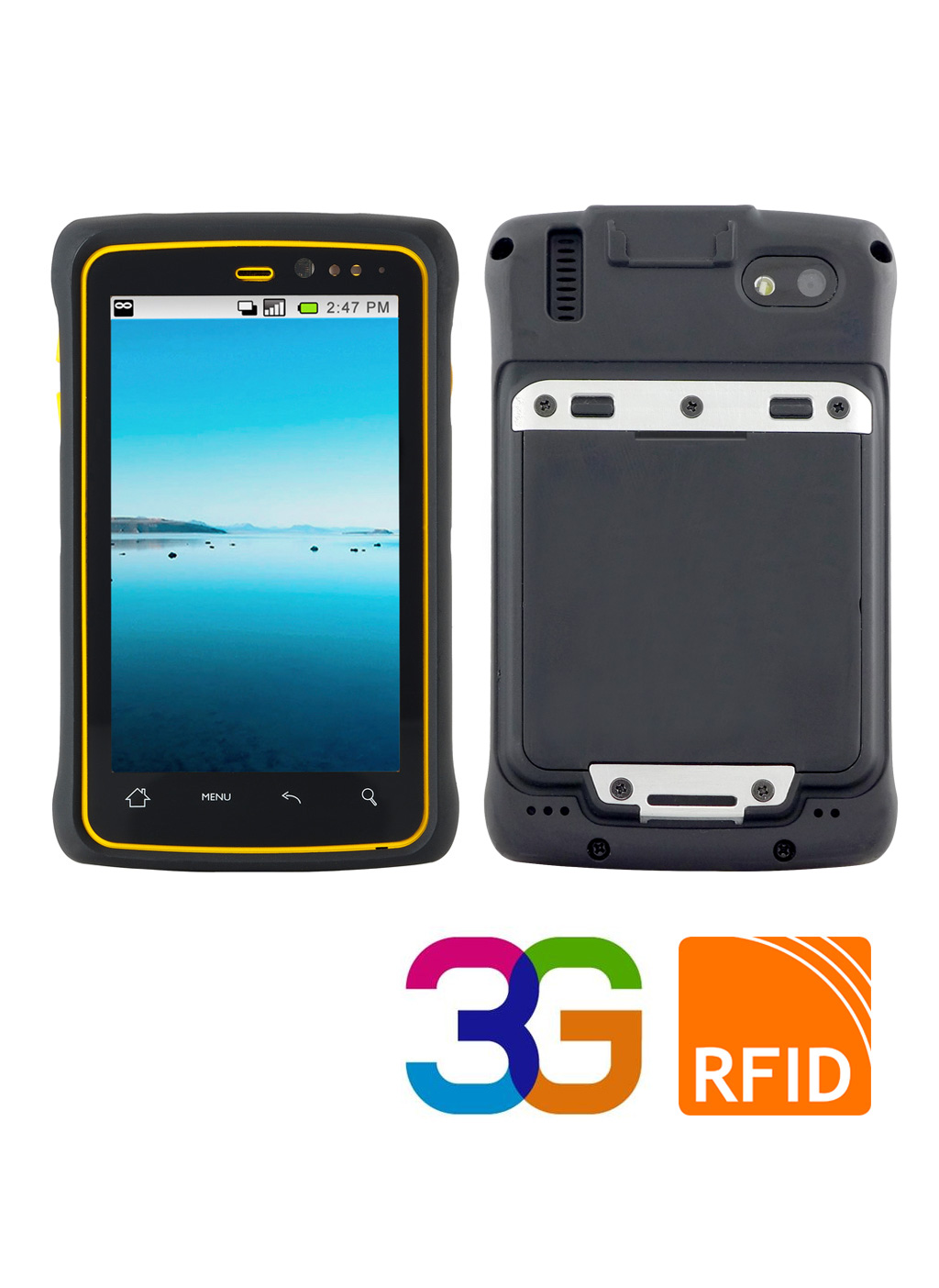

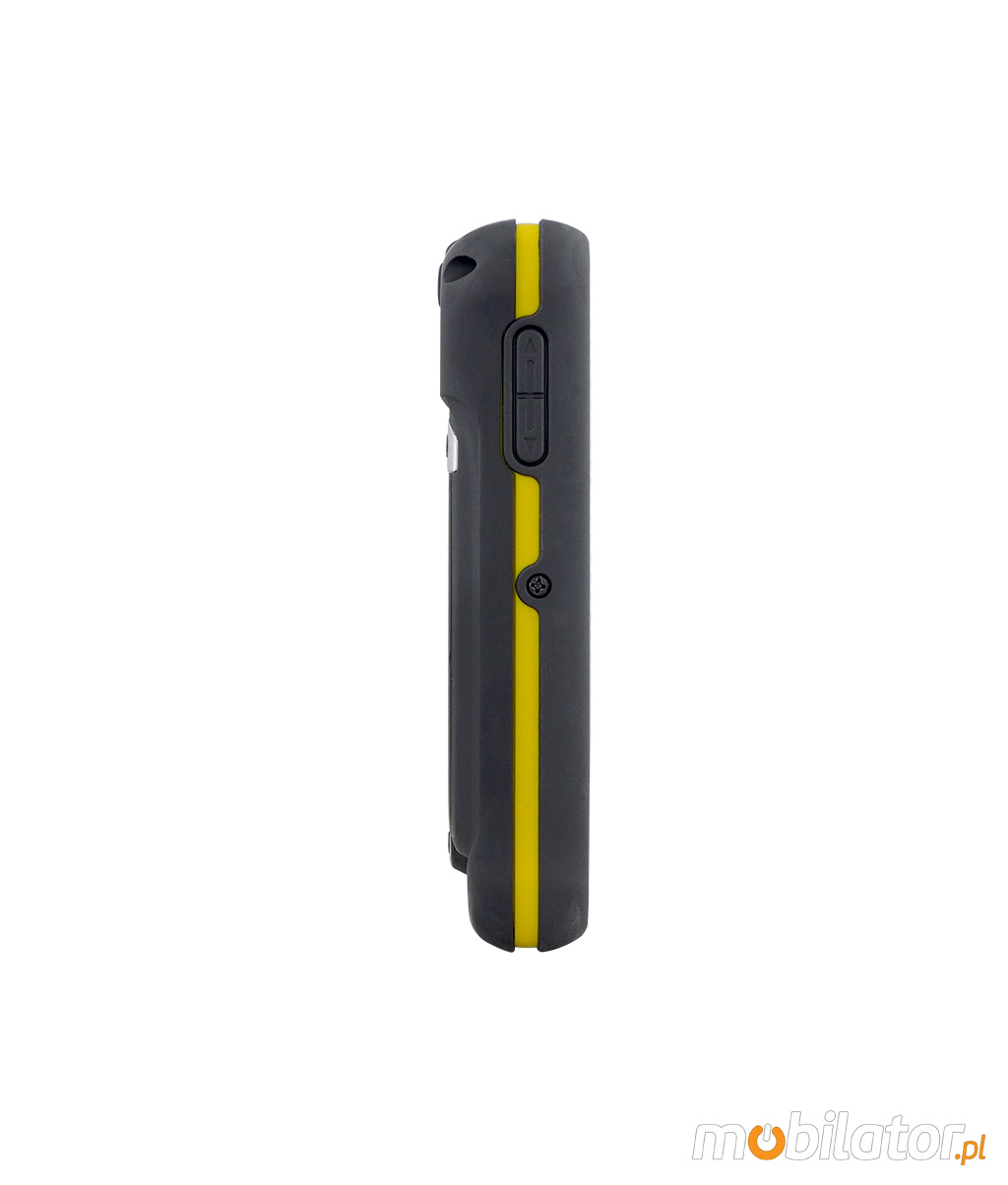

Industrial Winmate E430RM2-3HF (RFID HF)

Data update: 2019-10-09

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

winmate e430rm2 3G 1D 2D RFID

Description
The collection and processing of data
Minimalism
Fast battery replacement
Resistance
Select version for yourself

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

kolektor danych winmate e430rm2

•	Android 4.1.2
•	Multiple wireless communications option
•	Support for RFID and 1D/2D Barcode Reader
•	Robust battery
•	Industry and military standards

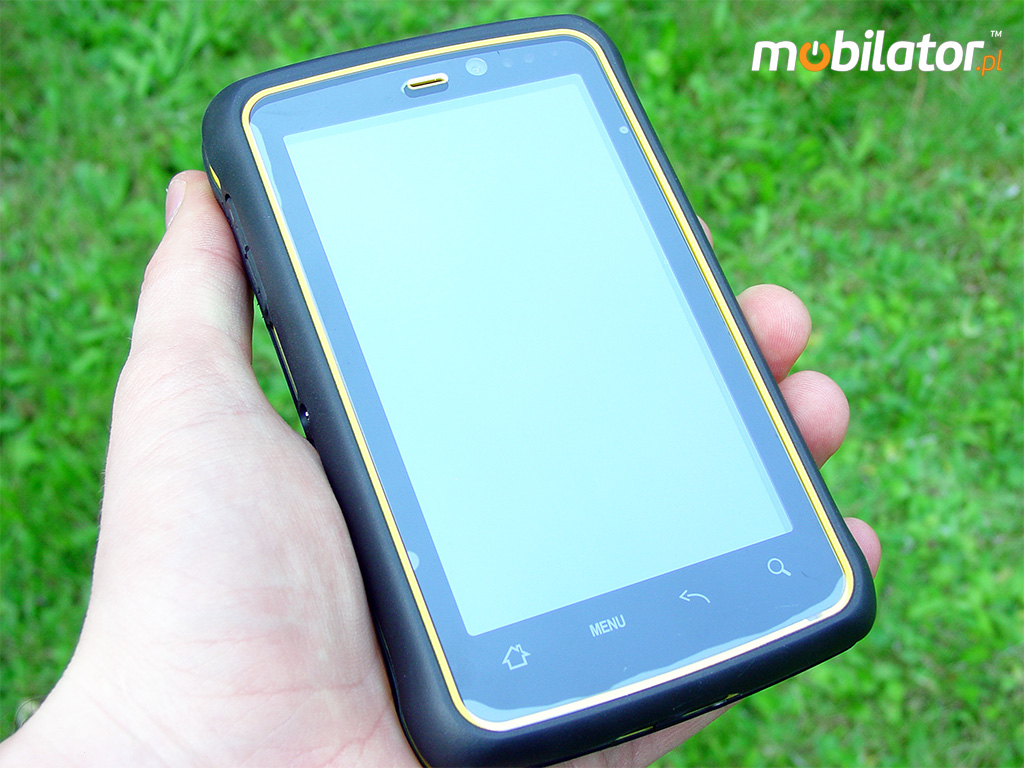

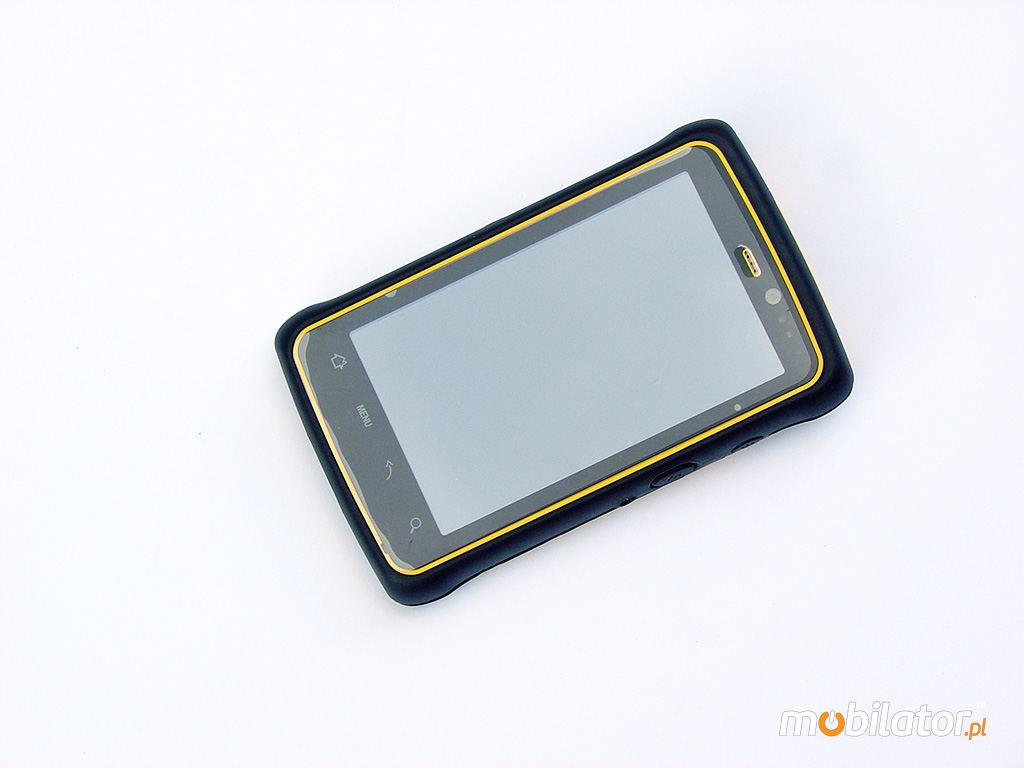

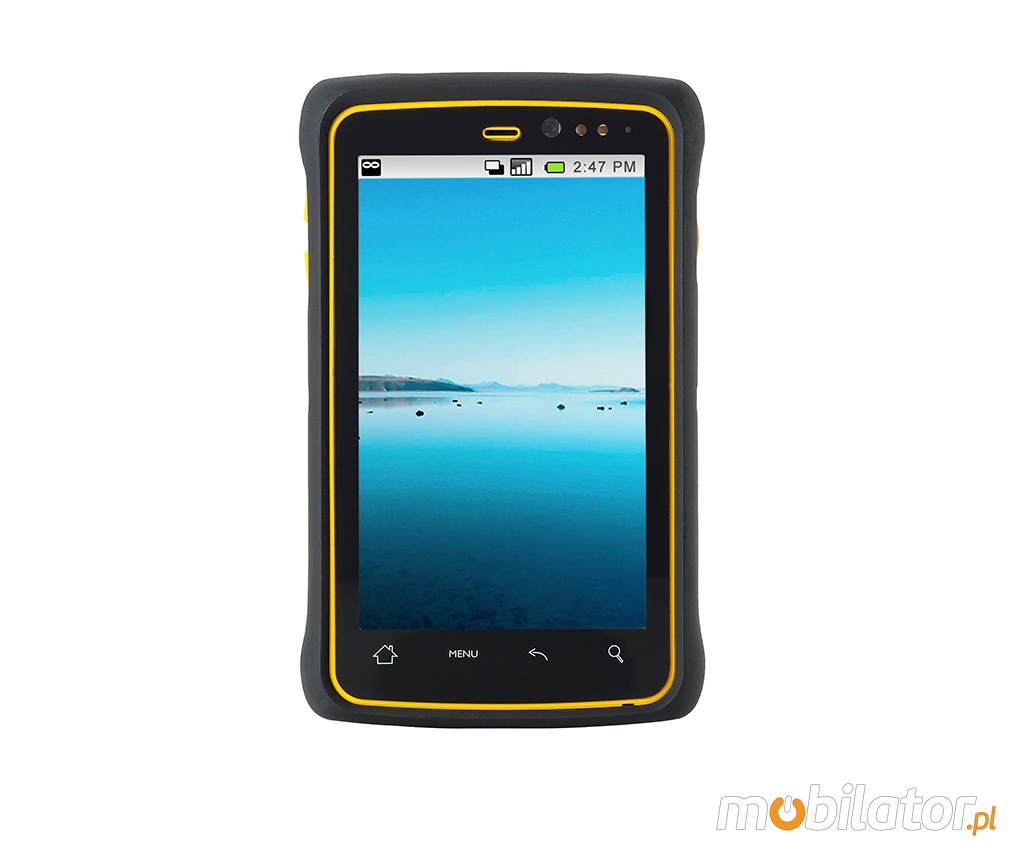

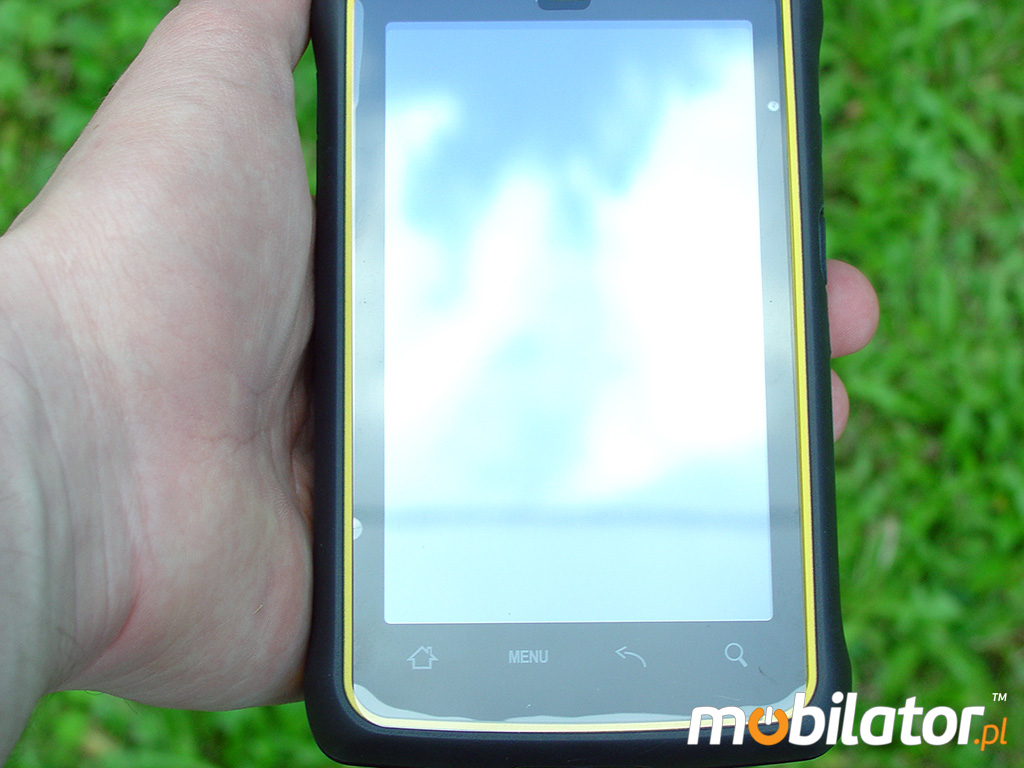

With its Android 4.1 platform, 1D/2D scanner, RFID reader, dual cameras, sunlight-readable 4.3-inch capacitive touchscreen, and a user replaceable battery design, the E430R rugged handheld streamlines data collection and operations in any field application.

Specification	Processor	ARM®Cortex™ - A9 1.0Ghz
	Display	4.3" (480x800) Capactive : Multi-touch
	RAM	1GB SDRAM
	ROM	4GB eMMC
	Connectors	Micro USB : SIM : Micro SD (max. 32GB)
	Audio	Built-in Microphone : Earphone : Speaker 1.2W
	Keys	Volume +- \| Power \| Define button
		Home \| Menu \| ESC \| Search
	Battery	3900 mAh Li-Ion (1S2P)
	Camera	Front: 2Mpx
		Rear: 5Mpx + LED
	Sensors	Light, Proximity, G-Sensor, Digital Compass
	Readers (optional)	RFID HF : 1D : 1D/2D : 1D
	Modules	WiFi : Bluetooth V2.1 + EDR : 3G
	Operating system	Android 4.1.2 (multi-language)

Refer to the "Select version for yourself" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Accesory

One difference between consumer devices and those designed for deployment in enterprise and vertical markets that's often overlooked is the availability of supporting accessories and peripherals. For consumer devices, all that's available may be a USB charging cable — definitely not a solution that would work for rugged equipment customers. Winmate knows that and offers not only a dedicated dual battery charger that shows charging level, but also a clever daisy chainable charging dock.

The collection and processing of data

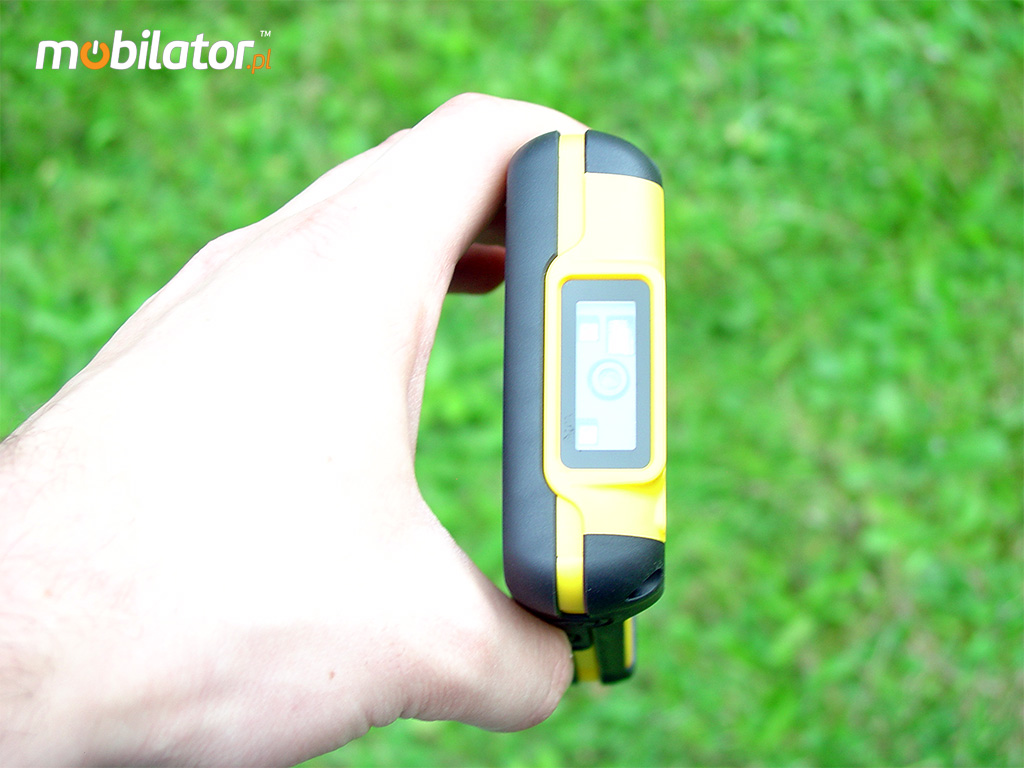

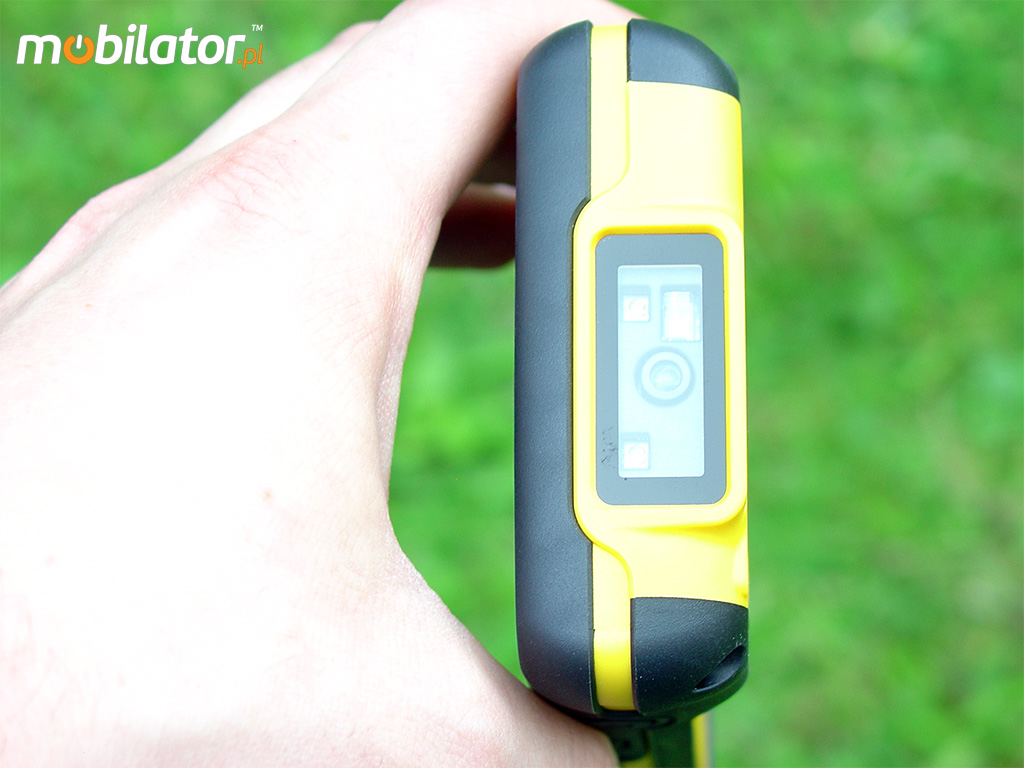

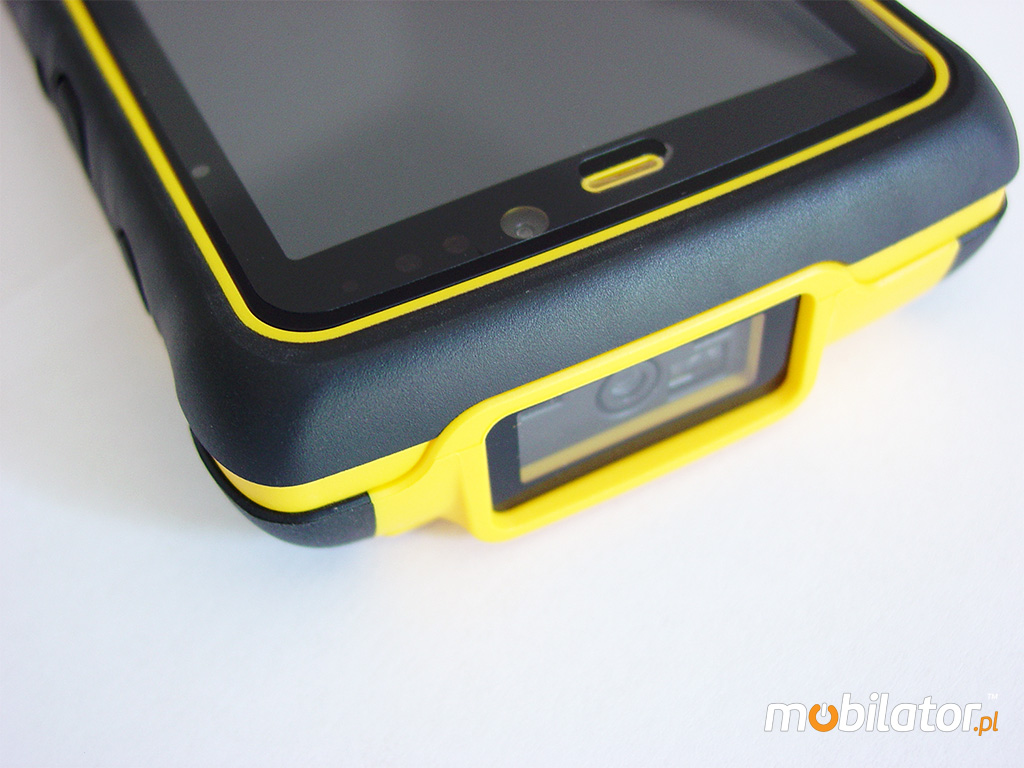

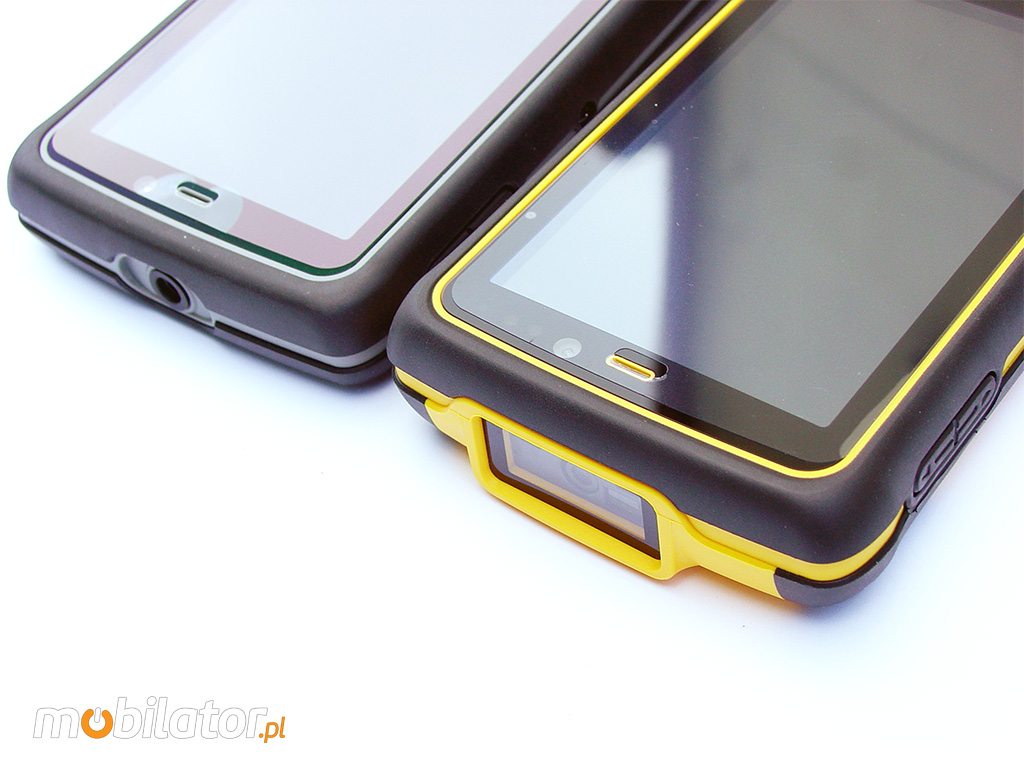

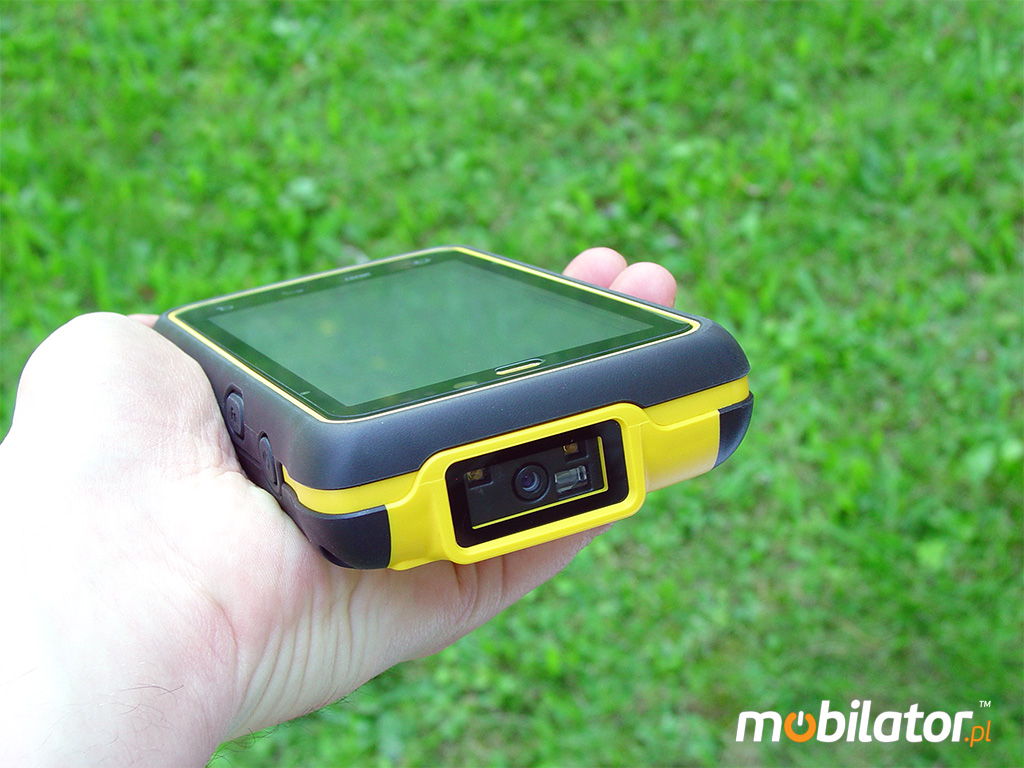

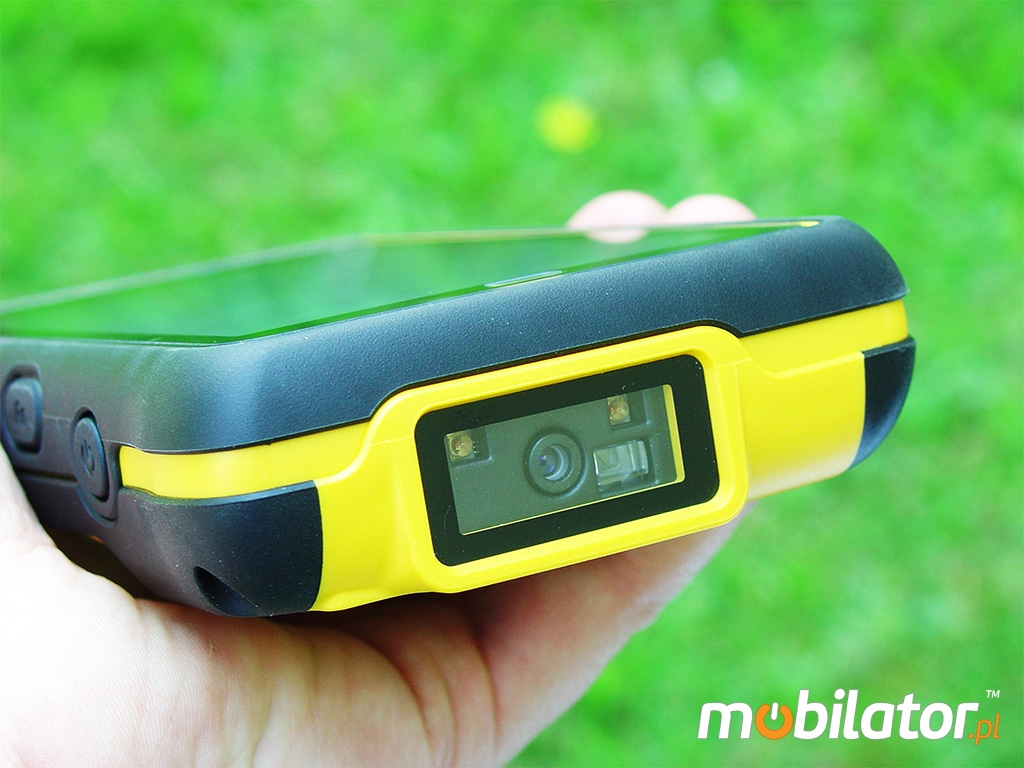

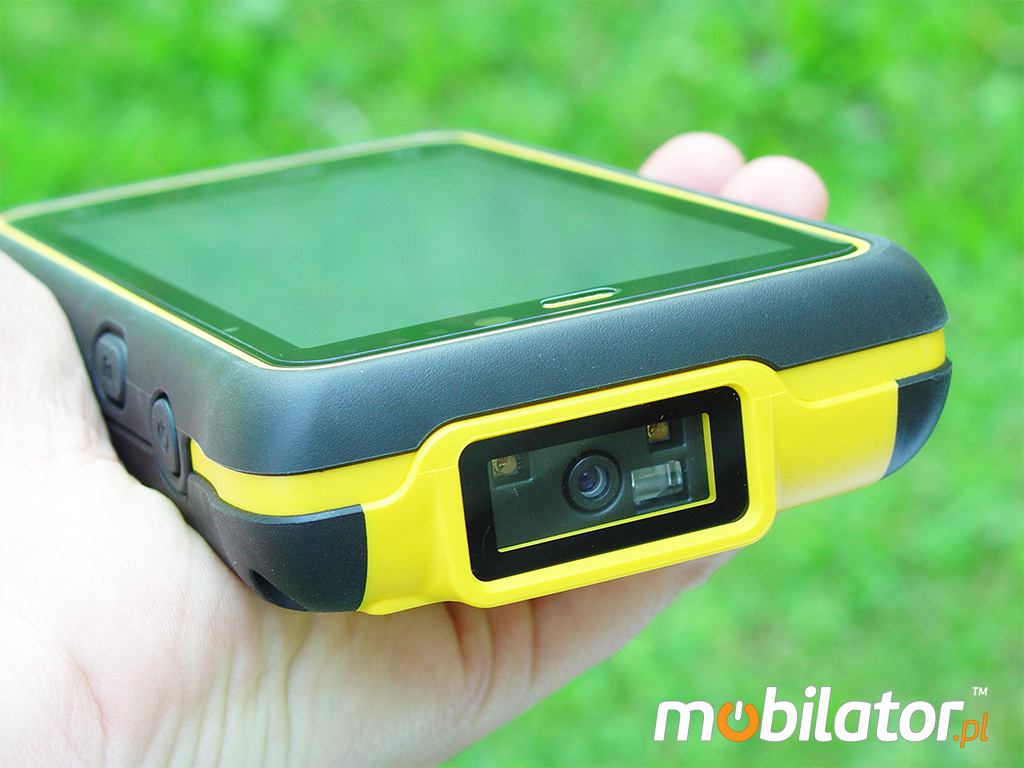

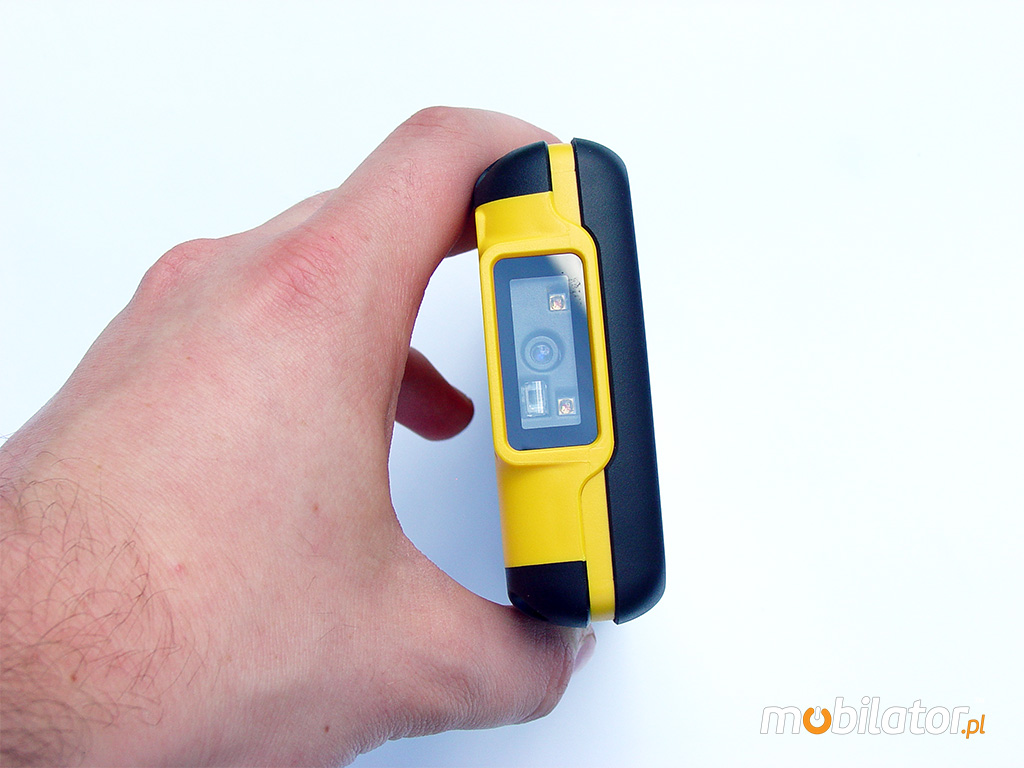

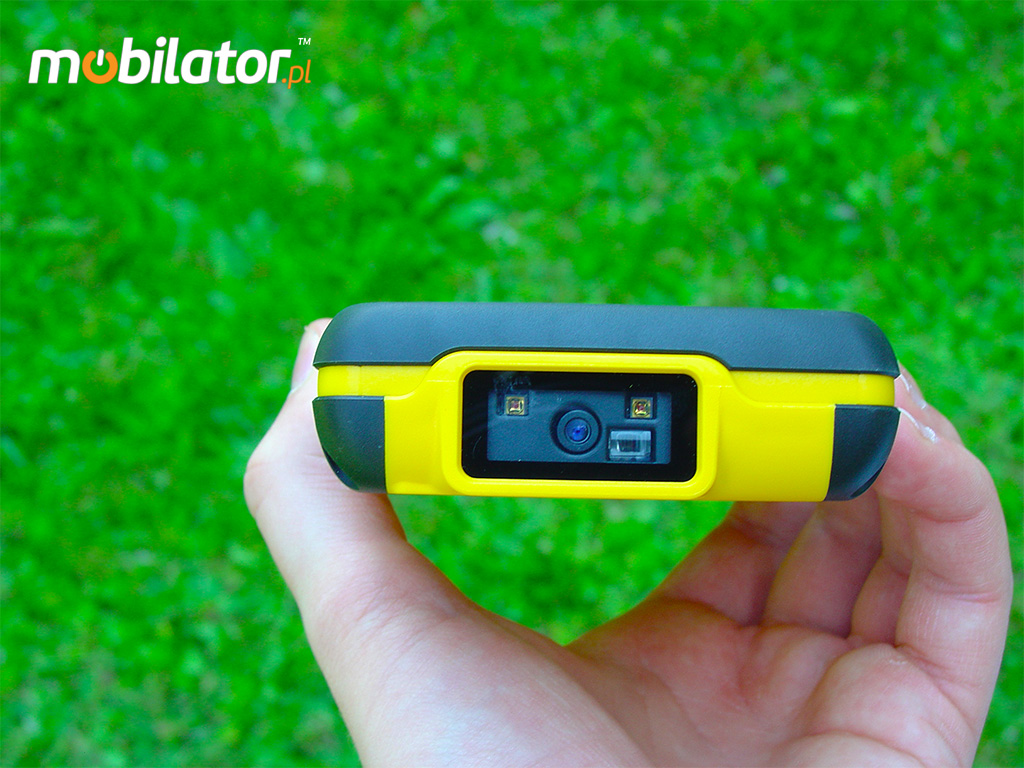

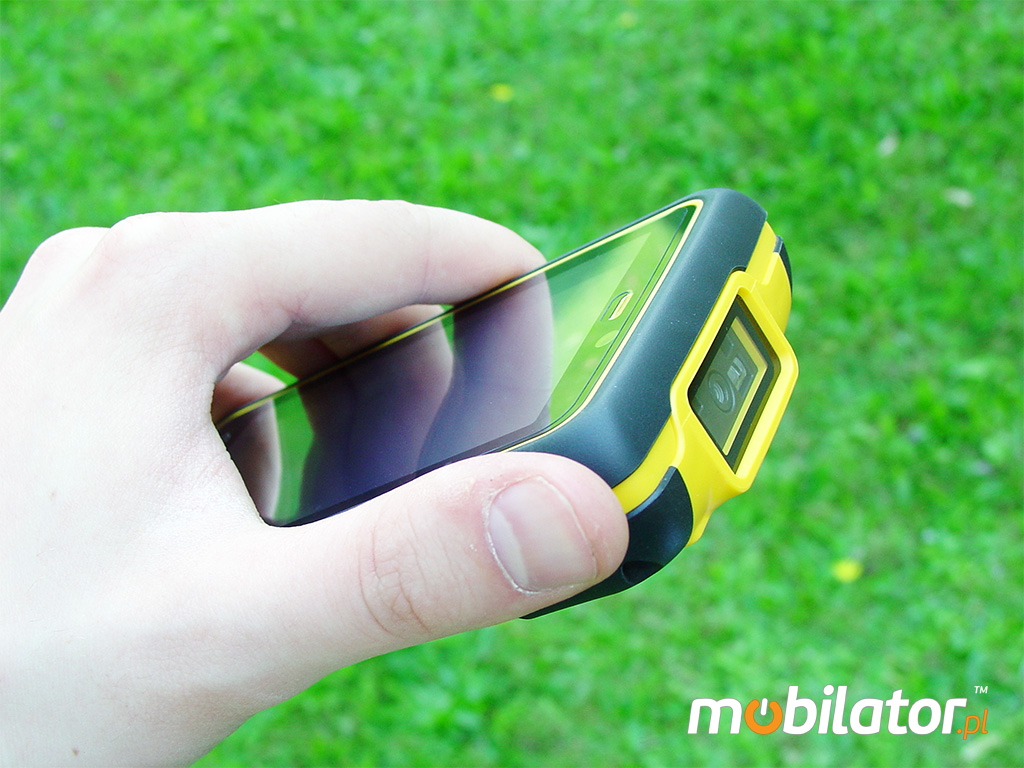

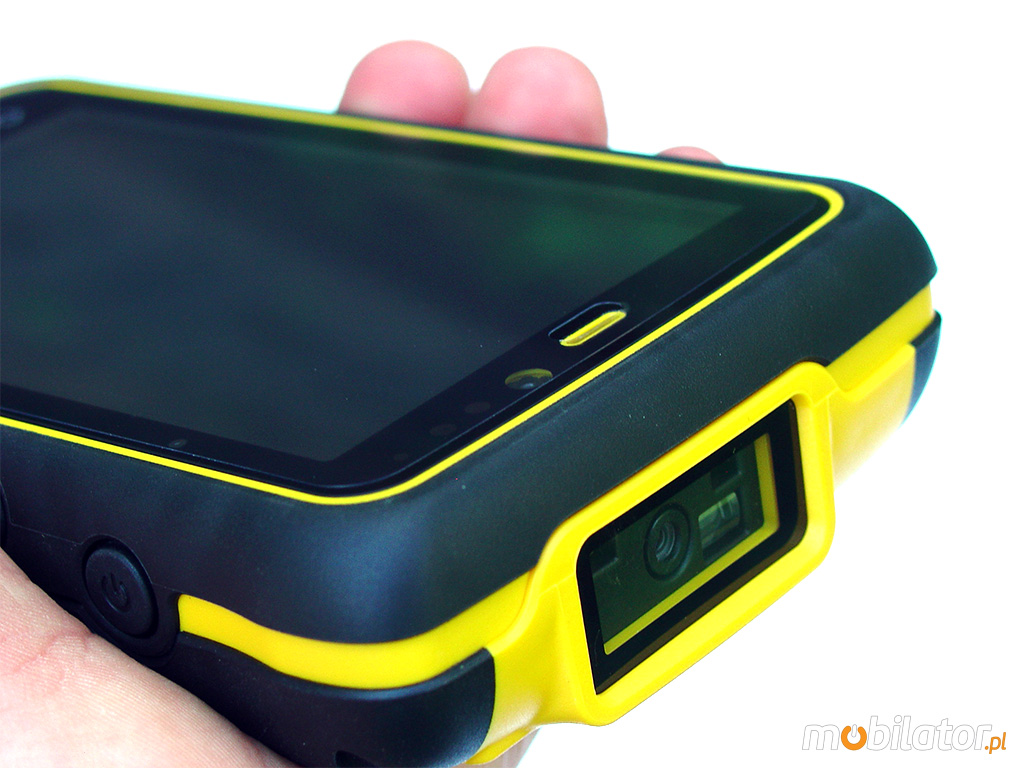

Barcode Scanner (optional)

Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E430RM2 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E430RM2 with various options of the scan engine can boost productivity and efficiency immediately.

	1D	1D/2D
Model	Opticon MDL-1000	Motorola SE4500
Scanner type	1D (LASER)	1D (LASER) \| 2D (CMOS)
Codes (1D)	JAN/UPC/EAN incl. add on, Codabar/•NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/PlesseyPostal code: Chinese Post, Korean Postal Authority	UPC/EAN, Code 128, Code 39,Code 93, Code 11, Interleaved 2 of5, Discrete 2 of 5, Codabar, MSI,Chinese 2 of 5, Matrix 2 of 5, Korean3 of 5, Postal codes, GS1 DataBar, Composite
Codes (2D)	no support	QR Code, Data Matrix, PDF417, Maxicode, Aztec

winmate e430rm2 barcode scanner czytnik kodów kreskowych

go top... menu…

RFID

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

	RFID HF
Frequency	13.56 Mhz
ISO 15693	TI HF-I Plus TI HF-I Pro NXPI-Code SLI
ISO 14443-A	NXP Mifare_One (S50_4byte) NXP Mifare_One (S50_7byte) NXP Mifare_One (S70_4byte) NXP Mifare_UltraLight NXP Mifare_UltraLight C
ISO 18092(R/W)	SONY Felica Lite s SONY Felica Lite

czytnik RFID winmate e430rm2 gps wcdma Bluetooth wifi

Modules and Wireless Networks

RFID HF	13.56Mhz
WiFi	802.11 a/b/g/n
Bluetooth	Bluetooth Class 2.1 + EDR
GPS	Wbudowany (u-blox NEO-6Q)
3G	2100/900MHz

go top... menu…

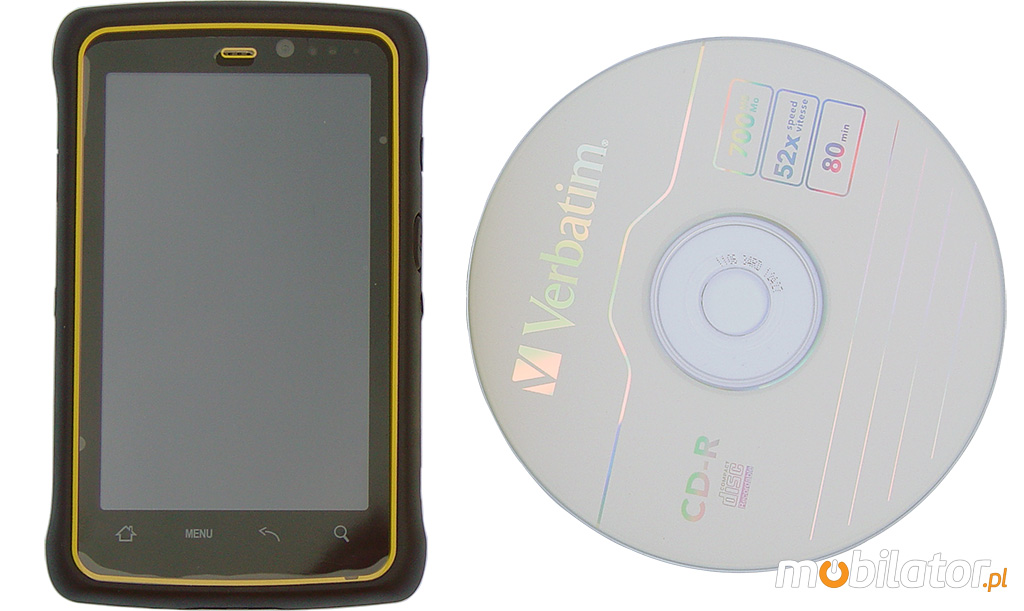

Minimalism

winmate e430Rm2 android 4.1 tablet przemysłowy kolektor danych

In addition to standard Bluetooth and Wi-Fi, the E430R handheld offers optional GPS and 3G asset tracking and real-time data transfer. Whether indoor or outdoor, the E430R handheld provides a wide of robust communications options.

winmate e430rm2 mały dla sklepów przemysł winmate e430rm2 kolektory danych rfid 1d 2d

go top... menu…

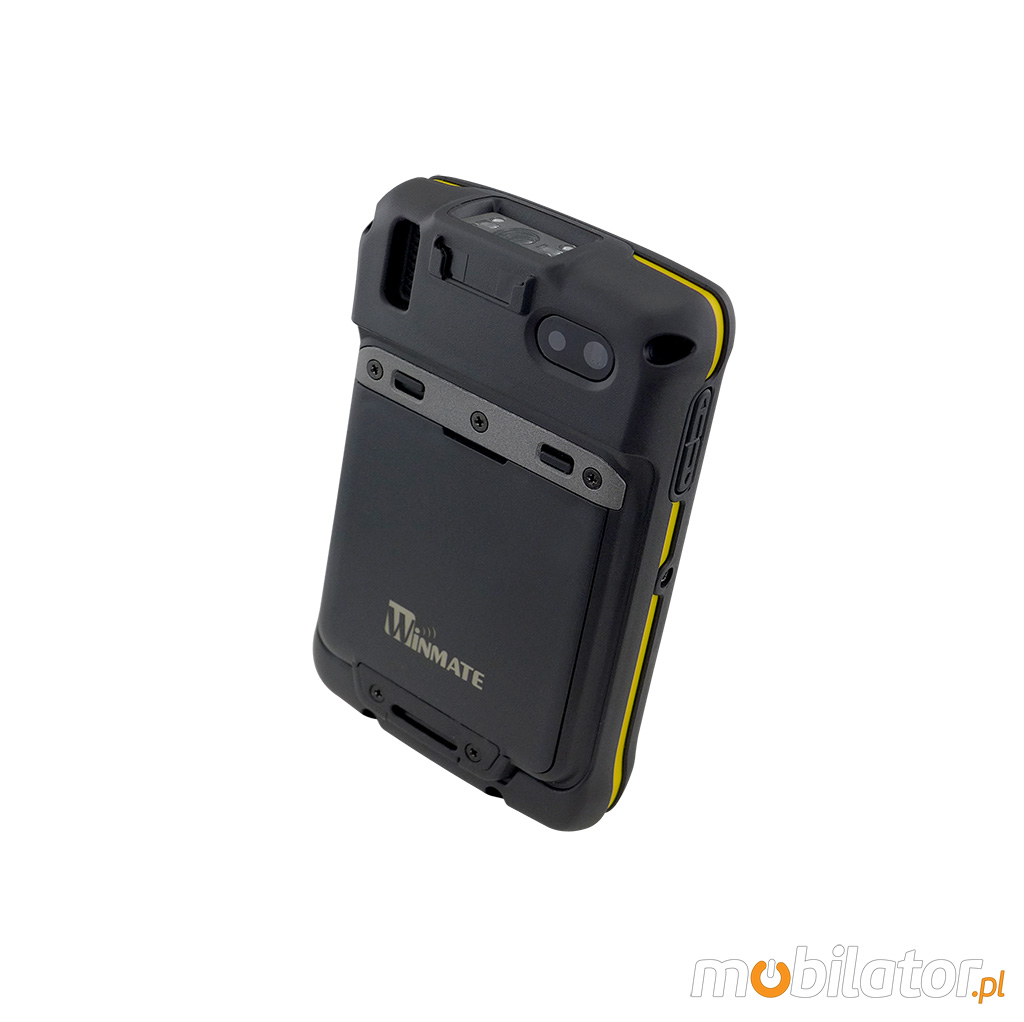

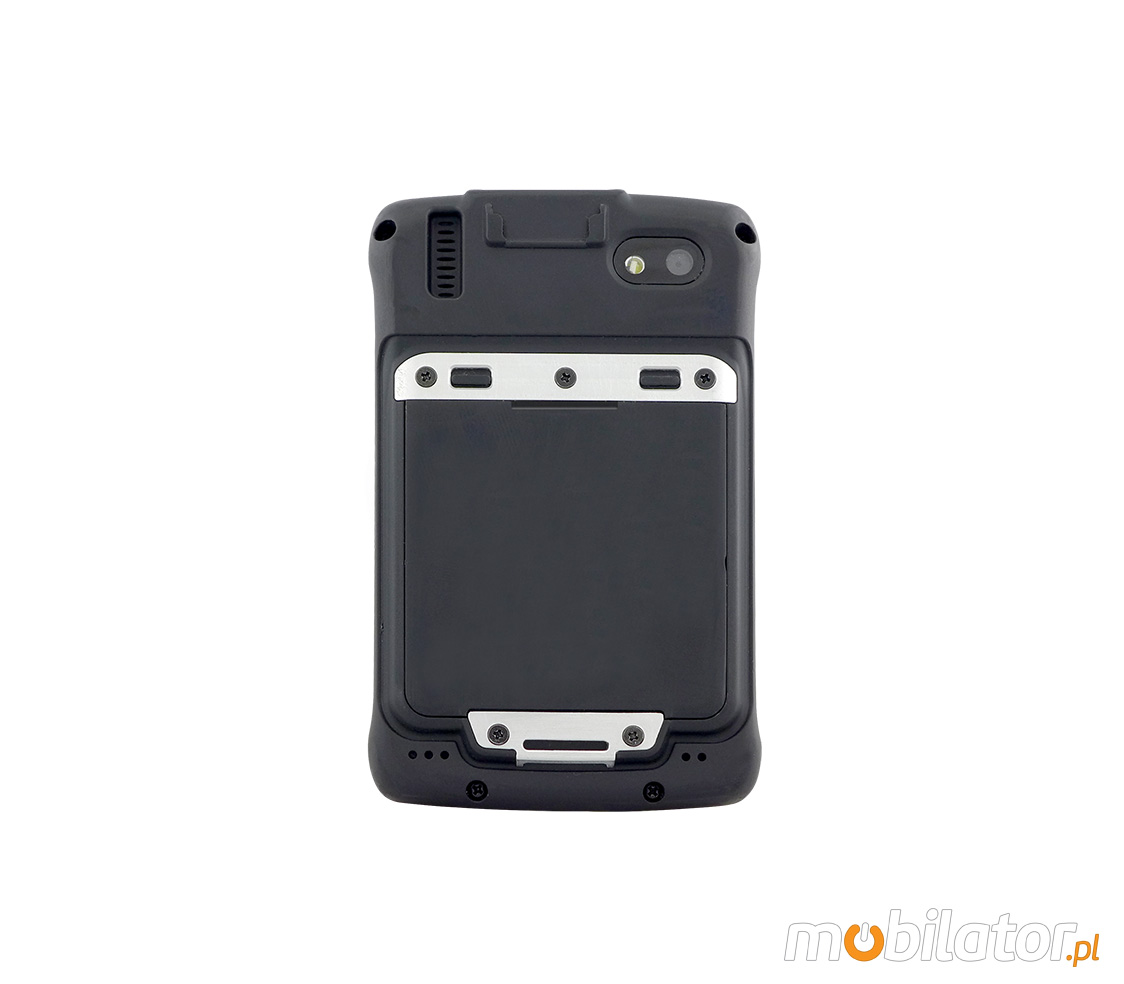

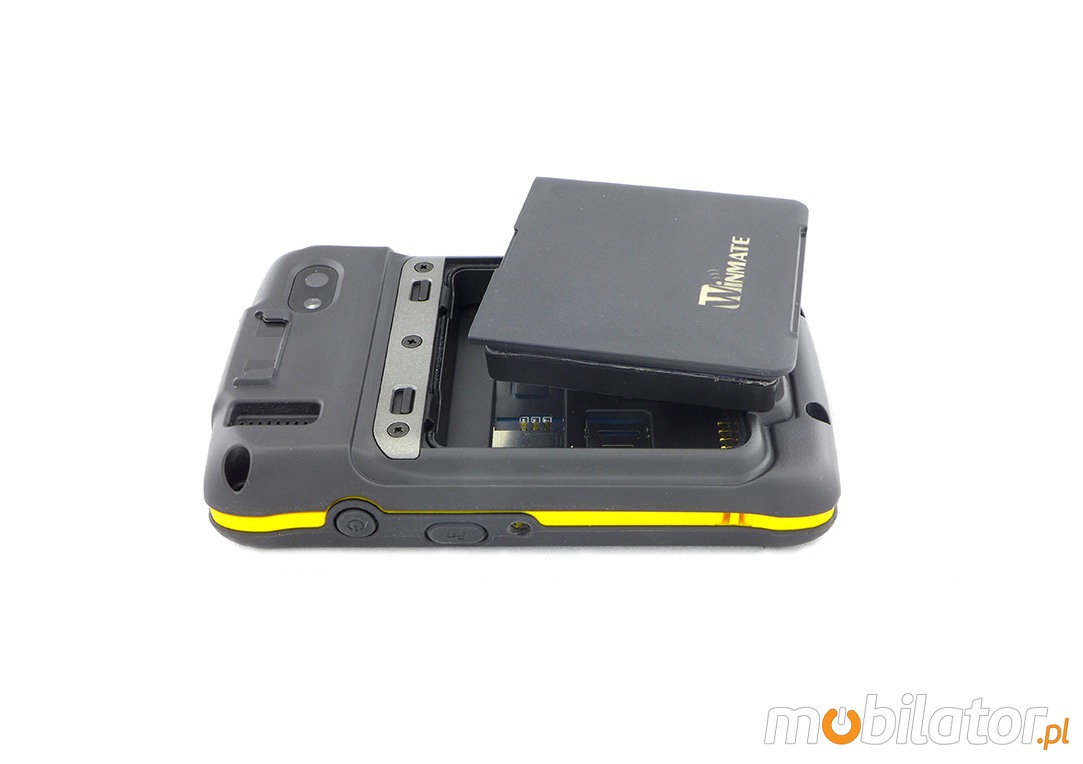

Fast battery replacement

szybka wymiana baterii e430rm2 fast battery change

Featuring a user replaceable battery design with simple latch system, E430R handheld can support continual operation on the field without down time. The replaceable battery also features high capacity at 3900mAh for extended use.

draw winmate e430rm2 rear tyl

Resistance

Standards

Operating temperature	-30°C -- +60°C
Storage temperature	-40°C -- +70°C
Humidity	95% non-condensation
Dust	IP6x (dust)
Water	IPx6 (water)
Vibration	MIL-STD-810G M514.6
Drop	MIL-STD-810G Method 516.6, 4 ft, Free to concrete
Regulatory	CE, FCC, UL, CCC

go top... menu…

Odporność sprzętowa IP65

Sealed to IP65, the E430R handheld is built to withstand harsh environments, protected against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -30°C to 60°C (-22F to 140F) and endure shock, vibration and 4-foot drops.

The first digit [x]
Protection against solid objects

The second digits [y]
Protection against liquids

Complete protectionm against contact, Protection from infiltration of dust

Protection from water projected from a nozzle

go top...

menu…

Select version for yourself

Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

	E430RM2-3G	E430RM2-3BL	E430RM2-3B2	E430RM2-3HF
WIFI
Bluetooth
Cameras
IP65
GPS
3G
1D (LASER)	-			-
2D (CMOS)	-	-		-
RFID HF	-	-	-

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu…

Compare all versions

Durability:	MIL-STD 810G
Humidity:	95% non-condensation
Waterproof:	IP 65
Weight:
Temperature:	Operating temperature: -30°C - 60°C Storage temperature: -40°C - 70°C
Shock:	MIL-STD-810G Metod 516.6
Vibration:	MIL-STD-810G Metod 514.6
Drop:	MIL-STD-810G Metod 516.6
Sand and dust:	IP 65
1D barcode scanner (reader):	none (available in other configurations)
2D barcode scanner (reader):	none (available in other configurations)
RFID scanner (reader):	RFID HF 13.56Mhz ISO 15693 ISO 14443-A ISO 18092(R/W)
Magnetic card reader (MSR):	No
Microchip card reader:	No
Docking station connector:	No
VESA standard – holders and mounts support:	No
COM port:	No
Dispaly:	4.3' (800x480) LED
Brightness:	400nit
Contrast:	800:1
Touch screen:	Touch Projective Capacitive Multi-Touch
Graphics card:	--------
Swivel Hinge:	--------
VGA out:	--------
TV Out:	--------
TV Tuner:	--------
Processor:	ARM®Cortex™ Dual Core - A9 1.0Ghz
Chipset:	--------
BIOS:	--------
Memory:	1GB SDRAM
Hard Drive:	4GB eMMC
Flash Memory:
Battery:	3900 mAh Li-Ion (1S2P) 5V/1A Adapter USB Adapter
Working time on battery:	12-15hr (Backlight at 10% duty cycle, default level, idle)
HotSwap battery:	No
Fast battery replacement ability:	Tak
Size:	132.2 x 82 x 25.7 mm 260g
Casing material:	plastic
Fanless casing:	Yes
Operating System:	Android 4.1.2
LAN:	--------
WLAN:	Yes - 802.11 a/b/g/n
Bluetooth:	Yes - Bluetooth V2.1+EDR
WAN:	Yes - 3.75G
GPS:	Yes - Built-in
Flash Card Reader:	microSD (max.32GB)
CD/DVD:	--------
Camera:	Front: 2Mpx Rear: 5Mpx + LED + Autofocus
Audio:	Built-in Microphone : Earphone : Speaker 1.2W
Seciurity:	Gum case
In/Out:	1x - Micro USB : 1x - SIM : 1x - Micro SD
Keyboard:	No
Additional Navigation Devices :	Function keys: Volume - + Power button Function button
Color:	black-yellow
Optional accessories:	1D/2D Barcode scanner RFID Car holder Car charger Optional warranty up to 3 years
Other:	Sensors: Light Sensor Proximity Sensor G-sensor Digital Compass
