Industrial tablet Winmate M700DM4-NB

Industrial tablet Winmate M700DM4-NB

Data update: 2017-02-21

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions



winmate m700DM4 industrial rugged przemys³owy

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.


Description


m700dM4 sunlight readable cortex a7

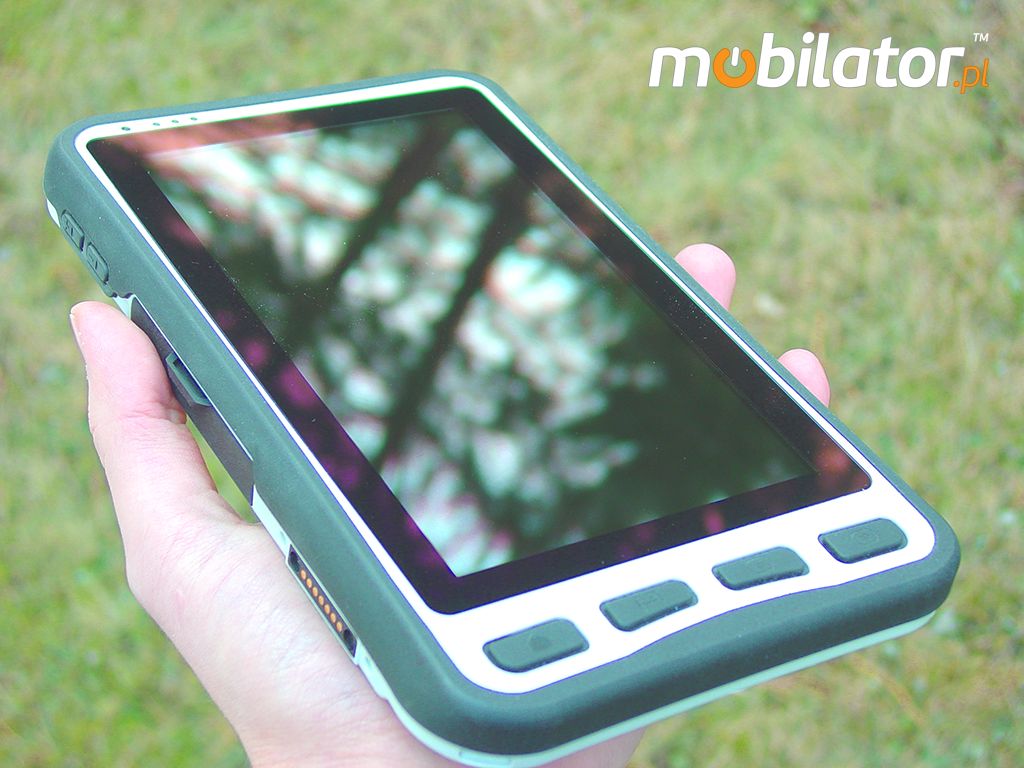

Winmate M700DT4 is unrivaled in the market, ultra-modern tablet that meets very strict industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where we require high performance, versatility and strength equipment.
 Procesdor  ARM®Cortex™-A7 Quad Core 1.5Ghz

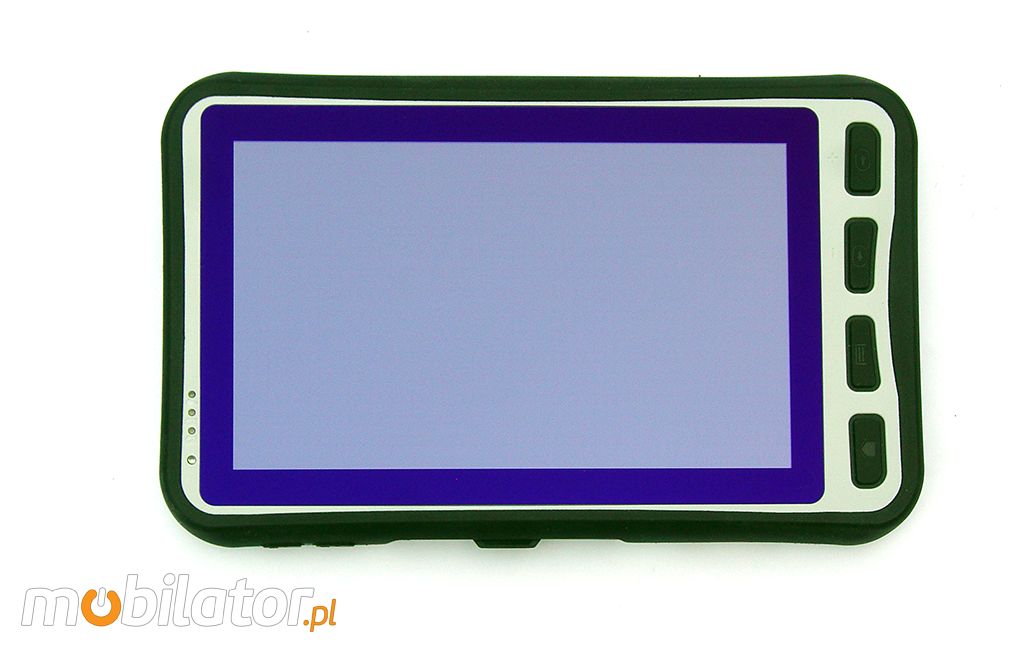

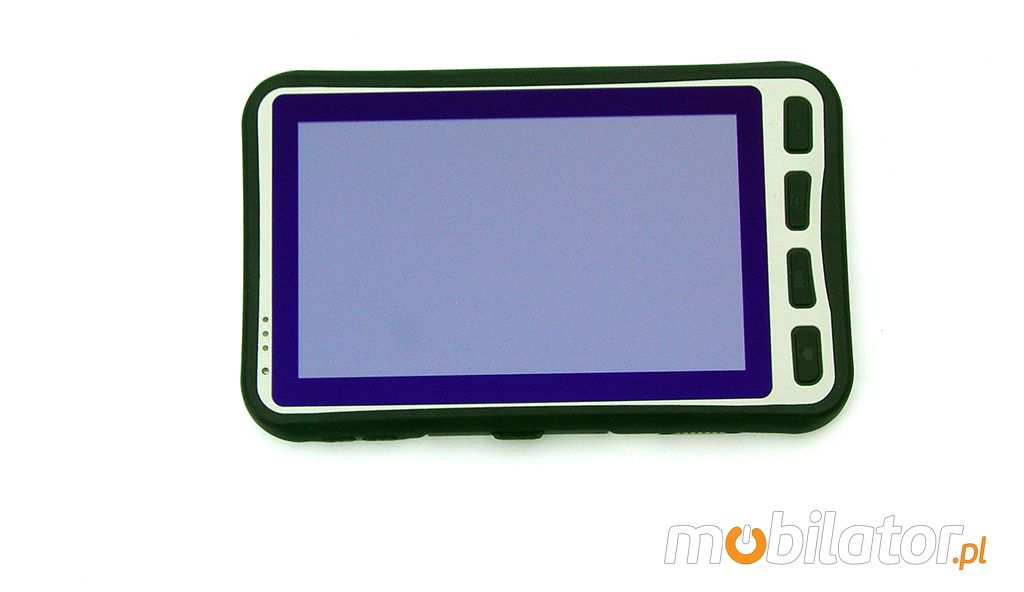

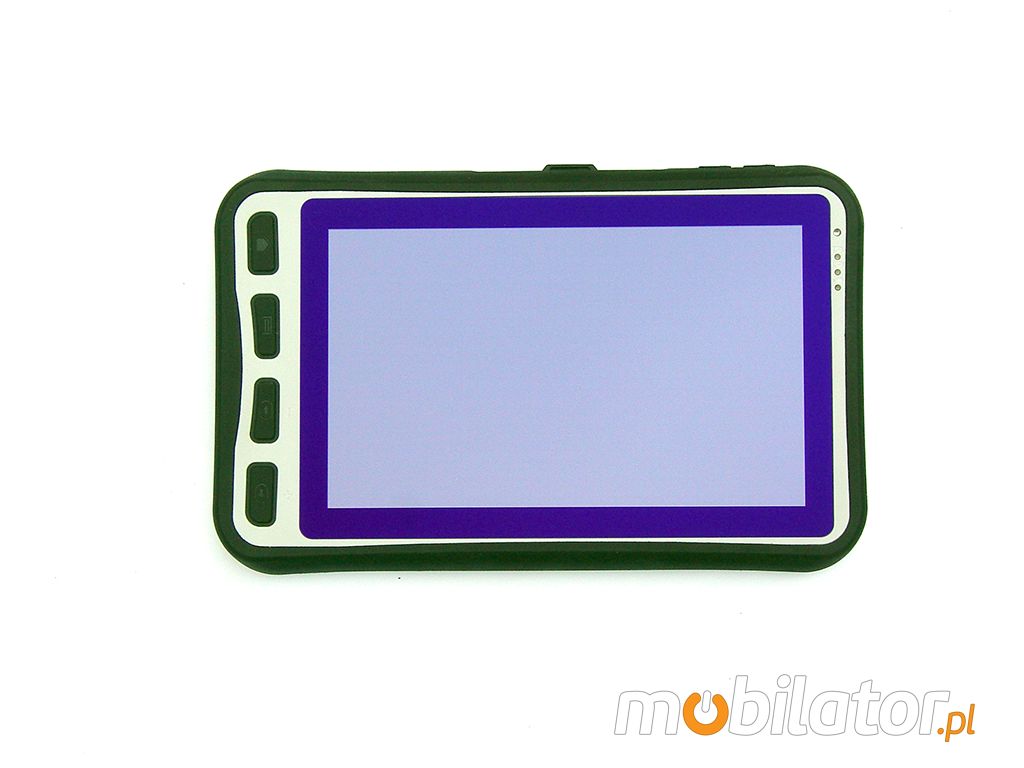

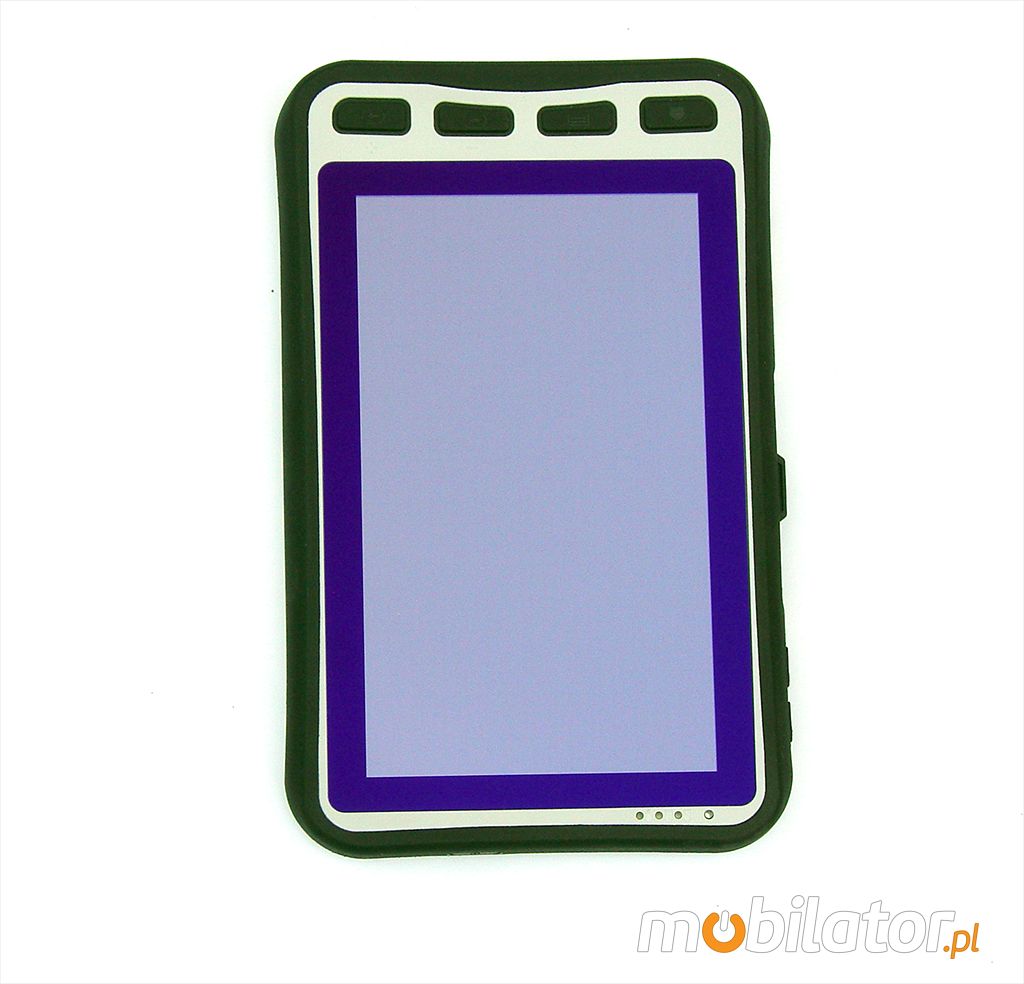

 Display  7" WSVGA (1024x600) TFT LCD Display - 500nit
 RAM  1GB Mobile DDR2
 Storage  16GB eMMC
 Operating System
  Android 4.2
 Readers  2D Barcode Scanner (optional) : RFID 13.56MHz (optional) : NFC (optional)

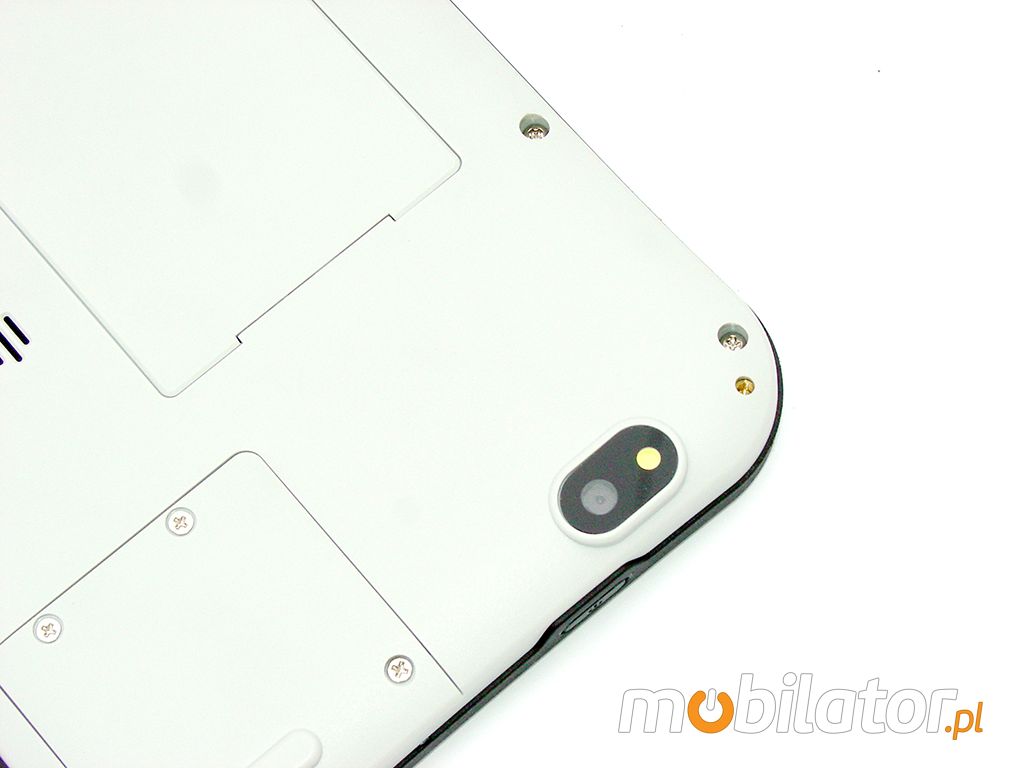

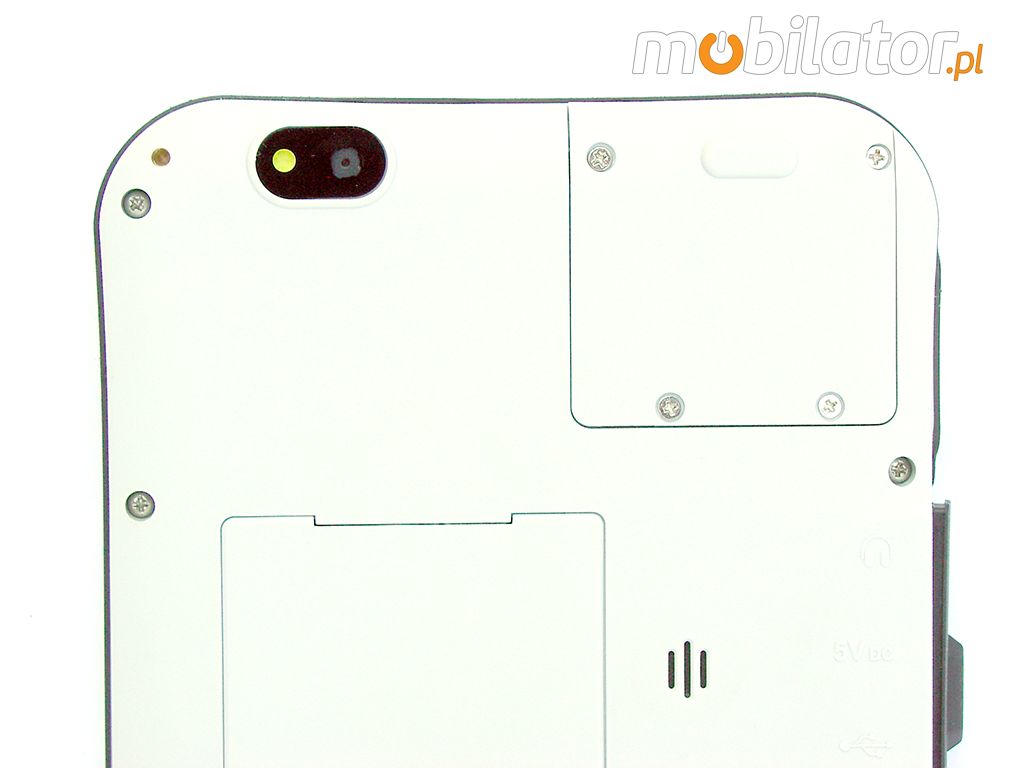

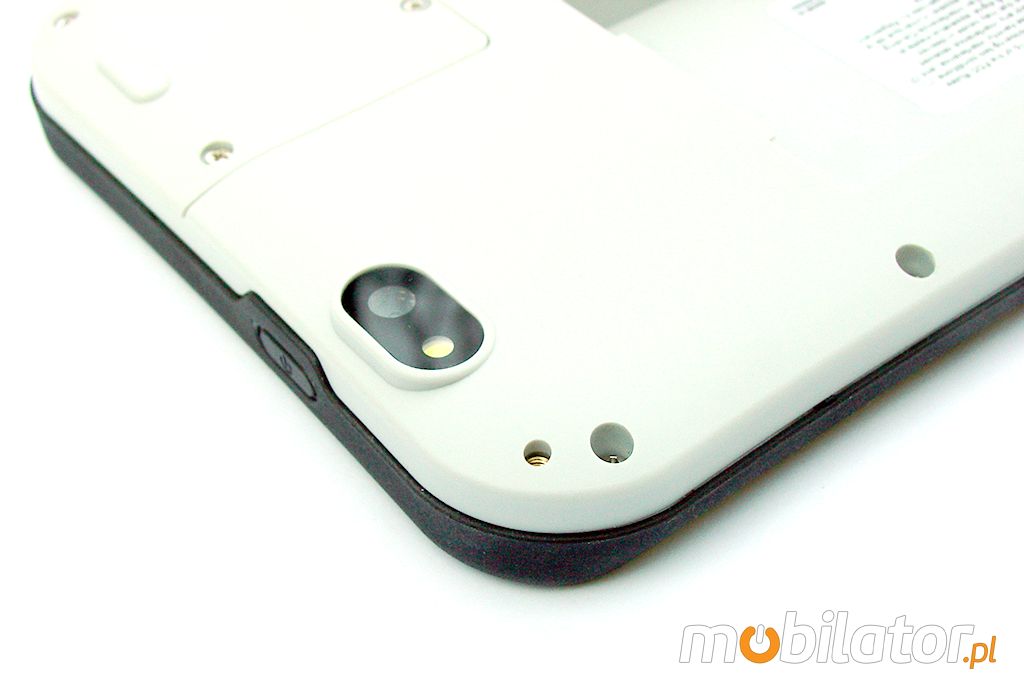

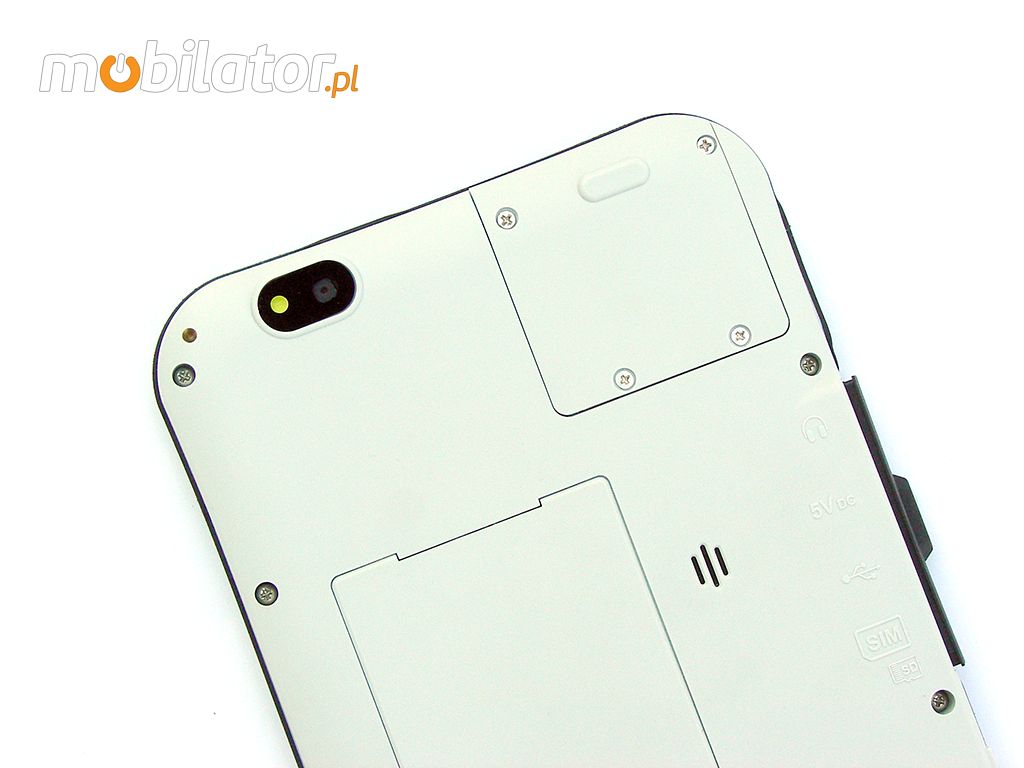

 Other  G-Sensor : 5.0M Kamera (LED , Auto Focus) : GPS+AGPS : 3G

Efficient processor

ARM® Cortex™ - A7
1.5Ghz Quad Core

The Texas Instruments' OMAP4 family of application processors contain a quad-core power-efficient and high performance ARM® Cortex™-A7. Delivering up to 1.5 GHz of processing power, the OMAP4430 features a PowerVR™.


tablet przemys³owy 7 cali android 4.2 winmate m700dM4

Minimalism

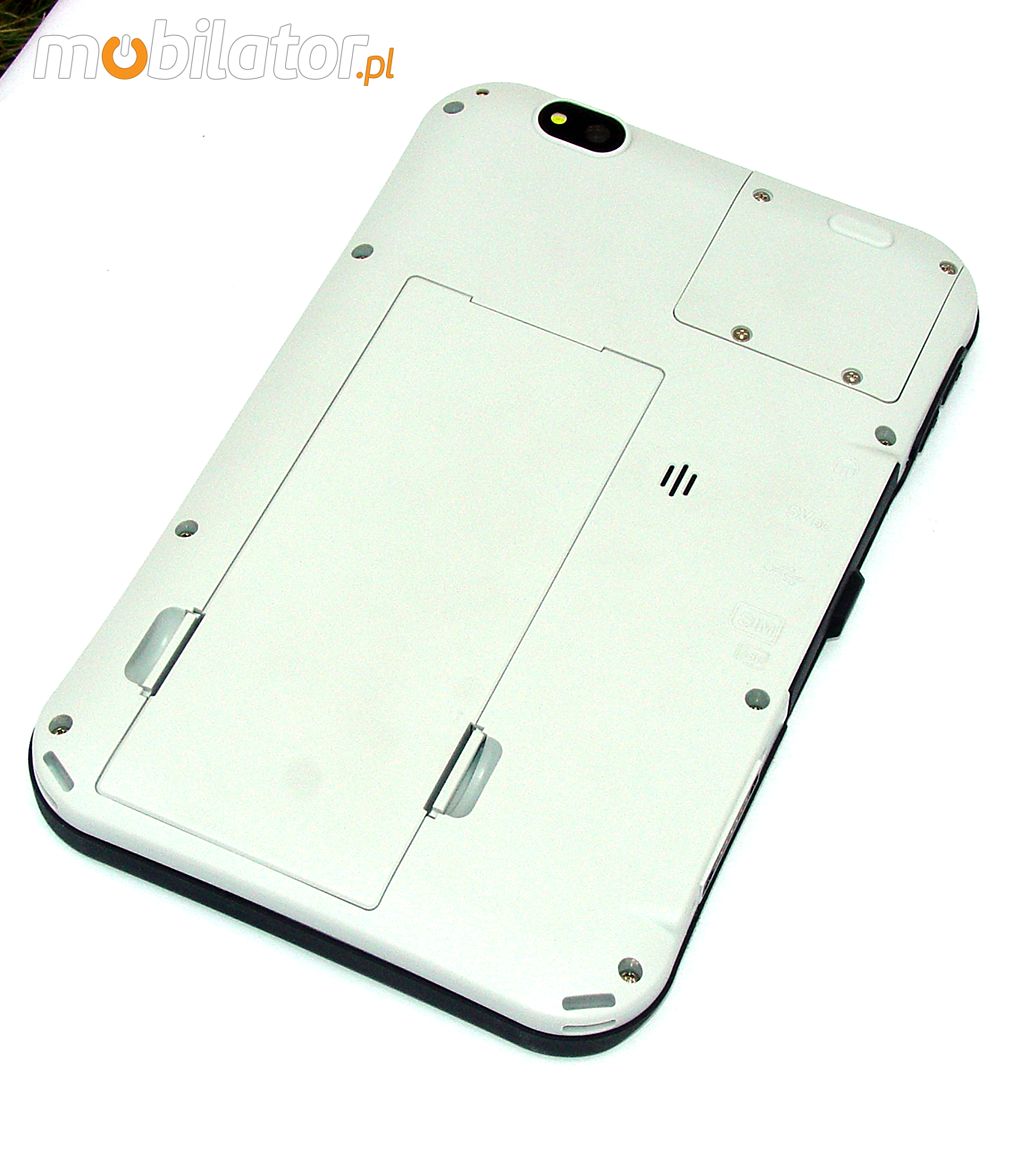

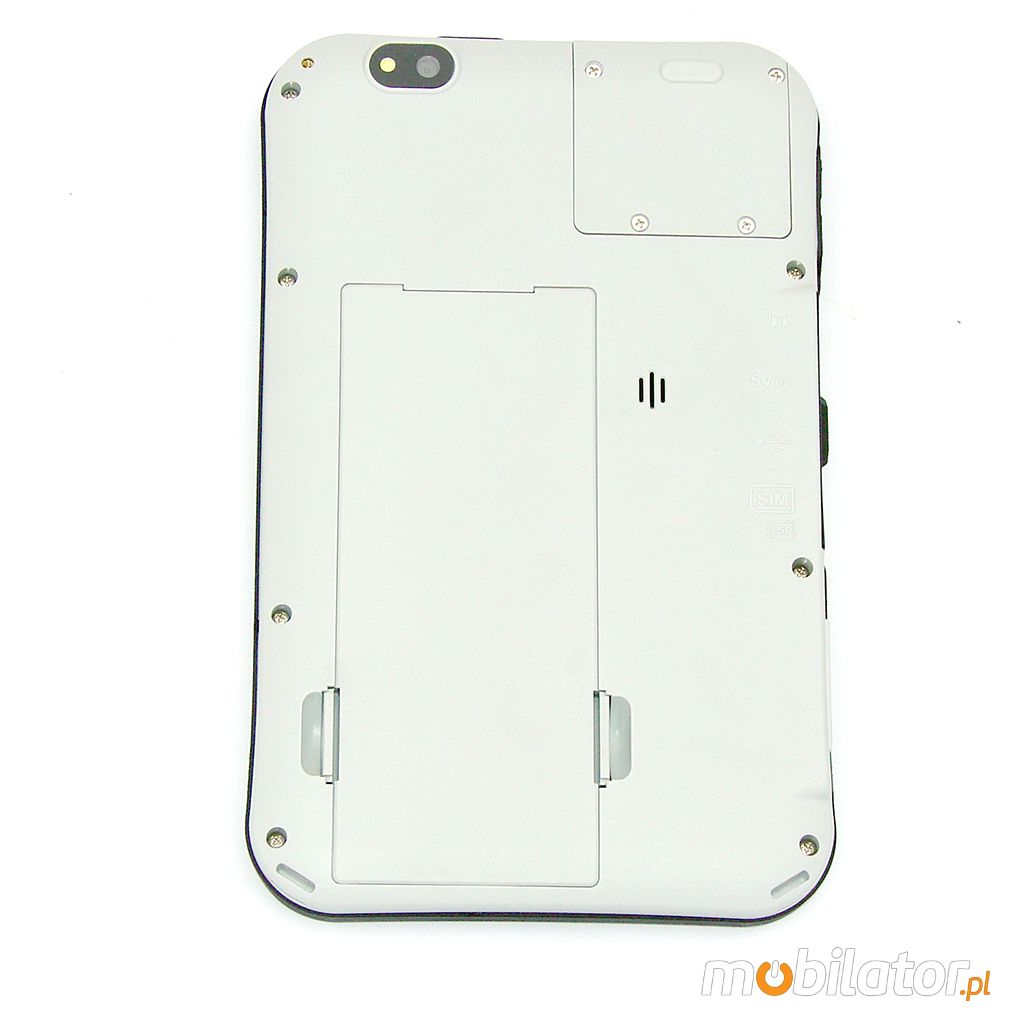

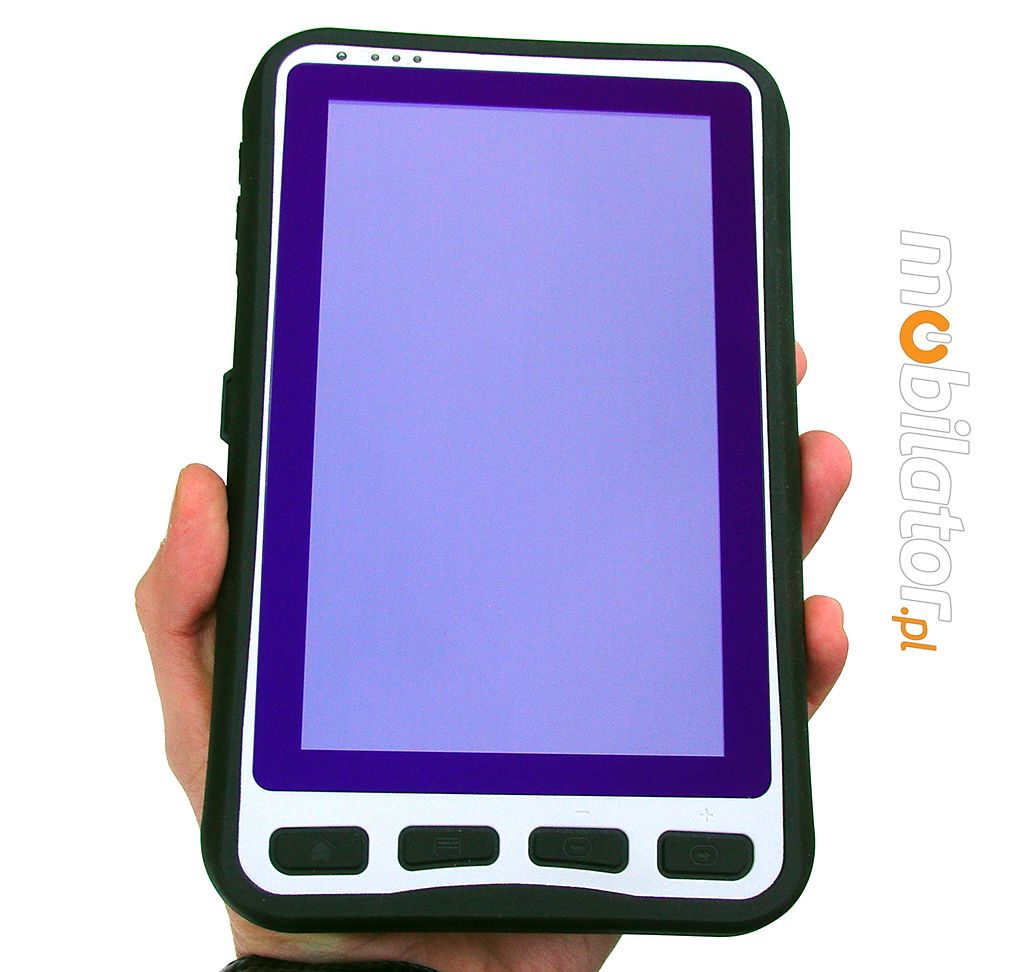

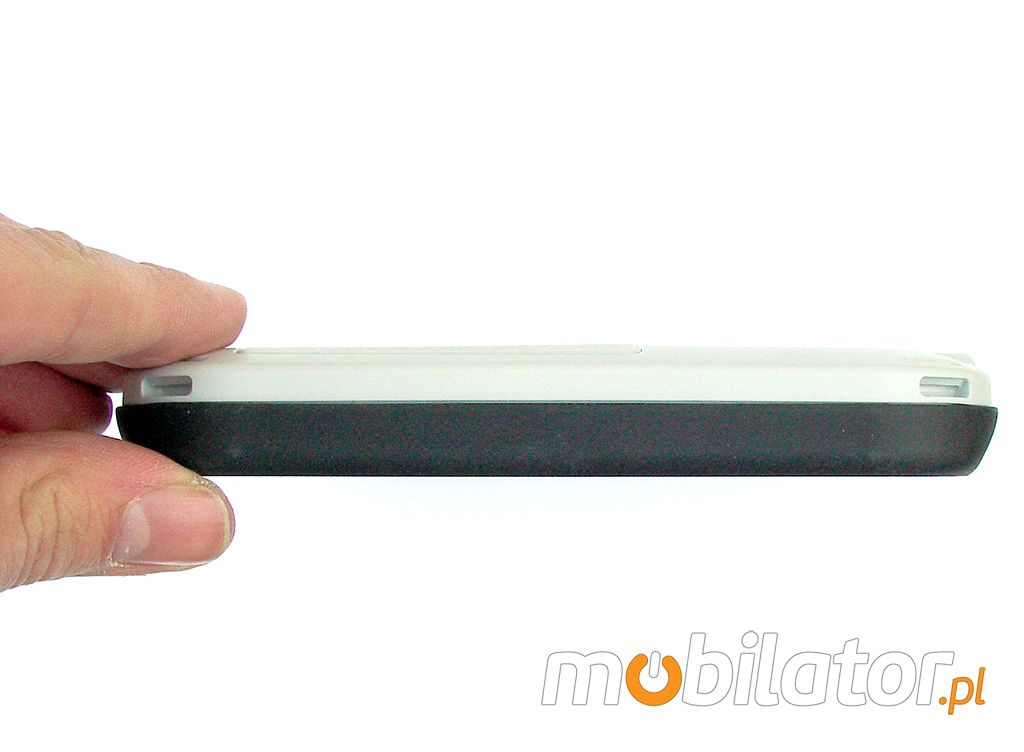

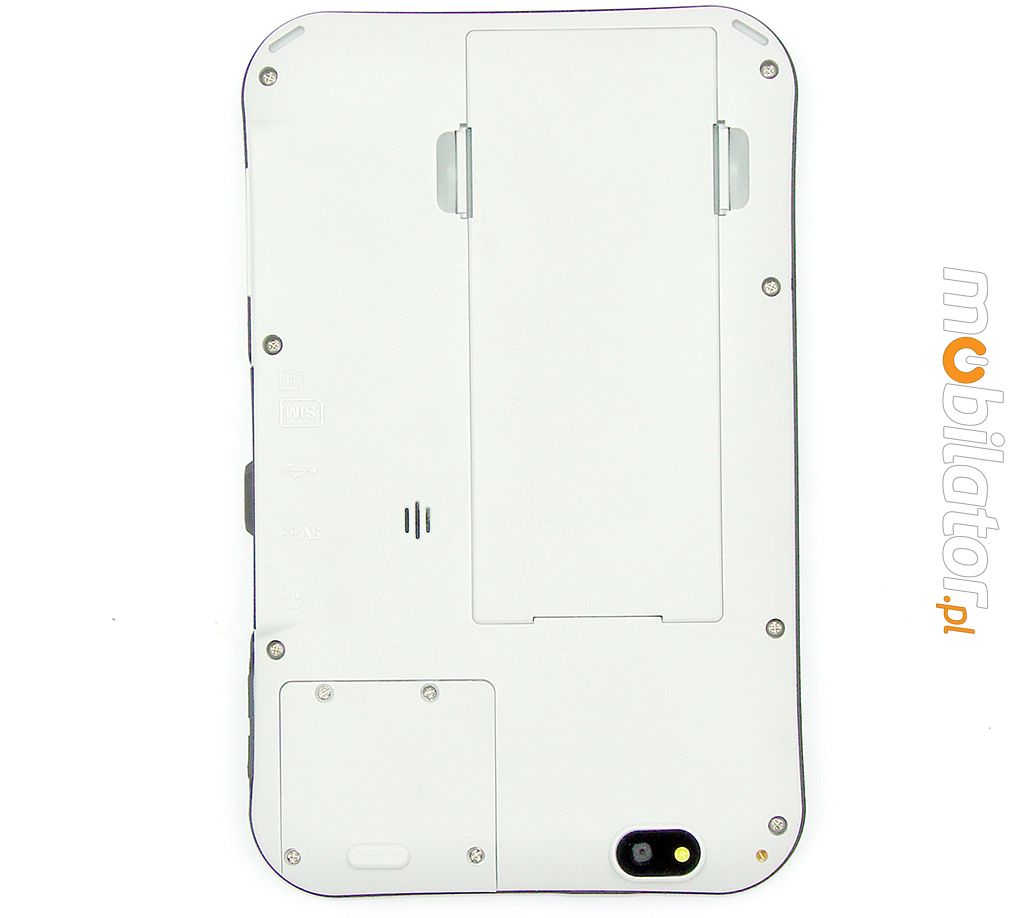

The device weighs just 550g which is undoubtedly a great advantage considering met industry standards. When fully charged, the battery will get up to 7 hours of total work. The standard battery capacity is 5300 mAh.

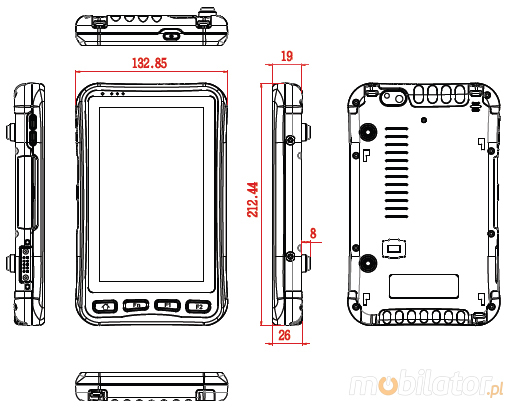

small winmate m700dM4

Dimensions 212.4mm x 132.8mm x 19mm (Standard)
Weight
 550g

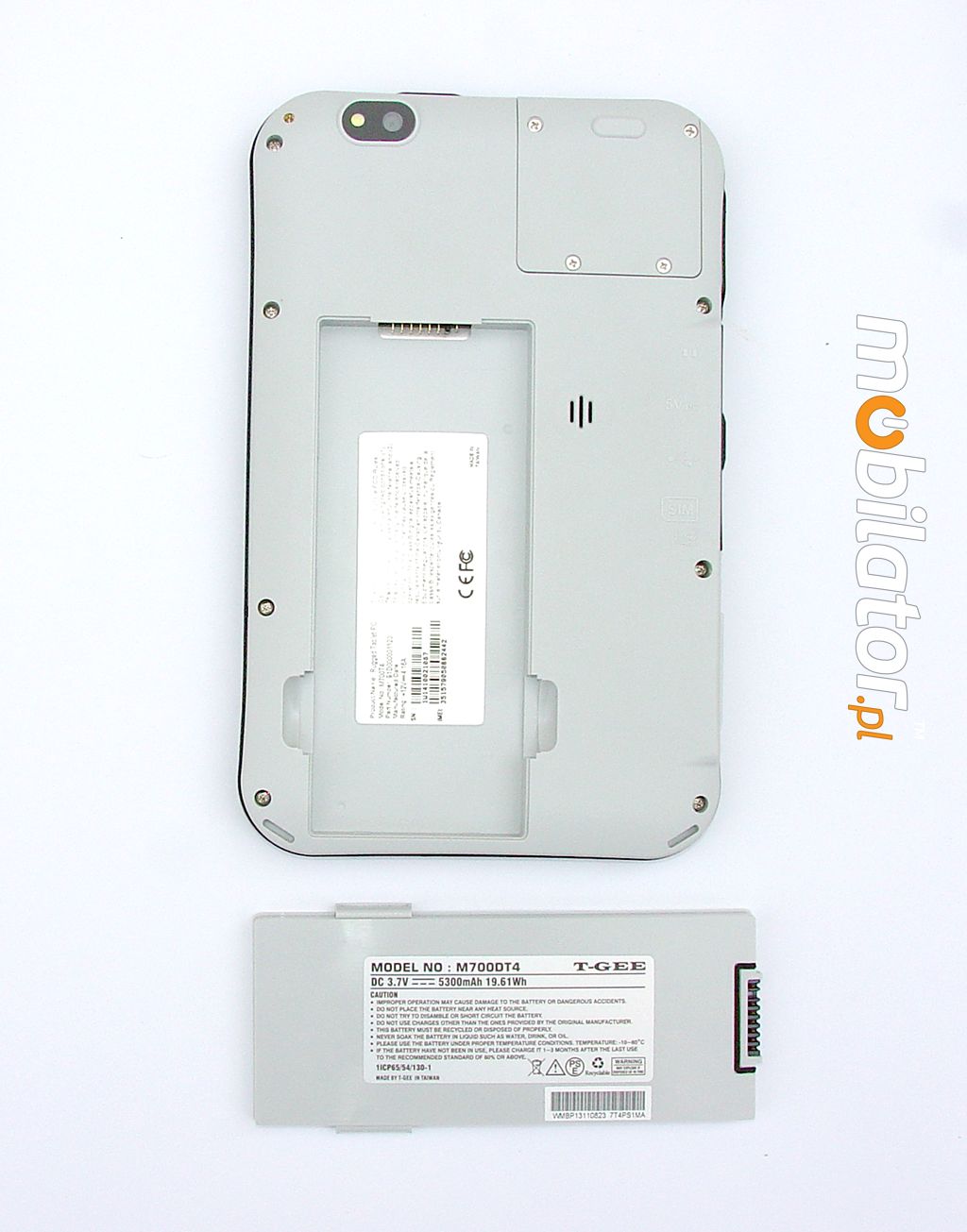

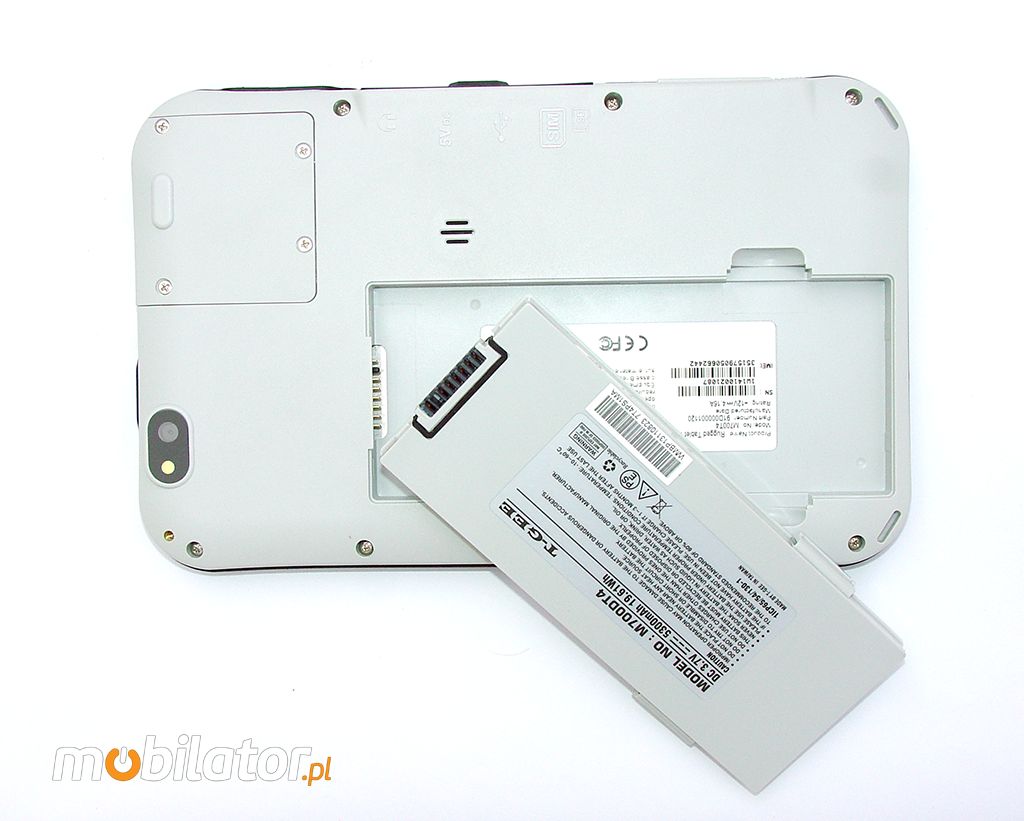

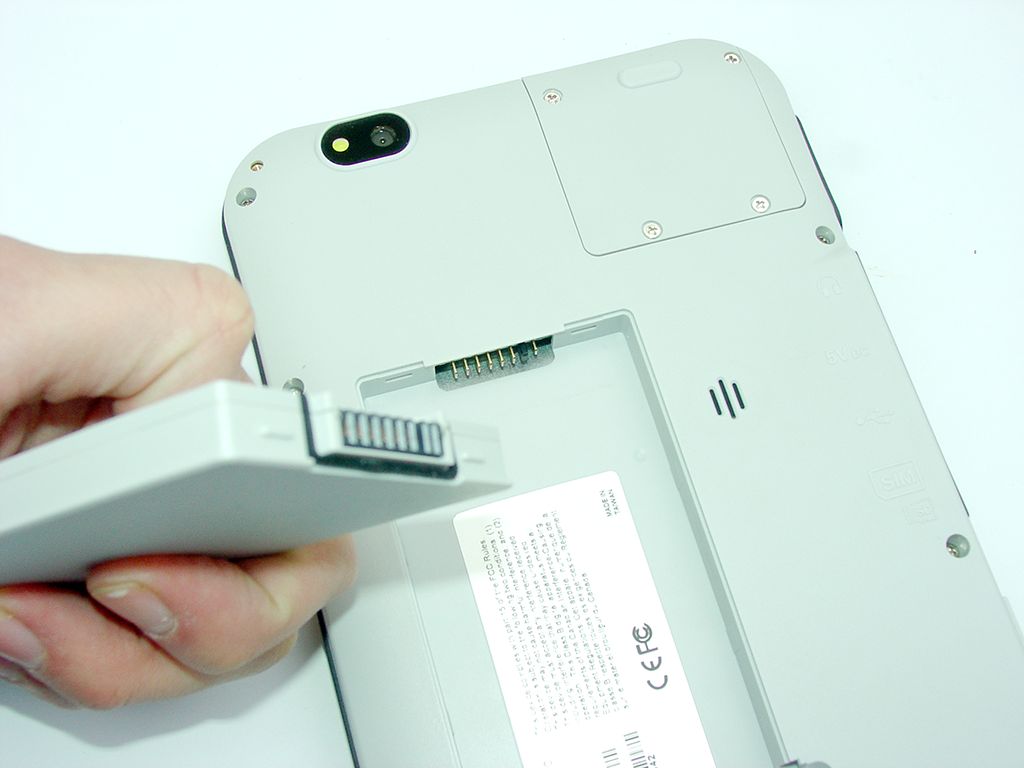

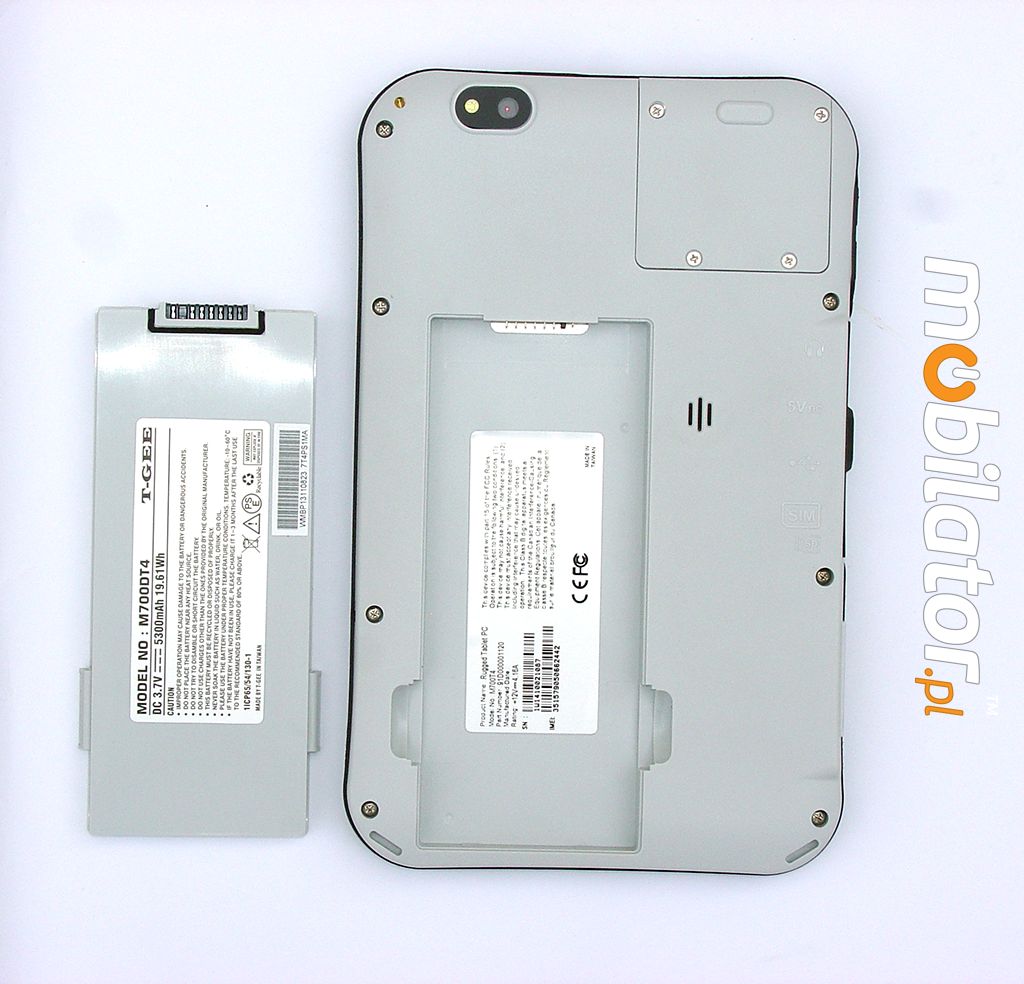

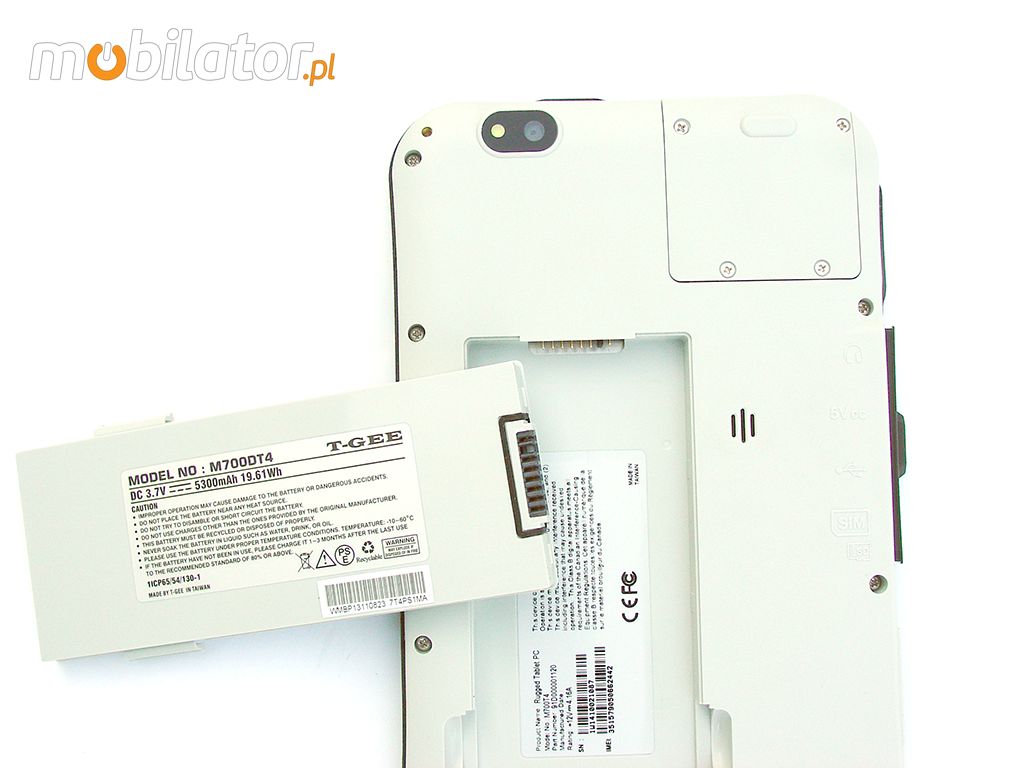

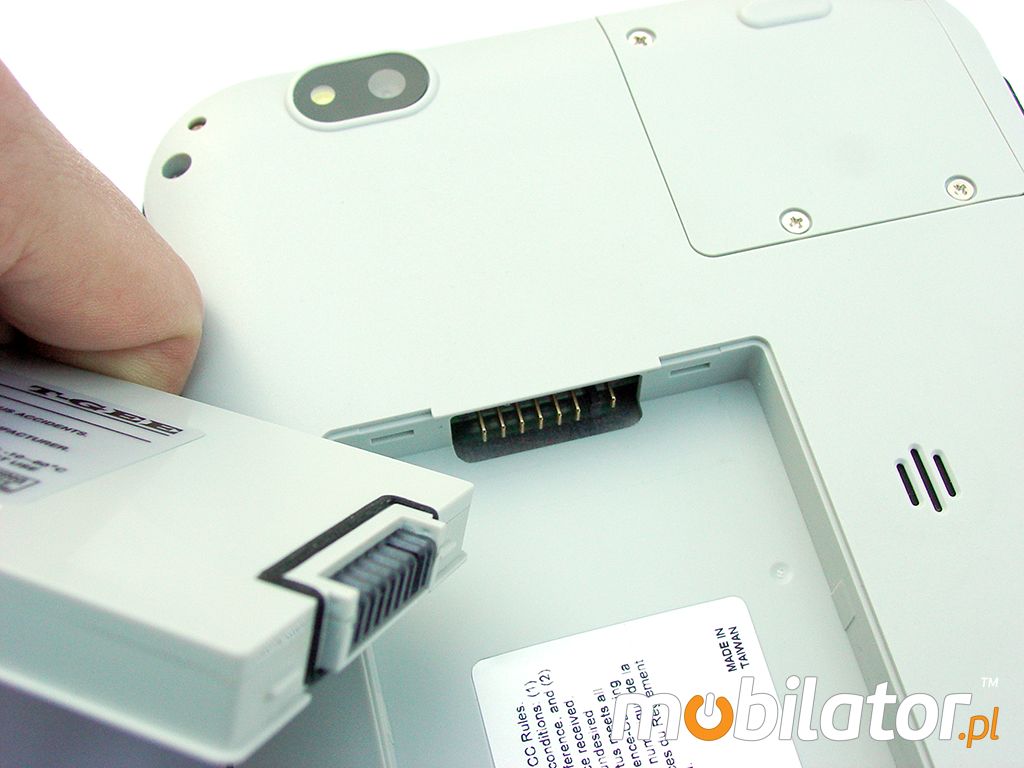

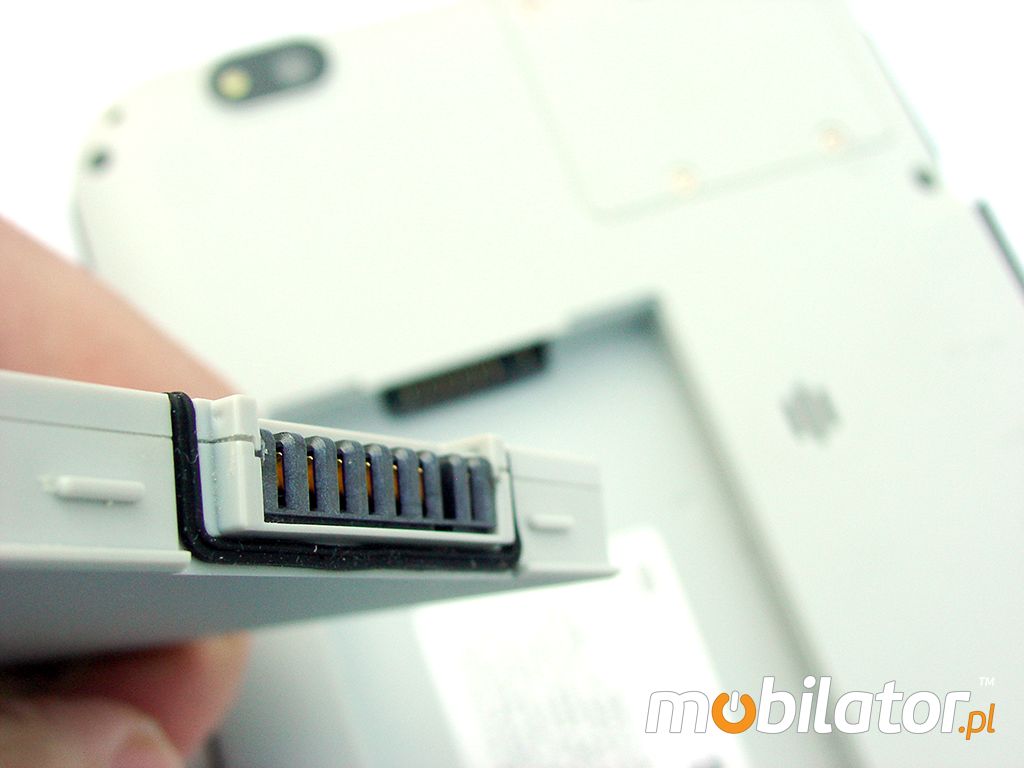

Battery Li-Po 5300mAh
Working Time
 7 hours
Power Consumption
 11.5W

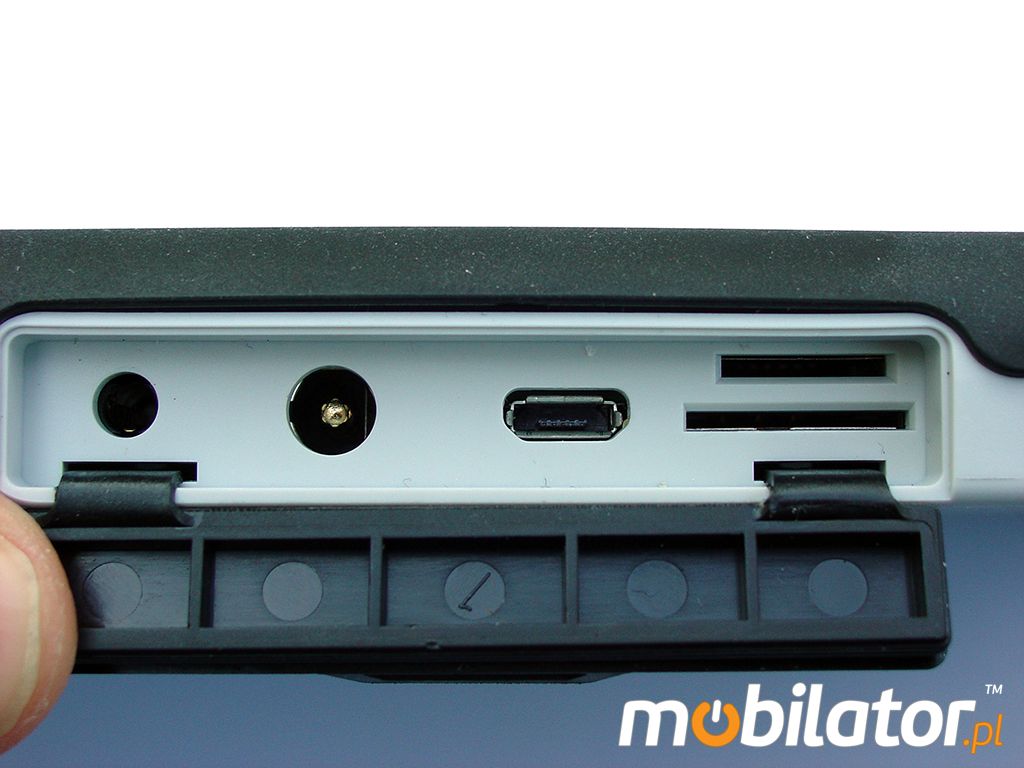

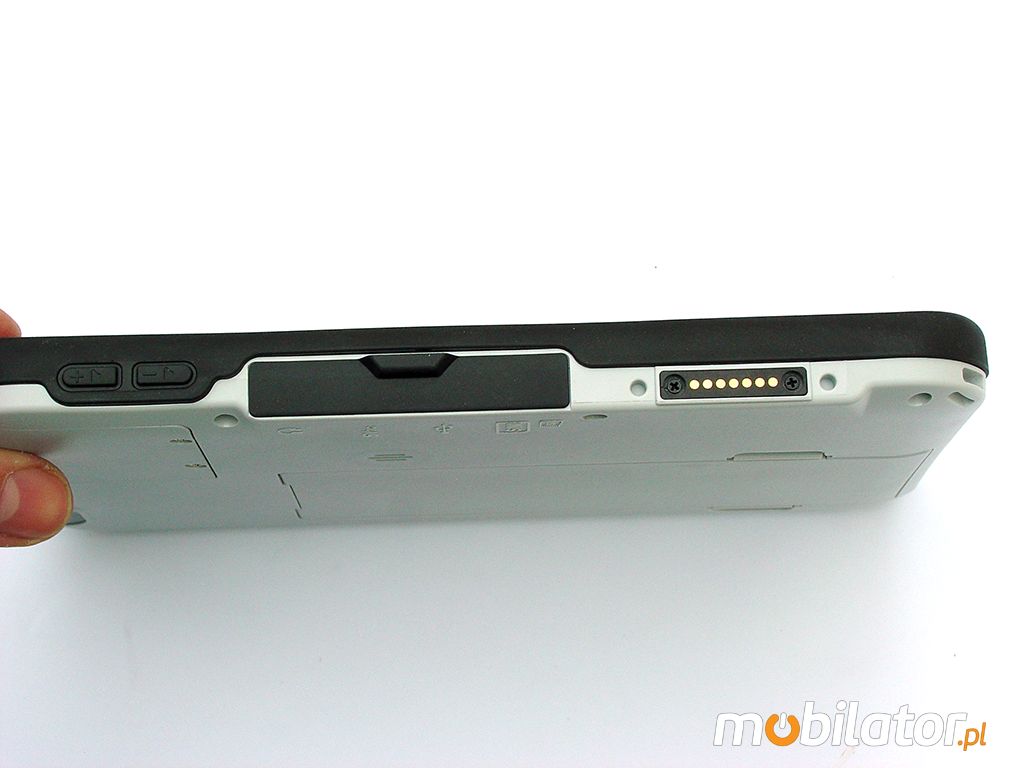

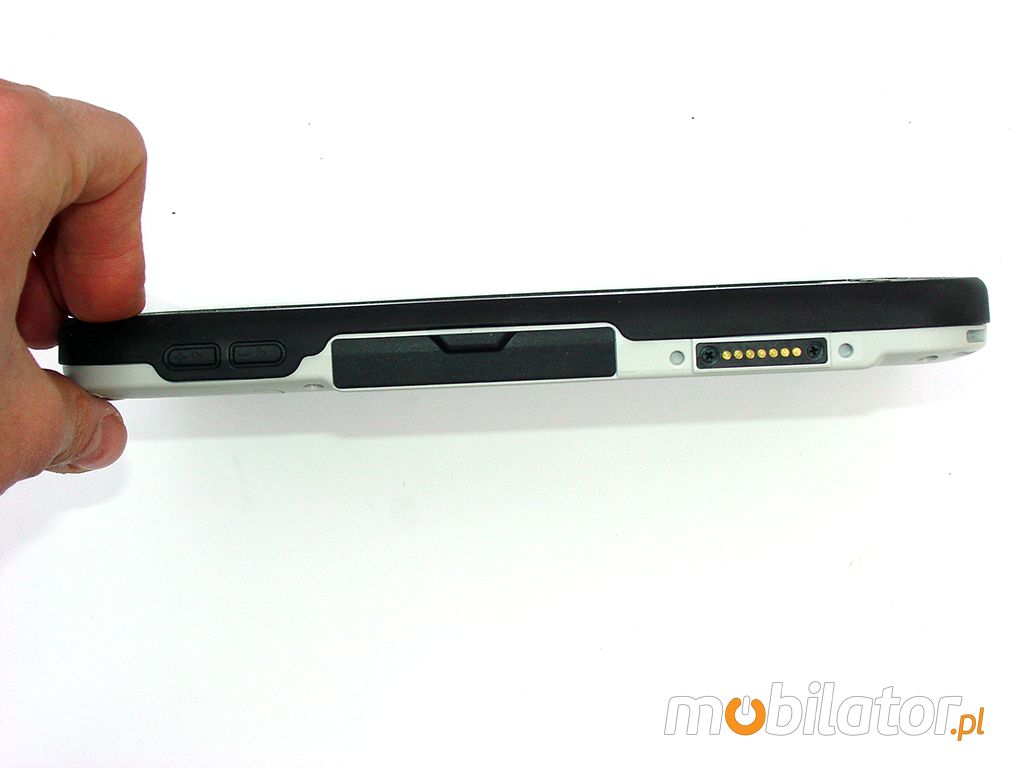

Connectors

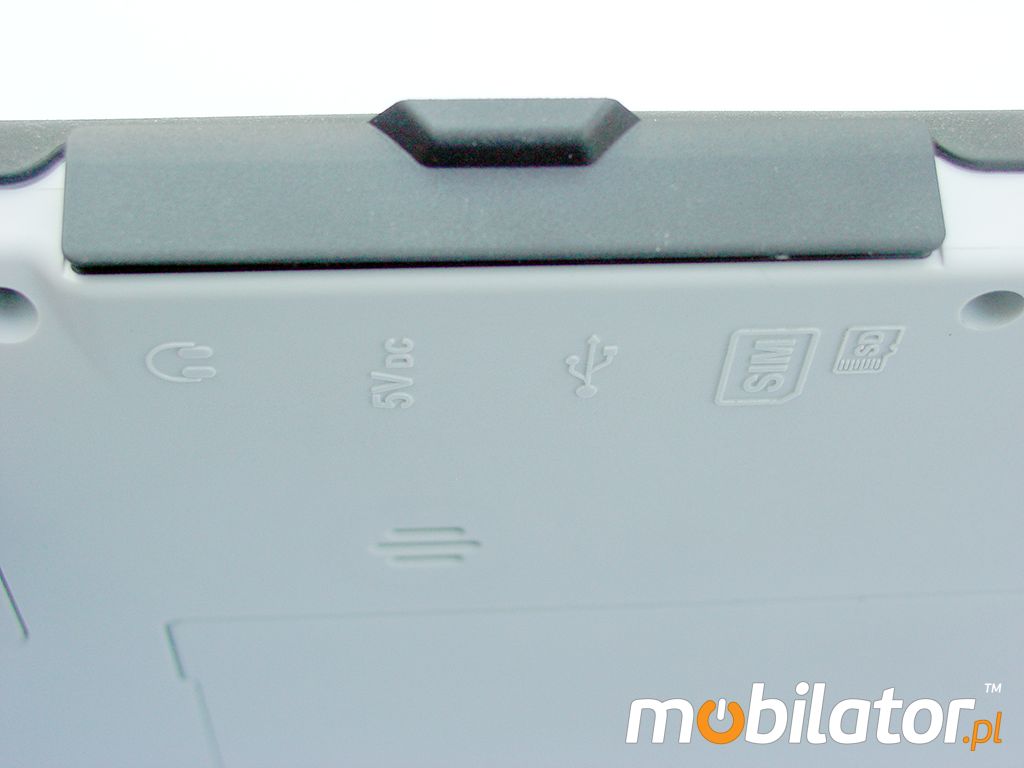

 1x Micro USB2.0 /  1x Headset jack / 1 x 2.5Ø 5V DCin / 1x SIM Card slot / 1x Micro SD slot
go top... do góry menu… menu

Functionality

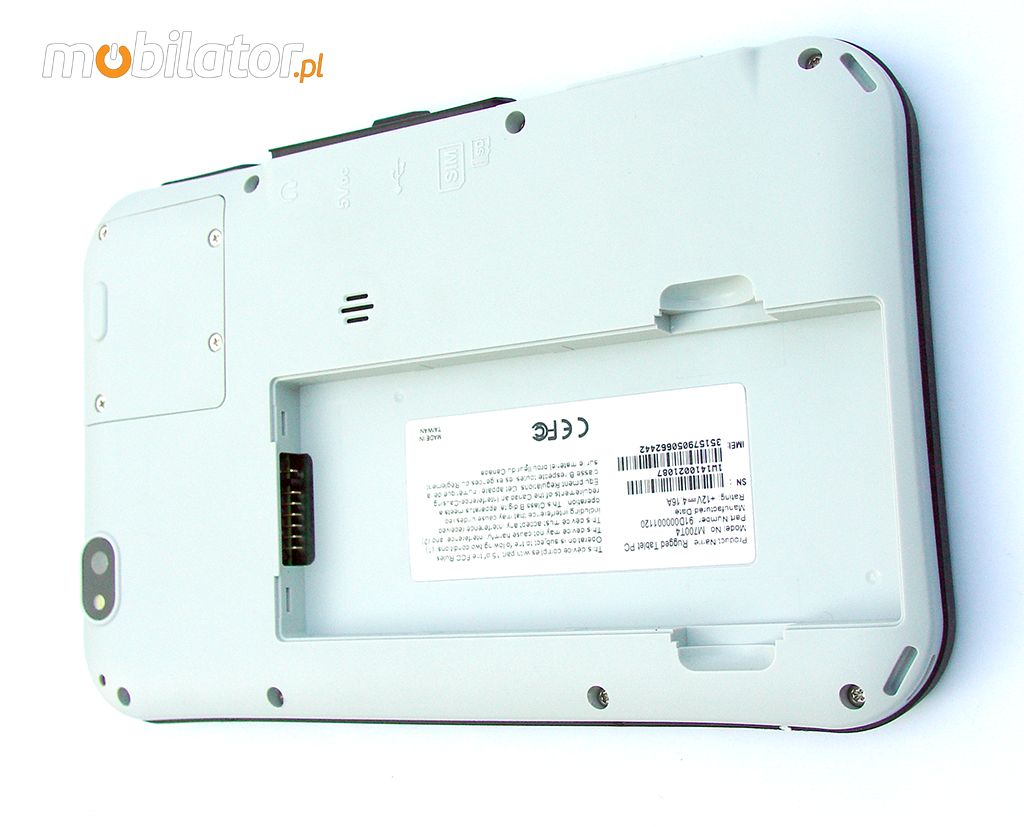

M700DT4 tablet is equipped with a micro USB 2.0 port, microSD card reader, SIM card slot and audio output mini-jack. The possibility of recording enables integrated 5Mpx camera with autofocus.

m700dM4 4g gps agps

2D Barcode Scanner (optional)

barcode scanner data collector winmate m700dm4

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

RFID (optional)

rfid tablet industrial data collector

They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

 RFID HF
  Support ANSI/ISO14443A & 15693 Card Type(13.56 MHz Frequency)
 detect range 1~3 cm

NFC (optional)

winmate m700dm4 nfc reader

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into proximity, usually no more than a few inches.Present and anticipated applications include contactless transactions, data exchange, and simplified setup of more complex communications such as Wi-Fi Communication is also possible between an NFC device and an unpowered NFC chip, called a "tag".

 Protocols
  Peer-to-peer: Full ISO 18092 (up to 424 Kbits/s)
 Reader/writer: ISO 14443 –A-B, MIFARE, FeliCa®, NFC Forum tags,ISO 15693



Modules and Wireless Networks

 WiFi 802.11 a/b/g/n mode
 Bluetooth Bluetooth 4.0
 4G 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT)
 GPS High performance positioning engine.
GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS



winmate m700dm4 3g sim micro sd

go top... do góry menu… menu

Protection Standards


The followilogo baner mobilator rugged industrial umpc mid winmate m700dng is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.



MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance.



MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment.

The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories.

The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf.

Applicable standards and tests carried out
Operating
 -10°C -- +50°C MIL-STD-810F
Storage
-20°C -- +70°C MIL-STD-810F
Humadity
 95% @ 40°C MIL-STD-810F
Dust Protection
 IP6x (kurz) -
Water Protection
 IPx5 (woda) -
Vibration - MIL-STD-810F  Method 514.5
Drop Test
 - MIL-STD-810F
Method 516.5
Regulatory CE / FCC class B

umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, komputer do autodiagnostyki, komputer do przemys³u,go top... do góry menu… menu

tablet wcdma gsm 7 cali winmate m700dm4

Resistance IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

norma ip65 tablet przemys³owy winmate m700dThe first digit in the range 0 to 6 the resistance to dust and the other in the range 0 to 8 the resistance of the water.

  • number 6 of the first index (protection against the penetration of foreign bodies - dust, limited ingress)
  • number 5 of the second index (protection against penetration - WATER BEFORE jet from any direction)

go top... do góry menu… menu
The first digit [x]
Protection against solid objects		   The second digits [y]
Protection against liquids
No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from object not greater than 12mm in diamete
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection against heavy seas, or powerful jets of water


7
Protection against immersion


8

Protection against complete, continuous submersion in water



Hardware configurations available

versions tablet rugged 7 cali barcode scanners
  Standard    BM
   NB
   HF
 NFC  LE-LA
2D Barcode Scanner
 - - - -
NFC
 - - - -
RFID - - - - -
4G LTE
 - - - - -

Version with Windows 7 - click here.
Version with Windows 8 - click here.

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
