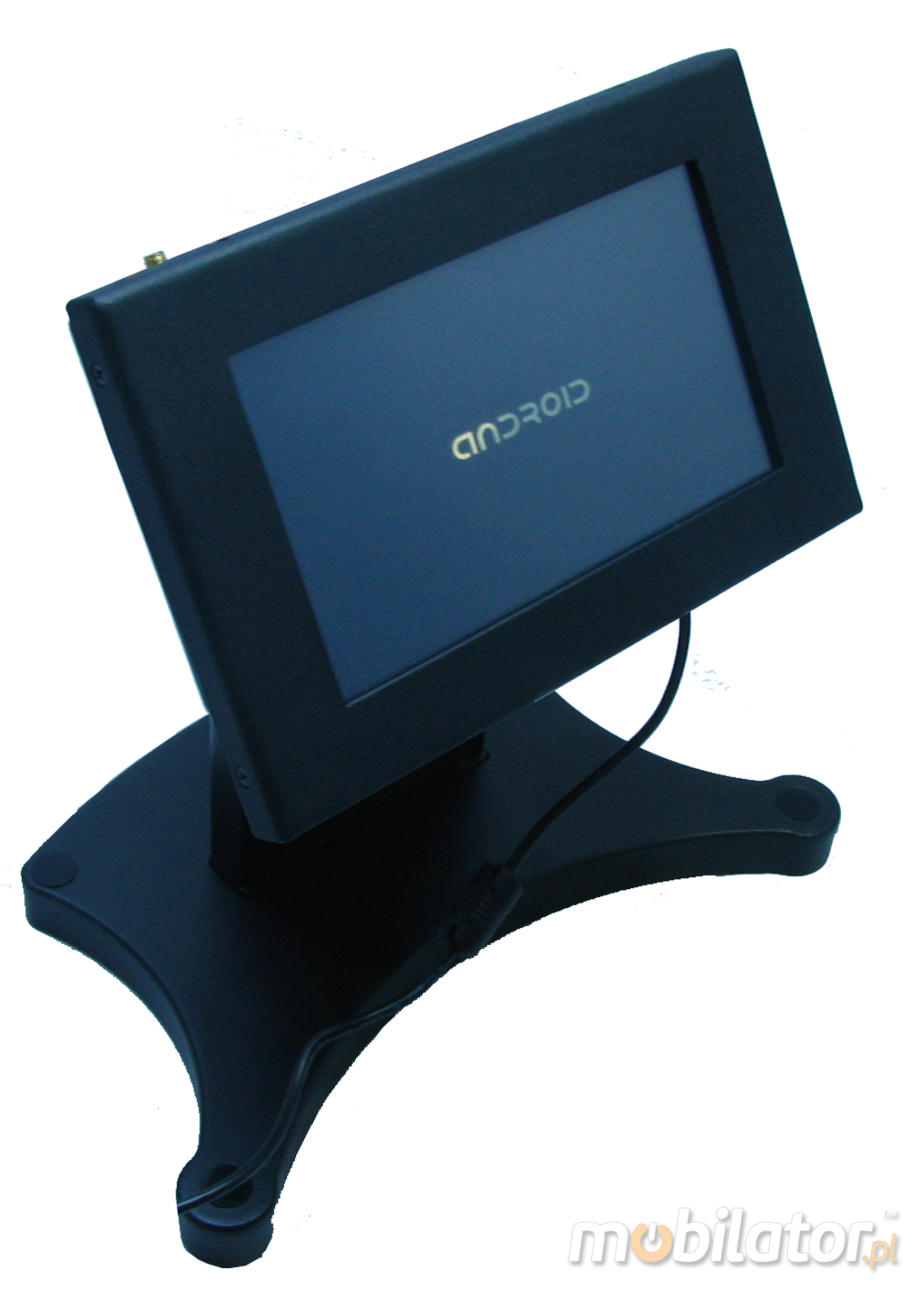

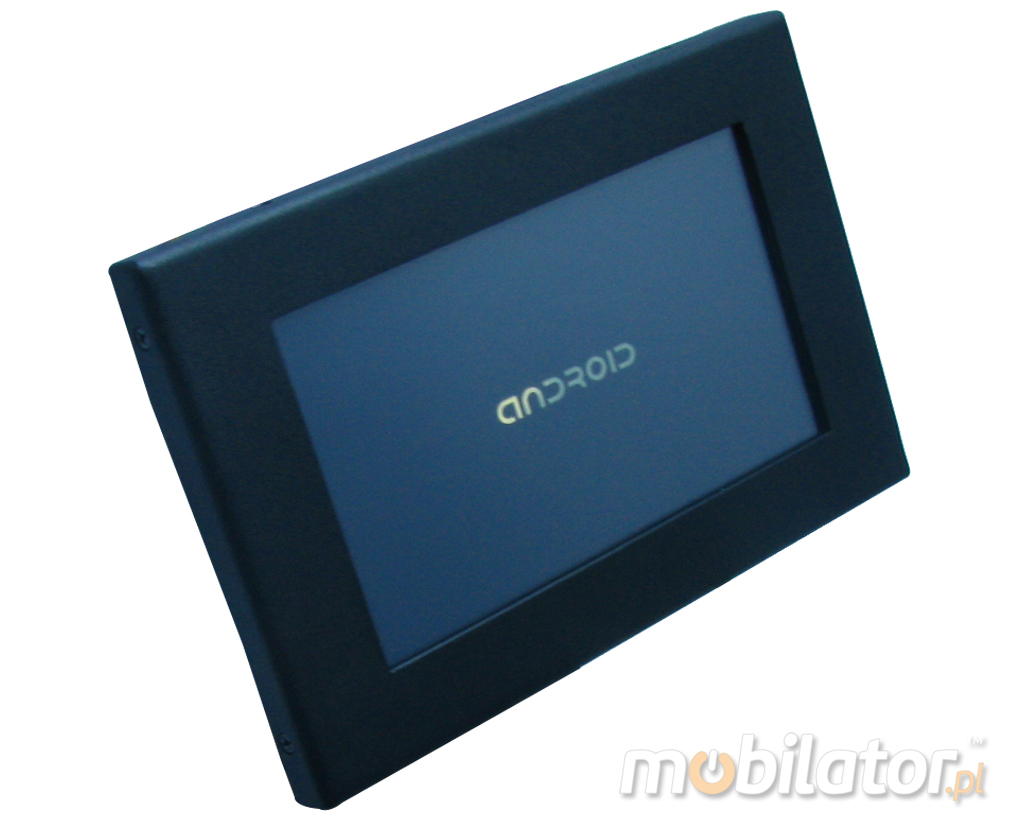

Industrial ANDROID Touch Panel PC AV-Panel 8 inch IP54 v.4.1
|
|
The product from the archive - production terminated
|
Compare all versions
|
Industrial Panel PC
Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.
|
|
|
AV-Panel
|

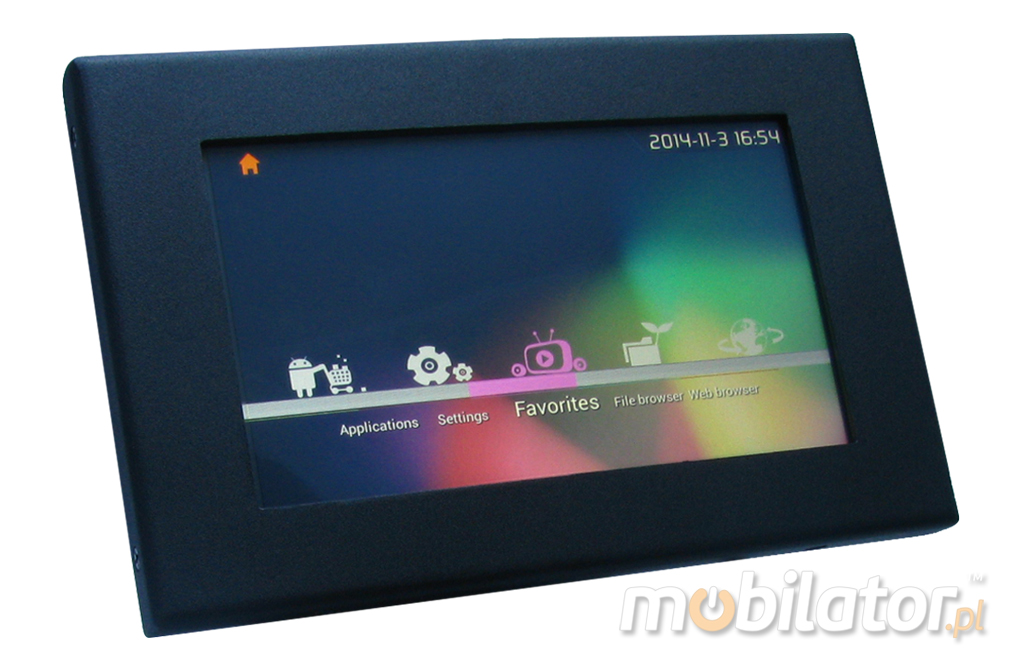

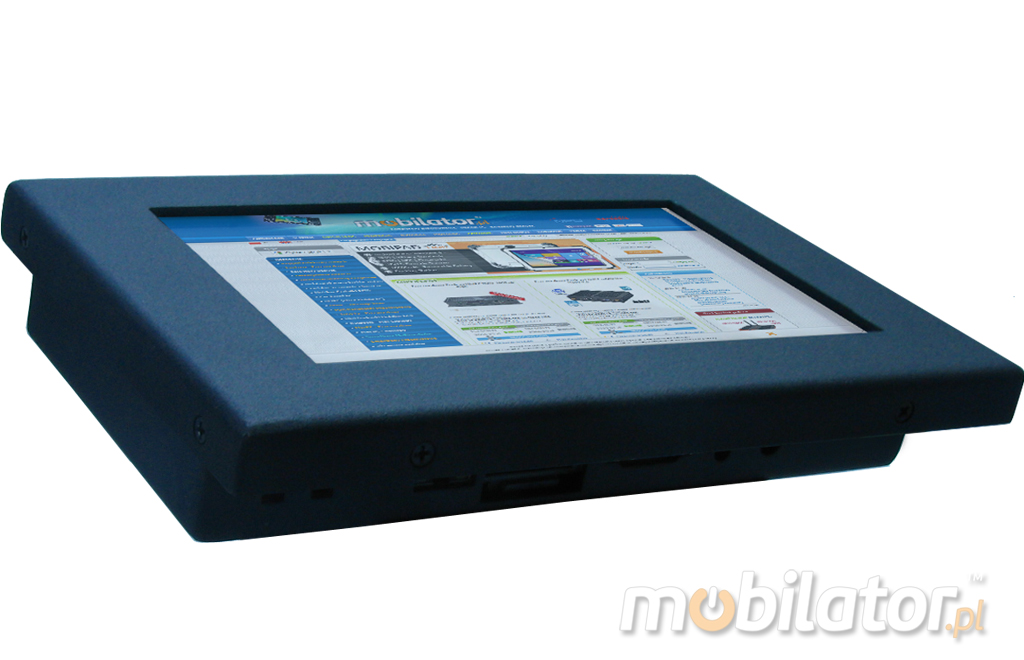

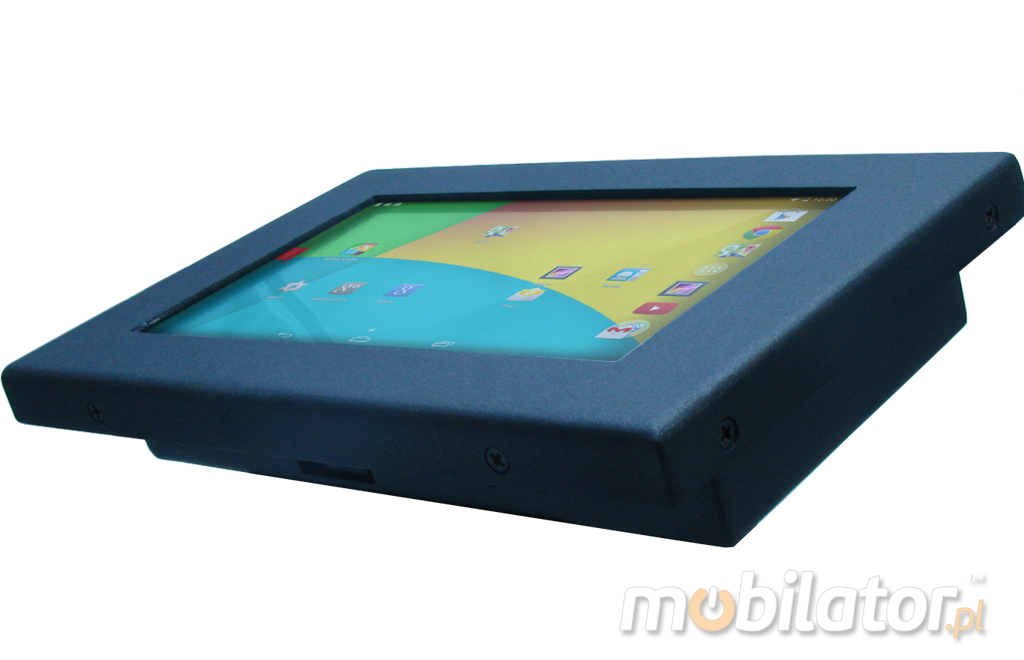

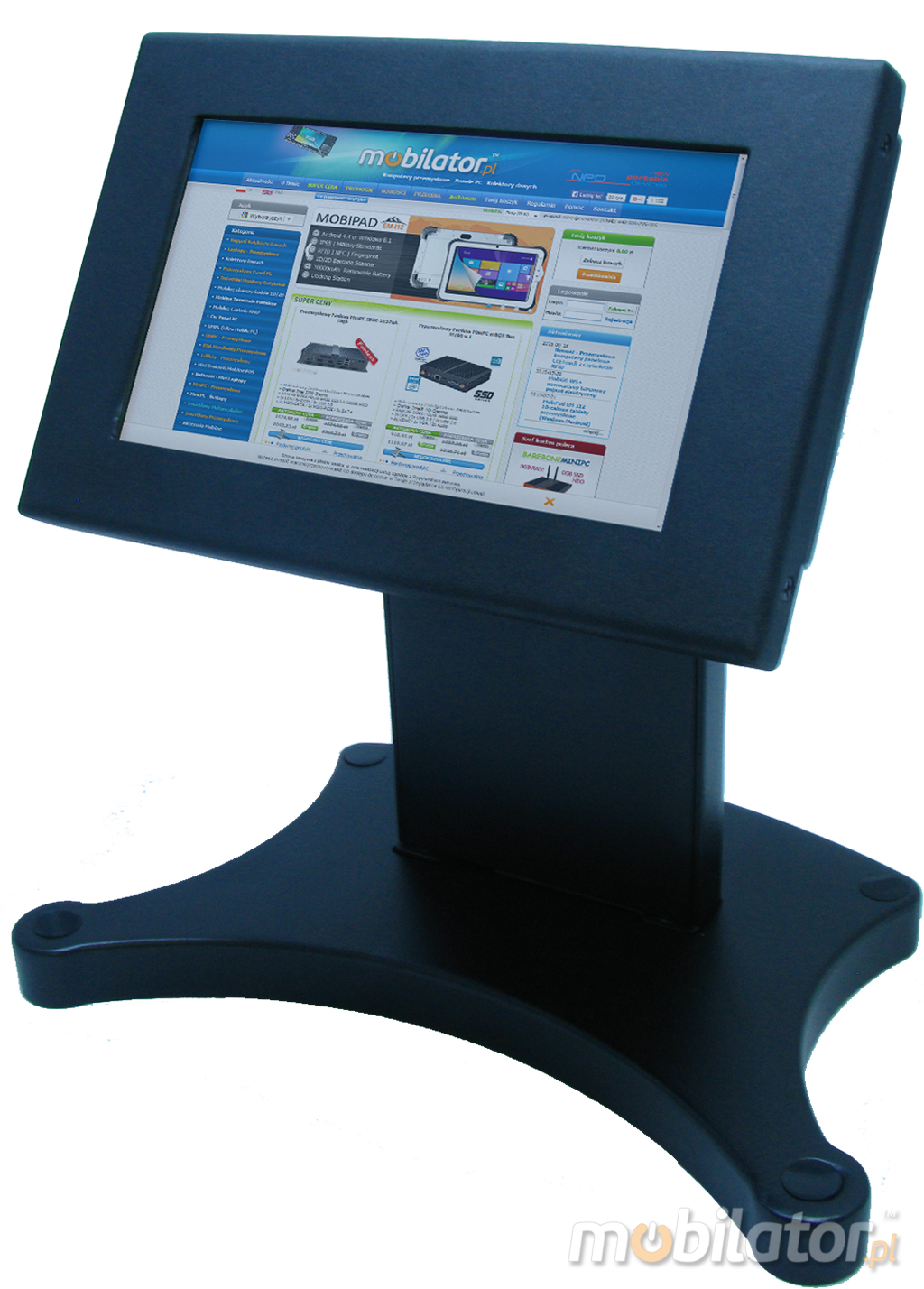

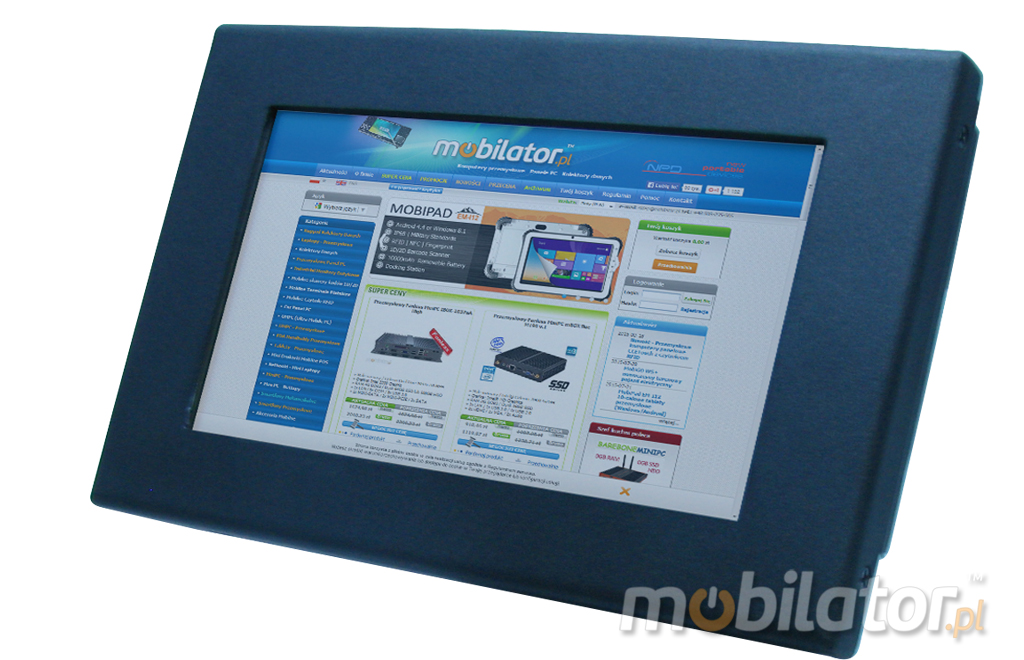

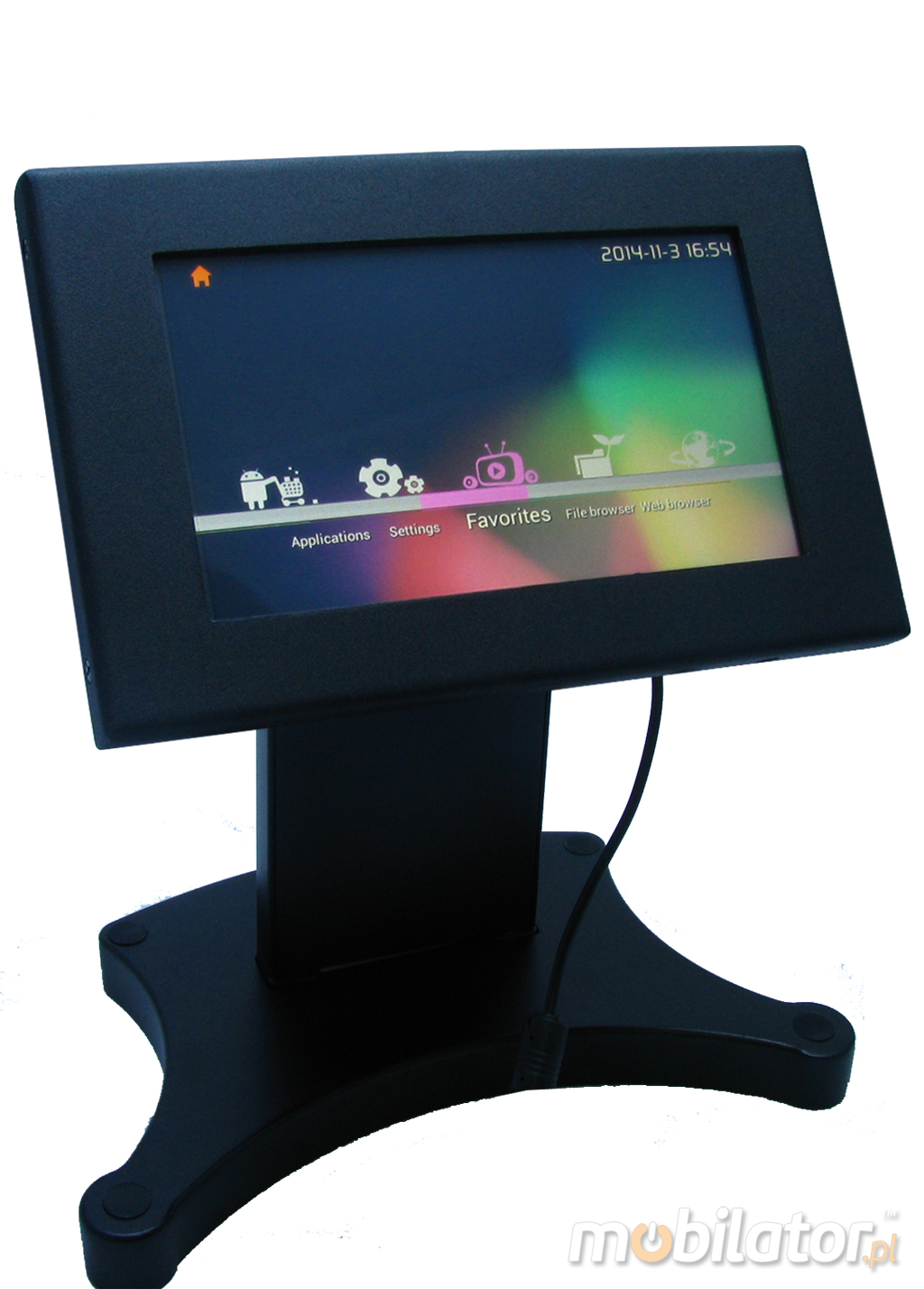

Industial ANDROID Touch Panel PC AV-Panel 8 inch IP54 v.4.1
|
|
|
 |
CPU: ARM Cortex-A7 A20 1GHz Dual Core
|
|
|
Memory RAM: 1GB
|
|
|
Memory ROM: 8GB Nand Flash
|
|
|
System: Android 4.2.2
|
|
|
Screen: 8" / 1024x768 / capacitivie
|
|
.png)
|
Expansion cards: none
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology Panel PC is designed for continuous operation multitasking with low power consumption. An important advantage is the powerful combination of small size with considerable opportunities through the use of processor family ARM® Cortex-A7 A20, 1GB of RAM memory. Integrated Mali400mp2 GPU video systems allow you to play a wide range of applications and media files (video, audio). The internal memory offers available to 8GB which can be expanded card SD memory (32GB max).
Dimensions:
Housing dimension are 216 x 176 x 46 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Cooling:
Industrial Touch PC AV-Panel 8 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
The industrial fanless Panel PC AV-Panel 8 uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Industrial Panel PC AV-Panel 8 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as Bluetooth, 3G and GPS.

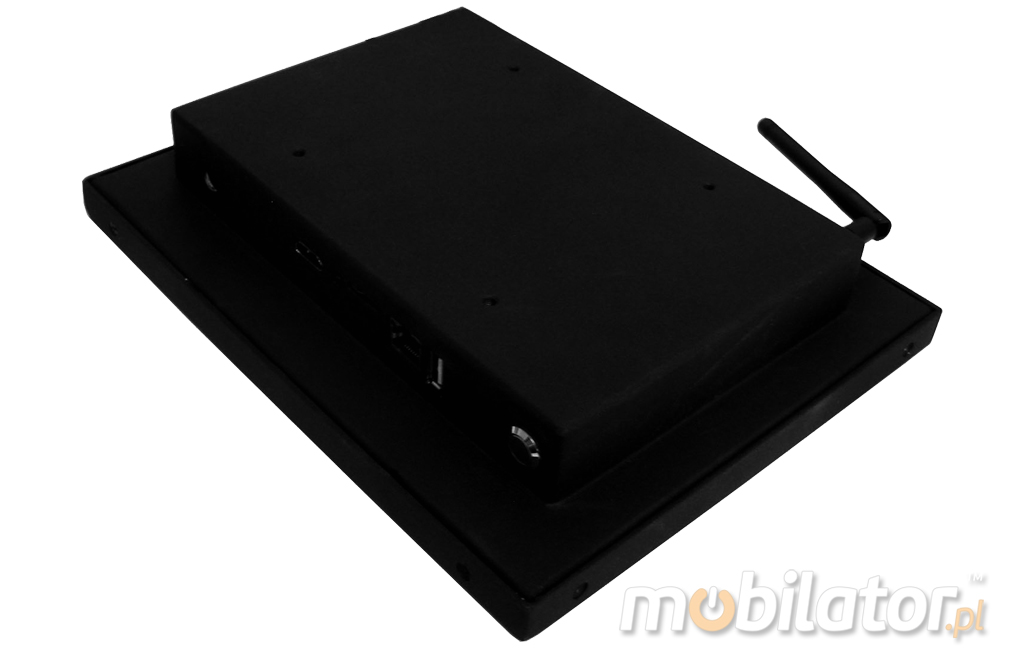

Connector:
Integrated Network card 10 / 100Mpbs 1xRJ-45 LAN, WIFI allows you to connect the device to the network. The panel is equipped with: one LAN connector, one VGA, two USB 2.0 ports, one Audio(Eerjack) input , SD card slot and power connector (DC-in).
|

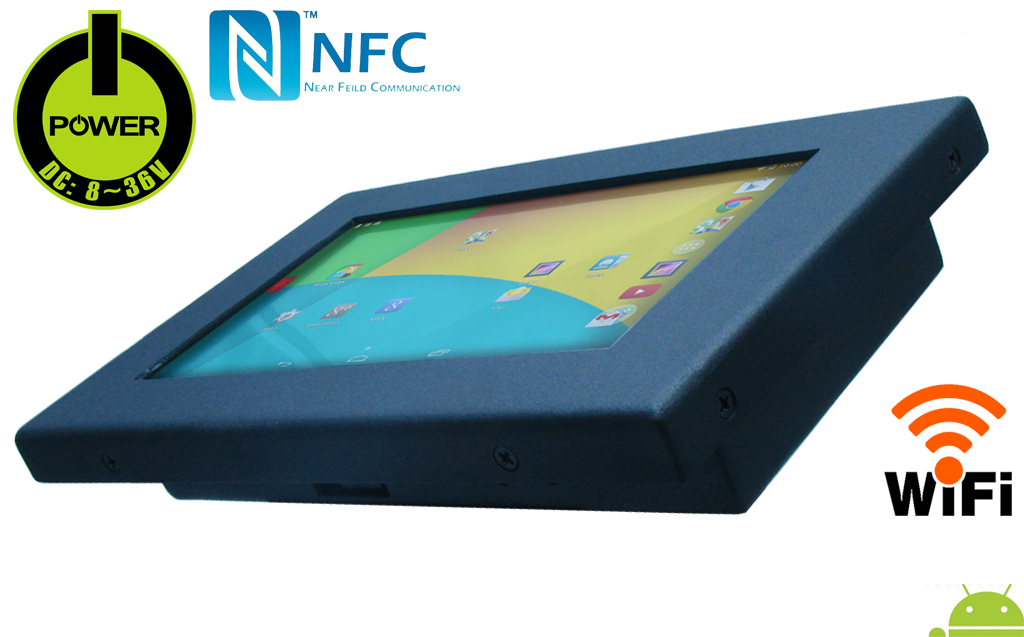

NFC
NFC, or near-field communication, is an easy and intuitive technology that  allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.
|
NFC |
NFC 13.56Mhz ISO14443 A / B i ISO15693 (NXP PN544) |
|
|
|
Industrial Touch PC AV-Panel8 has a water-resistant front panel and scratch resistant screen with 3H hardness. With 1024x768 resolution and high brightness of 250 cd/m2, screen capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.
Capacitive screen
Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.
Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.
|
Applicable standards and tests carried out.
Panel PC AV-Panel 8 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. AV-Panel 8 is the best solution for extreme applications in dust or moisture.
|
Operating Temp
|
0-60 °C |
|
Operating Humidity |
5%-90%
|
|
Dust |
IP5x(dust) |
|
Water |
IPx4(drops of water)
|
Resistance IP54 - Front Panel
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top…  menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Industrial Panel PCs with AV-Panel companies are based on the efficient dual-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial panel computers.
.jpg)
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM portcan be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 8-36V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
|
go top… menu…
Display
|
Screen: 8"
Resolution: 1024 x 768
Type: capacitive |
Resistance IP
|
Front Panel: IP 54
|
Communication
|
Wi-FI
Bluetooth (option)
3G (option)
GPS (option)
|
|
Dimensions
|
Height: 46 mm
Width: 176 mm
Length: 216 mm
|
|
Weight |
3 kg
|
|
Processor |
ARM Cortex-A7 A20 1GHz Dual Core |
Memory ROM
|
8GB NAND FLASH |
Memory RAM
|
1GB DDR3
|
Graphics Card
|
Mali400mp2 GPU
|
Sound Card
|
Integrated
|
Network Card
|
100Mpbs LAN |
|
NFC reader |
NFC 13.56Mhz (NXP PN544) |
|
Ports & interfaces |
2 x USB
1 x RJ45
1 x SD Card reader
1 x VGA
1 x Audio
1 x DC-in
|
|
|
|
|
Compare all versions
| Screen size: |
8" |
| Resolution: |
1024 x 768 |
| Aspect ratio: |
----- |
| Touchscreen: |
Capacitive |
| Chipset: |
----- |
| CPU Support: |
1) ARM Cortex-A7 A20 1GHz Dual Core
2) ARM Cortex-A7 A31s 1GHz Quad Core (option)
3) ARM Cortex-A9 S802 2.0GHz Quad Core (option) |
| Installed CPU: |
ARM Cortex-A7 A20 1GHz Dual Core |
| Memory Support: |
up to 1GB (max) |
| Installed Memory: |
1GB DDR3 |
| Graphic Card: |
Mali400mp2 GPU |
| Audio: |
Integrated, speakers (optional) |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
ROM: 8GB NAND FLASH |
| CD/DVD Drive: |
----- |
| LAN: |
RJ45 100Mpbs LAN |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
2x USB
1x RJ45
1x SD card reader
1x VGA
1x Audio
1x DC-IN |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
8-36 V DC |
| Supported OS: |
Support Android |
| Installed OS: |
Android 4.2.2 |
| Dimensions: |
216 x 176 x 46 mm |
| Weight: |
3 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
5%~ 90% |
| Temp: |
0°C ~ 60°C |
| Storage Temp: |
-20°C ~ 65°C |
| IP Norm: |
Front panel |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP 54 |
| Dual display: |
----- |
| Response time touch-panel (ms): |
< 20 |
| Contrast Ratio: |
500:1 |
| Brightness: |
250 cd/m2 |
| Viewing Angle: |
160;160 |
| Backlight MTBF: |
>15000hrs |
| Color Resolution: |
262 K |
| Surface hardness (display): |
>3H |
| Touch Life(contacts): |
>10,000,000 times |
| Housing material: |
Aluminum |
| Mounting VESA: |
VESA 100mm x 100mm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
6 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
NFC 13.56Mhz ISO14443 A / B i ISO15693 (NXP PN544) |
| Barcode reader: |
|
