Industrial operator panel HMI ATT800

Industrial operator panels also known as control panels are devices that control other electronical devices using convenient and intuitive touch interface. Thanks to its robust design, these devices are suitable for use even in harsh environments.

Specification

up…    menu…

Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

Description

up…    menu…

HMI is equipped with an operating system from Android family, which ensures maximum efficiency of the device and easily copes with multiple processes simultaneously. Convenient interface makes the operator panels as much intuitive as possible.

An important advantage of the HMI ATT800 is a powerful combination of small size with considerable capabilities through the use of the processor family ARM Cortex A8 with 1GHz clock speed, which, combined with 512MB of RAM gives us a powerful, multi-purpose, quality device for a low price.

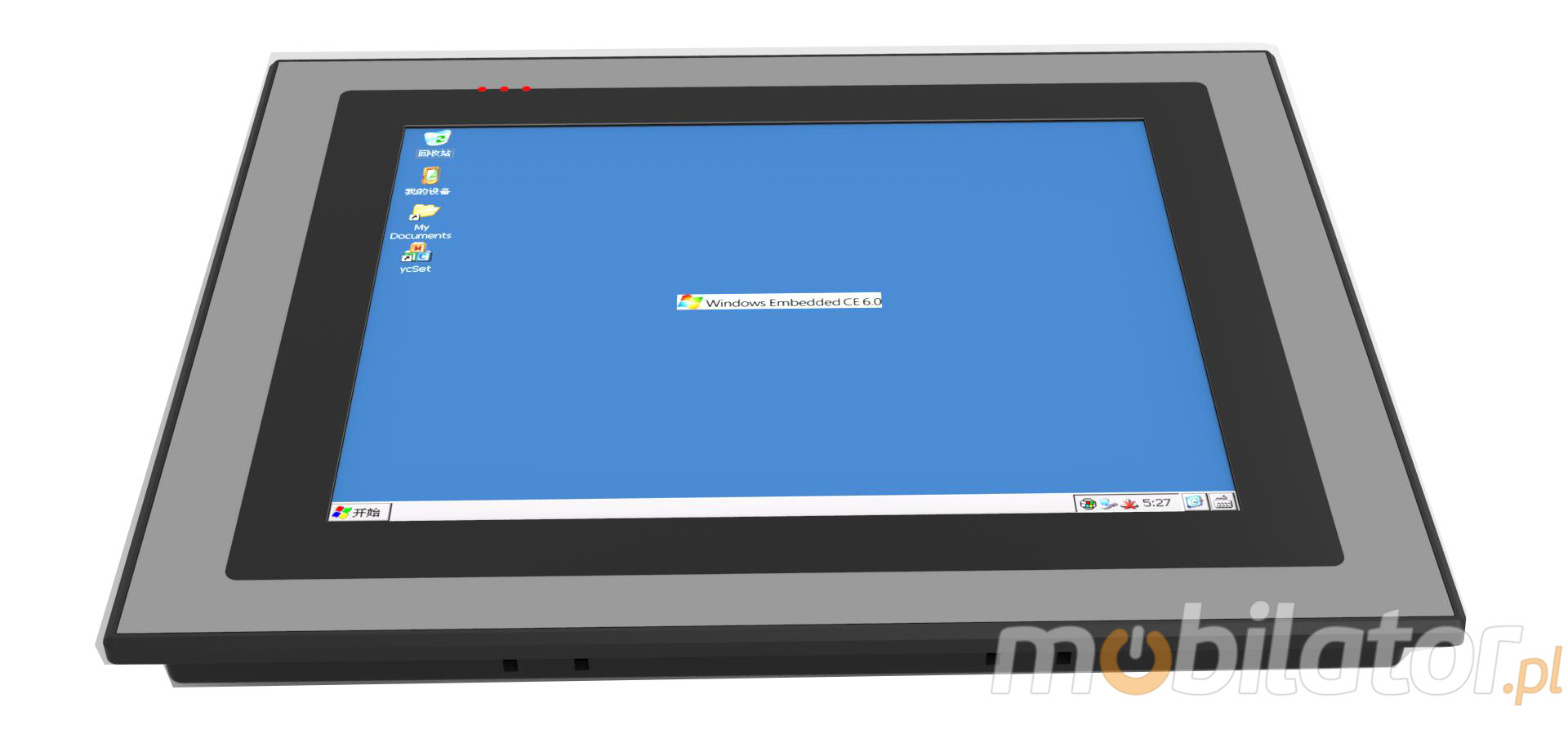

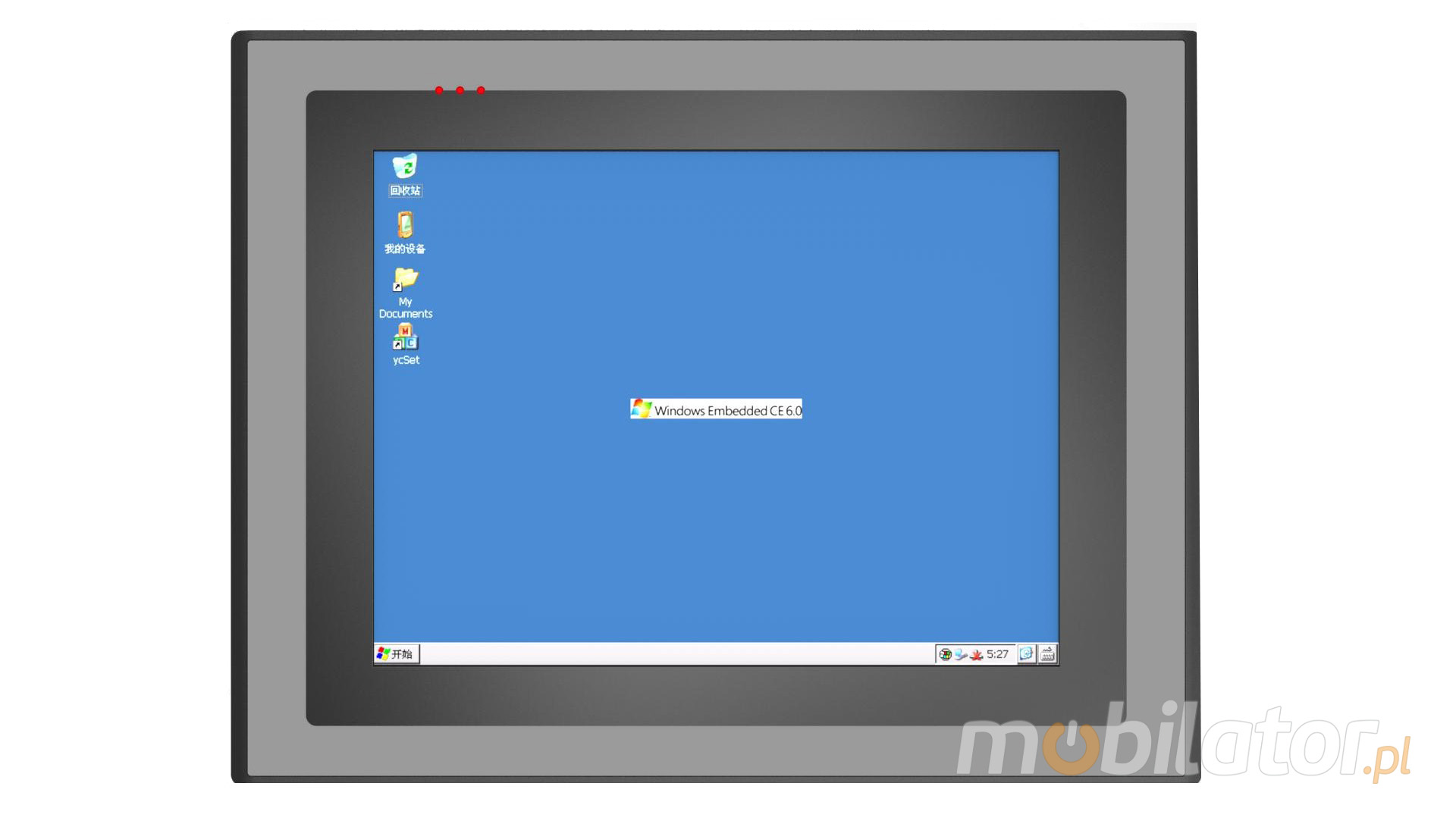

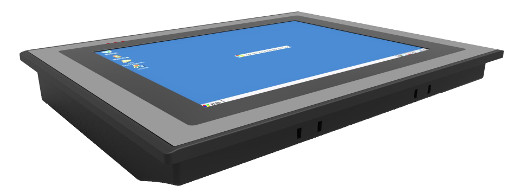

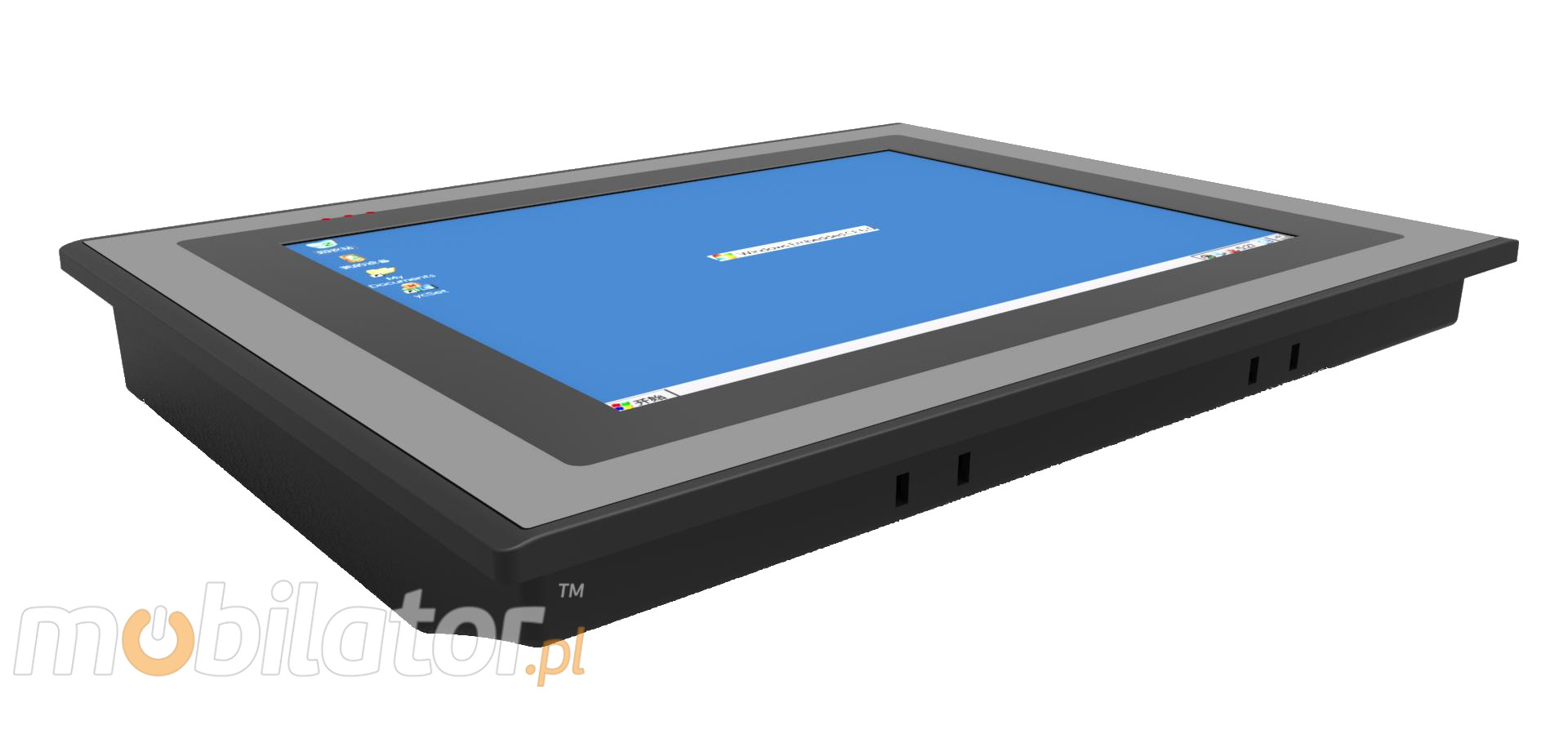

HMI ATT800 is equipped with a 8 inch screen and the overall size of its design is only 233.3 x 181.3 x 31.2mm. Its weight is only 700 grams. With such a small size it can be used in even if there is not much available space. In addition, HMI has the possiblility to mount it on a wall for the greatest convenience and ease of access.

HMI enclosure is made from a platic of a highest quality, providing a very high resistance to mechanical damage. With this construction it is ready for use even in extreme conditions such as heat, cold or vibration at any time. In addition.

Using the latest technology, HMI ATT800 is designed for continuous operation with a very low power consumption at 12-24V.

Protection

up…    menu…

Communication

up…    menu…

PLC

PLC is a universal microprocessor device designed to control the operation of the machine or technological equipment. PLC must be adapted to the HMI device by introducing into its memory the desired algorithm for operation of the plant. A characteristic feature of the PLC controller distinguishes this from other drivers computer is cyclic circulation of program memory. The algorithm is stored in a dedicated controller programming language. You can change the algorithm by changing the contents of program memory. The driver provided with a suitable number of input circuits gathering information on the object status and requests service and the appropriate number and type of output devices connected to the actuators, signaling or data.

PLC is not included in the standard equipment - it must be purchased separately.

Application

up…    menu…

Smart Home



Thanks to its transparent and intuitive touch interface, the HMI device can be easily adapted to the Smart Home, this solution allows you to control functions such as music, heating and air conditioning, from one place. The ideal device for people who like to have everything at your fingertips.



Warehouse



Industrial HMI operator panel can be used to connect multiple devices in the warehouse and make them easier to control. And its robust design is perfectly designed for the harsh conditions prevailing in these areas. Dust or dirt will not prevent this device from working, it will work flawlessly even in polluted environments.

Industry



Thanks to the ease with which the operator panel HMI can be customized for specific tasks, it's widely used escpecially in industry. Thanks to its functionality and mediation between machines and man, HMI is the center management processes, giving you the ability to control devices and to respond to specific situations.



You can find more photos of this device in Gallery. Specification of the given version is available in the Technical data tab.
