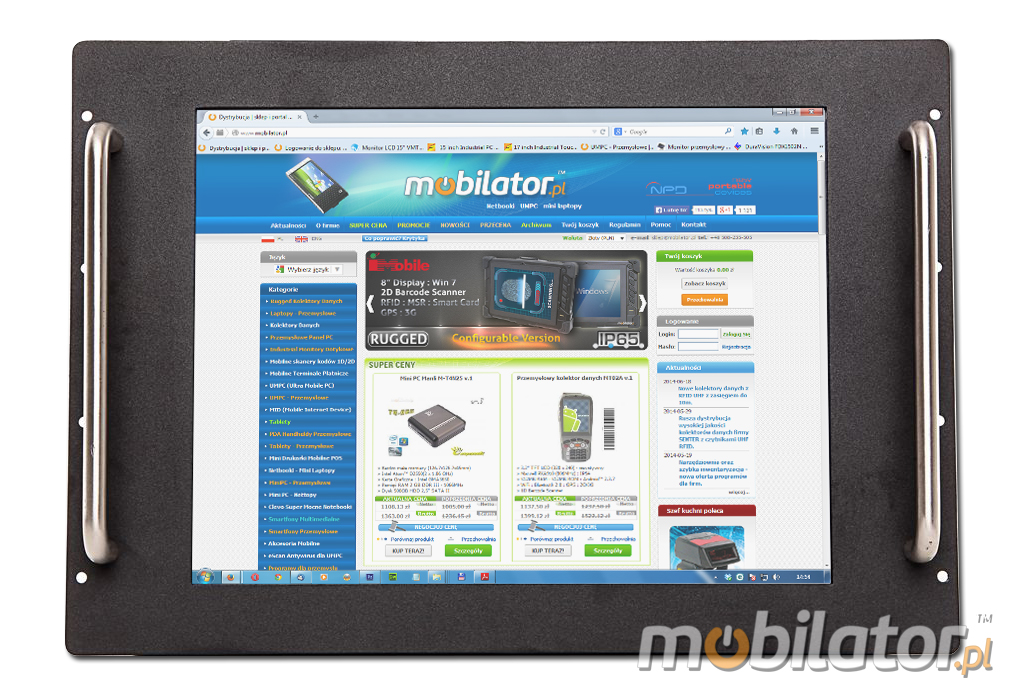

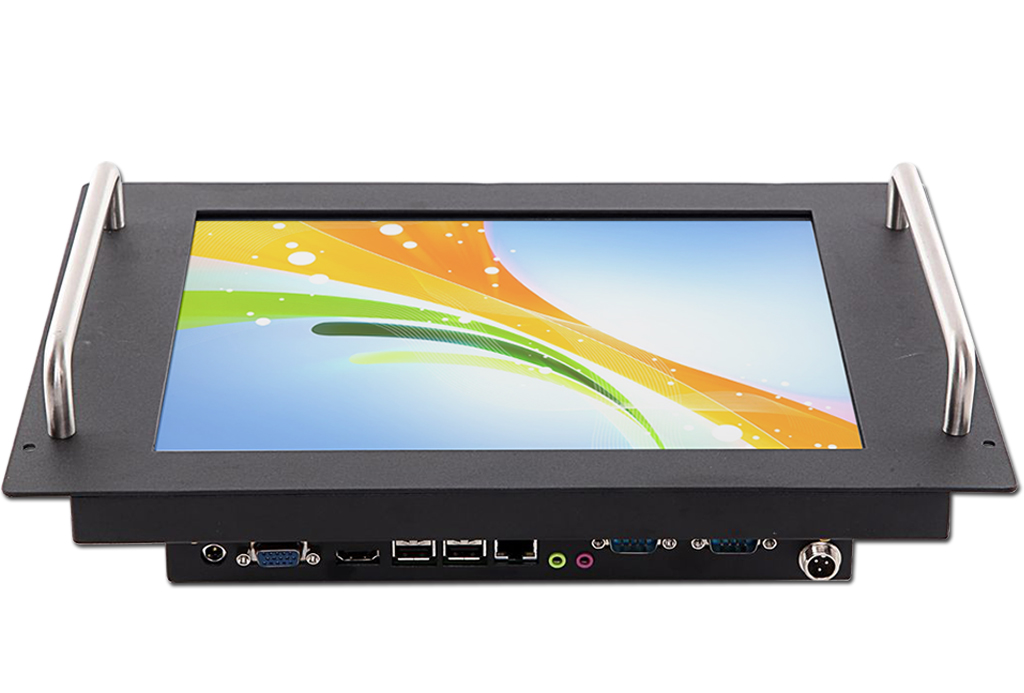

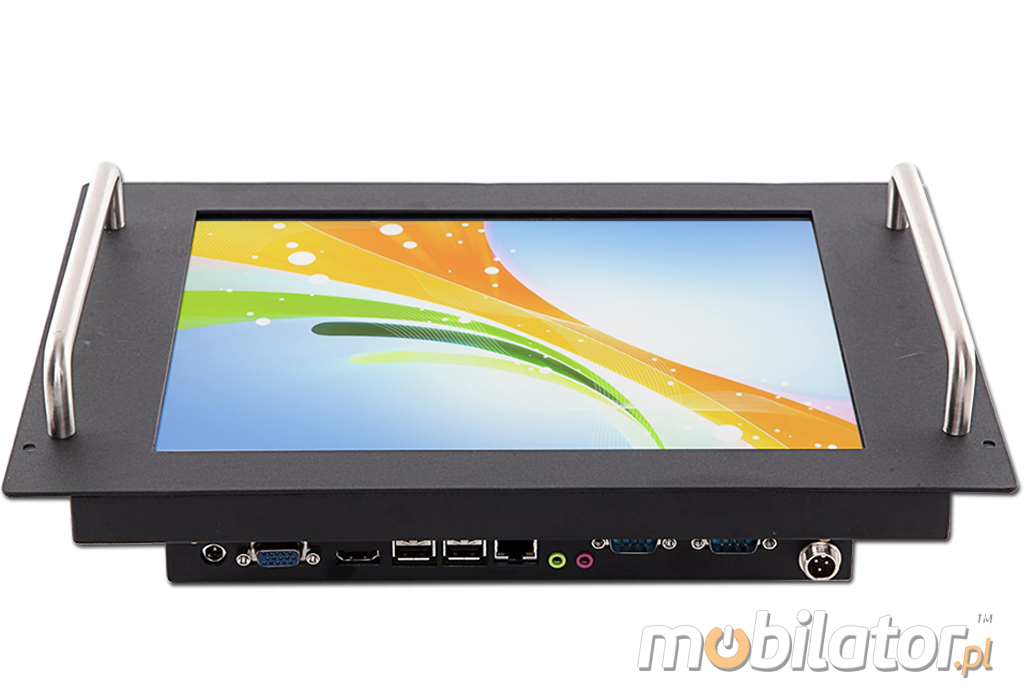

Industial RACK MOUNT Touch PC CCETouch CT12-3G-PC
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.
|
|
|
|
Industrial Panel PC
Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.
|
|
|
CCETouch
|
Industial RACK MOUNT Touch PC CCETouch CT12-3G-PC
|
|
|
 |
CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
|
|
|
Memory: 2GB RAM DDR3 SODIMM
|
|
|
Disk: 32GB SSD / 320GB HDD (option)
|
|
|
System: Windows 8.1/8 / Windows 7 / Windows XP / Linux
|
|
|
Screen: 12.1" / 800x600 / 4:3 / 5 - Wire Resistive
|
|
.png)
|
Expansion cards: None
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron™ processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 344 (W) x 240 (L) x 61.2 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 4.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.png)
Cooling:
Industrial Touch PC CT12-PC is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

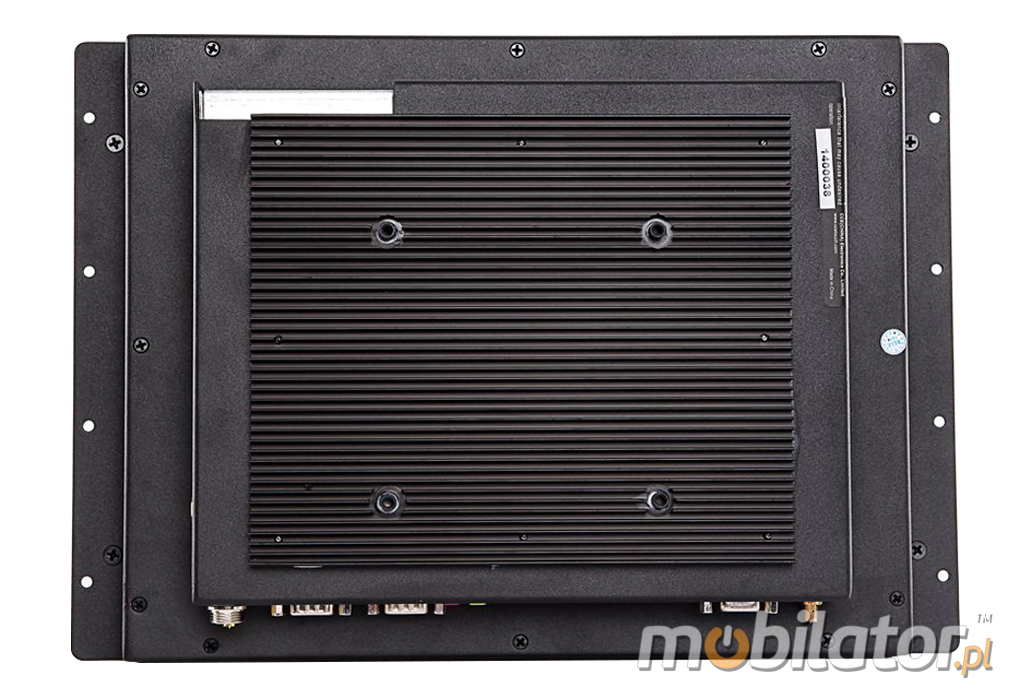

The industrial fanless RACK MOUNT Touch PC CCETouch CT12-PC uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Industial RACK MOUNT Touch PC CCETouch CT12-PC standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.
With 3G module panel PC will have, wherever access to the resources of the Internet without restrictions.
The GPS module installed in PanelPC enables user exact position location on the map, what extends PanelPC application to all types of vehicles.
Connector:

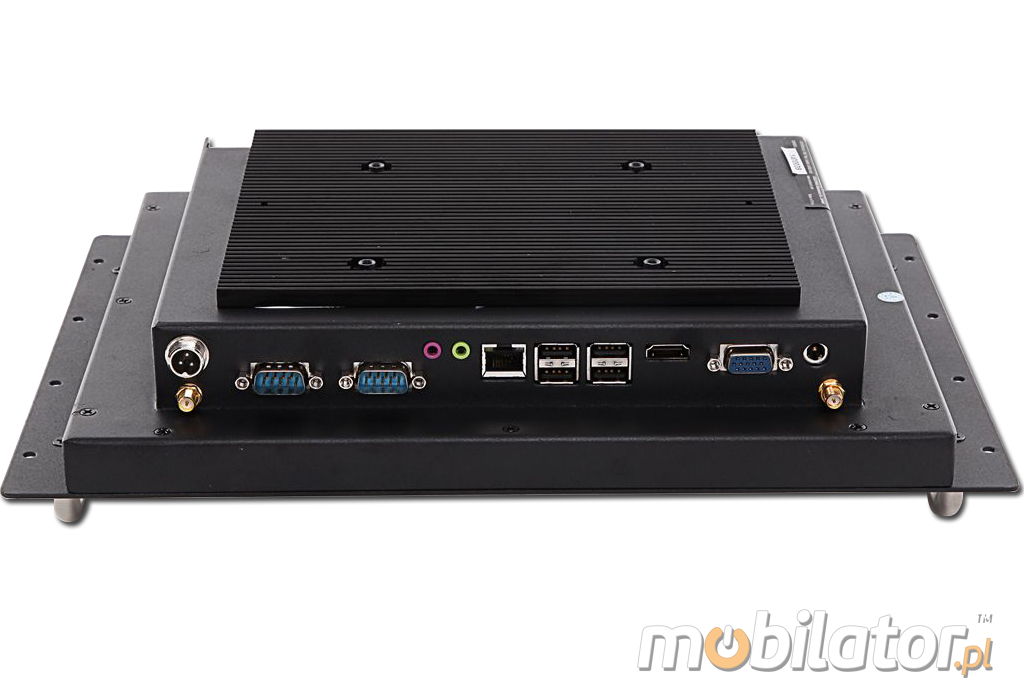

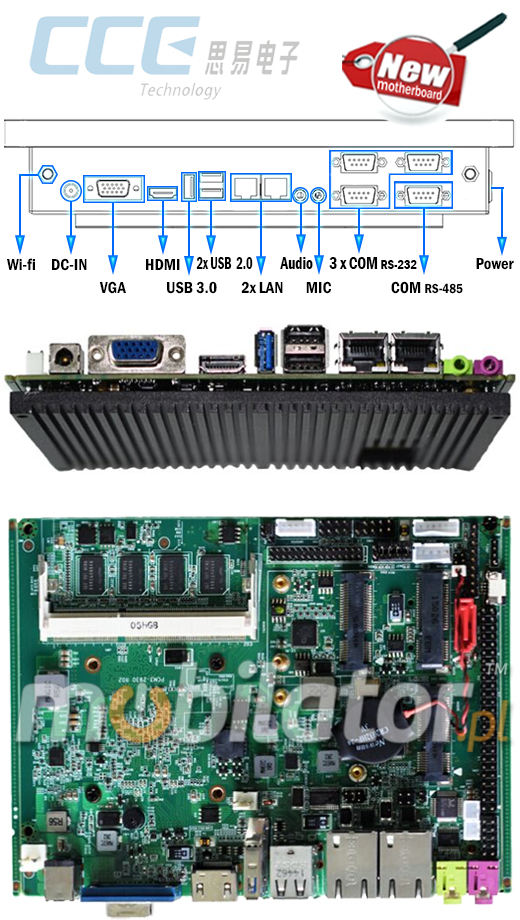

The integrated network card Intel RTL8111G 10/100/1000 Mbps LAN 2xRJ-45, WIFI allows you to connect the device to the network. The computer is equipped with: two LAN connector, three ports COM (RS232), one port COM (RS485), one VGA, one HDMI output, two USB 2.0 ports, one USB 3.0 port, one audio input, one input MIC, connector DC-in.
|
|
Industial RACK MOUNT Touch PC CCETouch CT12-PChas a water-resistant front panel and scratch resistant LCD screen with 3H hardness. With 800x600 resolution and high brightness of 400 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
5-WIRE RESISTIVE SCREENS
The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
Applicable standards and tests carried out.
Industial RACK MOUNT Touch PC CCETouch CT12-PC is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. CT12-PC is the best solution for extreme applications in dust or moisture.
|
Operating Temp
|
0-60 °C |
|
Operating Humidity |
5%-95%
|
|
Dust |
IP5x(dust) |
|
Water |
IPx4(drops of water)
|
Resistance IP54 - Front Panel
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top…  menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Industrial Panel PCs with CCETouch companies are based on the efficient quad-core processors and high-quality components..jpg)
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 9V - 30V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
|
go top… menu…
Display
|
Screen: 12.1"
Resolution: 800 x 600
Type: 5 - Wire Resistive |
Resistance IP
|
Front Panel: IP 54
|
Communication
|
Wi-Fi
3G
GPS
|
|
Dimensions
|
Height: 240 mm
Width: 61.2 mm
Length: 344 mm
|
|
Weight |
4.5 kg
|
|
Processor |
Intel® Celeron™ J1900 (4 x 2.0 GHz)
|
Chipset
|
Intel Bay trail
|
Memory RAM
|
2GB DDR3 (optional up to 6GB) |
Graphics Card
|
Intel® HD Graphics
|
Sound Card
|
Realtek ALC662 |
Network Card
|
Intel RTL8111G 1000M Lan |
|
Ports & interfaces |
3 x COM (RS-232)
1 x COM (RS-485)
2 x USB 2.0
1 x USB 3.0
2 x RJ-45
1 x Audio
1 x Mic
1 x HDMI
1 x VGA
1 x DC-in
|
|
|
|
|
Compare all versions
| Screen size: |
12.1" |
| Resolution: |
800 x 600 |
| Aspect ratio: |
4:3 |
| Touchscreen: |
Resistive Type 5-Wire |
| Chipset: |
Intel Bay trail |
| CPU Support: |
Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Installed CPU: |
Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Memory Support: |
do 6GB (max) DDR3 SODIMM |
| Installed Memory: |
2GB DDR3 |
| Graphic Card: |
Intel® HD Graphics |
| Audio: |
Realtek ALC662, 6 Channel High Definition Audio Codec 2x 2W loudspeaker |
| Storage (HDD) Support: |
32 - 512 GB SSD / 320 - 1TB HDD |
| Installed Storage (HDD): |
32 GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL 8111G, 10/100/1000Mbps, 2 x RJ45 |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
Yes |
| 4G LTE: |
|
| GPS: |
Yes |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1 x VGA
1 x HDMI
2 x USB 2.0
1 x USB 3.0
2 x RJ-45 LAN
3 x RS-232 COM
1 x RS-485 COM
1 x DC-in
1 x MIC
1 x Audio
1 x WIFI antenna |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
9-30V |
| Supported OS: |
Microsoft Windows: XP/Vista/7/8/8.1; Linux |
| Installed OS: |
----- |
| Dimensions: |
344 x 240 x 61.2 |
| Weight: |
4.5 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
5%~ 95% |
| Temp: |
0°C ~ 60°C |
| Storage Temp: |
-15°C ~ 70°C |
| IP Norm: |
Front panel |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP 54 |
| Dual display: |
Yes |
| Response time touch-panel (ms): |
< 10 |
| Contrast Ratio: |
700:1 |
| Brightness: |
400 cd/m2 |
| Viewing Angle: |
160;160 |
| Backlight MTBF: |
LED/30,000 h |
| Color Resolution: |
16,2 M |
| Surface hardness (display): |
3H |
| Touch Life(contacts): |
>10.000.000 times |
| Housing material: |
Aluminum |
| Mounting VESA: |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
32 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
|
