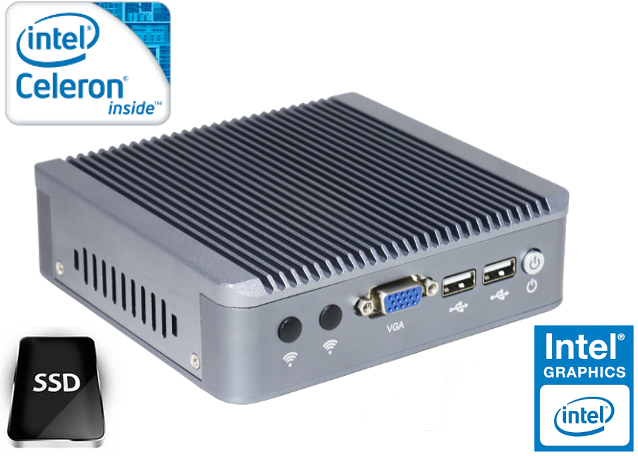

Industrial Computer Fanless MiniPC Nuc IBOX-501 N8 v.1
|
|
| CURRENT PRICE |
| 255.16 € |
Net |
| 313.85 € |
Gross |
|
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
MiniPC Nuc IBOX-501 N8 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 134 (W) x124 (L) x36 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4/8GB DDR3 memory. Disks offer free space 32GB/64GB/128GB SSD.
.jpg)
|
|

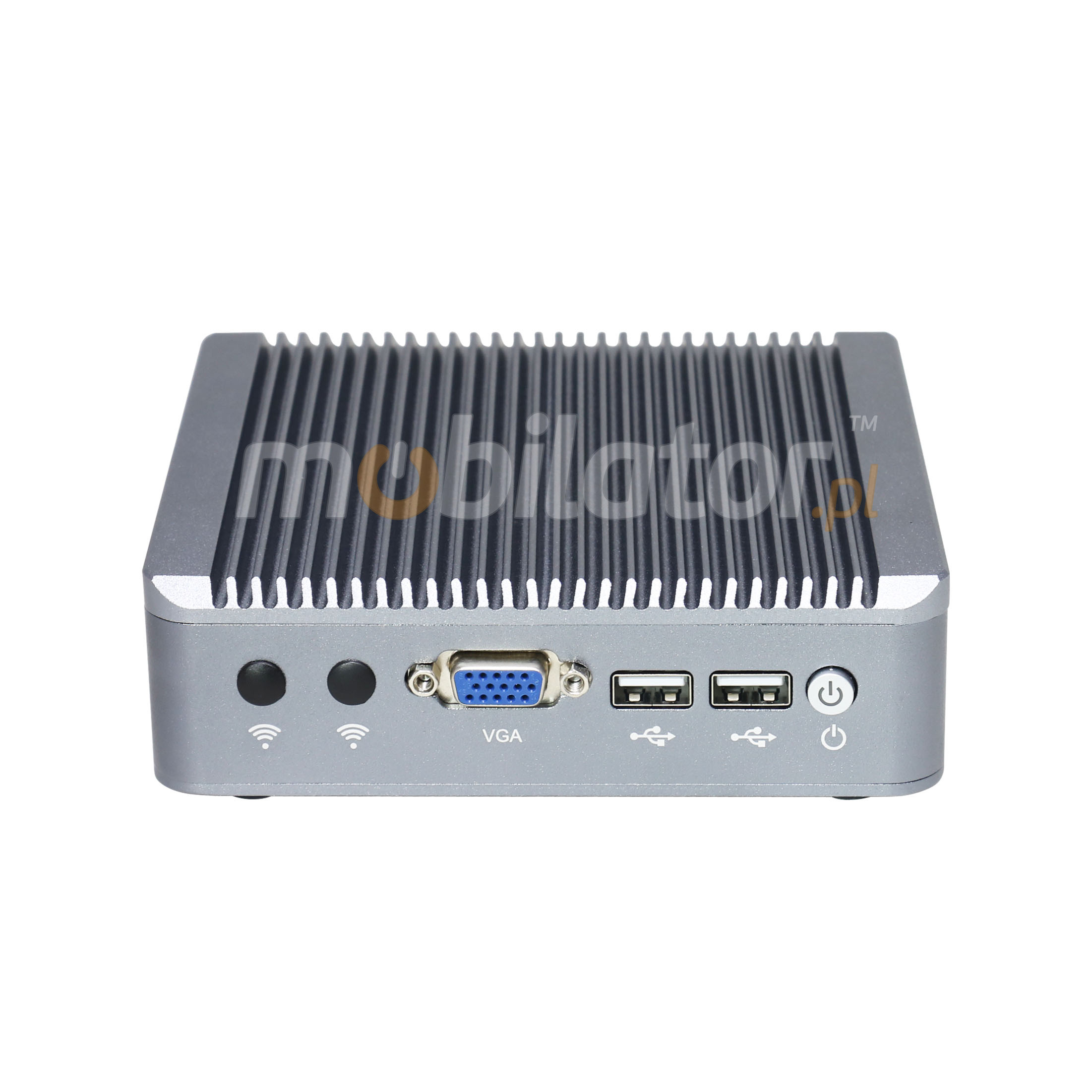

Integrated card - Intel WG82583 1000M Lan allows connection to the network. The computer is equipped with: two LAN ports, one VGA port and two USB 2.0 ports and a built-in connector on the motherboard: SATA port, MiniSATA port, one Mini-PCIE connector and one CPU Fan connector..
|
|
Cooling

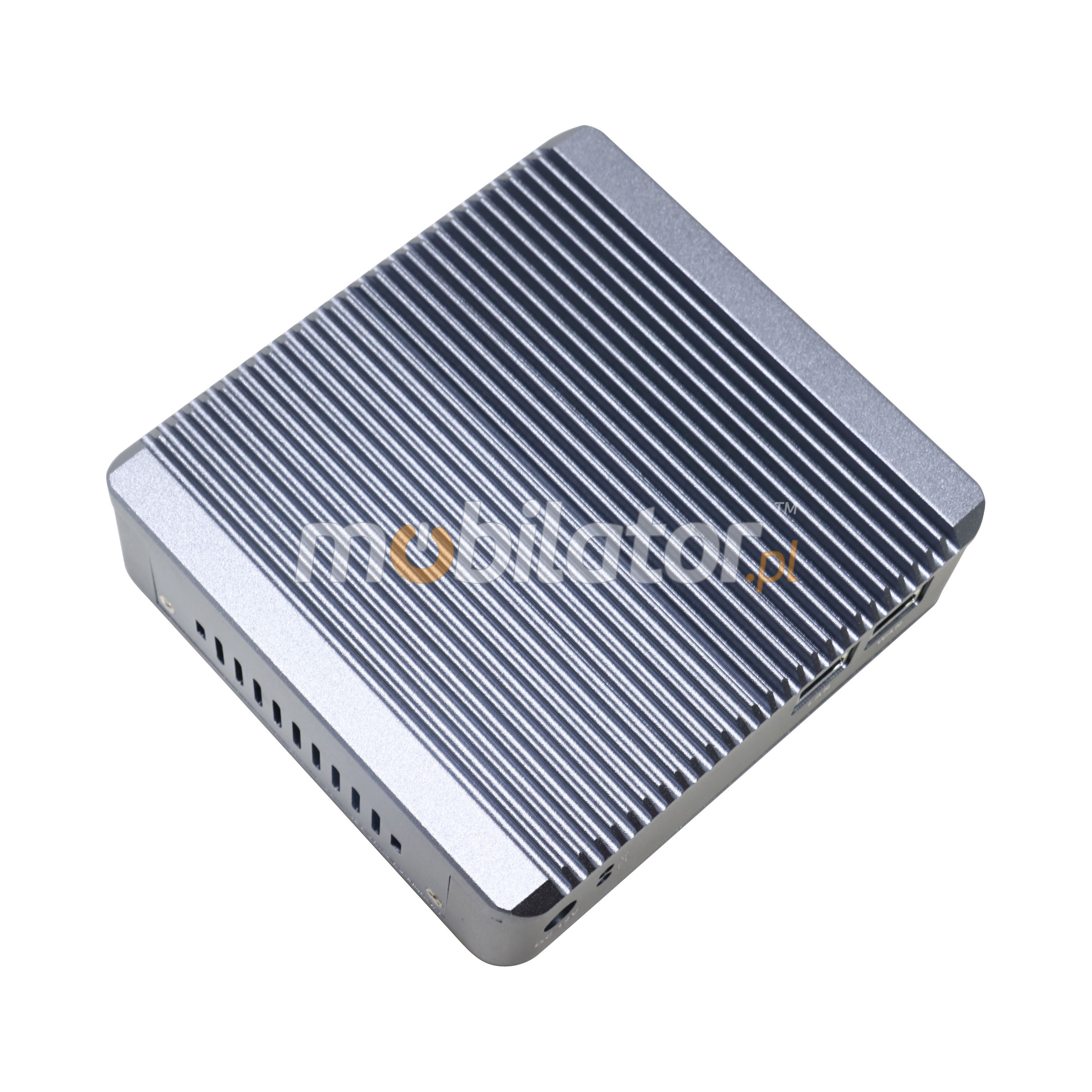

The industrial fanless MiniPC Nuc IBOX-501 N8 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
go top…  menu…
|
|
|
|

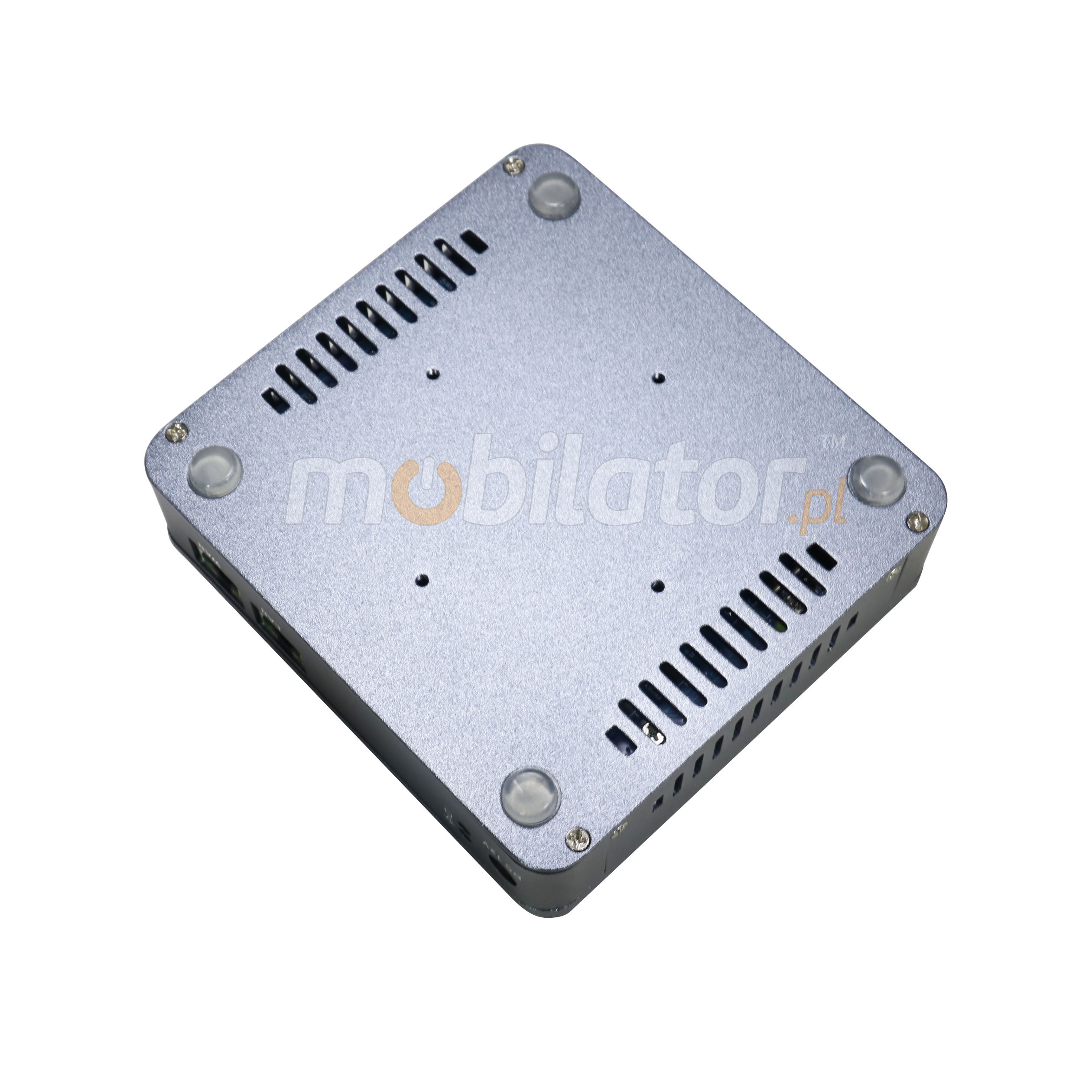

Industrial MiniPC Nuc IBOX-501 N8 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.jpg) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial MiniPC
Digital Engine
.jpg)
|
Trade
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Magazine
Industrial fanless MiniPC Nuc IBOX-501 N8 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport and cars
MiniPC Nuc IBOX-501 N8 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
|
|
Dimension
|
H: 36 mm
L: 124 mm
W: 134 mm
|
Processor
|
Intel Celeron J1900 Quad Core(2x2.42GHz)
|
Chipset
|
Intel express chipset |
RAM Memory
|
2/4/8GB DDR3
|
Graphic Card
|
Intel HD Graphics
|
WLAN
|
Intel WG82583 Gigabit 1000M Lan |
|
Connectors |
1x 12V DC Jack
2x USB 2.0
2x RJ-45 LAN
1x VGA
|
|
|
|
|
Compare all versions
| Others: |
Colour Black |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Celeron J1800 Dual Core (2x2.42GHz) |
| Memory Support: |
SO DDR3L 1.35V (max. 8GB) |
| Installed Memory: |
2GB DDR3 |
| Graphic Card: |
Intel HD Graphics |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
32 GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
2 x Intel WG82583 1000M Lan |
| Wireless LAN card: |
----- |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
0 ~ 255 sec |

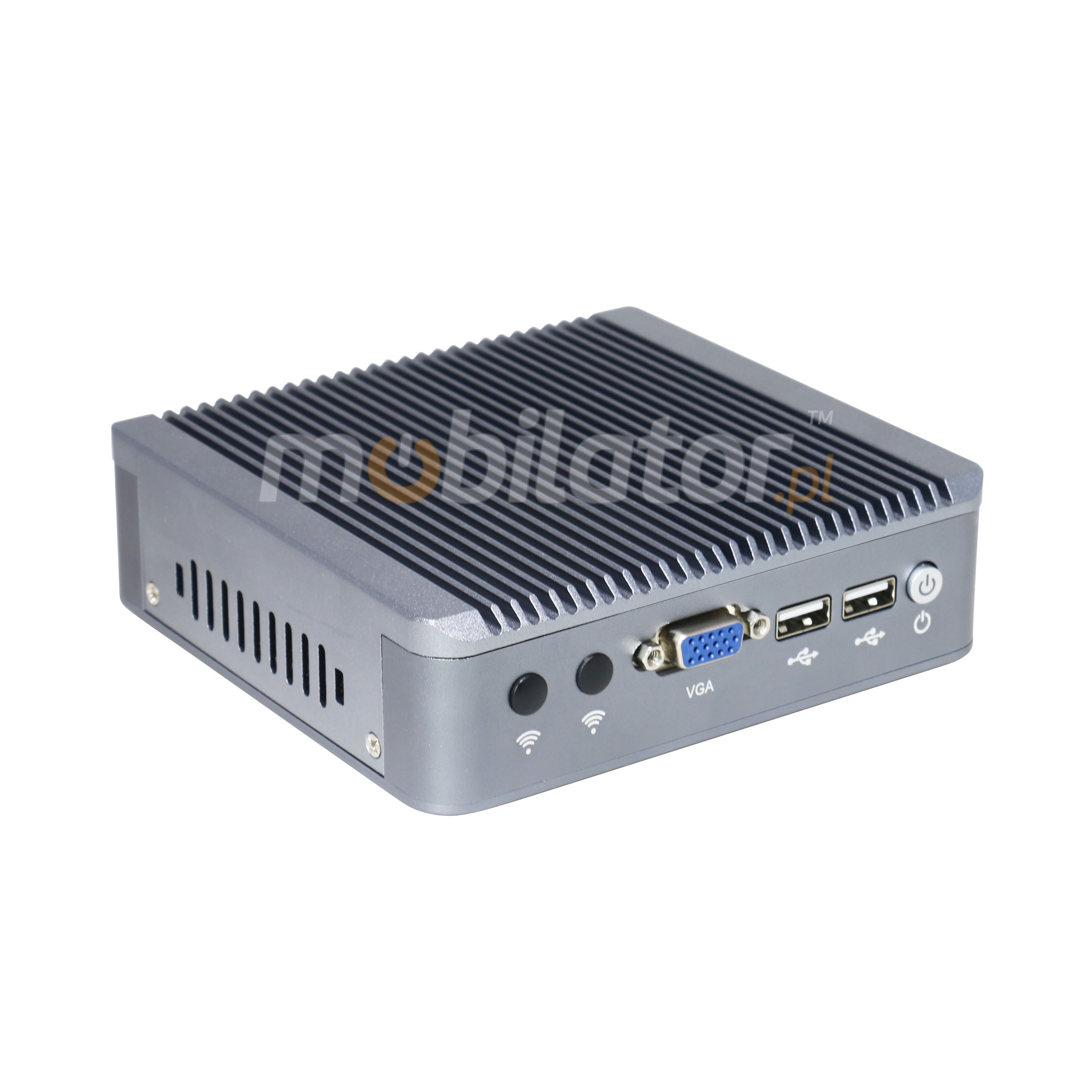

| Front Panel (ports): |
2x USB2.0, 1x VGA, Power ON/OFF |

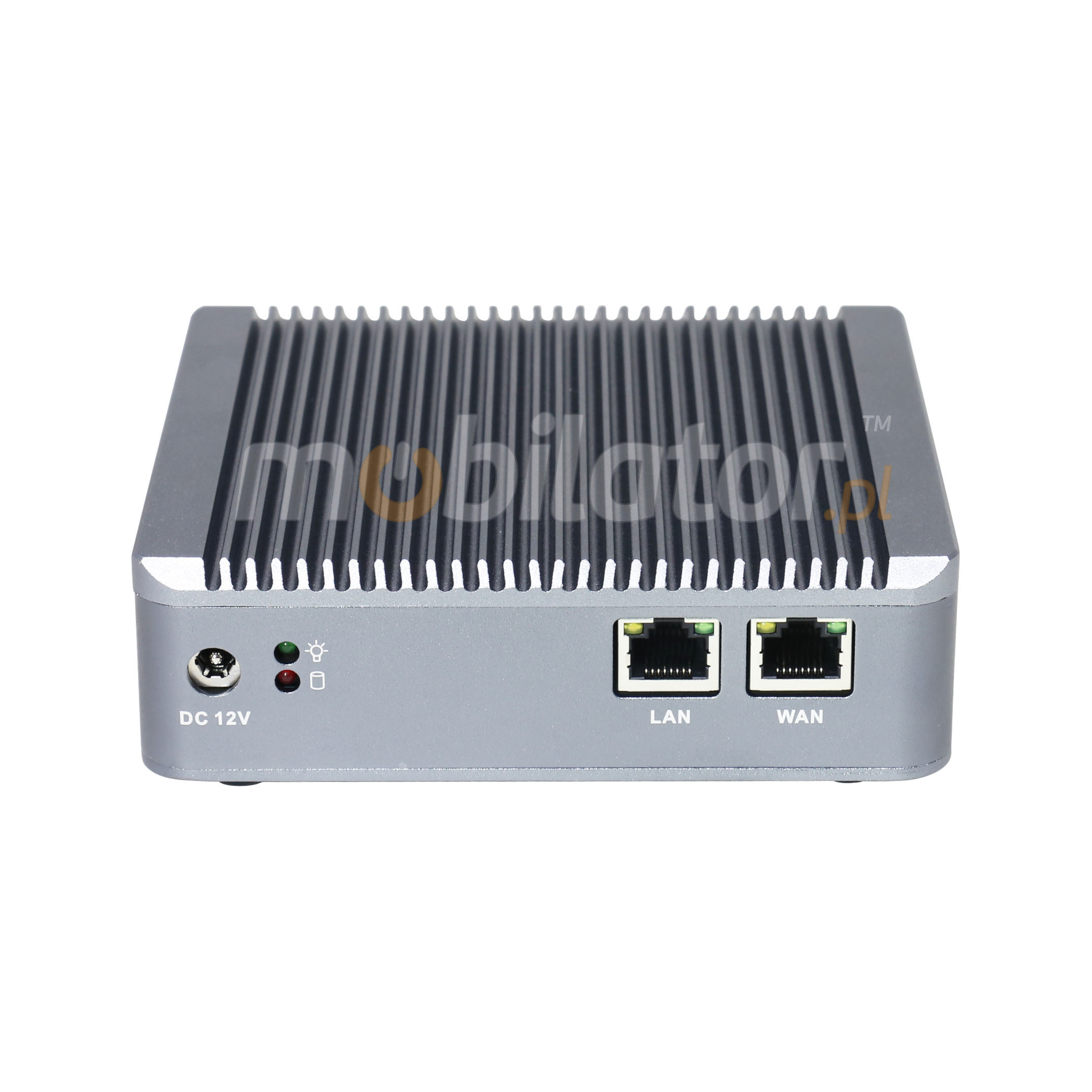

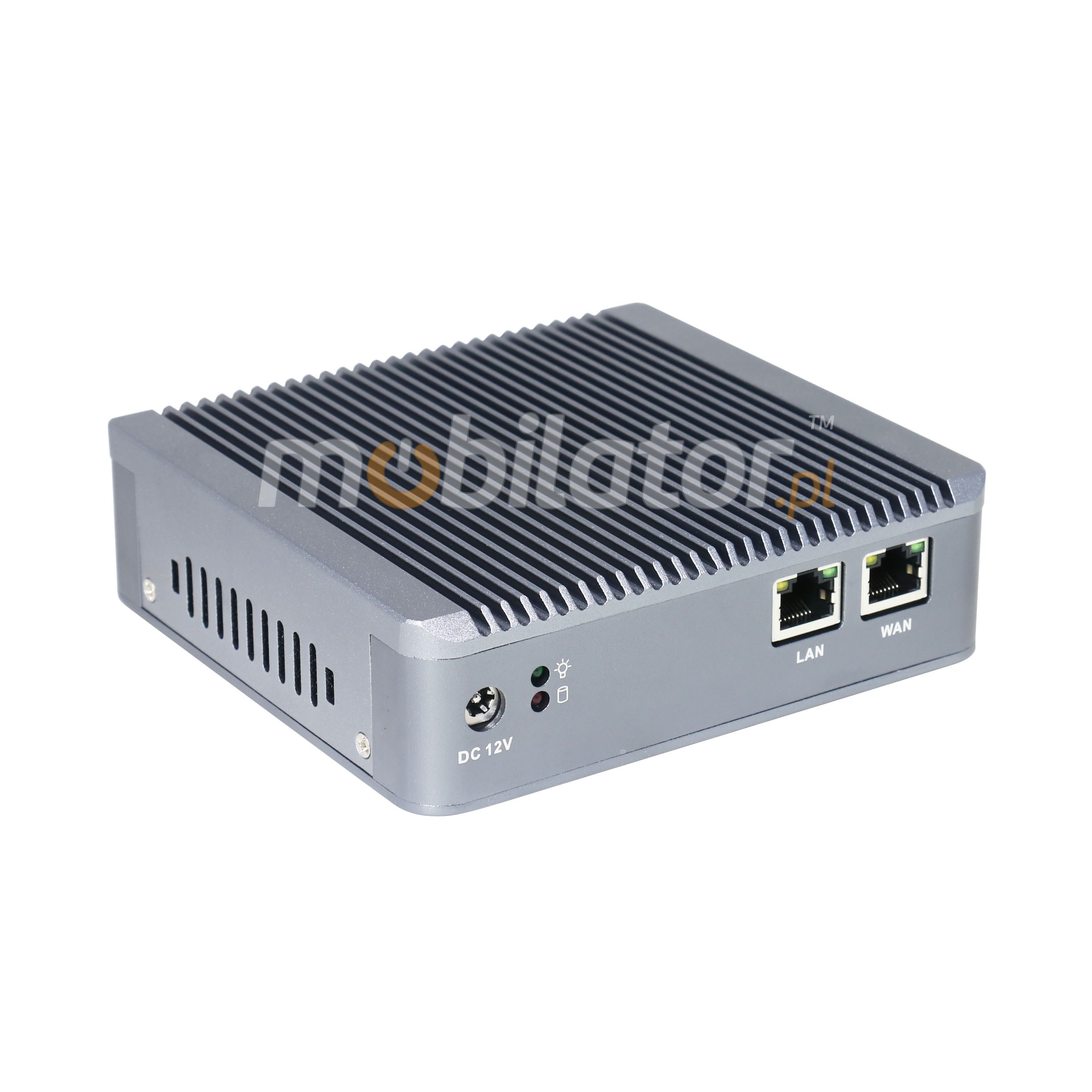

| Rear Panel (ports): |
DC-IN 12V, 2x RJ-45 LAN |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
134 x 124 x 36 mm |
| Weight: |
----- |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0 ~ 95% |
| Temp: |
-20 ～60℃ |
| IP Norm: |
----- |
| Storage temperature: |
-20 ~ 60℃ |
Compare all versions
