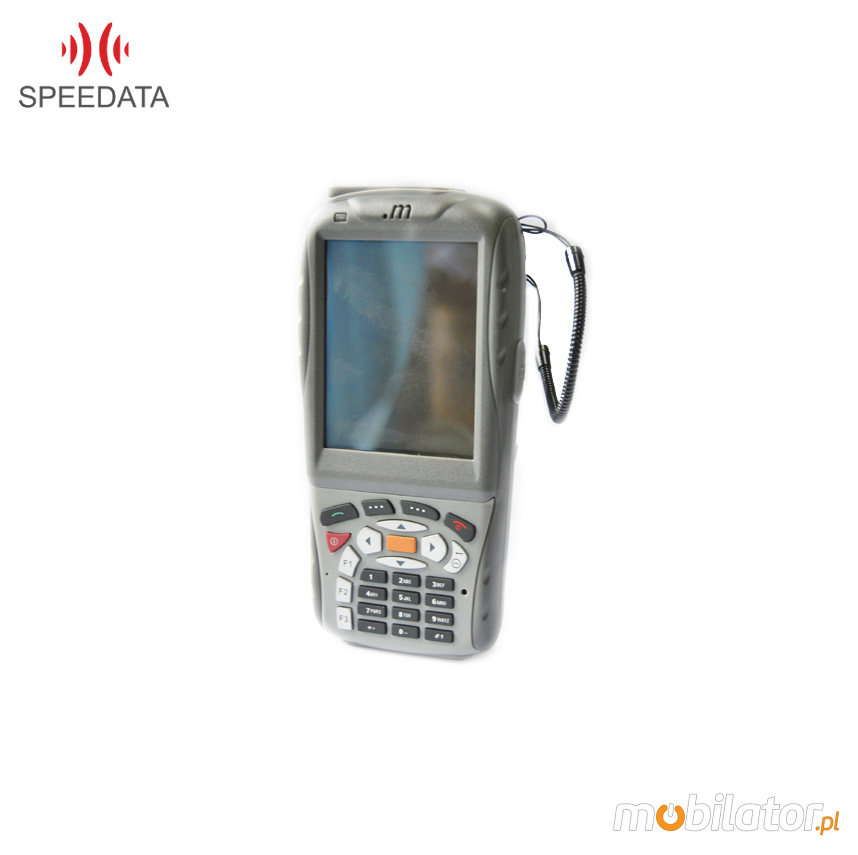

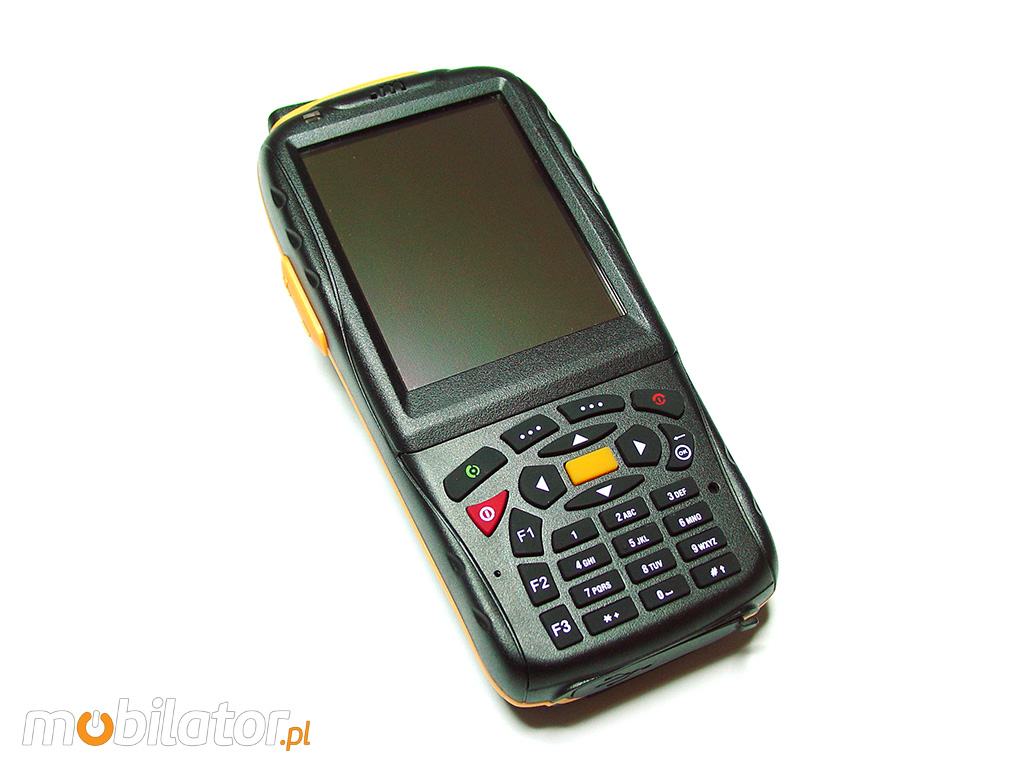

Rugged data collector TT32CBW v.5

Data update: 2015-03-19

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

Description
Available versions
Collection and processing of data
Resistance
Modules and Wireless Networks
Minimalism

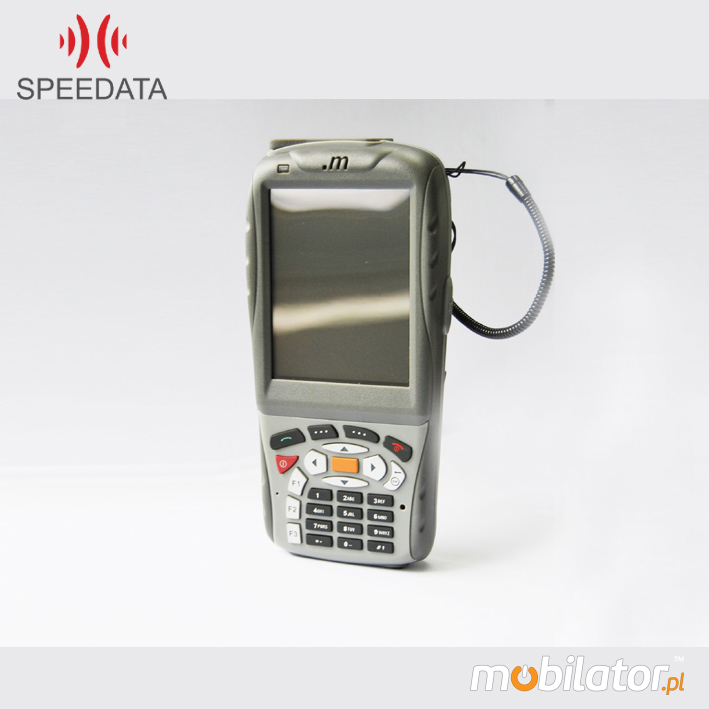

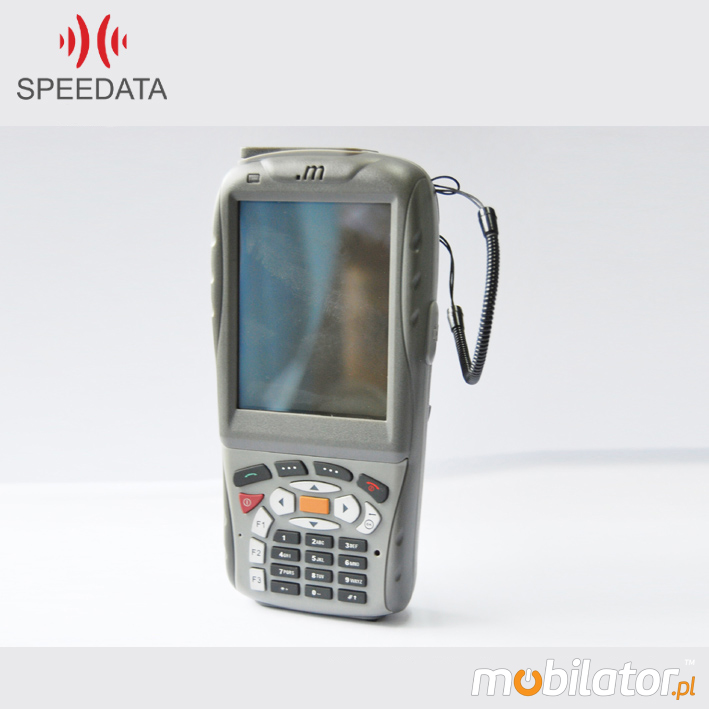

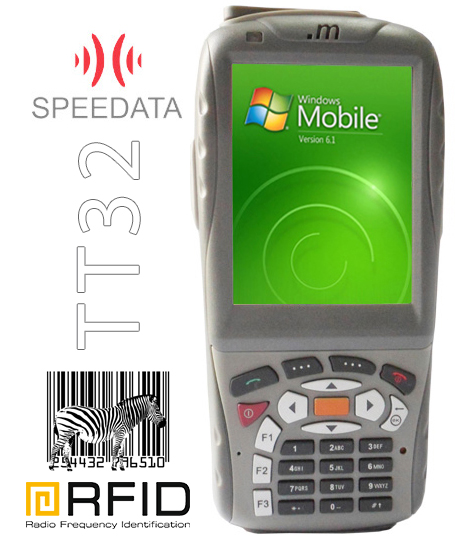

Speedata TT32CBW has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, the equipment produced for the military, meets the requirements of IP54. Thanks to this structure is resistant to dust and water. The device is ideal writes in the home and industry.

Description

kolektor danych speedata tt32 klawisze funkcyjne wifi bluetooth

Processor	Texas Instruments 3715 (ARM Cortex-A8) 1Ghz
Display	3.2" TFT LCD (320x240) - Resistive
RAM	512MB
ROM	512MB
Connectors	Micro SD : USB HOST/RS232 : USB 2.0/MiniUSB : SIM
GPS	GPS Standard
Audio	Speaker

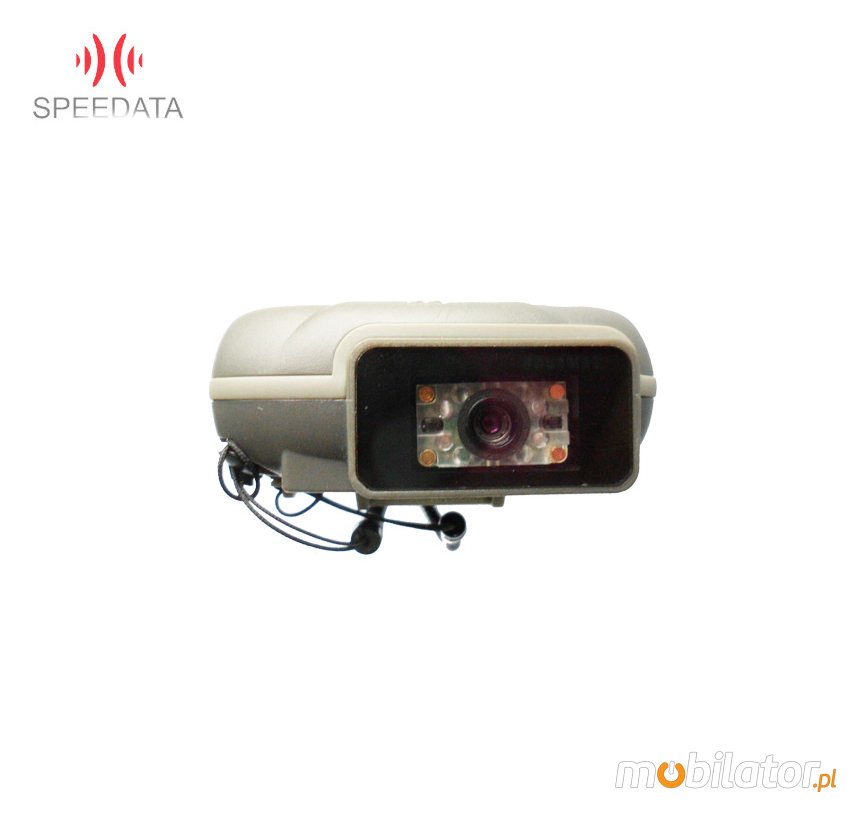

Camera	5Mpx (Auto-Focus)
Battery	3600mAh Li-Ion

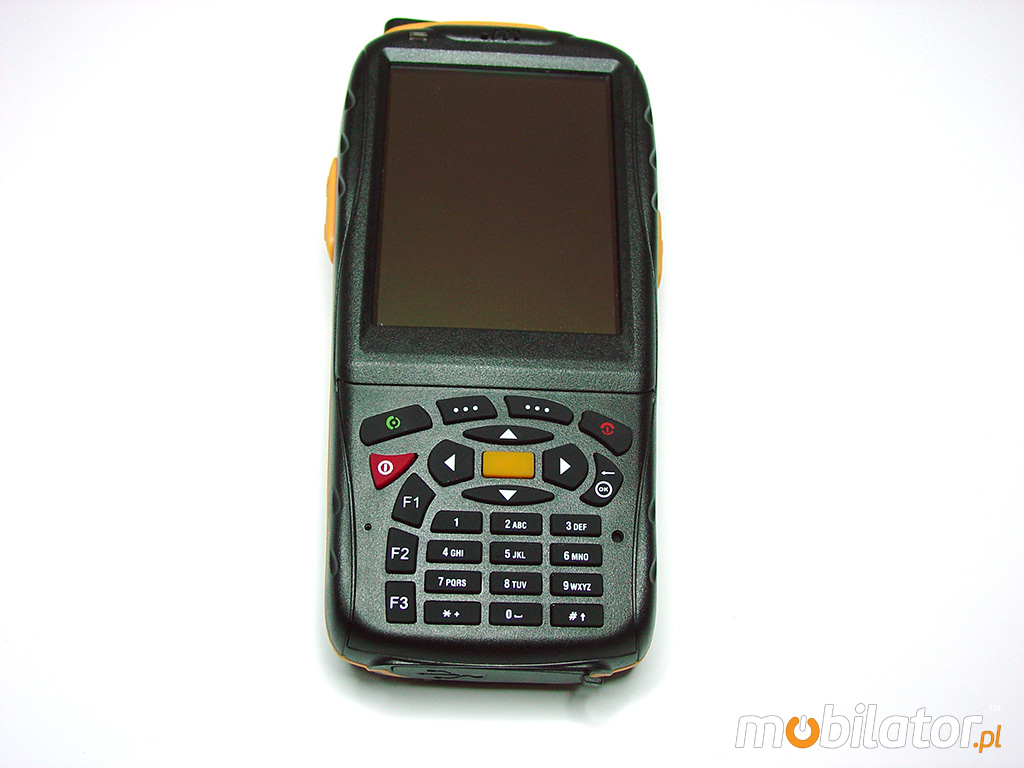

Keyboard	Alphanumeric + Function keys : On-Screen
Environment (choice)	Windows Mobile 6.1/6.5 \| Windows CE 6
Modules (factory)	2G/3G \| WiFi b/g \| Bluetooth 2.1+EDR \| GPS
	850/900/1800/1900MHz, GPRS, EDGE
	UMTS 850/900/1900/ 2100MHz HSPA
Weight	149 x 72 x 28mm - 320g
Resistance	IP54
Readers (optional)	IPOR \| RFID HF \| RFID HF+ \| 1D \| 2D \| u-blox LEA-6N \| u-blox LEA-6T
Warranty	12 months (optional - 24 months)

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Available versions

Select a version tailored to your needs. Clicking on the number of hardware configurations will be redirected to the product of the parameters listed below. At the customer's request can be created configuration available in the offer. Detailed parameters are available in the "Technical data".

	0.1	v.1	v.2	v.3	v.4	v.5	v.6	v.7	v.8	v.9	v.10	v.11	v.12	v.13	v.14	v.15	v.16	v.17
3G
Camera (Rear)
PSAM	-	-		-	-	-	-	-		-	-	-	-	-		-	-	-
RFID HF	-	-			-	-	-	-	-	-	-	-	-	-	-	-	-	-
RFID HF+	-	-	-	-	-						-						-
(1D) Motorola SE955	-	-	-	-							-	-	-	-	-	-	-	-
(1D) Newland EM1300	-		-		-	-	-	-	-	-	-	-	-	-	-	-	-	-
(2D) Newland EM3000	-	-	-	-	-	-	-	-	-	-							-	-
(2D) Motorola SE4500SR	-	-	-	-	-	-	-		-	-	-	-	-	-	-	-
FAR-INFRARED	-	-	-	-	-	-	-				-	-	-				-	-
u-blox LEA-6N	-	-	-	-	-	-		-	-	-	-	-	-	-	-	-	-	-
u-blox LEA-6T	-	-	-	-	-	-	-	-	-		-	-		-	-		-	-

go top… menu…

Collection and processing of data

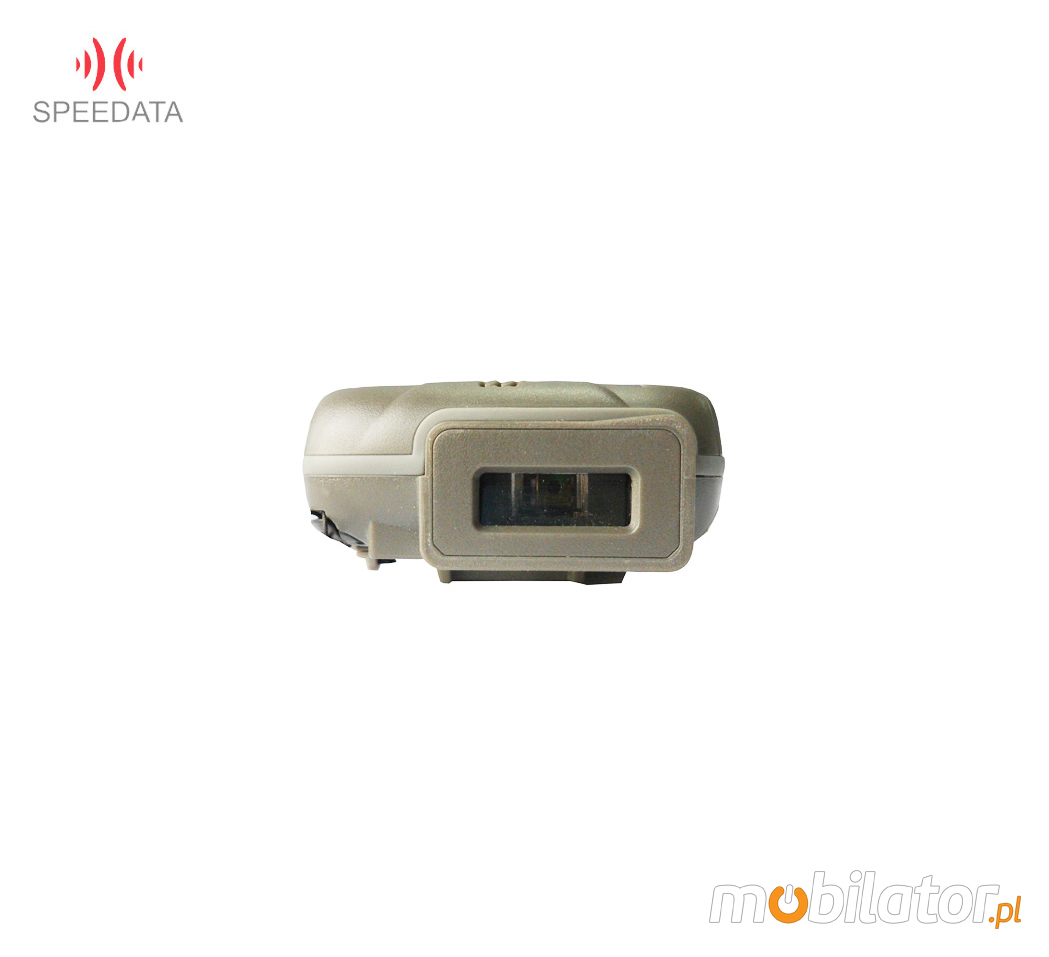

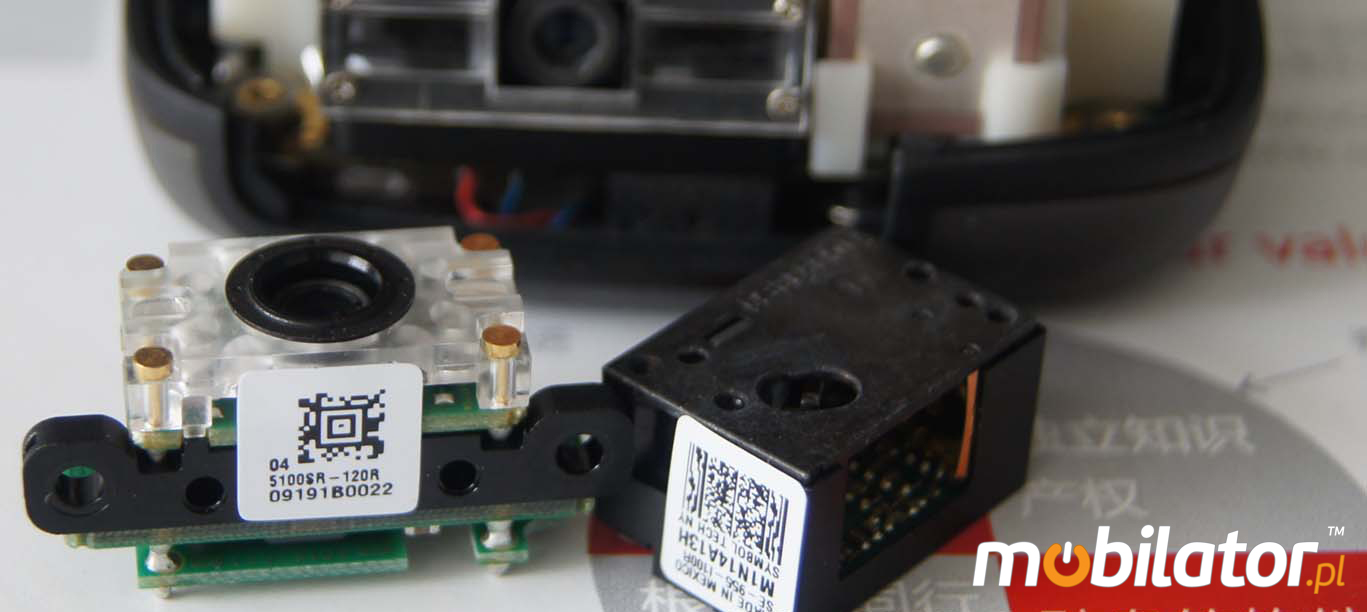

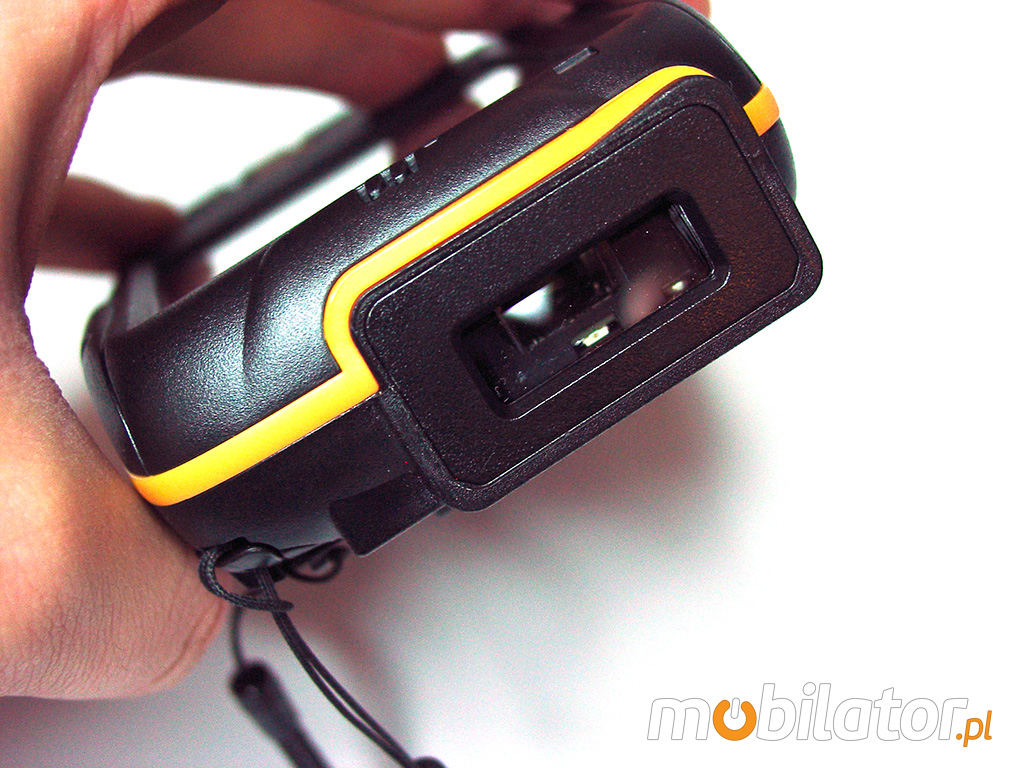

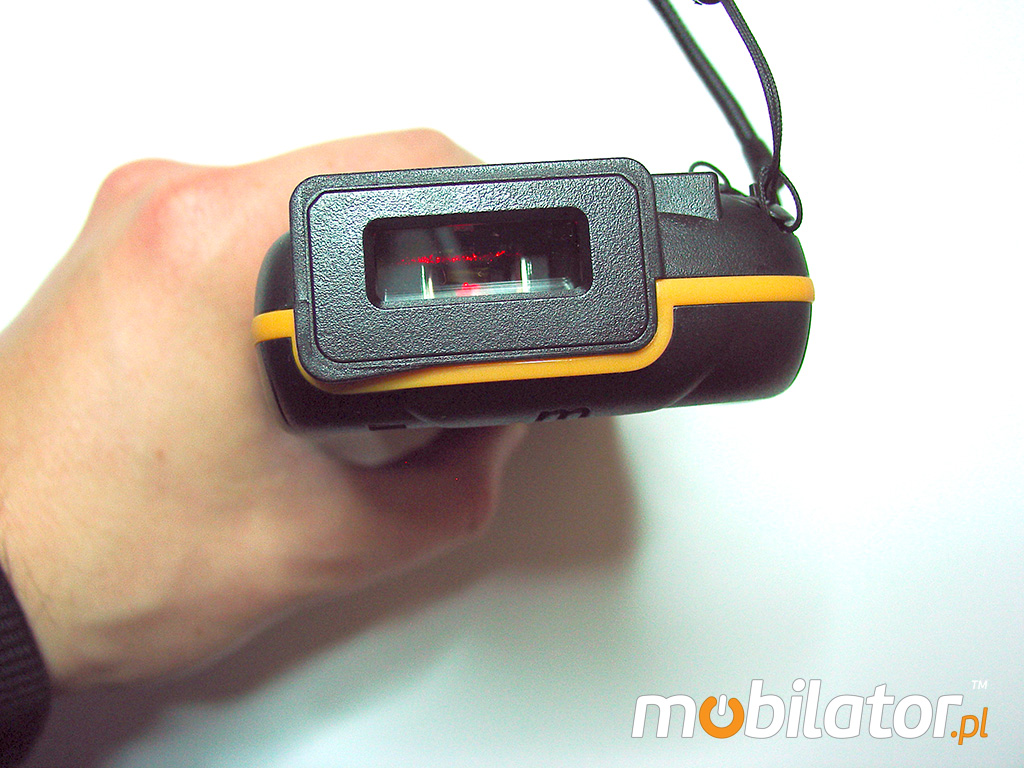

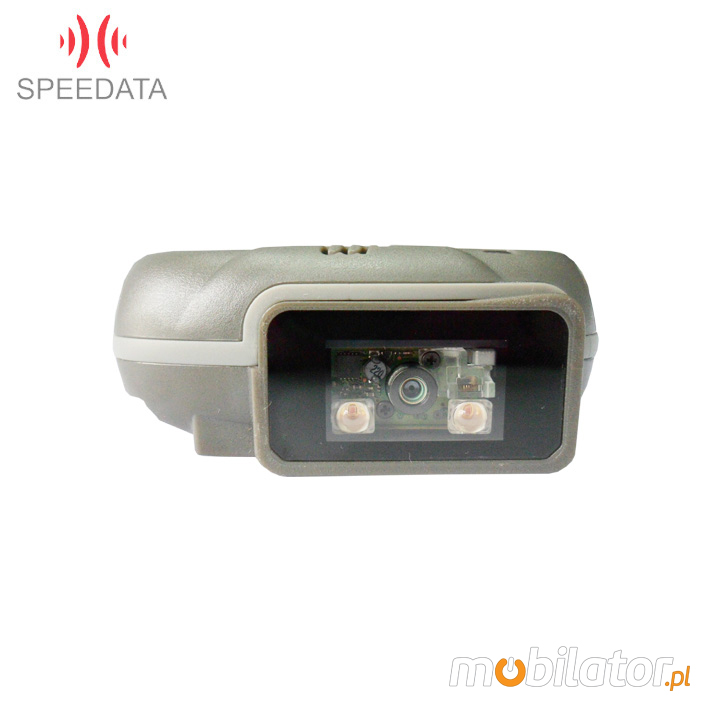

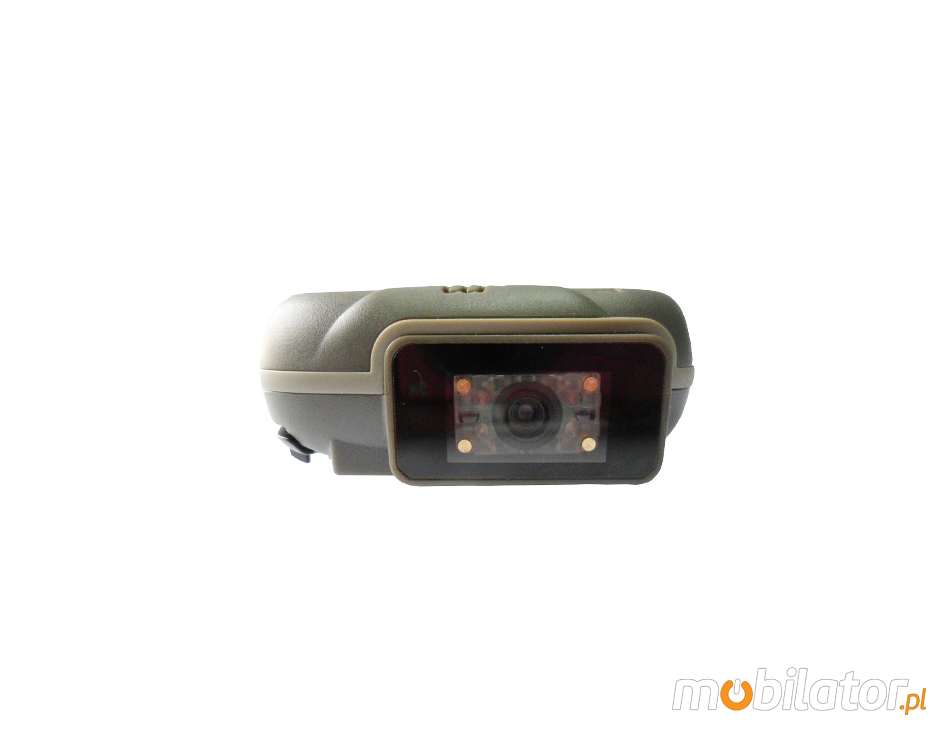

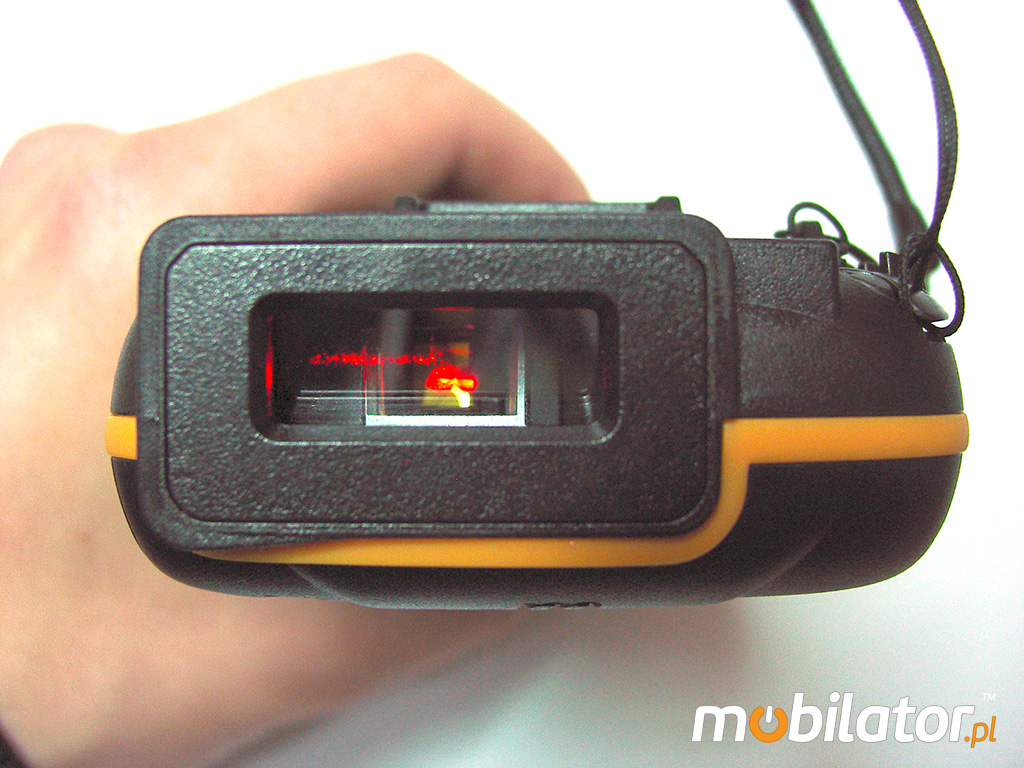

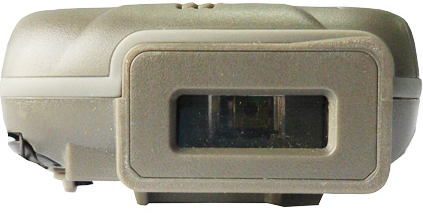

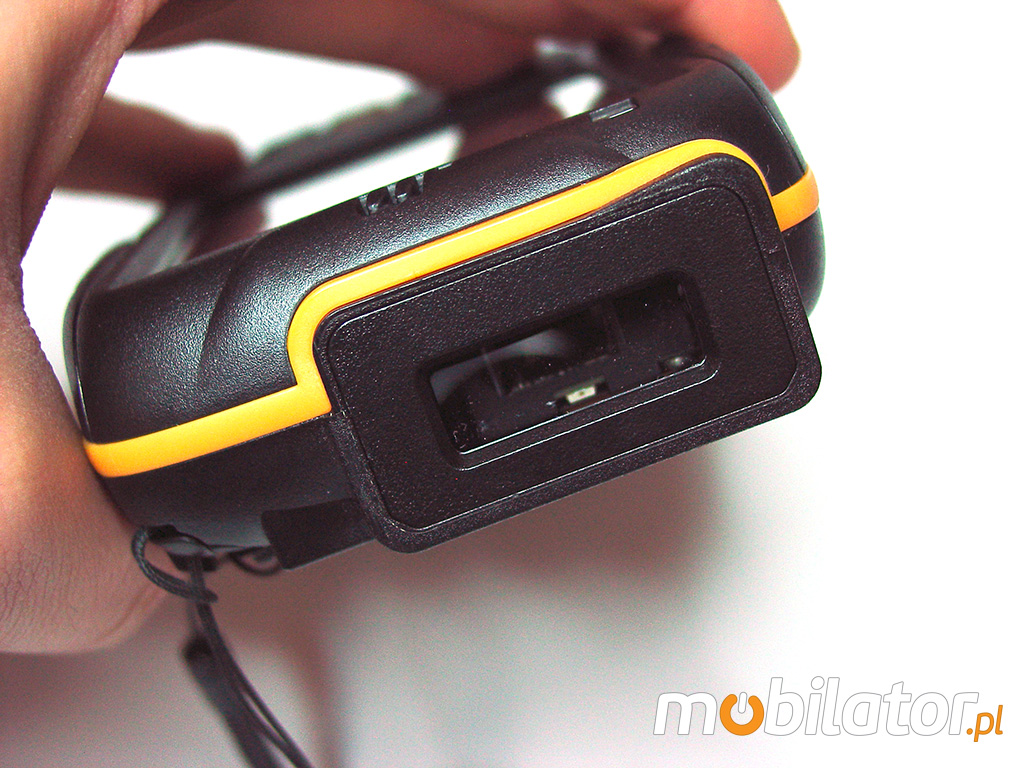

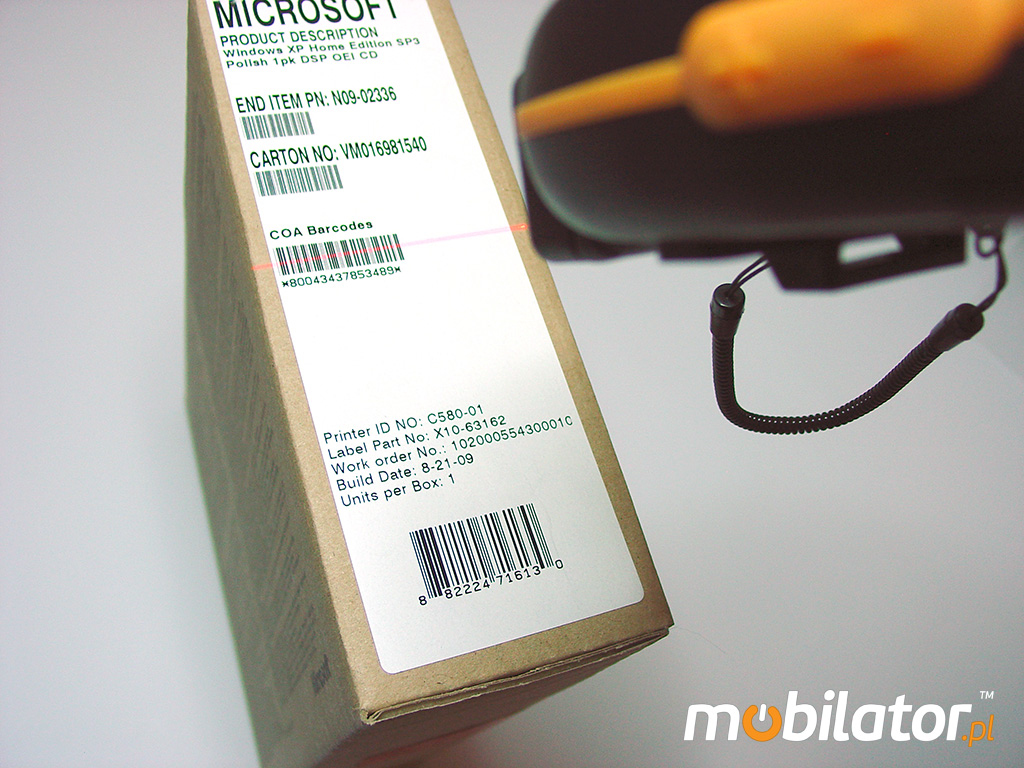

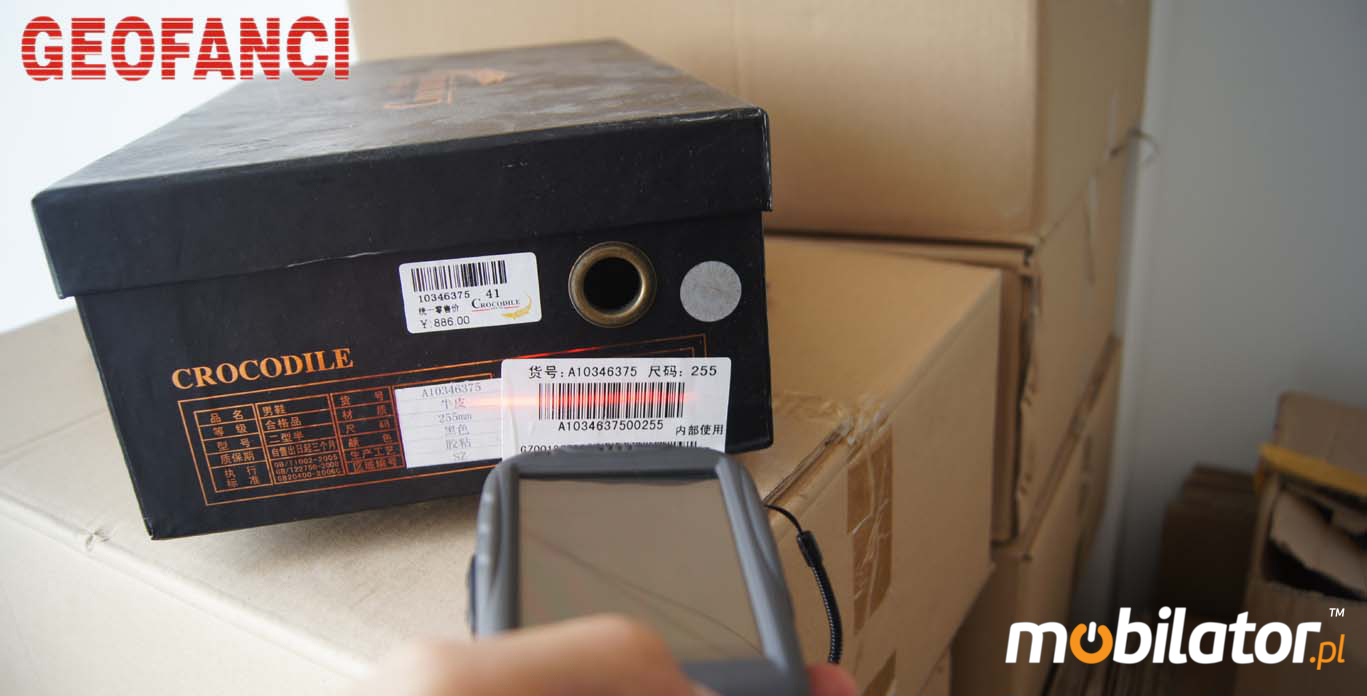

Barcode Scanner

Barcode Reader allows you to read, decode and transfer to your computer data stored in the barcode. With dynamic scanning capabilities and the large range of reading, data collector carefully collected data, which helps to increase the rate and efficiency. The whole can quickly start because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

1D	2D
NEWLAND: EM1300 (CCD)	NEWLAND: EM3000 (CMOS)
MOTOROLA: SE955 (LASER)	MOTOROLA: SE4500 (BI-DIRECTIONAL)

barcode scanner kody kreskowe skaner kodów kreskowych kolektory danych

Far-infrared meter reading (IPOR)

Optical rangefinder in the tablet industry TT32 prove you that the lines are gone. Built-in rangefinder will allow you to easily and accurately measure the distance without having to rebuy an additional device.

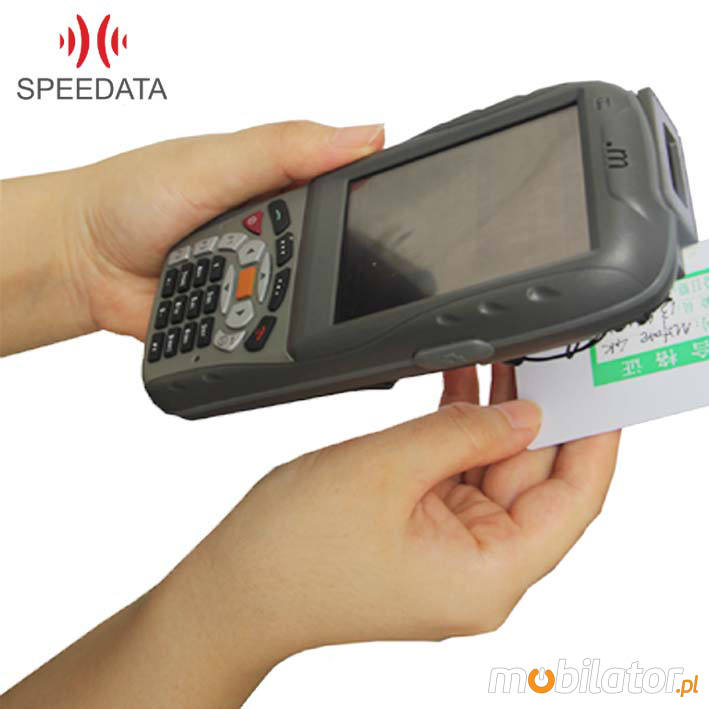

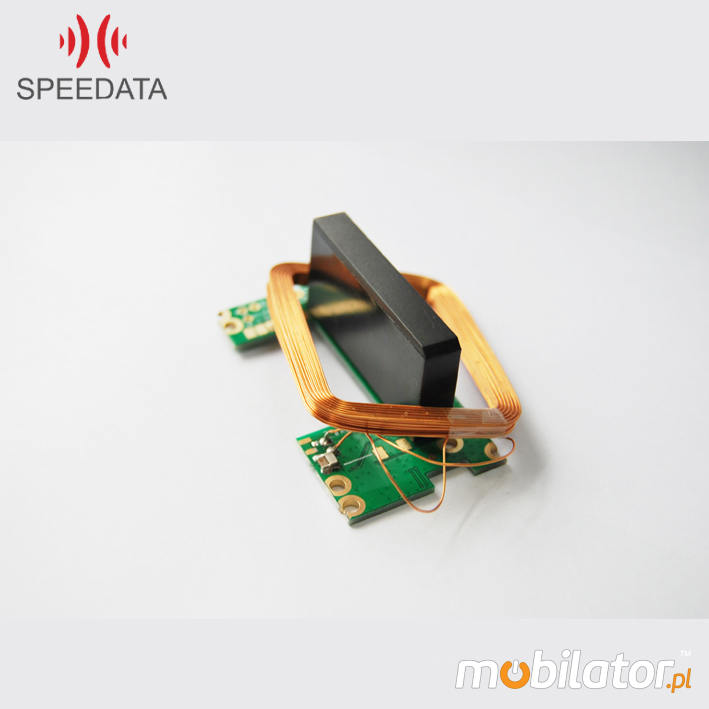

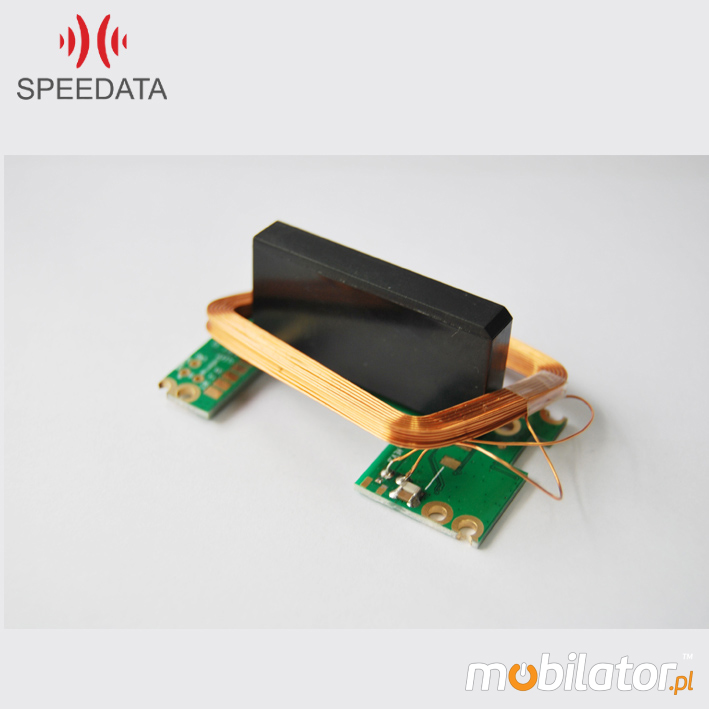

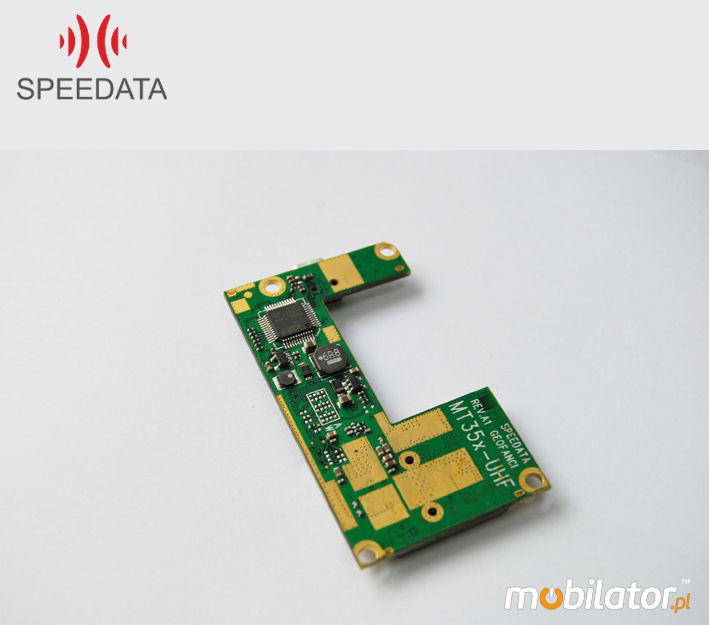

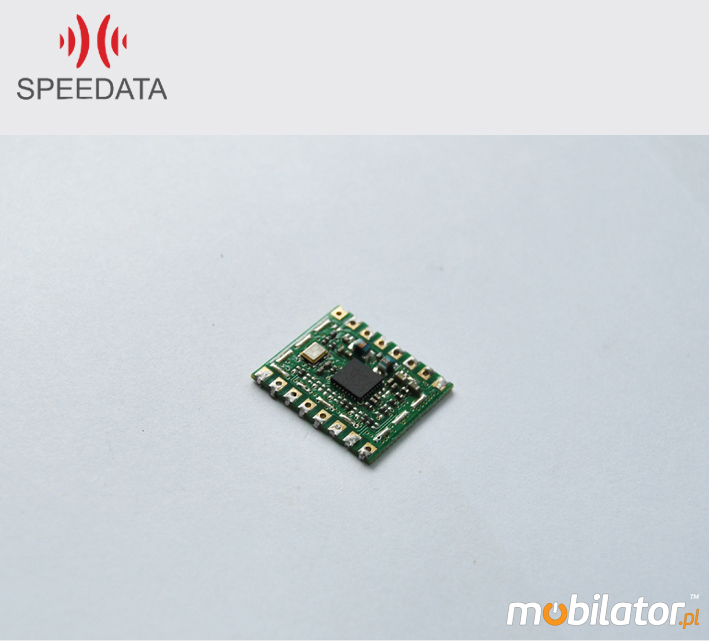

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

RFID - HF	RFID - HF +
13.56 Mhz	13.56 Mhz
ISO14443 A/B	ISO14443 A/B
	ISO15693

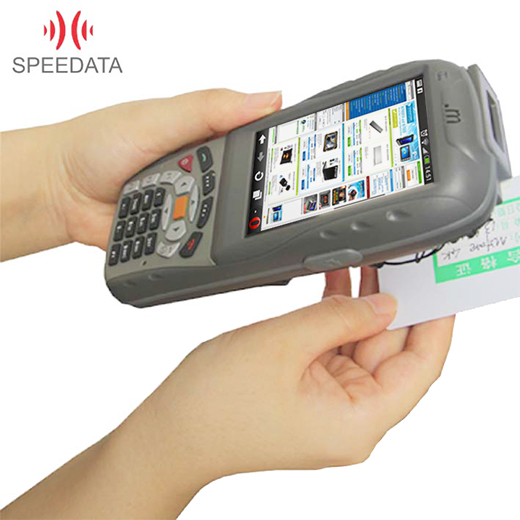

speedata tt32cbw rfid uhf hf

go top… menu…

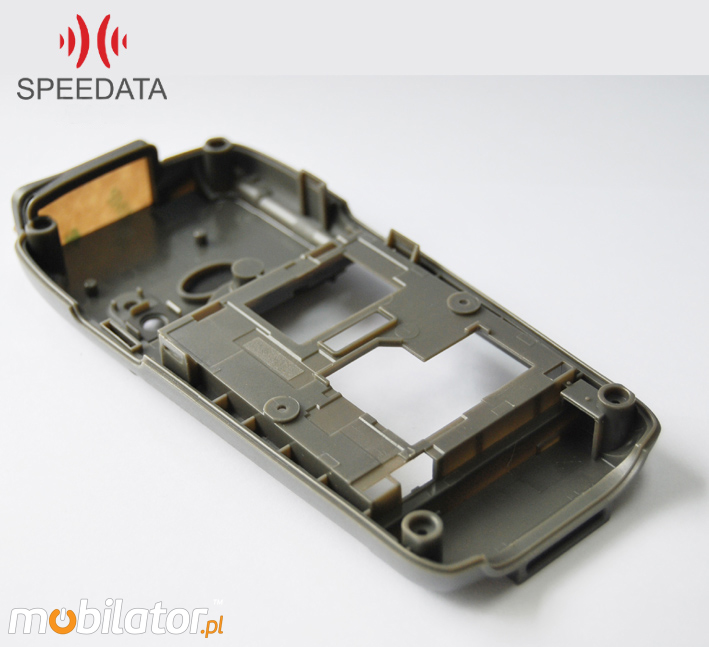

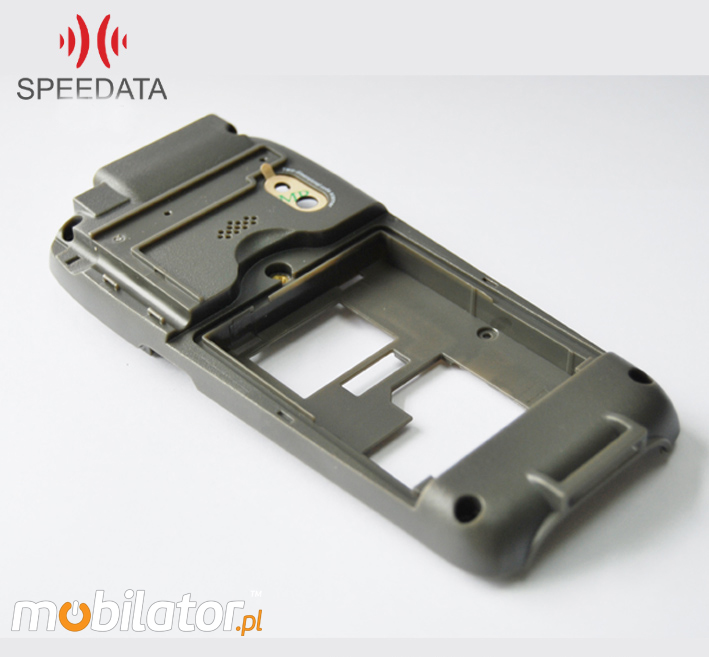

Resistance

Applicable standards

Operating	-15°C -- +50°C
Storage	-20°C -- +65°C
Humidity	5% - 95% non-condensation
Dust	IP5x (dust)
Water	IPx4 (water)
Drop	Multiple drops a concrete 1.5m the entire operation range

go top… menu…

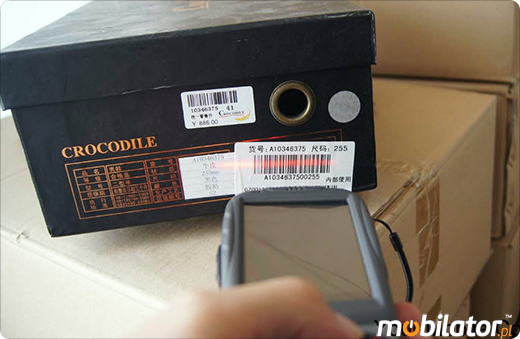

speedata tt32cbw uhf rfid 1d 2d

IP54 Resistance

IP level is a classification of different degrees of protection of electrical equipment which are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, such as dust. It's mainly about access of foreign bodies inside. The second digit is a degree of protection against water.

Complete protection against contact, Protection against dust deposit

Protection from splashed water

go top… menu…

Modules and Wireless Networks

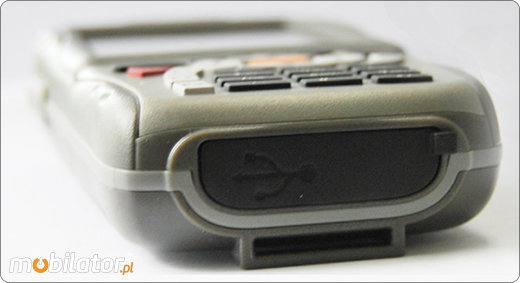

speedata tt32cbw gprs 3g wcdma hsdpa

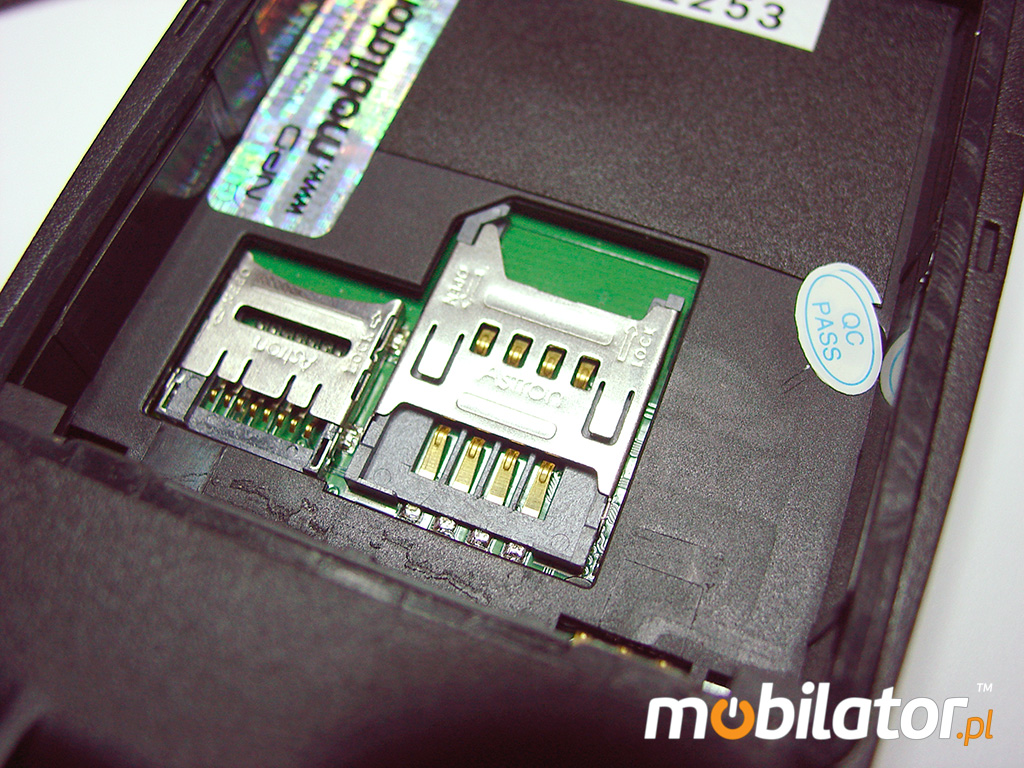

With WCDMA module, you need only insert a SIM card in the special slot and can instantly connect to the Internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Also used in TT32 internal 3G module adjusts automatically to transfer and network coverage.

WIFI	802.11b/g/n (JORJIN WG7310)
GPS	Standard (JORJIN WG7310)
	u-blox LEA-6N (opcja)
	u-blox LEA-6T (opcja)
Bluetooth	Bluetooth V2.1+EDR
Modem	Huawei MU609
	GSM 850/900/1800/1900MHz, GPRS, EDGE
	UMTS 850/900/1900/ 2100MHz HSPA
Połączenia głosowe	Only through bluetooth headphones

go top… menu…

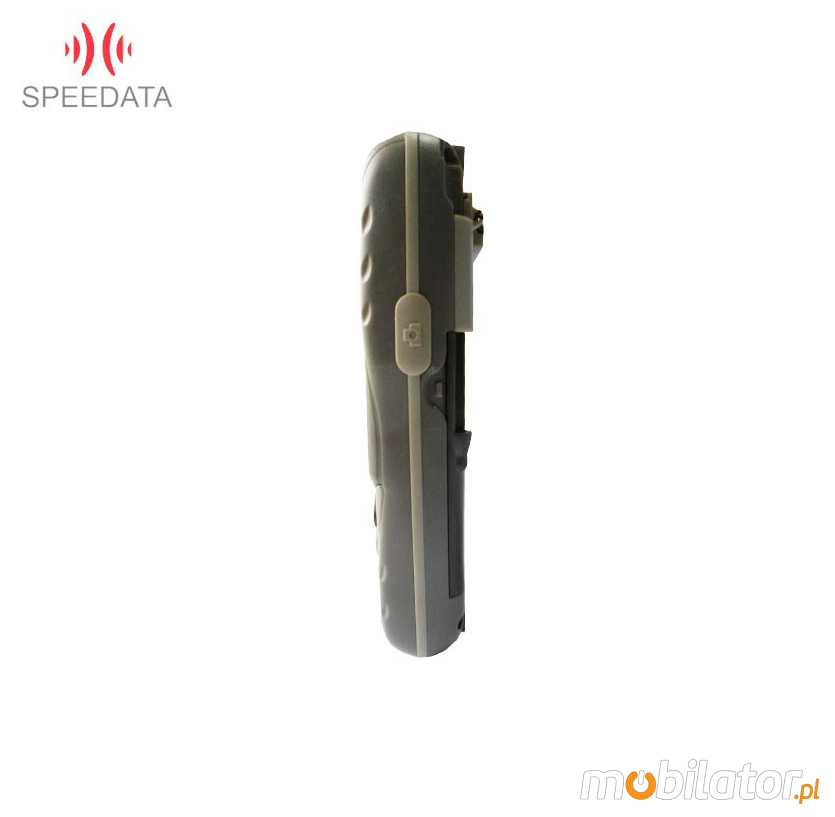

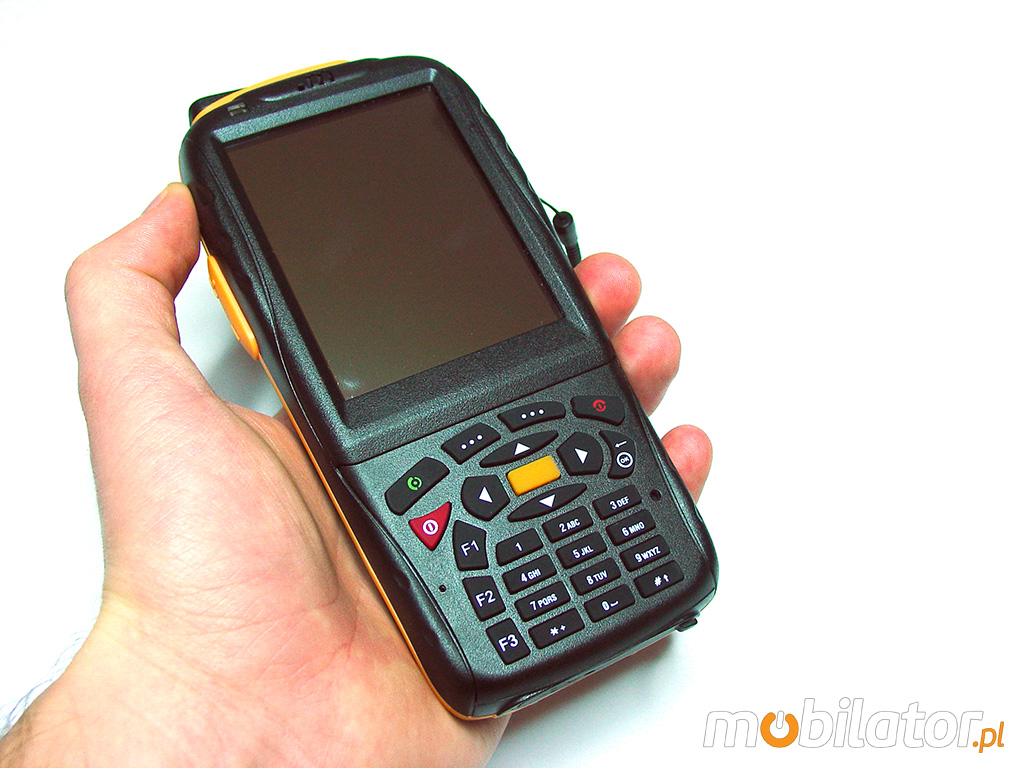

Minimalism

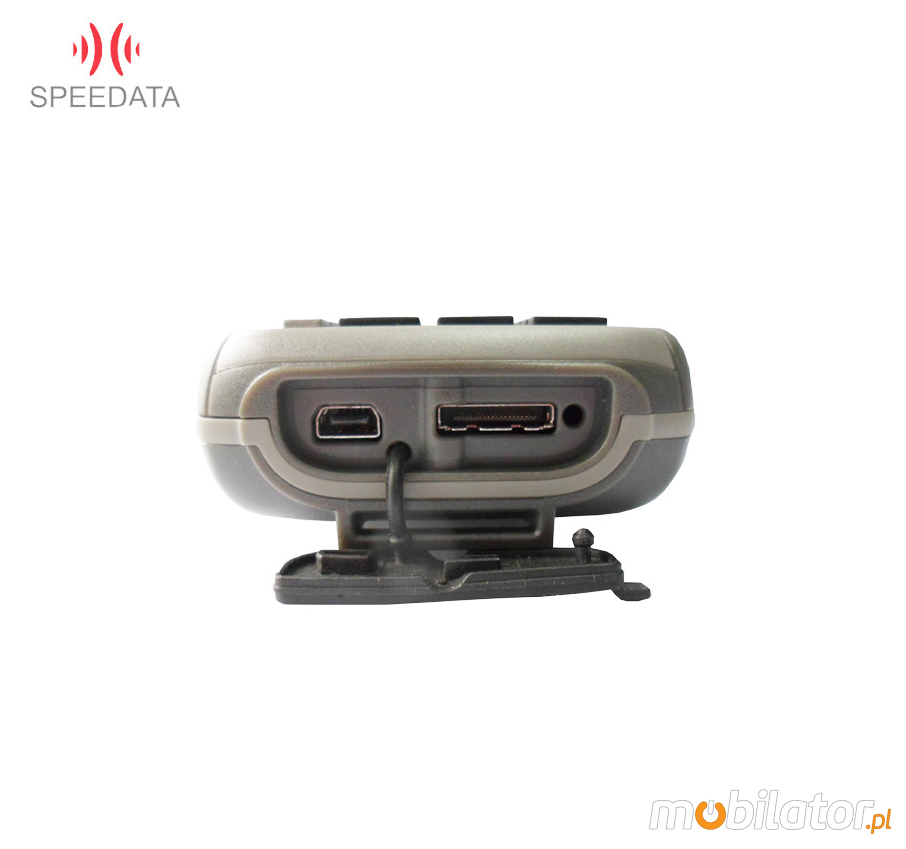

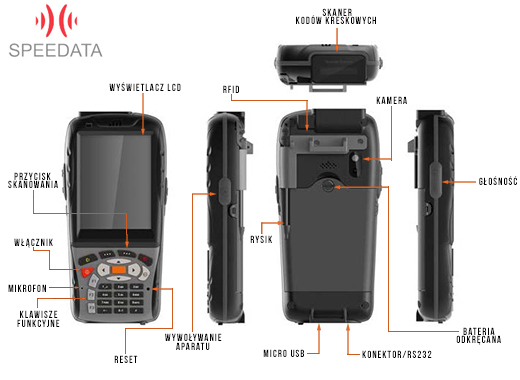

speedata tt32cbw 1d barcode scanner lase micro usb lan rj45 bateria

You no longer need to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with TT32 problem disappears forever, as it weighs only 320g and its dimensions (149 x 72 x 28mm) allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the Polish market in the industrial segment.

Sizes	149 x 72 x 28mm
Weight	320g

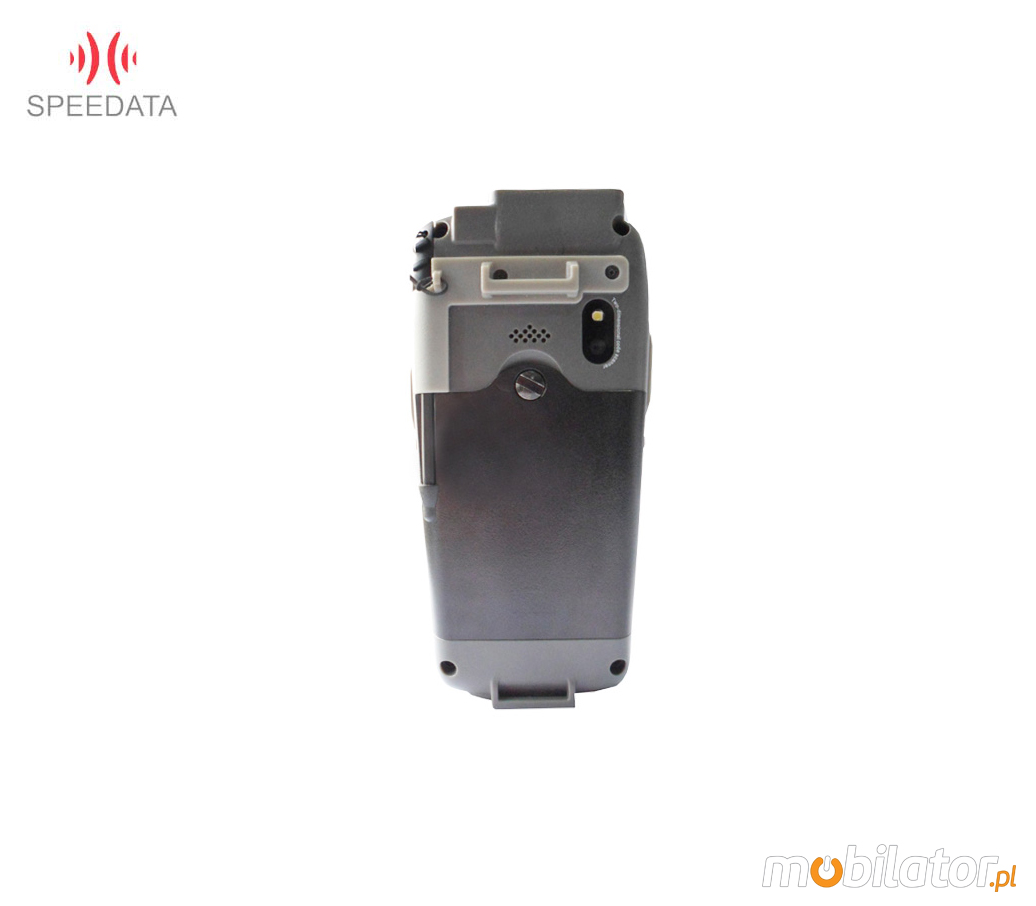

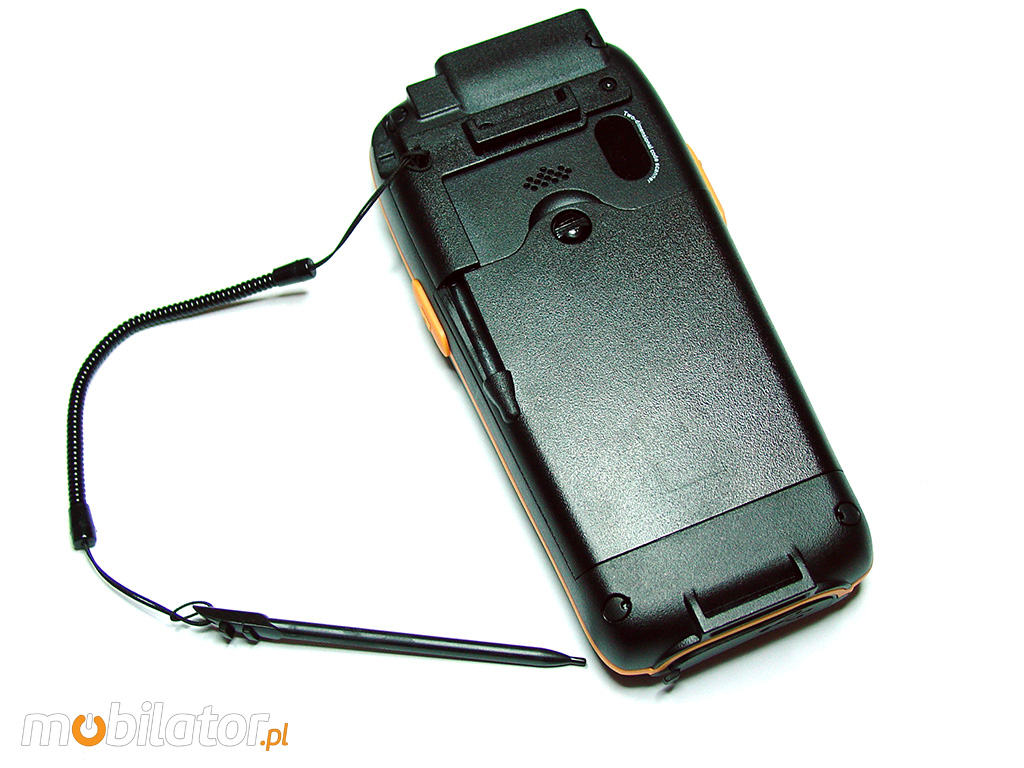

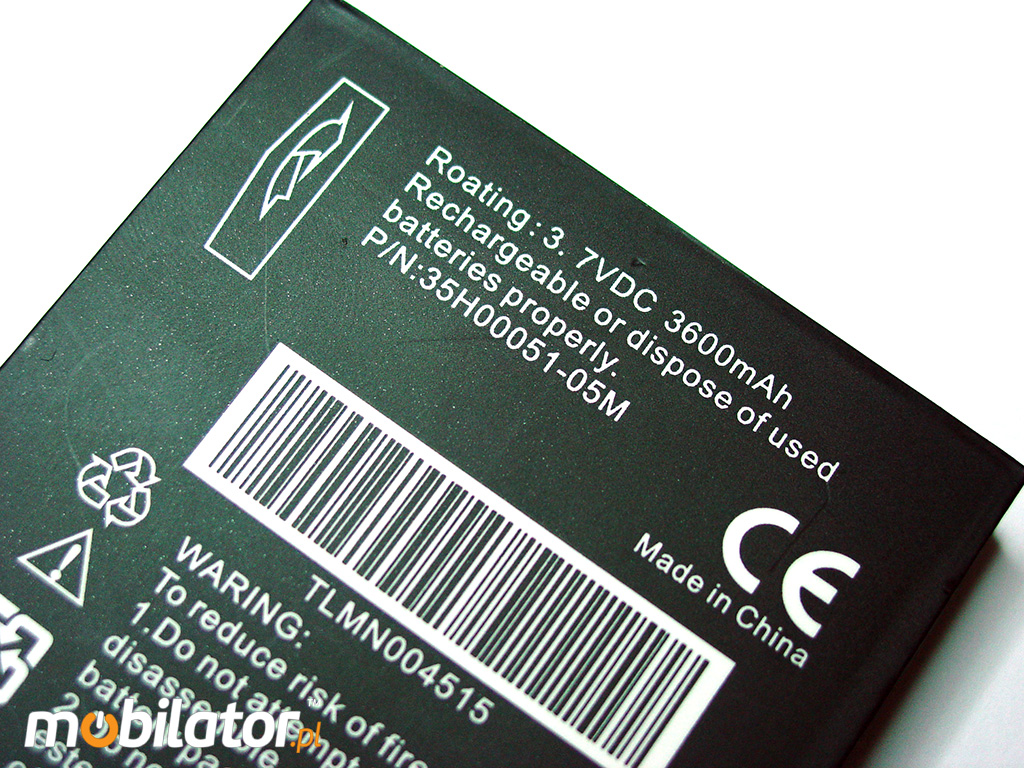

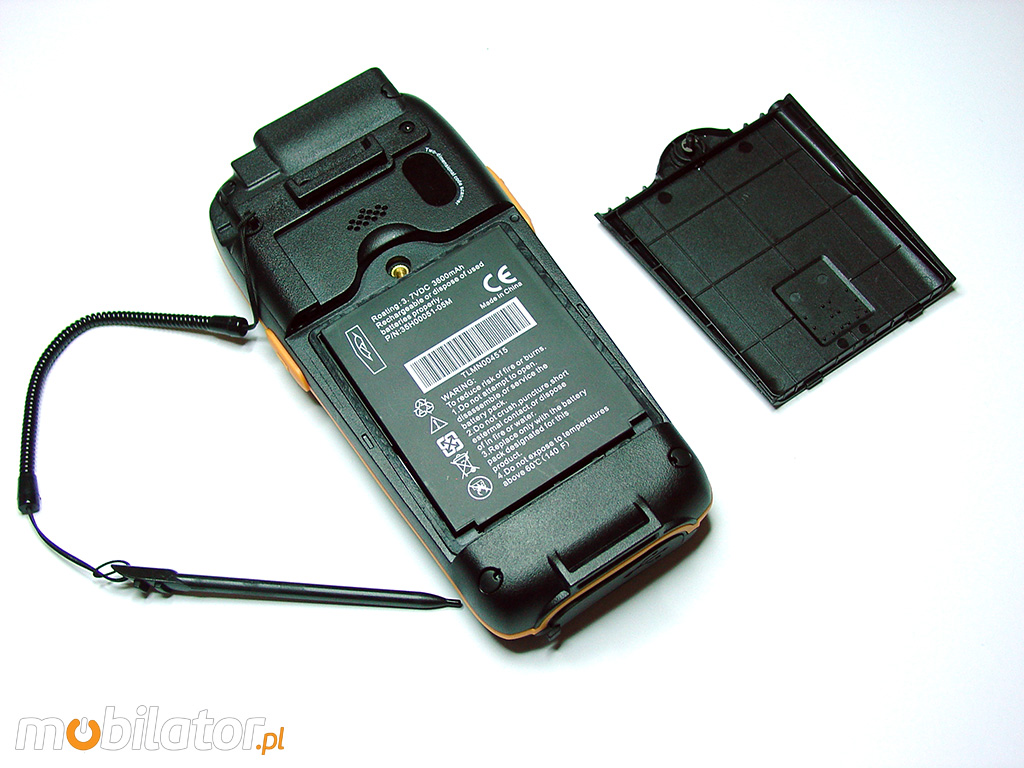

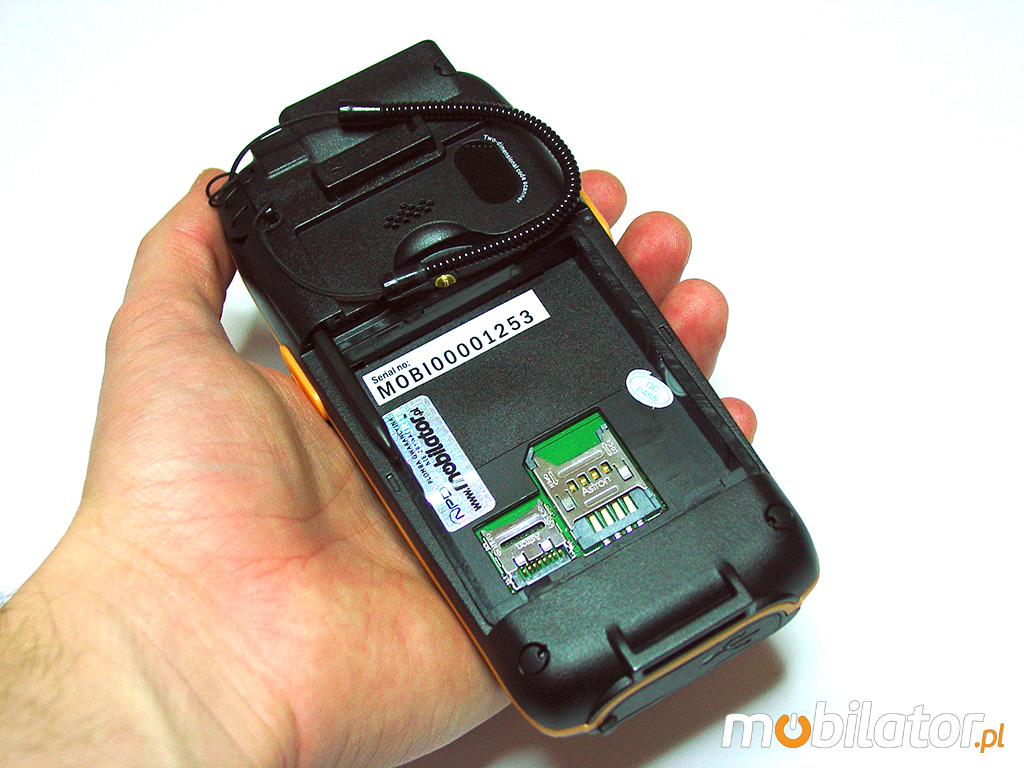

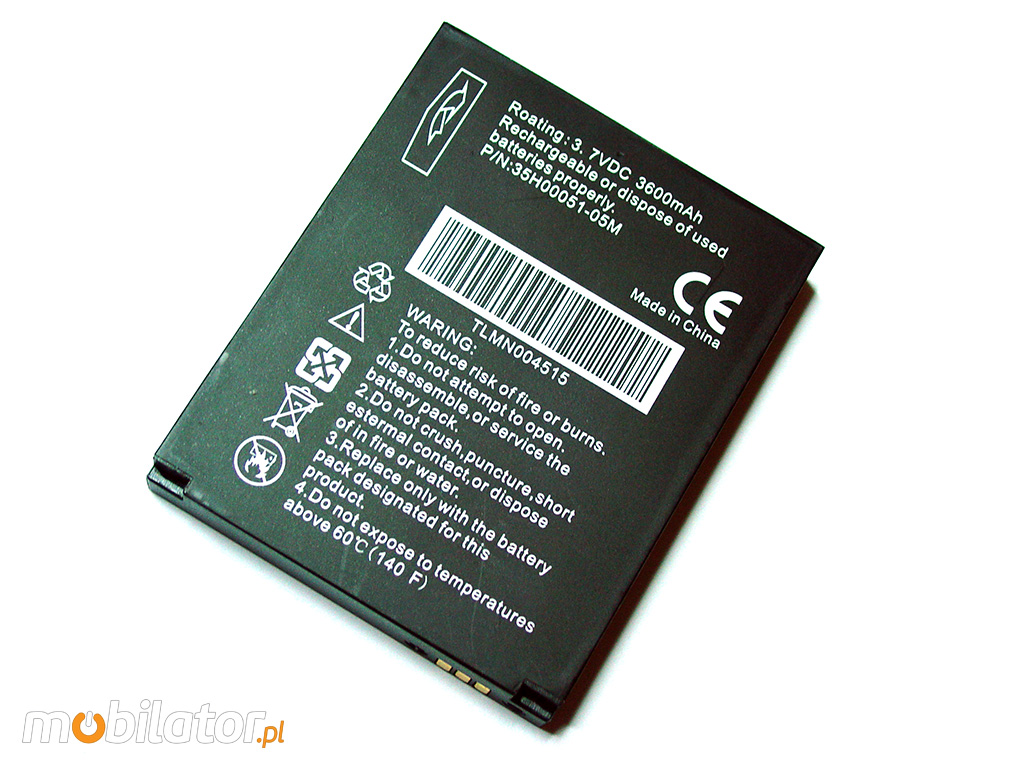

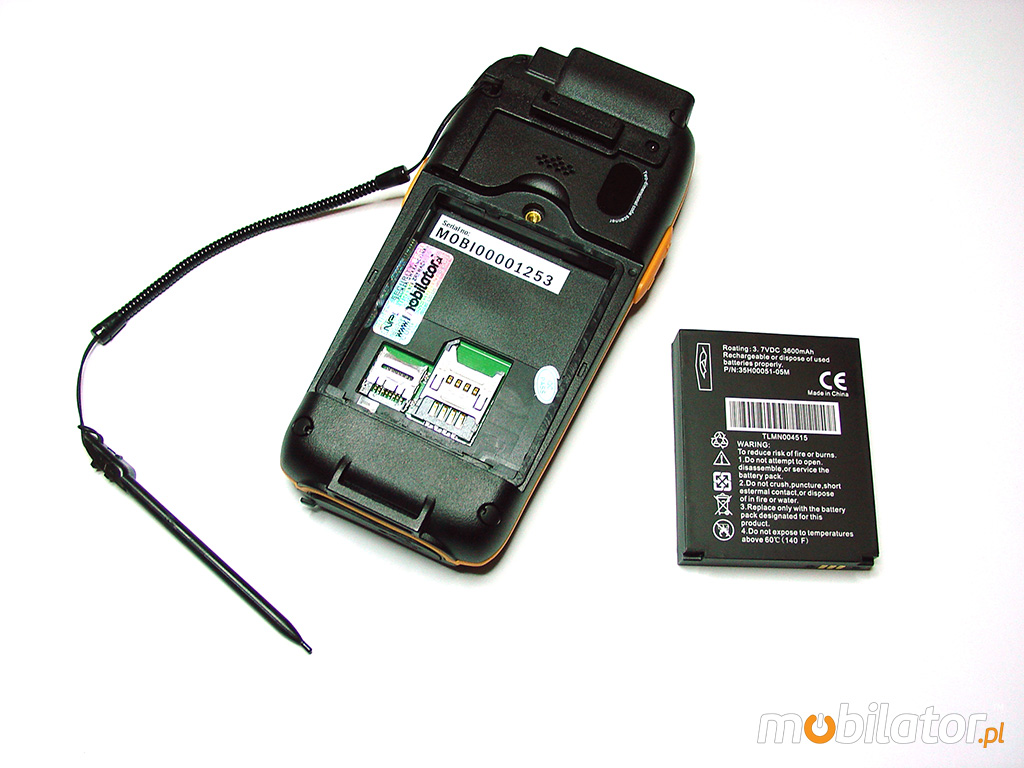

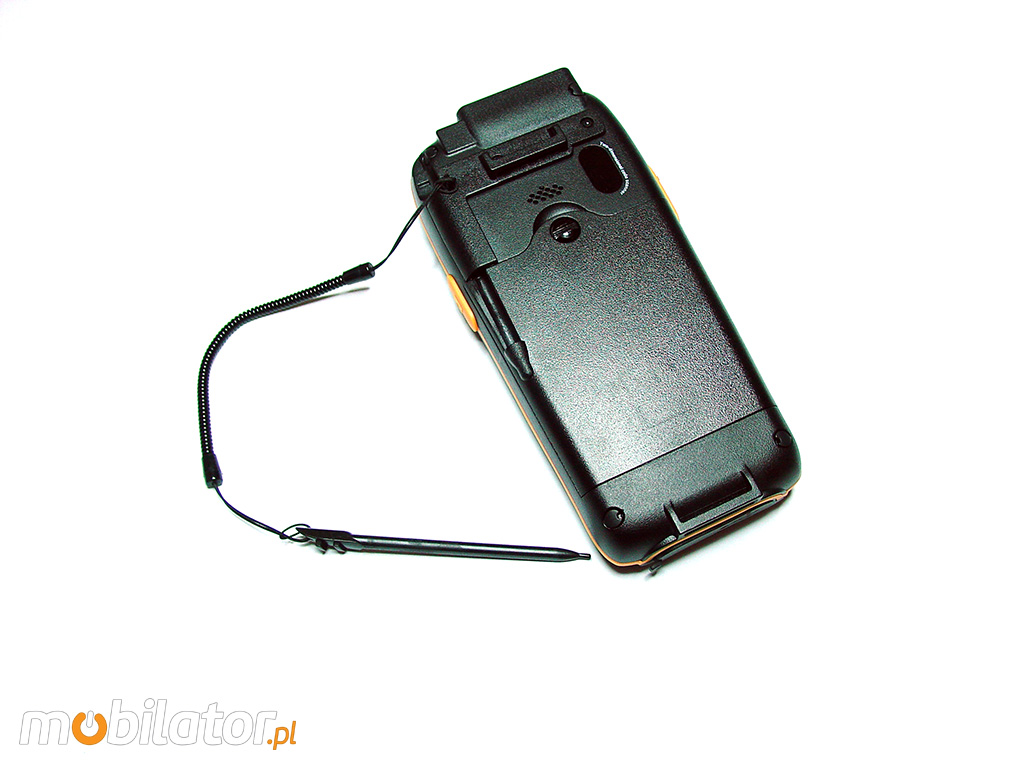

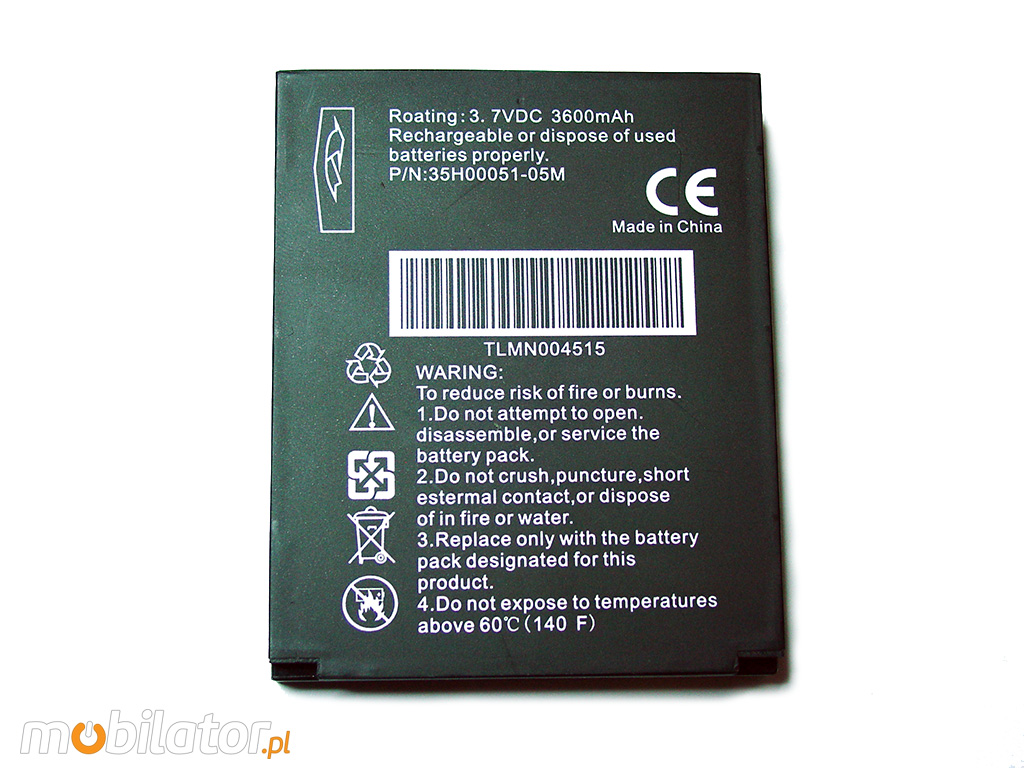

Quick change battery

With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.

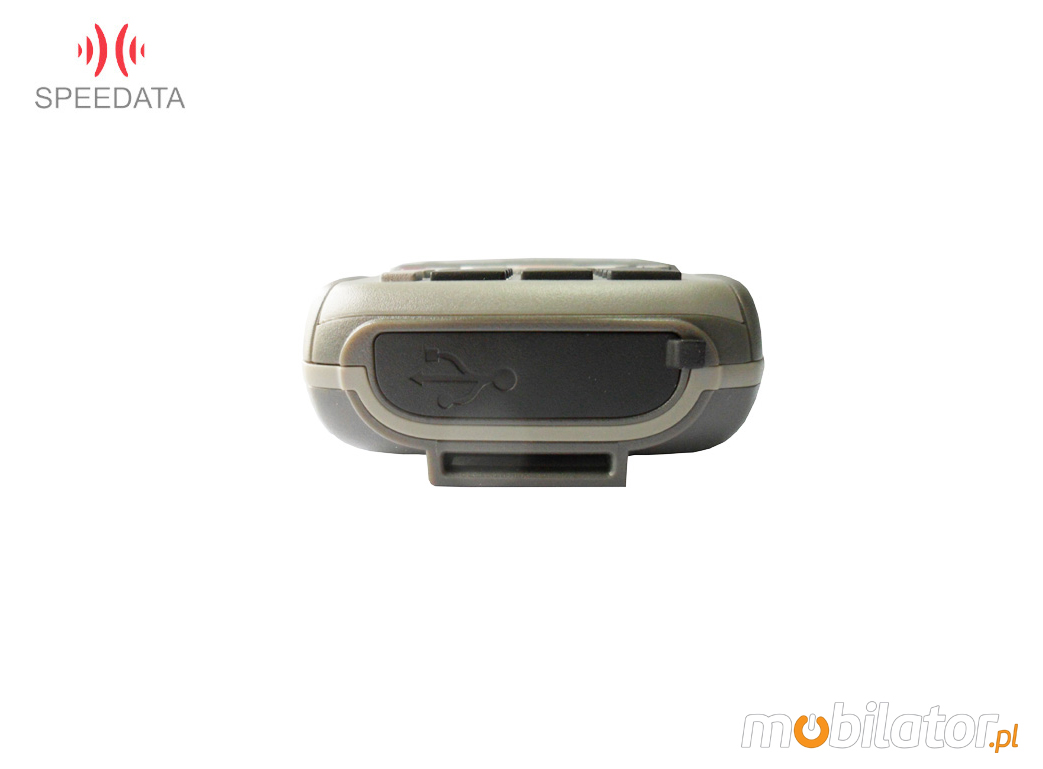

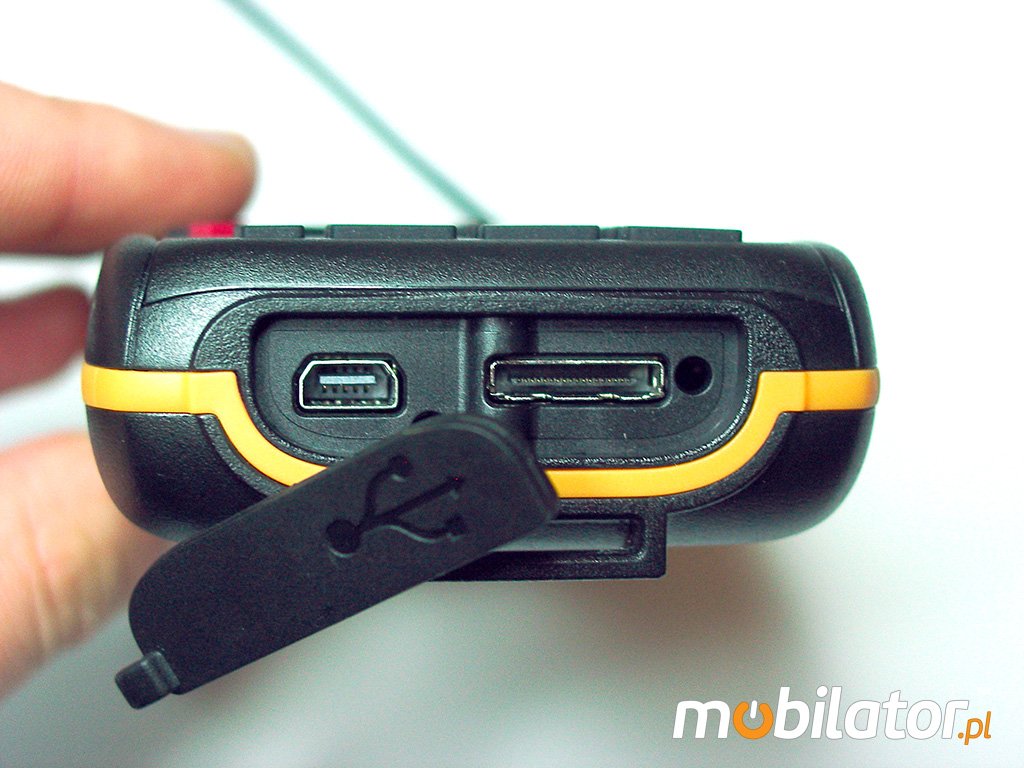

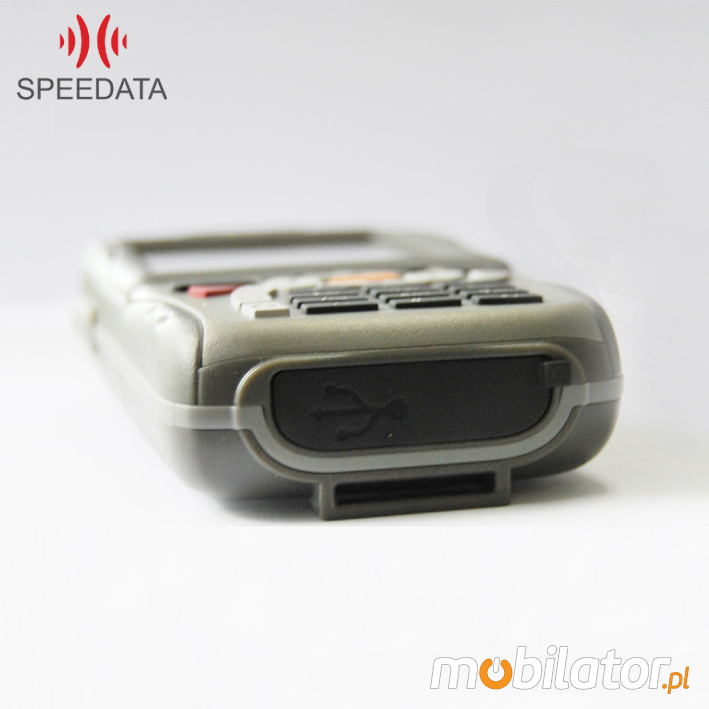

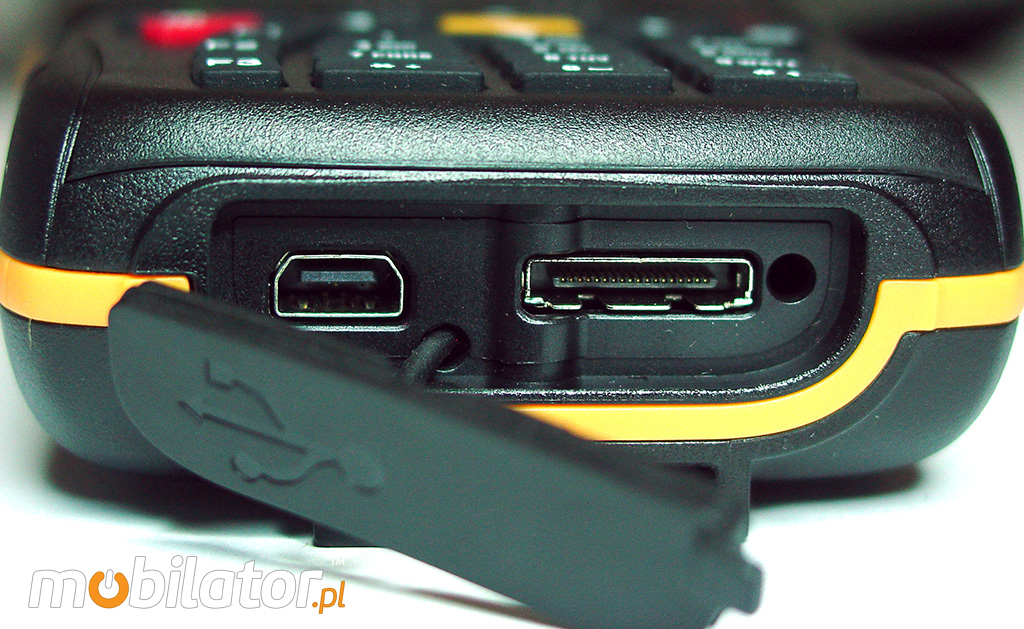

speedata tt32cbw microusb

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Compare all versions

Durability:	IP54
Humidity:	5% - 95% non-condensation
Waterproof:	IP54
Weight:
Temperature:	Operating temperature: -15°C -- +50°C Storage temperature: -20°C -- +65°C
Shock:	-----
Vibration:	-----
Drop:	1.5m
Sand and dust:	IP54
1D barcode scanner (reader):	Yes - MOTOROLA SE955 (LASER)
2D barcode scanner (reader):	-----
RFID scanner (reader):	Yes - RFID HF 13.56Mhz ISO14443 A/B ISO15693
Magnetic card reader (MSR):	-----
Microchip card reader:	-----
Docking station connector:	-----
VESA standard – holders and mounts support:	-----

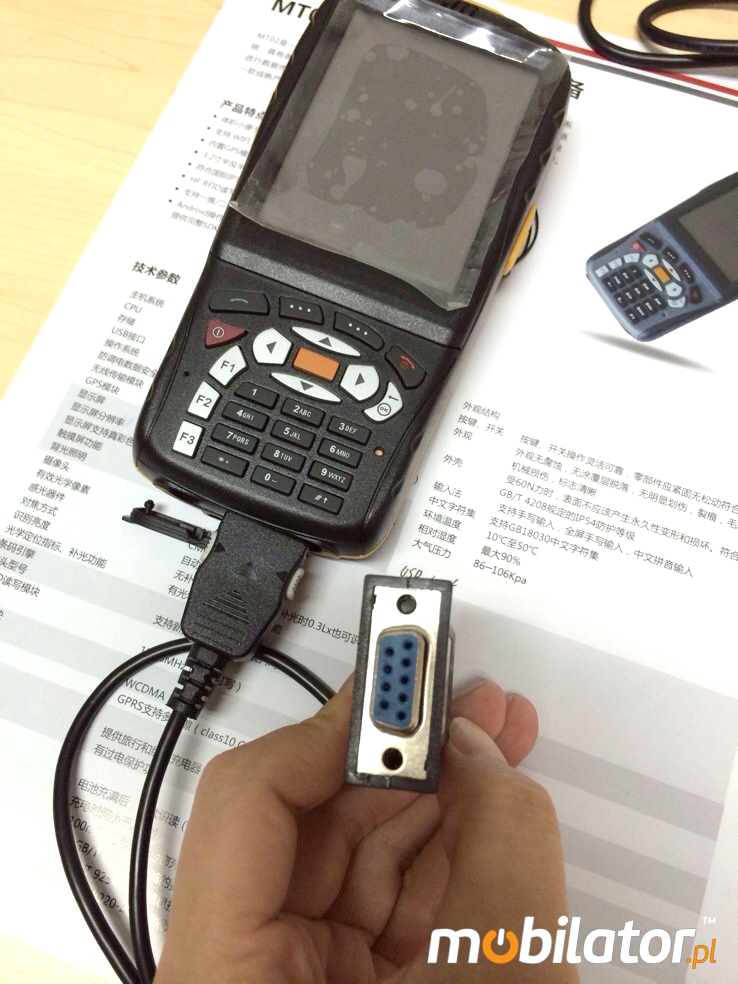

COM port:	Yes - RS232 (with an adapter)
Dispaly:	3.2" TFT LCD (320 x 240) - Resistive
Brightness:	-----
Contrast:	-----
Touch screen:	Yes - Resistive
Graphics card:	-----
Swivel Hinge:	-----
VGA out:	No
TV Out:	-----
TV Tuner:	-----
Processor:	Texas Instruments 3715 (ARM Cortex-A8) 1Ghz
Chipset:	-----
BIOS:	-----
Memory:	512MB
Hard Drive:	512MB
Flash Memory:
Battery:	3600mAh Li-Ion
Working time on battery:	-----
HotSwap battery:	No
Fast battery replacement ability:	Tak
Size:	149 x 72 x 28mm - 320g
Casing material:	high quality plastic and rubber
Fanless casing:	Yes
Operating System:	Windows Mobile 6.1/6.5 or Windows CE 6
LAN:	No
WLAN:	Yes - 802.11b/g/n JORJIN WG7310
Bluetooth:	Yes - Bluetooth JORJIN WG7310
WAN:	GPRS, EDGE / WCDMA 3G900/1710/2100MHz HSDPA 3.6Mbps inability to conduct telephone conversations
GPS:	GPS Standard
Flash Card Reader:	micro SD/TF max. 16GB
CD/DVD:	-----
Camera:	Yes - 5Mpx (Auto-Focus)
Audio:	Speaker
Seciurity:	-----
In/Out:	Micro SD : USB HOST/RS232 : USB 2.0/MiniUSB : SIM
Keyboard:	Yes - Onscreen Keyboard (alphanumeric) + Function keys
Additional Navigation Devices :	-----
Color:	czarno-szary
Optional accessories:	RS232 adapter
Other:	-----
