« Back    Home / UMPC - Ruggedized / Archives

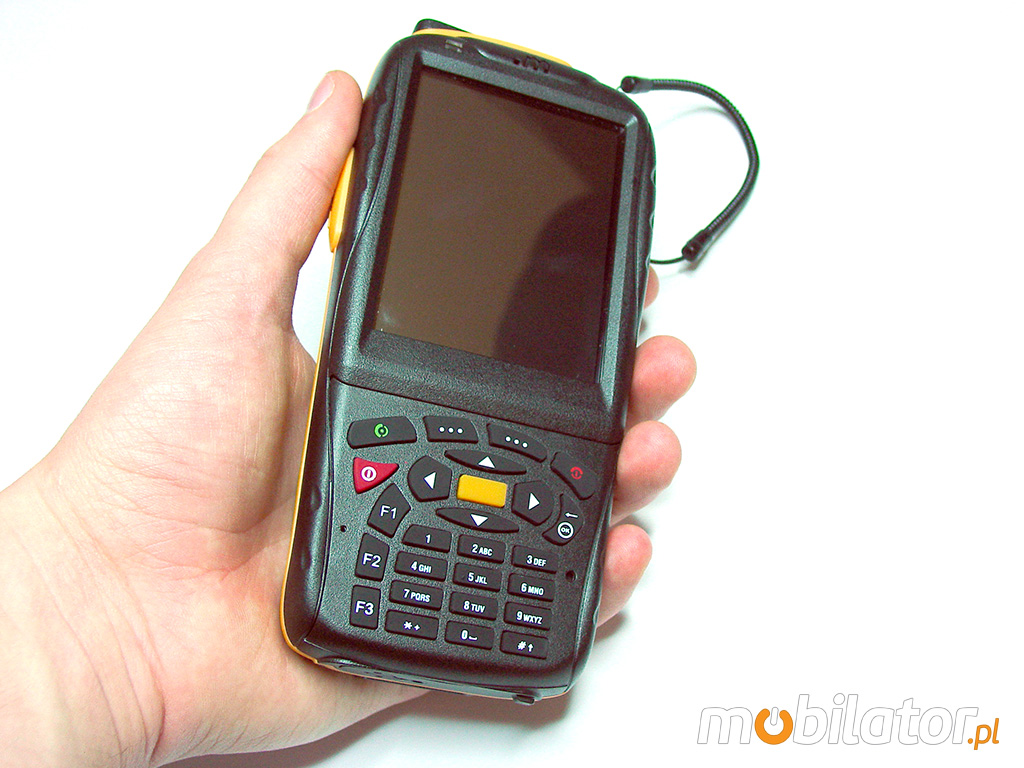

Rugged data collector TT32A-W v.5.1

Rugged data collector TT32A-W v.5.1

Data update: 2015-07-09

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

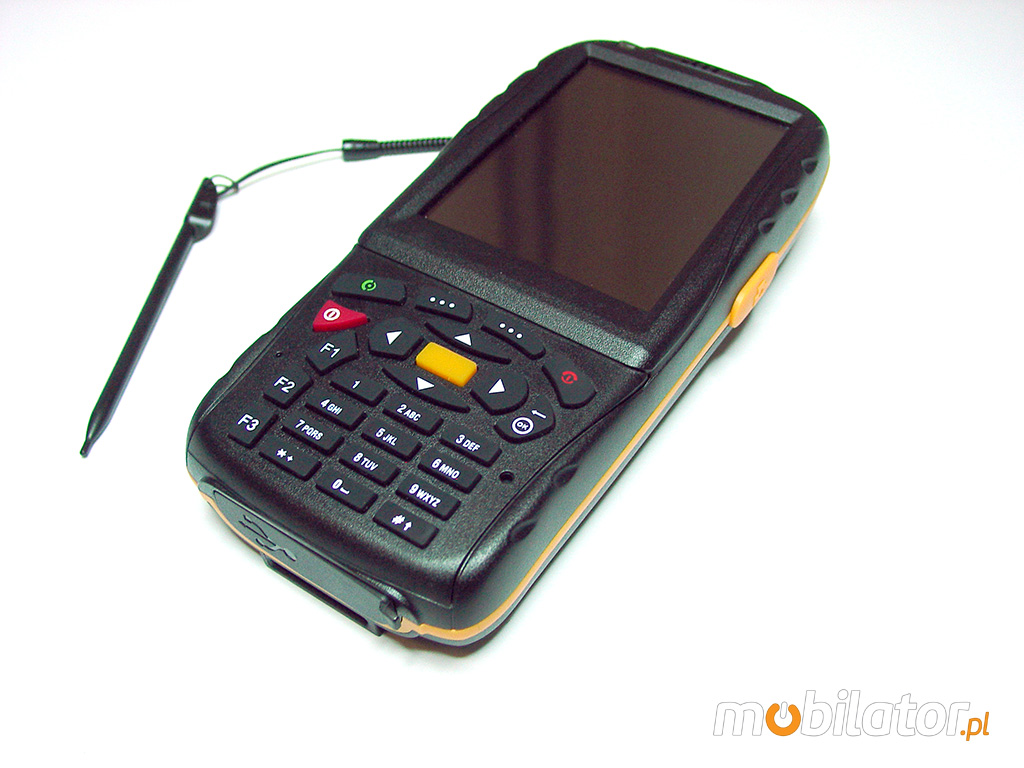

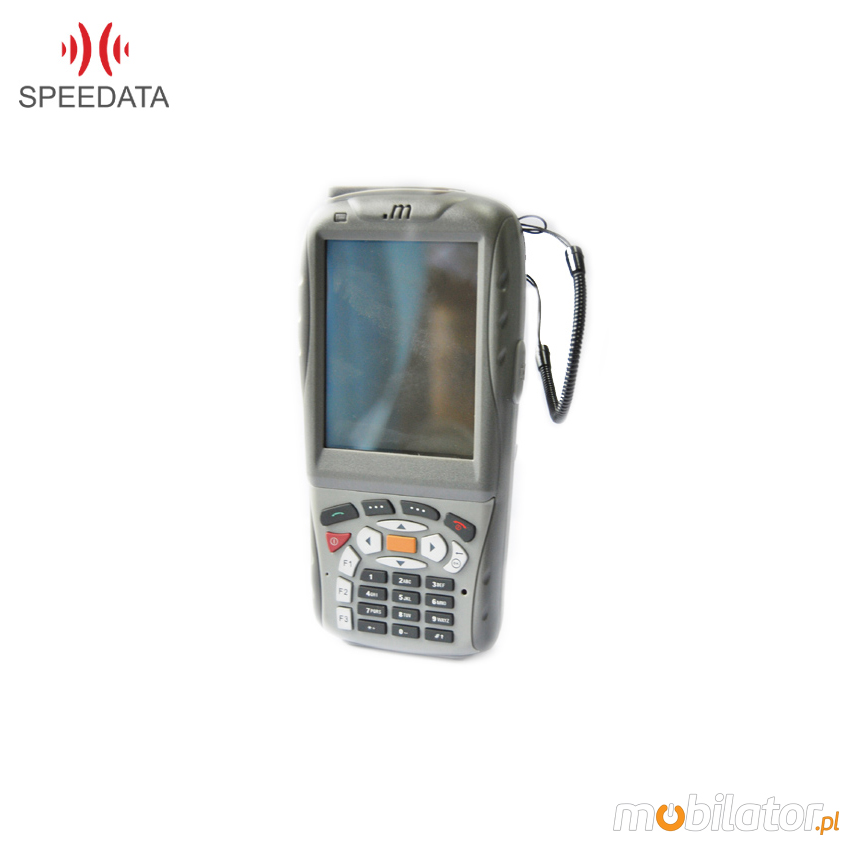

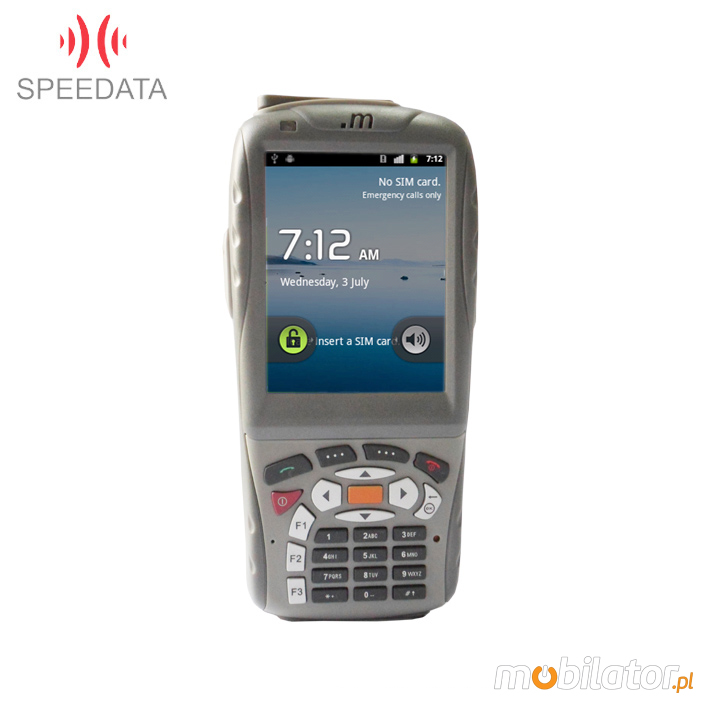

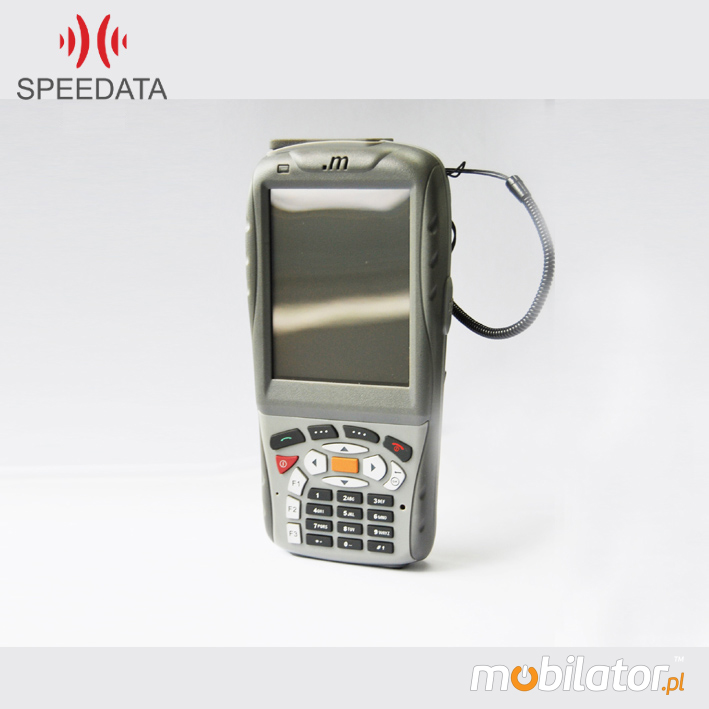

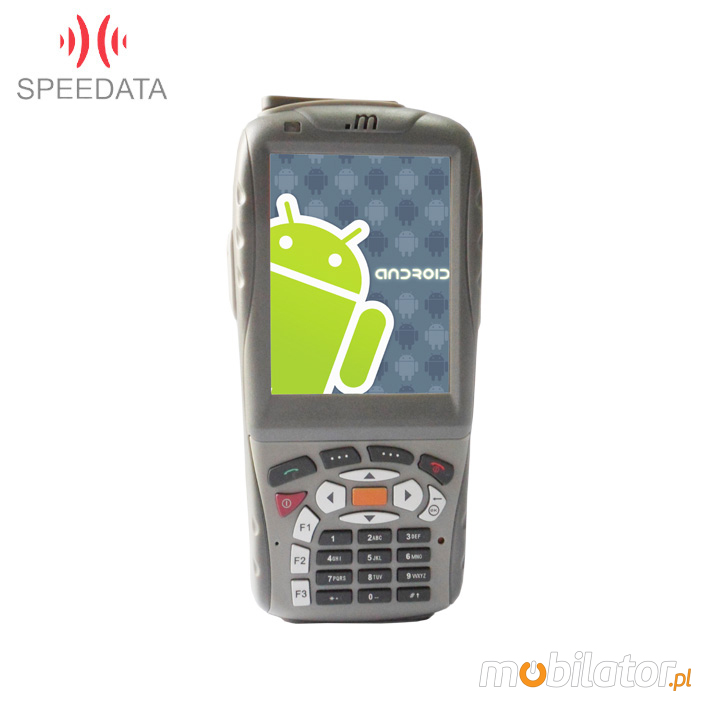

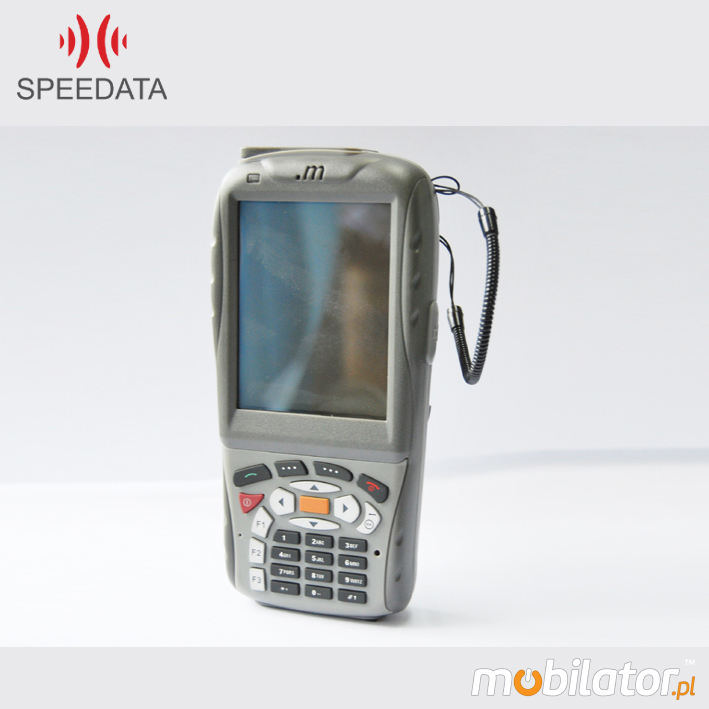

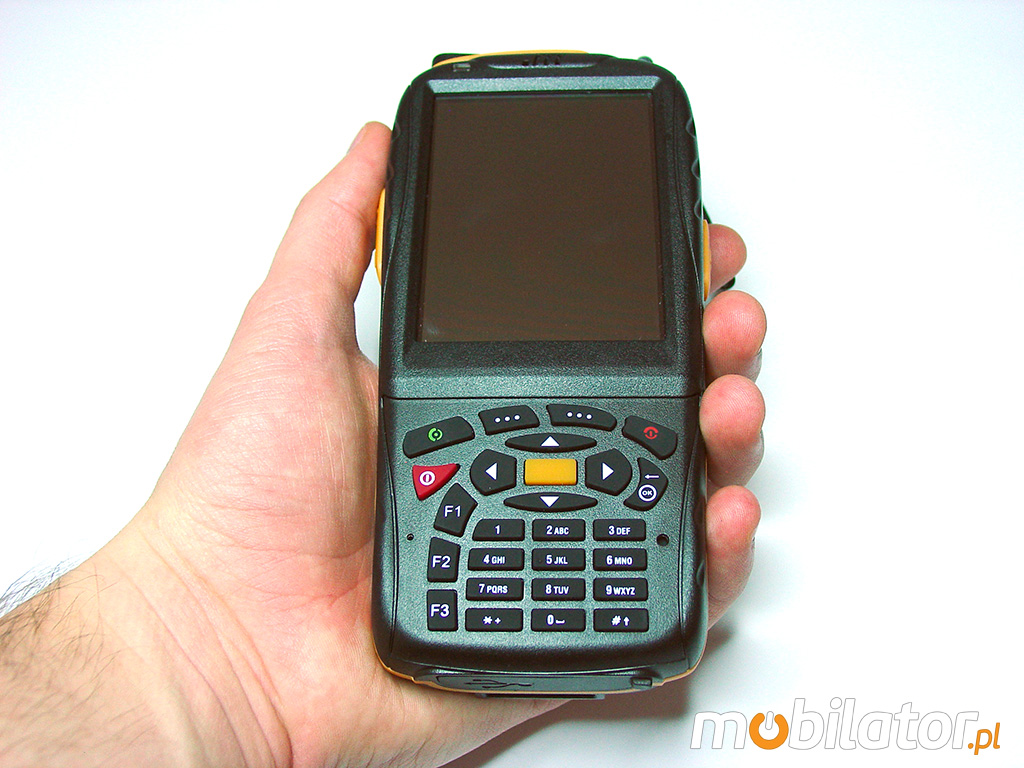

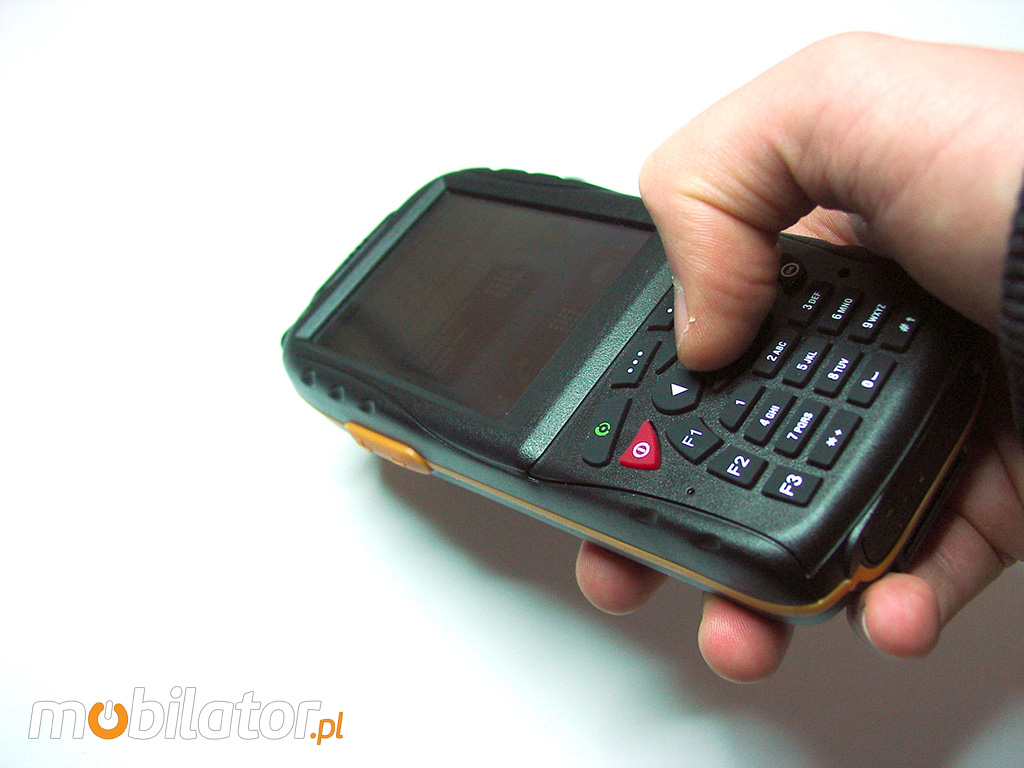

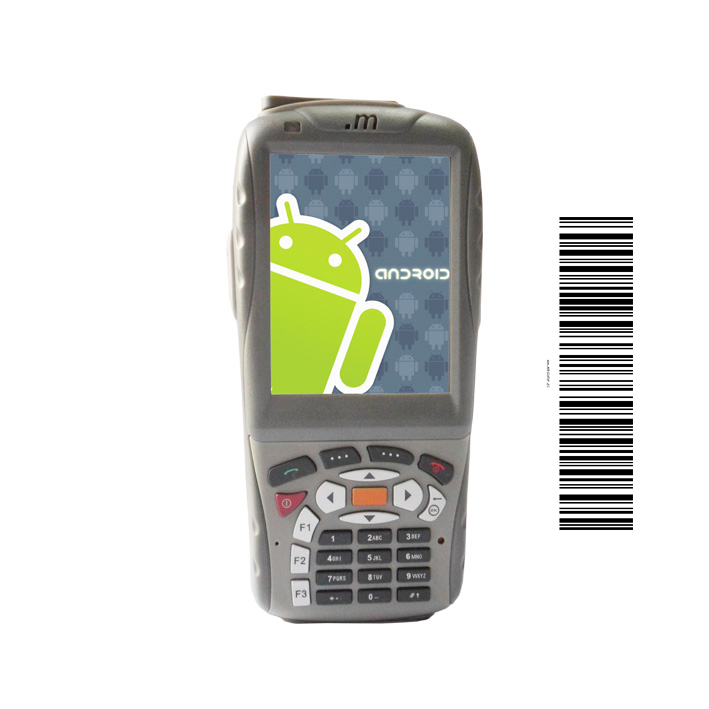

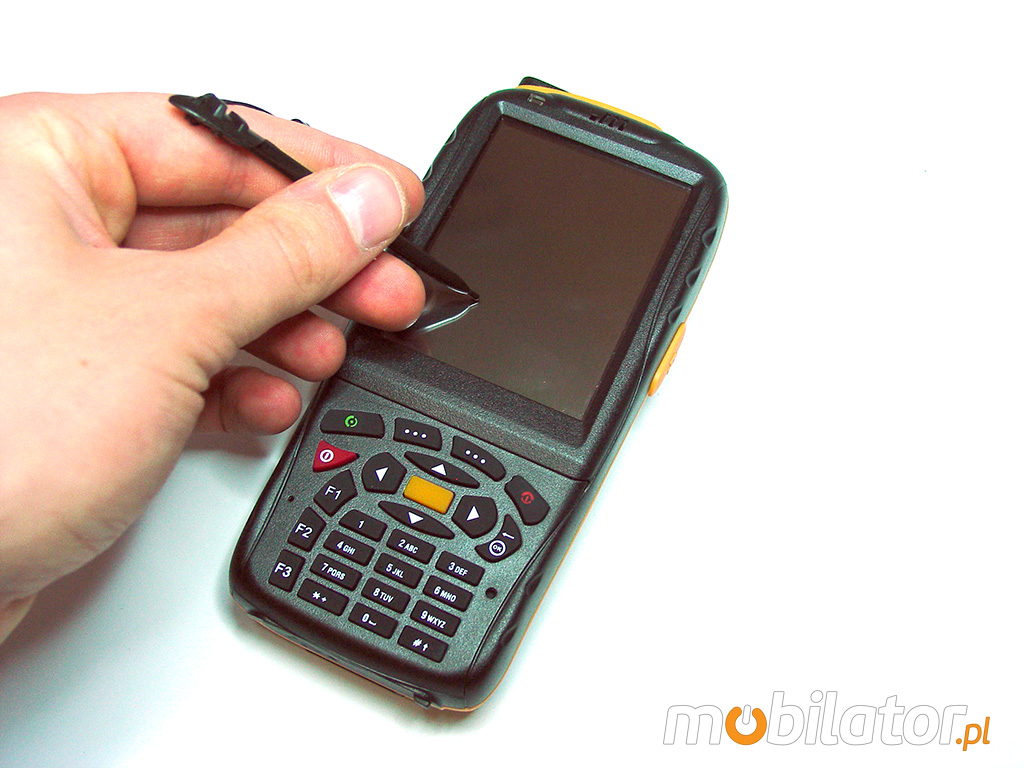

Speedata MT02 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, the equipment produced for the military, meets the requirements of IP54. Thanks to this structure is resistant to dust and water. The device is ideal writes in the home and industry.



Description

kolektor danych speedata mt02 klawisze funkcyjne wifi bluetooth

 Processor  Texas Instruments 3715 (ARM Cortex-A8) 1Ghz
 Display  3.2" TFT LCD (320x240) - resistive
 RAM  512MB DDR
 ROM  512MB

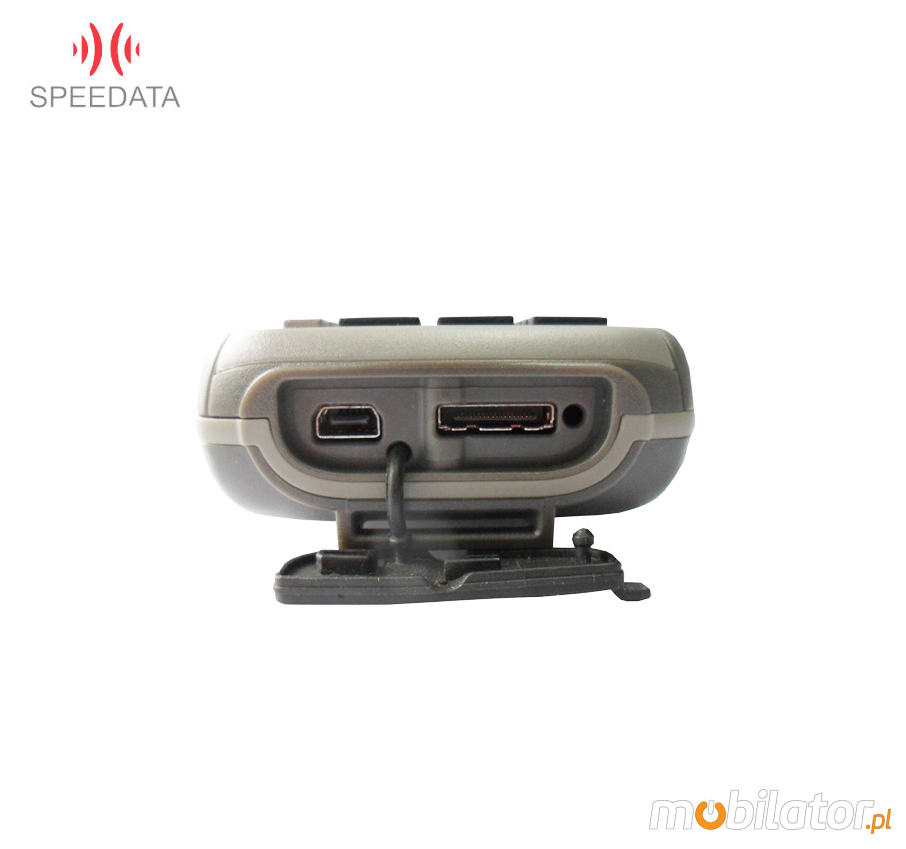

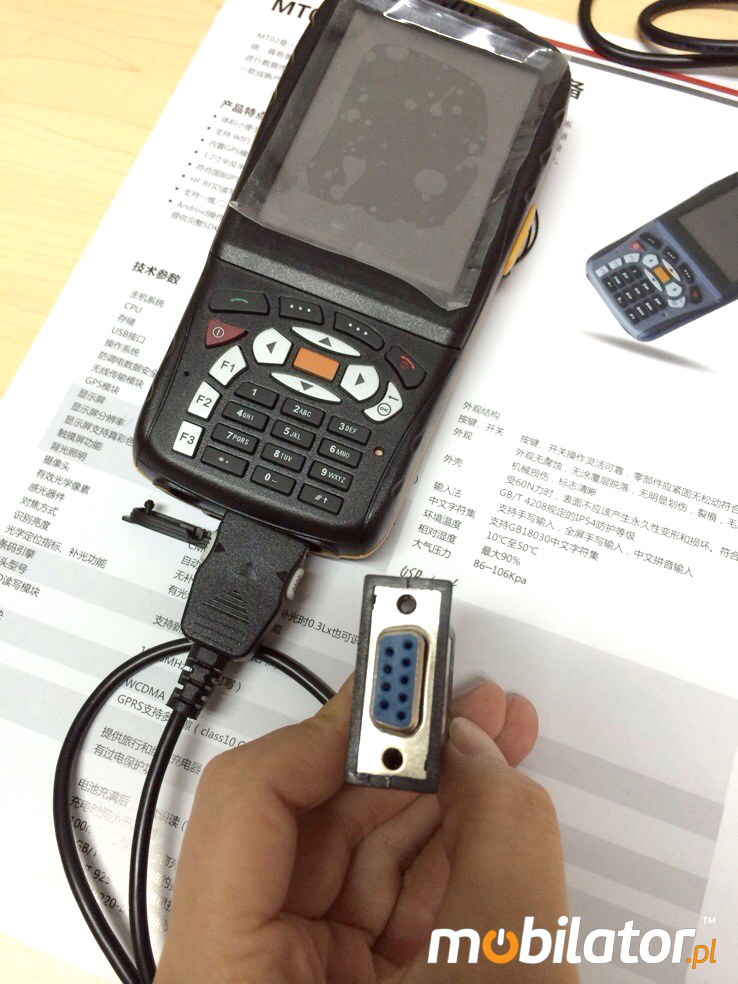

 Connectors  Micro SD : USB HOST/RS232 : USB 2.0/MiniUSB
 GPS  GPS UBLOX
 Audio  Microphone | Speaker
 Camera (opctional)
  5Mpx (Auto-Focus + LED Flash)
 Baterry  3600mAh Li-Ion

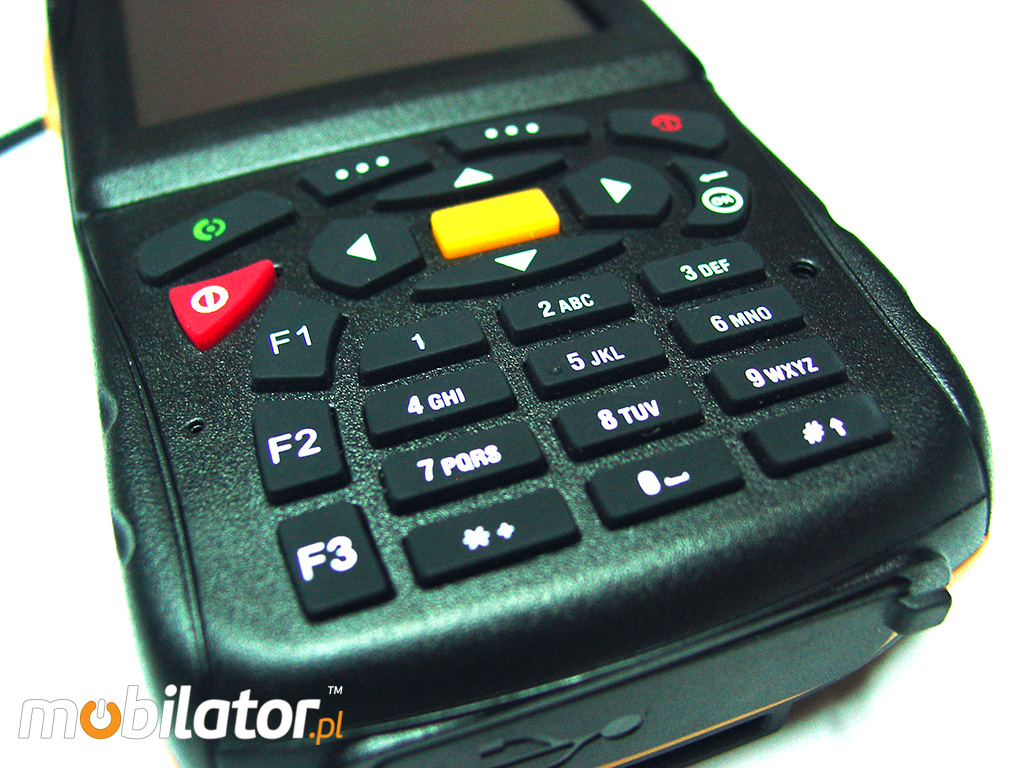

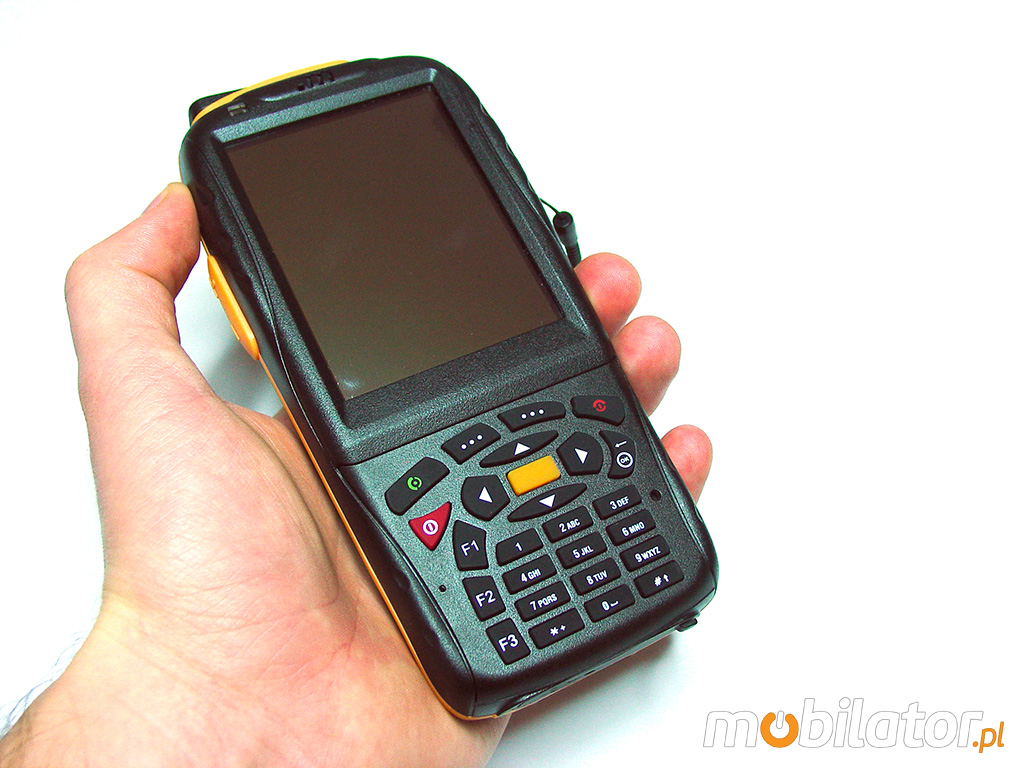

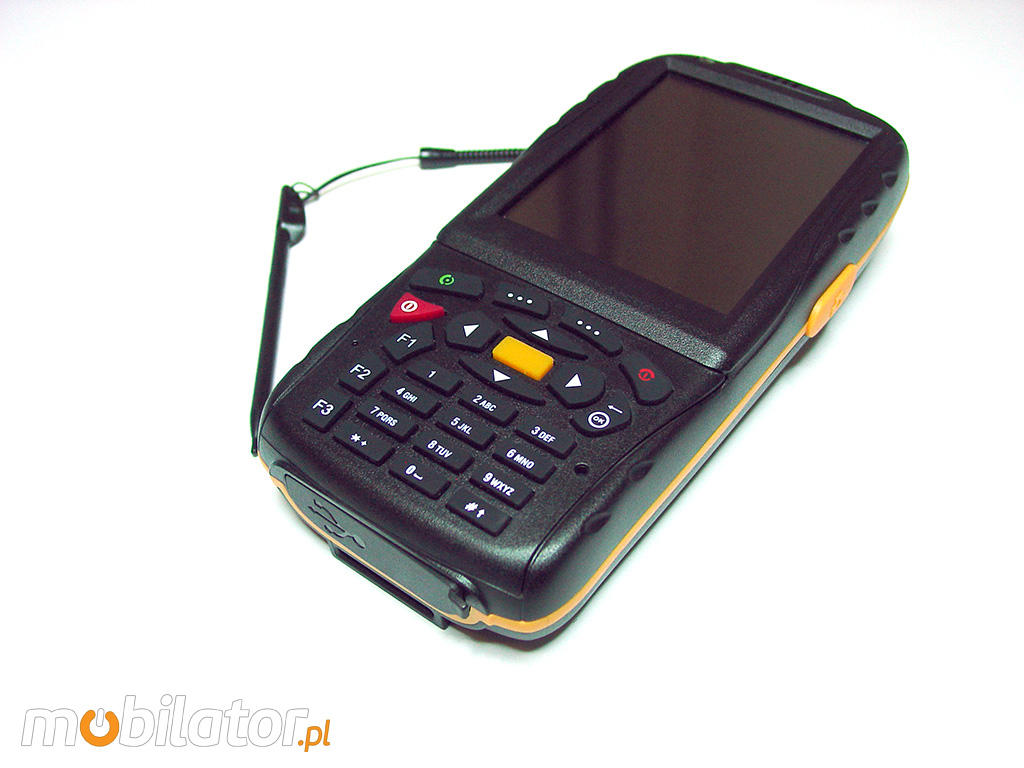

 Keyboard  Numeric + Function keys : Onscreen
 Environment  Android™ 4.0
 Modules (factory)
  2G/3G : WiFi b/g : Bluetooth 2.0
 Size
  149 x 72 x 28mm - 320g
 Resistance  IP54
 Readers (optional)
  Far-infrared meter reading | RFID HF | RFID HF+ | 1D | 2D
 Warranty
  12 months (optional 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Available versions

Select a version tailored to your needs. Clicking on the number of hardware configurations will be redirected to the product of the parameters listed below. At the customer's request can be created configuration available in the offer. Detailed parameters are available in the "Technical data".


 0.1 v.1 v.2 v.3 v.4 v.5 v.5.1 v.5.2 v.6 v.7 v.8 v.9 v.10 v.11 v.12 v.13 v.14 v.15
Kamera - - - - - - - - - - - - -
PSAM - -   - - - - - - - - - - -
RFID HF - - - - - - - - - - - - -
RFID HF+ - - - - - - - - - - -
SE955 - - - - - - - - - - - - - - - - -
N4313 - - - - - - - - - - - - -
EM1300 - - - - - - - - - - - - - - -
SE4500SR
 - - - - - - - - - - - -
5100 - - - -   - - - - - - - - - - - -
IPOR - - - - - - - - - - - - -

go top… do góry menu… menu



Collection and processing of data

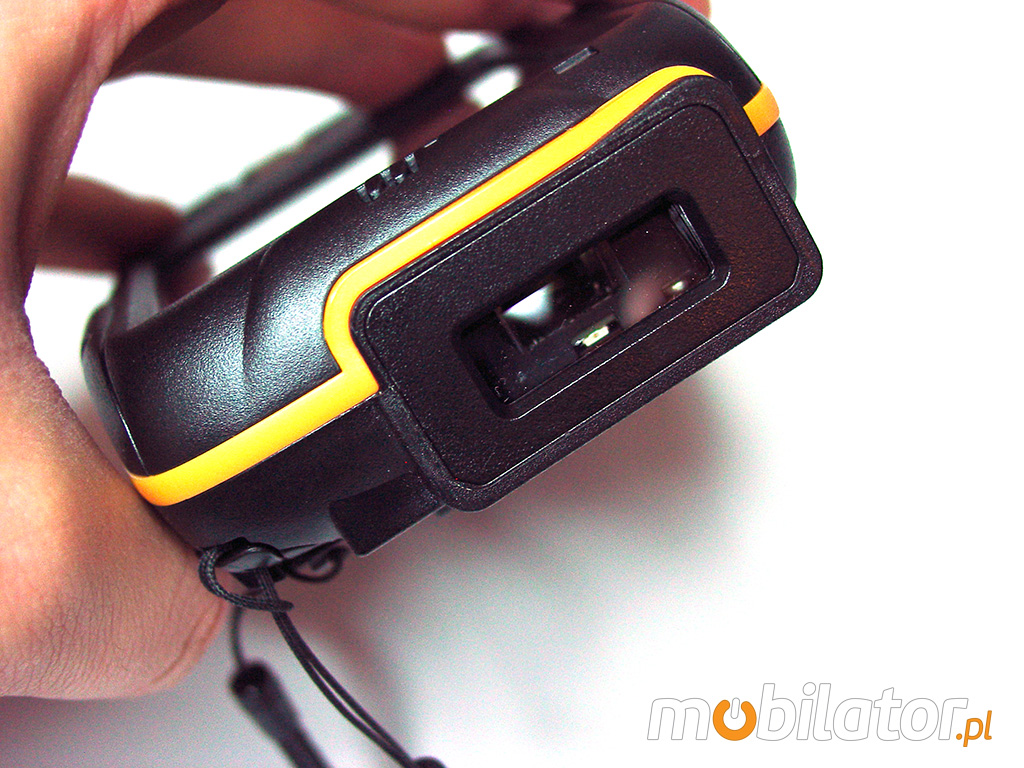

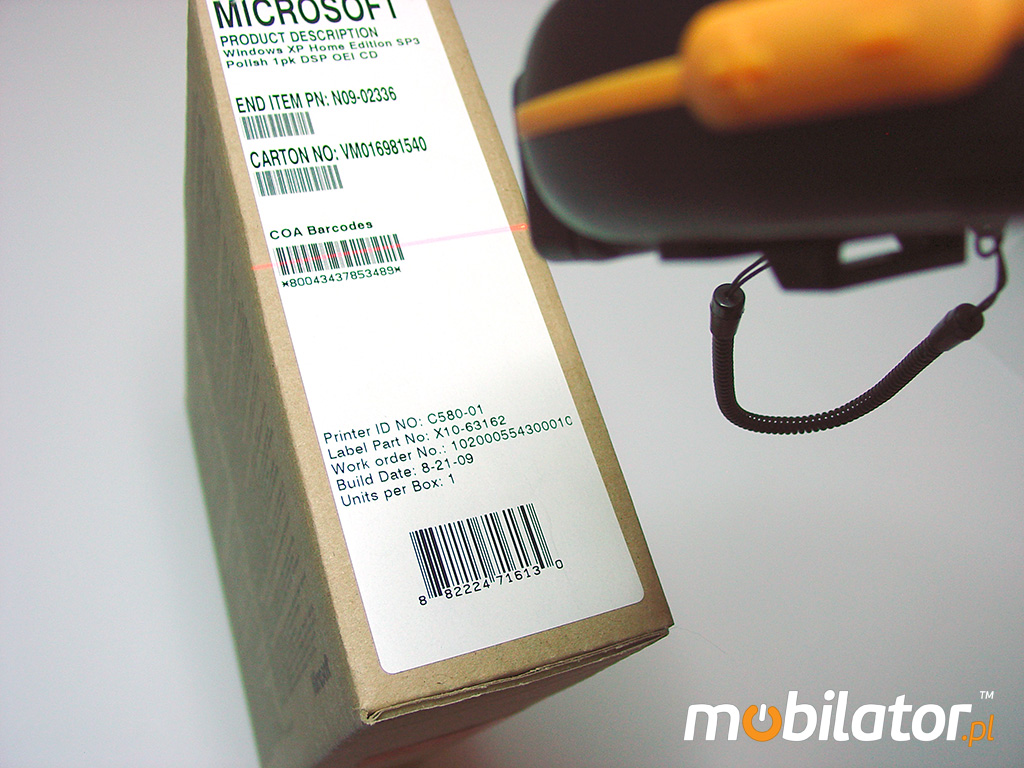

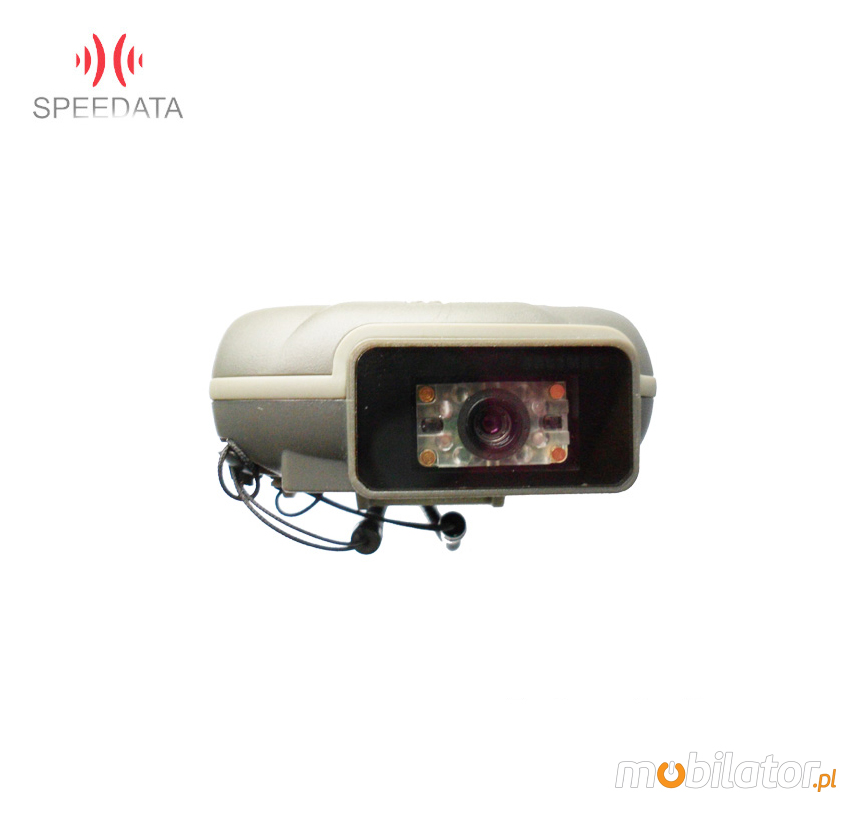

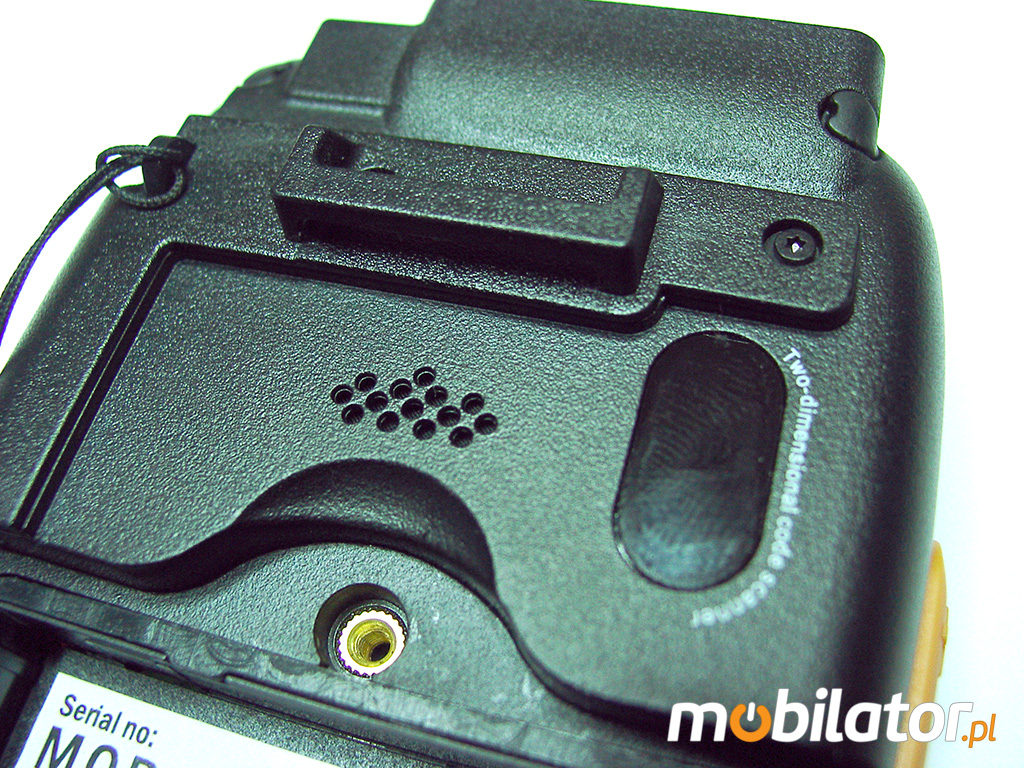

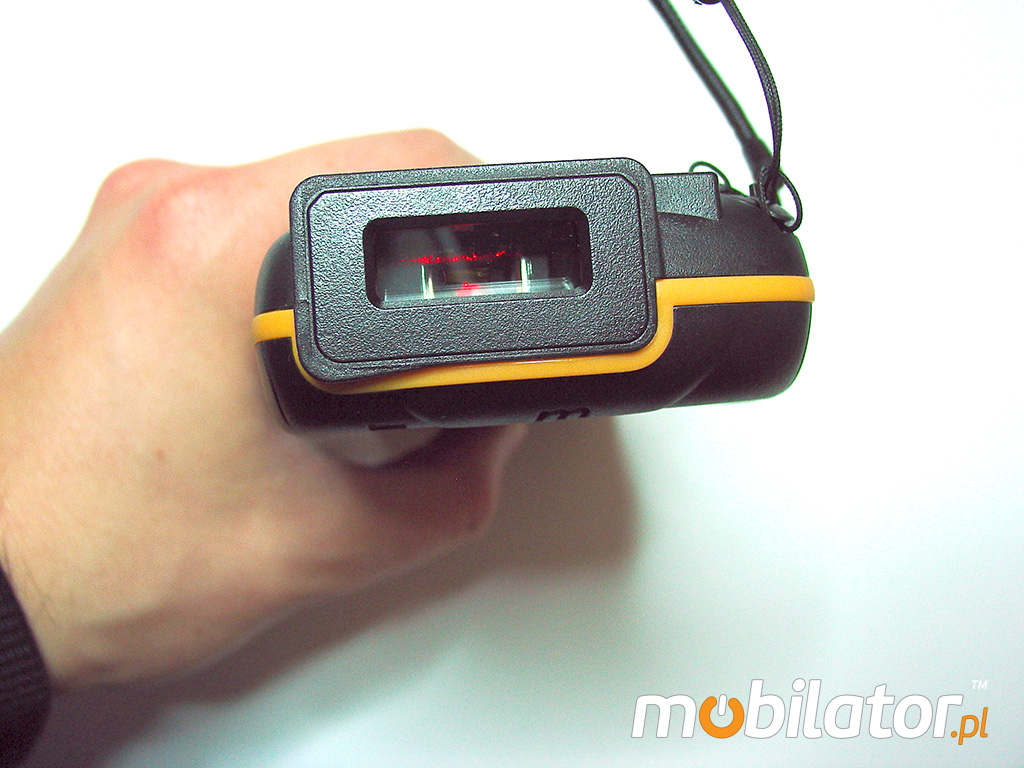

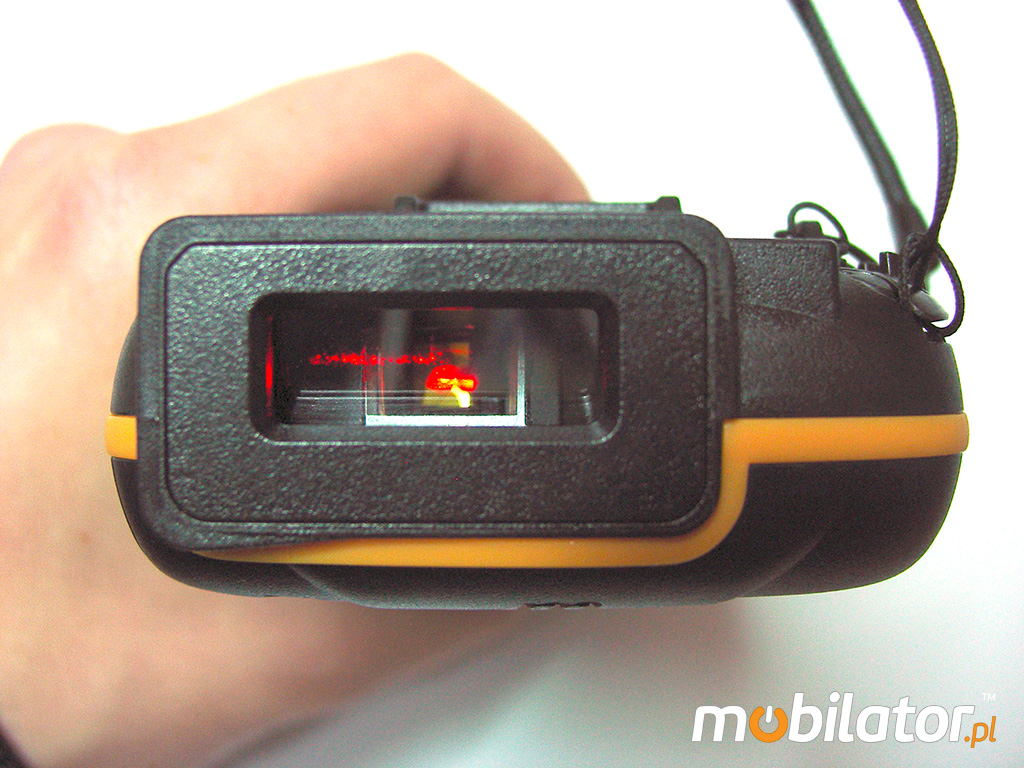

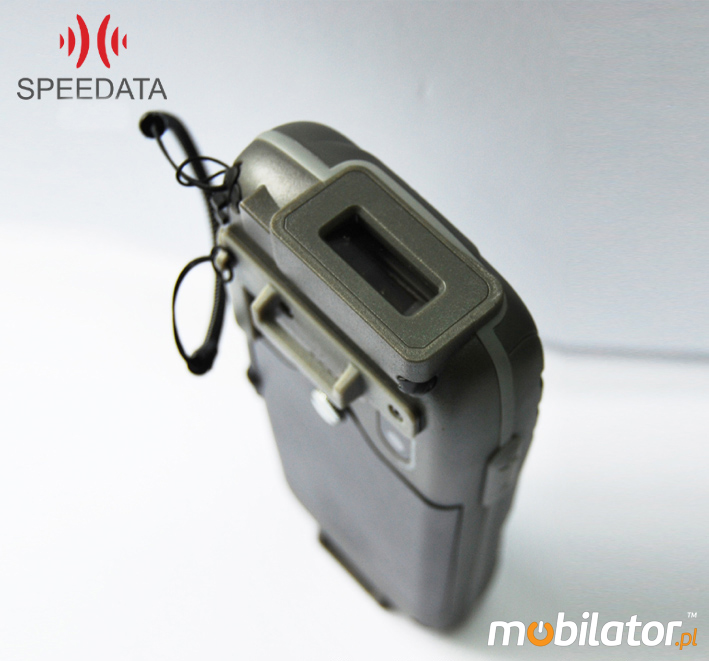

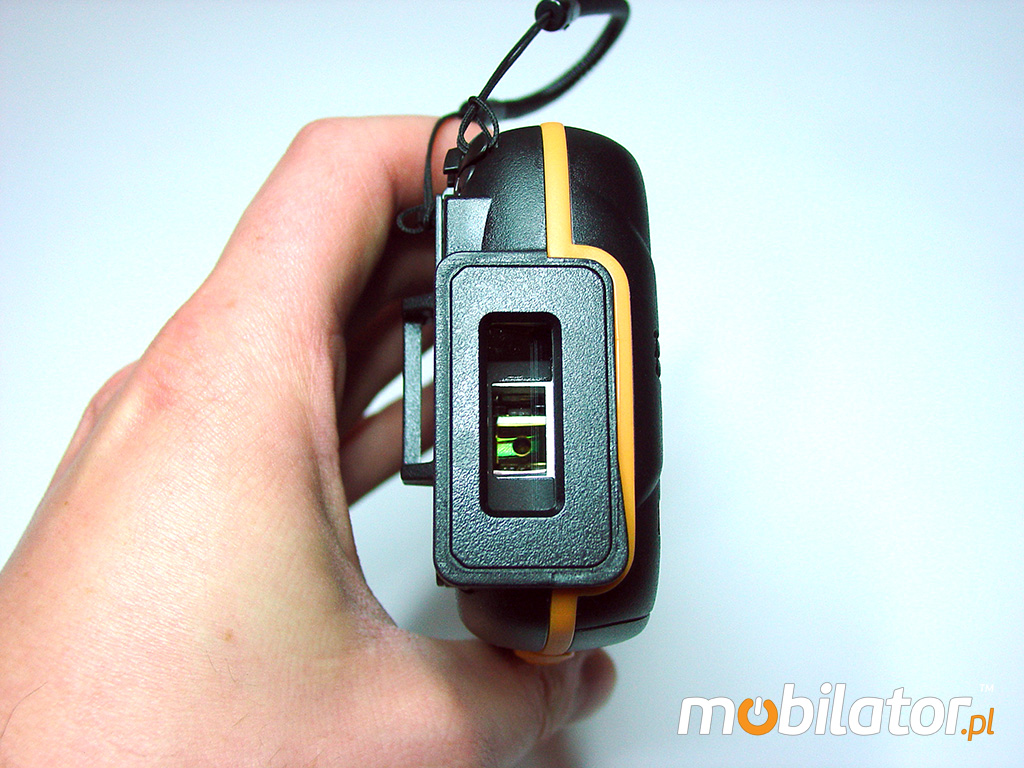

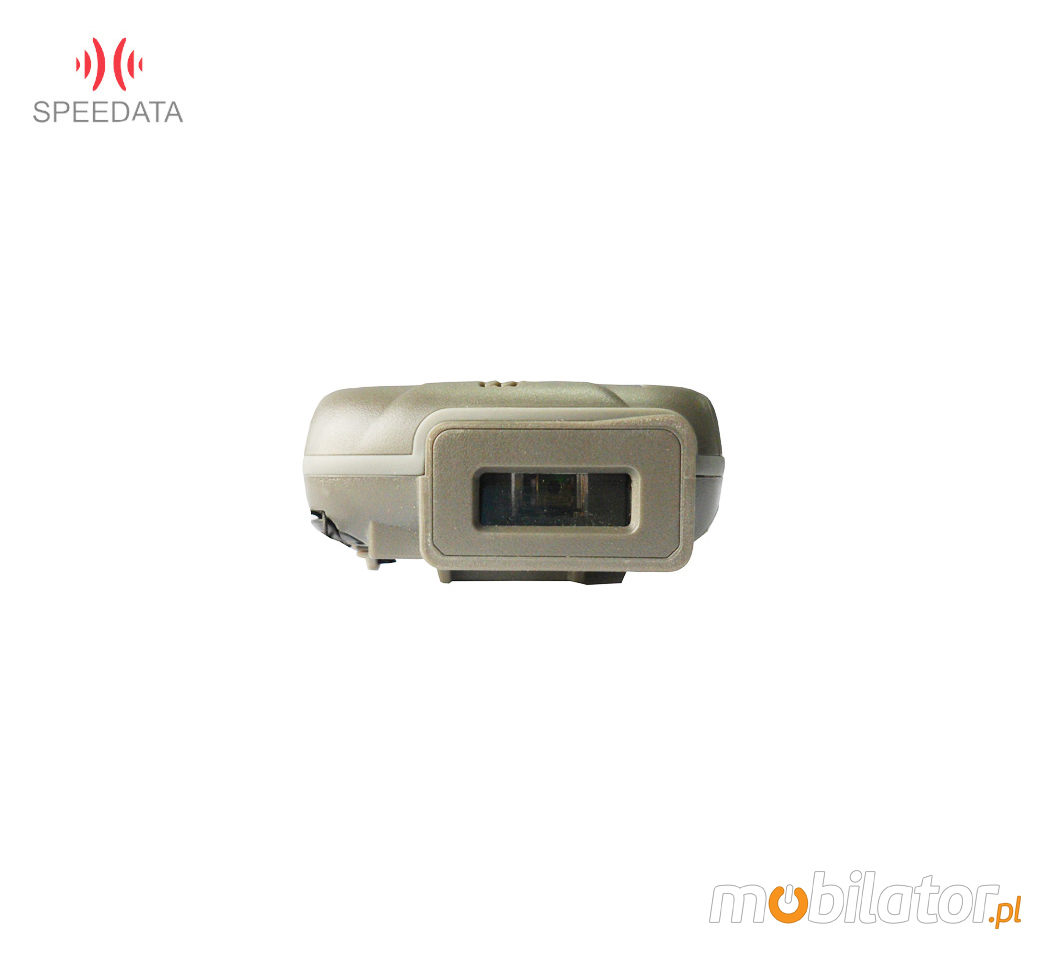

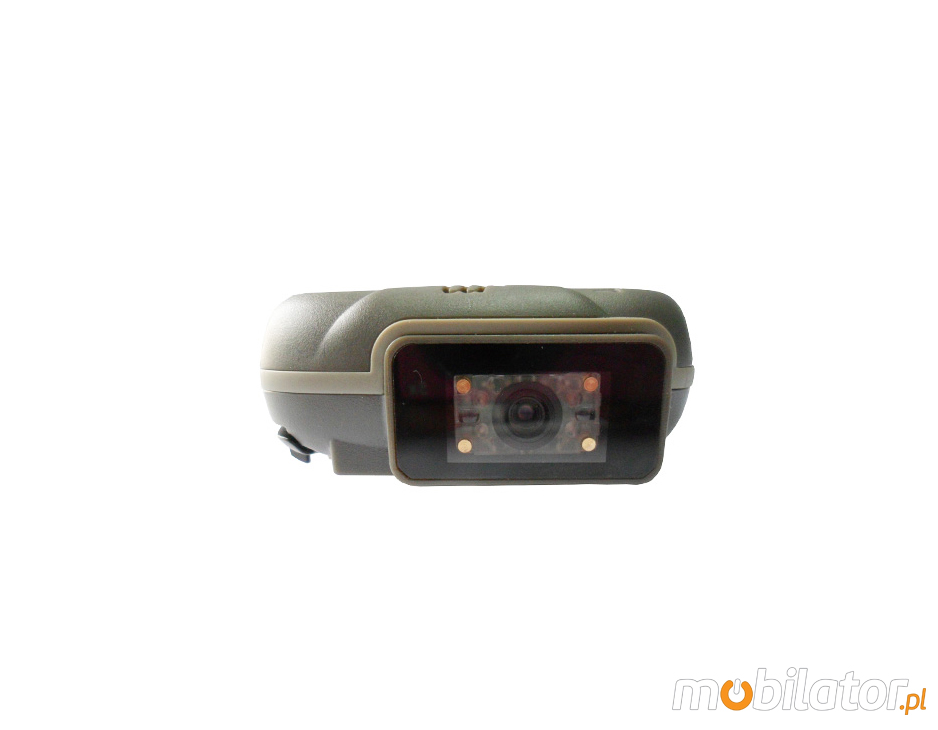

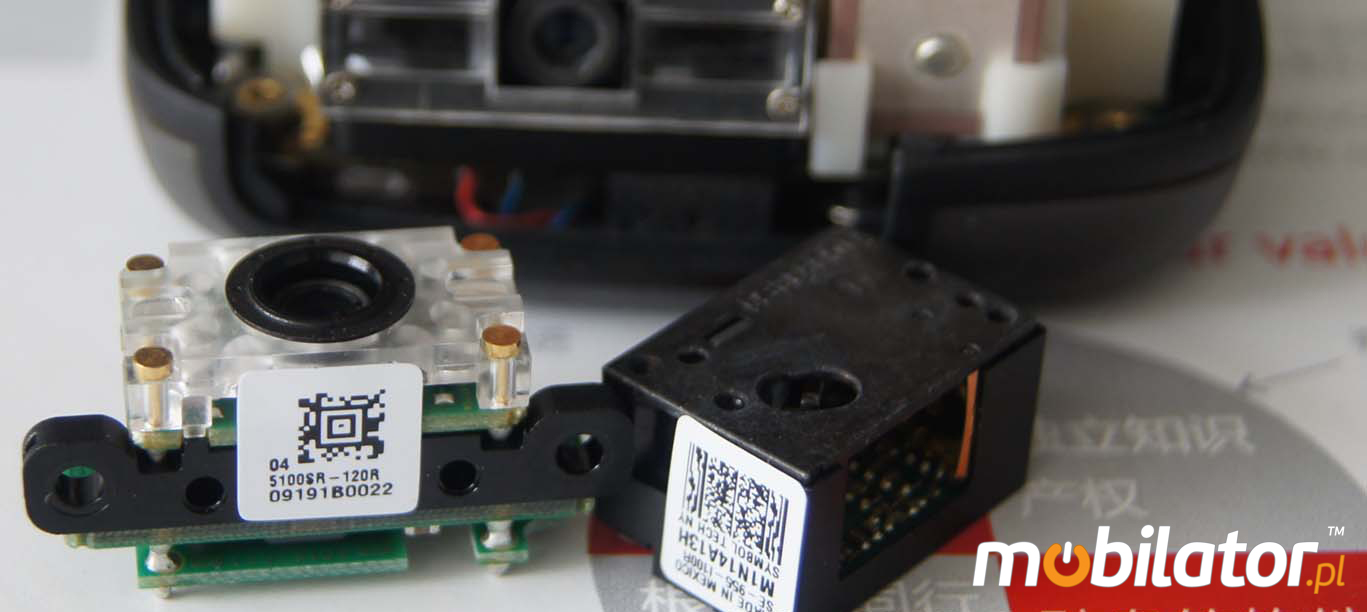

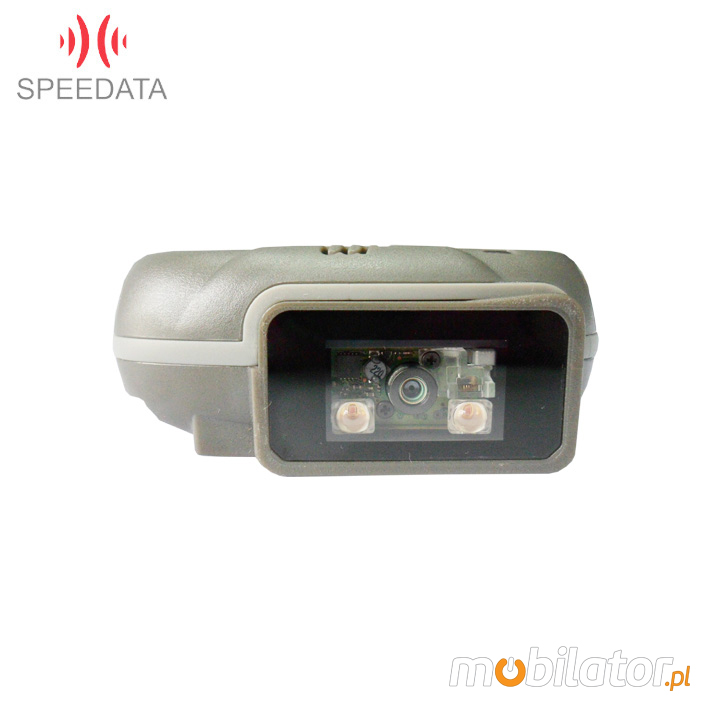

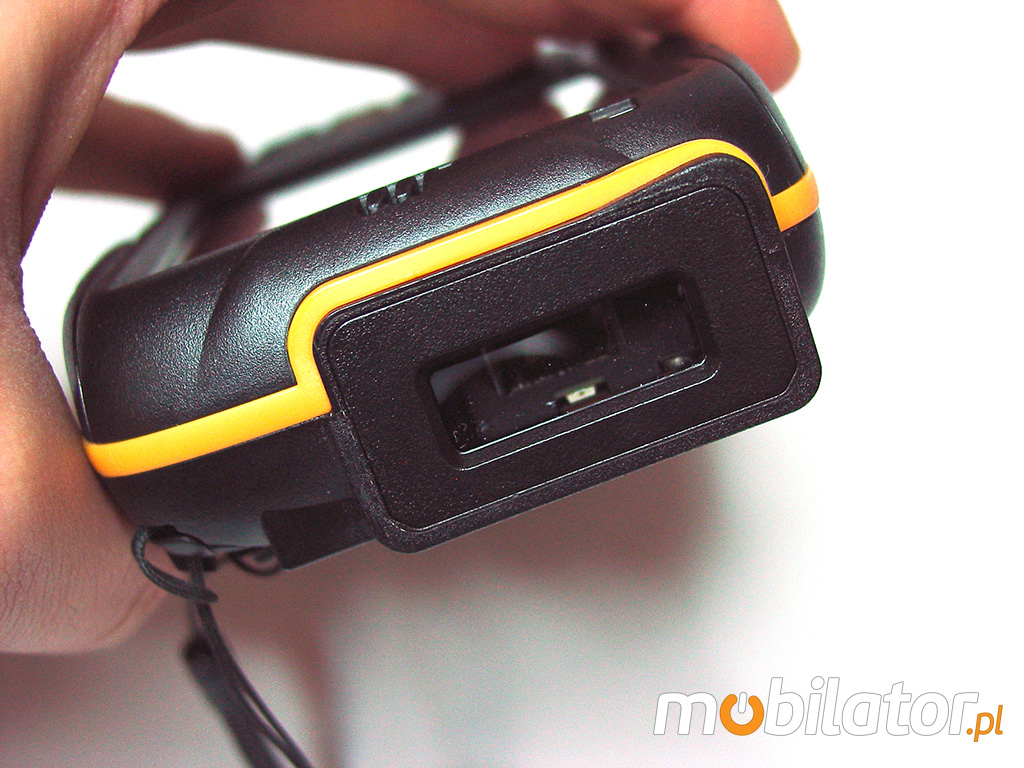

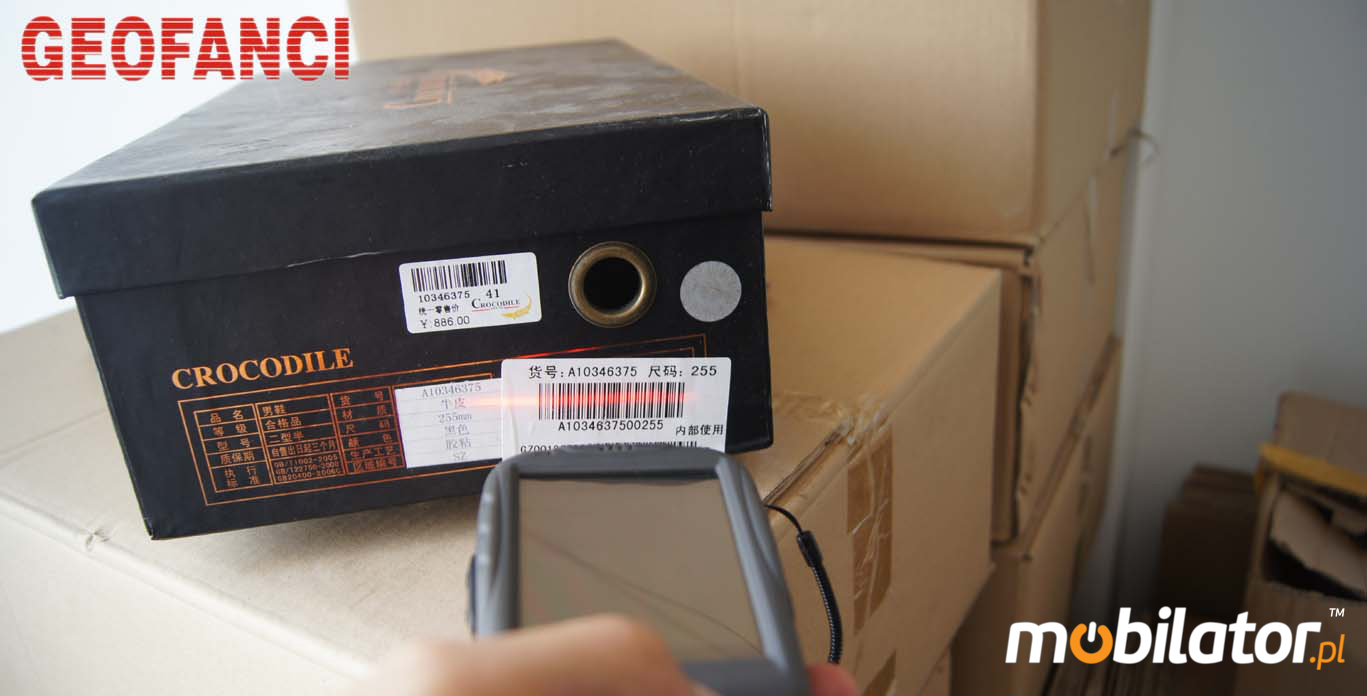

Barcode Scanner

Barcode Reader allows you to read, decode and transfer to your computer data stored in the barcode. With dynamic scanning capabilities and the large range of reading, data collector carefully collected data, which helps to increase the rate and efficiency. The whole can quickly start because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

1D 2D
NEWLAND: EM1300 (CCD)
 HONEYWELL: 5100 (CMOS)
HONEYWELL: N4313 (LASER)
 MOTOROLA: SE4500 (LASER)
MOTOROLA: SE955 (LASER)

barcode scanner kody kreskowe skaner kodów kreskowych kolektory danych

Far-infrared meter reading (IPOR)

Optical rangefinder in the tablet industry MT02 prove you that the lines are gone. Built-in rangefinder will allow you to easily and accurately measure the distance without having to rebuy an additional device.

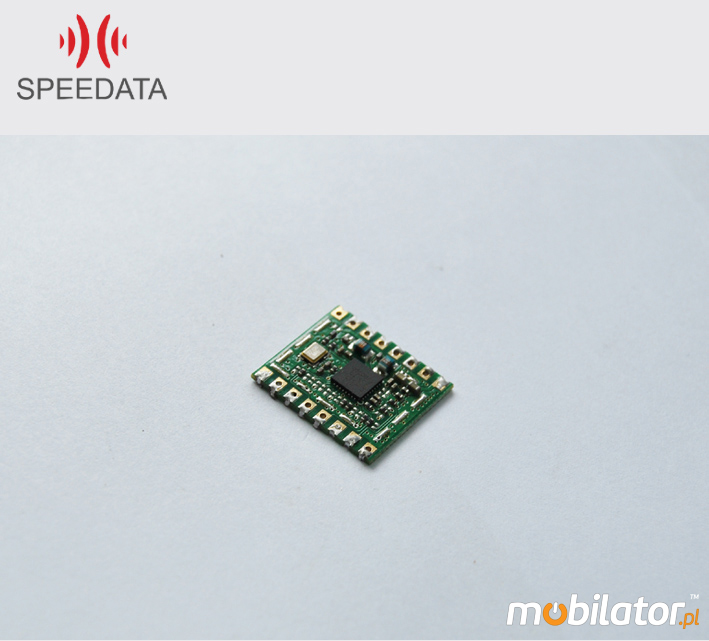

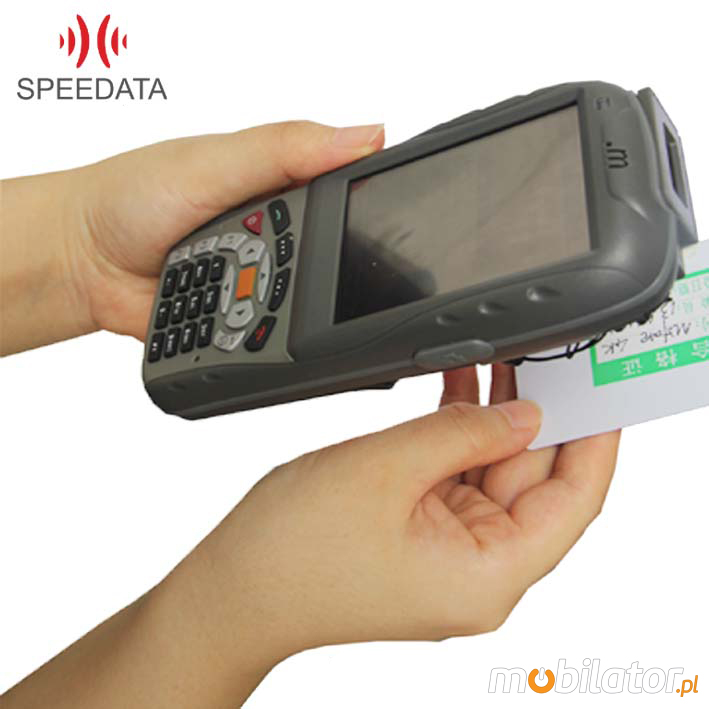

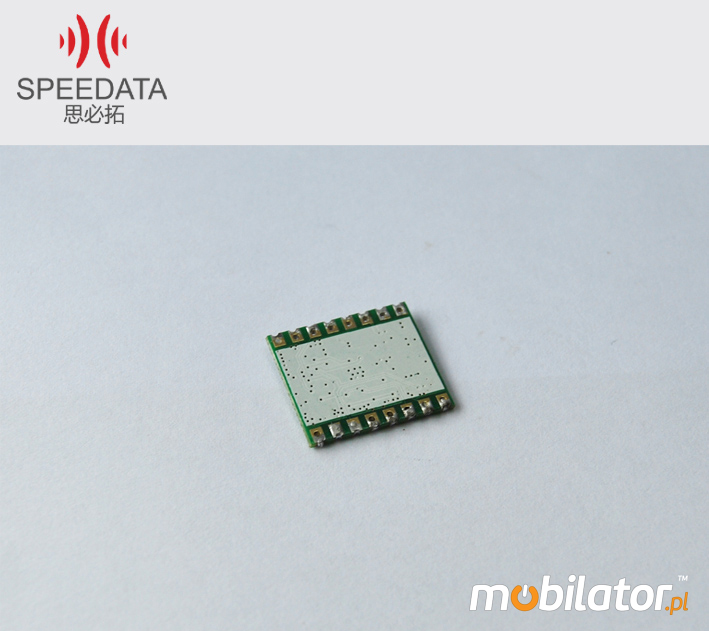

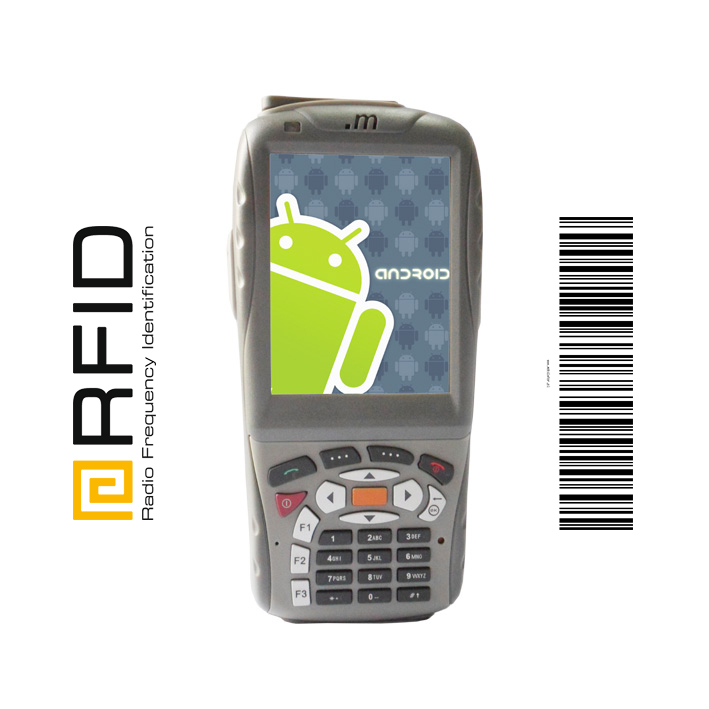

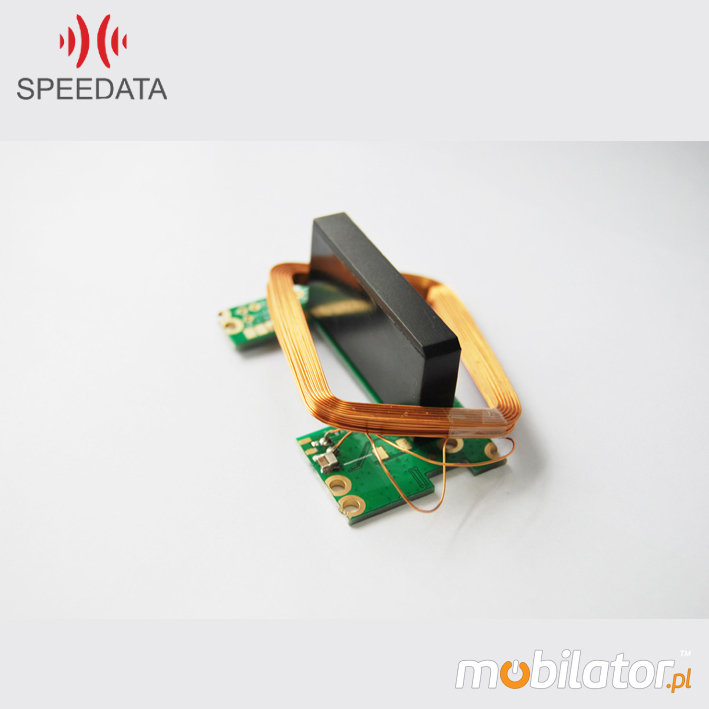

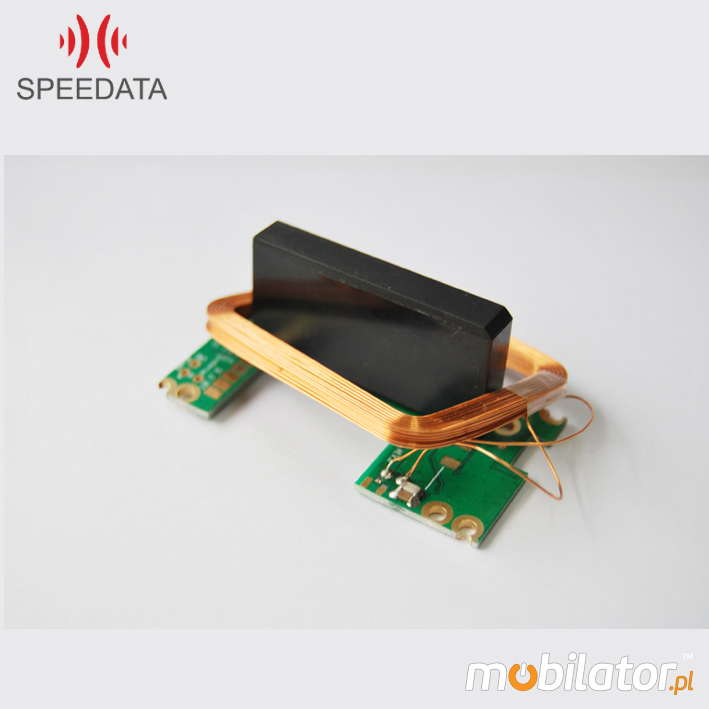

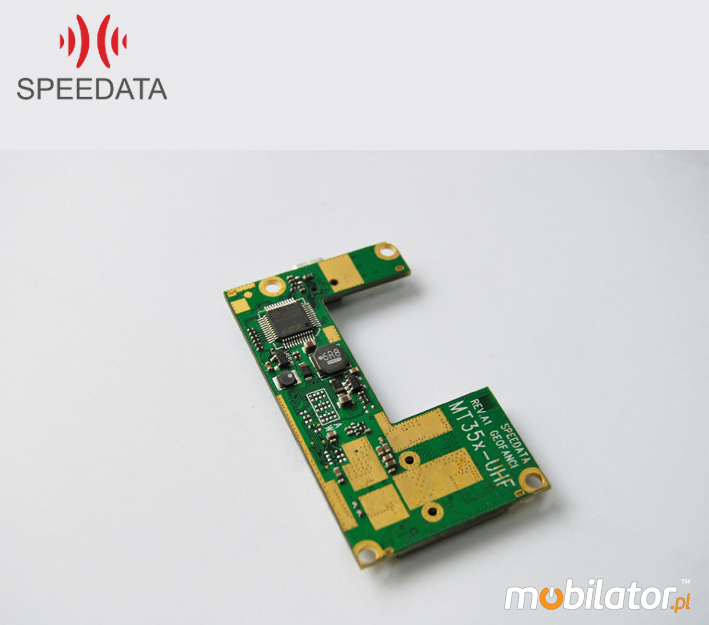

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

RFID  -  HF
   RFID  - HF +
13.56 Mhz 13.56 Mhz
ISO14443 ISO14443
  A/B ISO15693

speedata mt02 rfid uhf hf

go top… do góry menu… menu

Resistance

Applicable standards

Operating -15°C -- +50°C
Storage -20°C -- +65°C
Humidity 5% - 95% non-condensation
Dust IP5x (dust)
Water IPx4 (water)
Drop Multiple drops a concrete 1.5m the entire operation range

go top… do góry menu… menu

speedata mt02 uhf rfid 1d 2d

IP54 Resistance

IP level is a classification of different degrees of protection of electrical equipment which are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, such as dust. It's mainly about access of foreign bodies inside. The second digit is a degree of protection against water.



Complete protection against contact, Protection against dust deposit

5

4
Protection from splashed water

go top… do góry menu… menu

Modules and Wireless Networks

speedata mt02 gprs 3g wcdma hsdpa

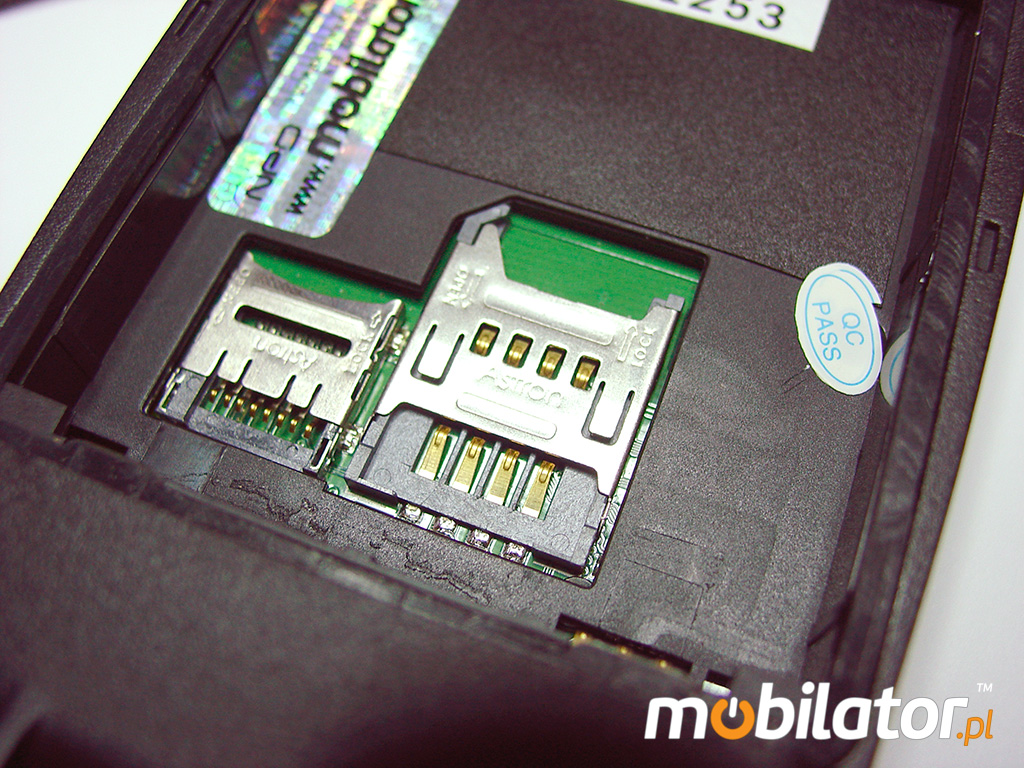

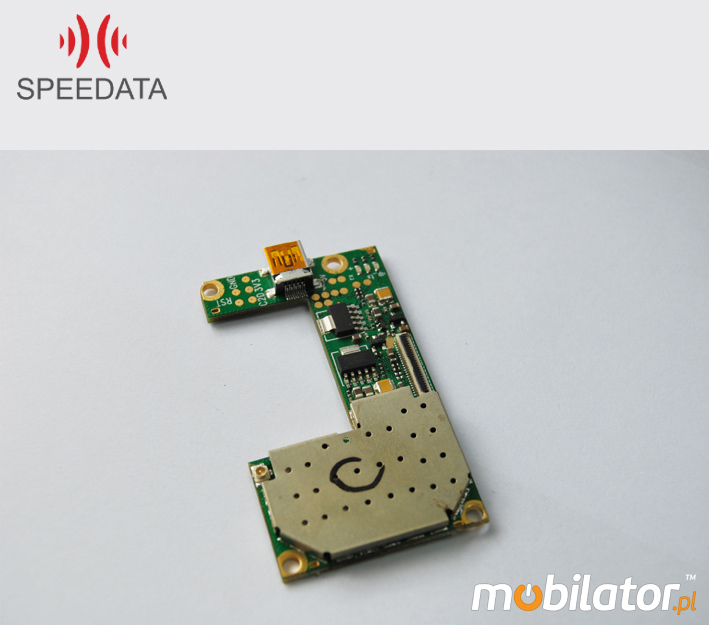

With WCDMA module, you need only insert a SIM card in the special slot and can instantly connect to the Internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Also used in MT02 internal 3G module adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WIFI  802.11b/g
GPS (Android)
  U-BLOX
Bluetooth  Bluetooth  V2.0
Modem  Huawei MU609
   GSM 850/900/1800/1900MHz, GPRS, EDGE
   UMTS 850/900/1900/ 2100MHz HSPA
  The ability to make voice calls

go top… do góry menu… menu

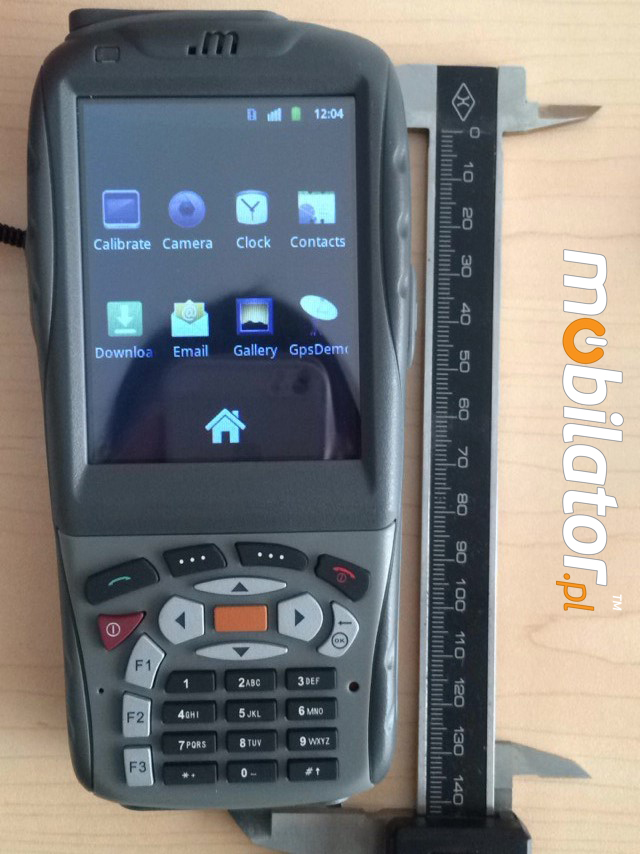

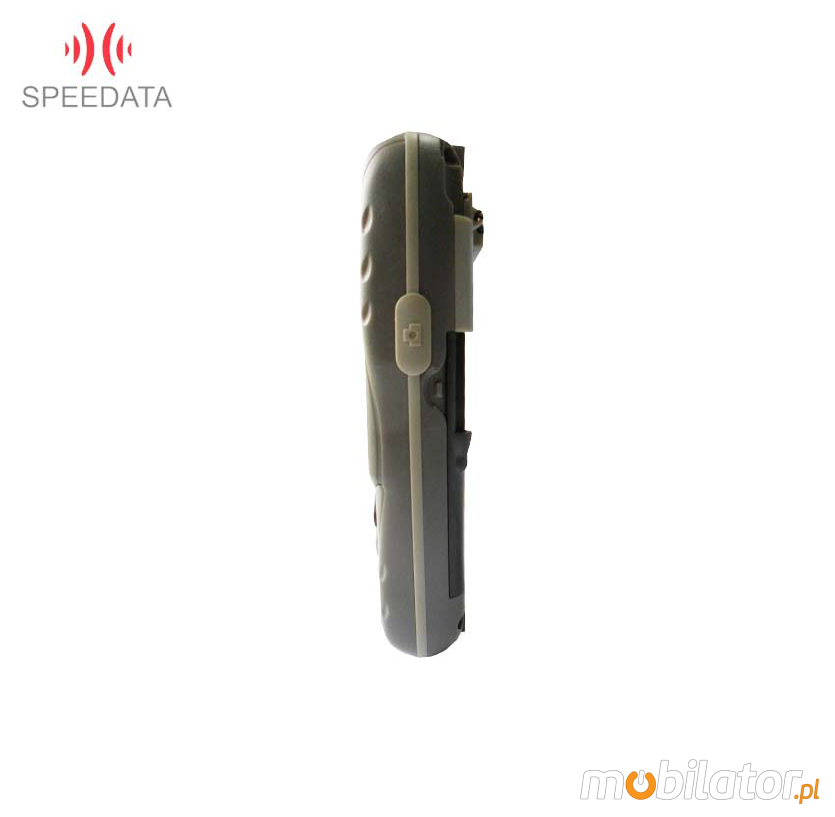

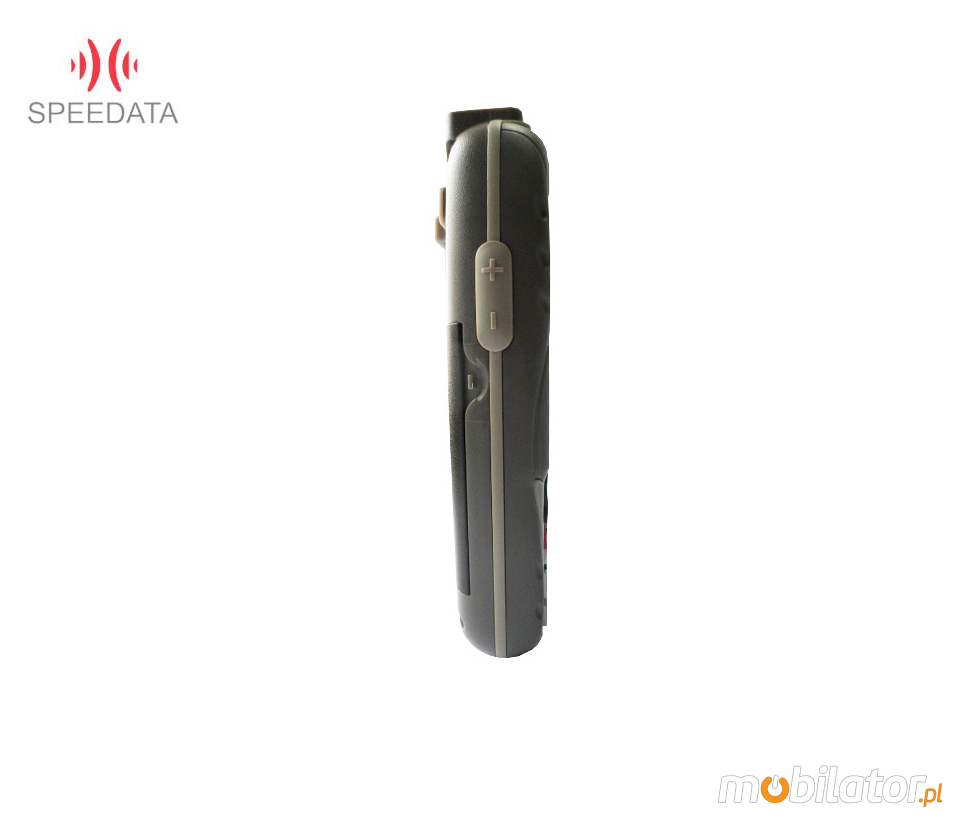

Minimalism

speedata mt02 1d barcode scanner lase micro usb lan rj45 bateria

You no longer need to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MT02 problem disappears forever, as it weighs only 320g and its dimensions (149 x 72 x 28mm) allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the Polish market in the industrial segment.
 Sizes 149 x 72 x 28mm
 Weight 320g

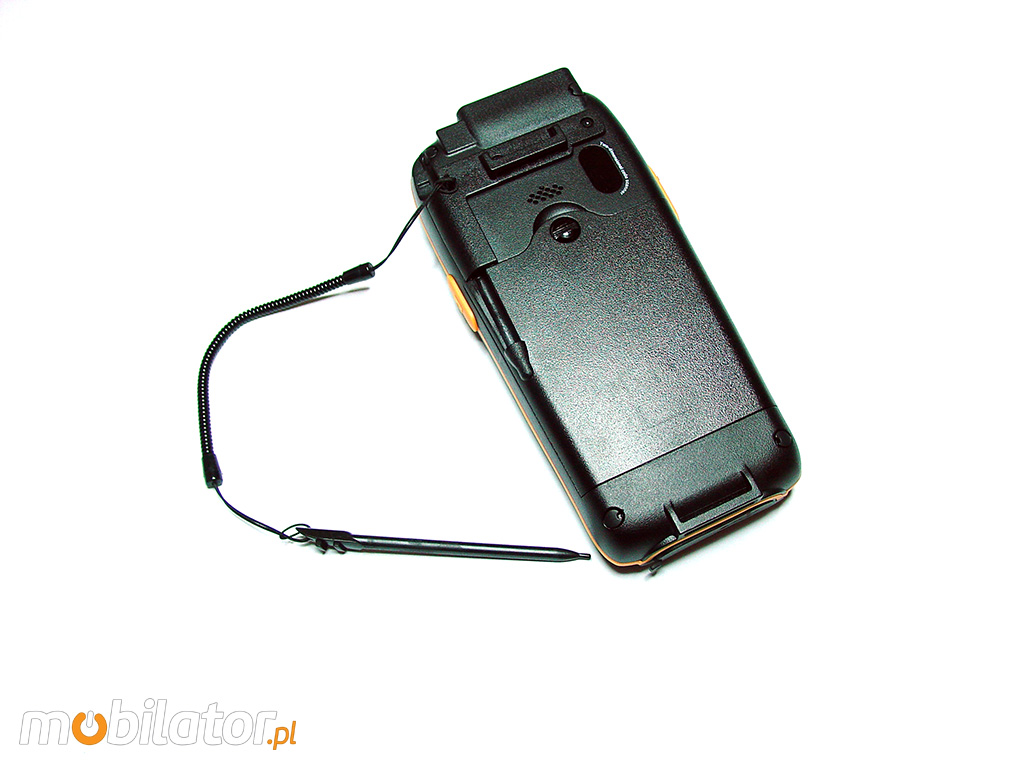

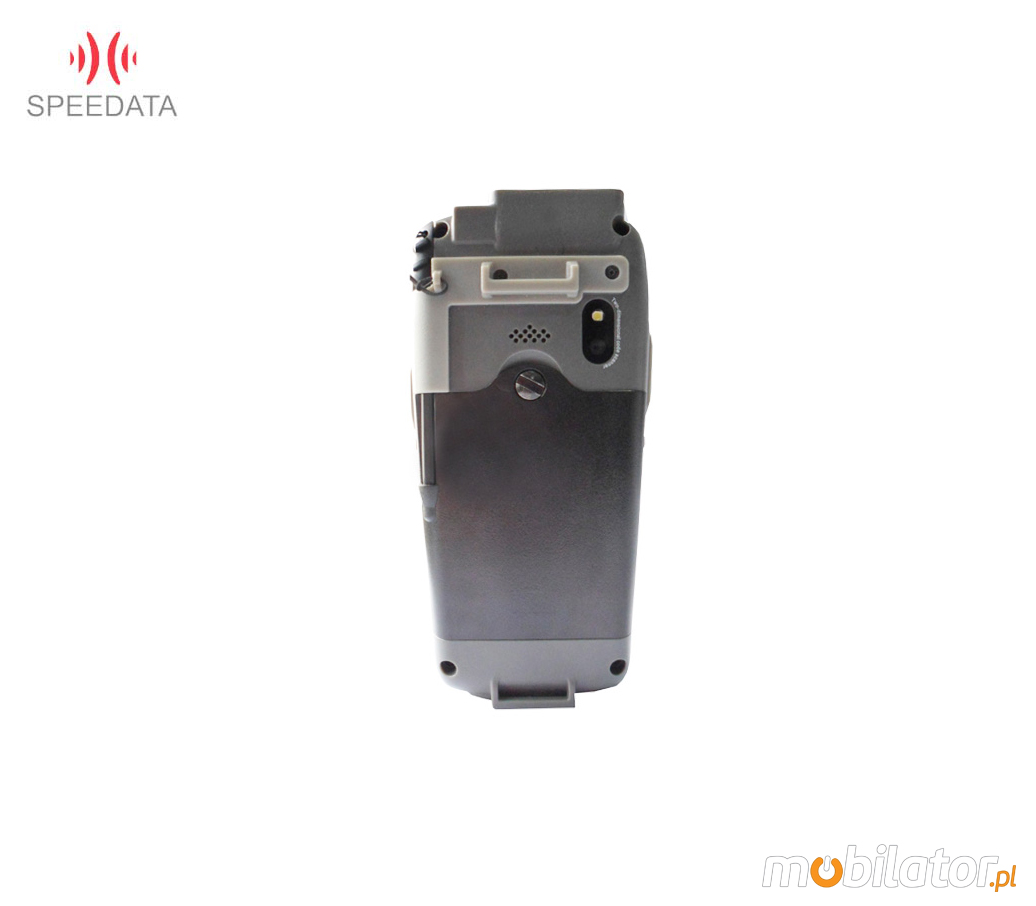

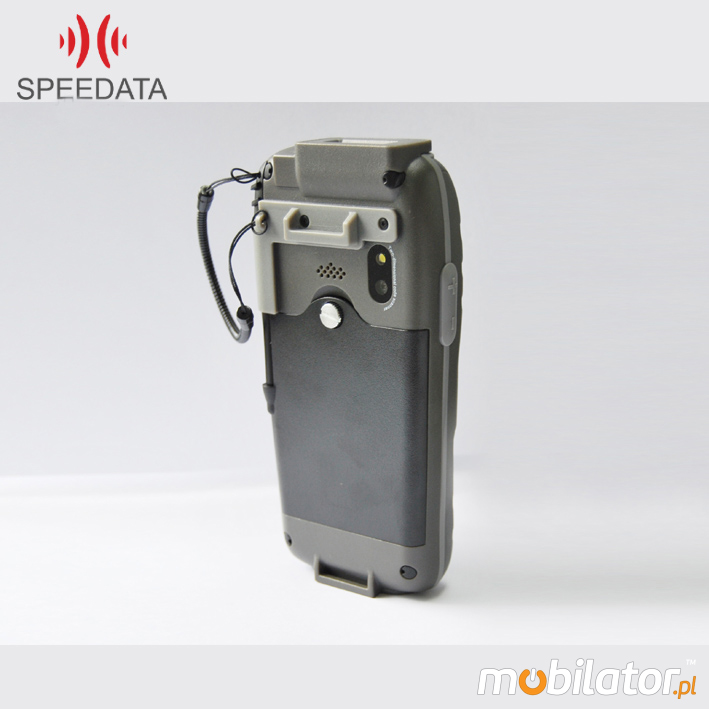

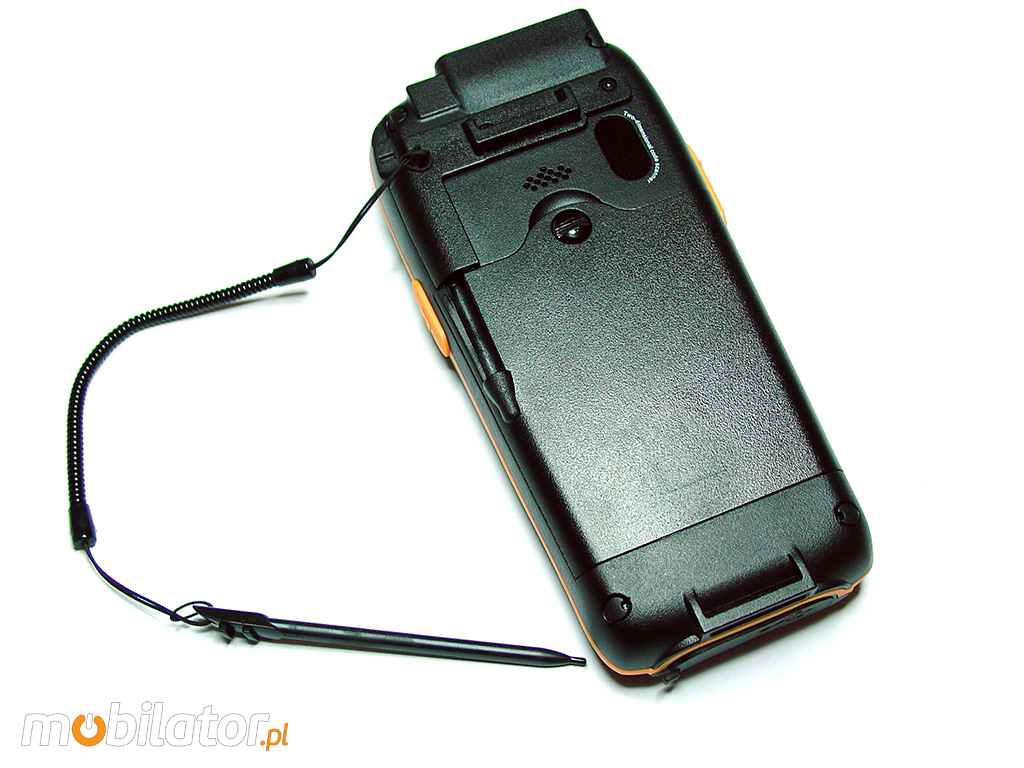

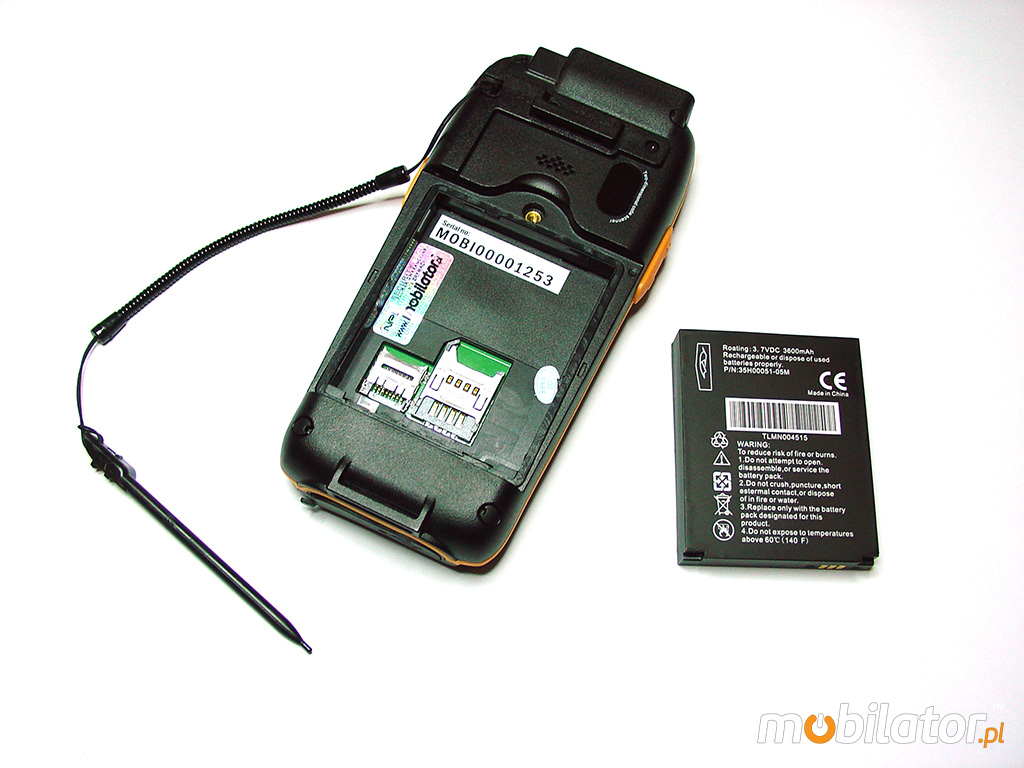

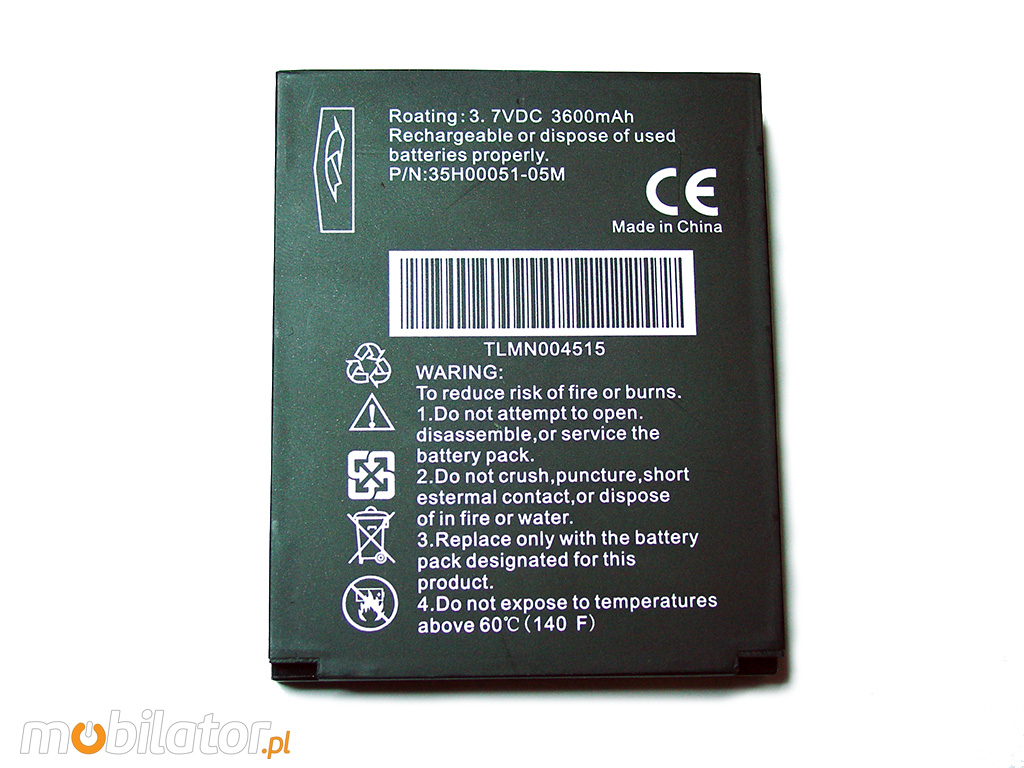

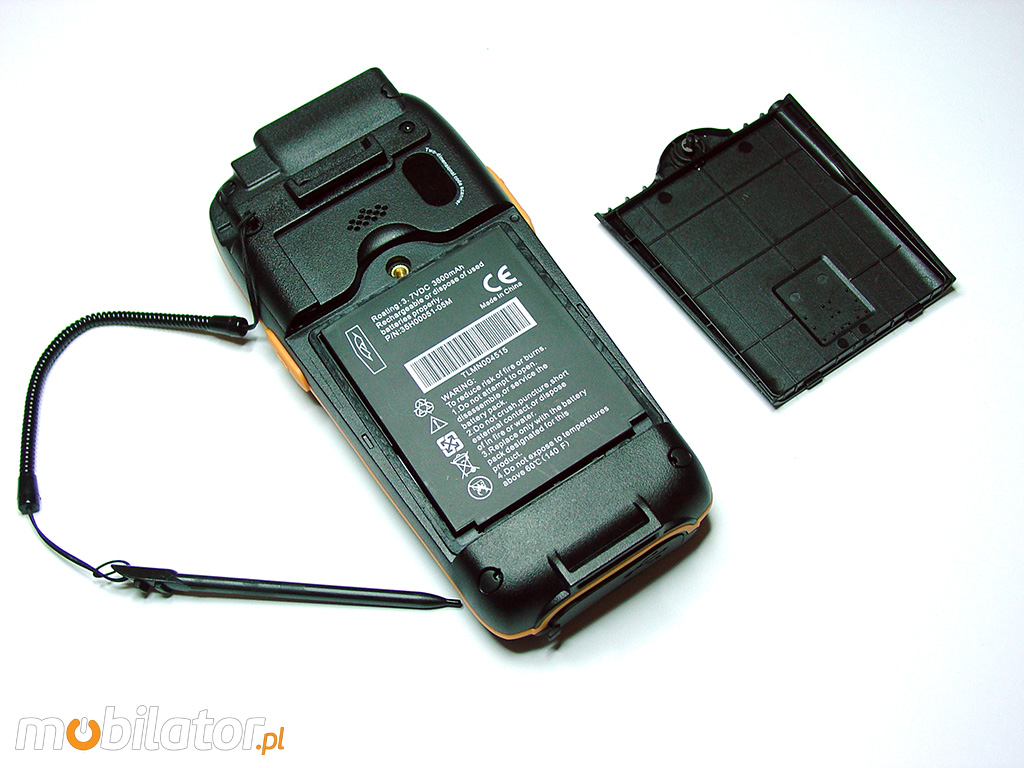

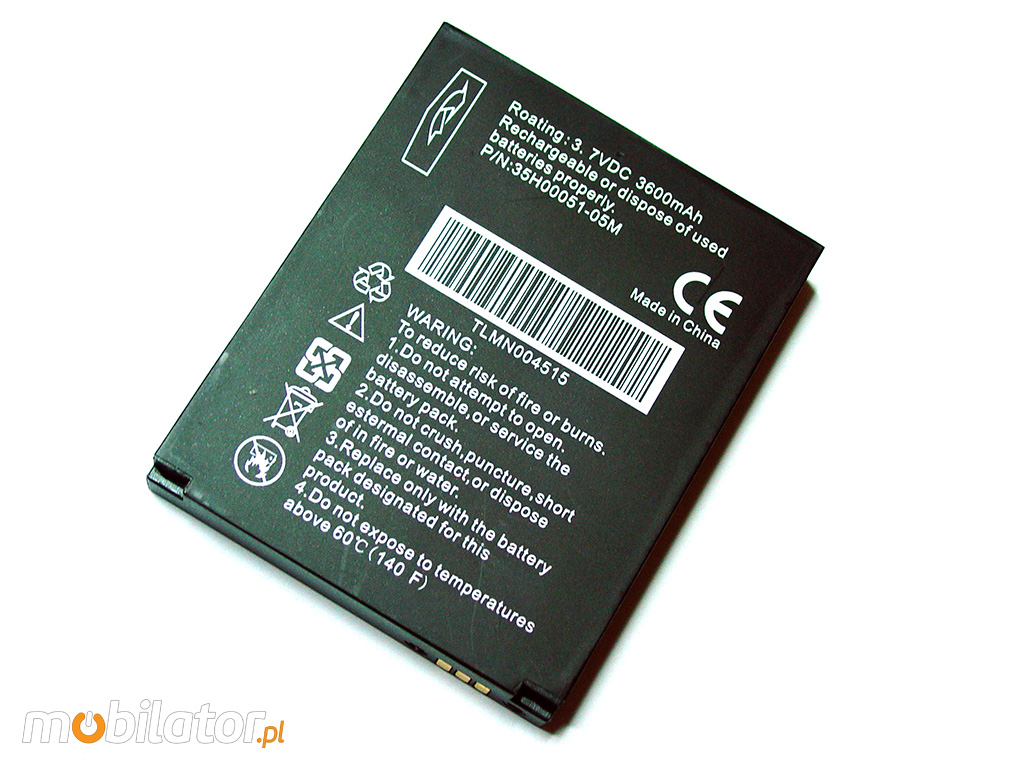

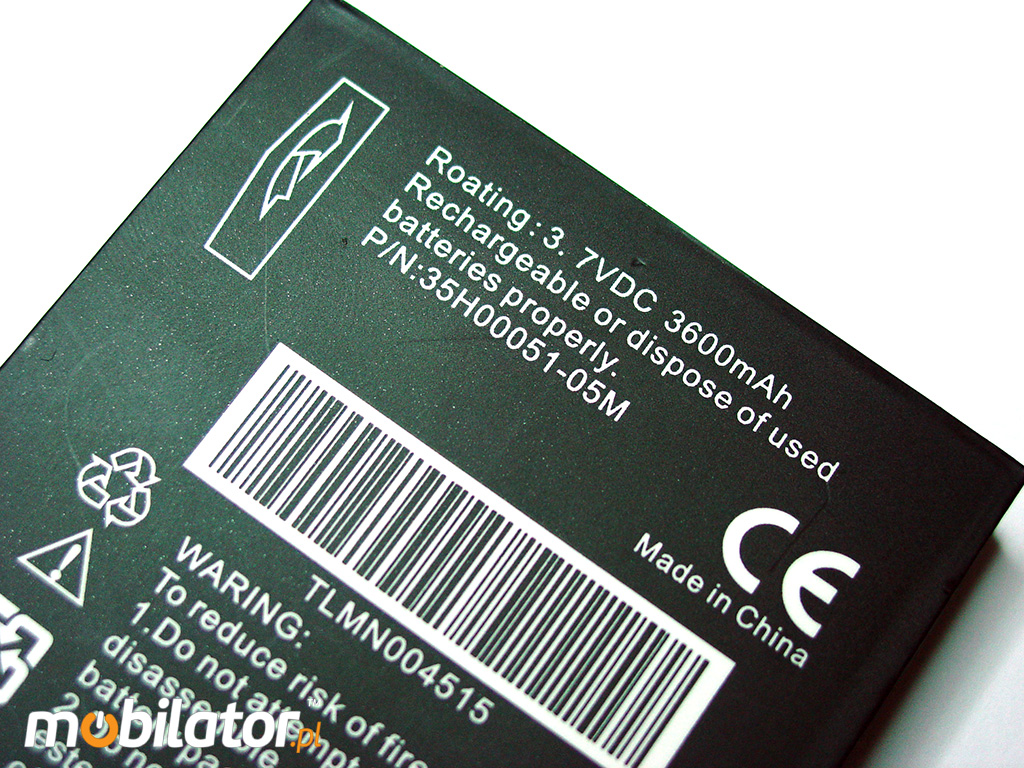

Quick change battery

With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.

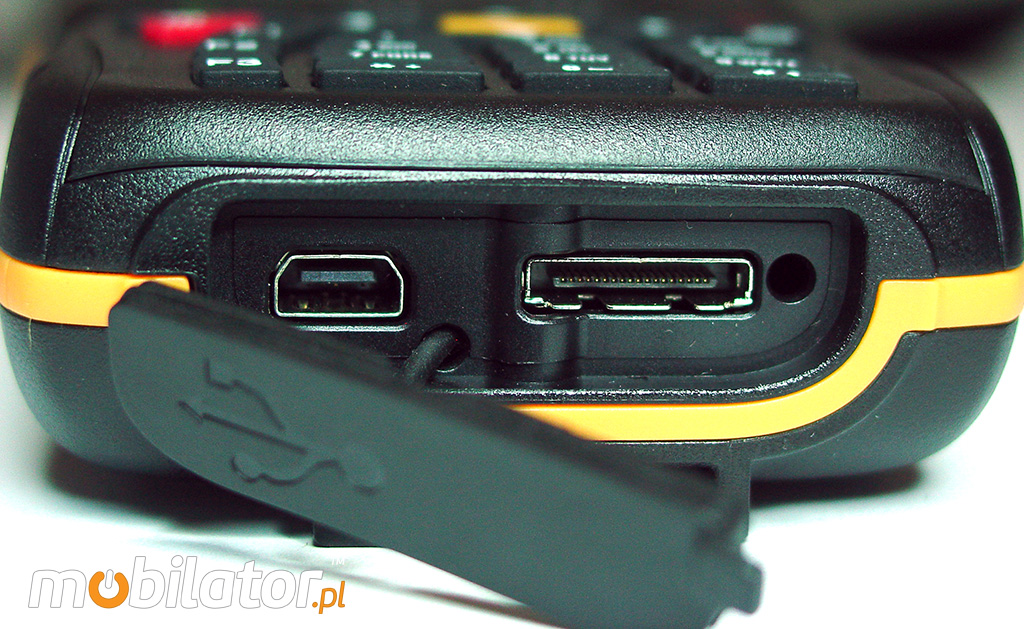

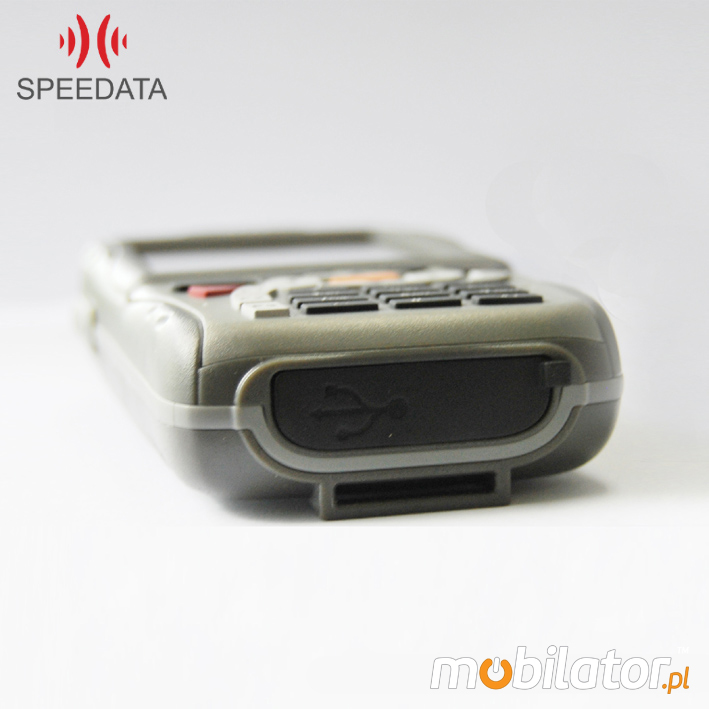

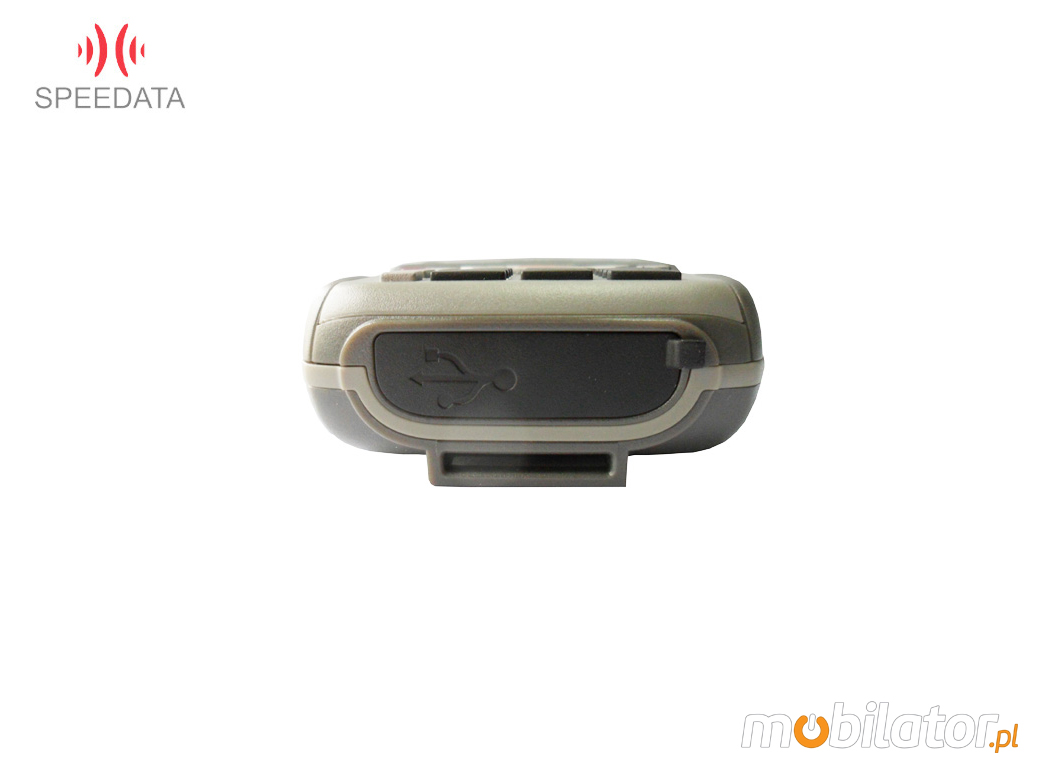

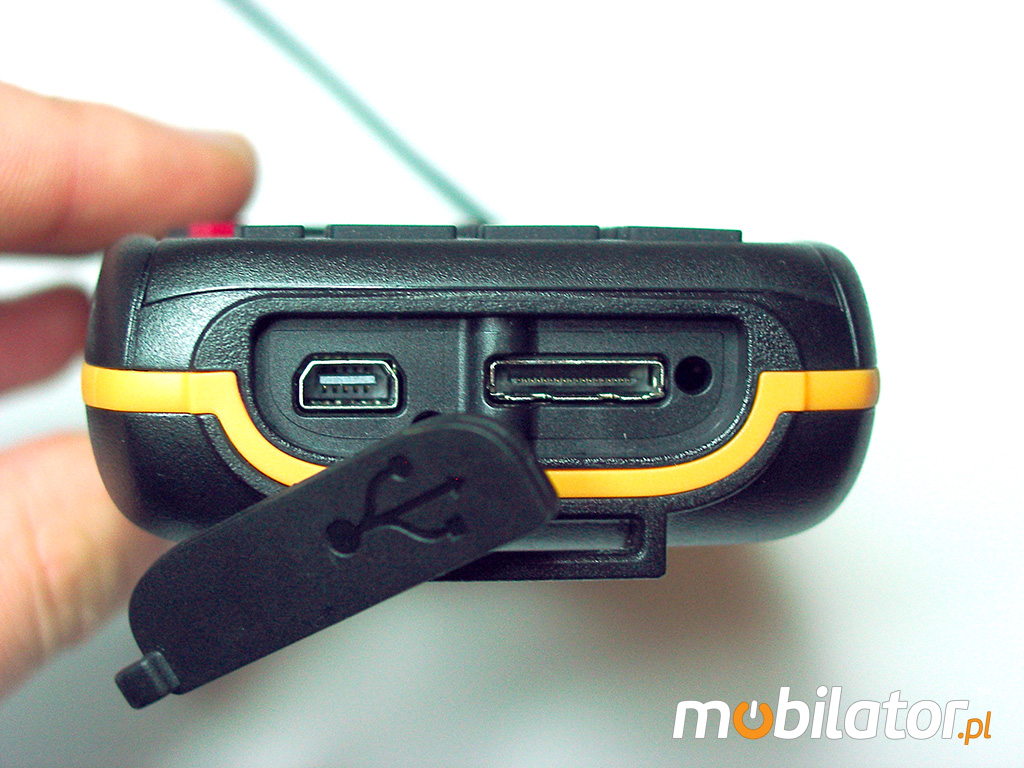

speedata mt02 microusb

go top… do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
VIDEO
MT02 - Assemble video

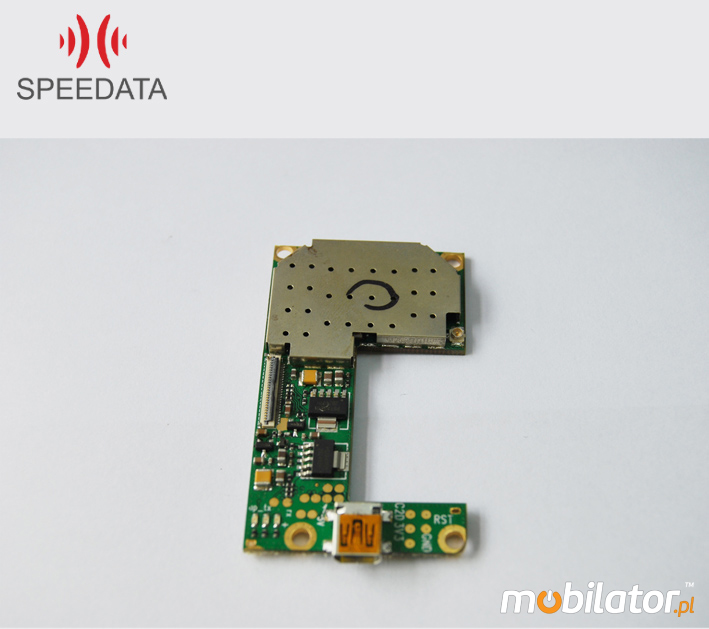

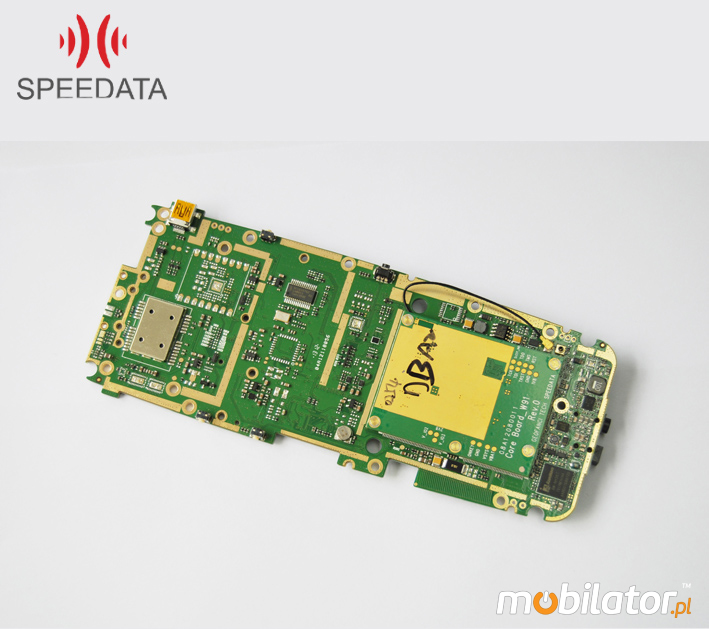

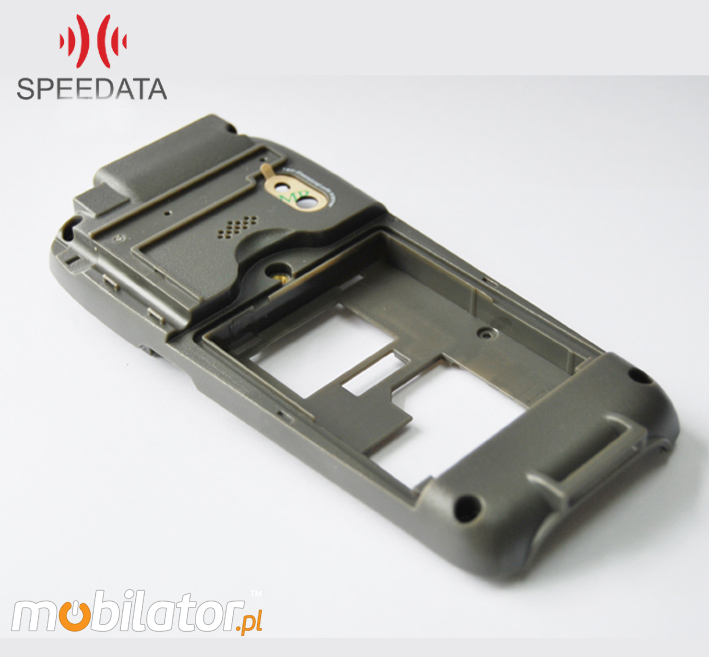

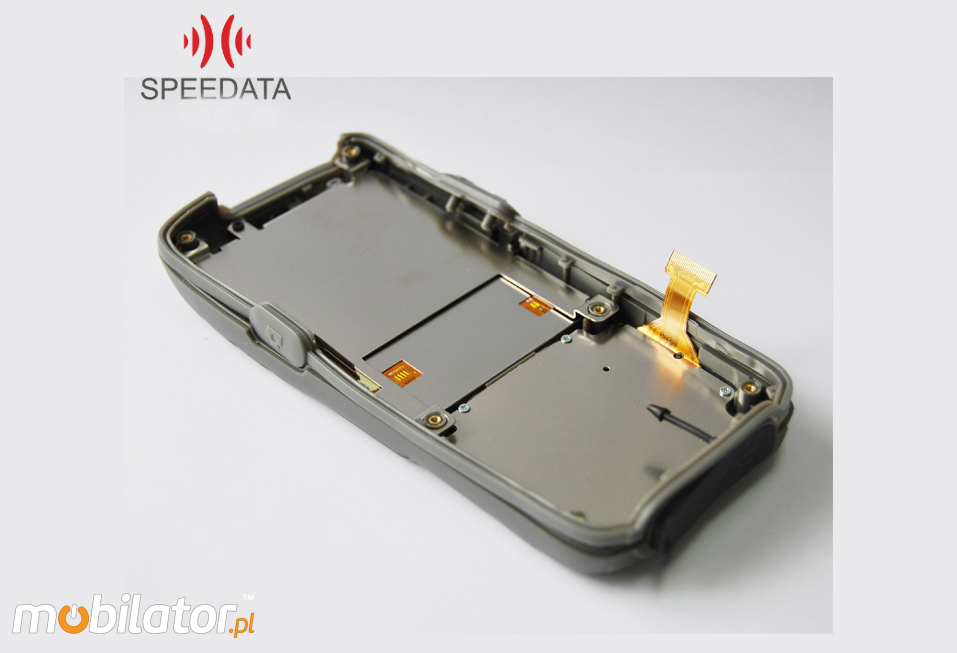

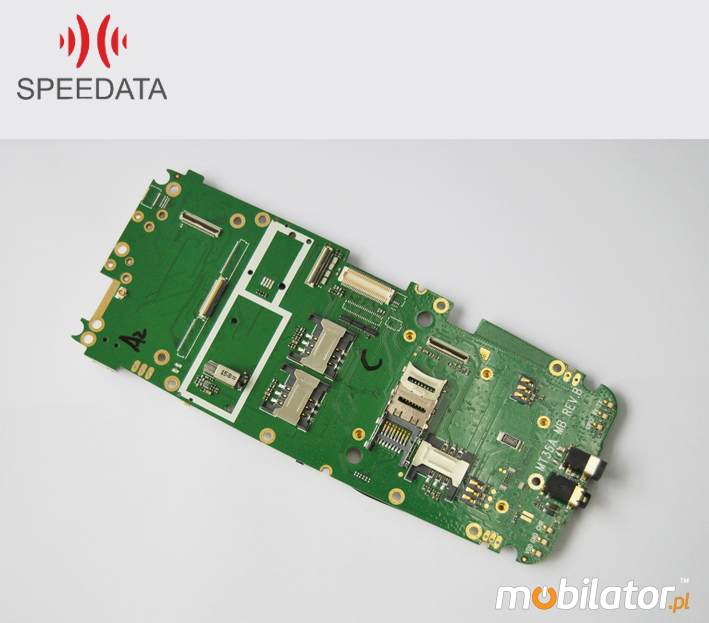

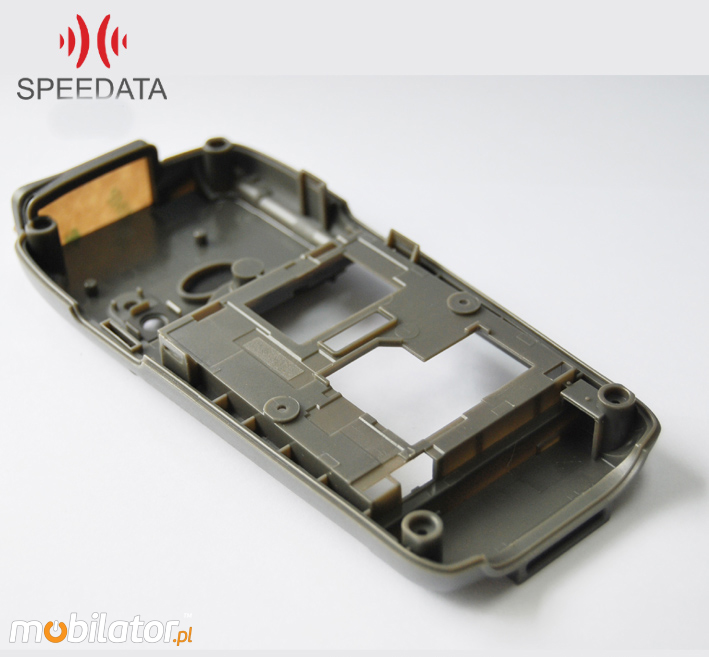

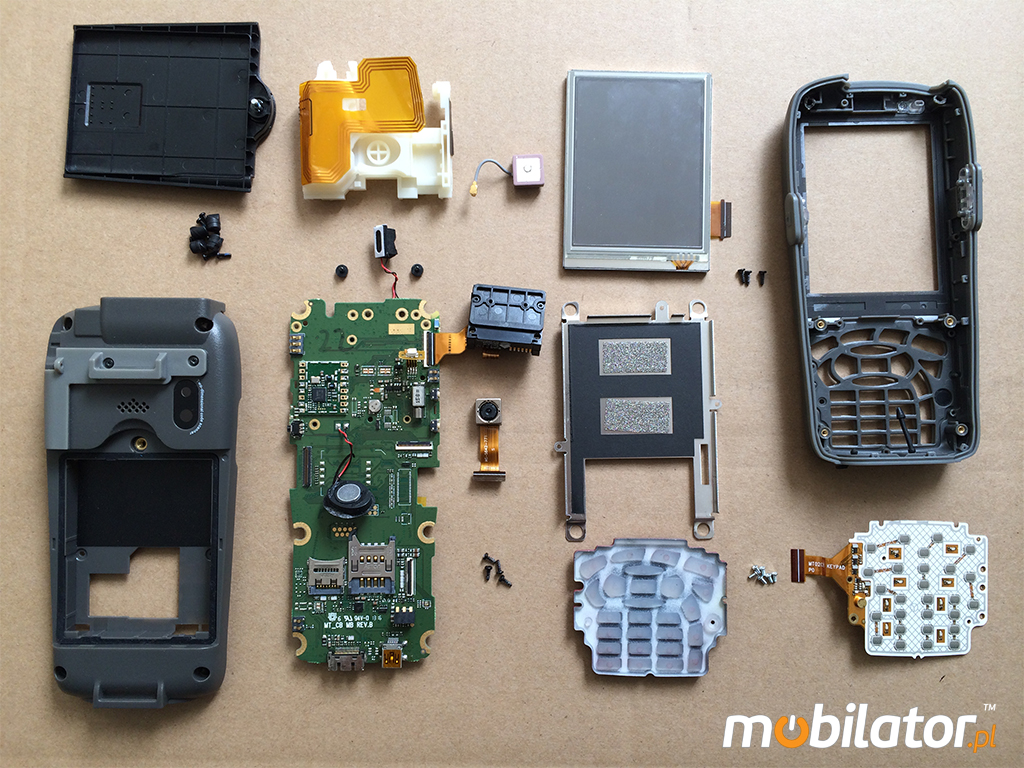

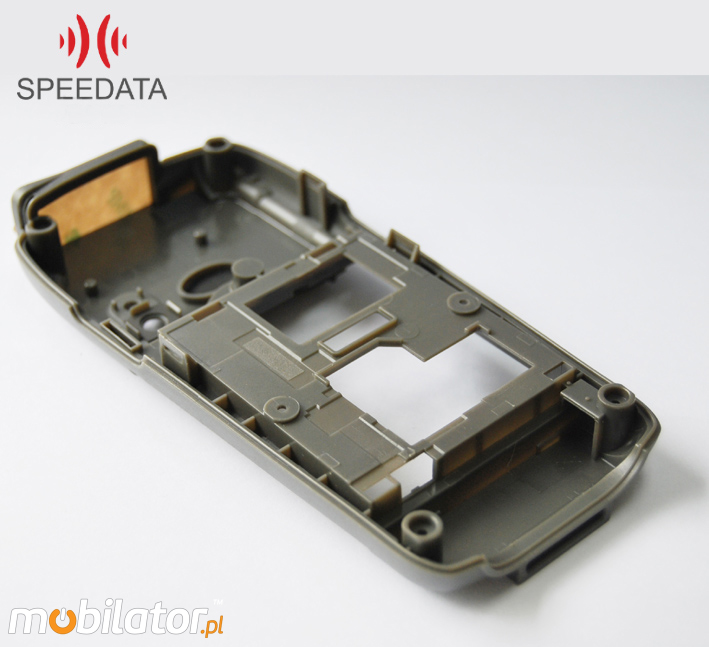

MT02 Teardown



Compare all versions
