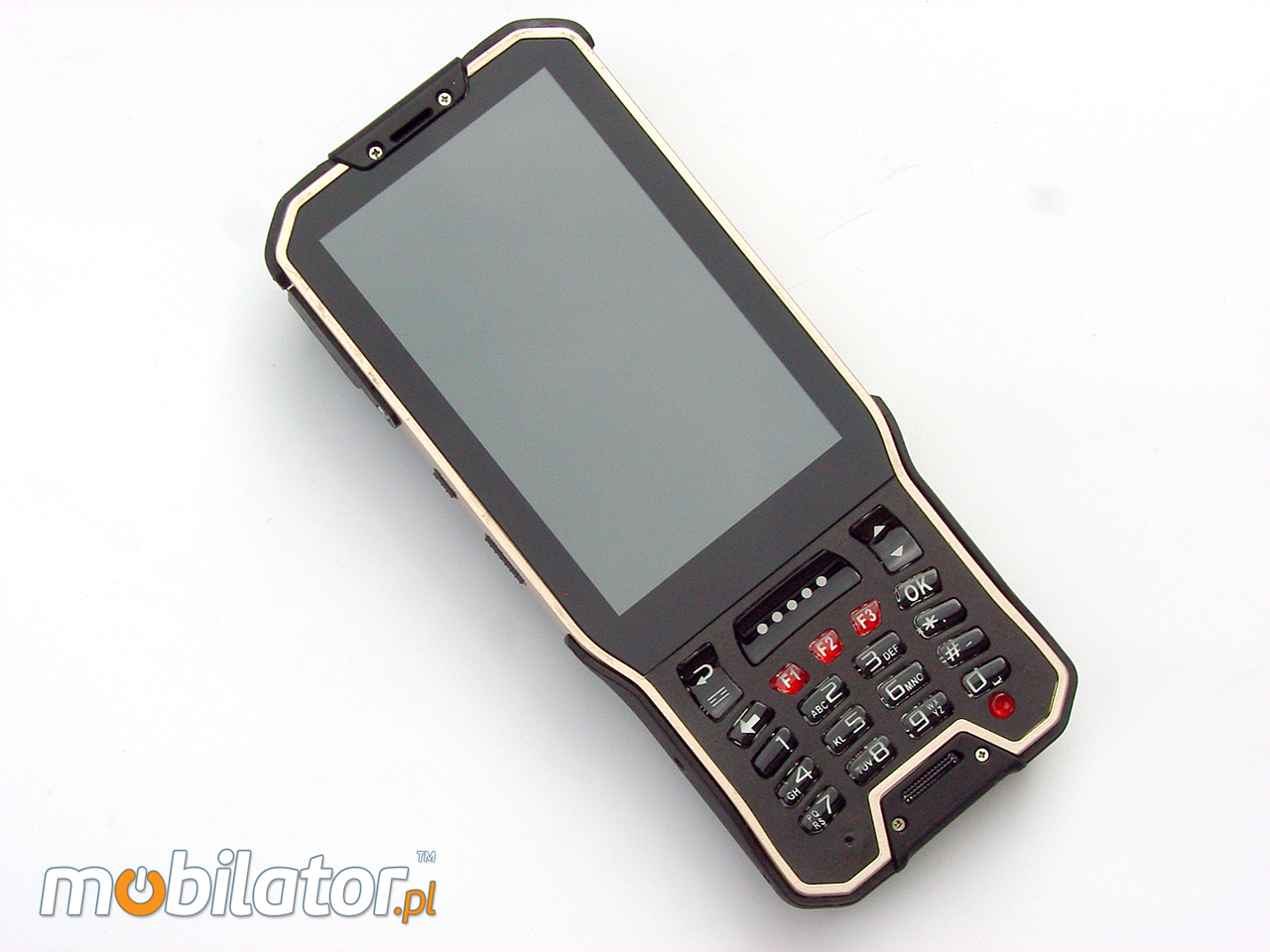

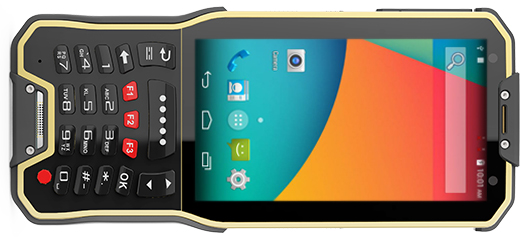

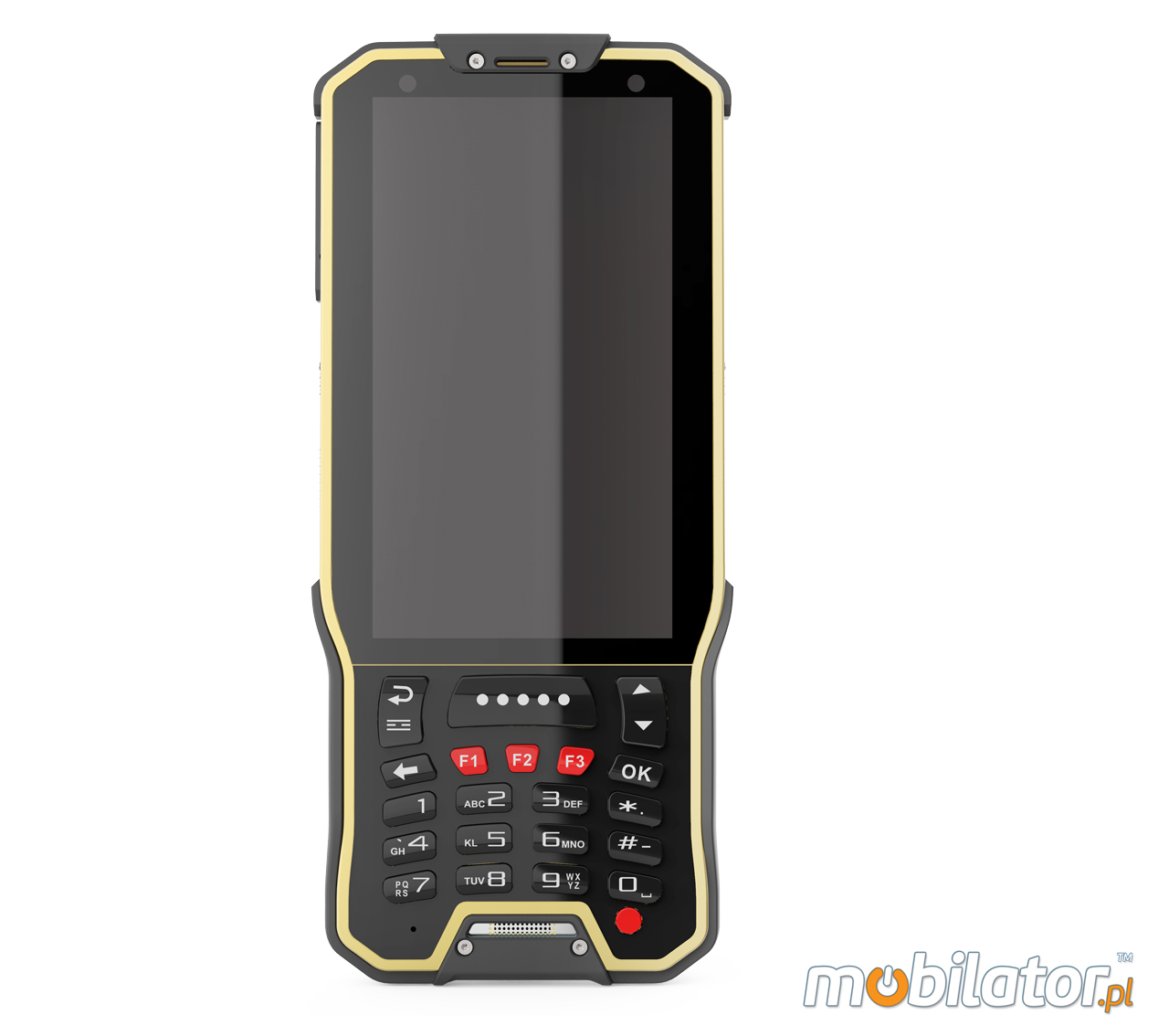

Data collector MobiPad MT40 v.2

Data update: 2019-09-12

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

kolektor danych mobipad mt40

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism

MT40 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

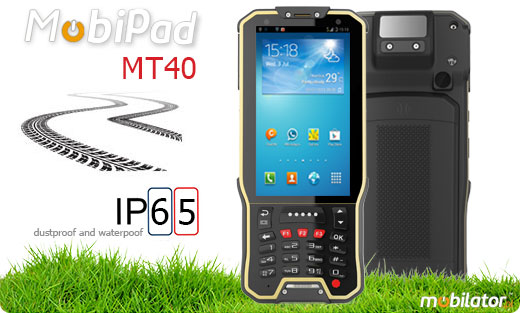

kolektor danych mobipad mt40

Processor	Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Graphics	Mali-400 MP
Display	4" (480x800) LCD
Type of display	Capacitive
RAM	1GB DDR3
ROM	8GB

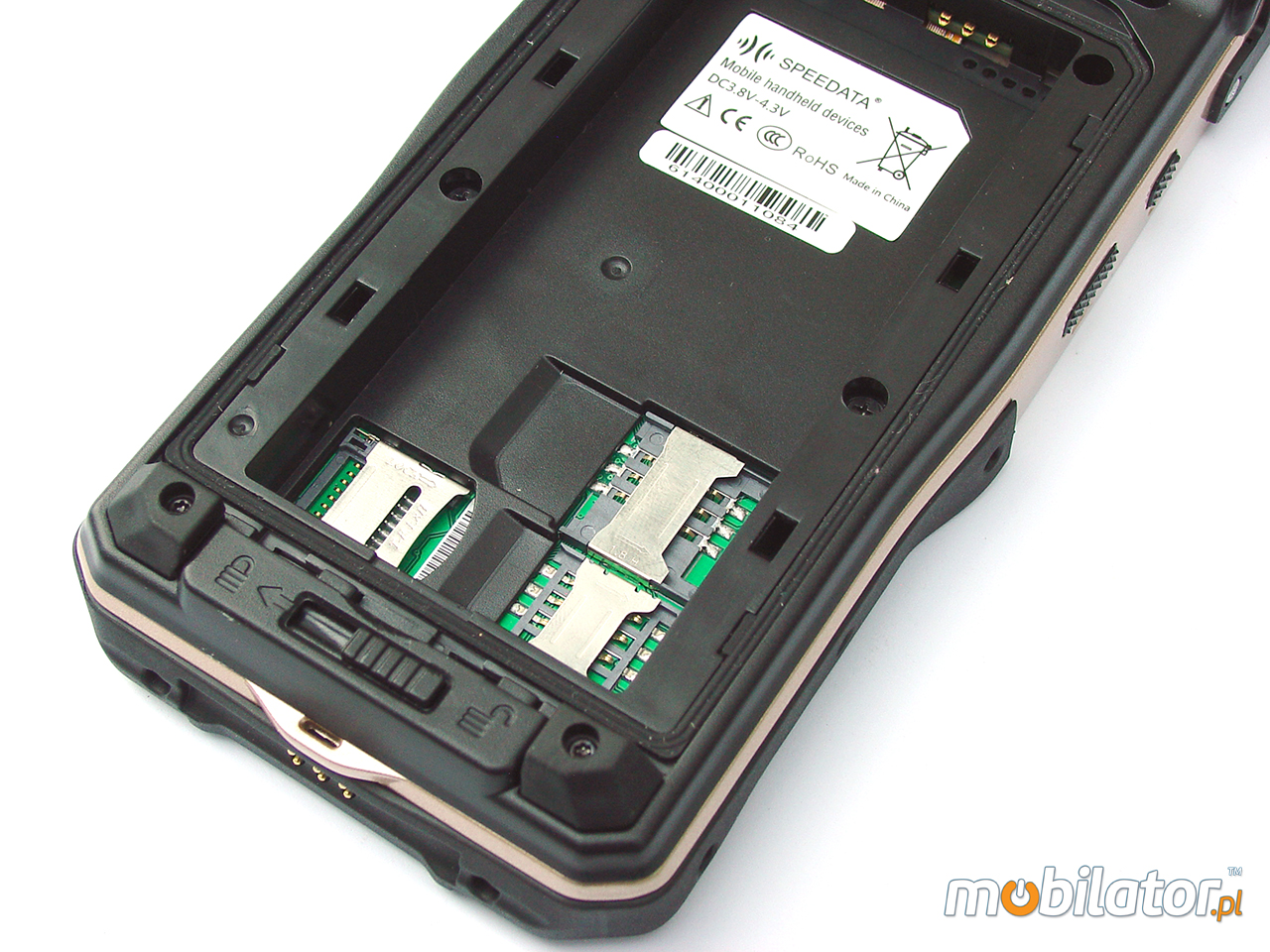

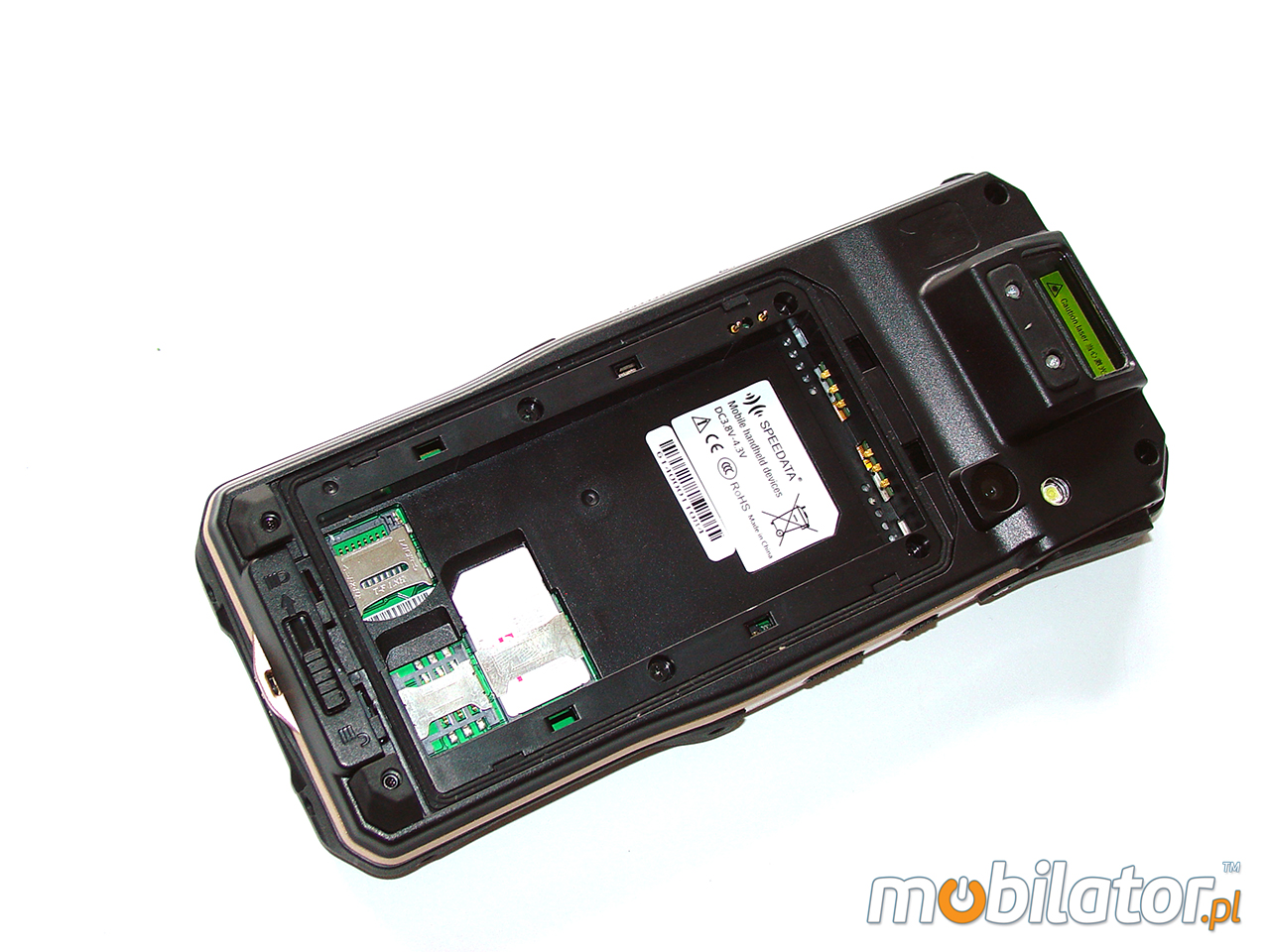

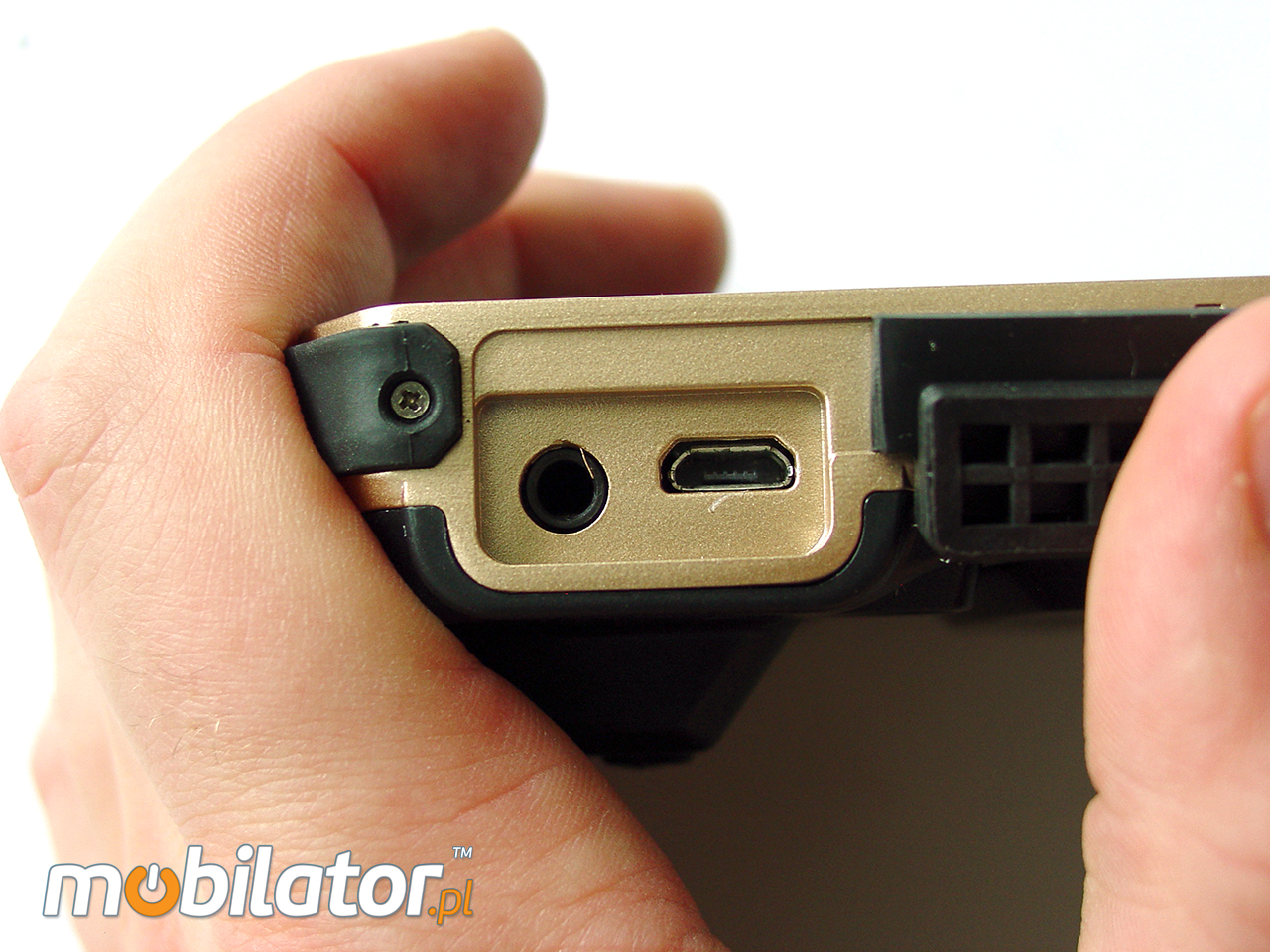

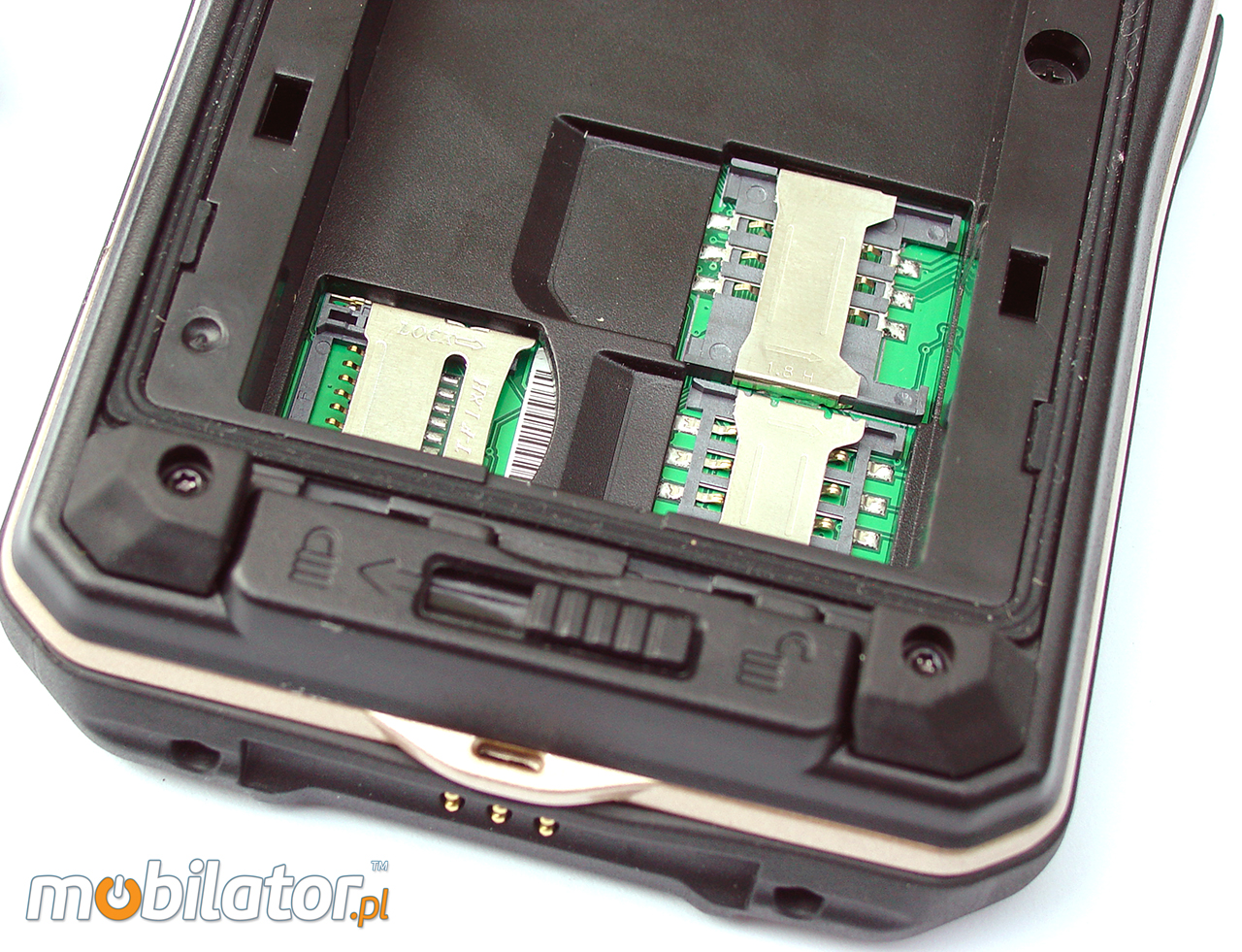

Connectors (factory)	MicroUSB (OTG) \| MicroSD \| Audio Jack \| Charging/Docking Port \| Dual SIM
	1x - SIM (3G)
	1x - micro SIM (2G)
GPS (factory)	GPS + A-GPS
Audio	Built-in Microphone \| Speaker \| Receiver \| Audio Jack

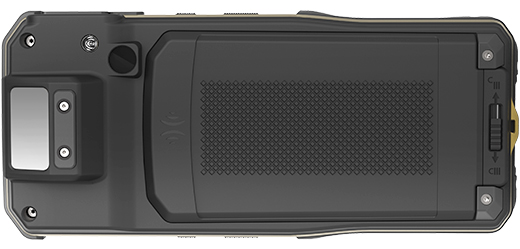

Camera (REAR)	8Mpx (Autofocus + Flash)

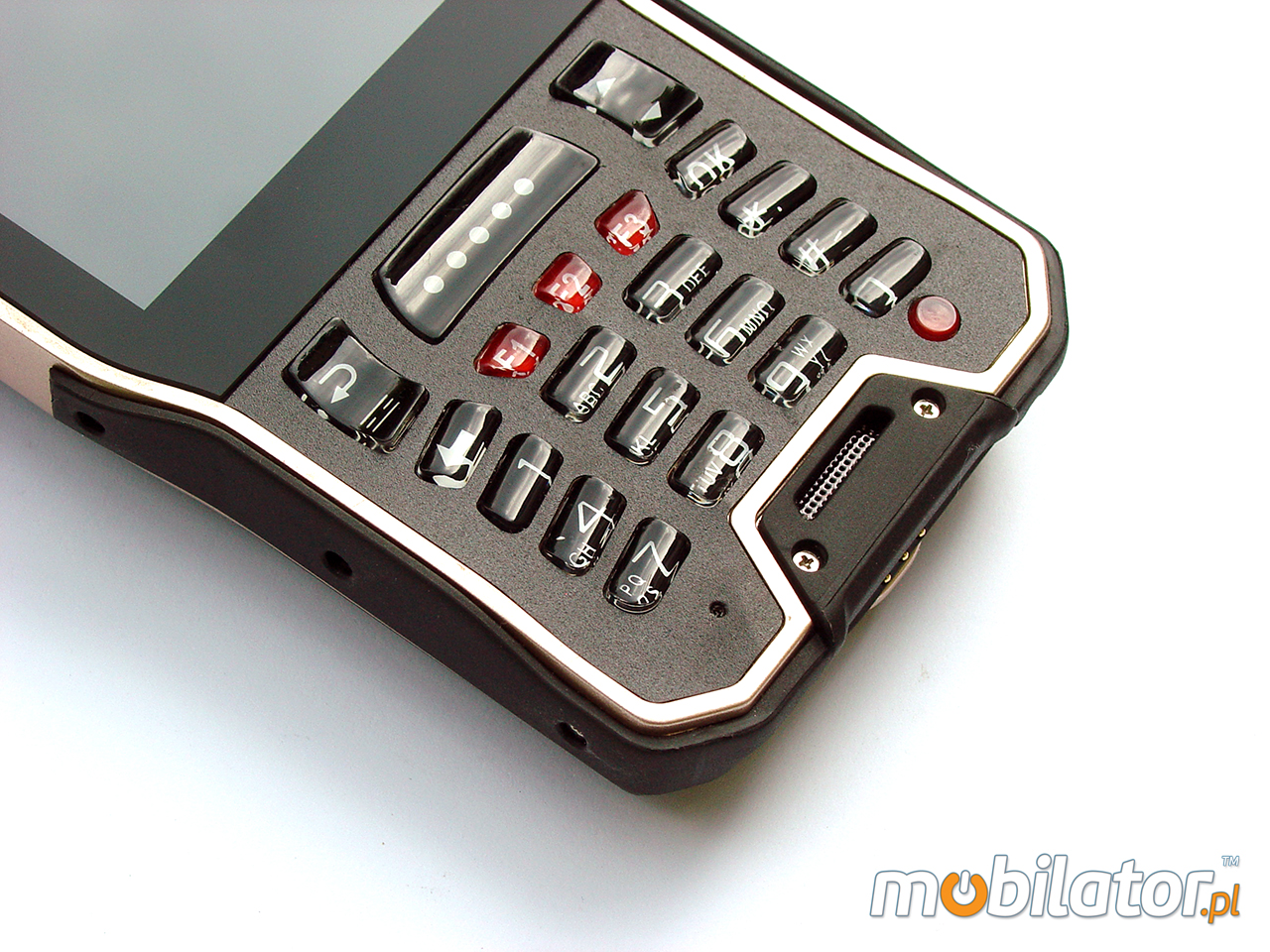

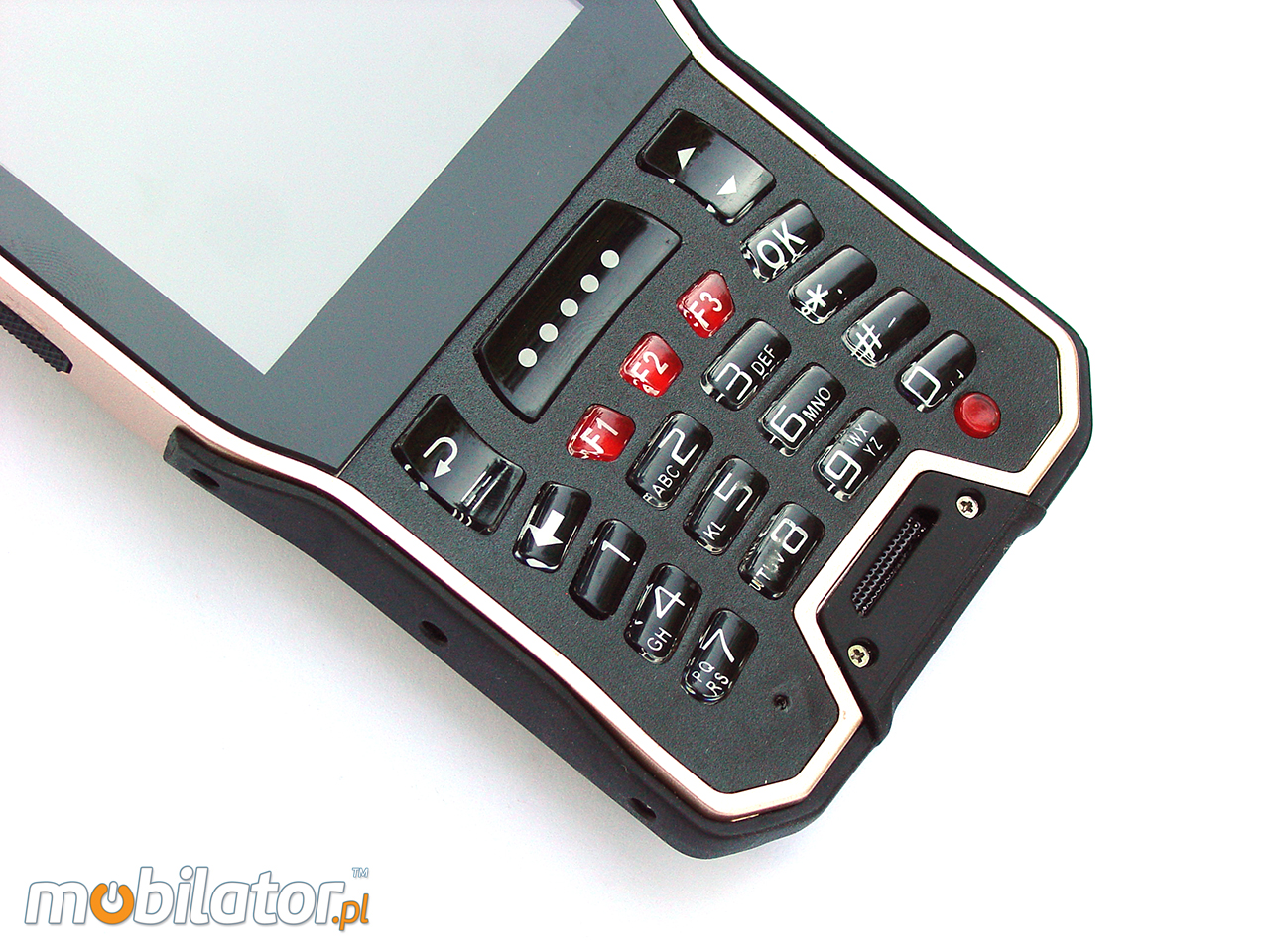

Klawiatura	on-Screen + Numeric
	Home \| Menu \| Return \| ON/OFF
	3x - Additional function keys (F1-F3)
	2x - Barcode Trigger
	2x- Camera Trigger (make photo/video)

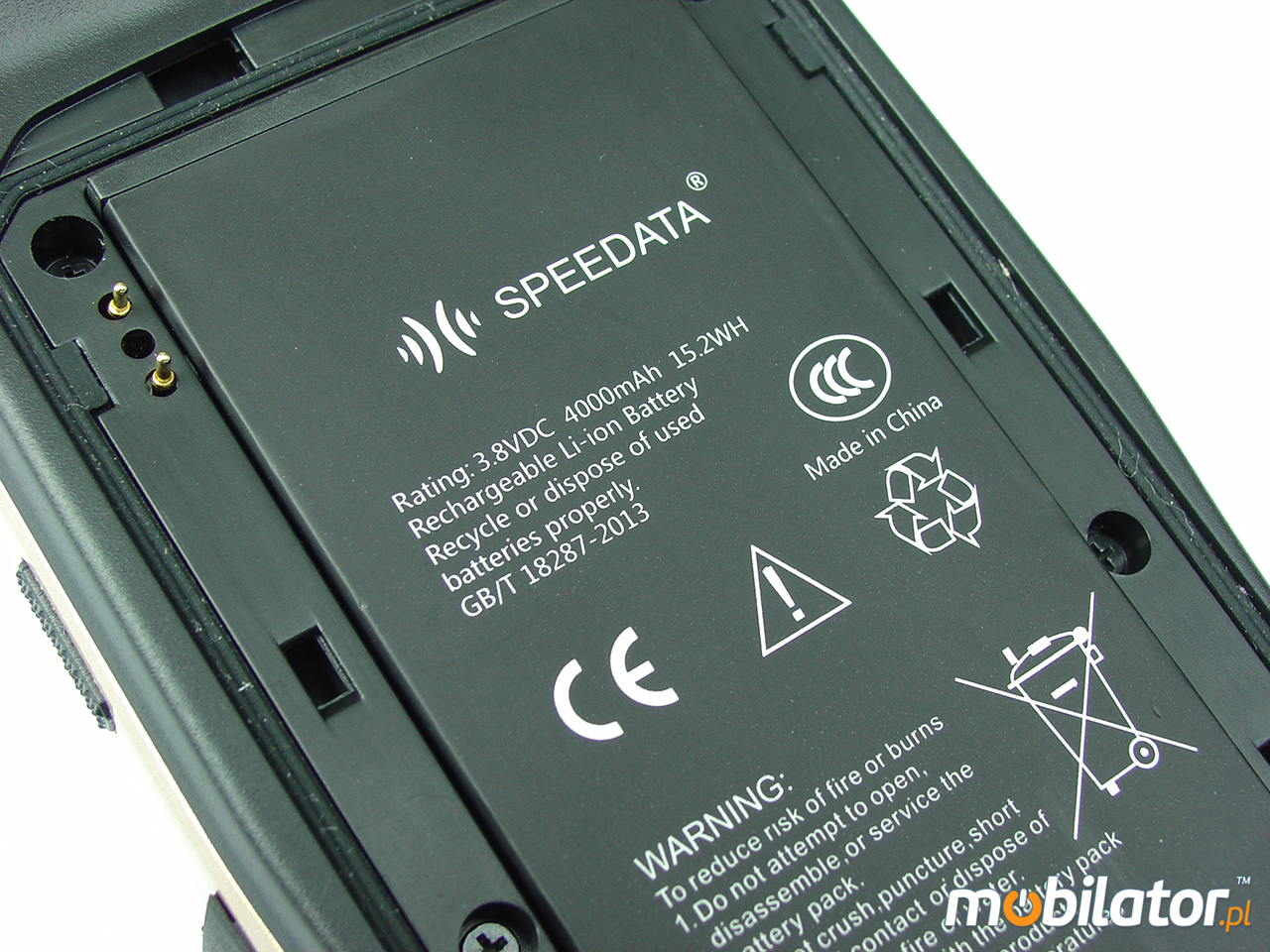

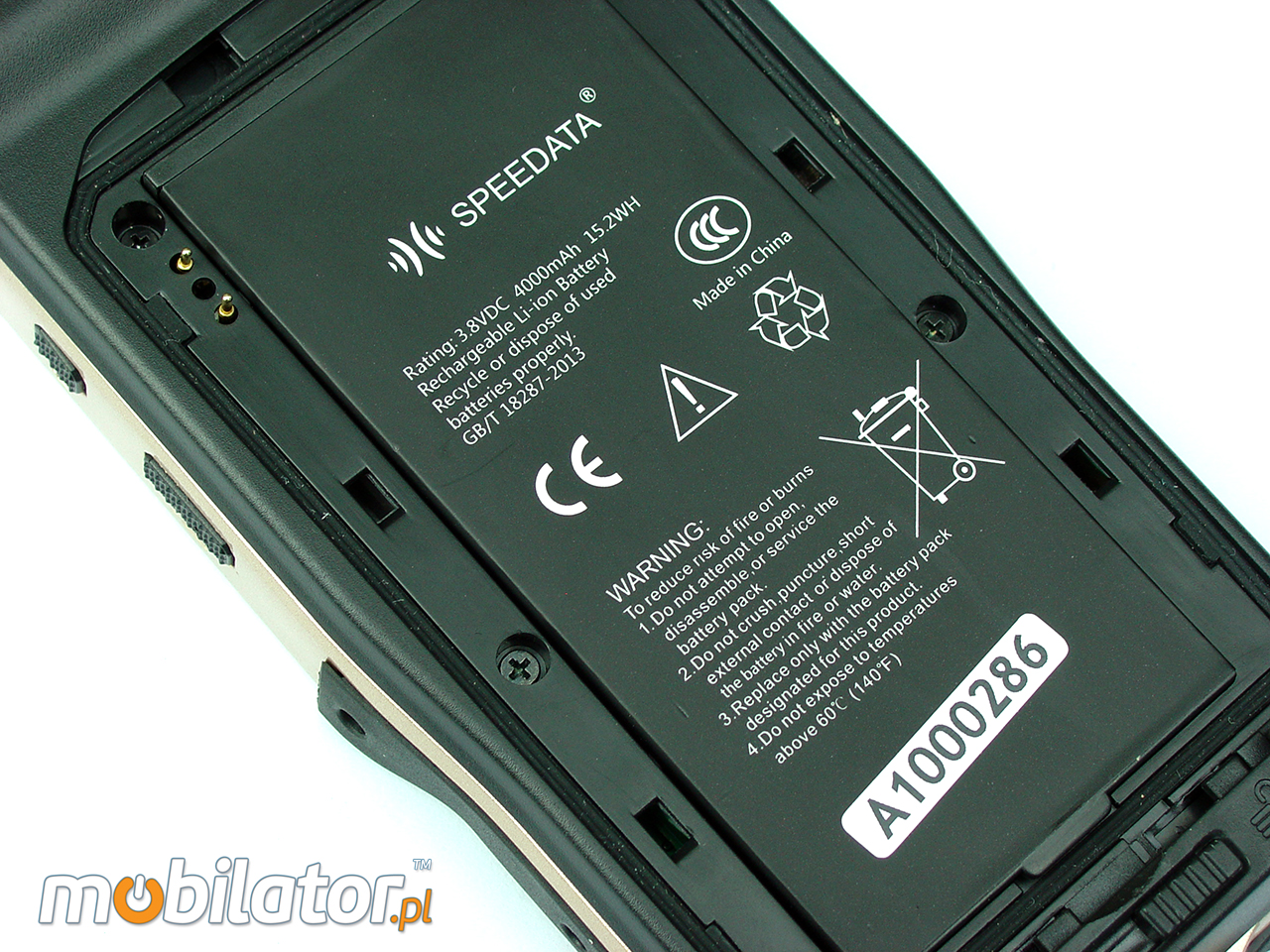

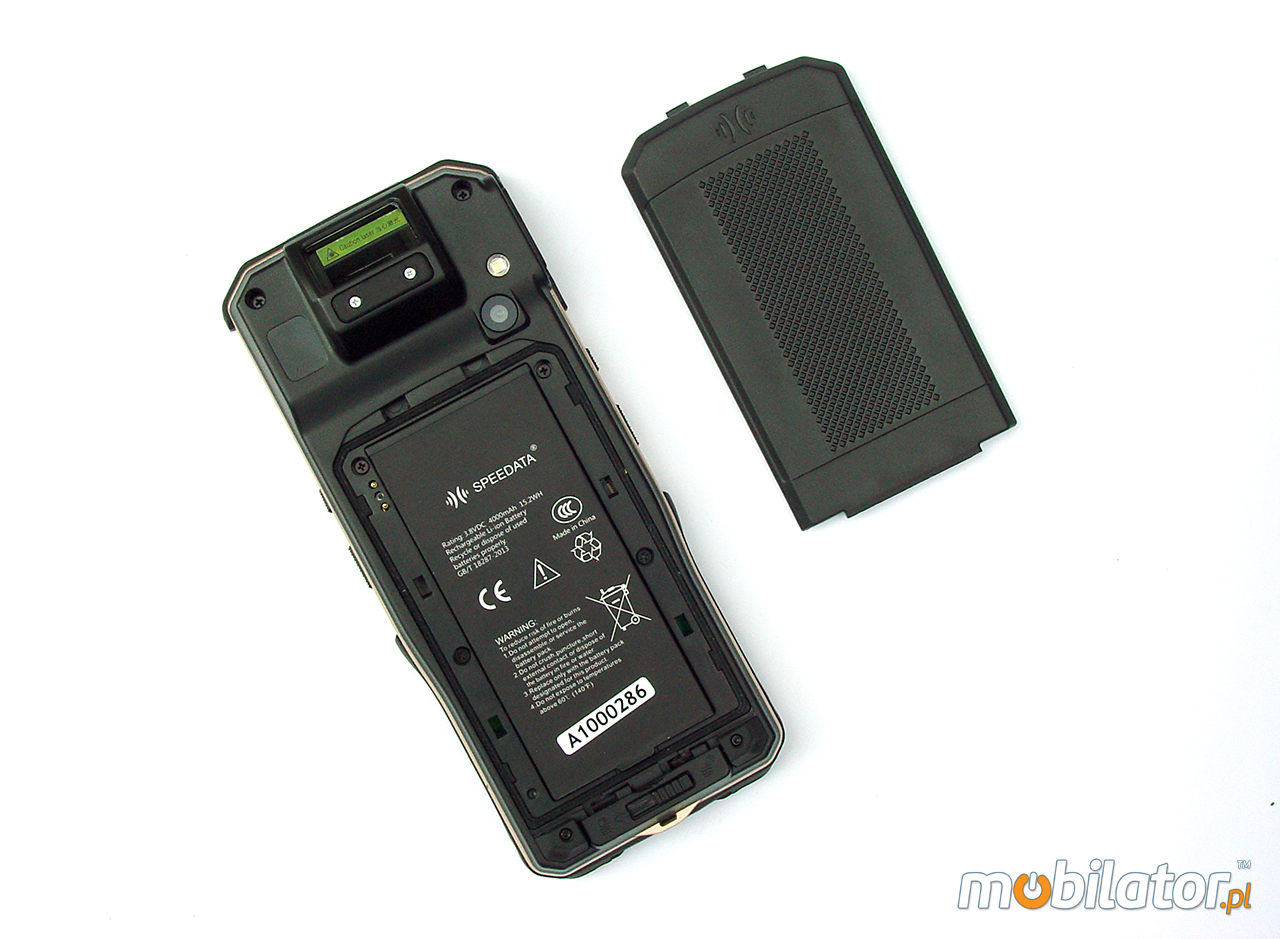

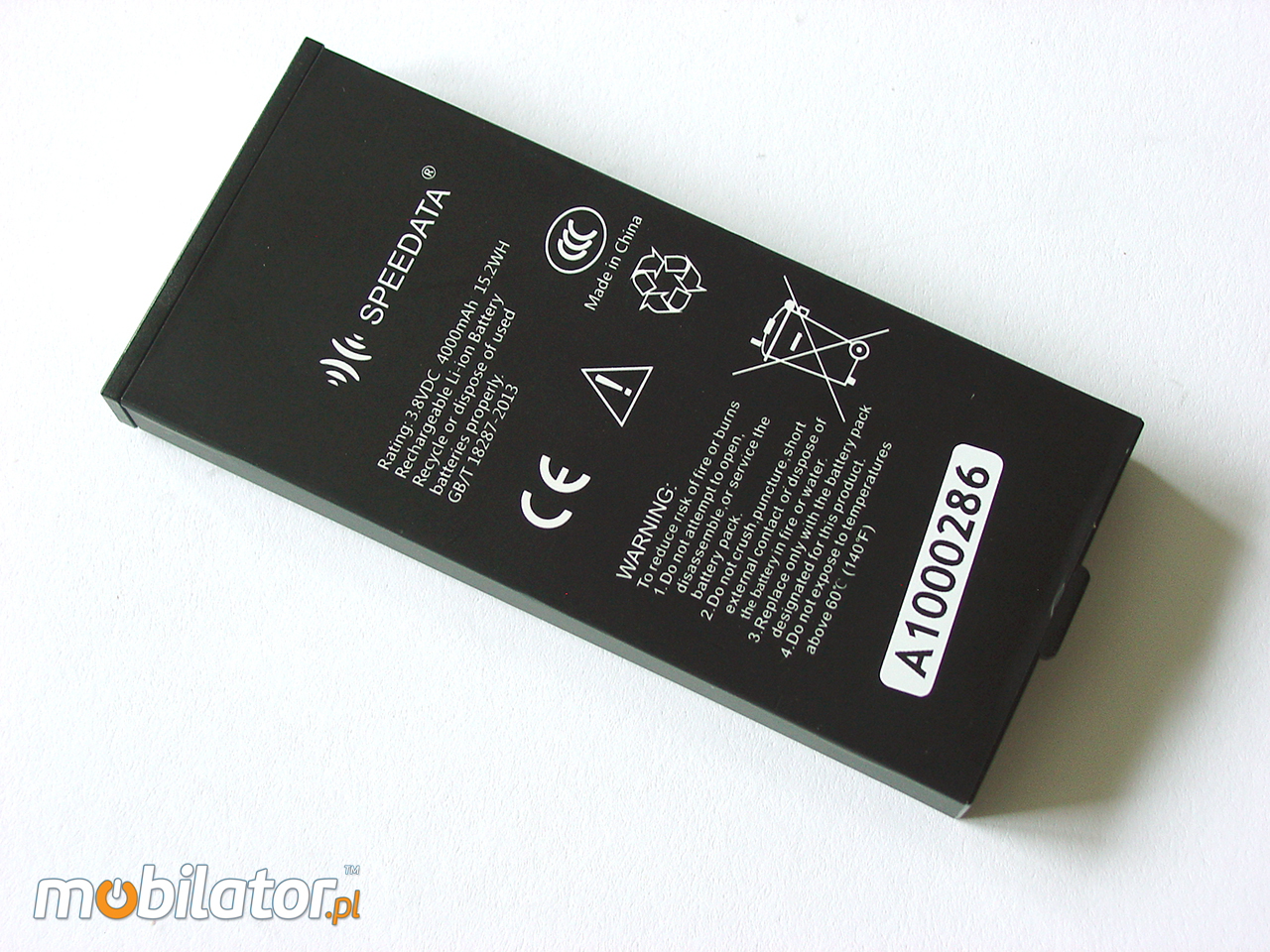

Battery	Li-Ion 3.8V 4000mAh \| 15.2Wh
	Standby time - 500h
	Operating time (depending of usage) - 7h
Environment	Android 4.4.2
Modules (factory)	802.11 b/g/n \| Bluetooth v4.0 (LE) \| 2G/3G \| GPS
Modules (optional)	(1D) Motorola SE955 \| (1D/2D) Motorola SE4500 \| NFC
Dimensions&Weight	1667416mm \| 350g
Resistance	IP65
Sensors (factory)	Accelerometer \| Proximity Sensor \| Light Sensor \| Magnetic Field Sensor
	Orientation Sensor
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4
1D (LASER)		-		-
1D/2D (BI-DIRECTIONAL)	-		-
NFC	-	-

go top… menu…

Resistance

Operating	-20°C -- +50°C
Storage	-40°C -- +60°C
Humidity	5% - 95% non-condensing
Dust	IP6x (dust)
Water	IPx5 (water)
Drop	1.5m

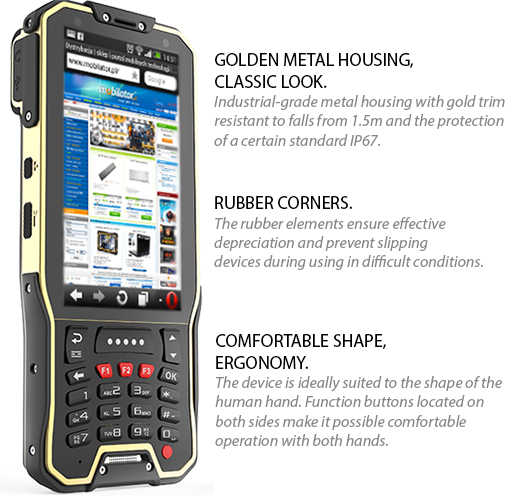

Waterproof and Dustproof

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact, Protection from infiltration of dust.

Protection from water projected from a nozzle.

go top… menu…

The collection and processing of data

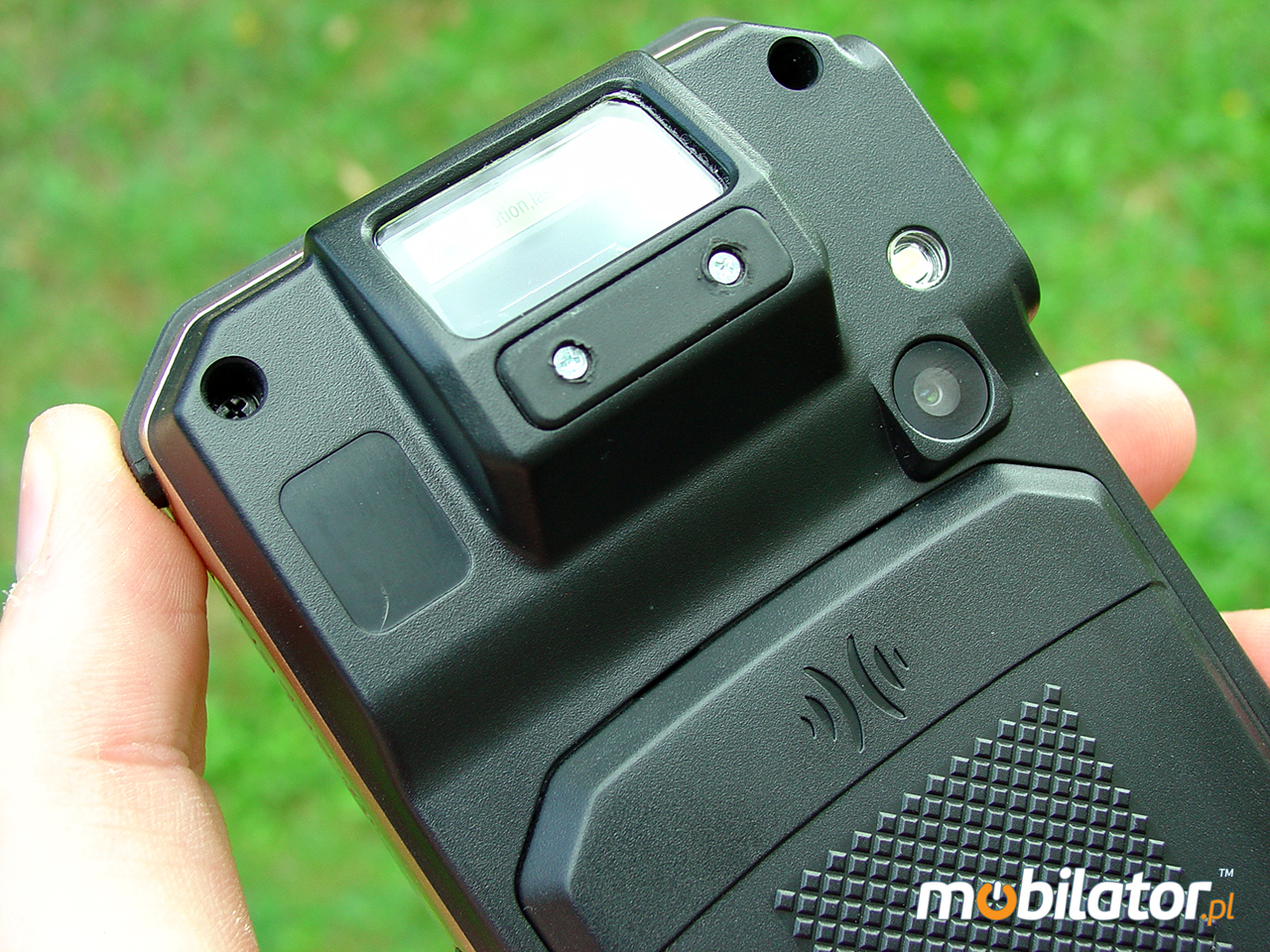

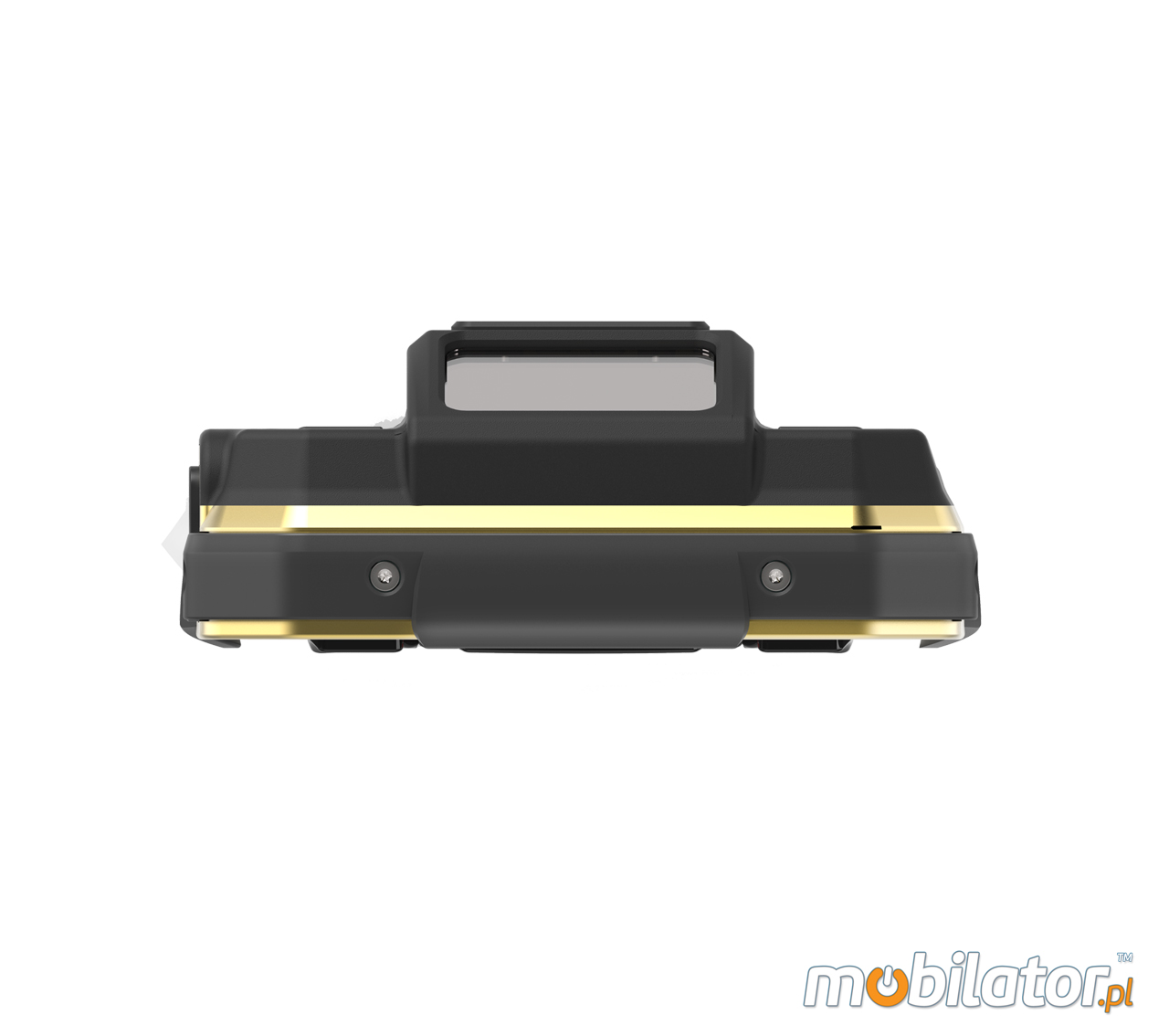

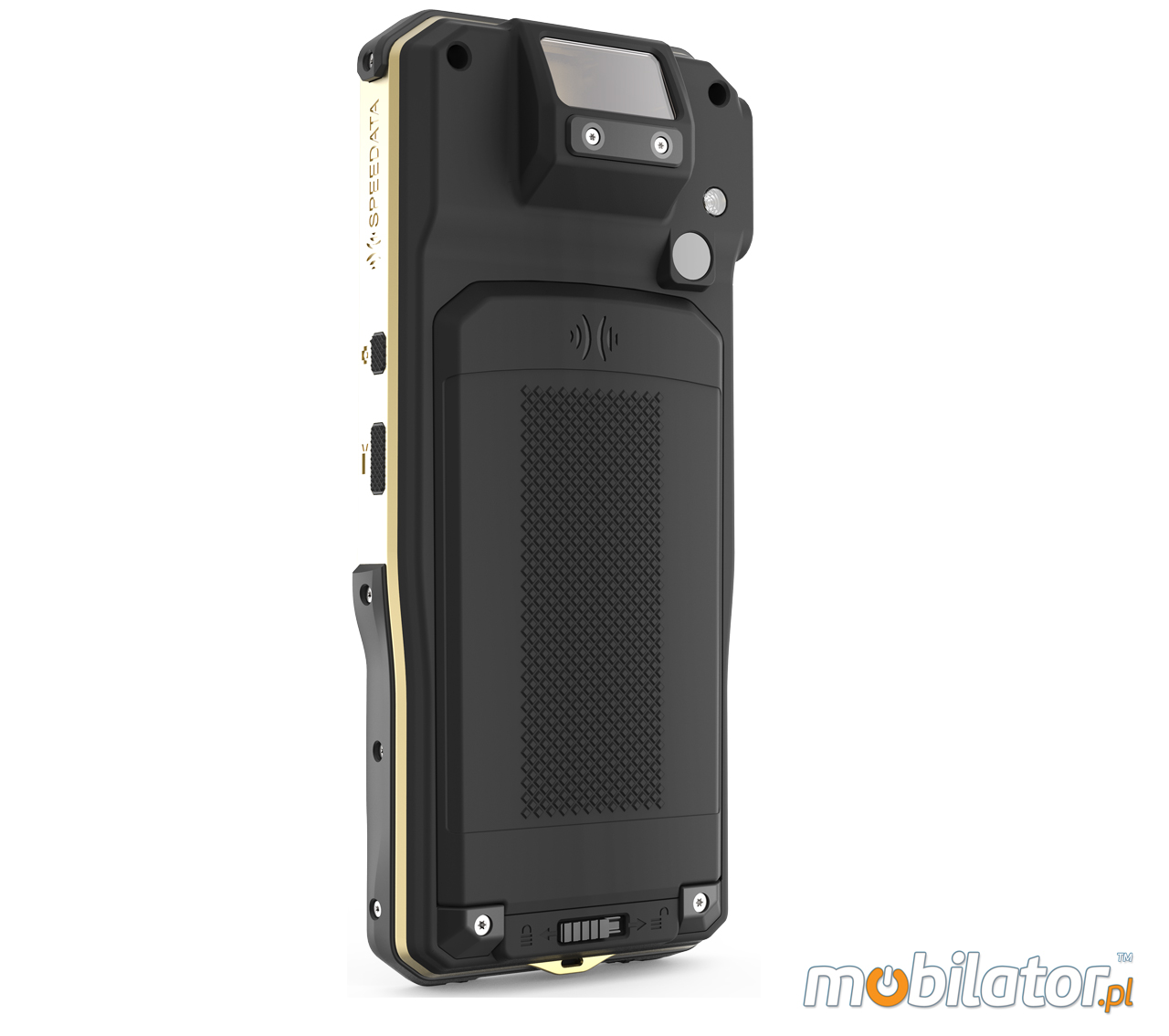

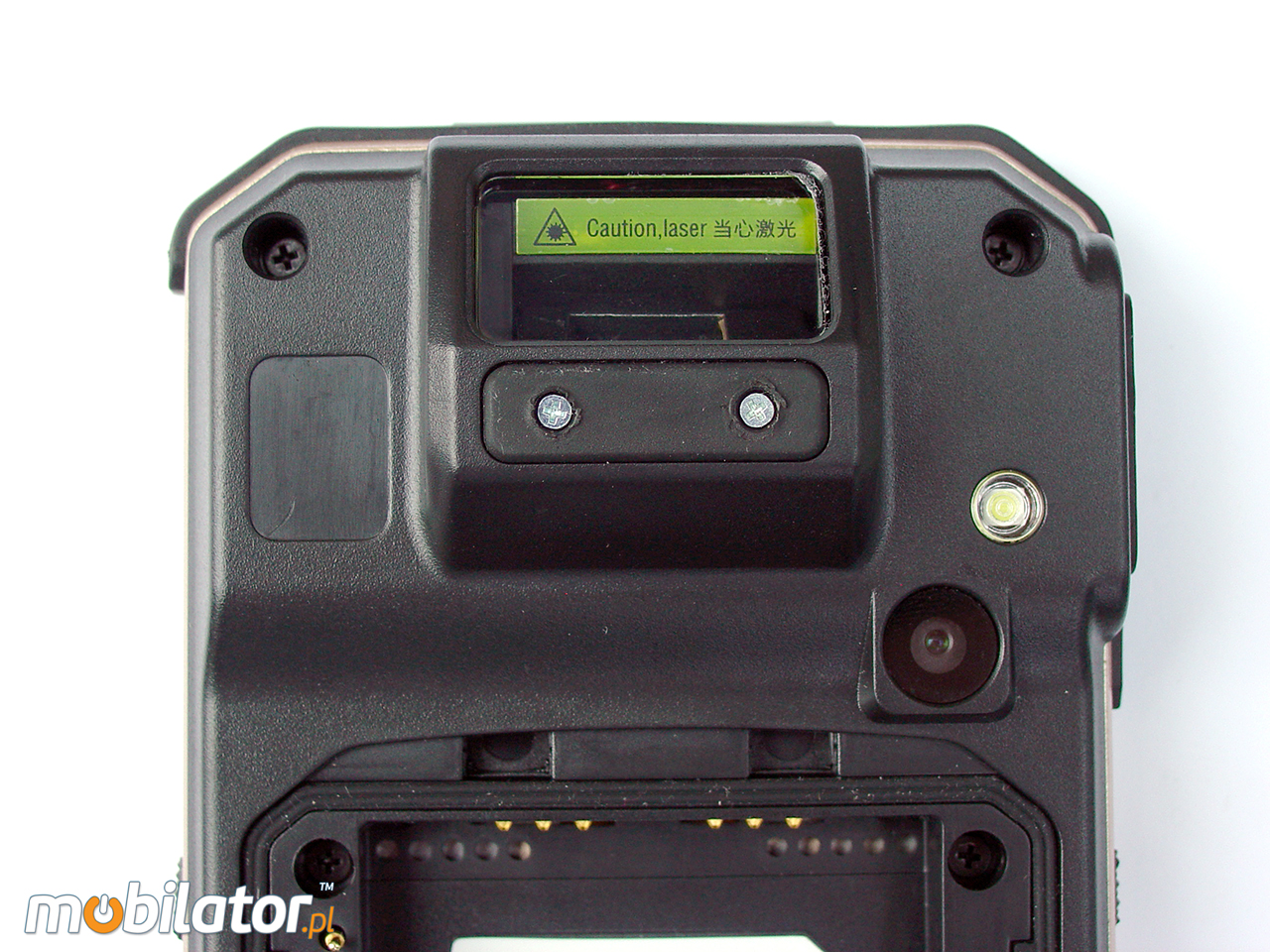

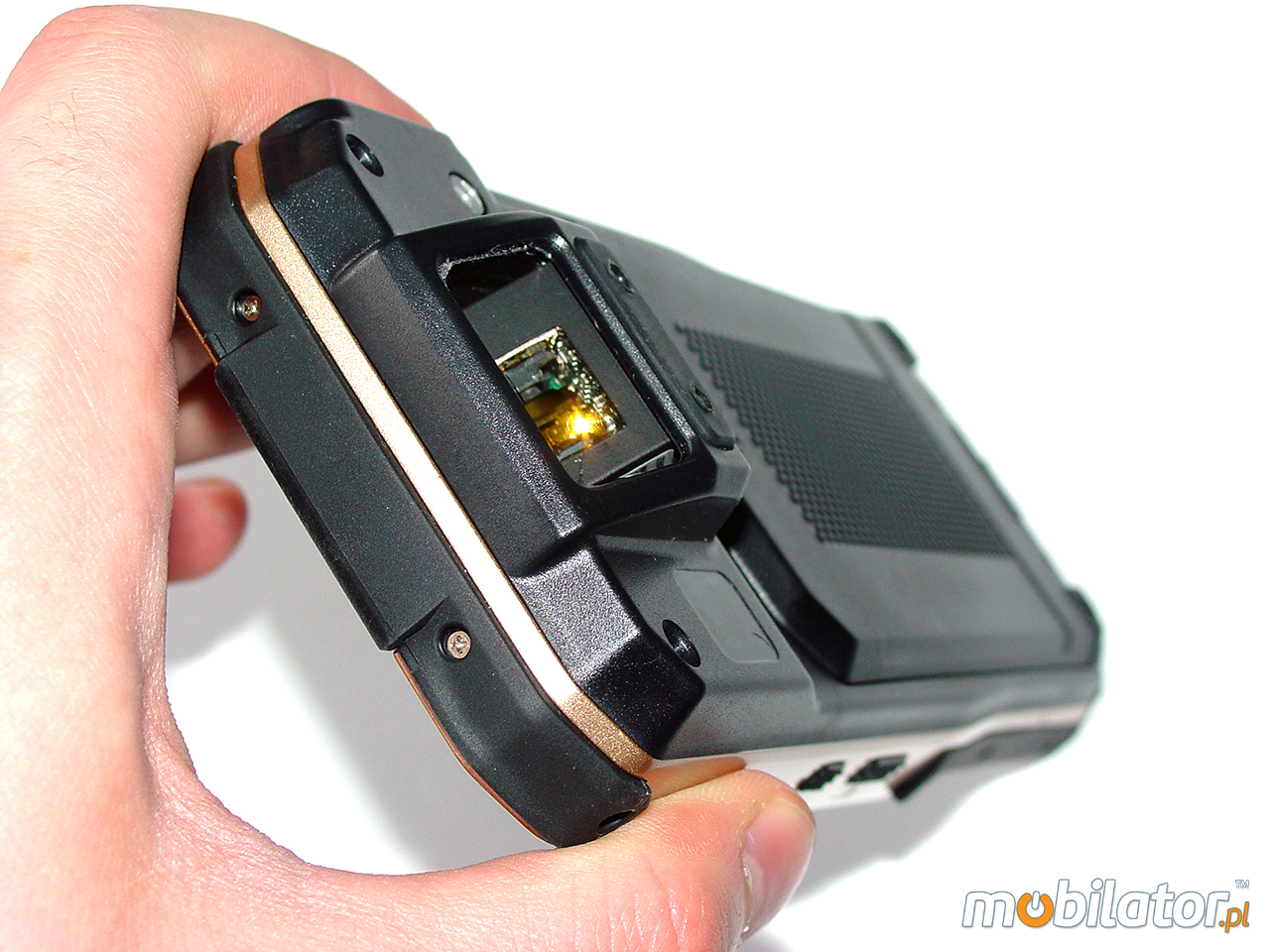

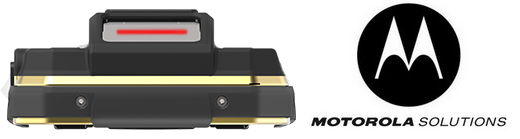

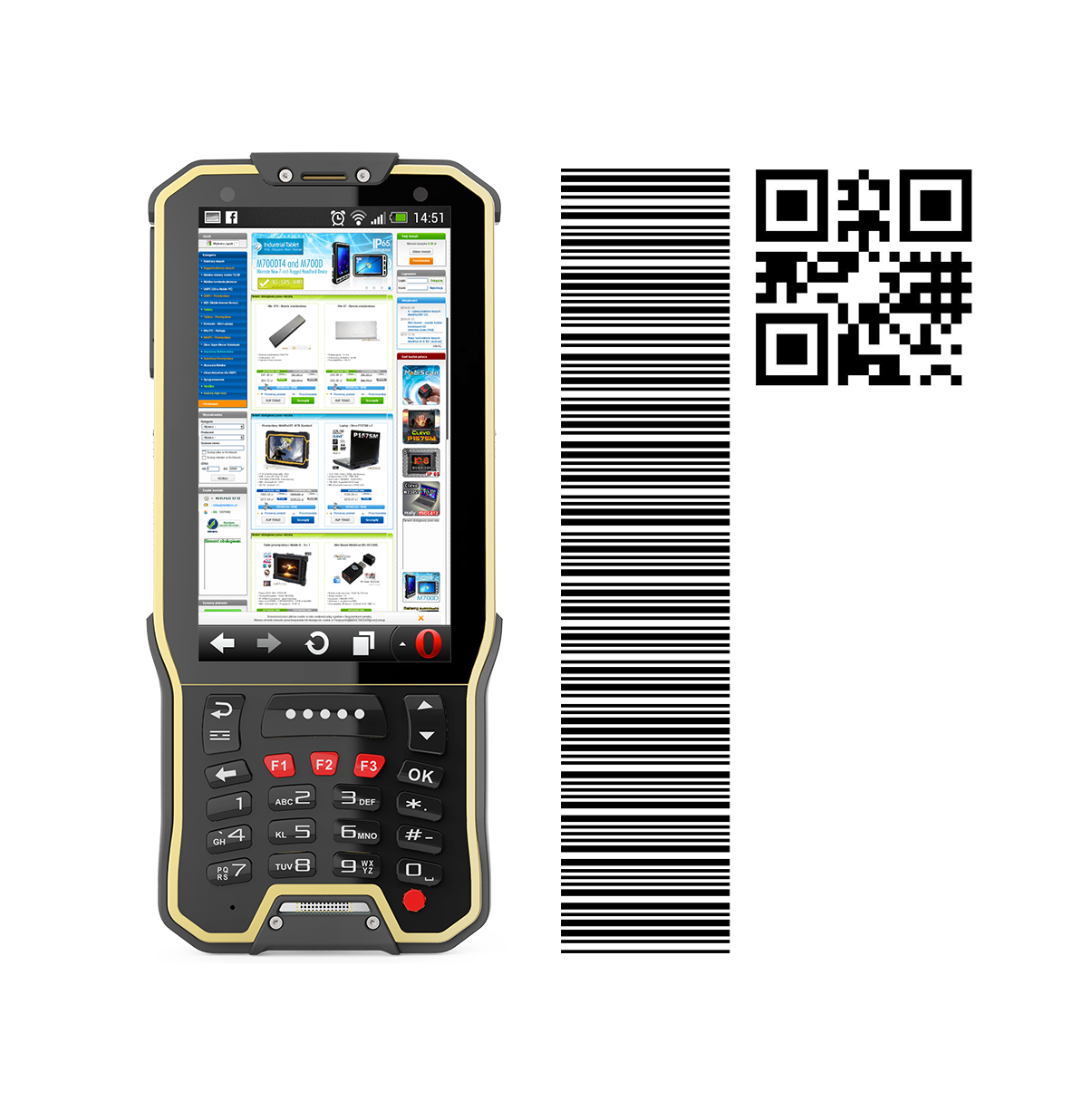

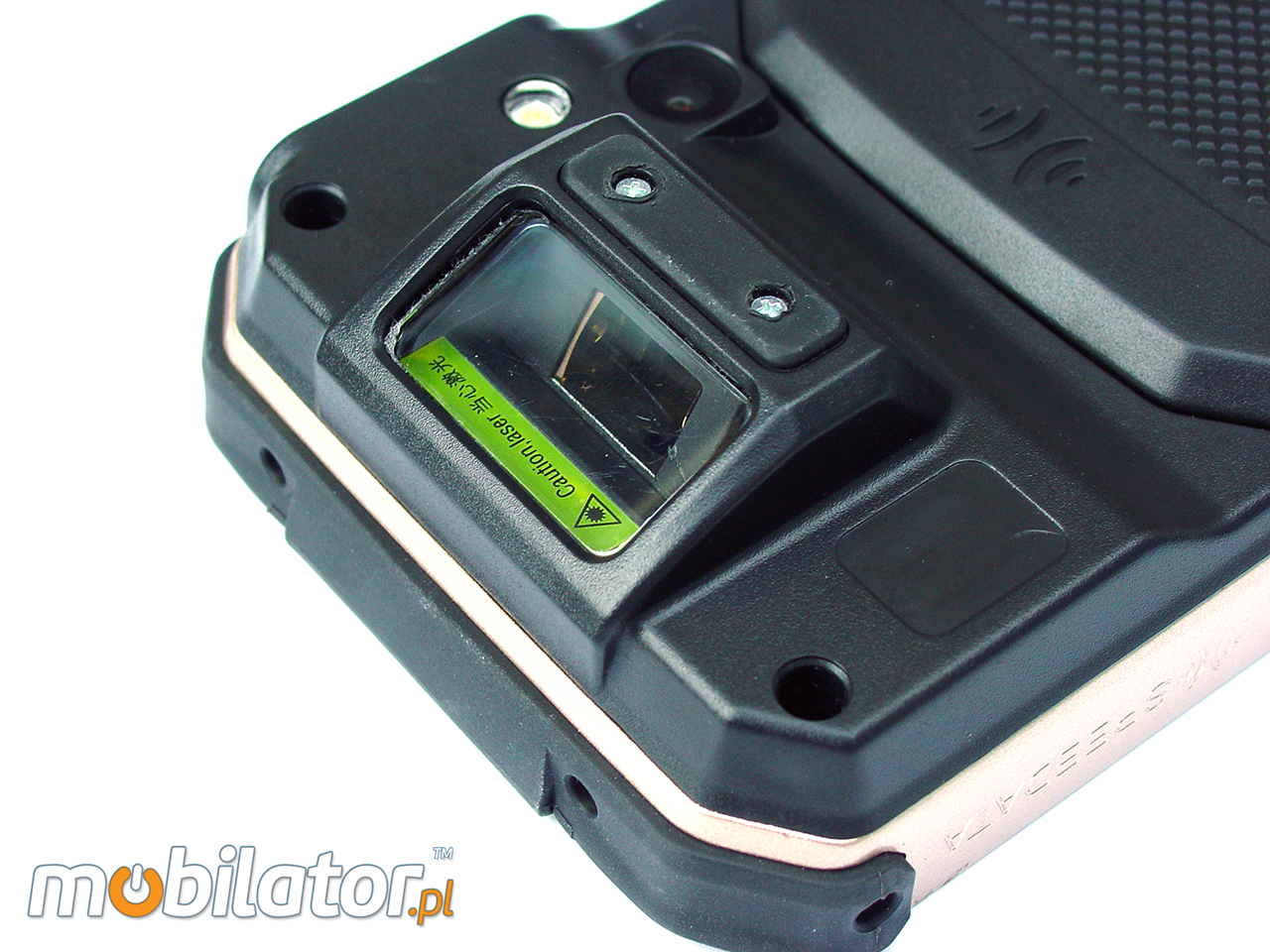

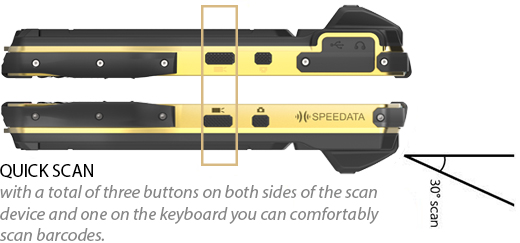

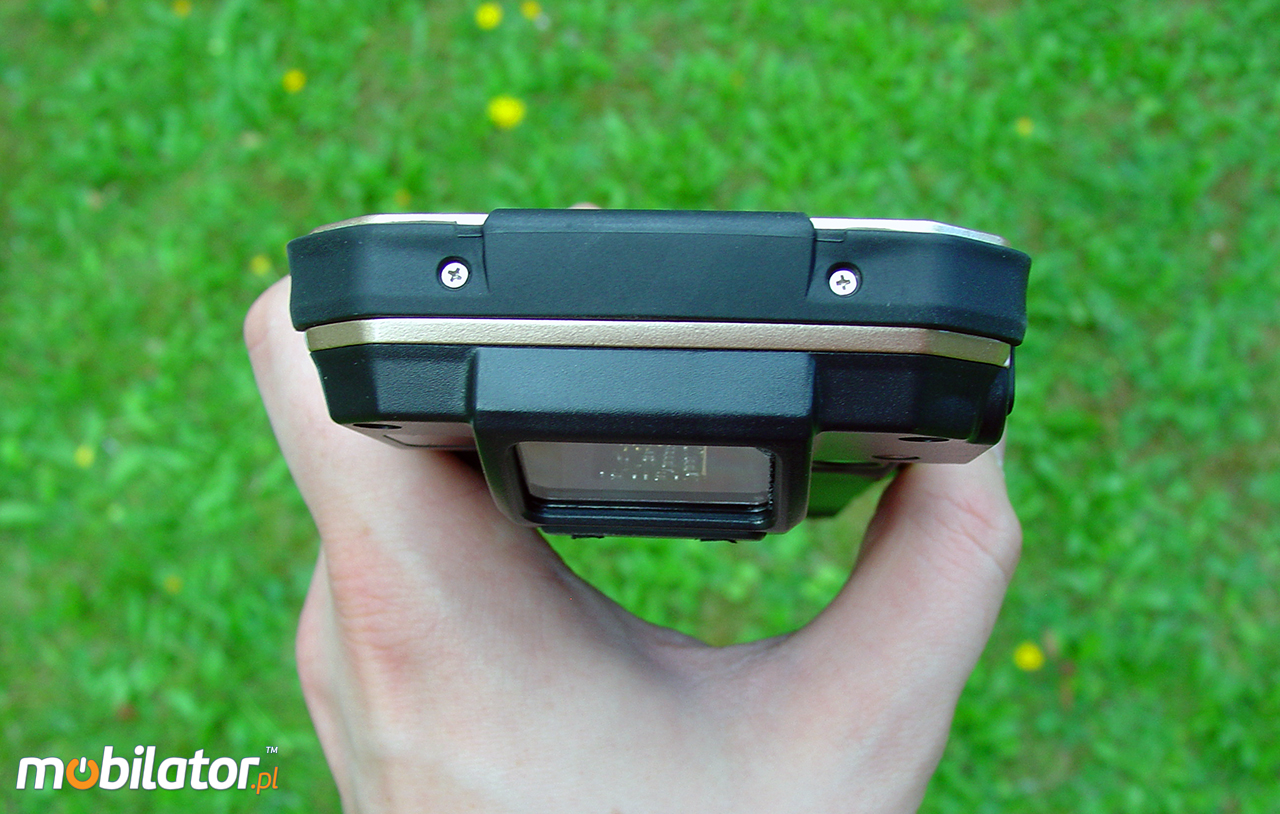

Barcode Scanner

mobipad mt40 se4500 motorola

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

motorola android skaner mobipad mt40

1D	1D / 2D
MOTOROLA™ SE955 (LASER)	MOTOROLA™ SE4500 (BI-DIRECTIONAL)

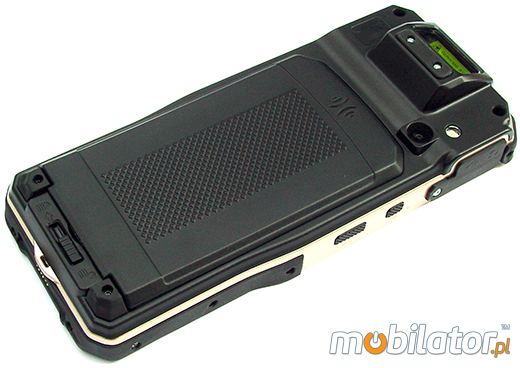

mobipad mt40 kolektor danych mobilator

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.

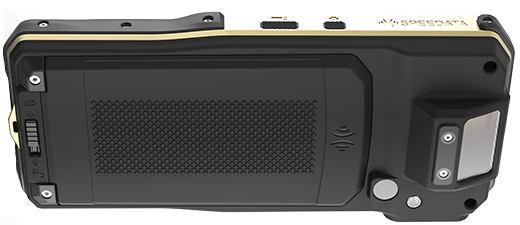

kolektor danych android system mobipad mt40 mtk

Type	NFC
Frequency	13.56 MHz
Standard	ISO/IEC 15693
	ISO/IEC 14443A/B

go top… menu…

Modules and Wireless Networks

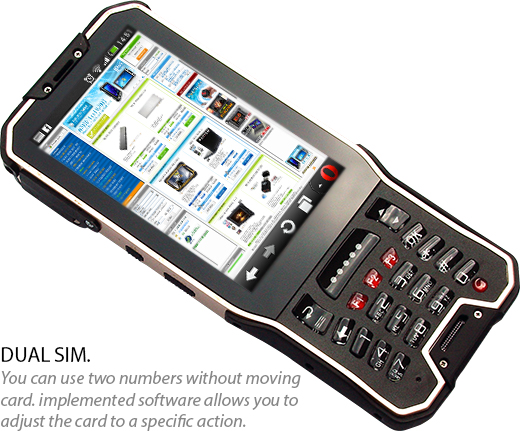

data collector mobipad mt40 dualsim android 4.4.2

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal MT40 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS (Standard)	GPS/Beidou + A-GPS
Bluetooth	Bluetooth v4.0 (LE)
2G/3G	GSM/GPRS/EDGE: 850/900/1800/1900 Mhz (EDGE Class 12)
	UMTS/HSPA: 850/900/1900/2100MHz (21Mbps / 5.76Mbps)
	The ability to make voice calls

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism

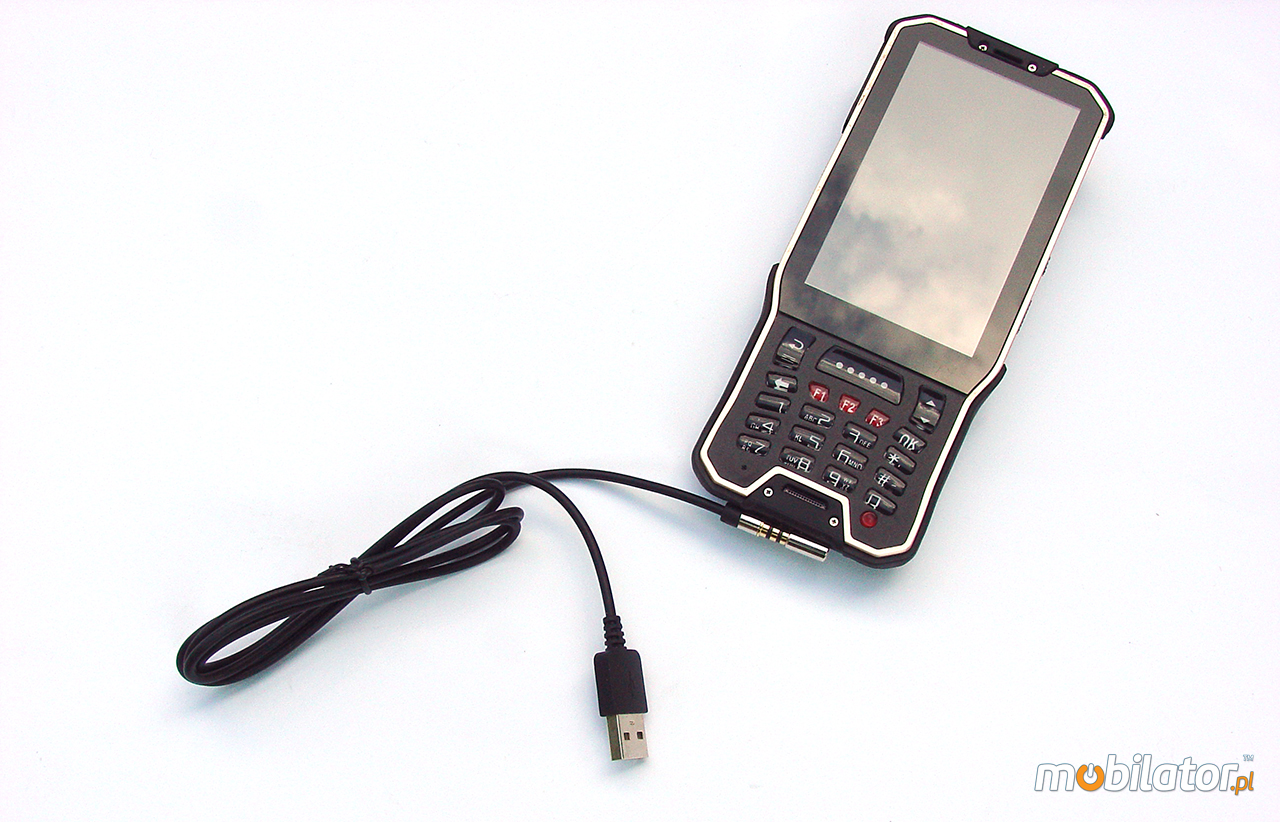

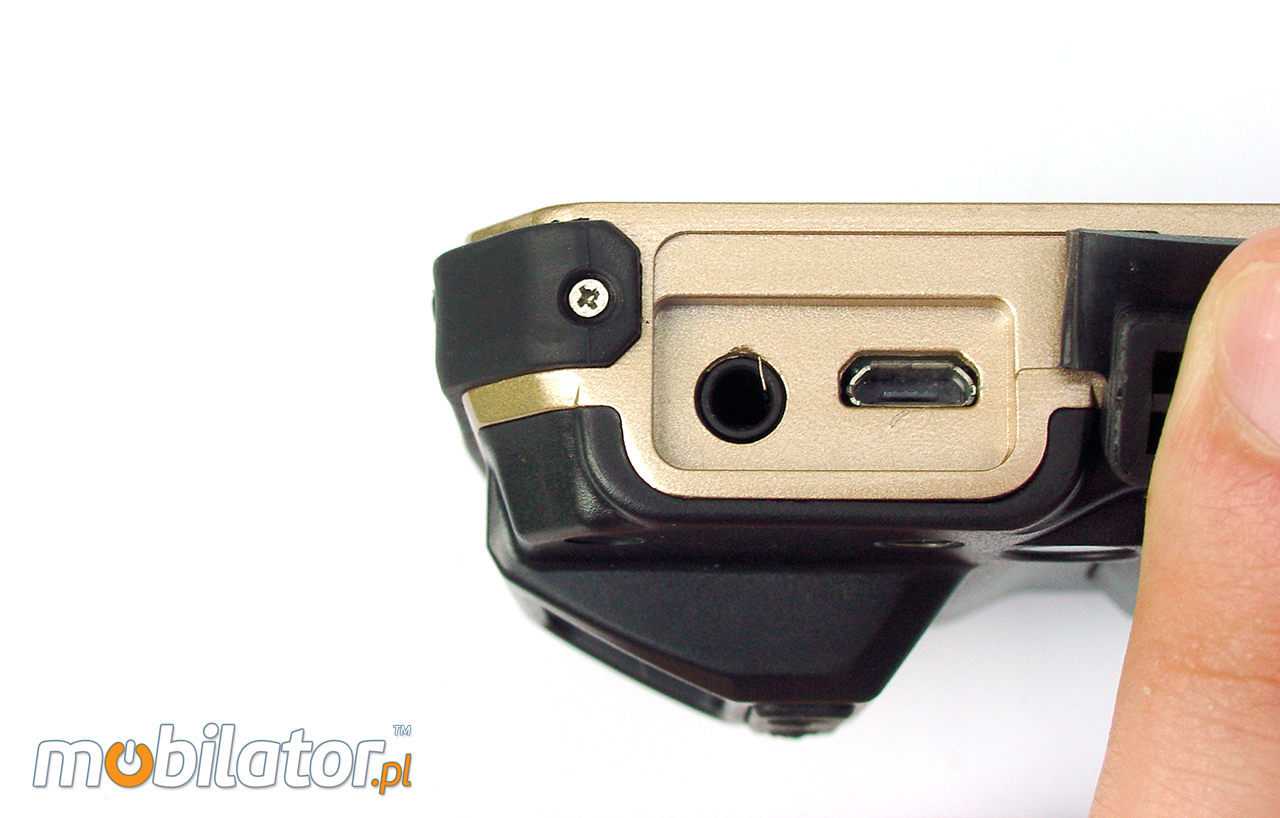

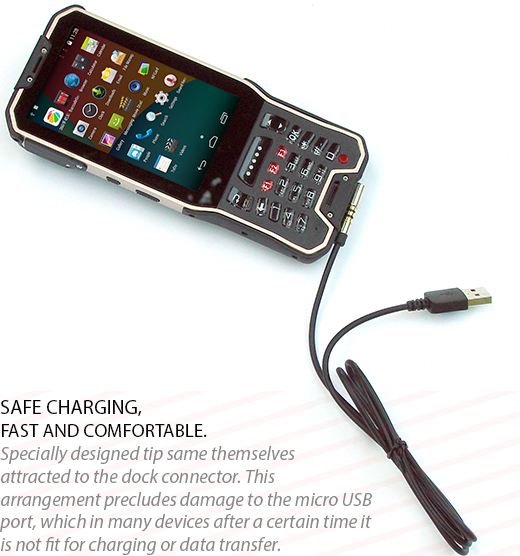

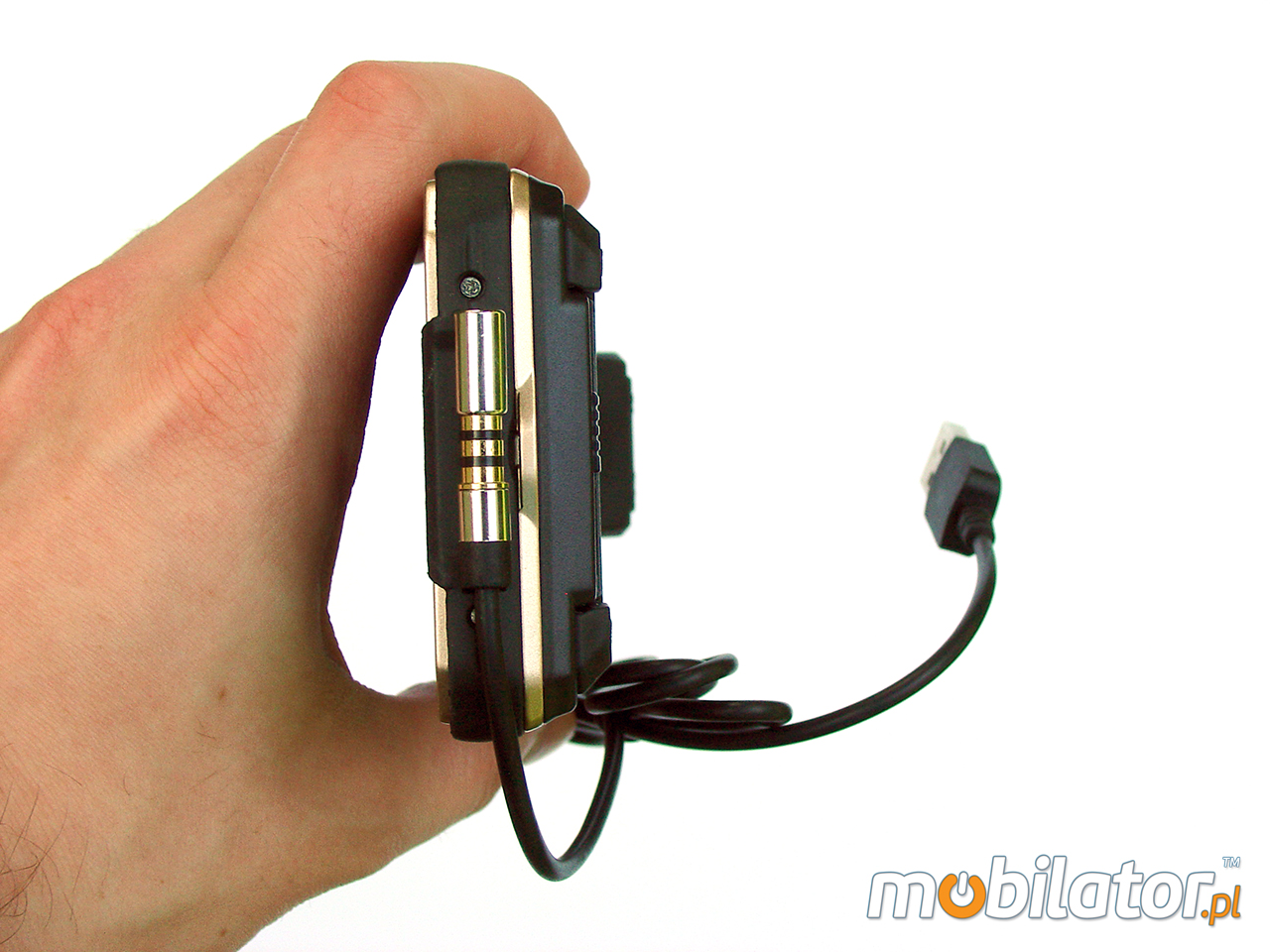

Charging

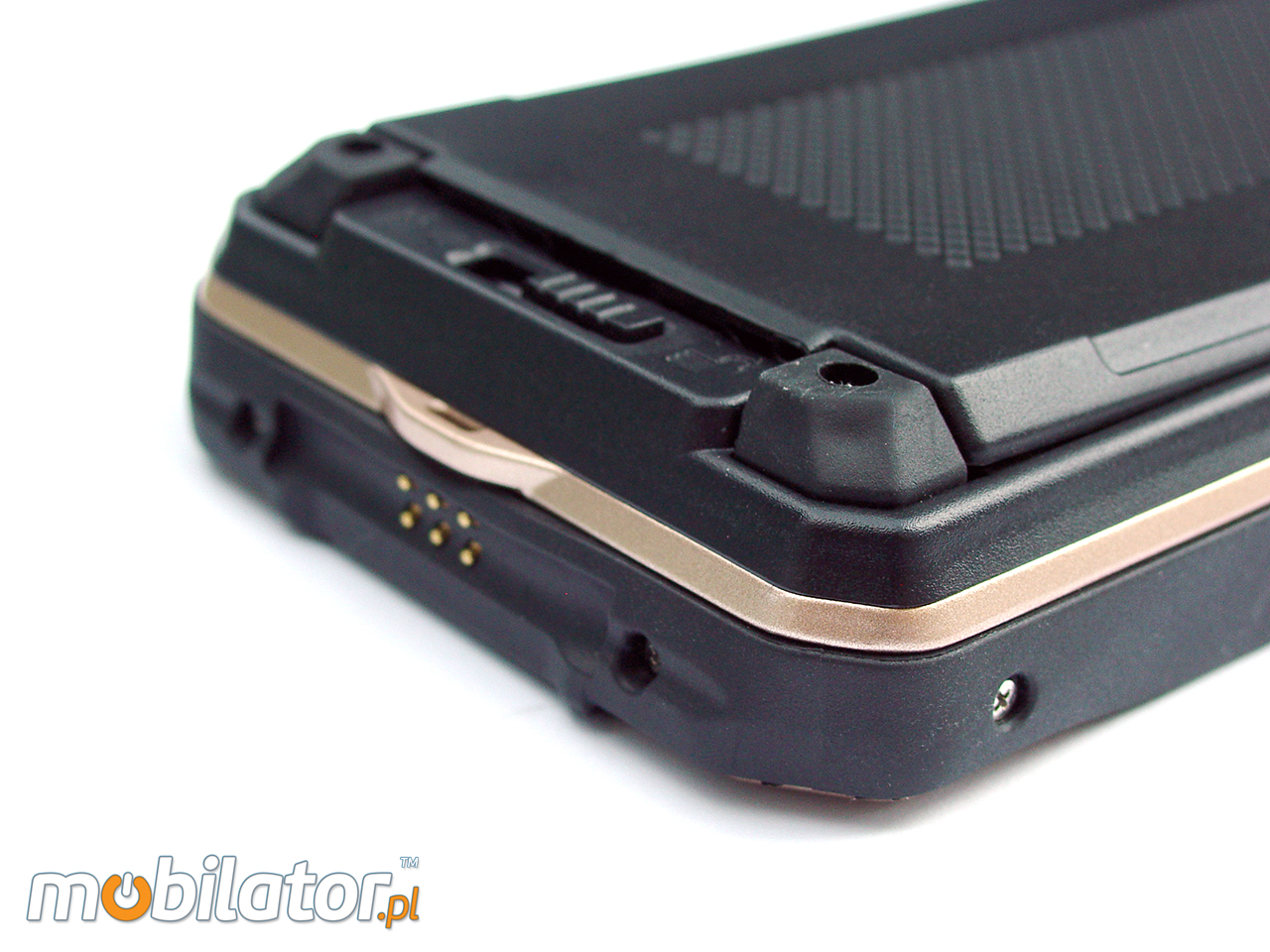

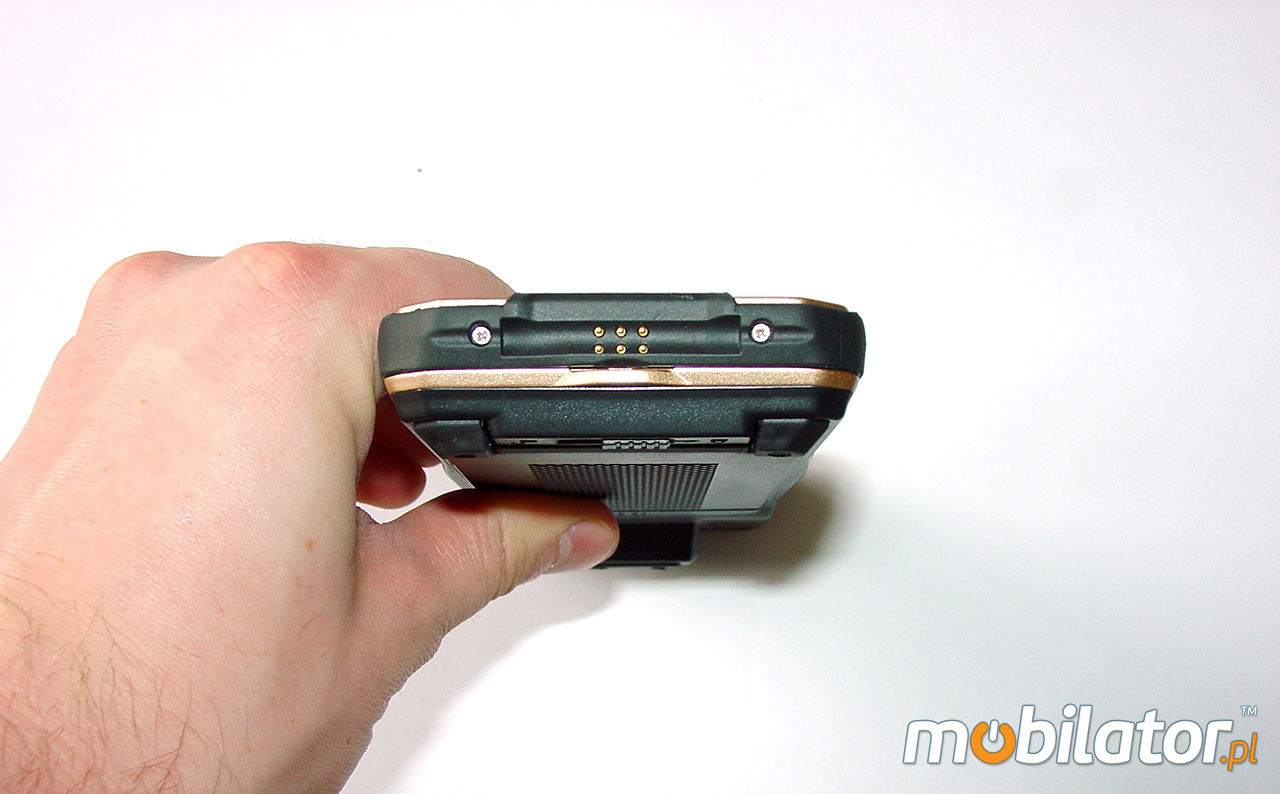

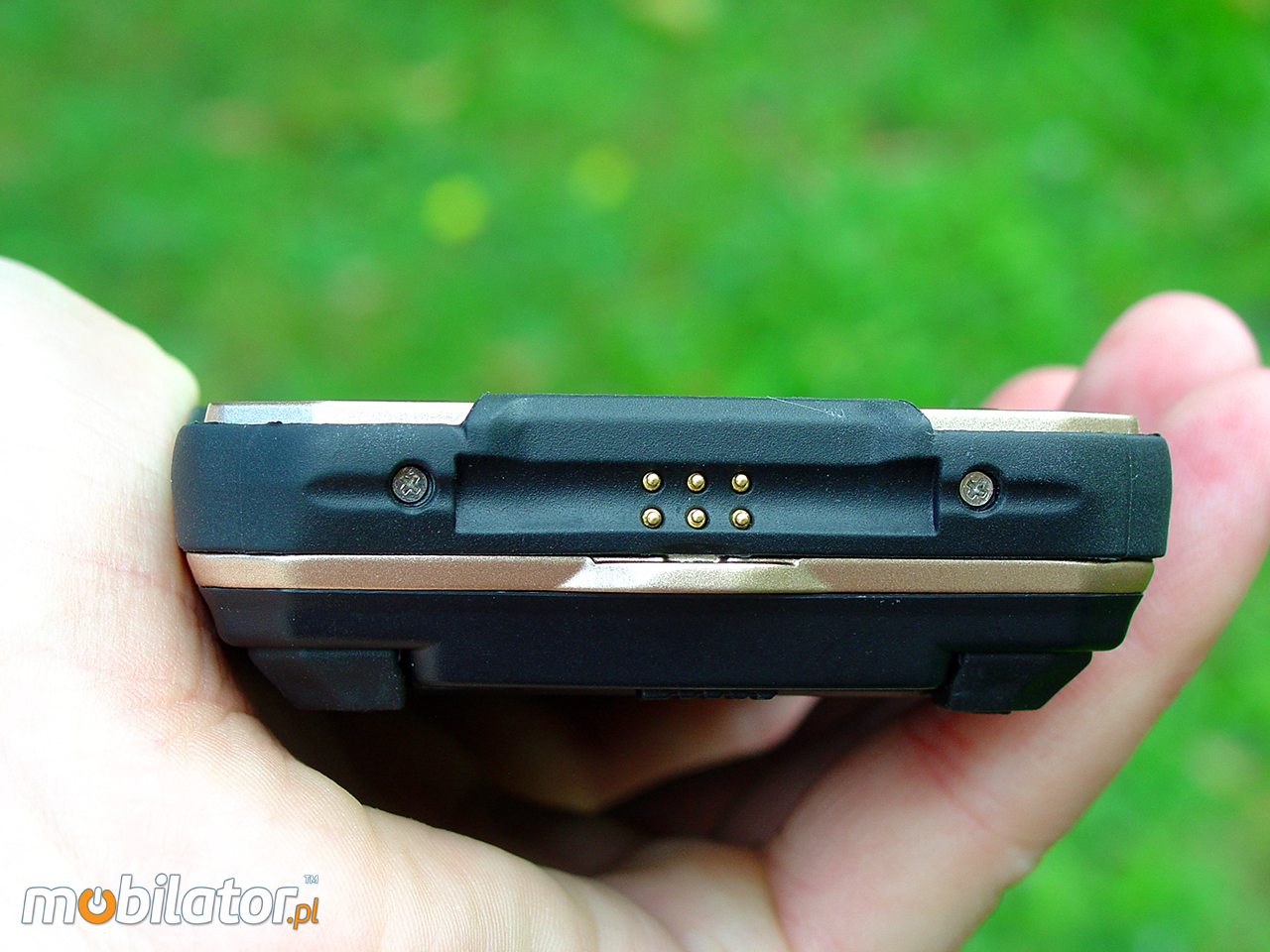

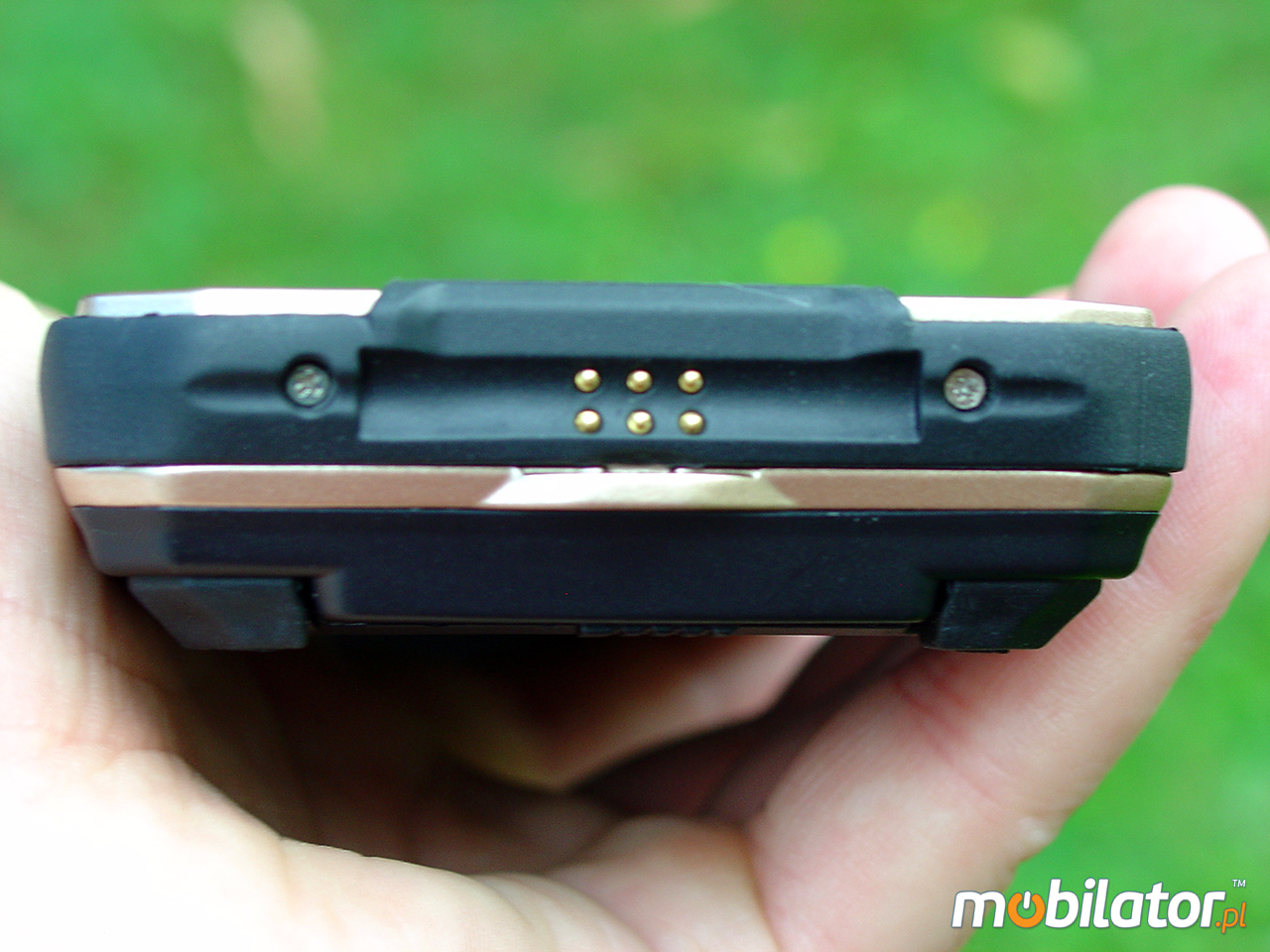

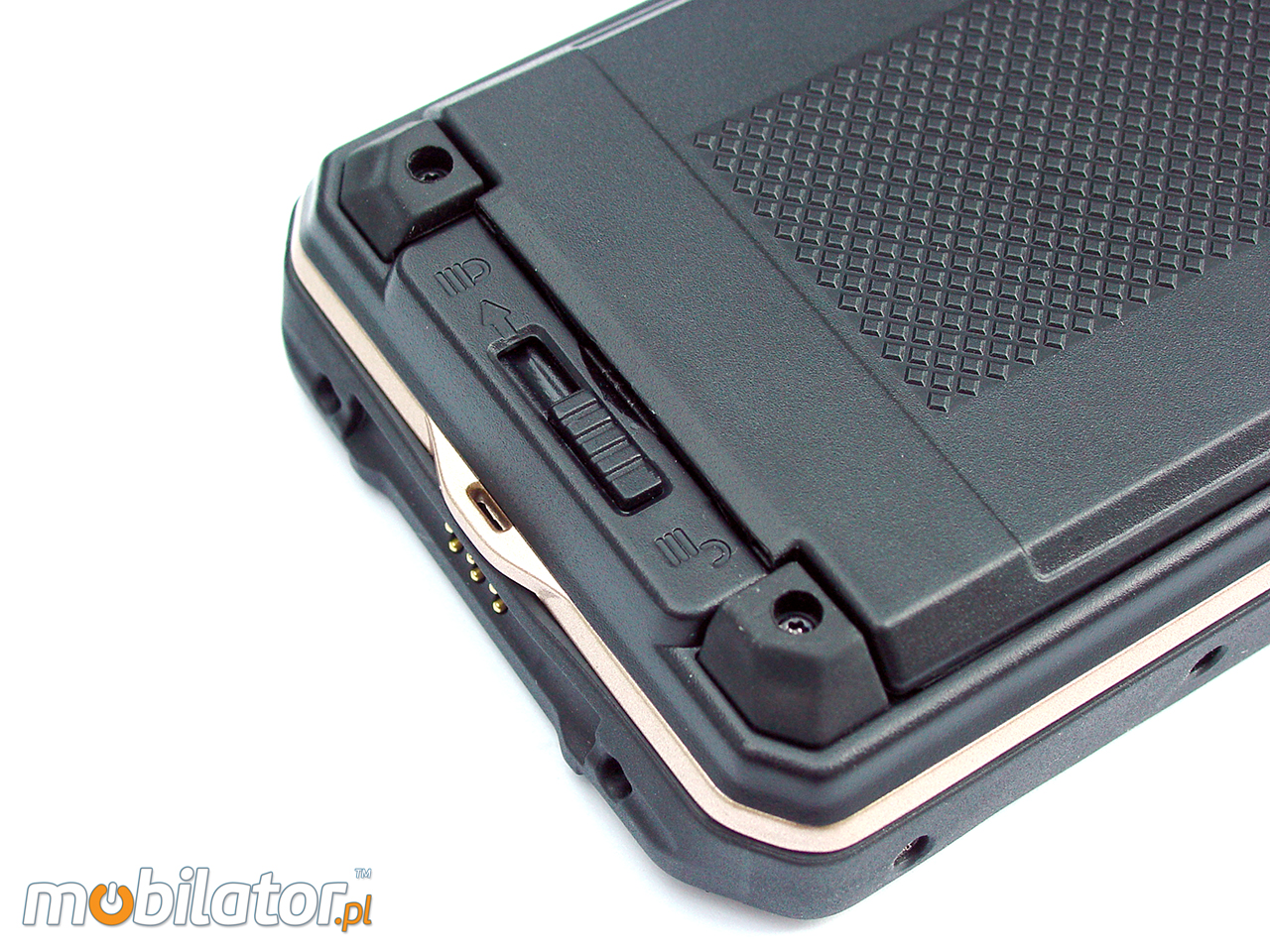

MobiPad MT40 has the latest solution that eliminates damage to the micro USB port. Damage to the charging port unieruchomiało work effectively in the enterprise. Manufacturer data collectors noticing this problem applied magnetic charge port, which itself clings on contact with dock connector.

docking charging mobipad mt40

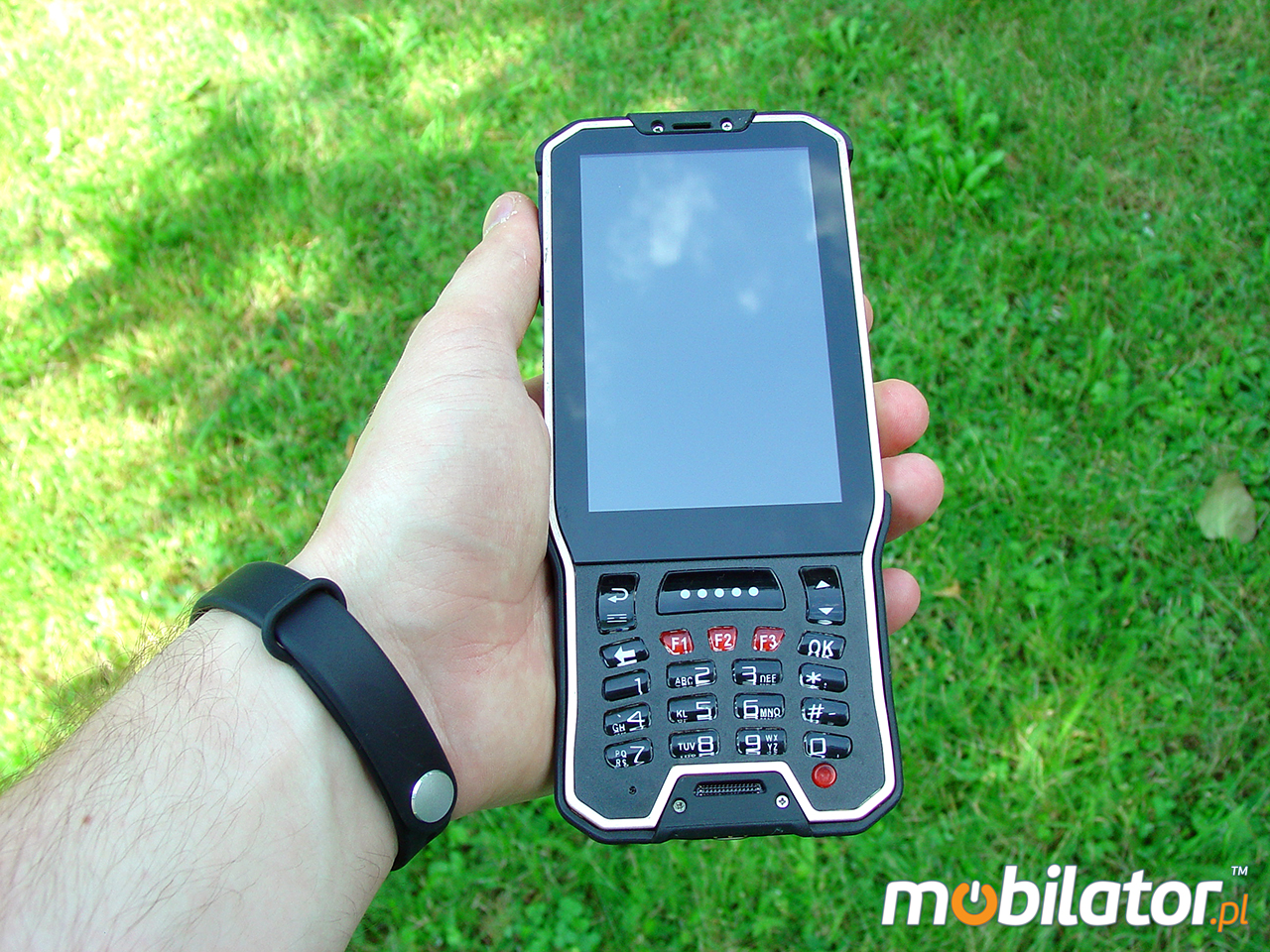

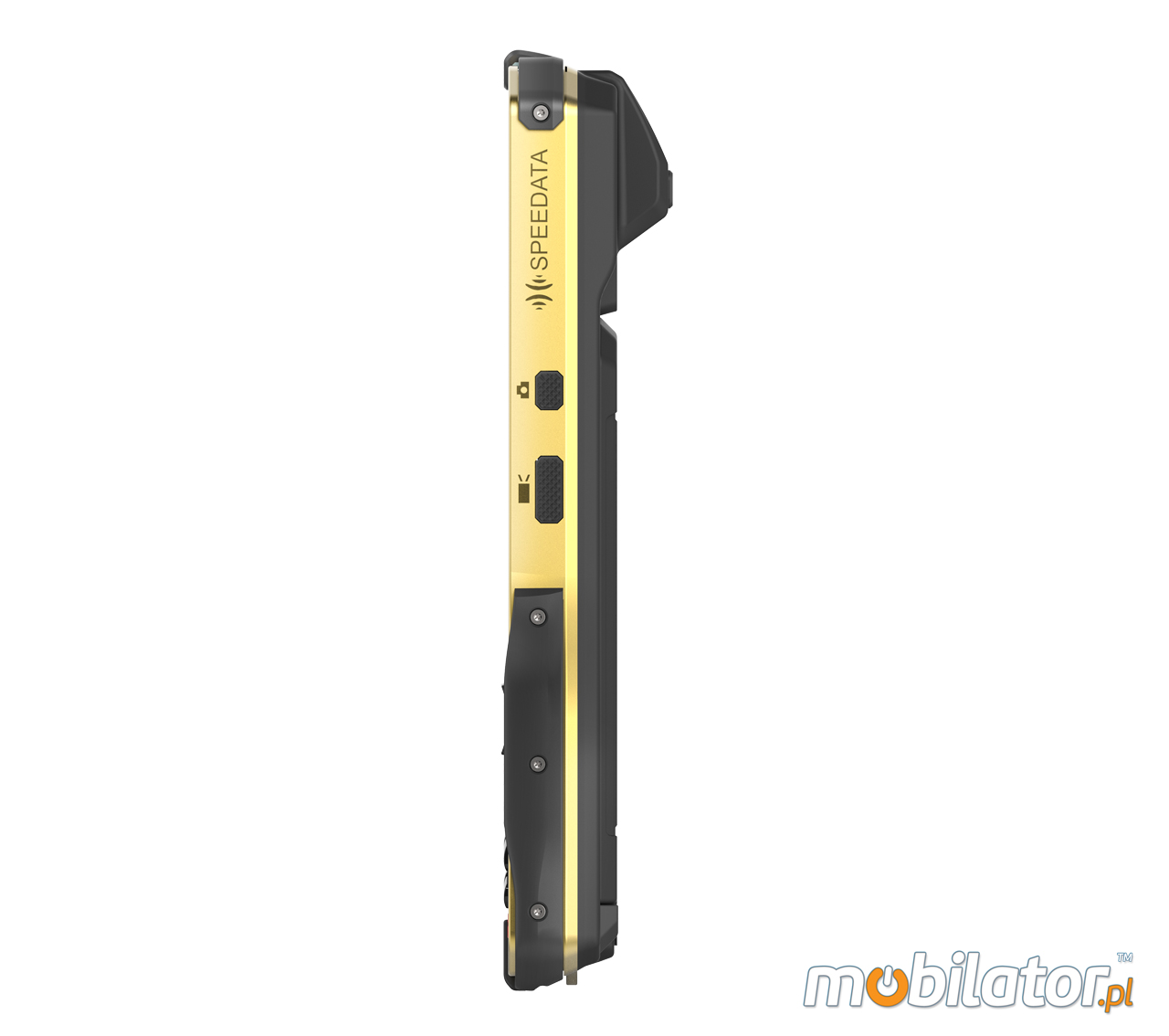

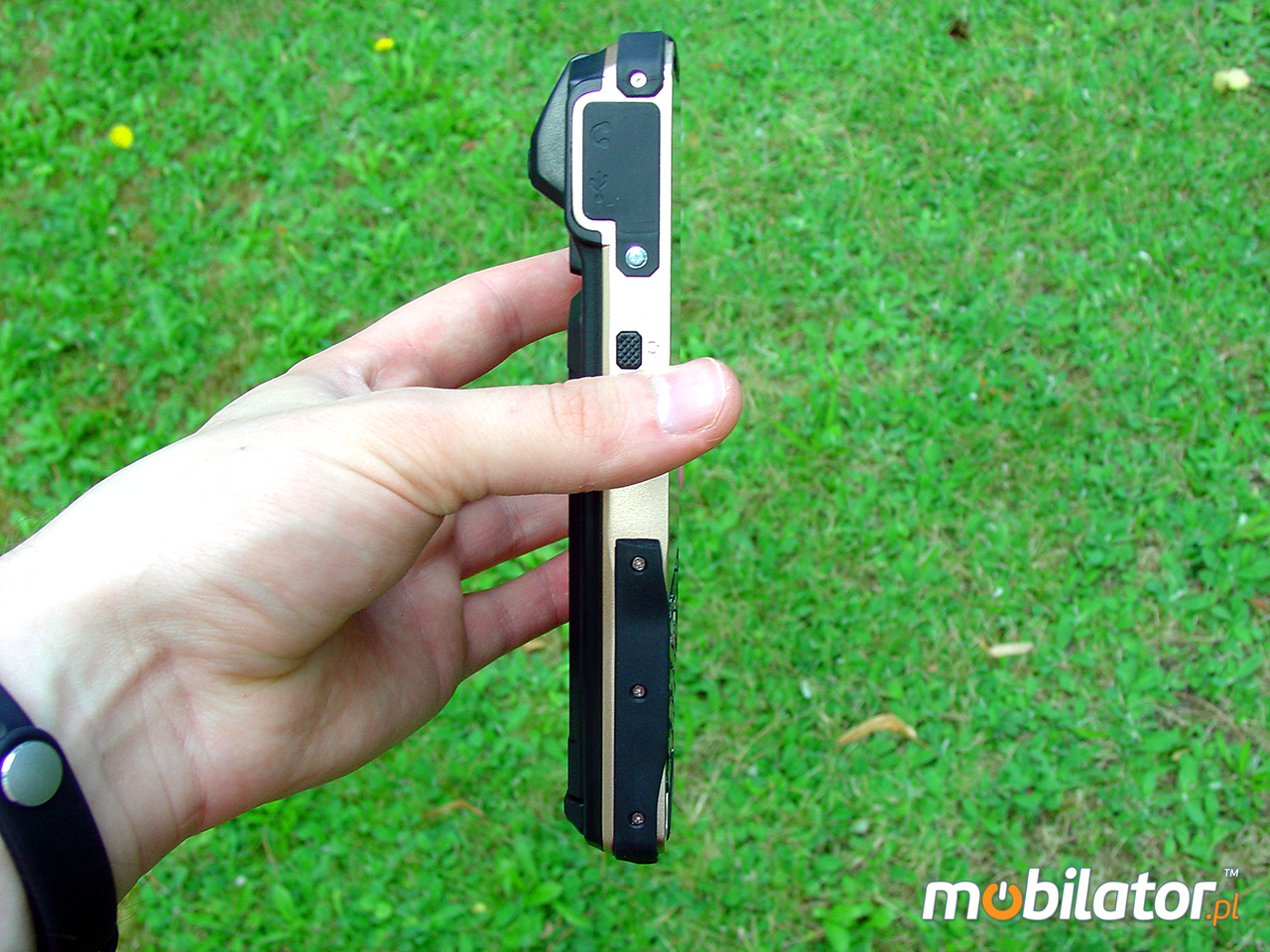

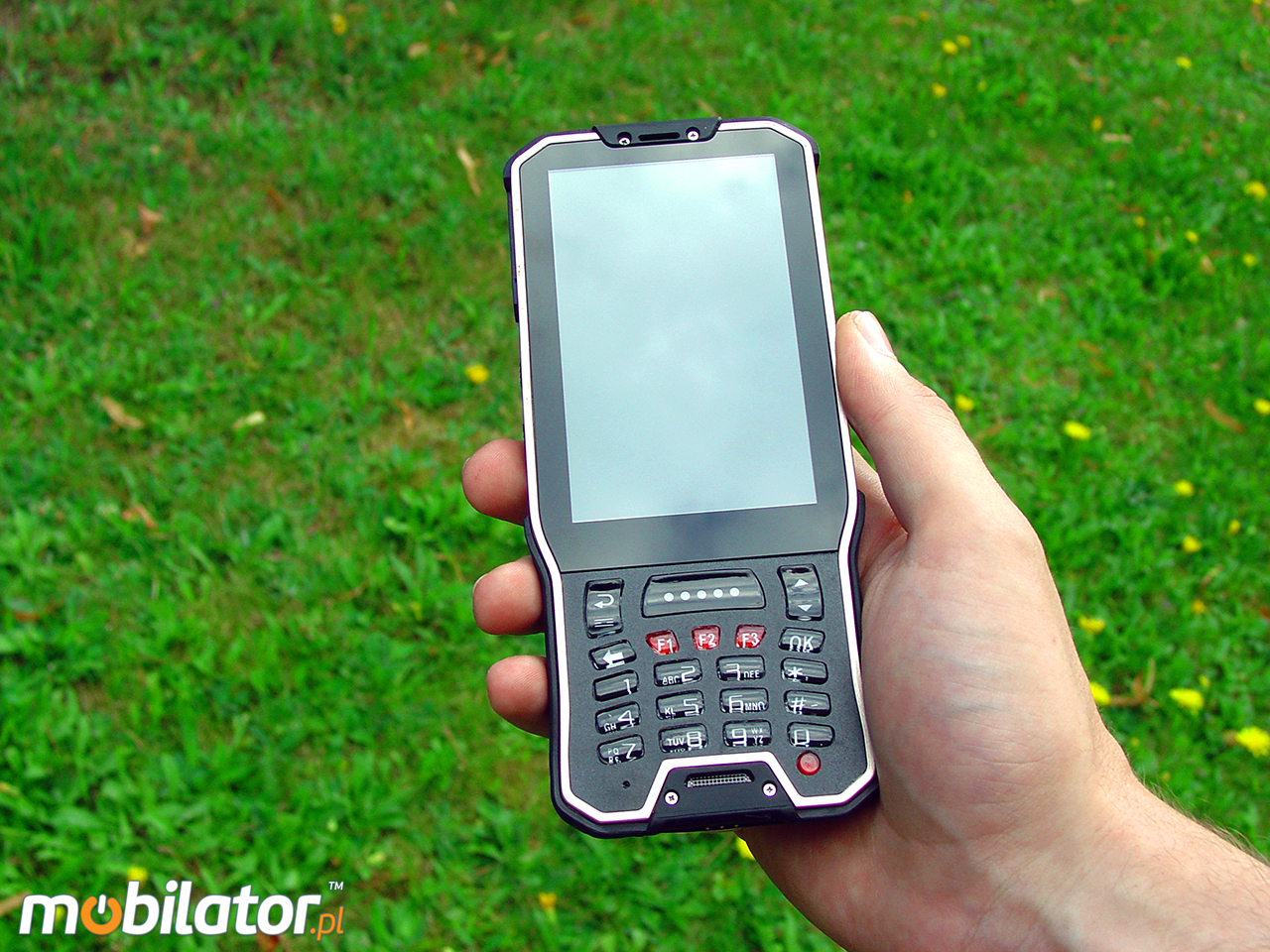

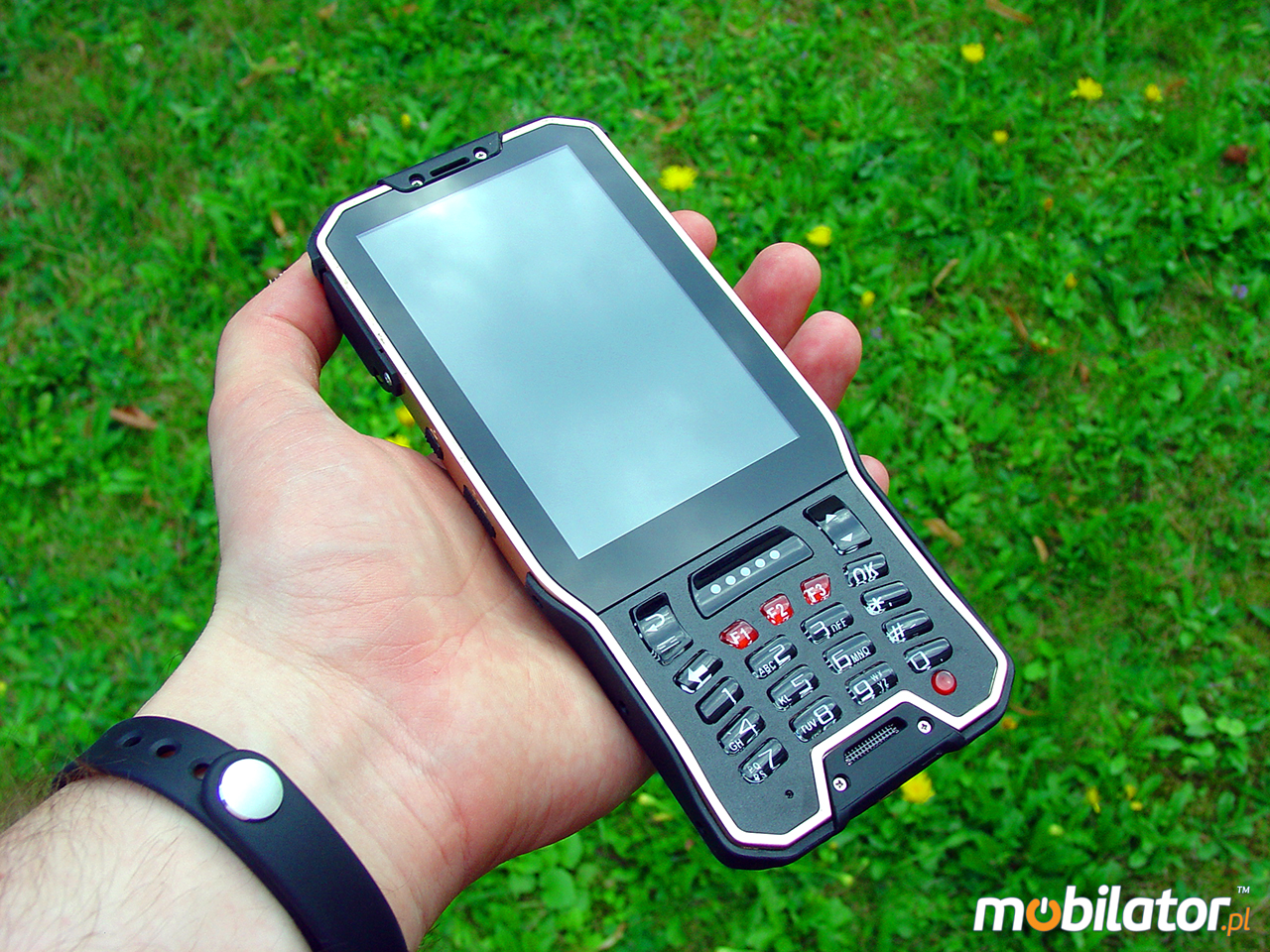

MT40 weighs only 350g and its dimensions (166 x 74 x 16mm) allow you to take it with them everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and enjoys great popularity on the Polish market in the industrial segment.

Dimensions	166 x 74 x 16mm
Weight	350g

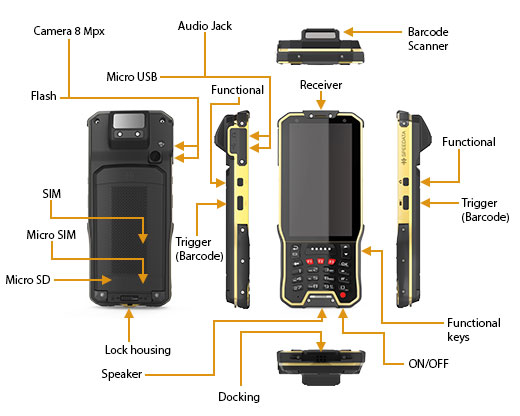

dualsim camera data collector mobipad mt40

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Compare all versions

Durability:	IP65
Humidity:	5% - 95% non-condensing
Waterproof:	IPx5
Weight:
Temperature:	Operating temperature: -20°C -- +50°C Storage temperature: -40°C -- +60°C
Shock:	-----
Vibration:	-----
Drop:	1.5meters
Sand and dust:	IP6x
1D barcode scanner (reader):	1D/2D (BI-DIRECTIONAL) MOTOROLA SE4500
2D barcode scanner (reader):	1D/2D (BI-DIRECTIONAL) MOTOROLA SE4500
RFID scanner (reader):	none (available in other configurations)
Magnetic card reader (MSR):	-----
Microchip card reader:	-----
Docking station connector:	-----
VESA standard – holders and mounts support:	-----
COM port:	No
Dispaly:	4" (480x800) LCD
Brightness:	-----
Contrast:	-----
Touch screen:	Yes - capacitive
Graphics card:	Mali-400 MP
Swivel Hinge:	-----
VGA out:	-----
TV Out:	-----
TV Tuner:	-----
Processor:	Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz)
Chipset:	-----
BIOS:	-----
Memory:	1GB
Hard Drive:	8GB
Flash Memory:
Battery:	Li-Ion 3.8V 4000mAh \| 15.2Wh
Working time on battery:	Operating time (depending on usage) - 7h Standby time - 500h
HotSwap battery:	No
Fast battery replacement ability:	Yes
Size:	1667416mm 350g
Casing material:	high quality plastic and rubber
Fanless casing:	Yes
Operating System:	Android 4.4.2
LAN:	-----
WLAN:	IEEE 802.11b/g/n
Bluetooth:	Bluetooth v4.0 (LE)
WAN:	SIM: GSM/GPRS/EDGE: 850/900/1800/1900 Mhz (EDGE Class 12) micro SIM: UMTS/HSPA: 850/900/1900/2100MHz (21Mbps/5.76Mbps)
GPS:	GPS/Beidou + A-GPS
Flash Card Reader:	Yes - max. 32GB
CD/DVD:	-----
Camera:	REAR: 8MPX (Auto Focus+ Flash)
Audio:	Built-in Microphone \| Built-in Speaker \| Receiver \| Audio Jack
Seciurity:	IP65
In/Out:
Keyboard:	on-Screen + Numeric Home \| Menu \| Return \| ON / OFF 3x - Additional function keys 2x - Barcode Trigger 2x- Camera Trigger (make photo/video)
Additional Navigation Devices :	-----
Color:	czarno-złoty
Optional accessories:	-----

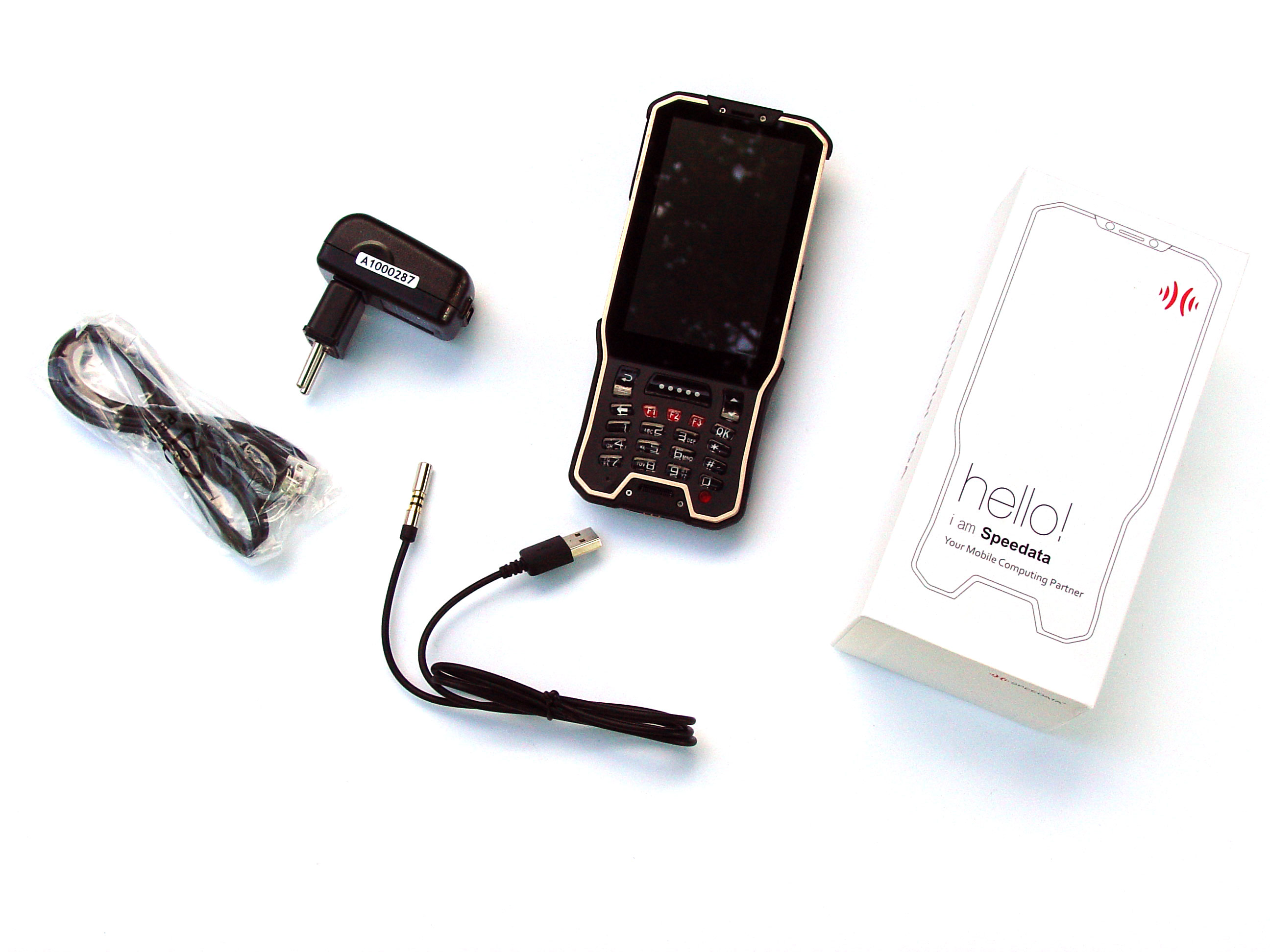

Other:	Accessories Factory Charger (5V / 1.2A) microUSB Cable Power Cord Sensors Accelerometer Proximity Sensor Light Sensor Magnetic Field Sensor Orientation Sensor
