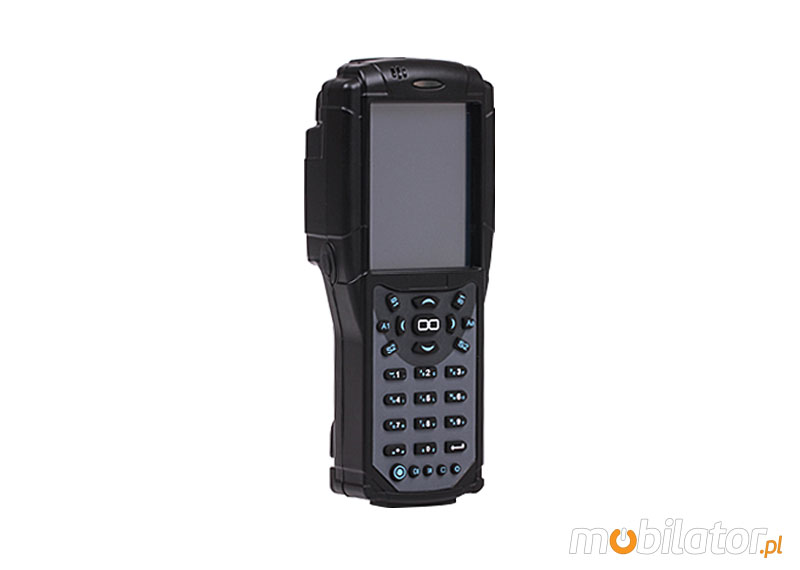

Industrial data collector MobiPad M38S-L v.7
|
|
The product from the archive - production terminated
|
Compare all versions
MobiPad M38S-L has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
|
| Processor |
Marvell PXA3XX (624MHZ) |
| Display |
3.5" (240x320) TFT-LED QVGA : Sunlight Readable : Resistive |
| RAM |
128MB |
| ROM |
128MB (optional - 256MB) |
| Connectors |
MicroSD/TF Reader (max. 2GB) |
| Audio |
Speaker |
| Battery |
7.4V 2500MAH + Chargeable Button battery |

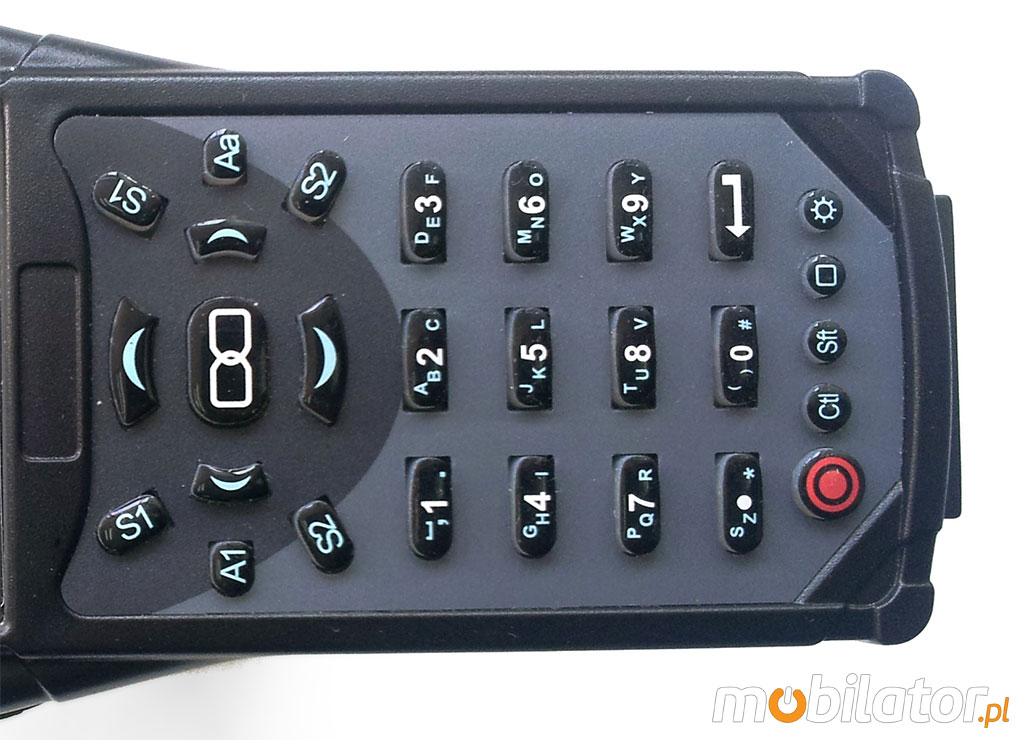

| Keyboard |
Numeric + Functions (30 keys) |
| Environment |
Windows CE 6.0 R3 |
| Modules (factory) |
WiFi |
| Modules (Optional) |
GPRS/3G (WCDMA) : GPS |
| Dimensions |
190×78×40mm - 430g (with battery) |
| Resistance |
IP65 |
| Certificates |
CE : RoHS |
| Readers (Optional) |
UHF - (860-928Mhz) - 2 meters |
1D - MOTOROLA SE955 (LASER) |
| |
|
1D/2D - OPTICON MDL2000 (CMOS) |
|
| Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
Select a version for yourself
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
go top...  menu…
|
|
|
Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
| 1D |
1D / 2D |
| MOTOROLA SE955 (LASER) |
OPTICON MDL2000 (CMOS) |
|
RFID
RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.
| |
LF |
HF |
UHF |
| Frequency |
124 kHz, 125 kHZ lub 135 kHz |
13,56 Mhz |
865-928 Mhz |
| Reading Range |
few centimeters |
to 0.5 meters |
2-10 meters |

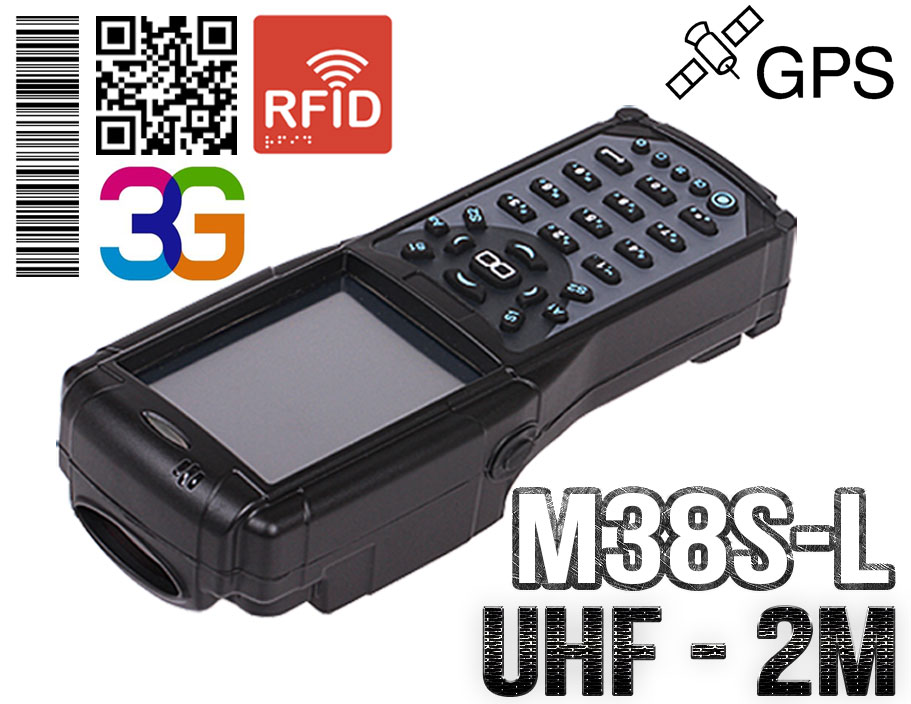

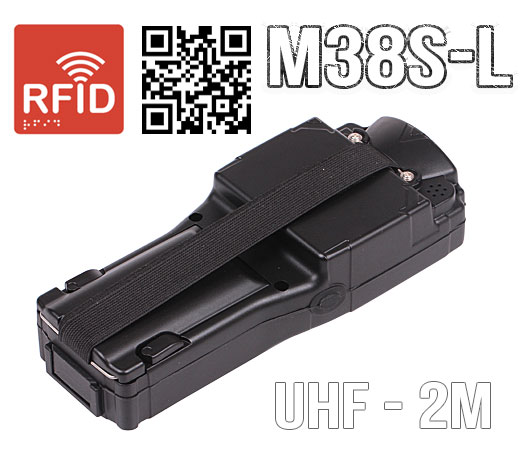

RFID UHF (860-928Mhz)
.jpg)
RFID UHF
(860-928Mhz) |
| UHF ISO180006C (EPC C1 GEN2) / ISO 180006B - (10m) |
In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO). The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.
go top... menu…
|
|
|
Applicable standards
| Operating |
-15°C -- +50°C |
| Storage |
-20°C -- +60°C |
| Humidity |
5% - 95% RH | non-condensing |
| Dustk |
IP6x (dust) |
| Water |
IPx5 (water) |
| Drop |
Multiple drops to concrete 4ft./1.2m the entire operation range |
go top... menu…
IP65 Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
| Complete protection against contact, Protection against dust deposit |
| 5 |
 |
5
|
|
Protection from water projected from a nozzle |
| Complete protectionm against contact, Protection from infiltration of dust |
| 6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
go top... menu…
|
|
|
|
When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in MobiPad adjusts automatically to transfer and network coverage.
| WiFi |
WPA 802.11i (WPA2), WEP, TKIP, TLS, TTLS, AES, PEAP, MD5 |
| GPS (optional) |
GPS - 48 | Accuration 2.5m | Speed Below 0.01m/s |
| GSM/3G (optional) |
GPRS/3G WCDMA |
go top... menu…
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
VIDEO
MOBIPAD M38W/M87S - WATER TEST  MOBIPAD M38S - RFID UHF 60tags  MOBIPAD M38S - RFID UHF ABOVE 4M
Compare all versions
| Durability: |
IP65 |
| Humidity: |
95% |
| Waterproof: |
IP65 |
| Weight: |
|
| Temperature: |
Operating temperature: -15°C -- +50°C
Storage temperature: -20°C -- +60°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.2 meters |
| Sand and dust: |
IP65 |
| 1D barcode scanner (reader): |
OPTICON MDL2000 (CMOS) |
| 2D barcode scanner (reader): |
OPTICON MDL2000 (CMOS) |
| RFID scanner (reader): |
UHF (860-928Mhz)
ISO180006C (EPC C1 Gen2) | ISO 180006B
Range: 2 |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
----- |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
----- |
| Dispaly: |
3.5" (240x320) TFT-LED QVGA : Sunlight Readable : Resistive |
| Brightness: |
----- |
| Contrast: |
----- |
| Touch screen: |
Yes |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Marvell PXA3XX (624MHZ) |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
128MB |
| Hard Drive: |
128MB (optional - 256MB) |
| Flash Memory: |
|
| Battery: |
7.4V 2500MAH |
| Working time on battery: |
Up to 20 hours (depending on usage)
For 10 days in standby mode. |
| HotSwap battery: |
----- |
| Fast battery replacement ability: |
----- |
| Size: |
190×78×40mm - 430g (with battery) |
| Casing material: |
high quality plastic and rubber |
| Fanless casing: |
Yes |
| Operating System: |
Windows CE 6.0 R3 |
| LAN: |
----- |
| WLAN: |
WPA 802.11i (WPA2), WEP, TKIP, TLS, TTLS, AES, PEAP, MD5 |
| Bluetooth: |
----- |
| WAN: |
GPRS/3G (WCDMA) |
| GPS: |
Internal GPS Signal 48 | Accuration 2.5m | Speed below 0.01m/s |
| Flash Card Reader: |
microSD/TF (max. 2GB) |
| CD/DVD: |
----- |
| Camera: |
----- |
| Audio: |
Built-in Speaker |
| Seciurity: |
IP65 | CE | RoHS |
| In/Out: |
----- |
| Keyboard: |
Numeric (+ function keys) : On-screen |
| Additional Navigation Devices : |
----- |
| Color: |
----- |
| Optional accessories: |
----- |
| Other: |
Charger |
