Ring Bluetooth Mini Scanner - Ring Scanner 1D Motorola SE955
|
|
The product from the archive - production terminated
|
|

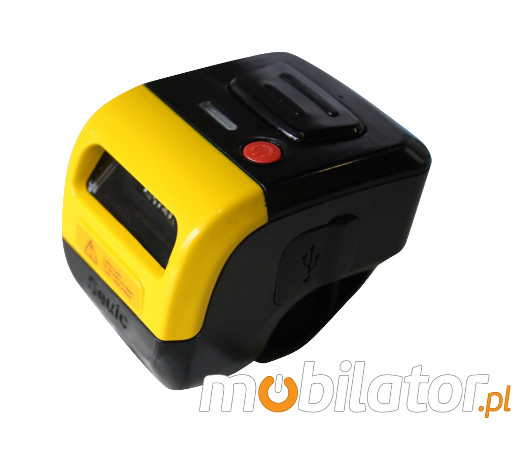

Ring Bluetooth Mini Scanner is one of the smallest barcode readers, which guarantee high quality and high functionality. Device allows to read the barcodes from boxes, machines, documents and all places where the barcodes were implemented.
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_1.jpg)
|
|
Ring Bluetooth Mini Scanner - Ring Scanner 1D Motorola SE955 |
Barcode scanner
|
Motorola SE955 |
Working time
|
more than 10 hours |
|
Support system |
Android, iOS, Windows |
|
Range |
10 m |
|
Communication |
Bluetooth 4.0 |
|
Dimensions |
47 x 37 x 39 mm
|
Weight
|
48g |
Memory
|
2MB RAM | Memory built to store 100000 data |
|
Other |
IP64 | Drop up to 1.5m |
|
The detailed specification of the configuration available in the "Technical data" |
|
Atypical, modern, wireless Ring Bluetooth Mini Scanner of barcodes was designed for useres who needs to catalog all available logistics information in electronic form of database, Spreadsheet, juxtaposition, form, etc.
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_4(1).jpg) Ring Bluetooth Mini Scanner its a intelligent and ergonomic, handheld barcode reader will facilitate the work warehouseman, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .
Barcode Scanner 1D Laser Motorola - Ring Mini Scanner thanks Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch.
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_5.jpg)

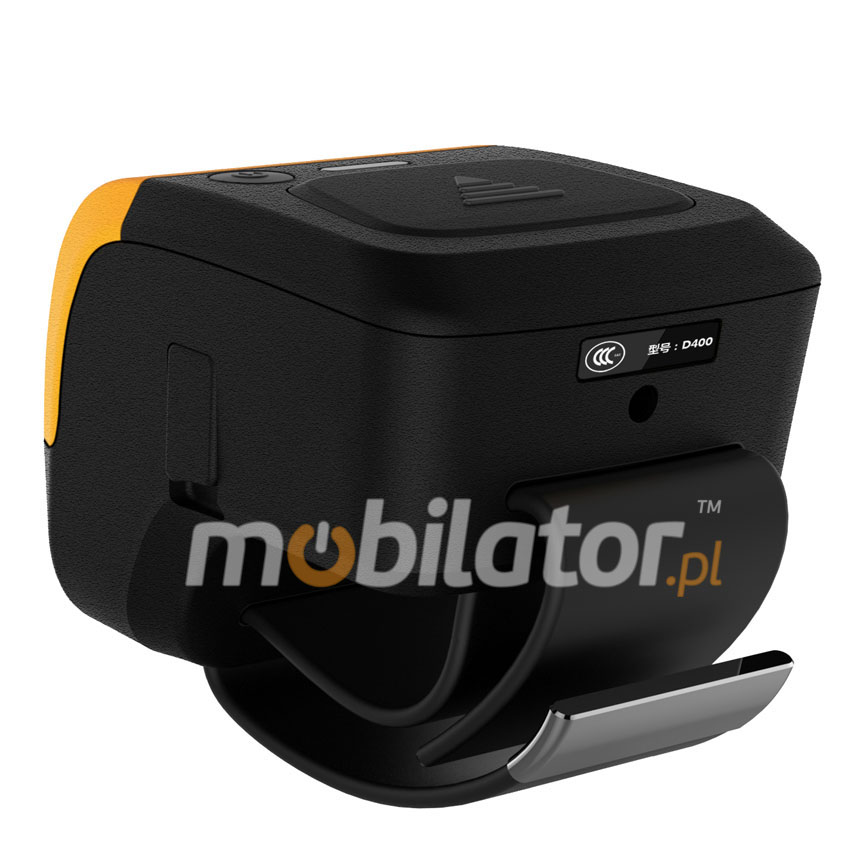

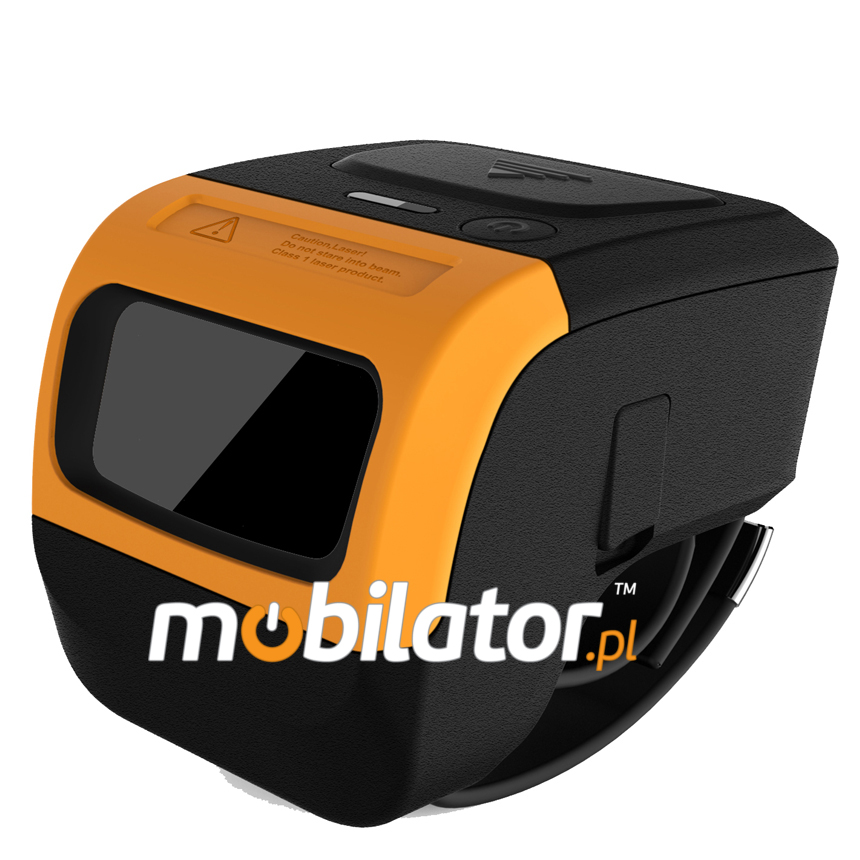

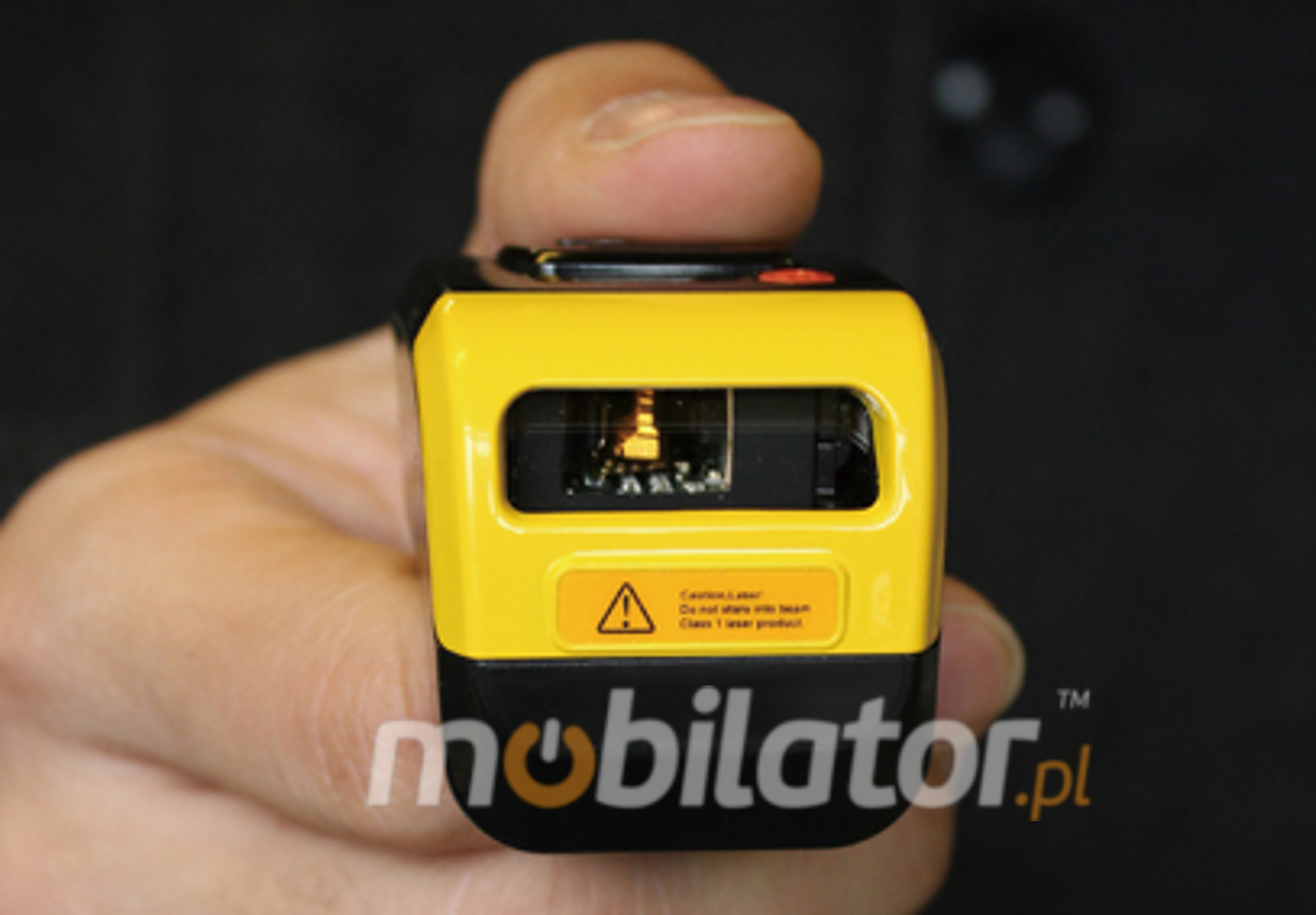

Ring Mini Scanner its a ergonomic, small and light barcode reader with a suitable surface which provides to comfortable holding the device in your hand.
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_2.jpg)
Mini Scanner was equipped with a Li-Ion battery with sufficient capacity 500mAh, allowing you to operate the scanner more than 10 hours - if scanning once per three seconds - or remain in standby mode for 500 hours.
|
|
Ring Bluetooth Mini Scanner - Ring Scanner 1D Motorola SE955 without problems might be connect with operating systems like Windows, Android or iOS thanks this users might transfer files in real time to PC or mobile devices.
.jpg)
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_3(1).jpg)
|
|
|
|
|
|
Operating |
-20° do 50°C |
|
Operating Humidity |
5% -- 95% non-condensing |
|
Dust |
IP6x (dust) |
|
Water |
IPx4 (splashed water) |
|
Drop |
1.5m |
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_6.jpg)
IP64 Resistance
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
|
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. The bar code scanner can be connected to almost any device of computer - via USB.
|
Ring Bluetooth Mini Scanner - Ring Scanner 1D Motorola SE955 |
Mechanical
|
Height: 39mm
Width: 37 mm
Lenght: 47 mm
Weight: 48g
|
Scanner's model
|
Motorola SE955 |
|
Type of scanner |
Laser
|
|
Barcode |
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2of 5, MSI, RSSI
|
Baterry Power
|
-Li-ion 500 mAh,
-Working time: >10h
-Standby: about 500 hours
|
|
Communication |
Bluetooth 4.0 HID,SPP
Range: 10 m
USB |
|
Pier¶cionkowy Bluetooth Mini Skaner 1D Motorola SE965_7.jpg)
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
| Supported Operating Systems: |
Android, iOS, Windows |
| Internal memory: |
Built to store 100000 data |
| Operation Voltage: |
----- |
| Reading indicator: |
1D Laser |
| Dimensions: |
47 x 37 x 39 mm |
| Weight: |
48 g |
| Battery: |
500 mAh Lithium |
| Housing material: |
Plastic |
| Scan rate: |
92 times/sec |
| Light source: |
Laser Diode 650 nm |
| Resolution: |
----- |
| Communication distance: |
10 m |
| Readable codes: |
1D:UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar |
| Sensor: |
Laser |
| Scan Angle: |
±50°,±65°,±35°(Skew, Pitch, Roll) |
| Print Contrast Ratio: |
≥20% |
| Scan range: |
----- |
| Cable Type: |
MicroUSB |
| Battery Life: |
>10 h |
| Communication: |
Bluetooth 4.0 |
| Interface/ Pro le: |
HID/ SPP |
| Operating Temperature: |
-20°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
5% ~ 95%, non-condensing |
| Resistance IP: |
IP 64 |
| Drop test: |
Multiple drops 1.5m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
Yes |
| 2 of 5 Discrete: |
Yes |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
No |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
No |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
Yes |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
No |
| Code - 39 Trioptic : |
Yes |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
No |
| ISBT - 128: |
No |
| ISSN: |
No |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
Yes |
| MSI - Plessey: |
No |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Does not support |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
