Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.
up…
menu…
Specifications and parameters
|
Performance |
|
Processor |
Intel Celeron J1900 (4x 2.0GHz) |
|
Graphics card |
Intel HD |
|
Operating system |
Windows /7/8/10 |
|
RAM |
4GB |
|
Drive |
64GB SSD |
|
Display |
|
Screen |
17" (1280x1024) |
|
Touch screen |
Capacitive |
|
Brightness |
350cd/m² |
|
Contrast |
1000:1 |
|
Response time |
5ms |
|
Hardness |
— |
|
Interfaces |
|
Communication |
Wi-Fi |
|
Connectors |
HDMI / VGA / RJ45 / 4x USB 2.0 / RS232 / Audio / DC 12V /
RFID HF (virtual COM mode)
|
|
Barcode scanner |
1D |
|
SIM card |
— |
|
Other |
|
Protection |
IP65 (front panel) |
|
Dimensions |
540mm x 345mm x 90mm |
|
Weight |
5kg |
.png)
Detailed device specification is available in the "Technical data" tab.
The dust-proof industrial PC panel uses an efficient and energy-saving Intel Celeron J1900 processor. In its interior there are four cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.

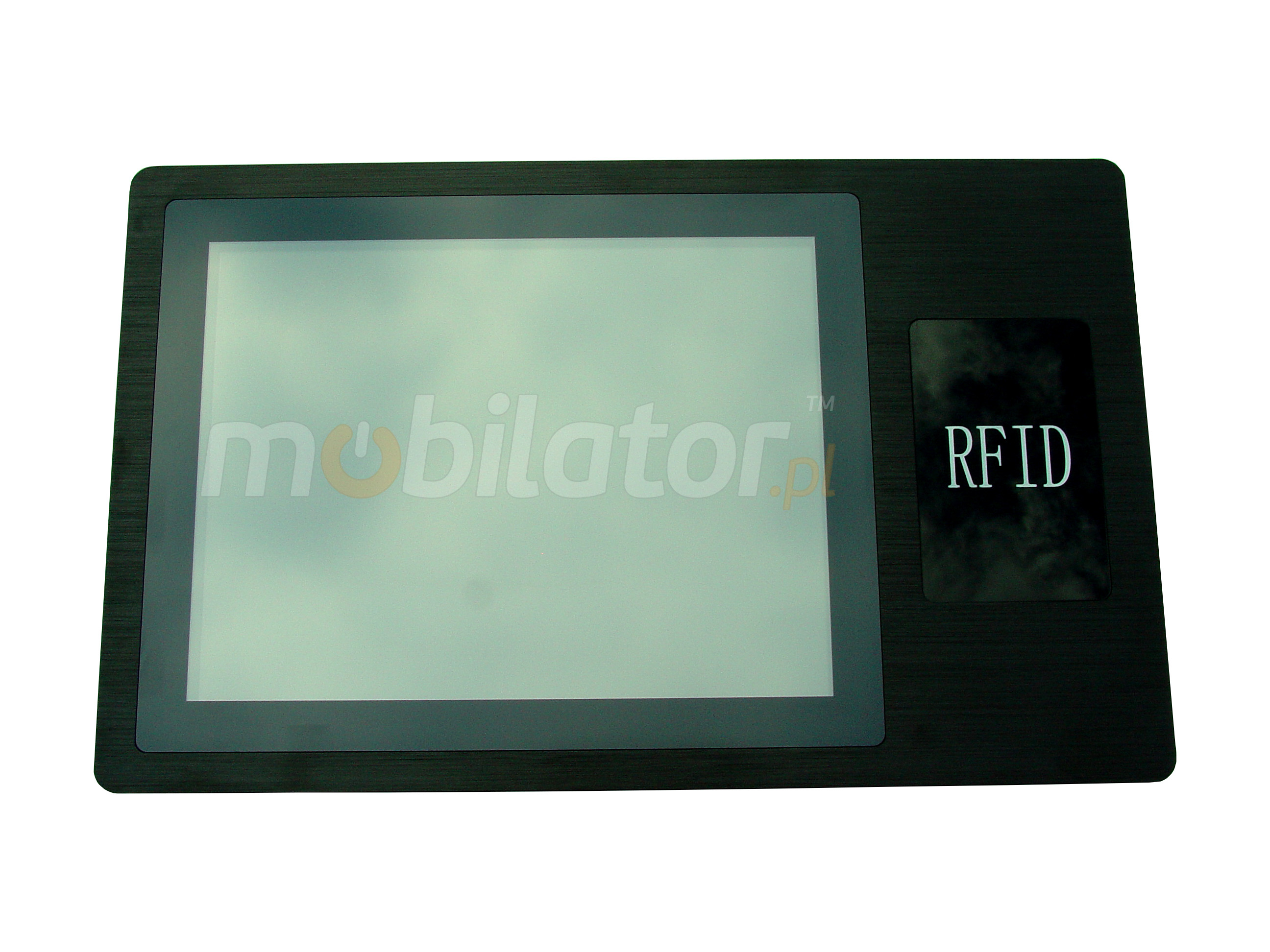

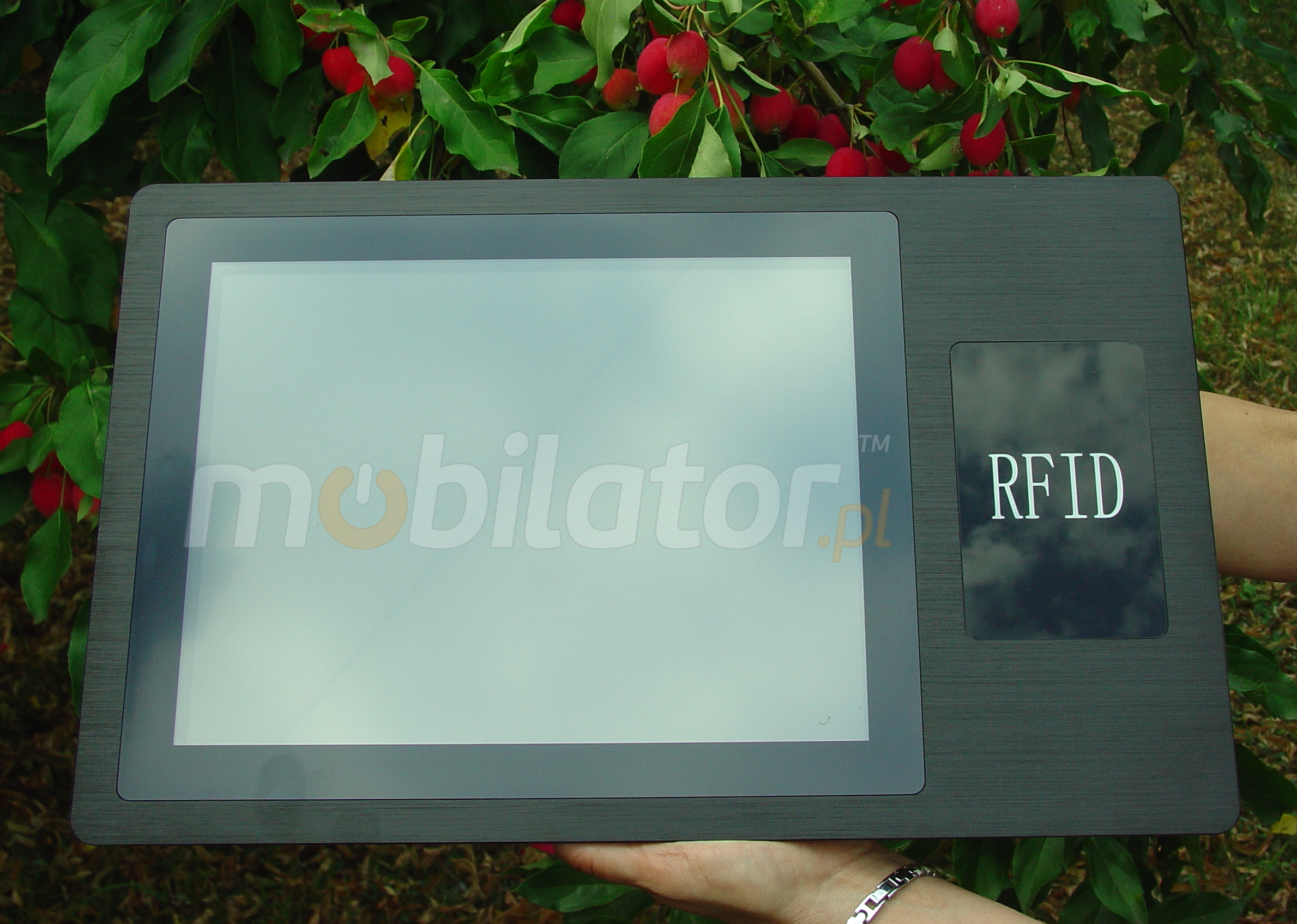

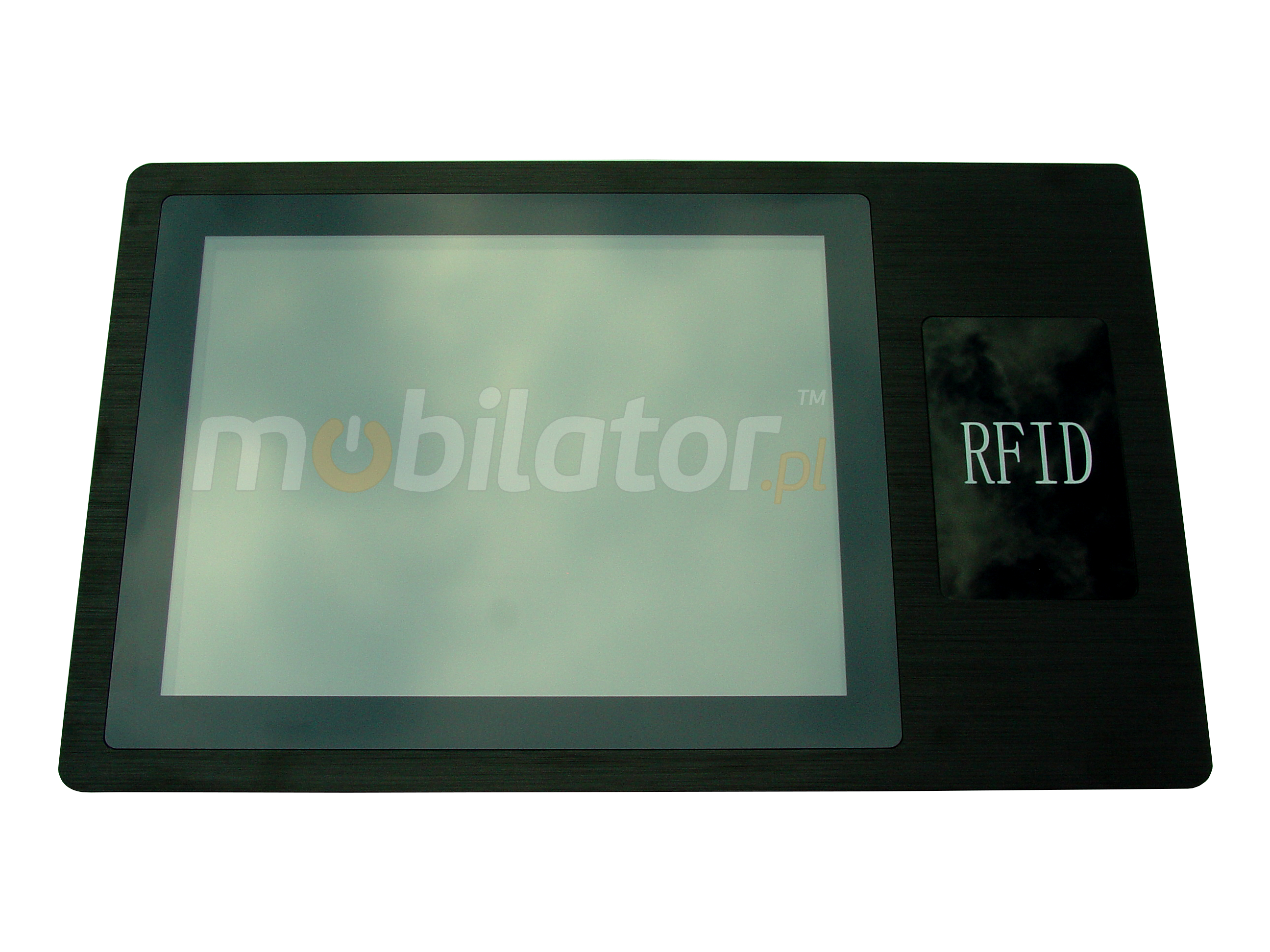

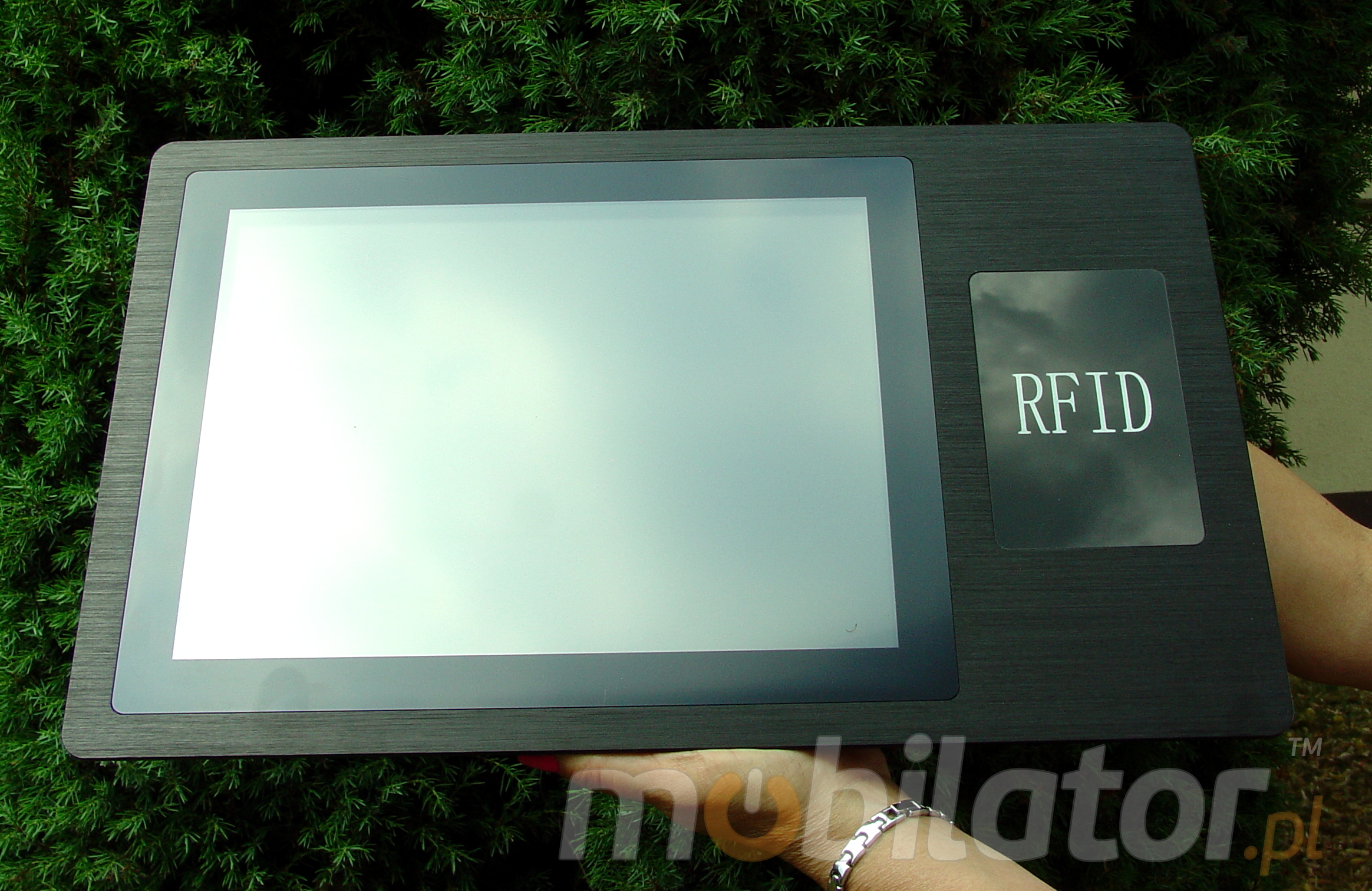

.jpg)
More photos in full resolution available in the "Gallery" tab.
up… menu…
Display and touch
Amplified, waterproof industrial computer MobiBOX IP65 J1900 RFID HF 17 has a water-resistant and scratch-proof 17" LED screen 1280x1024 resolution offers good image quality, and high brightness in the 350 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident.
CAPACITIVE SCREEN
In the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our screen with a few fingers at once.
up… menu…
Resistance and protection
PROTECTION STANDARD IP65
IP norm (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.
|
IP6X (front panel) |
Protection against access to dangerous parts with wire.
Dustproof protection. |
|
IPX5 (front panel) |
Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. |
.jpg)
EXtreme temperatures
PanelPC MobiBOX IP65 J1900 RFID HF 17 is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -30 ° C and 60 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 90% relative humidity.
|
Work temp. |
-10°C to 60°C |
|
Storage temp. |
-30°C to 60°C |
|
Humidity |
10% - 90% |
up… menu…
Communication and connectors
WIreless Wi-Fi network
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel MobiBOX J1900 IP65 RFID HF 17 has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.
|
Standards |
802.11a/b/g/n |
|
Frequencies |
2.4GHz | 5GHz |

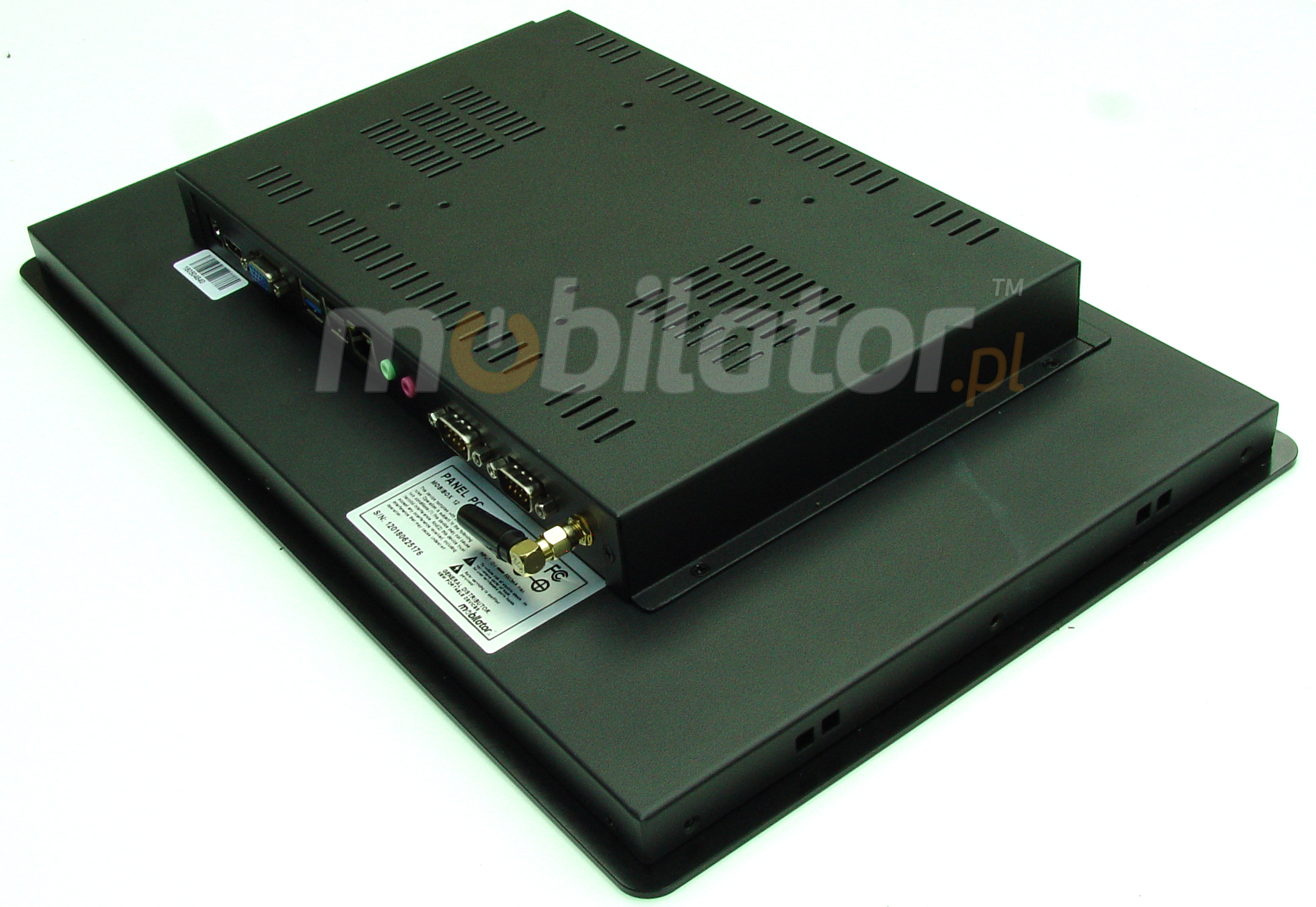

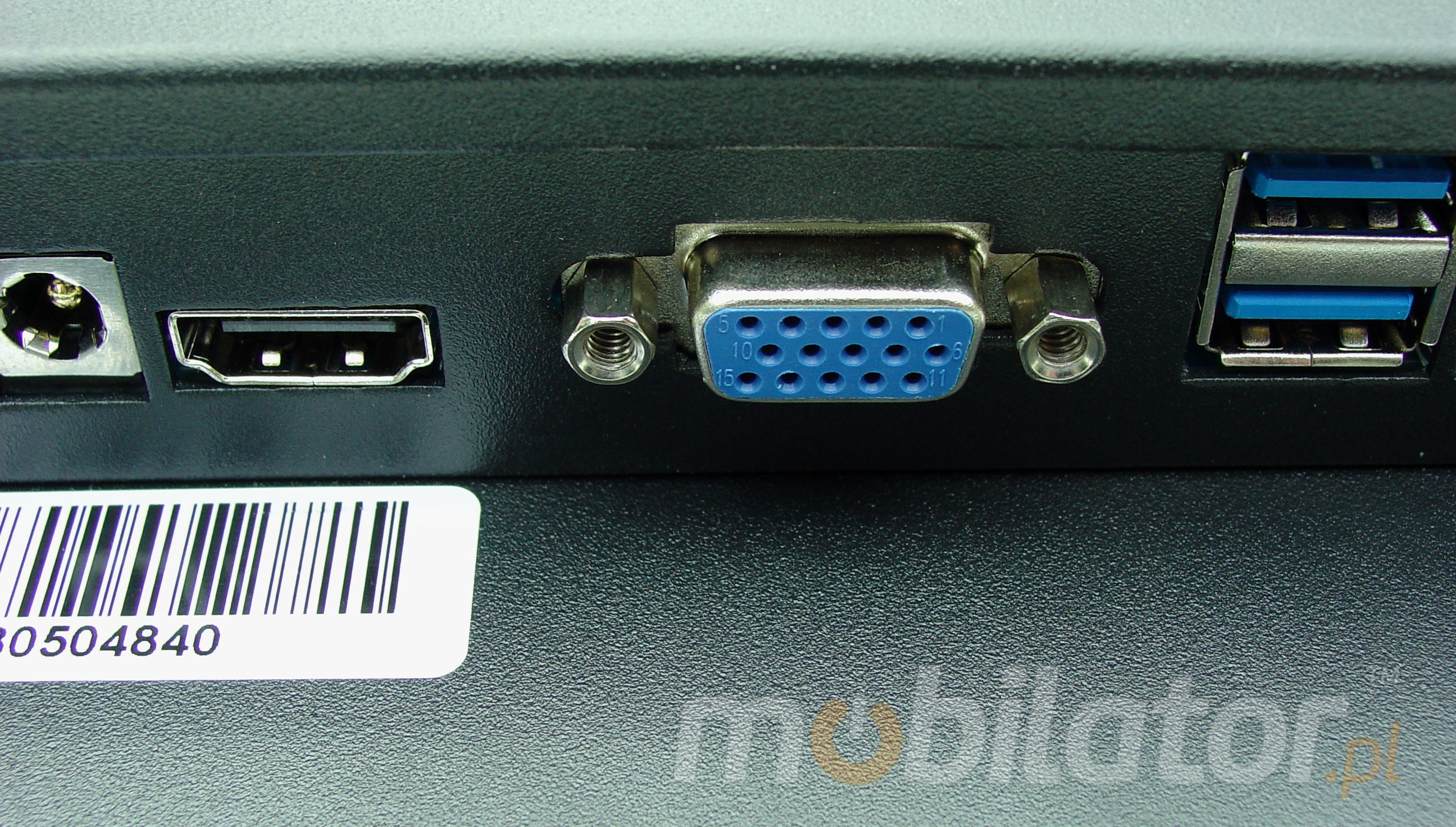

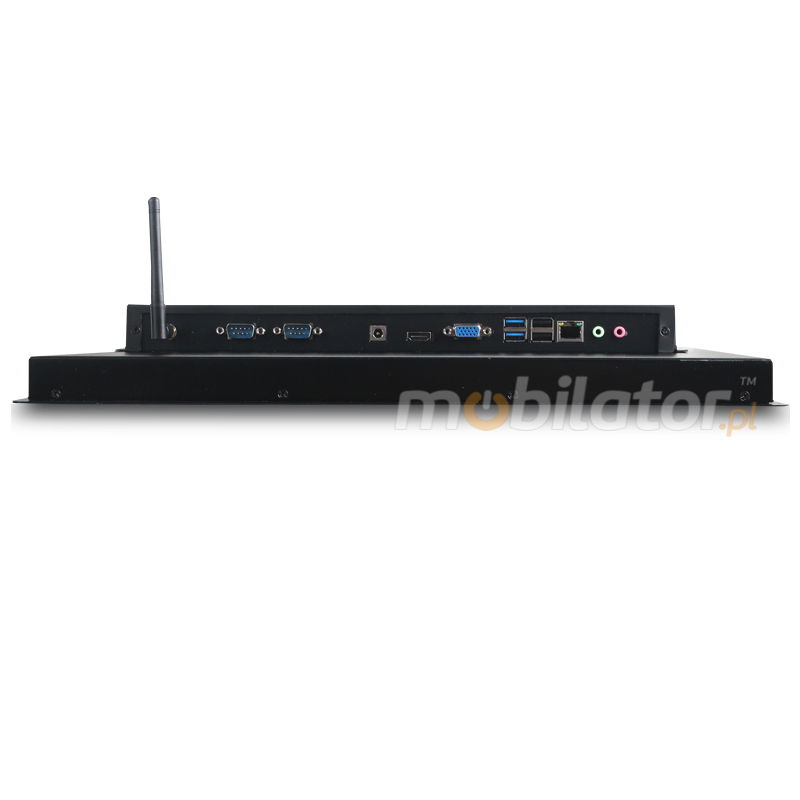

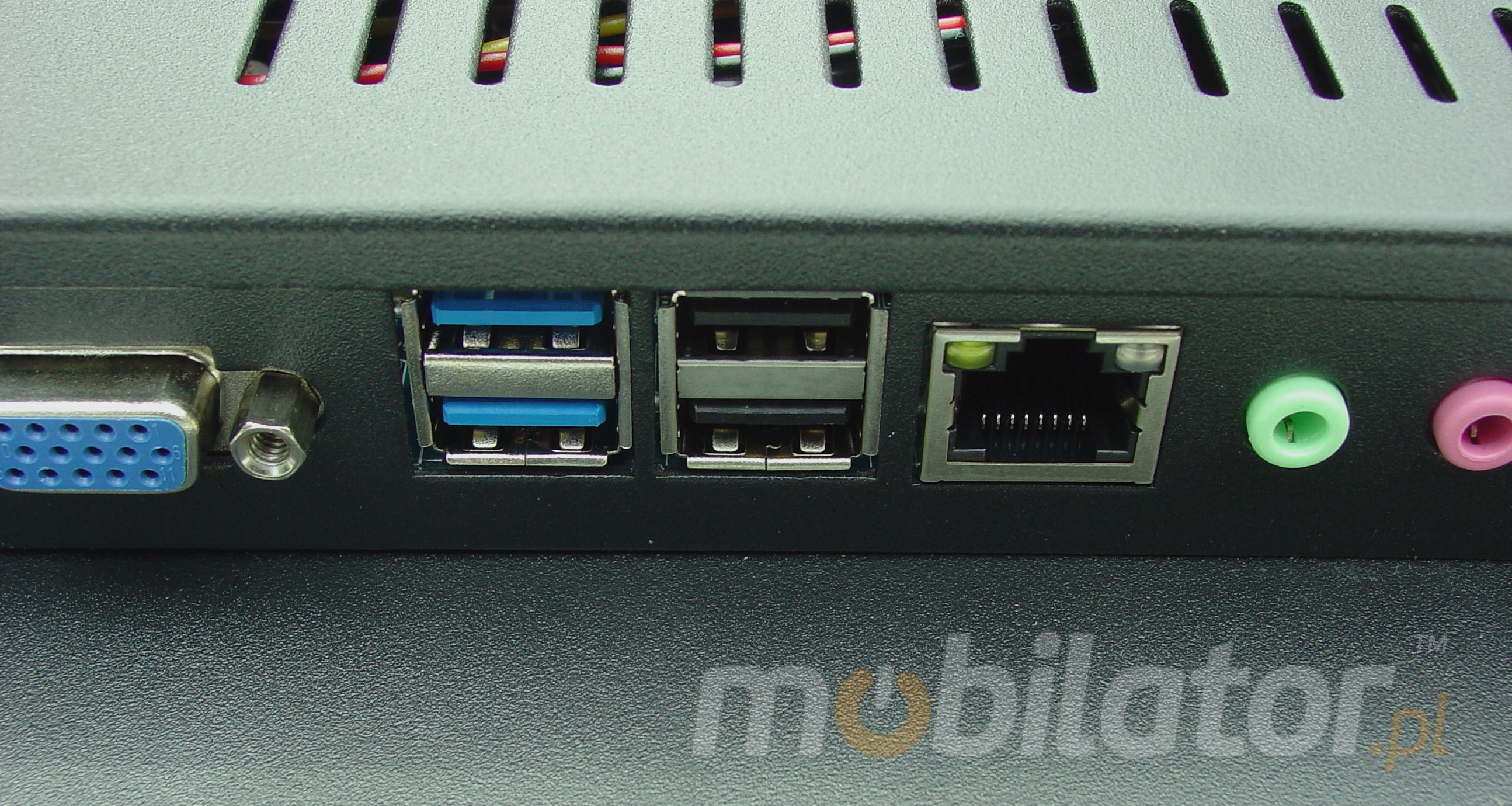

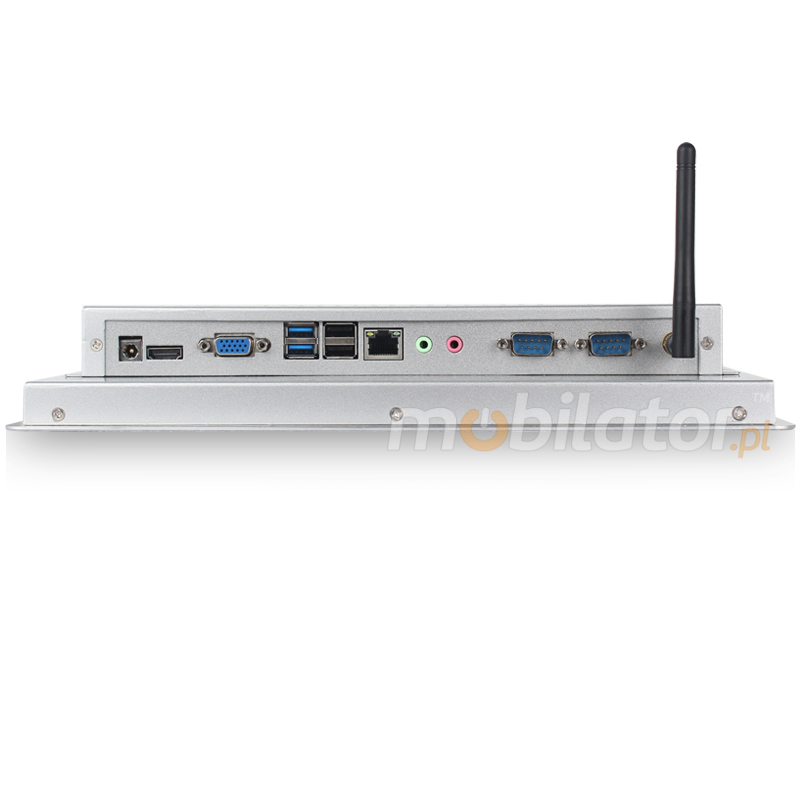

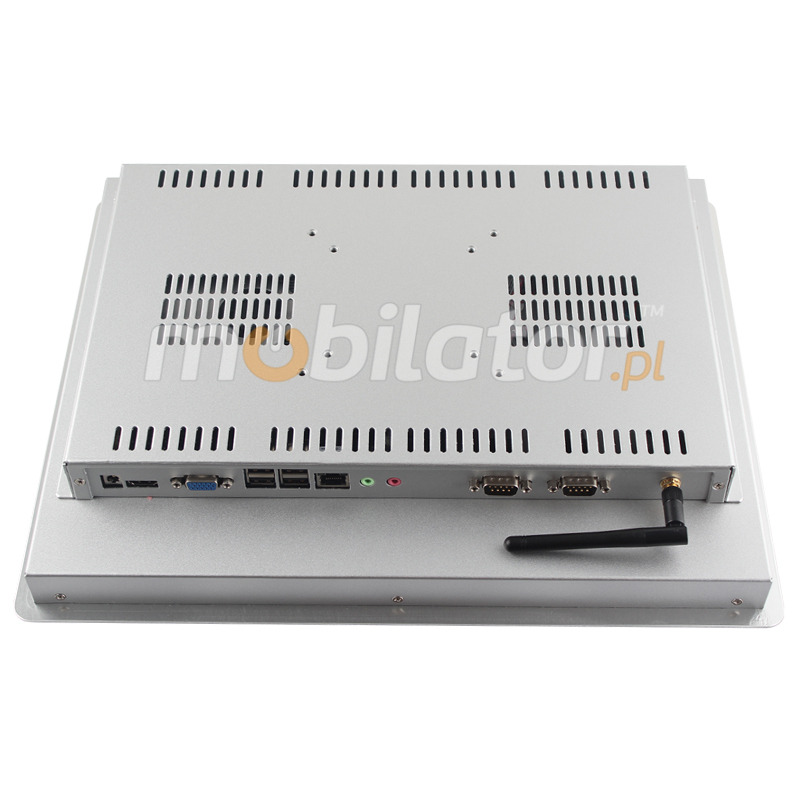

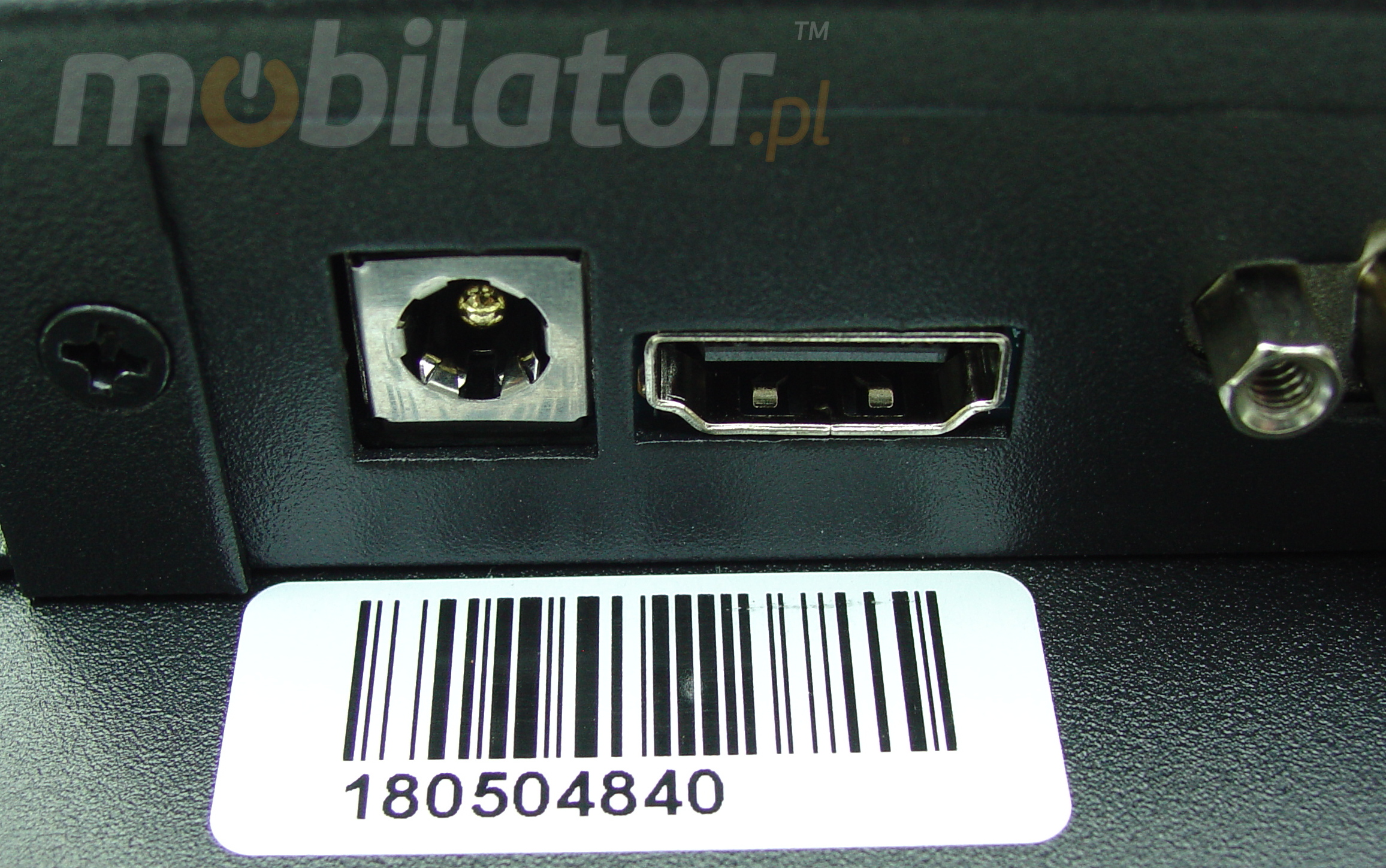

Connectors and interfaces
.png)
up… menu…
Application
trade and services

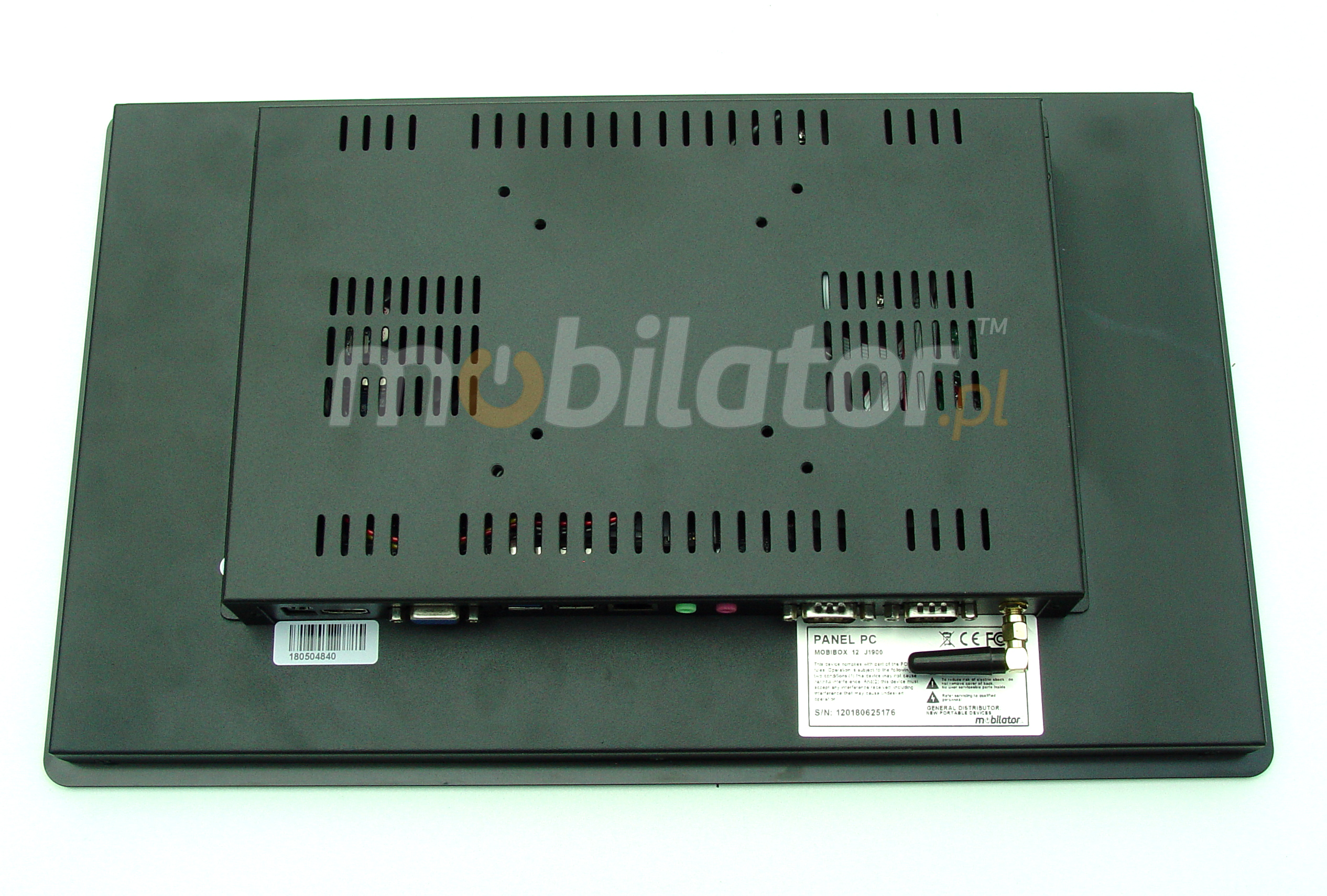

Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.
warehouse and management
The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.
Transport and motorization
Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
Modules

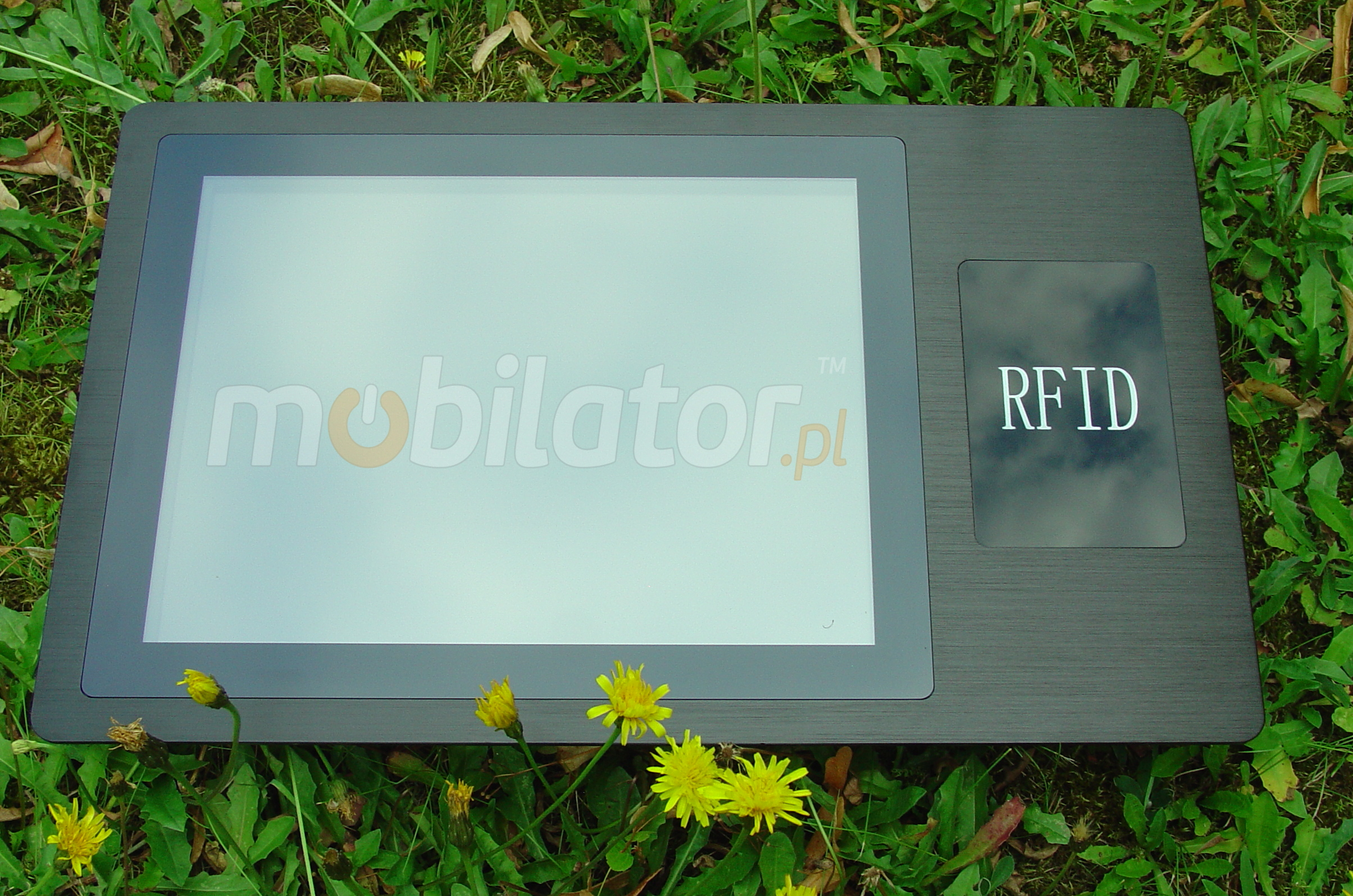

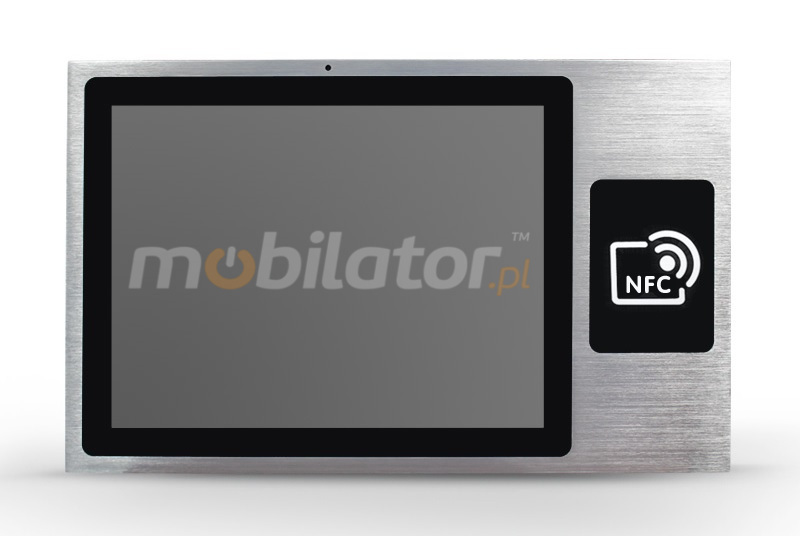

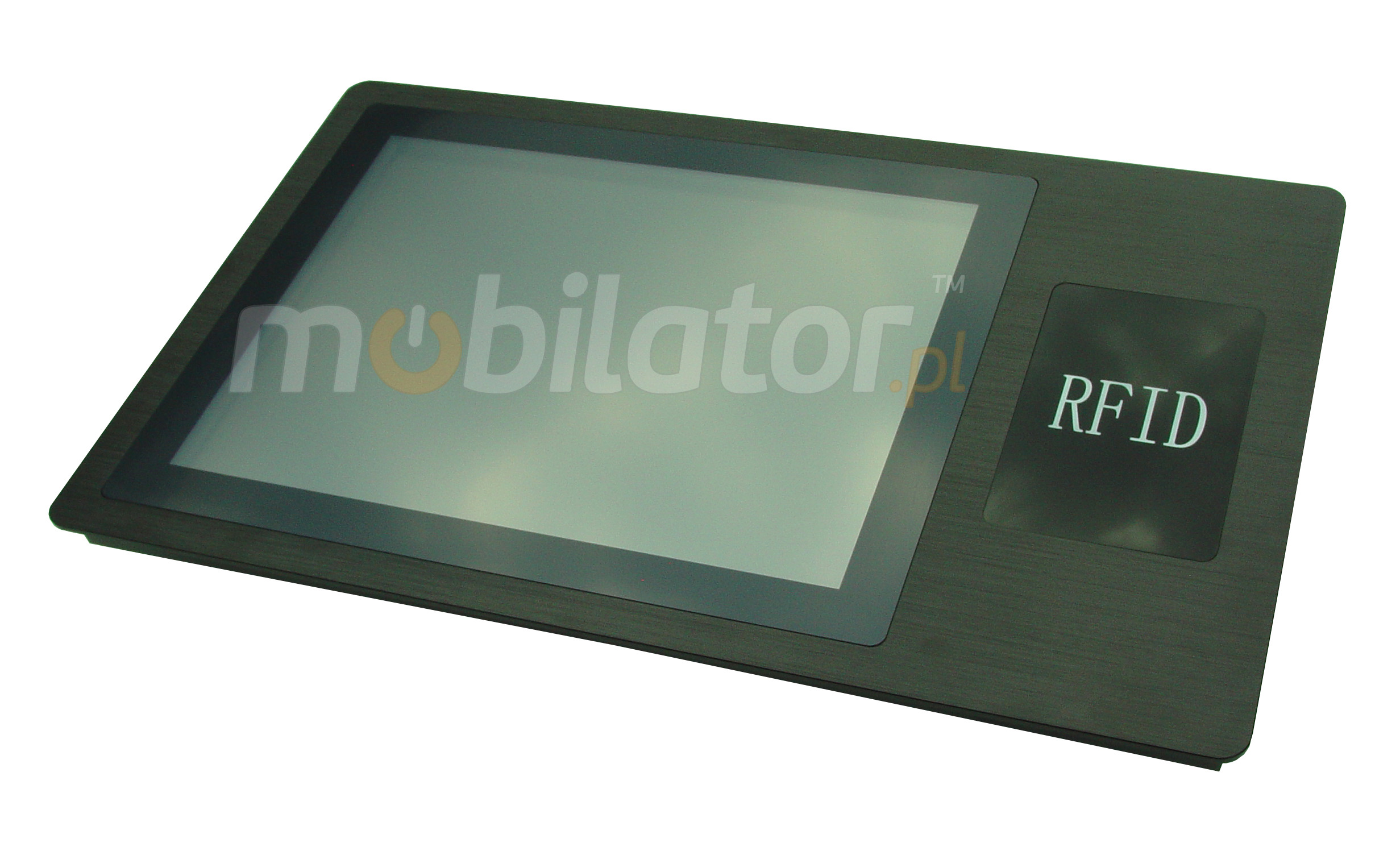

READER RFID
.jpg)
RFID is a techology used to identify objects to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of infomation that can hold as well as th masimium distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient. In this model there is the RFID HF reader operating at 13.56 MHz. RFID card reader used in the device works in virtual COM mode. To save readings as text files additional software is required.
BARCODE SCANNER
.jpg)
A barcode scanner enables you to read, decode and send data to a computer writen in a bar code. With dynamic scanning capabilities and a large reading range, the data computer gets the data accurately, helping to increase speed and productivity. You can quickly launch the scanner because of the simplified installation procedure and intuitive, convenient construction of the scanner to work is very ease. In this model was installed a 1D scanner.
