Notebook - Clevo W230ST v.0.4
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
Founded in 1983, the company has achieved an excellent reputation Clevo as a manufacturer of notebook computers. Due to the high position of the products in the high-tech has won many awards in tests conducted around the world.
|
 |
Mobility without compromise
Slight size and minimal weight makes the Clevo W230ST highly portable netbook, which is applicable in all cases. Thorough study of all the ergonomic aspects, the keyboard dimensions and position of the main control keys allow a very simple use of a laptop. Upgrading the fourth generation of processors Intel ® i7 processor and Nvidia graphics GTX-765M made W230ST is currently the best laptop in the world in this segment.
.jpg)
|
Clevo W230ST v.0.4 |
|
Processor |
Intel® Core™ i5-4300M Processor (3M Cache, up to 3.30 GHz) |
|
Memory |
not included - for building |
|
HDD |
not included - for building |
|
Graphics |
nVidia Geforce GTX-765M (N14E-GE) 2GB DDR5 |
|
Display |
13.3” (33.78cm) FHD (1920x1080) 16:9 panel, 2.8mm (Anti-Glare) |
|
Communication |
Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card |
|
Other |
2M HD Video Camera / Sound Blaster Cinema |
|
The detailed specification of the configuration available in the "Technical data" |
|
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.
|
 |
Each purchaser of a Clevo barebone has the opportunity to buy their own components (CPU, RAM, disk). In this case, keep in mind that parts must be in full working order. Purchased parts to be sent to the headquarters of the NPD in order to verify the correct installation and operation.
|
 |
|
Fourth generation Intel® Core™ i7
Intel Core 4th generation, the engineers placed emphasis on optimal power management. Less energy means good things - longer battery life and thinner casing.
|
Model |
C/T |
Frequency |
Max. Frequency
|
L3 cache |
Max. GPU
|
TDP |
|
i3-4000MQ |
2 / 4 |
2.4 GHz |
2.4 GHz |
3 MB |
1.1 GHz |
37 Wat |
|
i5-4300MQ |
2 / 4 |
2.6 GHz |
3.3 GHz |
3 MB |
1.25 GHz |
37 Wat |
|
i7-4700MQ |
4 / 8
|
2.4 GHz |
3.4 GHz |
6 MB |
1.15 GHz
|
47 Wat |
|
i7-4800MQ |
4 / 8 |
2.7 GHz |
3.7 GHz |
6 MB |
1.3 GHz
|
47 Wat |
|
i7-4900MQ |
4 / 8 |
2.8 GHz |
3.8 GHz |
8 MB |
1.3 GHz
|
47 Wat |
|
.jpg)
A new generation of NVIDIA ® GeForce ® GTX
NVIDIA GeForce ® GTX 765M graphics chip is designed for laptops based on the award-winning architecture of NVIDIA ® Kepler ™. The system has more clocks and cores than ever before, thanks to crush the competition in every respect. Graphics card has a core frequency of 850 MHz Boost technology 2.0 and GDDR5 memory with a capacity of 2GB.
|
NVIDIA GeForce GTX 765M
|
|
Codename |
N14-GE |
|
Cores |
768 |
|
Clock |
850 MHz |
|
Memory |
2048 MB GDDR5 |
|
Memory Speed |
1000 MHz |
|
Flexible storage
.jpg) W230ST can support a total of three disks at the same time. This makes it possible to easily expand without having to move data from the old disk to the new one. Clevo Notebook W230ST to mount two mSATA drive on which you can install the system and most used applications. The use of RAID brings powerful performance increase (read data at 1GB / s).
(1).png)
RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

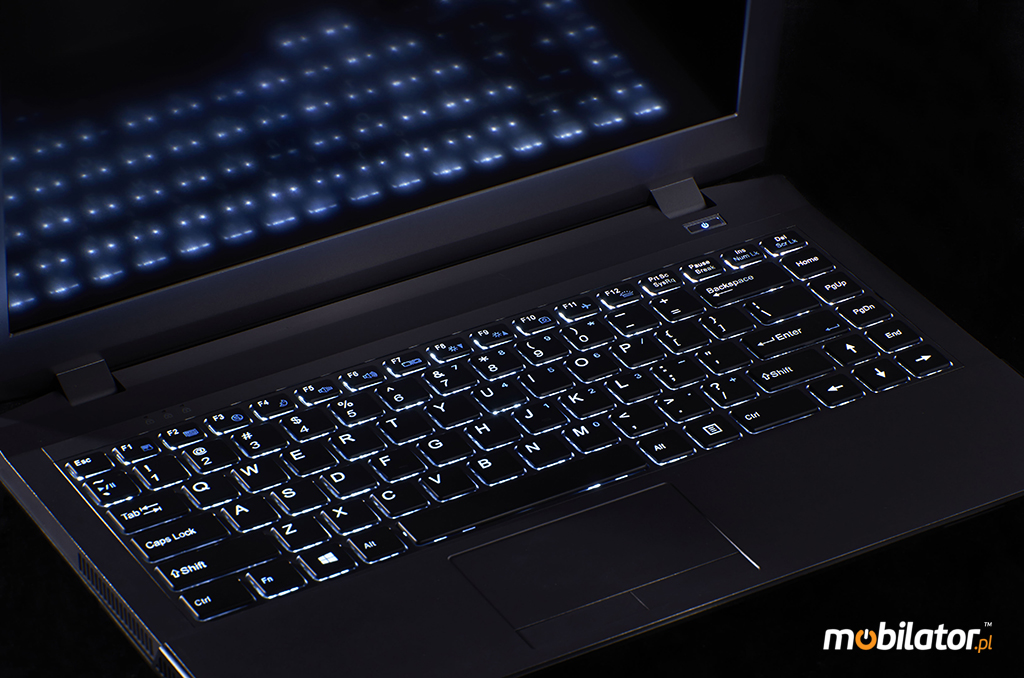

Advanced illumination
|
|
The keyboard backlight LED is a feature that not only beautifies Clevo W230ST, but also makes it easier to write when the light in the environment is weak. The color and intensity of illumination can be adjusted to your needs. Highlighting three-zone which allows for the keyboard backlight in areas that are in use, and put it out there where it is unnecessary for example, the numeric keypad.
.jpg)
|
Powerful storage capacity
Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications. With up to 16GB of system memory always cope with the number of assigned tasks in parallel. The manufacturer can install two memory modules SODIMM DDR3/DDR3L.
CLEVO company to meet the needs of users applied in a laptop W230ST easy access to system components. In this way without any problems replacing the drive for greater efficiency will increase bone RAM or just clean the laptop with a residual dust.
Sound Blaster® Cinema
Sound Blaster Cinema has the best qualities of sound cards Sound Blaster ® and sets new standards in technology for games and entertainment via the PC. Sound Blaster and built-in Onkyo speakers deliver superior sound quality when listening to music and playing.
|
1. 2.0M HD Video Camera
|
4. Power Button |
2. Built-in Microphone
|
5. Backlit Keyboard |
3. LED Status Indicators
|
6. Touchpad with Scroll Slider |
|
|
1. Onkyo Speakers
|
4. Battery Release Latch |
2. Battery Pack (6 cell)
|
5. CPU & GPU Cooling Fan |
3. Battery Lock
|
6. CPU, GPU, Pamiêæ, Dysk, WiFi, mSata |
|
|
1. 3x USB 3.0
|
4. RJ-45 LAN Port (Gigabit) |
2. HDMI 1.4a Output Jack
|
5. DC-In Jack |
3. DB15 VGA Output Jack
|
4. Kensington Lock |
|
1. CPU & GPU Vents
|
5. Headphone - Out Jack |
2. USB 2.0 Port
|
6. Microphone - In Jack |
|
1. Hard Drive, Airplane mode, Power and Battery Charge Status Indicators
|
2. Card Reader 6-in-1
|
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
Compare all versions
| WAN: |
------ |
| WLAN: |
Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card module |
| Bluetooth: |
Yes - 4.0 |
| Processor: |
Intel® Core™ i5-4300M Processor(3M Cache, up to 3.30 GHz) |
| Memory: |
none (available in other configurations) |
| Chipset: |
Mobile Intel® HM87 Express Chipset |
| Dispaly: |
13.3” (33.78cm) FHD (1920x1080) 16:9 panel, 2.8mm (Anti-Glare) |
| Graphics card: |
nVidia GTX-765M (N14E-GE) 2GB DDR5 |
| Touch screen: |
No |
| Swivel Hinge: |
No |
| Hard Drive: |
none (available in other configurations) |
| BIOS: |
------- |
| VGA out: |
Yes - HDMI, VGA |
| LAN: |
10/100/1000MB Base - TX Ethernet LAN |
| Camera: |
Yes - 2M HD Video Camera |
| Audio: |
High Definition Audio / Built in microphone / Built in two speakers / SOUND BLASTER Cinema |
| Seciurity: |
Kensington® Lock |
| TV Out: |
------ |
| In/Out: |
1x USB 2.0 port / 3x USB 3.0 ports(1x powered USB port, AC/DC) / 1x HDMITM output port (with HDCP) / 1x external VGA port / 1x Headphone jack / 1x Microphone jack / 1x RJ-45 LAN port / 1x DC-in jack |
| Keyboard: |
QWERTY - function keys, illuminated |
| Additional Navigation Devices : |
Touch pad with scrolling function |
| Battery: |
Removable 6 cells Smart Lithium-Ion battery pack, 62.16WH |
| Working time on battery: |
300 minutes |
| Size: |
330 (W) x 227 (D) x 31.9 (H) mm - 2.0kg, including 62.16WH battery |
| CD/DVD: |
No |
| Operating System: |
No |
| Flash Card Reader: |
Yes - 6-in-1 Push-Push Card reader (MMC / RSMMC / SD / Mini SD / SDHC / SDXC) |
| GPS: |
------ |
| TV Tuner: |
------ |
| Color: |
------ |
| Other: |
Warranty 24 months |
