MoTouch 185 v.2 - Reinforced industrial touch monitor - IP65 standard for the front
|
|
| CURRENT PRICE |
| 545.08 € |
Net |
| 670.45 € |
Gross |
|
Compare all versions
|
Industrial Touch Monitors
Small dimensions Industrial Panel Monitor are used in environments dominated by dust, dirt and moisture. They are ideal for applications requiring quiet and continuous operation. Industrial touch screen monitor, through its function of touch, replaces: mouse, keyboard, or other pointing device.
|
|
|
Mobilator
|
MoTouch 185
|
|
|
 |
Resolution: 1920x1080 / 16:9
|
|
|

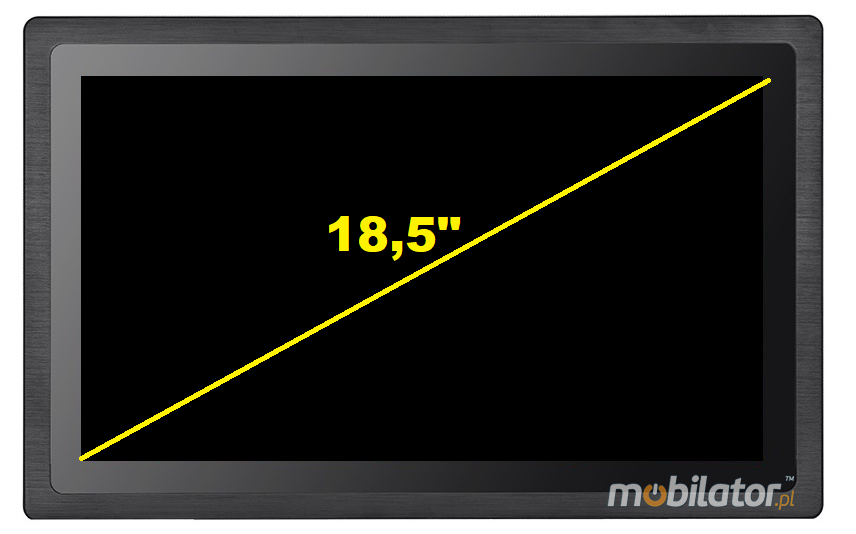

LCD size: 18,5"
|
|
|
Backlight: TFT LCD |
|
|
Connectors:VGA/DVI/HDMI/Audio I/O
|
|
|
Screen Protection: -
|
|
|
Mounting: 75mm x 75mm / 100mm x 100mm
|
 |
Built-in speakers: - |
| |
Detailed specification of the configuration available in the "Technical data"
|
Dimensions:
Housing dimension are 486 x 307.4 x 67 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 6 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
|
|
For proper operation of the touch controller is needed connect the monitor to the computer using the USB cable.
Connector:
Touch monitor MoTouch 185 is equipped with the essential connectors such as:
| 1. RJ-45 (touch connector) |
3. DVI |
5. Audio I/O |
| 2. HDMI |
4. VGA |
6. DC-IN
|
|
|
MoTouch 185 With 1920x1080 resolution and high brightness of 300 cd/m2, screen of capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.
The LCD monitor has backlight TFT LCD. This technology allows for the construction and easy control of high-resolution displays, as well as obtaining much higher image quality.
Resistive screen
The touch-sensitive surface is made of two plastic plates. The surface plate is made of thin and scratch-resistant plastic. It is also covered with a thin layer of conductive materials (tin oxide and indium oxide) placed on the bottom of the "glass". There is a second plastic plate under the upper glass (i.e. below the conductive material). The two plates have no contact with each other until the user of the device presses the screen with a finger or stylus. Contact then occurs between slightly separated screens. As a result of their contact, a short circuit is created, which, thanks to the measurement of vertical and horizontal resistance, is converted into data indicating the place of contact to the processor.
 The resistive screen provides good visibility, but it decreases quite significantly in the sun. This type of screen, unlike a capacitive screen, allows the use of handwriting (a stylus comes in handy here). We can only dream about multitouch.
|
Extreme temperatures
Touch monitor MoTouch 185 is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 70 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative humidity.
|
| Operation Temp |
-10 - 60 °C |
| Storage Temp |
-20 - 70 °C |
| Operation Humidity |
to 95% |
go top…  menu…
|
Industrial Monitors from the company Mobilator are based on efficient high-quality displays.
Industrial Monitors are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of monitors models of industrial and the ability to change the configuration, allow for optimal selection monitors for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model monitors has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
With industrial touch screens (touch screen) can be used on virtually any computer, and the list of applications is limited only by the imagination. Common applications of the touch screens:
- gambling, lotteries and slot arcade
- interactive public telephones,
- Industrial control rooms,
- terminals at points of sale,
- control of industrial processes,
- office equipment (photocopiers, franking machines, etc.)
- handling vehicles and machines airlines.
|
go top… menu…
Display |
Screen: 18,5"
Resolution: 1920x1080
Type: Resistive
Backlight: TFT LCD
Aspect ratio: 16:9
Brightness: 300 nits
Contrast Ratio: 1000:1
|
| Resistance IP |
IP 65 on front
|
| Connectors |
1 x VGA
1 x HDMI
1 x DVI
1 x DC-IN
1 x RJ-45 (Touch connector)
1 x Audio I/O
|
|
Dimensions
|
Height: 307.4 mm
Width: 67 mm
Length: 486.5 mm
|
| Weight |
6 kg |
|
|
|
Porównaj wszystkie wersje
| Dostêpne wersje/Available versions |
v.1 |
v.2 |
| Ekran pojemno¶ciowy/Capacitive screen |
✔ |
— |
| Ekran rezystywny/Resistive screen |
— |
✔ |
|
|
Compare all versions
| Ports - rear panel: |
1x VGA, 1x HDMI, 1x DVI, 1x DC-IN, 1x RJ-45 (touch connector), 1x Audio I/O |
| Power: |
12V~36V DC |
| Dimensions: |
486.5mm x 307.4mm x 67mm |
| Weight: |
6 kg |
| Expansion: |
----- |
| Humidity: |
to 95% |
| Temp: |
-10°C ~ 60°C |
| Storage Temp: |
-20°C ~ 70°C |
| IP Norm: |
IP 65 on front |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP 65 |
| Screen size: |
18,5" |
| Resolution: |
1920x1080 |
| Aspect ratio: |
16:9 |
| Touchscreen: |
Resistive |
| Response time touch-panel (ms): |
10 ms |
| Contrast Ratio: |
1000:1 |
| Brightness: |
300 cd/m2 |
| Viewing Angle: |
85/85/80/80 (L/R/U/D) |
| Backlight MTBF: |
TFT LCD |
| Color Resolution: |
16.7M |
| Surface hardness (display): |
- |
| Touch Life(contacts): |
Infinity |
| Housing material: |
rugged 3mm thickness aluminum |
| Mounting VESA: |
Panel, Wall, Rack, Stand and Arm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
18 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| Built-in speakers: |
No |
Compare all versions
