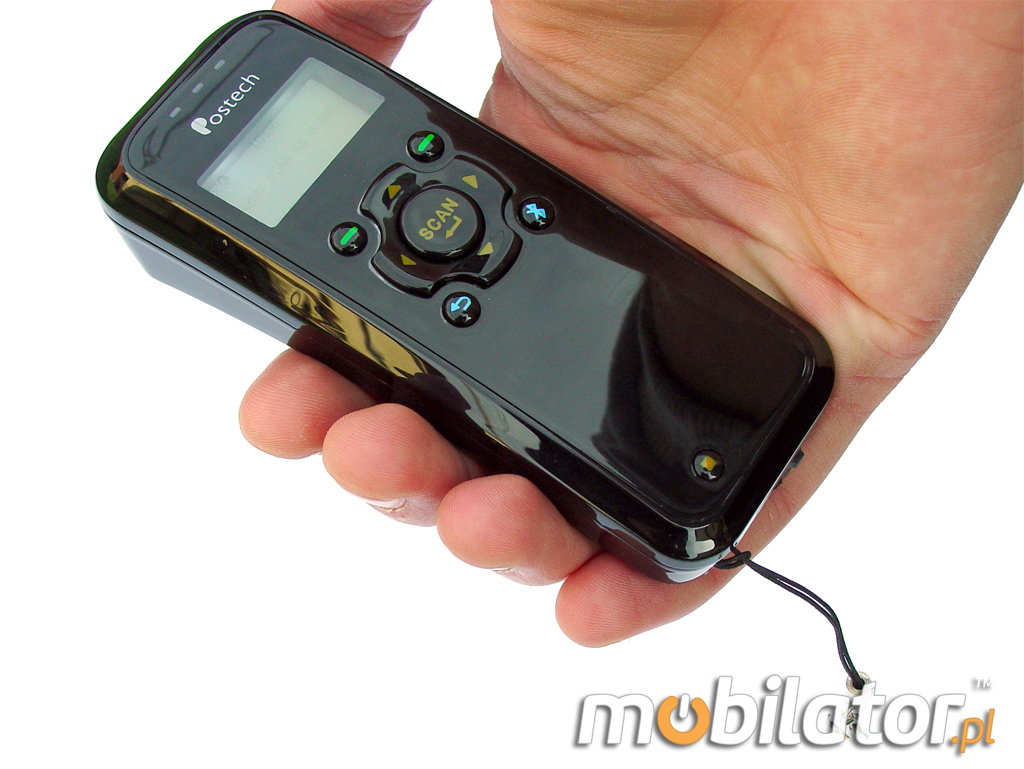

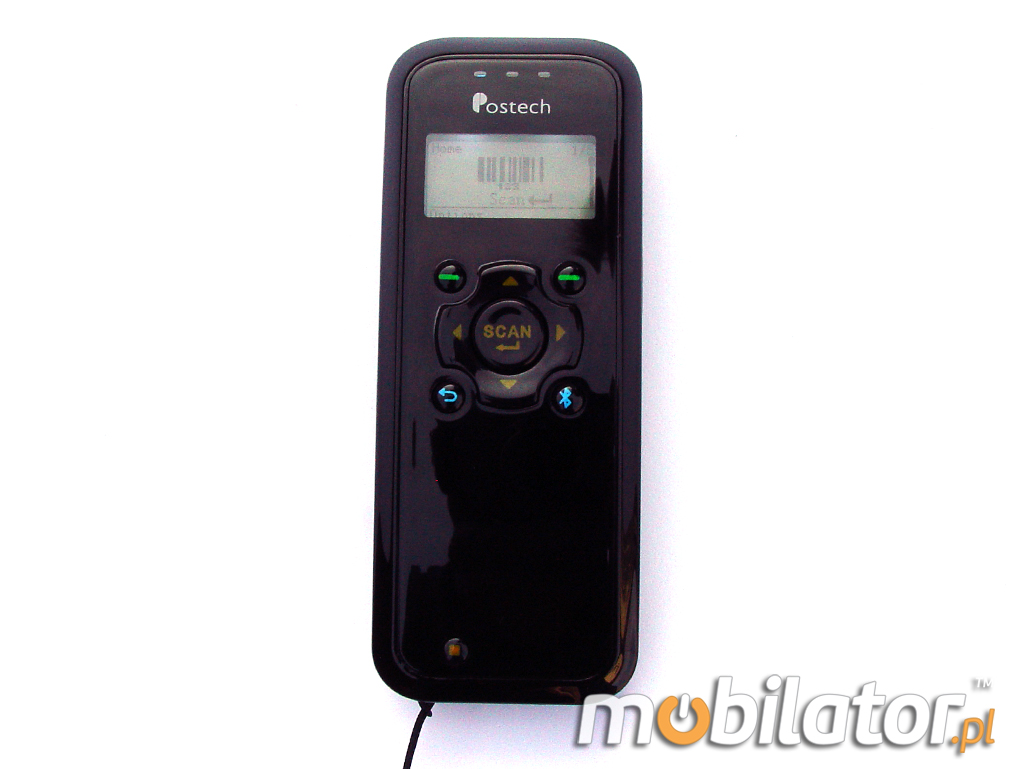

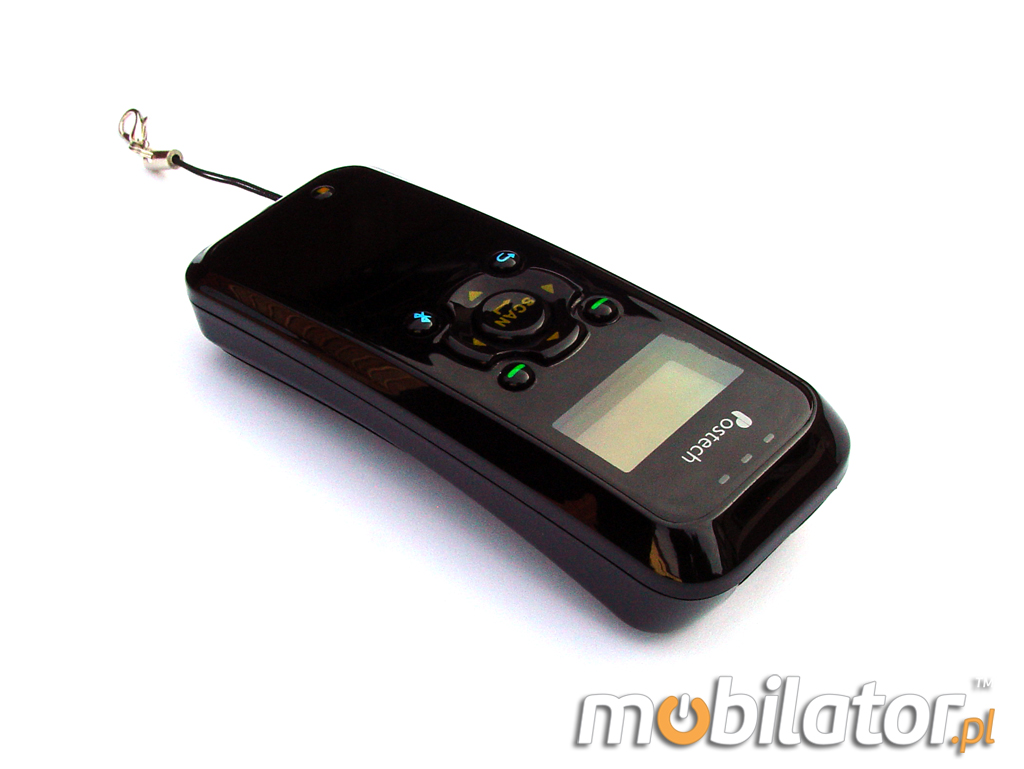

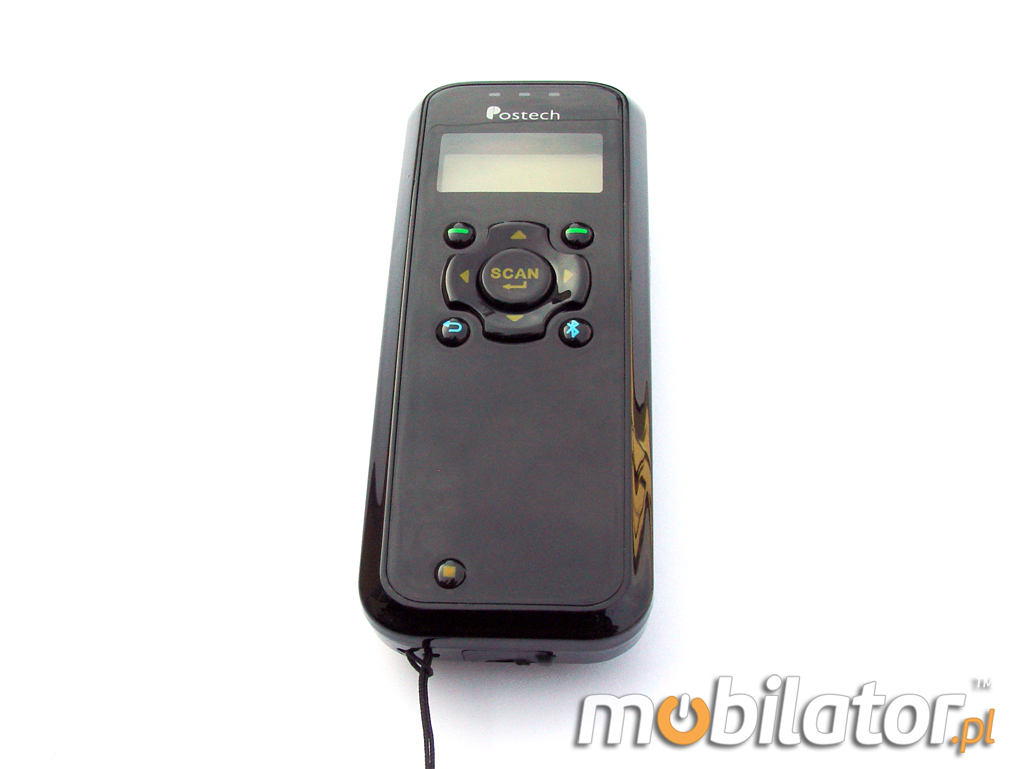

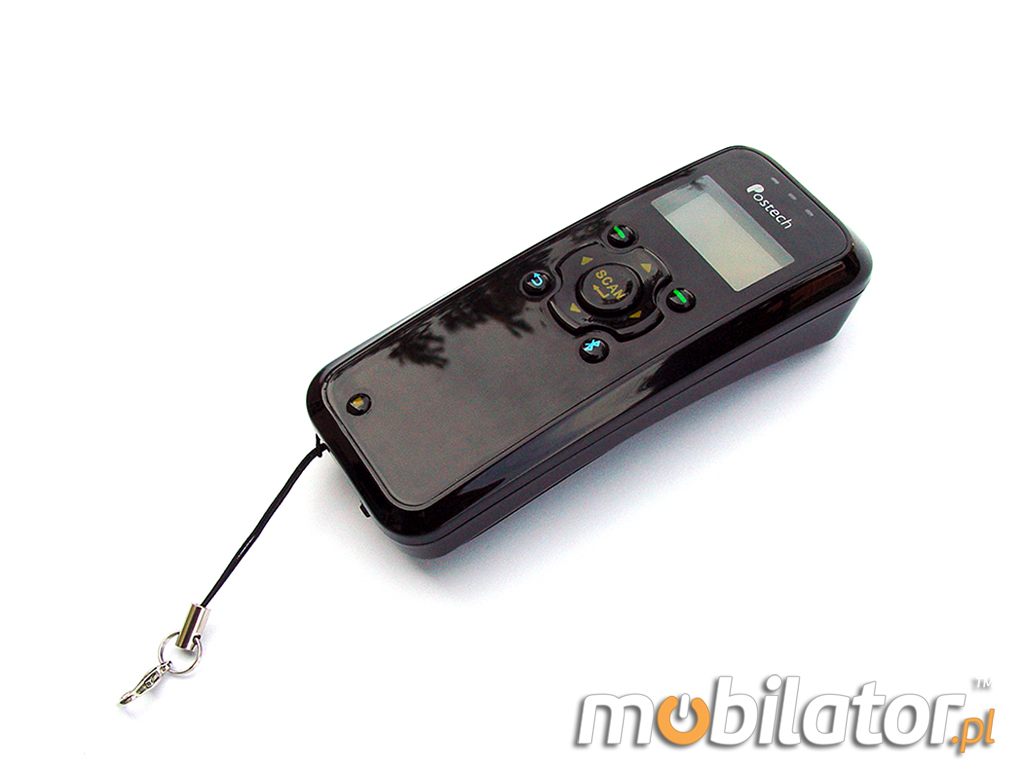

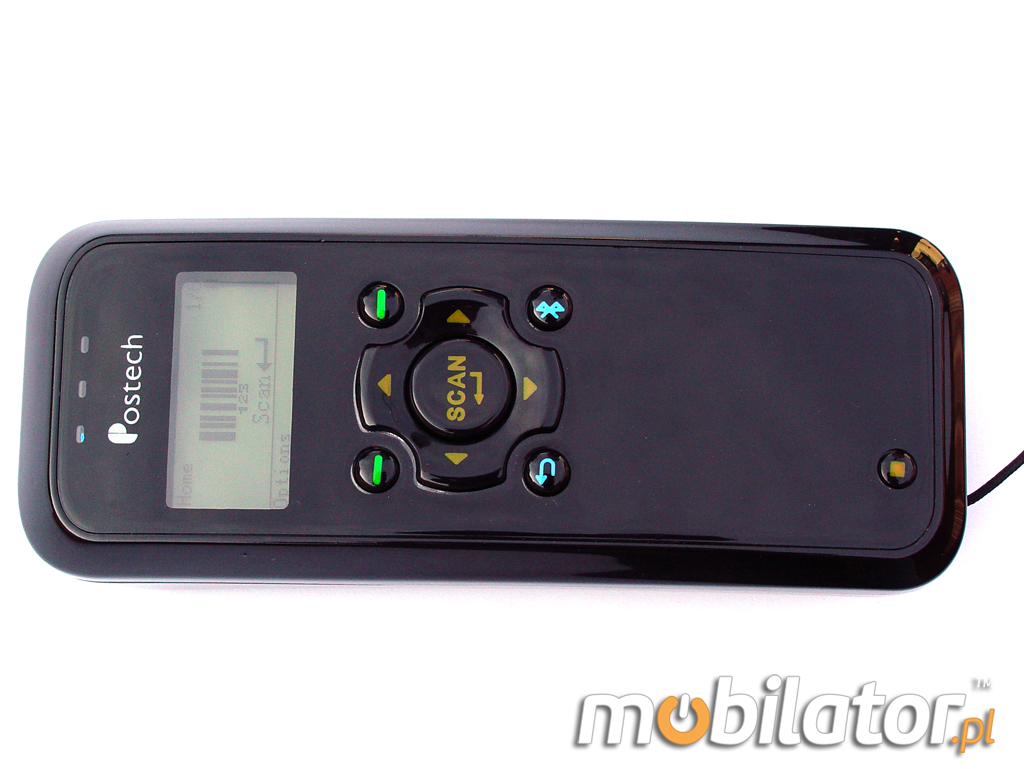

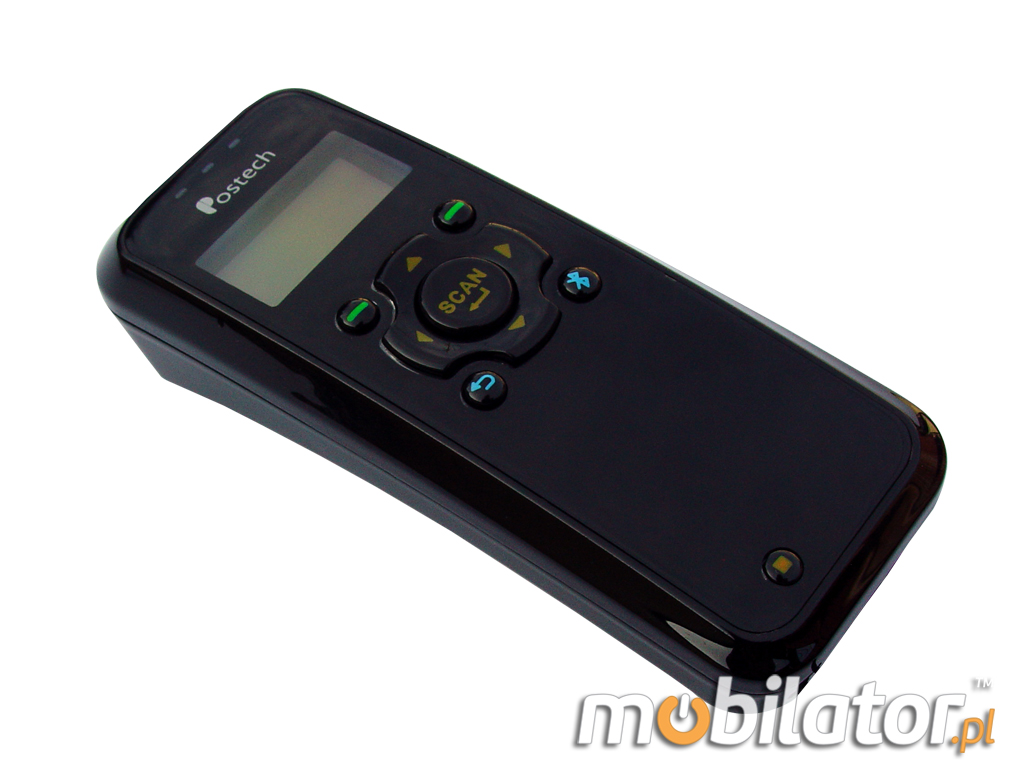

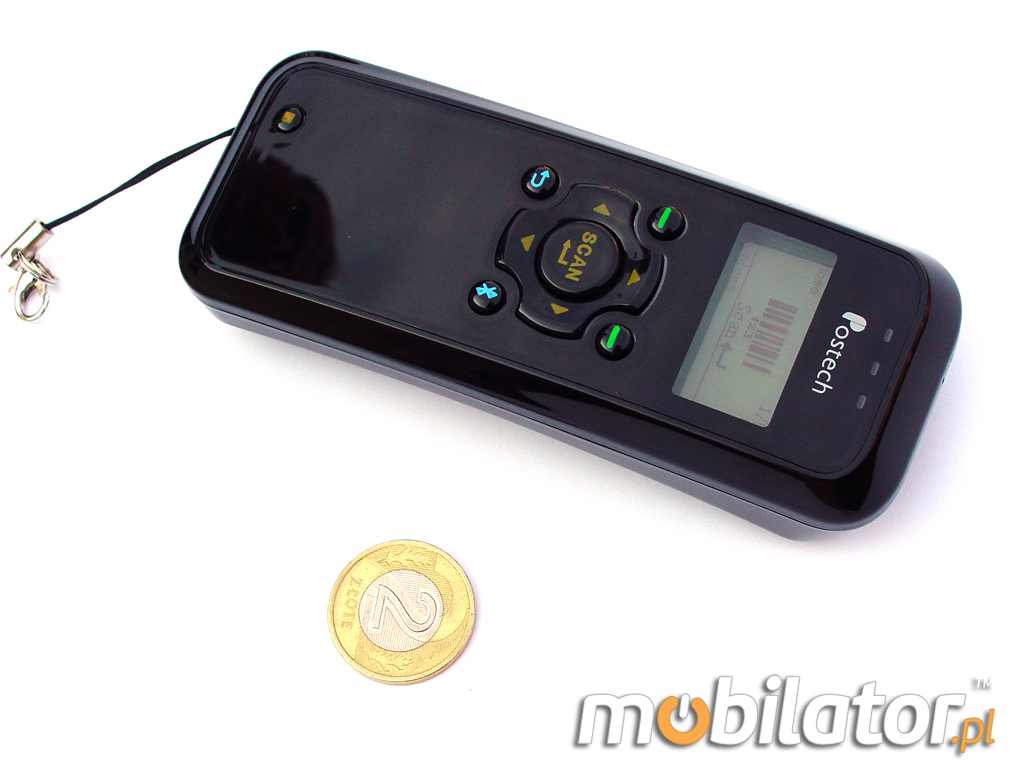

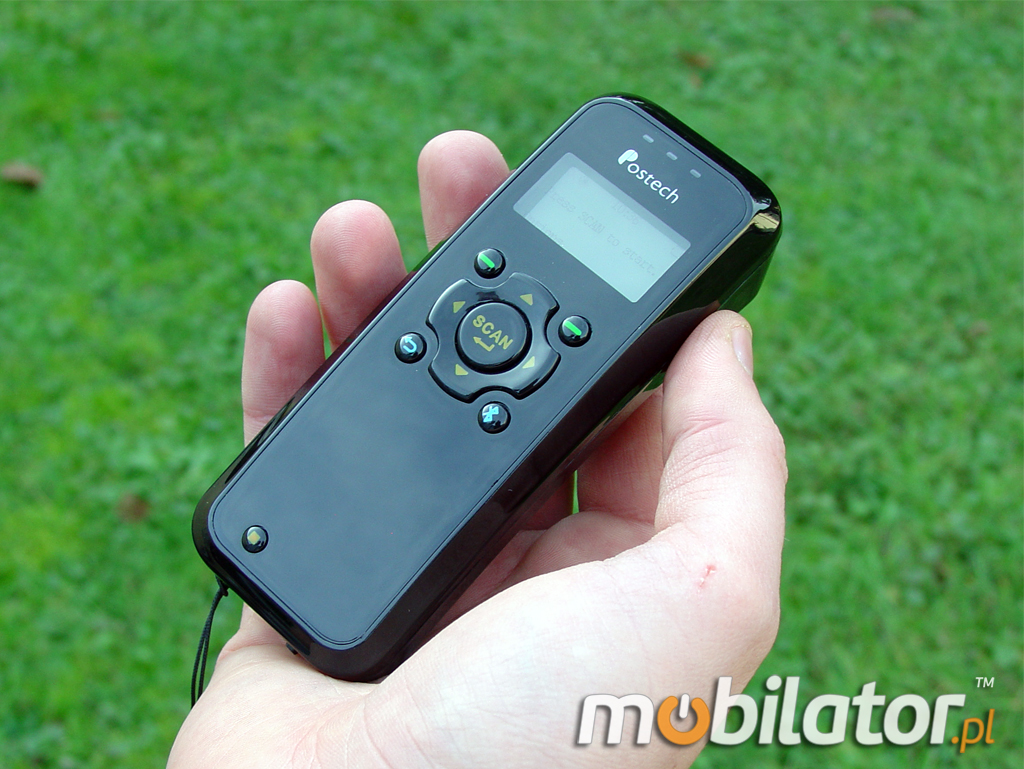

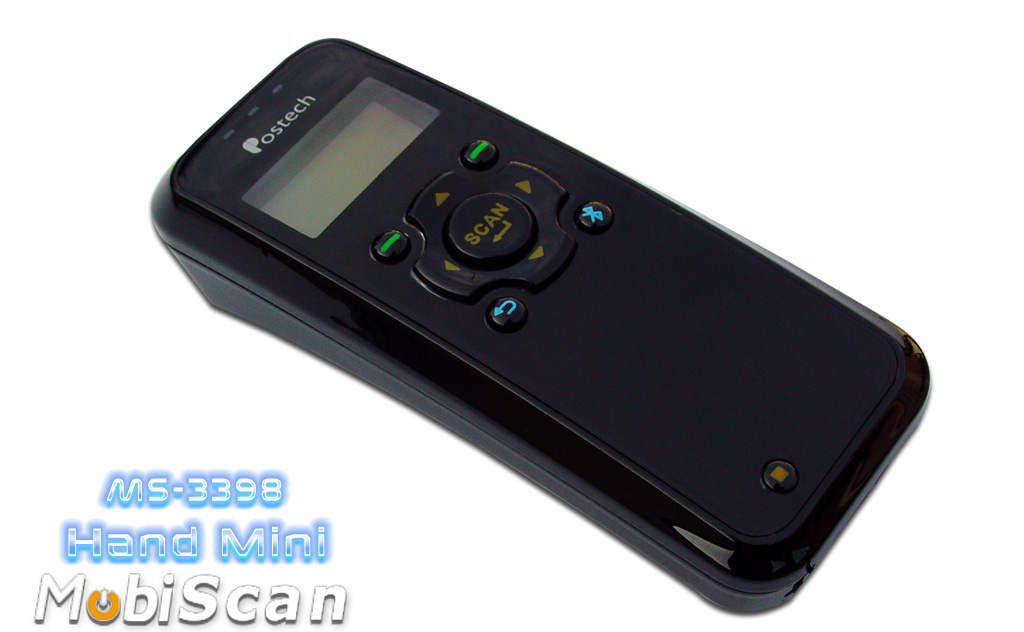

MobiScan Hand Mini MS-3398 Bluetooth
|
|
| CURRENT PRICE |
| 221.43 € |
Net |
| 272.36 € |
Gross |
|
|
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.
|
|
MobiScan Hand Mini MS-3398 |
Barcode scanner
|
1D Laser
|
|
Display |
LCD (128x64)
|
Working time
|
8 h
|
Support system
|
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8
|
|
Range |
30 m
|
|
Communication |
Bluetooth V2.0+EDR, Class II |
|
Dimensions |
43 x 110 x 27mm
|
Weight
|
87g |
|
Other |
Internal Memory: 8MB (Standard Batch, Out of Range Batch), 53MB (U Disk)
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
|

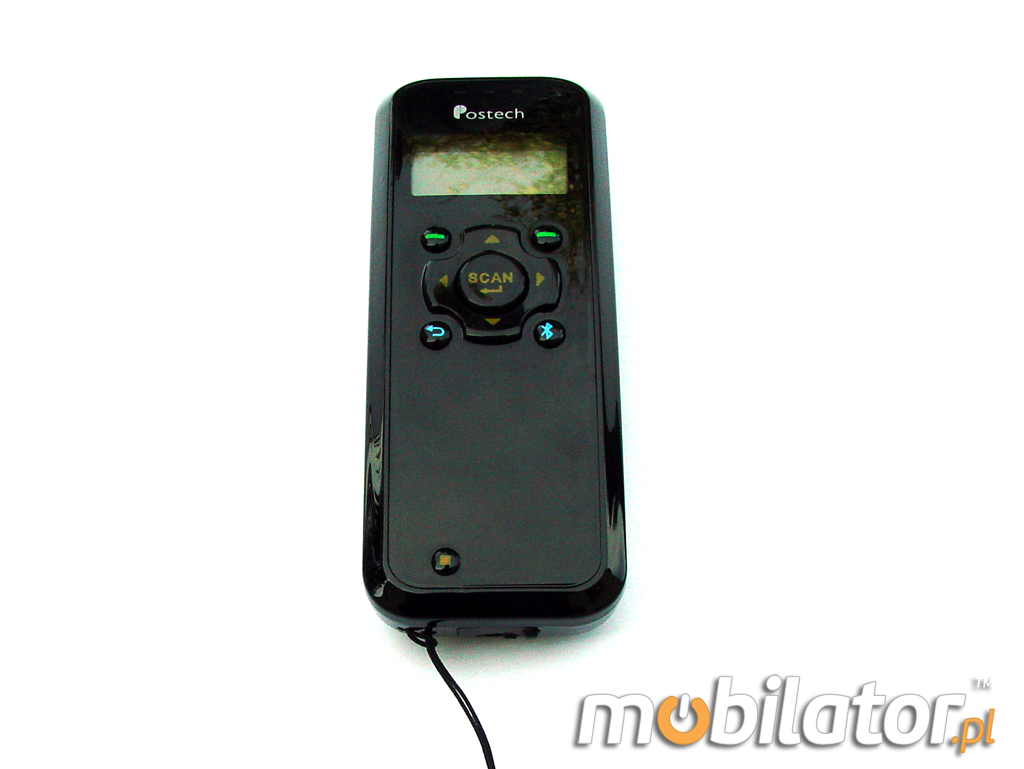

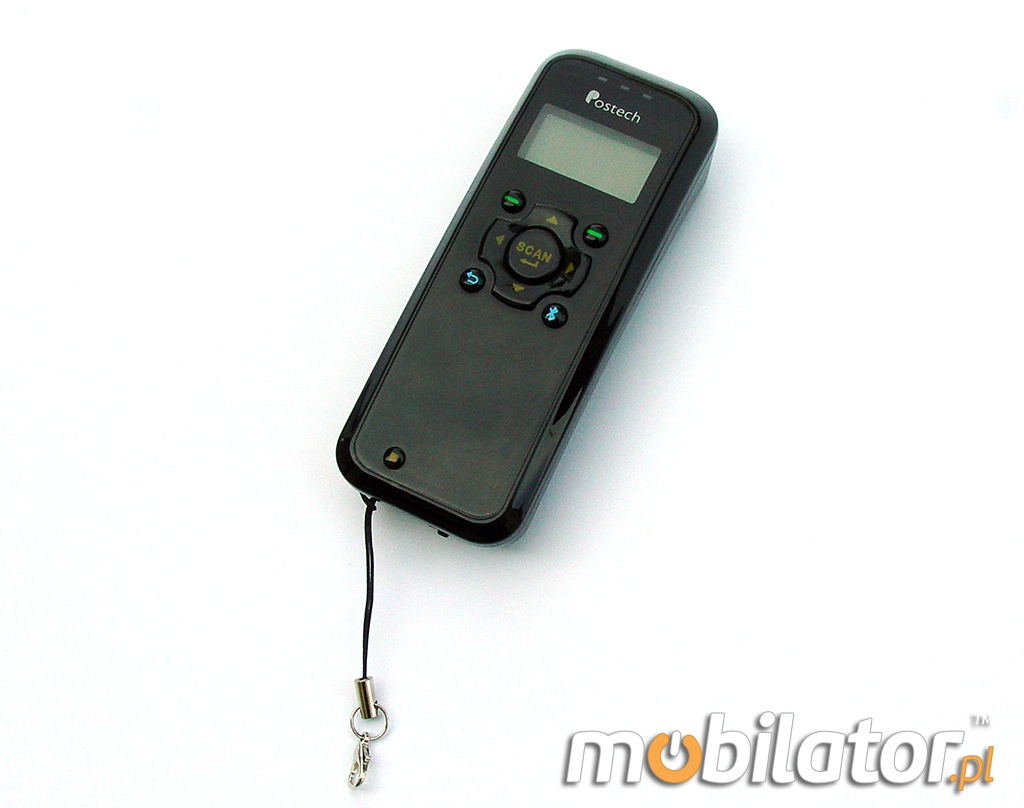

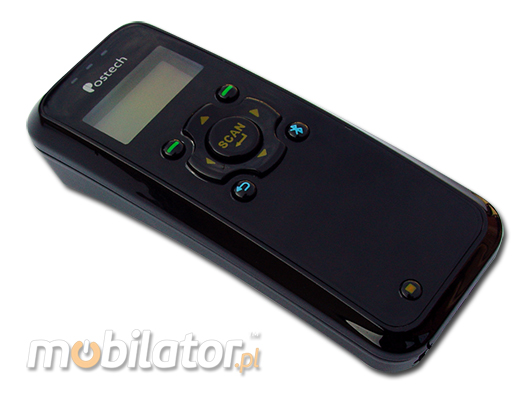

Unusual, modern, wireless (Bluetooth) mini barcode scanner MobiScan Hand Mini MS-3398 has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
 MS-3398 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.
Barcode Scanner 1D Laser - MobiScan MS-3398 through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).
|

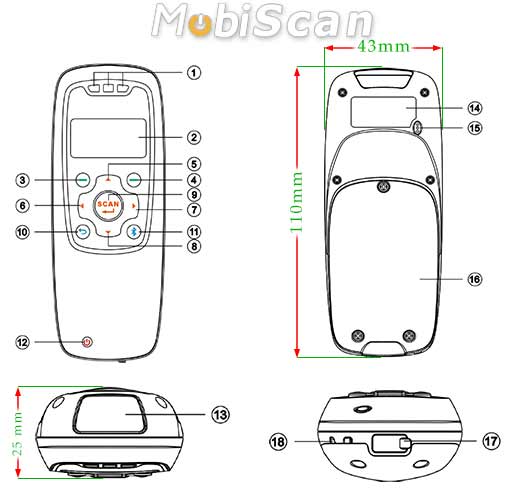

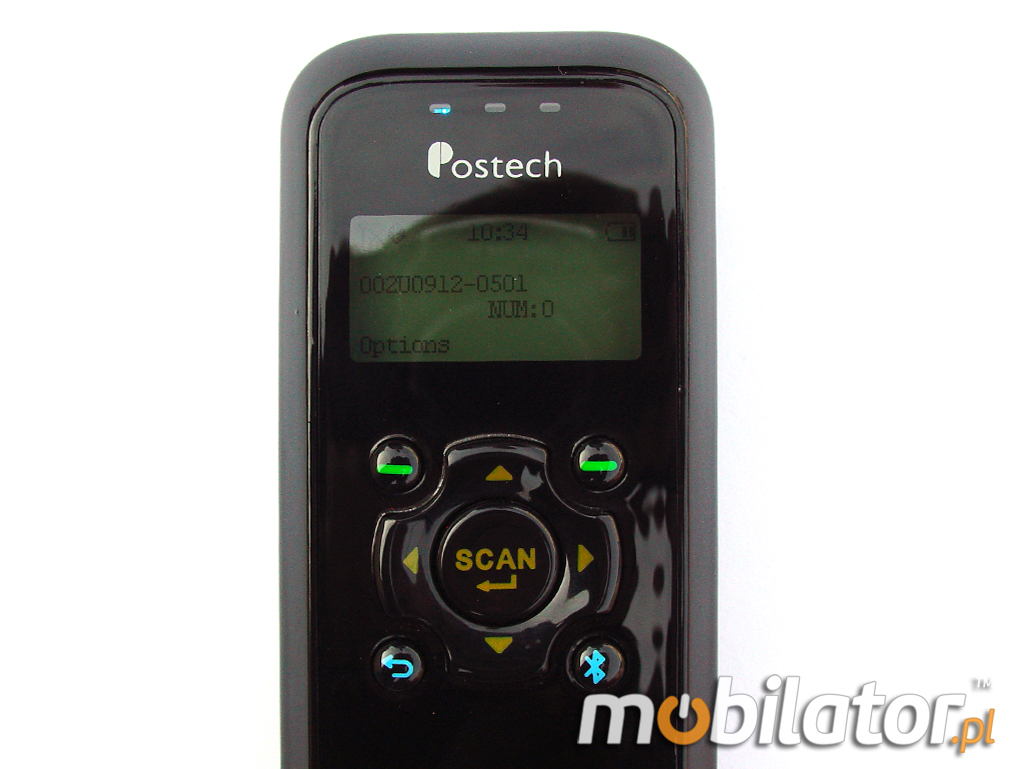

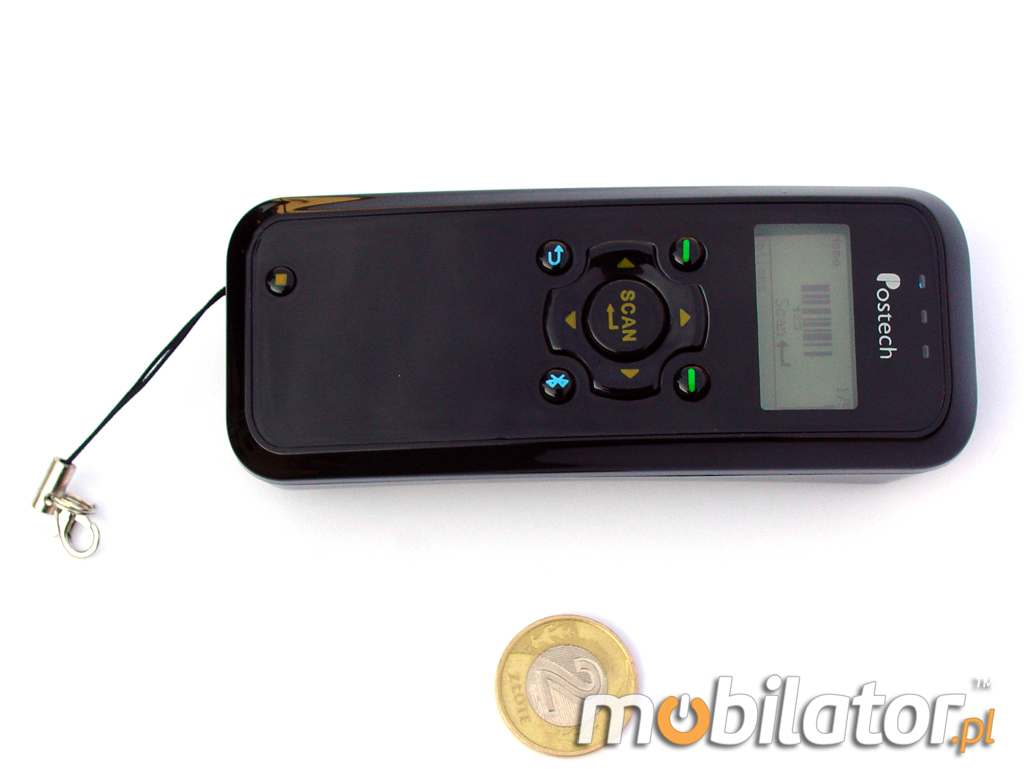

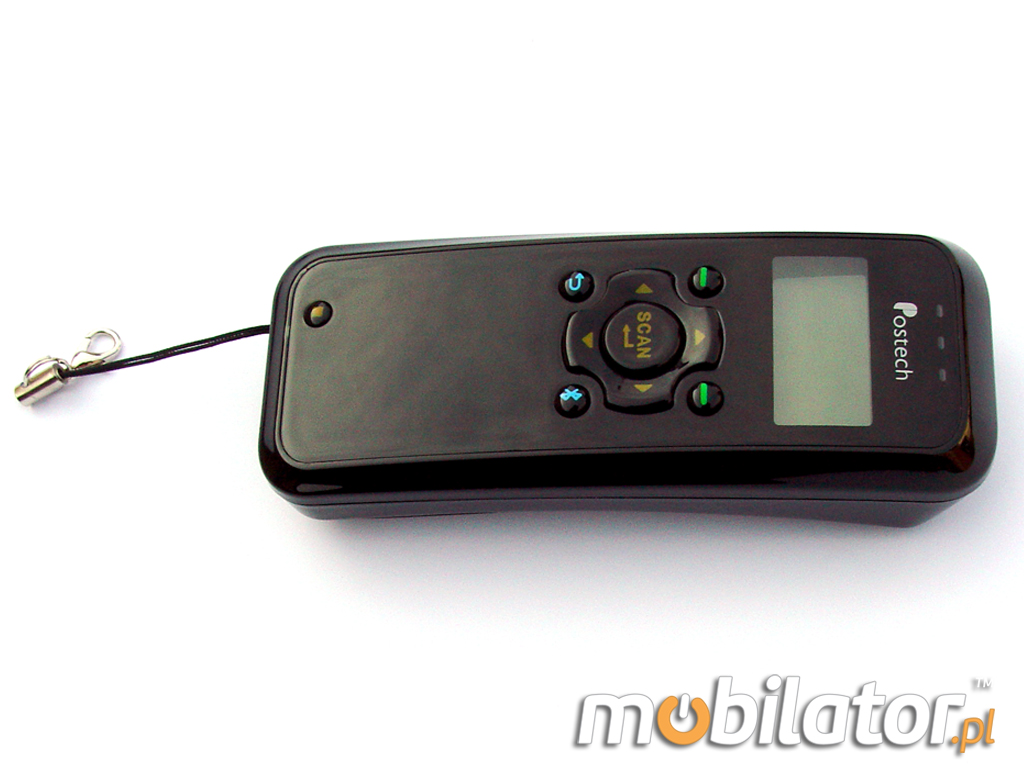

1. Blue LED (Bluetooth power), |
2. LCD |
|
Green LED (Decode success), |
|
|
Red LED (Charging indicator) |
|
|
3. Left soft key |
4.Right soft key |
|
5. Up navigation key |
6. Left navigation key |
|
7. Right navigation key |
8. Down navigation key
|
|
9. Scan/Select key |
10. Return key |
|
11. Bluetooth on / off |
12. Power/Sleep key |
|

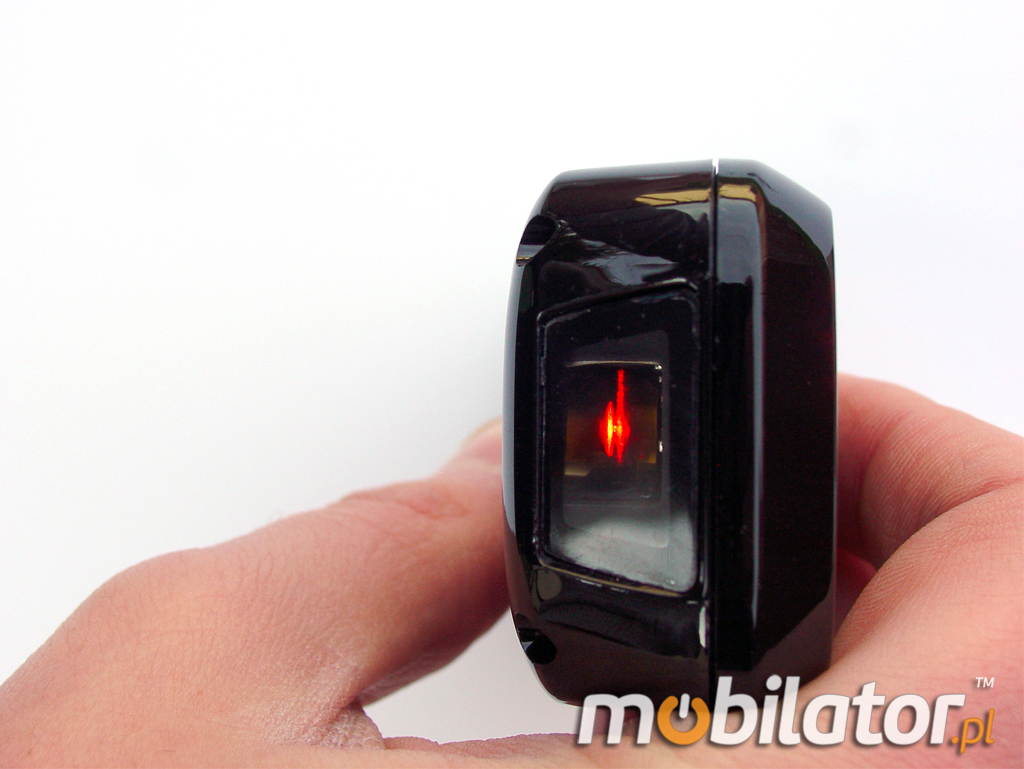

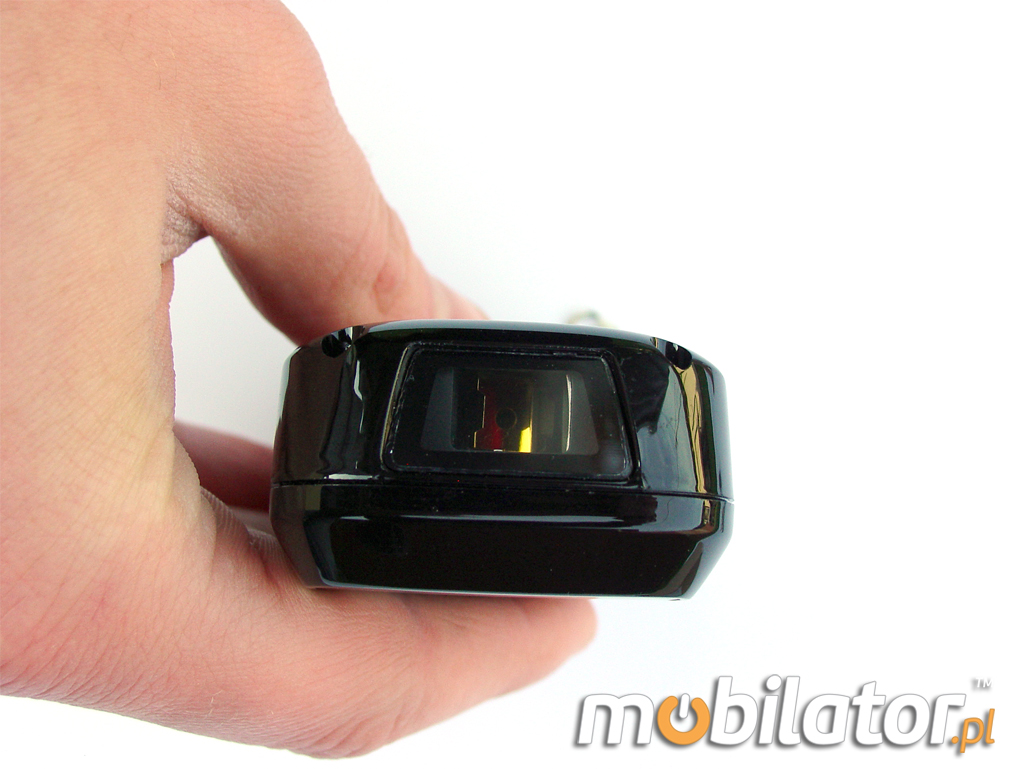

13. Scan window |
14. Label |
|
15. Beeper |

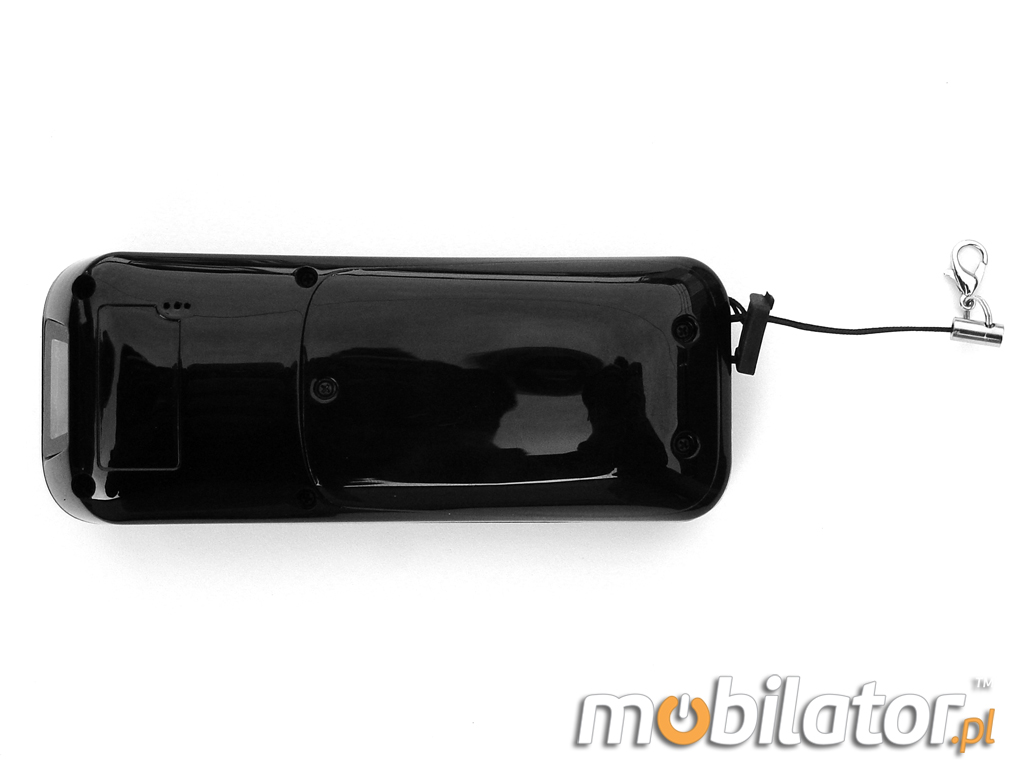

16. Battery cover |
|

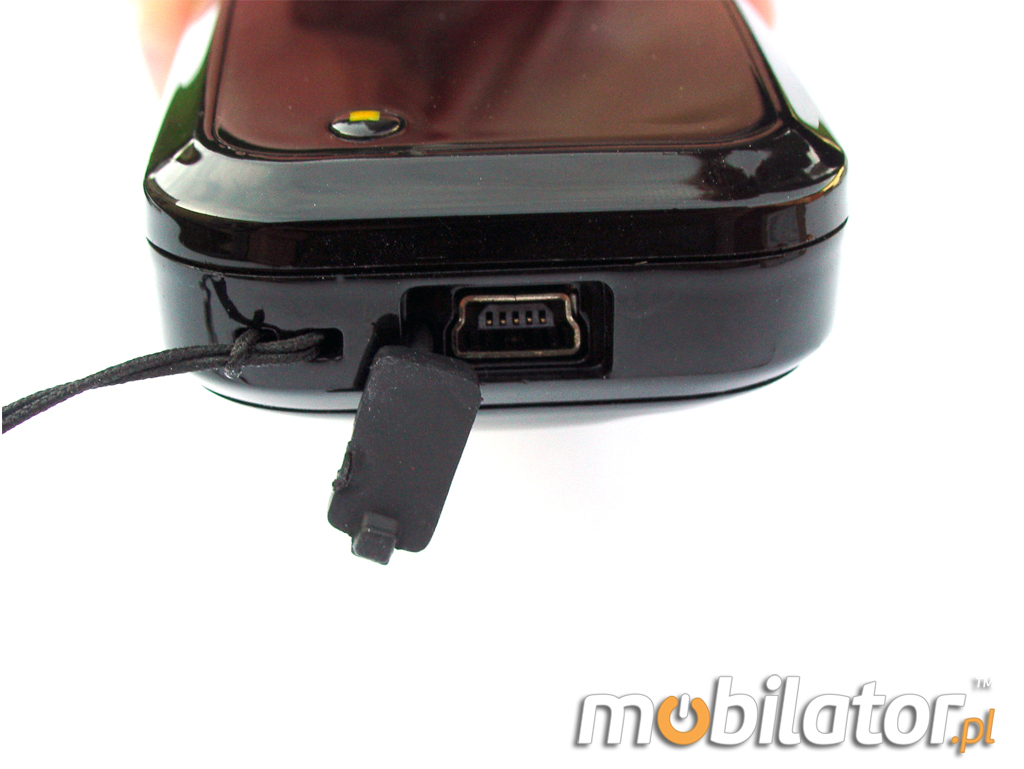

17. Mini USB port / Battery charging port (Lift cover) |
18. Hook for neck/wrist strap |

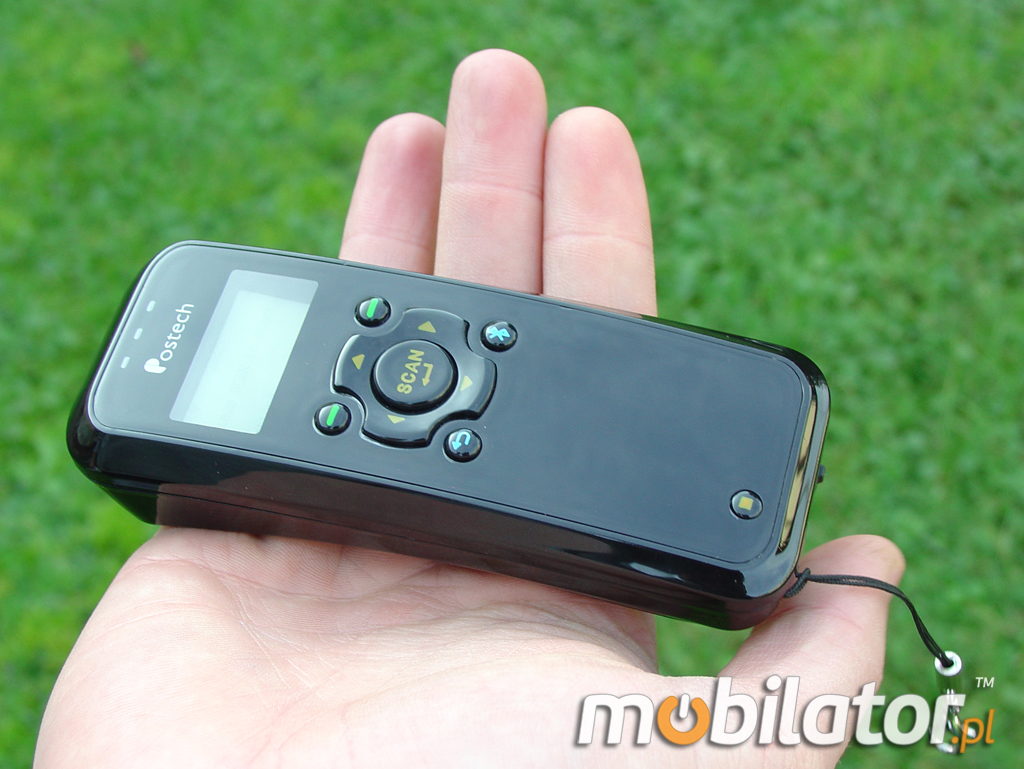

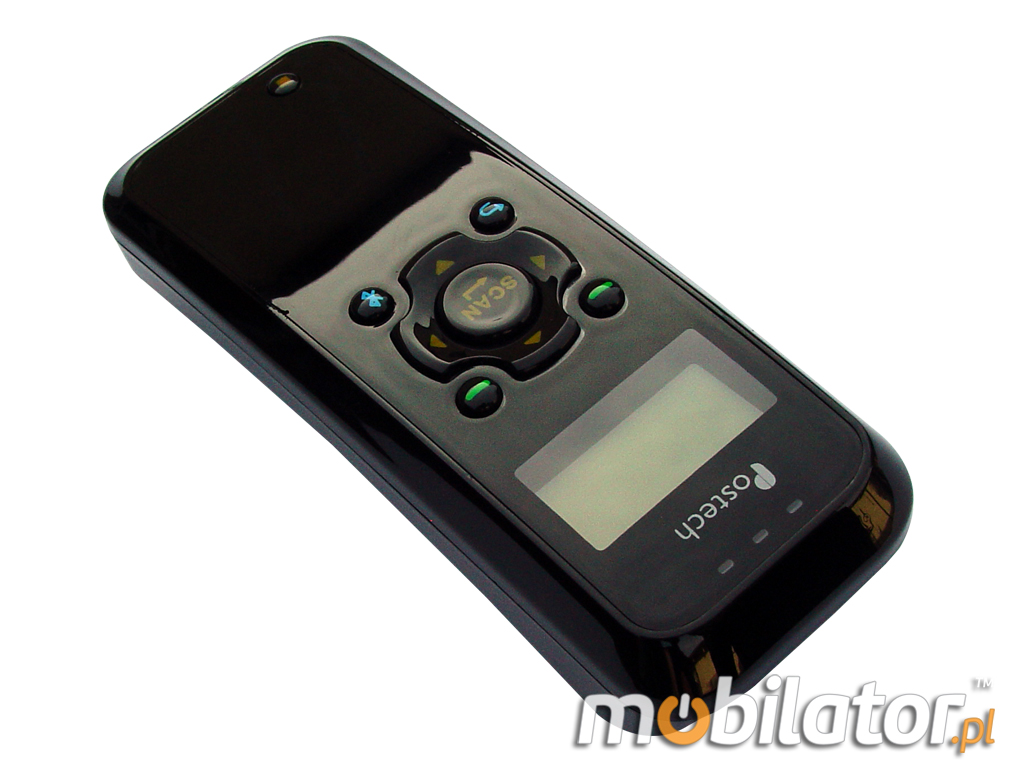

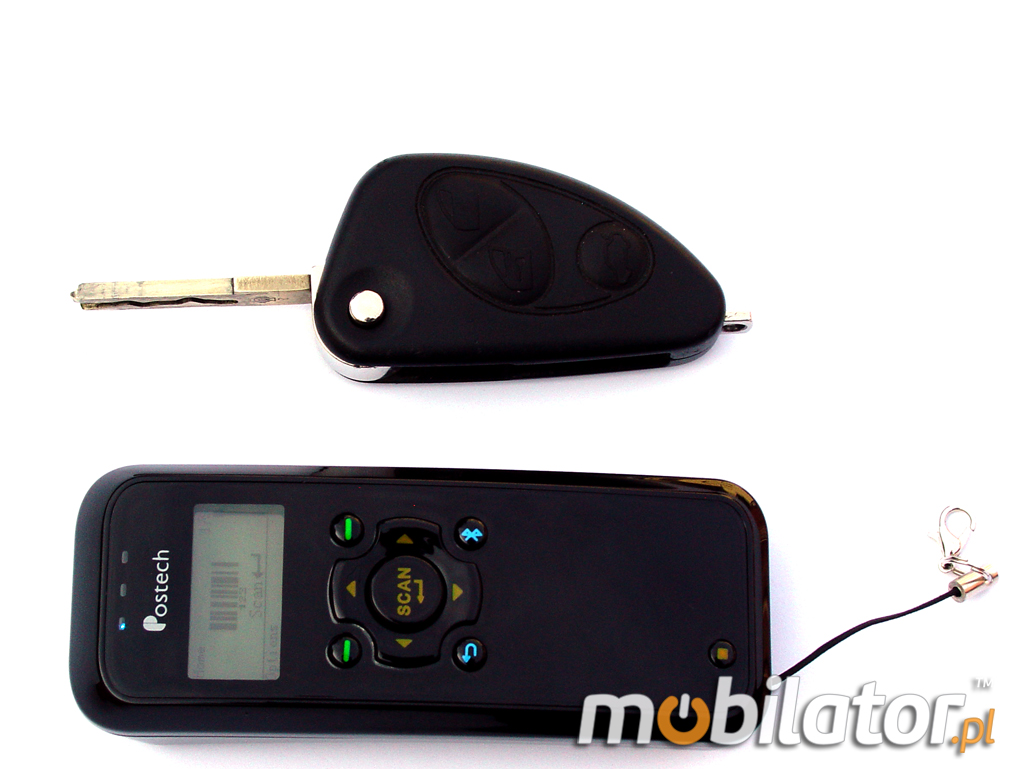

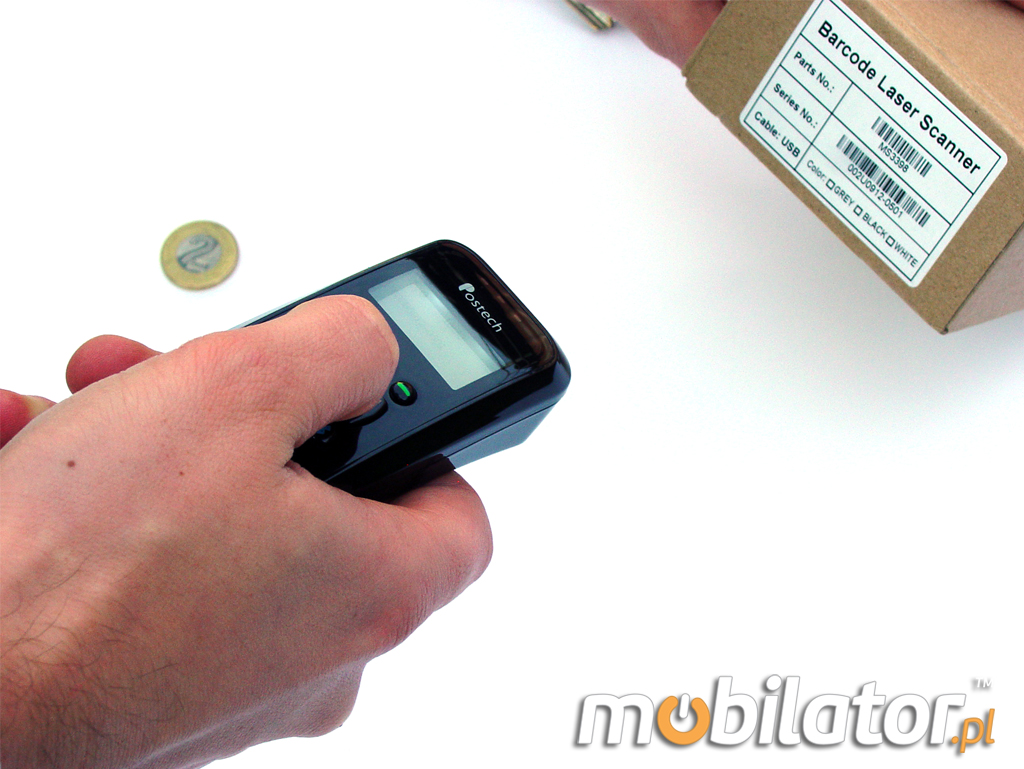

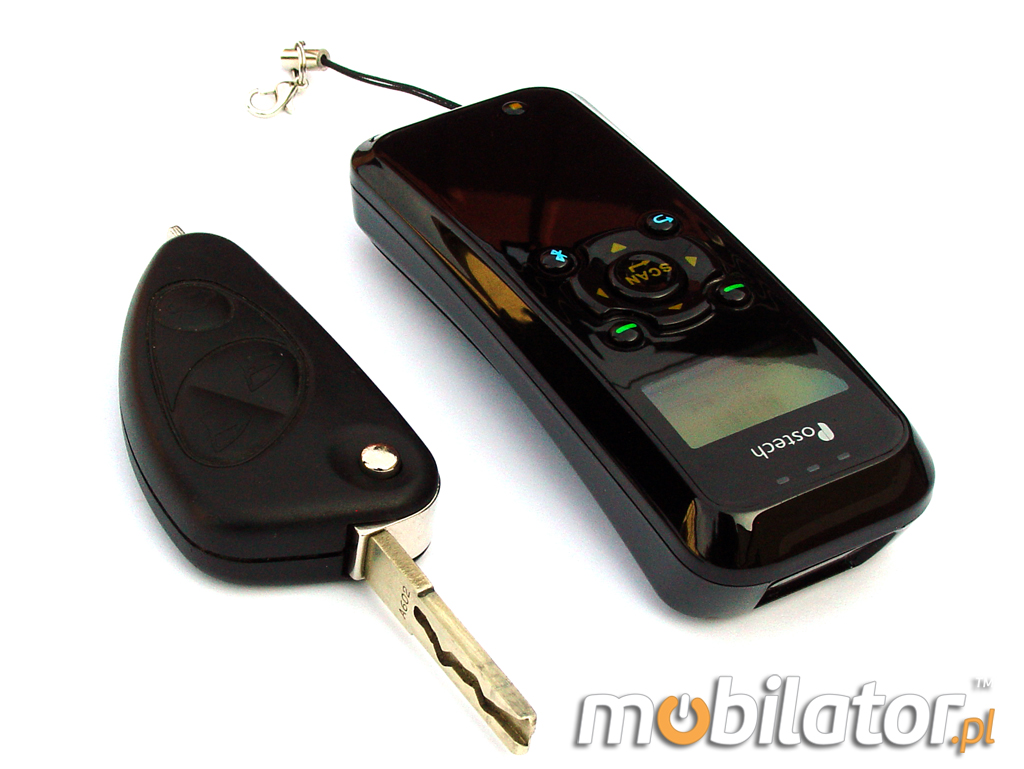

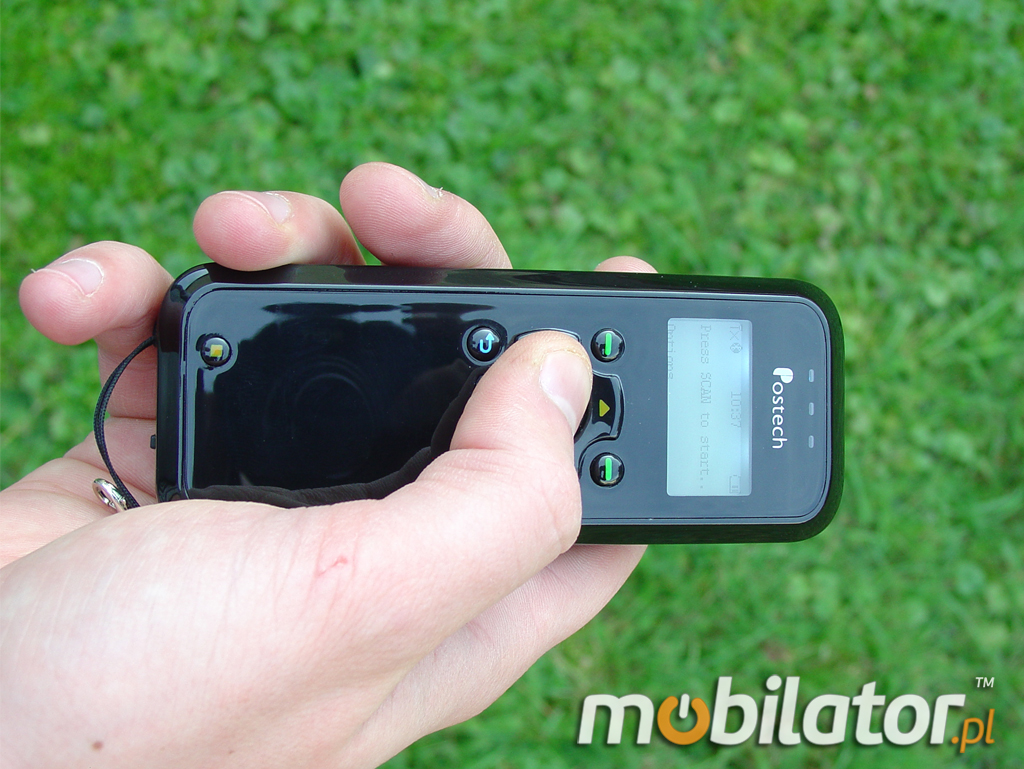

 A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.
 MobiScan Hand MINI MS-3398 is equipped with a Li-Ion battery with sufficient capacity 950mAh, which allows the scanner to operate for about 6 hours in scan mode or leave it on standby for 4days.

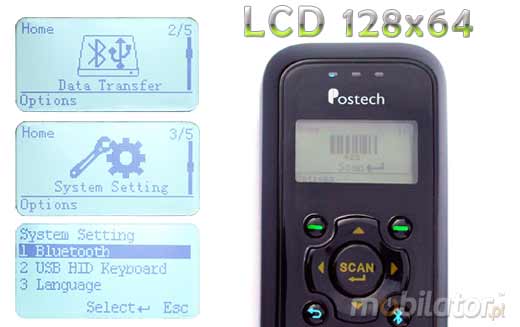

Summary mini barcode scanner has a built-in four-line LCD display (128x64) monochrome, so that we can check the status of the scanner on a regular basis and read data from barcodes in real-time.
|
The present device has a built - 1D LASER barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
 Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.
|
|

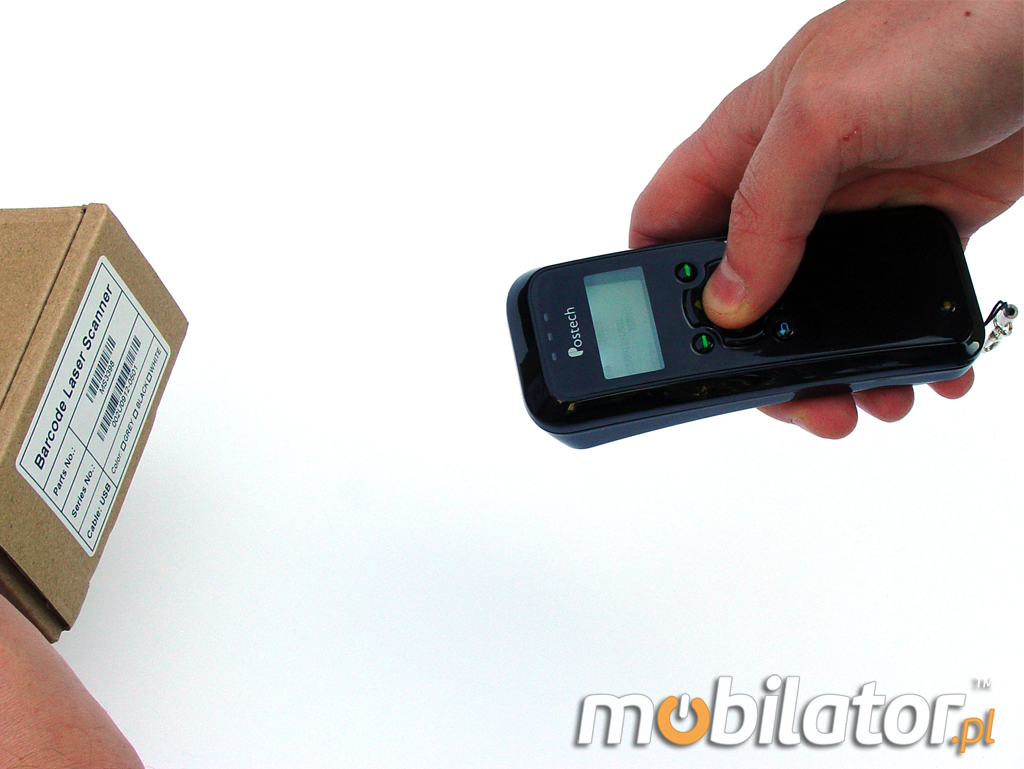

Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 10m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

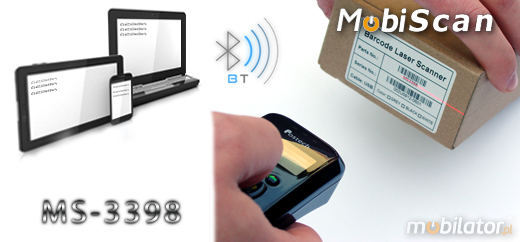

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
.jpg)
|
|
|
|
|
|
Operating |
0° do 50°C |
|
Operating Humidity |
5% -- 95% non-condensing |
|
Dust |
IP6x (dust) |
|
Water |
IPx4 (splashed water) |
|
Drop |
Multiple drops to concrete 4,9ft./1.5m |

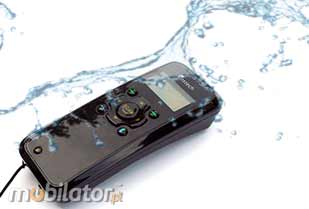

IP64 Resistance
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Application
MobiScan MS3398, which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
|
|
Pharmacy
MS-3398 allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification. |
|
|
Barcode readers allow you to in the bar code read and send to your database..jpg) We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
MobiScan Hand Mini MS-3398
|
Mechanical
|
Height: 27mm
Lenght: 110 mm
Width: 43 mm
Weight: 89g
|
|
Display |
LCD Monochrome display (128 × 64) |
|
Resistance |
IP 64
|
Radio link
|
2402 ~ 2480MHz FHSS/GFSK modulation, 79 channels at 1MHz intervals |
Data Storage
|
8MB (Standard Batch, Out of Range Batch),
53MB (U Disk)
|
|
Electrical |
DC: 4.75V / 5.25V
|
|
Scan Performance |
Sensor Type: 650 nm visible laser diode
Scan Rate: 100±10 times /sec
|
|
Baterry Power |
Li-ion 950 mAh
Working time: 8h
Standby time: 4 dni
|
|
Barcode Type |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5,
Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128,
China Post, GS1 Data Bar (formerly RSS) varia |
|
Communication |
Bluetooth V2.0+EDR, Class II
Range: 30 m
Cable MiniUSB
|
|
Scan Range |
Long-range series: High-density series:
5 mil: 35-160mm 3 mil: 45-90mm
15 mil: 25-440mm 5 mil: 22-130mm
30 mil: 40-740mm 15 mil: 20-305mm
55 mil: 75-985mm 55 mil: 80-730mm |
|
Housing color |
Black
|
|
Accessories |
User Manual, cable miniUSB , CD Driver.
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
|
|
VIDEO
MobiScan Hand Mini MS-398
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8 |
| Internal memory: |
8 MB (Standard Batch, Out of Range Batch), 53MB (U Disk) |
| Operation Voltage: |
4.75V / 5.25V - DC |
| Reading indicator: |
1D LASER |
| Dimensions: |
110 × 43 × 27 mm |
| Weight: |
87 g |
| Battery: |
950 mAh Li-ion |
| Housing material: |
Plastic |
| Scan rate: |
100 ± 10 times/sec |
| Light source: |
650 nm visible laser diode |
| Resolution: |
- |
| Communication distance: |
30 m |
| Readable codes: |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, GS1 Data Bar (formerly RSS) varia |
| Sensor: |
1D Laser |
| Scan Angle: |
±50°, ±65°, ±35° (Skew, Pitch, Roll) |
| Print Contrast Ratio: |
- |
| Scan range: |
Long-range series:5 mil: 35-160mm, 15 mil: 25-440mm, 30 mil: 40-740mm, 55 mil: 75-985mm. High-density series:3 mil: 45-90mm, 5 mil: 22-130mm, 15 mil: 20-305mm, 55 mil: 80-730mm. |
| Cable Type: |
MiniUSB |
| Battery Life: |
8 h |
| Communication: |
Bluetooth V2.0+EDR, Class II |
| Interface/ Pro le: |
HID / SPP |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-40°C ~ 60°C |
| Relative Humidity: |
5% ~ 95%, non-condensing |
| Resistance IP: |
IP64 |
| Drop test: |
Multiple drops to concrete 4.9 ft / 1.5 m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
No |
| Codabar - NW7: |
Yes |
| Code - 11: |
No |
| Code - 11(USD-8): |
Yes |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
Yes |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
Yes |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
