MobiPAD WST11 v.2 - industrial tablet with Honeywell N4680 2D code scanner, 4G LTE, Windows 10, 4GB RAM and 64GB ROM

MobiPAD WST11 v.2 - industrial tablet with Honeywell N4680 2D code scanner, 4G LTE, Windows 10, 4GB RAM and 64GB ROM

Data update: 2024-05-21

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product Configurator

The product from the archive - production terminated



Compare all versions



MobiPad Cool W311 Waterproof Shockproof Industrial Rugged Rugged Tablet NFC 4G Military IP65 MIL-STD 810G 1D 2D Barcode Scanner

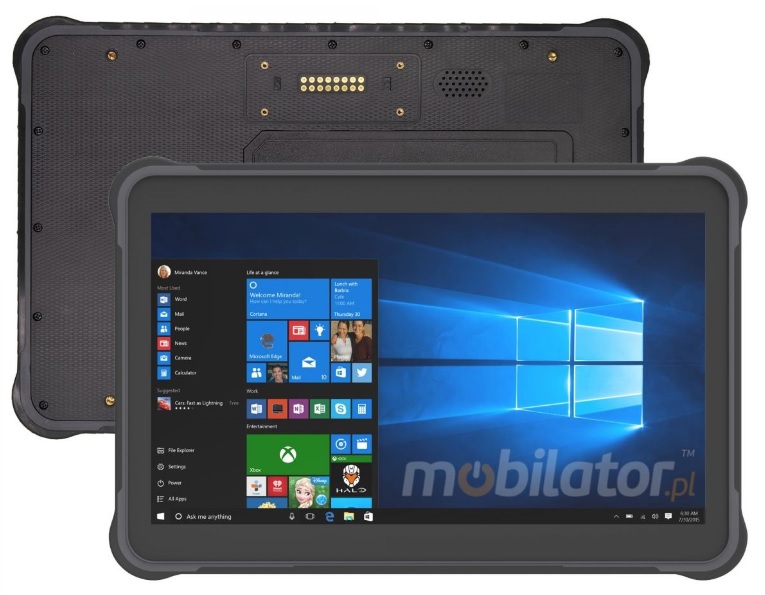

MobiPAD WST11 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65, which confirms the protection of the device against dust and water. Like the military equipment, the tablet has the MIL-STD 810G military standard.



Specification



MobiPAD WST11
Processor Intel Z8350 (4x1.44GHz)
Operating system Windows 10 PRO
RAM 4 GB
Hard drive

64

Display 10.1", 1920 x 1200, 500 nits
Touch screen Capacitive, 10 point touch

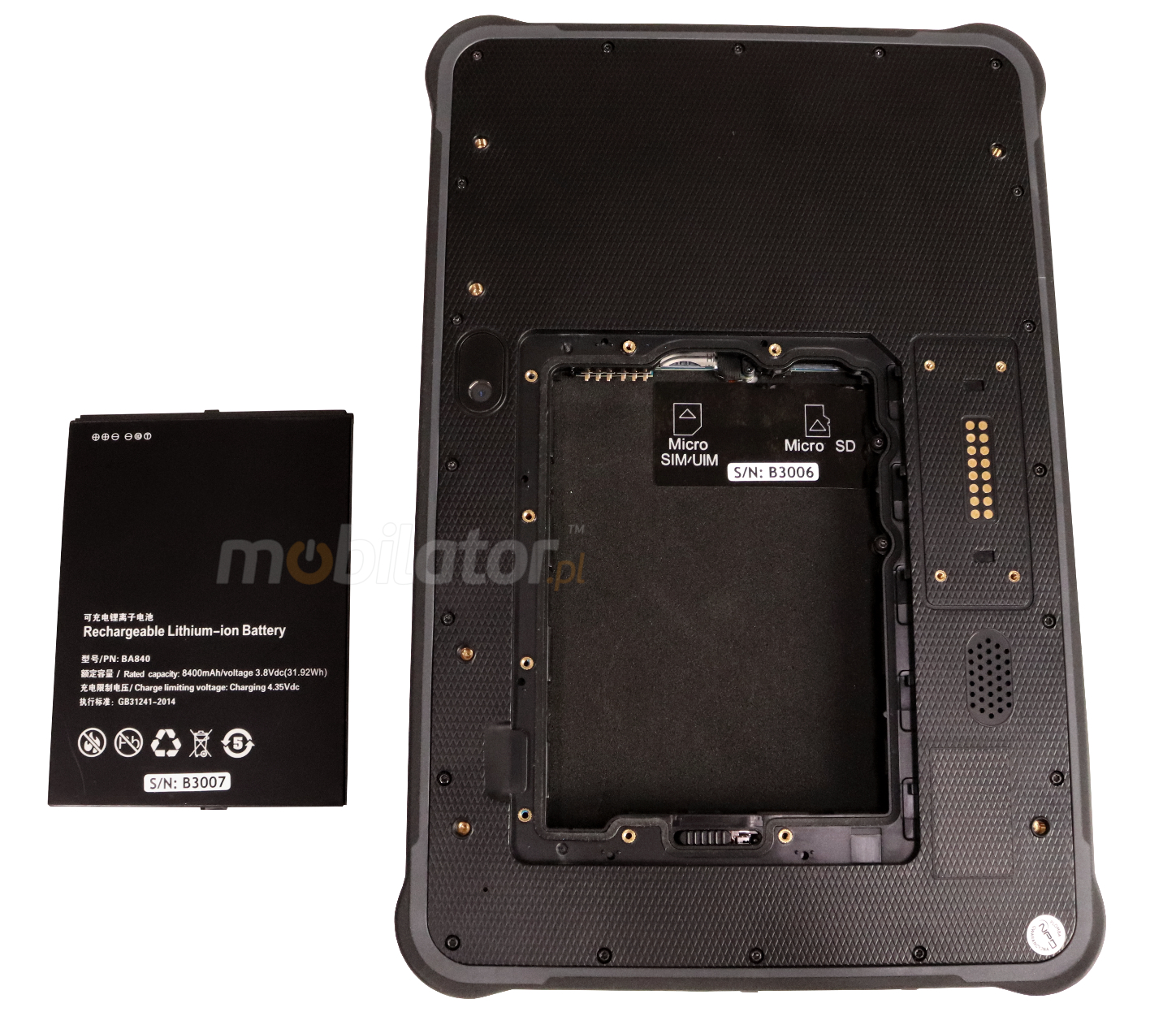

Battery 14400mAh / 3.7V
Camera Front: 2Mpx | Rear: 5Mpx
Protection IP65 | MIL-STD-810G | 1.2m. drops
Communication 4G LTE* | Bluetooth 4.0 | GSM*| Wi-Fi | GPS

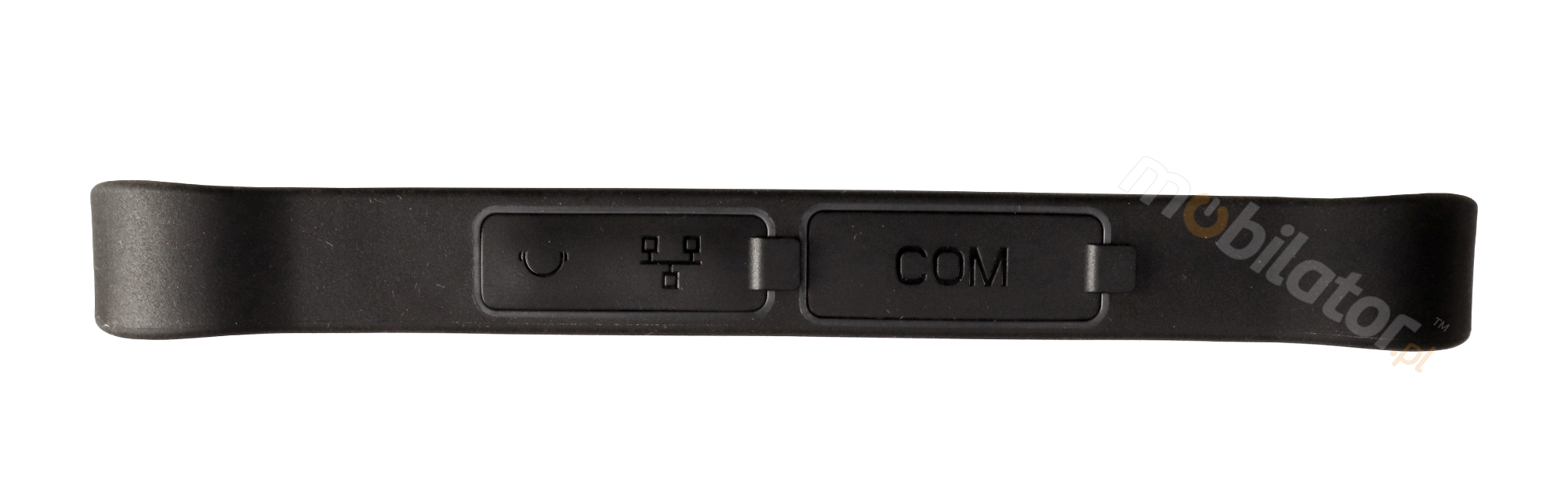

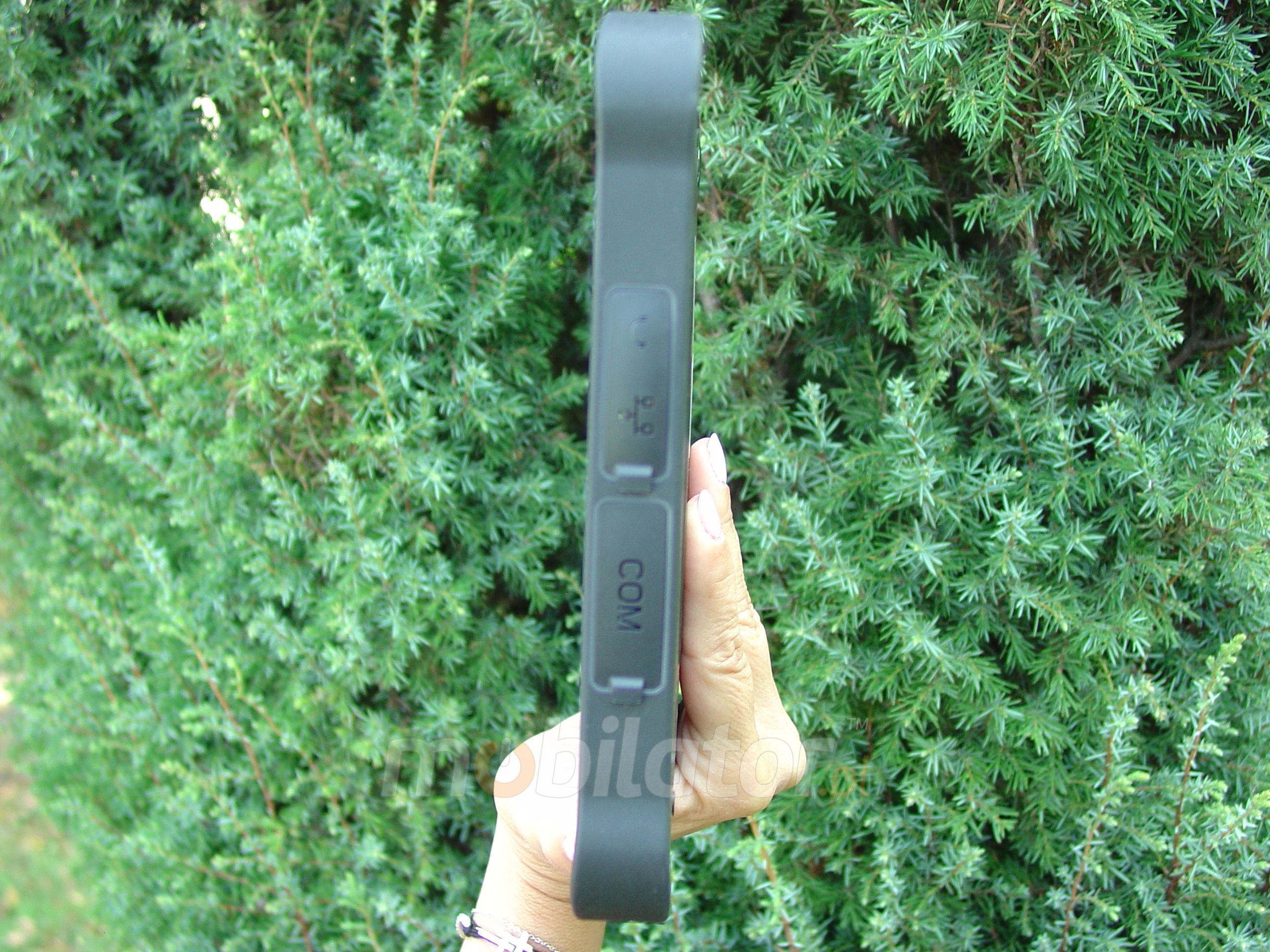

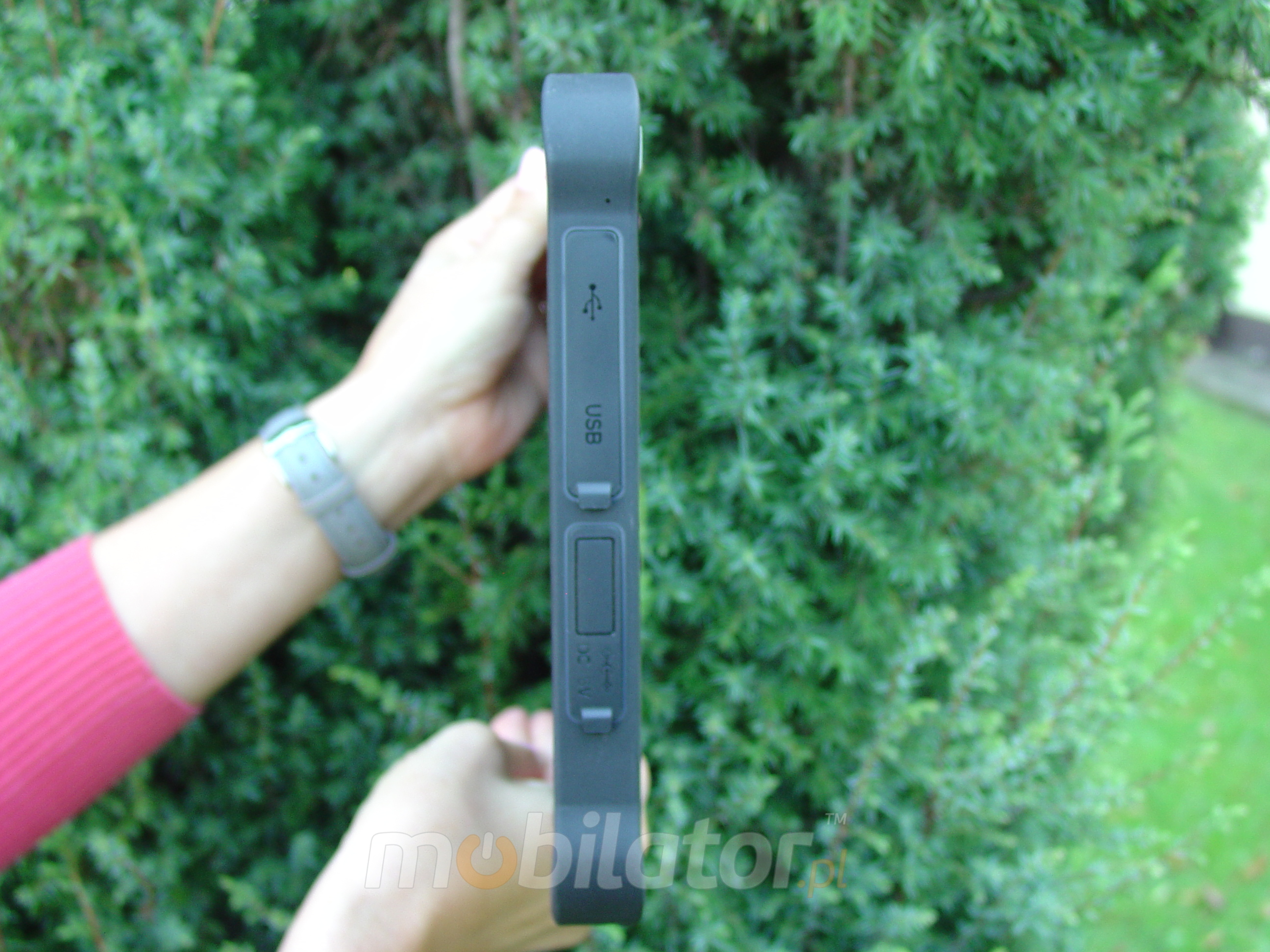

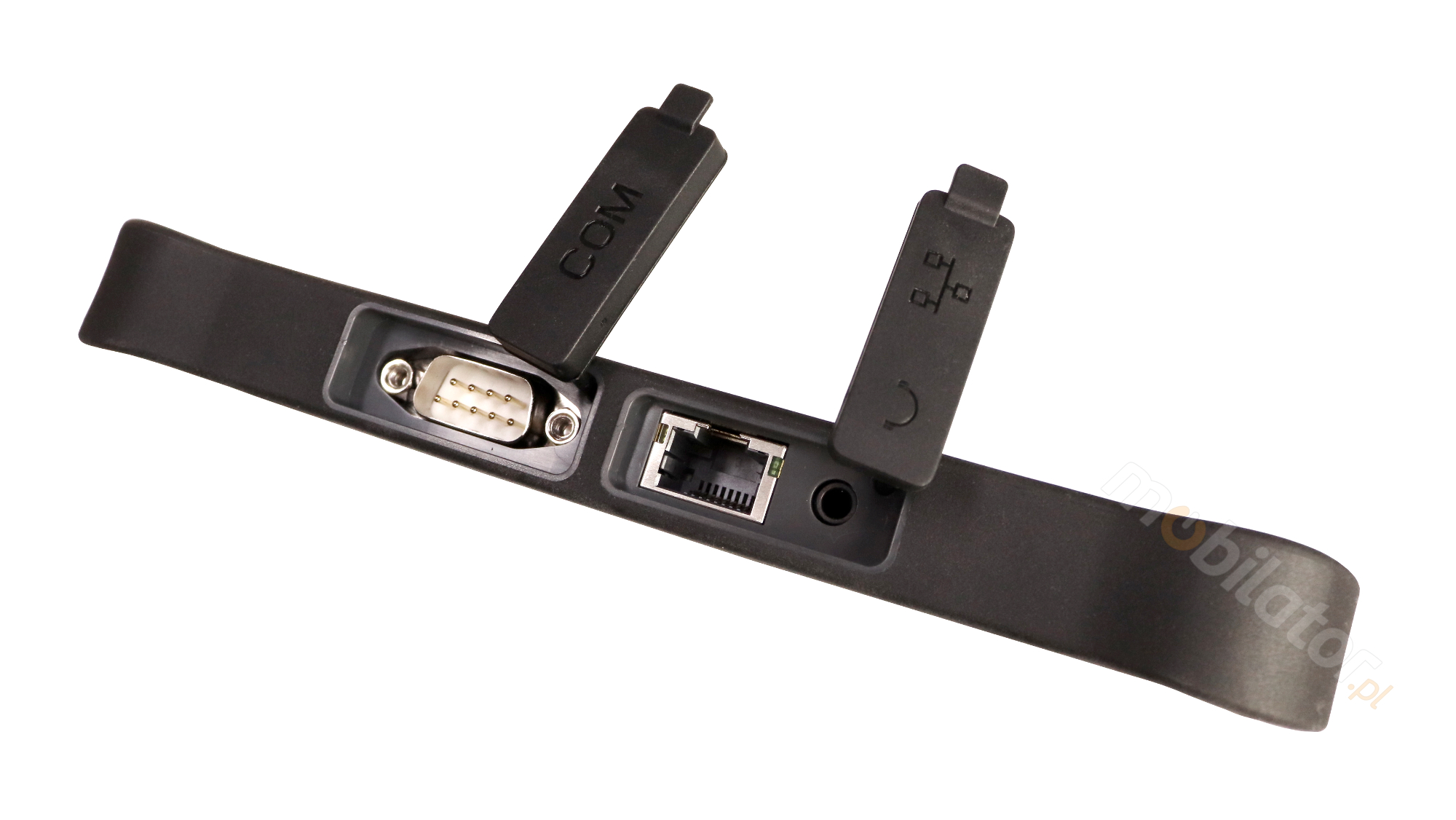

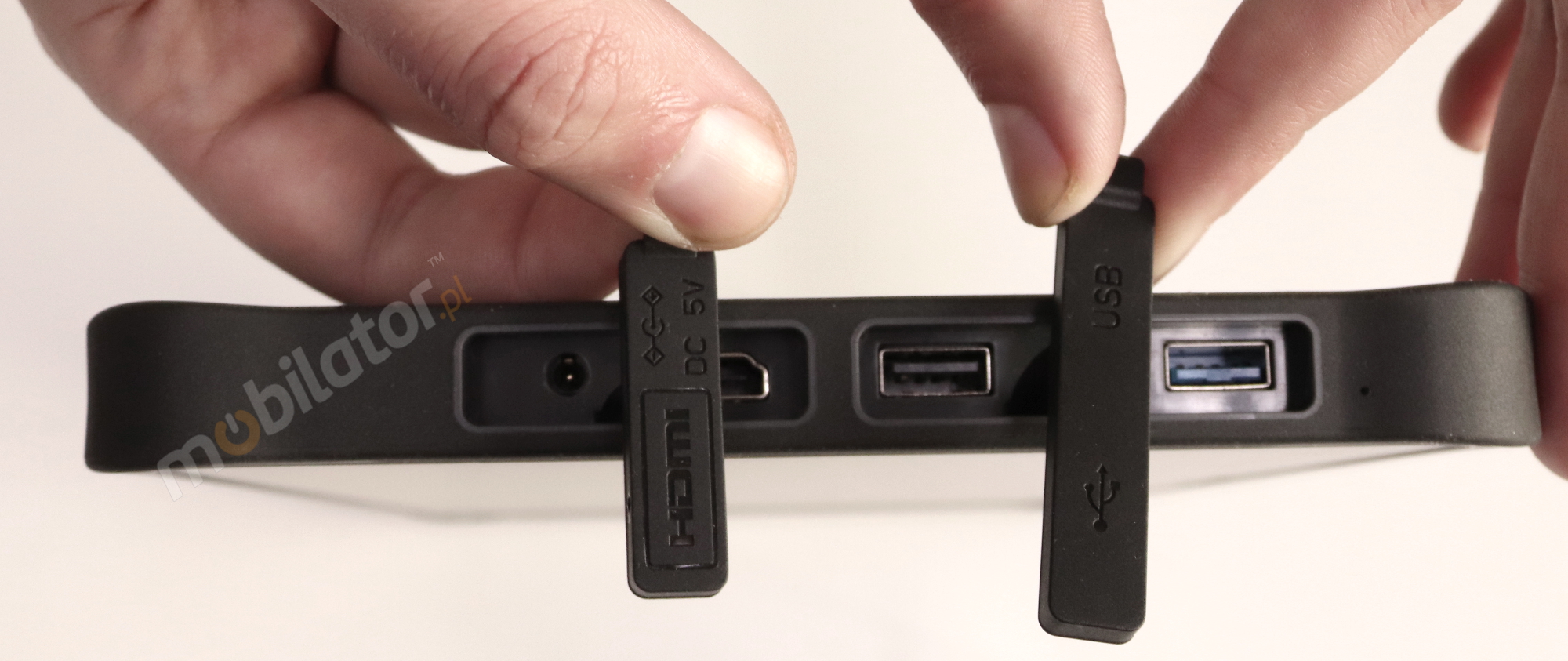

Connectors USB 3.0 | HDMI | RJ45 | RS232 | Audio Jack | Pogopin
Sensor Light sensor | Acceleration/gravity
Memory card Micro SD
SIM card Micro SIM
RFID Reader UHF RFID (3-4m) / (0.8-1m) | Option*
NFC Option*
2D Scanner Honeywell N4680 | Option*

* Optional equipment, available on specific versions only.


Dustproof industrial tablet MobiPAD WST11 was equipped with high performance, energy-efficient Intel Z8350 processor. Inside, there are four cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.

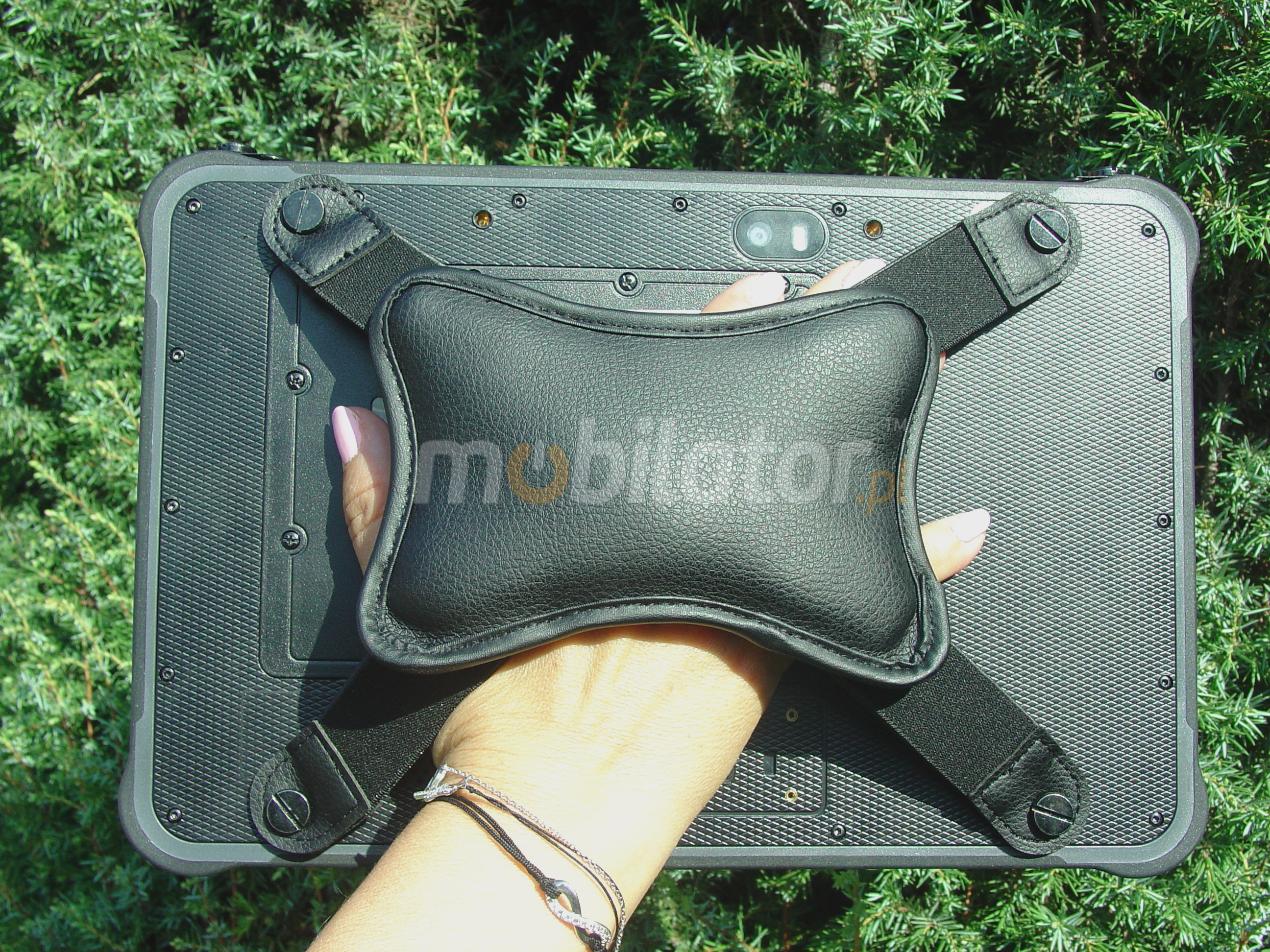

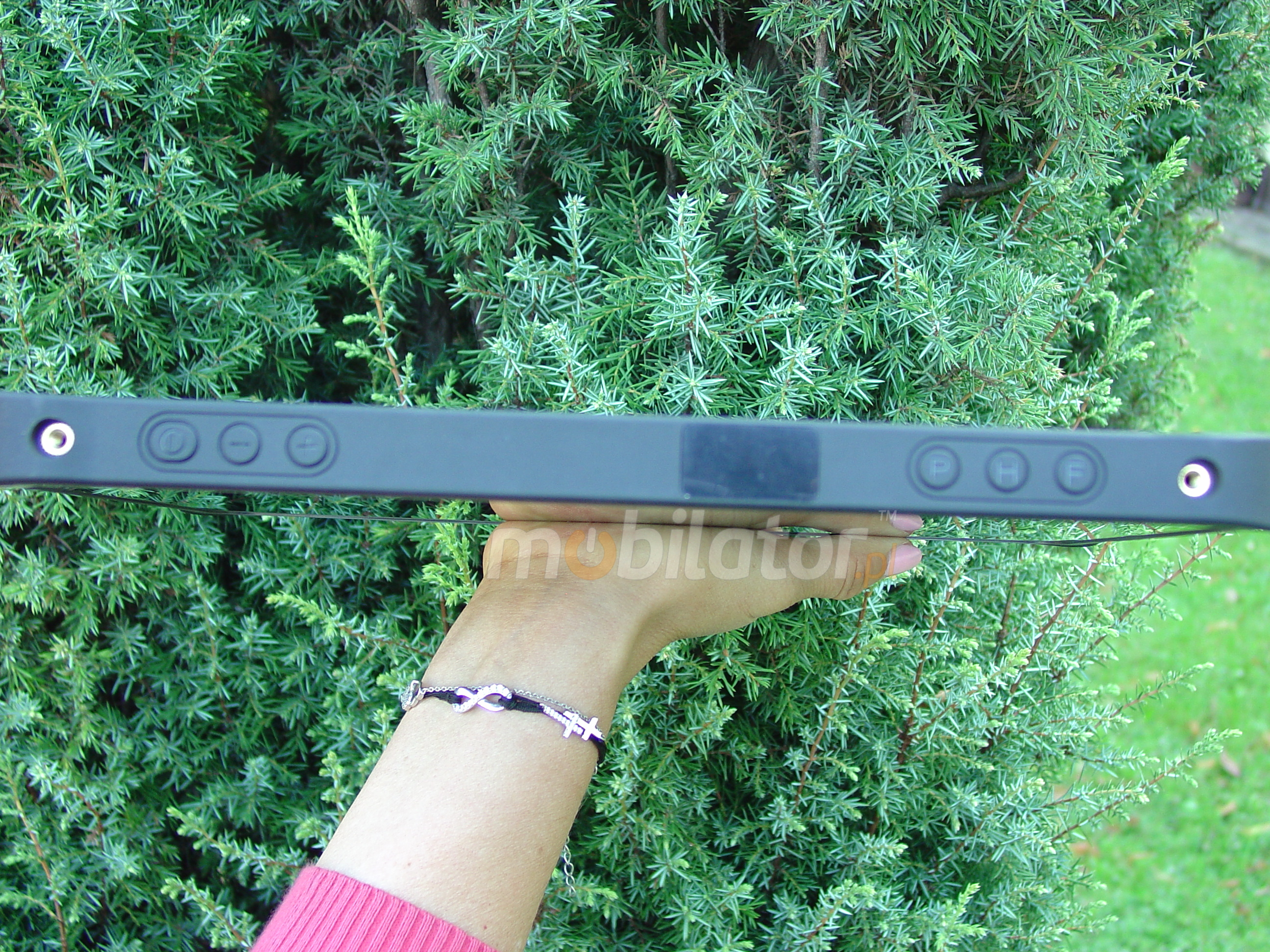

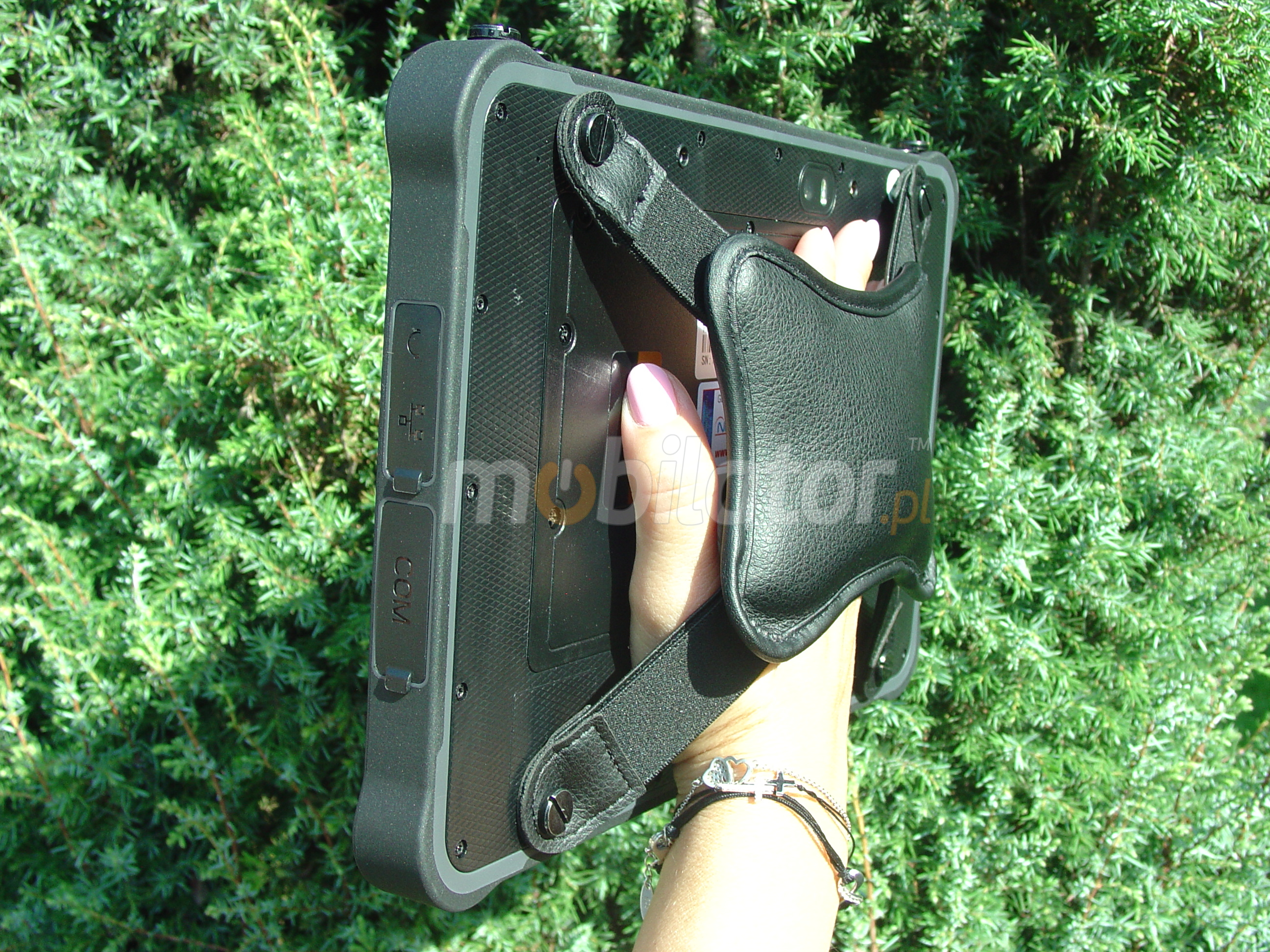

Ergonomic design




MobiPad Cool W311 dimensions buttons resistant rugged tablet IP65 umpc




MobiPAD WST11 industrial tablet is designed for resistance and convenience. The sleek and rugged 18mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.


Dimensions 275mm x 178mm x 18mm
Weight 1000g

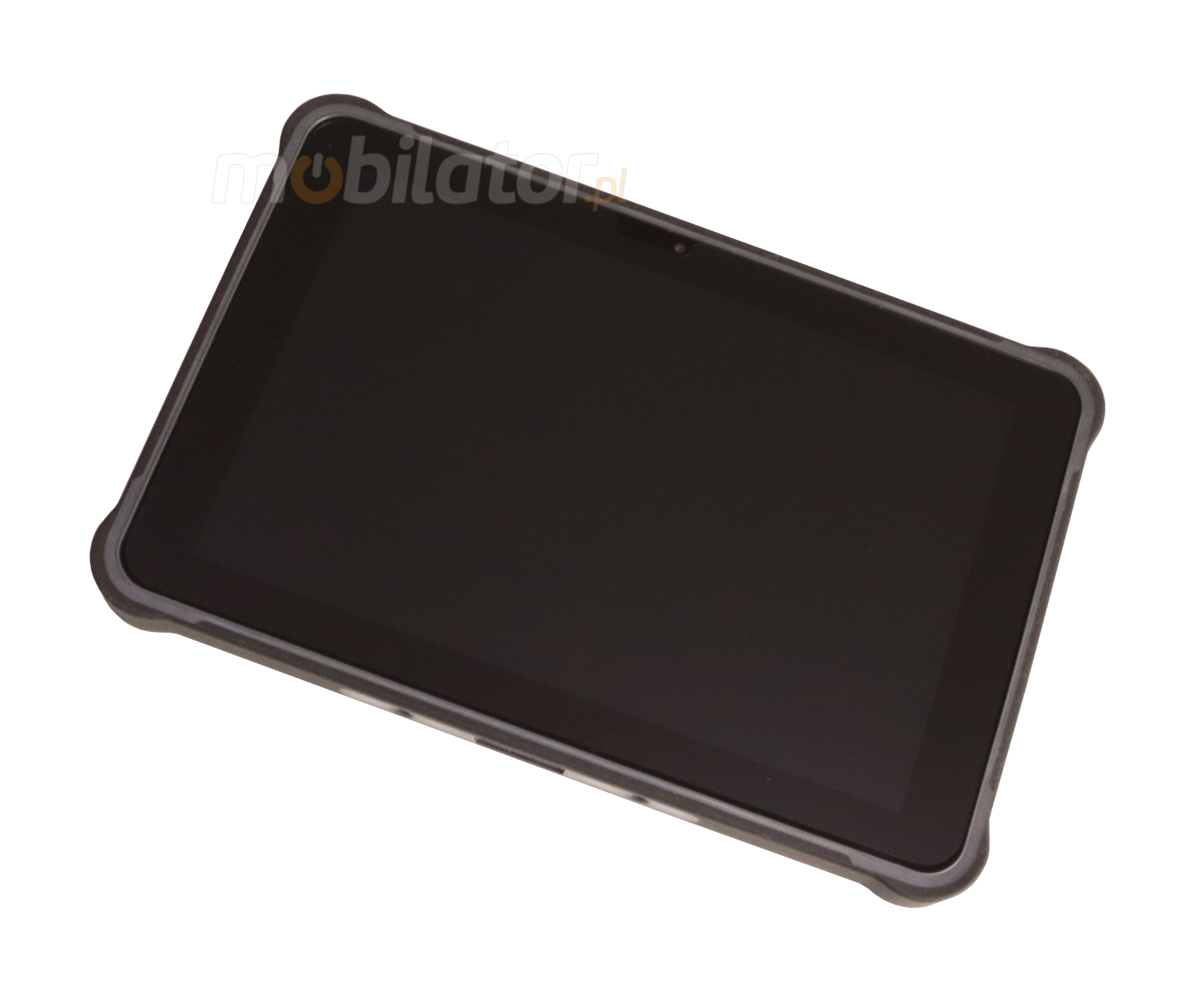

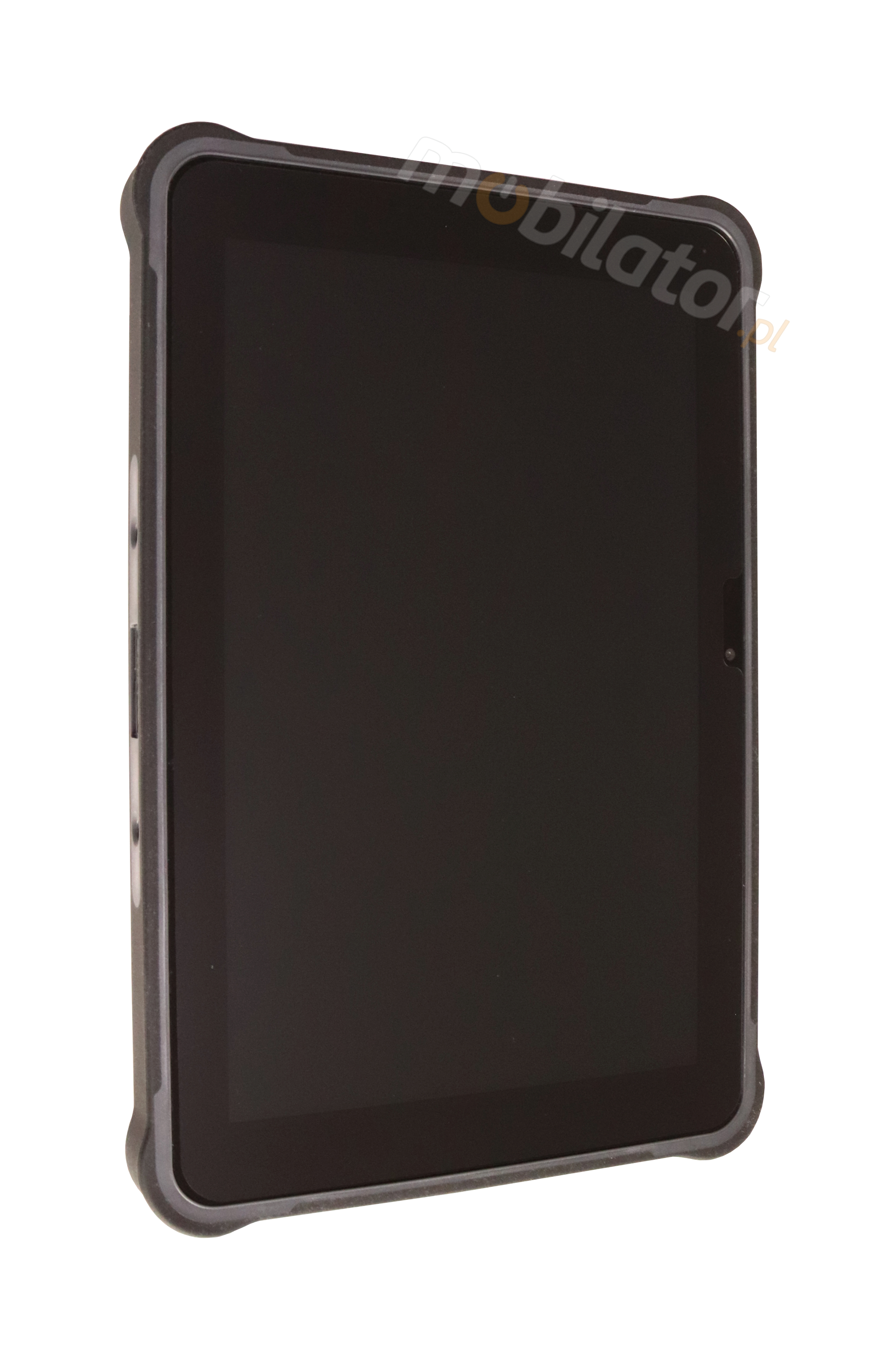

Capacitive screen




MobiPad Cool W311 Capacitive Touch Screen Capacitive Display



With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet  with a few fingers at once.



REsistance





MobiPad Cool W311 resistant comfortable ergonomic solid workmanship waterproof shockproof IP65






IP65 Protection


The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.






MIL-STD-810G Standard


The MIL-STD-810G is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.






1.2m drop resistance


Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.







Extreme temperatures


MobiPAD WST11 is suitable for continuous operation in both low and high temperatures in the range of -20° C to 60° C. When the device is off, it can handle temperatures ranging from -25° C to 80°C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 90% relative humidity.



Working Temp. -20°C to 60°C
Storage Temp. -25°C to 80°C
Humidity 0% do 90%







MobiPad Cool W311 resistant to extreme temperatures operating range from -20°C to 60°C

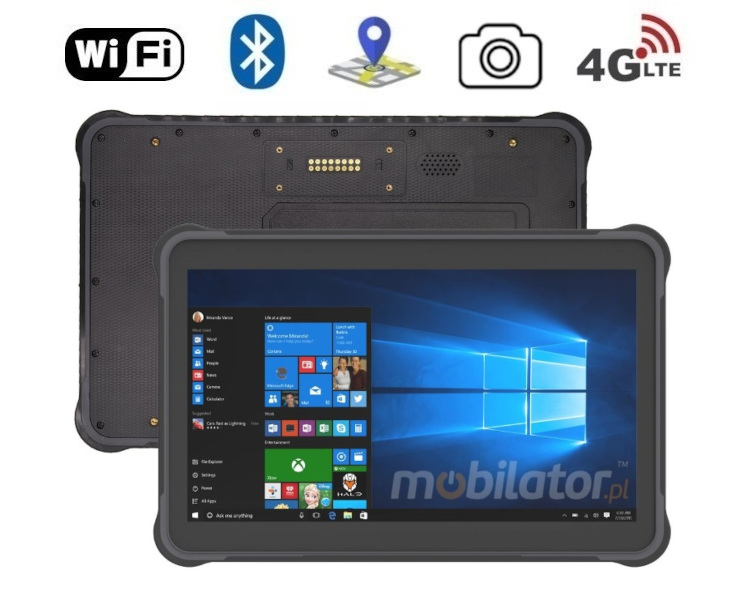

wireless communication





GPS Navigation


Waterproof tablet MobiPAD WST11 is equipped with a professional GPS module with GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 4.2


Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.



MobiPad Cool W311 Module Bluetooth 4.2 connectivity - rugged industrial tablet





 Wi-Fi network


Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 1 Gb/s.


Standards 802.11(a/b/c/g/n/ac)
Frequencies 2.4GHz and 5GHz


Functionality





                Barcode Scanner (Optional)



Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities MobiPAD WST11 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.



2D scanner Honeywell N4680 (1D/2D)





MobiPad Cool W311 barcode scanner 2D 1D QR reader umpc





       RFID UHF 3-4m/0.8-1m  (Optional)



RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. UHF RFID range (3-4m).





Type RFID UHF
Frequency 900MHz









                            NFC (Optional)





Near Field Communication - a short-range, high-frequency, radio communication standard that allows for wireless data exchange at a distance of up to several centimeters. The technology is a simple extension of ISO / IEC 14443 that combines the smart card interface and reader in one device. NFC devices can communicate with both existing devices in the ISO / IEC 14443 standard, as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure. NFC present in the device supports ISO / IEC 14443A / B and ISO15693 protocols. Distance 5cm or above.

MobiPad Cool W311 - NFC, range, communication - rugged industrial tablet, IP65





do góry… do góry menu… menu





Application


Trade and Services


Thanks to their size and light weight, tablet are a useful tool for sales representatives. Today's applications running under the tablet system enable even entering the tablets contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of tablets in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



MobiPad Cool W311 tablet for sales representatives WiFi connectivity communication






Industry and Construction



Industrial tablets are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, tablets can be used for control and control of various industrial processes, as well as for data collection and analysis.


MobiPad Cool W311 Industrial tablet resistant to harsh conditions






Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using tablets are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


MobiPad Cool W311 work in the warehouse time saving speed of operation




Available versions and accessories





The industry-leading MobiPAD WST11 tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.







Compare all versions
