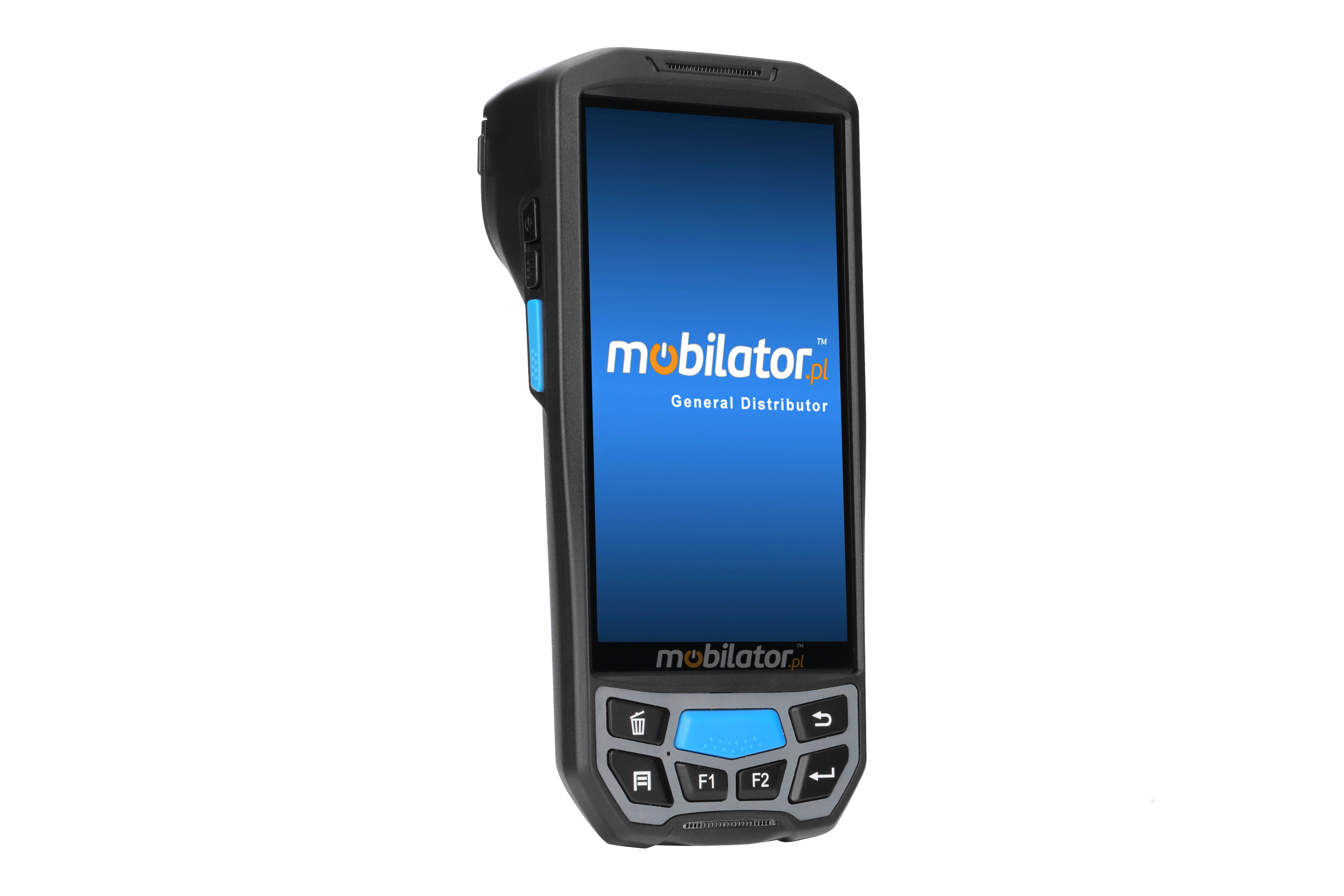

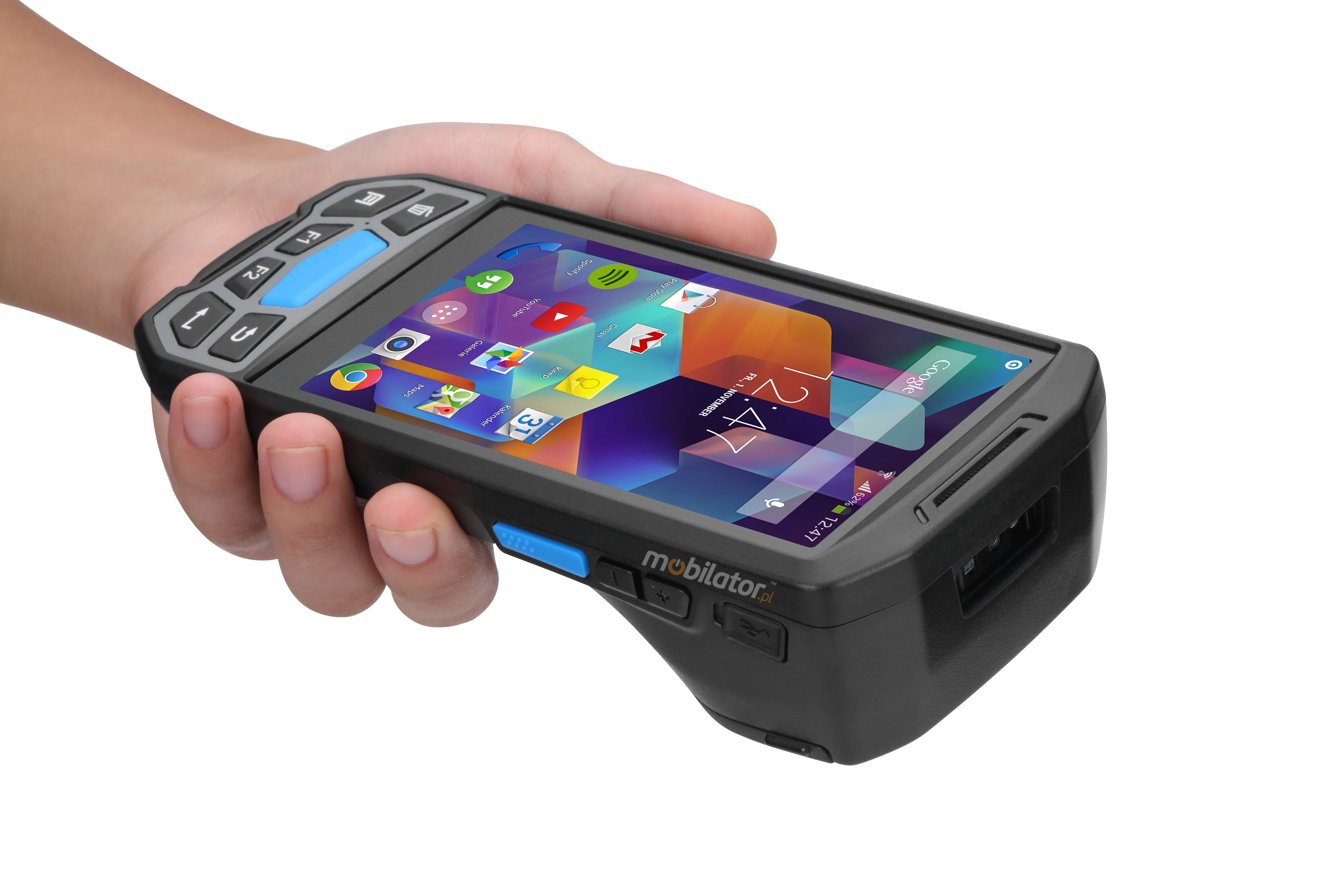

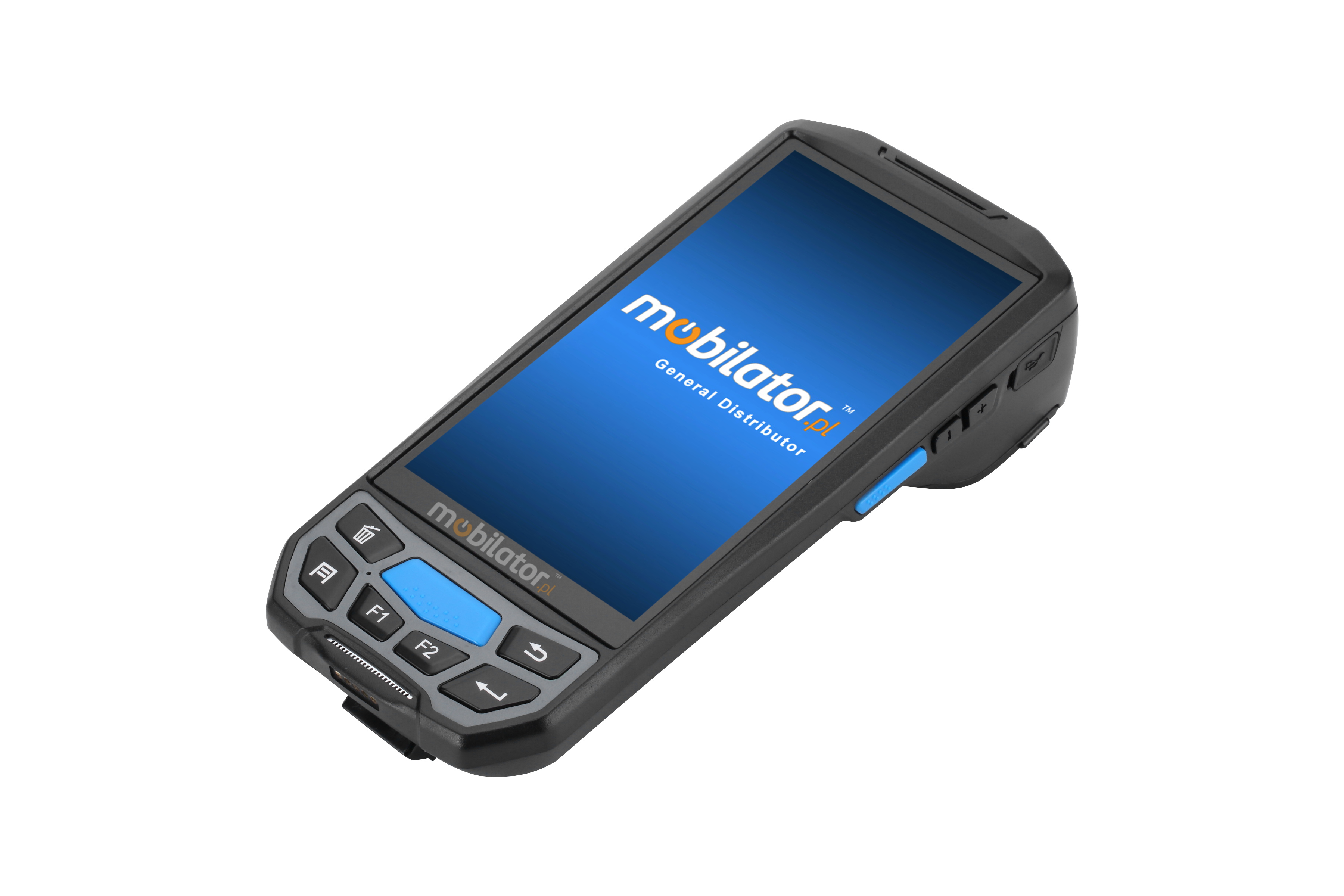

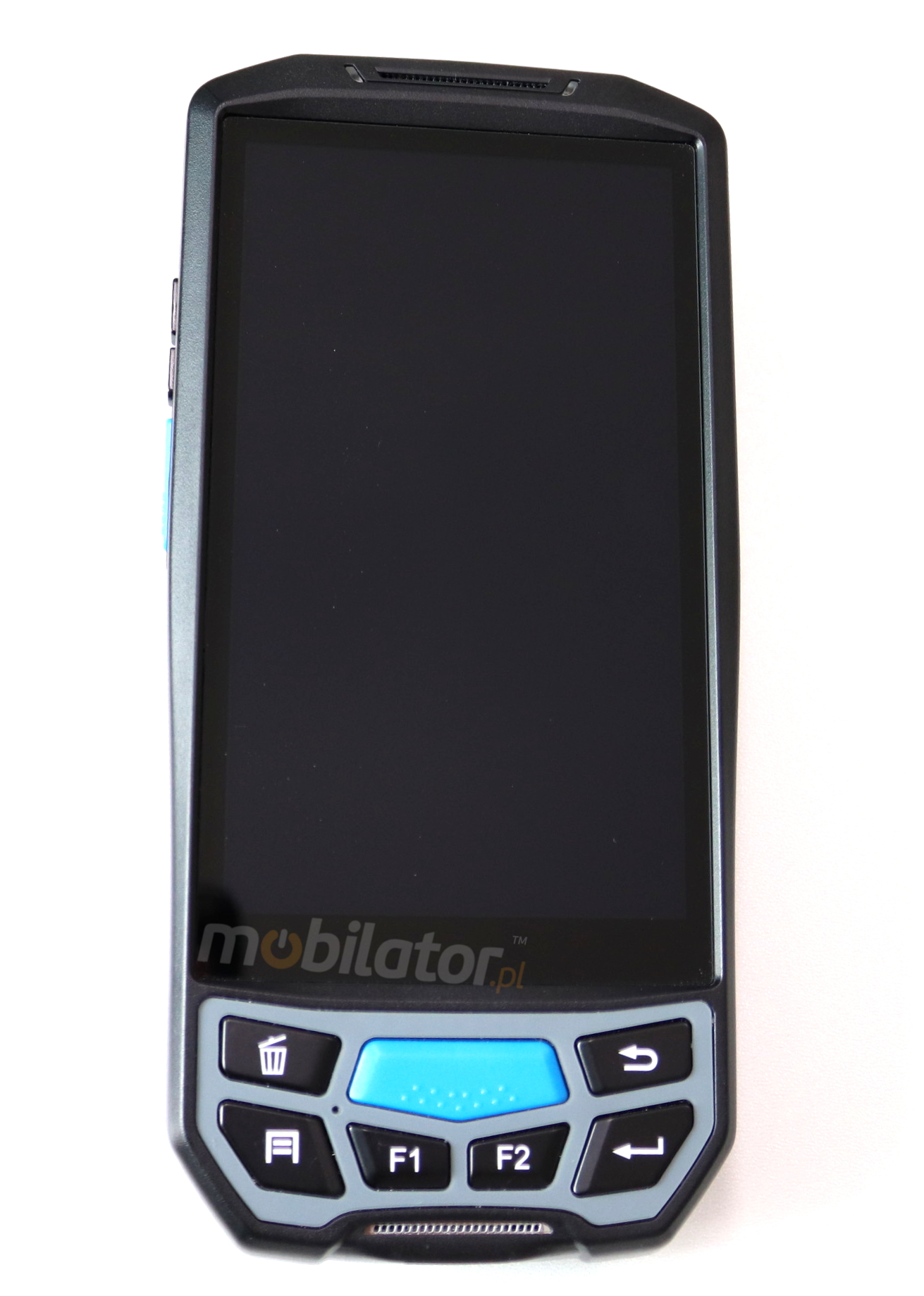

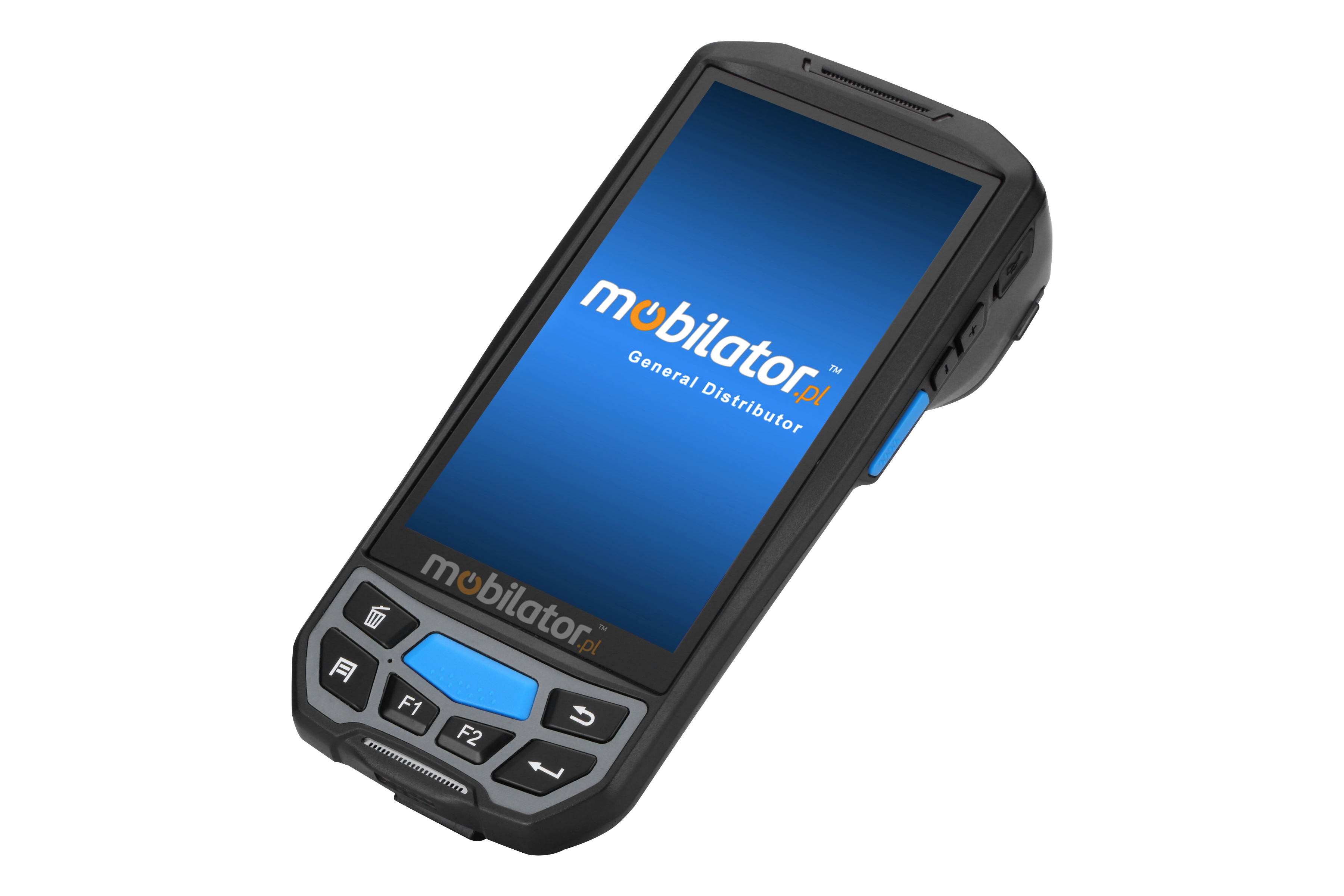

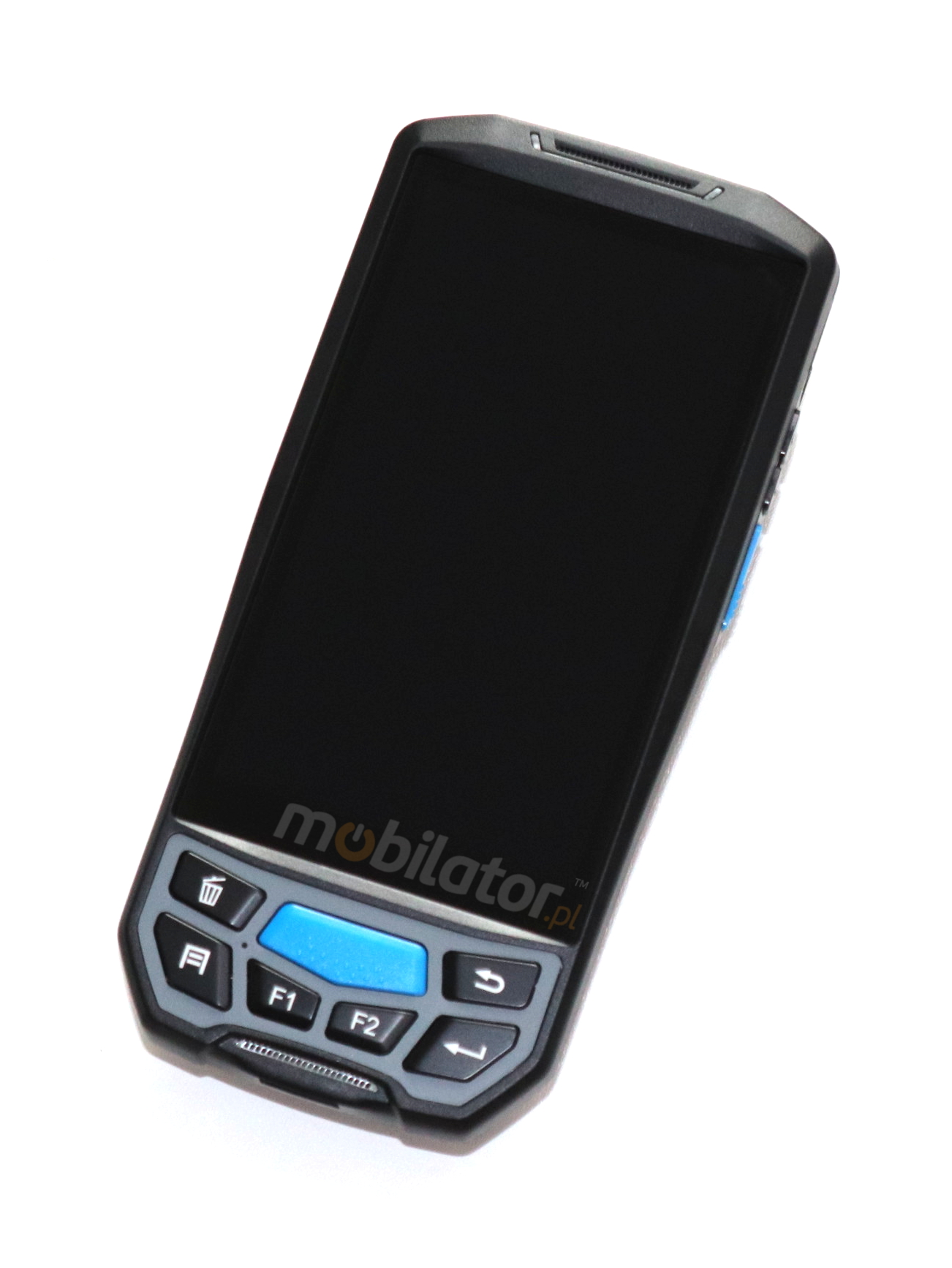

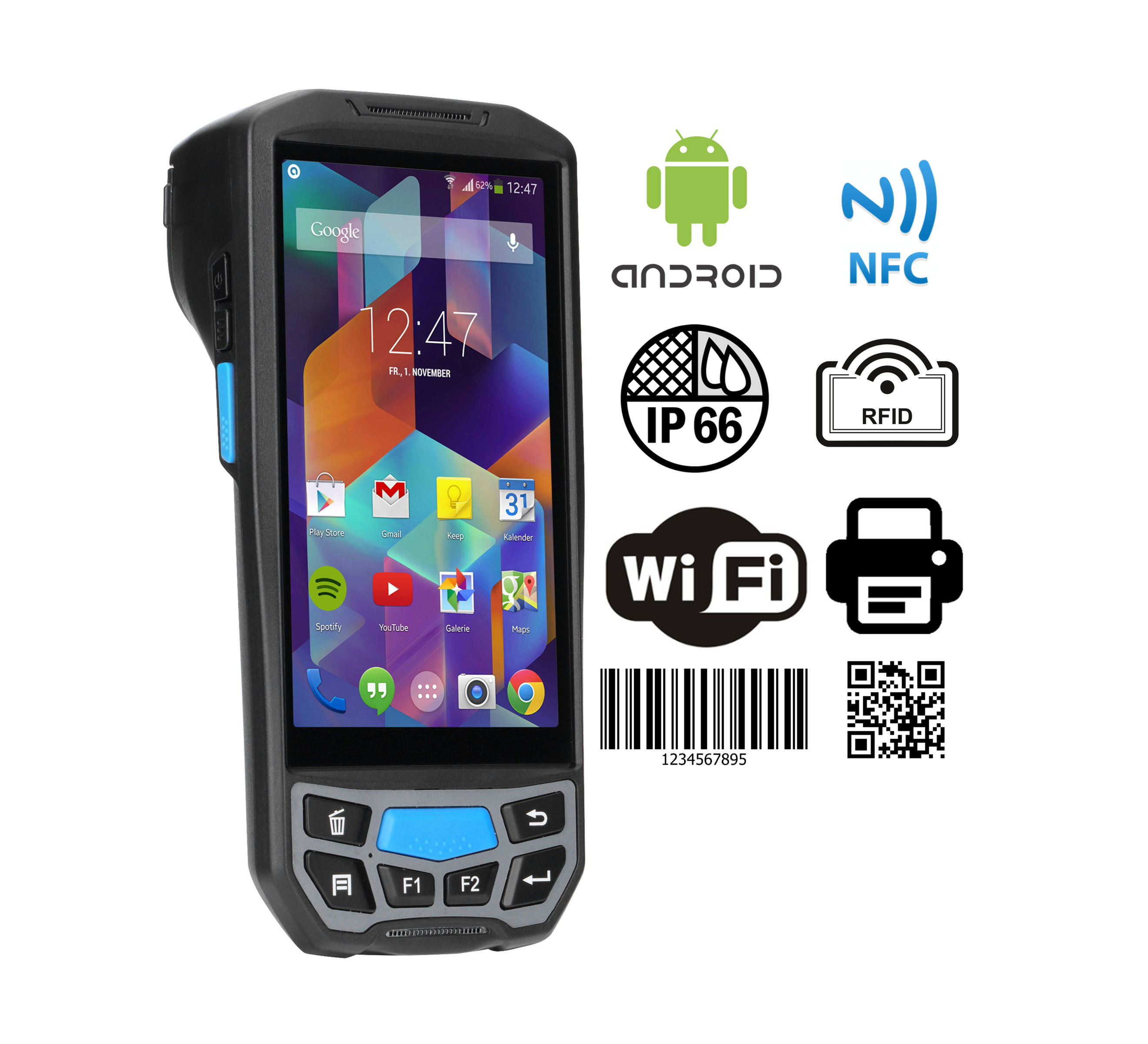

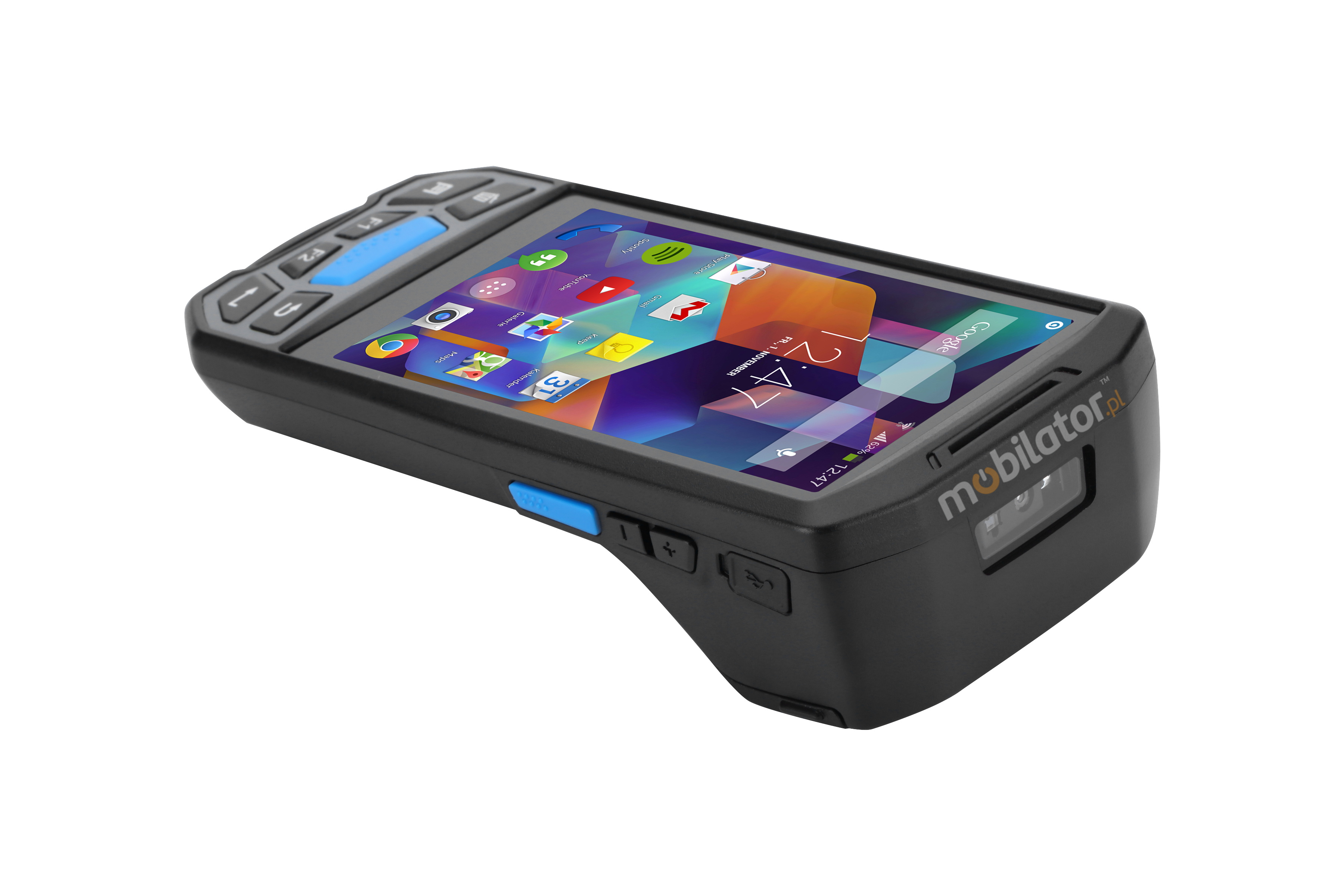

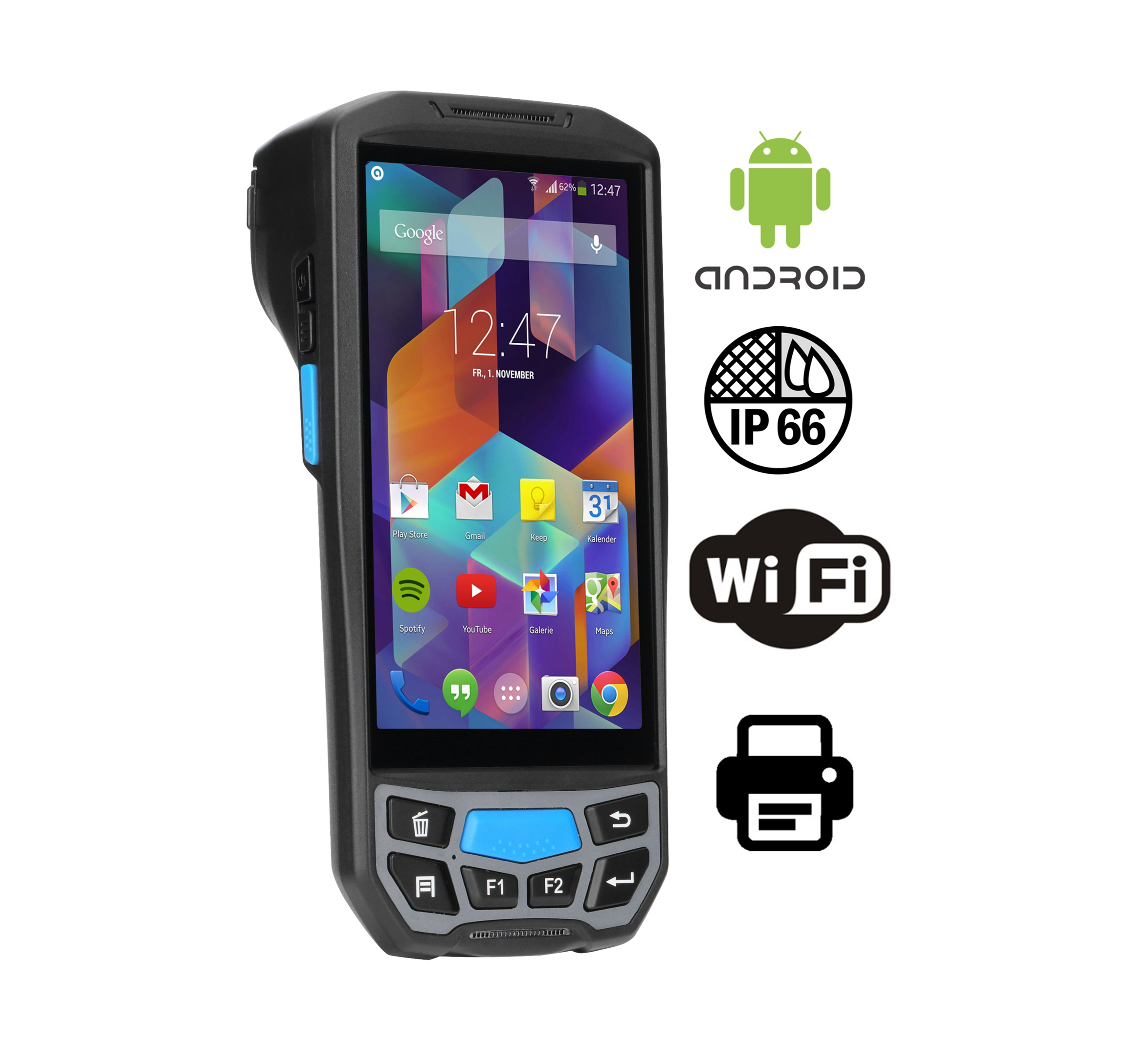

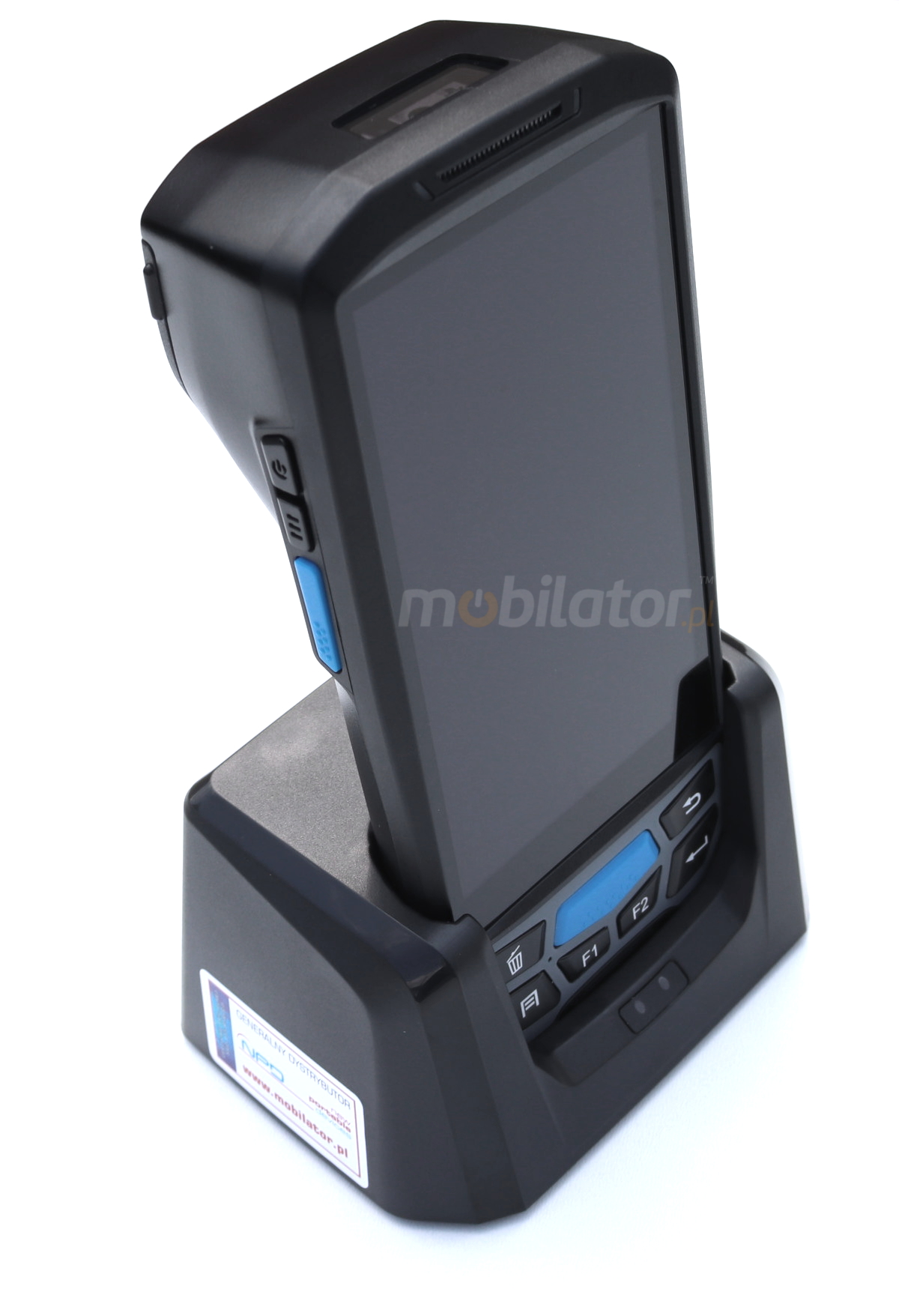

MobiPAD U93 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP66,
Specification
|
MobiPad U93 |
|
Processor |
ARM Cortex-A53 64-bit Quad-Core (4x1.3 GHz) |
|
Operating system |
Android 7.0 |
|
RAM |
2GB |
|
ROM |
16GB Nand Flash Storage |
|
Display |
5" | (720 x 1280) |
|
Touch screen |
Capacitive |
|
Battery |
4800mAh |
|
Camera |
8Mpx Rear + Flash |
|
Protection |
IP66 |
|
Communication |
2G/3G/4G | Bluetooth | Wi-Fi | GPS |
|
Connectors |
Micro-USB
|
|
Memory card |
Micro SD (max. 32GB) |
|
SIM card |
Micro SIM |
|
RFID Reader |
NFC | RFID HF | RFID LF* |
|
1D Scanner |
Honeywell N6603 |
|
2D Scanner |
Honeywell N6603 |
|
Printer |
Thermal printer 58mm |
* Optional equipment, available on specific versions only.
Dustproof industrial data collector was equipped with high performance, energy-efficient ARM Cortex-A53 processor. Inside, there are four cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory.

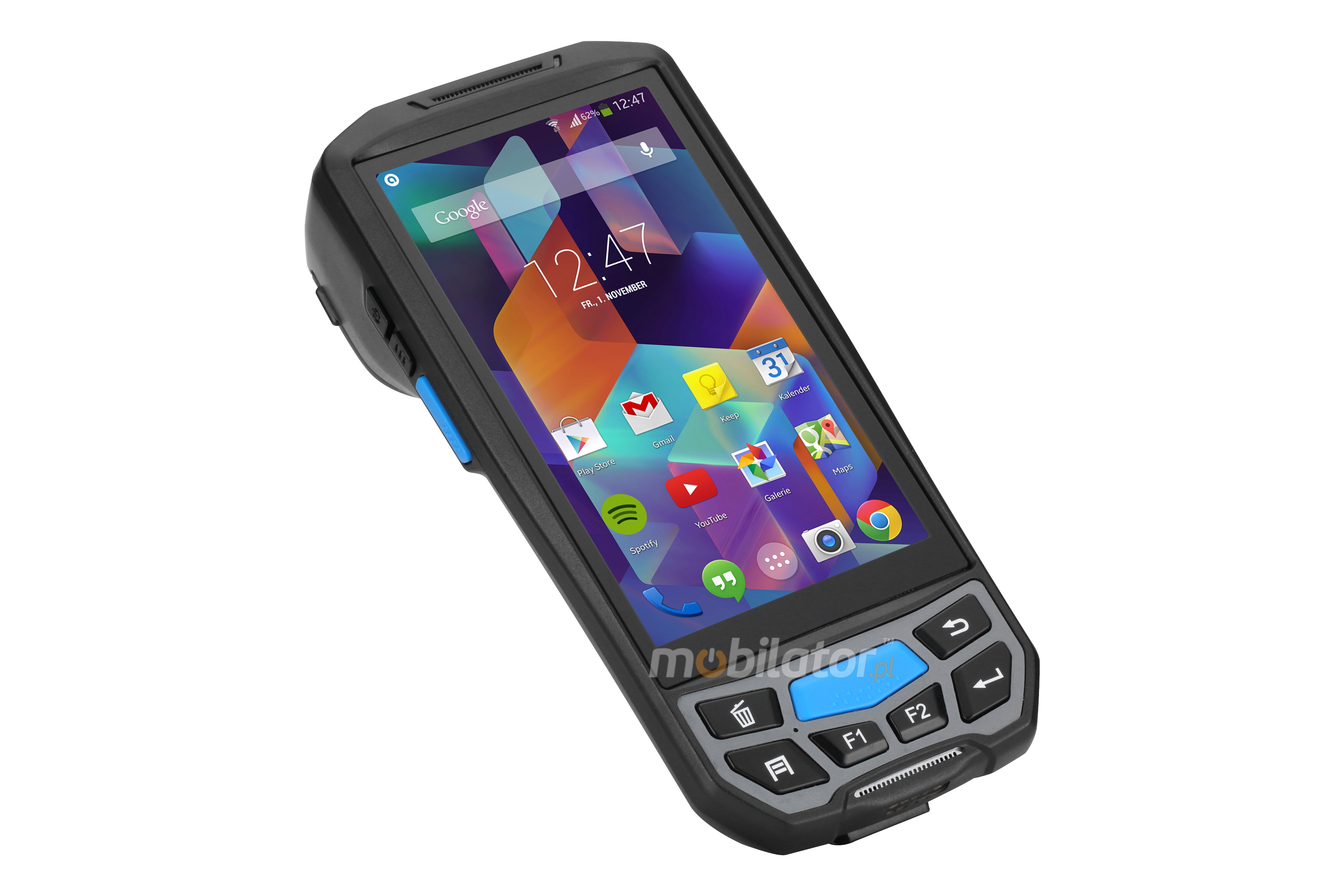

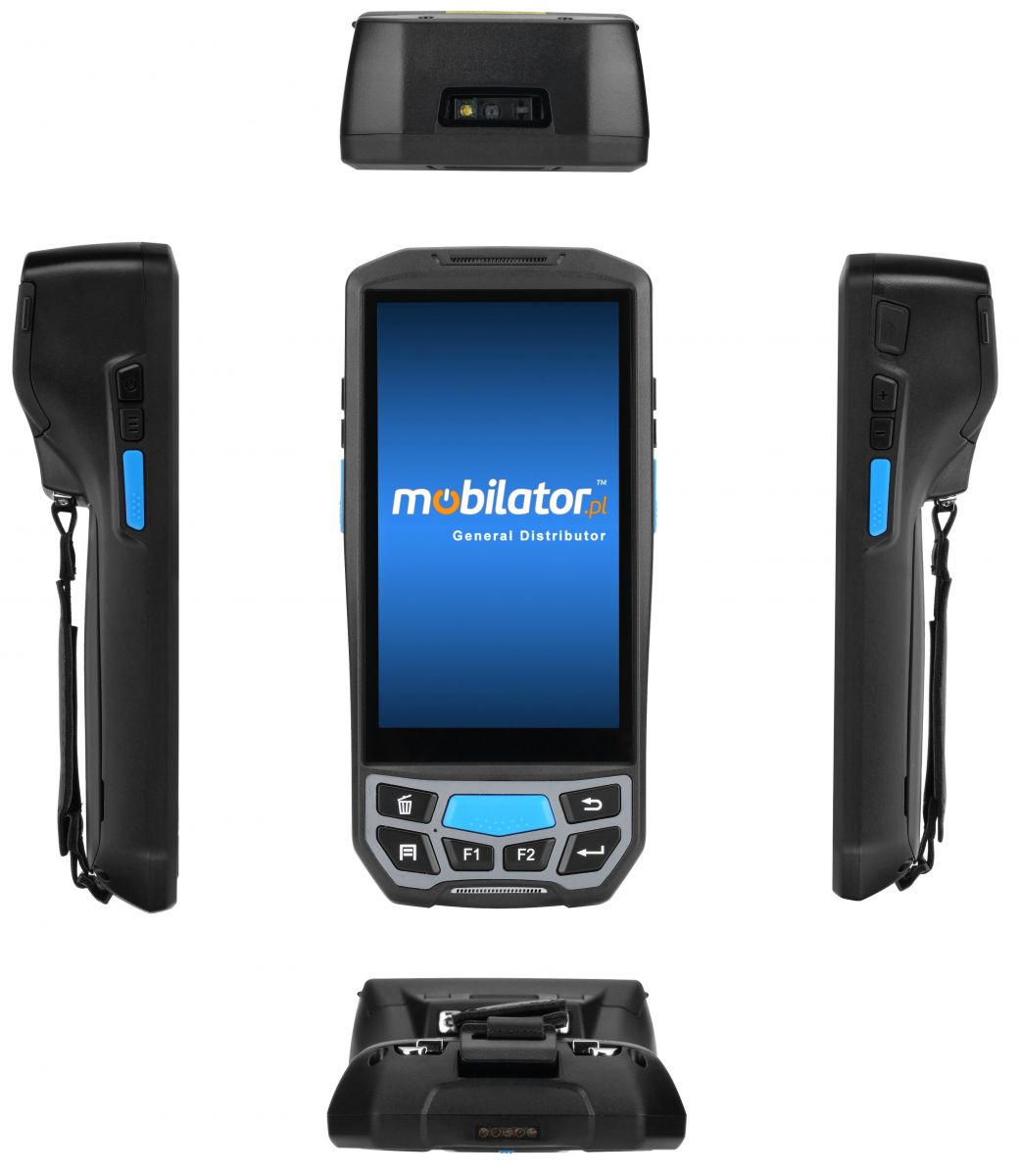

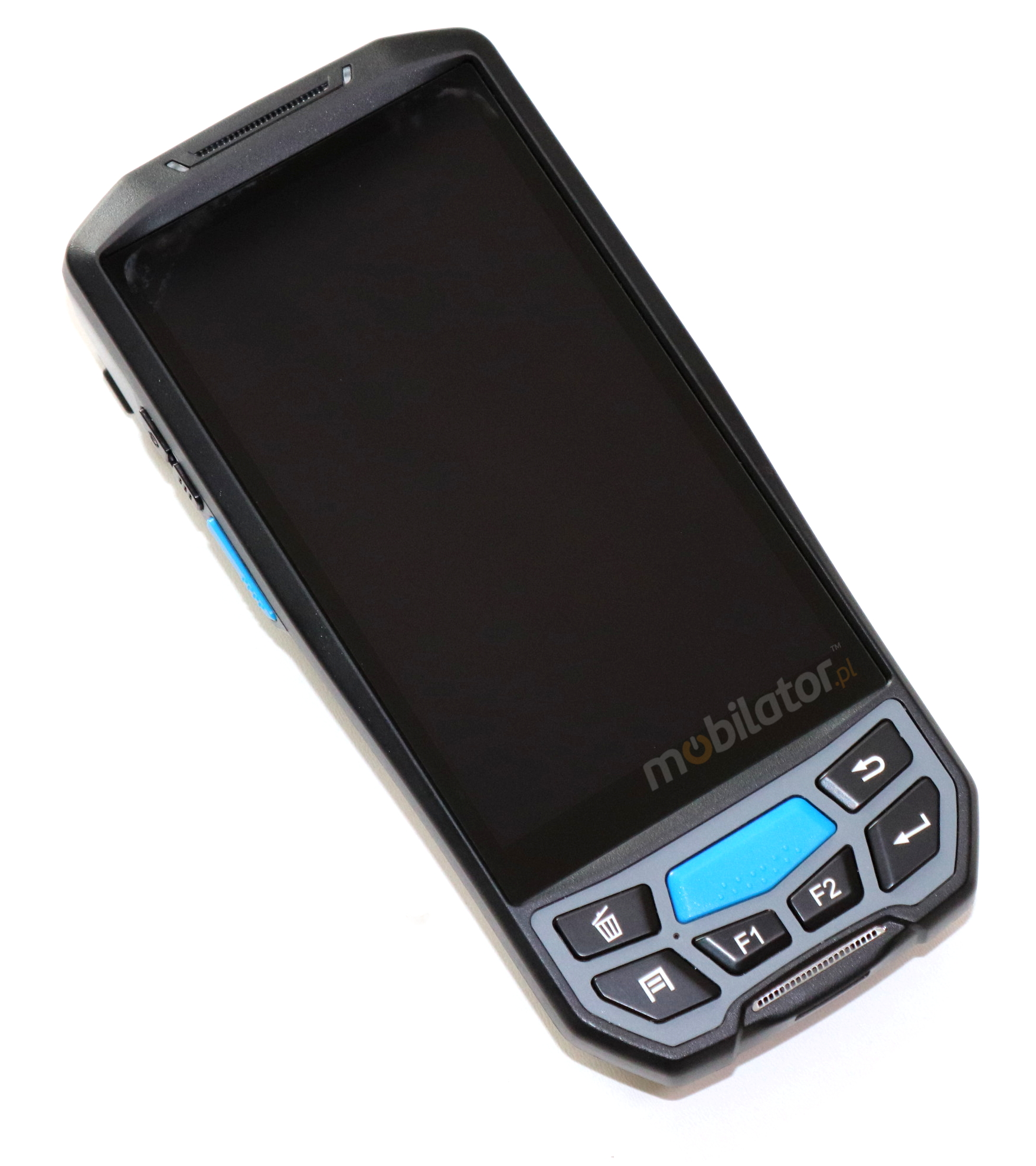

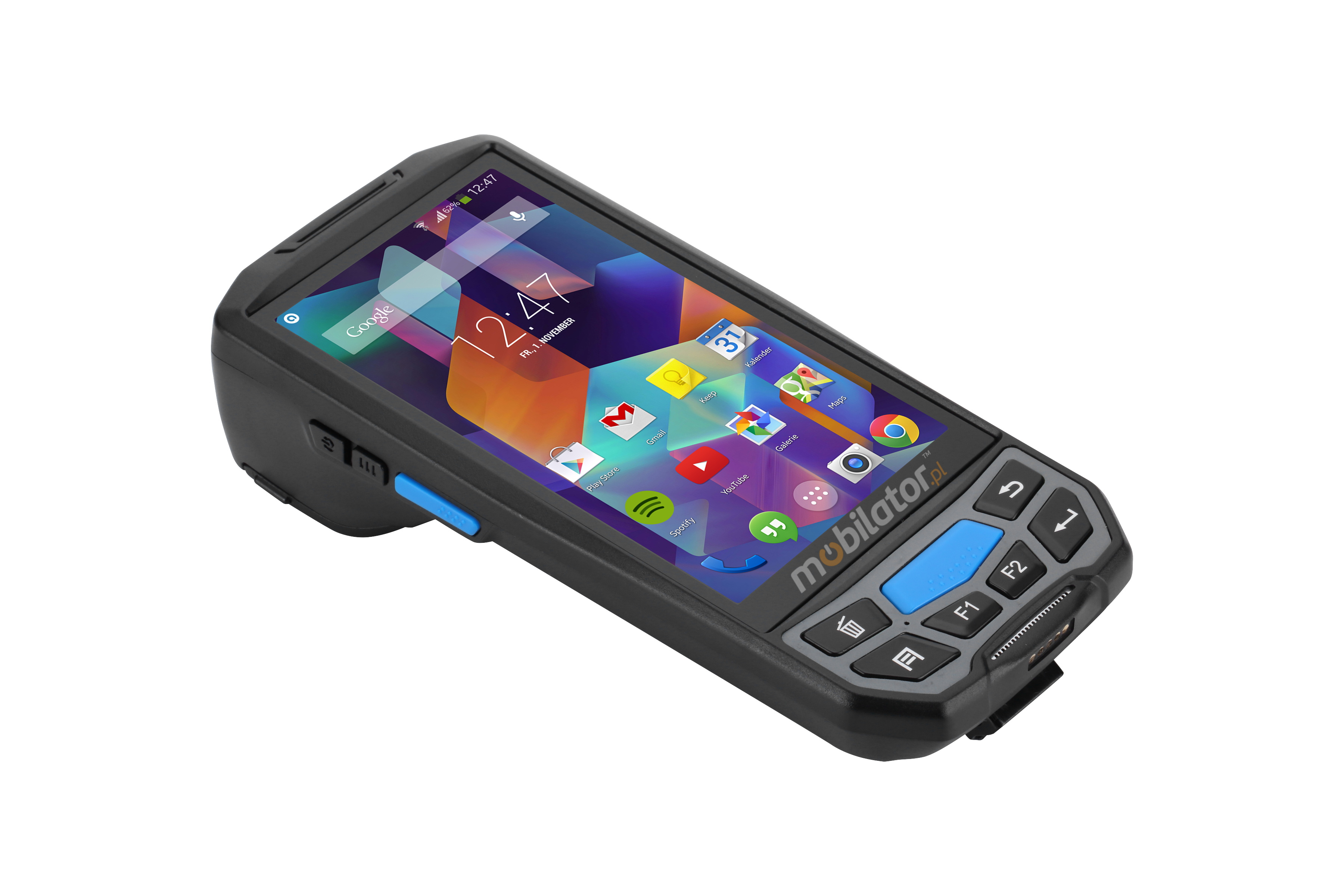

Ergonomic design
.jpg)

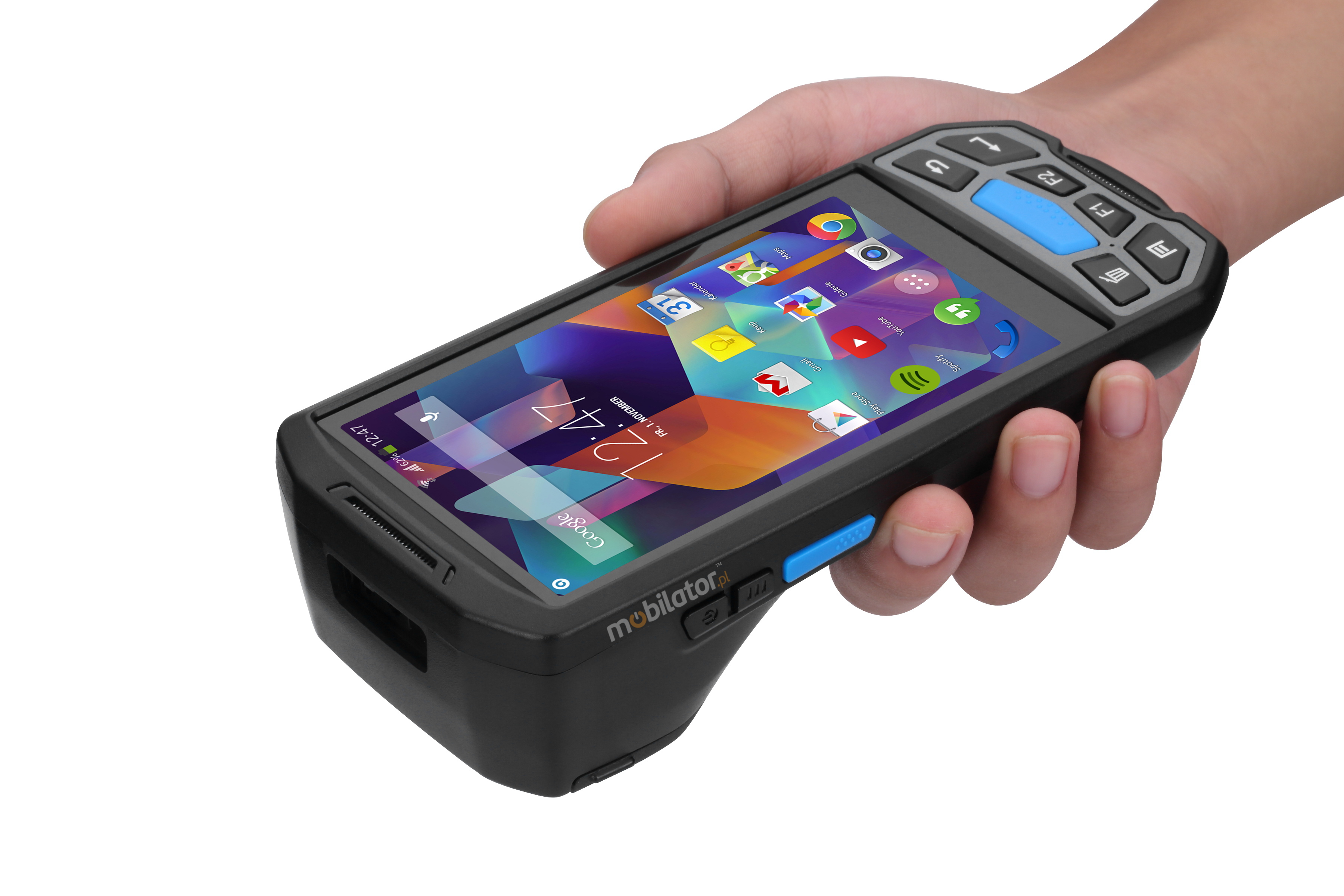

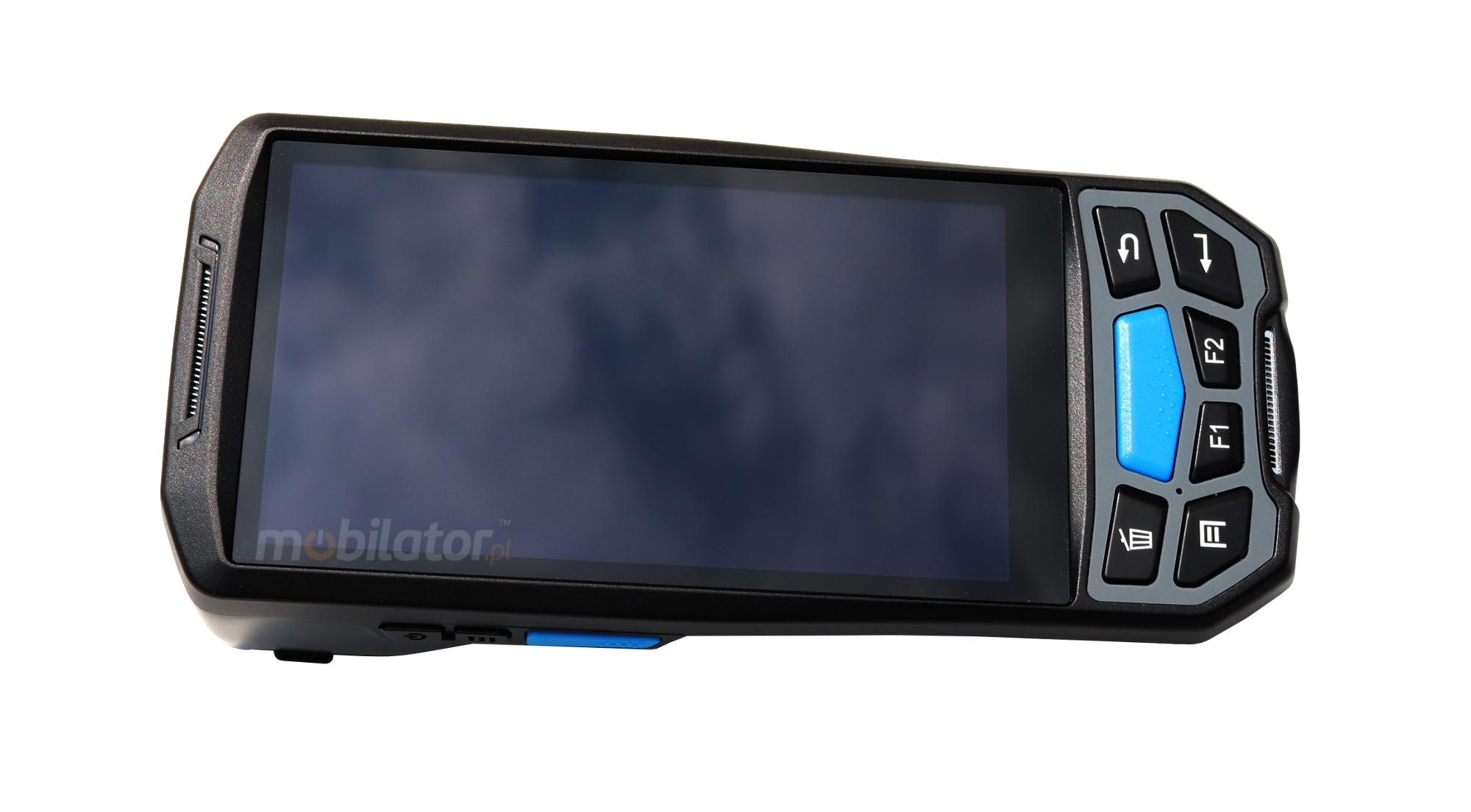

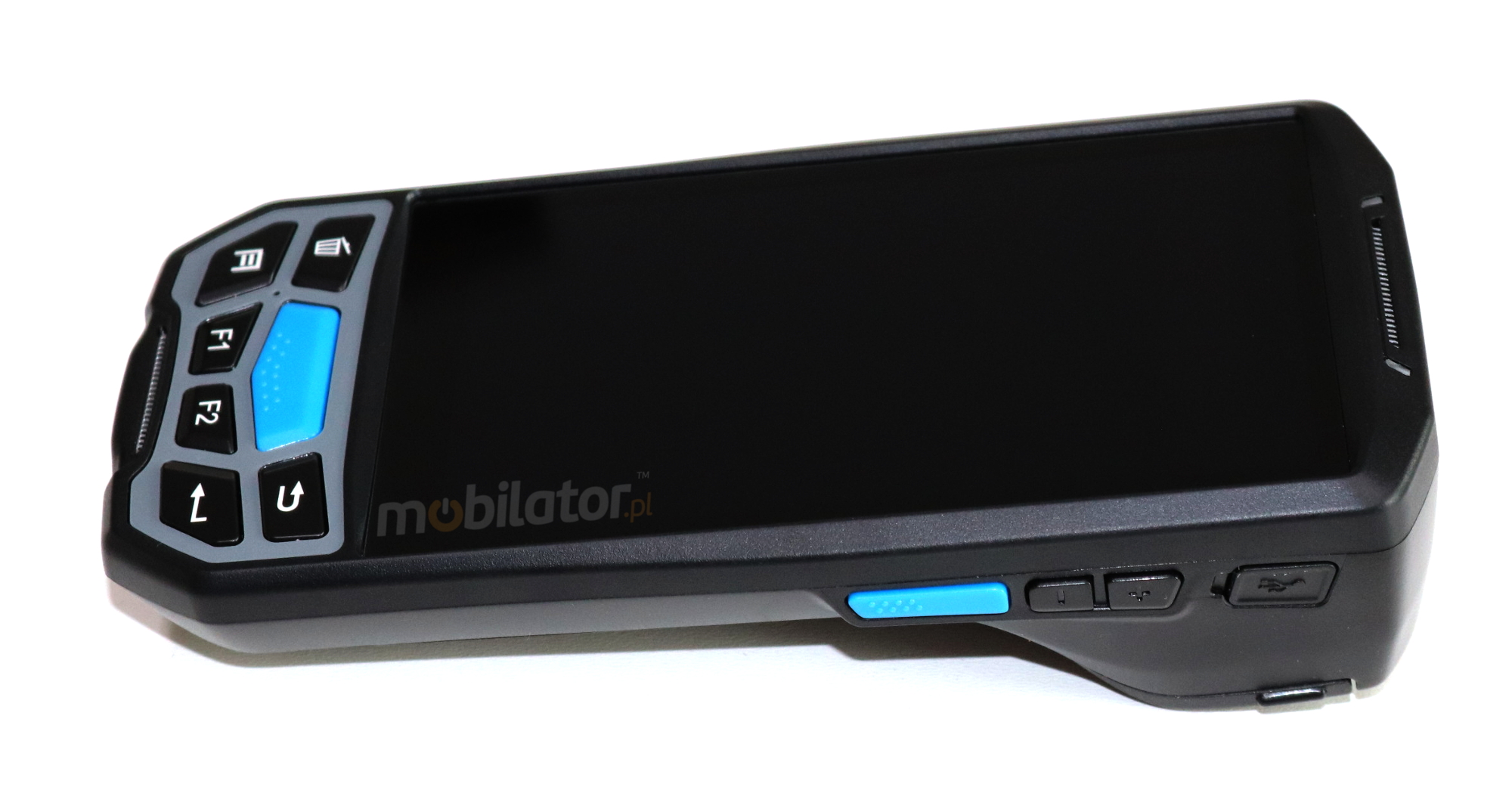

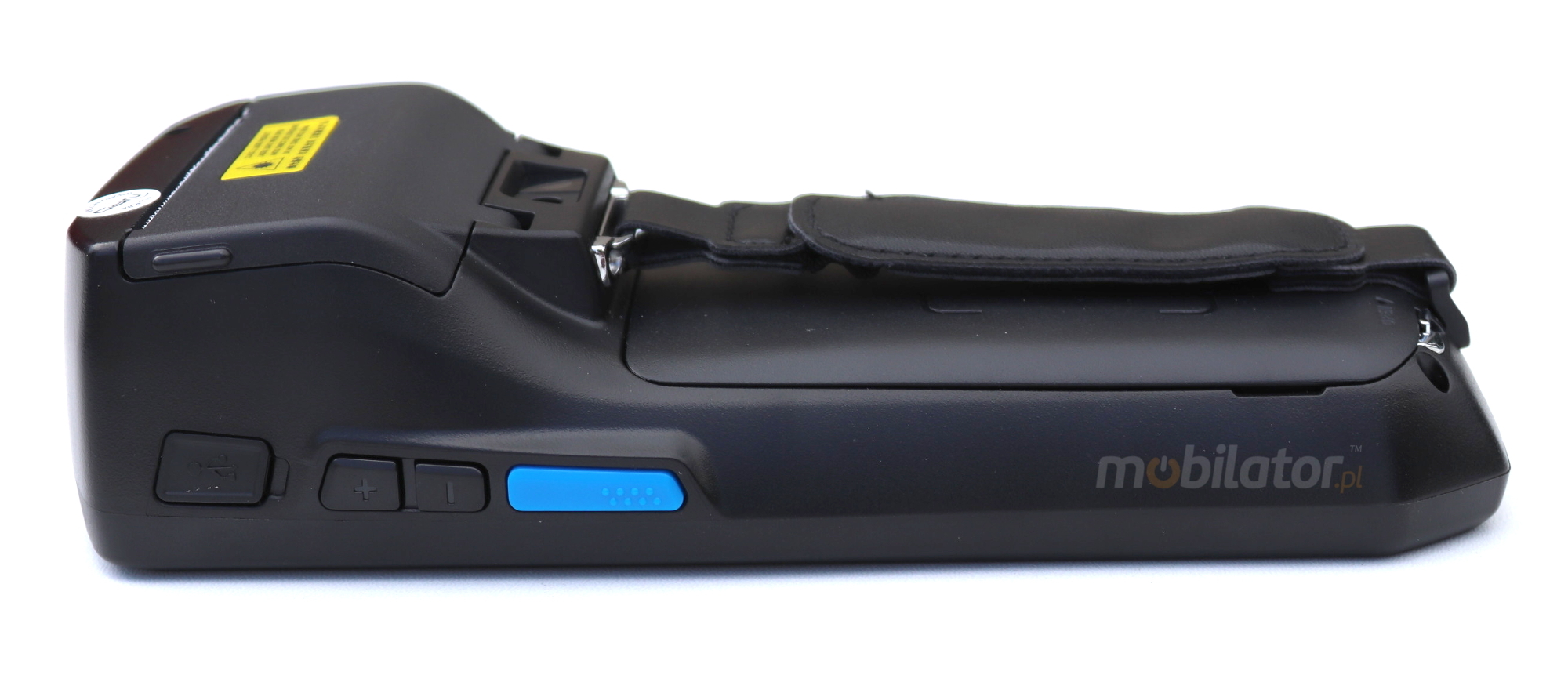

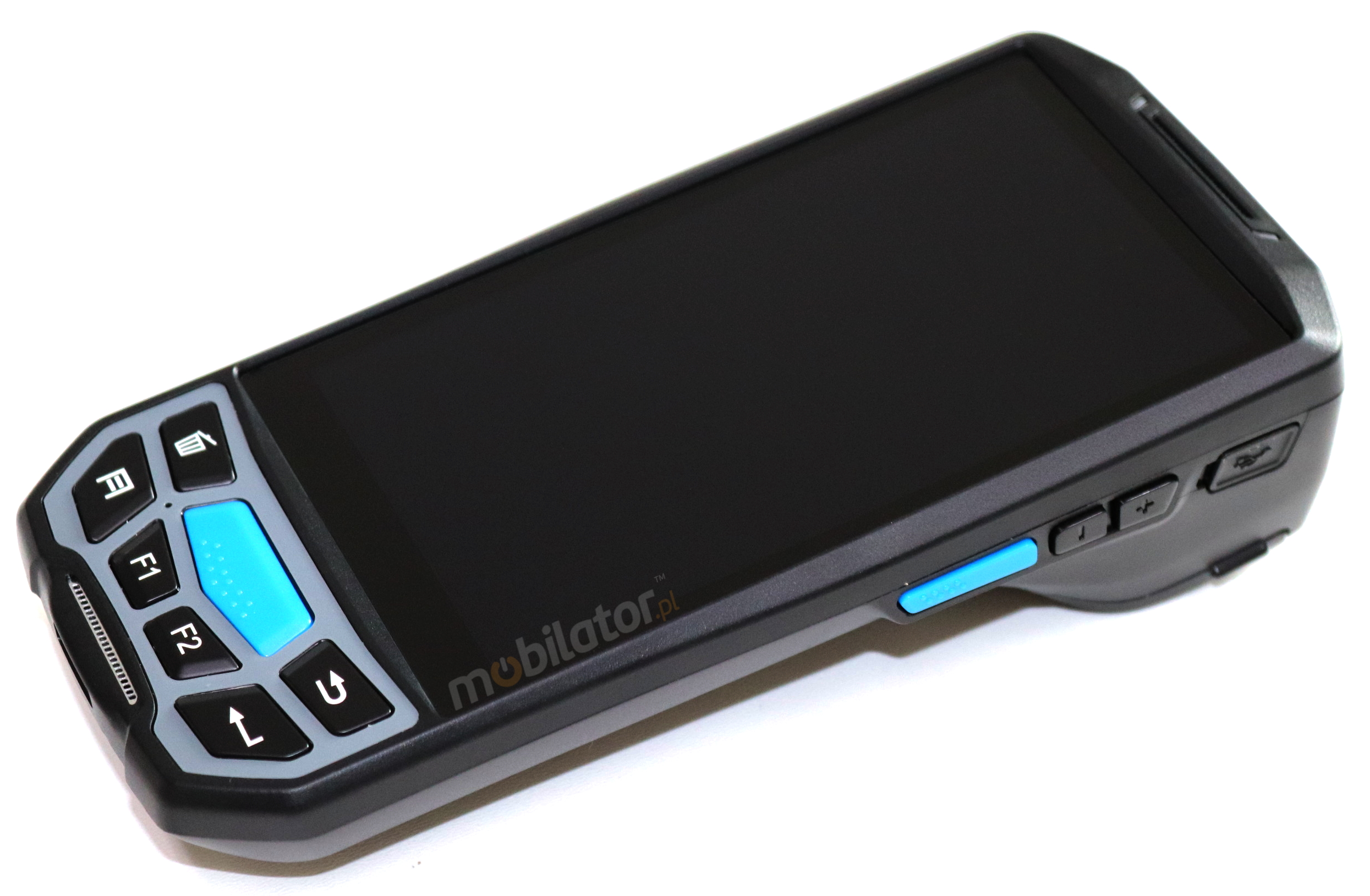

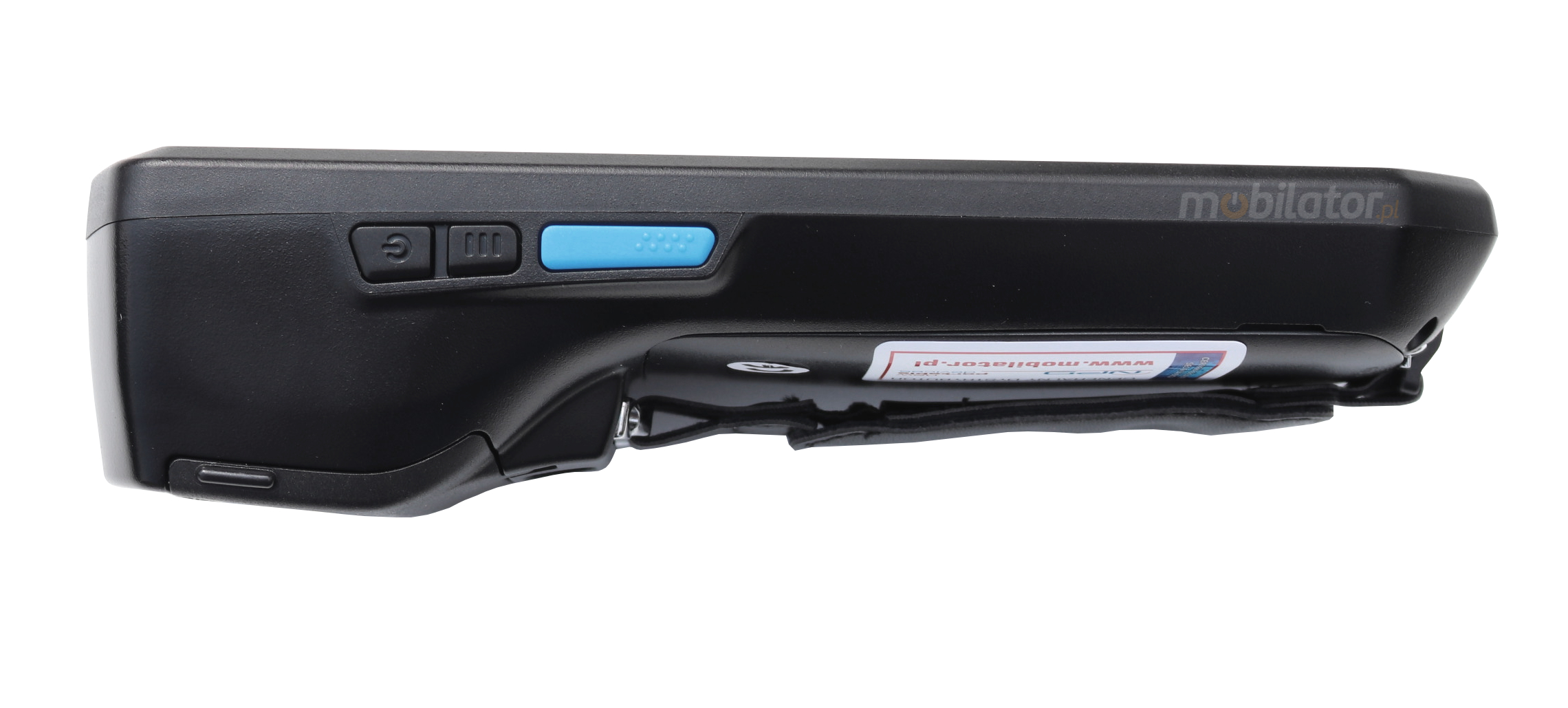

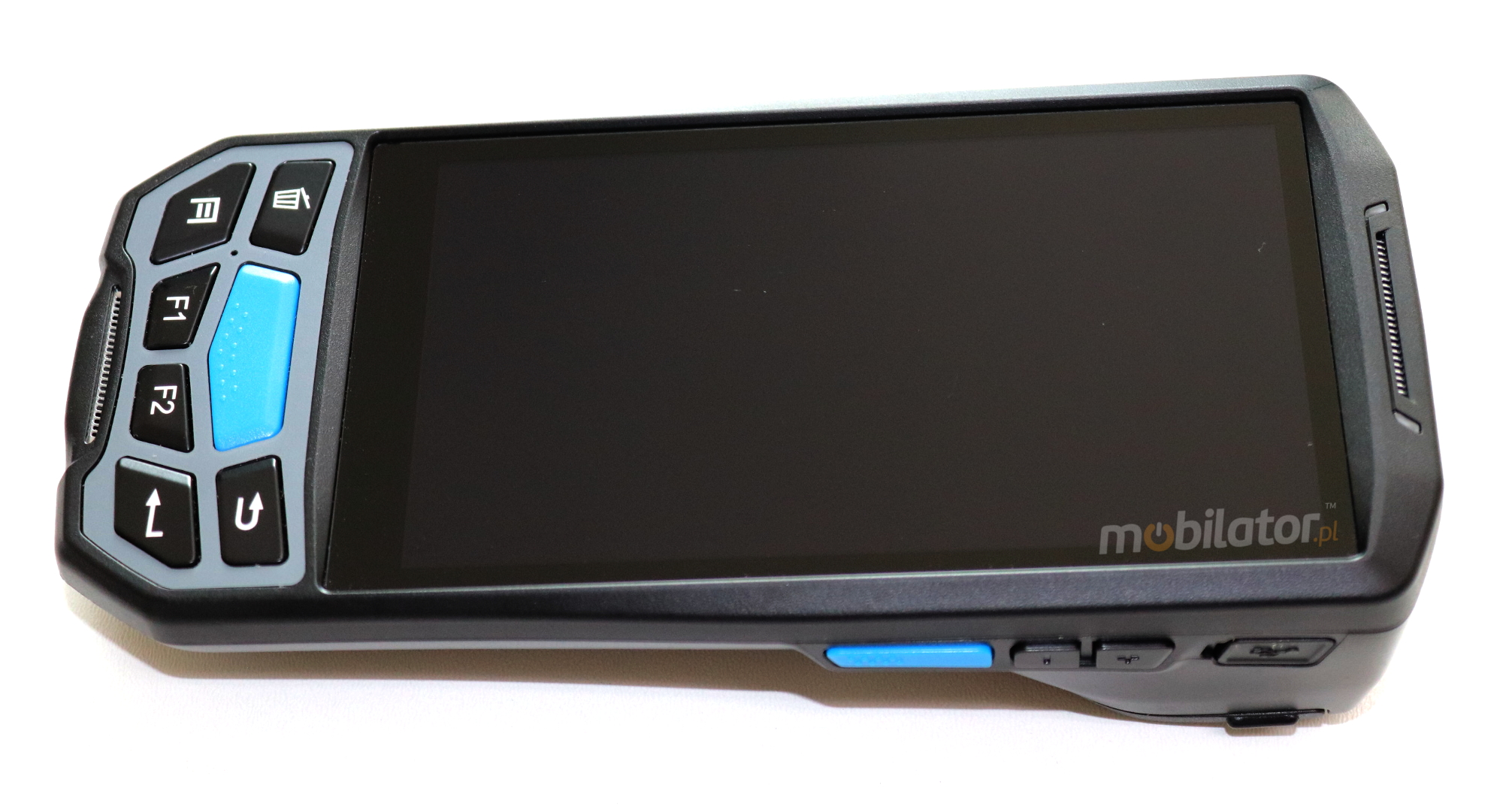

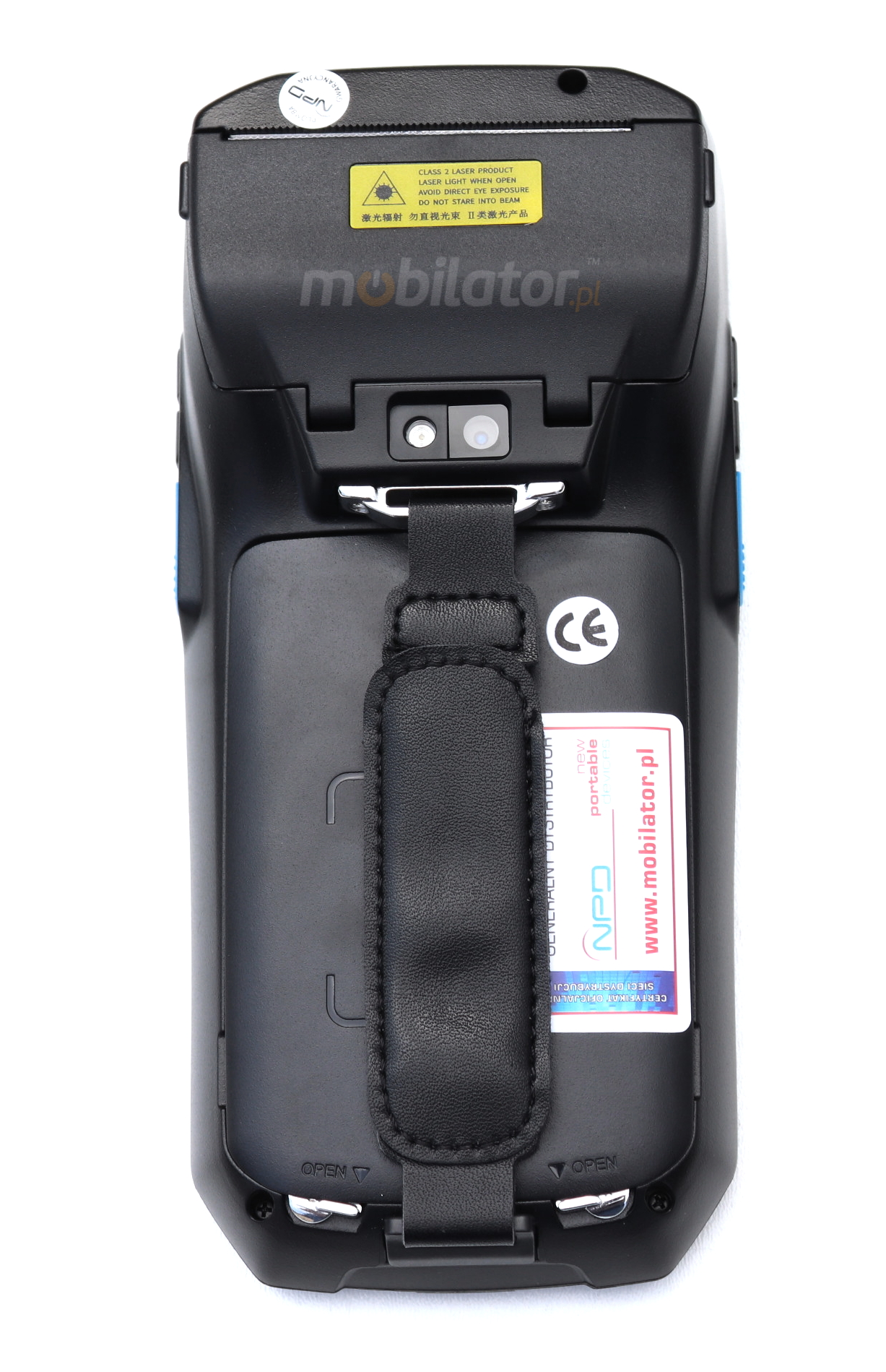

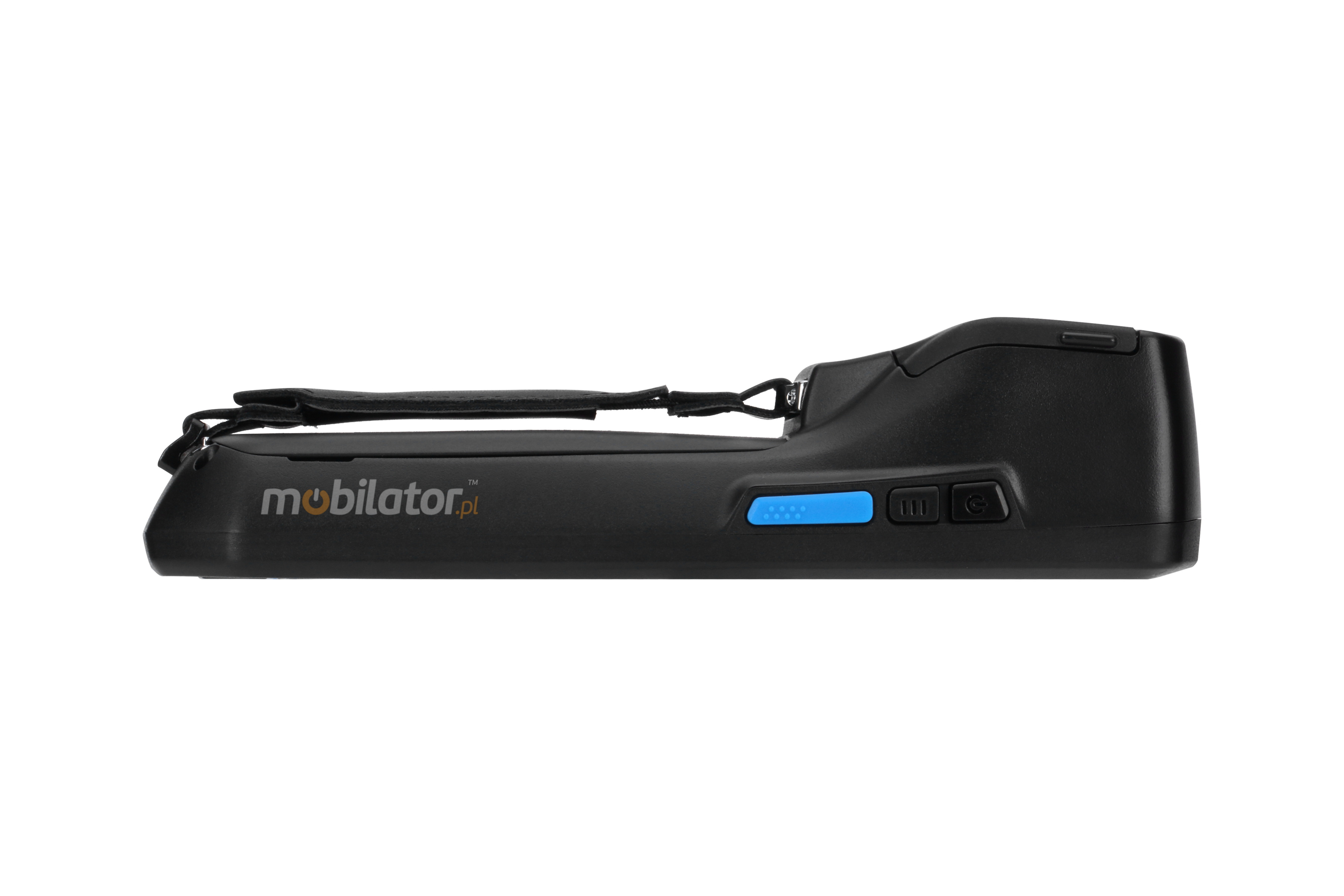

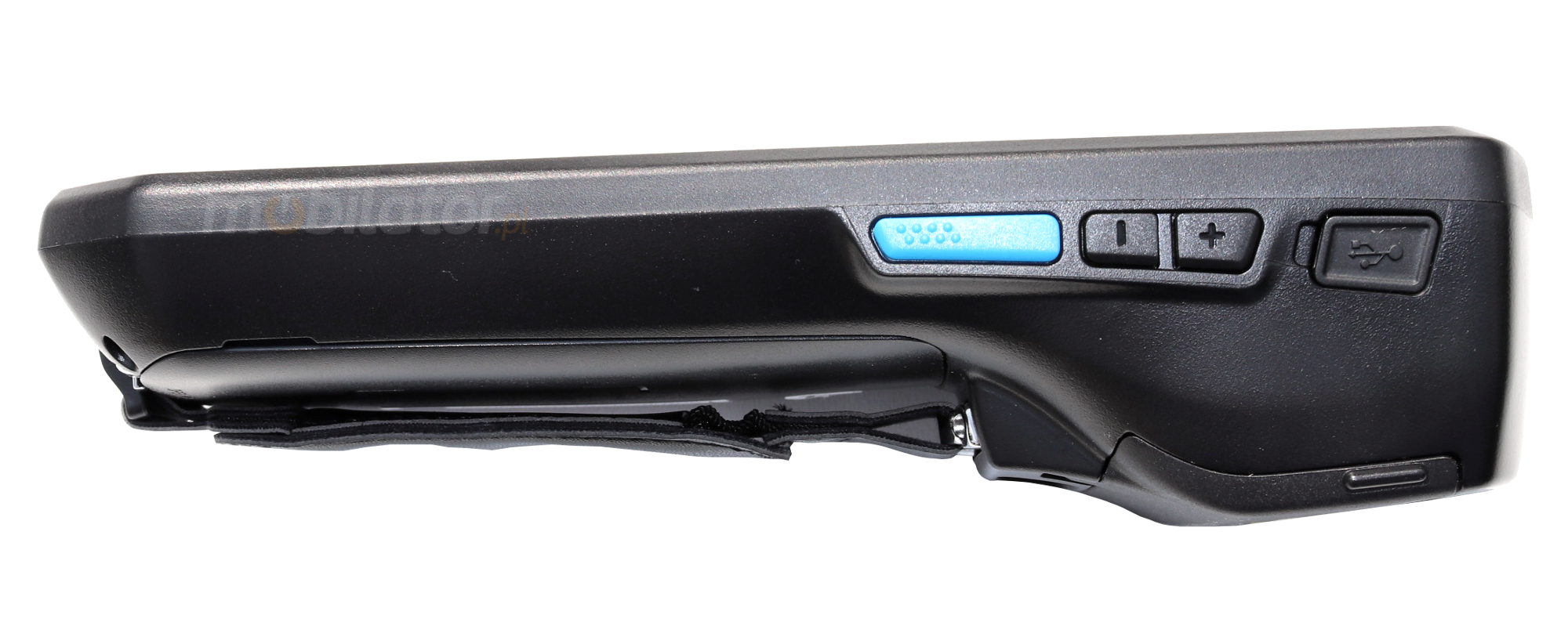

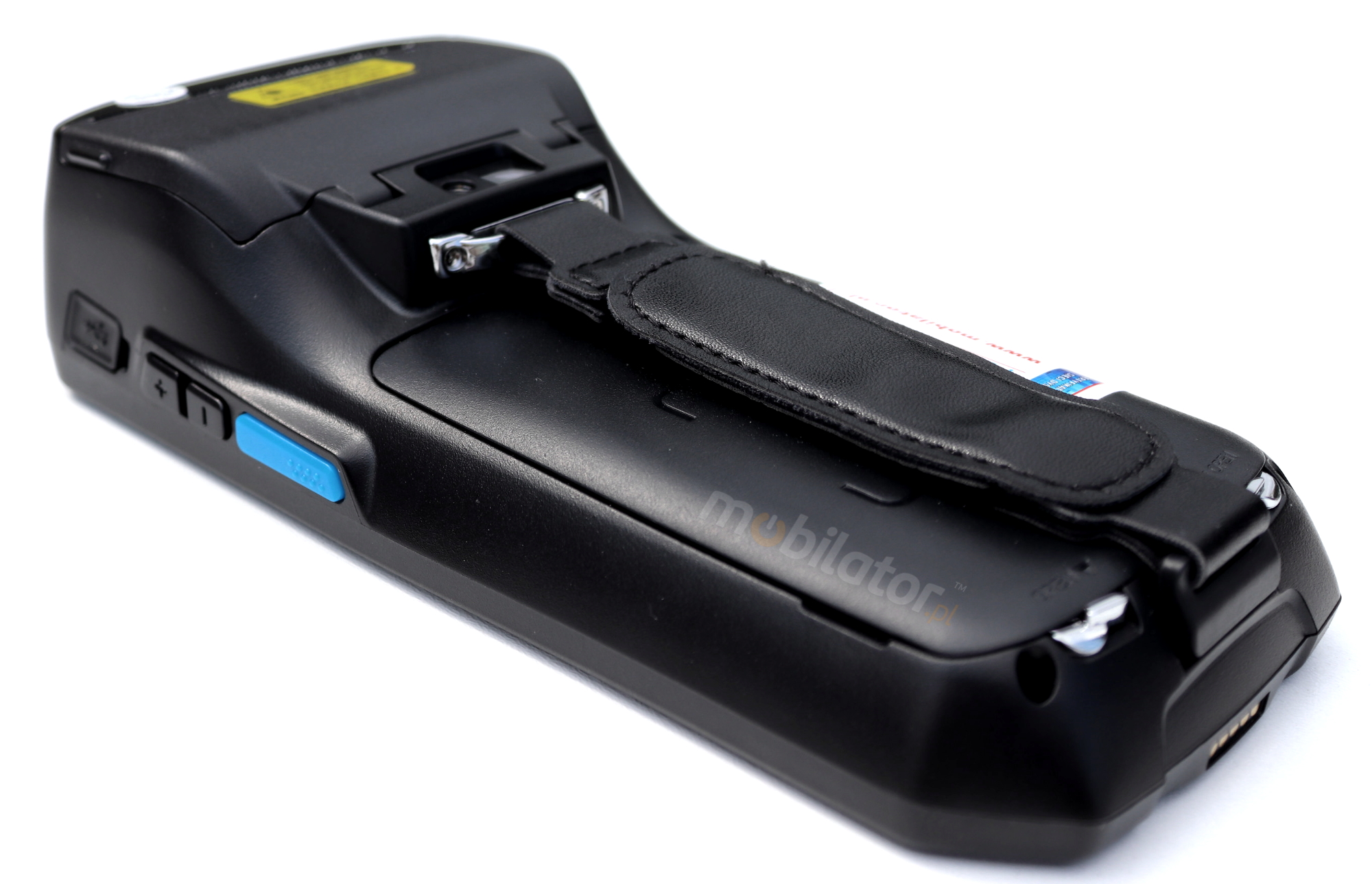

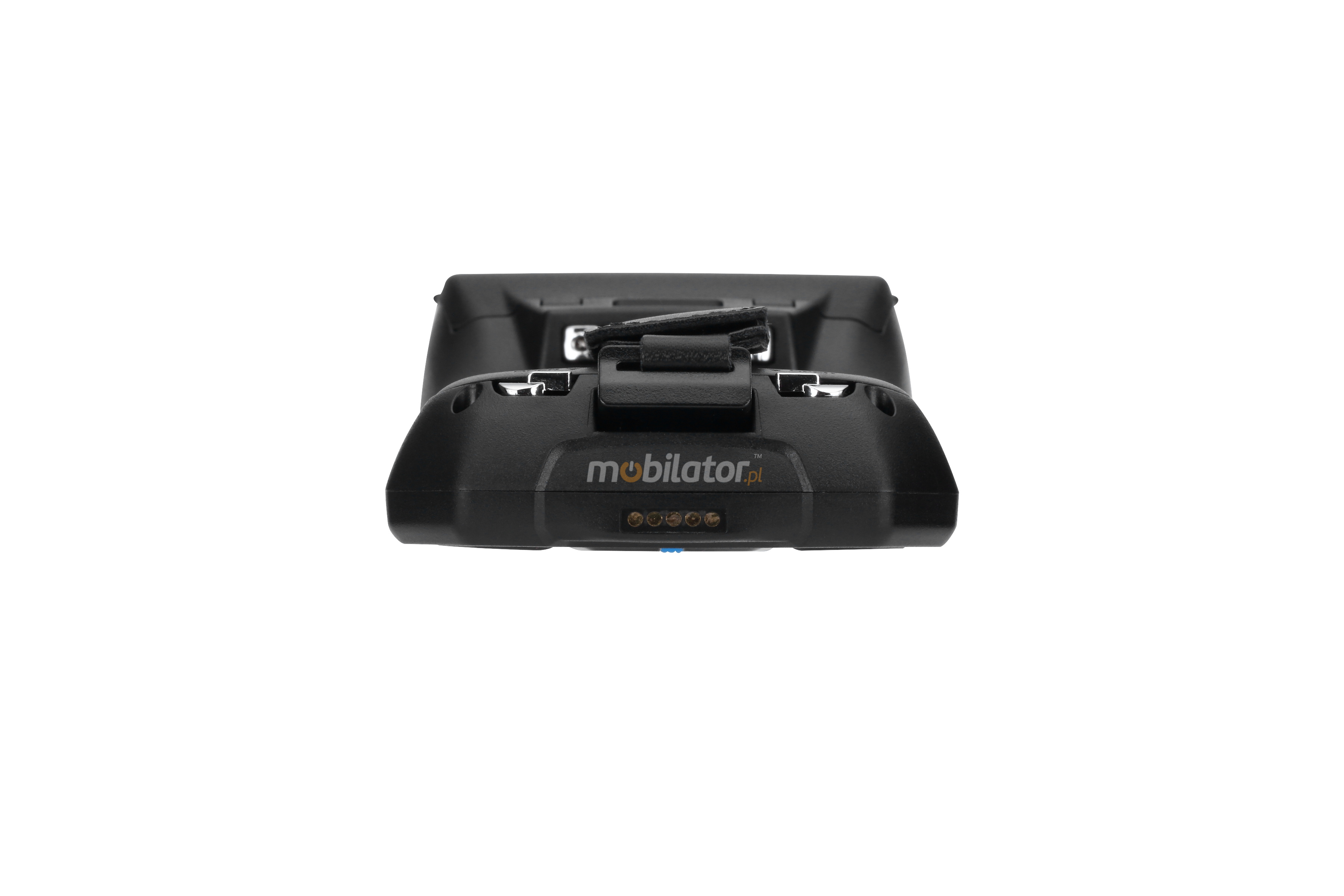

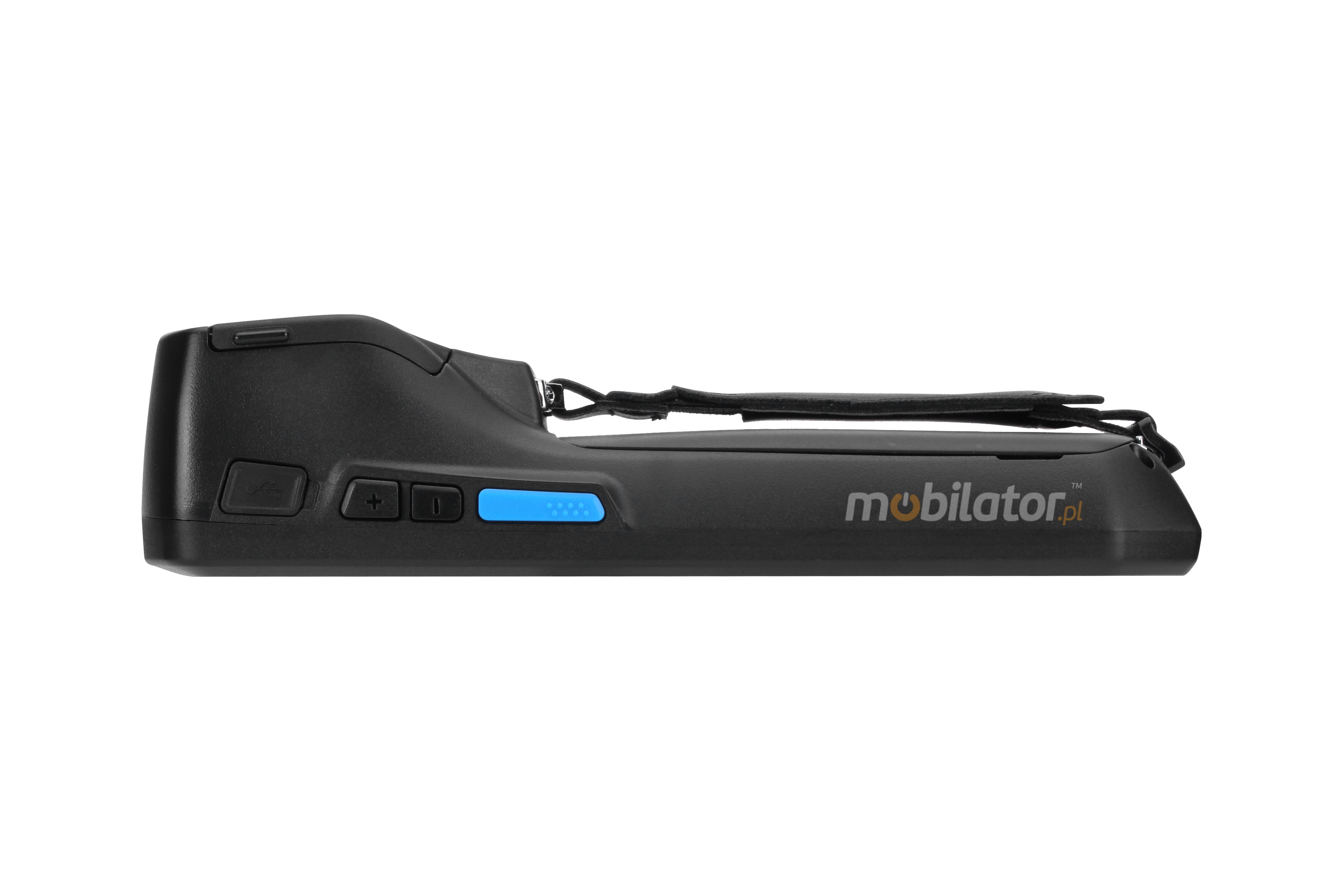

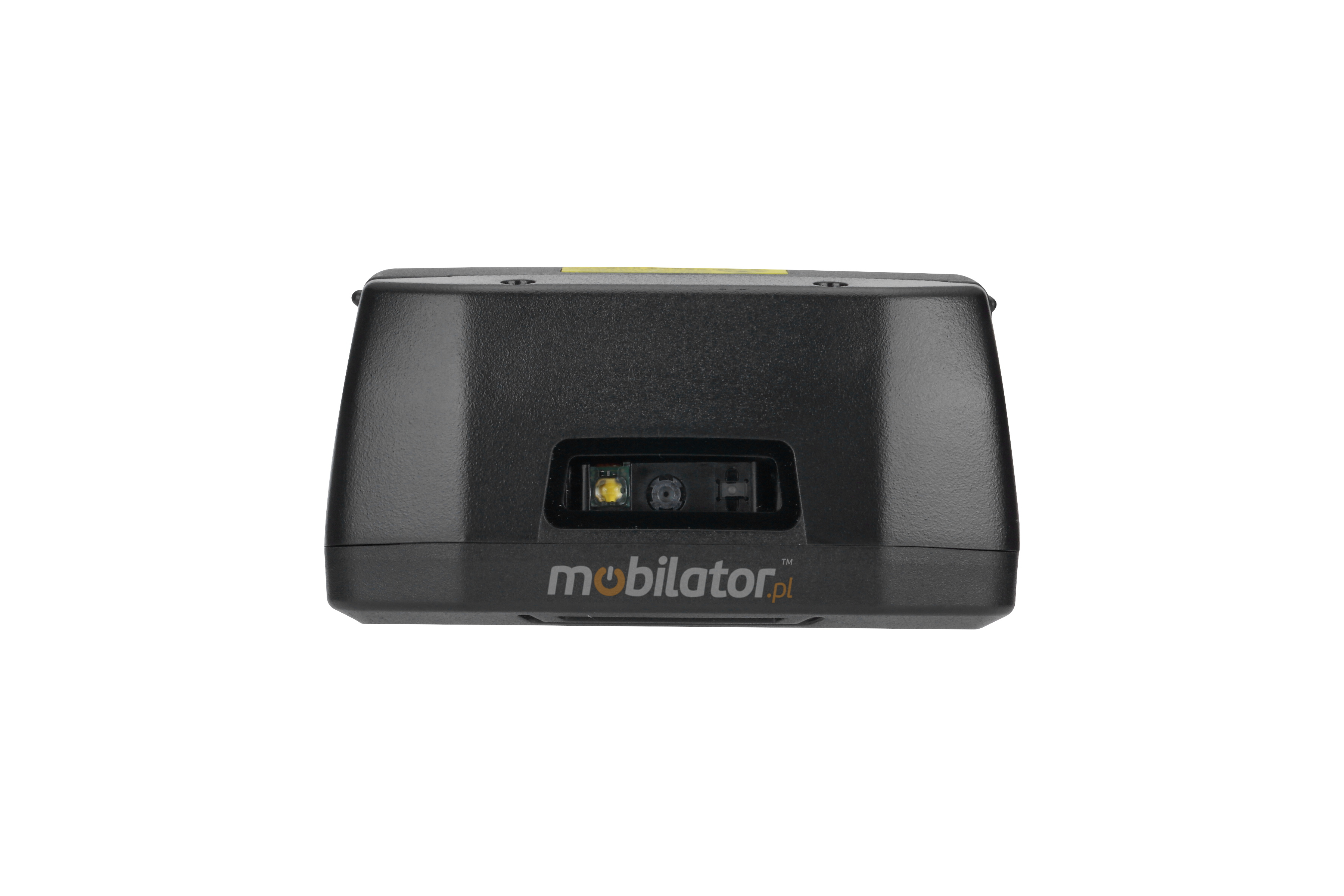

Industrial Data Terminal MobiPad U93 is designed for resistance and convenience. The sleek and rugged 27mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.
|
Dimensions |
172 x 80 x 27mm |
|
Net weight |
500g |

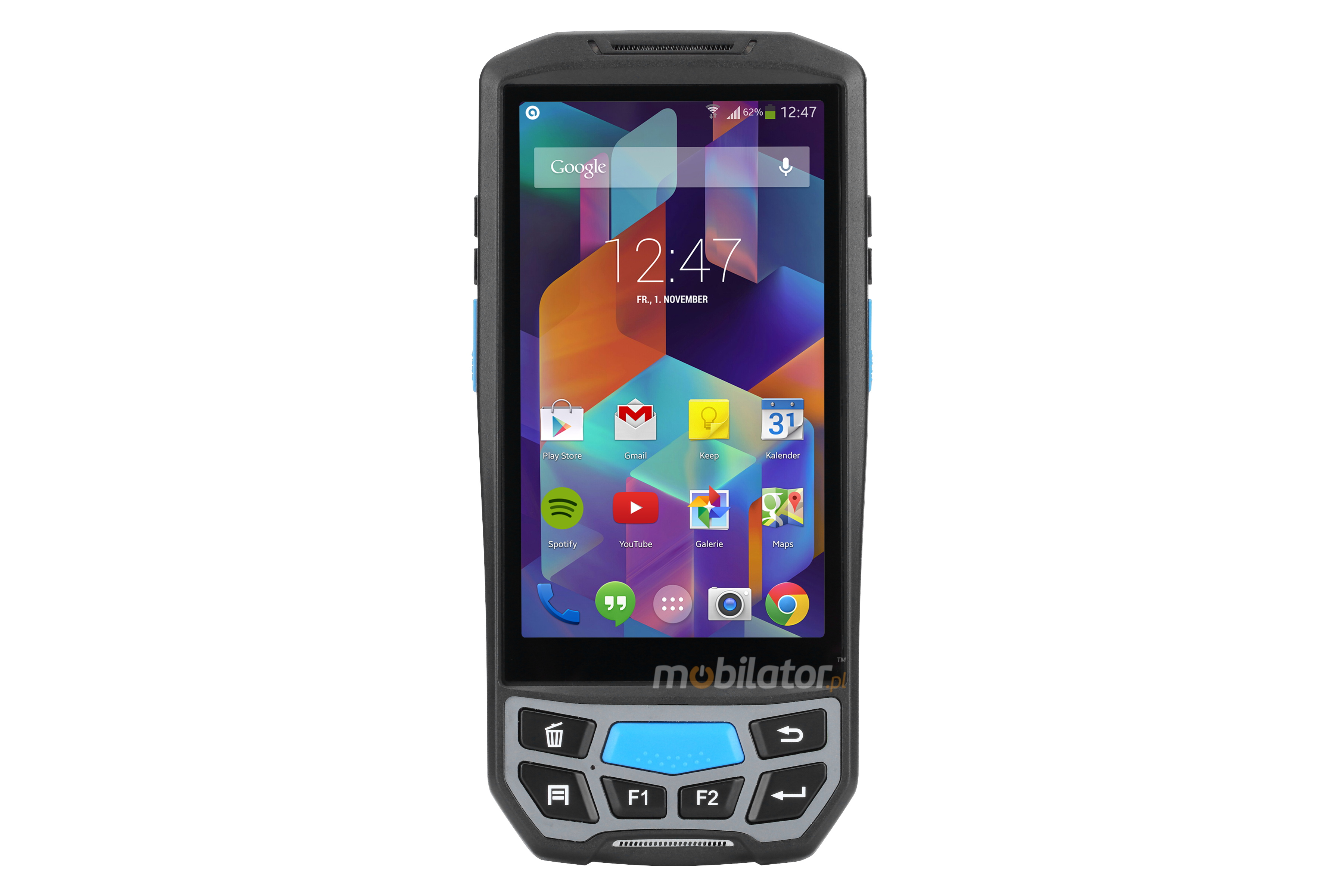

Capacitive screen

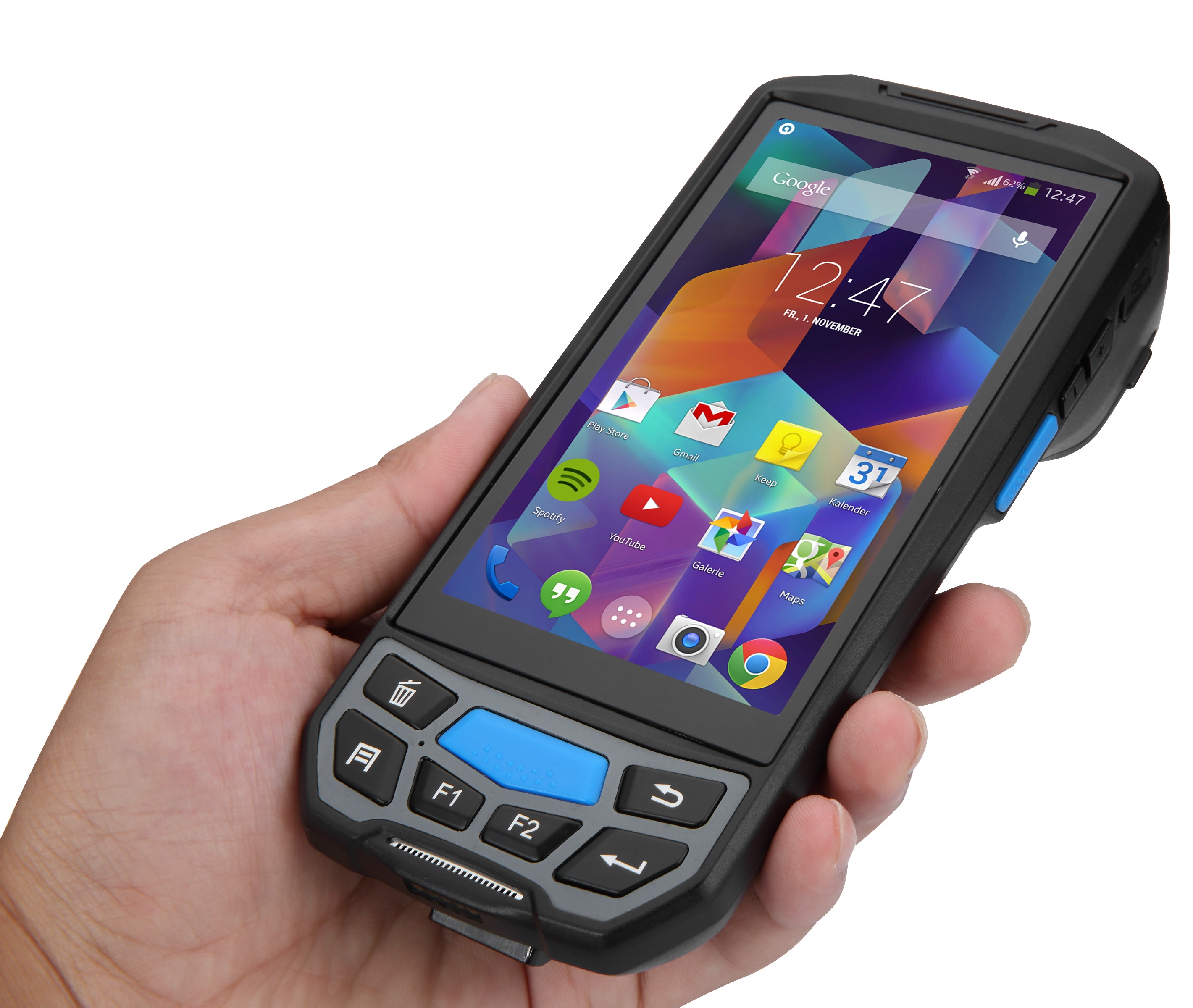

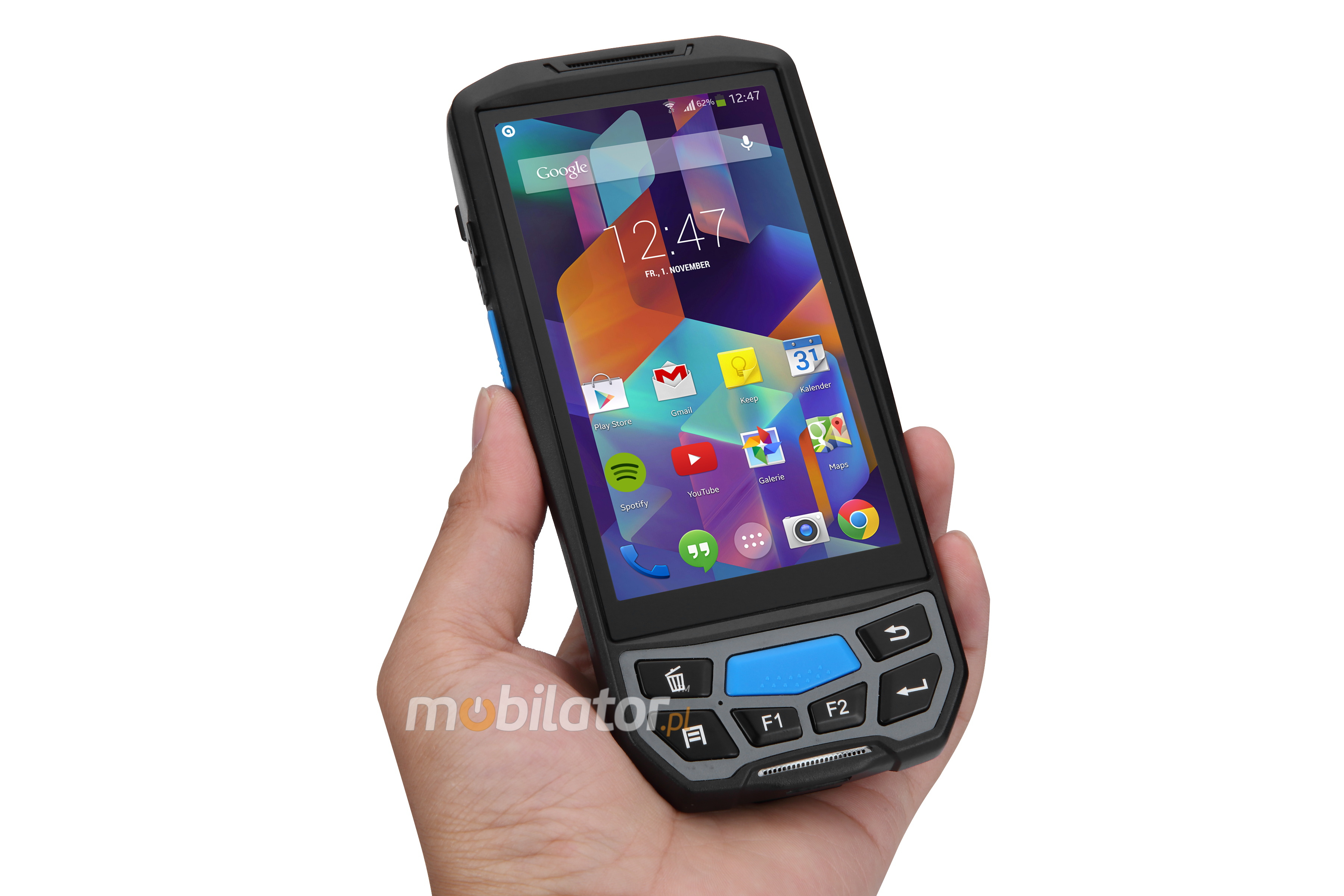

With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.
up…
menu…

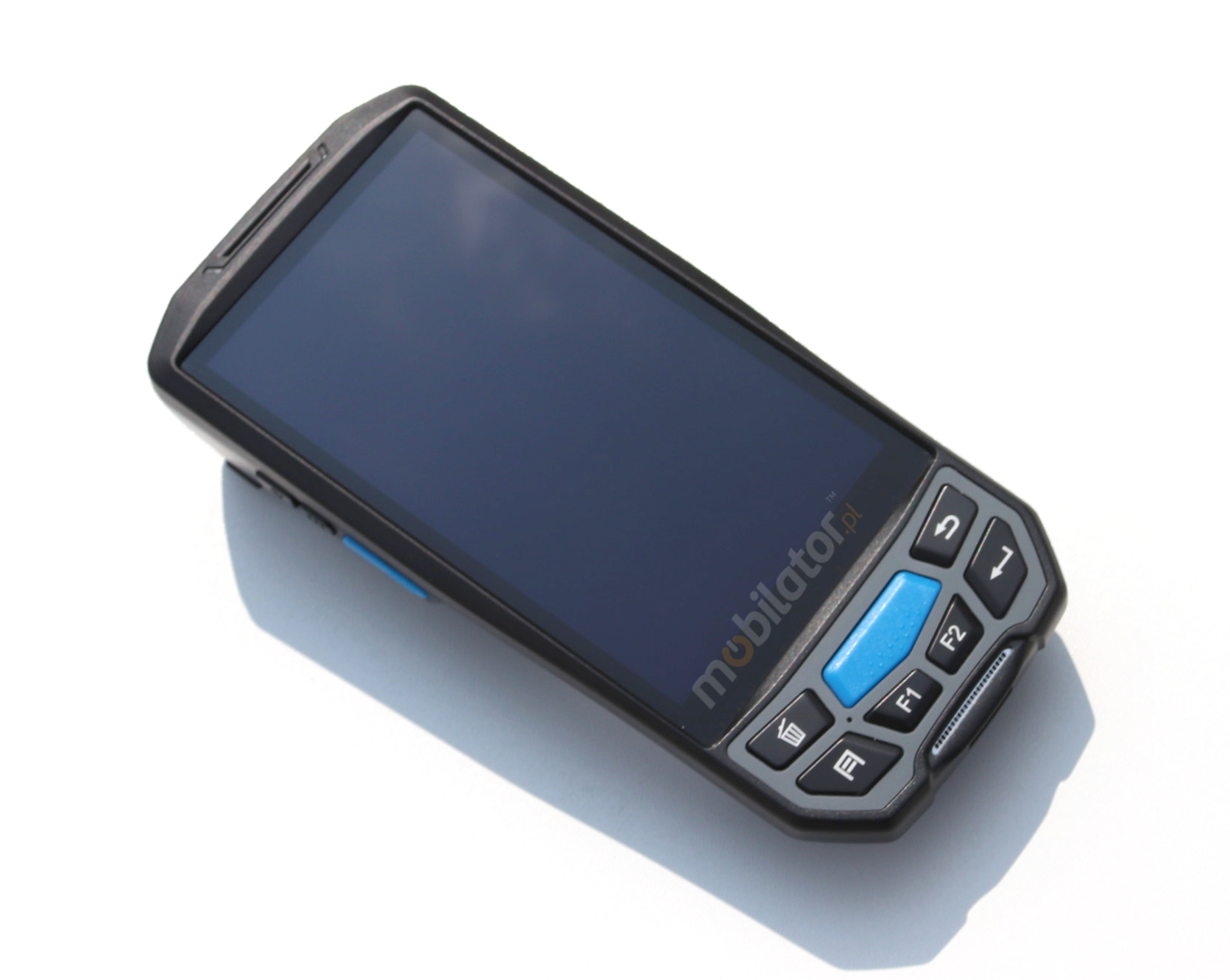

REsistance
.JPG)

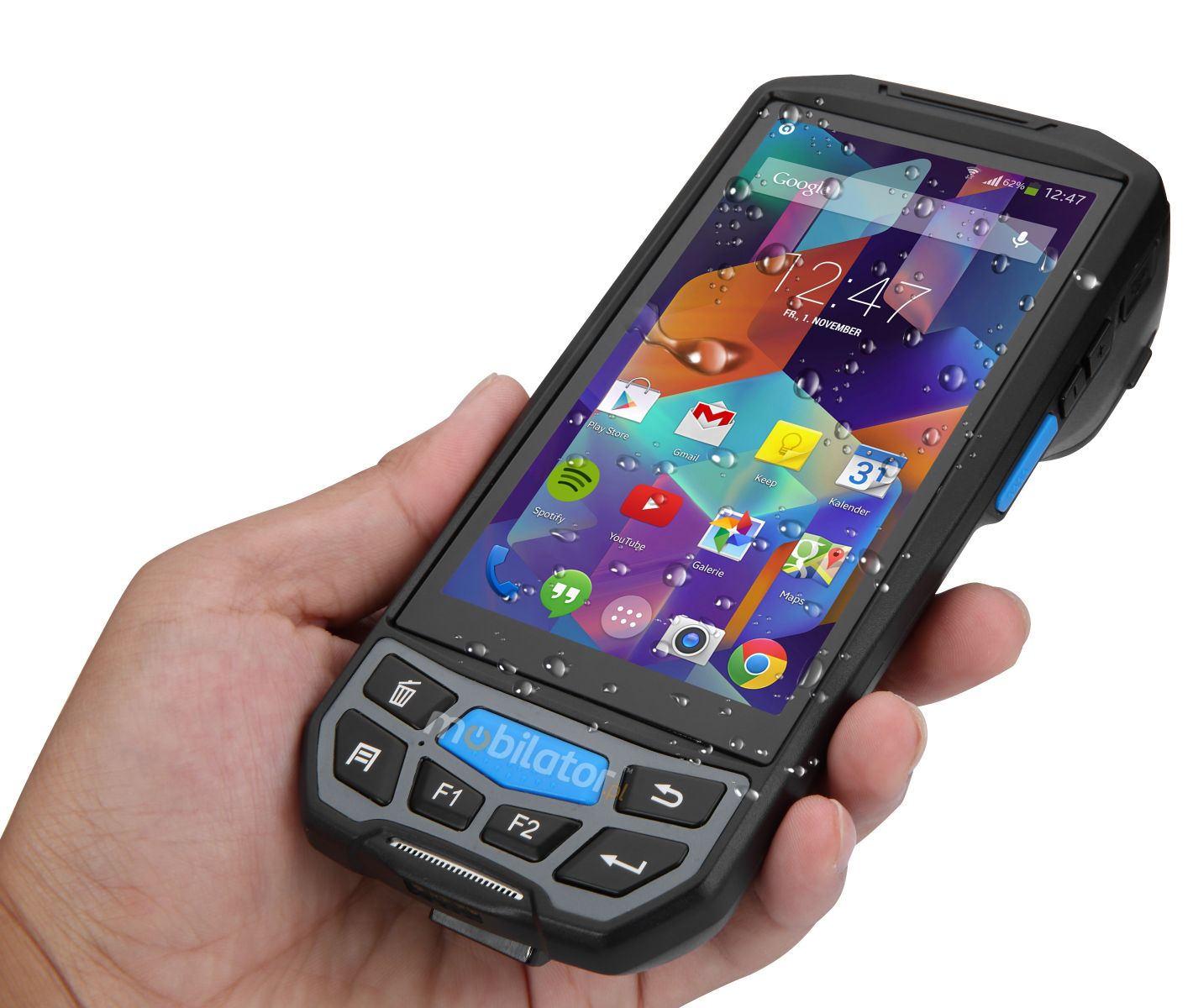

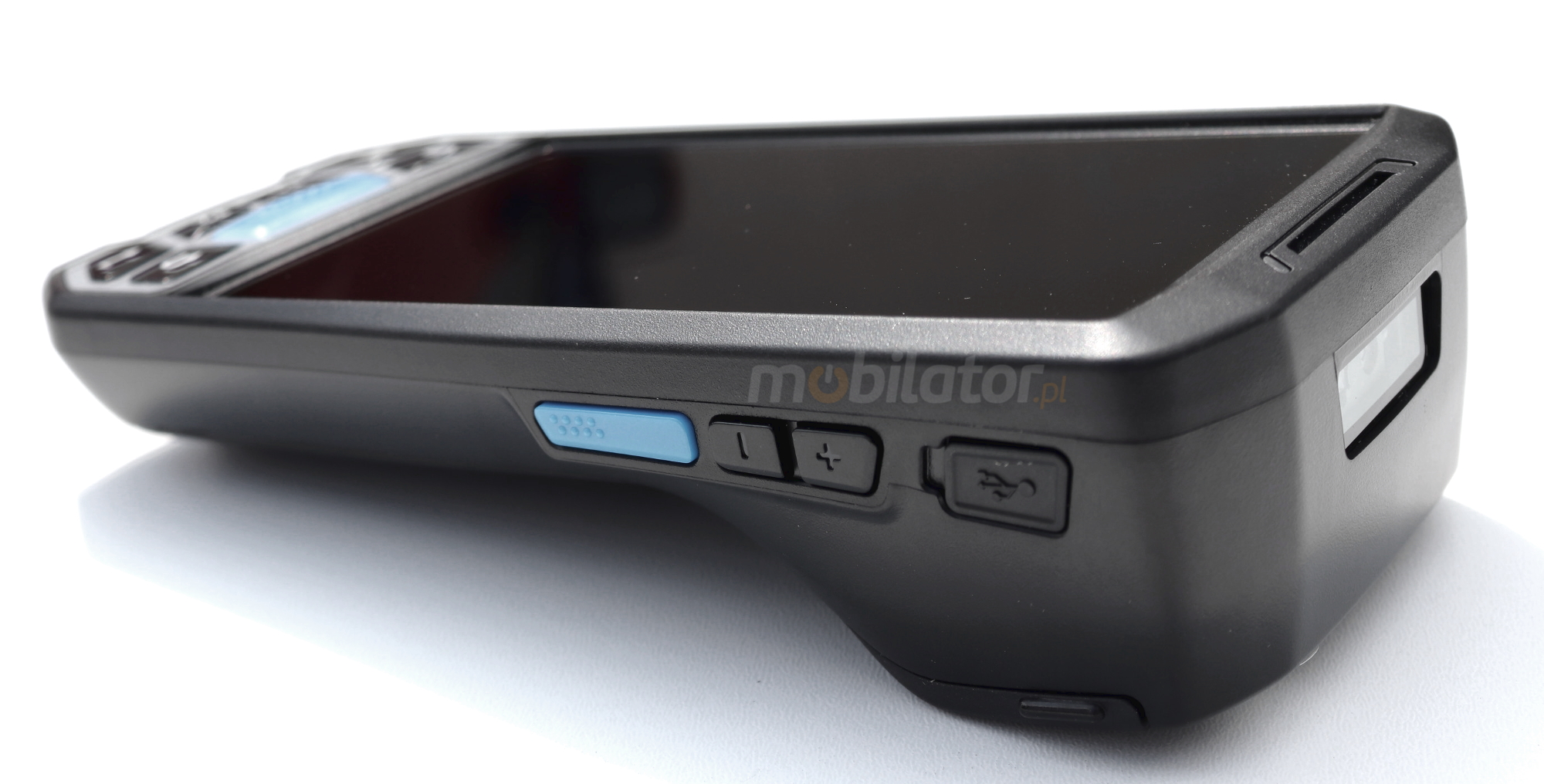

IP66 Protection
The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.
|
IP6X |
No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
|
IPX6 |
Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). |
1.5m drop resistance
Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.
Extreme temperatures
MobiPad U93 is suitable for continuous operation in both low and high temperatures in the range of -20°C to 50°C. When the device is off, it can handle temperatures ranging from -25°C to 70°C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.
|
Working Temp. |
-20°C do 50°C |
|
Storage Temp. |
-25°C do 70°C |
|
Humidity |
5% do 95% |
up… menu…
data collecting
NFC

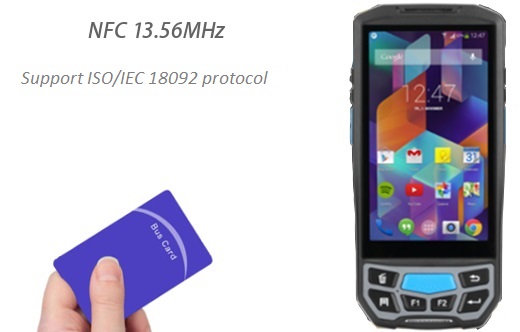

Short-range communication, known as NFC, is a radio communication standard that allows for wireless data exchange at a distance of a few centimeters. This technology is a simple extension of the proximity card standard that combines smart card interface and reader in one device. NFC devices can communicate with existing equipment in the standard ISO/IEC 18092 (cards and readers) as well as with other NFC devices, and thus are compatible with existing and already used public transport and payment infrastructures such as MIFARE.
.jpg)

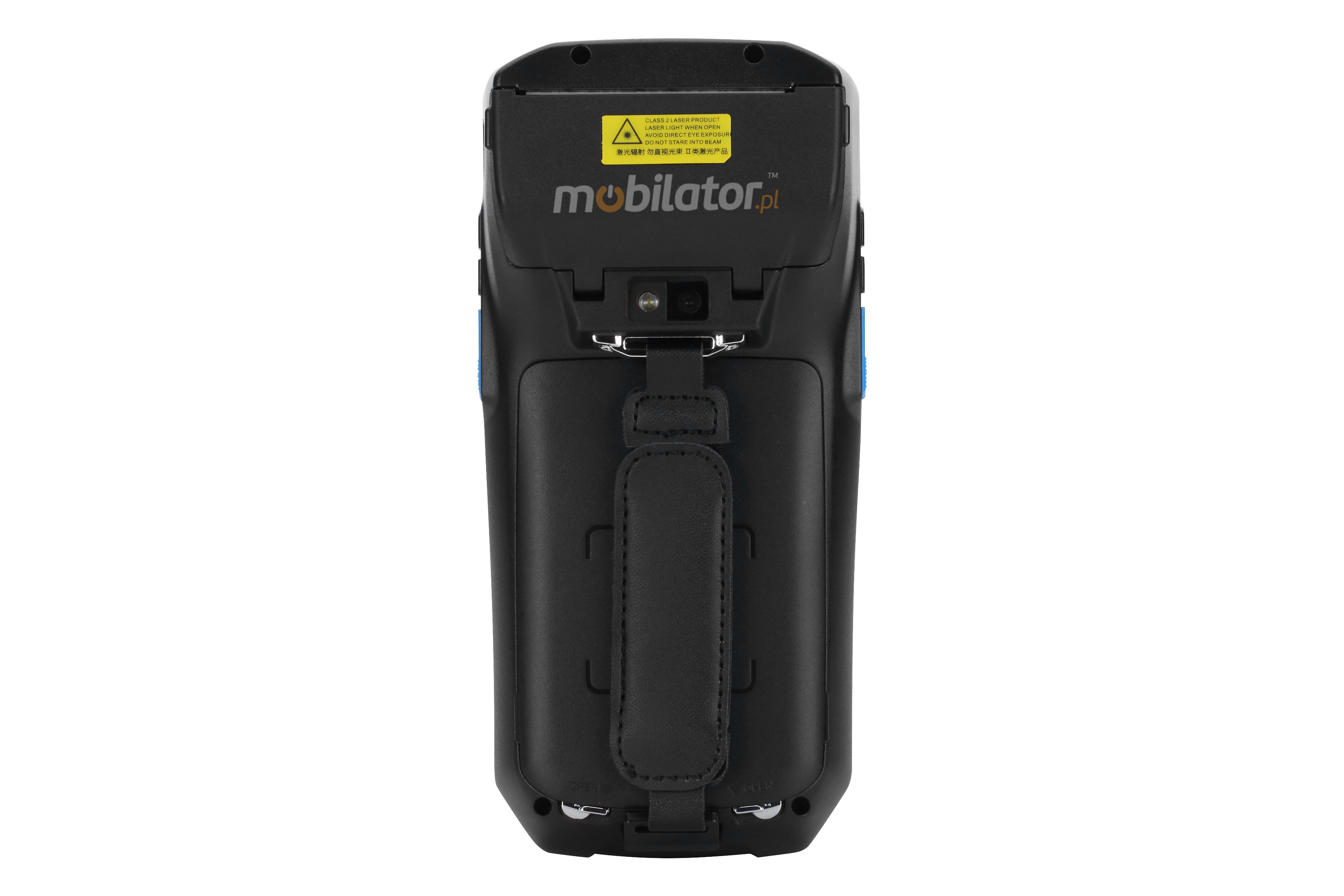

RFID Reader
RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
|
RFID HF |
HF 13.56 MHz
Support ISO14443A/B | ISO15693
Read distance from 3 to 8 cm.
|
|
RFID LF (option) |
LF 125 KHz
Support ISO 11784/5 protocol.
Read distance from 3 to 8cm.
|

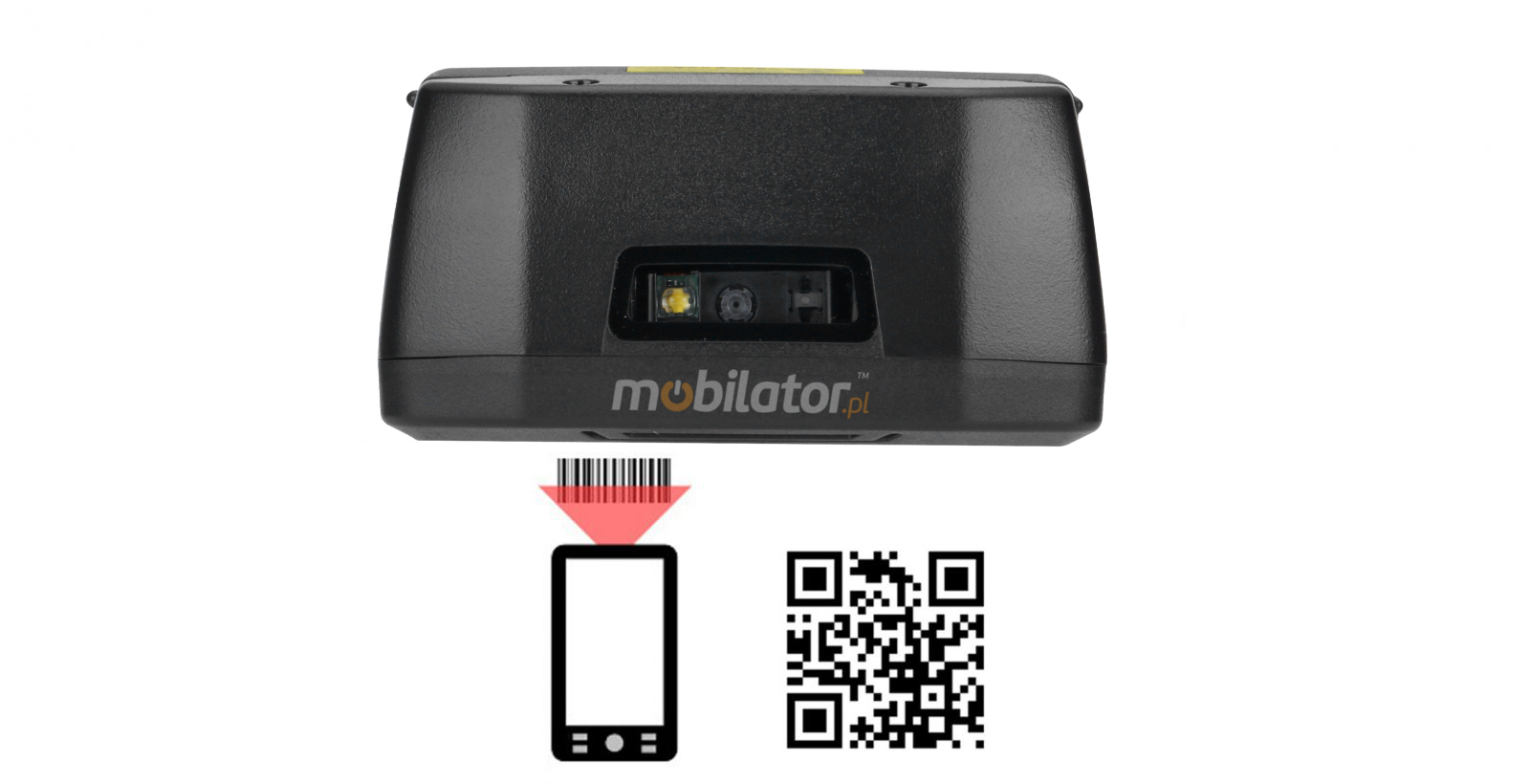

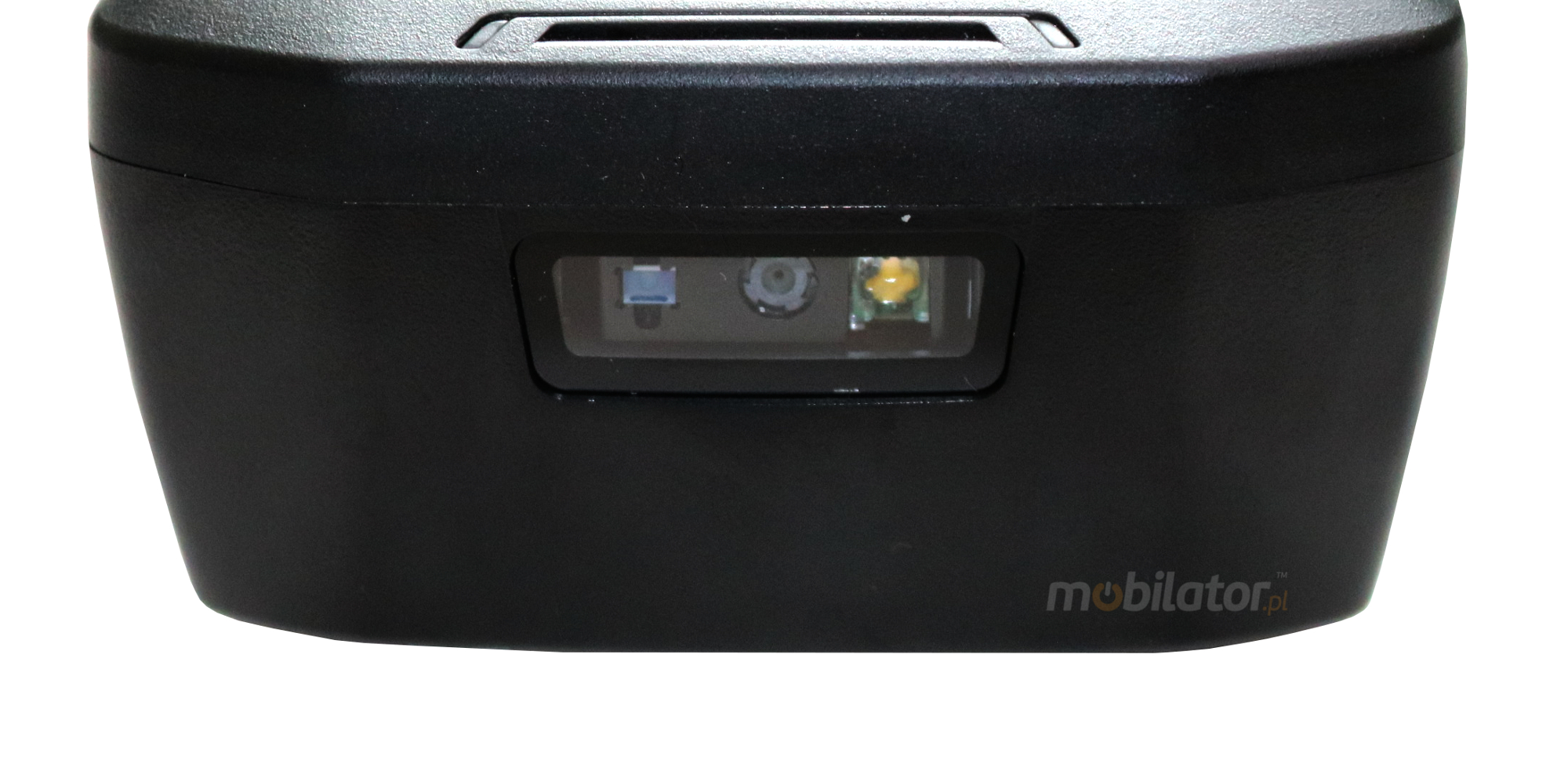

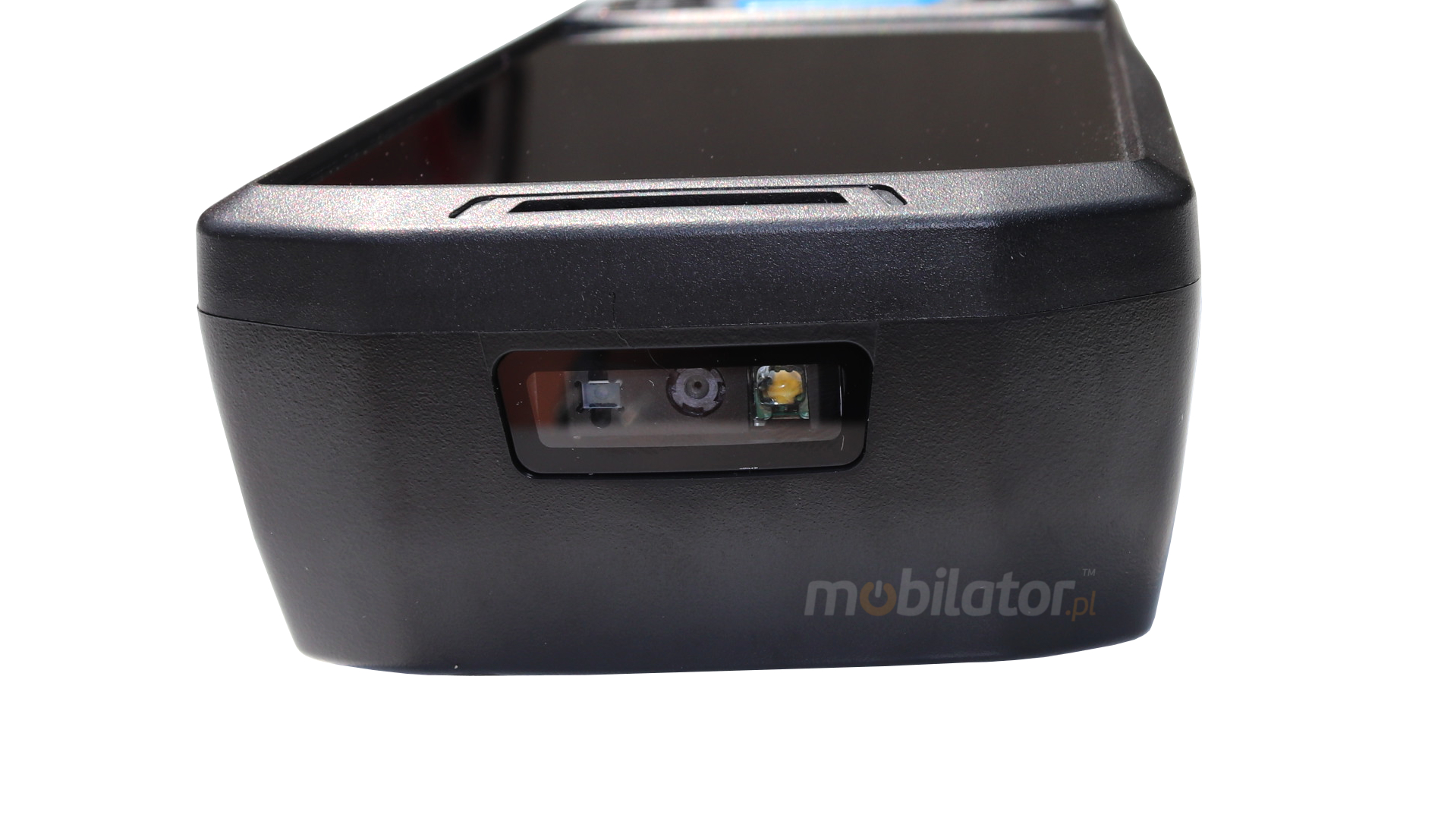

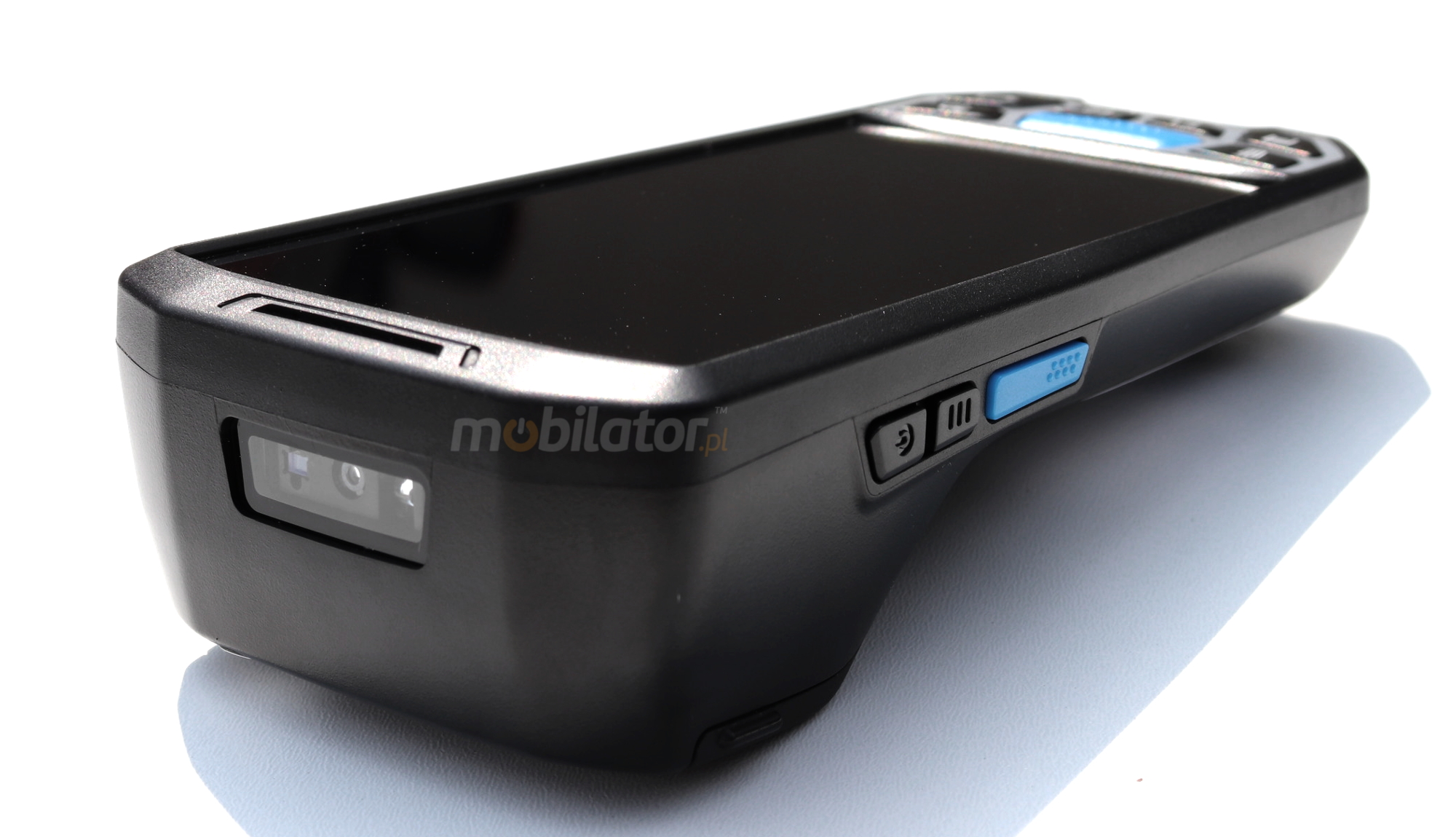

Barcode scanner
(2).jpg)
|
1D / 2D |
Obs³ugiwane kody |
|
Honeywell N6603 |
1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post.
2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR Code, Micro QR Code, Aztec, Postal Codes: US PostNet, US Planet, UK Planet, Australian Postal, JapanPostal, Dutch Postal (KIX)3.
|
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

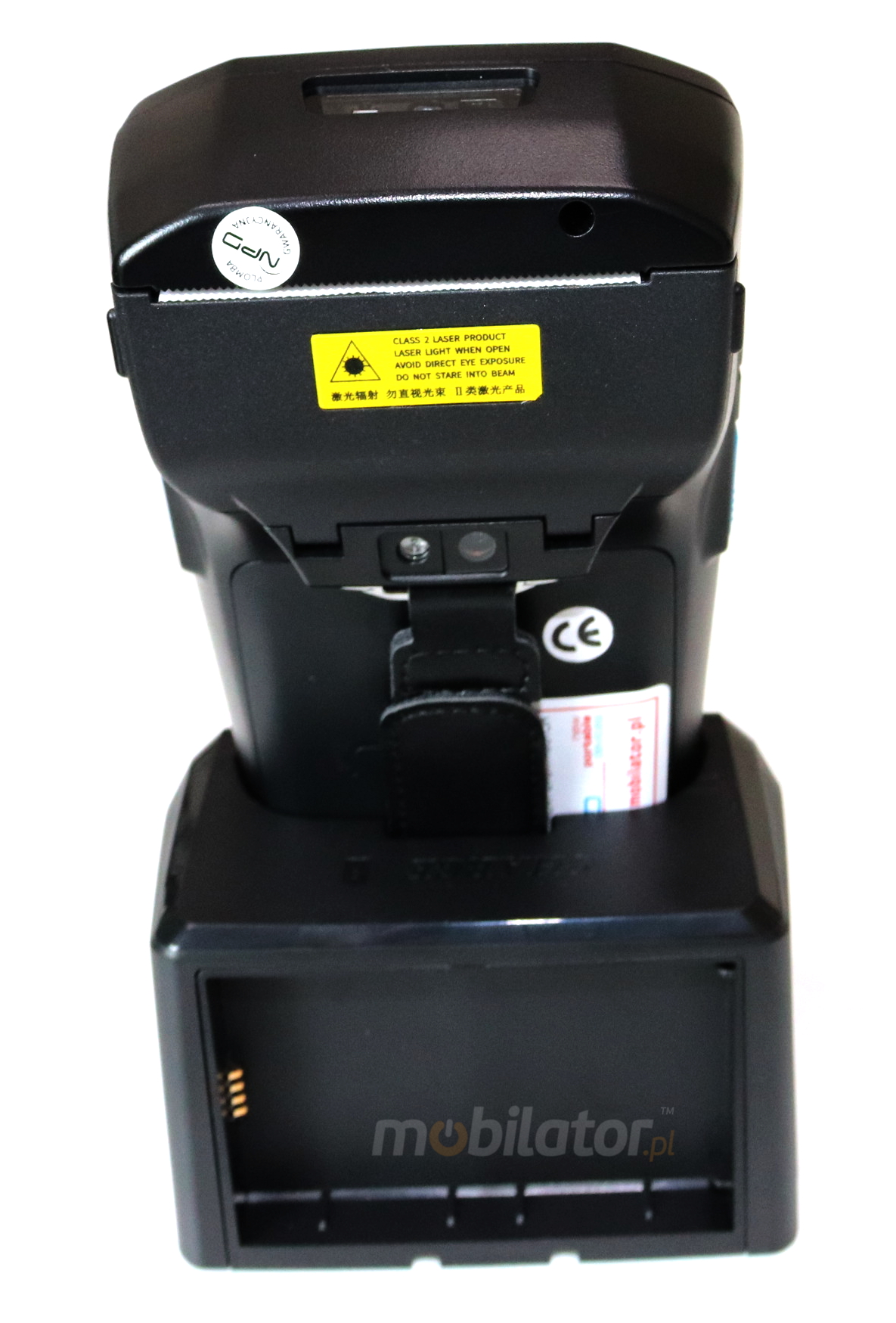

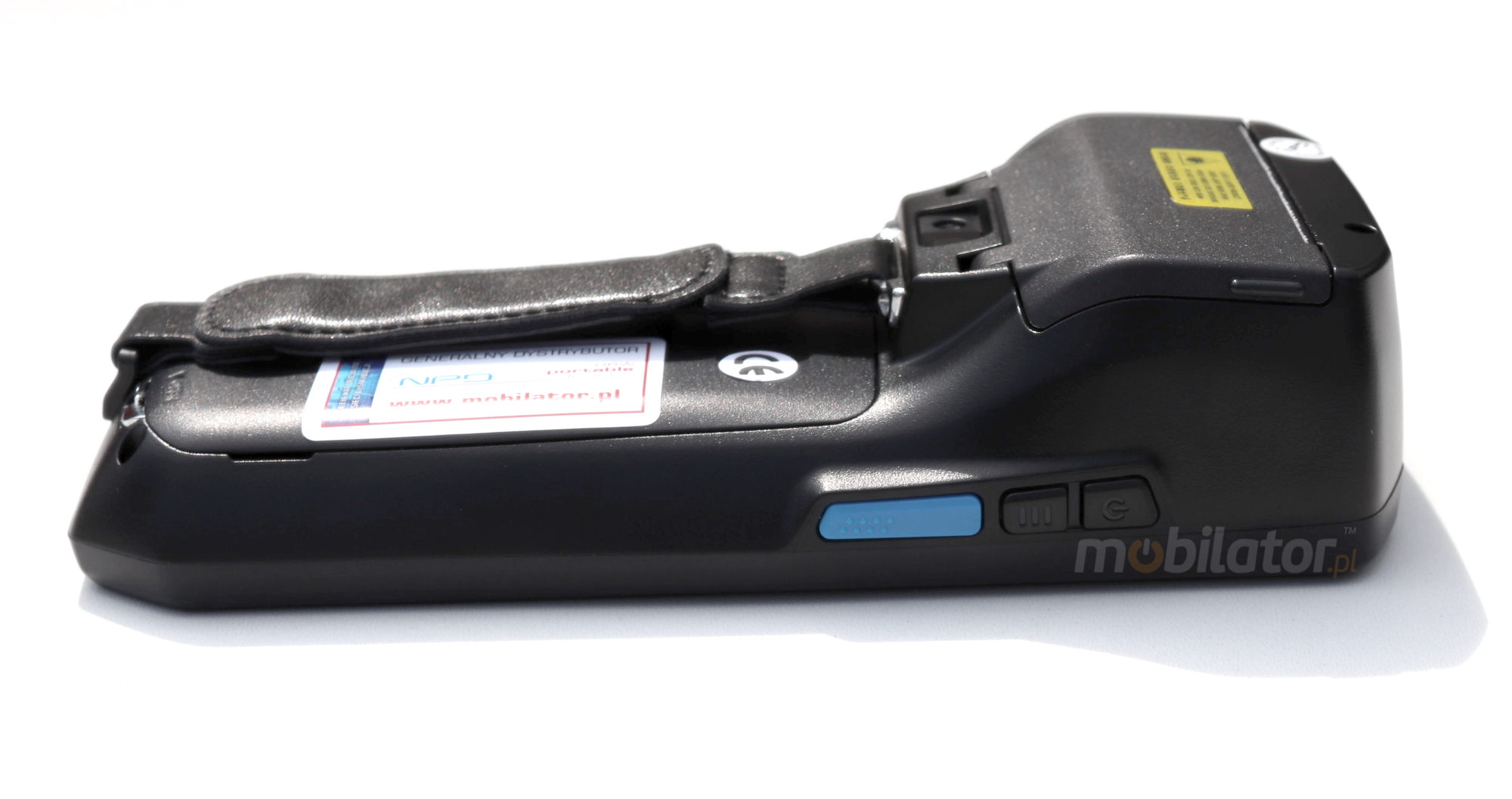

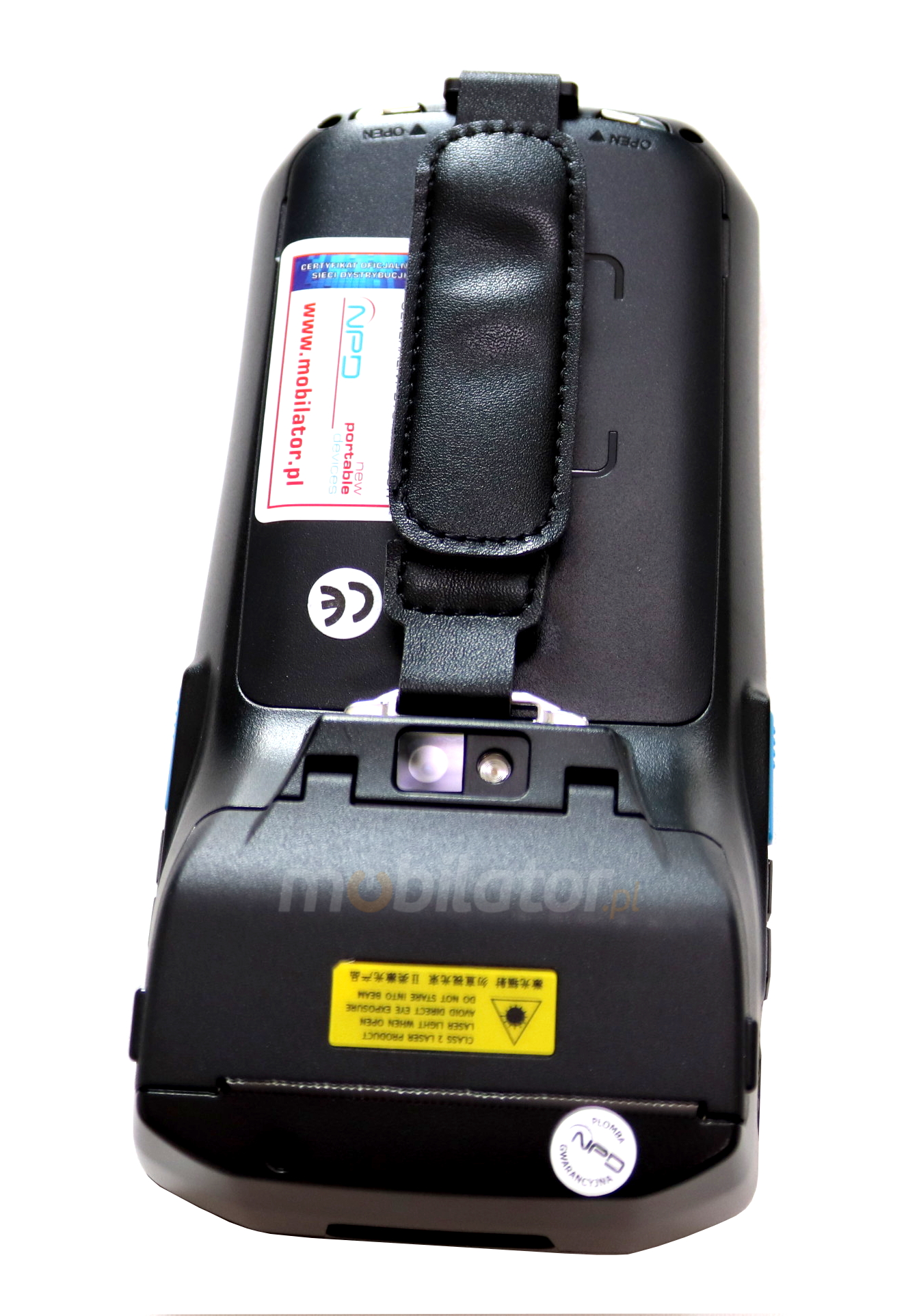

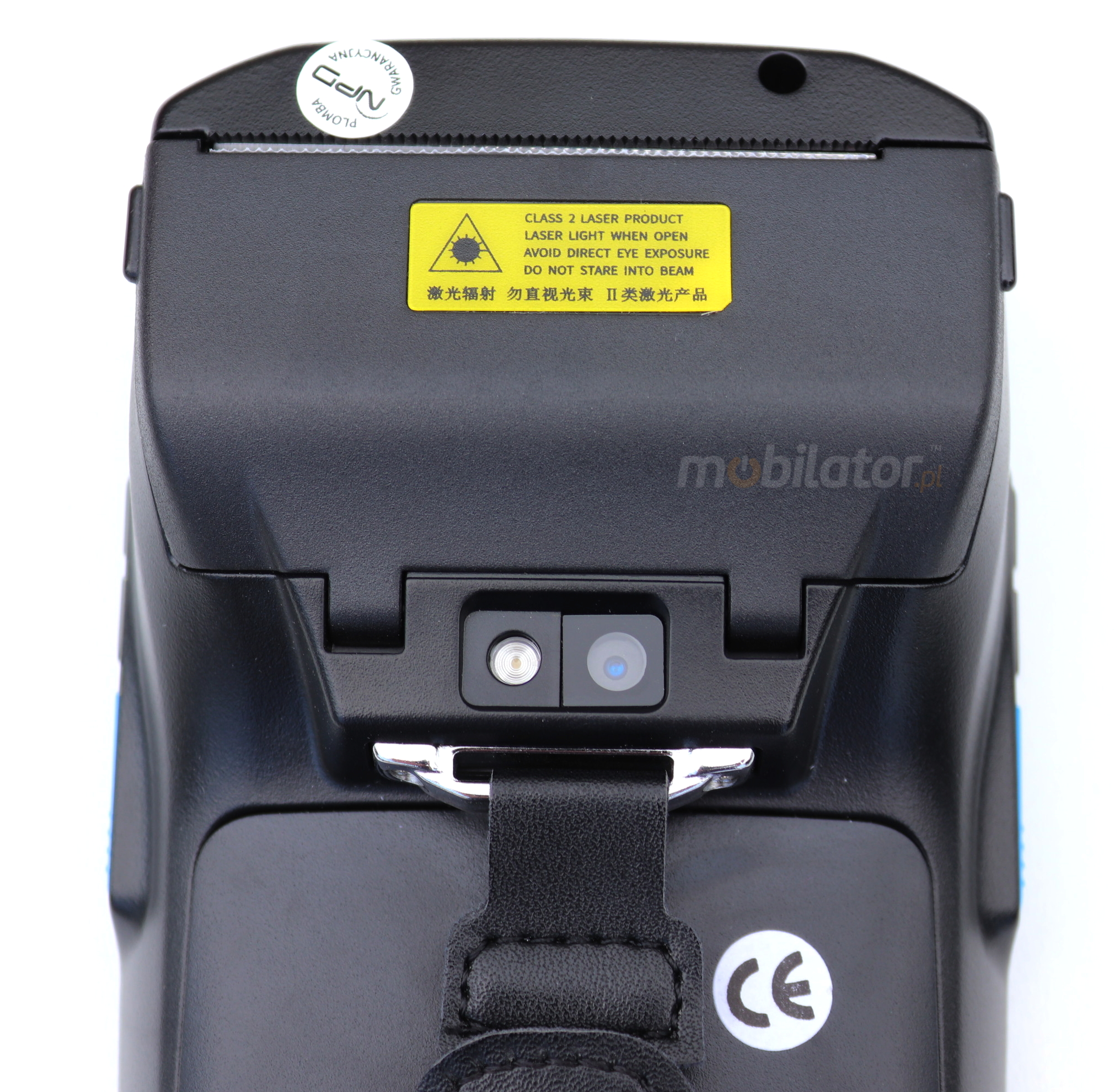

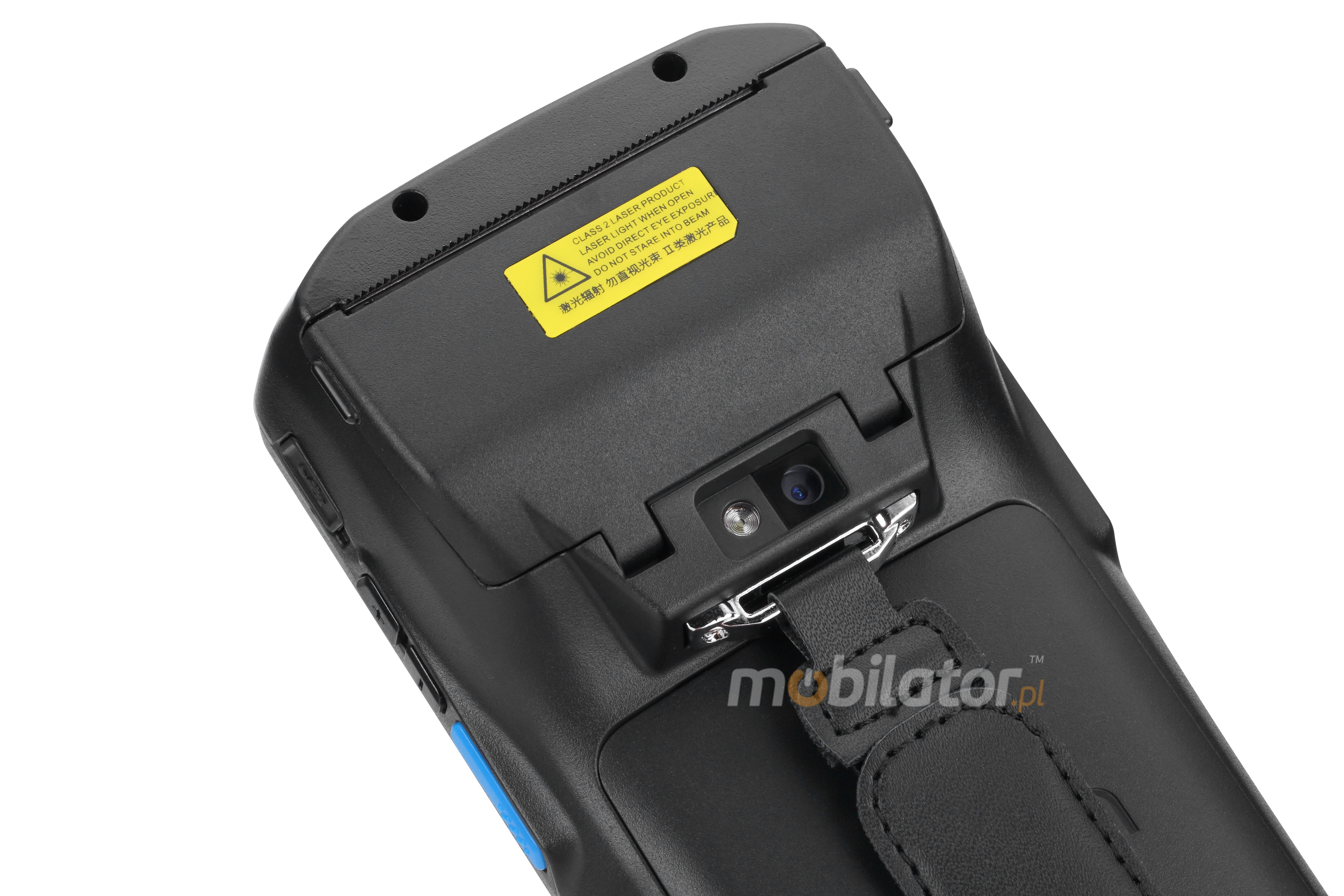

Thermal printer

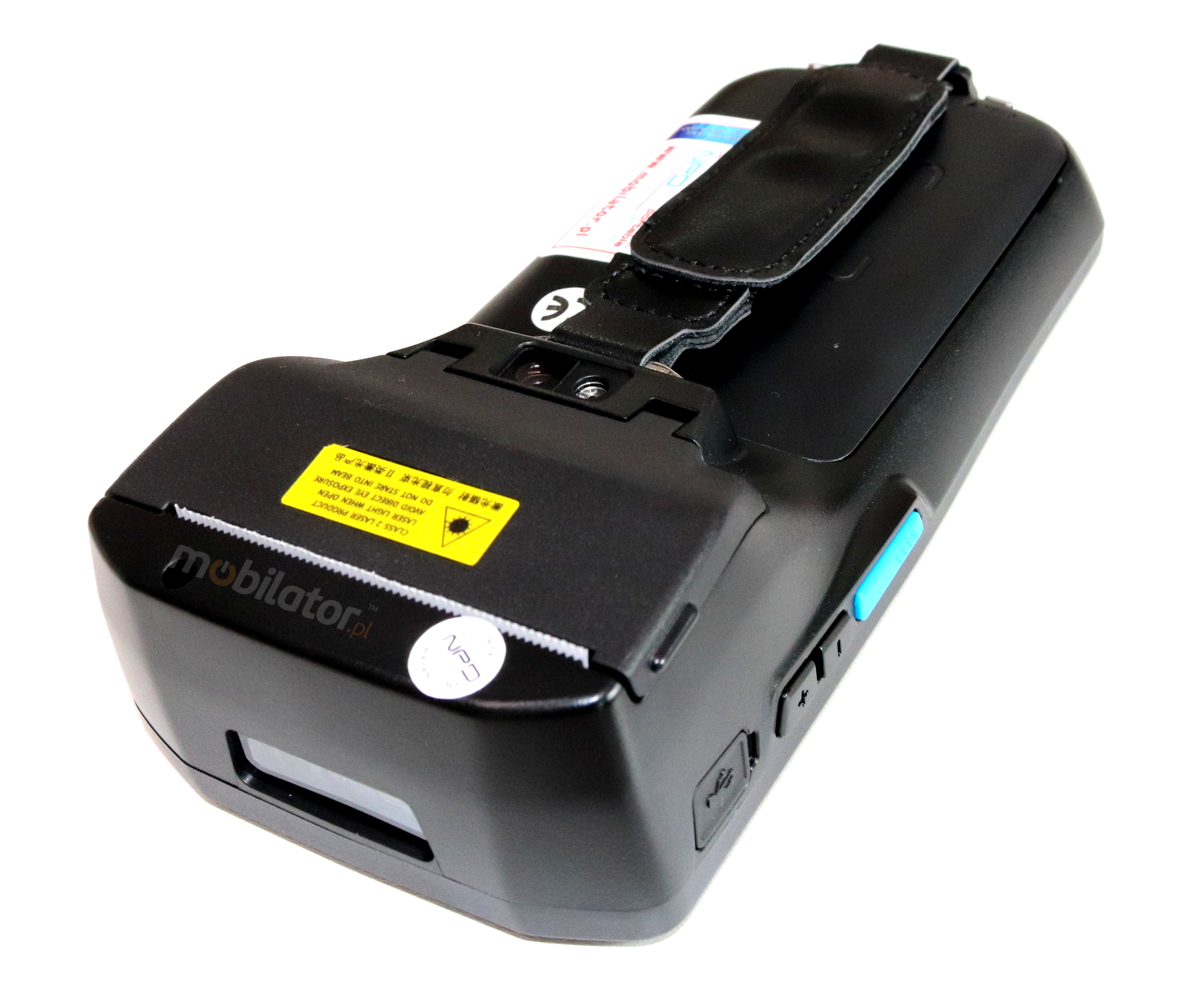

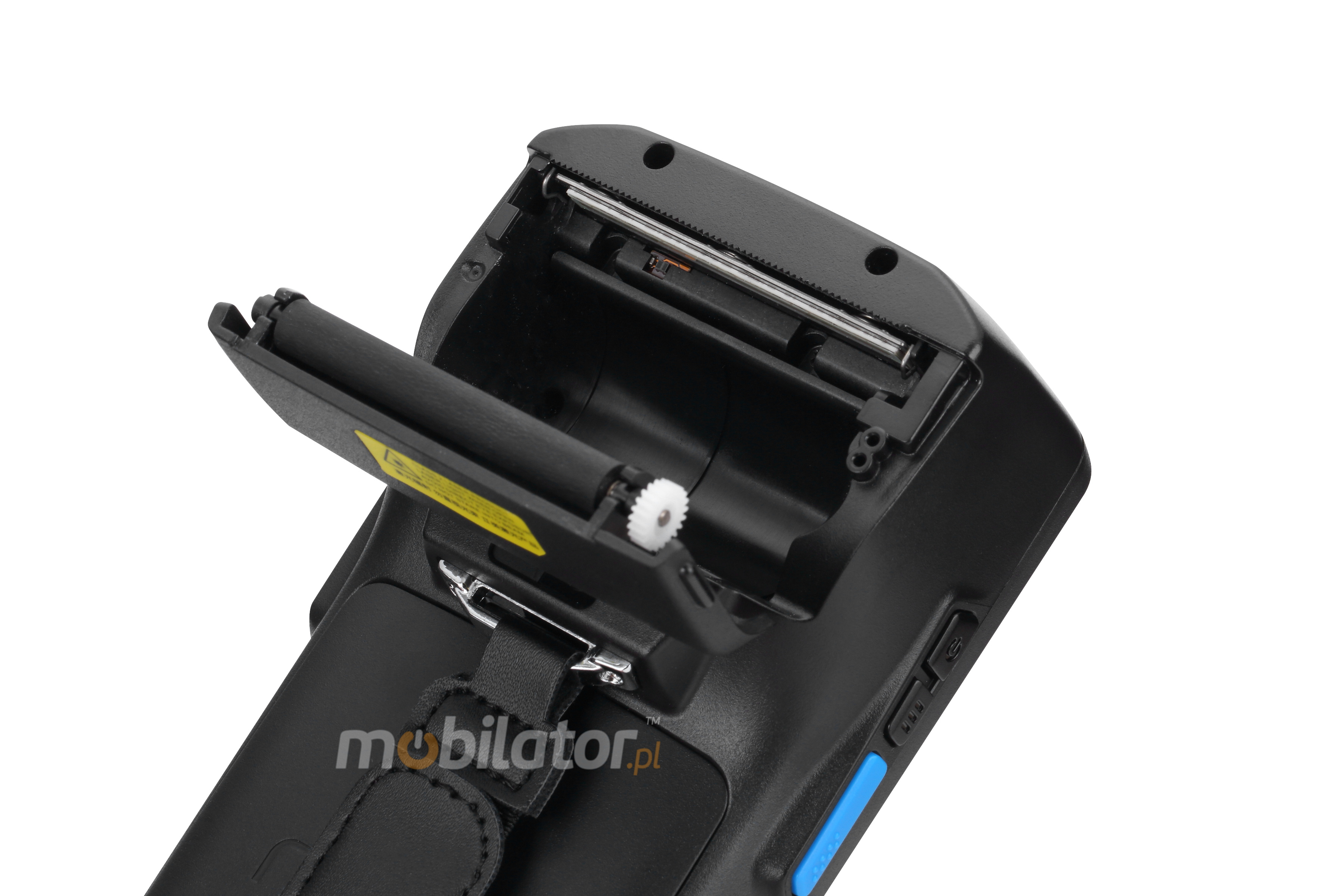

MobiPad U93 with built-in thermal printer is designed for field work, where it can be use to print receipts. A small number of moving parts and a solid construction ensure trouble-free operation even in the most difficult eliminates the need for expeensive ink or toner. No matter how many pages the pages will be print - there will be enough ink in the printer.
|
Printing method |
Thermal |
|
Paper width |
58mm |
|
Print speed |
80mm/s - 90mm/s |
up… menu…
wireless communication
4G Module
4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.
|
4G Module |
FDD-LTE: B1/B3/B5/B7/B8 2100/1800/850/2600/900
TDD-LTE :
Band38:2570 MHz - 2620 MHz,
Band39: 1880 MHz - 1920 MHz,
B41: 2555-2655MHz,
B40: 2300-2400MHz, B38/B39/B41/B40/B38/B39/B40/B41 |
|
3G Module |
GSM: 850/900/1800/1900 B5/B8/B3/B2
WCDMA: B1/B2/B4 2100/1900/1700
TD-SCDMA: B34/B39 |
GPS Navigation
Mobile terminal MobiPad U93 is equipped with a professional GPS module with combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.
Bluetooth 4.1
Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.
Wi-Fi network
Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, the Emode I18H, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.
|
Standards |
802.11(a/b/g/n) |
|
Frequencies |
2.4GHz + 5GHz (Dual-Band) |
up… menu…
Application
Trade and Services
Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.
Industry and Construction
Industrial tablets and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards).
Warehouse
An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
up… menu…
Available versions
The industry-leading MobiPad U93 data collector is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.
