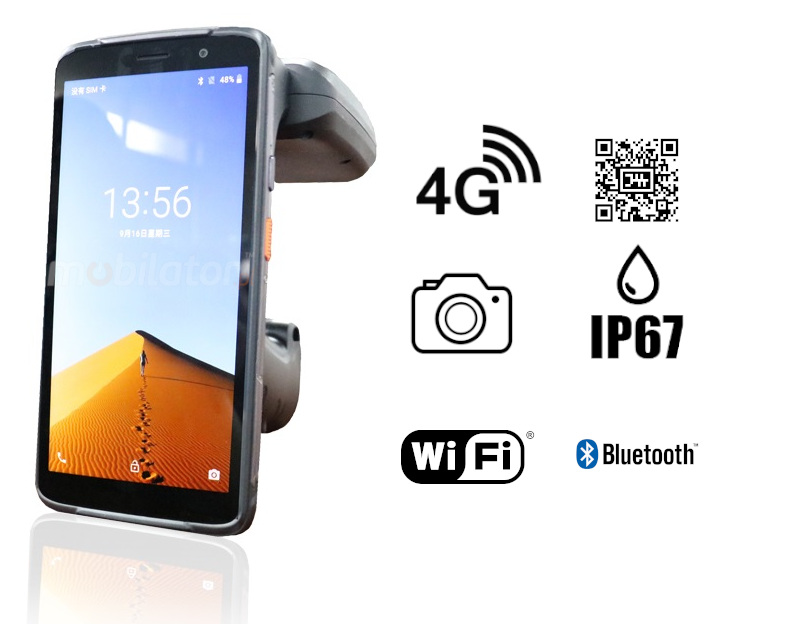

MobiPad T20R-2D is a modern, waterproof industrial data collector with a pistol grip designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67.
Specification
| MobiPad T20R-2D UHF |
| Processor |
MT6762V, Octa-core, 2.0GHz |
| Operating system |
Android 9.1 |
| RAM |
4GB |
| ROM |
64GB |
| Display |
5,45" LTPS (720x1440) |
| Touch screen |
Capacitive |
| Battery |
10000 mAh |
| Camera |
13MPx + flash
|
| Protection |
IP67 |
| Communication |
4G | Bluetooth 5.0 | Wi-Fi | GPS |
| Connectors |
USB C
|
| Memory card |
Micro SD (max. 64GB) |
| SIM card |
1xMicro SD(TF) and 1xNano Sim OR 2xNano Sim |
| 2D Scanner |
SE6100-2D
|
| RFID Reader |
UHF RFID R2000
|
| Accessories |
Charger, USB cable, hand strap, screen protector |
| NFC |
No |
Dustproof industrial data collector was equipped with high performance, energy-efficient MT6762V processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory.

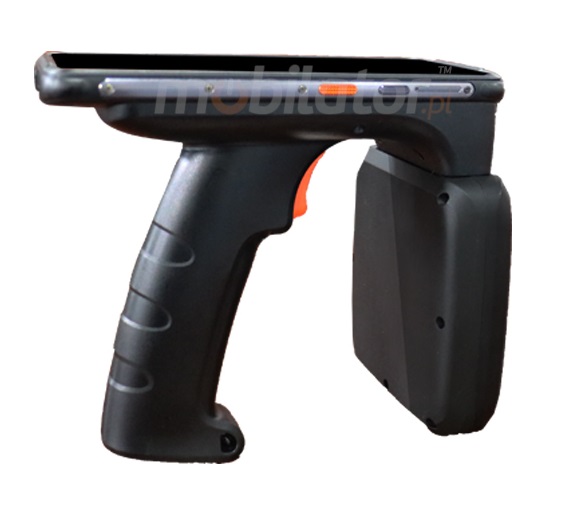

Ergonomic design
Industrial Data Collector MobiPad T20R-2D is designed for resistance and convenience. The sleek and rugged design and stylish case will make the collector very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing and pistol grip makes it safe and secure to hold it in your hand.

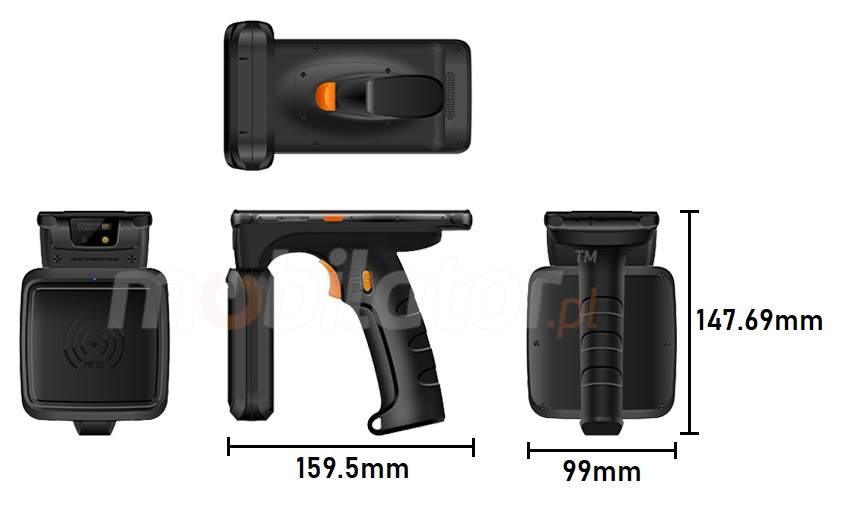

| Dimensions |
159.5 x 99 x 147.69mm |
| Net weight |
607g |
Capacitive screen
With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our collector with a few fingers at once.
up…
menu…
REsistance
IP67 Protection
The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.
| IP6X |
No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| IPX7 |
Can be submerged up to 1 meter in water for 30 minutes. |

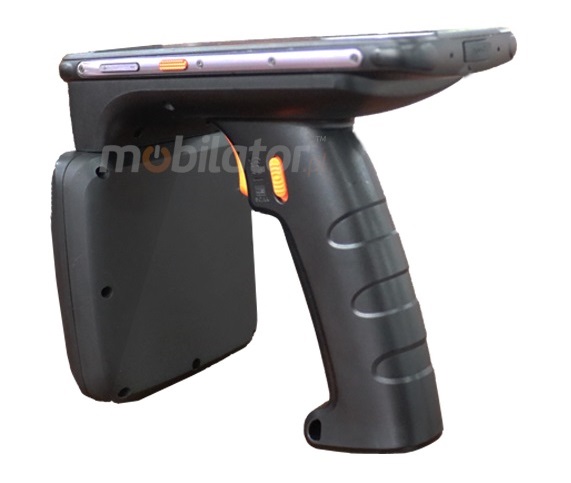

1.5m drop resistance
Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the collector screen is protected by specially tempered glass.
Extreme temperatures
MobiPad T20R-2D is suitable for continuous operation in both low and high temperatures in the range of -20°C to 55°C. When the device is off, it can handle temperatures ranging from -40°C to 60°C. In addition, the rugged industrial collector performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.
| Working Temp. |
-20°C to 55°C |
| Storage Temp. |
-40°C to 60°C |
| Humidity |
0 ~ 95% |
up… menu…
data collecting
Barcode scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

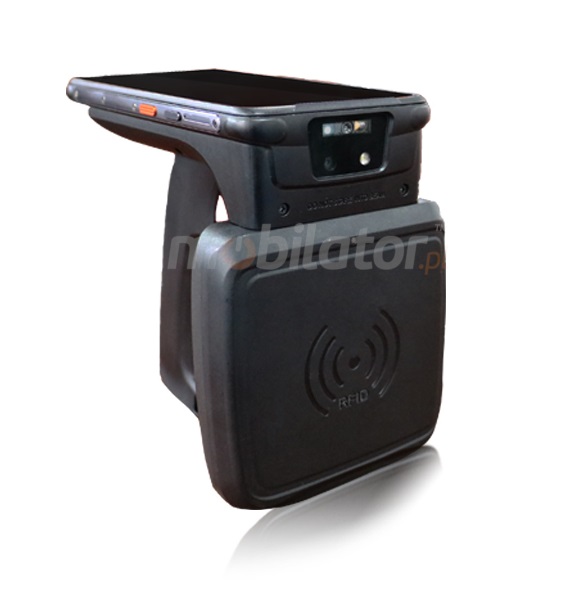

RFID UHF
RFID is a technology used to identify objects and to control the flow of products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
| Type |
UHF |
| Frequency |
859~873MHz and 915~930MHz |
| Protocol |
ISO 18000-6C |
| Antenna |
0 dBm to +27 dBm |
| Read distance |
0~12m |
up… menu…

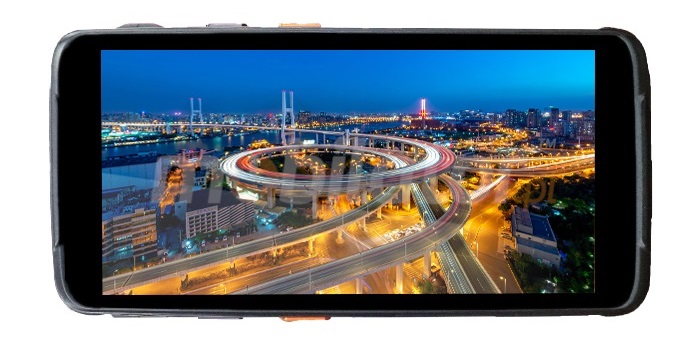

wireless communication
4G Module
4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.
| 4G Module |
TDD-LTE：B34/B38/B39/B40/B41
LTE_FDD/TDD：B1/B3/B8
|
| 3G Module |
GSM: B2/B3/B5/B8; CDMA/CDMA-EVDO: BC0;
TD-SCDMA: B34/B39; WCDMA: B1/B8;
|
GPS Navigation
Mobile terminal MobiPad T20R-2D is equipped with a professional A-GPS module with combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.
Bluetooth 5.0
Bluetooth 5.0 enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.
Wi-Fi network
Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial collector is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 500 Mb/s.
| Standards |
802.11(a/b/g/n/ac) |
| Frequencies |
2.4GHz + 5GHz (Dual-Band) |
up… menu…

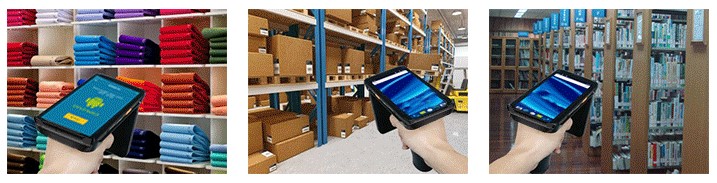

Application
Trade and Services
Thanks to their size and light weight, smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.
Industry and Construction
Industrial data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards).
Warehouse
An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
up… menu…
Accessories and available versions
The industry-leading MobiPad T20R-2D data collector is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.

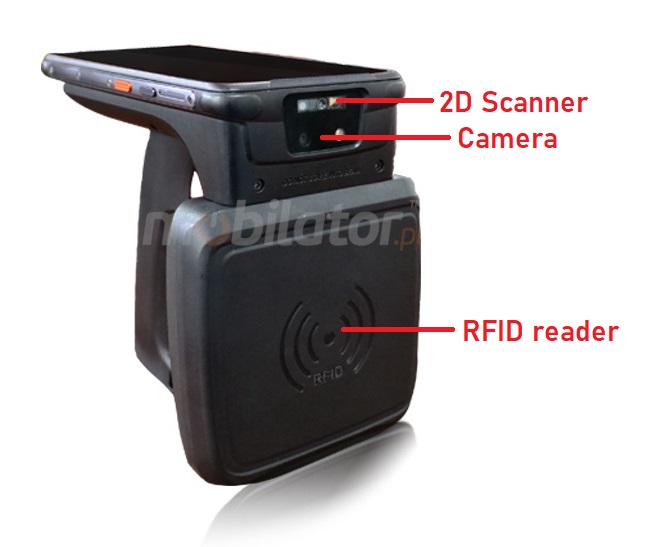

MobiPad T20R-2D can optionally be equipped with a 2D scanner or a RFID reader.
Porównaj wszystkie wersje
| | v.1 | v.2 | v.3 | v.4 |
| Skaner 2D SE6100-2D | — | ✔ | — | ✔ |
| Czytnik UHF RFID R2000 | — | — | ✔ | ✔ |
