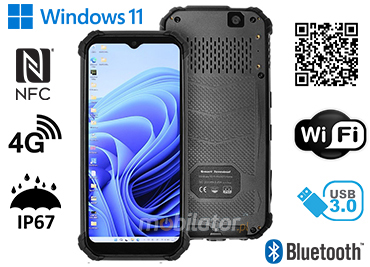

MobiPad HS6 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67, which confirms the protection of the device against dust and water.
Specification
MobiPAD HS6 |
Processor |
Intel Celeron N100 (4x3.4GHz) |
Operating system |
Windows 11 |
RAM |
8GB
|
Hard drive |
256GB
|
Display |
6.5", 1600 x 720, 410 nits |
Touch screen |
Capacitive, 10 point touch |
Battery |
5000mAh / 7.6V |
Camera |
Front: 5Mpx | Rear: 13Mpx + Flash |
Protection |
IP67 | 1.2m. drops |
Communication |
4G LTE | Bluetooth 5.0 | GSM | Wi-Fi | GPS |
Connectors |
USB 3.0 | USB-C | Pogopin |
Sensor |
Light sensor | Acceleration/gravity |
Memory card |
Micro SD |
SIM card |
SIM |
RFID Reader |
NO
|
NFC |
13,56MHz
|
2D Scanner
|
2D scanner Newland N1
|
Dustproof industrial tablet MobiPad HS6 was equipped with high performance, energy-efficient Intel Celeron N100 processor. Inside, there are four cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.

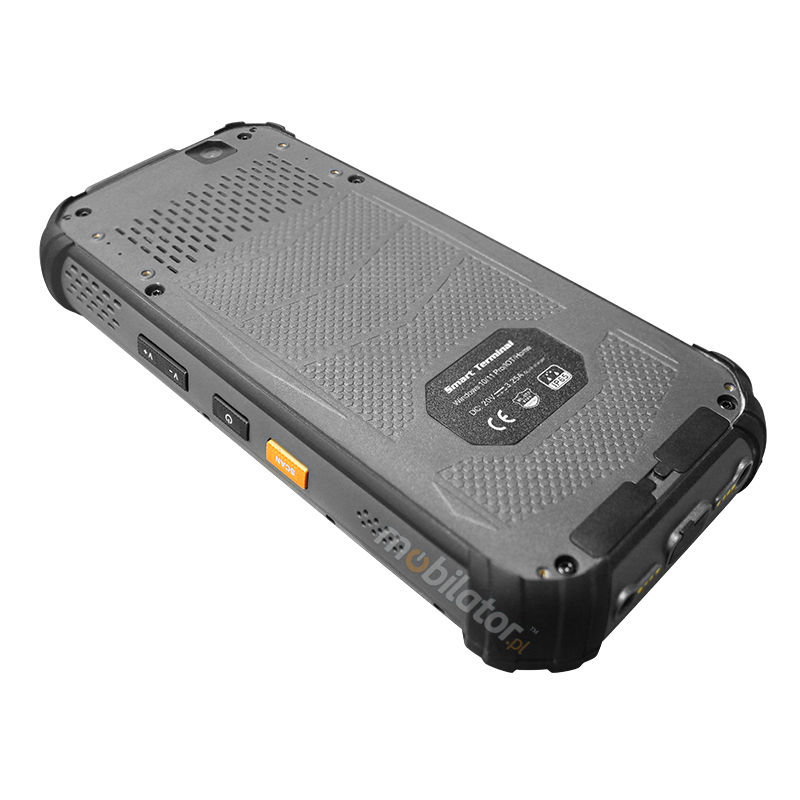

Ergonomic design
MobiPad HS6 industrial tablet is designed for resistance and convenience. The sleek and rugged 22mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.
Dimensions |
180mm x 85mm x 22mm |
Weight |
500g |

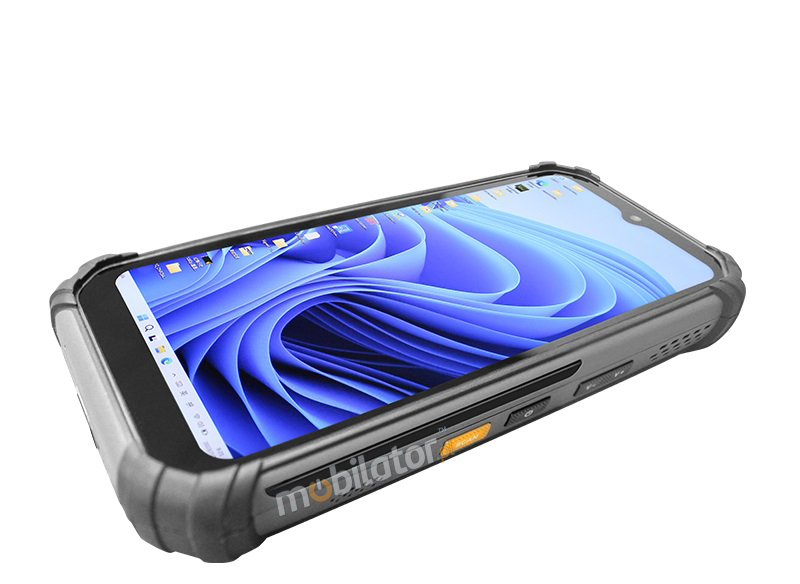

Capacitive screen
With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet with a few fingers at once.

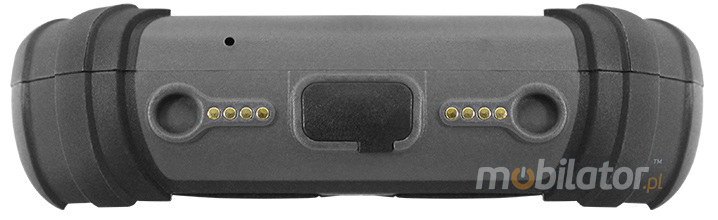

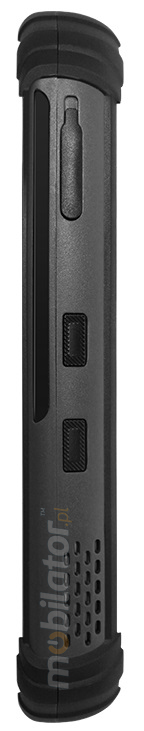

Connectors and buttons
MobiPAD HS6 can be equipped with a fingerprint reader and 2D scanner, available in individual versions or in its own configuration.
up… menu…
REsistance
IP67 Protection
The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.
IP6X |
No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
IPX7 |
Water projected - 30 minutes under water (up to 1 meter deep) |
1.2m drop resistance
Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.
Extreme temperatures
MobiPad HS6 is suitable for continuous operation in both low and high temperatures in the range of -20° C to 60° C. When the device is off, it can handle temperatures ranging from -25° C to 80°C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 100% relative humidity.
Working Temp. |
-20°C to 60°C |
Storage Temp. |
-25°C to 80°C |
Humidity |
0% to 100% |
up… menu…
wireless communication
GPS Navigation
Waterproof tablet MobiPad HS6 is equipped with a professional GPS module with GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.
Bluetooth 5.0
Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.
Wi-Fi network
Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 1 Gb/s.
Standards |
802.11(a/b/g/n/ac) |
Frequencies |
2.4GHz and 5GHz |
up… menu…
Functionality
Barcode Scanner (Optional)*
Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities MobiPad HS6 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

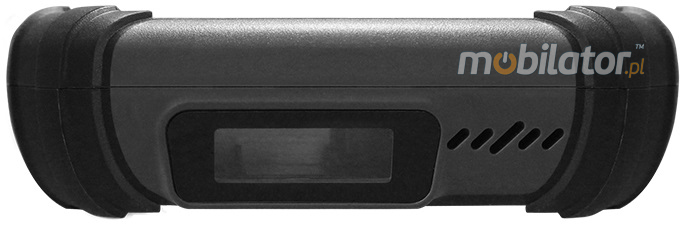

2D scanner
|
Newland NLS-N1 (1D/2D)
|
NFC
Near Field Communication - a short-range, high-frequency, radio communication standard that allows for wireless data exchange at a distance of up to several centimeters. The technology is a simple extension of ISO / IEC 14443 that combines the smart card interface and reader in one device. NFC devices can communicate with both existing devices in the ISO / IEC 14443 standard, as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure. NFC present in the device supports ISO/IEC 14443, ISO/IEC 15693, range 3-5cm.
up… menu…
Application
Trade and Services
Thanks to their size and light weight, tablet are a useful tool for sales representatives. Today's applications running under the tablet system enable even entering the tablets contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of tablets in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.
Industry and Construction
Industrial tablets are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, tablets can be used for control and control of various industrial processes, as well as for data collection and analysis.
Warehouse
An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using tablets are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
up… menu…
Available versions and accessories
The industry-leading MobiPad HS6 tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.
