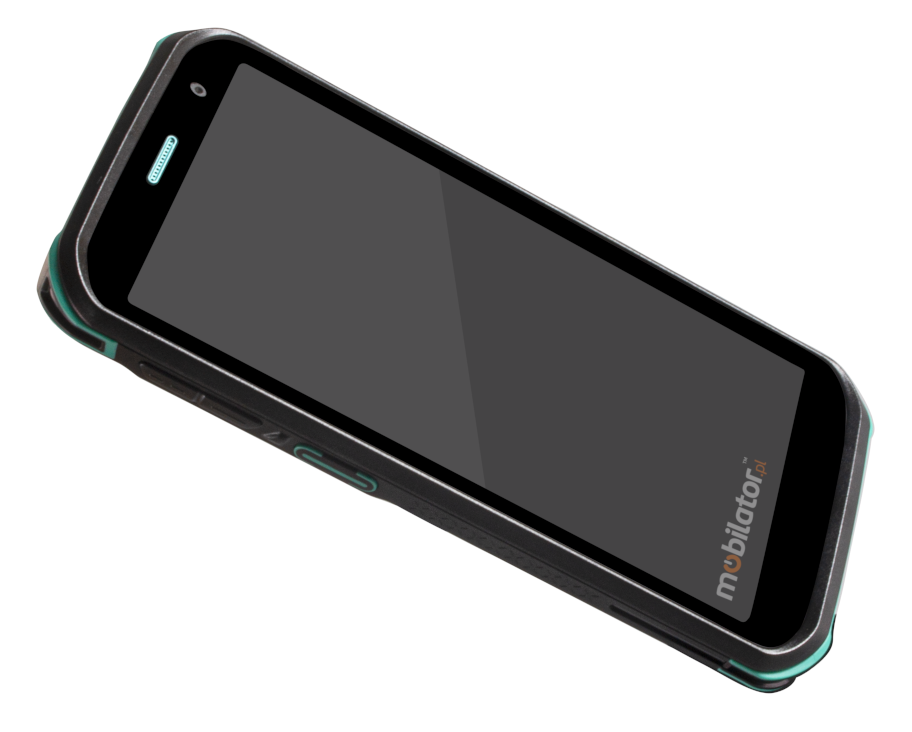

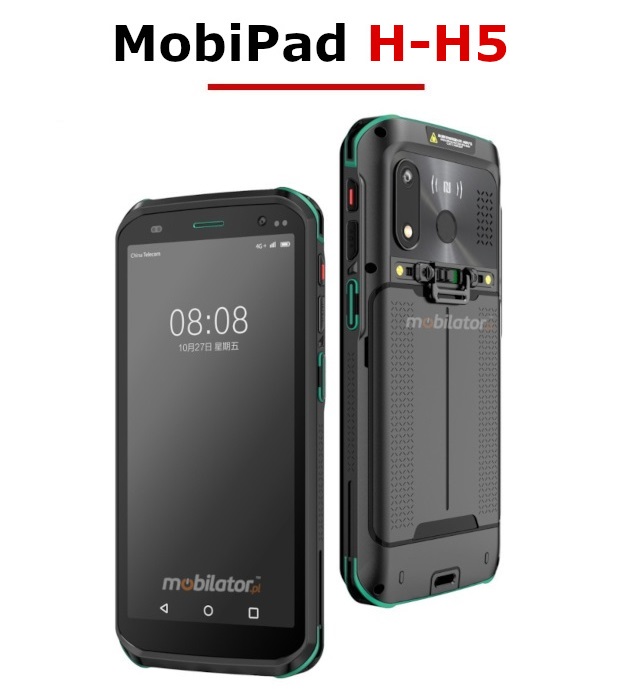

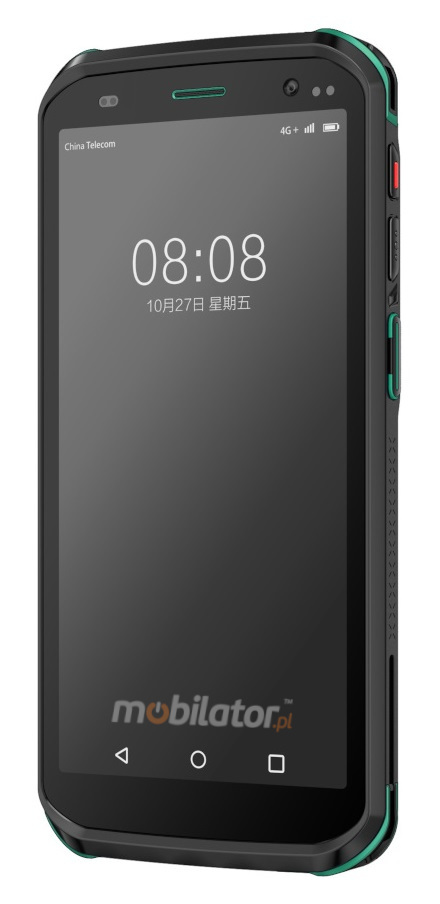

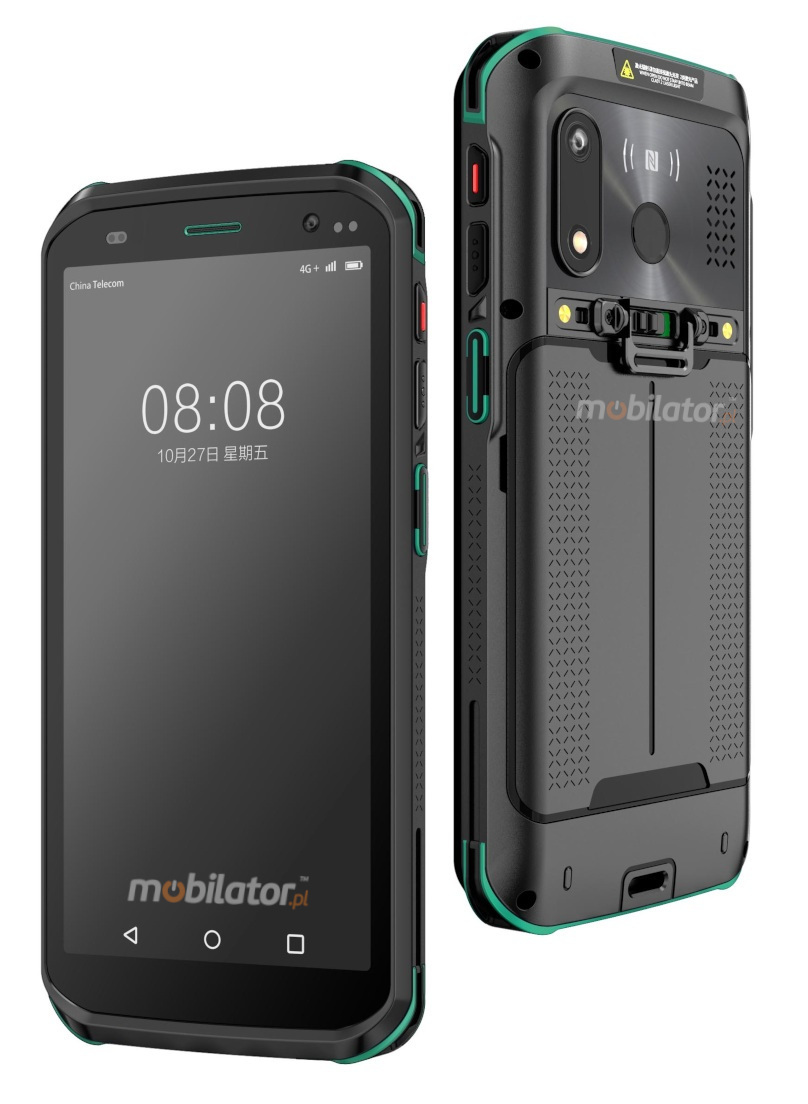

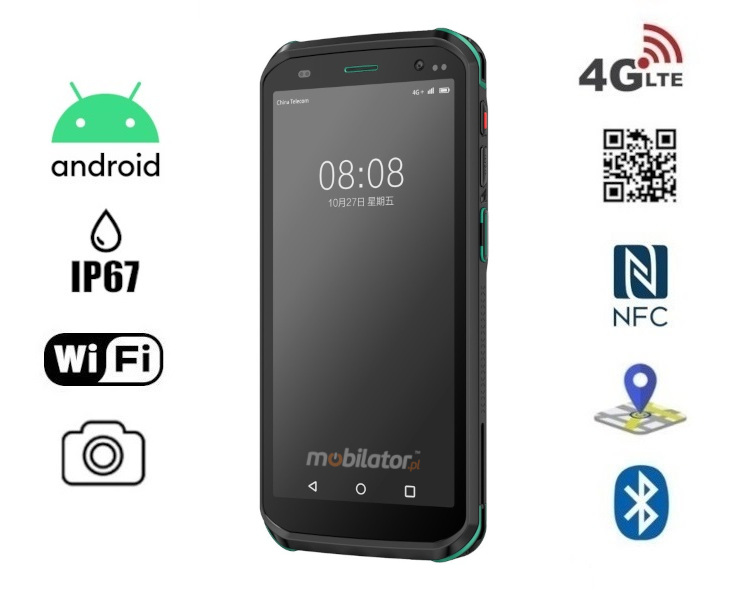

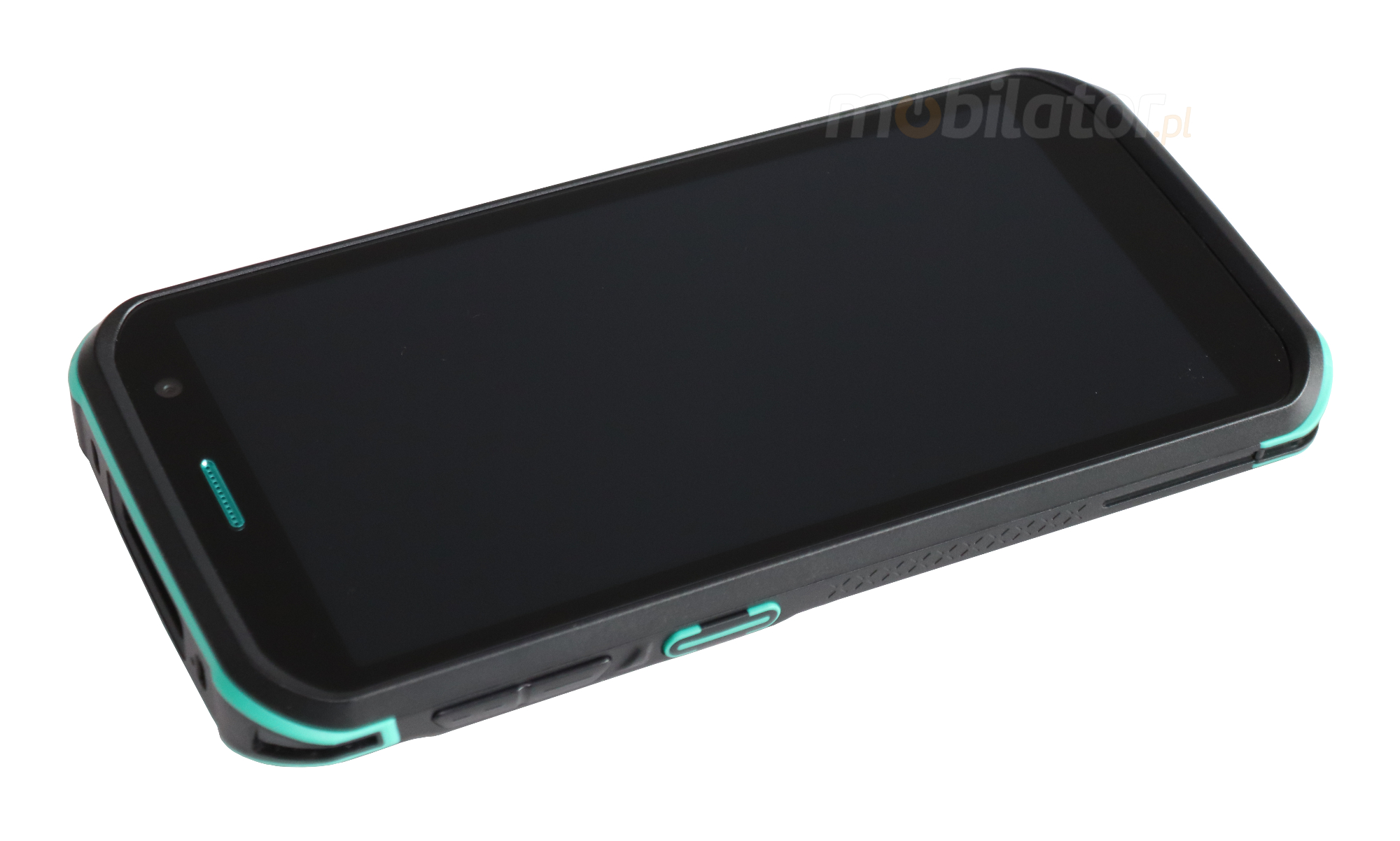

MobiPad H-H5 is a modern, waterproof industrial data collector with a pistol grip designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67.
Specification
| MobiPad H-H5 |
| Processor |
MTK MT6762
Octa-core Cortex-A53 (8x 2.0GHz)
|
| Operating system |
Android 11 |
| RAM |
4GB |
| Flash |
64GB eMMc |
| Display |
5.5" IPS (1440×720) HD |
| Touch screen |
Capacitive
Gorilla Glass
|
| Battery |
5000 mAh |
| Camera |
Front: 5MPx
Rear: 13MPx + AF + Flash
|
| Protection |
IP67 |
| Communication |
4G LTE | Bluetooth 5.0 | Wi-Fi | GPS | GSM |
| Connectors |

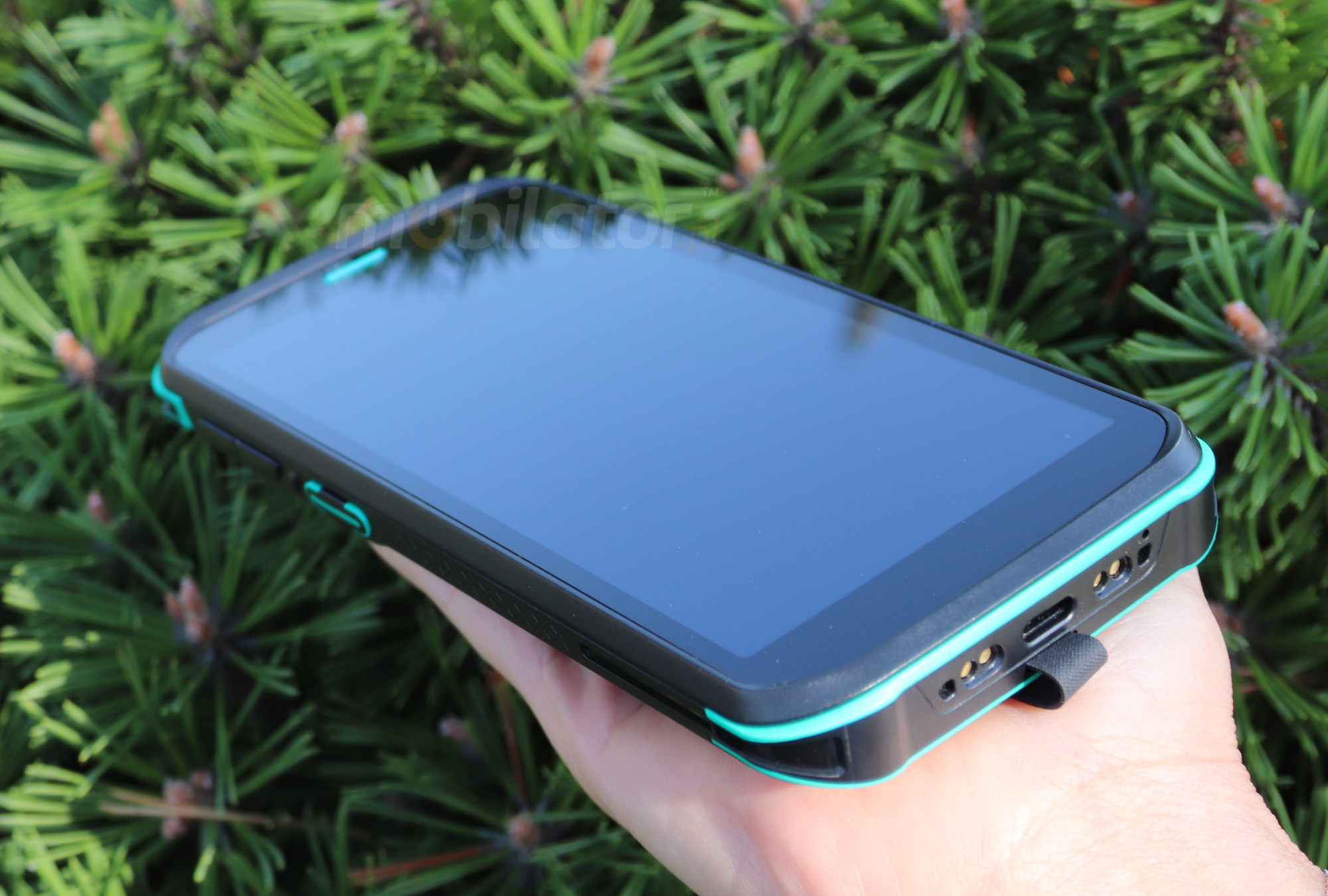

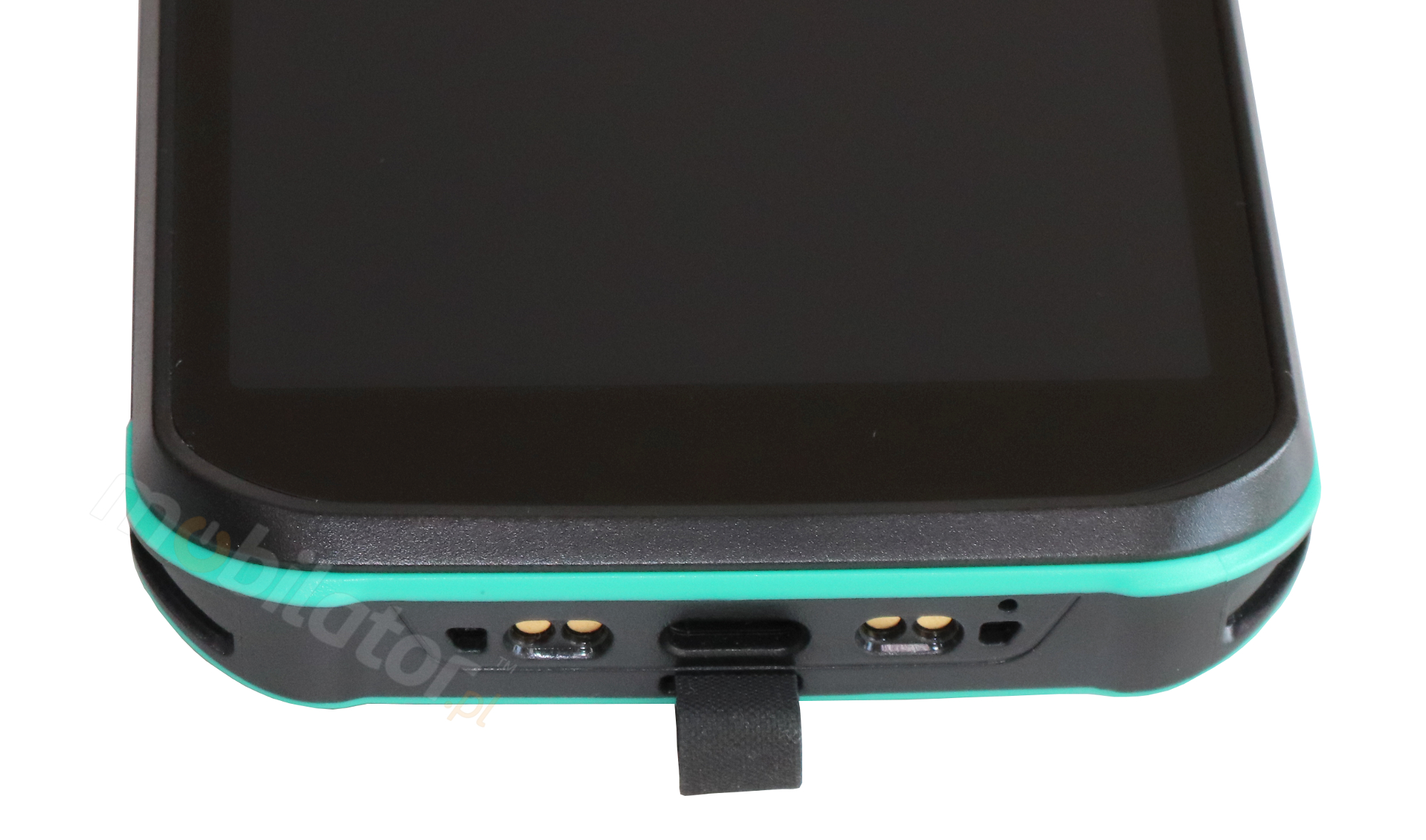

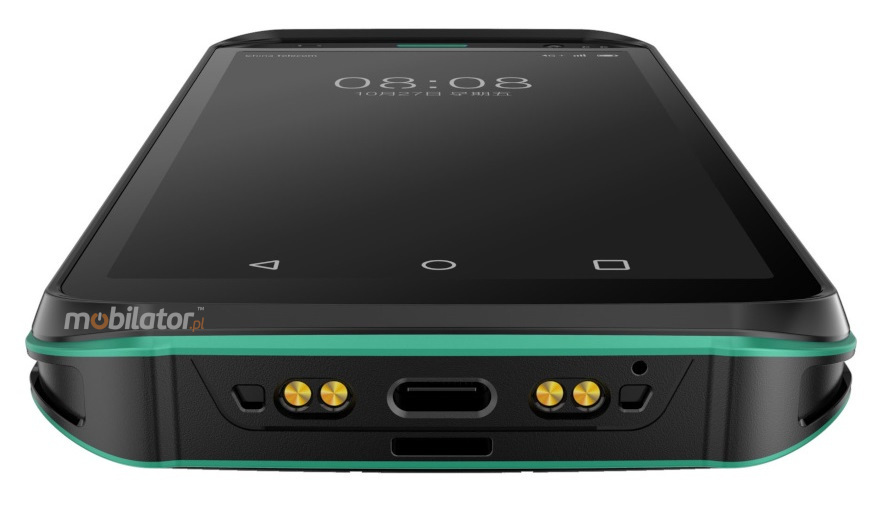

USB Type-C
|
| Memory card |
1x MicroSD (TF) - max. 512GB |
| SIM card |
1x Nano SIM + 1x SIM |
| Sensors |
Proximity Sensor
Light Sensor
Accelerometer
|
| 2D Scanner |
YES
|
| NFC |
YES |
| Warranty |
3 years |
Dustproof industrial data collector was equipped with high performance, energy-efficient MTK MT6762 Cortex-A53 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory.

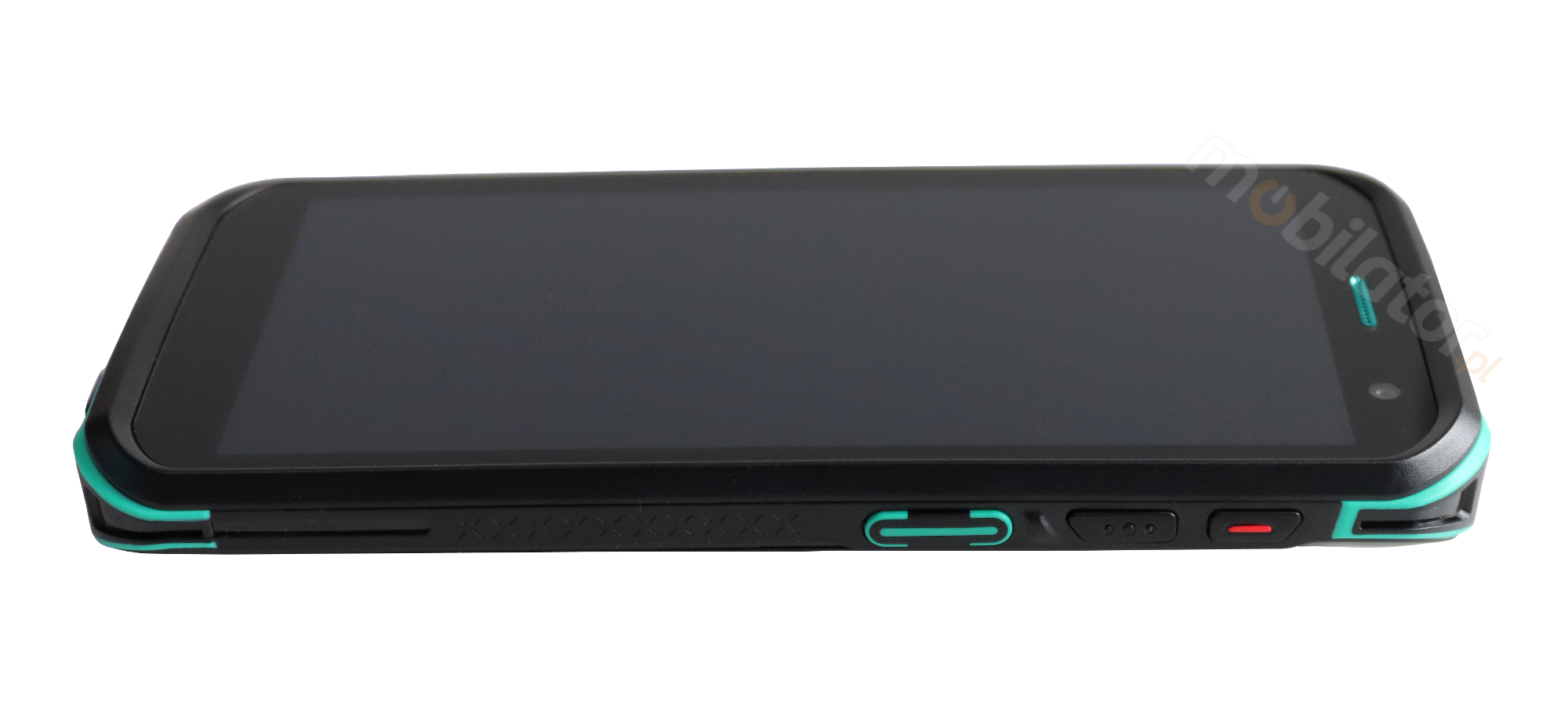

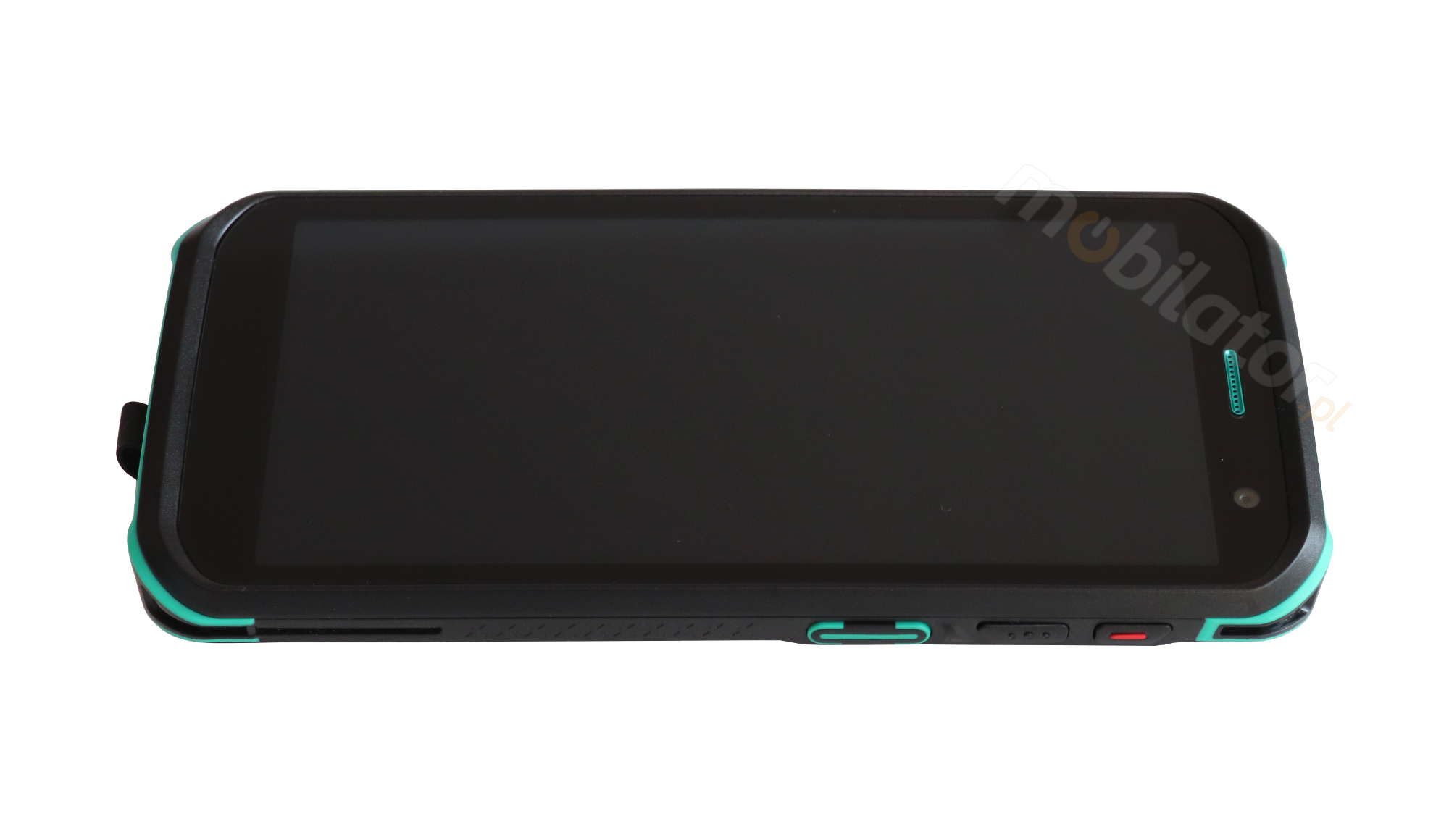

Ergonomic design

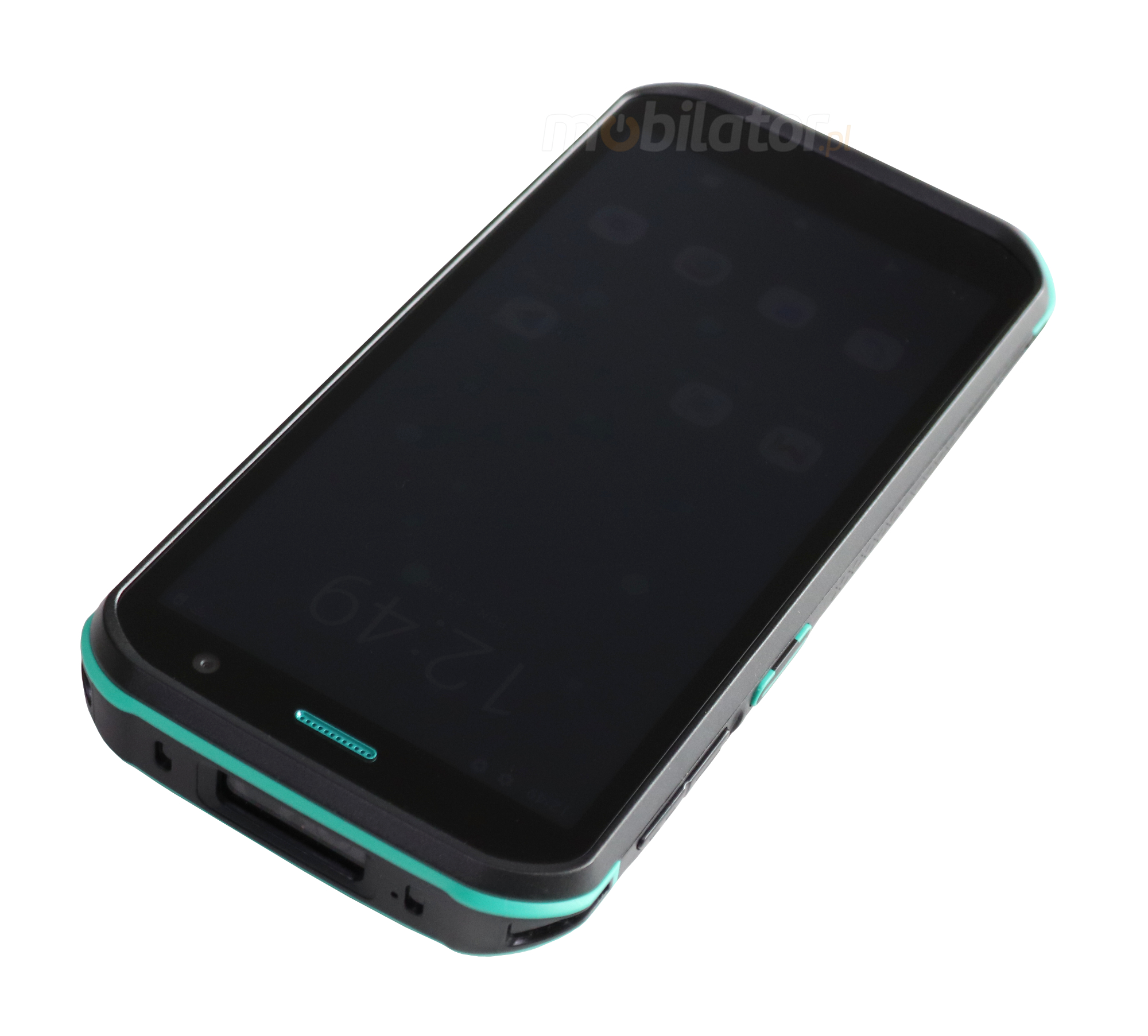

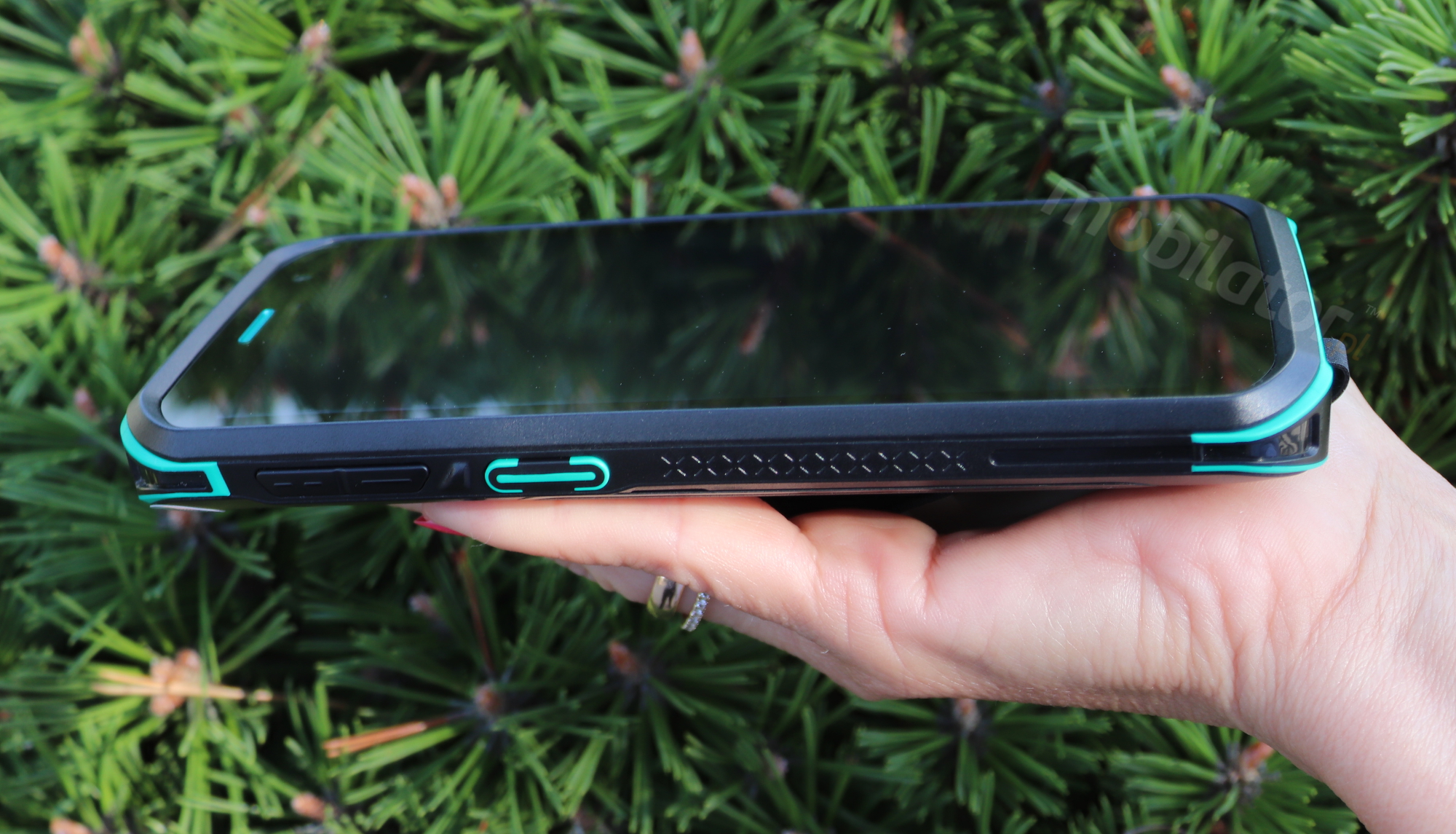

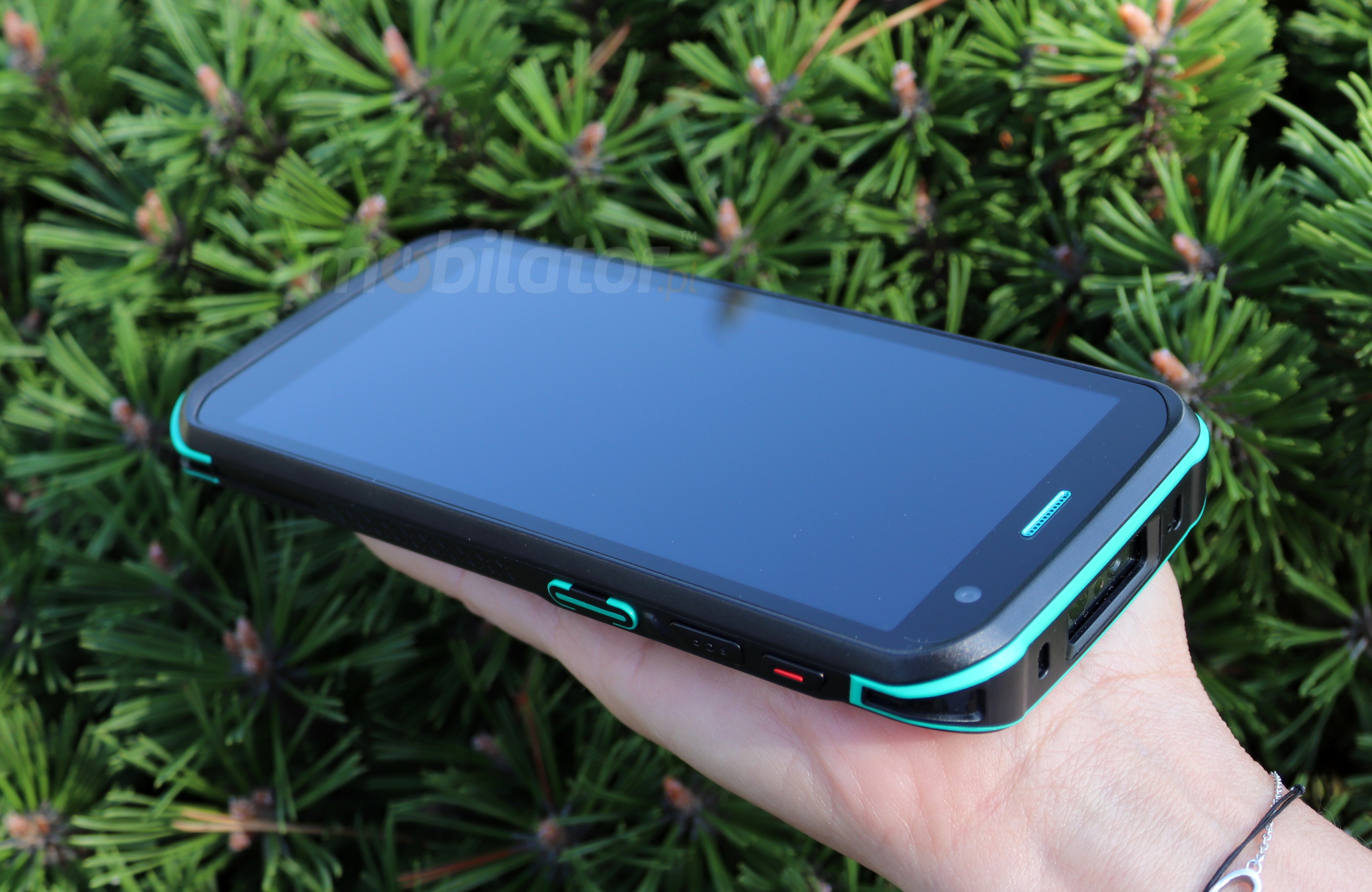

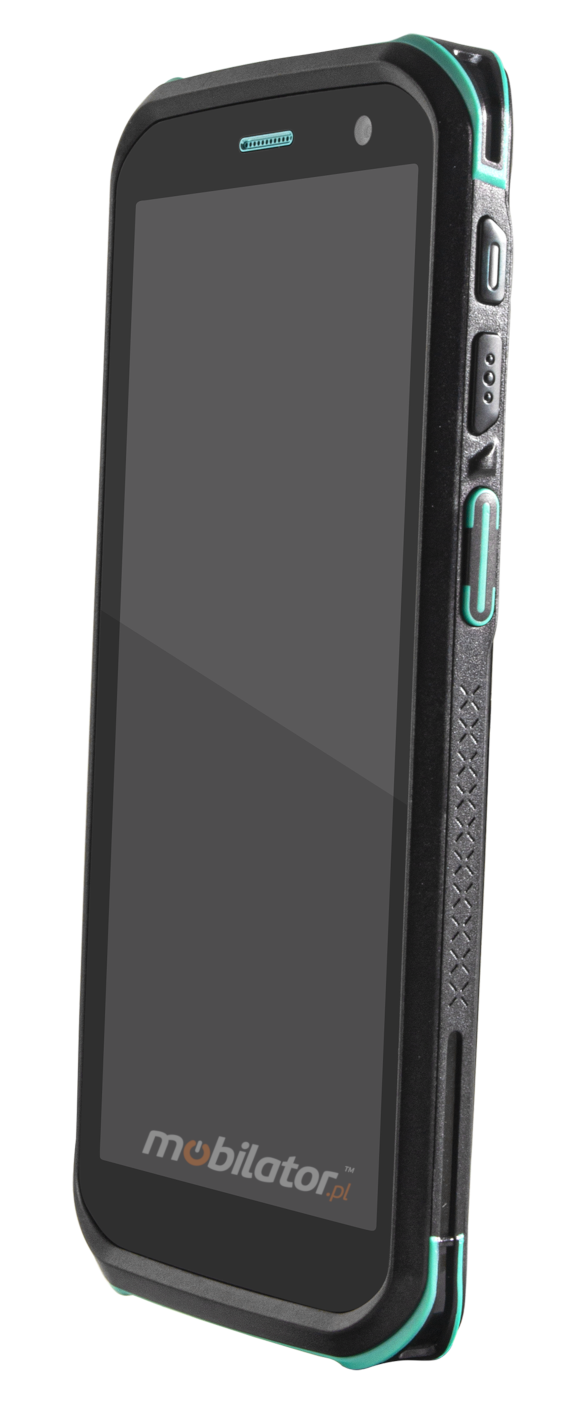

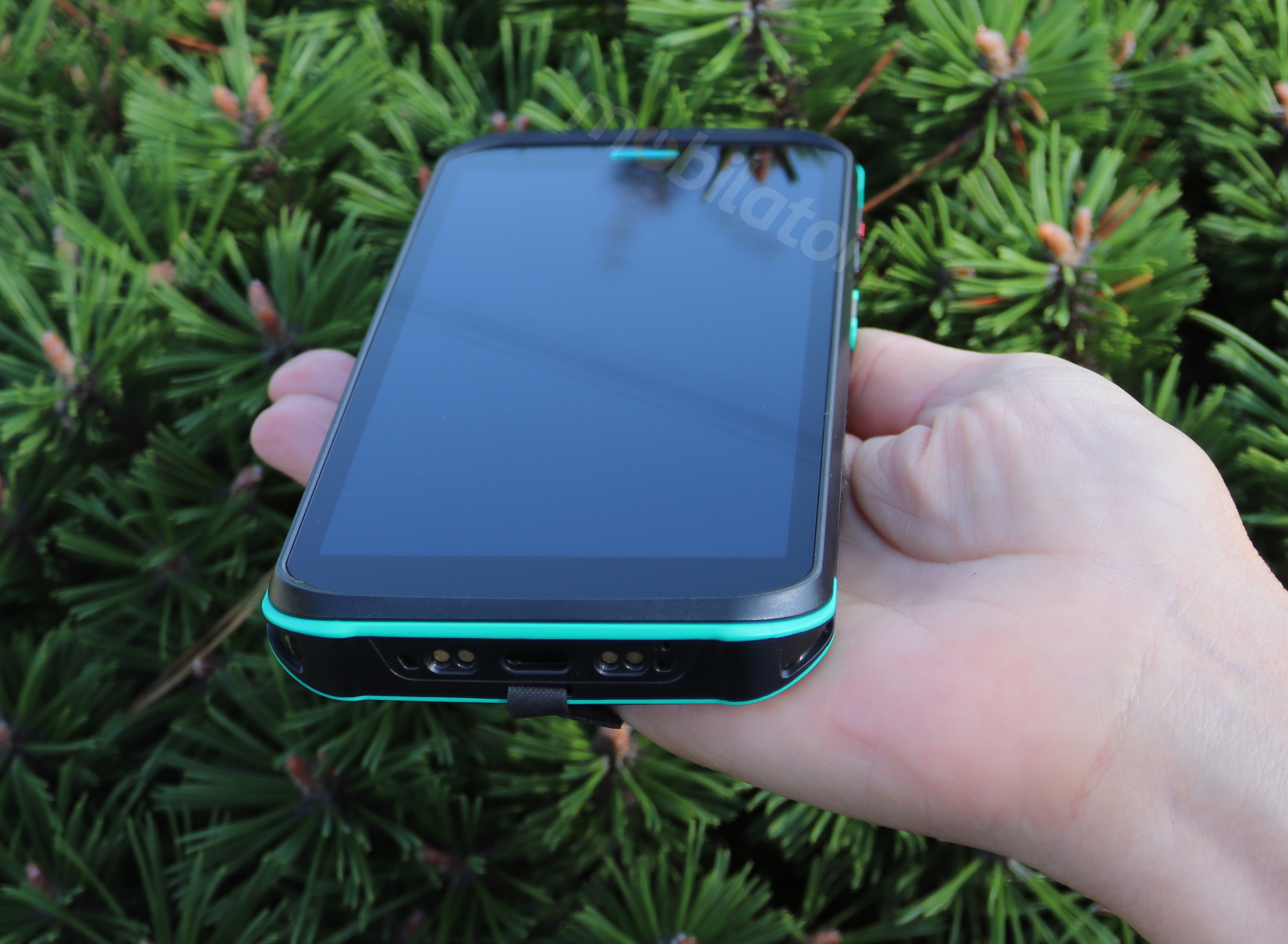

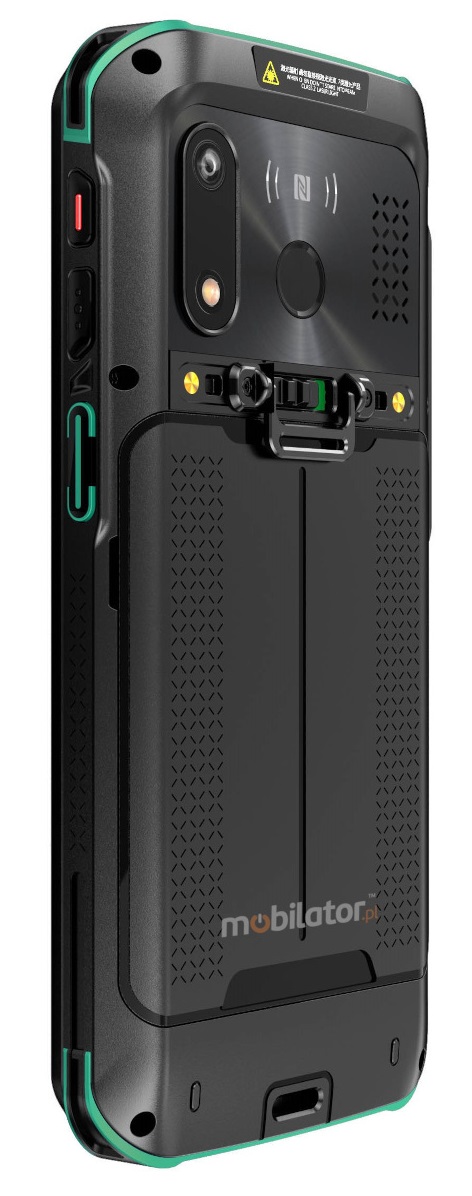

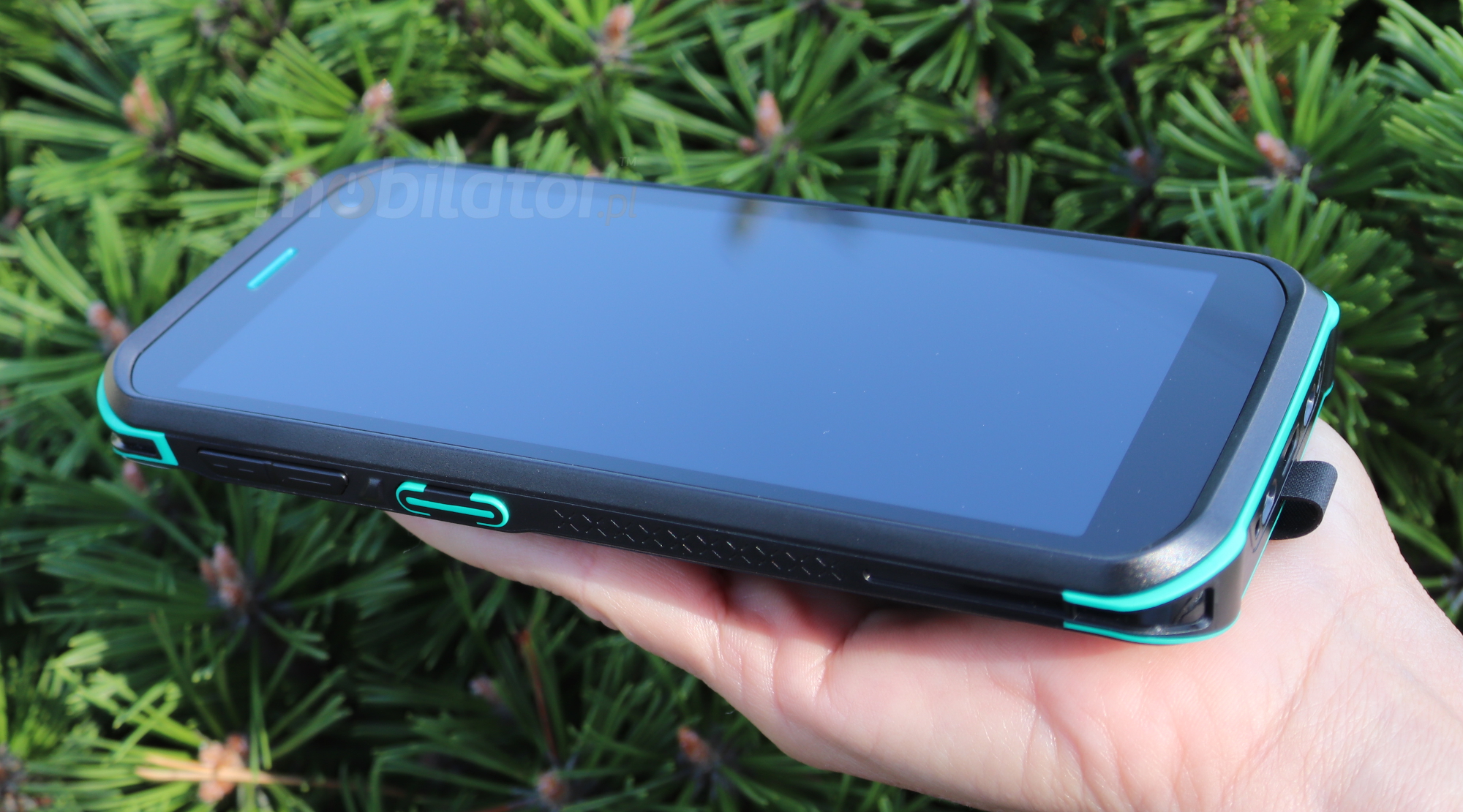

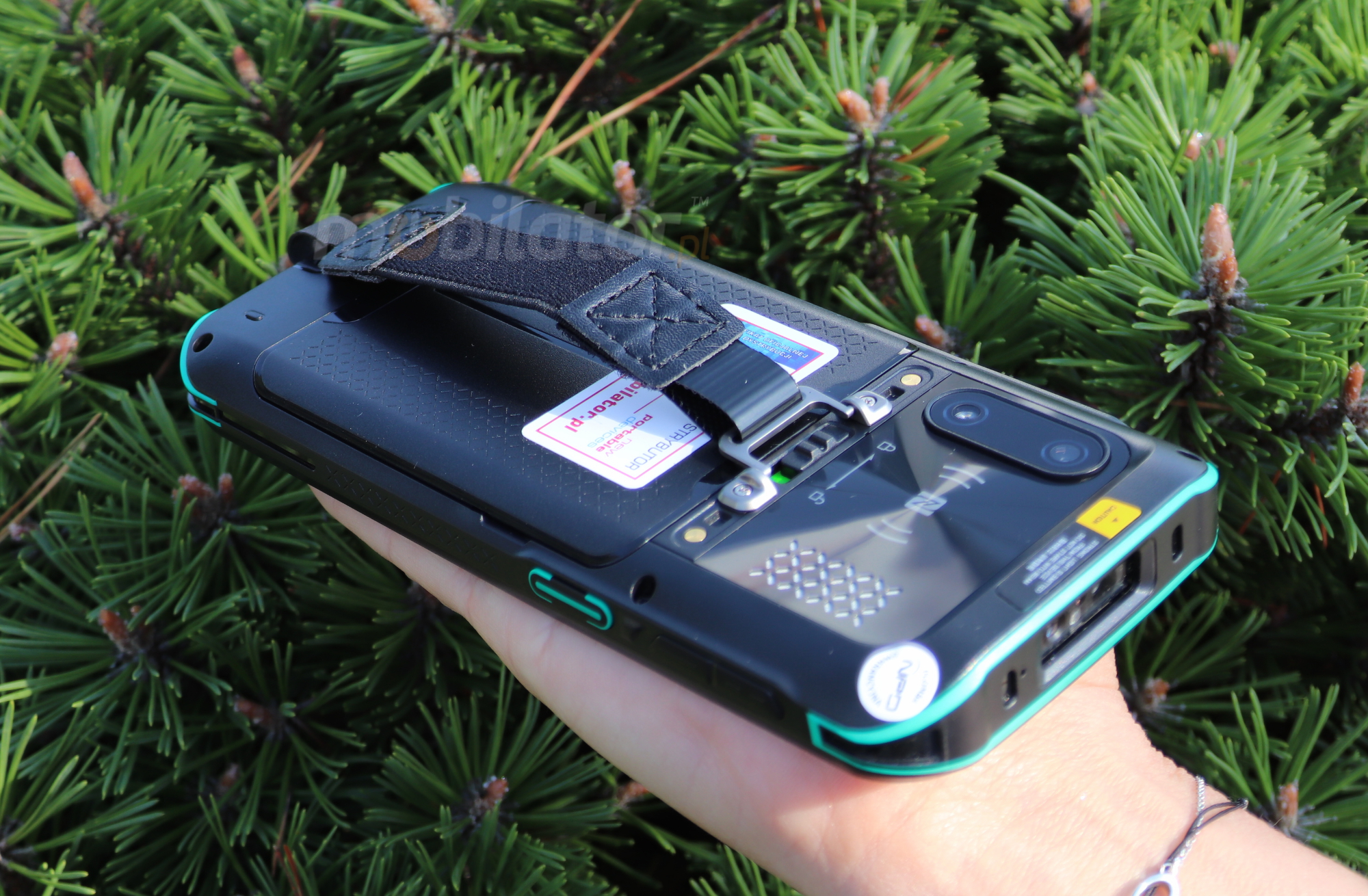

Industrial Data Collector MobiPad H-H5 is designed for resistance and convenience. The sleek and rugged design and stylish case will make the collector very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand.

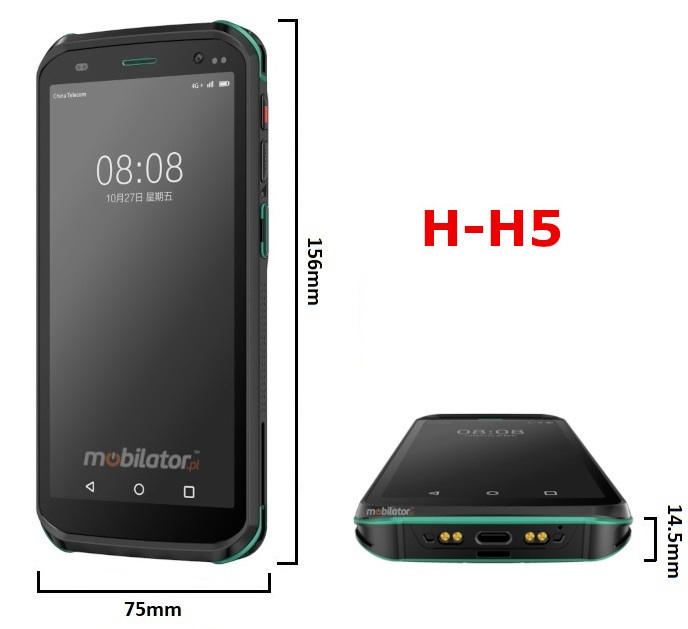

| Dimensions |
156 x 75 x 14.5mm |
| Net weight |
249g |

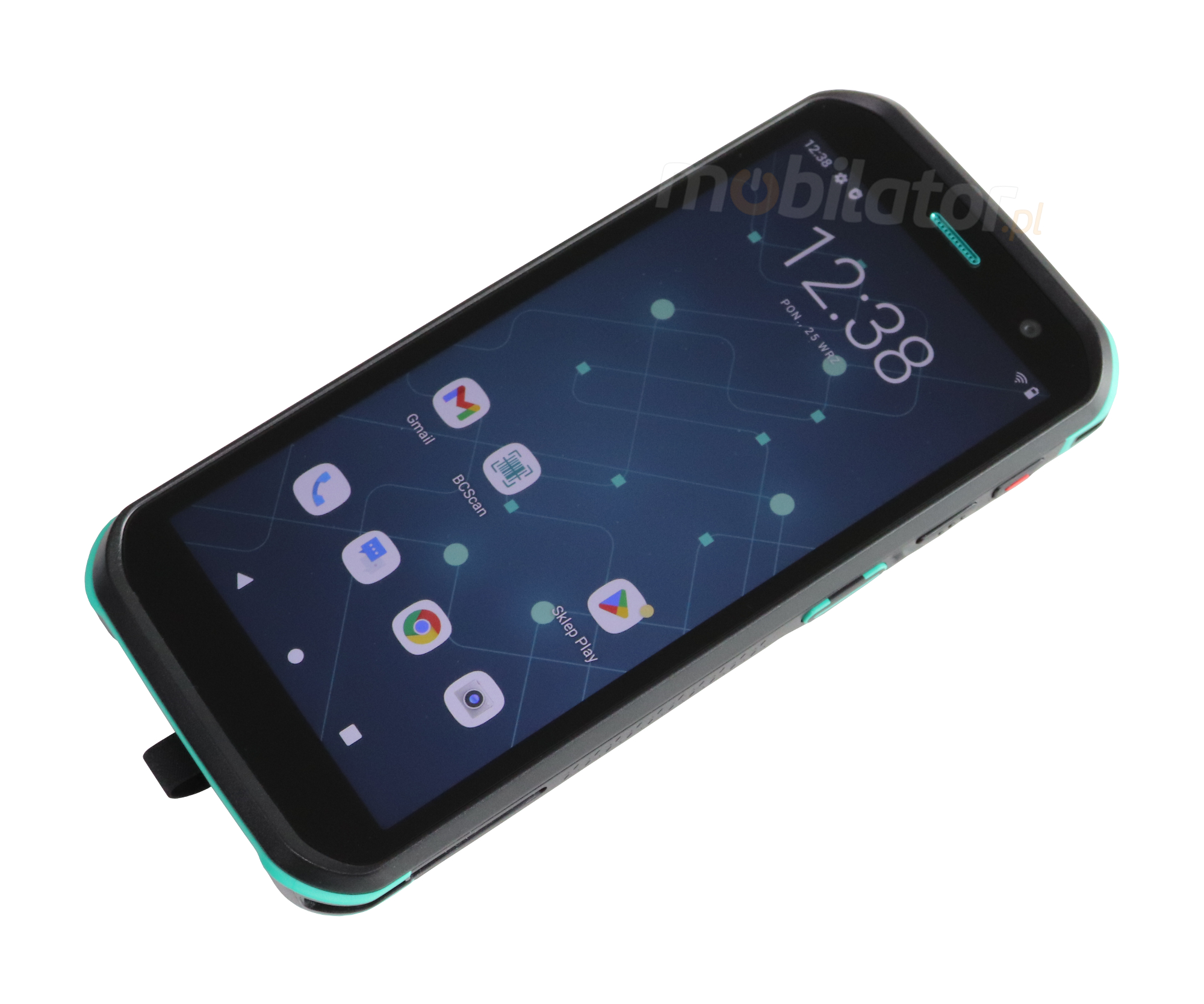

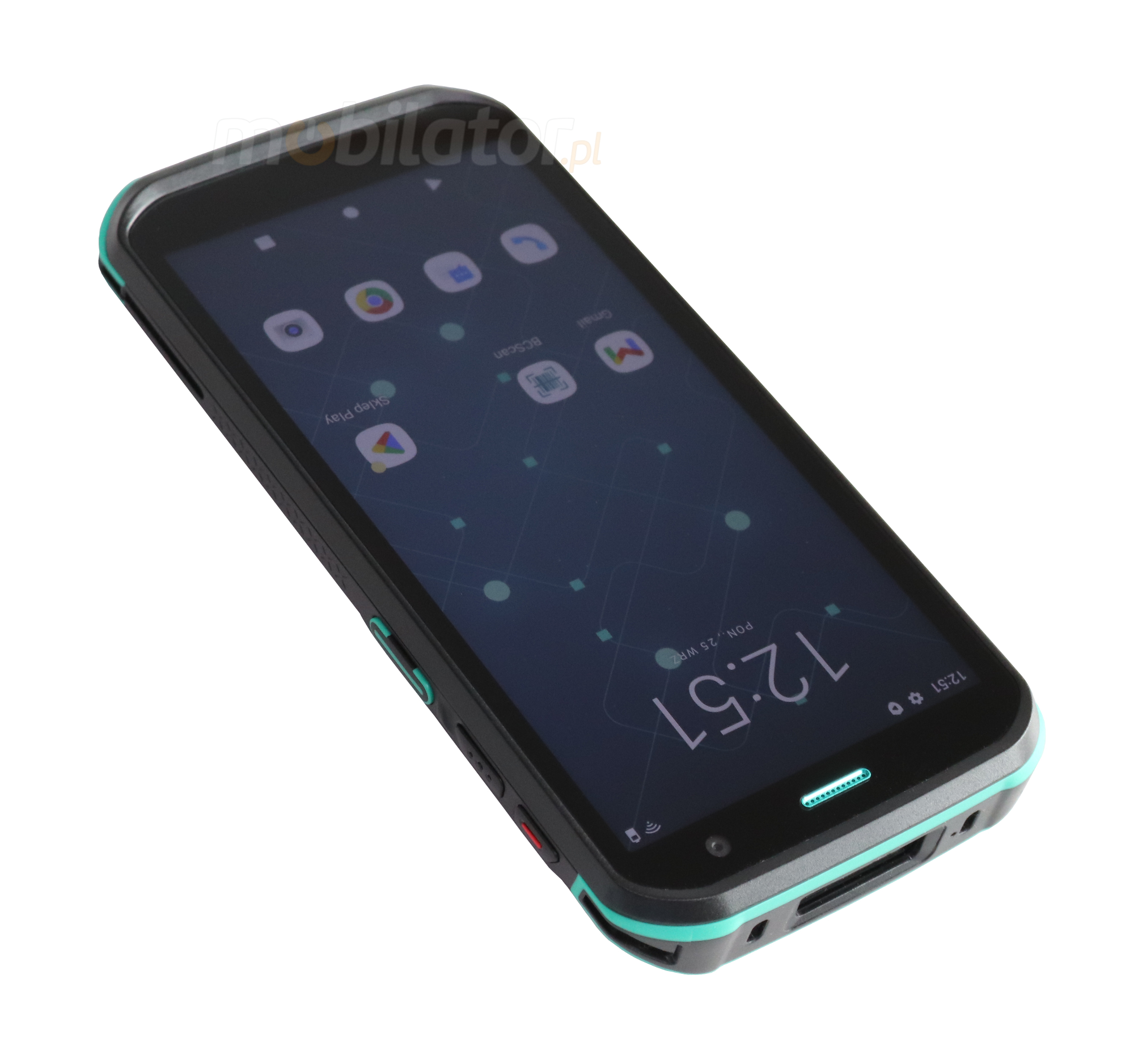

Capacitive screen
With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our collector with a few fingers at once.
up…
menu…
REsistance

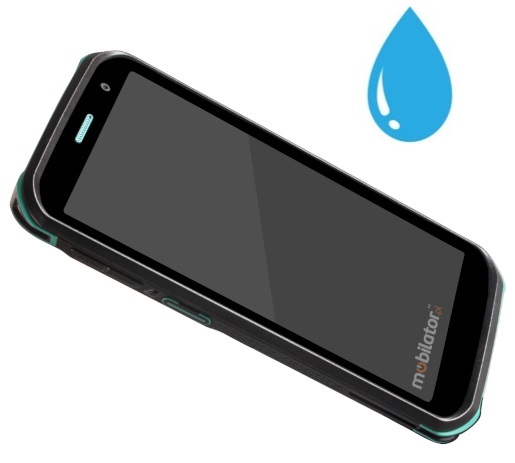

IP67 Protection
The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.
| IP6X |
No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| IPX7 |
Can be submerged up to 1 meter in water for 30 minutes. |

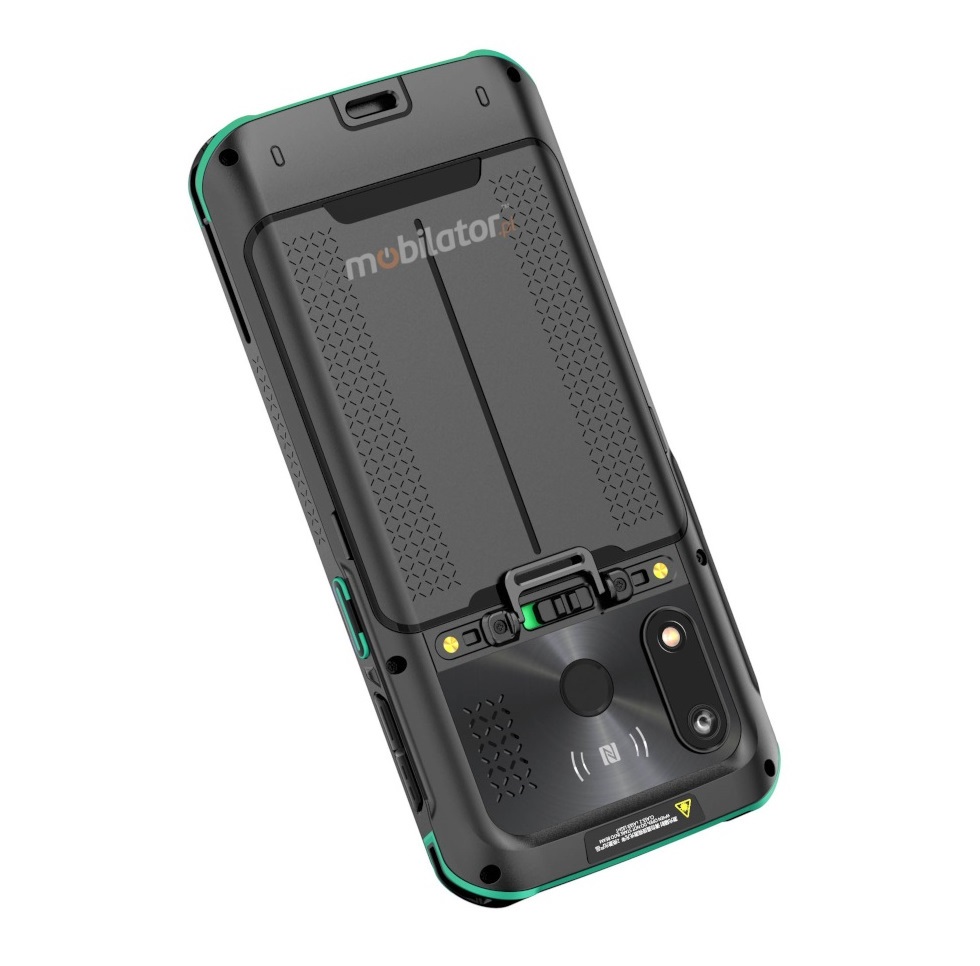

1.5m drop resistance
Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the collector screen is protected by specially tempered glass.
Extreme temperatures
MobiPad H-H5 is suitable for continuous operation in both low and high temperatures in the range of -20°C to 50°C. When the device is off, it can handle temperatures ranging from -40°C to 70°C. In addition, the rugged industrial collector performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.
| Working Temp. |
-20°C to 50°C |
| Storage Temp. |
-40°C to 70°C |
| Humidity |
5 ~ 95% |
up… menu…
data collecting

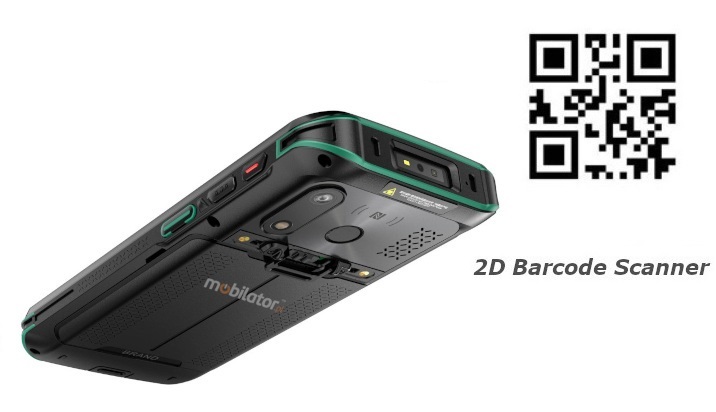

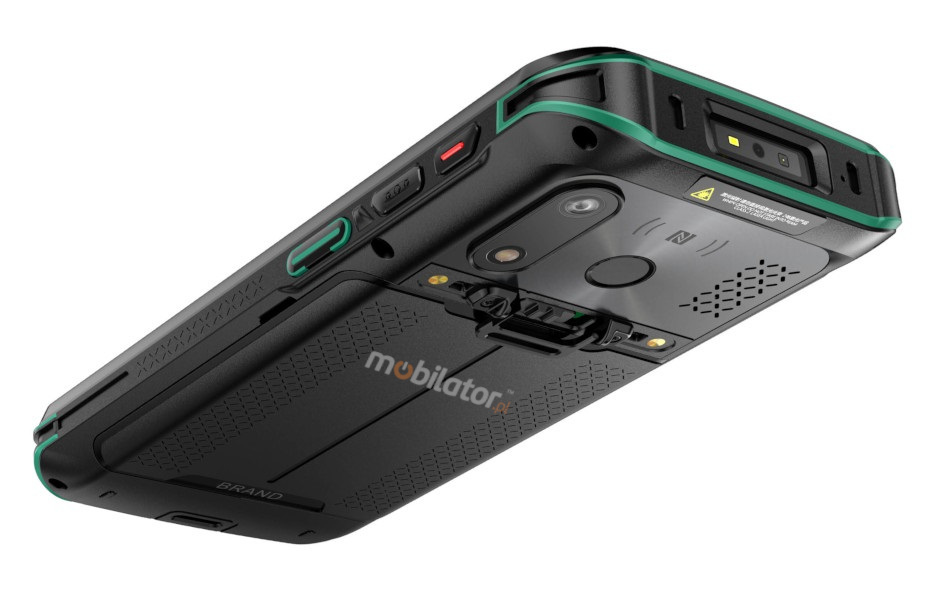

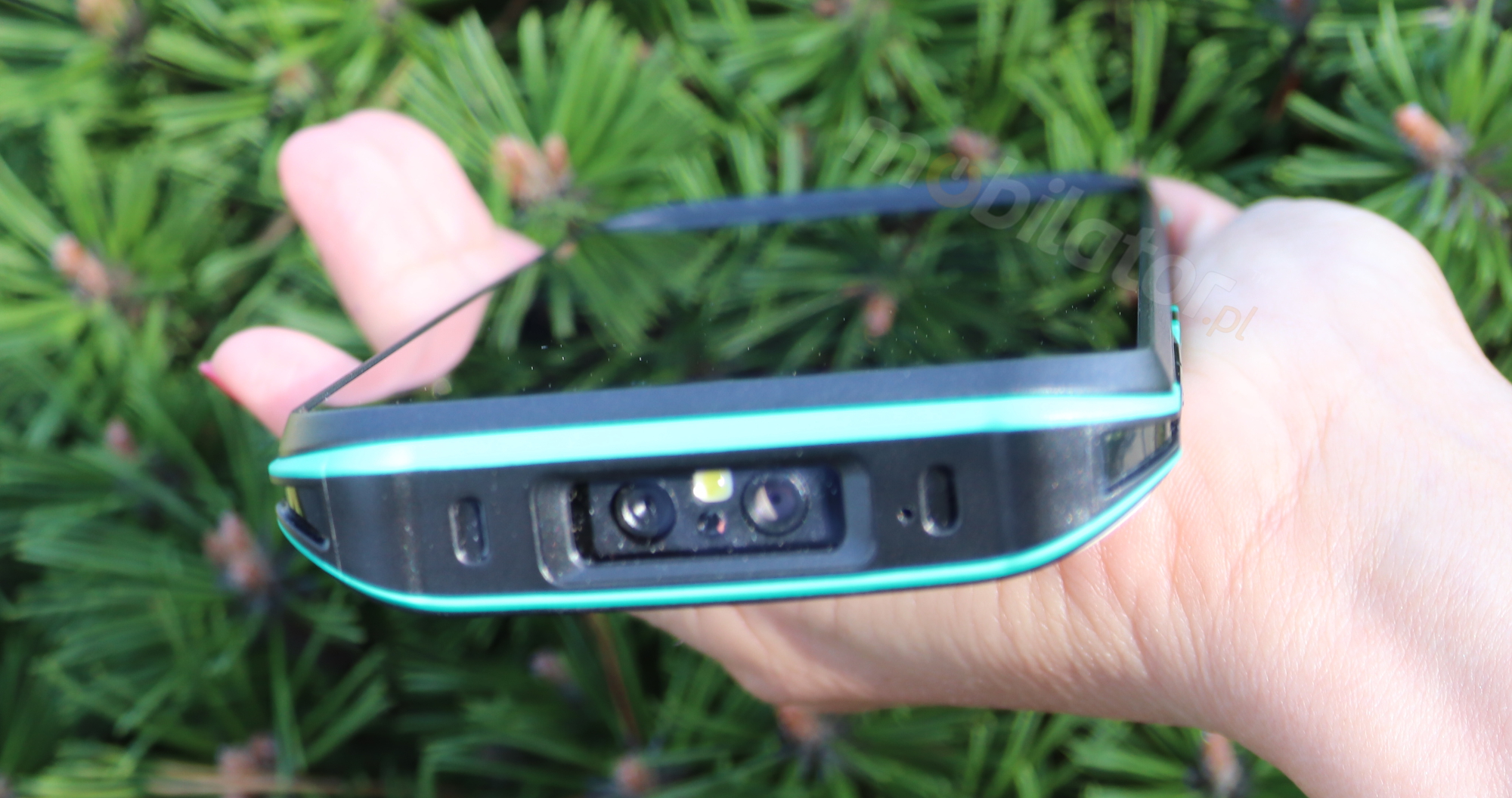

2D Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

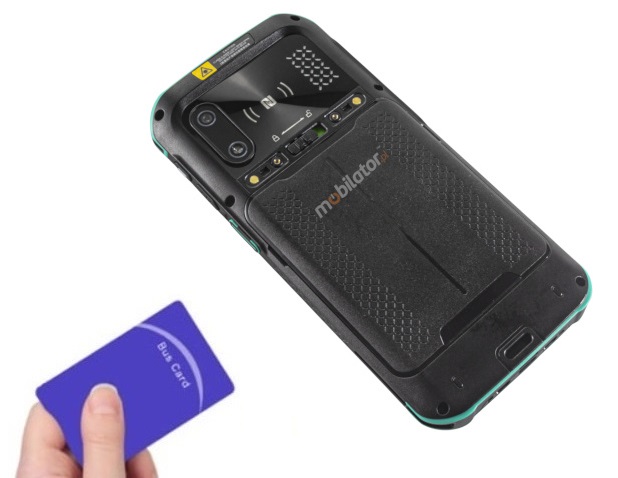

NFC
Near Field Communication - a short-range, high-frequency, radio communication standard that allows for wireless data exchange at a distance of up to several centimeters. The technology is a simple extension of ISO / IEC 14443 that combines the smart card interface and reader in one device. NFC devices can communicate with both existing devices in the ISO / IEC 14443 standard, as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure. NFC present in the device supports ISO / IEC 14443A / B and ISO15693 protocols. Working distance is 2-4 cm.
up… menu…
wireless communication

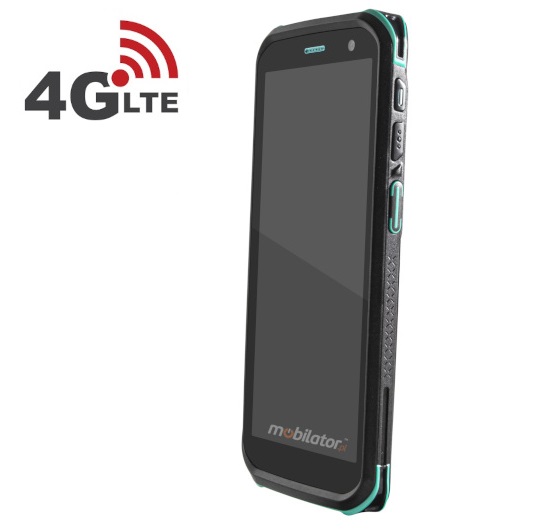

4G Module
4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.
| 4G Module |
TDD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B3/B5/B7/B8/B20/B28A/B28B)
WCDMA(B1/B5/B8)
|
| 3G Module |
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)
CDMA 1x
GSM/EDGE/GPRS(850/900/1800/1900)
|
GPS Navigation
The MobiPad H-H5 mobile terminal is equipped with a professional A-GPS module (GPS+Glonass+Beidou+Galileo) combining low power consumption with high accuracy. The navigation works quickly and smoothly, which will allow you to reach any destination in an easy and simple way.
Bluetooth 5.0
Bluetooth 5.0 enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.

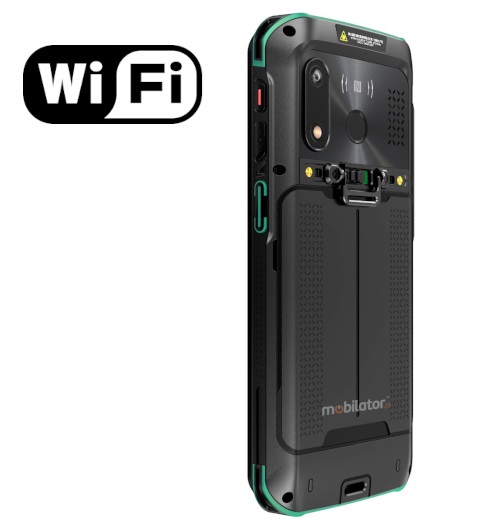

Wi-Fi network
Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial collector is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 500 Mb/s.
| Standards |
802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w |
| Frequencies |
2.4GHz + 5GHz (Dual-Band) |
up… menu…
Application
Trade and Services
Thanks to their size and light weight, smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.
Industry and Construction
Industrial data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards).
Warehouse
An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
up… menu…
Accessories and available versions

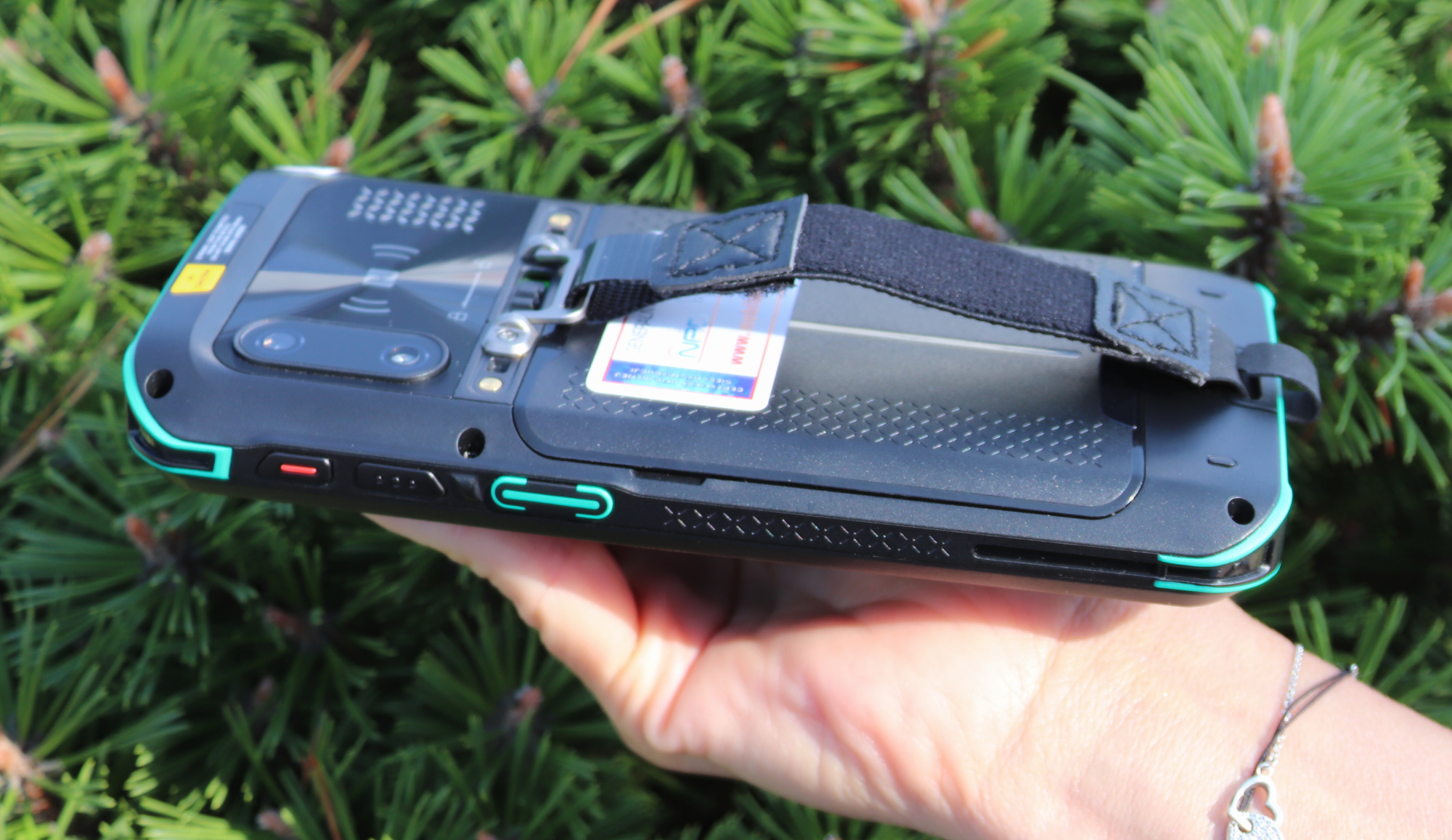

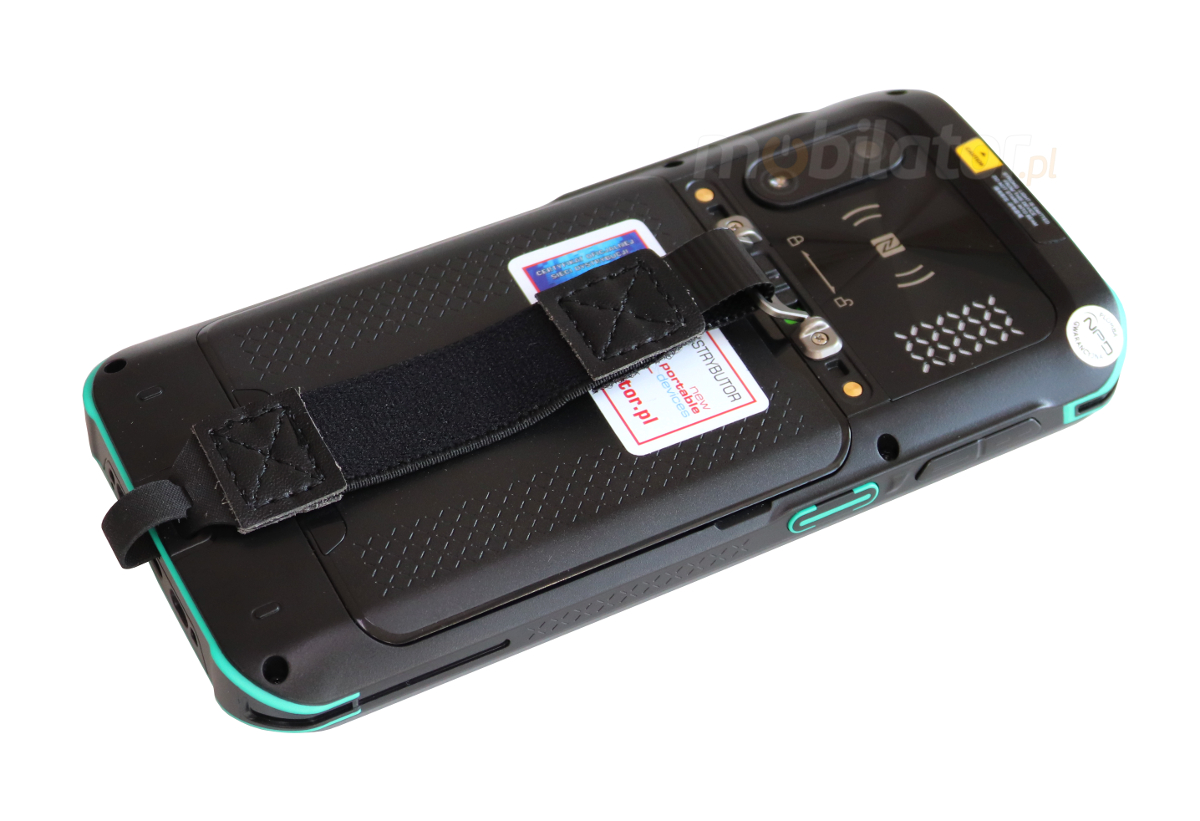

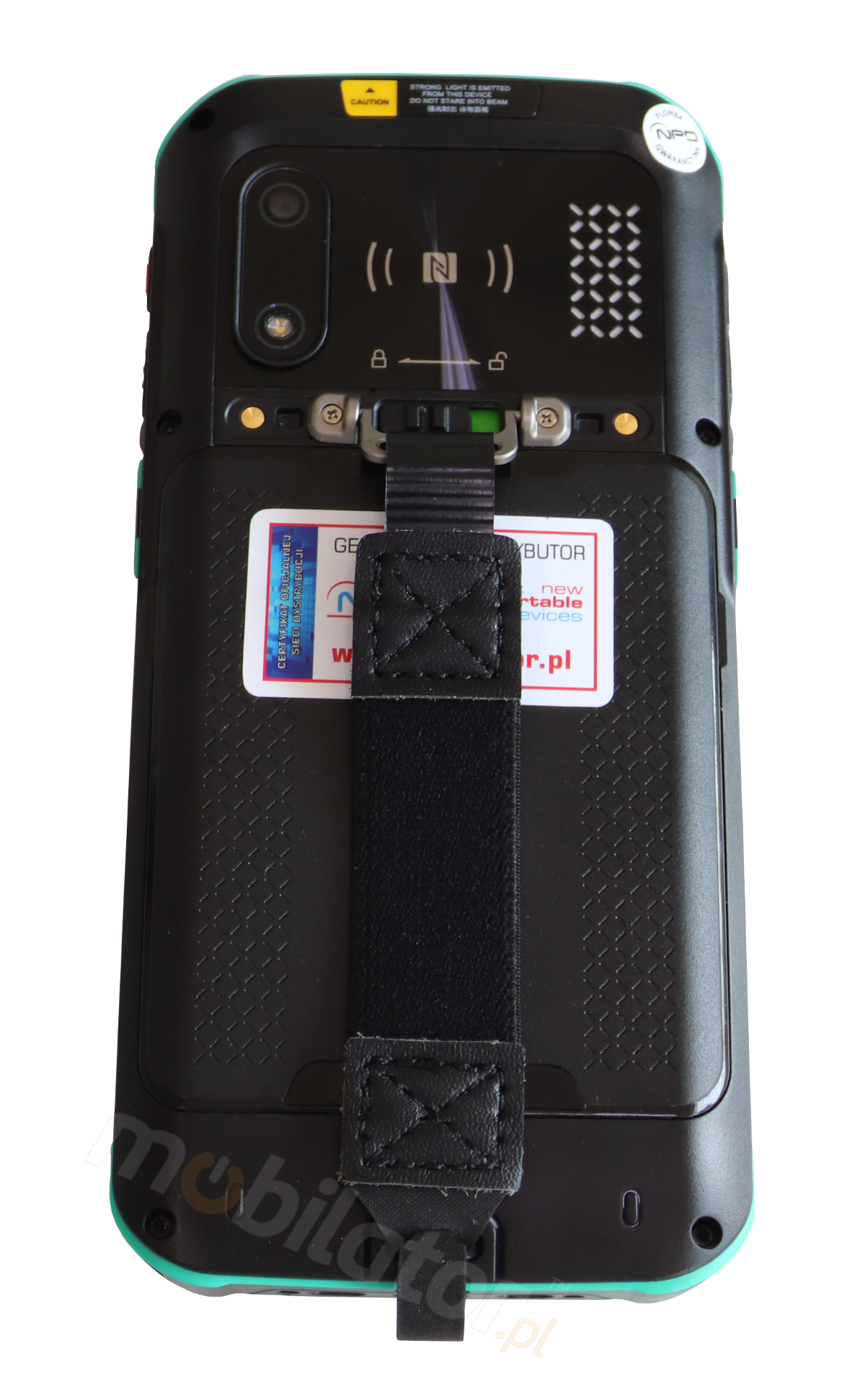

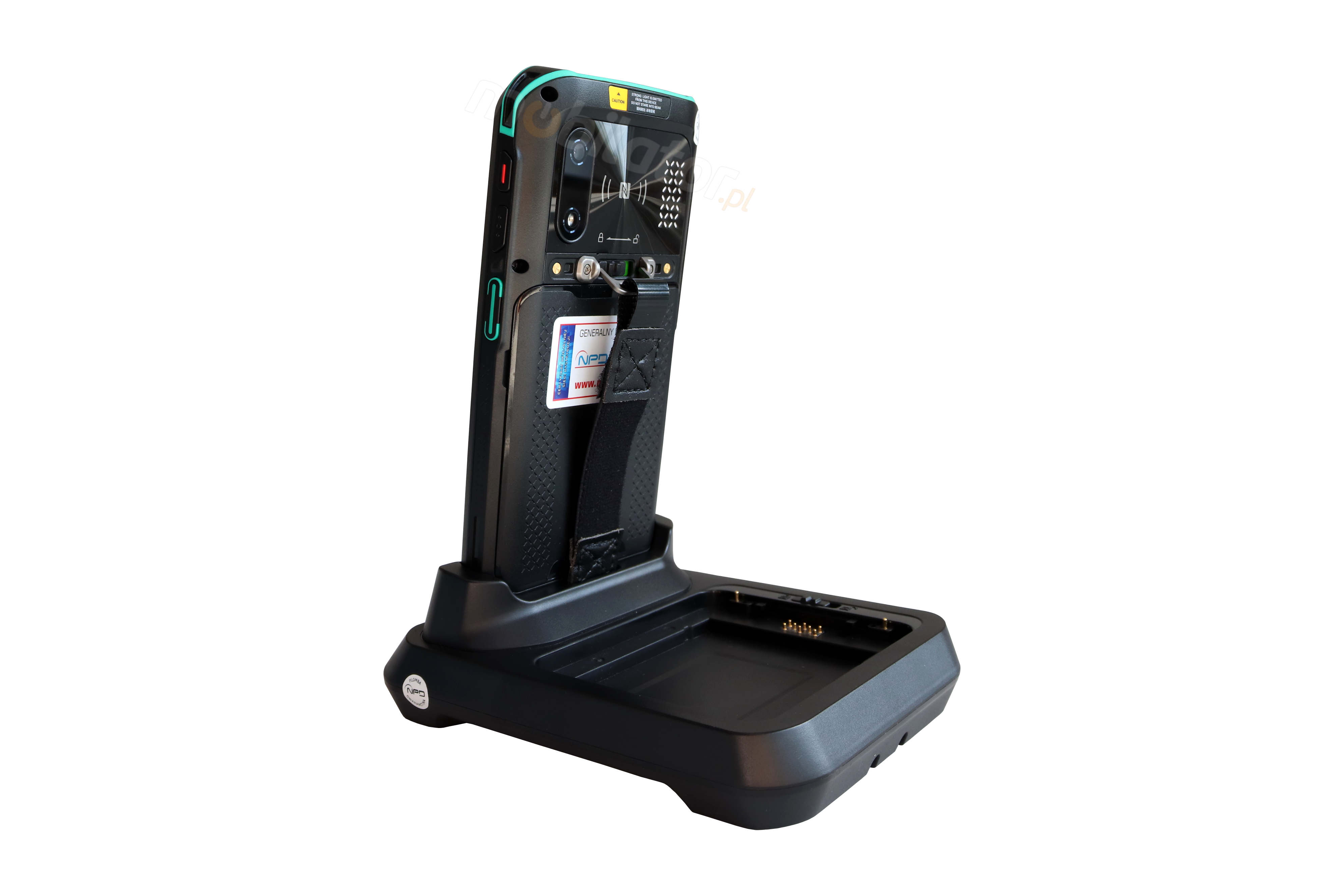

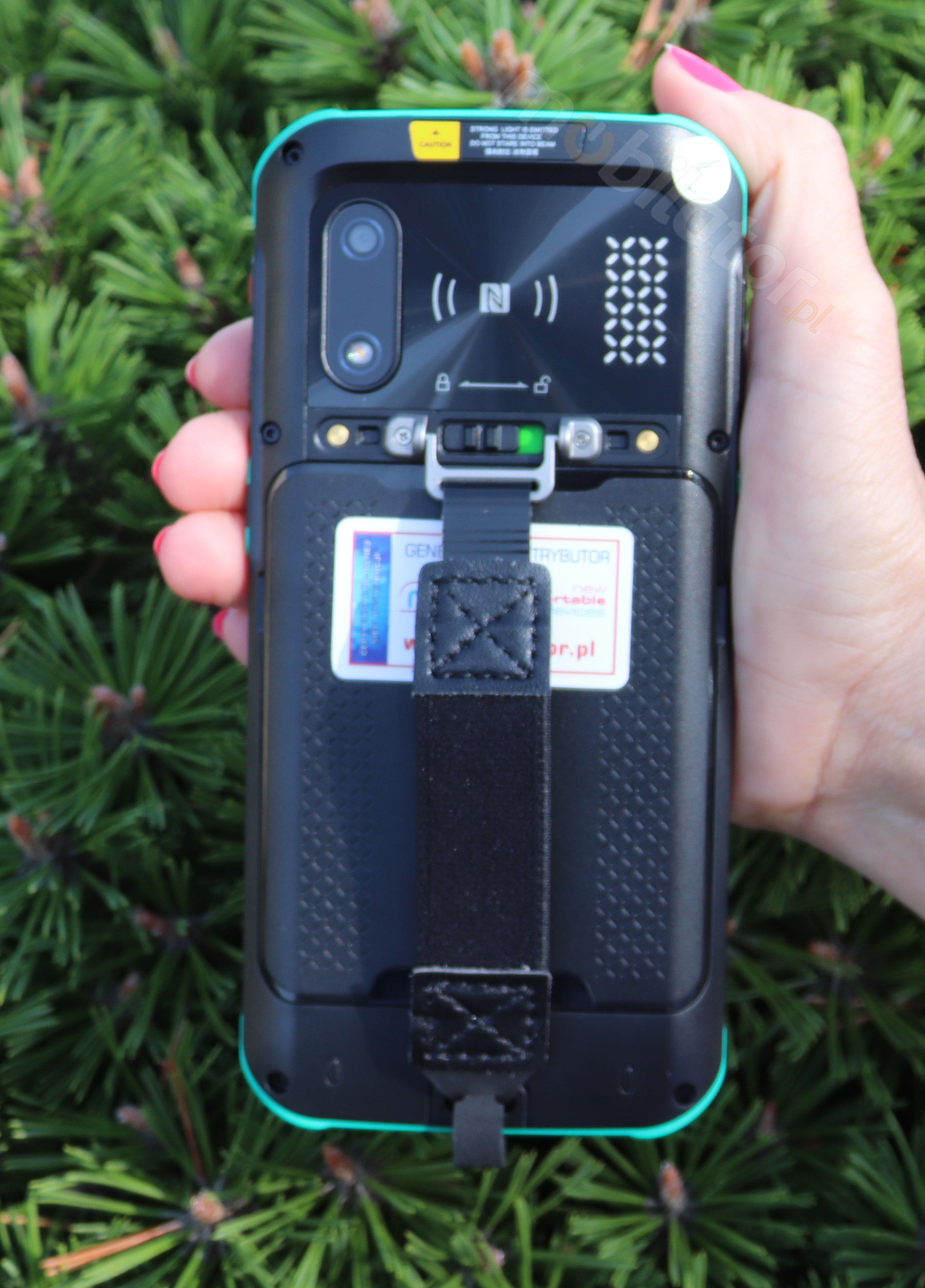

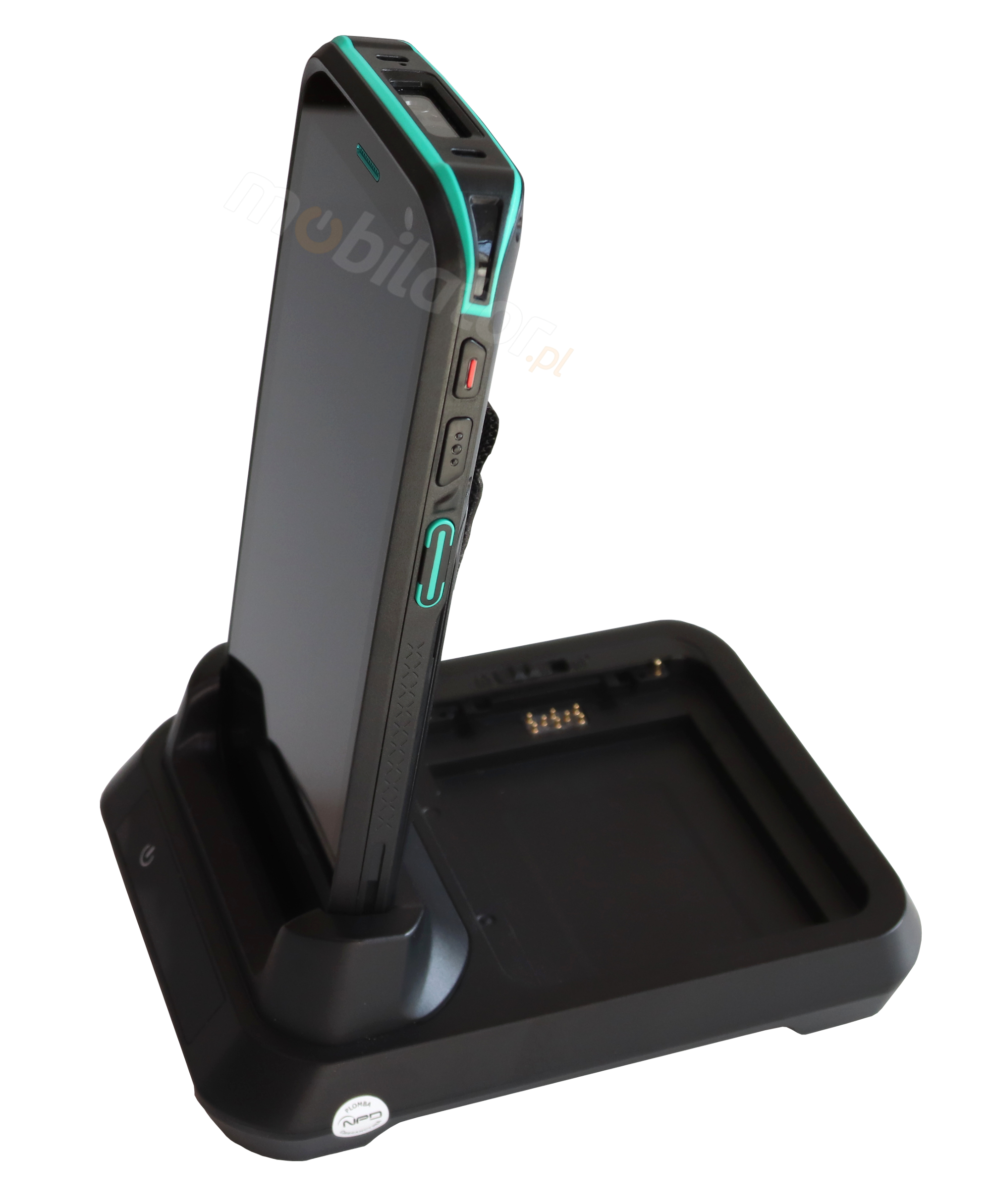

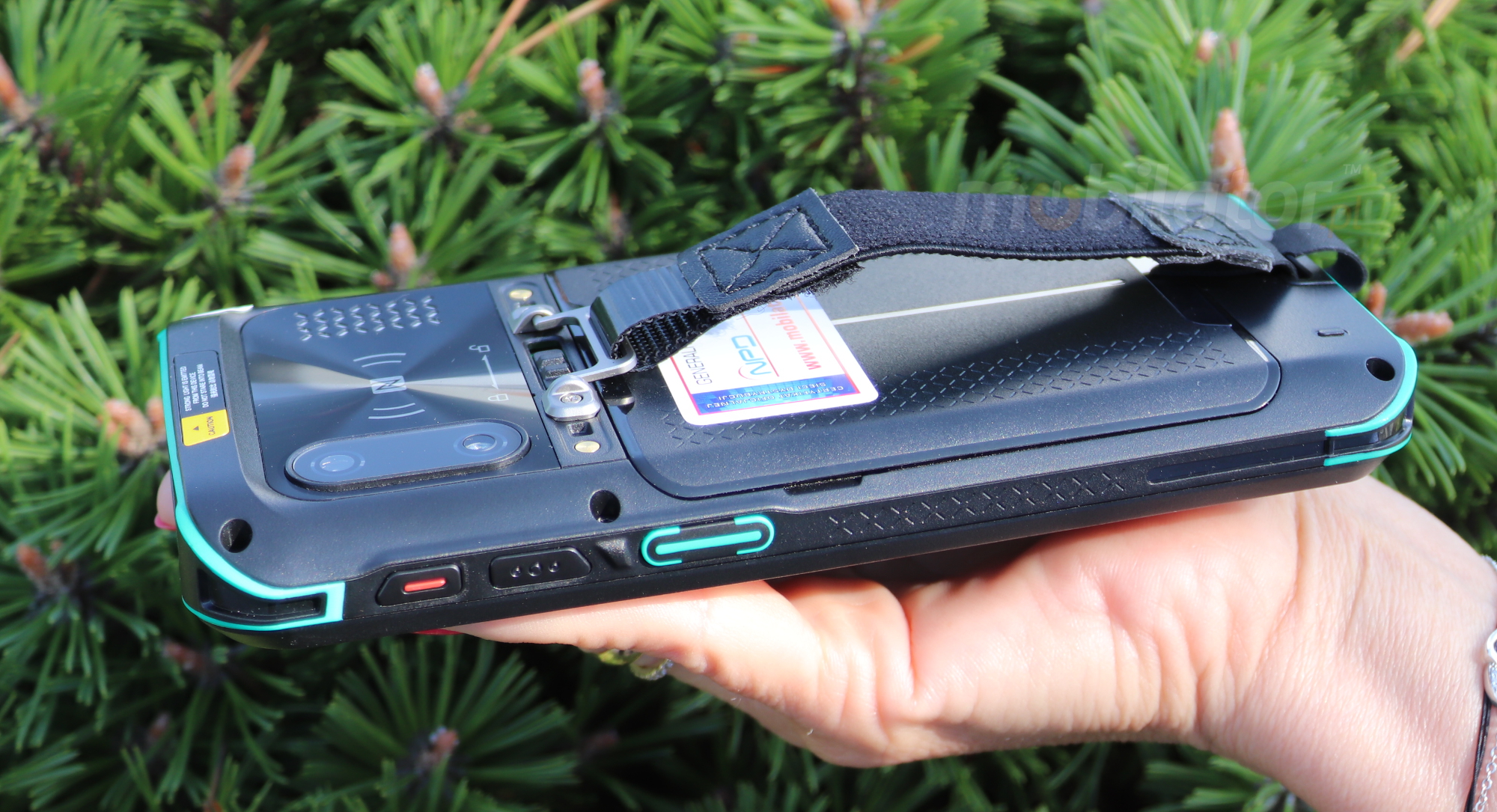

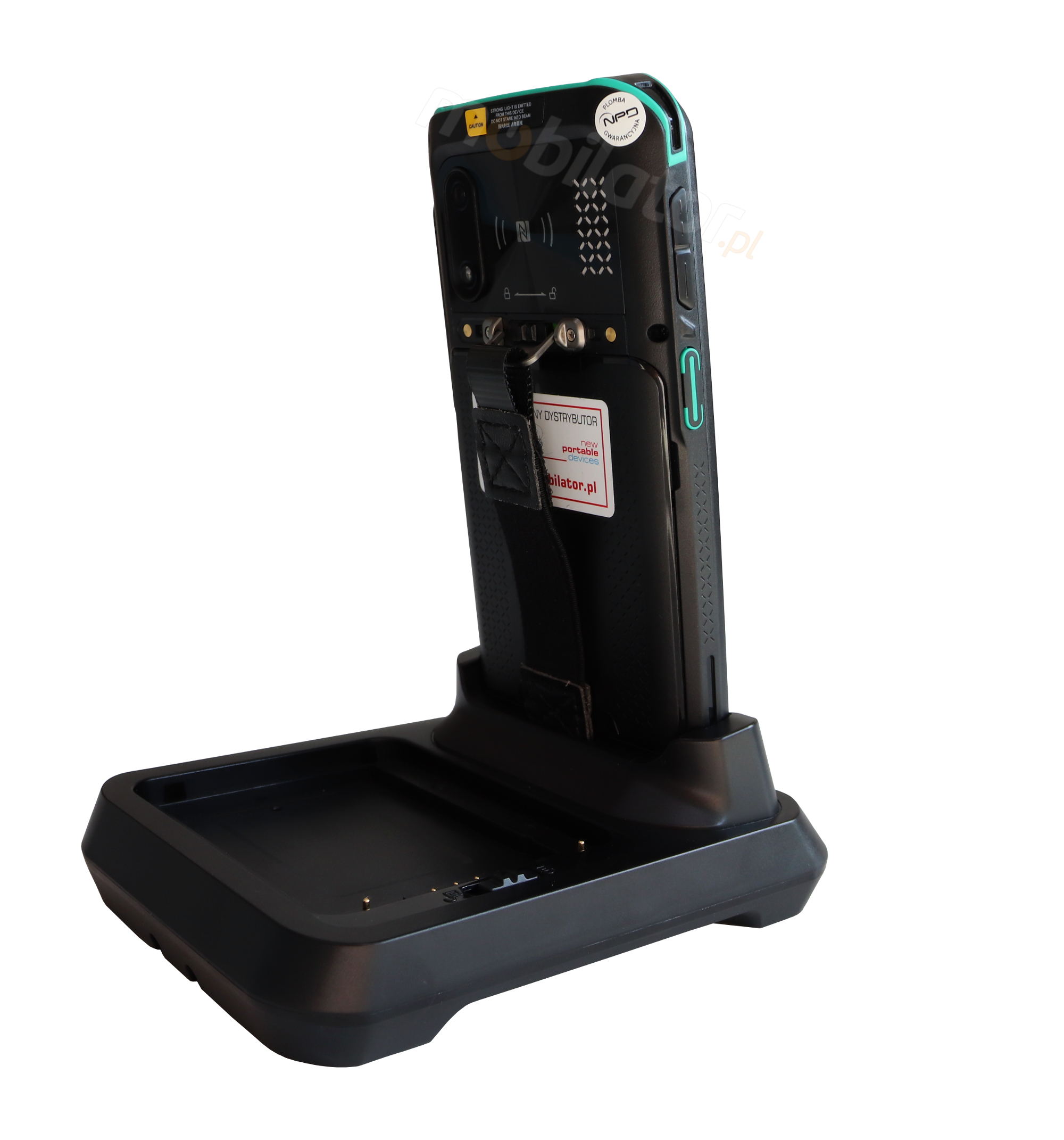

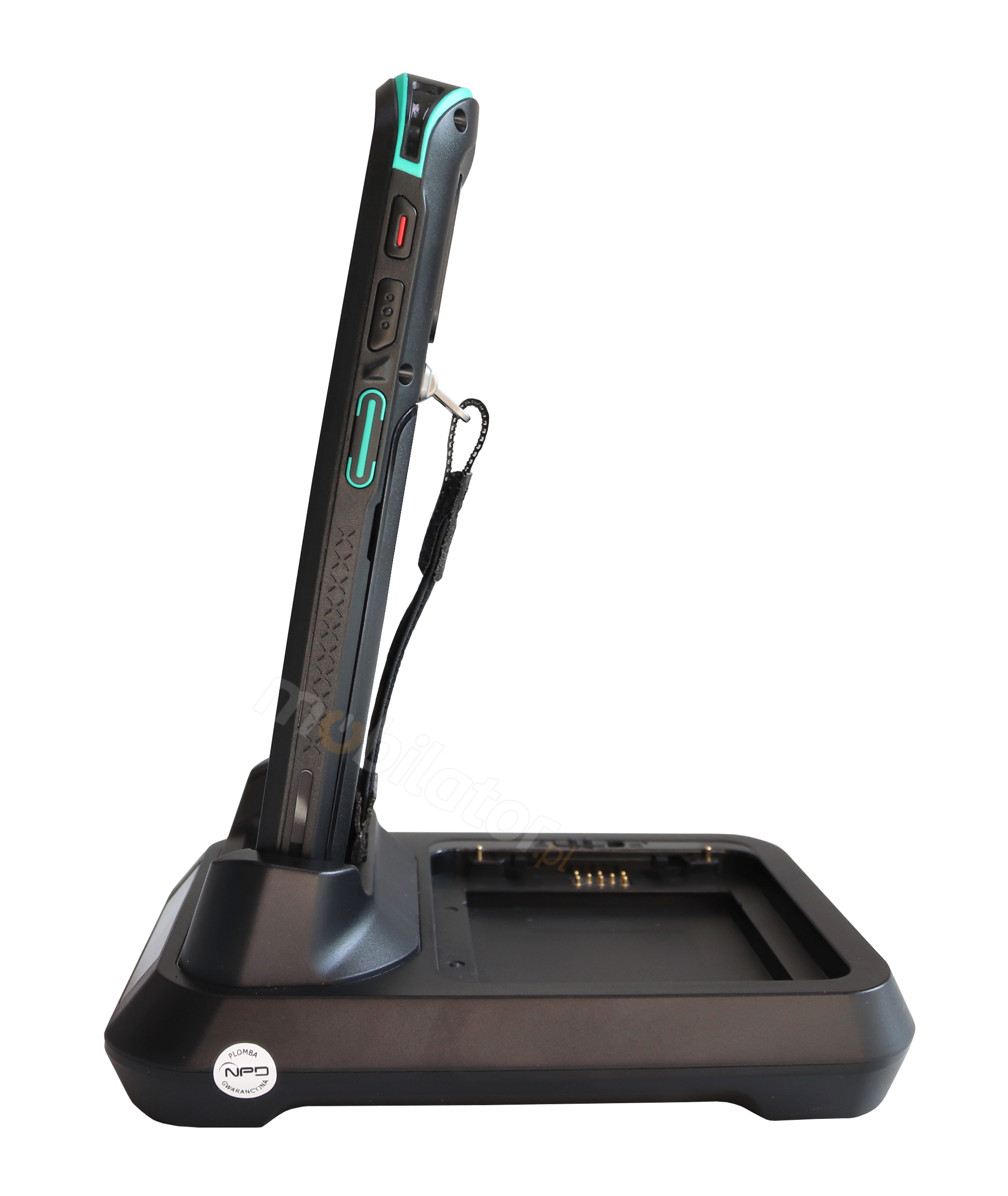

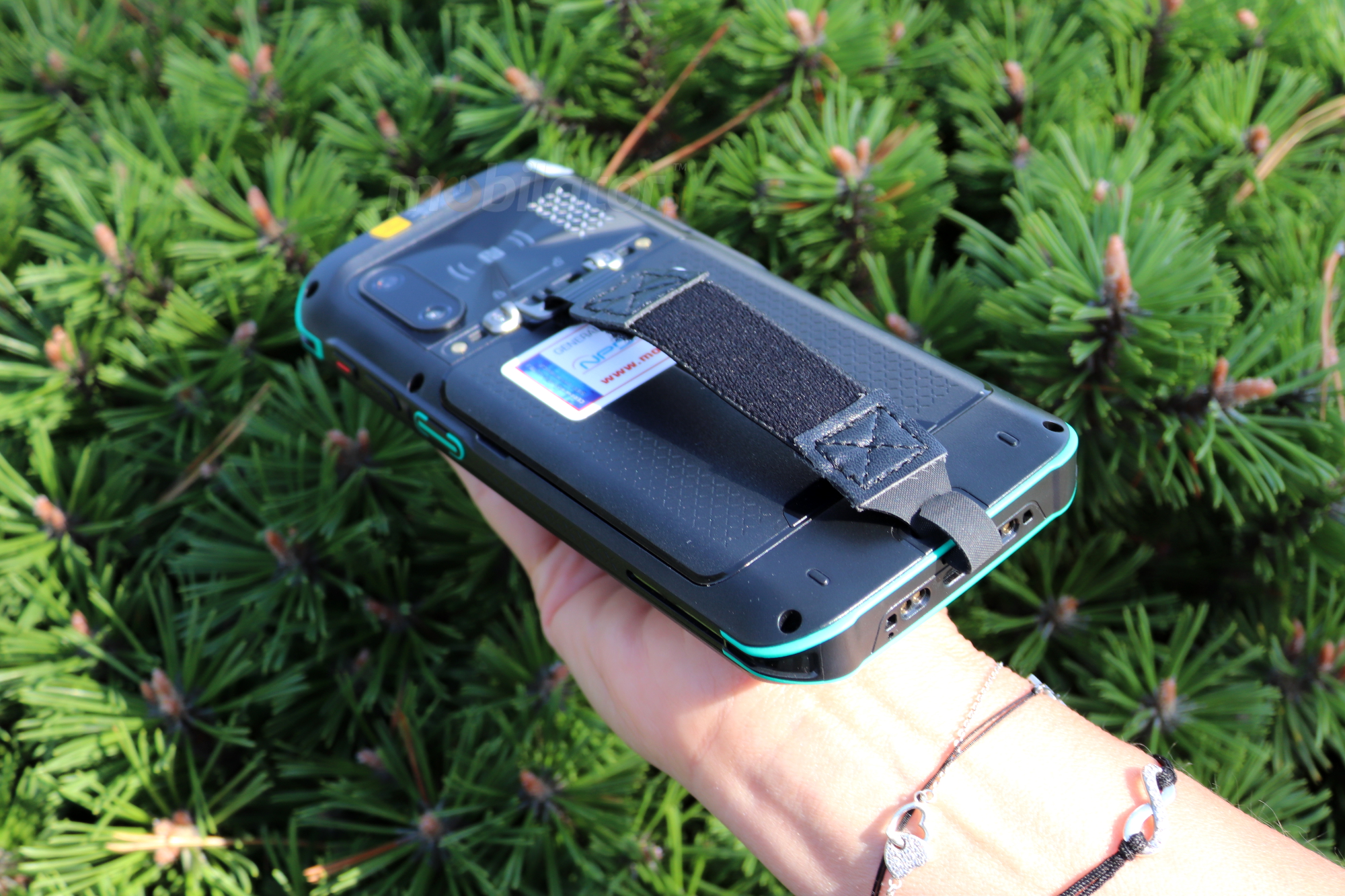

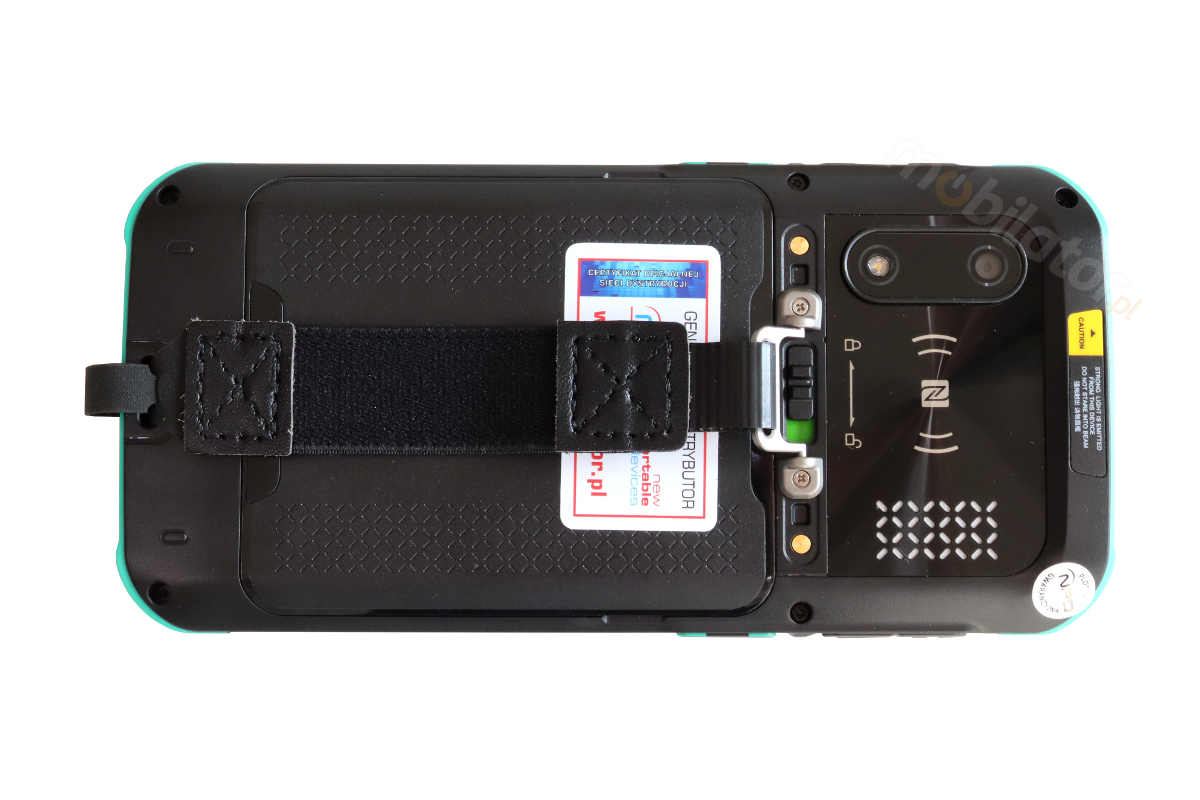

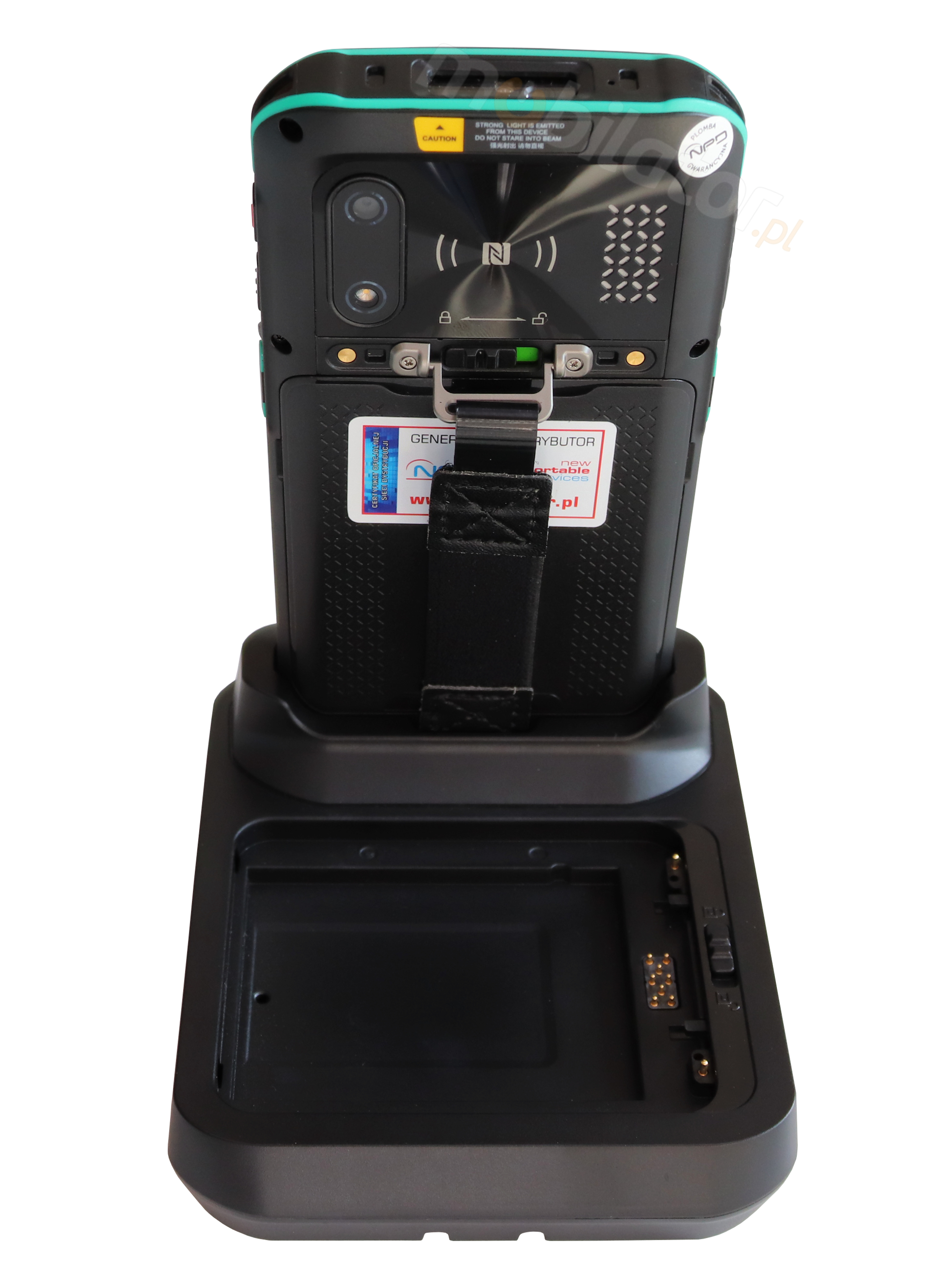

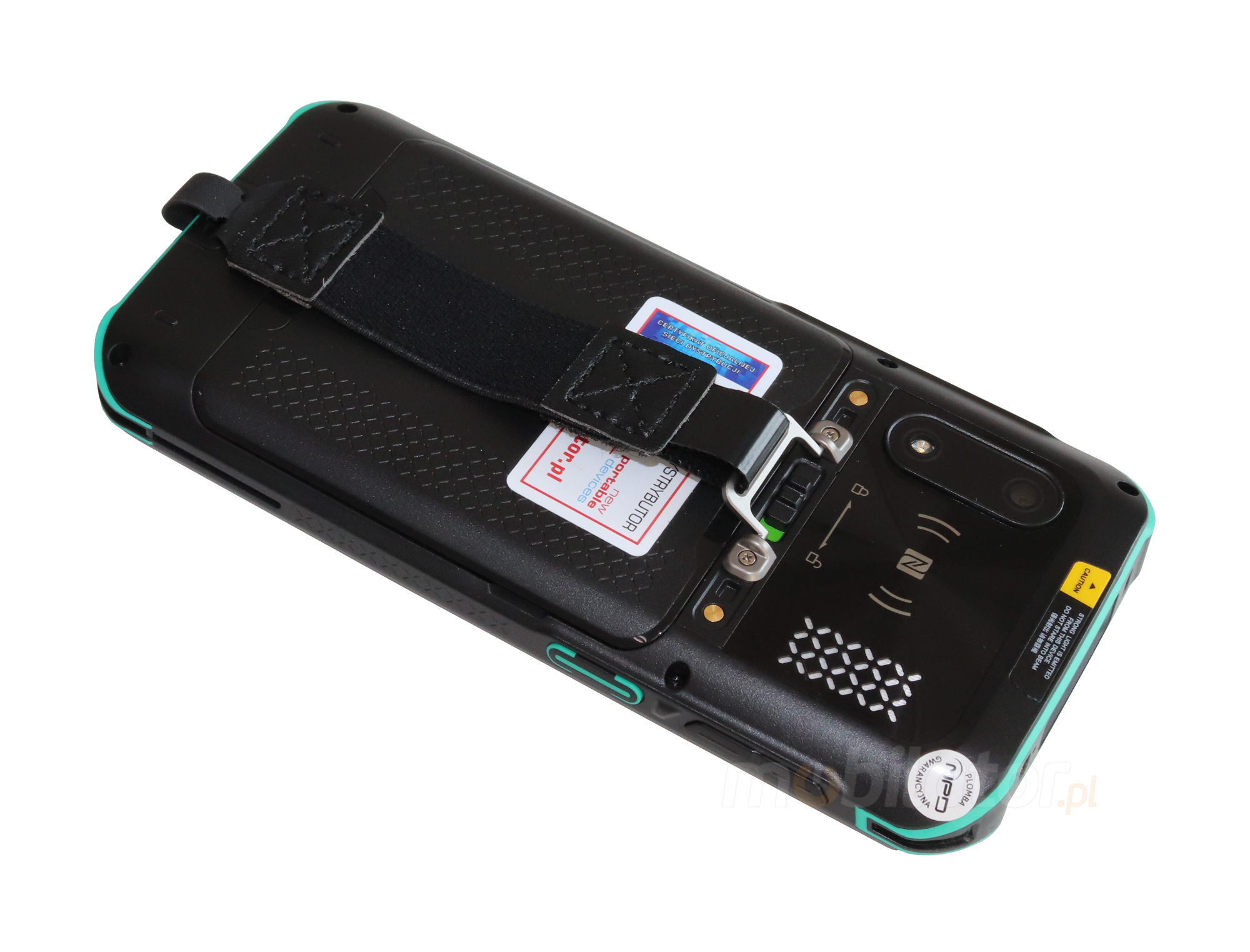

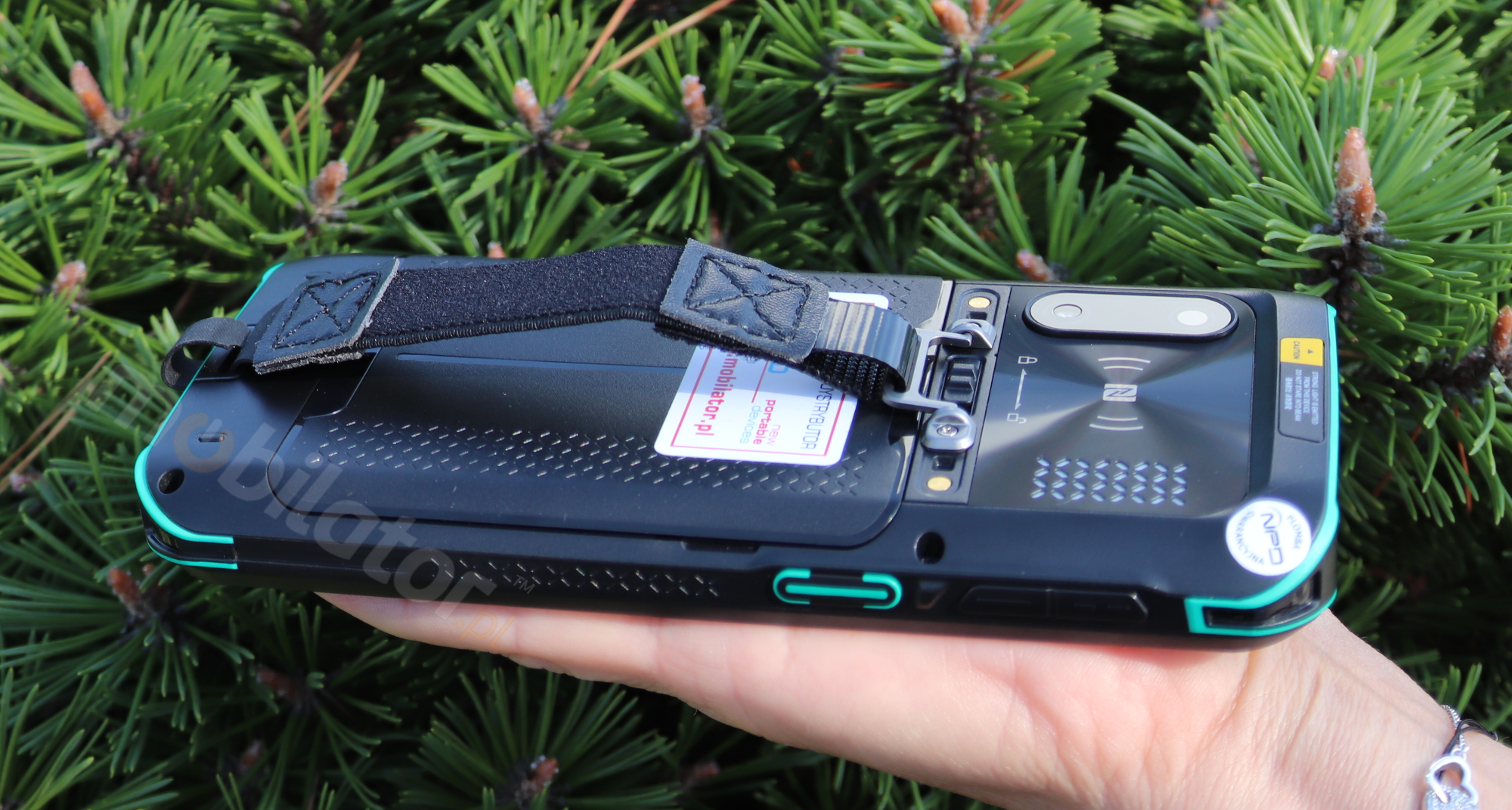

Industrial Data Collector MobiPad H-H5 is also available in a version with a real keyboard (MobiPad H-H4). We then get the opportunity to work comfortably on the buttons that we feel under our fingers. Both data collectors can be equipped with accessories that facilitate work. We can choose between a charging station, a pistol grip, a battery that extends the operating time of the device, or a strap that makes it easier to hold the collector. No matter which collector you choose. Both will make your work easier and make the performance of tasks a pleasure.
