Mobile Industrial Data Collector WINMATE E500RM8 v.1

Mobile Industrial Data Collector WINMATE E500RM8 v.1

Data update: 2020-07-23

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

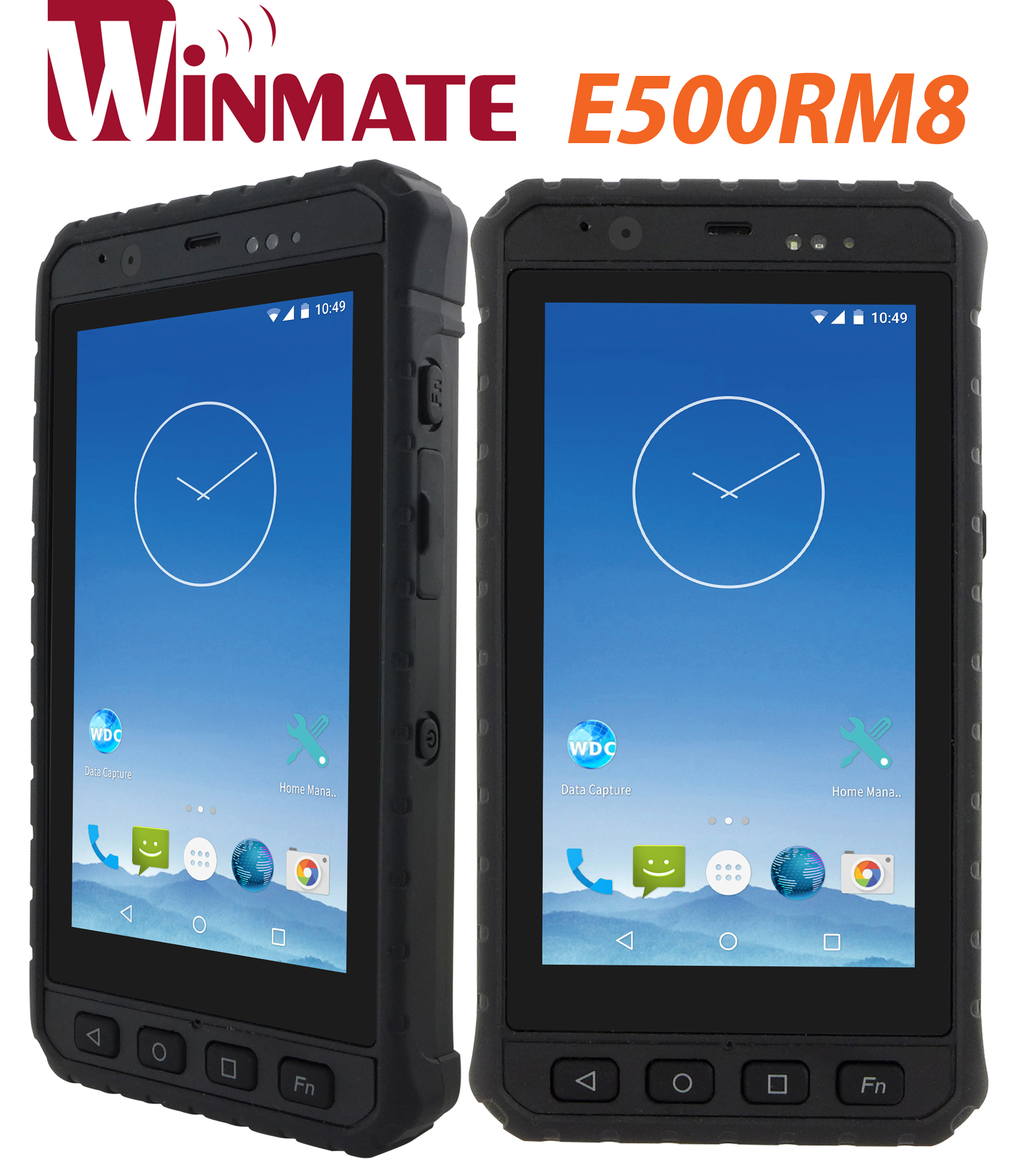

Mobile Industrial Data Collector WINMATE E500RM8 umpc mobilator

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

Mobile Industrial Data Collector WINMATE E500RM8 umpc mobilator

Android 5.1
Multiple wireless communications option
Support for 1D/2D Barcode Reader
Robust battery
Industry and military standards

With its Android 5.1 platform, 1D/2D scanner, RFID reader, dual cameras, sunlight-readable 5-inch capacitive touchscreen, and a user replaceable battery design, the E500RM8 rugged handheld streamlines data collection and operations in any field application.

Specification
Processor ARM® Cortex™-A53 Octa-core 1.3 GHz
Display 5" (1280x720) Capactive : Multi-touch
RAM 2GB SDRAM
ROM
16GB eMMC
Connectors Micro USB : SIM : Micro SD (max. 32GB)
Audio Built-in Microphone : Speaker 1.2W
Keys Volume +- | Power | 2xDefine button
  Home | Menu | ESC | Define button
Battery 3900 mAh Li-Ion (1S2P)
Camera Front: 2Mpx
  Rear: 8Mpx + LED
Sensors Light, Proximity, G-Sensor, Digital Compass
Readers (optional)
1D/2D : Smart Card Reader : Fingerprint
Modules WiFi : NFC : Bluetooth V4.1  : 3G : 4G(Option)
Operating system
Android 5.1 (multi-language)
Refer to the "Select version for yourself" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.



Porównaj wszystkie wersje



  v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9 v.10
2D Motorola SE4500
Hotswap Battery
4G LTE
Smart Card Reader
Fingerprint Scanner

Accesory

One difference between consumer devices and those designed for deployment in enterprise and vertical markets that's often overlooked is the availability of supporting accessories and peripherals. For consumer devices, all that's available may be a USB charging cable — definitely not a solution that would work for rugged equipment customers. Winmate knows that and offers not only a dedicated dual battery charger that shows charging level, but also a clever daisy chainable charging dock.

Mobile Industrial Data Collector WINMATE E500RM8 umpc mobilator

The collection and processing of data

Barcode Scanner (optional)

Mobile Industrial Data Collector WINMATE E500RM8 barcode scanner czytnik kodów kreskowych

Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E500RM8 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E500RM8 with various options of the scan engine can boost productivity and efficiency immediately.

  1D/2D
Model Motorola SE4500
Scanner type
2D (CMOS)
Codes (1D)
UPC/EAN, Code 128, Code 39,Code 93, Code 11, Interleaved 2 of5, Discrete 2 of 5, Codabar, MSI,Chinese 2 of 5, Matrix 2 of 5, Korean3 of 5, Postal codes, GS1 DataBar, Composite
Codes (2D) QR Code, Data Matrix, PDF417, Maxicode, Aztec





go top... do góry menu… menu

Smart Card Reader (optional)

Handheld device equippMobile Industrial Data Collector WINMATE E500RM8 umpc mobilatored with Smart Card Reader is a compact, ergonomic, and rugged solution for a wide range of applications where information security is a priority – medical identification, e-government and e-commerce applications, digital signage and identification. The device securely inputs the sensitive data from ID card to the system and guarantees the safety and confidentiality of information.

Fingerprint Scanner (optional)

Mobile Industrial Data Collector WINMATE E500RM8 umpc mobilator

In the areas where the work content varies by confidentiality degree, the importance of information security arise. Fingerprints taken using the handheld device provide access for the information only to authorized personnel, significantly improving information management system on the field.



Modules and Wireless Networks

NFC
13.56Mhz
WiFi 802.11 a/b/g/n
Bluetooth Bluetooth Class 4.1
GPS Wbudowany (u-blox NEO-6Q)
3G GSM / GPRS / EDGE / WCDMA / HSDPA / HSUPA
4G LTE(Opcja)

go top... do góry menu… menu

Minimalism



Mobilny Przemys³owy Kolektor Danych WINMATE E500RM8 mobilator.pl umpc




In addition to standard Bluetooth and Wi-Fi, the E500RM8 handheld offers optional GPS and 3G asset tracking and real-time data transfer. Whether indoor or outdoor, the E500RM8 handheld provides a wide of robust communications options.






go top... do góry menu… menu

Fast battery replacement

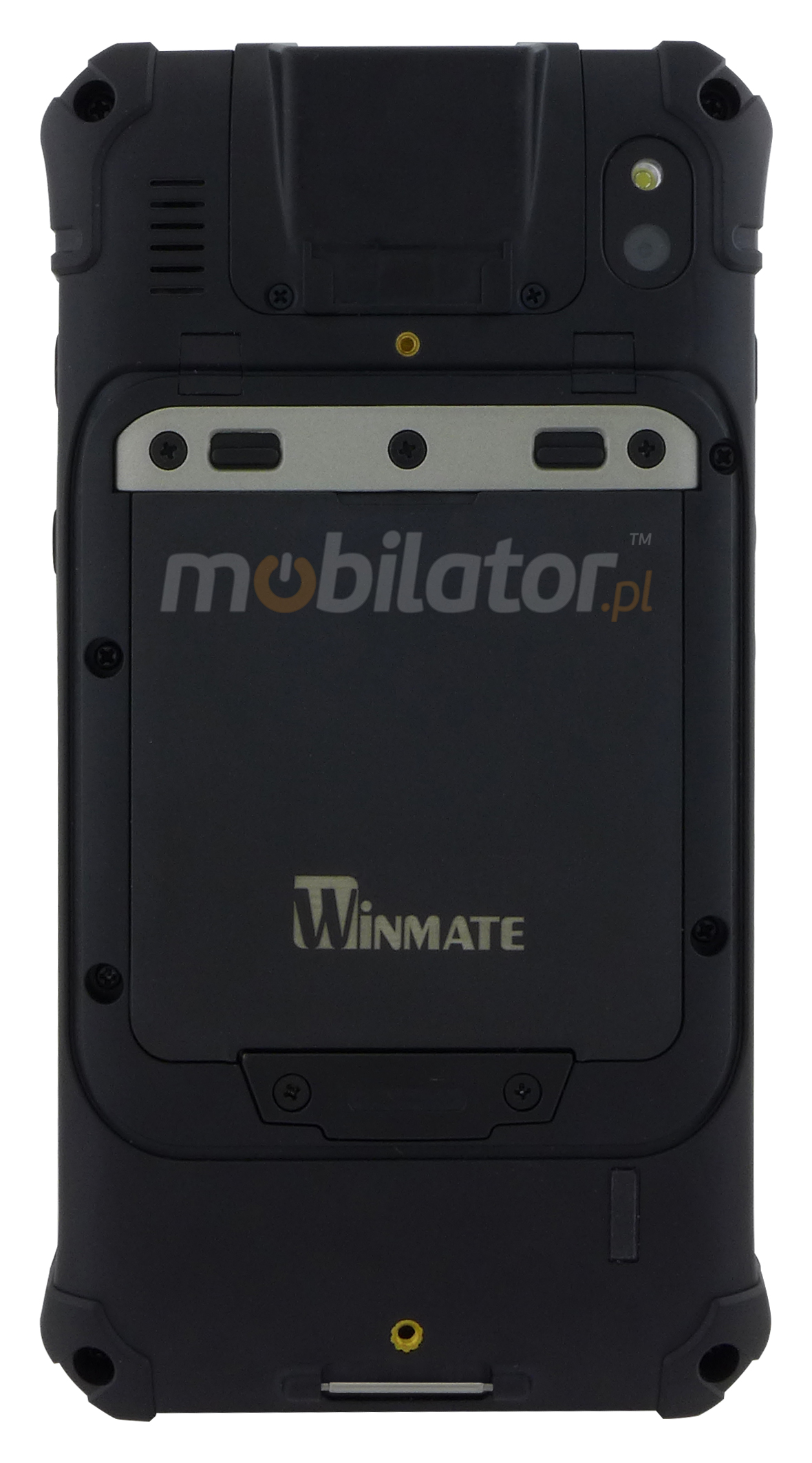

Mobile Industrial Data Collector WINMATE E500RM8 fast battery change

Featuring a user replaceable battery design with simple latch system, E500RM8 handheld can support continual operation on the field without down time. The replaceable battery also features high capacity at 3900mAh for extended use.



Resistance



Standards

Operating temperature

-10°C -- +50°C (Battery)

-20°C -- +60°C (AC)

Storage temperature -30°C -- +70°C
Humidity 95% non-condensation
Dust IP6x (dust)
Water IPx5 (water)
Vibration MIL-STD-810G M514.6
Drop MIL-STD-810G Method 516.6, 4 ft, Free to concrete
Regulatory CE, FCC, UL, CCC

go top... do góry menu… menu



Odporno¶æ sprzêtowa IP65

Mobile Industrial Data Collector WINMATE E500RM8 umpc mobilator android nfc rfid 1d 2d

Sealed to IP65, the E500RM8 handheld is built to withstand harsh environments, protected against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -10°C to 50°C and endure shock, vibration and 4-foot drops.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
Complete protectionm against contact, Protection from infiltration of dust
6

5

Protection from water projected from a nozzle










Compare all versions
