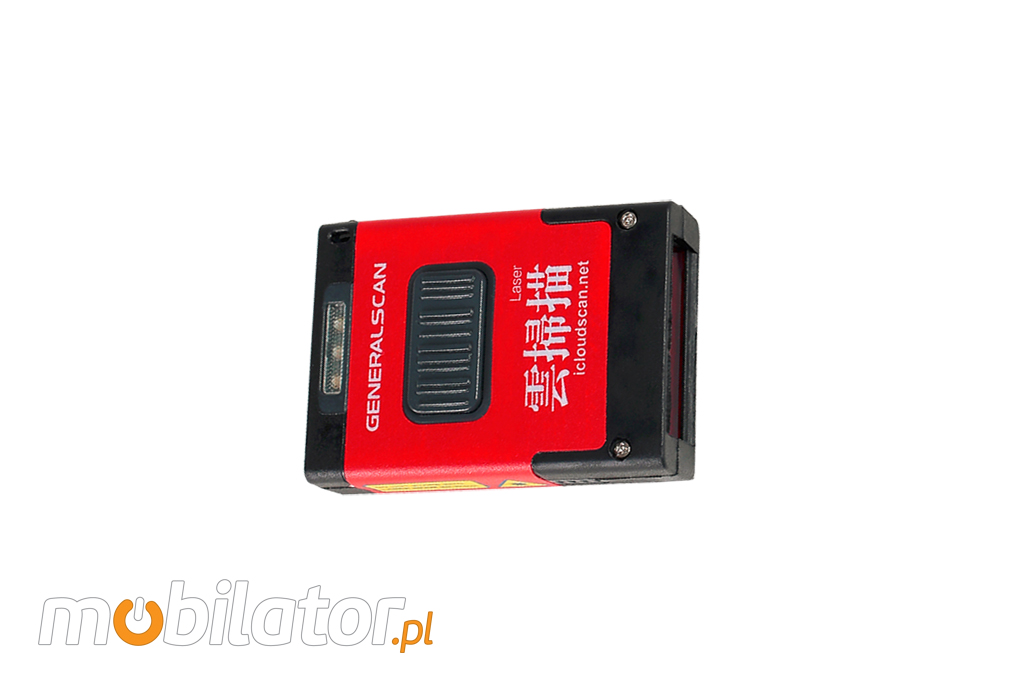

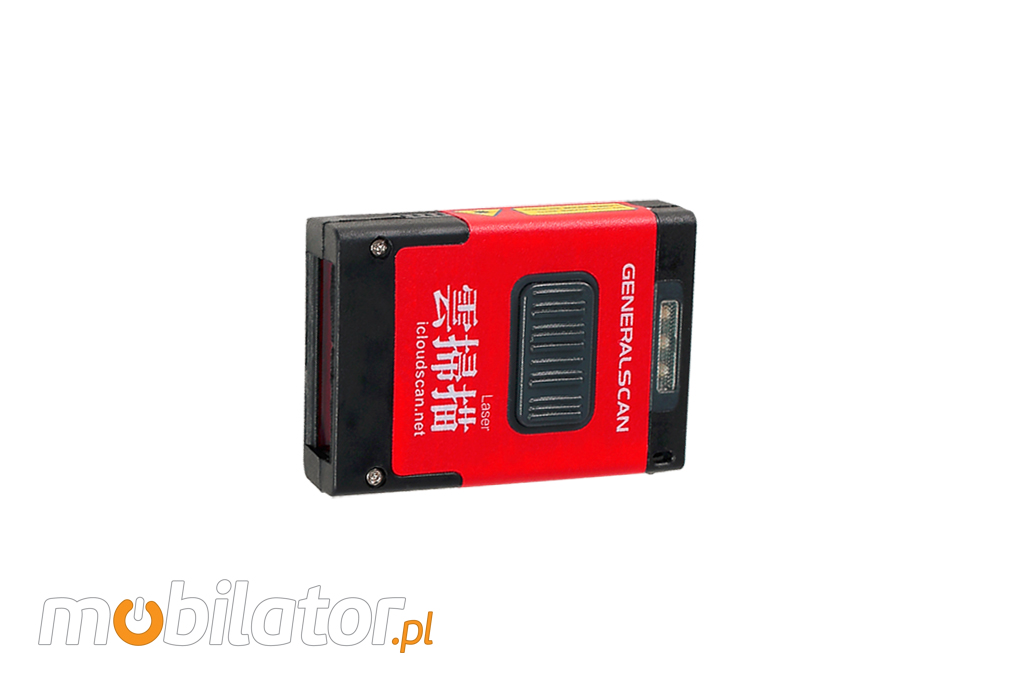

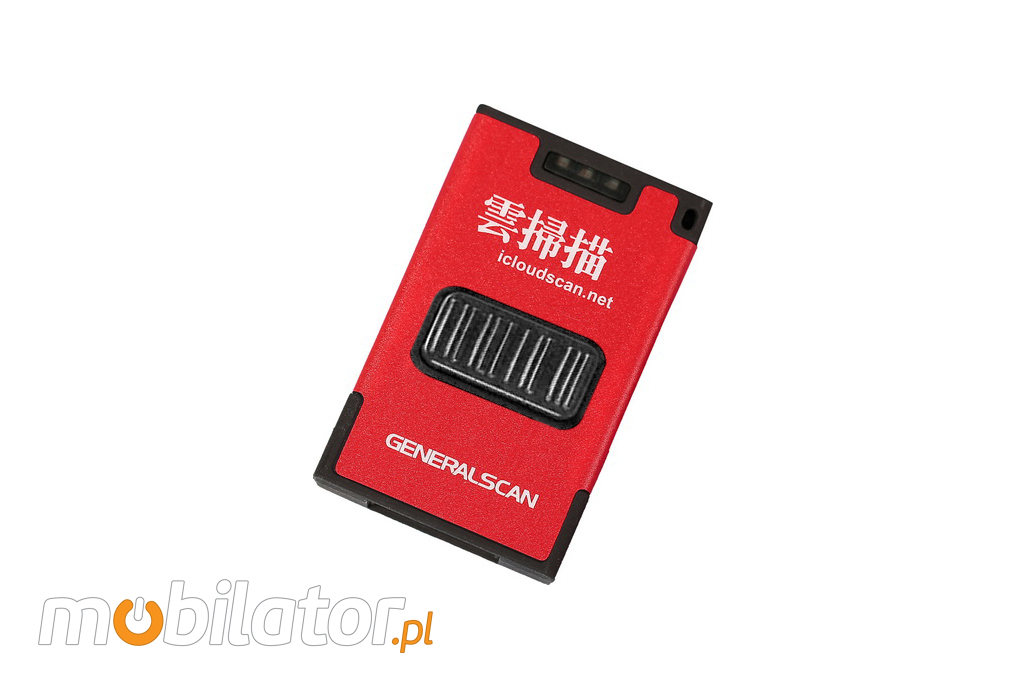

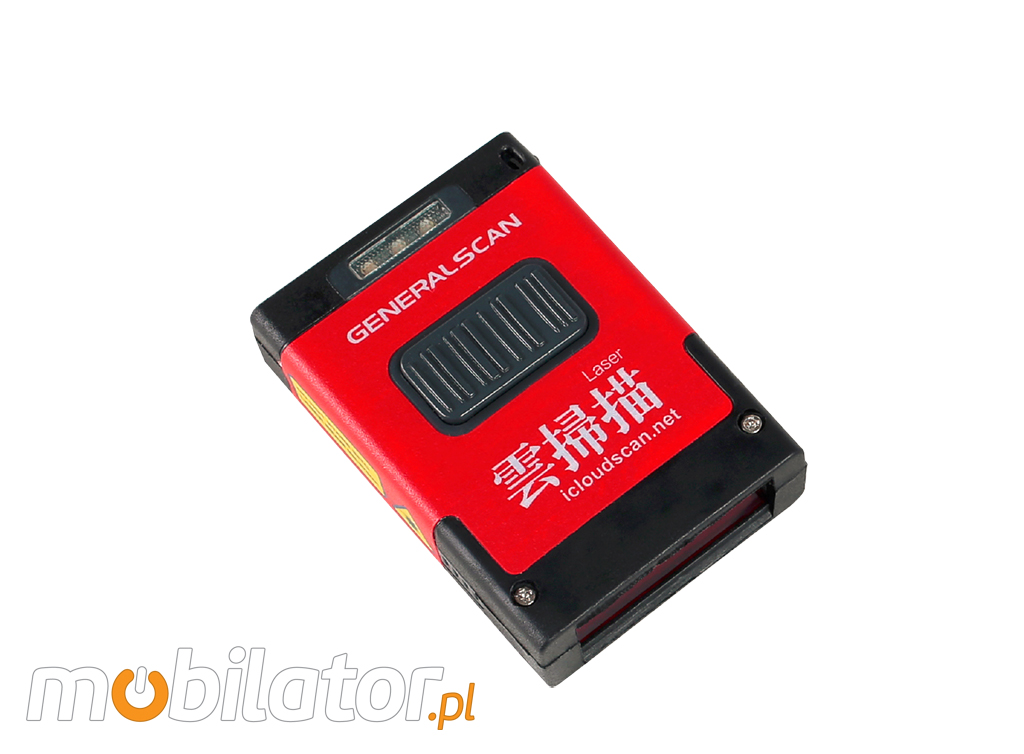

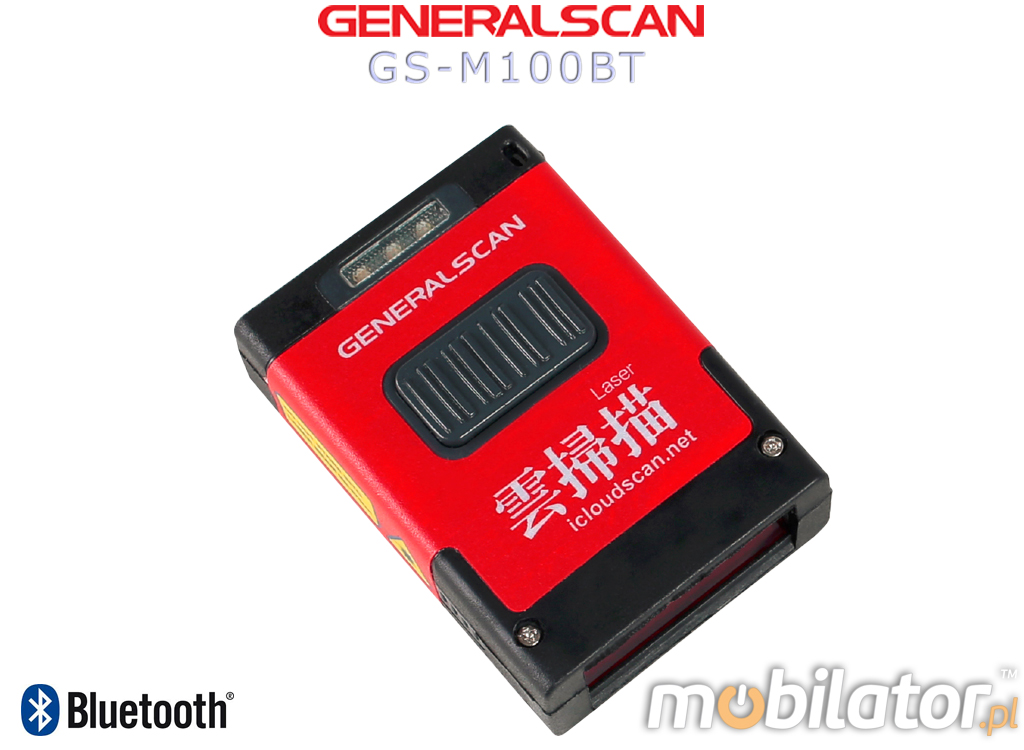

Mini scanner GS-M100BT 1D Laser Bluetooth
|
|
The product from the archive - production terminated
|
|
|
The company's new distribution GENERALSCAN Mobilator s. It has achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
.jpg)
|
|
|
Barcode scanner is a device that allows for barcode reading out of boxes, equipment, documents and all the places where these codes were implemented. GENERALSCAN Products are of high quality and the ability to trouble-free operation for many years.
|
|
GENERALSCAN GS-M100BT |
Barcode scanner
|
1D Laser
|
Working time
|
6-8 h
|
Support system
|
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8
|
|
Distance |
10 m
|
|
Communication |
Bluetooth
|
|

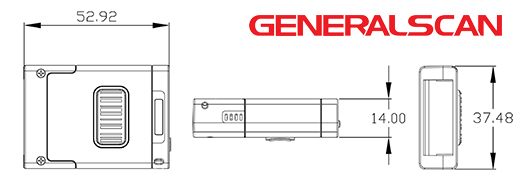

Dimensions |
14 x 52,9 x 37,5mm
|
Weight
|
50g |
|
Other |
Built-in memory, and offline store 10,000 15-bit character barcode / Support for screen scraper directly. |
|
The detailed specification of the configuration available in the "Technical data"
|
|
|

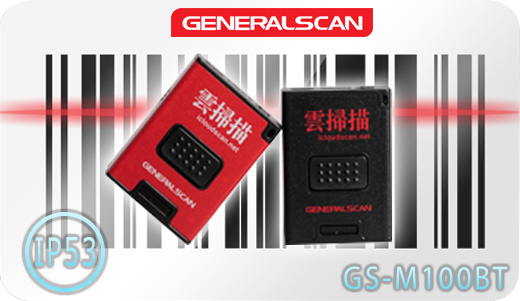

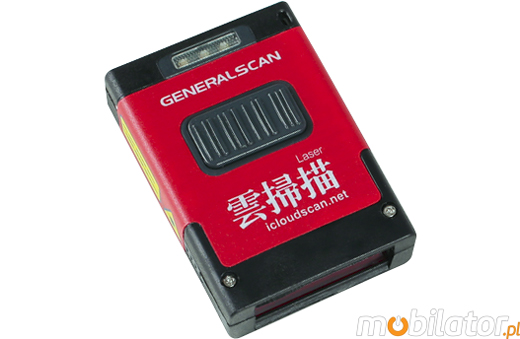

Unusual, modern, wireless (Bluetooth) mini barcode scanner GENERALSCAN GS-M100BT has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
 GS-M100BT intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing the information read from the barcode.

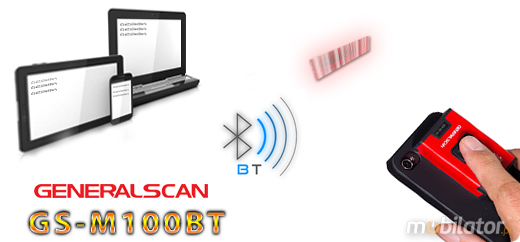

1D Barcode Scanner - GENERALSCAN GS-M100BT through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

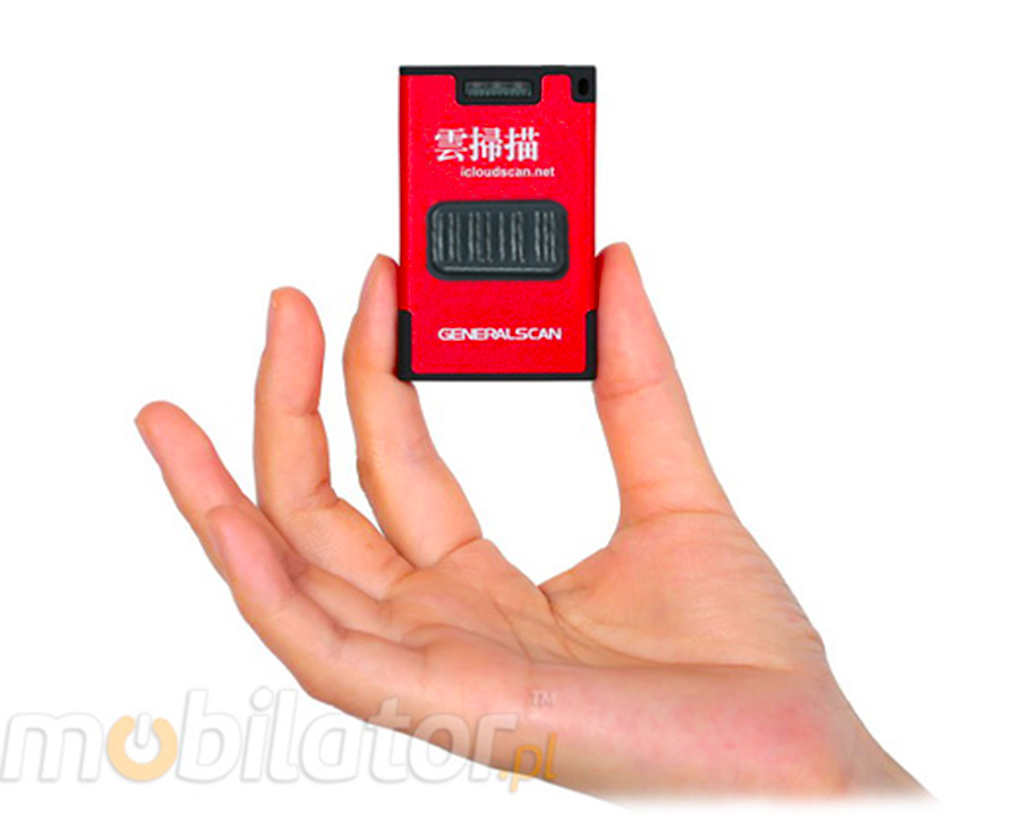

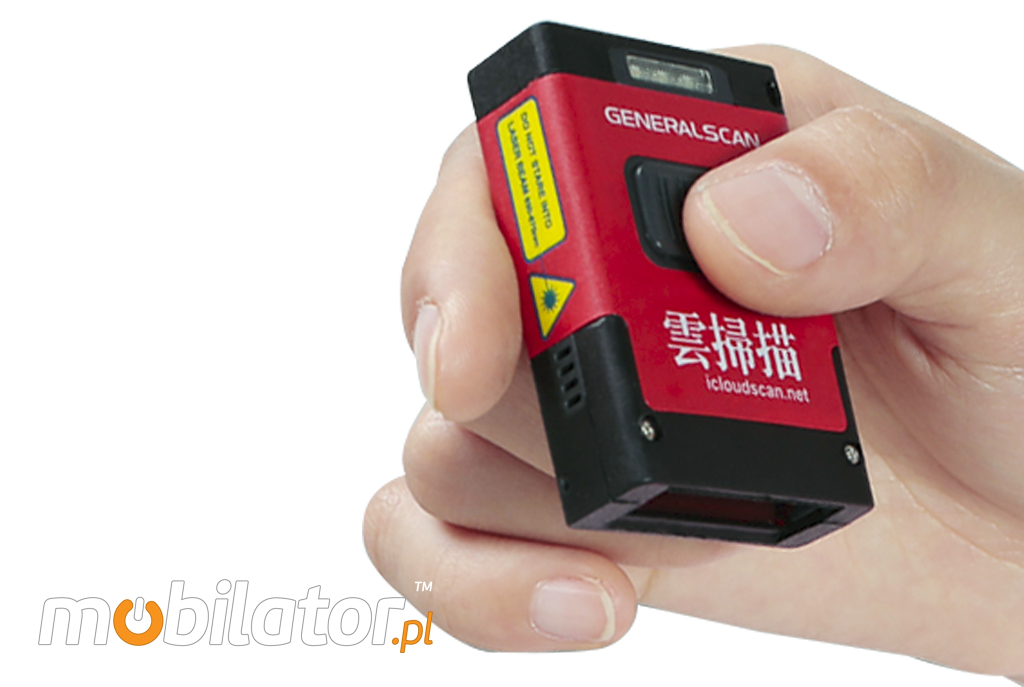

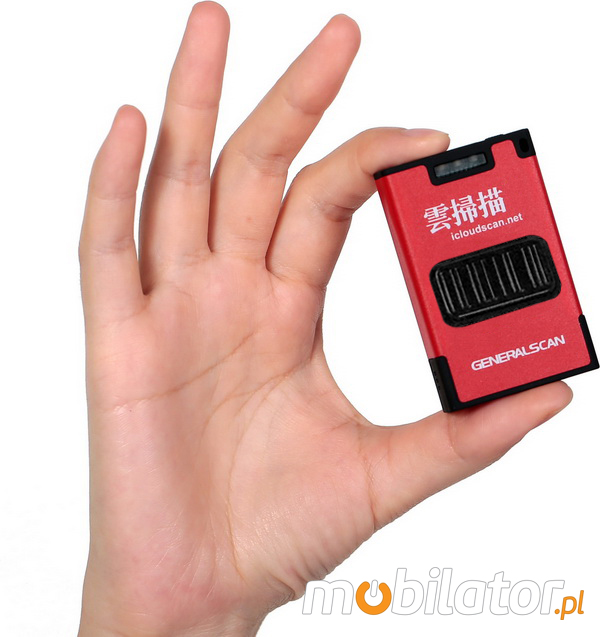

 A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.
GENERALSCAN GS-M100BT is equipped with a Li-Ion battery with sufficient capacity 500mAh, which allows the scanner to operate about 8 hours in scan mode or leave it on standby for 15days.
 Mini scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczo¶ci connecting the device, remembers up to 10 000 thousand barcodes. Built-in battery supports a large amount of scanned data.
1D Barcode reader
Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 1D Barcode Reader allows you to read, decode and transfer to your computer data stored in the barcode. With dynamic scanning capabilities and the large range of reading, mini scanner GS-M100BT carefully collected data, which helps to increase the rate and efficiency. The whole can quickly start because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.
|
Scan speed: 30 scan/sec |
1D Laser
|
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,
Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,
UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
|
|
Mini scanner has a built-in 1D Laser barcode reader that connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with systems such as Android, iOS3, Windows CE, Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 10m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
|
|
Operating |
-10°C To 60°C |
|
Operating Humidity |
5% to 90%(No non-condensing)
|
|
Dust |
IP5x (dust) |
|
Water |
IPx3 (stream of water)
|
|
Drop |
Withstands multiple drops of 4,5ft’ (1.2 Meters) |

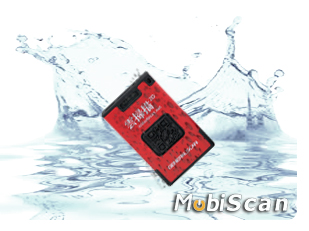

Resistance IP53
 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
go top…  menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Application
For GENERALSCAN GS-M100BT manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
GS-M100BT allows quick identification and introduction of prescriptions to the database. With a small, mobile, lightweight design is easy to carry and efficient accepting orders..
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.
|
|
|
.jpg) Barcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments..jpg)
After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.
The bar code scanner can be connected to almost any device of computer technology - via the USB port.
GENERALSCAN GS-M100BT
|
Mechanical
|
Height: 14 mm
Lenght: 52,9 mm
Witdh: 37,5 mm
Weight: 50g
|
|
Electrical |
DC: 5V ± 5%
|
|
Scan Performance |
Sensor Type: 1D Laser Diode,650 nm
Light Source: 1D Laser
Scan speed: 100 scan / s
Continuous decoding speed: 15times / s
Scan Angle: >50⁰
|
Battery
|
Li-ion 500 mAh
Working time 6-8h
Continuous Working Time: 3 day
|
Barcode Type
|
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN,
Code 39, Code 39 full ASCII,
Code 32, Trioptic Code 39, Interleaved 2 of 5,
Industrial 2 of 5, Matrix 2 of 5,
Codabar (NW7), Code 128, Code 93,
Code 11(USD-8), MSI/Plessey,
UK/Plessey, UCC/EAN 128, China Post,
GS1 DataBar (formerly RSS) variants
|
|
Communication |
Bluetooth 3.0
USB 2.0
Distance: 10 m
Cable MiniUSB
|
Scan Range
|
(1 mil = 0.0254 mm)4 mil:42- 75 mm
5 mil:40-105 mm 10 mil:10-250 mm
15 mil:23-380 mm 20 mil:35-490 mm
30 mil:30-650 mm 55 mil:75-900 mm
|
|
Housing color |
Red
|
|
Accessories |
User manual, Mini USB cable for charging,
|
|
Resistance |
IP 53 |
|
wiêcej zdjêæ w zak³adce "Galeria"...
specyfikacja danej wersji dostêpna jest w zak³adce "Dane techniczne"...
|
|
|
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows Mobile, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
Memory save more than 10,000 15-bit character barcode can be stored offline |
| Operation Voltage: |
5V - DC |
| Reading indicator: |
1D |
| Dimensions: |
14 x 52.9 x 37.5 mm |
| Weight: |
50 g |
| Battery: |
500 mAh Li-ion |
| Housing material: |
Plastic |
| Scan rate: |
100 times/sec |
| Light source: |
1D Laser Diode，650 nm |
| Resolution: |
- |
| Communication distance: |
10 m |
| Readable codes: |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
| Sensor: |
1D Laser |
| Scan Angle: |
50°, 65°, 35° (Skew, Pitch, Roll) |
| Print Contrast Ratio: |
- |
| Scan range: |
（1 mil = 0.0254 mm）4 mil：42- 75 mm 5 mil：40-105 mm 10 mil：10-250 mm 15 mil：23-380 mm 20 mil：35-490 mm 30 mil：30-650 mm 55 mil：75-900 mm |
| Cable Type: |
MiniUSB |
| Battery Life: |
6 - 8 h |
| Communication: |
Bluetooth 3.0 |
| Interface/ Pro le: |
HID / SPP |
| Operating Temperature: |
-10 ~ 60⁰C |
| Storage Temperature: |
-20 ~ 70⁰C |
| Relative Humidity: |
5 ~ 90% 5% to 90%（No non-condensing) |
| Resistance IP: |
IP53 |
| Drop test: |
Multiple drops 4.5 ft / 1.2 m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
Yes |
| ISSN: |
Yes |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
No |
| MSI - Plessey: |
No |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
