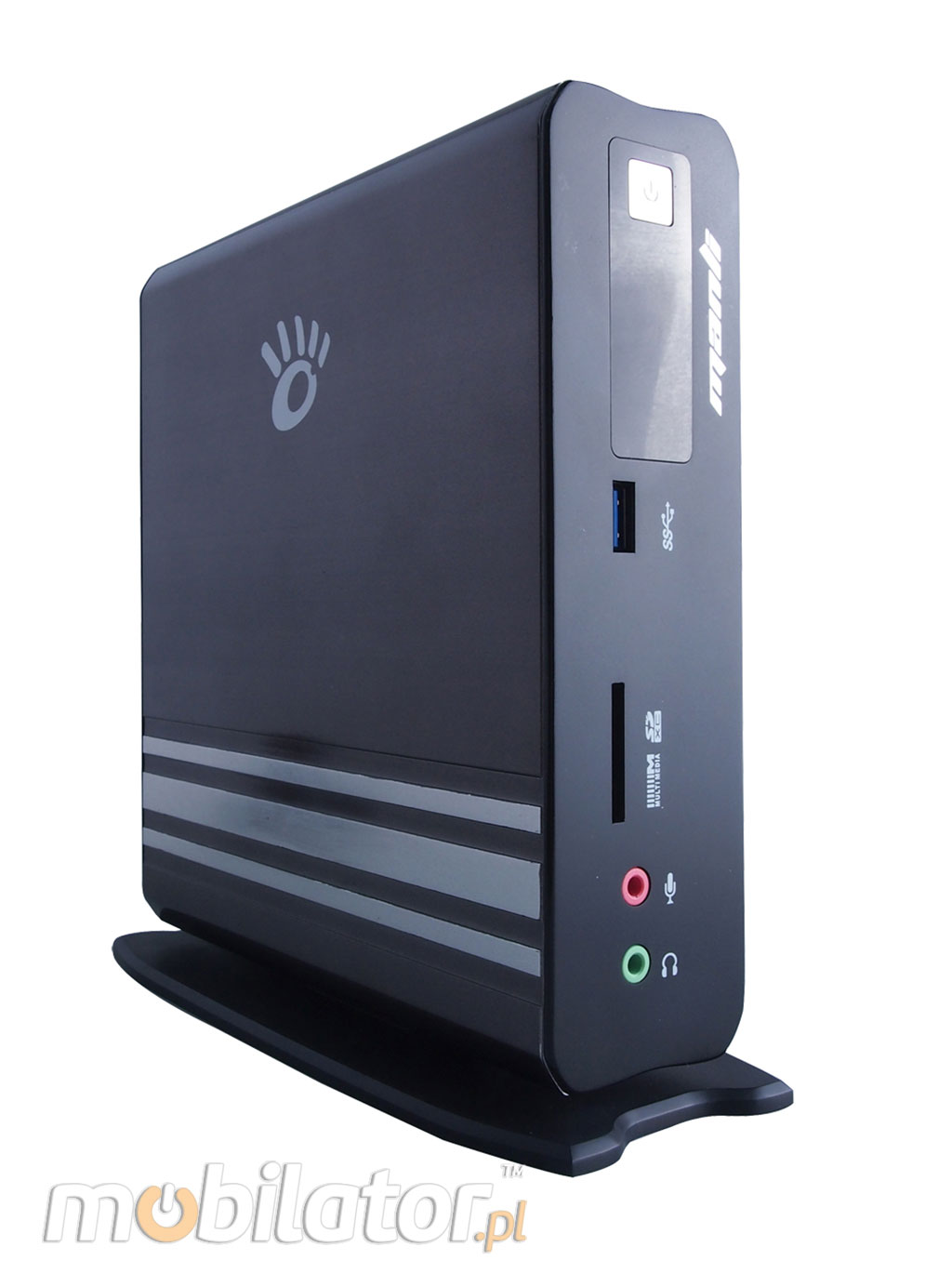

Mini PC Manli M-T6H34
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
.gif)
|
|
MiniPC for the most demanding users
Manli T6 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T6H34 on one of the first places in the world rankings MiniPC.
|
|
Mini PC Manli M-T6H34 - barebone |
|
Processor |
Intel® Core™ i5-3470T (2x2.9 GHz)
|
|
RAM |
not included - for building |
|
Disk |
not included - for building |
|
Graphics |
Intel® HD 2500
|
|
Chipset |
H61 |
|
Communication |
WiFi 802.11n 150Mbps + Bluetooth 4.0 |
|
Dimensions |
182.7x177.3x49mm |
|
Other |
None |
|
The detailed specification of the configuration available in the "Technical data" |
|
|
go top…  menu…
|
.jpg)
New generation of Intel® Core™ i5-3470T
Manli Mini-PC is supported with Intel® Core™ i5-3470T, making it extremely energy efficient (35W), while retaining the high performance, as evidenced in Windows 7 or 8, which is dedicated for this device. Intel® Core™ i5-3470T is a dual-core processor with a frequency (2x2.9GHz) for small netbooks and MiniPC. It offers powerful integrated graphics Intel ® HD 2500 and dual channel DDR3-1600MHz.
Processors available in a series of MiniPC MANIL T6
|
Model |
R/W |
Frequency |
Max. Frequency
|
L3 cache
|
Max. GPU
|
TDP |
|
Intel® Core™ i3-3220T |
2/4 |
2.8GHz |
2.8 GHz |
3 MB
|
1.05 GHz
|
35 Wat |
|
Intel® Core™ i5-3470T |
2/4 |
2.9 GHz |
3.6 GHz |
3 MB
|
1.1 GHz
|
35 Wat |
Intel® Core™ i7-3770T
|
4/8 |
2.5 GHz |
3.7 GHz |
8 MB
|
1.15 GHz
|
45 Wat |
|
New generation Intel® HD 2500
Nettop Manli M-T6H34 equipped with powerful integrated graphics Intel ® HD 2500. Intel ® graphics solution adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, the clever arrangement of the Intel ® HD. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.
|

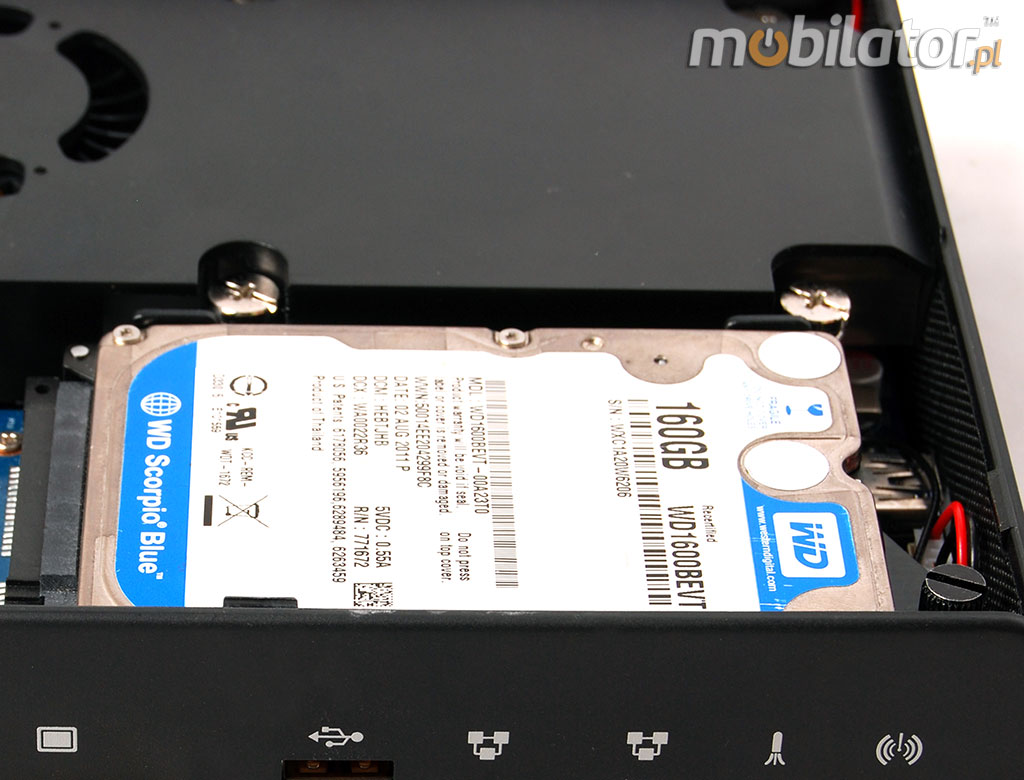

Flexible storage
 Flash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%..
.jpg)

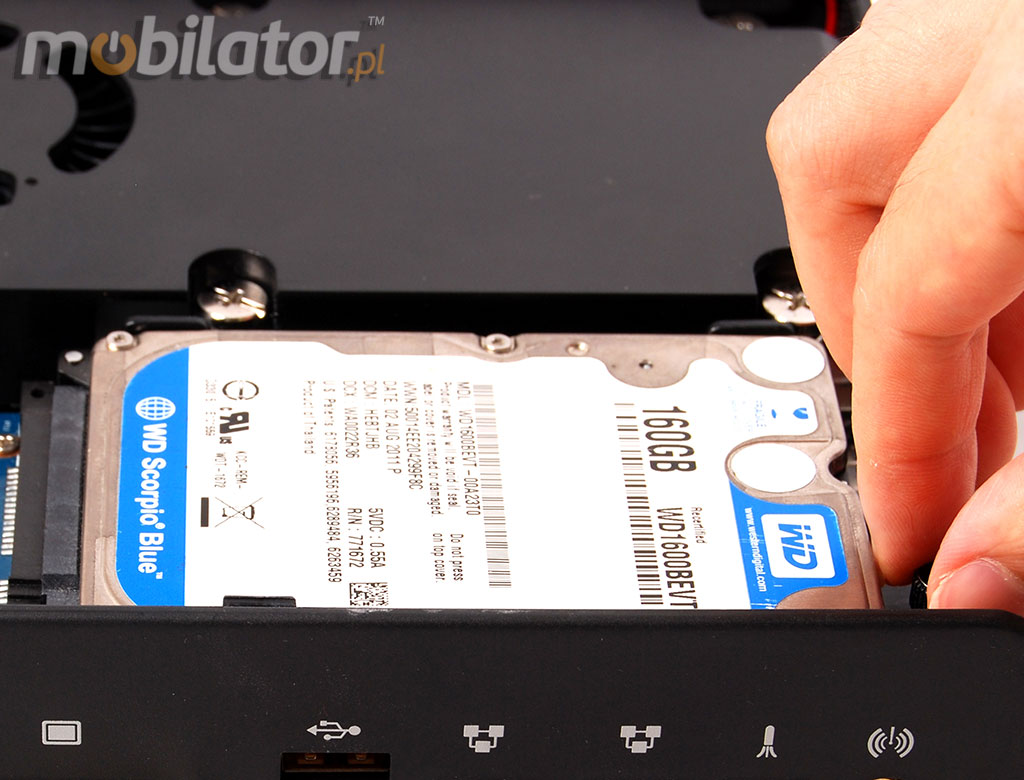

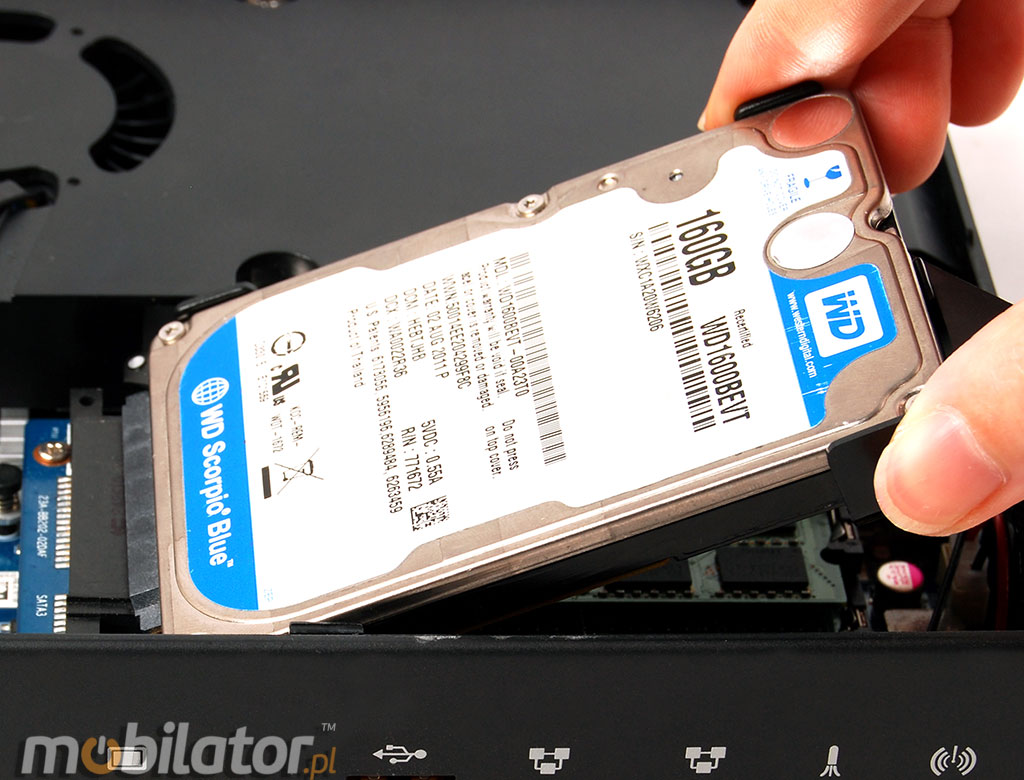

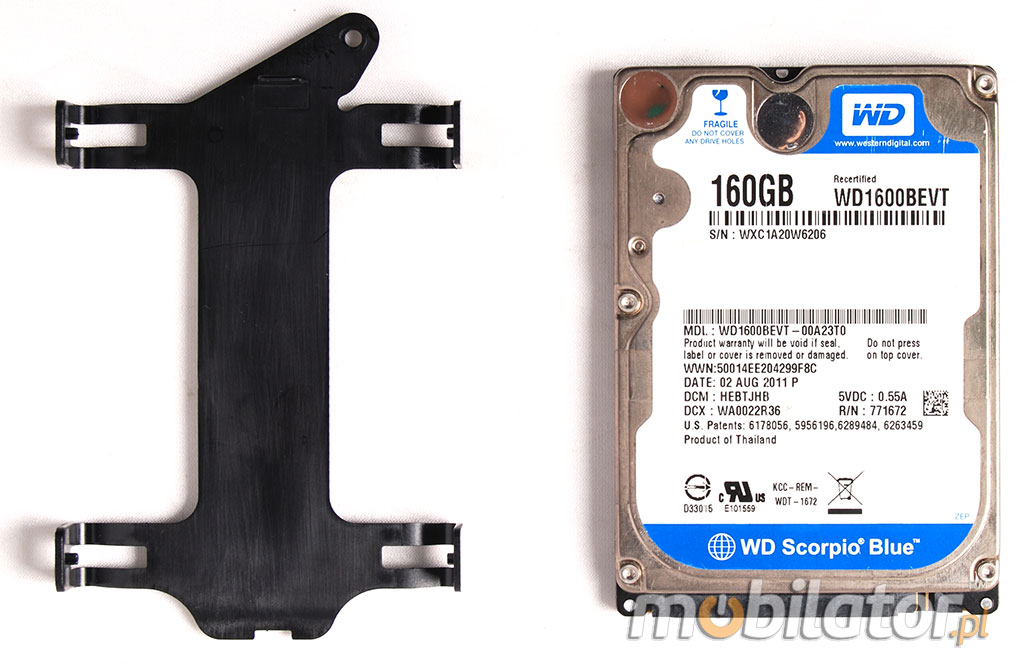

Manli M-T6H34 can support a total of one HDD or SSD 2.5 ".
This approach leads to a super-fast action of our little computer.
The rate of operations performed on the applications installed SSD can increase up to 40%.
Increased security and faster work in RAID
 RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.
.jpg)
|

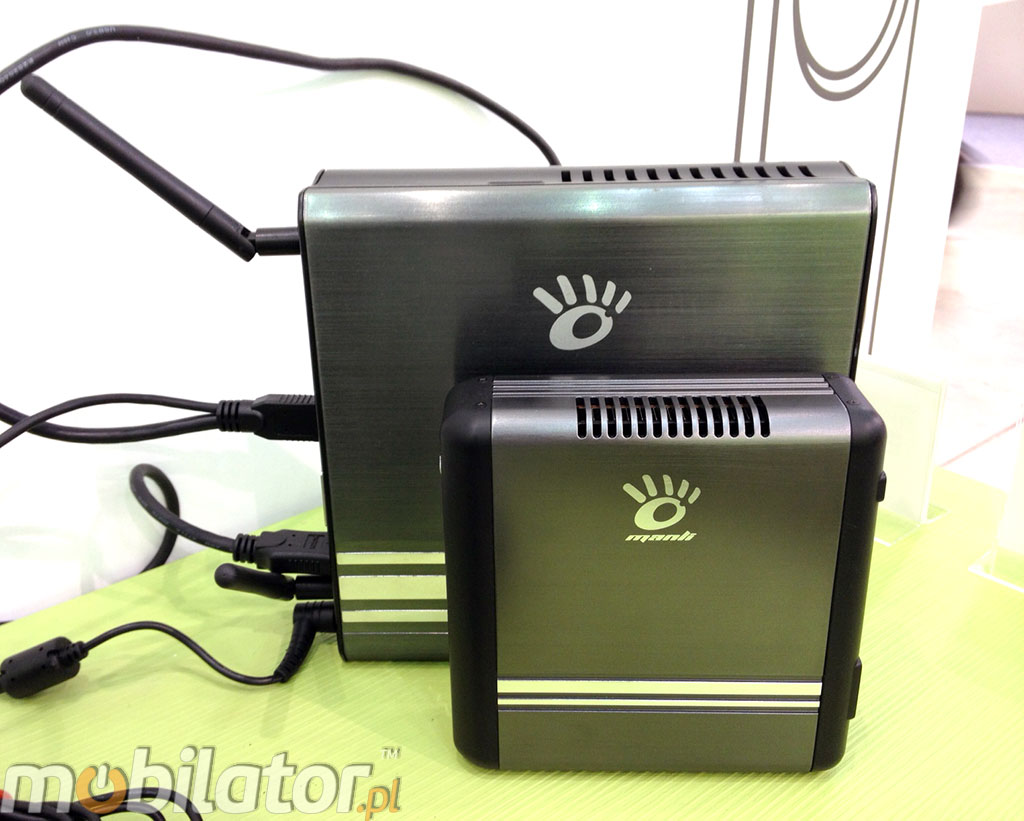

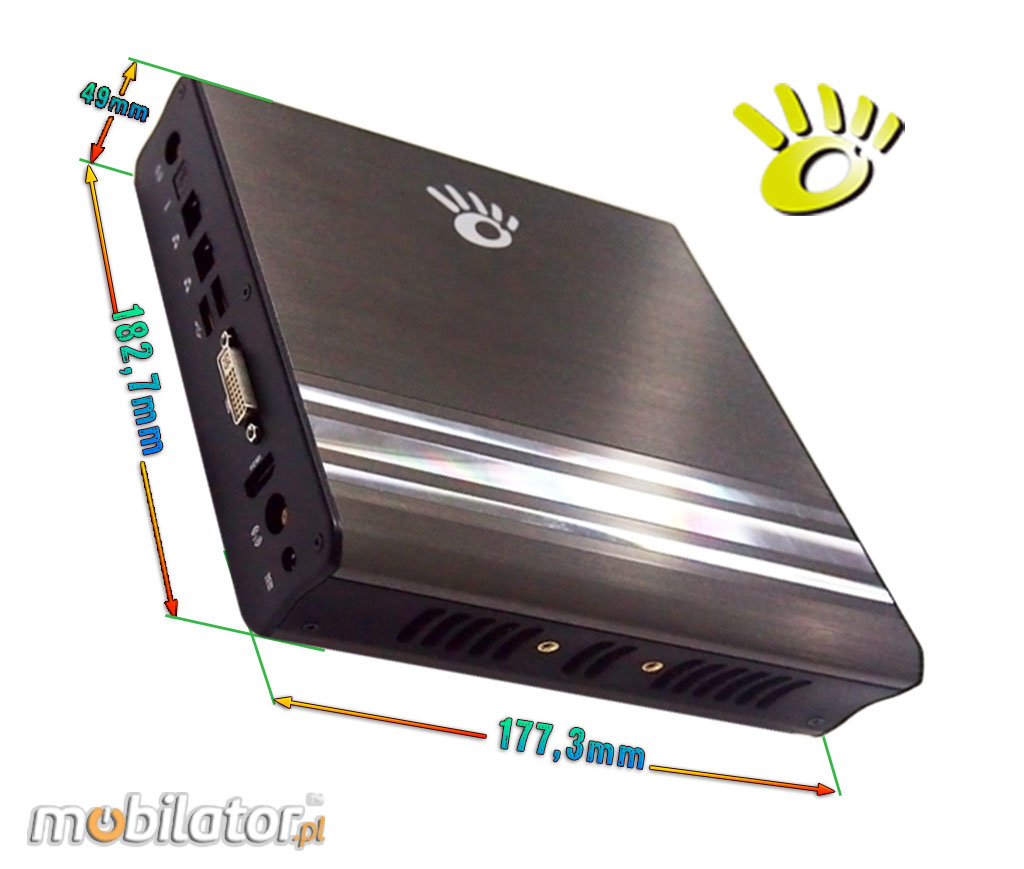

Very small size
|
|

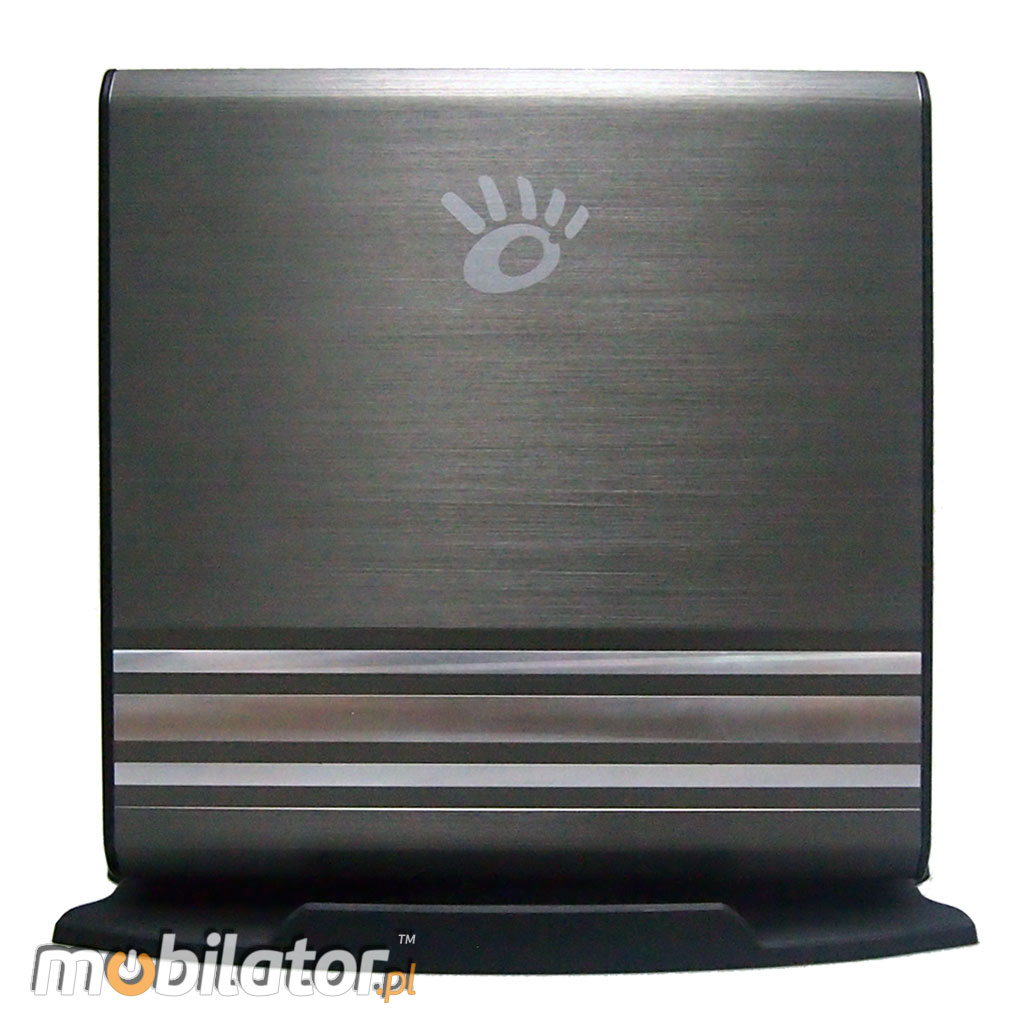

You do not have to worry about where you bet your old desktop computer - in the house or office. The Manli M-T6H34 problem disappears forever because it has very small dimensions (182.7x177.3x49mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which nettop is a very small and has a modern design.
.jpg)
 With the optional mounting brackets and
adapters, there are many mounting options
such as LCD / LED, in stores, on the desktop
and in the car, etc
Application
|
Large storage capacity
Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications.

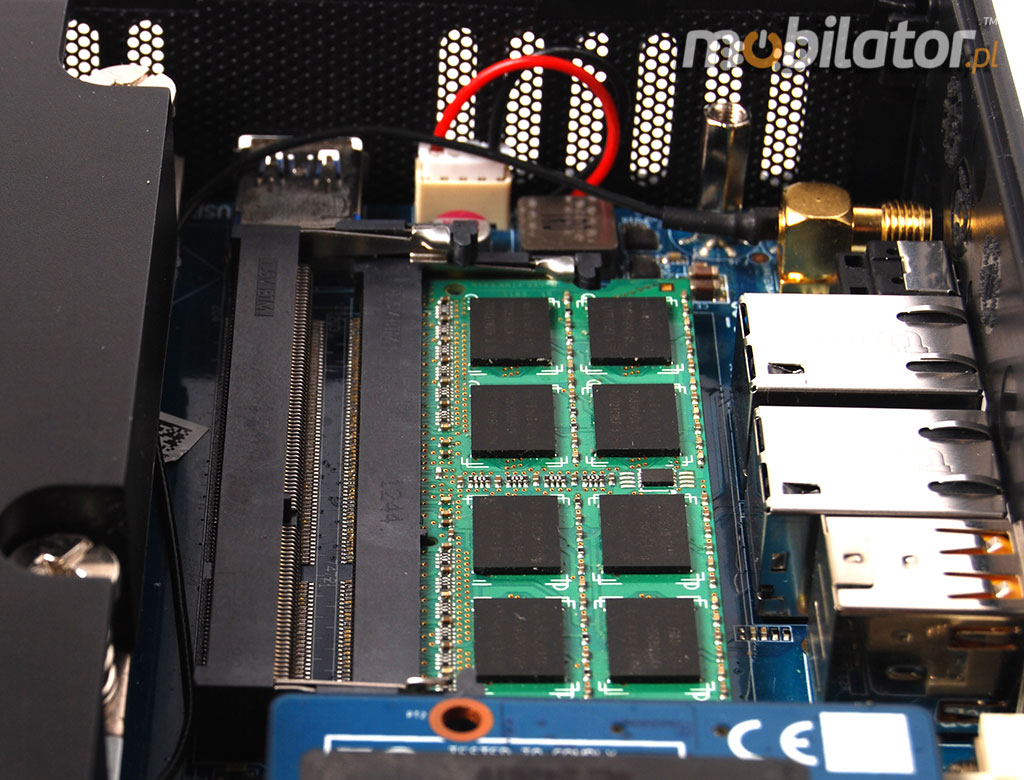

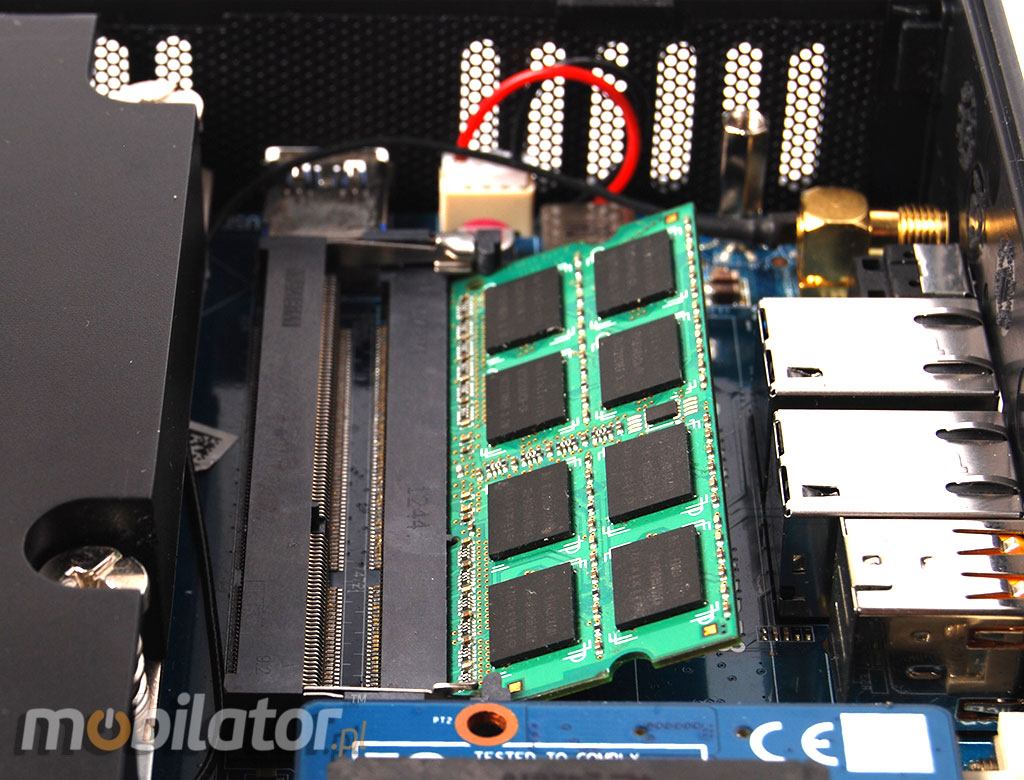

With up to 16GB of memory running Windows 7, 8 always cope with the number of assigned tasks in parallel. Producer allows you to mount two DDR3 SODIMM memory modules.
It's time to effectively replace the DVD player. Manli T6 ideally suited to the role player for movies, music and photos. With it on your TV to display whatever you want.
About 60% less energy than a standard desktop computer
Manli T6 with a powerful processor Intel® Core™ i5-3470T provides up to 60% more efficiency compared to a traditional desktop computer.
|
|
|
Dual integrated Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MMC),  2 x LAN connector, three USB ports (2xUSB 2.0 / 1xUSB 3.0), one HDMI output, one DVI-I port, two audio inputs, and optionally WIFI, Bluetooth.

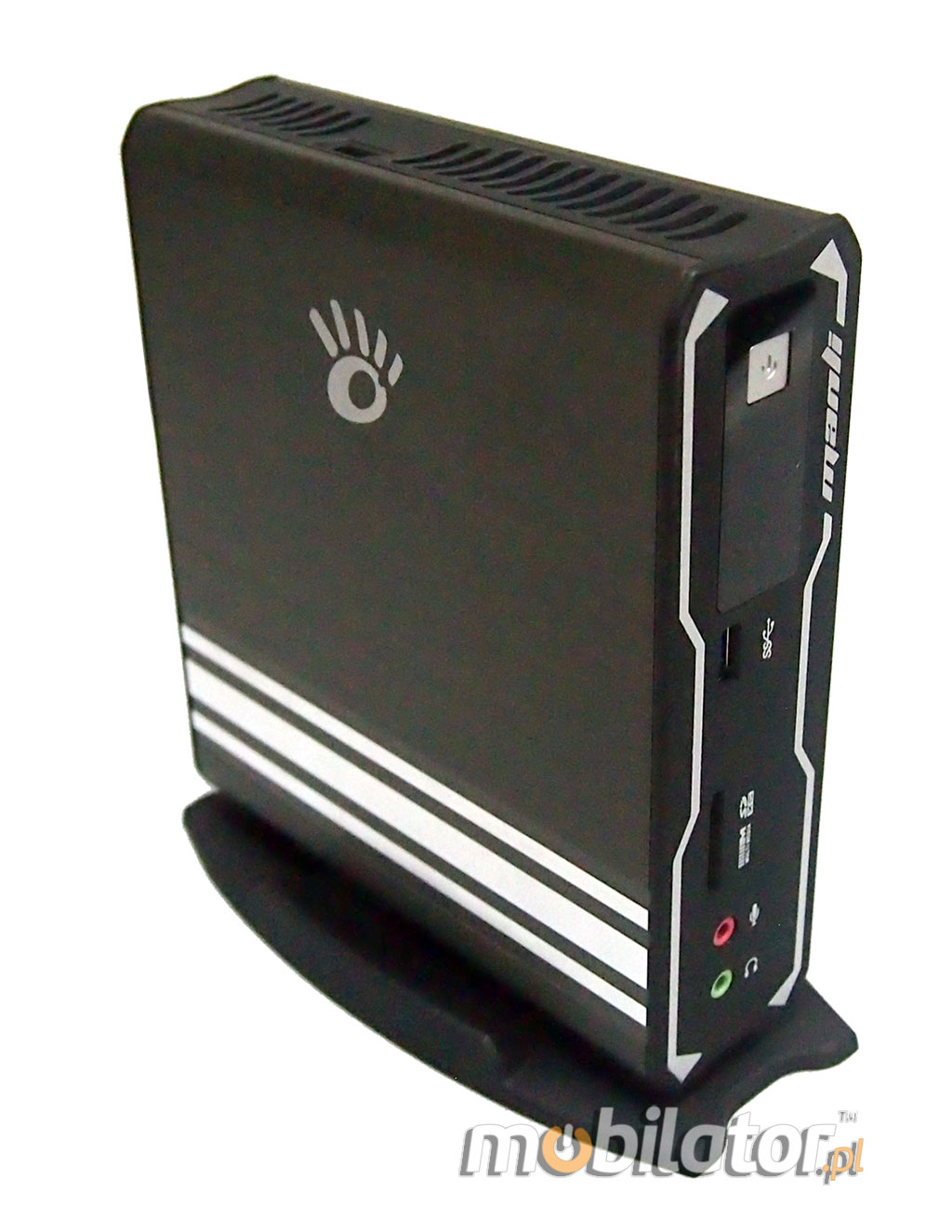

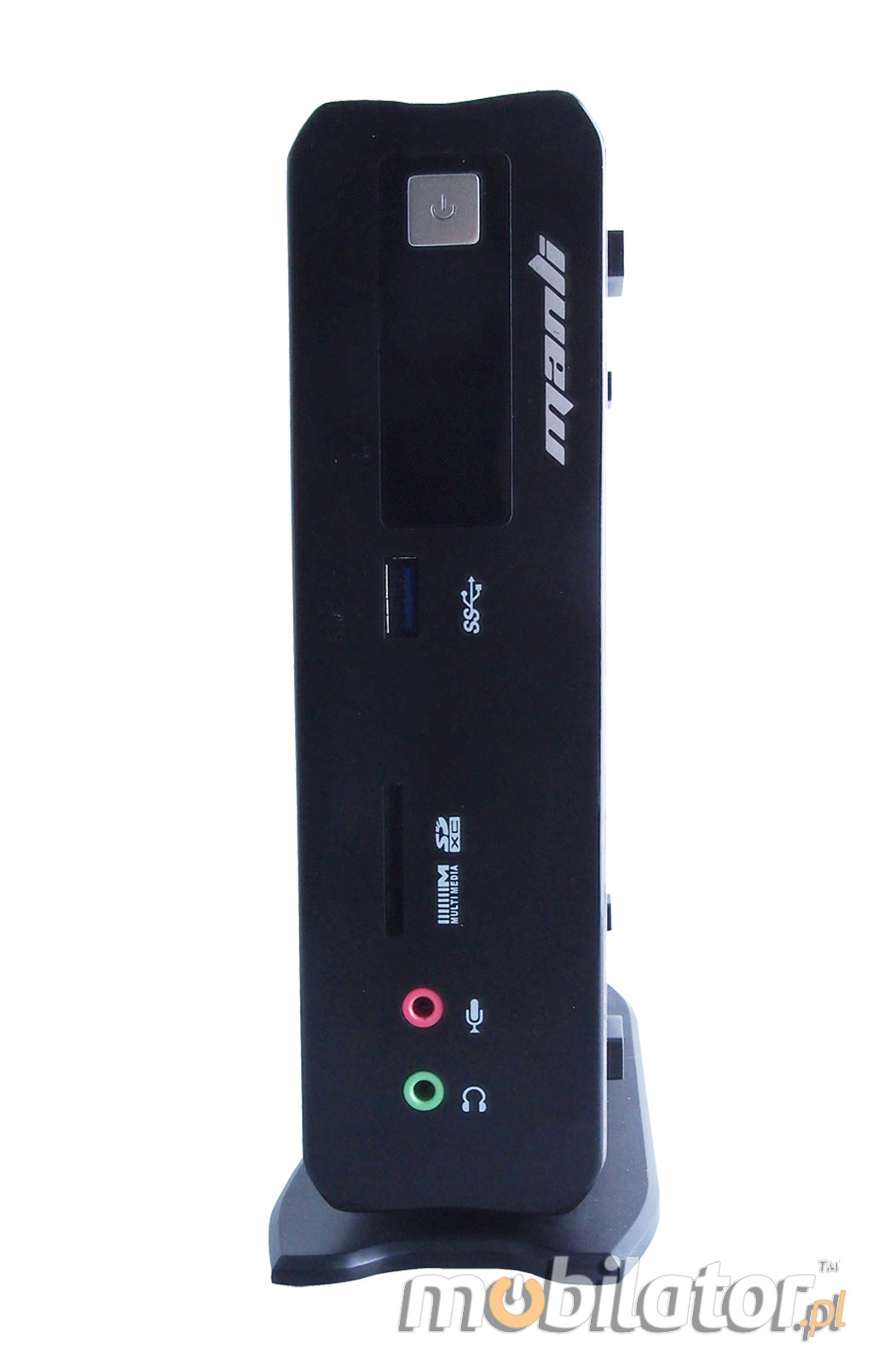

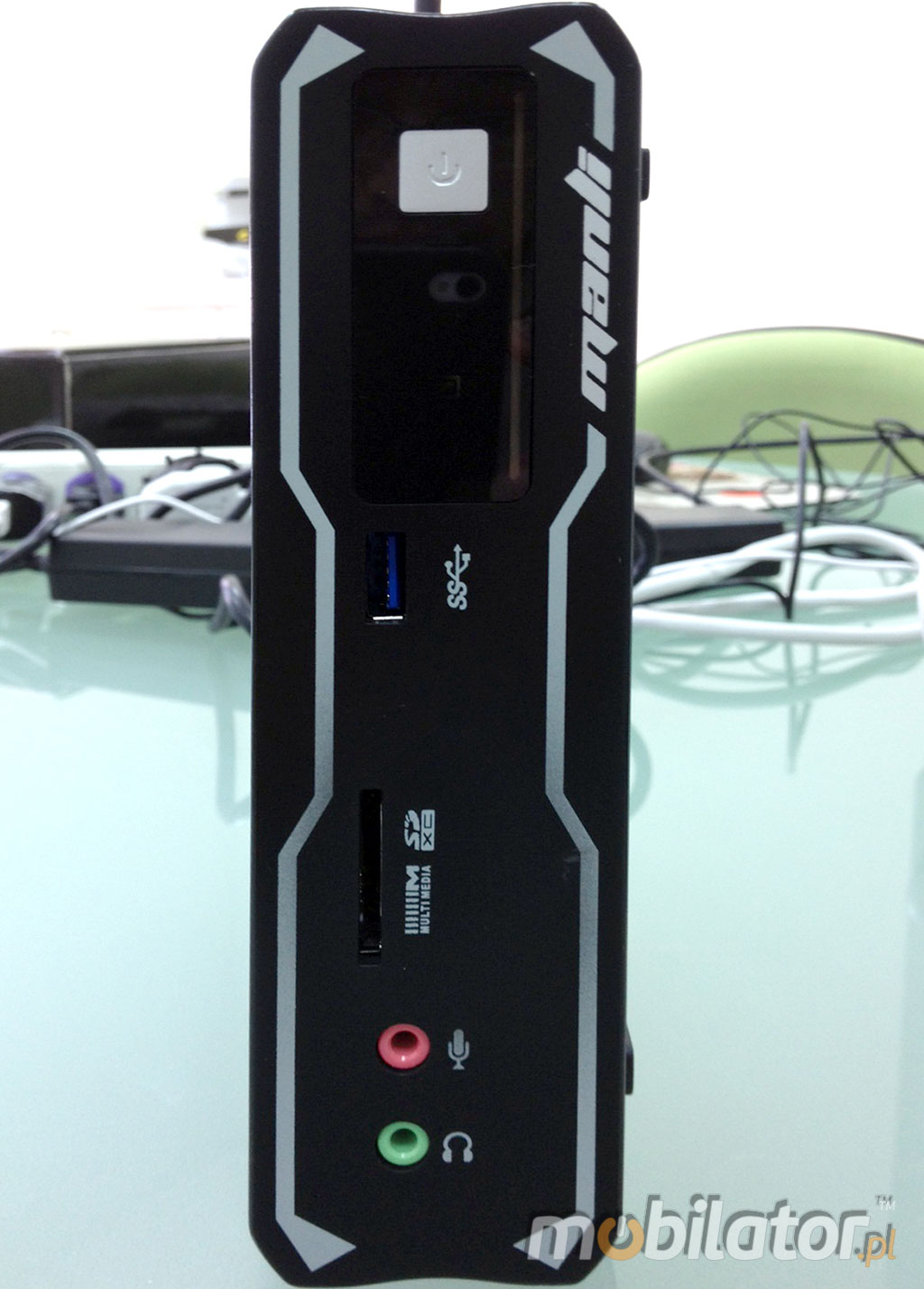

Front
|
1. Audio (speaker) |
2. Mic-IN |
3. Memory Card Reader |
4. USB 3.0
|
5. Power
|
|

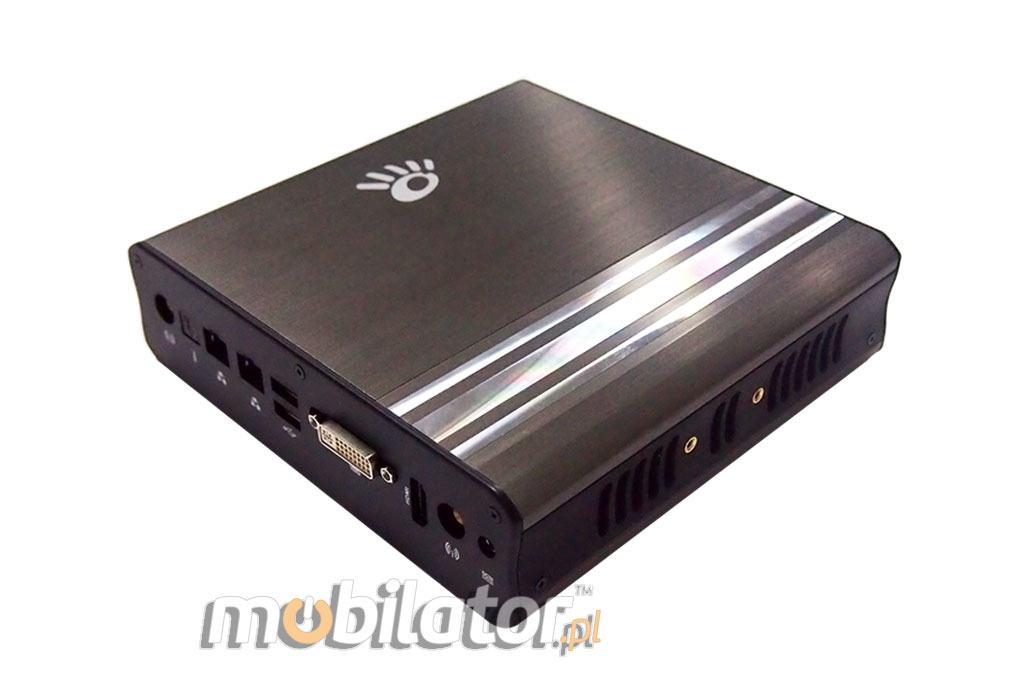

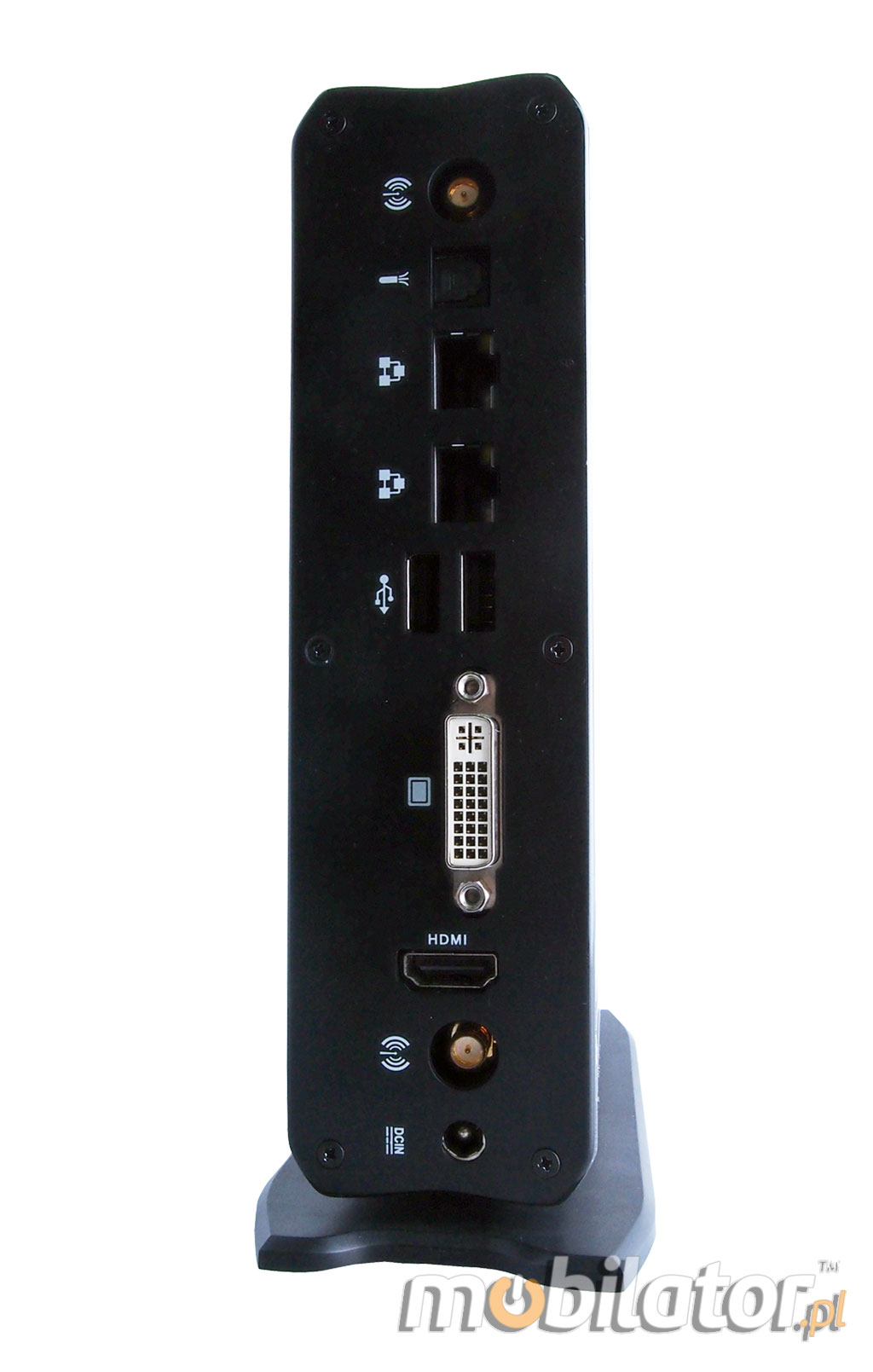

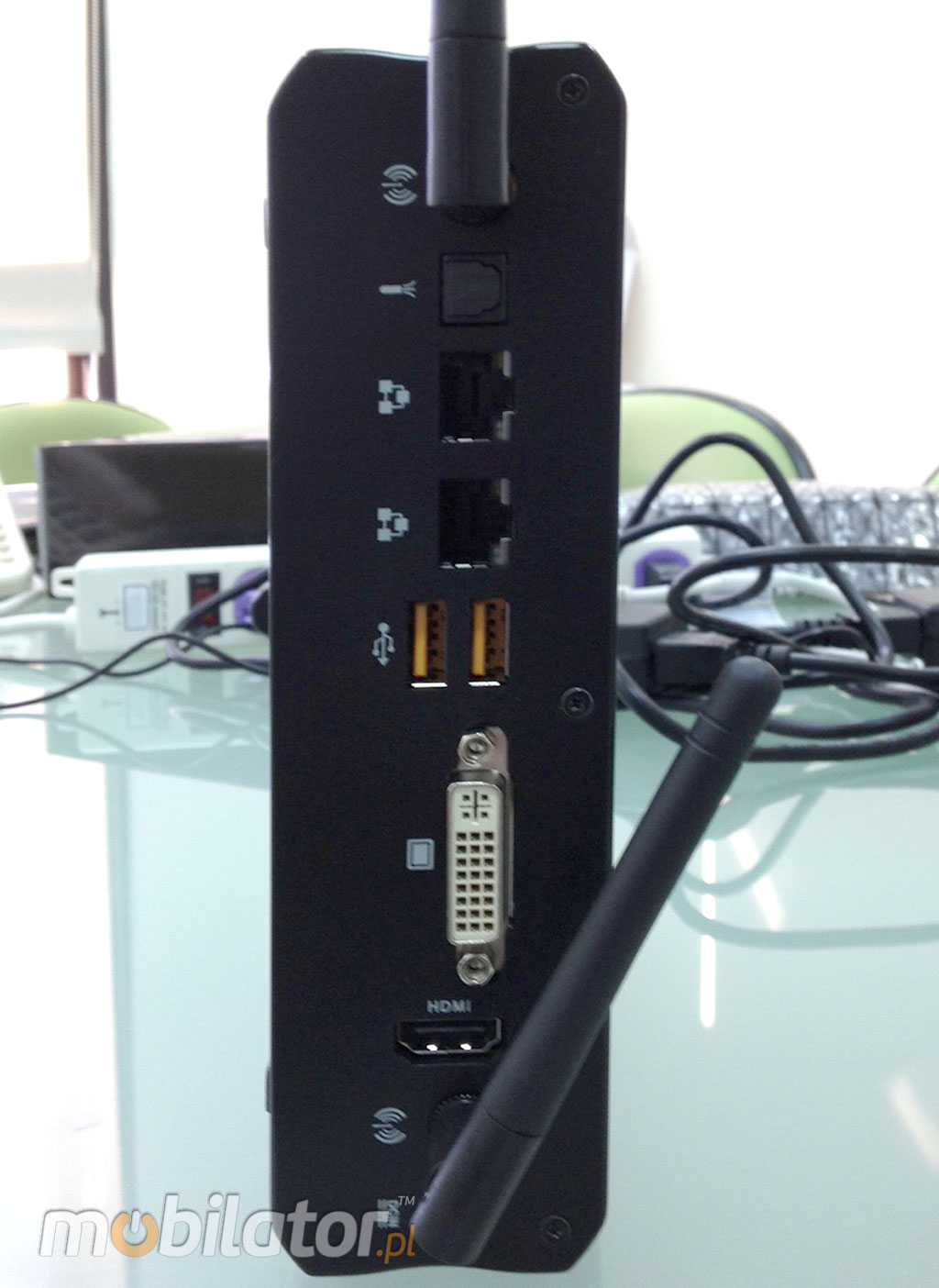

Back
1. Antena WiFi
|
2. Output SPDIF(optional)
|
3. 2 x USB 2.0
|
|
4. DVI-I |
5. Antena Bluetooth
|
6. 2 x LAN
|
7. Output HDMI
|
8. The charging DC-IN |
|
|
- AC Adapter
- Stand
- Driver CD
- User Manual
- 2 x Antena (WiFi, Bluetooth)
- VESA mount (optional)
- External USB IR receiver(optional)
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
Compare all versions
| Others: |
none |
| Chipset: |
H61 |
| FSB: |
1600MHz |
| CPU Support: |
Intel® Core™ i5-3470T Processor (3M Cache, up to 3.60 GHz) |
| Installed CPU: |
Intel® Core™ i5-3470T (2x2,9 GHz) |
| Memory Support: |
DDR3 SO-DIMM x 2 1600MHz (do 16GB) |
| Installed Memory: |
None |
| Graphic Card: |
Intel® HD Graphics 2500 |
| Storage (HDD) Support: |
2.5" SATA II/III HDD to 1TB / SSD to 500GB |
| Installed Storage (HDD): |
None |
| CD/DVD Drive: |
None |
| LAN: |
Dual- 10/100/10p00Mbs Ethernet |
| Wireless LAN card: |
WiFi 802.11b/g/n + Bluetooth 4.0 |
| TV Tuner: |
none |
| Front Panel (ports): |
Audio (Line-Out/SPDIF, Microphone) / Card Reader 4-in-1 (SD/SDHC/SDXC/MMC) |
| Rear Panel (ports): |
2x USB 2.0, 2x RJ-45 , 1x HDMI, 1x DVI-I, 1x DC-in Jack |
| Power: |
AC/100-240V, 50/60Hz, 19V, Max 90W |
| Supported OS: |
Windows 7, Windows 8 |
| Installed OS: |
No (optional Windows 7, Windows 8) |
| Dimensions: |
182.7x177.3x49mm |
| Expansion: |
None |
