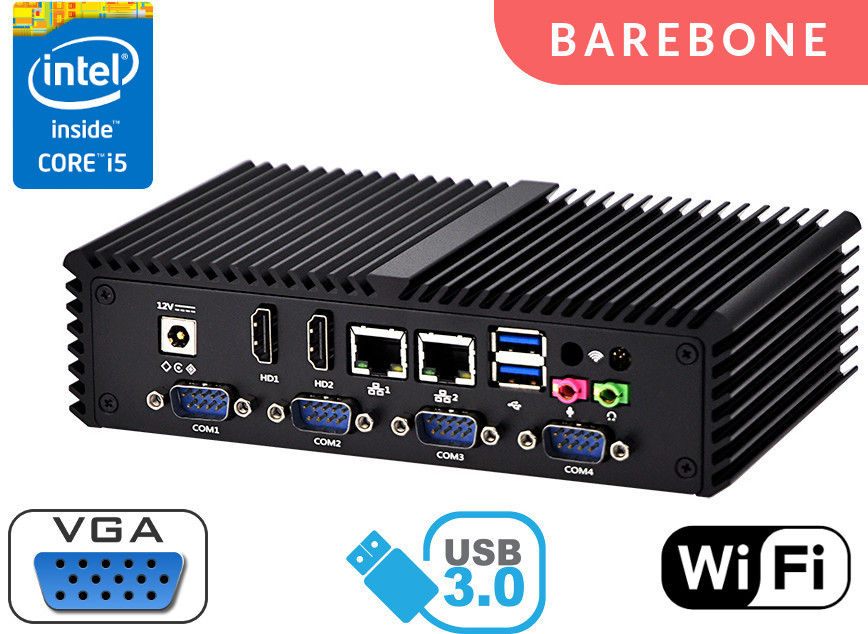

Computer Industrial Fanless MiniPC mBOX Nuc Q350P v.Barebone
|
|
| CURRENT PRICE |
| 336.17 € |
Net |
| 413.49 € |
Gross |
|
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
Industrial Fanless MiniPC mBOX Nuc Q350P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 187 (W) x111 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2/4GB/8GB DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB and 500GB HDD.
|
|
Two Integrated cards - Intel I211-AT- 10/100/1000 Controller allow connection to the network. The computer is equipped with: two LAN ports, two HDMI ports, two USB 2.0 ports, four USB 3.0 ports, five COM (RS232) port, one VGA port, one Audio input and one Mic output.
.gif)
|
|

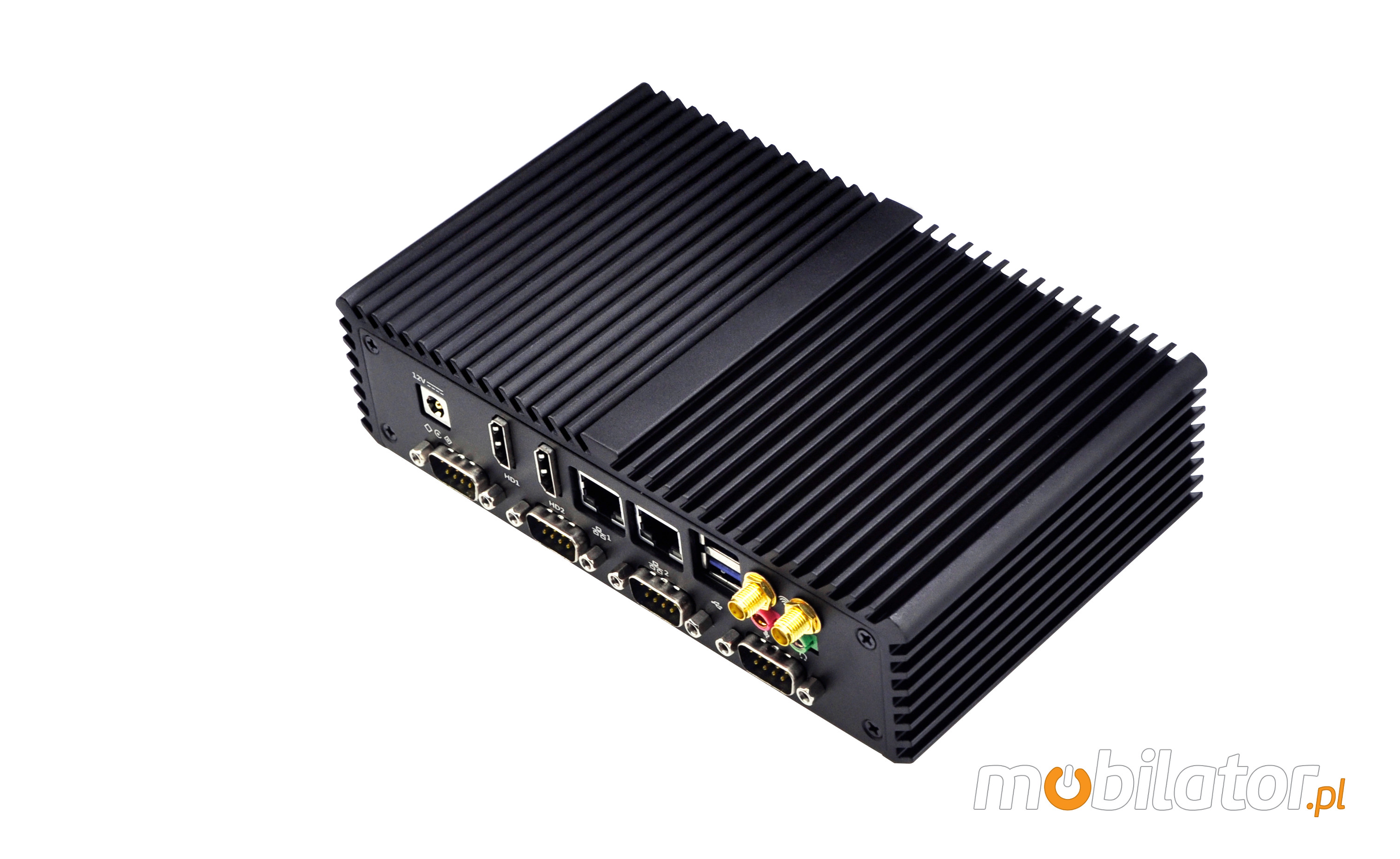

The Industrial Computer Fanless MiniPC mBOX Nuc Q350P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
go top…  menu…
|
|
|
|
Industrial Computer Fanless MiniPC mBOX Nuc Q350P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.png) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial MiniPC
Digital Engine
|
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Industrial Computer Fanless MiniPC mBOX Nuc Q350P by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
.jpg)
Industrial Computer Fanless MiniPC mBOX Nuc Q350P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
.jpg)
|
|
Dimension
|
H: 50 mm
L: 111 mm
W: 187 mm
|
Processor
|
Intel Core i5-4200U 1.6GHz |
Chipset
|
Intel Chipset |
RAM Memory
|
no
|
Graphic Card
|
Intel HD Graphics 4400
|
Sound Card
|
Realtek ALC662 |
WLAN
|
2 x Intel I211-AT- 10/100/1000 Controller |
|
Connectors |
1x 12V DC Jack
2x USB 2.0
4x USB 3.0
2x RJ-45 LAN
1x Mic
2x HDMI
5x COM (RS232)
1x VGA
1x Audio
|
|
|
|
|
Compare all versions
| Others: |
Colour Black |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Core i5-4200U (2x 1.6GHz) |
| Memory Support: |
DDR3L (max. 8GB) 1333MHz/1600MHz SO-DIMM |
| Installed Memory: |
----- |
| Graphic Card: |
Intel HD Graphics 4400 |
| Storage (HDD) Support: |
SSD/HDD
mSATA |
| Installed Storage (HDD): |
----- |
| CD/DVD Drive: |
----- |
| LAN: |
2 x Intel I211-AT- 10/100/1000 Controller |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
0 ~ 255 sec |

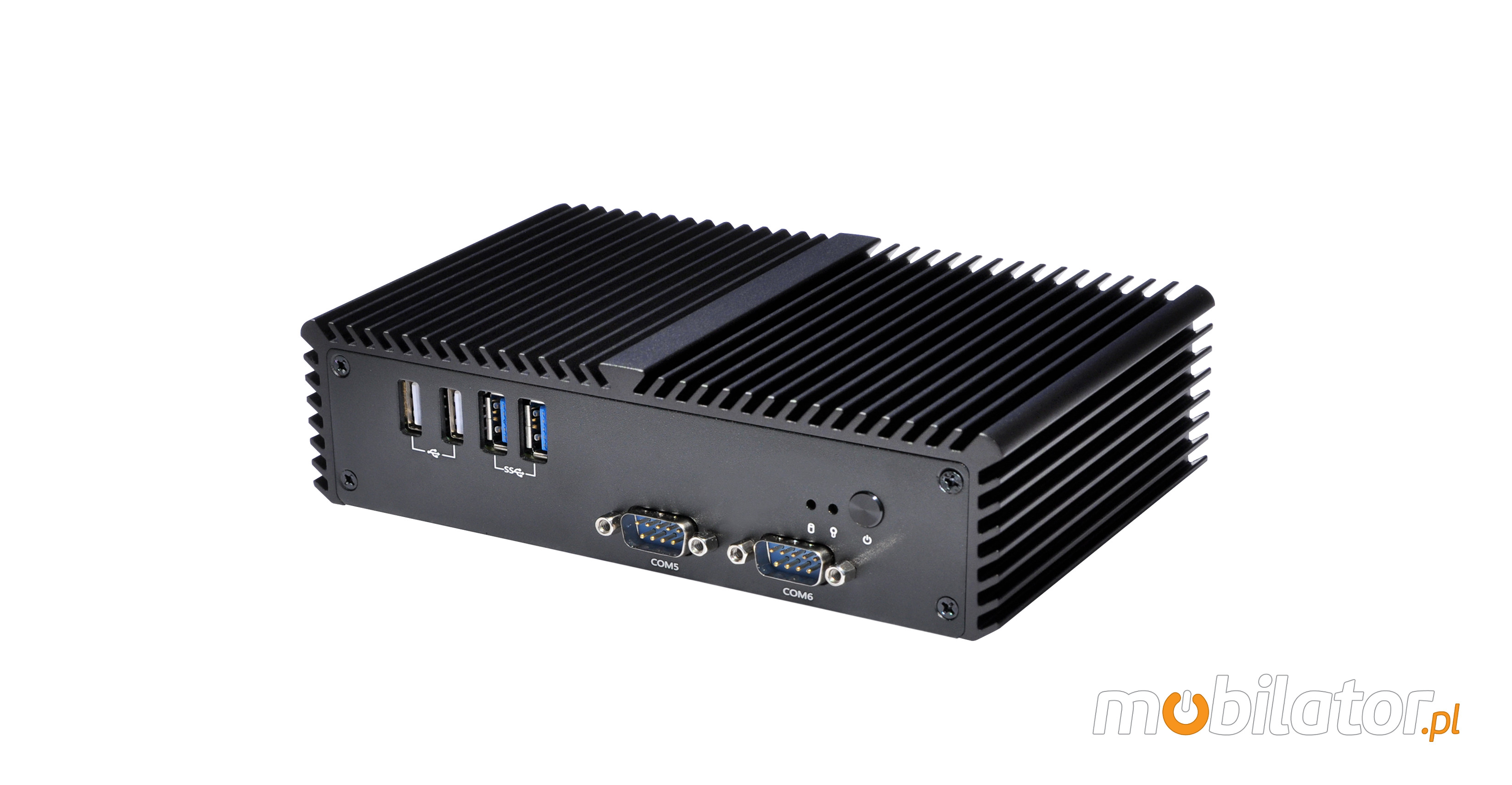

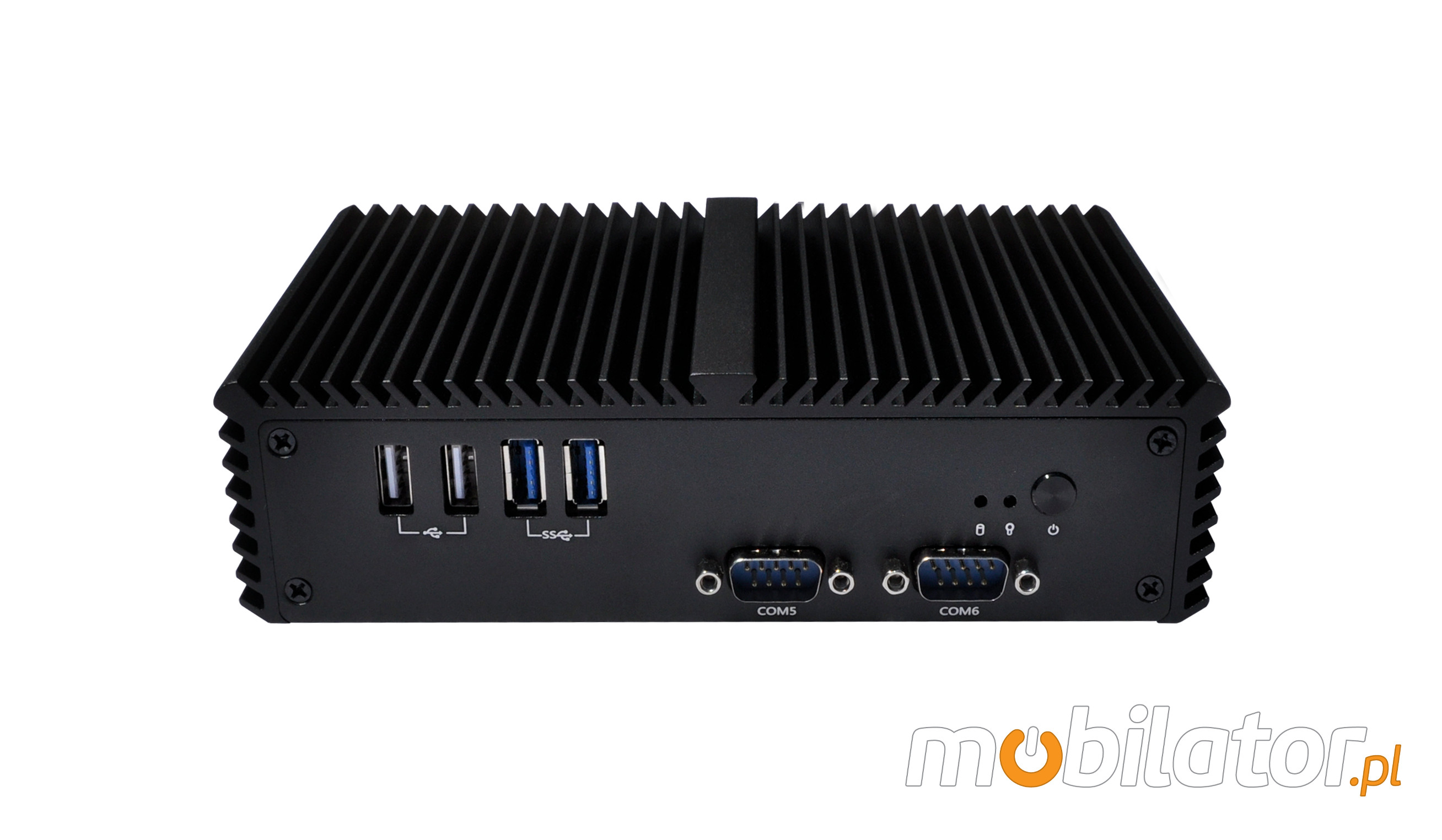

| Front Panel (ports): |
2x USB2.0
2x USB 3.0
2x COM(RS232)
Power ON/OFF |

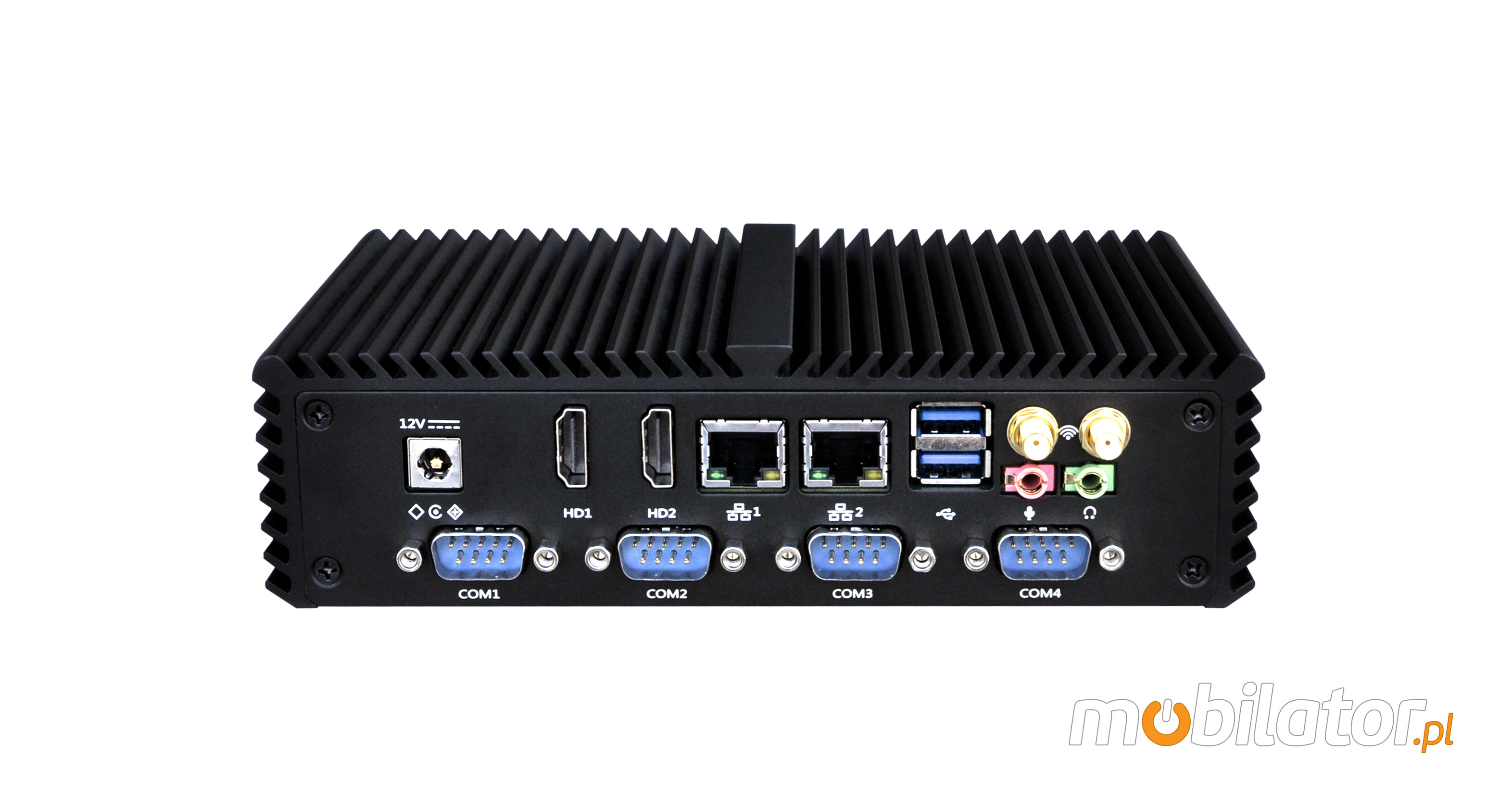

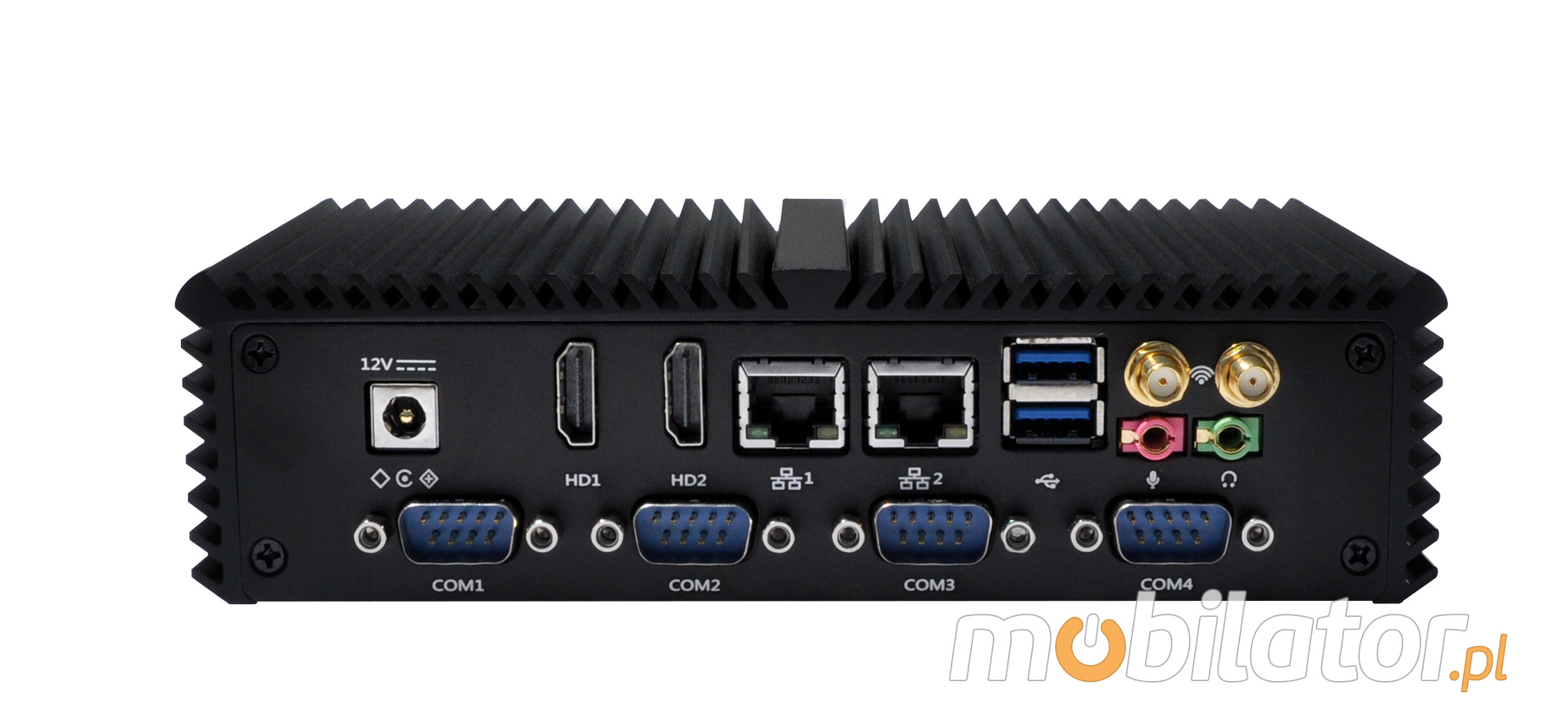

| Rear Panel (ports): |
DC-IN 12
1x VGA
3x COM(RS232)
2x RJ-45 LAN
1x Mic
1x Audio
2x HDMI
2x USB 3.0 |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
187 x 111 x 50 mm |
| Weight: |
2.5kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
10 ~ 90% |
| Temp: |
0 ～50℃ |
| IP Norm: |
----- |
| Storage temperature: |
-20 ~ 80℃ |
