Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.4
|
|
| CURRENT PRICE |
| 338.56 € |
Net |
| 416.43 € |
Gross |
|
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
MBOX Nuc Q190P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM (RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.

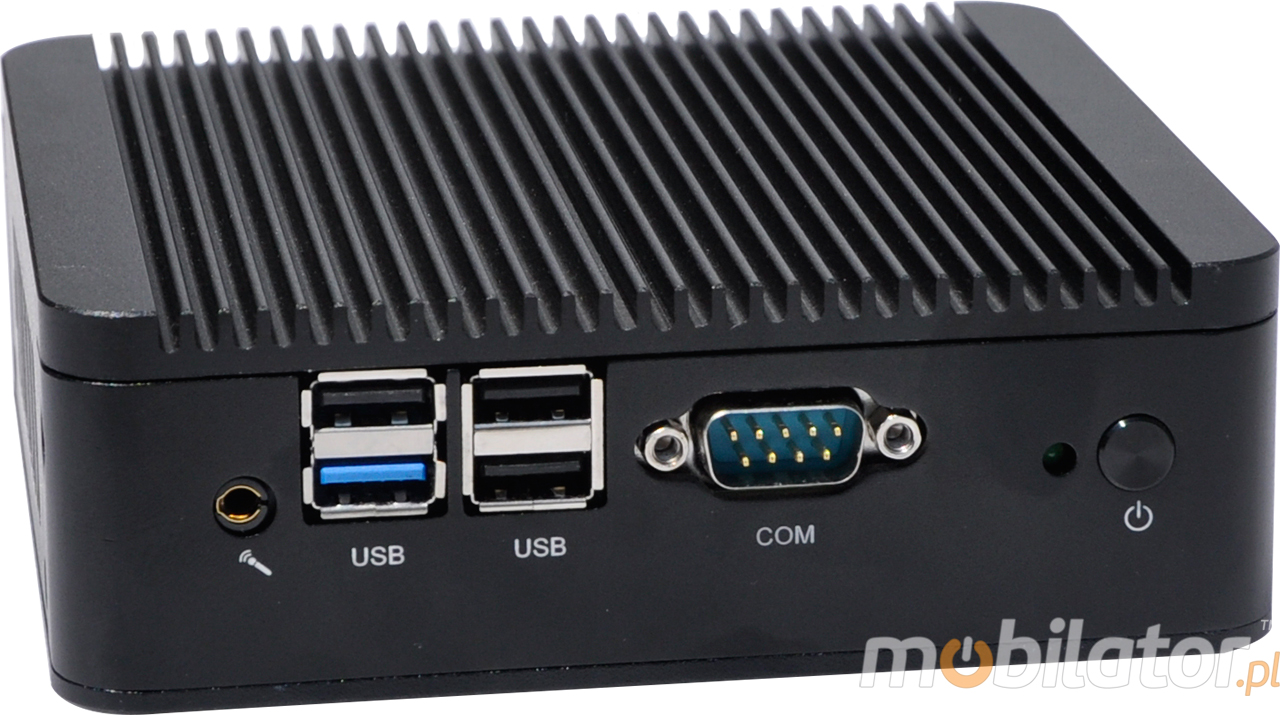

.jpg)

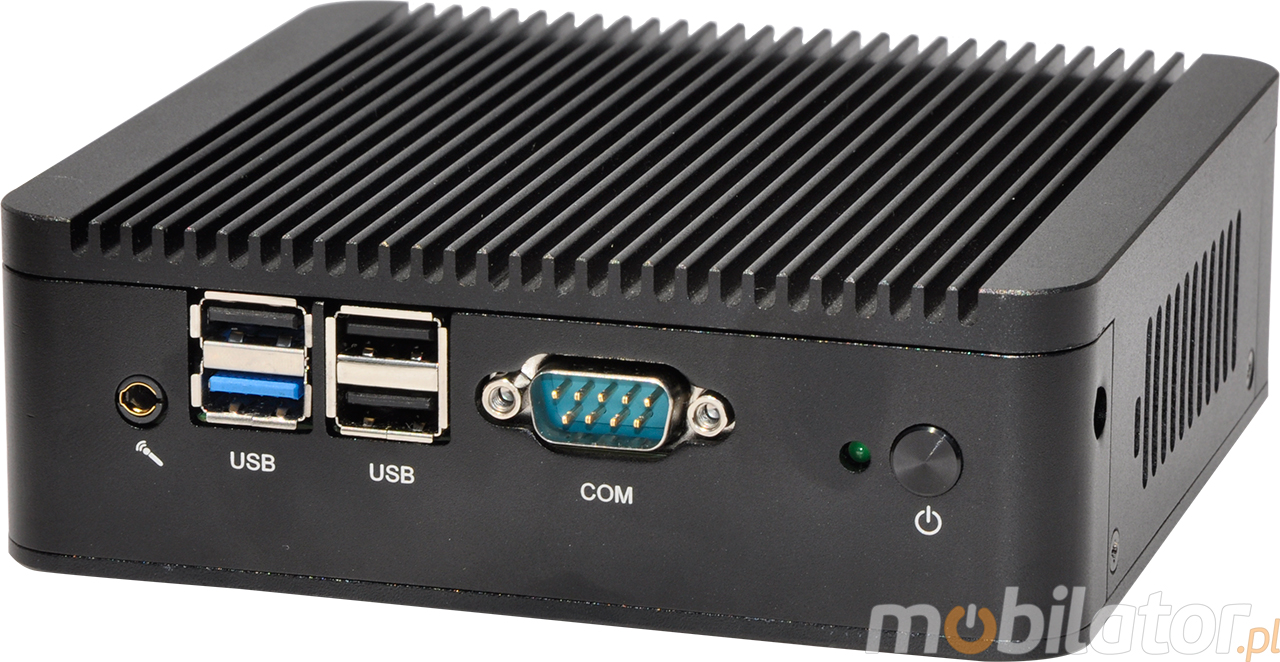

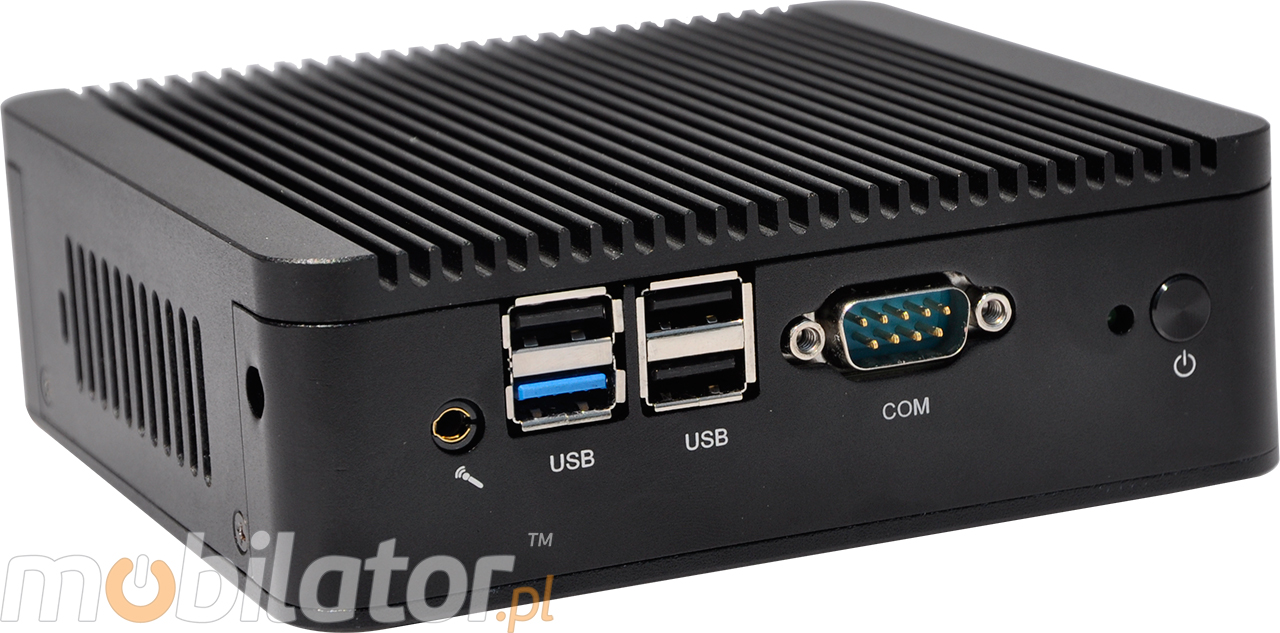

1. 1x Mic
|
|
4. 1x COM (RS232)
|
2. 1x USB 3.0
|
|
5. Power ON/OFF
|
|
3. 3x USB 2.0 |
|
|

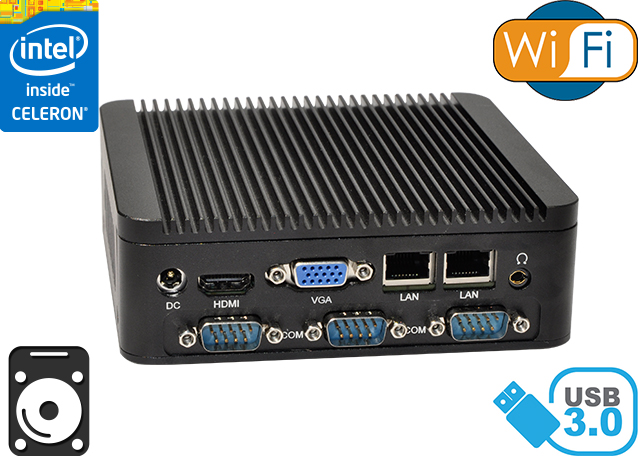

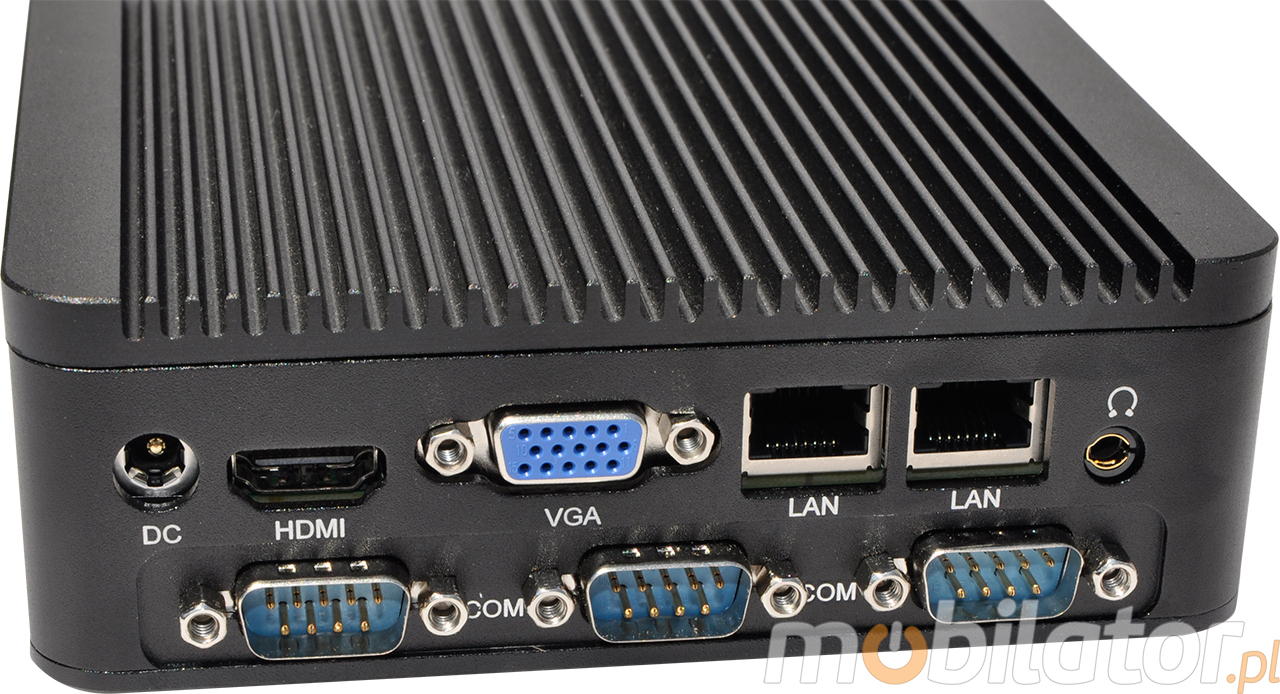

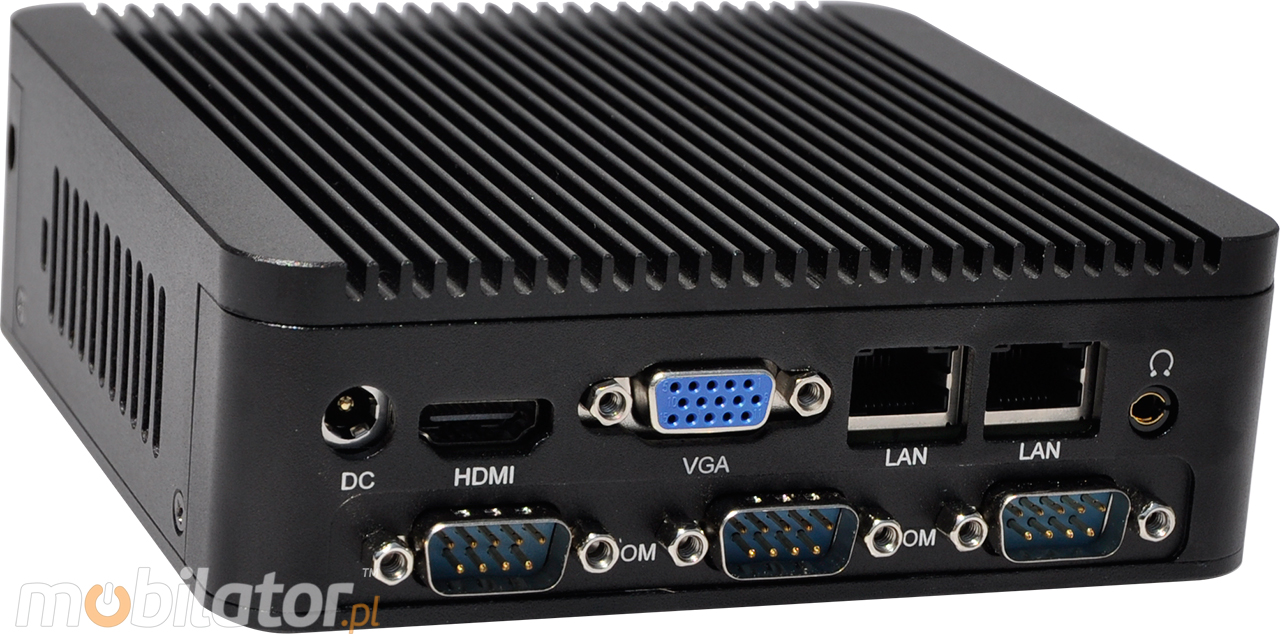

.jpg)

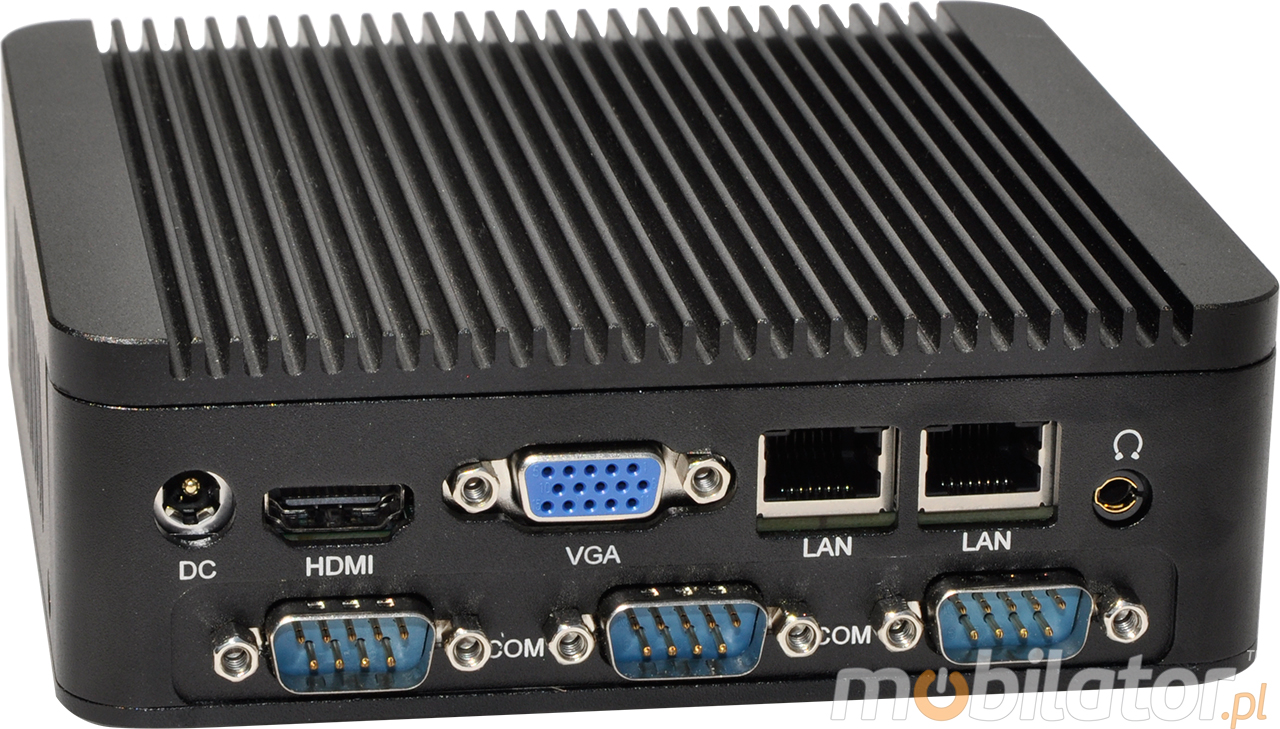

1. 1x DC-IN 12V
|
|
4. 2x LAN RJ-45
|
2. 1x HDMI
|
|
5. 1x Audio Jack
|
3. 3x COM(RS232)
|
|
6. 1x VGA
|
|
|
Cooling

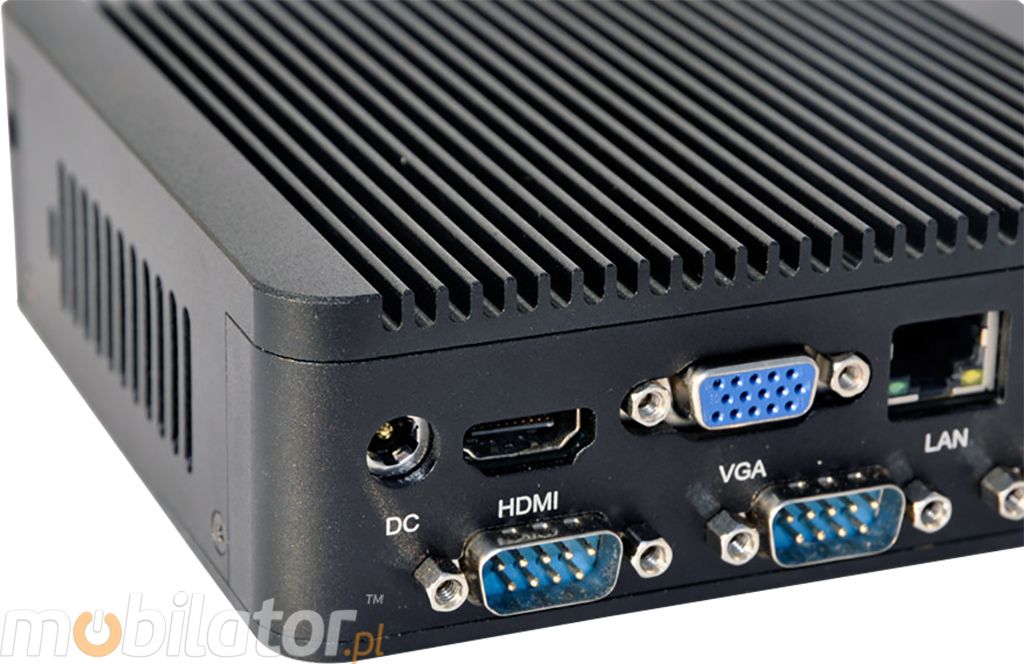

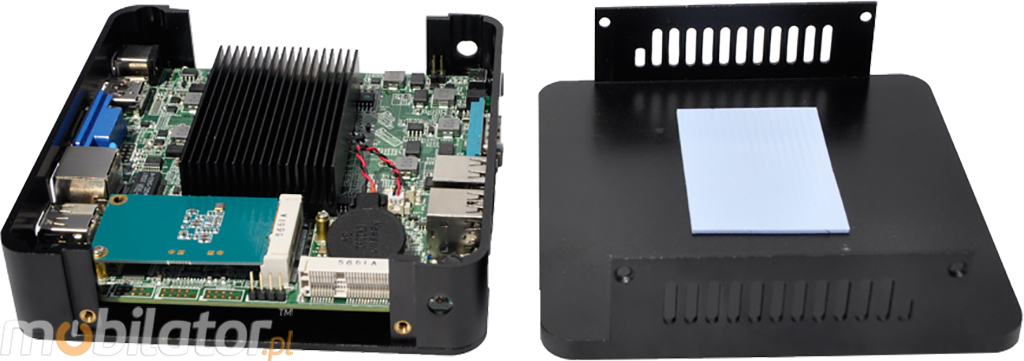

The industrial fanless MiniPC MBOX Nuc Q190P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
|
|
Industrial MiniPC Series MBOX Nuc Q190P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications.

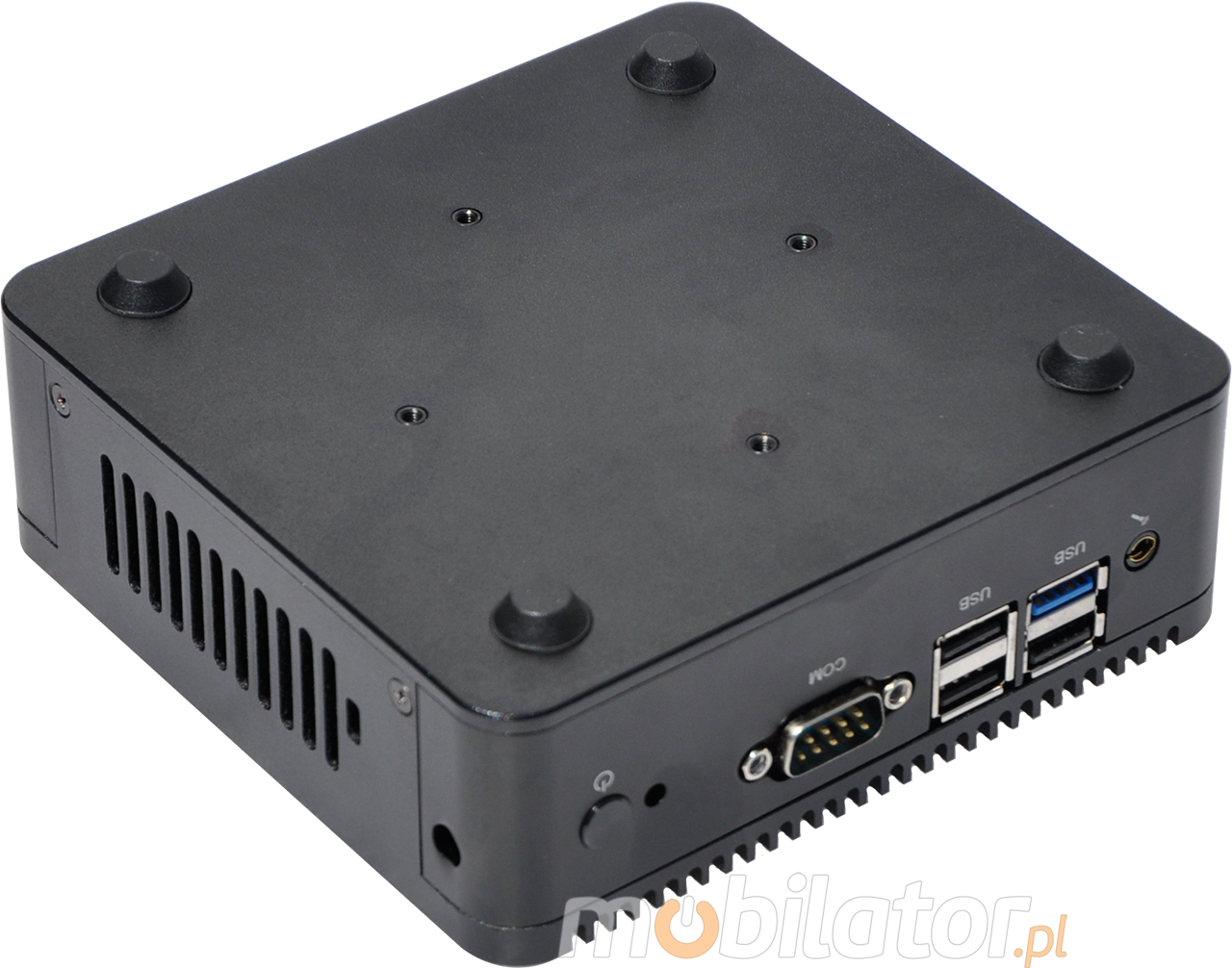

The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q180P of these devices are: small size, performance and energy efficiency. An extra pair of brac.jpg) kets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial MiniPC
Digital Engine
.jpg)
|
Trade
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Warehouse
Industrial fanless MiniPC MBOX Nuc Q190P by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport and cars
MiniPC fanless MBOX Nuc Q190P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
.jpg)
.jpg)
|
|
Dimensions
|
H: 45 mm
L: 128 mm
W: 135 mm
|
|
Weight |
0,82kg |
|
Processor |
Intel Celeron J1900 (4x 2GHz)
|
Chipset
|
Intel NM70
|
RAM
|
4GB DDR3 |
Graphics
|
Intel HD Graphics
|
Sound Card
|
Realtek ALC662 |
WLAN
|
RTL8111E 10/100/1000 Controller |
|
Connectors |
1x Power ON/OFF
1x USB 3.0
3x USB 2.0
1x MIC
4x RS232
1x Power Input
1x HDMI
1x - VGA
2x - RJ45
1x - Speaker
|
|
|
.jpg)
|
|
Compare all versions
| Others: |
Colour Black, Aluminum |
| Chipset: |
Intel NM70 |
| CPU Support: |
----- |
| Installed CPU: |
Intel Celeron J1900 (4x2GHz) |
| Memory Support: |
2GB DDR3 (max. 8GB) |
| Installed Memory: |
4GB DDR3 |
| Graphic Card: |
Intel HD Graphics |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
500GB HDD (opc. mSata SSD + 2,5" SSD/HDD) |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL8111E 10/100/1000 Controller |
| Wireless LAN card: |
Yes - WIFI b/g/n |
| Bluetooth: |
No |
| 3G: |
No |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
0~255 sec |
| Front Panel (ports): |
Power ON/OFF
1x USB 3.0
3x USB 2.0
1x MIC
1x COM (RS232) |
| Rear Panel (ports): |
1x Power Input
1x HDMI
1x VGA
2x LAN (RJ45)
3x COM (RS232)
1x Audio Jack
1x Mic |
| Power: |
DC 12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1, Linux |
| Installed OS: |
----- |
| Dimensions: |
135 x 128 x 45mm |
| Weight: |
0.82 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0 ~ 95% |
| Temp: |
0 - 50 ℃ |
| IP Norm: |
----- |
| Storage temperature: |
-15 - 70 ℃ |
