Open Frame Touch Screen PC CCETouch CT19-OPC-SAW
|
|
The product from the archive - production terminated
|
Compare all versions
|
.gif)
|
(June 2014) Industrial panel PCs CCETouch company are a new distribution segment on Mobilator.pl. CCETouch company has achieved an excellent reputation as a manufacturer of industrial touch panel computers. Due to the high position of products in the segment of high-tech has won the confidence of many customers around the world.
|
|
|
|
Open Frame Touch Screen PC
Fanless Industrial Panel PC computers OPEN FRAME are used in environments where you need a quick and hassle-free access to the network or data. They are ideal for applications that require quiet operation. Small but robust Panel PC using the heat-pipe technology and aluminum fins for passive cooling.
|
|
|
CCETouch
|

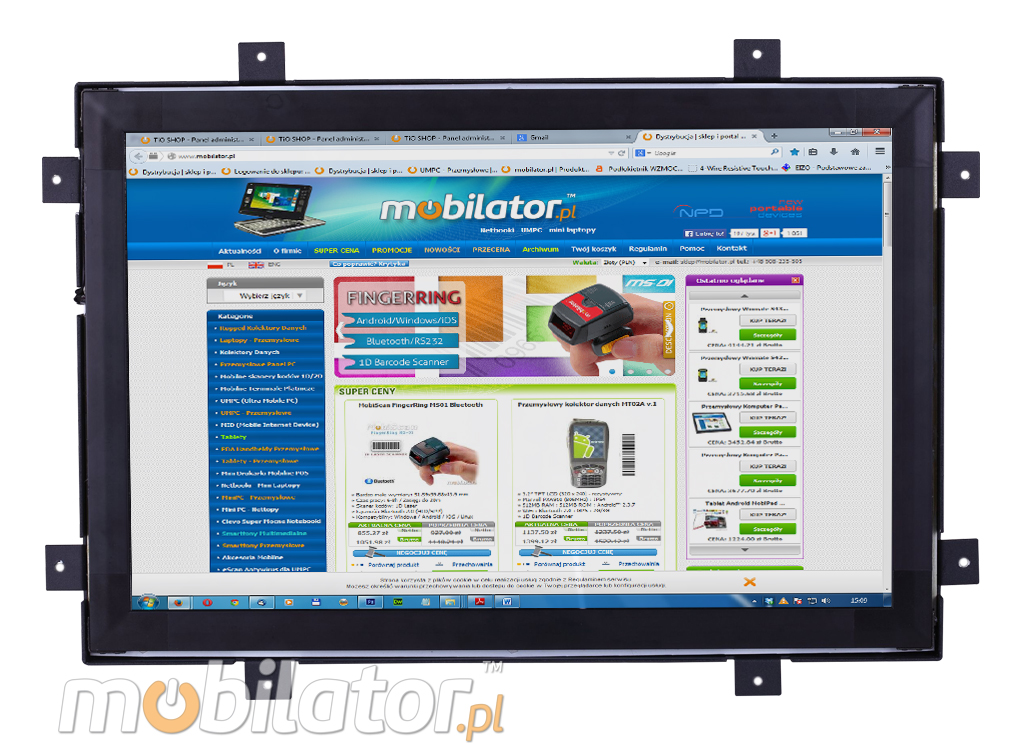

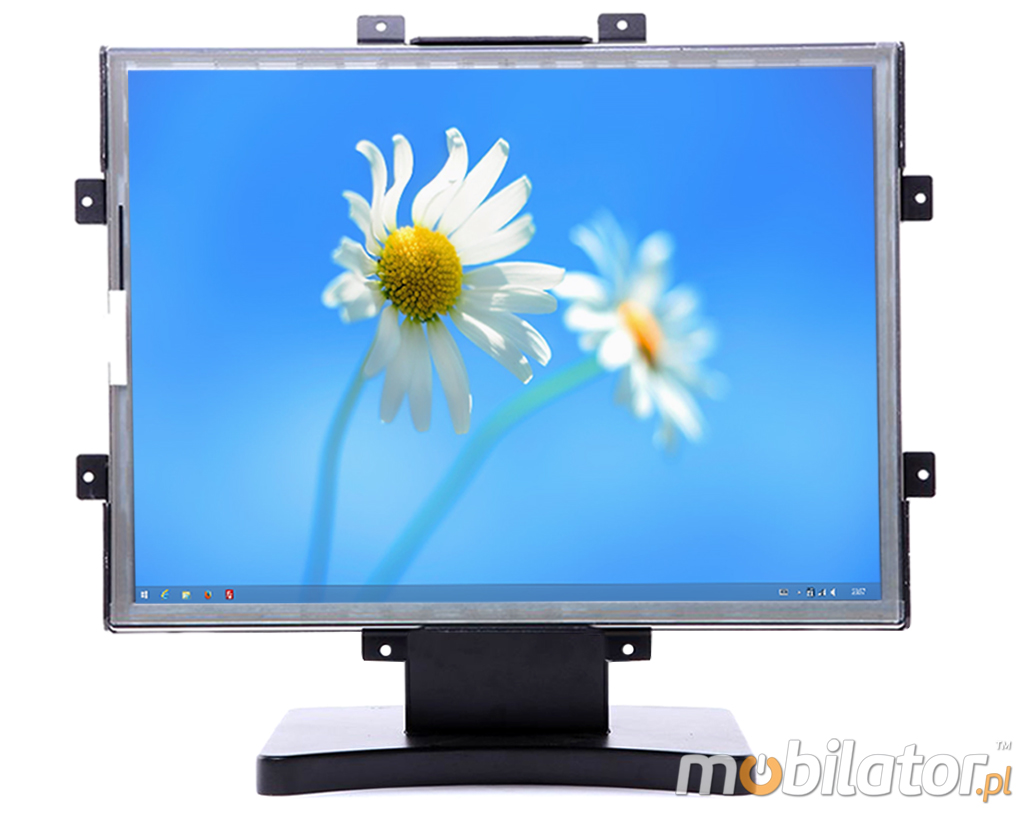

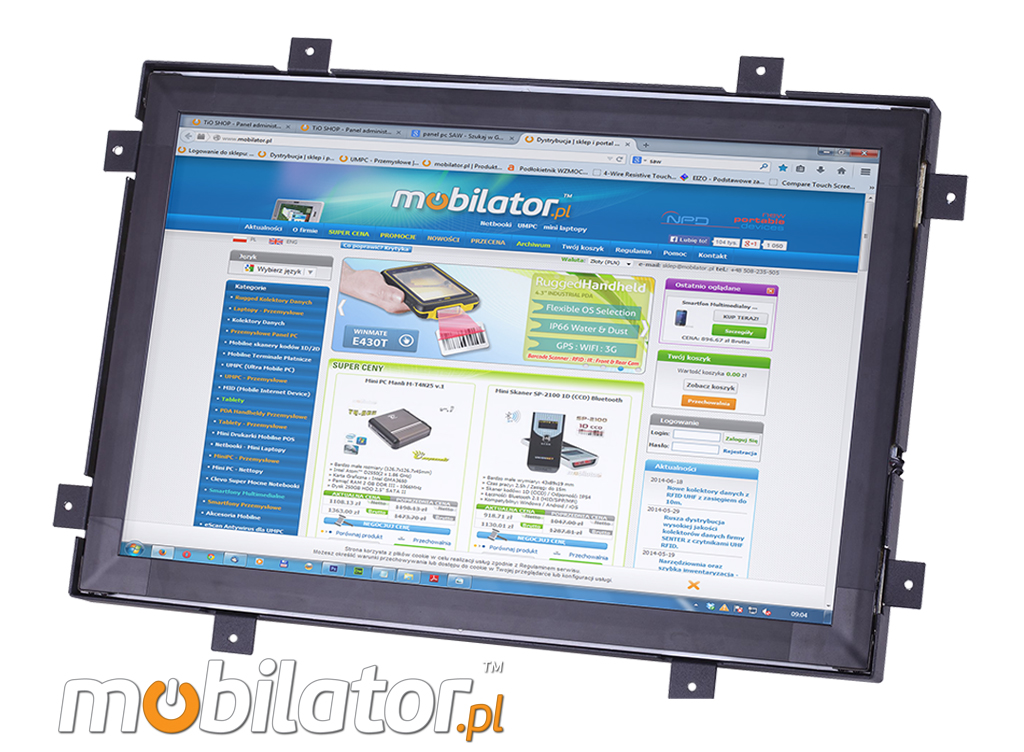

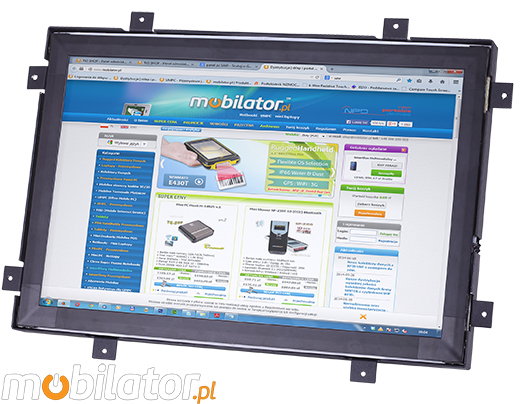

Open Frame Touch Screen PC CCETouch CT19-OPC-SAW
|
|
|
 |
CPU: Intel® Celeron™ J1900 (4 x 2.0 GHz)
|
|
|
Memory: 2GB RAM DDRIII SODIMM
|
|
|
Disk: 32GB SSD |
|
|
System: Windows 8.1/8 / Windows 7 / Windows XP / Linux
|
|
|
Screen: 19" / 1280 x 1024 / 4:3 / SAW
|
|
.png)
|
Expansion cards: none
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption (32W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD 2500 video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

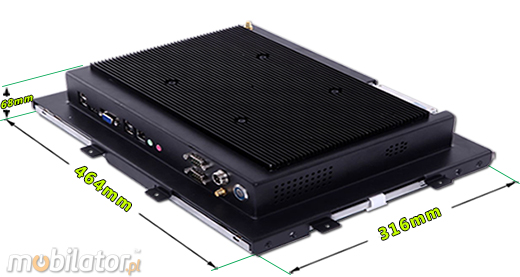

Dimensions:
Housing dimension are 464 (W) x 316 (L) x 68 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 7.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.jpg)

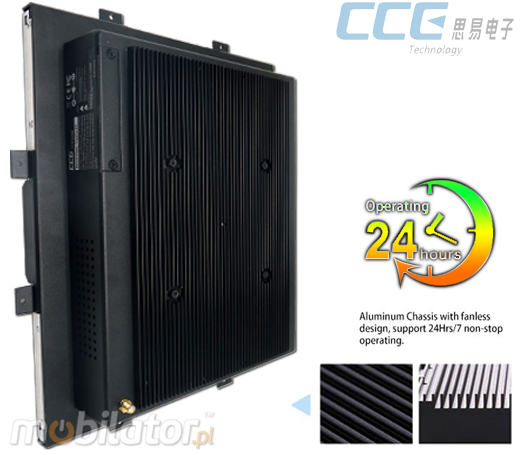

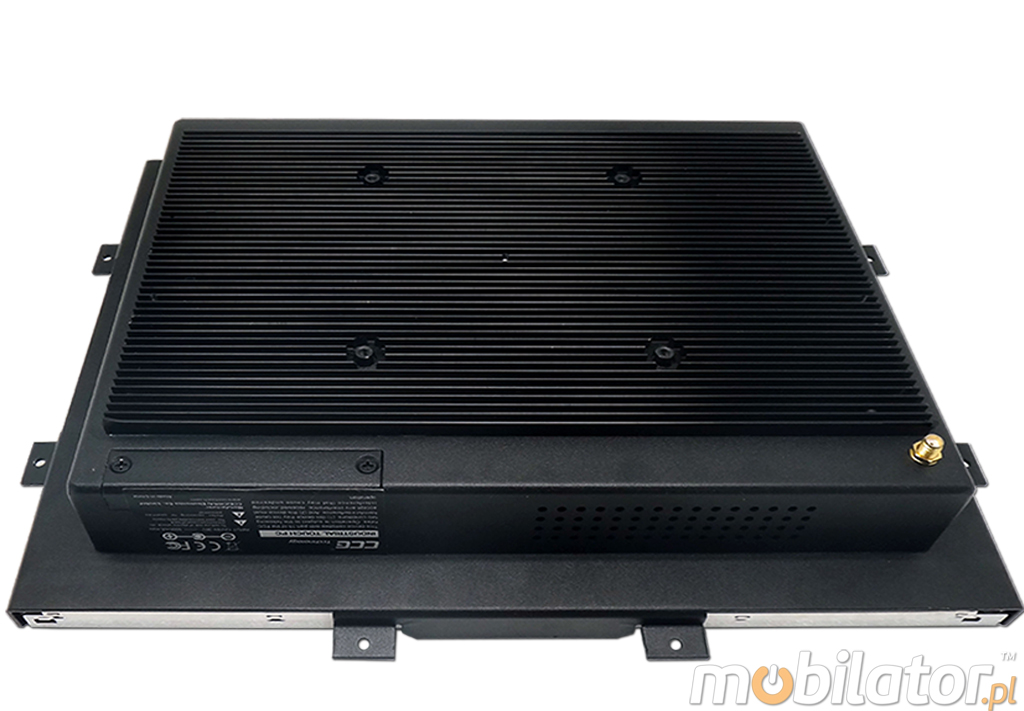

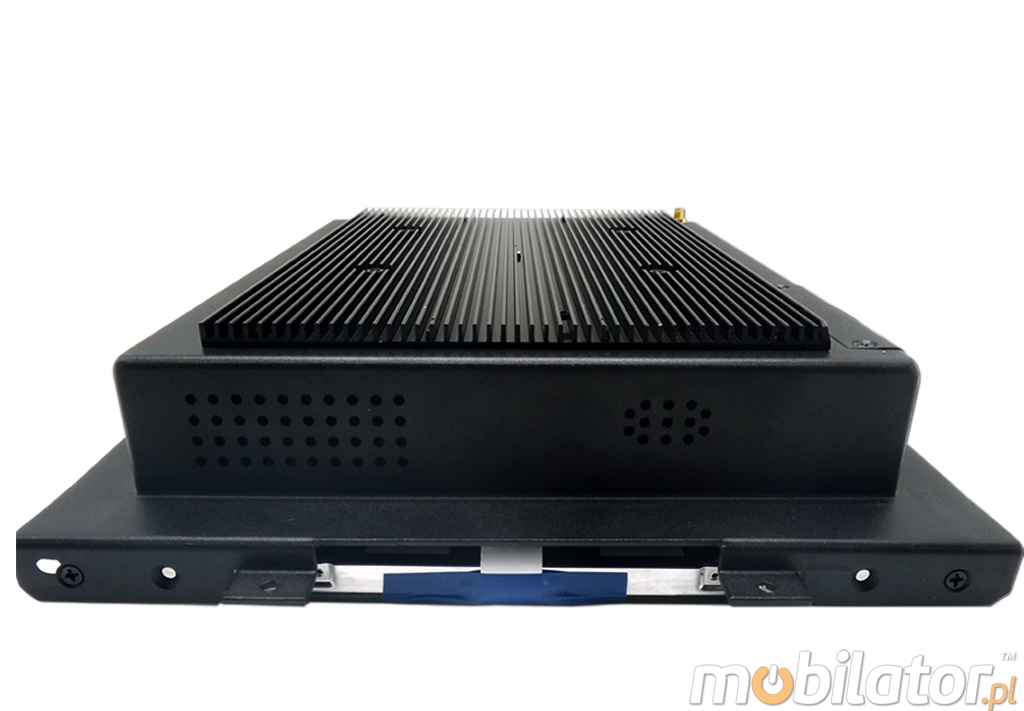

Cooling:
Open Frame Touch Screen PC CCETouch CT19-OPC-SAW is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

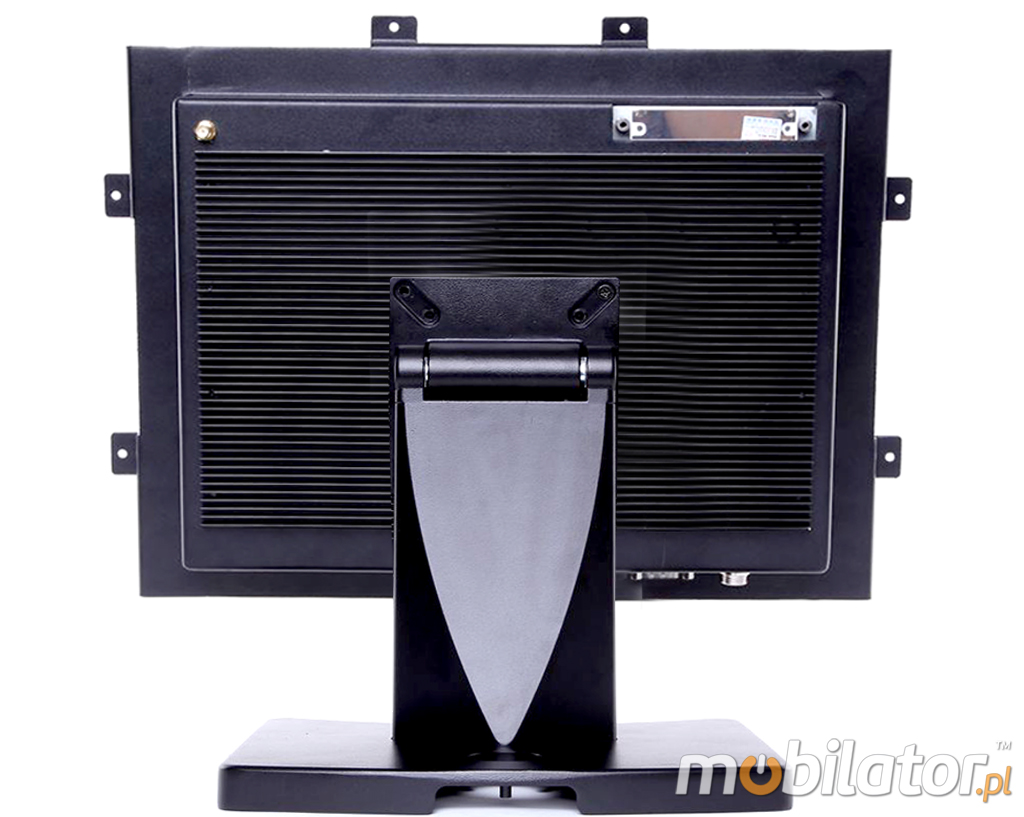

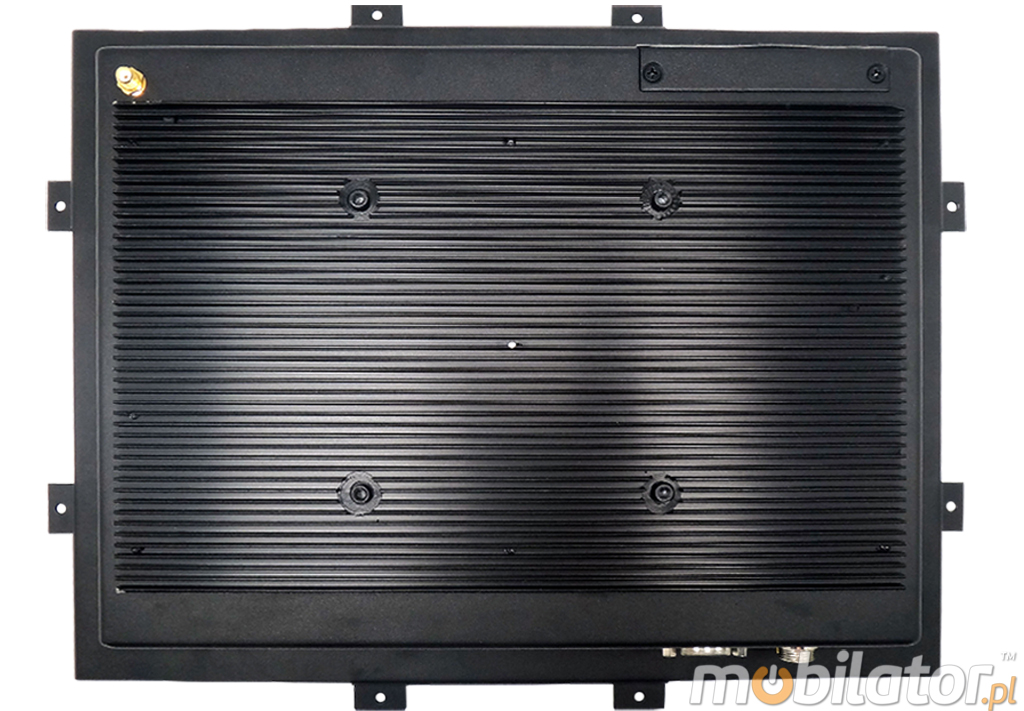

The industrial fanless Open Frame Touch Screen PC CCETouch CT19-OPC-SAW uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled. |
|
Communication:

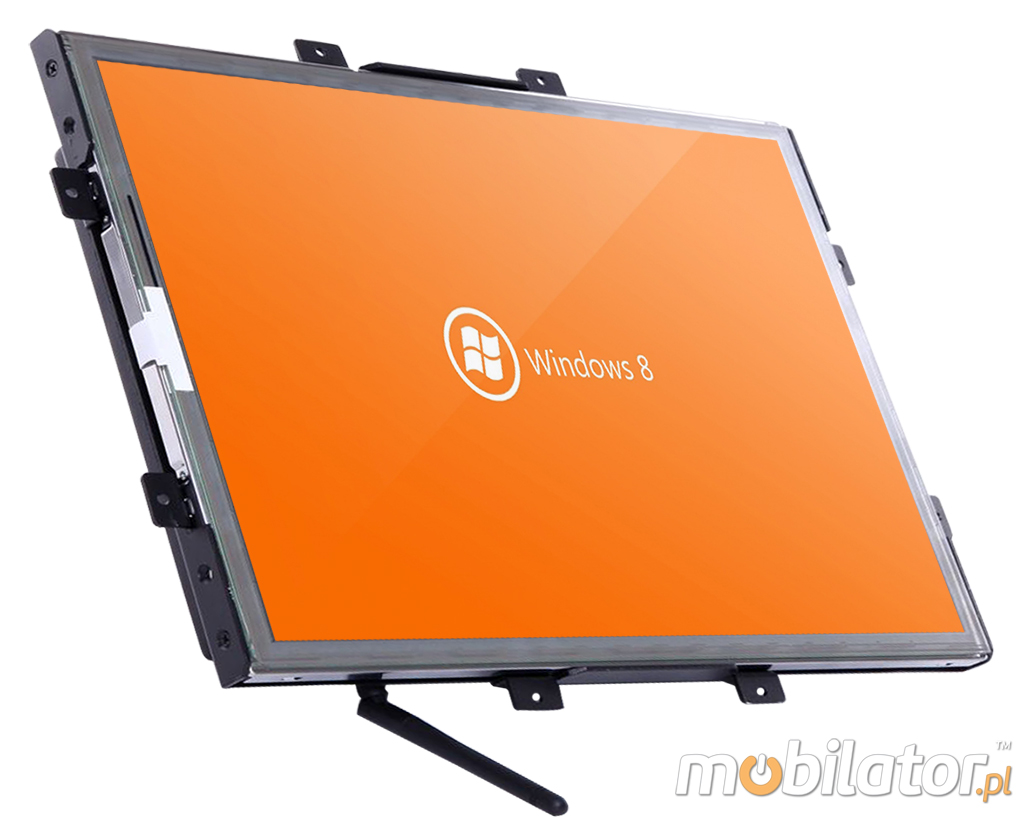

Open Frame Touch Screen PC CCETouch CT19-OPC-SAW standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G and GPS.
.jpg)

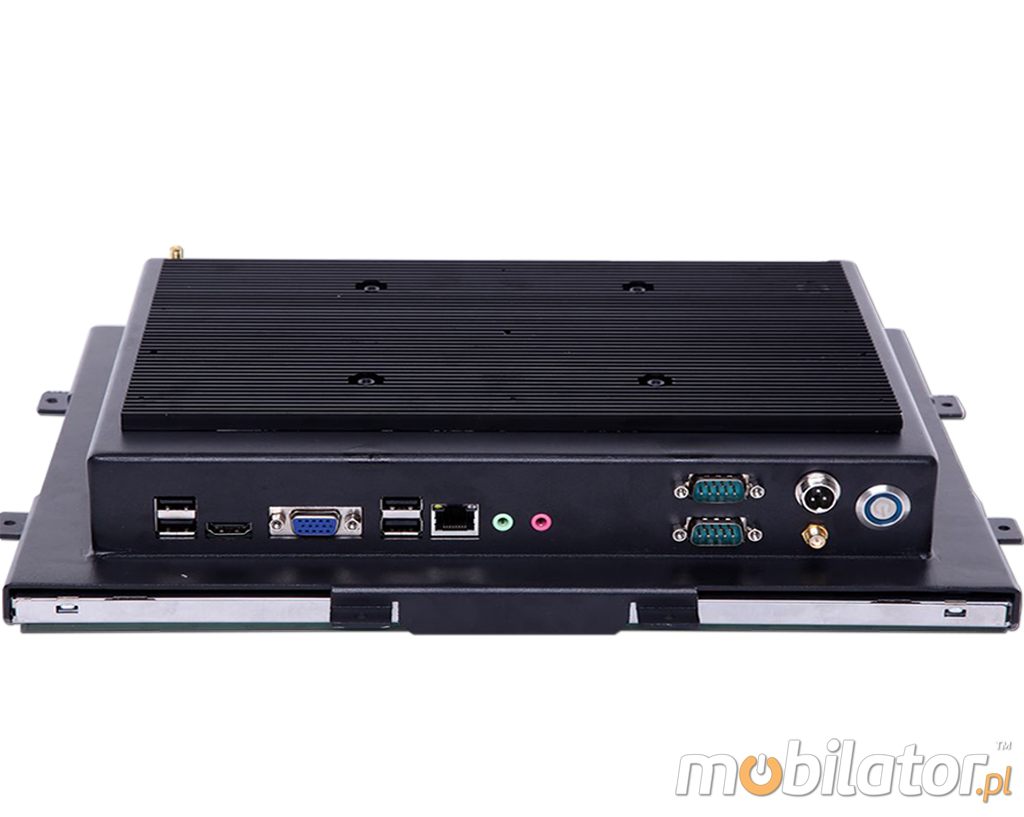

Connector:

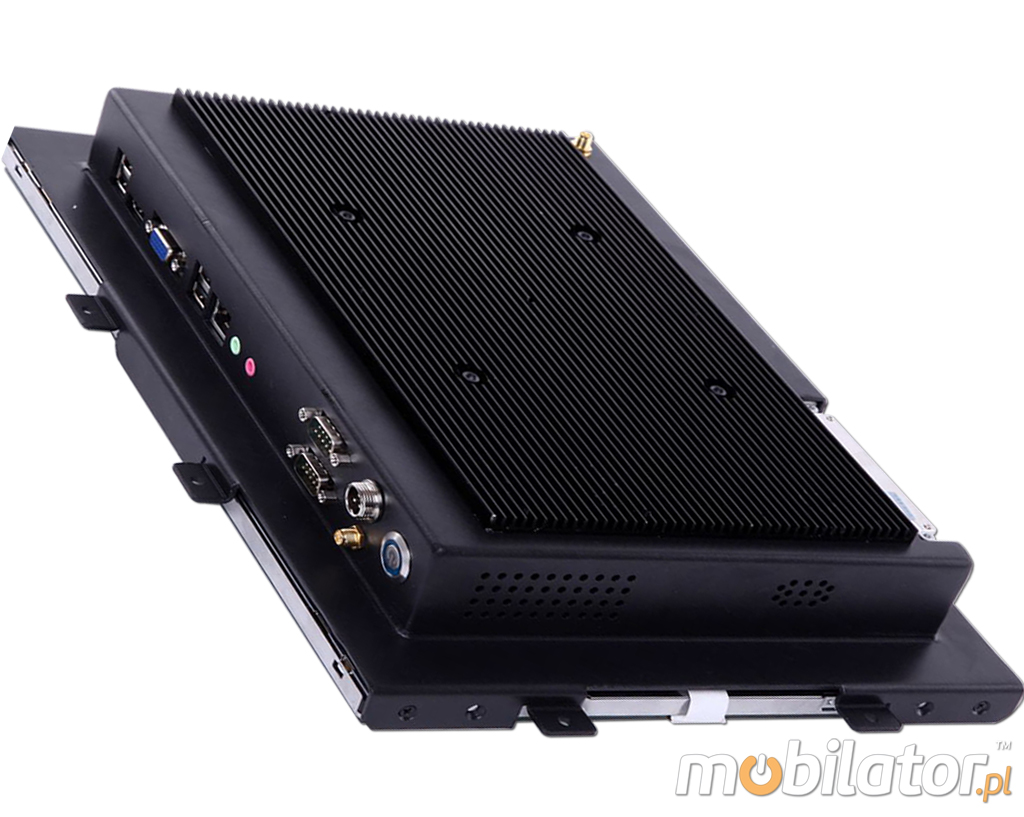

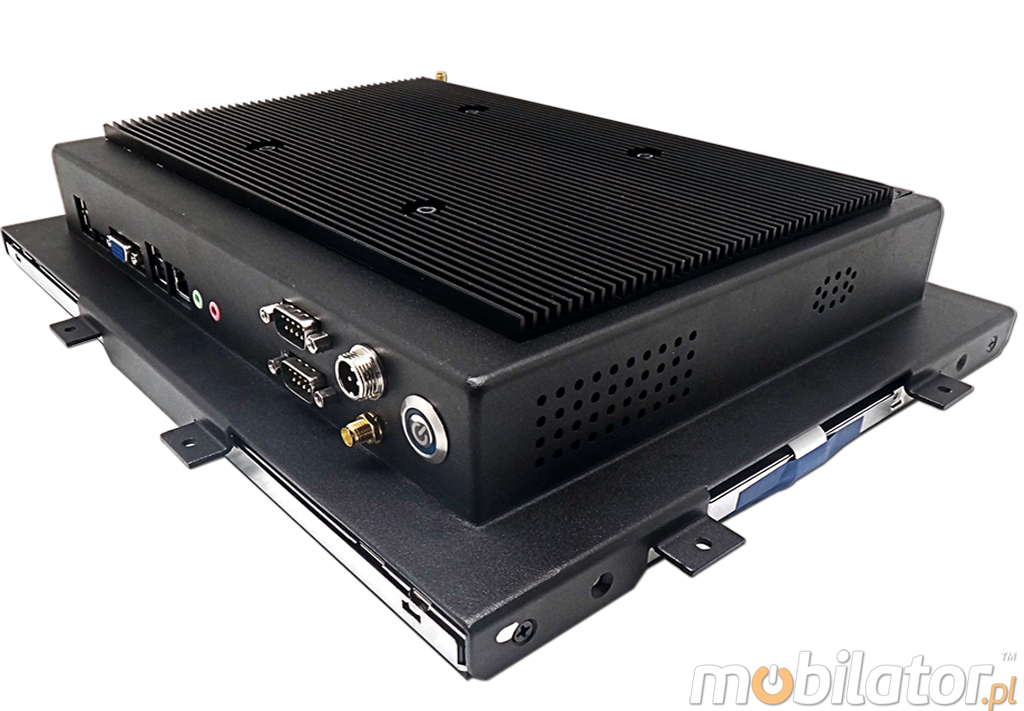

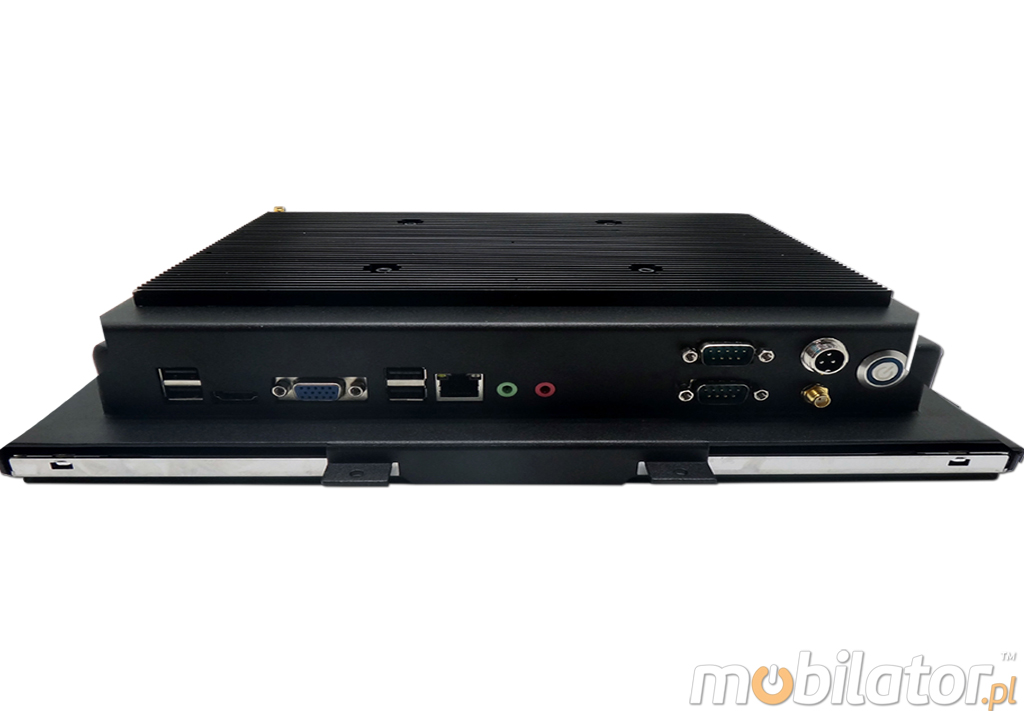

The integrated network card Intel RTL8111G 10/100/1000 Mbps LAN 2xRJ-45, WIFI allows you to connect the device to the network. The computer is equipped with: two LAN connector, three ports COM (RS232), one port COM (RS485), one VGA, one HDMI output, two USB 2.0 ports, one USB 3.0 port, one audio input, one input MIC, connector DC-in.
|
|

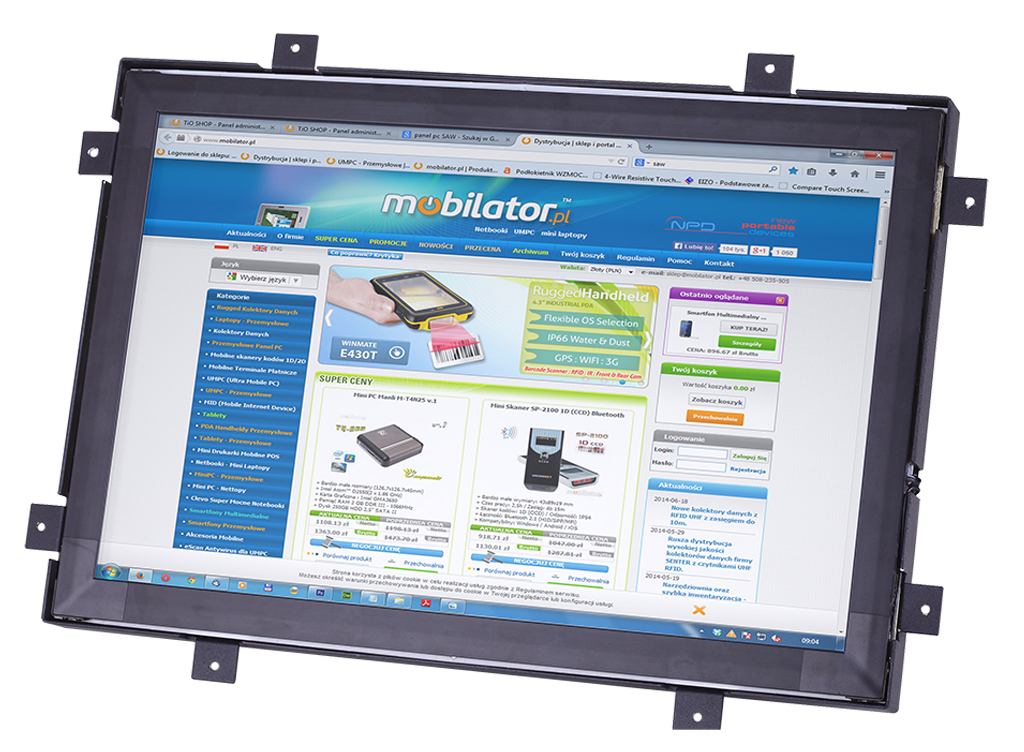

Open Frame Panel PC CCETouch CT19-OPC-SAW has adapted to building 19 "LCD screen with 3H hardness. With 1280 x 1024 resolution and high brightness of 250 cd/m2, screen type SAW with high sensitivity to touch, offers the user a clear picture and ease of use .

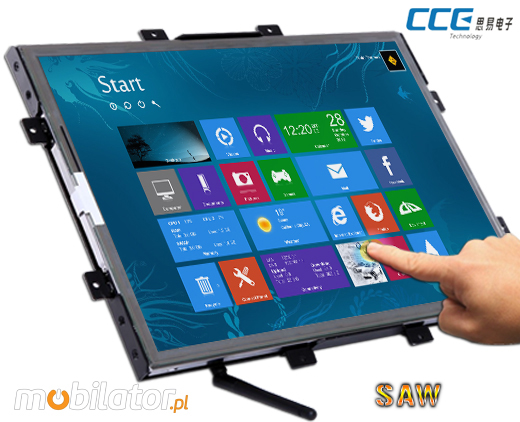

Vandal-proof SAW Touch Screen
This type of touchscreen uses tempered glass, which provides excellent impact performance and strength several times that of ordinary glass. Even if a touchscreen is broken, the fragments are safe with no sharp edges. Special anti-vandalism design for applications in industry, nobody-on-duty and public, with excellent performance for safety and anti-vandalism.
SAW Acoustic Technology
The principle of SAW acoustic technology is similar to IR technology. Acoustic wave emitters that cover the monitor are necessary. When the screen is touched, the sound wave is partly absorbed, causing the registration of touch. You do not need a special coating, so there is no concern about the distortion of the image presented on the monitor. The technology is cheap and proven, which guarantees its low failure rate. In addition, touch screens, acting on the basis of SAW acoustic technology can be used outdoor and in other public places. SAW acoustic technology touch screen also recognizes the touch in a glove. Still, as in the case of IR technology, you need to have regard to the casual touch, and as a result a misstatement. However, the sensitivity of this technology is lower.
|
|
Panel PC CCETouch CT19-OPC-SAW is specially designed for zamontowanmia in special cabinets Internet kiosks, ATMs, etc. Open Frame Panel PC is the best solution for use in public places where you need a fast and seamless access to Danch or the Internet.
|

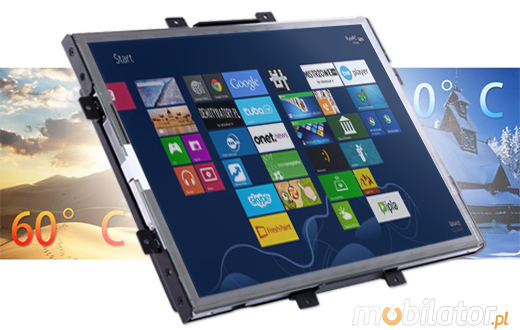

Operating Temp
|
0-60 °C |
|
Operating Humidity |
5%-95%
|
|

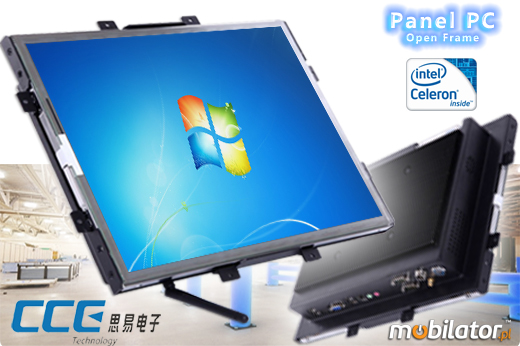

Industrial Panel PCs with CCETouch companies are based on the efficient two-core processors and high-quality components..jpg)

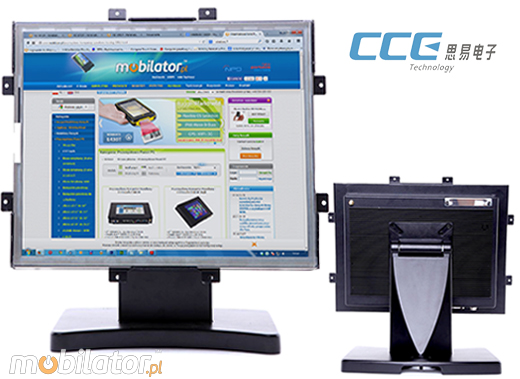

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top…  menu…
|
go top… menu…
Display
|
Screen: 19"
Resolution:1280 x 1024
Type: SAW |
Resistance IP
|
-
|
Communication
|
Wi-FI
3G (option)
GPS (option)
|
|
Dimensions
|
Height: 68 mm
Width: 316 mm
Length: 464 mm
|
|
Weight |
7.5 kg
|
|
Processor |
Intel® Celeron™ J1900 (4 x 2.0 GHz)
|
Chipset
|
Intel NM70
|
Memory RAM
|
2GB DDR3 (optional up to 8GB) |
Graphics Card
|
Intel® HD 2500
|
Sound Card
|
Realtek ALC662 |
Network Card
|
Realtek RTL8105E LAN |
|
Ports & interfaces |
2 x COM(RS232)
4 x USB 2.0
1 x RJ-45
1 x VGA
1 x HDMI
1 x VGA
1 x Audio
1 x Mic
1 x Power Switch
1 x SATA
|
|
|
|
|
Compare all versions
| Screen size: |
19" |
| Resolution: |
1280 x1024 |
| Aspect ratio: |
4:3 |
| Touchscreen: |
SAW |
| Chipset: |
Intel® NM70 Mobile Chipset |
| CPU Support: |
Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Installed CPU: |
Intel® Celeron™ J1900 (4 x 2.0 GHz) |
| Memory Support: |
up to 8GB DDR3 Max. 1333/1066 SODIMM |
| Installed Memory: |
2 GB DDR3 |
| Graphic Card: |
Intel® HD 2500 |
| Audio: |
Realtek ALC662, 6 Channel High Definition Audio Codec 2x 2W loudspeaker |
| Storage (HDD) Support: |
32 - 512 GB SSD / 320 - 1TB HDD |
| Installed Storage (HDD): |
32 GB S-ATA SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL RTL8105E, 1x10/100/1000Mbit RJ45 Ports |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1 x VGA
1 x HDMI
2 x USB 2.0
1 x USB 3.0
2 x RJ-45 LAN
3 x RS-232 COM
1 x RS-485 COM
1 x DC-in
1 x MIC
1 x Audio
1 x WIFI antenna |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
12 V |
| Supported OS: |
Microsoft Windows: XP/Vista/7/8/8.1; Linux |
| Installed OS: |
----- |
| Dimensions: |
464 x 316 x 68 mm |
| Weight: |
7.5 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
5%~ 95% |
| Temp: |
0°C ~ 60°C |
| Storage Temp: |
-15°C ~ 70°C |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |

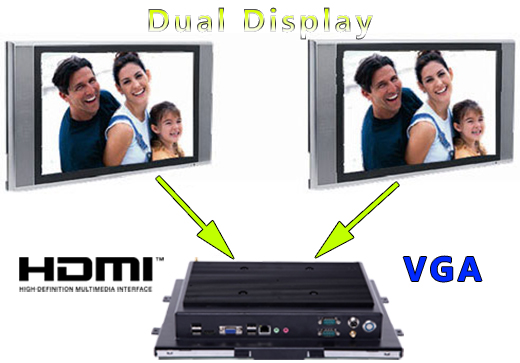

| Dual display: |
Yes |
| Response time touch-panel (ms): |
< 10 |
| Contrast Ratio: |
1000:1 |
| Brightness: |
250 cd/m2 |
| Viewing Angle: |
160;150 |
| Backlight MTBF: |
LED/40,000 h |
| Color Resolution: |
16,7 mln |
| Surface hardness (display): |
3H |
| Touch Life(contacts): |
>35.000.000 times |
| Housing material: |
Aluminum |
| Mounting VESA: |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
32 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
|
