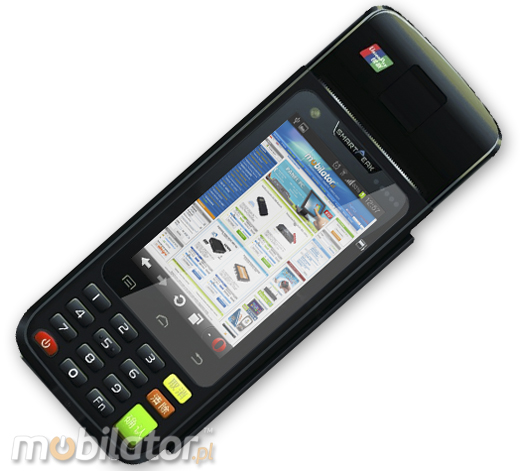

Industrial collector SMARTPEAK P800SP Android
|
|
The product from the archive - production terminated
|

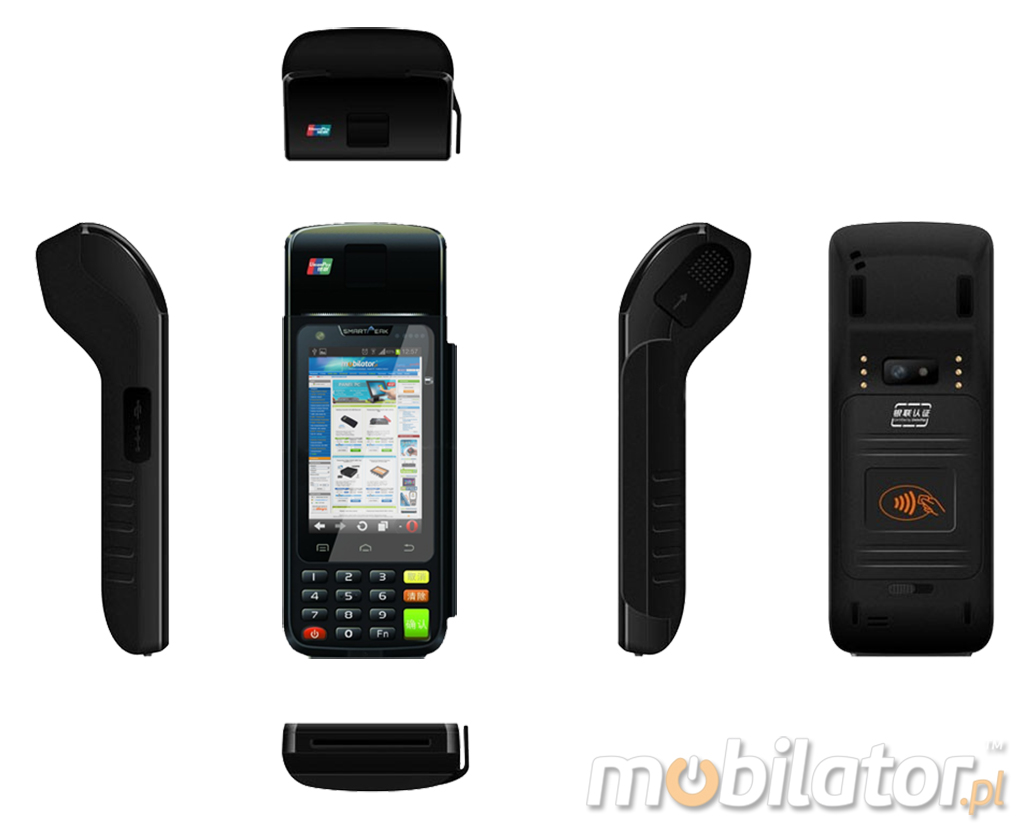

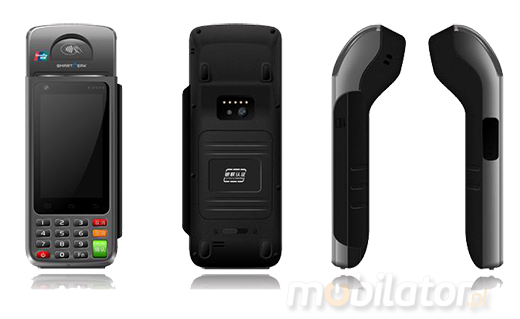

Smartpeak P800 SP has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
|
|
Processor |
Qualcomm MSM8212 quad-core 1.2GHz |
|
Display |
4.0" (800x480) WVGA | IPS | capcitive | multi-touch |
|
RAM |
512MB
|
|
ROM |
4GB |
|
Connectors |
MicroSD : Micro USB
|
|
GPS |
GPS | A-GPS
|
|
Audio |
AudioJack : Speaker : Microphone |
|
Camera |
Front - 0.3 Mpx, Rear - 5 Mpx |
|
Battery |
5700 mAh Li-Ion 3.7V |
|
Keyboard |
On-Screen + numeric (function keys)
|
|
Environment |
Android 4.4 |
Modules (factory)
|
GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth 4.0 : GPS+A-GPS |
|
Dimensions |
205mm x 82mm/67mm x 33mm -530g |
Readers NFC
|
NFC 13.56Mhz ISO14443 A / B
|
Sensors
|
Gravity sensor
|
|
|
|

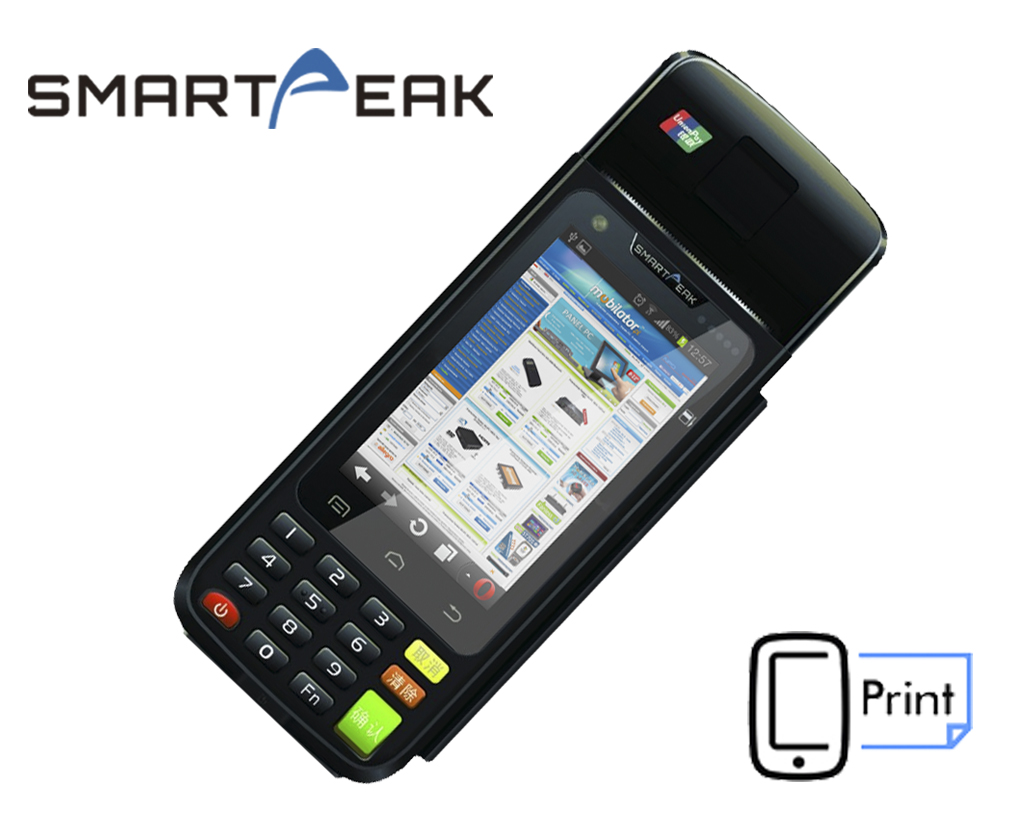

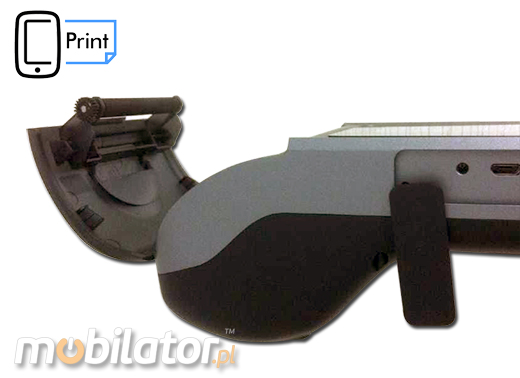

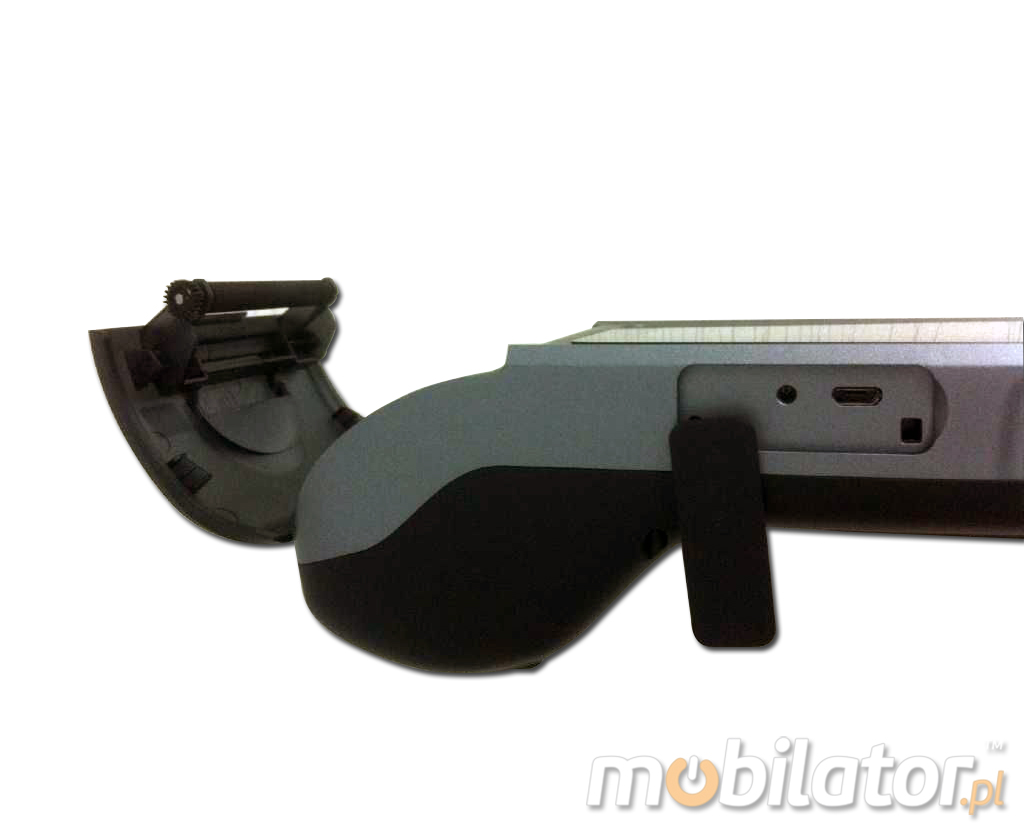

Built-in Thermal Printer
Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.
Printing Speed
|
18 row/sec, Typical 60mm/sec, Low battery 30mm/sec |
|
Paper Roll Width |
58mm |
Paper Roll diameter
|
30mm |
Printing Width
|
48mm |
|

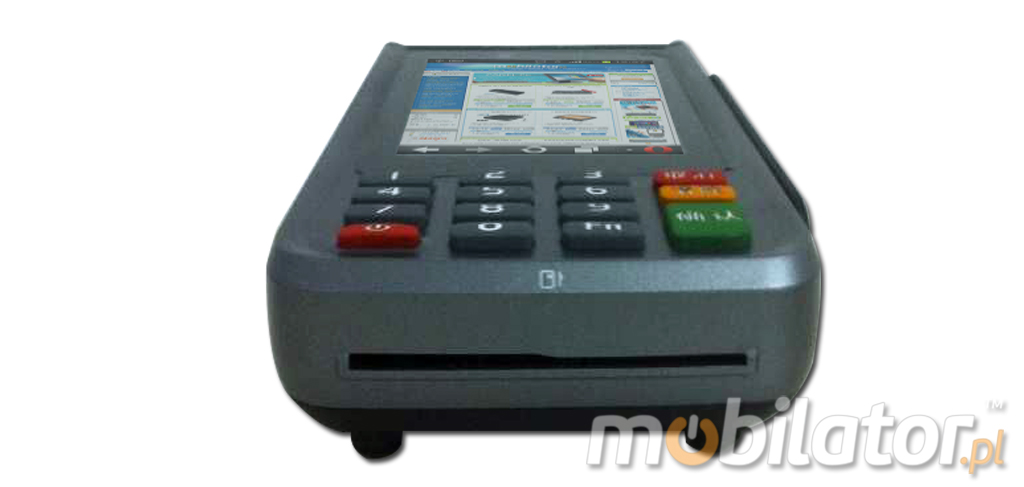

Magnetic Card Reader / IC
Card Readers Smartpeak are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
|
Magcard |
Triple track MSR, bi-directional swiping, ISO7811,7812 |
|
SAM card |
1 SAM Solt, ISO7816 |
IC Card
|
1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV |
|
Karta zbli¿eniowa IC |
13.56MHz, ISO/IEC 14443 Type A/B, qPBOC |
.jpg)

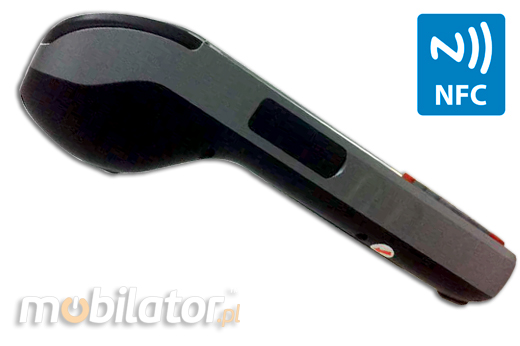

NFC
NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.
|
NFC |
NFC 13.56Mhz ISO14443 A / B
|
go top...  menu…
|
|
|
Applicable standards
|
Operating |
-20°C -- +60°C |
|
Storage |
-40°C -- +80°C |
|
Humidity |
10% - 90% RH | non-condensing |
|
Drop |
Multiple drops to concrete 4.0ft./1.0m
|
go top... menu…
go top... menu…
|
|
|
|
When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Smartpeak P800 SP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.
|
WiFi |
802.11a b/g/n |
|
GPS |
GPS, supported A-GPS,
|
|
Bluetooth |
Bluetooth 4.0 + EDR; Class II |
|
GSM/3G |
WCDMA：850/1900/2100MHz
GSM:850/900/1800/1900MHz |
|
|
The ability to make voice calls |
go top... menu…
|
|
|
|
You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have P800 SP. The device weighs just 530g and its dimensions (205mm x 82mm/67mm x 33mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that P800 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.
|
|
Dimensions |
205mm x 82mm/67mm x 33mm
|
|
Weight |
530g |

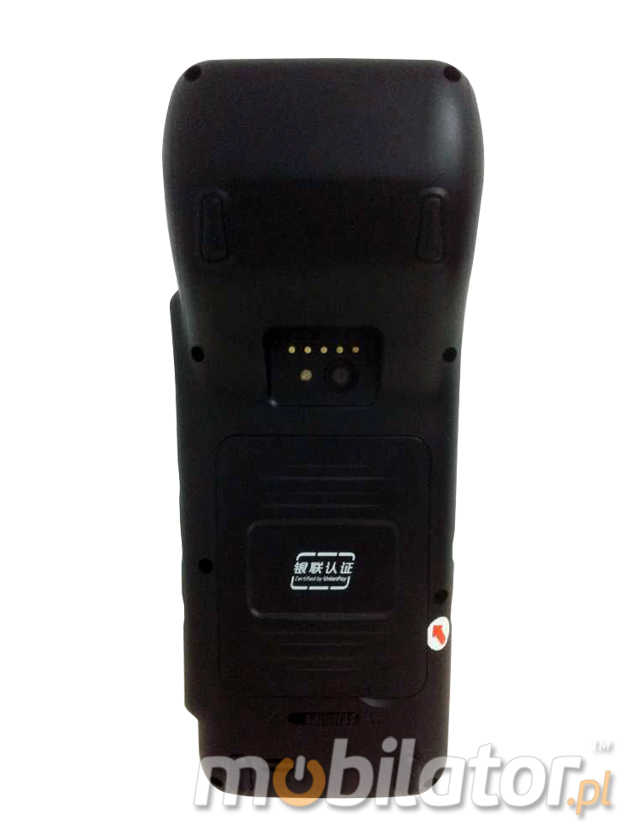

Quick change battery
Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.
.jpg)
go top... menu…
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
| Durability: |
----- |
| Humidity: |
10 to 90%(no condensation) |
| Waterproof: |
----- |
| Weight: |
|
| Temperature: |
Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.0 meter |
| Sand and dust: |
----- |
| 1D barcode scanner (reader): |
----- |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
NFC (13.56Mhz)
ISO14443 A/B
|
| Magnetic card reader (MSR): |
Yes - Triple track MSR, bi-directional swiping, ISO7811,7812 |
| Microchip card reader: |
Yes - 1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV | 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC | 1 SAM Solt, ISO7816 |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
----- |
| Dispaly: |
4.0 ", capcitive, multi touch, WVGA (480x800), IPS |
| Brightness: |
350nits |
| Contrast: |
----- |
| Touch screen: |
Tak |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
No |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Qualcomm MSM8212 quad-core 1.2GHz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
512MB |
| Hard Drive: |
4GB |
| Flash Memory: |
|
| Battery: |
3.7V; 5700mAh Li-Ion |
| Working time on battery: |
8h |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
Yes |
| Size: |
205mm x 82mm/67mm x 33mm -530g |
| Casing material: |
high quality plastic |
| Fanless casing: |
Yes |
| Operating System: |
Android 4.4 |
| LAN: |
No |
| WLAN: |
802.11a b/g/n internal antenna |
| Bluetooth: |
Bluetooth 4.0 + EDR |
| WAN: |
WCDMA/GSM |
| GPS: |
Built-in GPS + A-GPS |
| Flash Card Reader: |
microSD (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
Front - 0.3 Mpx, Rear - 5 Mpx |
| Audio: |
AudioJack : Built-in Speaker : Microphone |
| Seciurity: |
----- |
| In/Out: |
micro USB (support OTG), AudioJack, Mirco SD card slot (max.32GB) |
| Keyboard: |
Numeric (+function keys) + On-Screen |
| Additional Navigation Devices : |
----- |
| Color: |
black |
| Optional accessories: |
High-speed Thermal printer |
| Other: |
Factory accessories:
- charger
- hand strap Sensors:
- gravity sensor
|
