« Back    Home / UMPC - Ruggedized / Archives

Industrial collector SMARTPEAK C300SP-2D-SE4500 Android v.3

Industrial collector SMARTPEAK C300SP-2D-SE4500 Android v.3

Data update: 2018-03-22

guarantee 1 year

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

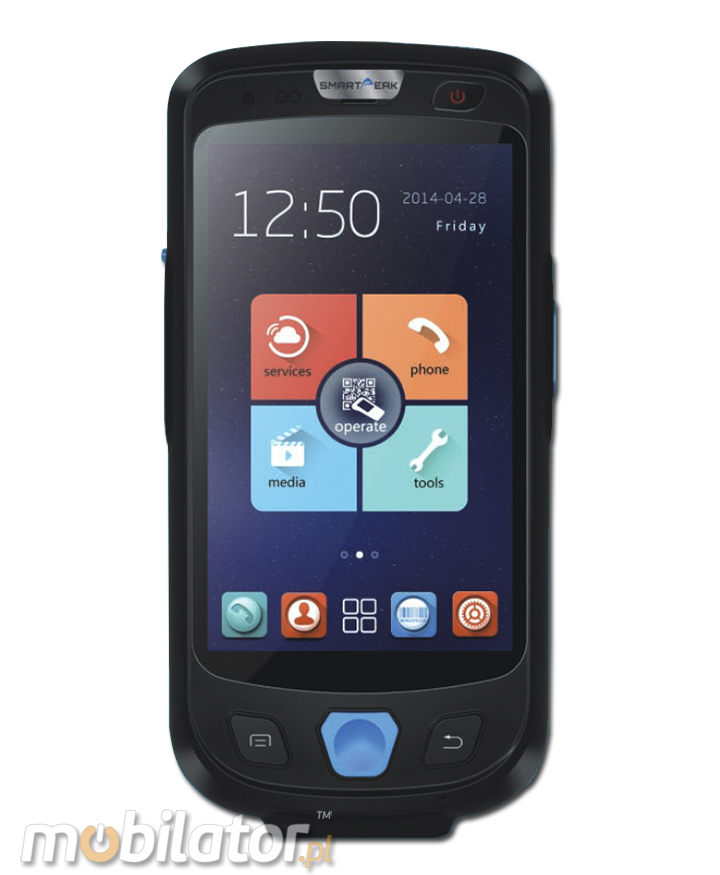

Smartpeak C300 SP  has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

 Processor  Qualcomm MSM8225 dual-core 1.2GHz

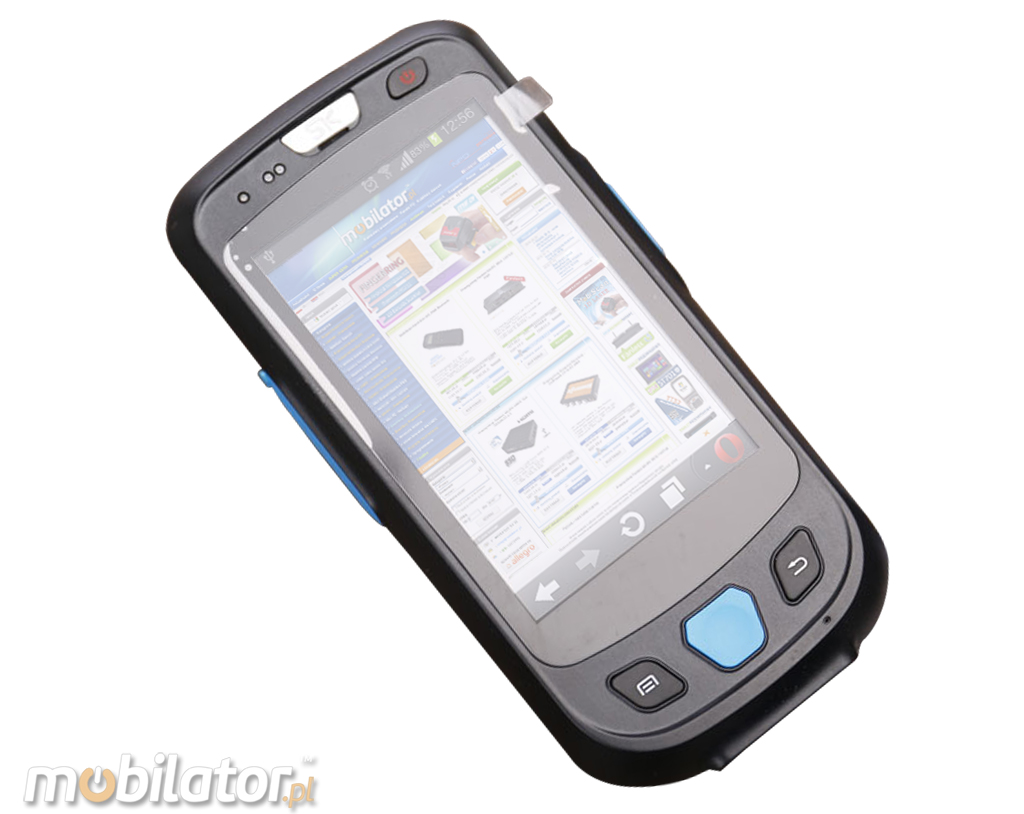

 Display 3.7" (800x480) WVGA | LCD | Sunlight readable | IPS | Capacitive | Gorilla Glass
 RAM  768MB
 ROM  4GB

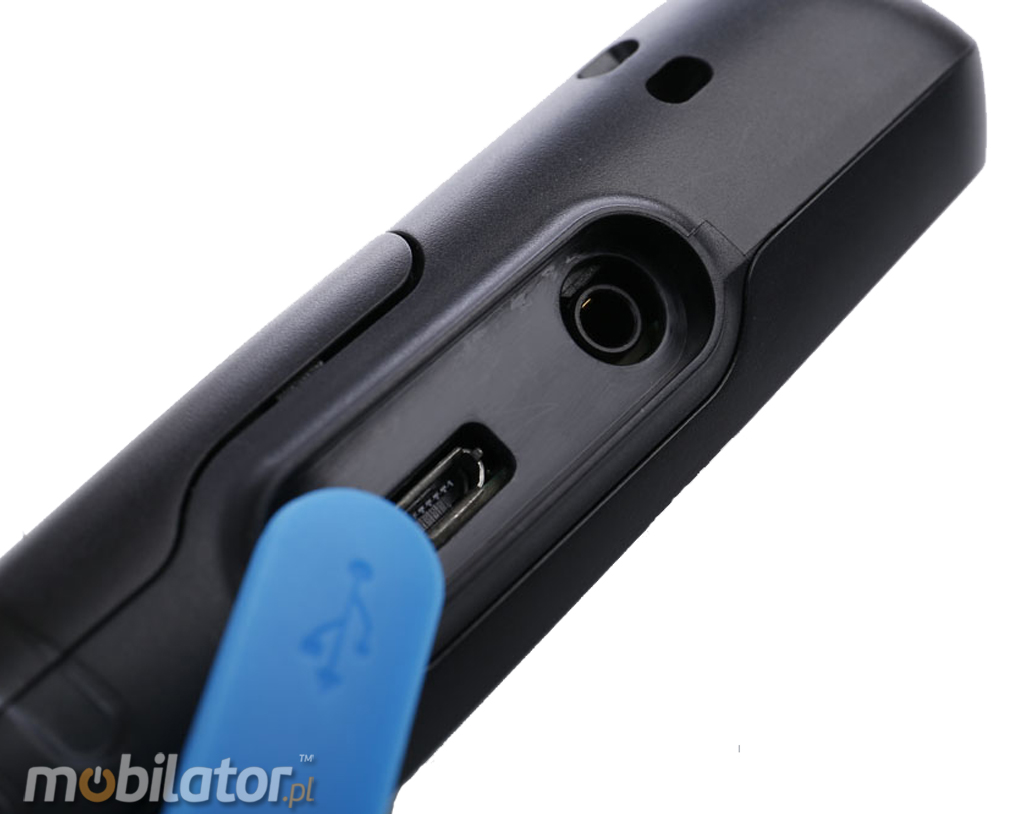

 Connectors  MicroSD : Micro USB
 GPS  GPS | A-GPS
 Audio  AudioJack : Speaker : Microphone
 Camera  2Mpx (5Mpx - option)
 Battery  3300 mAh Li-Ion 3.7V
 Keyboard  On-Screen + function keys
 Environment  Android 4.1
 Modules (factory)
 GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth  4.0 : GPS+A-GPS
 Dimensions  142 mm x 69 mm x 25 mm- 250g
 Resistance  IP54
 Readers (optional)
  1D - MINDEO (LASER)

  1D - MOTROLA: SE955 (LASER)
    1D/2D -MOTROLA SE4500 (CMOS)
 Readers NFC
NFC 13.56Mhz  ISO14443 A / B i ISO15693
 Sensors
 Triaxial gravity sensor, ambient light sensor, proximity sensor
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


1D (Laser)
1D (LASER)
1D/2D (CMOS)
NFC 3G Camera
v.1 - -
v.2 - -
v.3 - -

go top... do góry menu… menu

The collection and processing of data

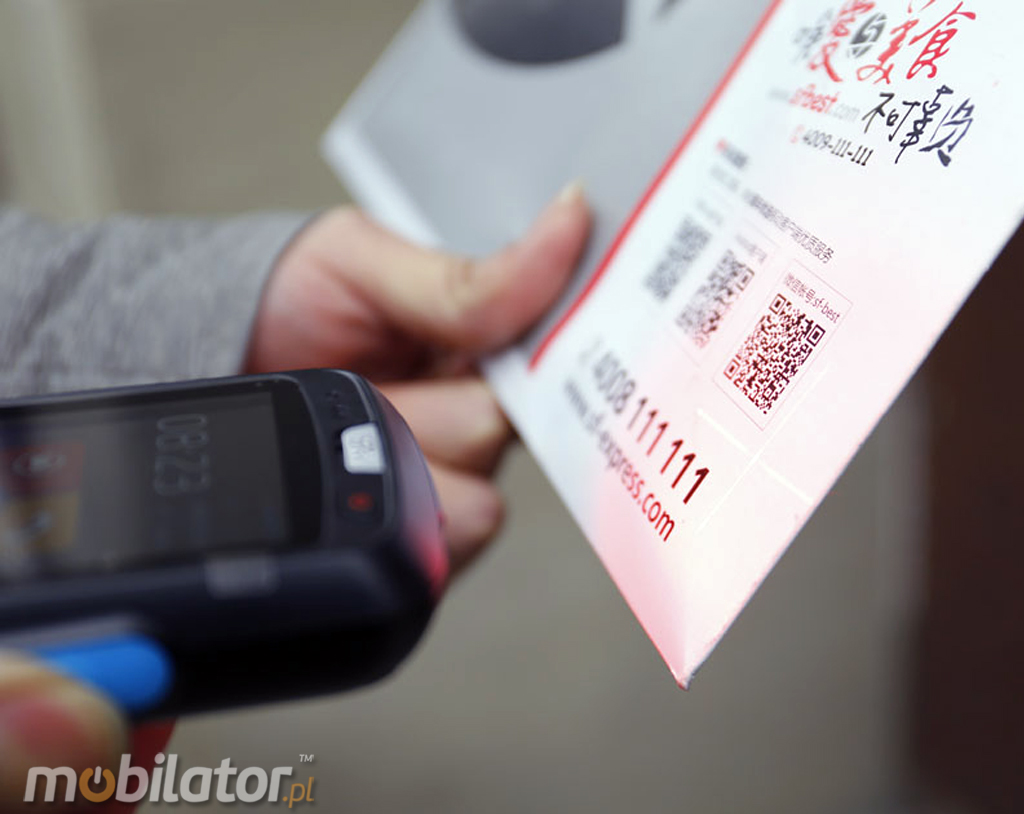

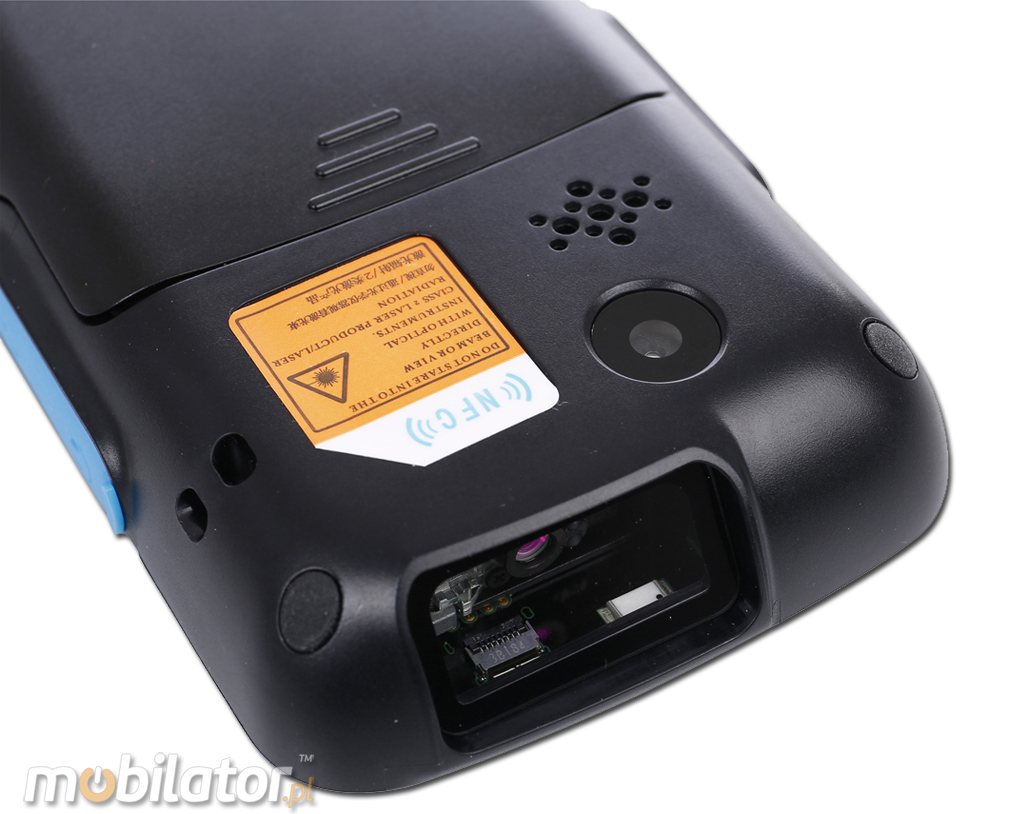

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
MINDEO (Laser)
MOTOROLA: SE4500 (CMOS)
MOTOROLA: SE955 (LASER)

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

NFC

NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.

NFC NFC 13.56Mhz  ISO14443 A / B i ISO15693

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

go top... do góry menu… menu



Resitance

Applicable standards

Operating -20°C -- +60°C
Storage -40°C -- +80°C
Humidity 0% - 95% RH | non-condensing
Dust IP5x (dust)
Water IPx4 (water)
Drop Multiple drops to concrete 4.5ft./1.2m the entire operation range

go top... do góry menu… menu

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

IP54 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Smartpeak C300 SP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11a b/g/n
GPS  GPS, supported A-GPS,
Bluetooth  Bluetooth 4.0 + EDR; Class II
GSM/3G  WCDMA:850/1900/2100MHz
 GSM:850/900/1800/1900MHz
   The ability to make voice calls

go top... do góry menu… menu

Minimalism

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have C300 SP. The device weighs just 250g and its dimensions (142 x 69 x 25mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that C300 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

 Dimensions 142 × 69 × 25mm
 Weight 250g

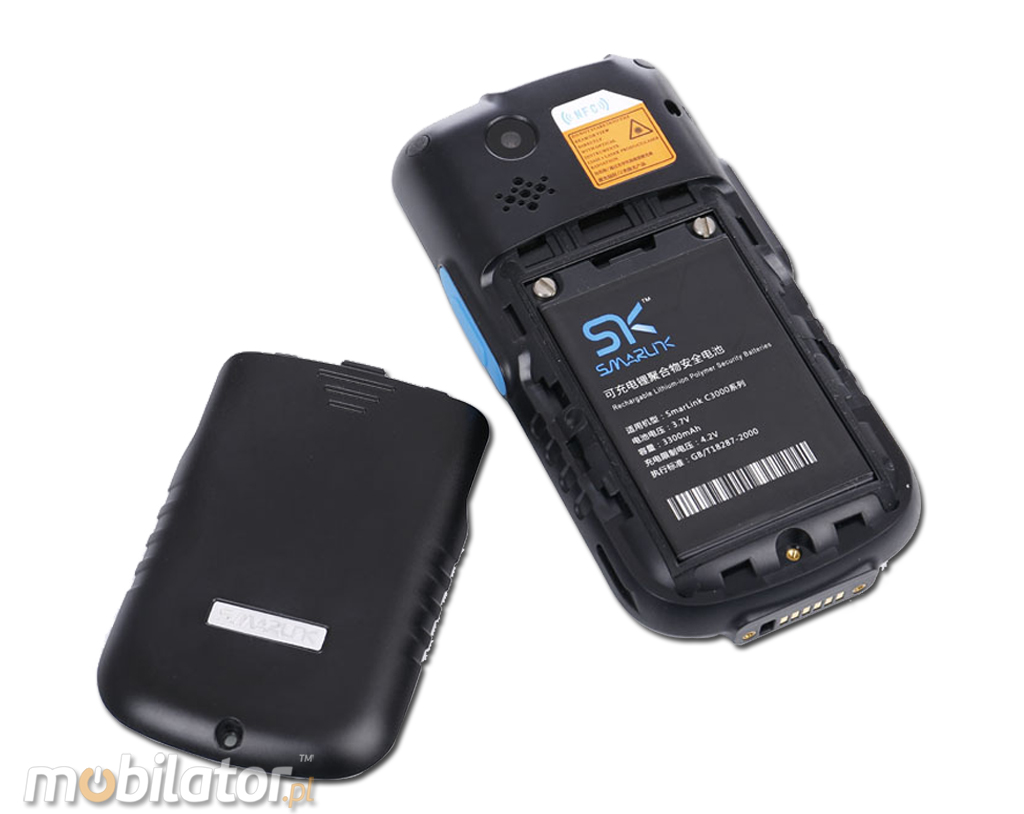

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

Kolektor przemys³owy SMARTPEAK C300SP-1D Android RUGGED DATA COLLECTOR C300SP3g wcdma gsm 1d  barcode scanner  czytnik kodow kreskowych 1d 2d

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
