Data collector MobiPad M-B1RF

Data collector MobiPad M-B1RF

Data update: 2014-04-04

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

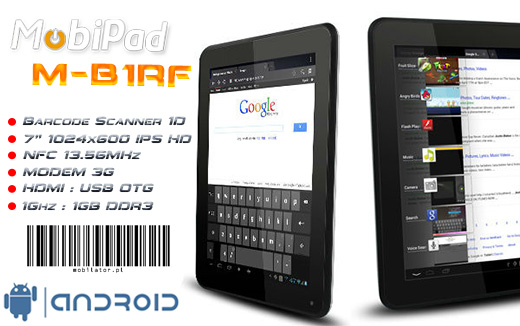

tablet 7 inch mobipad m-b1rf barcode scanner ips hd modem 3g

Compact dimensions, Internet access, advanced communications and multimedia capabilities make up the elements constituting the essence of mobile versatility. Anyone can make its tablet will be one of a kind, all with access to thousands of applications the Android environment.


Description

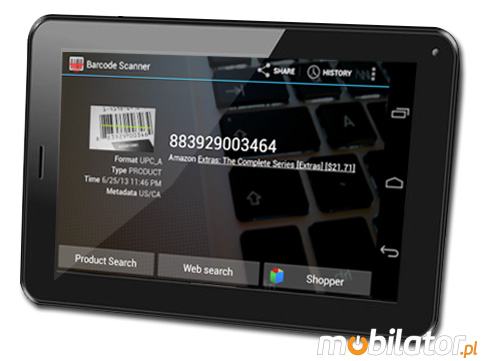

tablet rfid 1d barcode scanner wifi bluetooth

System specifications
  Processor  Amlogic Cortex-A9 AML8726-M3 1Ghz
 Display  7" 16:9 (1024x600) IPS :  Capacitive : Multi-Touch
 RAM  1GB DDR3
 ROM  4GB ROM
 Connectors  USB OTG  : SIM : HDMI 1.4a
   Micro SD/TF (max. 32GB)
 Readers  NFC (HF:13.56M)
   Barcode Scanner 1D CCD
   Barcode Scanner 2D via Camera
 Modules  WiFi 802.11b/g/n : Bluetooth 4.0 : 3G
 Audio  G³o¶nik 8Ω/1.5W x2 : ∮3.5mm Jack
 Camera  Front 0.2Mpx: Rear 5Mpx
 Battery  Litowo-Ion Poli 3.7V 4100mAh (4-8h)
 Keyboard  OnScreen
 System
  Environment Android 4.0.3 (multi-language)
 Dimensions
  19.8*1.17*12.8cm - 725g
 Warranty
  12 months (optional 24 months)
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

go top... do góry menu… menu

The collection and processing of data

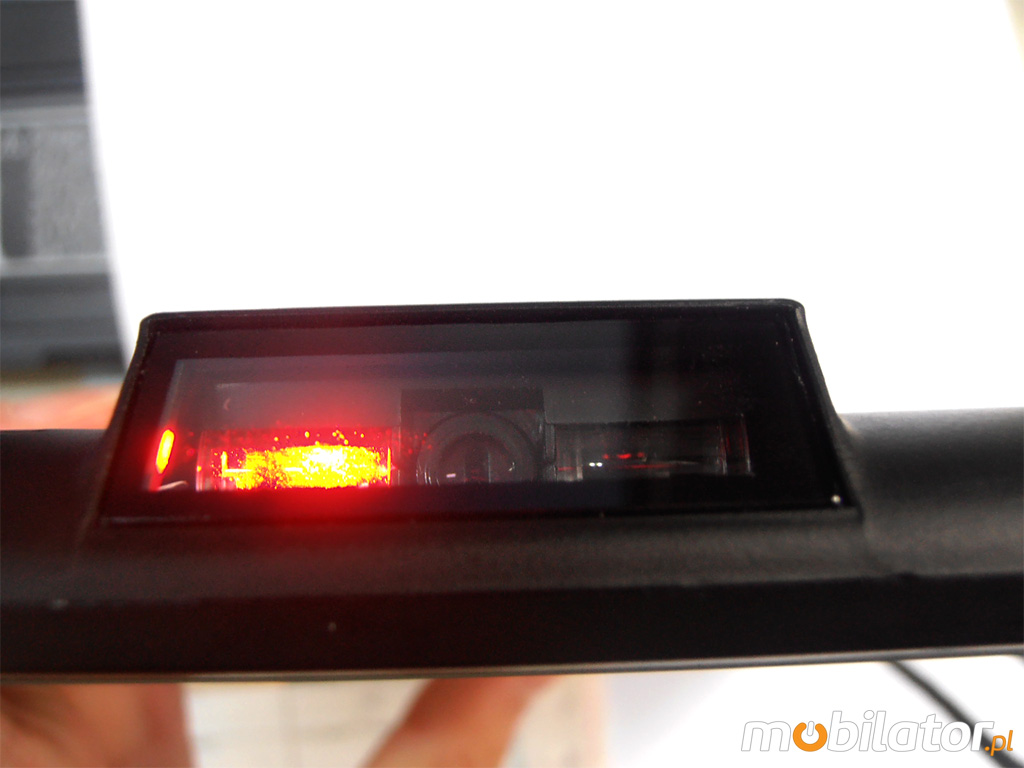

Barcode Scanner

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 1D Barcode Reader allows you to read, decode and transfer to your computer data stored in the barcode. With dynamic scanning capabilities and the large range of reading, the data collector collects data accurately, which helps to increase the rate and efficiency. The whole can quickly start because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.

 Barcode Scanner
  Built-in CCD Scanner (1D)
 Interface  TTL232
 Reading mode
  CCD
 Resolution  2500
 Decoding speed
  max. 300 times/sec
 Optical source
  LED (622 nm - 628 nm)
 Optical source intensity  265 LUX (130 mm)

 Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2
 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar

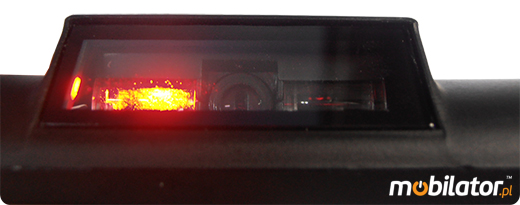

data collector tablet 7 cali mobipad m-b1rf

NFC Technology

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few inches. Present and anticipated applications include contactless transactions, data exchange, and simplified setup of more complex communications such as Wi-Fi. Communication is also possible between an NFC device and an unpowered NFC chip, called a "tag".

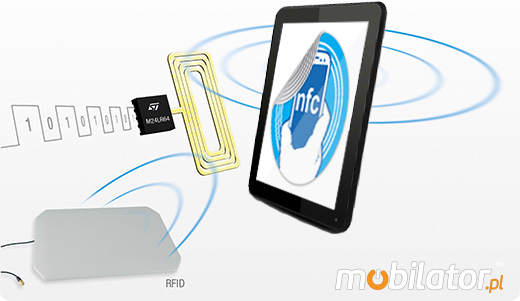

nfc rfid 13.56mhz tablet mobipad data collector UART

 Chipset
  NXP,128K/C2 ROM\44kB EEPROM
 RF Frequency  13.56MHz
 Support Configuration Mode  Card reader mode,P2Pmode
 Support Interface
  UART、SPI、IIC
 Module Voltage Range
  2.3V-5.5V
 Modulation Mode  ASK
 Module Power Consumption
  30mA (Max)
 Baud Rate
  9.6 to 460.8 kbps (UART)
 Work range
  <10cm
 Main Function
  Serial port - NFC |  MID - data exchange
   Low power consumption control
   ISO14443A/B, ISO15693, Mifare, Felia
   The point-to-point data transmission (P2P mode)
 NFC Antena  The built-in antenna, antenna type: magnetic FPC

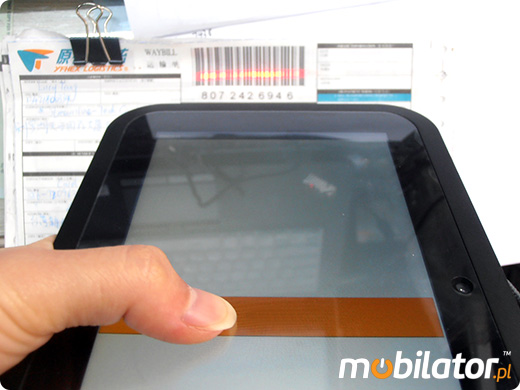

barcode scanner 1D Barcode Scanner CMOS CCD mobipad m-b1rf

go top... do góry menu… menu

Modules and Wireless Networks

With HSDPA module, you need only insert a SIM card in the special slot and can instantly connect to the Internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Also used in MobiPad internal HSDPA module adapts automatically to transfer and network coverage.

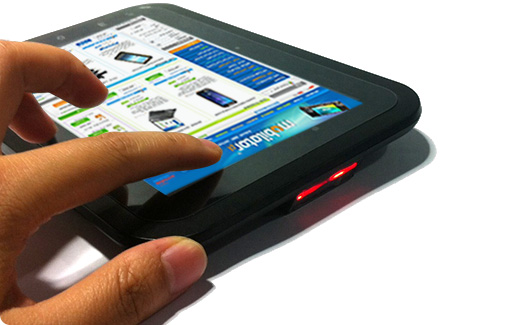

wifi bluetooth scanner mobipad barcode m-b1rf

 WiFi  802.11b/g/n
 Bluetooth  Bluetooth 2.1 + EDR Class 2
 WCDMA  GSM/GPRS/EDGE3G : WCDMA 2100MHz

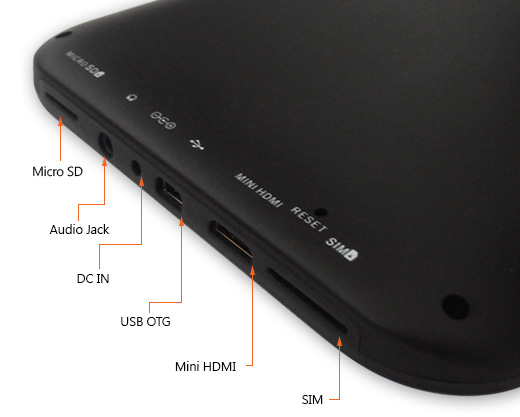

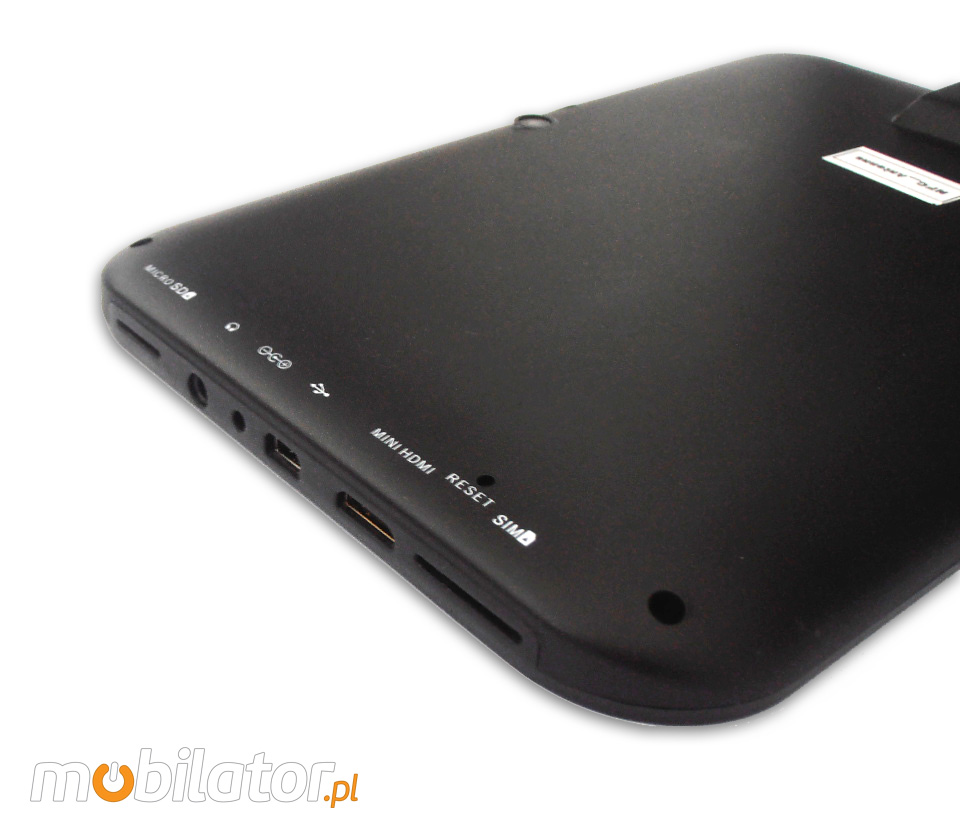

Connectors

With USB OTG to connect a portable storage device and pointing devices. In addition, we rely on the following set of ports - power connector, miniHDMI, microSD card slot, SIM card slot and audio jack. Computer hardware is recognized as a mass storage.
sd sim USB OTG SIM mini HDMI tablet mobipad m-b1rf

 Dimensions 19.8*1.17*12.8cm
 Weight 725 (with battery)
more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
