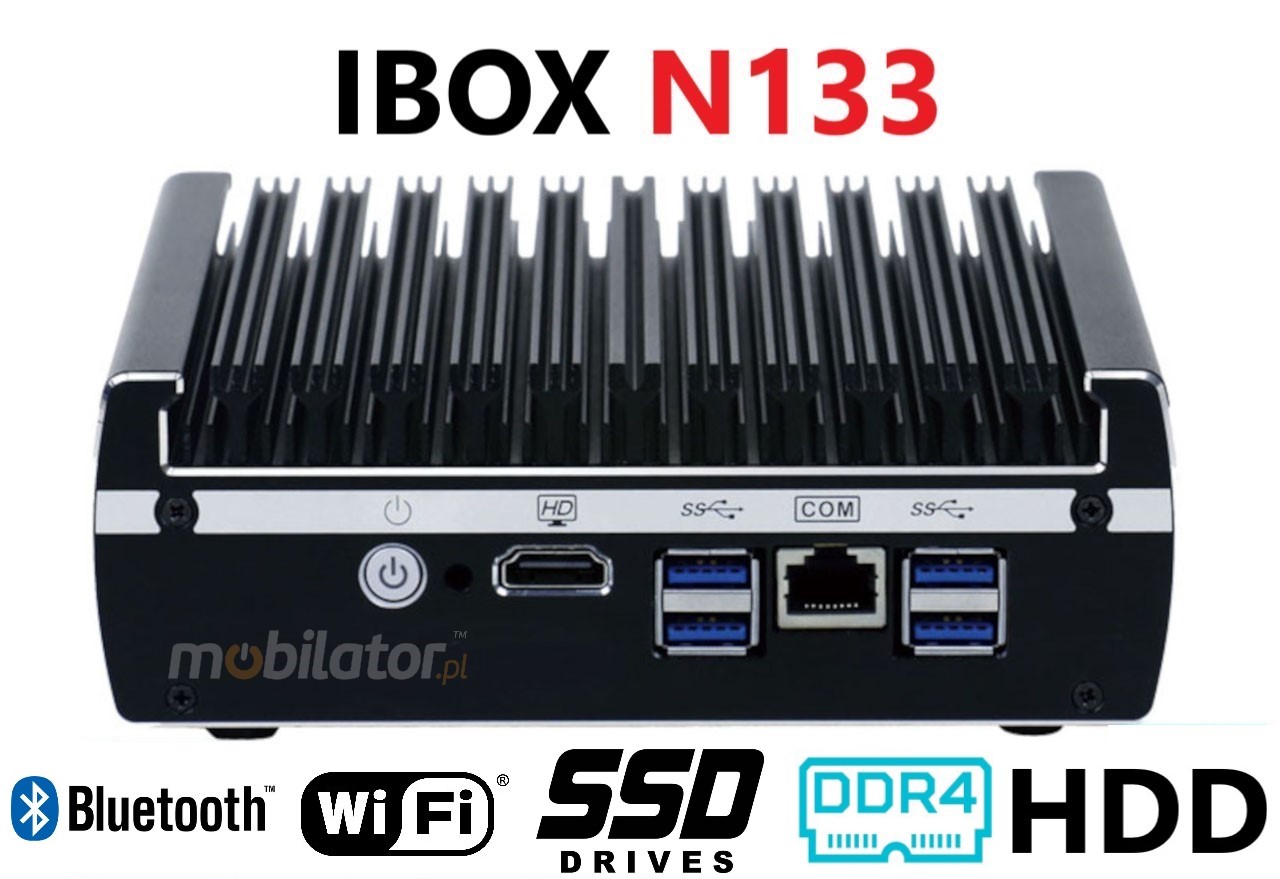

IBOX N133 v.10 - MiniPC with aluminum housing, 8GB RAM, Intel Core processor, USB 3.0 connectors and HDD drives with SSD, Bluetooth and WiFi
Compare all versions
Small-sized industrial computers excel in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. The small and reliable MiniPCs use heat-pipe technology and aluminum fins for passive cooling. The rugged mini industrial computer iBox N133 is a device designed for all industrial and other applications requiring continuous operation - 24 hours a day, 7 days a week.
TECHNICAL SPECYFICATIONS
| Mini-PC IBOX N133 |
| Processor |
Intel Core I3 7100U (dual core quad threading, 2.4GHz) |
| Operating system |
Support: Windows 7/8/10
Linux
|
| RAM |
4GB* | 8GB | 16GB* | 32GB* DDR4 |
| Hard drive |
SSD: 64* | 128* | 256* | 512 GB
HDD: 500GB* | 1TB | 2TB*
|
| Graphics card |
Integrated Intel HD Graphics 620 |
| Communication |
Bluetooth
WiFi (AC7260)
LAN: 6xRTL8111E 1000M
|

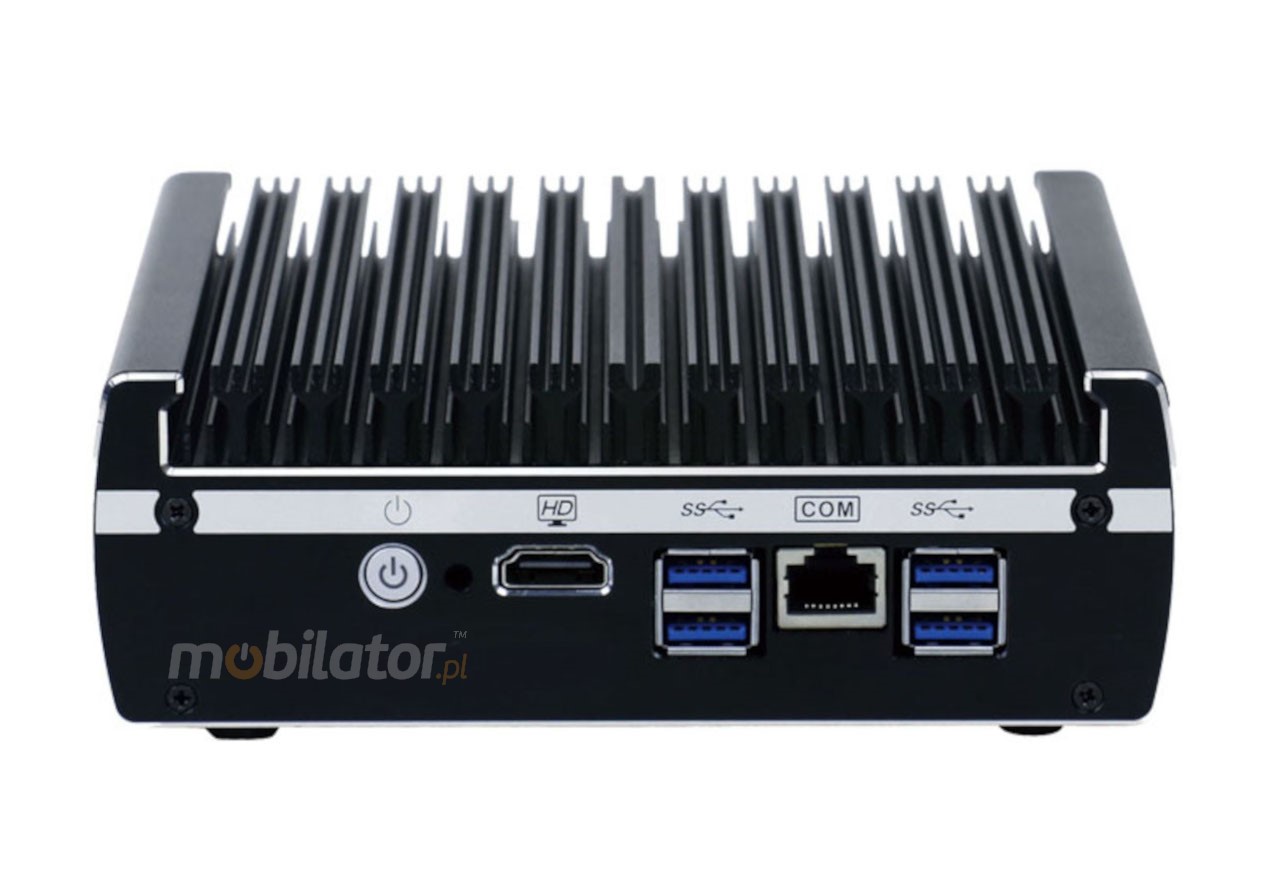

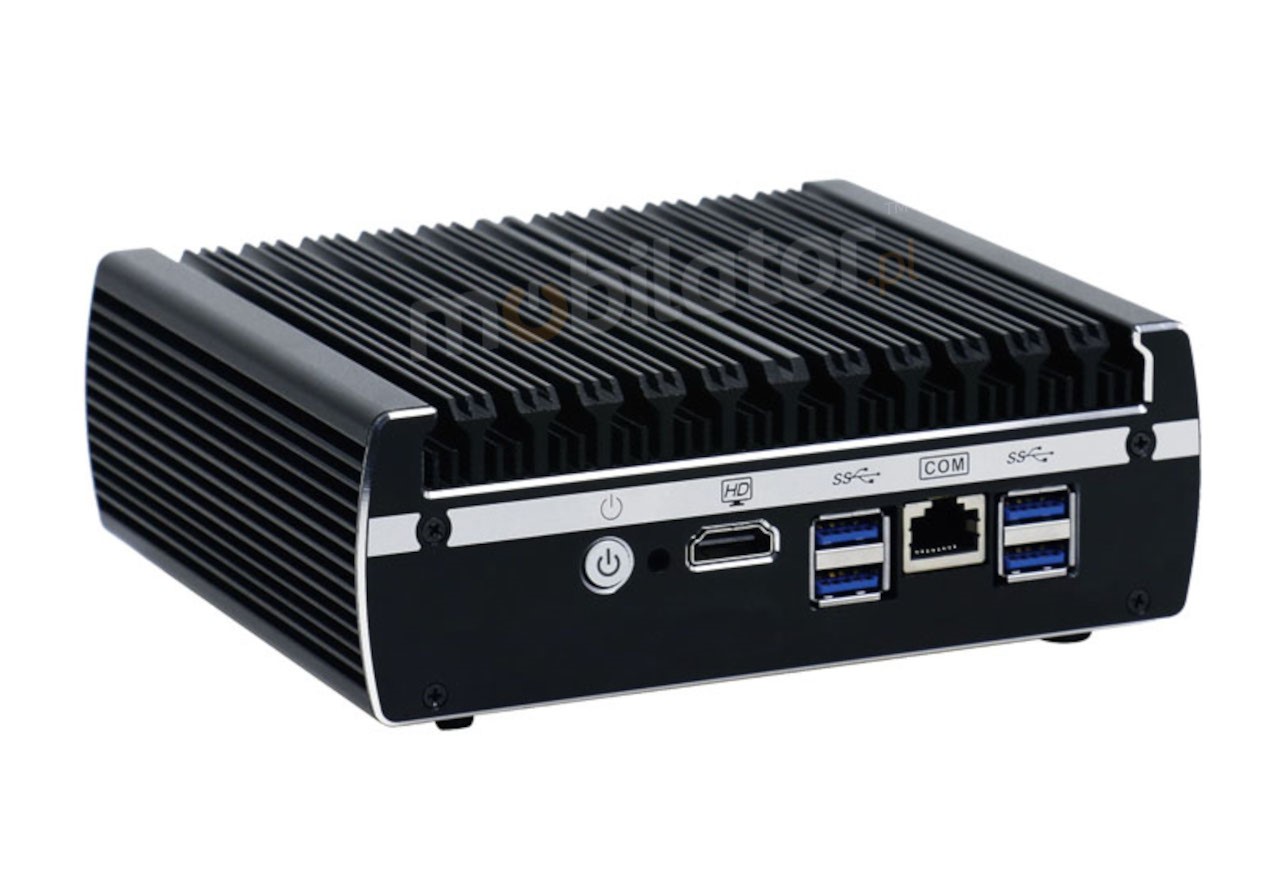

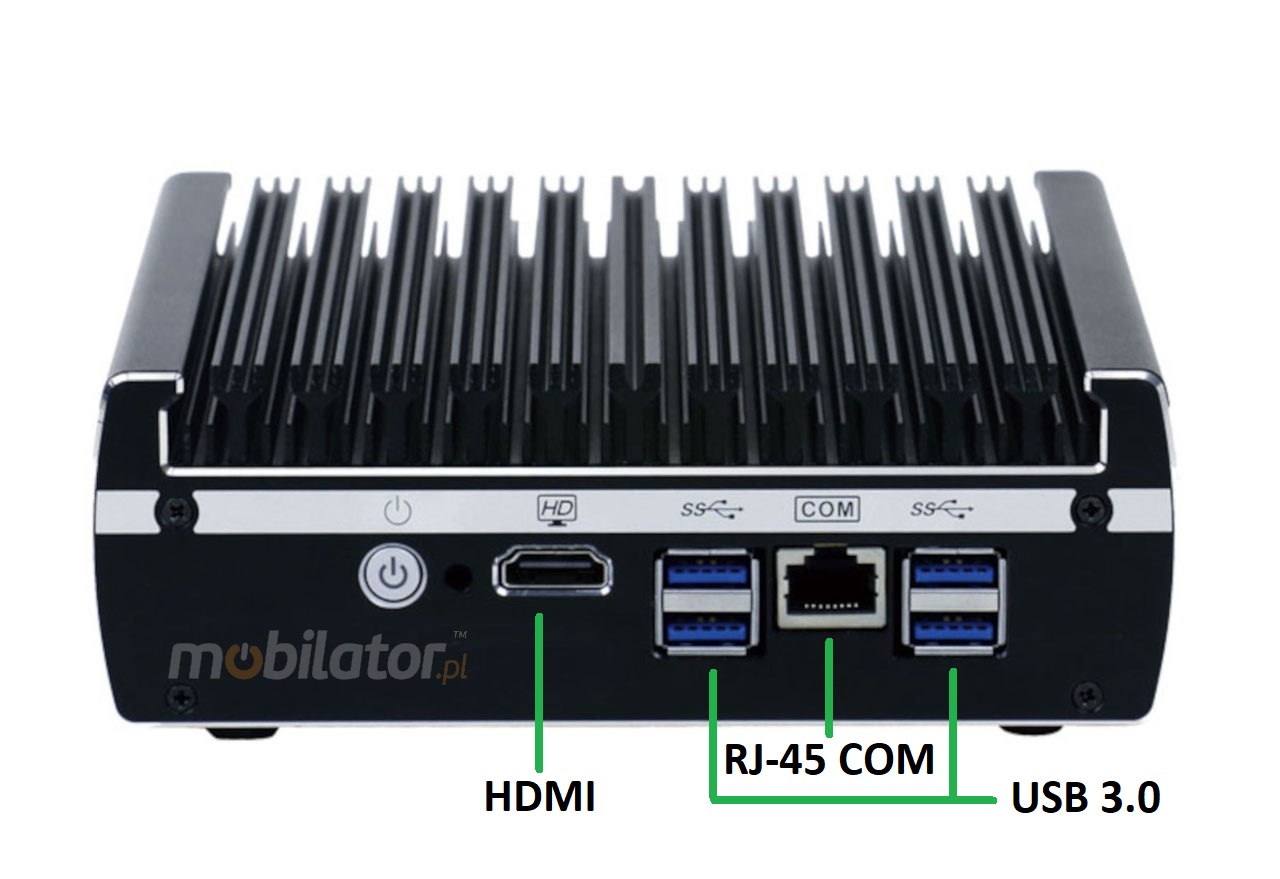

| Connectors - front panel |
4xUSB 3.0 | 1x RJ45 COM | Power button | HDMI |

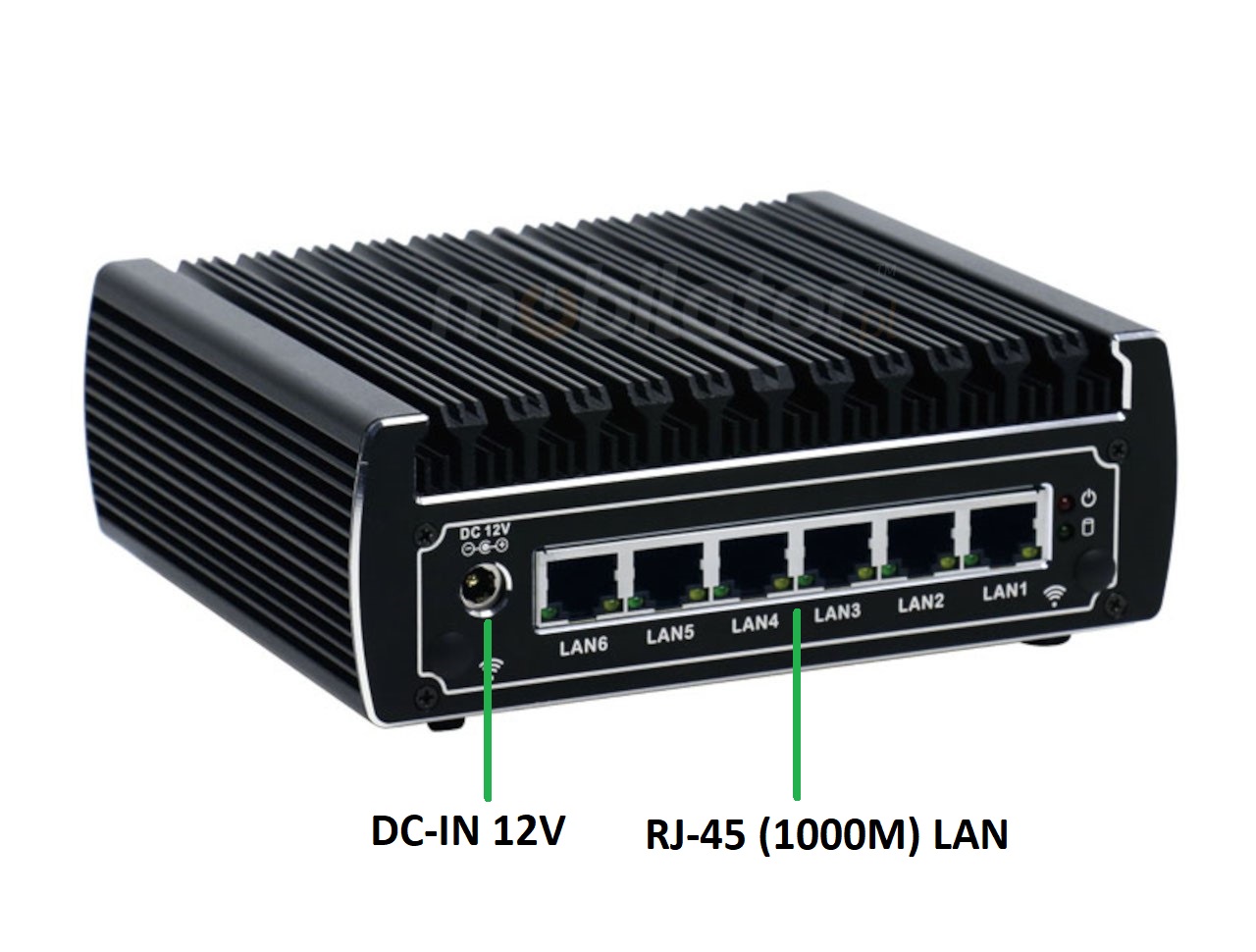

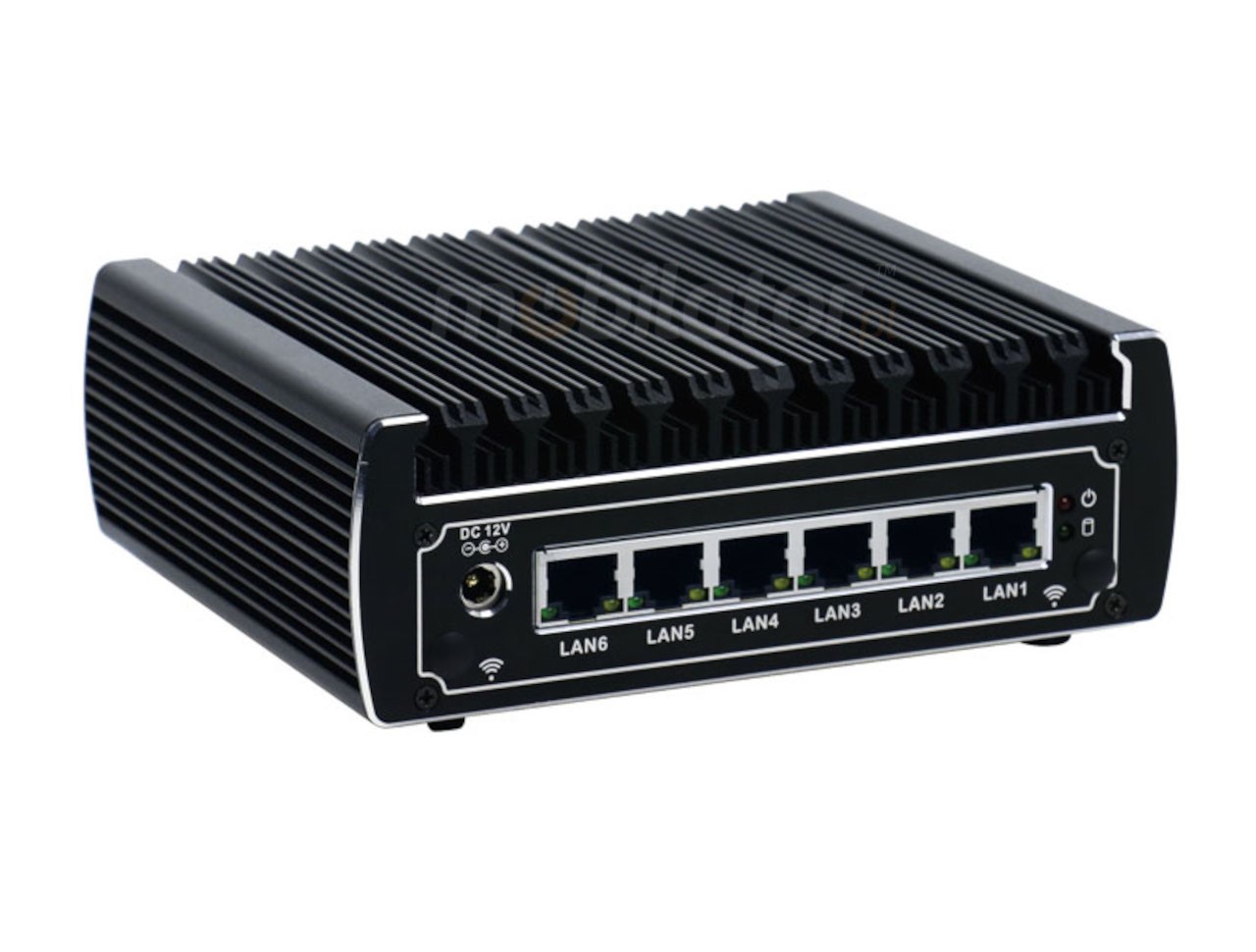

| Connectors - rear panel |
6x LAN | 1X DC |
| Colors |
black (can be customized)
|
| Dimensions |
155 x 126.5 x 52,5 mm |
| Weight |
1,6 kg |
* Optional equipment, available only in specific versions of the device or on request.
Efficient processor
The industrial mini computer IBOX N133 uses a powerful and energy-saving Intel Core I3 processor. Inside, there are two cores that work together to efficiently process multiple tasks simultaneously. A shared cache that uses a multi-level hierarchy is dynamically allocated to each processor core based on workload. This leads to a reduction in the average access time to main memory. Provides greater manageability by reducing downtime and maintaining high performance by partitioning your computing processes into separate partitions.
Connectors | Interfaces

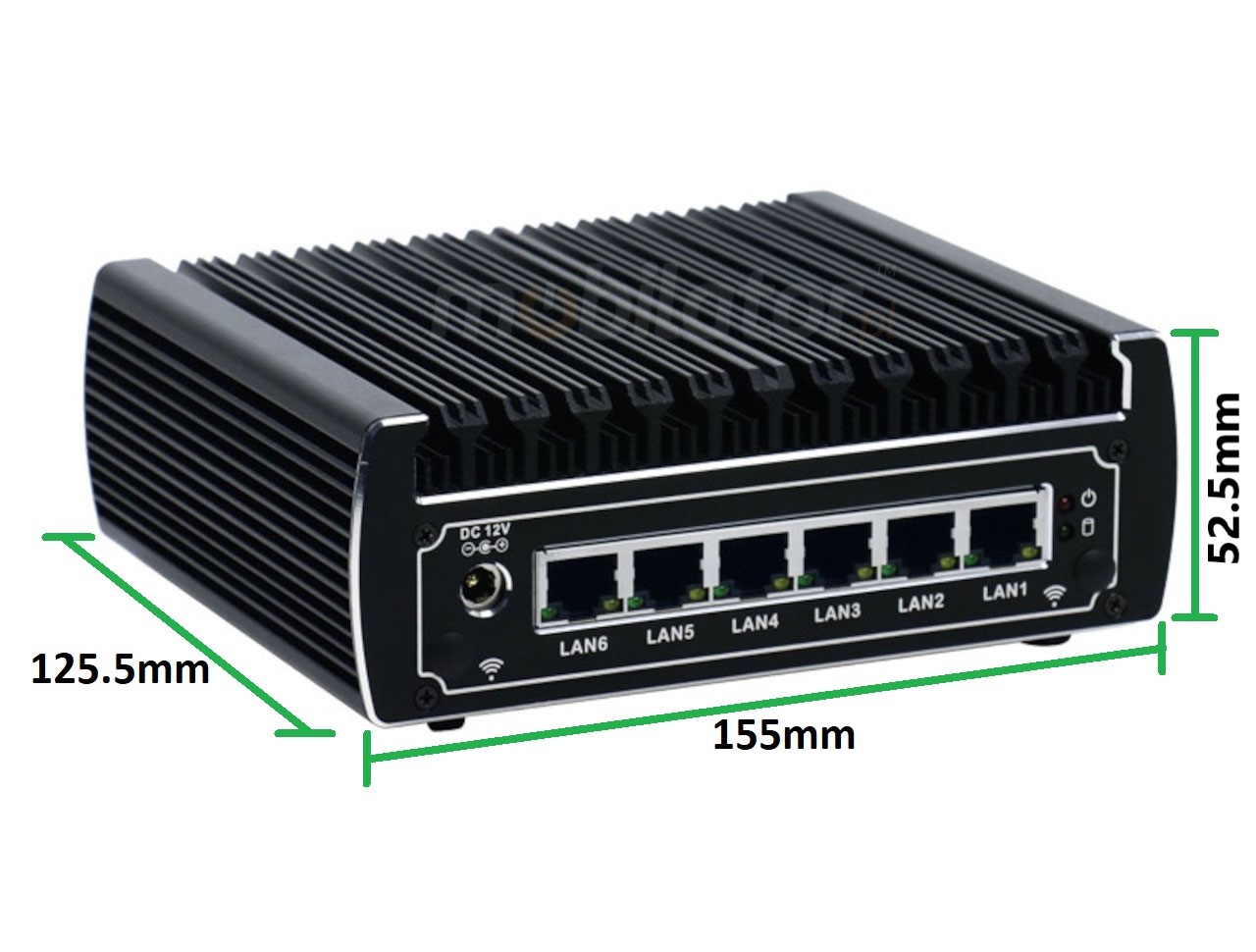

Dimensions
Thanks to its small dimensions, the MiniPC is versatile both at home, in the office and in industry, for example in a production hall. It fits literally anywhere.
.jpg)
| Dimensions |
155 x 126,5 x 52,5 mm
|
| Net weight |
1,6 kg |
Pass-through cooling
The industrial Mini PC uses a proven cooling system based only on solid elements, mainly heat sinks. This system uses the phenomenon of metals giving off heat energy to the environment - there are no additional moving elements such as fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.
do góry…  menu…
resistance and durability
Temperature variation
IBOX N133 is designed for continuous operation both in very low and high temperatures in the range from -20°C to 50°C SSD or 0°C to 50°C HDD.
| Temperature Work |
0°C to +50°C (HDD) or -20°C to +50°C (SSD) |
| Resting temperature |
0°C to +50°C (HDD) or -20°C to +50°C (SSD) |
| Humidity |
5～95% relative humidity, non-condensing |
Mechanical damage

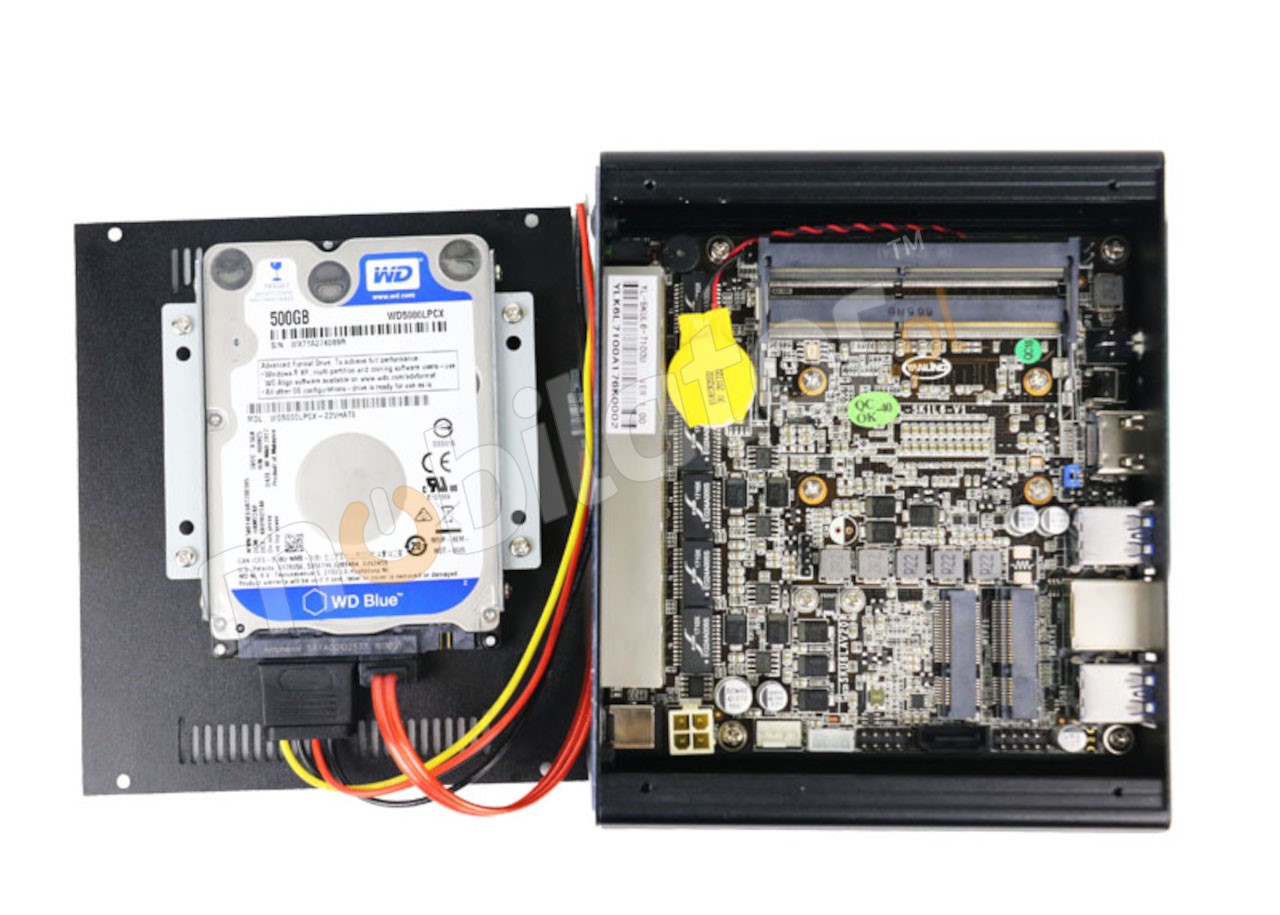

The passive cooling system used in IBOX N133 in conjunction with a plateless SSD drive makes this computer very resistant to various types of mechanical damage. An additional advantage of industrial computers is a solid structure made of high-quality aluminum and specially designed in such a way that, in addition to high efficiency in heat dissipation, it can also resist any external damage.
do góry… menu…
CONNECTIVITY AND COMMUNICATION
Wireless network (Option)
The optional Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. It is a convenient solution for people who have a router and a wireless network in their place of work or residence, which can be used at no additional charge. The industrial Mini PC IBOX N133 can be equipped with the technology standard - 802.11n, which allows you to transfer files at dizzying speeds up to 300 Mb / s.
We also have the option of extending our device with a Buetooth 4.0 module for communication with nearby devices.
Wired LAN
MiniPC IBOX N133 has built-in network cards that can work in a fast Gigabit Ethernet network.
do góry… menu…
APPLICATION OF THE DEVICE
Trade and services
Mini PC is an ideal tool supporting us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to such activities as invoicing or preparing documentation, which in turn allows us to conveniently and optimally manage sales.
Warehouse and logistics
Thanks to its high performance, the industrial computer can be used to connect multiple devices in the warehouse and greatly facilitate their management. Its durable housing and fanless cooling system are perfect for the harsh conditions in such rooms. The solid construction guarantees long-term operation, even in dusty and dirty environments.
.jpg)
Transport and automotive
A small industrial computer can be used in transport thanks to the possibility of working with a 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows the driver to be informed about the current state of the vehicle, its current position to the management center, displaying information for passengers, etc. It will fulfill its functions very well in vehicles where small dimensions of the device are important.
do góry… menu…
AVAILABLE VERSIONS
The industrial mini computer IBOX N133 is offered in several versions tailored to different needs. In addition, at the customer's request, it is possible to create a configuration currently unavailable in the offer.
| |
v.2 |
v.3 |
v.4 |
v.5 |
v.6 |
v.7 |
v.8 |
v.9 |
v.10 |
| WIFI + BLUTOOTH |
— |
— |
— |
— |
✔ |
— |
— |
✔ |
✔ |
| 4GB RAM |
✔ |
✔ |
— |
— |
— |
✔ |
— |
— |
— |
| 8GB RAM |
— |
— |
✔ |
✔ |
✔ |
— |
✔ |
✔ |
✔ |
| 16GB RAM |
— |
— |
— |
— |
— |
— |
— |
— |
— |
| 32GB RAM |
— |
— |
— |
— |
— |
— |
— |
— |
— |
| 64 GB SSD |
✔ |
— |
— |
— |
— |
— |
— |
— |
— |
| 128 GB SSD |
— |
✔ |
✔ |
— |
— |
— |
— |
— |
— |
| 256 GB SSD |
— |
— |
— |
✔ |
— |
— |
— |
— |
— |
| 512 GB SSD |
— |
— |
— |
— |
✔ |
— |
— |
— |
— |
| 500 GB HDD |
— |
— |
— |
— |
— |
✔ |
— |
— |
— |
| 1 TB HDD |
— |
— |
— |
— |
— |
— |
✔ |
— |
— |
| 2 TB HDD |
— |
— |
— |
— |
— |
— |
— |
✔ |
— |
| 1TB HDD + 512GB SSD |
— |
— |
— |
— |
— |
— |
— |
— |
✔ |
| |
v.11 |
v.12 |
v.13 |
v.14 |
v.15 |
v.16 |
v.17 |
Barebone |
| WIFI + BLUTOOTH |
— |
✔ |
— |
✔ |
✔ |
✔ |
✔ |
— |
| 4GB RAM |
— |
— |
— |
— |
— |
— |
— |
— |
| 8GB RAM |
— |
— |
— |
— |
— |
— |
— |
— |
| 16GB RAM |
✔ |
✔ |
✔ |
✔ |
— |
— |
— |
— |
| 32GB RAM |
— |
— |
— |
— |
✔ |
✔ |
✔ |
— |
| 64 GB SSD |
— |
— |
— |
— |
— |
— |
— |
— |
| 128 GB SSD |
— |
— |
— |
— |
— |
— |
— |
— |
| 256 GB SSD |
✔ |
— |
— |
— |
— |
— |
— |
— |
| 512 GB SSD |
— |
✔ |
— |
— |
✔ |
— |
— |
— |
| 500 GB HDD |
— |
— |
— |
— |
— |
— |
— |
— |
| 1 TB HDD |
— |
— |
✔ |
— |
— |
— |
— |
— |
| 2 TB HDD |
— |
— |
— |
✔ |
— |
✔ |
— |
— |
| 1TB HDD + 512GB SSD |
— |
— |
— |
— |
— |
— |
✔ |
— |
Compare all versions
| Others: |
|
| Chipset: |
Intel Chipset |
| CPU Support: |
-------- |
| Installed CPU: |
Intel Core I3 7100U (dual core quad threading, 2.4GHz) |
| Memory Support: |
DDR4 1866/2133 |
| Installed Memory: |
8 GB |
| Graphic Card: |
Integrated Intel HD Graphics 620 |
| Storage (HDD) Support: |
SSD, HDD |
| Installed Storage (HDD): |
512GB SSD | 1TB HDD |
| CD/DVD Drive: |
----- |
| LAN: |
YES |
| Wireless LAN card: |
Intel Wireless-AC7260 |
| Bluetooth: |
YES |
| 3G: |
--- |
| 4G LTE: |
--- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
Yes |
| Front Panel (ports): |
Power ON
4x USB 3.0
1x COM RJ45
1x HDMI |
| Rear Panel (ports): |
6xLAN
DC12V |
| Power: |
12V |
| Supported OS: |
Windows 7/8/10, Linux |
| Installed OS: |
--- |
| Dimensions: |
155 * 126.5 * 52.5mm |
| Weight: |
1.6kg |
| Expansion: |
--- |
| Fanless: |
YES |
| Humidity: |
5% ～ 95% non-condensing |
| Temp: |
0℃ ～50℃ (HDD)
-20℃ ～ 50℃ (SSD) |
| IP Norm: |
--- |
| Storage temperature: |
0-50℃ |
Compare all versions
 |
IBOX N3 v.1 BAREBONE - Rugged miniPC with Intel Celeron processor, 4x USB 2.0, 2x USB 3.0, 1x RJ-45 COM and 2x RJ-45 LAN IBOX N133 v.1 BAREBONE - Resistant miniPC with dual-core Intel Core processor, 4x USB 3.0 and 6x LAN ports |
The product from the archive - production terminated |
 |
IBOX N133 v.2 - Industrial miniPC with 4x USB 3.0, 1x RJ-45 COM, 4GB RAM and 64GB SSD mSATA disk |
The product from the archive - production terminated |
 |
IBOX N133 v.3 - Made of aluminum miniPC with Intel processor, 128GB SSD, 4GB RAM, USB 3.0 and LAN ports |
The product from the archive - production terminated |
 |
IBOX N133 v.4 - MiniPC with aluminum housing, 4x USB 3.0 and 6x RJ-45 LAN inputs, 8GB DDR4 RAM and 128GB SSD disk |
The product from the archive - production terminated |
 |
IBOX N133 v.5 - Customized for the miniPC industry with 8GB RAM and 256GB SSD disk, Intel Core processor, 4x USB 3.0 ports |
The product from the archive - production terminated |
 |
IBOX N133 v.6 - MiniPC with Intel Core dual-core processor, WiFi and Bluetooth, DDR4 memory - 8GB RAM and 512GB SSD disk |
The product from the archive - production terminated |
 |
IBOX N133 v.7 - A small miniPC with a SATA disk with a capacity of 500GB HDD and 4GB RAM DDR4 and 4x USB 3.0 |
The product from the archive - production terminated |
 |
IBOX N133 v.8 - Small miniPC with Windows support, a capacious 1TB HDD and fast DDR4 memory |
The product from the archive - production terminated |
 |
IBOX N133 v.9 - Rugged miniPC with 8GB RAM, 4x USB 2.0, 6x LAN connectors, 2TB 2.5-inch HDD, WiFI and BT |
The product from the archive - production terminated |
 |
IBOX N133 v.10 - MiniPC with aluminum housing, 8GB RAM, Intel Core processor, USB 3.0 connectors and HDD drives with SSD, Bluetooth and WiFi |
The product from the archive - production terminated |
 |
IBOX N133 v.11 - Rugged miniPC with dual-core Intel processor, 4x USB 3.0 and 6x LAN ports |
The product from the archive - production terminated |
 |
IBOX N133 v.12 - Industrial miniPC with 16 GB RAM DDR4 memory, 512 GB SSD mSATA disk, WiFi module and Bluetooth support |
The product from the archive - production terminated |
 |
IBOX N133 v.13 - Rugged miniPC with Intel Core processor, 1TB HDD, 16GB RAM, 4x USB 3.0 ports, 6x RJ-45 LAN |
The product from the archive - production terminated |
 |
IBOX N133 v.14 - Minimalistic miniPC with 2TB SATA HDD, 16 GB RAM, WiFi and Bluteooth modules |
The product from the archive - production terminated |
 |
IBOX N133 v.15 - Perfect size miniPC with WiFi, BT up to 32GB RAM and 512GB SSD disk, Intel Core processor with USB 3.0 and RJ-45 ports |
The product from the archive - production terminated |
 |
IBOX N133 v.16 - Industrial miniPC with Intel Core dual-core processor, 32GB RAM, 2TB HDD, WiFi and Bluetooth |
The product from the archive - production terminated |
 |
IBOX N133 v.17 - Small miniPC with 4x USB 3.0 connectors, WiFi module, BT and 6x RJ-45 LAN, 512GB SDD disk, 1TB HDD and 32GB RAM DDR4 |
The product from the archive - production terminated |
Compare all versions
