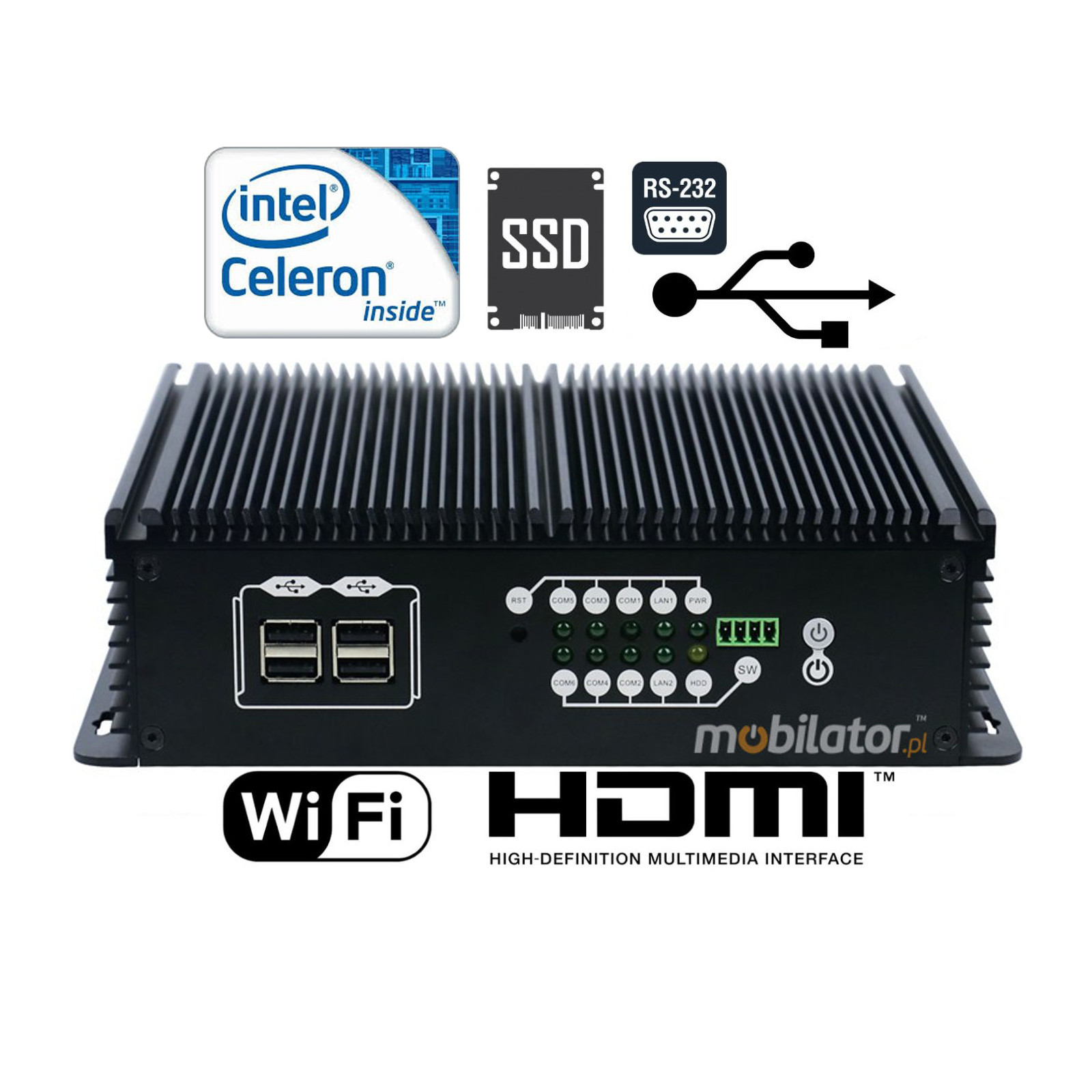

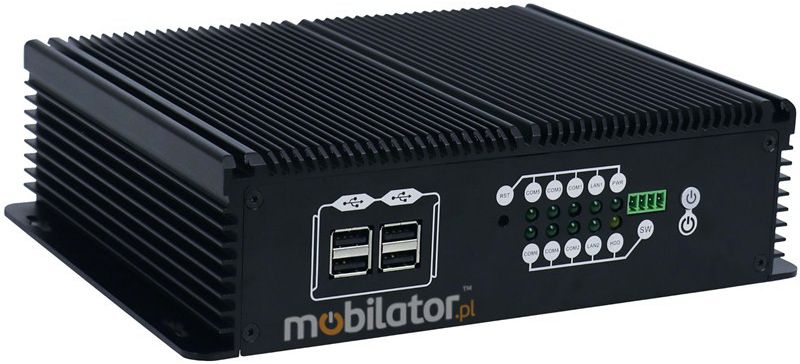

Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer IBOX 702B is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.
SPECIFICATION
|
IBOX 702B |
|
Processor |
Intel Celeron J1900 (4x 2.00GHz) Cache 2MB |
|
Operation system |
Support: Windows 7/8/10
Linux
|
|
RAM |
4GB DDR3L SO-DIMM |
|
Drive |
64GB SSD
|
|
Graphic card |
Intel HD Graphics |
|
Connectivity |
WLAN: Intel 6205 Dual-Band | 802.11 b/g/n
2x LAN: Intel 82583V Gigabit Ethernet
|
|

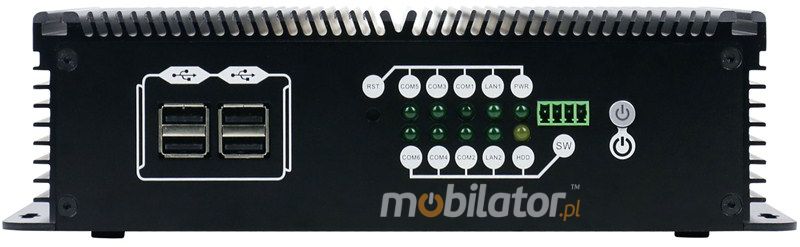

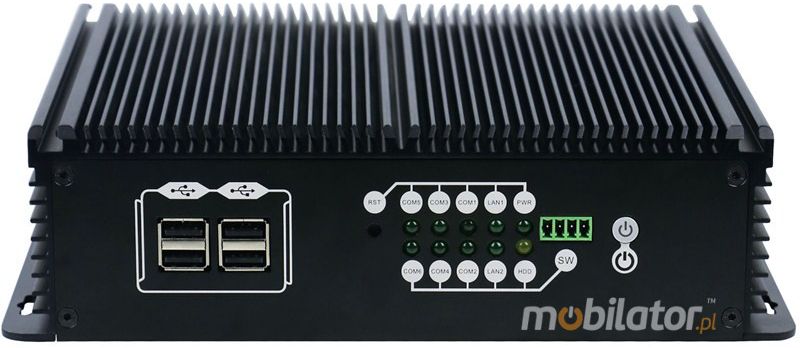

Front panel |
Power ON | 4x USB 2.0
|
|

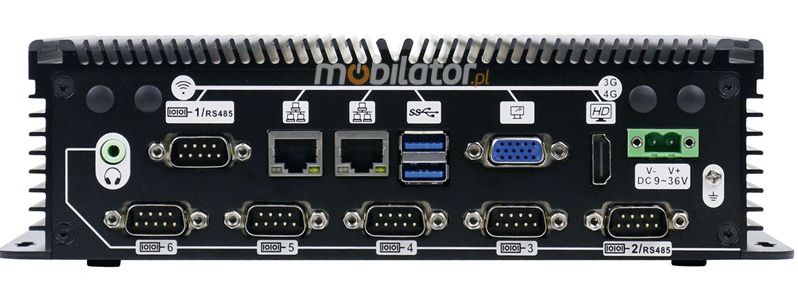

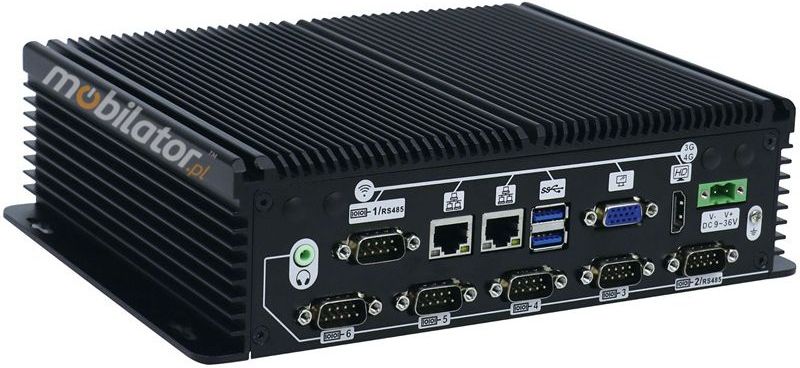

Rear panel |
2x USB 3.0 | 2x LAN | 6x COM |
1x VGA | 1x HDMI | 1x DC 9~36V
|
|
Available colors |
Black |
|
Dimensions |
234 x 175 x 64.5mm |
|
Weight |
1.35 kg |
Efficient processor
The industrial mini-computer IBOX 702B uses an efficient and energy-saving Intel Celeron J1900 processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. The implemented Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Interfaces

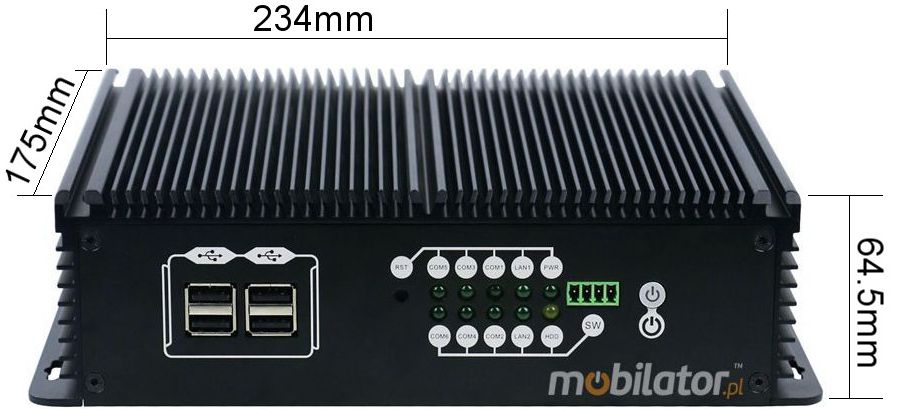

Dimensions
.JPG)
Thanks to the small dimensions of the MiniPC, the IBOX 702B is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and thanks to the VESA mount it can be mounted on the back of the monitor to optimize the job.
|
Dimensions |
234 x 175 x 64.5mm |
|
Weight |
1350g |
Passive coolong
The industrial MiniPC IBOX 702B uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.
do góry…
menu…
Resistance and durability
.JPG)
Temperatures
IBOX 702B is designed for continuous operation in both very low and high temperatures ranging from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 80 ° C.
|
Work temp. |
-10°C do 60°C |
|
Storage temp. |
-20°C do 80°C |
|
Humidity |
10% do 90% |
Mechanical damage
The passive cooling system used in the mini PC IBOX 702B combined with the SSD* disk makes this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.
do góry… menu…
connectivity and communication
Wireless network (Option)
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC IBOX 702B has been equipped the standard of - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.
Wired LAN Network
The MiniPC IBOX 702B has built-in Intel network adapter that can work in a fast Gigabit Ethernet network.
.jpg)
do góry… menu…
device application
Trade and service
Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.
Warehouse and logistics
Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.
.jpg)
Transport and motorization
A small industrial computer can be used in transport thanks to the ability to work on 9~36V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.
do góry… menu…
available versions
The industrial mini-computer IBOX 702B is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
|
|
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
|
32GB SSD |
✔ |
— |
— |
— |
— |
|
64GB SSD |
— |
✔ |
— |
— |
— |
|
128GB SSD |
— |
— |
— |
✔ |
— |
|
500GB HDD |
— |
— |
✔ |
— |
— |
|
1TB HDD |
— |
— |
— |
— |
✔ |
|
WiFi |
— |
✔ |
✔ |
✔ |
✔ |
