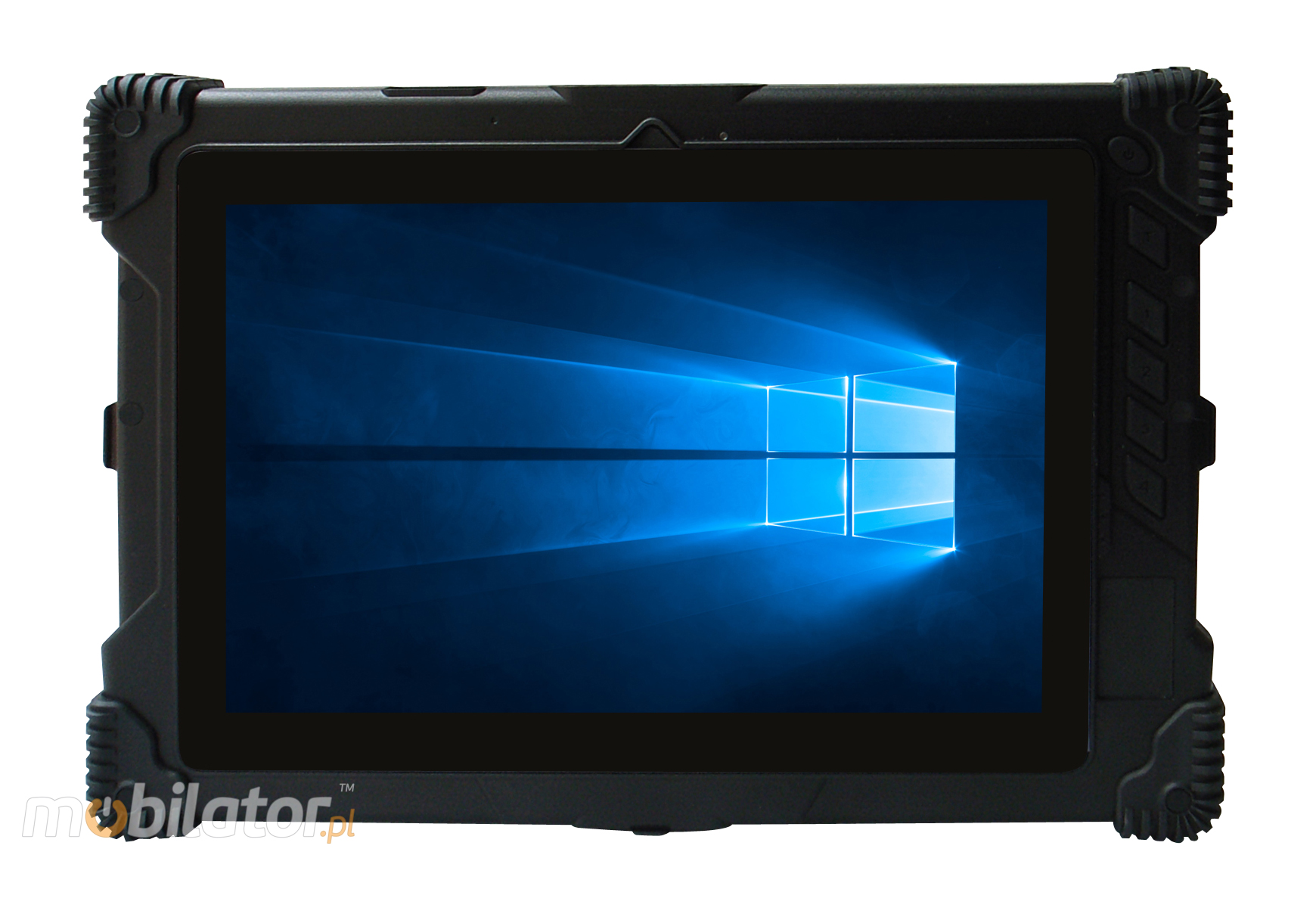

Industrial Tablet i-Mobile AP-10 v.20
Compare all versions
|
|
Taiwanese company i-Mobile has an excellent reputation Achieved as a manufacturer of industrial mobile computers. Due to the high position of products in the segment of high-tech, have won many awards in tests Conducted around the world.
|
|
i-Mobile AP - 10 is unrivaled in the market, ultra-modern, armored tablet meets the very stringent industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where require high performance, flexibility and strength equipment.
|
Warranty
Devices i-Mobile's standard with 1 year warranty, OPTIONALLY you can change the warranty period for 2 years. Any minor repairs are Carried out on the site in Poland. Defects requiring intervention in the components end up in haste to the main website i-Mobile Technology in Taiwan.
|
|
The high performance processor
|
|
Intel® Apollo Lake Quad Core Pentium N4200
(2.0M Cache, 4x1.10 GHz)
|
|
The Intel Lake Quad Core Pentium N4200 is a power efficient quad-core SoC for entry-level notebooks. It is clocked at 1.10 - 2.50 GHz and part of the Bay Trail-M platform. Thanks to the specially optimized 22 nanometer low-power process (P1271) with tri-gate transistors, performance and energy efficiency have been significantly improved compared to previous Intel Atom CPUs. The N4200 supports Quick Sync as well as Wireless Display.
Super fast mSATA SSD drive
Use your mSATA SSD 512GB (max - 512GB) on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer. The speed of operations carried out applications installed on the mSATA drives can be increased up to 50%.
Advanced display technology
|
|
The display of the image corresponds to the 10.1-inch full touch screen (1280 x 800) LED-backlit display with Sunlight Readable Technology (700nit), Which uses reflected light beam as a light sensor - the bigger the better backlight illumination sensor. The Resulting display bright and is easy to read even in direct sunlight encounters.
|
.jpg) |
|
|
With the hot-swap There is a possibility to connect an additional battery quickly without shutting down the operating system. Additional optional battery extends the life of half a standard battery.
|
|
.jpg) AP-10 is equipped with a tablet (optional) on 4G and 72-channel GPS armored performed. This small komputerek is made of very durable materials. It is well protected against falls, shocks or vibrations. He also is harmless water (IP65) or Low Temperatures. Equipped with fast DDRIII RAM expandable to 8GB and SSD.
go top...  menu…
|
.jpg) Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading-Mobile device and AP-10 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.
Barcode Scanner 1D/2D (UART)
|
1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code39, Code 128, UCC/EAN 128, ISBN, ISBT, Interlaeved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post) (All majors format)
|
|
2D |
PDF417, MicroPDF417, Composite, RSS,
TLC-39, Datematrix, QR Code, Micro QR Code, Aztec, Maxicode
Postal Codes : US PostNet, US Planet, UK Postal, Australian
Postal, Japan Postal Dutch Postal (KIX) |
|
Scan Rate |
2D mode: 60/images/auto adaptive |
Scan Angle
|
40" (Horizontal) 25" (Vertical) |
Optical Resolution
|
752 (H) x 480 (V) pixel, 256 gray levels |
|
Contrast |
down to 35% |
|
Version |
Standard range and high density |
|
RFID
|
.jpg) RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading the details of the special tags are attached That is the object (but not only, because RFID is also applicable to the identification of the animals, and even humans) is by radio. Depending on the type of tag changes the amount of information Which can hold as well as the maximum distance from Which to read data. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
|
|
HF |
UHF |
|
Frequency |
13,56 Mhz |
860-960 Mhz |
Reading range
|
0.5 meters |
2-10 meters |
RFID HF
|
13.56 MHz Mifare DESFire Reader / ISO 15693 Reader |
Reading Distance
|
30mm ~ 50mm depending on tag types |
RFID UHF (860-960Mhz)
In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO). The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.
Magnetic Card Reader
|
.jpg) Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption.
|
|
Tablet AP-10 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
Magnetic card reader writes to all 3 tracks magnetic, so you can use it for all major card types (such as credit, debit, staff and membership cards, loyalty card systems, etc.)
|
MSR |
USB Interface |
|
Formats |
ISO 7811, AMMYA, oraz inne formaty F2F |
|
Rate |
7 to 150cm per secod, bi-directional |
|
Vitality |
1,000,000 cycles minimum |
Smart Card Reader
The smart card reader Enables the secure electronic transactions through the use of digital signatures and certificates to enhance secure transactions through public and private networks. With easy access to the smart card reader you can use it in many different ways, Regardless of Whether you use it for authentication, data retrieval and verification of Their correctness, or is it the use of embedded applications. Smart cards are typically used by the departments of information technology (IT) in large Organizations. This internal device for reading and writing smart cards is reliable and easy to use, and Provides That support for applications require high-speed data from a smart card to the computer. The unit Complies with all major standards for use in companies, making it the perfect alternative to external devices That read and write smart cards.
|
Operation |
ISO7816 microprocessor or memory card |
|
Transfer |
9600 to 115200 bps |
|
Vitality |
1,000,000 cycles minimum |
Modules and Wireless Networks
|
WIFI |
WLAN 802.11 ac/b/g/n |
|
Bluetooth |
Bluetooth 4.0 |
|
4G |
WCDMA/HSDPA/HSUPA/GSM/GPRS/CDMA 1xEV-DO/CDMA1X/EDGE/LTE:Support up to non-CA CAT4, Max 150Mbps(DL)/50Mbps(UL) |
WCDMA R99
|
maximum data rate of 384 kbps |
|
HSDPA |
Downlink Category 8 (7.2 Mbps) or 10 (14.4 Mbps) |
|
HSUPA |
E-DCH data rates of up to 5.76 Mbps for 2 ms TTI (UE category 6) uplink |
GSM R99
|
Supports CS SMS |
|
GPRS |
CS schemes - CS1, CS2, CS3 and CS4 |
CDMA 1xEV-DO
|
High-speed peak data rates of 3.1 Bmps on the downlink and 1.8 Mbps on the uplink |
CDMA1X
|
Supports up to 153.6 kbps data throuhput on both forward and reverse links |
|
EDGE |
Downlink coding schemes - CS 1-4, MCS 1-9 |
|
GPS |
High performance positioning engine. Support 50 channels |
|
GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS |
|
|
|
TPM (Trusted Platform Module)
 A TPM is a microchip designed to provide basic security-related functions, primarily involving encryption keys. The TPM is usually installed on the motherboard of a computer or laptop, and communicates with the rest of the system using a hardware bus. Computers that incorporate a TPM can also create a key that has not only been wrapped, but also tied to certain platform measurements. This type of key can only be unwrapped when those platform measurements have the same values that they had when the key was created. This process is called "sealing" the key to the TPM. Decrypting it is called "unsealing".
go top... menu…
|
|
|
|
Product of i-Mobile is directed to audiences Primarily as emergency services, industry, surveying, telecommunications, airlines, industrial equipment maintenance, repair and service, logistics, construction, industry, domestic, automotive. Also in energy and water supply, and wherever the engineers and operators need to read or monitor the parameters of the devices, Which are Often in a humid environment.
Operating temperature: -10 ° C ~ 50 °C
Operating Humidity: 0% ~ 95% |
go top... menu…
|
|
|
|
High Temperature: MIL-STD 810G Method 501.5
This test procedure determines a computer’s operating performance during exposure to high temperature conditions. The operational test differs from the storage test in that the computer is evaluated while conditioned to elevated temperatures determined to be applicable to, or resulting from, exposure in its operational configuration.
Low Temperature: MIL-STD 810G Method 502.5
This test determines the performance of the computer during exposure to low temperature conditions. The operational test differs from the storage test in that the computer is evaluated under cold conditions determined to be applicable to, or resulting from, exposure in its operational configuration.
Temperature Shock: MIL-STD 810G Method 503.5
Temperature shock tests determine if an item can withstand sudden changes in the temperature of the surrounding atmosphere without experiencing physical damage or deterioration in performance.
The two objectives of the temperature shock test are set to determine whether the test item can still a) be safely operated, and b) satisfy its performance requirements, after being exposed to sudden changes in temperature of the surrounding atmosphere.
Rain: MIL-STD 810G Method 506.5
Rain Resistance tests are performed to determine the resistance to rain and wind-driven rain.
Vibration: MIL-STD 810G Method 514.6
Vibration resistance tests are conducted to determine the strength of the device even during transport.
Drop: MIL-STD 810G Method 516.6
Free fall drop tests (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks or transient vibrations encountered during handling, transportation, and normal service. The standard requires 26 drops from 1.2 m (4 ft) onto plywood, using up to 5 units.
Operating temperature
|
-10°C to +50°C
<0.5°C / min ; 24h cycle x 3 cycles |
MIL-STD-810G
Methods 501.5; 502.5 (Operating) |
|
Storage Temperature |
20°C -- +70°C
<0.5°C / min ; 24h cycle x 3 cycles |
MIL-STD-810G
Methods 501.5; 502.5 (Non-operating) |
|
Relative Humidity |
95% @ 40°C
3 x 24hr cycles |
MIL-STD-810G
Metoda 507.5 |
|
Dust Protection |
IP6x (dust) |
IEC 60529 / AC2:2007 |
|
Water Protection |
IPx5 (water) |
IEC 60529 / AC2:2007 |
|
Vibration |
Fig 514.6E-1 & 514.6E-2 |
MIL-STD-810G-514.6
Procedure I Cat.24
(Non-operating) |
|
Drop Test |
1.2 meters (47") drop, 2⇒plywood over concrete, each edge,face and corner; 26 drops total (@ ambient temp) |
MIL-STD-810G
Metoda 516.6
Procedure IV |
|
Regulatory |
CE / FCC CLASS B / FCC ID / EN 60950-1 2005 |
 .jpg) go top... menu…

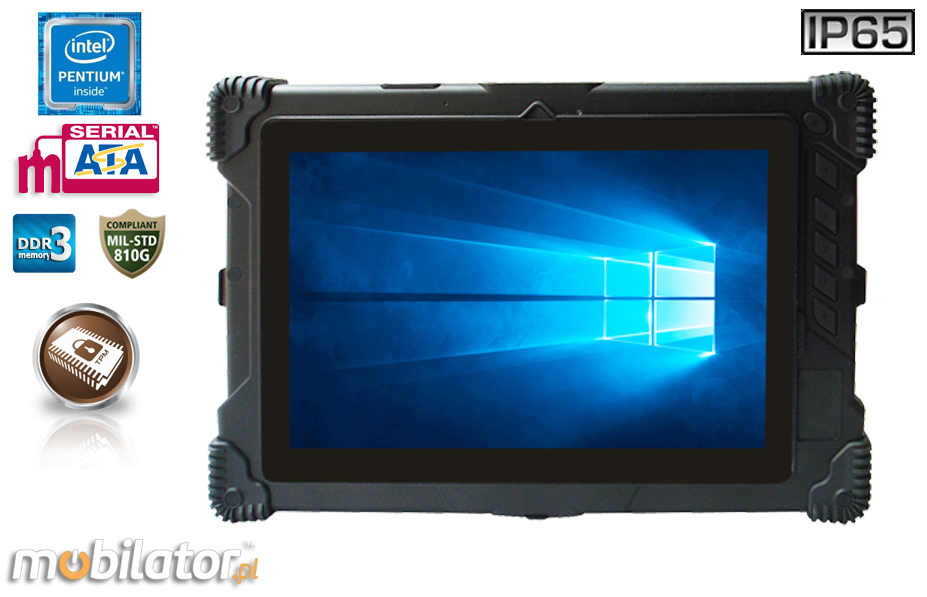

Resistance IP65
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water.
|
Compare all versions
| Durability: |
MIL-STD 810G |
| Humidity: |
0% ~ 95% |
| Waterproof: |
(IP65) IEC 60529 / AC2:2007 |
| Weight: |
|
| Temperature: |
Operating: -10° –– +50°C
Storage: -20°C –– +70°C |
| Shock: |
MIL-STD-810G |
| Vibration: |
MIL-STD-810G-514.6 Procedure I Cat.24 (Non-operating) |
| Drop: |
MIL-STD-810G Method 516.6 Procedure IV |
| Sand and dust: |
(IP65) IEC 60529 / AC2:2007 |
| 1D barcode scanner (reader): |
----- |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
----- |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
1 x 16 pin docking connector |
| VESA standard – holders and mounts support: |
Yes |
| COM port: |
Yes - RS232 (DB9 full function connector) |
| Dispaly: |
TFT LCD 10.1" (1280 x 800) LED Sunlight Readable |
| Brightness: |
700 nits Sunlight Readable |
| Contrast: |
----- |
| Touch screen: |
Yes - capacitvie |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Intel® Apollo Lake Quad Core Pentium N4200 (2M Cache, 4x1.10 GHz) |
| Chipset: |
----- |
| BIOS: |
Phoenix |
| Memory: |
4GB DDR3 (DDR3 SO-DIMM) |
| Hard Drive: |
512GB mSata SSD |
| Flash Memory: |
|
| Battery: |
DC 10.8V/ 3400mAh x 2 |
| Working time on battery: |
480 minutes (8h) |
| HotSwap battery: |
Yes |
| Fast battery replacement ability: |
Yes |
| Size: |
306 x 206 x 40 (mm) - 1.4kg with batteries |
| Casing material: |
----- |
| Fanless casing: |
Yes |
| Operating System: |
Yes (option) - Microsoft® Windows 10 |
| LAN: |
Tak - 10/100/1000 Ethernet, Support POE (Power-Over-Ethernet applications up to 25.5W) |
| WLAN: |
WLAN 802.11 ac/b/g/n |
| Bluetooth: |
Bluetooth 4.0 |
| WAN: |
----- |
| GPS: |
72-channel u-blox M8 engine,GPS L1 C/A,SBAS L1 C/A |
| Flash Card Reader: |
Yes - MicroSD |
| CD/DVD: |
----- |
| Camera: |
----- |
| Audio: |
Built-in speaker and microphone |
| Seciurity: |
Yes - Fingerprint, TPM 1.2 |

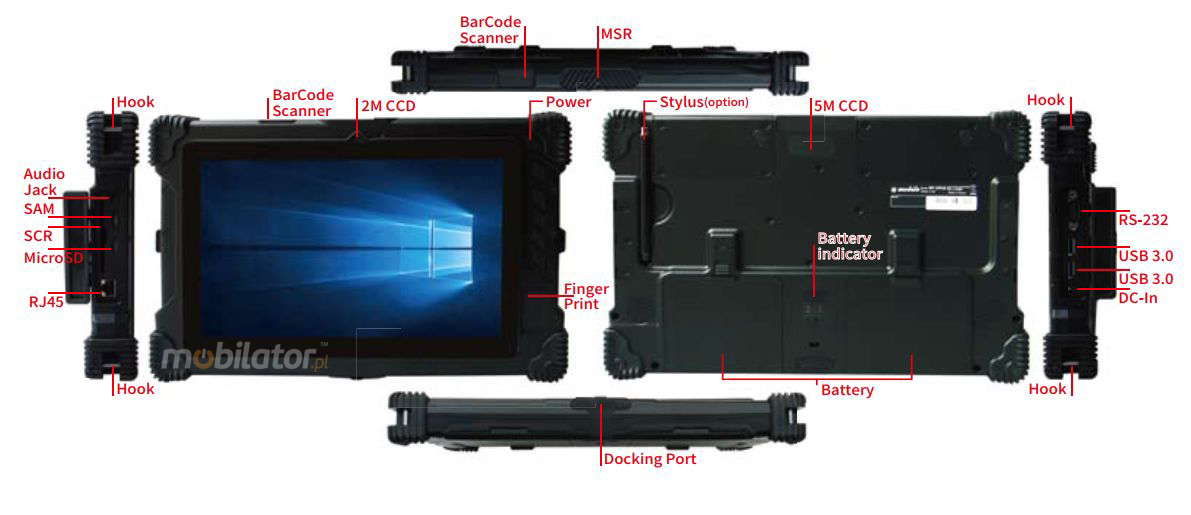

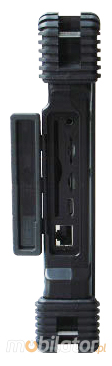

| In/Out: |
2 x USB 3.0
1 x DC Power input (16V / 4A)
1 x DB-9 RS232 Full function connector
1 x Micro SD
1 x 16 pin docking connector
1 x 10/100/1000 Ethernet , Support POE (Power-Over-Ethernet applications up to 25.5W)
1 x SIM |
| Keyboard: |
On-Screen Keyboard |
| Additional Navigation Devices : |
Yes - Function keys |
| Color: |
Black |
| Optional accessories: |
Docking station: 4 x USB, 1 x RS-232, 1 x VGA, 1 x RJ45, 1 x DC in, 1 x Earphone, 1 x Microphone, Battery charging bay
Vehicle & Wall mount: Standard VESA & DC in
12V vehicle adapter
12~36V vehicle adapter
Stylus |
| Other: |
Stylus , Shoulder strap , Hand strap |
Compare all versions
