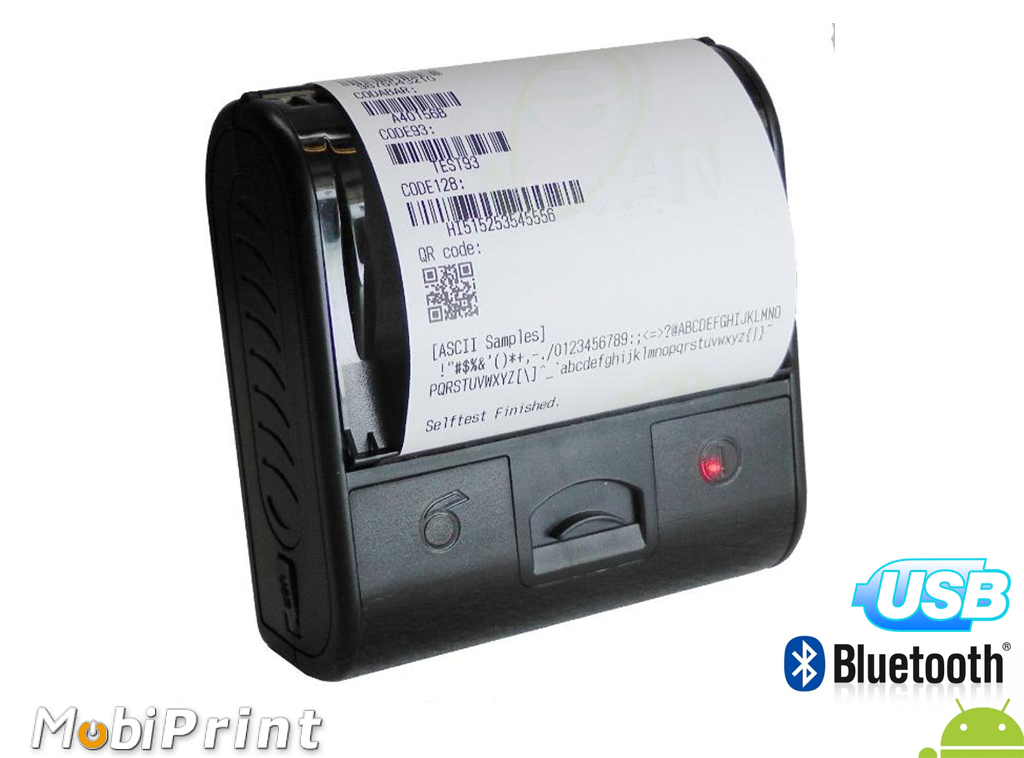

Mobile printer MobiPrint MP-T3
|
|
The product from the archive - production terminated
|
|
|
Brand MobiPrint is a new distribution in Mobilator. Under this brand we are selling portable mini printer manufactured by companies who have achieved recognition of clients due to high quality of products in the segment of high-tech.
|
.jpg)
|
|
|

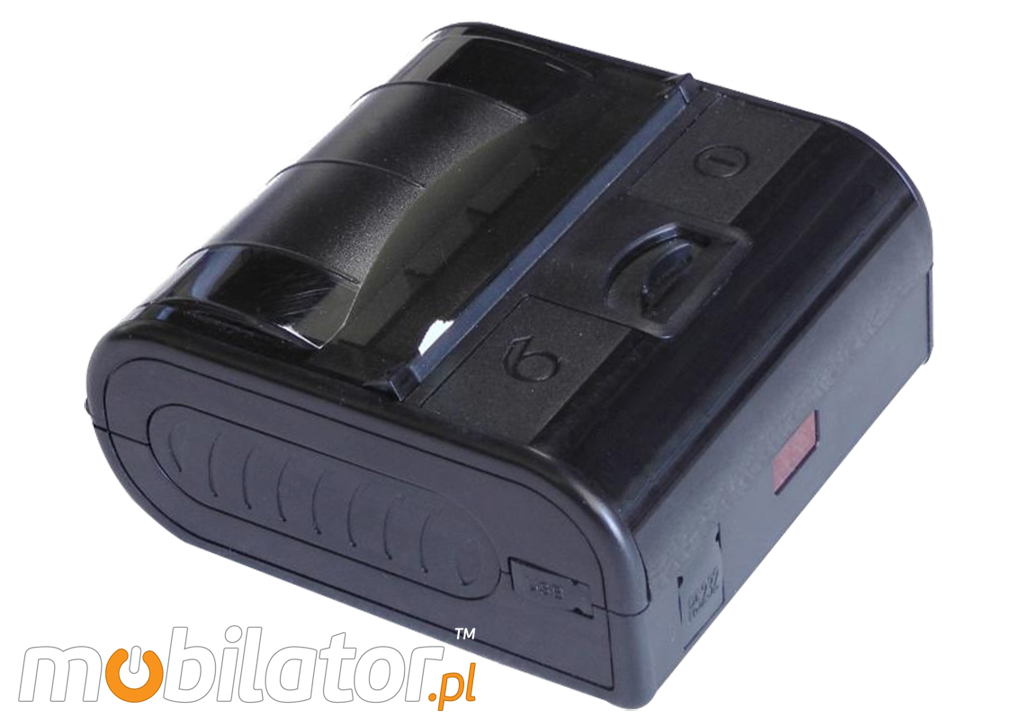

Portable Mobile Printer series MobiPrint is a lightweight device used to print receipts, invoices or labels in places where it is not possible to use large desktop printers. Depending on the client's needs - printers are available with different wireless interfaces (depending on model): Bluetooth and WiFi and wired USB and RS232.
|
|
MobiPrint MP-T3 |
Printing Method
|
Thermal Line
|
Resolution
|
9 dots/mm, 576 dots/line
|
|
Support system |
Android , Windows CE , Windows Mobile , Windows XP, Windows 7 , Windows 8
|
|
Distance |
up to 10m
|
|
Communication |
Bluetooth, USB
|
|
Dimensions |
102 mm x 104 mm x 50 mm
|
Weight
|
340g |
|
Other |
None
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
Modern, wireless (Bluetooth) thermal printer MobiPrint MP-T3 was designed with users in mind, for which it is necessary to print invoices, receipts or labels in places where there is no access to the electricity grid, transportation and mobile commerce, at events, etc.
 Portable printers MOBIPRINT MP-T3 has a simple paper loading, ease of use, print quality, fast printing, printing on thermal paper roll. These properties make the lightweight portable printers are used in a variety of mobile applications.
Thermal Printer - MOBIPRINT MP-T3 through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running under different operating systems (see the text "Communication" - below).

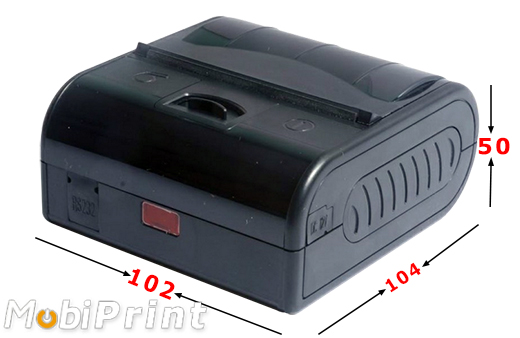

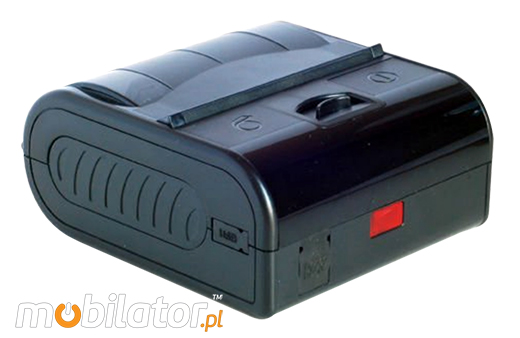

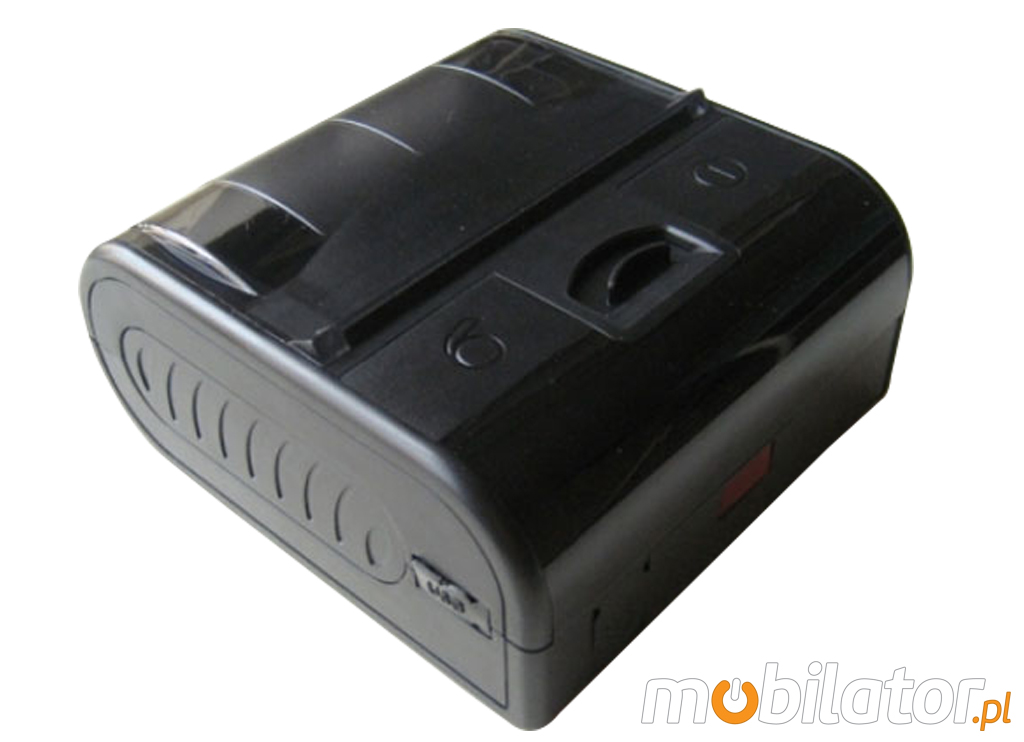

.jpg) A new generation of mini printer surprises his appearance. This ergonomic, compact and extremely lightweight thermal printer dimensions (102 mm x104 mm x 50 mm) and weight only 340g, allows complete mobility.
.jpg)

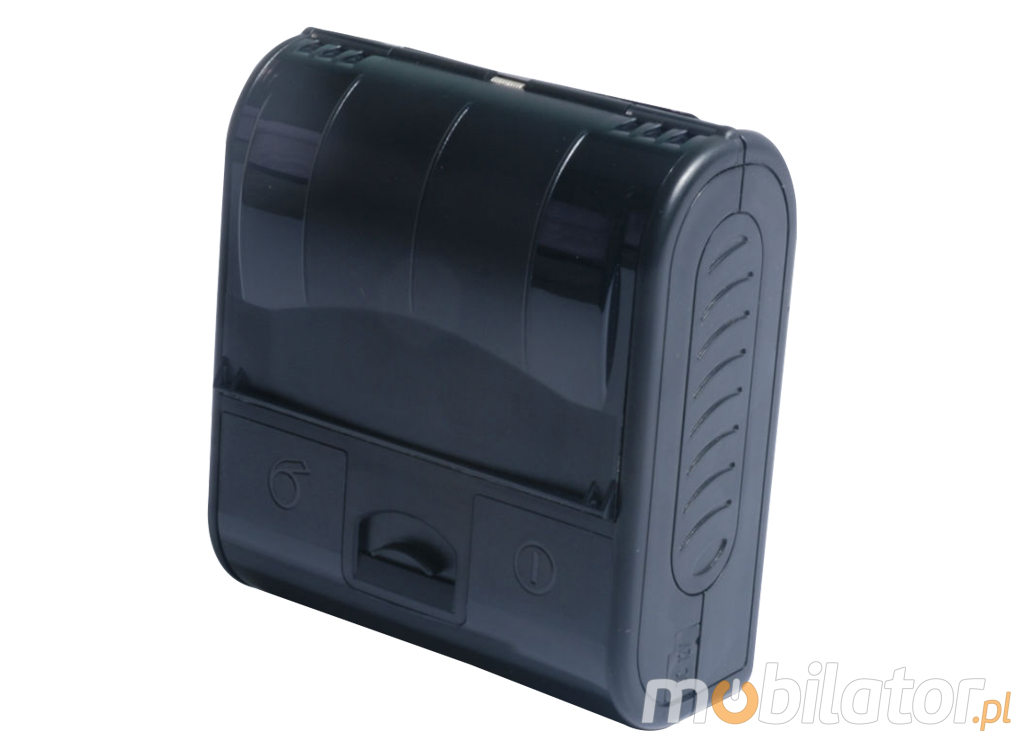

MobiPRINT MP-T3 is equipped with a Li-Ion battery with sufficient capacity - 1500mAh, allowing you to work up to 200 minutes in continuous printing or left in standby mode for 15 days..jpg)

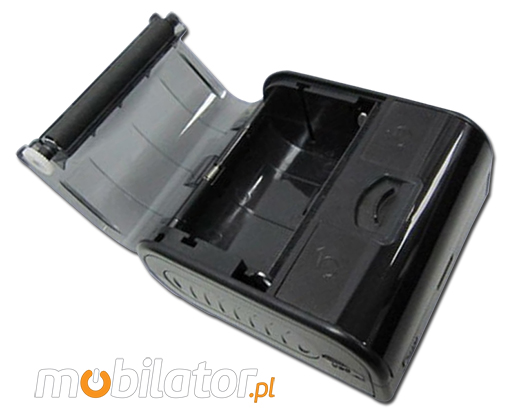

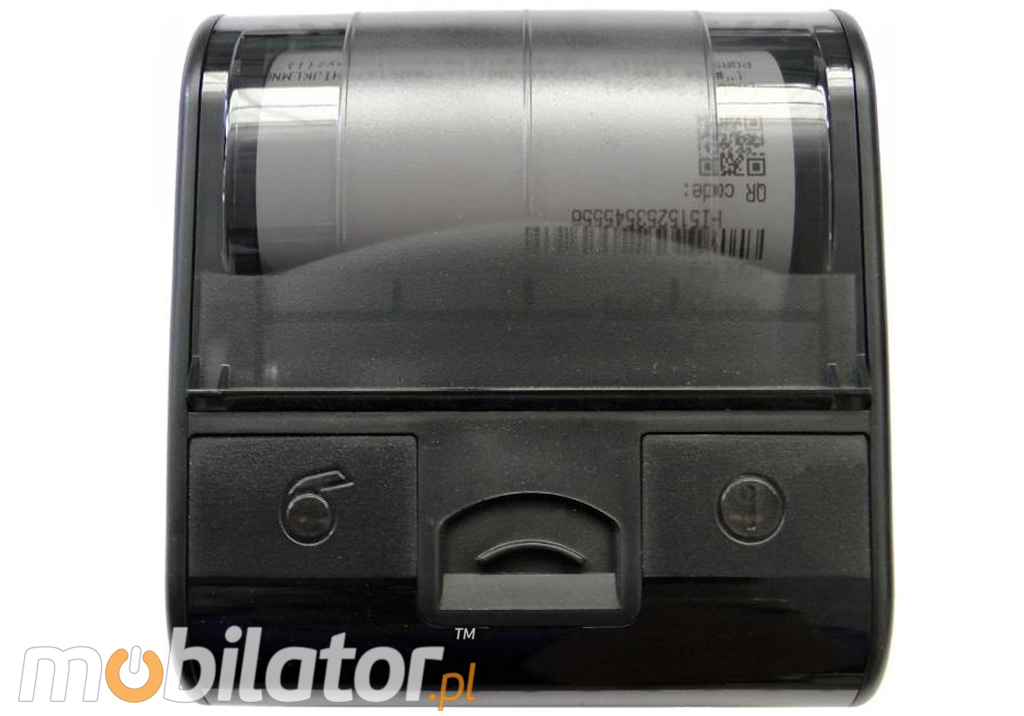

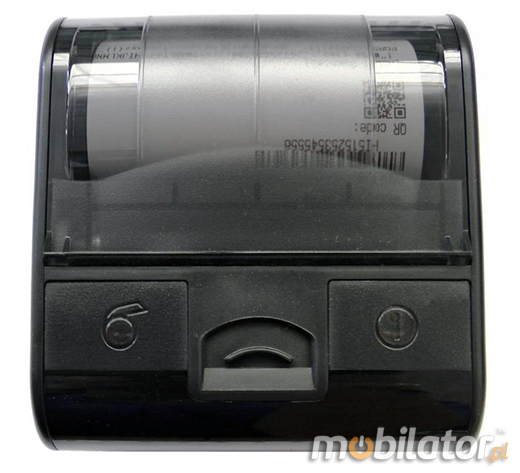

Easy loading paper roll "Drop-In & Print", high quality printing, fast printing (up to 80 mm / s), printing on rolls of thermal paper with a width of 80mm makes the printer is used in various applications mobilnych. Mini printer distinguished: a front panel on which are placed two buttons. This multiplicity of functions makes the printer easy to use and ideal for field work through a Bluetooth module.

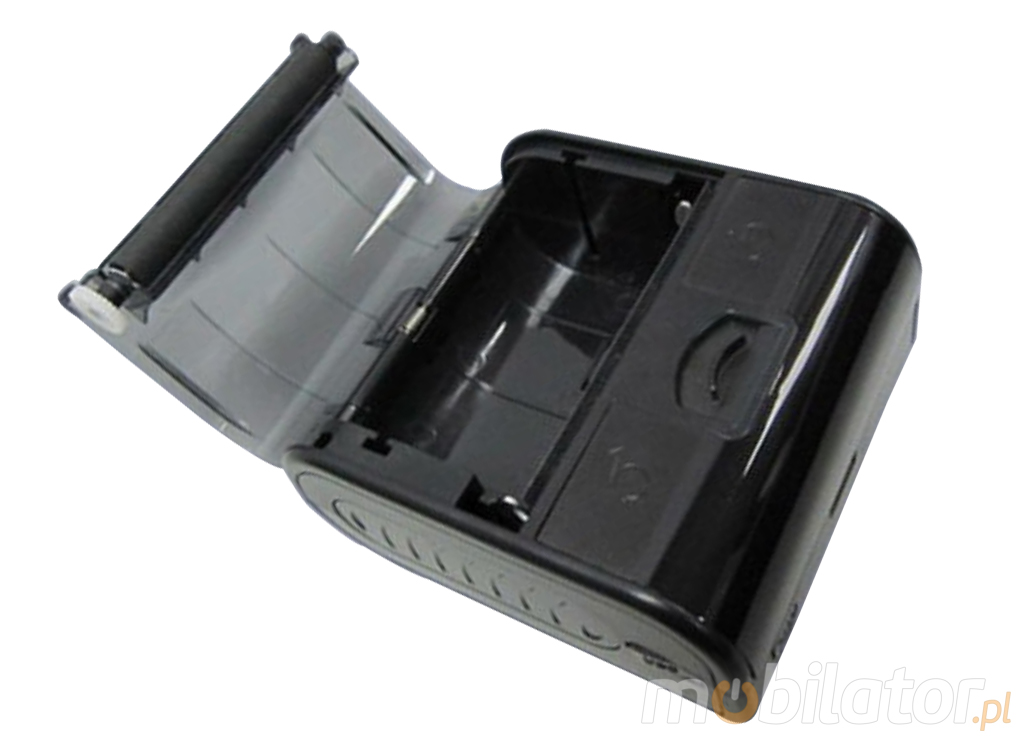

The printer is easy to use, among other things due to the use of very high-quality mechanism for easy paper loading. The printer is operating in a wide range of temperatures and humidity. The small dimensions allow you to use the printer in a confined work area, providing high-quality prints.
|
.jpg) Designed to be tailored to different applications, wireless (Bluetooth) Mobile printer may be compatible with systems such as Android, Windows CE, Windows Mobile, Windows XP, Windows 7, Windows 8 Users can send data to the printer in real time with PCs or mobile devices.
|
|
Portable (radio and bluetooth) mobile printers by using thermal printing methods are convenient and easy to use and offer a wealth of configuration parameters. Print fonts with different contrasts in depending of used paper roll. Thanks to the wireless communication range of connection offer up to 10m.
The printer has two basic communication interfaces: wireless interface - Bluetooth and wired - USB port.
|
|
|
|
|
Application
For MobiPrint MP-T3 manufacturer recommends widely use in situations where it is necessary to the need for rapid and mobile print a receipt or confirmation of the purchased goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
The printer is ideally suited for use in pharmacies, for printing the valuation of drugs for physicians to print prescriptions, referrals, orders, etc. It can be used as a portable printer (home visits) and to cooperate with the medical laboratory apparatus and measuring devices and control print graphs.
|
|
Trade
The device is used for high speed printing of receipts, confirmations and invoices. Certainly will be applied in all kinds of commercial networks, resteurants, hotels, etc.
|
|
|
|
Magazine
Mini printer allows for quick and wireless printing with confirmation of receipt of goods from the warehouse.
|
|
Logistics and transport
Little Printer will find all kinds of application also in transport.
|
|
|
.jpg) Move the printer allows you to send her the necessary data from your computer to print. We offer the highest quality devices work flawlessly even in harsh industrial environments.
MobiPrint MP-T3
|
Print
|
Printing Method: Thermal Line
Printing Speed: 80mm/s
Resolution:9 dots/mm, 576 dots/line
EffectivePrinting Width: 48mm
|
Character
|
Character Set: -
Print Font: Codepage, ANK: 8x16, 12 x24 GBK:16x16, 24 x 24
Character per Line: 48
|
Paper Spec
|
Paper Type:Thermal paper / label paper
Paper Width: 80.0± 0.5mm
Paper Roll Diameter:40mm(max.)
Roll Core Inner Diameter: 13 m m(min.)
Paper Thickness: 0.06~0.08mm
|
Paper Supply Method
|
Drop-in easy paper loading
|
Reliability
|
MCFB: -
TPH: 100km
|
|
Emulation |
ESC/POS |
|
Sensor |
Paper End Sensor |
|
Interface |
USB / Bluetooth
|
|
Power Supply |
DC 12V/1A |
|
Battery |
Battery Power: 1500 mAh, 7.4V
Type: Li-ion
Battery Charge: 150-200m continuous printing
|
|
Physical |
Printer Dimension: 102 mm x 104 mm x 50 mm
Weight: 340g
Color: black
|
|
IP Resistance |
-
|
|
Accessories |
Battery,Charger USB Cable,CD Driver, Paper-roll
|
|
Barcode |
1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128; 2D:PDF417, QR code, DATA Matrix |
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
| Other: |
|
| Printing Method: |
Thermal Line |
| Printing Speed: |
50～80mm/s |
| Resolution: |
9 dots/mm 576 dots/line |
| Effective Printing Width: |
72mm |
| Character Set: |
- |
| Print Font: |
ANK: 8x16, 12 x24 GBK:16x16, 24 x 24 |
| Character per Line: |
48 |
| Paper Type: |
Thermal paper/label paper |
| Paper Width: |
80.0± 0.5mm |
| Paper Roll Diameter: |
40mm (max.) |
| Roll Core Inner Diameter: |
13mm (min.) |
| Paper Thickness: |
0.06~0.08mm |
| Ribbon Cassette: |
- |
| Paper Supply Method: |
Drop-in easy paper loading |
| Printer Mechanism: |
Fujitsu Brand |
| MCBF (Mean Cycle Between Failure): |
- |
| TPH: |
100km |
| Smart Card: |
- |
| MSR: |
- |
| Barcode: |
1-D:UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128; 2D:PDF417, QR code, DATA Matrix |
| Emulation: |
ESC/POS |
| Sensor: |
Paper end sensor, Power near end sensor, Cover open sensor |
| Interface: |
USB/Bluetooth |
| Button: |
Power, Feed, Mode |
| Indicator: |
Power, Feed, Mode |
| LCD: |
- |
| Display Content: |
- |
| Memory: |
Flash: 512kb; RAM: 128kb |
| Receive Buffer Size: |
- |
| Multi-languages: |
- |
| Supported System - Drivers: |
IWindows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win8 / Linux |
| Supported System - SDK: |
- |
| Working on the cable - Systems: |
Windows CE , Windows Mobile , Windows XP, Windows 7 , Windows 8 |
| Working wireless - Systems: |
Android |
| Setup Software: |
- |
| Power Supply (Adapter): |
DC12V/1A |
| Battery Power: |
7.4V,1.5A rechargeable Li-ion battery |
| Battery Duration: |
150-200m continuous printing |
| Charge Time: |
less than 3 hours |
| Battery Duration: |
360 hours |
| Auto Cutter: |
- |
| Weight: |
340g |
| Printer Dimension: |
102 mm x 104 mm x 50 mm |
| Color: |
Black |
| Operating Temp: |
-10-50 °C |
| Storage Temp: |
-20-70°C |
| Operating Humidity: |
20%-85% |
| Storage Humidity: |
5%-95% |
| Accessories: |
Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll Option: vehicle charger |
| Resistance IP: |
- |
