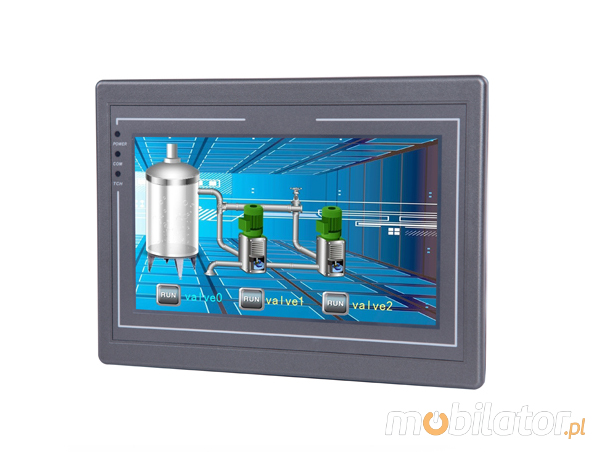

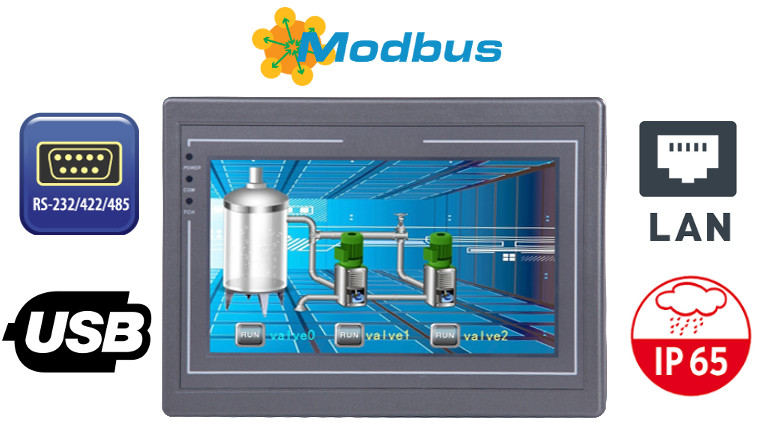

Industrial operator panels also known as control panels are devices that control other electronical devices using convenient and intuitive touch interface. Thanks to its robust design, these devices are suitable for use even in harsh environments. Model N8070PI has a IP65 standard which classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures.
|
Processor |
ARM Cortex A8 600MHz |
|
Screen |
10.4" (800x600), Resistive |
|
RAM |
512MB DDR |
|
Flash memory |
8GB EMMC |
|
Connectors |
USB 2.0 Host | USB 2.0 Client | COM: RS232/422/485 | RJ-45 LAN | SD Card |
|
Operating system |
Windows CE 7.0 | Linux | WECON OS (Manufacturer's dedicated system) |
|
Dimensions |
299mm x 222mm x 54mm |
|
Weight |
~1.9kg |
|
Protection |
IP65 (Front panel) |
|
PLC Protocols |
Standard | Modbus |
|
Other |
CANBUS | IP camera support | Remote control support | Wi-Fi support |
Multitasking OS
HMI can be equipped with a Windows CE, Linux or WECON operating system, which ensures maximum efficiency of the device and easily copes with multiple processes simultaneously. Convenient interface makes the operator panels as much intuitive as possible.
Efficient processor
An important advantage of the HMI N8070PI is a powerful combination of small size with considerable capabilities through the use of the processor family ARM Cortex A8 with 600MHz clock speed, which, combined with 512MB of RAM gives us a powerful, multi-purpose, quality device for a low price.

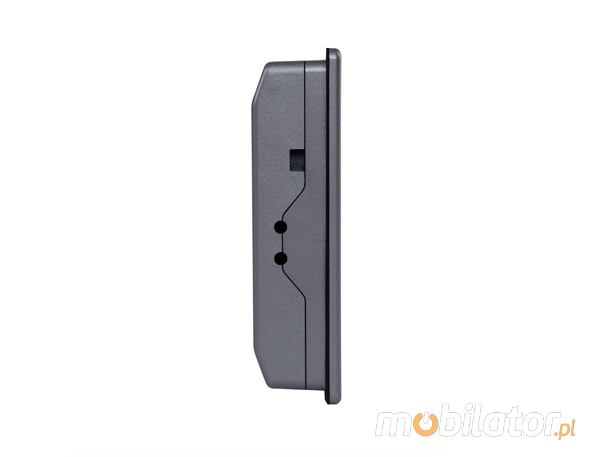

Small size
HMI N8070PI is equipped with a 10.4 inch screen and the overall size of its design is only 299mm x 222mm x 54mm, with a cutout size of 288mm x 212mm and its weight is only 1.9kg. With such a small size it can be used in even if there is not much available space. In addition, HMI has the possiblility to mount it on a wall for the greatest convenience and ease of access.
Solid construction
HMI enclosure is made from a specialized blend of ABS providing a very high resistance to mechanical damage. With this construction it is ready for use even in extreme conditions such as heat, cold or vibration at any time. In addition, the front panel of the device has IP65 international standard, which confirms the water resistance and a complete protection against dust.
Low power consumption
Using the latest technology, HMI N8070PI is designed for continuous operation with low power consumption of less than 10W at 24V.
IP65 Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
No protection |
0 |
 |
0 |
No protection |
|
Protection against any large surface of the body, such as the back of a hand |
1 |
 |
1 |
Protection against vertically dripping water |
|
Protection from object > 12mm, e.g. Fingers or similar objects |
2 |
 |
2 |
Protection against vertically dripping water when device is tilted at an angle up to 15 degrees |
|
Protection from object > 2.5mm, e.g tools, thick wires, etc. |
3 |
 |
3 |
Protection against direct sprays of water when device is tilted at an angle up to 60 degrees |
|
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. |
4 |
 |
4 |
Protection from sprays and splashing of water in all directions |
|
Dust protected - Ingress of dust is almost entirely prevented. |
5 |
 |
5 |
Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction |
|
Dust tight - No ingress of dust, complete protection against contact. |
6 |
 |
6 |
Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction |
|
— |
7 |
.gif) |
7 |
Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins |
|
— |
8 |
|
8 |
Protected from immersion in water with a depth of more than 1 meter |
|
Work temperature |
-10℃ - 60℃ |
|
Storage temperature |
-30℃ - 70℃ |
|
Humidity |
10% - 90% |
|
Dust resistance (Front panel) |
IP6x |
|
Water resistance (Front panel) |
IPx5 |
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
SUPPORT FOR INDIVIDUAL OPERATING SYSTEMS
|
|
wecon os |
|
Development tool |
PI Studio |
|
Cost |
Free |
|
System tool |
Display adjust
Communication parameters configuration |
|
Documentation |
Yes |
|
Technical support |
Professional support for hardware and software development
|
|
Default screen |
WECON factory sceen |
|
|
Windows ce 7.0 |
|
Development tool |
Visual Studio .NET |
|
Cost |
Free (not licensed) / Paid (licensed) |
|
System tool |
CETOOL tool |
|
Documentation |
Microsoft documentation |
|
Technical support |
Driver developmnet only |
|
Default screen |
Windows CE 7.0 desktop |
|
|
linux |
|
Development tool |
Qt |
|
Cost |
Free |
|
System tool |
No |
|
Dokumentacja |
No |
|
Technical support |
Driver developmnet only |
|
Default screen |
Standard Linux command line |
.jpg)
Modbus
Modbus is a serial communications protocol initially for use with programmable logic controllers (PLCs). Simple and robust, it has since become a standard communication protocol, and it is now a commonly available means of connecting industrial electronic devices. Modbus enables communication among many devices connected to the same network, for example a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.

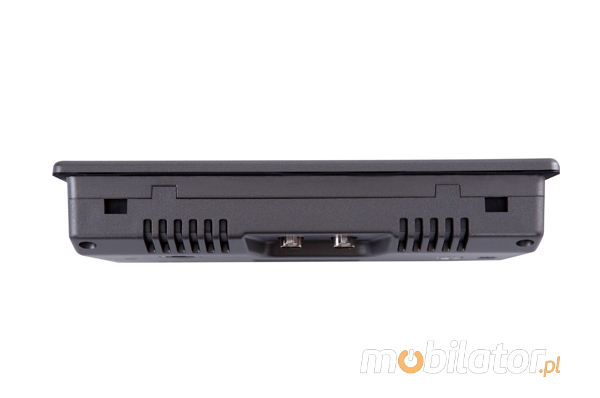

Connectors:
|
Connector type |
Quantity |
|
USB 2.0 Host |
1 |
|
USB 2.0 Client |
1 |
|
RS232/422/485 |
1 |
|
RS232/485 |
1 |
|
RJ-45 LAN |
1 |
|

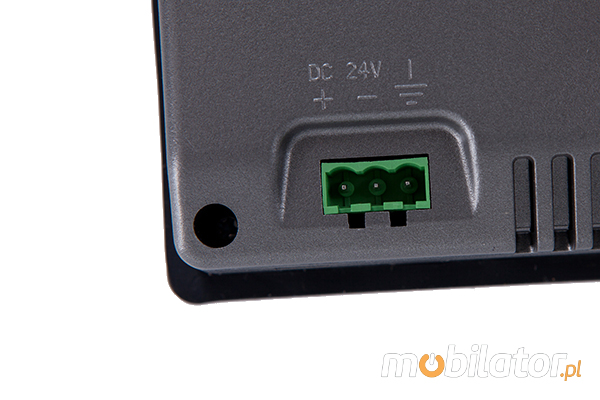

DC 24V |
1 |

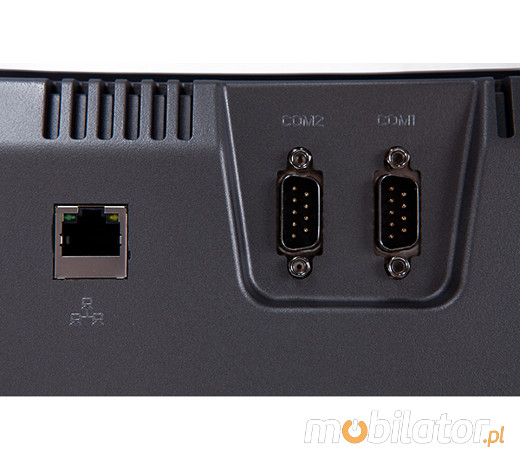

COM Ports:
|
port number |
supported protocols |
|
COM1 |
RS232/RS485 or RS232/RS422 |
|
COM2 |
RS232/485 |
|
COM3 ( COM2 port) |
RS485 |
PLC
PLC is a universal microprocessor device designed to control the operation of the machine or technological equipment. PLC must be adapted to the HMI device by introducing into its memory the desired algorithm for operation of the plant. A characteristic feature of the PLC controller distinguishes this from other drivers computer is cyclic circulation of program memory. The algorithm is stored in a dedicated controller programming language. You can change the algorithm by changing the contents of program memory. The driver provided with a suitable number of input circuits gathering information on the object status and requests service and the appropriate number and type of output devices connected to the actuators, signaling or data.
PLC is not included in the standard equipment - it must be purchased separately.
REMOTE CONTROL
The HMI N8070PI allows you to remotely connect to your device via Ethernet, allowing you to fully control the HMI and display its screen in real-time on a device connected to it via a web browser. With this solution, you can connect several devices to one main computer and manage the network from one place.
IP CAMERA support
.png)
IP cameras are devices that record and transmit live video directly over the IP network, allowing authorized users to observe on-site or off-site. View, save and manage video from this camera is done through a standard IP-based network infrastructure. The HMI N8070PI allows you to connect this camera using an ethernet port so that you can view and control the camera image directly on the panel screen.
CANBUS SUPPORT
CAN is an asynchronous serial bus for data exchange. It has been designed for the automotive industry to increase the reliability of systems such as ABS and engine control. This is commonly used in a variety of fields, primarily in the automotive industry, where a digital bus is based on the CAN bus. It is the primary aggregate medium for sensors, actuators, and auxiliaries. The CAN standard priority technology allows you to delimit control on one side of extremely important components, such as airbags, on the other hand, trivial issues such as the transmission of data between additional equipment.
.jpg)
Smart Home
Thanks to its transparent and intuitive touch interface, the HMI device can be easily adapted to the Smart Home, this solution allows you to control functions such as music, heating and air conditioning, from one place. The ideal device for people who like to have everything at your fingertips.
Warehouse
Industrial HMI operator panel can be used to connect multiple devices in the warehouse and make them easier to control. And its robust design is perfectly designed for the harsh conditions prevailing in these areas. Dust or dirt will not prevent this device from working, it will work flawlessly even in polluted environments.
.jpg)
Industry
Thanks to the ease with which the operator panel HMI can be customized for specific tasks, it's widely used escpecially in industry. Thanks to its functionality and mediation between machines and man, HMI is the center management processes, giving you the ability to control devices and to respond to specific situations.
