Digital Singage Player - Android 13.3 inch Touch PanelPC MobiPad HDY133W-T
|
|
The product from the archive - production terminated
|
|
Industrial Panel PC
Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.
|
|
|
MTouch
|

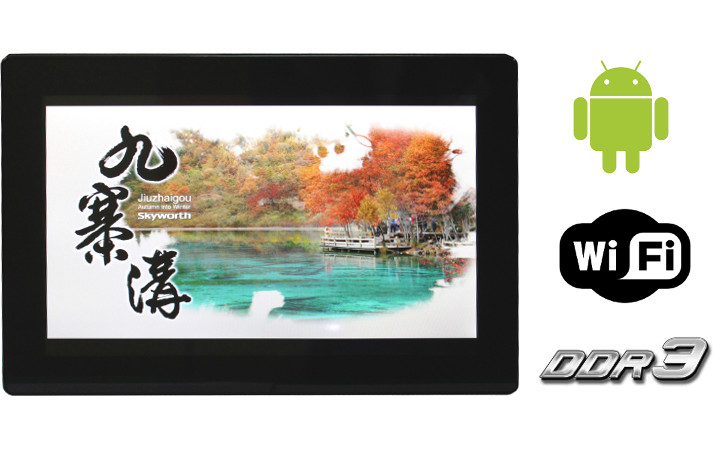

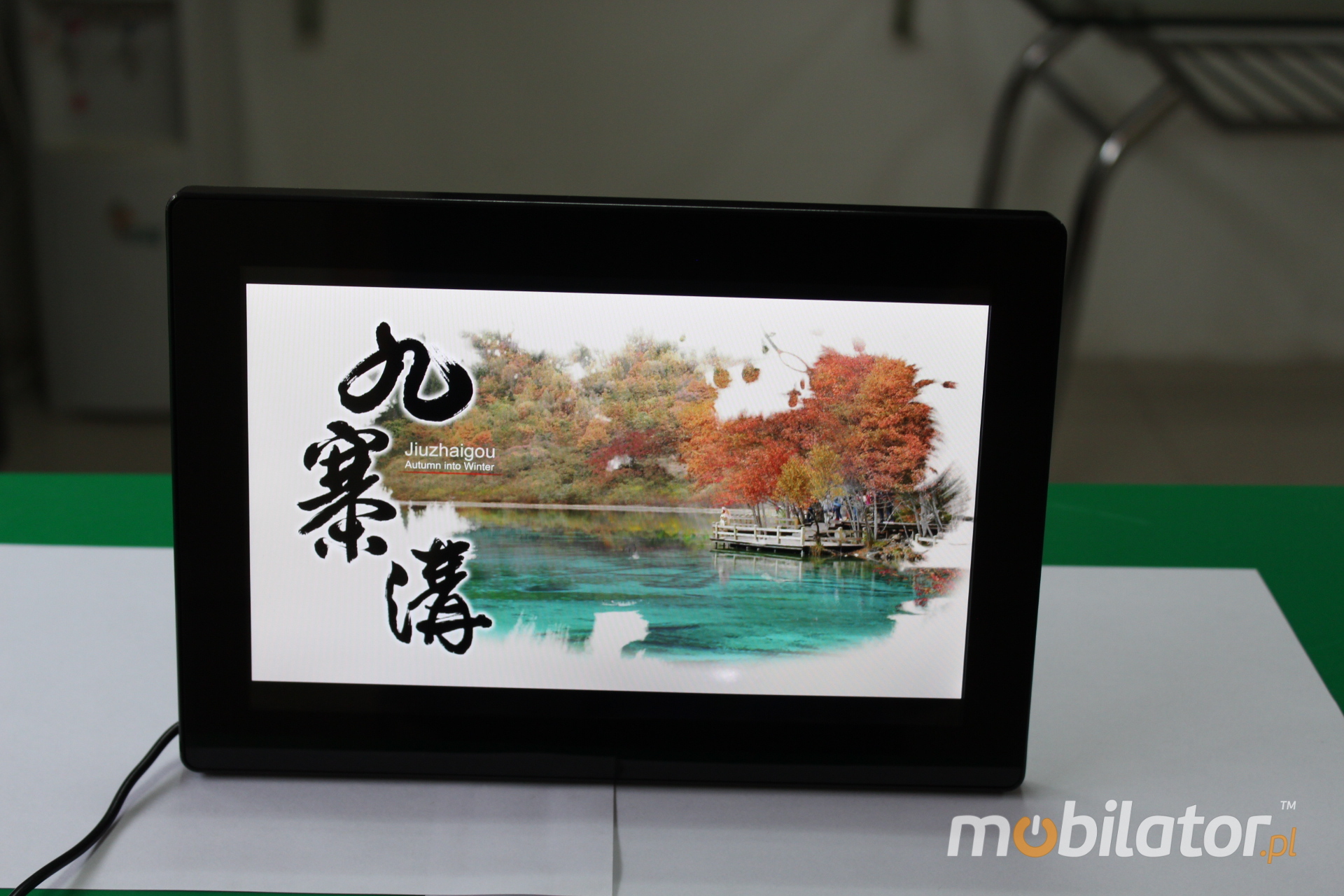

Digital Singage Player MobiPad 101HDY
|
|
|
 |
CPU: Quad Core ARM Cortex A9 1.6GHz
|
|
|
Memory: 2GB RAM DDR3
|
|
|
Disk: 16GB Flash |
|
.png)
|
System: Android 7.1.2
|
|
|
Screen: 10.1" / 1080x800 / 16:10 / Capacitive
|
|
.png)
|
Expansion cards: none
|
| |
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of ARM Cortex A9 processor family and DDR3 memory. Integrated video graphics card and audio allow you to play a wide range of applications and media files (video, audio). Disk offers 8GB of free space.
Dimensions:

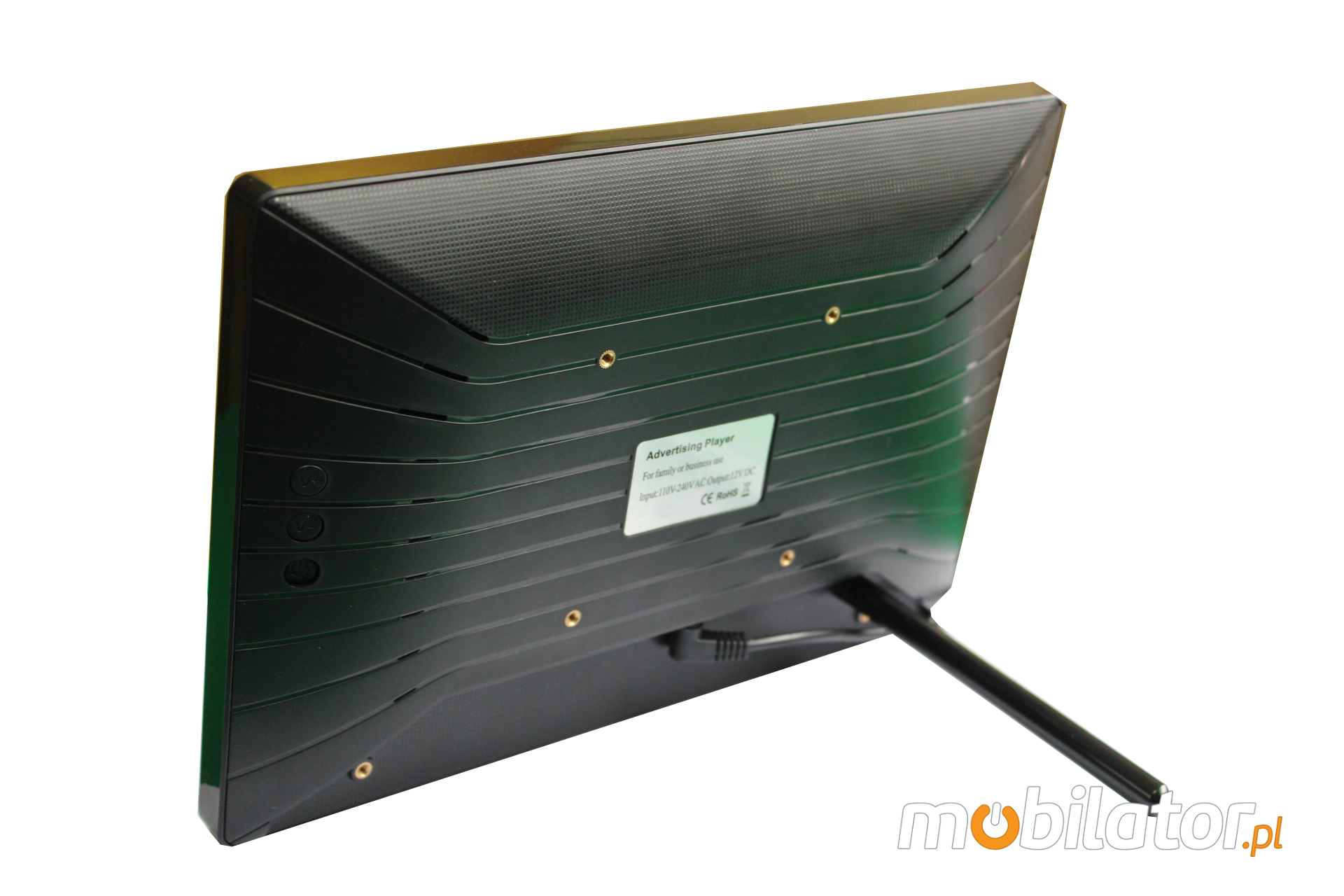

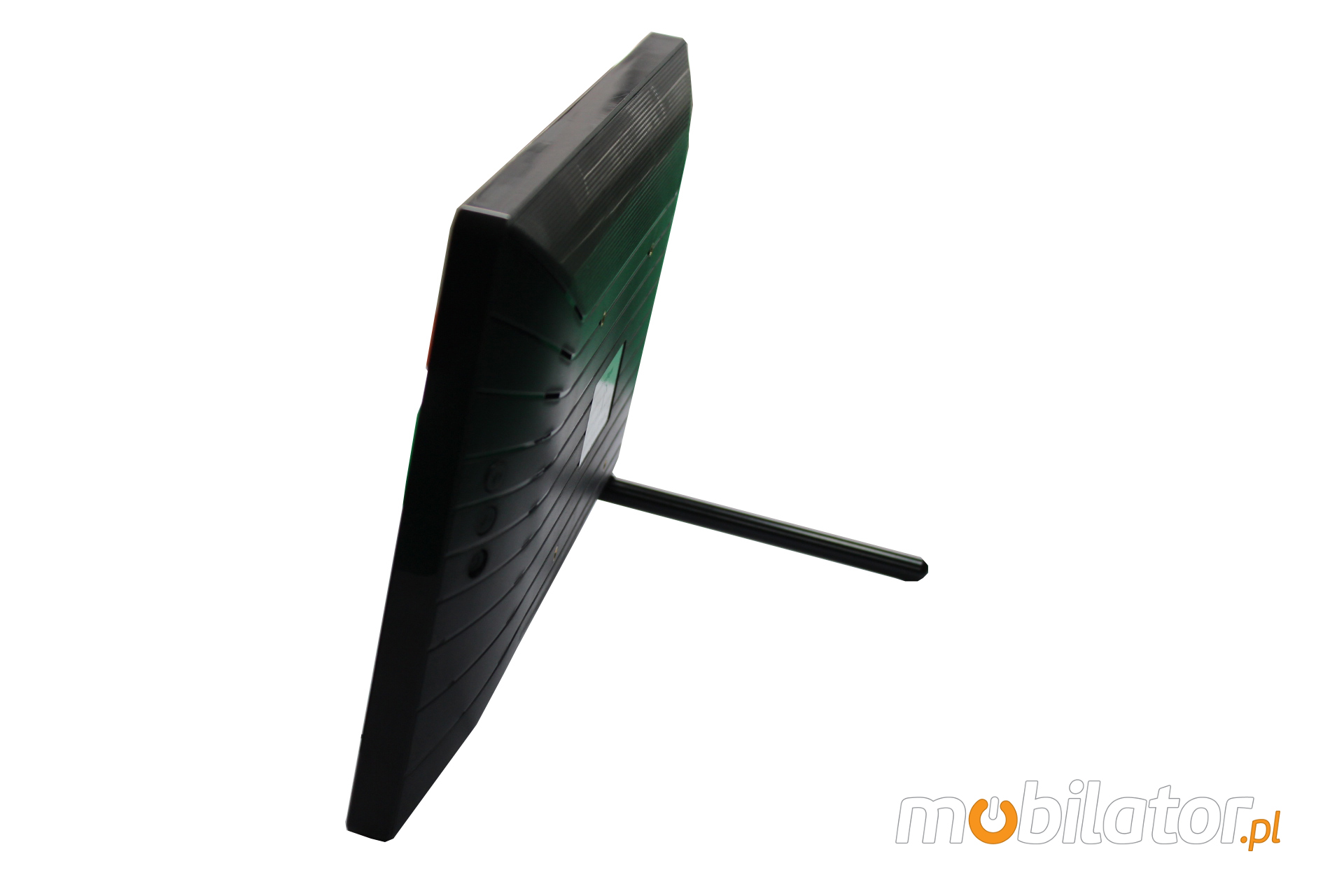

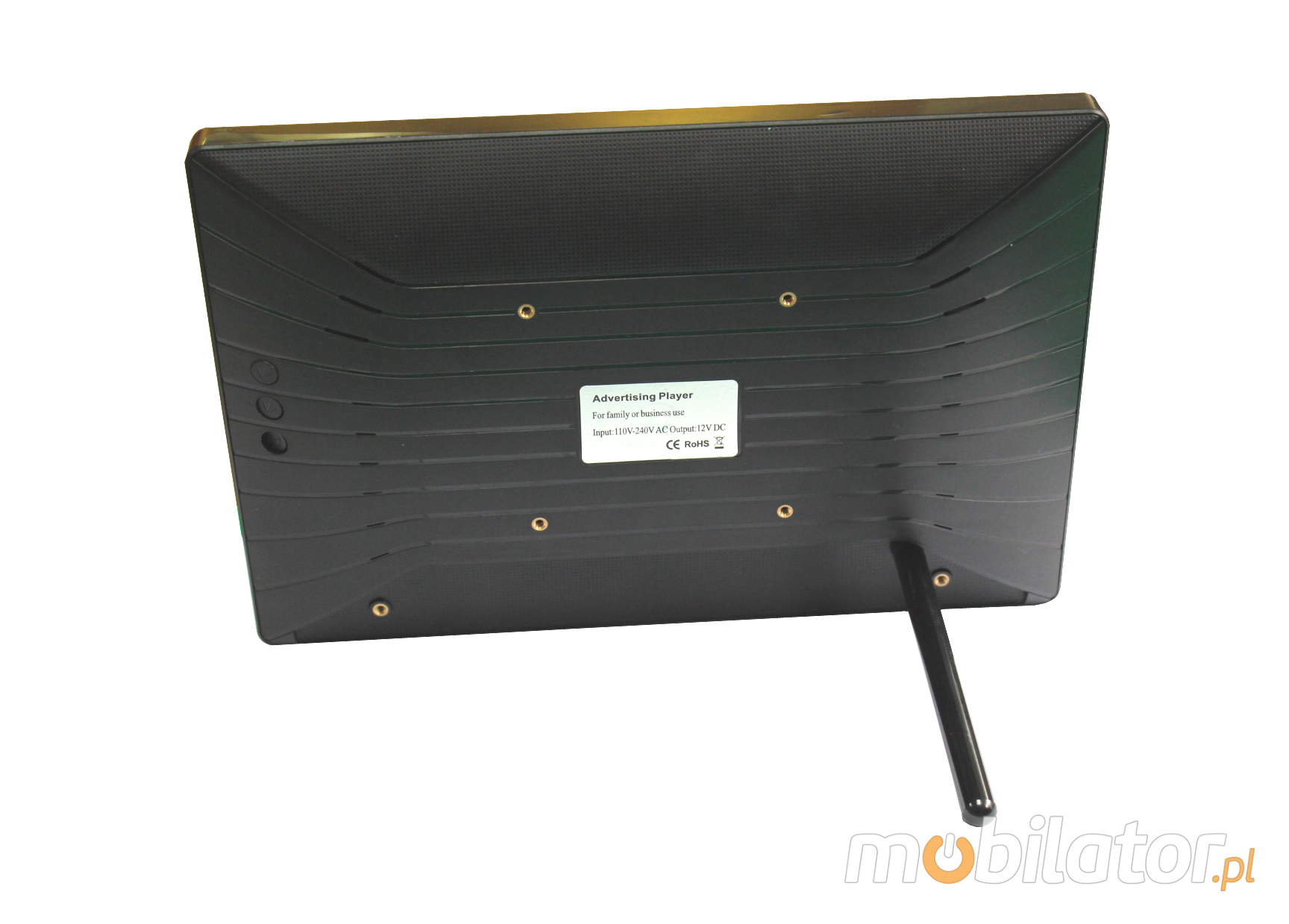

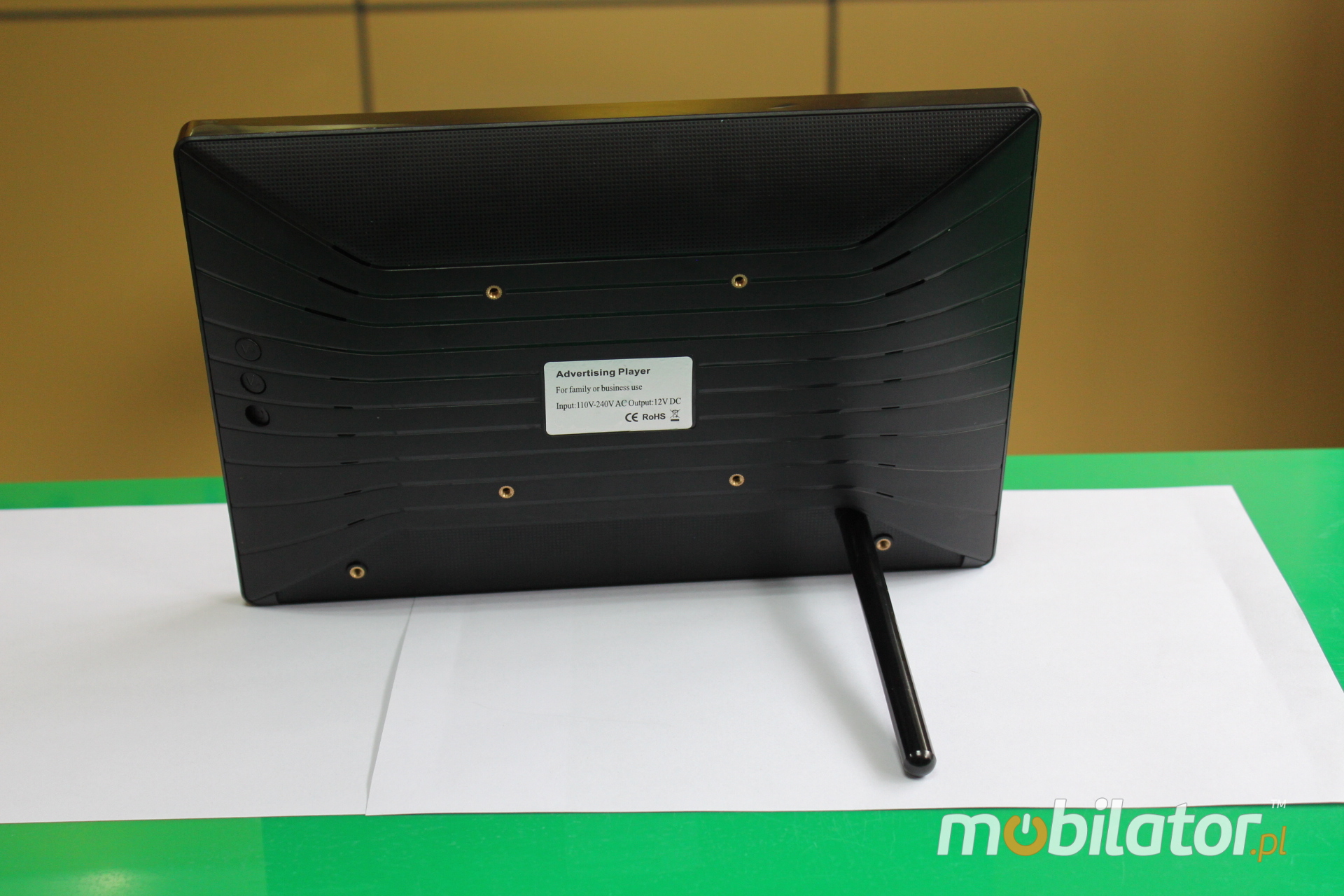

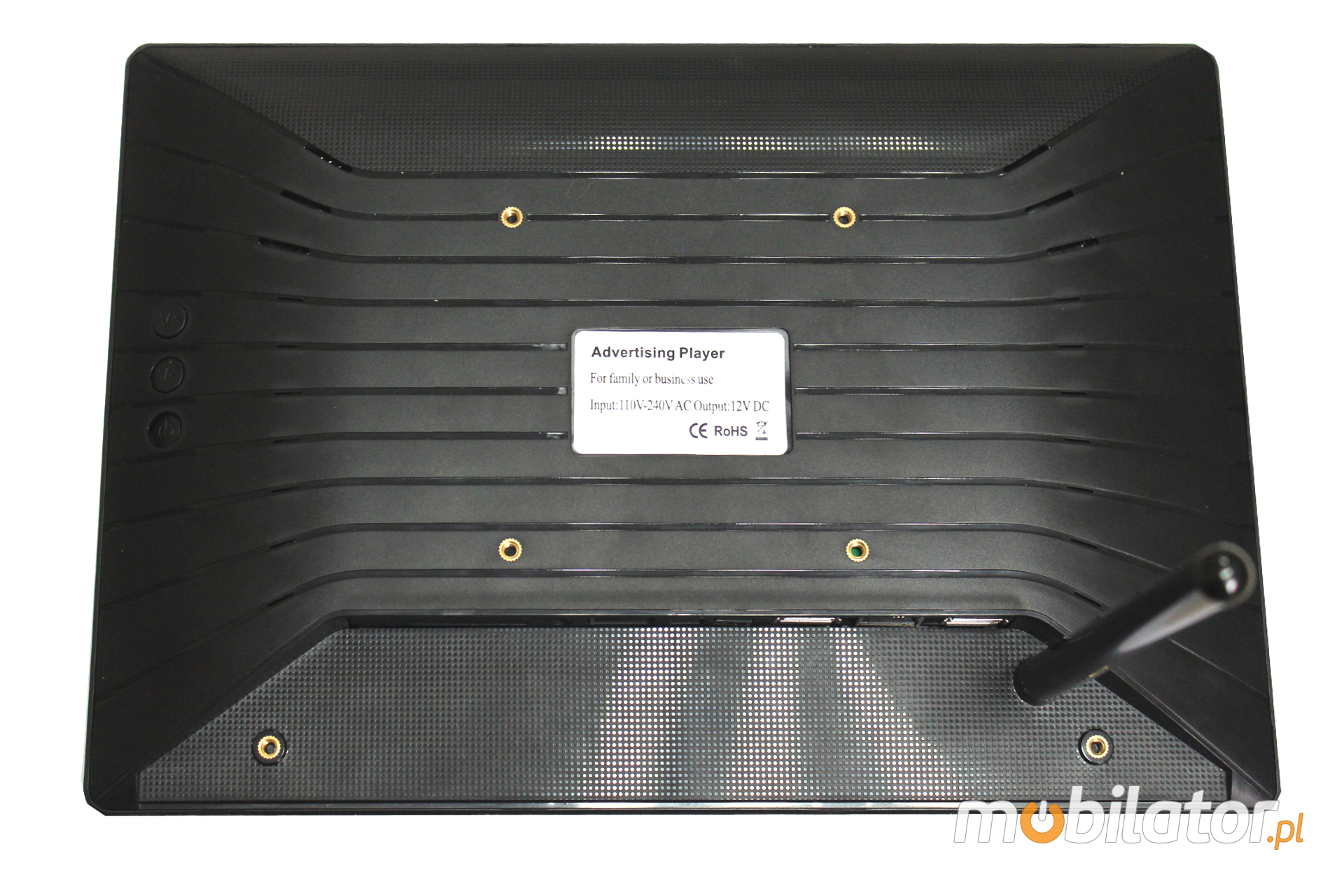

Housing dimension are 261.96mm x 171.96mm x 24.5mm. Housing is made of high quality plastic what ensures a very high resistance to mechanical damages. This model with weight of only 520g is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Continuous work:
Digital Singage Player - Android 10 inch Touch PanelPC MobiPad 101HDY is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
The computer Panel Digital Singage Player MobiPad 101HDY uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Operator Panel Digital Singage Player MobiPad 101HDY standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.
Connector:

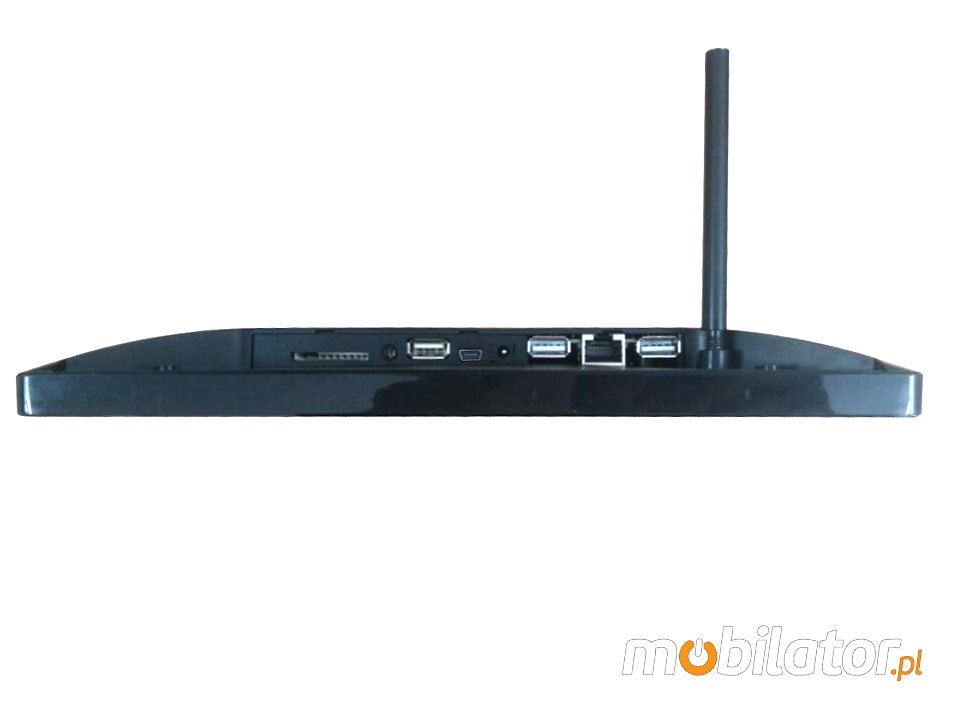

Integrated network card and Wi-Fi module allows you to connect the device to the network. The computer is equipped with: one LAN connector, three USB ports, one Mini USB port, one SD card slot, four USB 2.0 ports, one audio out and a Power Jack.
| 1. Karta SD |
5. USB 2.0 |
| 2. USB 2.0 |
6. RJ-45 |
| 3. Mini USB |
7. USB 2.0 |
| 4. Power Jack |
|
|
|

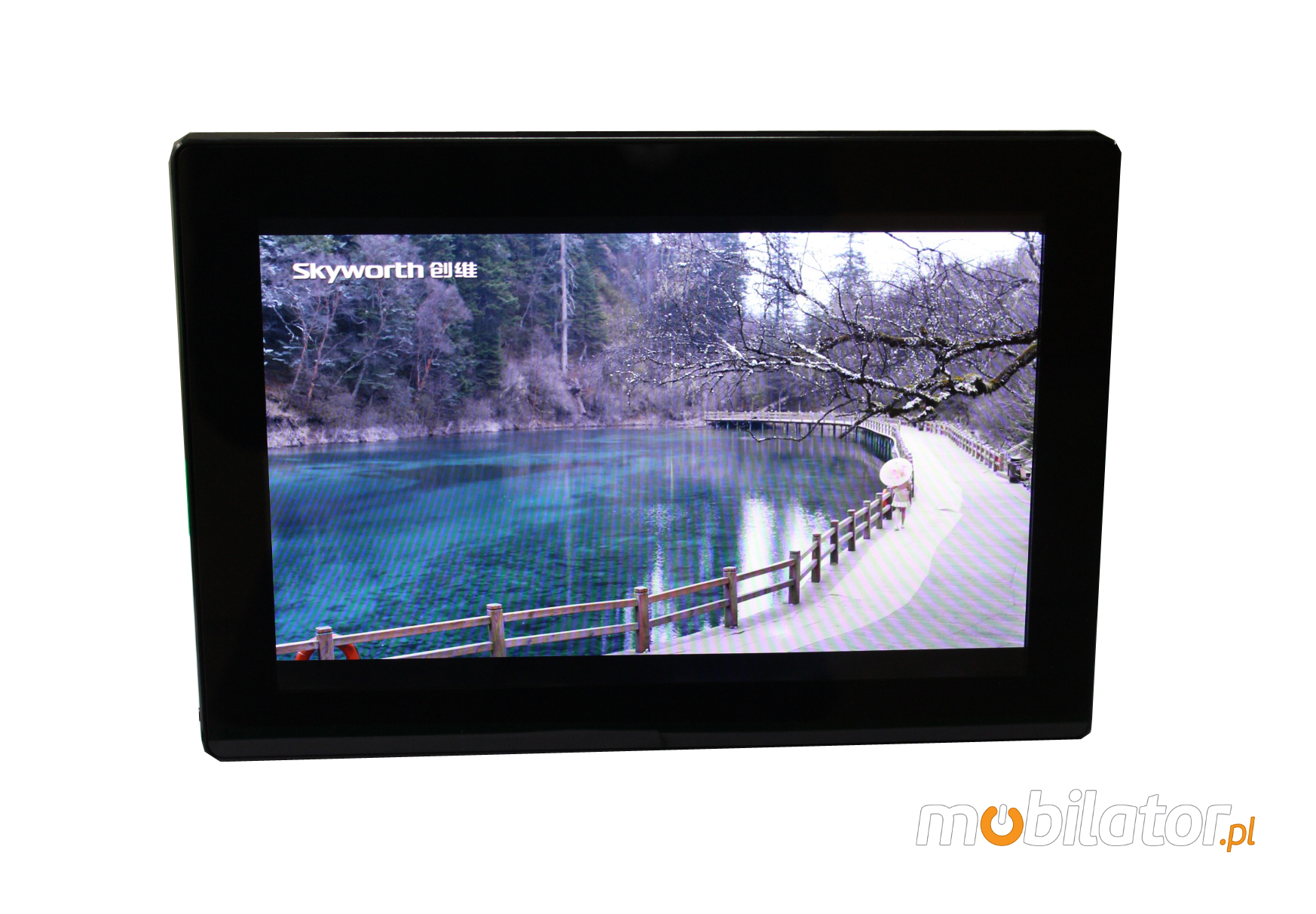

Operator Panel Digital Singage Player MobiPad 101HDY has a scratch resistant LED screen. With 1080x800 resolution and high brightness of 350cd/m2, screen of capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.
.jpg)
Capacitive screen
Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.
Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.
|
|
Operator Panel Digital Singage Player MobiPad 101HDY is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, oil, sand and dust. Operator Panel Digital Singage Player MobiPad 101HDY is the best solution for extreme applications in dust or moisture.
| Storage Temp |
-20-60 °C |
| Operating Temp |
0-50 °C |
| Operating Humidity |
10%-95% |
|
|
go top…  menu…
Industrial Panel PCs with MTouch companies are based on the efficient quad-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial panel computers.
.jpg)
|
Trade
Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel's durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
|
go top… menu…
Display |
Screen: 10.1"
Resolution: 1080 x 800
Type: Capacitve |
| Resistance IP |
N/A
|
| Communication |
Wi-Fi
3G (option)
|
|
Dimensions
|
Height: 172mm
Width: 24.5mm
Length: 262mm
|
| Weight |
520g |
| Processor |
Quad Core ARM Cortex A9 1.6GH
Quad Mali 400 533Mhz (Mali400MP4)
|
| Chipset |
N/A |
| Memory RAM |
2GB |
| Graphics Card |
N/A |
| Sound Card |
N/A |
| Network Card |
Tak |
| Ports & interfaces |
3 x USB 2.0
1 x Mini USB
1 x RJ-45 LAN
1 x SD
1 x Audio
1 x Power Jack
|
|
|
|
|
| Screen size: |
10.1" |
| Resolution: |
1080 x 800 |
| Aspect ratio: |
16:10 |
| Touchscreen: |
Capacitive |
| Chipset: |
----- |
| CPU Support: |
Quad Core ARM Cortex A9 1.6GHz
Quad Mali 400 533Mhz (Mali400MP4) |
| Installed CPU: |
Quad Core ARM Cortex A9 1.6GHz
Quad Mali 400 533Mhz (Mali400MP4) |
| Memory Support: |
----- |
| Installed Memory: |
2GB DDR3 |
| Graphic Card: |
----- |
| Audio: |
----- |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
16GB Flash |
| CD/DVD Drive: |
----- |
| LAN: |
Yes |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1x Mini USB
3x USB 2.0
1x RJ-45
1x SD
1x Power Jack
1x Audio Jack |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
12V DC-in |
| Supported OS: |
Android |
| Installed OS: |
Android 7.1.2 |
| Dimensions: |
262mm x 172mm x 24.5mm |
| Weight: |
520g |
| Expansion: |
----- |
| Fanless: |
No |
| Humidity: |
10%~ 80% |
| Temp: |
-10°C ~ 60°C |
| Storage Temp: |
-20°C ~ 60°C |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
Yes |
| Response time touch-panel (ms): |
----- |
| Contrast Ratio: |
1000:1 |
| Brightness: |
350cd/m2 |
| Viewing Angle: |
89°/89°/89°/89° |
| Backlight MTBF: |
LED |
| Color Resolution: |
----- |
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
----- |
| Housing material: |
High quality plastic |
| Mounting VESA: |
----- |
| Folding Bracket (for office type working): |
----- |
| Power Consumption: |
20W |
| Others: |
Housing color: Black |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
----- |
