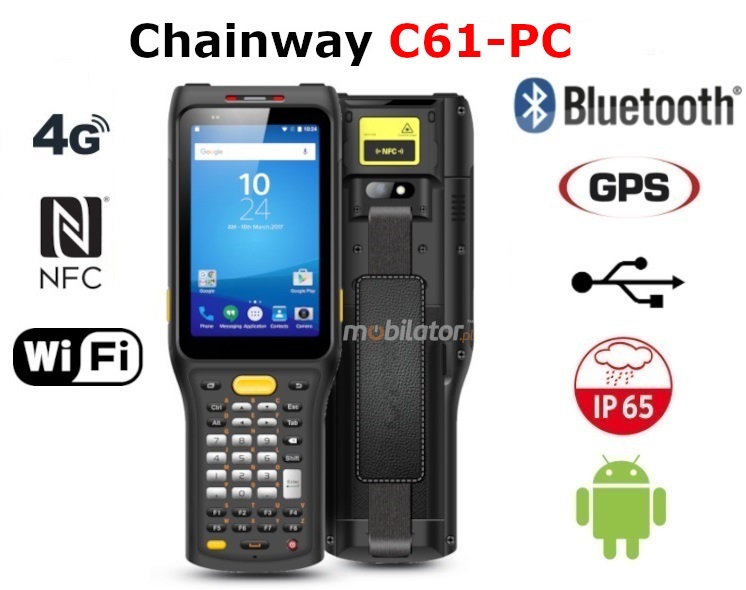

Chainway C61-PC v.1 - Adapted to work in low temperatures, data collector with a 4-inch screen and Gorilla Glass protection

Chainway C61 backlight keyboard - 27 keys

The keyboard with 27 keys allows you to use the Chainway C61 data collector in a comfortable and convenient way. In addition, the keyboard with 27 keys is backlight.

Choose a keyboard with 27 keys and take full advantage of the possibilities offered by Chainway C61.

* The choice of the keyboard version does not affect the price of the device.

Chainway C61 keyboard - 37 keys

The keyboard with 37 keys allows you to use the Chainway C61 data collector in a comfortable and convenient way.

Choose a keyboard with 37 keys and take full advantage of the possibilities offered by Chainway C61.

* The choice of the keyboard version does not affect the price of the device.

Chainway C61 keyboard - 47 keys

The most extensive keyboard with 47 keys allows you to use the Chainway C61 data collector in a comfortable and convenient way.

Choose a keyboard with 47 keys and take full advantage of the possibilities offered by Chainway C61.

* The choice of the keyboard version does not affect the price of the device.

READER RFID

RFID (Radio-Frequency Identification),  this technology is used to identify objects and flow control products. Extracting information from special tags that are attached to objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to barcode - more comfortable and more efficient.

RFID UHF (902-928 MHz - America, 865-868 MHz - Europe) versions are designed to work hand-held mobile or fixed. Substantial differences in the construction of the result of the range and scope of their use. Handheld readers may not have extensive large-size antennas. Their sphere of sensitivity is limited and conditional on the orientation set by the operator. Readers intended for installation on transport carriages like stationary structures, but their antennas must include your sphere detection associated with dimensions of transported goods.

The Impinj Indy R2000 UHF Gen 2 RFID reader chip is a highly integrated, high-performance, low power, SiGe BiCMOS device for EPC Gen2 / ISO18000-63 (formerly 18000-6C) applications. The Indy R2000 can also be programmed to support ISO18000-6B, iPico and iP-X protocols; however, the current reference design does not support these protocols. The Indy R2000 reader chip supports a zero intermediate frequency (ZIF) architecture in the worldwide UHF industrial, science, and medical (ISM) band. The Indy R2000 reader chip contains all of the RF and baseband blocks to interrogate and receive data from compatible RFID tags.

Key Features:

Industry leading modem architecture uses modern digital signal processing which ensures high read reliability
Exclusive Self-jammer Cancellation Technology ensures read reliability even with high antenna reflections
Fully integrated voltage controlled oscillator (VCO) with world wide RFID coverage
Integrated Power Amplifier (PA)
High compression point quadrature downconverting mixer
Integrated RF envelope detectors for forward and reverse power sense
Integrated multipurpose Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs)
Configurable digital baseband
High speed synchronous serial bus or 4-bit parallel bus control

Coasia IA166S

Coasia IA166S, supports barcode type:
1D: UPC/EAN, UPC/EAN with supplementals, Code128, GS1-128, Code 39, Trioptic, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial 2 of 5,Codabar, Codablock F,MSI,Telepen,Code11, GS1 DataBar variants.

2D: PDF417, MicroPDF417, Composite Code,Data Matrix, Maxicode, QR Code,
MicroQR, Aztec, Hanxin Code

IA166S cost-effective entry-class 2D barcode scan engine, a computerized image recognition system, bring about a new era of 2D barcode scan engines.
IA166S, a tiny turnkey imager engine and illumination system that is smaller than a penny, ready to fit in your most space constrained designs.

SE4710 its maximum reading distance is around 75cm.
DECODE RANGES:
4 mil Code 39: Near 8.4cm - Far 22.4cm
5 mil Code 128: Near 7.1cm - Far 20.8cm
5 mil Code 39: Near 5.08cm - Far 34.3cm
5 mil PDF417: Near 7.9cm - Far 21.3cm
10 mil DataMatrix: Near 7.4cm - Far 25.7cm
100% UPCA: Near 4.6cm - Far 66.0cm
20 mil Code 39: Near 5.08cm - Far 76.2cm

SMALL SIZE - HIGHEST PERFORMANCE
The SE4710 features Zebra's patented, intelligent PRZM imaging technology, industry-leading decoding algorithms, and advanced focusing, optical and illumination systems - all in the slimmest and smallest body yet.

In addition, this model weighs only a few grams.

With its superb performance and working range, this miniature imager enables you to build mobile devices with the high-throughput scanning functionality your customers need to increase the productivity and efficiency of mobile workers - while maintaining the attractive design that today's workers expect.

LIGHTWEIGHT CONSTRUCTION
The SE4710 weighs less than 5 grams and is only 8.1 mm high, making it even very thin devices such as smartphones and scanning holders that can be equipped with enterprise-class data logging.

MIPI SUPPORT
Now you can integrate the latest processors into your products without sacrificing integration time, valuable mounting space for additional components, and without increasing costs. You can also bring your products to market faster.

UNIQUE RANGE
This device records barcodes at various distances - from almost direct contact to over 60 cm, and thanks to the wide field of view, it enables easy registration of large barcodes from a short distance and the registration of several codes at the same time.

Honeywell EX30 - 2D scanner

EX30 its maximum reading distance is around 20m.

Decode Ranges EX30:

13 MIL UPC: Near 5cm - Far 280cm

5 MIL C39: Near 9,5cm - Far 136cm

10 MIL C39: Near 6cm - Far 263cm

20 MIL C39: Near 8cm - Far 589cm

55 MIL C39: Near 20cm - Far 1500cm

10 MIL QR: Near 9cm - Far 138cm

55 MIL QR: Near 12cm - Far 704cm

100 MILS C39 RFL: Near 36cm - Far 2900cm

100 MILS C128 RFL: Near 26cm - Far 2250cm

EX30 supports:

Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar

Codablock A, Codablock F, PDF417, MicroPDF417

Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code

The Extended FlexRange™ EX30 2D Scan Engine for warehouse and distribution center operations seamlessly reads barcodes from 10 cm to 20 m [4 in to 66 ft] using the latest technology for a fast auto-focus mechanism.

Warehouse and distribution center operation managers need barcode scanning solutions that can read barcodes at close distances as well as those farther away, such as package labels on shelves as high as 10 cm to 20 m [4 in to 66 ft]. The EX30 answers this key requirement by enabling a wide angle read range of 42° at close distances and up to 20 m [66 ft].

Operators reading barcodes at both near and far distances expect to switch seamlessly between both operations. The Extended FlexRange EX30 uses the latest technology for a fast auto-focus lens mechanism that provides the focus change multiple times faster than its predecessor. At this level of performance, the operator feels no latency in reading across the entire distance range, allowing an efficient and comfortable work pace.

The Extended FlexRange EX30's electrical interface is fully compatible with Honeywell's N670X Series, N660X Series, and N360X Series fixed-focus, compact scan engines. This compatibility provides customers with a complete barcode scanning performance offering, ranging from better to best, that fits into the same mobile device, keeping design time and resources to a minimum. The Extended FlexRange EX30 is available with either a parallel or the MIPI interface, now commonly used with the newest generation of processors.

The Extended FlexRange EX30 may easily be embedded into mobile devices running under an OS by using the resources of the device's main processor. Honeywell supports its customers with integrating decoder software into their solutions, saving the cost of ownership by eliminating hardware and also enhancing performance by using the main processor's power.

The Extended FlexRange EX30 may also be powered by the new Honeywell Gen7 DB Decoder Board, allowing easy integration into non-OS devices such as drones, mobile accessories and sleds.

Features

Near and Extended FlexRange read ranges of 10 cm to20 m [4 in to 66 ft] allow both near and far barcode reading in the same device.

MIPI interface provides compatibility with newer processors.

Patented, embedded, auto-focus lens mechanism enables fast, aim-and-scan operation, allowing job efficiency.

Compact dimensions of 13 mm x 30,5 mm x 22,2 mm [5.12 in x 1.2 in x 0.87 in] allow easier fit into slimmer mobile device designs.

Fully compatible with Honeywell’s N670X, N660X, and N360X Series scan engines, reduces integration time and increases design flexibility.

Flexible choice of decoder software or hardware (Honeywell Gen7 DB Decoder Board) options allow integration into both OS and non-OS supported devices.

Zebra SE4850 - 2D scanner

SE4850 maximum reading distance is around 20m.

Decode Ranges SE4850:

10 mil Code 39: Near 7.6cm - Far 215.9cm

13 100% UPC: Near 8.9cm - Far 254cm

15 mil Code 128: Near 12.7cm - Far 292.1cm

20 mil Code 39: Near 7.62cm - Far 457.2cm

40 mil Code 39: Near 15.2cm - Far 863.6cm

55 mil Code 39: Near 17.8cm - Far 1092.2cm

100 mil Code 39 (paper): Near 38.1cm - Far 2133.6cm

100 mil Code 128 (reflective): Near 50.8cm - Far 2133.6cm

DataMatrix 10: Near 12.7cm - Far 114.3cm

DataMatrix 55: Near 12.7cm - Far 635.0cm

15 mil Code 128 (4 in. wide): Near 20.3cm - Far 279.4cm

UNMATCHED, EXTREMELY LONG RANGE AND EFFICIENCY FOR INDUSTRIAL ENVIRONMENTS
The Zebra SE4850 Extended Range Module enables you to create mobile devices that will help your customers increase efficiency and throughput throughout their supply chain. From barcodes to documents, this versatile long-range imager captures everything. It allows barcodes to be scanned from close contact distances over 21.3 meters (70 feet), providing the range flexibility required to support virtually any industrial application - workers can capture barcodes and handheld documents with the same ease as they scan barcodes on the highest storage racks.

SE4750SR its maximum reading distance is around 1m.

DECODE RANGES SE4750SR:

3 mil Code 39: Near 7.1cm - Far 15.8cm

5 mil Code 128: Near 5.8cm - Far 22.1cm

5 mil PDF417: Near 7.6cm - Far 20.6cm

6.67 mil PDF417: Near 5.6cm - Far 26.9cm

10 mil DataMatix: Near 6.1cm - Far 26.9cm

100% UPCA: Near 4.1cm - Far 58.4cm

15 mil Code 128: Near 6.1cm - Far 64.0cm

20 mil Code 39: Near 4.1cm - Far 92.2cm

The Zebra SE4750 represents a new generation of imagers that provide unparalleled performance in capturing almost any type of information: from 1 and 2D codes through photos to A5 documents.

Thanks to intelligent imaging technology, patented by Zebra Technologies, the module is second to none. While competing systems rely on decoding software, the SE4750 reduces its load by improving lens-sensor interaction. The improved scanning engine is able to capture better quality images in a much shorter time. Thanks to these changes, the manufacturer managed to eliminate unnecessary delays, setting a new record in the speed of data capture.

Unlike its main competitors, the SE4750 is available in versions that provide the possibility of data transmission via a parallel interface, as well as a modern MIPI interface. The big advantage is also the scanning range, which, even in the 'Standard range' version, is not the norm. SE4750SR users can capture data from a distance of 92 cm, which is 30 percent better than its predecessors. For more demanding users, a 'Mid-range' version has been created with an enlarged working range of over 6 meters. Additionally, it is possible to choose between two versions of the backlight: laser and LED.

To sum up, this miniature and ultra-light scanning module is an unrivaled device with a huge number of possible applications. What's more, the number of features offered, combined with the exceptional scanning speed, make it difficult to find an OEM reader with comparable capabilities on the market.

Zebra SE4750MR - 2D scanner.

SE4750MR maximum reading distance is around 4m.

DECODE RANGES SE4750MR:

5 mil Code 128: Near 18.8cm - Far 40.6cm

5 mil PDF417: Near 20.6cm - Far 33.3cm

7.5 mil DataMatrix: Near 21.1cm - Far 32.5cm

10 mil DataMatrix: Near 17.8cm - Far 43.2cm

100% UPCA: Near 5.8cm - Far 96.5 cm

15 mil Code 128: Near 10.2cm - Far 101.7cm

20 mil Code 39: Near 5.3cm - Far 137.2cm

100 mil Code 39: Near 27.9cm - Far 436.9cm

160 mil DataMatrix: Near 29.2cm - Far 350.5cm

The Zebra SE4750 represents a new generation of imagers that provide unparalleled performance in capturing almost any type of information: from 1 and 2D codes through photos to A5 documents.

Thanks to intelligent imaging technology, patented by Zebra Technologies, the module is second to none. While competing systems rely on decoding software, the SE4750 reduces its load by improving lens-sensor interaction. The improved scanning engine is able to capture better quality images in a much shorter time. Thanks to these changes, the manufacturer managed to eliminate unnecessary delays, setting a new record in the speed of data capture.

Unlike its main competitors, the SE4750 is available in versions that provide the possibility of data transmission via a parallel interface, as well as a modern MIPI interface. The big advantage is also the scanning range, which, even in the 'Standard range' version, is not the norm. SE4750SR users can capture data from a distance of 92 cm, which is 30 percent better than its predecessors. For more demanding users, a 'Mid-range' version has been created with an enlarged working range of over 6 meters. Additionally, it is possible to choose between two versions of the backlight: laser and LED.

To sum up, this miniature and ultra-light scanning module is an unrivaled device with a huge number of possible applications. What's more, the number of features offered, combined with the exceptional scanning speed, make it difficult to find an OEM reader with comparable capabilities on the market.
