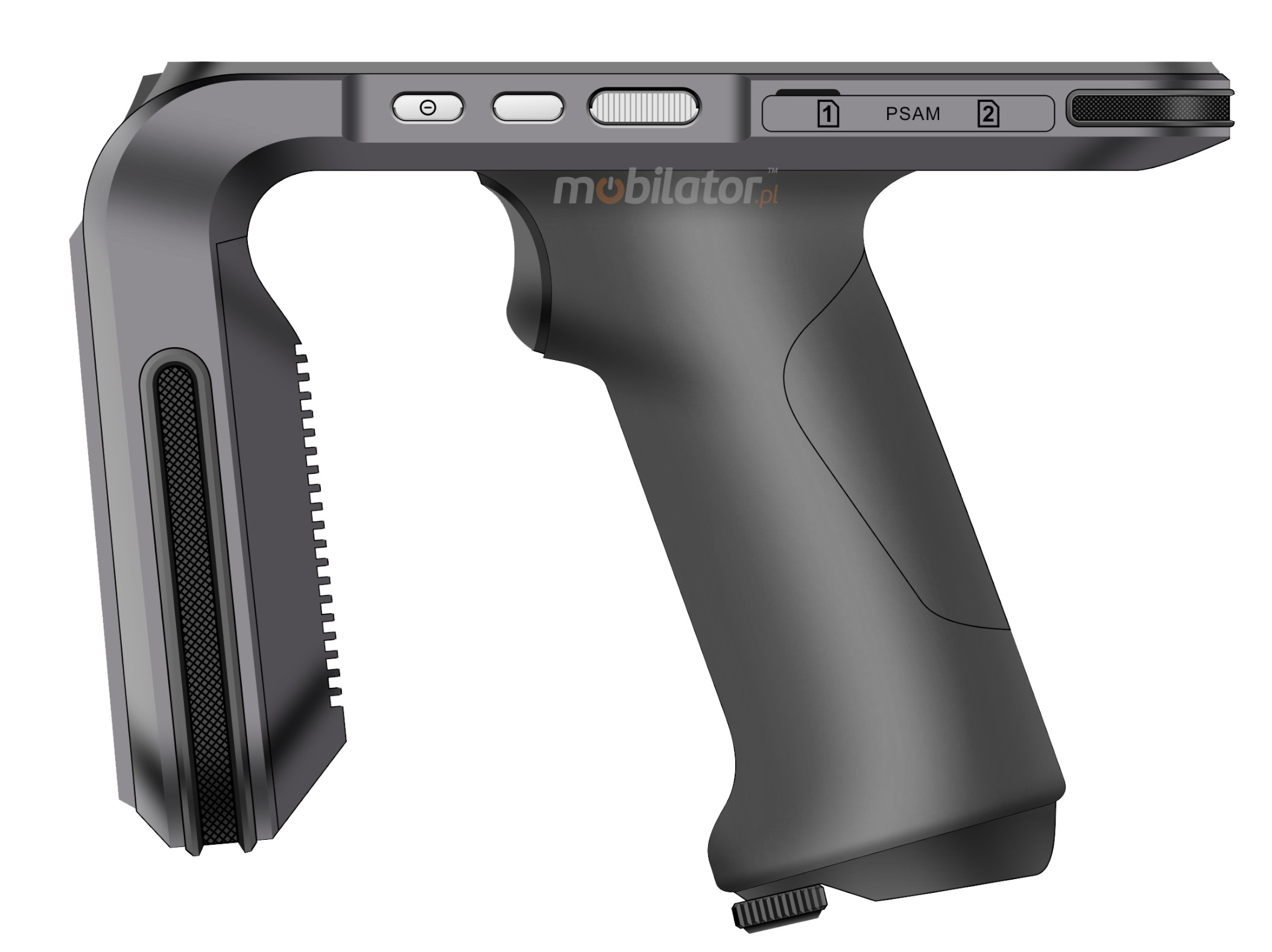

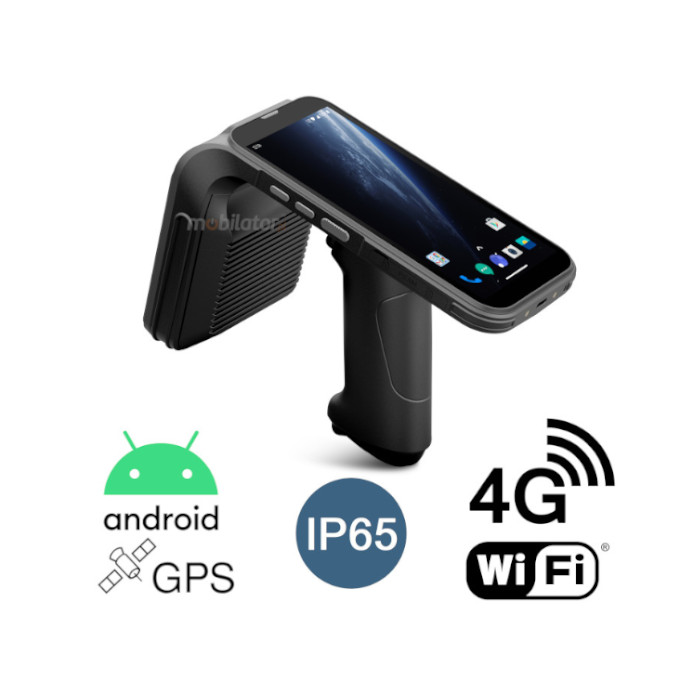

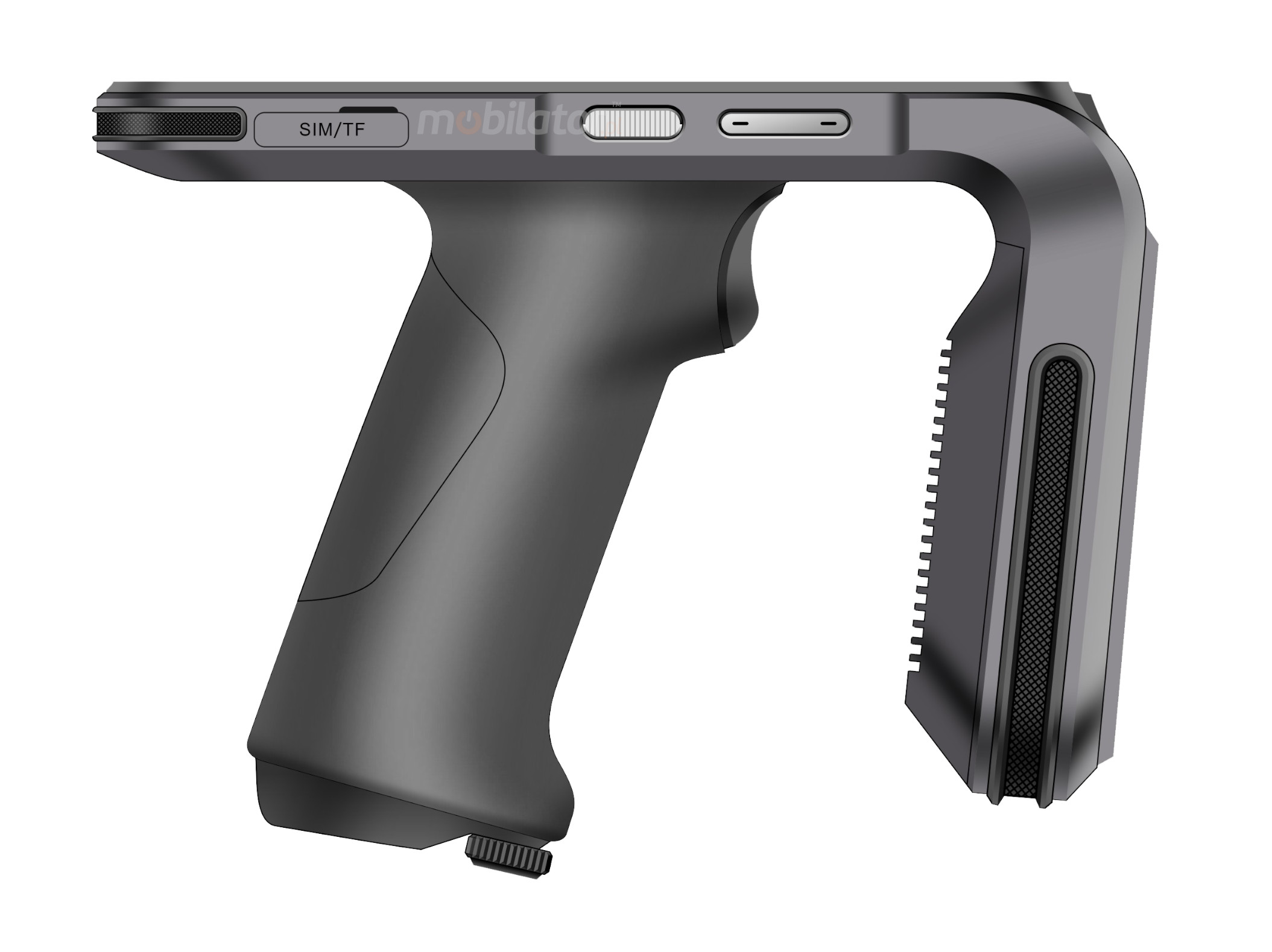

Chainway C5-V6 is a modern, waterproof industrial data collector with a pistol grip designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67.

Specification

RFID reader

* Optional equipment, available in other device versions.

Detailed device specification is available in the "Technical data".

Dustproof industrial data collector was equipped with high performance, energy-efficient MT6765 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory.

Industrial Data Collector Chainway C5-V6 is designed for resistance and convenience. The sleek and rugged design and stylish case will make the collector very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand.

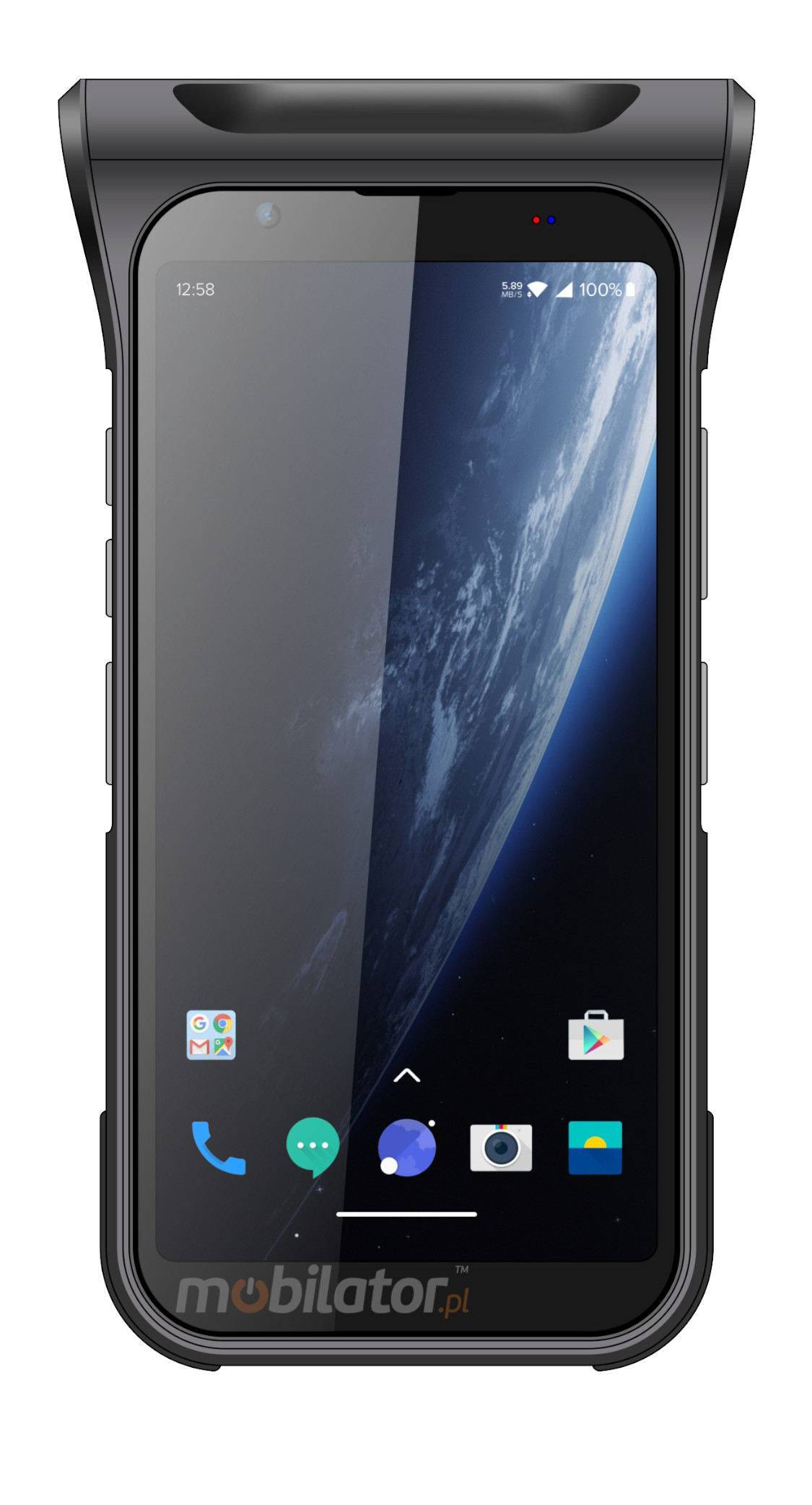

With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our  collector with a few fingers at once.


up…    menu…

REsistance

The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.

Resistant to water jets from any direction

Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the collector screen is protected by specially tempered glass.

Chainway C5-V6 is suitable for continuous operation in both low and high temperatures in the range of -20°C to 50°C. When the device is off, it can handle temperatures ranging from -40°C to 70°C. In addition, the rugged industrial collector performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.

up…    menu…

data collecting

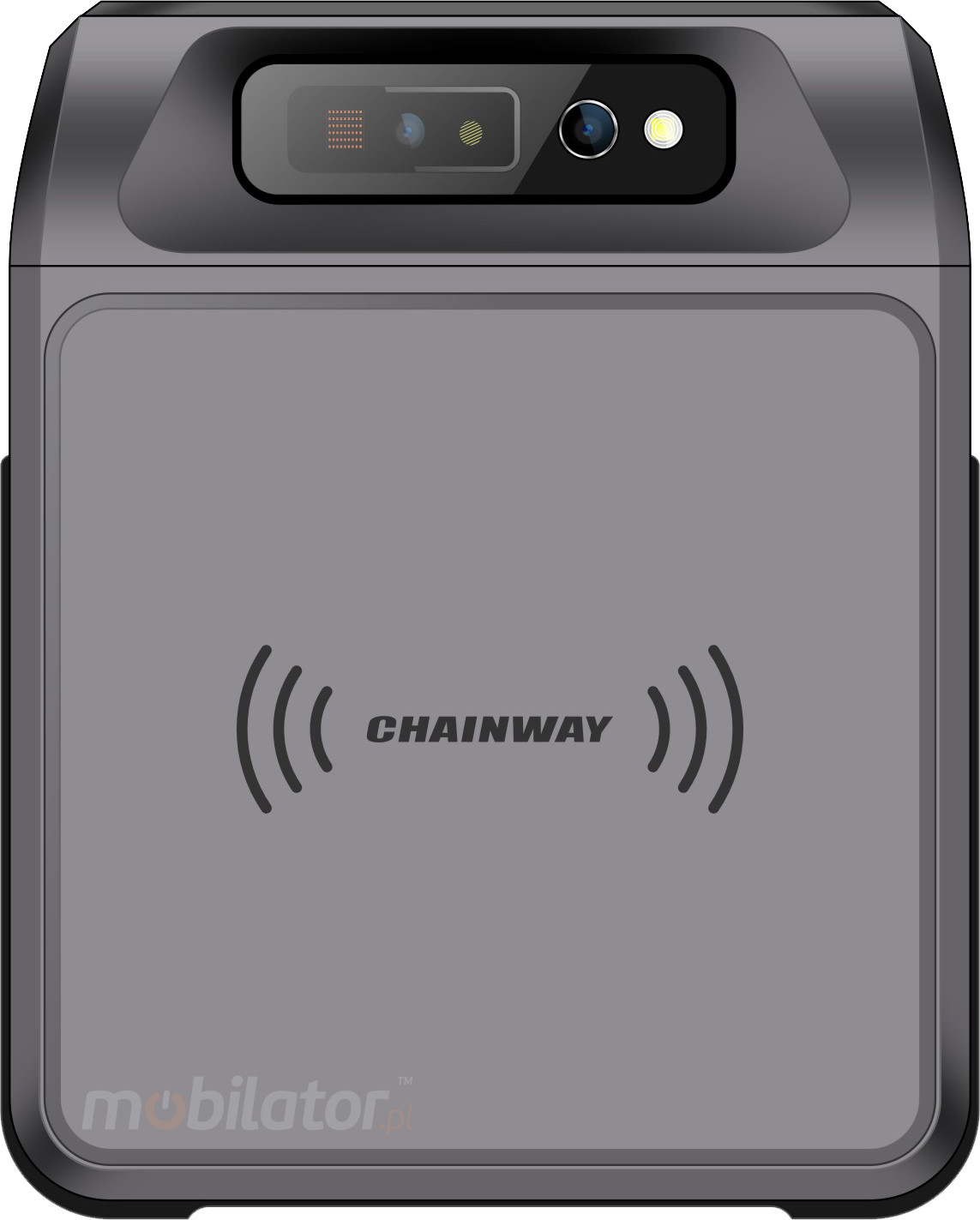

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

* Optional equipment, available in other device versions.

RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. UHF Indy Impinj E710 also has a pistol grip and a battery.

Near Field Communication - a short-range, high-frequency, radio communication standard that allows for wireless data exchange at a distance of up to several centimeters. The technology is a simple extension of ISO14443A/B that combines the smart card interface and reader in one device. NFC devices can communicate with both existing devices in the ISO / IEC 14443 standard, as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure. NFC present in the device supports ISO / IEC 14443A / B and ISO15693 protocols. Working distance is 2-4 cm.

up…    menu…

wireless communication

4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.

Chainway C5-V6 mobile terminal is equipped with a professional A-GPS module (GPS+Glonass+Beidou+Galileo) combining low power consumption with high accuracy. The navigation works quickly and smoothly, which will allow you to reach any destination in an easy and simple way.

Bluetooth 5.0 enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.

Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial collector is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 500 Mb/s.

 up…    menu…

Application

Thanks to their size and light weight, smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.

Industrial data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards).

An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.

up…    menu…

Accessories and available versions

Data collector can be equipped with accessories that facilitate work. We can choose between a charging station, a pistol grip, a battery that extends the operating time of the device, or a strap that makes it easier to hold the collector. No matter which collector you choose. Both will make your work easier and make the performance of tasks a pleasure.

More photos in full resolution available in the "Gallery".
