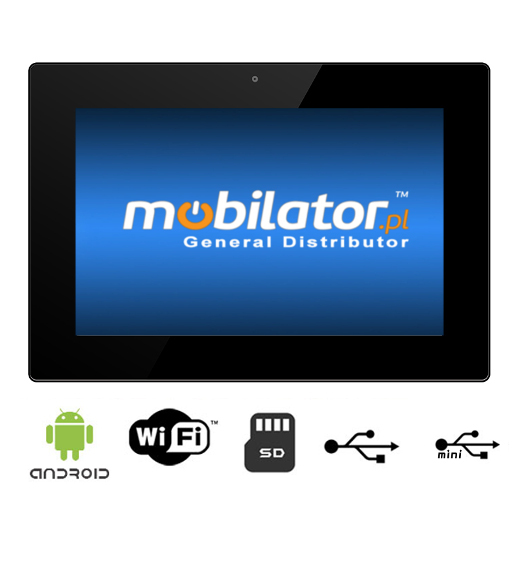

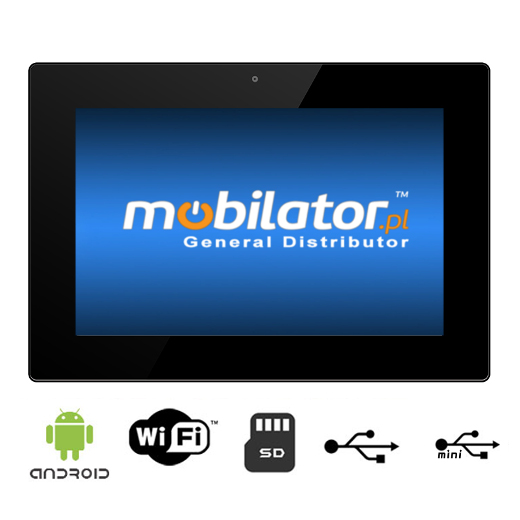

Android Digital Media Player MobiPad MP-T1012
|
|
The product from the archive - production terminated
|
|
Android Media Player
Android Digital Media Player MobiPad MP-T1012 it's device with Android OS which can be use in Digital Signage system.
The concept of Digital Signage includes an integrated form of system management, which includes electronic displays (digital signs, infosics) that present information, advertising, and other messages. Digital signage systems are used, inter alia, at airports, points of sale or service networks (e.g. travel companies, real estate, information, stations, shopping centers, etc.).
|
|
Housing is made of high quality material what ensures a very high resistance . Using the latest technology Digital Engine is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use effective processor and operating memory. Integrated video module allows to play a wide range of applications and media files in Full HD quality. Disk offer free space 8GB EMMC.
|
Processor |
Cortex A7 Allwinner A83T ( 8 x 2GHz) |
OS
|
Android 4.4 |
RAM Memory
|
2GB DDR3 |
Flash Memory
|
8GB EMMC |
Communiaction
|
Wi-Fi, Bluetooth, 3G USB Dongle(option) |
Interfaces
|
Slot SD | USB | miniUSB | RJ-45 | Audio |
Sound Card
|
support dual channel 4R/20W, 8R/10W loudspeaker
|
Camera
|
Front - 2. Mpx
|
Dimensions
|
275 x 188 x 200mm |
Weight
|
3kg |
Storage Temperature
|
-20°C - 70°C |
Work Temperature
|
-20°C - 70°C |
Humidity
|
80% |
Support formats
|
Audio: MP3 | WMA | AAC itp.
Image: jpeg
Wideo: MPEG-1 | MPEG-2 | MPEG-4 | H.263 | H.264 | VC1
RV itp. - support up to 1080p |
Play Modes
|
Loop, Timing, inter-cut and variable
|
Application
|
MSN | Skype | Facebook | Twitter | Youtube | E-mail
Google map itp. |
|
|

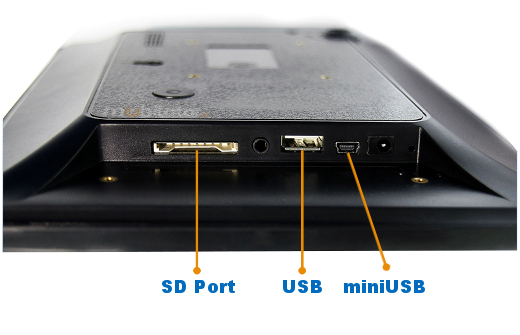

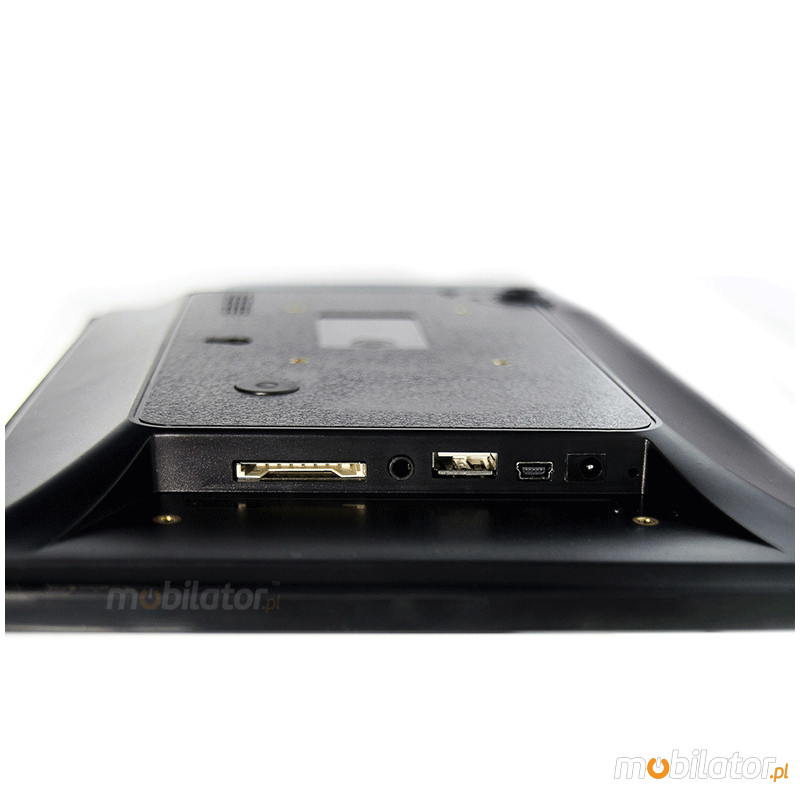

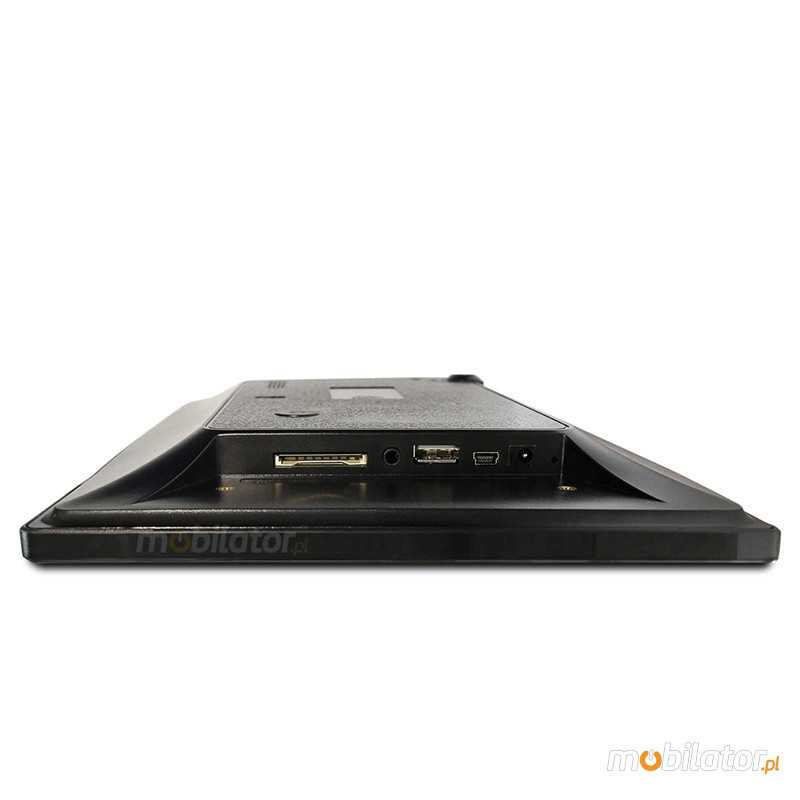

Thanks installed WiFi card it is possible to connection to the network and Bluetooth module make possible to wireless data transfer. The computer is equipped with: one SD slot, one Audio port, one USB port, one miniUSB, and Power On/Off.
do góry…  menu…
|
|
|
|
Digital Signage is a modern, dynamic form of advertising that allows you to stand out from the competition and raise interest among your audience. This solution allows you to remotely control your monitor network with one central device. In addition, it is possible to integrate such device with the company's database applications, which allows for full automation of displayed messages, thanks to this solution the receiver always has access to up-to-date data. Despite being a relatively new form of information transfer, Digital Signage is slowly but effectively supplanting older, static forms of advertising such as posters, banners, banners and leaflets.
Digital Signage comes in many different forms and can be used for almost any purpose. Advertising monitors can be found in places such as airports, shops, hotels, service centers, shopping malls, train stations, tourist offices and other smaller or larger companies, both indoor and outdoor. Wherever used, they will surely attract the attention of the customer, they will bring to your business the atmosphere of modernity and originality and will make them stand out among the competition.
do góry… menu…
Android Digital Media Player MobiPad MP-T1012 is based on high-performance eight-core processor and high-quality components. The biggest advantages of these devices are: small size, performance and energy efficiency. Offered model MobiPad MP-T1012 has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Trade and services
|
The commercial industry is the mainstay of this type of device, Digital Signage can be used here to present prices, products, branding, promotion information, or traffic to the selected product. For tactile interaction, you can also use tactile infokios.
|
 |
Hotel and gastronomy
|
|
In this type of place Digital Signage can serve not only for commercial purposes but also for information such as menu presentation, promotion of services, information on available rooms, booking rooms, etc. |
Industry
In industry-related areas, DS panels can display order tables, production information, employee information, and device monitoring. Touch Digital Signage can be used to organize interim Fire protection tests, health and safety, etc.
|
 |
Offices and institutions
|
Here, just as in the industry, DS systems are primarily information functions, can display messages, notices, but also present announcements (eg job offers) or even help customers. |
Education
|
Digital Signage places a modern information network displaying information such as room listings, lesson plans, conference listings, and reminders of important events. |
 |
|
*more details in "Technical Data"...
|
|
|
| Screen size: |
10.1” LCD IPS 1280*800 |
| Resolution: |
1280*800 |
| Aspect ratio: |
16:9 |
| Touchscreen: |
Yes - capacitive 10-point |
| Chipset: |
Allwinner A83T |
| CPU Support: |
----- |
| Installed CPU: |
Allwinner A83T ( 8 x 2GHz) |
| Memory Support: |
DDR3 |
| Installed Memory: |
2GB DDR3 |
| Graphic Card: |
Integrated |
| Audio: |
support dual channel 4R/20W, 8R/10W loudspeaker |
| Storage (HDD) Support: |
Flash |
| Installed Storage (HDD): |
8GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
----- |
| Wireless LAN card: |
Yes |
| Bluetooth: |
Bluetooth 4.0 |
| 3G: |
3G USB Dongle (optional) |
| 4G LTE: |
|
| GPS: |
No |
| TV Tuner: |
----- |
| Watch Dog Timer: |
Yes |
| Ports - front panel: |
----- |
| Ports - rear panel: |
----- |
| Ports - left panel: |
----- |
| Ports - right panel: |
1x SD card slot(max 32GB)
1x Audio
1x USB 2.0
1x miniUSB
1x DC |

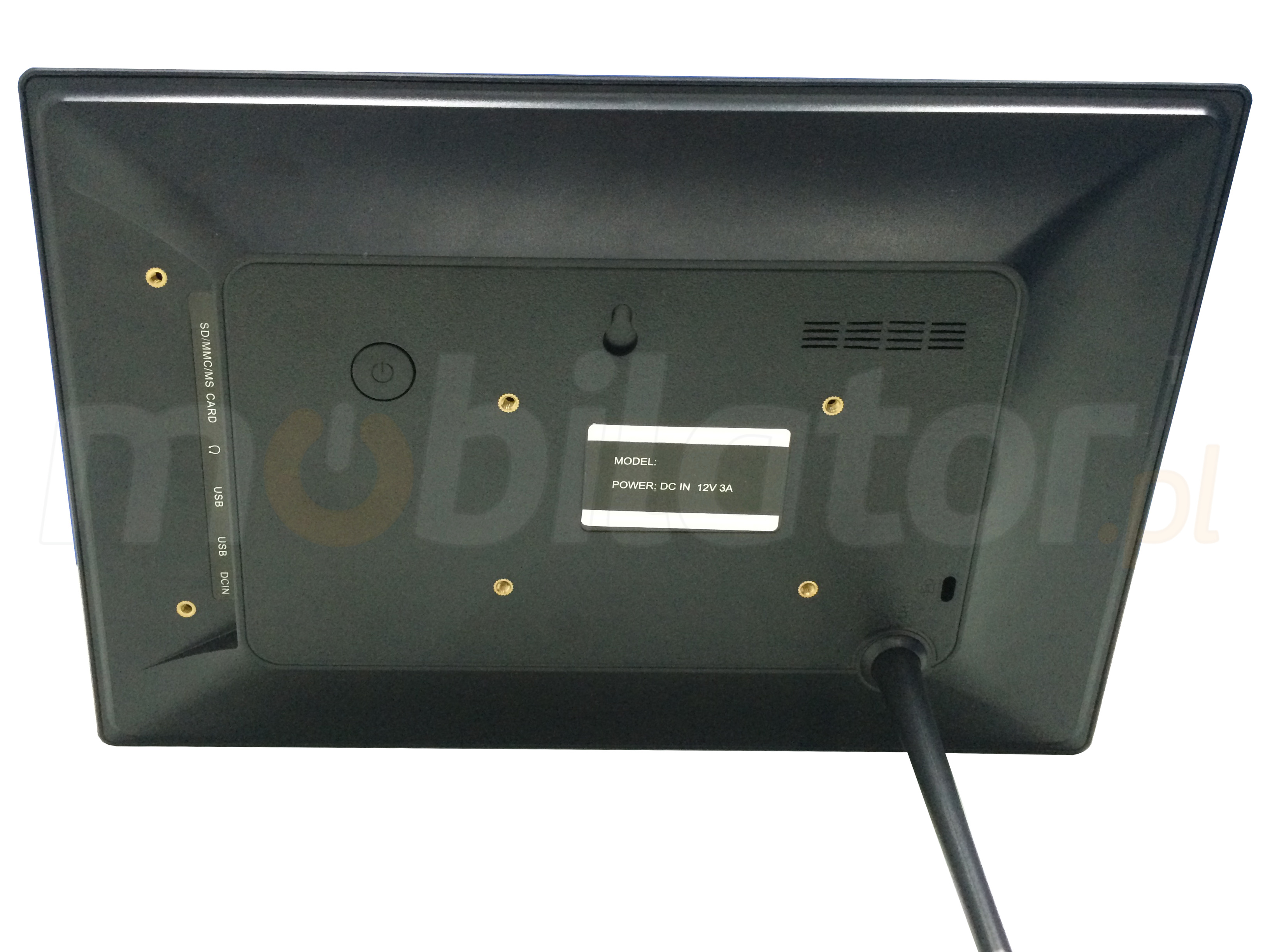

| Power: |
12V |
| Supported OS: |
Android |
| Installed OS: |
Android 4.4 |
| Dimensions: |
275x188x200mm |
| Weight: |
3kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
80% |
| Temp: |
-20 ～70℃ |
| Storage Temp: |
-20 ～70℃ |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
No |
| Response time touch-panel (ms): |
----- |
| Contrast Ratio: |
700 |
| Brightness: |
300 cdm2 |
| Viewing Angle: |
|
| Backlight MTBF: |
----- |
| Color Resolution: |
|
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
----- |
| Housing material: |
High quality plastic |

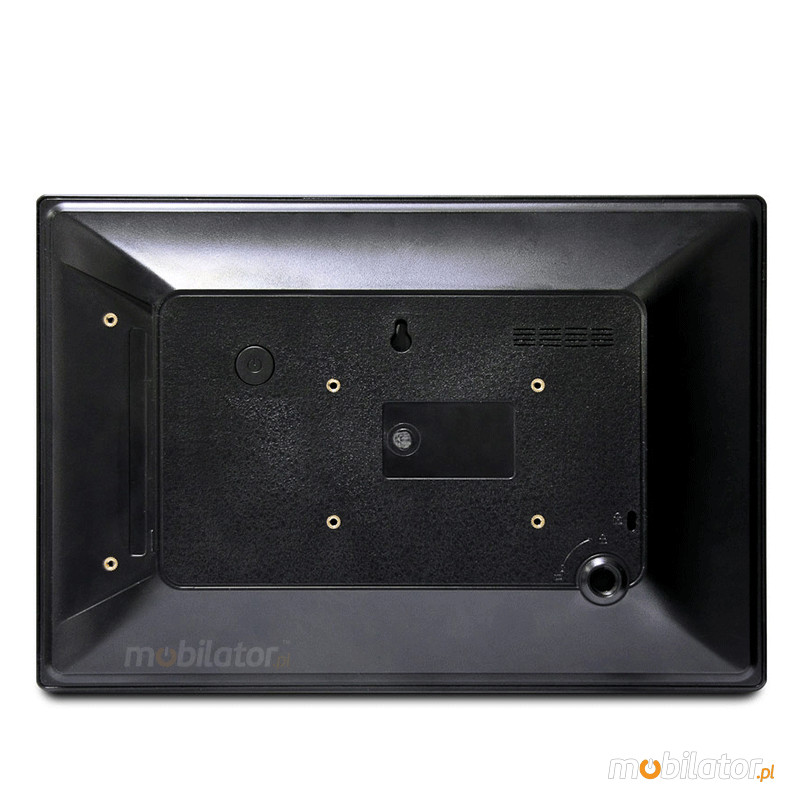

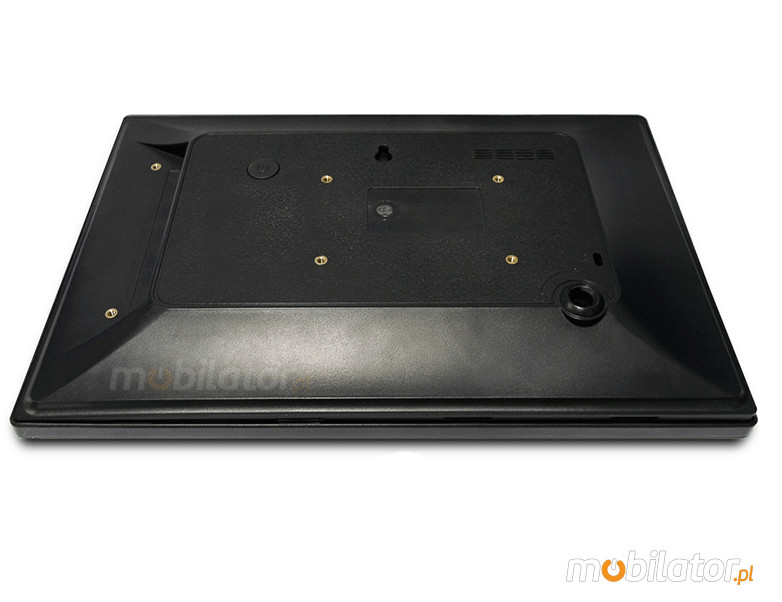

| Mounting VESA: |
100mm x 100mm |
| Folding Bracket (for office type working): |
Yes - to work on desk |
| Power Consumption: |
----- |
| Others: |
High quality plastic - Colour Black | Real Time Clock | Camer Front 2Mps |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
No |
| Barcode reader: |
No |
