3 YEARS WARRANTY Industrial Computer Fanless MiniPC HyBOX 07PMF-N3160-1C v.5
|
|
The product from the archive - production terminated
|
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
MiniPC Nuc HyBOX 07PMF-N3160-1C is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 134 (W) x126 (L) x38 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 2GB/4GB/8GB DDR3L memory. Integrated Intel HD Graphics 400 video and audio High Definition Audio Controller allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 16GB/32GB/64GB/128GB/256GB SSD and 500GB/1TB HDD.
The 3-year limited warranty does not apply to RAM and hard disk drive, which is provided with a separate one-year limited warranty!
.jpg)
|
|

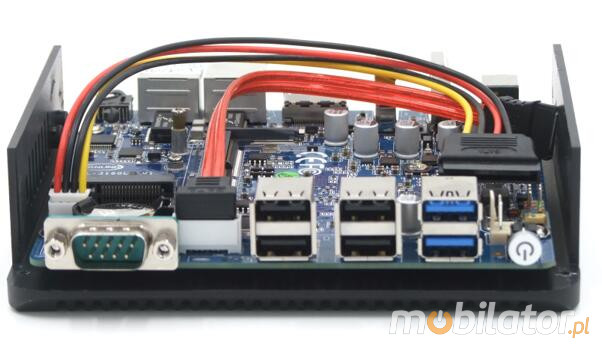

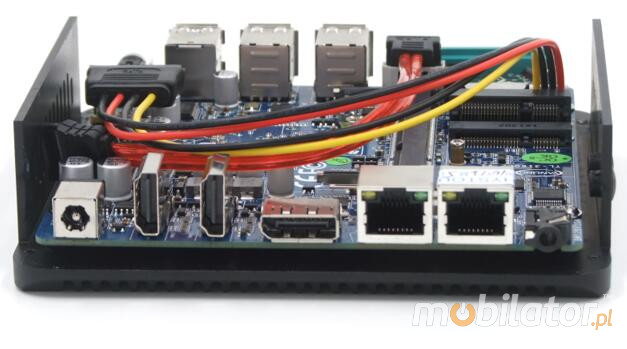

Integrated card - Intel RTL811E 1000M Lan and the Wi-Fi module allow connection to the network. The computer is equipped with: two LAN ports, one DisplayPort port, two HDMI ports, two USB 3.0 ports, four USB 2.0 ports, two COM(RS232) ports and a built-in connector on the motherboard: SATA port and mSATA port.
|
|
Cooling
The industrial fanless MiniPC HyBOX 07PMF-N3160-1C uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
go top…  menu…
|
|
|
|
Industrial MiniPC HyBOX 07PMF-N3160-1C are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of HyBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.jpg) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial MiniPC
Digital Engine
|
Trade
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Magazine
Industrial fanless MiniPC HyBOX 07PMF-N3160-1C by USB and COM ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport and cars
MiniPC HyBOX 07PMF-N3160-1C can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
|
|
Dimension
|
H: 38 mm
L: 126 mm
W: 134 mm
|
Processor
|
Intel Celeron N3160 Quad Core(4x1.6GHz)
|
Chipset
|
Intel express chipset |
RAM Memory
|
4GB DDR3L
|
Graphic Card
|
Intel HD Graphics 400
|
Sound Card
|
High Definition Audio Controller |
WLAN
|
Intel RTL8186/8111/8112 Gigabit NIC |
|
Connectors |
1x 12V DC Jack
2x USB 3.0
4x USB 2.0
2x RJ-45 LAN
1x DisplayPort
2x HDMI
1x Audio
1x COM
Wi-Fi
|
|
|
|
|
Compare all versions
| Others: |
Color Black |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Celeron N3160 Quad Core(4x1.6GHz) |
| Memory Support: |
DDR3L (max. 8GB) 1333/1600MHz SO-DIMM |
| Installed Memory: |
4GB DDR3L (1 year warranty) |
| Graphic Card: |
Intel HD Graphics 400 |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
500GB HDD (1 year warranty) |
| CD/DVD Drive: |
----- |
| LAN: |
2x Intel RTL8186/8111/8112 Gigabit NIC |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |

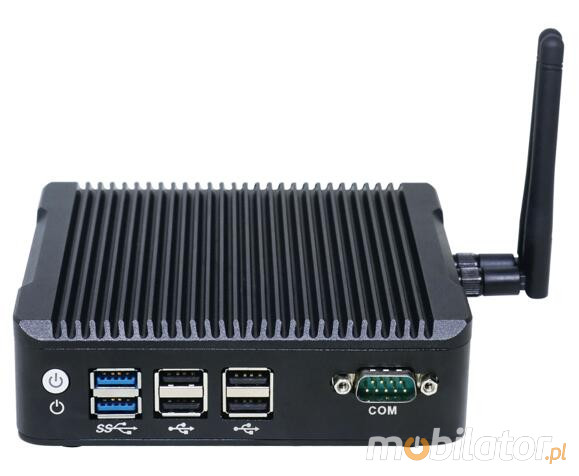

| Front Panel (ports): |
2x USB 3.0
4x USB2.0
1x COM(RS232)
Power ON/OFF |

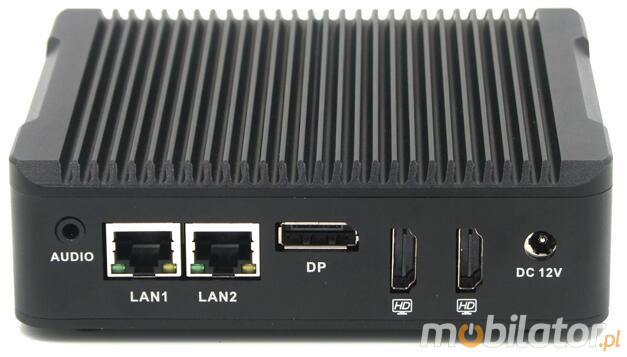

| Rear Panel (ports): |
DC-IN 12V
2x RJ-45 LAN
2x HDMI
1x DP
1x Audio |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
134 x 126 x 38 mm |
| Weight: |
650g |
| Expansion: |
HDMI Cable
HDMI to DVI Cable
HDMI to VGA Cable |
| Fanless: |
Yes |
| Humidity: |
10 ~ 85% |
| Temp: |
0 ～70℃ |
| IP Norm: |
----- |
| Storage temperature: |
0 ~ 70℃ |
Compare all versions
Compare all versions
