Industial PanelPC D-SYS 10.4 v.6
|
|
The product from the archive - production terminated
|
Compare all versions
|
Industrial Panel PC
Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.
|
|
|
DNSYS
|
Industial PanelPC D-SYS 10.4 v.6
|
|
|
 |
CPU: Intel® Core™ i7-3770 (8M Cache, 4 x 3.40 GHz)
|
|
|
Memory: 2GB RAM
|
|
|
Disk: 64 GB SSD / 500 GB HDD (optoin) |
|
|
System: Windows 8 / Windows 7
|
|
|
Screen: 10.4" / 1024x768 / 4:3 / 4 - Wire Resistive
|
|
.png)
|
Expansion cards: 1 x PCIe x16, 1 x mini-PCIe
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (100 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Core i7 processor family, Intel chipsets and DDR2 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC109 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 256 (W) x 203.2 (L) x 73.5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.jpg)
Cooling:
Industial PanelPC D-SYS 10.4 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
The computer panel DNSYS 10.4 uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Industial PanelPC D-SYS 10.4 optional has a system of wireless Wi-Fi communication.
Connector:

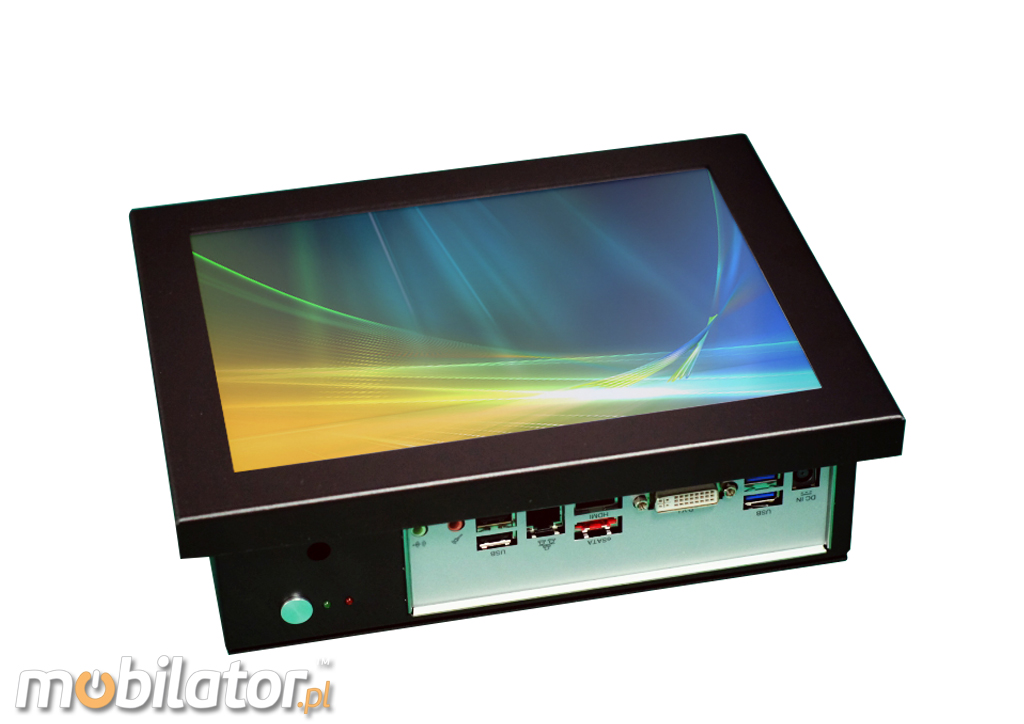

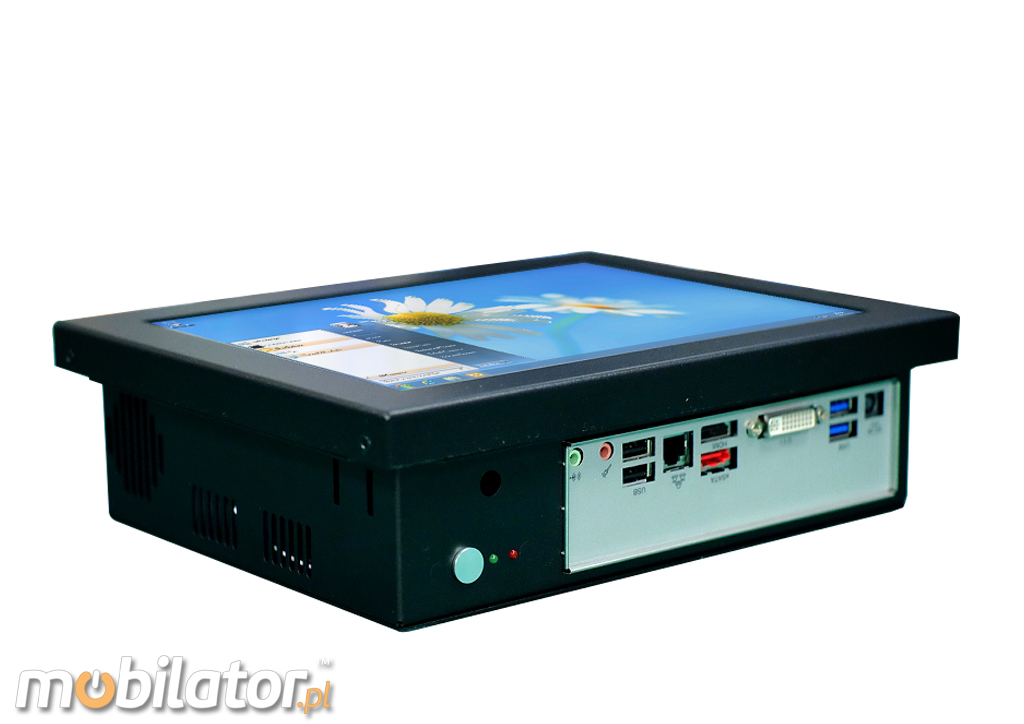

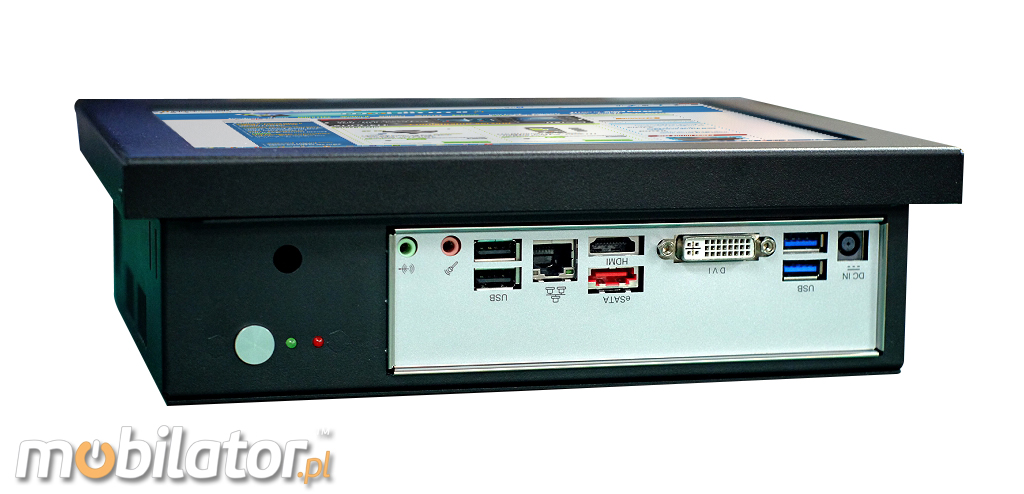

Integrated Realtek GbE LAN chip (10/100/1000 Mbit), WIFI (optional) allows you to connect the device to the network. The computer is equipped with: one LAN connector, one DVI output, one HDMI output, two USB 2.0 ports, two USB 3.0 ports, one audio input, one microphone, one eSATA port and power connector. Additionally, the panel can be equipped with one VGA connector and two COM connectors.
1. Audio
|
4. 1 x RJ45
|
7. 1 x DVI
|
2. Mic
|
5. 1 x HDMI |
8. 2 x USB 3.0
|
3. 2 x USB 2.0
|
6. 1 x eSATA
|
9. DC-in
|
|
|

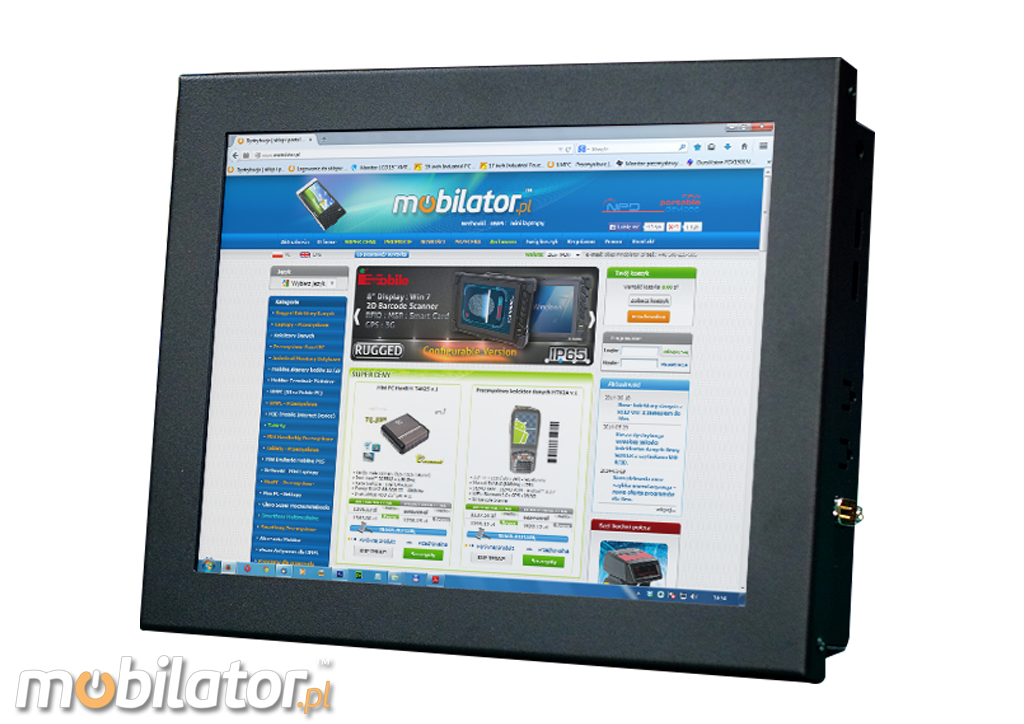

Industial PanelPC D-SYS 10.4 has a water-resistant front panel and scratch resistant LCD screen. With 1024x768 resolution and high brightness of 350 cd/m2, screen of "4 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
4-WIRE RESISTIVE SCREENS
The 4-wire Resistive Touch Screen is the preferred solution for low-cost applications. It consists of a conductive bottom layer of either glass or film and a conductive top film layer, separated by extremely small, transparent spacer dots. A voltage is applied across the conductive surface. When pressure from a touch is applied to the top layer, it is deflected and makes contact with the bottom layer resulting in a voltage drop. This change is detected by the controller. By alternating the voltage signal between the top layer and the bottom layer, the X and Y coordinates of the user’s touch are computed.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
|
Industial PanelPC D-SYS 10.4 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. DNSYS 10.4 is the best solution for extreme applications in dust or moisture.
.jpg)
|
Operating Temp
|
0-50 °C |
|
Operating Humidity |
85 % RH
|
|
Industrial Panel PCs with DNSYS companies are based on the efficient two-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top…  menu…
|
go top… menu…
Display
|
Screen: 10.4"
Resolution: 1024 x 768
Type: 4 - Wire Resistive |
Resistance IP
|
none
|
Communication
|
Wi-FI (option)
|
|
Dimensions
|
Height: 203.2 mm
Width: 73.5 mm
Length: 256 mm
|
|
Weight |
3.5 kg
|
|
Processor |
Intel® Core™ i7-3770 (8M Cache, 4 x 3.40 GHz) |
Chipset
|
Intel®H81 Chipset |
Memory RAM
|
2GB (optional up to 16GB) |
Graphics Card
|
Intel® HD Graphics 4000
|
Sound Card
|
Realtek ALC109
Option: 2x Speakers
|
Network Card
|
GbE LAN1:Intel 82583V, LAN2: Intel 82579V |
|
Ports & interfaces |
2 x USB 2.0
2 x USB 3.0
1 x RJ-45,
1 x eSATA
1 x DVI,
1 x HDMI,
1 x Mic-in
1 x Line-out
Option:
1 x VGA
3 x COM
|
|
|
.jpg)
|
|
Compare all versions
| Screen size: |
10.4" |
| Resolution: |
1024 x 768 |
| Aspect ratio: |
4:3 |
| Touchscreen: |
Resistive Type 4-Wire |
| Chipset: |
Intel® H81 Express Chipset |
| CPU Support: |
Intel Core i7/i5/i3/Celeron - Socket LGA1150 |
| Installed CPU: |
Intel® Core™ i7-3770 (8M Cache, 4 x 3.40 GHz) |
| Memory Support: |
do 16 GB DDR3 / 1600/1333MHz / 2 x SO-DIMM |
| Installed Memory: |
2 GB |
| Graphic Card: |
Intel® HD Graphics 4000 |
| Audio: |
Realtek ALC109 , 6 channel high-fidelity sound card |
| Storage (HDD) Support: |
32 - 512 GB SSD / 320 - 1TB HDD (SATA II) |
| Installed Storage (HDD): |
64 GB SSD (option: 500 GB HDD) |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Wireless LAN card: |
No (option) |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1x e-SATA / 1x LAN / 2x USB 3.0 / 2X USB 2.0 / 1x HDMI / 1x DVI / 2x Audio(Mic-in, Line-out) |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
12V DC-in |
| Supported OS: |
Microsoft Windows: 7/8 |
| Installed OS: |
----- |
| Dimensions: |
256 x 203.2 x 73.5 mm |
| Weight: |
3.5kg |
| Expansion: |
Connector: 2x COM / 1x VGA | Speakers: x2 |
| Fanless: |
No |
| Humidity: |
85 % RH |
| Temp: |
0°C ~ 50°C |
| Storage Temp: |
-10°C ~ 60°C |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
Yes |
| Response time touch-panel (ms): |
<10ms |
| Contrast Ratio: |
500 |
| Brightness: |
400 cd/m2 |
| Viewing Angle: |
70/70/60/60 ( R/L/U/D) |
| Backlight MTBF: |
LCD |
| Color Resolution: |
262K |
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
50 000 h |
| Housing material: |
Metal and Alluminum |
| Mounting VESA: |
Yes |
| Folding Bracket (for office type working): |
----- |
| Power Consumption: |
100 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
|
Compare all versions
Compare all versions
