Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.2
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/komputer-przemyslowy-fanless-minipc-mbox-nuc-q190p-v.2-produkt-87658.html

Computer Industrial Fanless MiniPC mBOX Nuc Q190P v.2

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX Nuc Q190P is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu

Description


Housing dimension are 135 (W) x128 (L) x45 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 0.82 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB/128GB/256GB SSD or 500GB HDD. Support together: mSata SSD and 2.5 inch SSD/HDD - SATAIII.



srodek minipc przemyslowy Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Version for you

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


v.1 v.2 v.3 v.4 v.5 v.6
WIFI b/g/n
2GB RAM - - - - -
4GB RAM
- - -
8GB RAM - - - -
32GB mSATA
- - - - -
64GB mSATA - - - - -
128GB mSATA - - - - -
256GB mSATA - - - - -
500GB HDD - - - -
go topdo góry   menu… menu

Communiaction & Connectors

Integrated card - Intel RTL8111E LAN and WiFi module allow connection to the network. The computer is equipped with: two LAN port, four COM (RS232) port, one VGA output, three USB 2.0 ports, one USB 3.0 port, one HDMI output one way audio, one microphone input.

zlacza przod usb hdmi com Computer Industrial Fanless MiniPC mBOX Nuc Q190P

1. 1x Mic
  4. 1x COM (RS232)
2. 1x USB 3.0
  5. Power ON/OFF
3. 3x USB 2.0

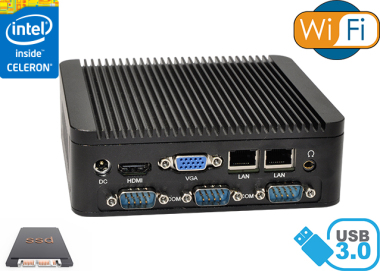

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

1. 1x DC-IN 12V
  4. 2x LAN RJ-45
2. 1x HDMI
  5. 1x Audio Jack
3. 3x COM(RS232)
  6. 1x VGA

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Cooling

The industrial fanless MiniPC MBOX Nuc Q190P uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
go topdo góry   menu… menu

Usability

Industrial MiniPC Series MBOX Nuc Q190P are based on high-performance quad-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications.

The biggest advantages Industrial Fanless MiniPC mBOX Nuc Q180P of these devices are: small size, performance and energy efficiency. An extra pair of bracComputer Industrial Fanless MiniPC mBOX Nuc Q190Pkets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Areas of use of industrial MiniPC

Digital Engine

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Computer Industrial Fanless MiniPC mBOX Nuc Q190P
Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Warehouse

Industrial fanless MiniPC MBOX Nuc Q190P by to four USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX Nuc Q190P can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Computer Industrial Fanless MiniPC mBOX Nuc Q190P

Computer Industrial Fanless MiniPC mBOX Nuc Q190P



Computer Industrial Fanless MiniPC mBOX Nuc Q190P

go topdo góry   menu… menu



Specifications


  Dimensions





   H: 45 mm

   L: 128 mm

   W: 135 mm

   Weight    0,82kg
   Processor    Intel Celeron J1900 (4x 2GHz)
   Chipset
   Intel NM70
   RAM
   4GB DDR3
   Graphics
   Intel HD Graphics
   Sound Card
   Realtek ALC662
   WLAN
   RTL8111E 10/100/1000 Controller
   Connectors

   1x Power ON/OFF

   1x USB 3.0

   3x USB 2.0

   1x MIC

   4x RS232

   1x Power Input

   1x HDMI

   1x - VGA

   2x - RJ45

   1x - Speaker

Computer Industrial Fanless MiniPC mBOX Nuc Q190P


Others: Colour Black, Aluminum
Chipset: Intel NM70
CPU Support: -----
Installed CPU: Intel Celeron J1900 (4x2GHz)
Memory Support: 2GB DDR3 (max. 8GB)
Installed Memory: 4GB DDR3
Graphic Card: Intel HD Graphics
Storage (HDD) Support: -----
Installed Storage (HDD): 64GB mSata SSD (opc. mSata SSD + 2,5" SSD/HDD)
CD/DVD Drive: -----
LAN: Realtek RTL8111E 10/100/1000 Controller
Wireless LAN card: Yes - WIFI b/g/n
Bluetooth: No
3G: No
4G LTE:
TV Tuner: -----
Watch Dog Timer: 0~255 sec
Front Panel (ports): Power ON/OFF
1x USB 3.0
3x USB 2.0
1x MIC
1x COM (RS232)
Rear Panel (ports): 1x Power Input
1x HDMI
1x VGA
2x LAN (RJ45)
3x COM (RS232)
1x Audio Jack
1x Mic
Power: DC 12V
Supported OS: Microsoft Windows: 7/8/8.1, Linux
Installed OS: -----
Dimensions: 135 x 128 x 45mm
Weight: 0.82 kg
Expansion: -----
Fanless: Yes
Humidity: 0 ~ 95%
Temp: 0 - 50 ℃
IP Norm: -----
Storage temperature: -15 - 70 ℃


CURRENT PRICE
1380.27 € Net
1697.73€ Gross
