Rugged Tablet Emdoor I22K - Windows 10 Home

Rugged Tablet Emdoor I22K - Windows 10 Home

Data update: 2019-09-19

guarantee 1 year (opt. 3)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

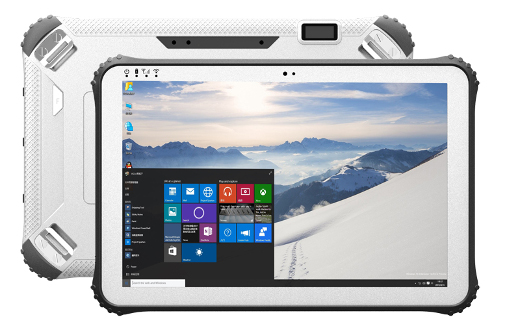

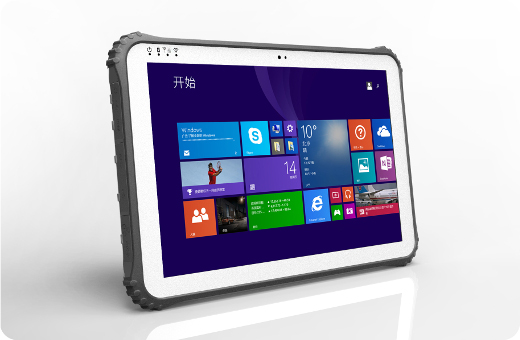

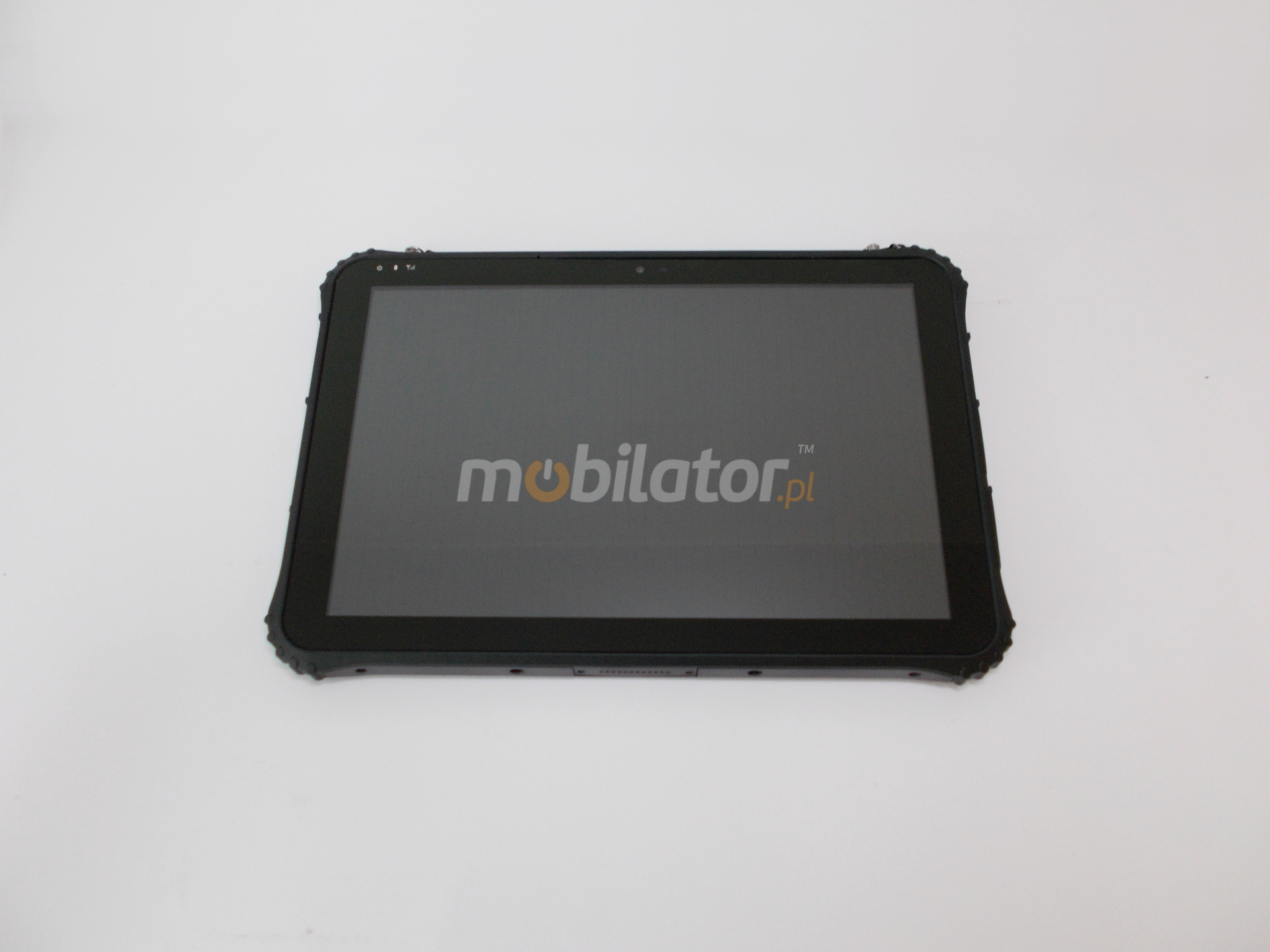

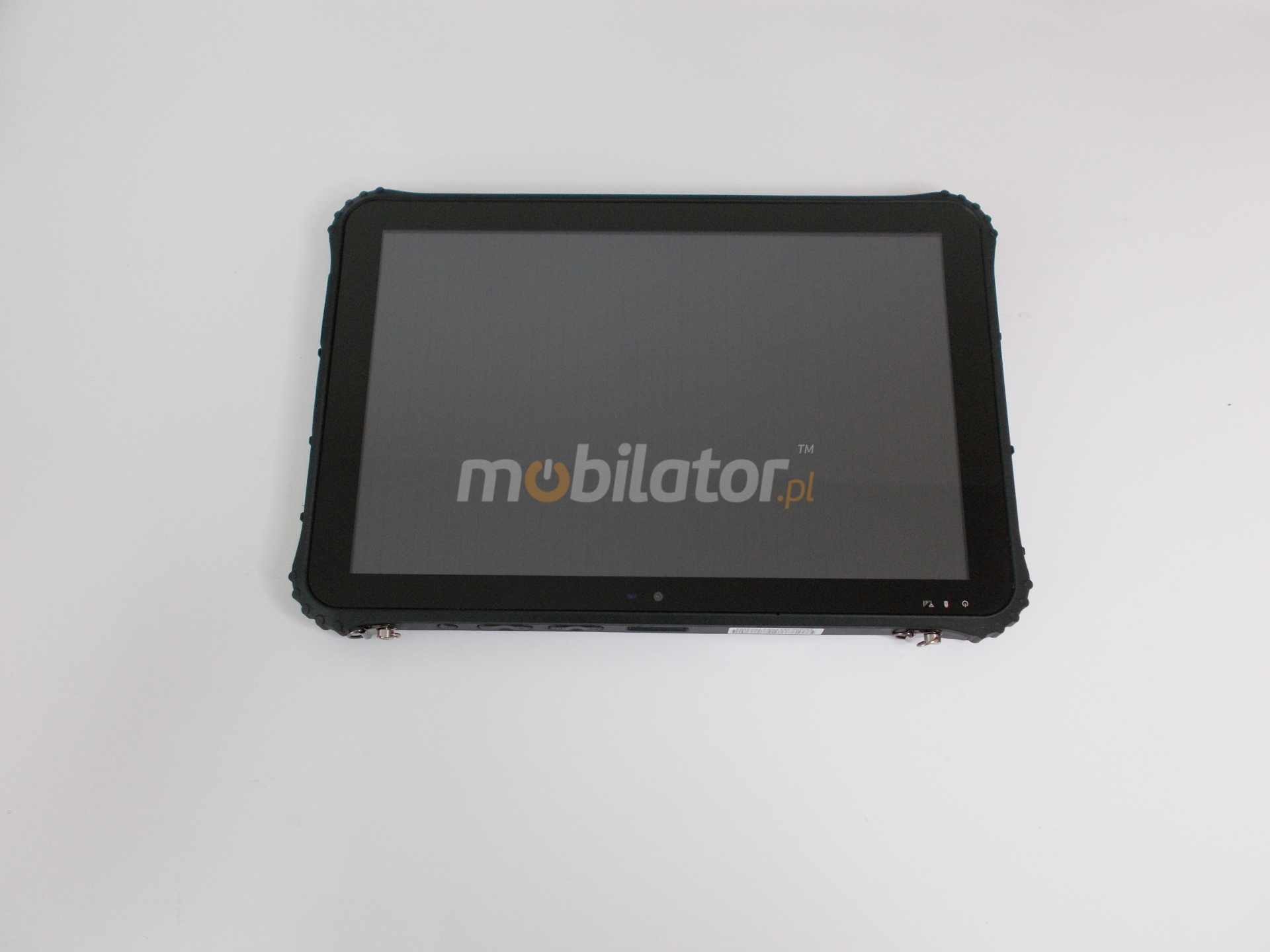

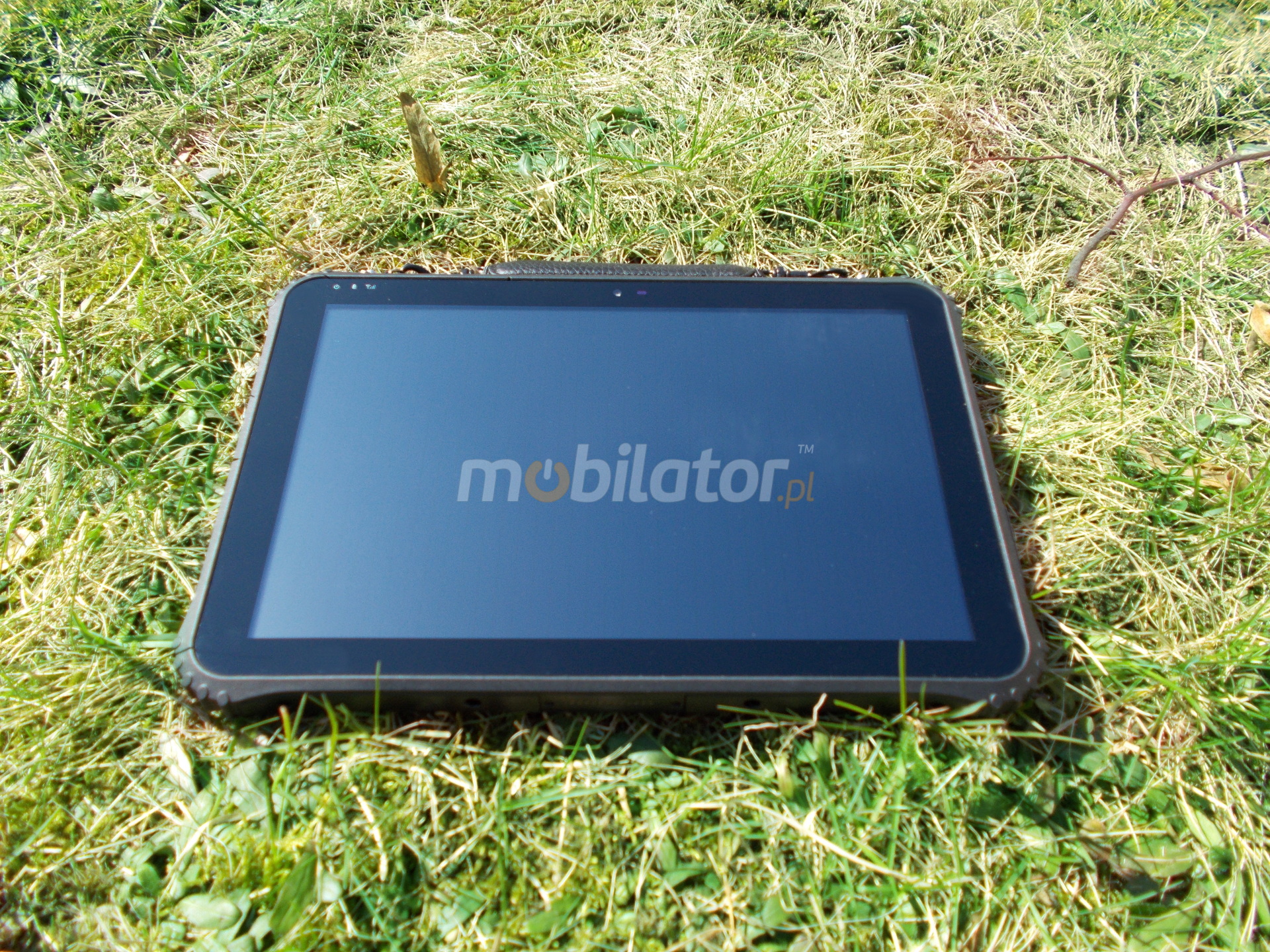

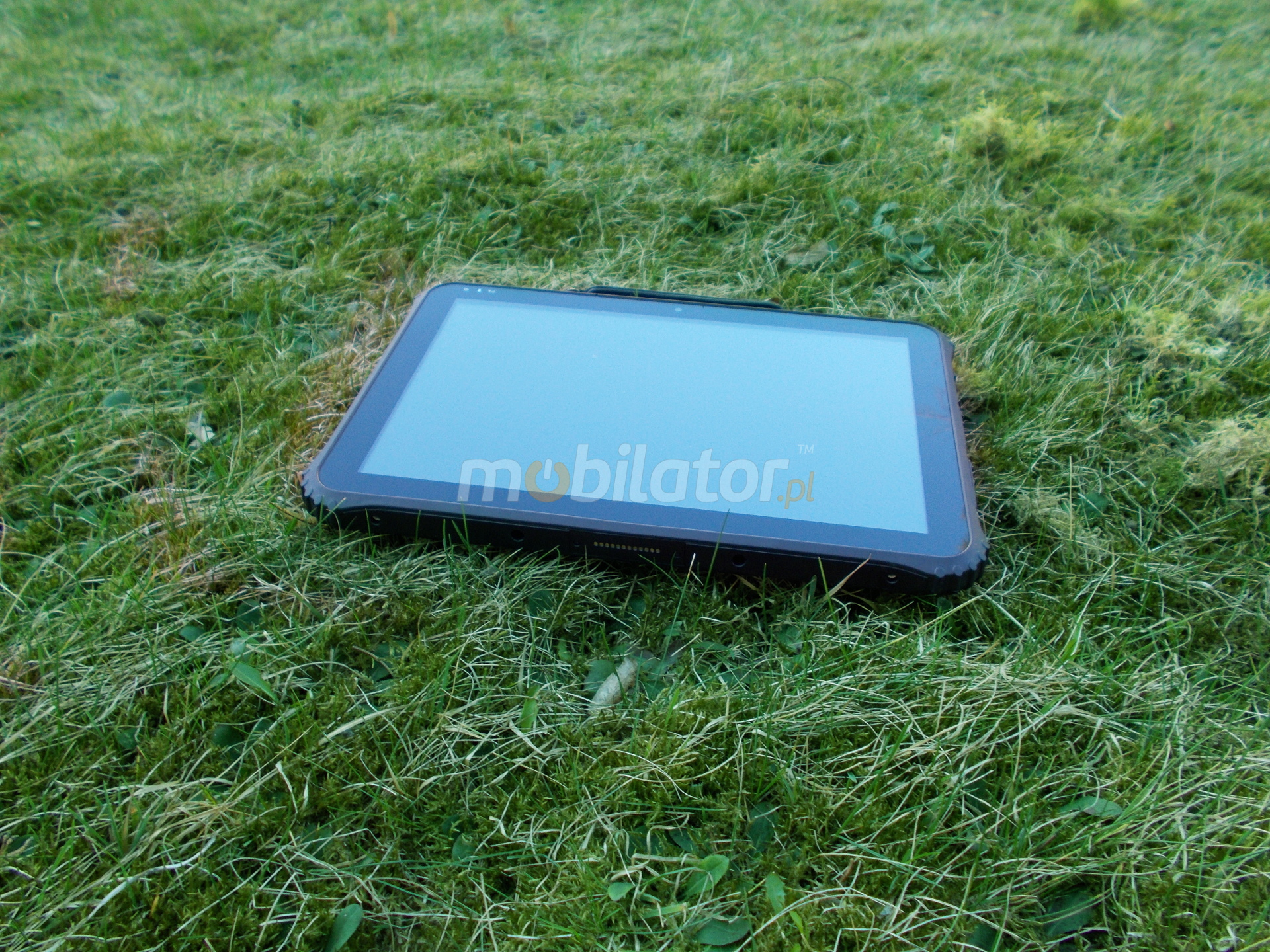

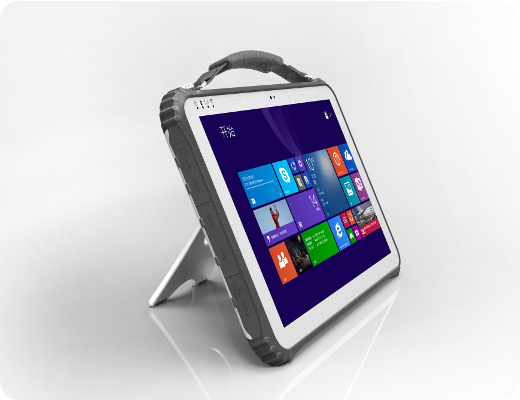

Emdoor I22K is a new proposal 12.2 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

i22k rugged industrial tablet

Emdoor I22K is offered with the latest dual-core Intel Kabylake Core m3-7Y30 to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.

 Processor  Intel Kabylake Core m3-7Y30 (2x 1GHz)
 Graphics  Intel HD Graphics 515
 Display  12.2” (1920*1200) 16:10 | Sunlight Readable (optional)
 Type of display
  IPS | Gorilla Glass | Capacitive (5-punktowy)
 LED
  Power
 Brightness  280nits
 RAM  4GB DDR3L
 ROM 128GB FLASH

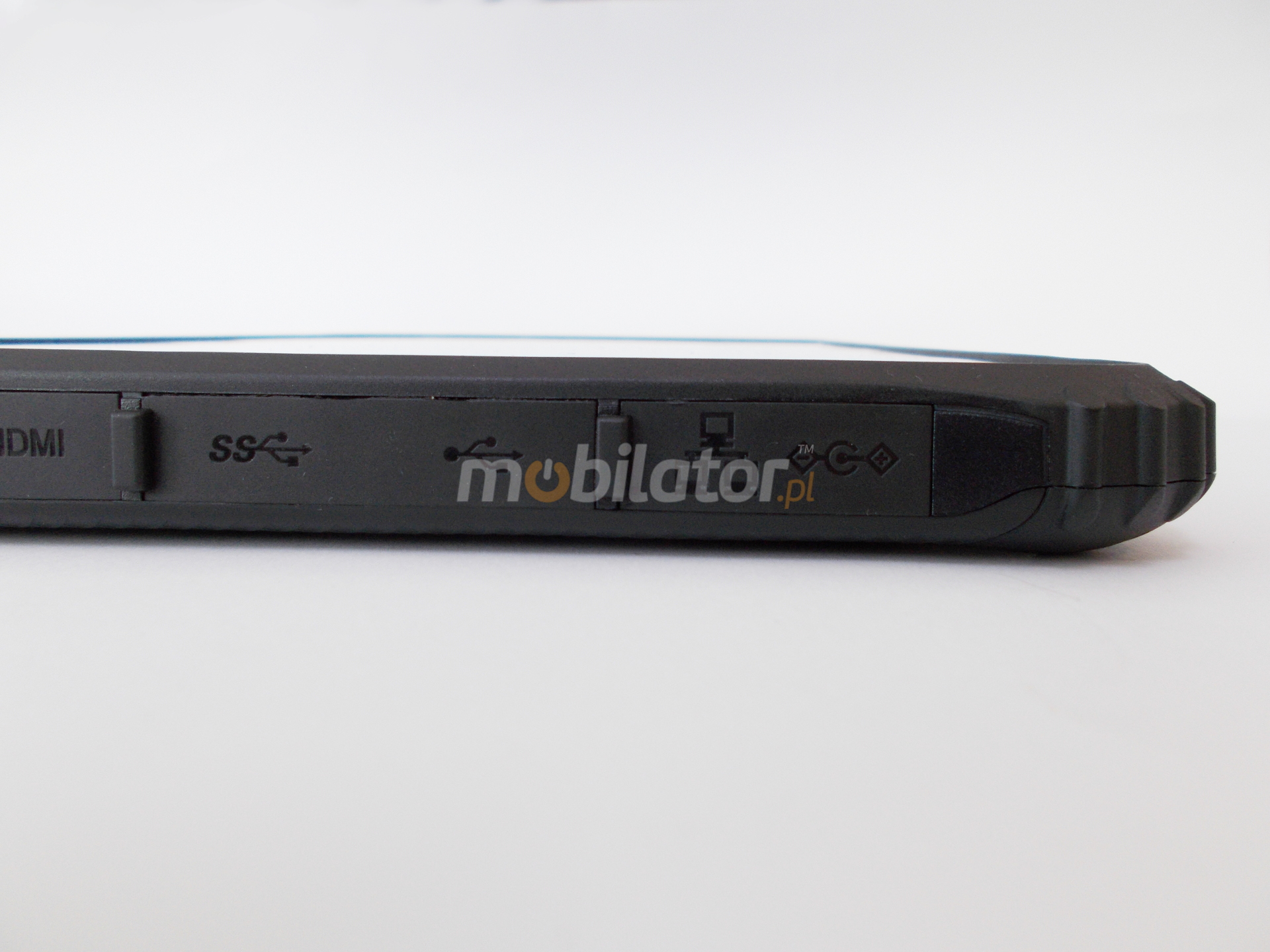

 Connectors  HDMI 1.4a Typu C | Czytnik MicroSD | Slot kart SIM | USB 2.0/3.0 | LAN
 RS232 | RS485 | Dokowanie | DC In
 GPS (optional)  U-blox NEO-7
 Audio  Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 7.4V 6300mAh/1000mAh

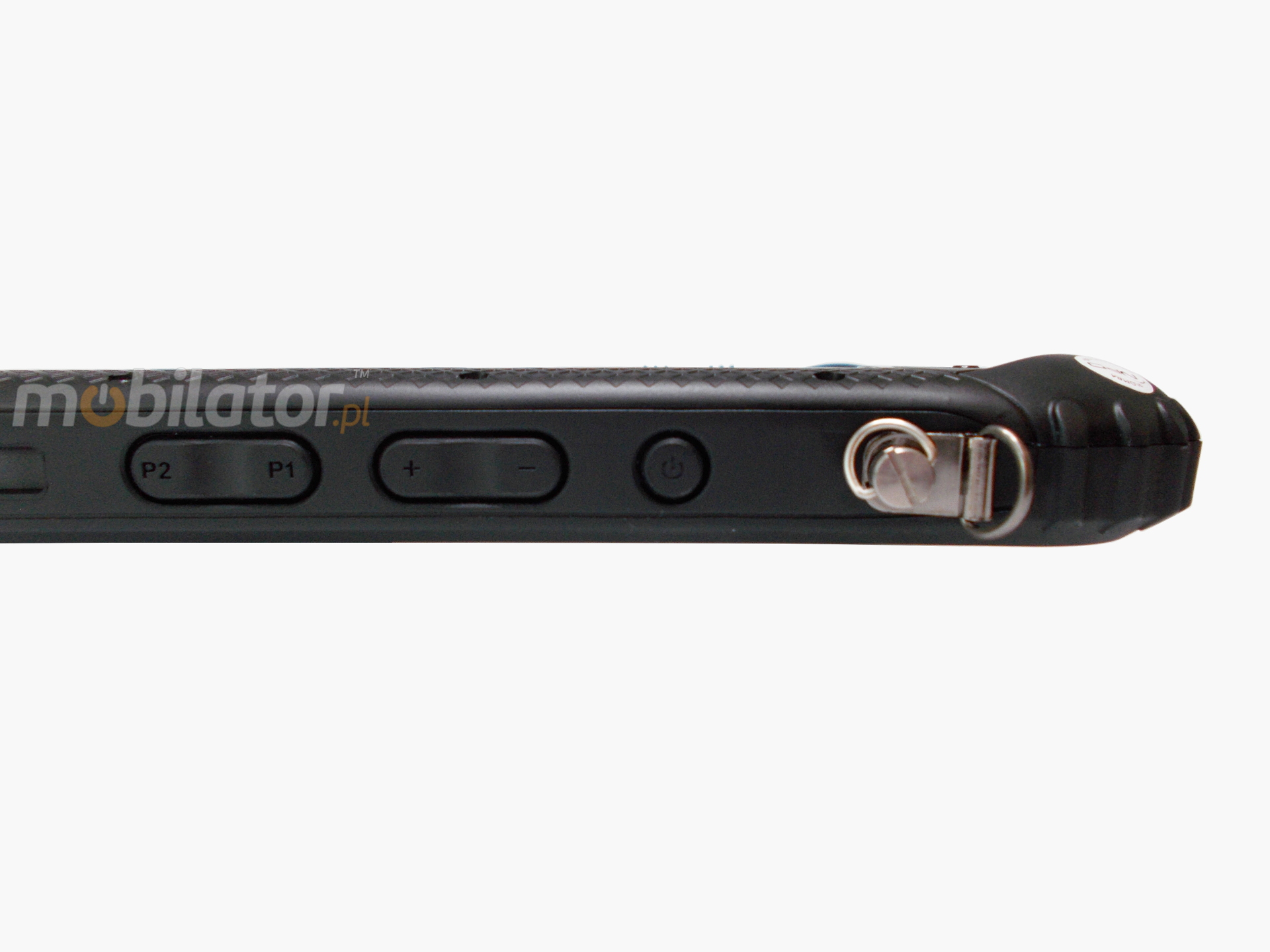

 Keyboard  On-Screen | Functional keys

 Volume + | Volume - | Power | Functional
 OS

Windows 10 Home
 Modules
  802.11 a/b/g/n : Bluetooth 4.1
 Dimensions  319.6*216*23.4 mm - 1500g (with battery)
 Resistance  IP65
 Readers (optional)
  4G | NFC | 1D Scanner | 1D/2D Scanner
 Sensors (factory)  G-Sensor
 Warranty
  12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

i22k mobipad

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

wersje mobipad i22k rugged tablet tablet przemys³owy



Porównaj wszystkie wersje



  v.1 v.2 v.3 v.4 v.5 v.6 v.7
Windows 10 Home — ✔ — — — — —
Windows 10 IoT Enterprise — — ✔ — ✔ — —
1D Motorola — — — — — — —
2D Honeywell — — — — — ✔ —
4G — — — ✔ ✔ — —
NFC — — — — — ✔ ✔
  v.8 v.9 v.10 v.11 v.12 v.13
Windows 10 Home — — — — — —
Windows 10 IoT Enterprise — — — — ✔ ✔
1D Motorola ✔ ✔ ✔ — — —
2D Honeywell — — — ✔ ✔ ✔
4G — — ✔ — — ✔
NFC — ✔ ✔ — ✔ ✔

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading Emdoor device and MMP quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

tablet przemys³owy i22k

 Model
 Motorola SE665 Honeywell N3680
 Type of scanner
 1D
 1D/2D
 Display type
 Laser CMOS

tablet przemys³owy i22k

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

   NFC
 Frequency 13.56 MHz
 Reading distance
 to 4 cm
 Supported standards
  ISO/IEC 14443 A/B

ISO/IEC 15693
  ISO/IEC 18092

3g wcdma tablet przemys³owy i22k

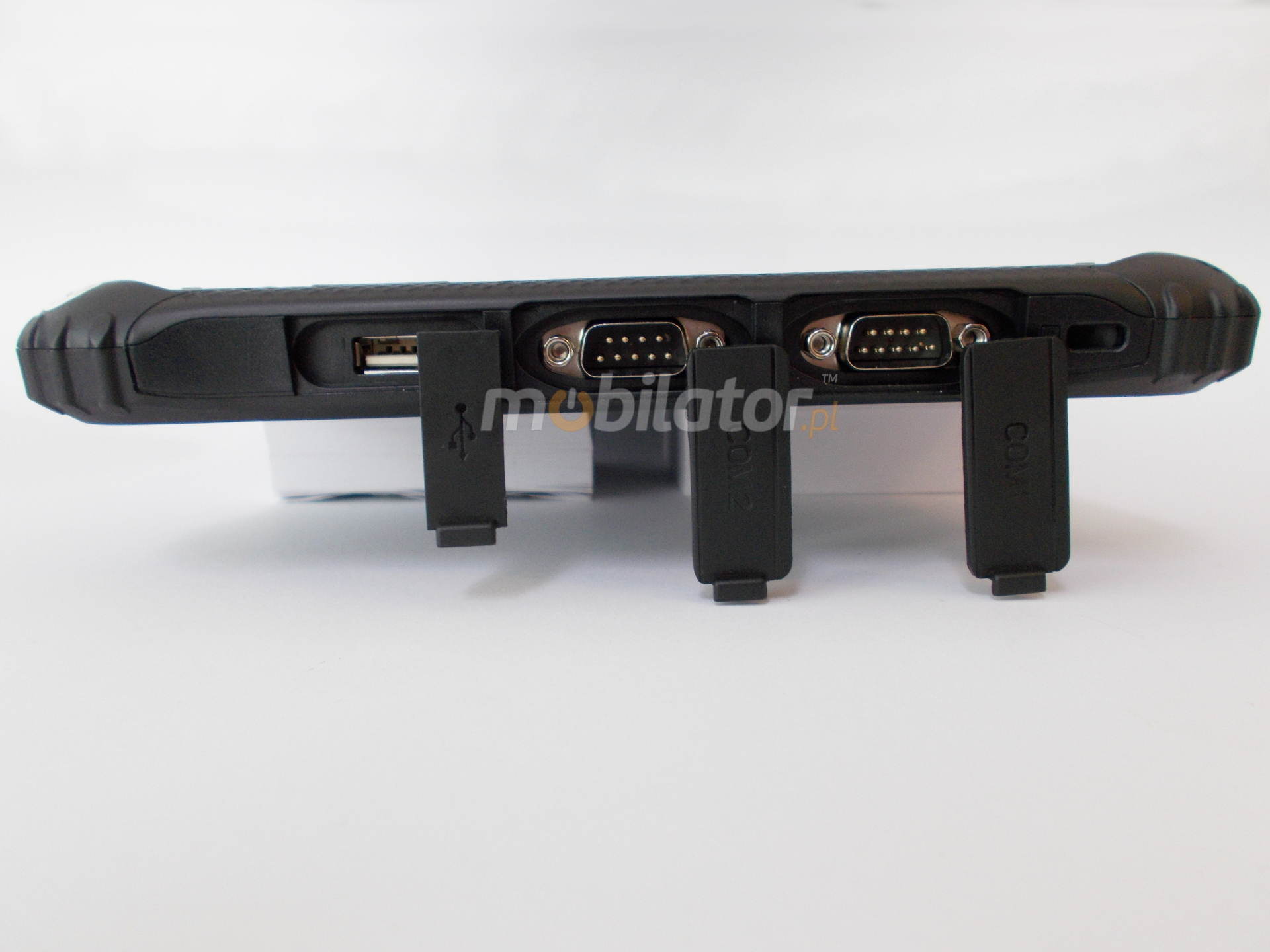

Serial ports

Two build-in serial ports COM(RS232) and COM(RS485) make possible to connect "streaming" devices like: measuring device, etc.

porty COM RS232 MobiPad i22k

go top... do góry menu… menu

Resistance and strength

Standards

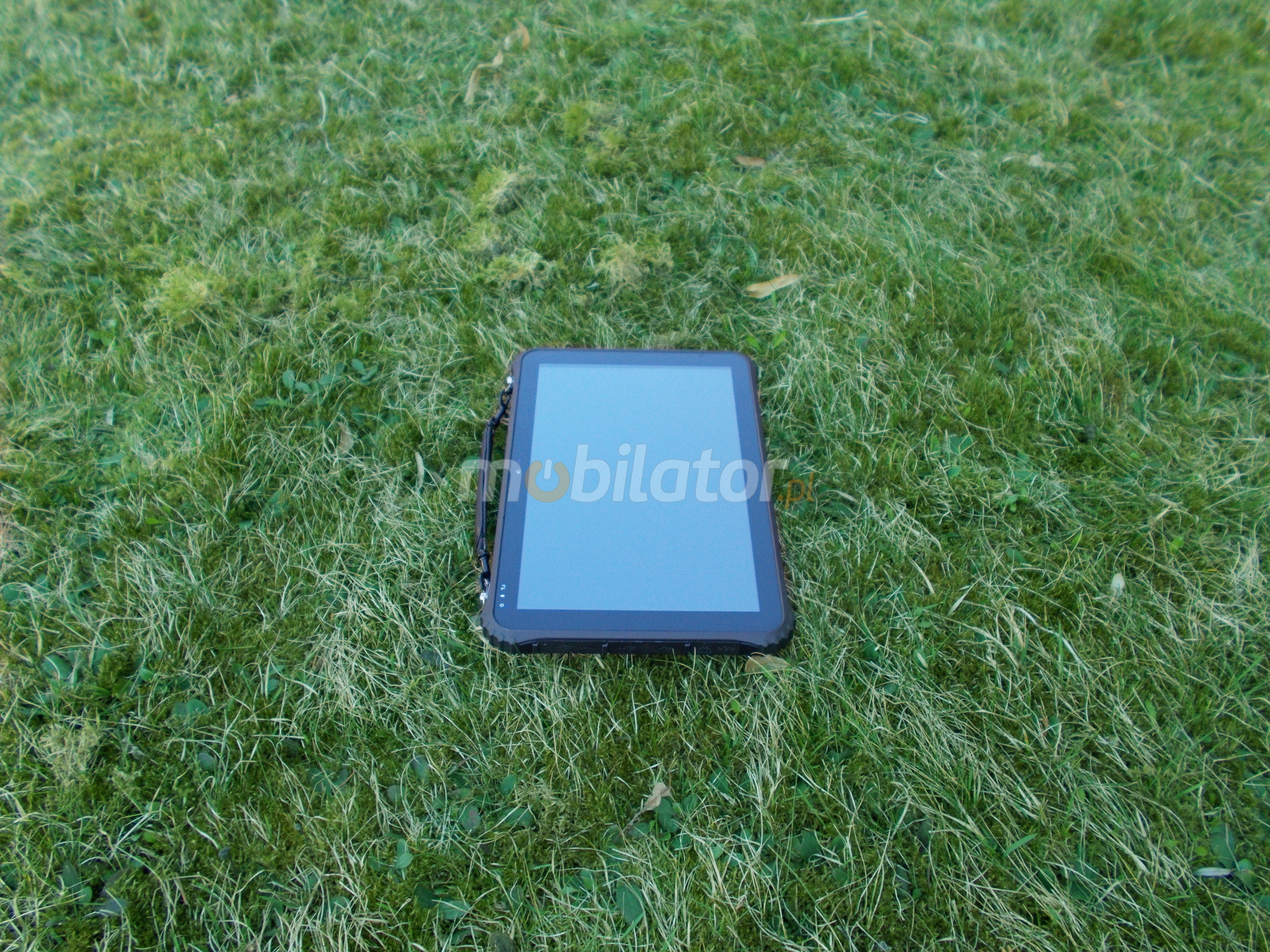

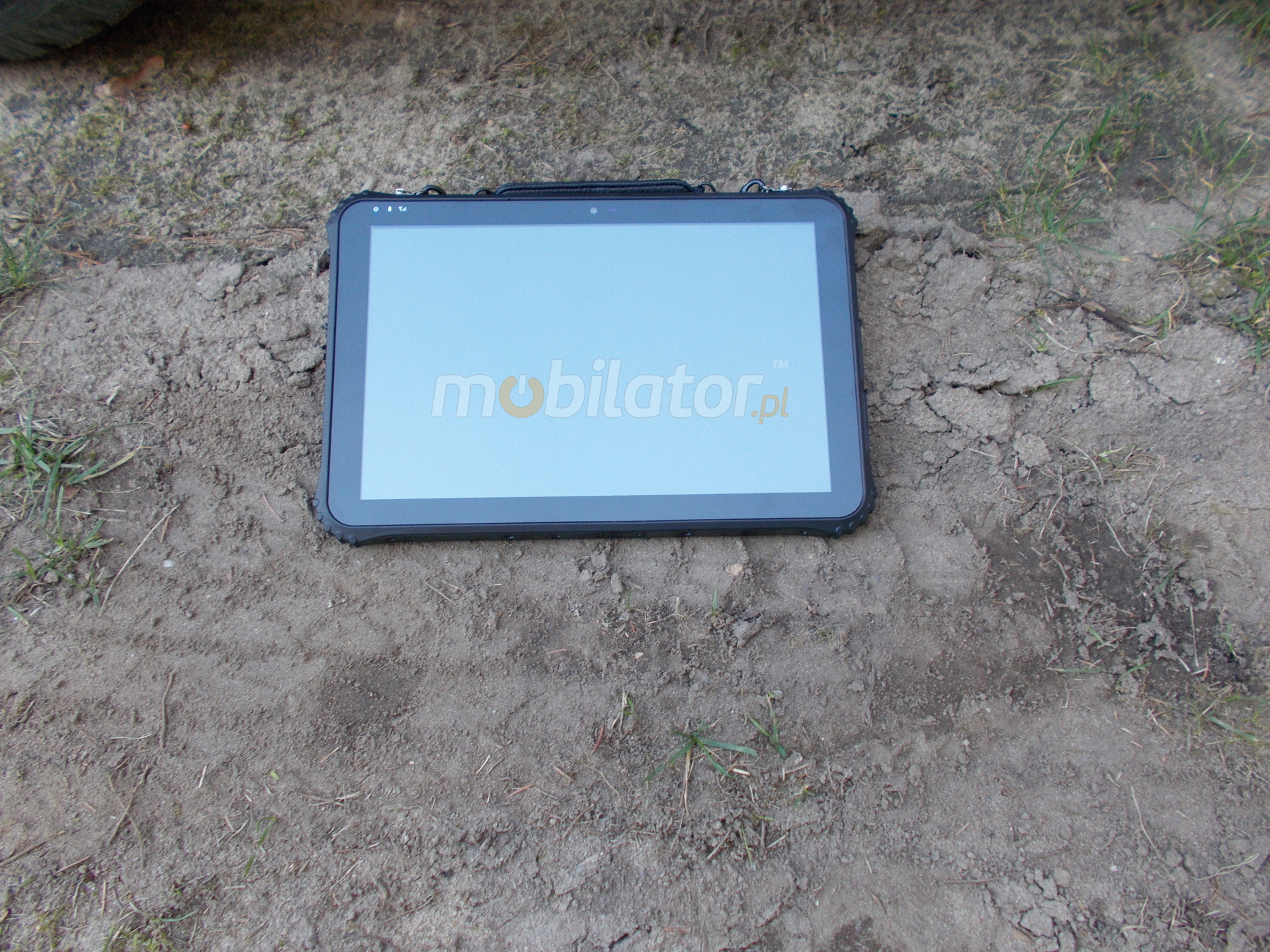

In terms of device ruggedness, the I22K can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. I22K is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating temperature
 -20°C -- +60°C
 Storage temperature
 -30C -- +70°C



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why Emdoor ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass Emdoor products ensures that our customers receive products that meet the highest standards of durability and reliability.Emdoor ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

 Dust IP6x
 Water IPx5
 Drop 1.0m

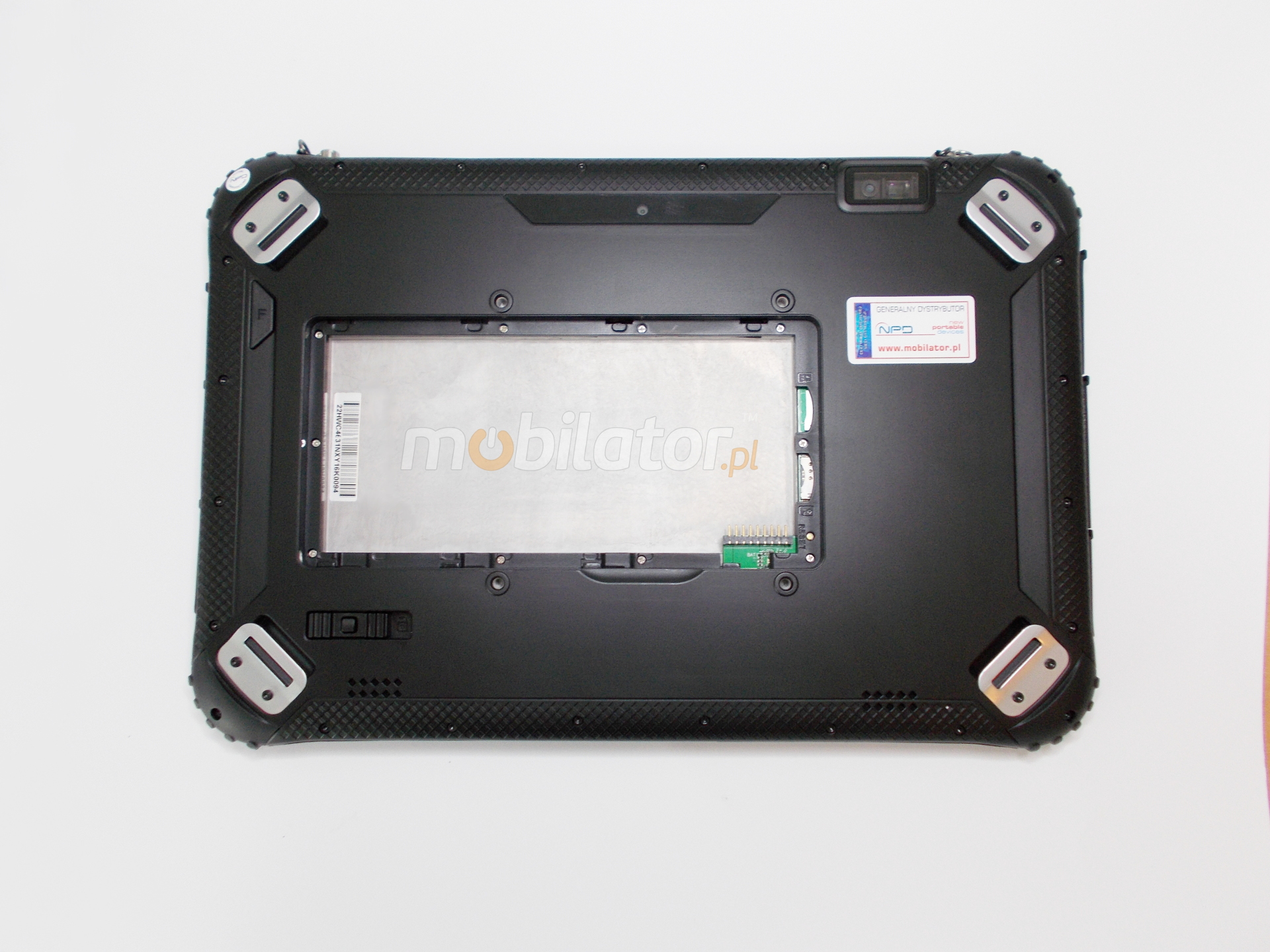

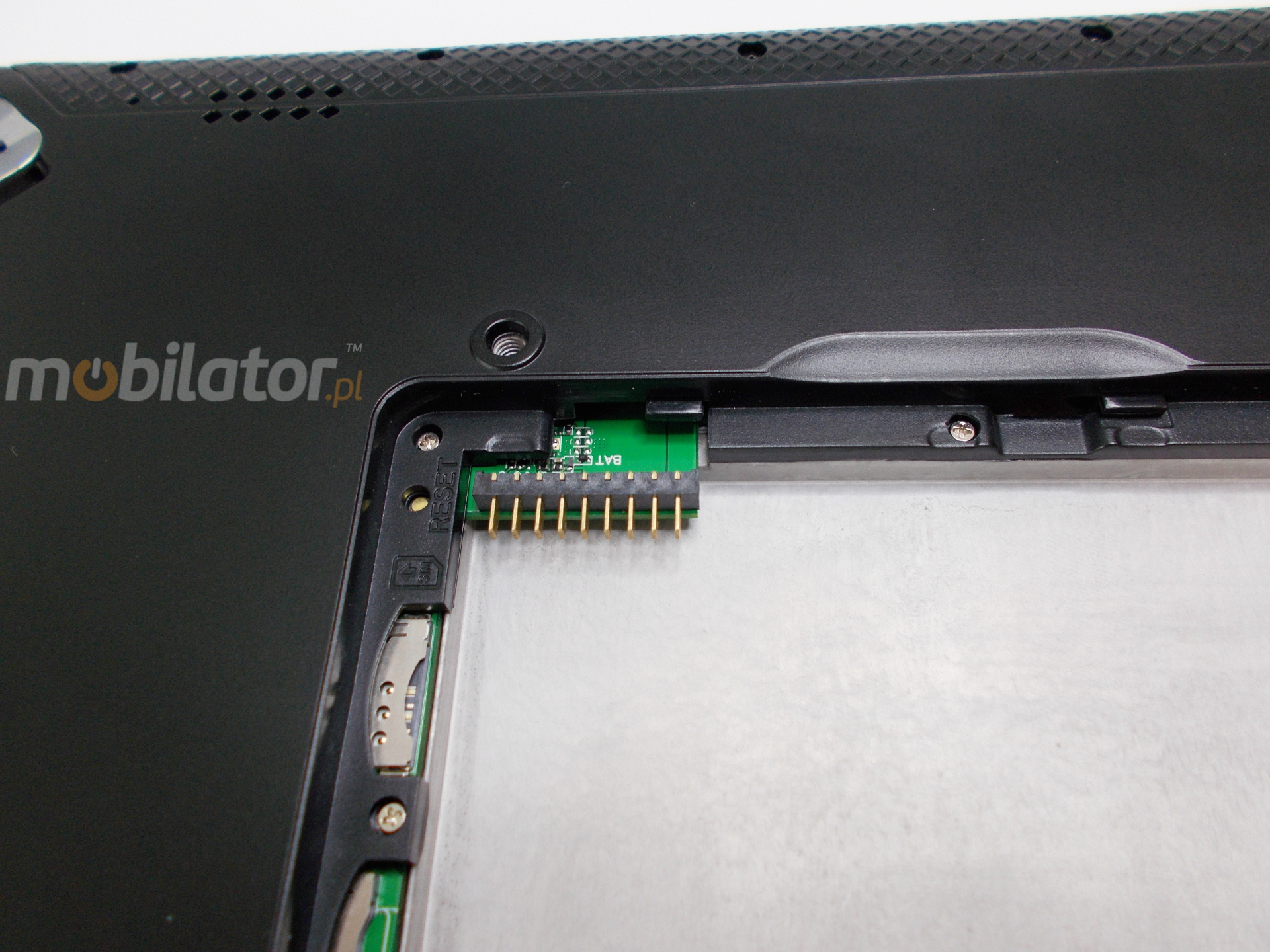

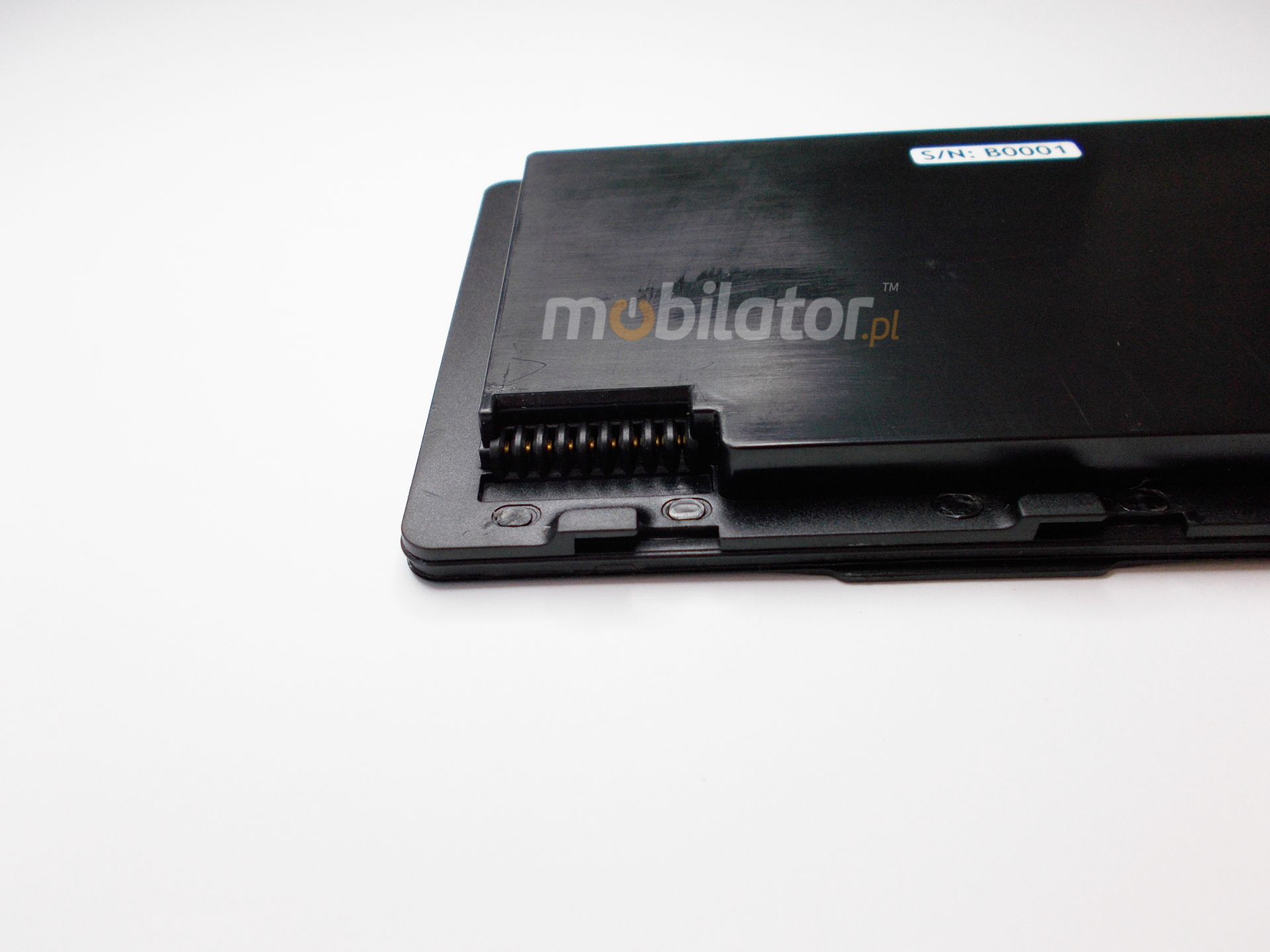

The battery at its best

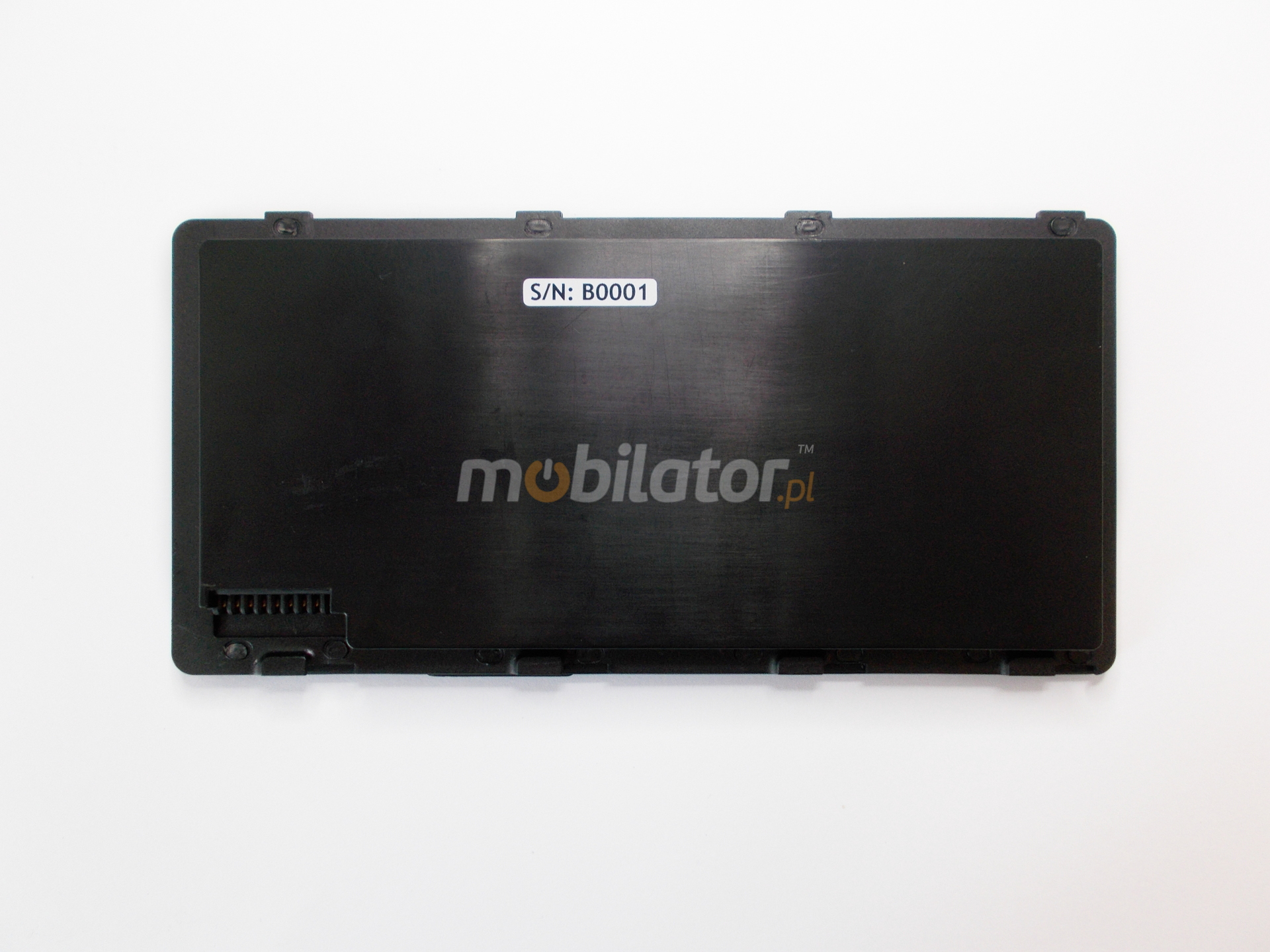

High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With Emdoor I22K you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu

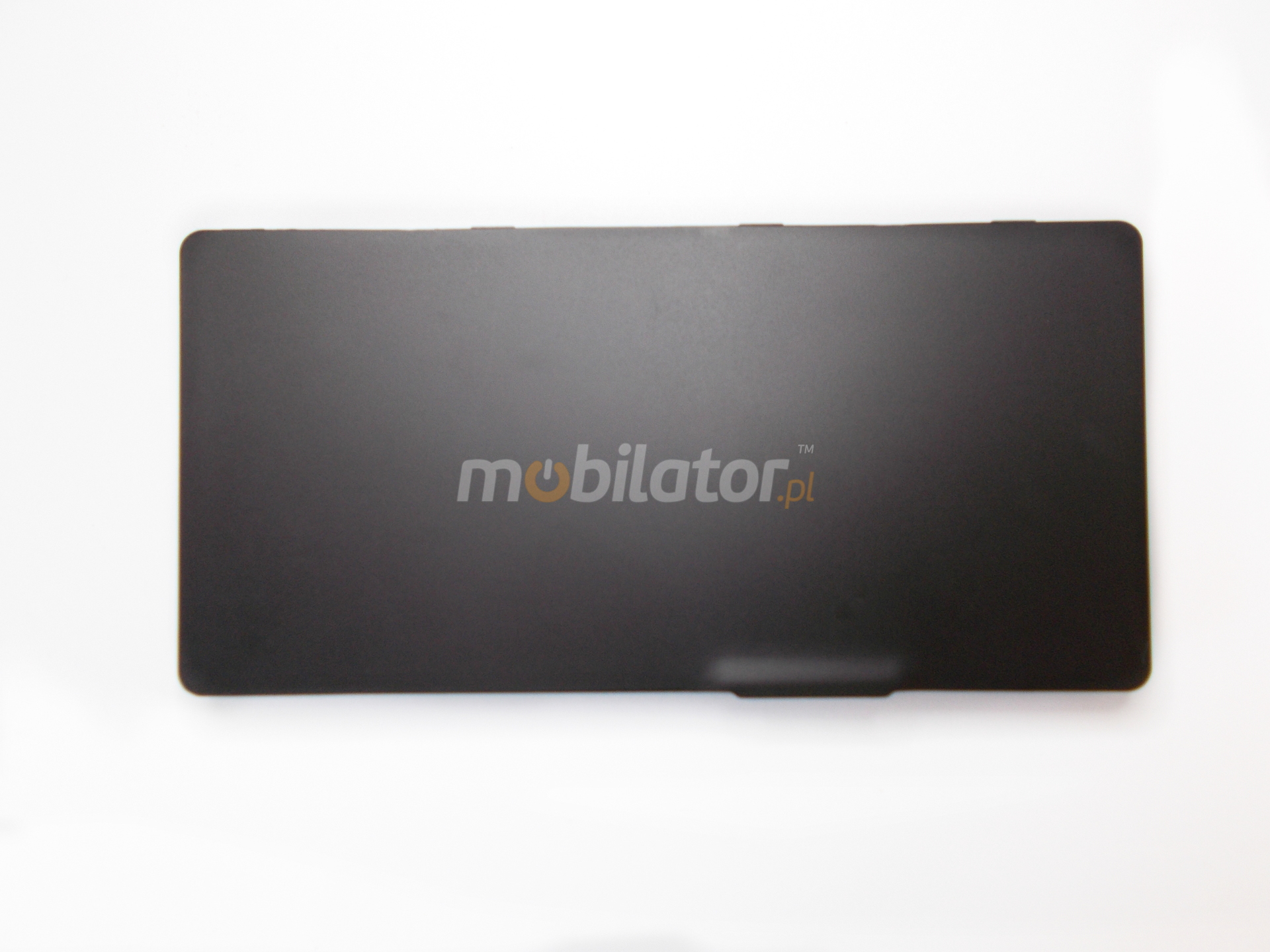

external battery zewnetrzna bateria i22k mobipad

IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

Complete protectionm against contact, protection from infiltration of dust.
6

5
Protection from water projected from a nozzle.

go top... do góry menu… menu

Modules and Wireless Networks

i22k bluetooth 4.0 klawiatura

Thanks 3G(4G as option) module, user can connect with Internet by insert SIM card in right place.

 WIFI  802.11 a/b/g/n
 GPS (optional) U-blox NEO-7
 Bluetooth  Bluetooth 4.1
 3G (optional)
 WCDMA (900 / 2100 MHz)
 4G (optional) WCDMA/GSM/GPRS/EDGE (900/1800MHZ）

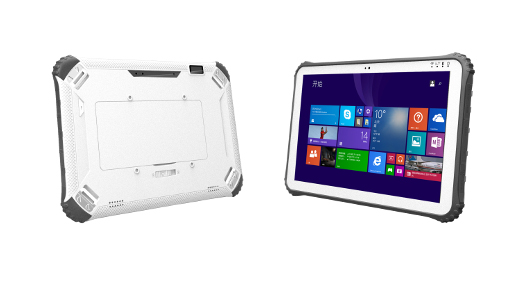

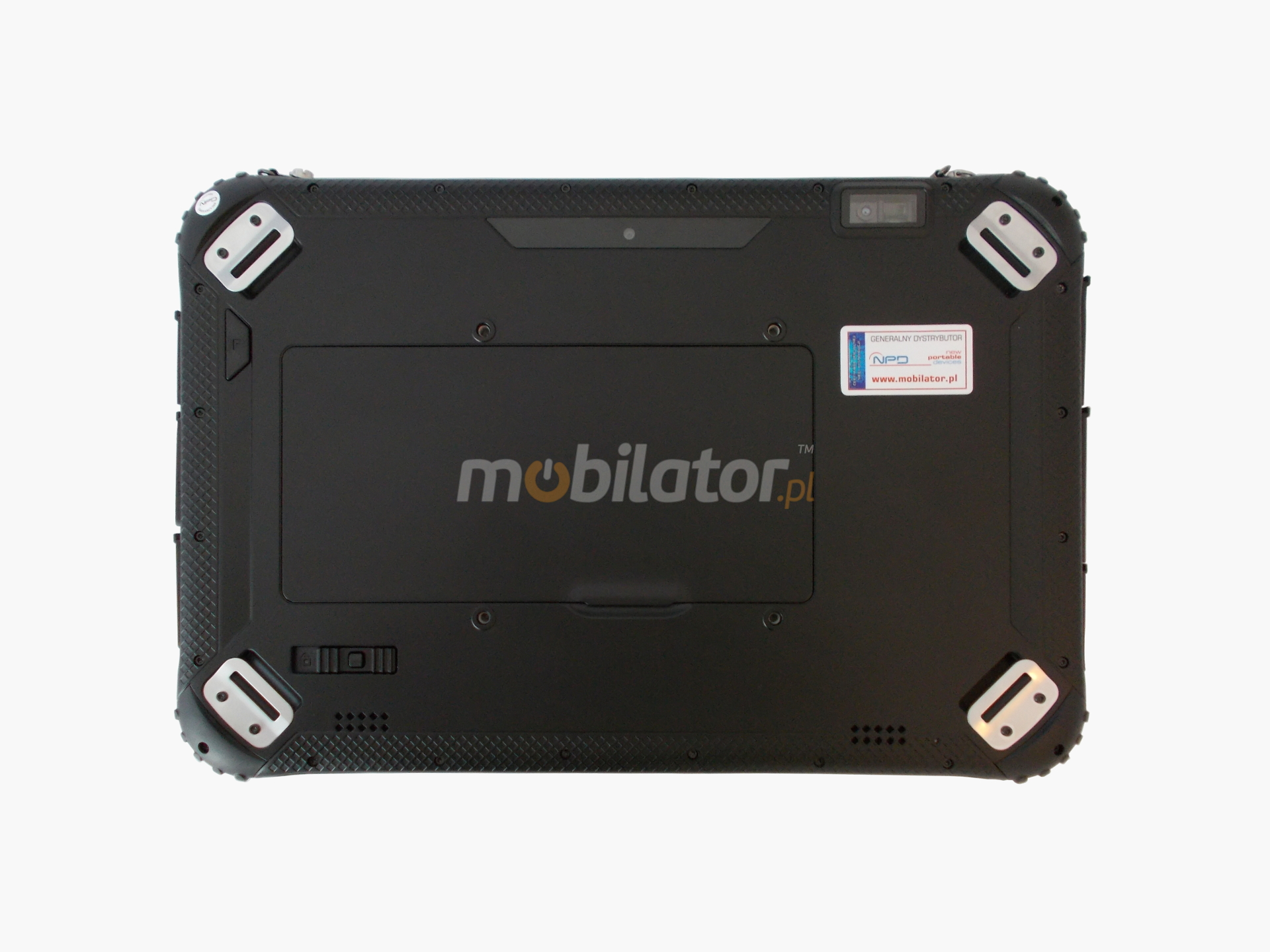

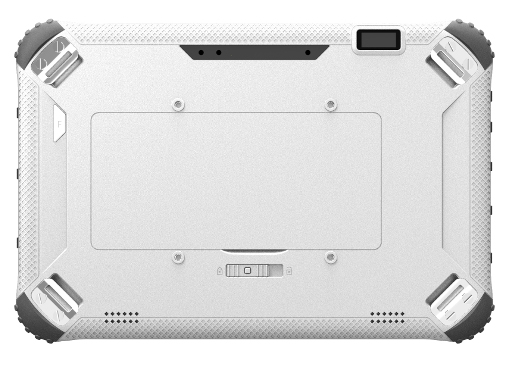

Mobipad i22k ty³ przód

go top... do góry menu… menu

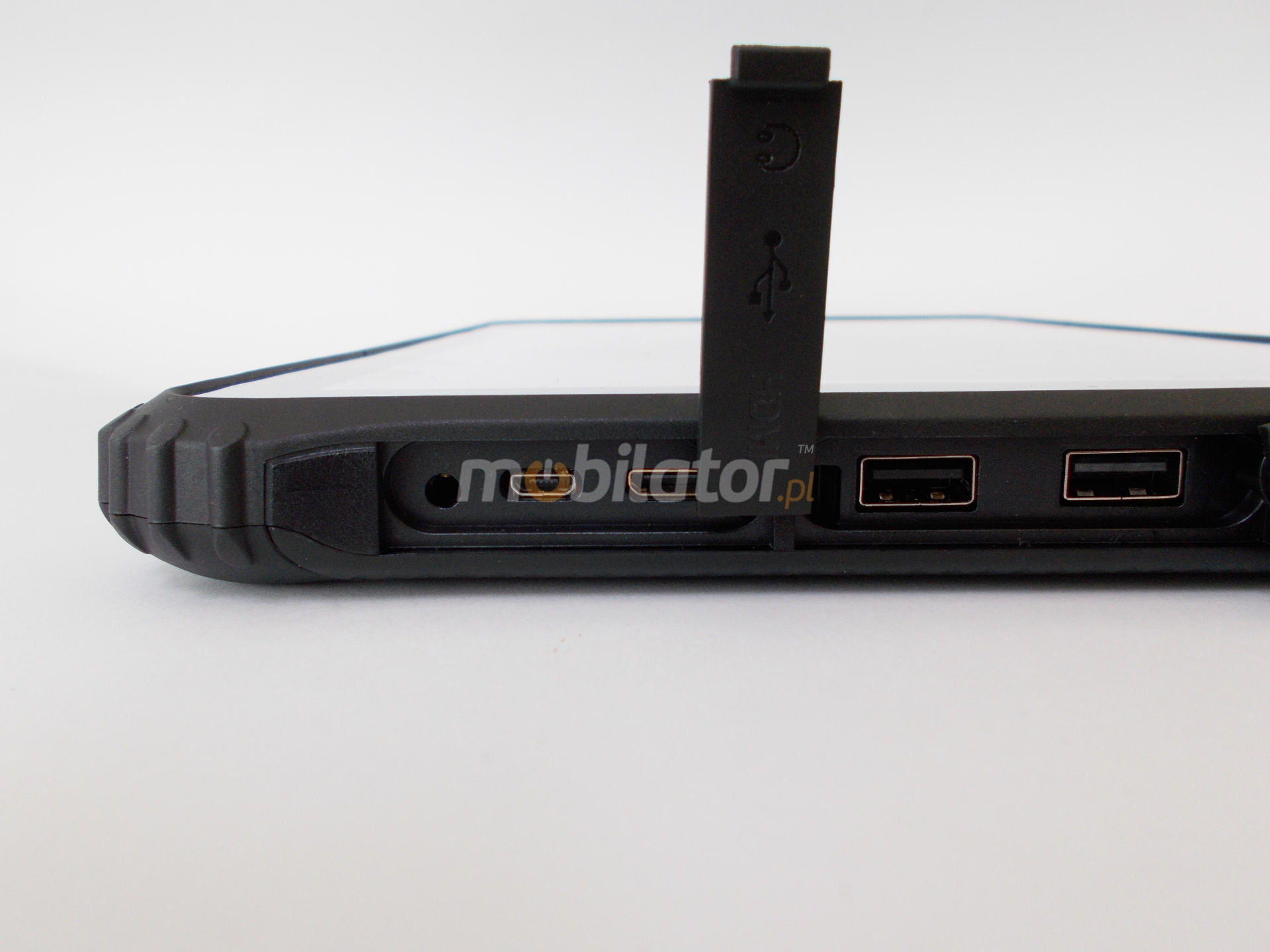

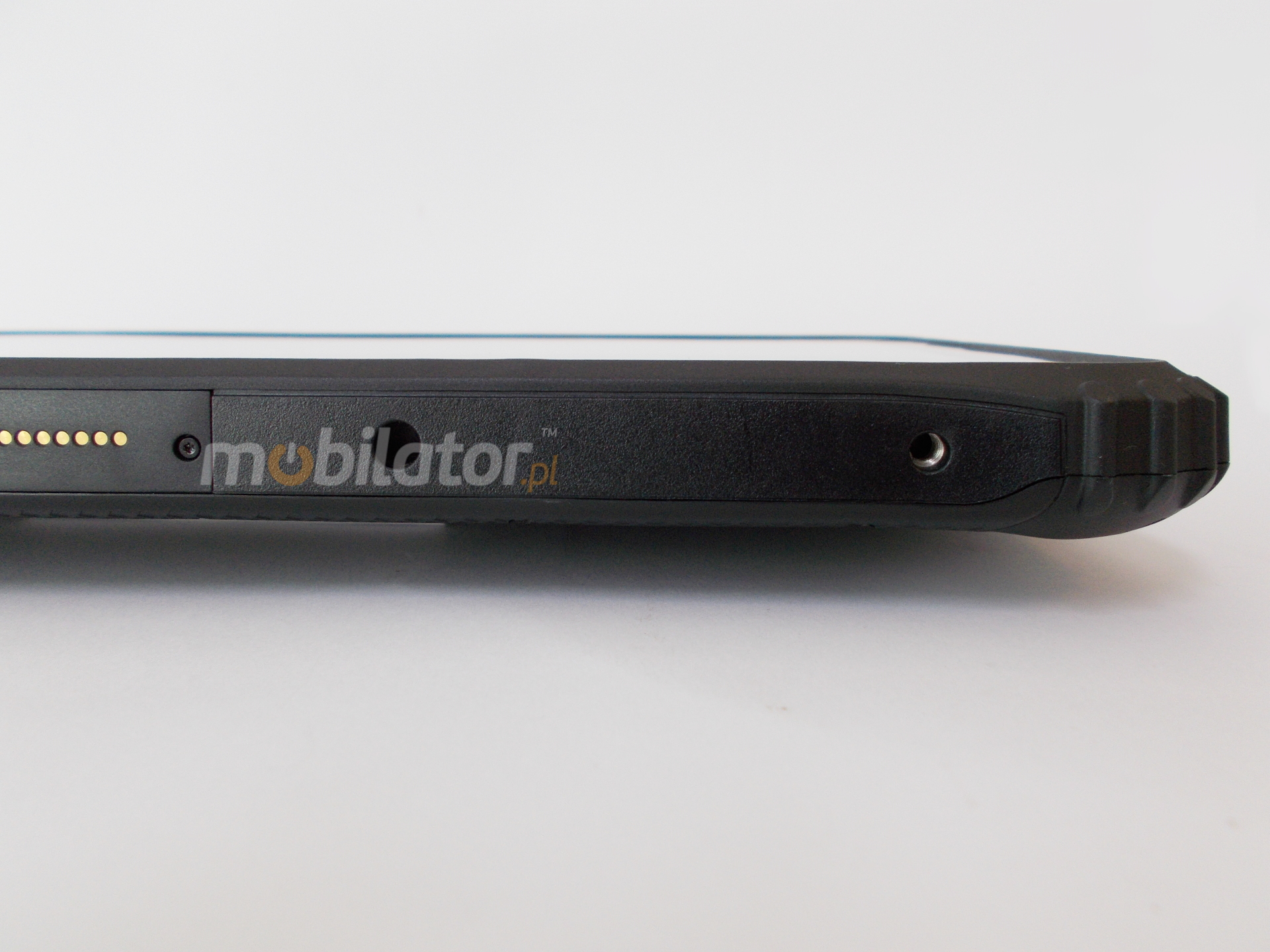

Functionality

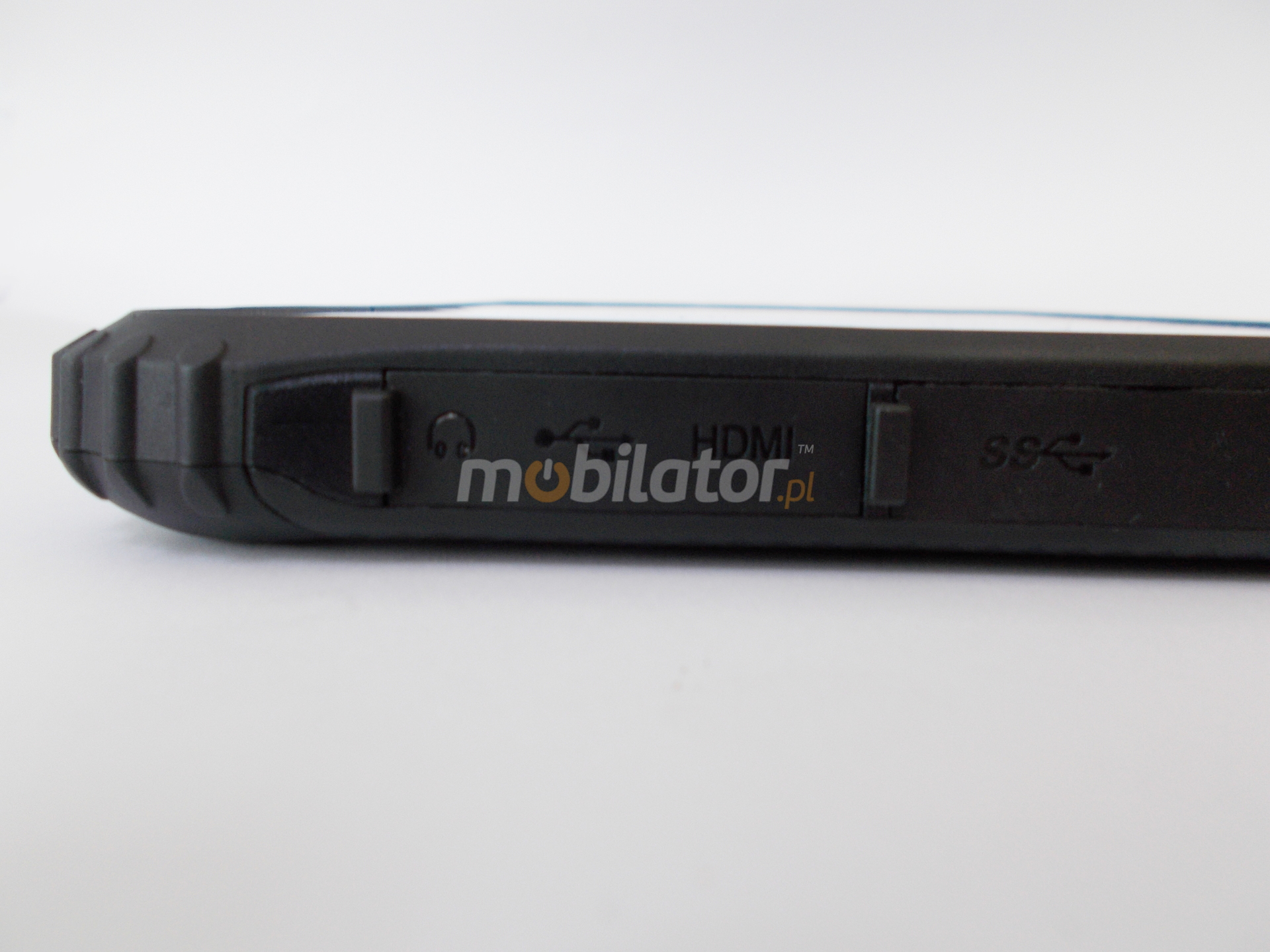

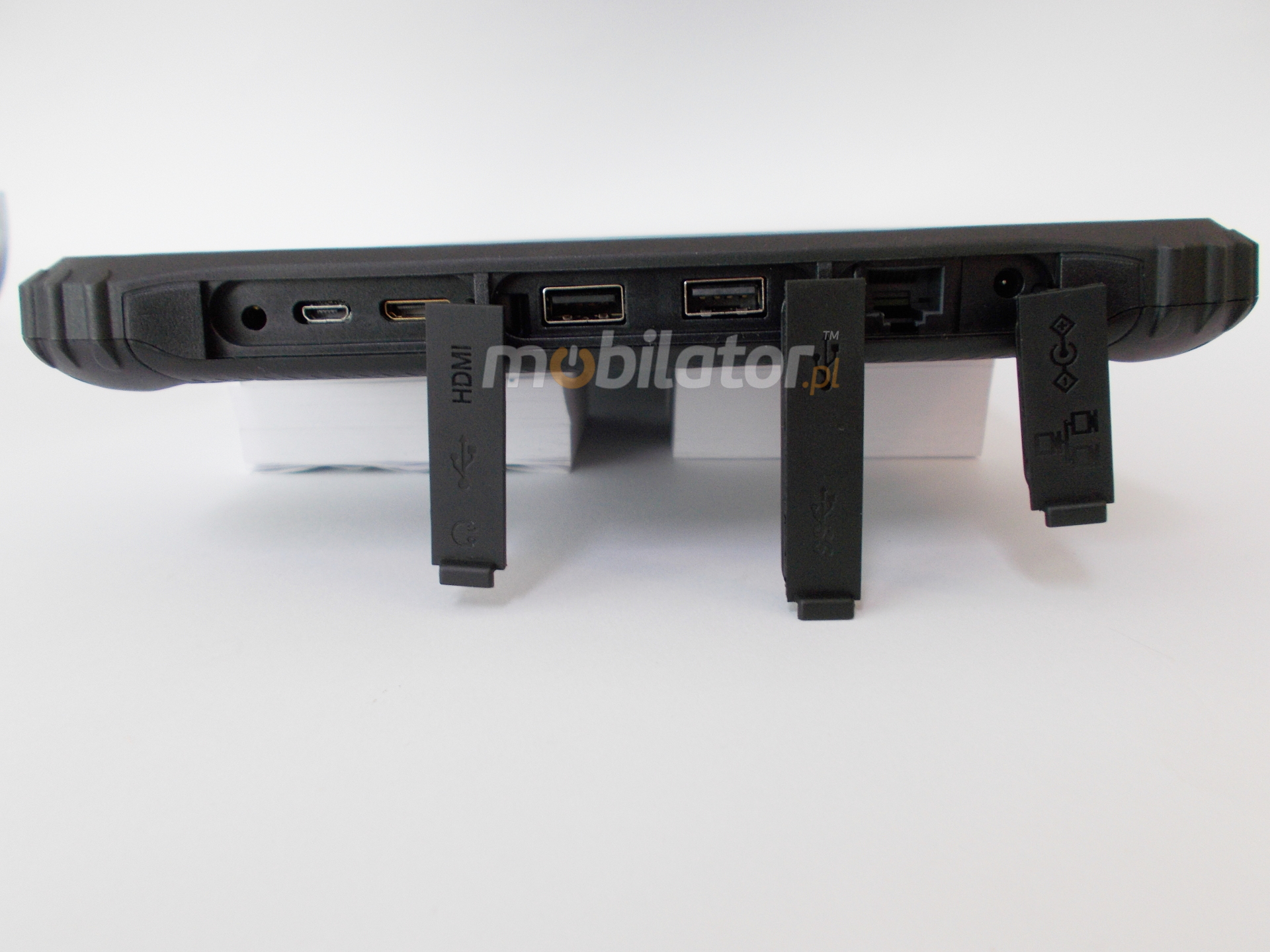

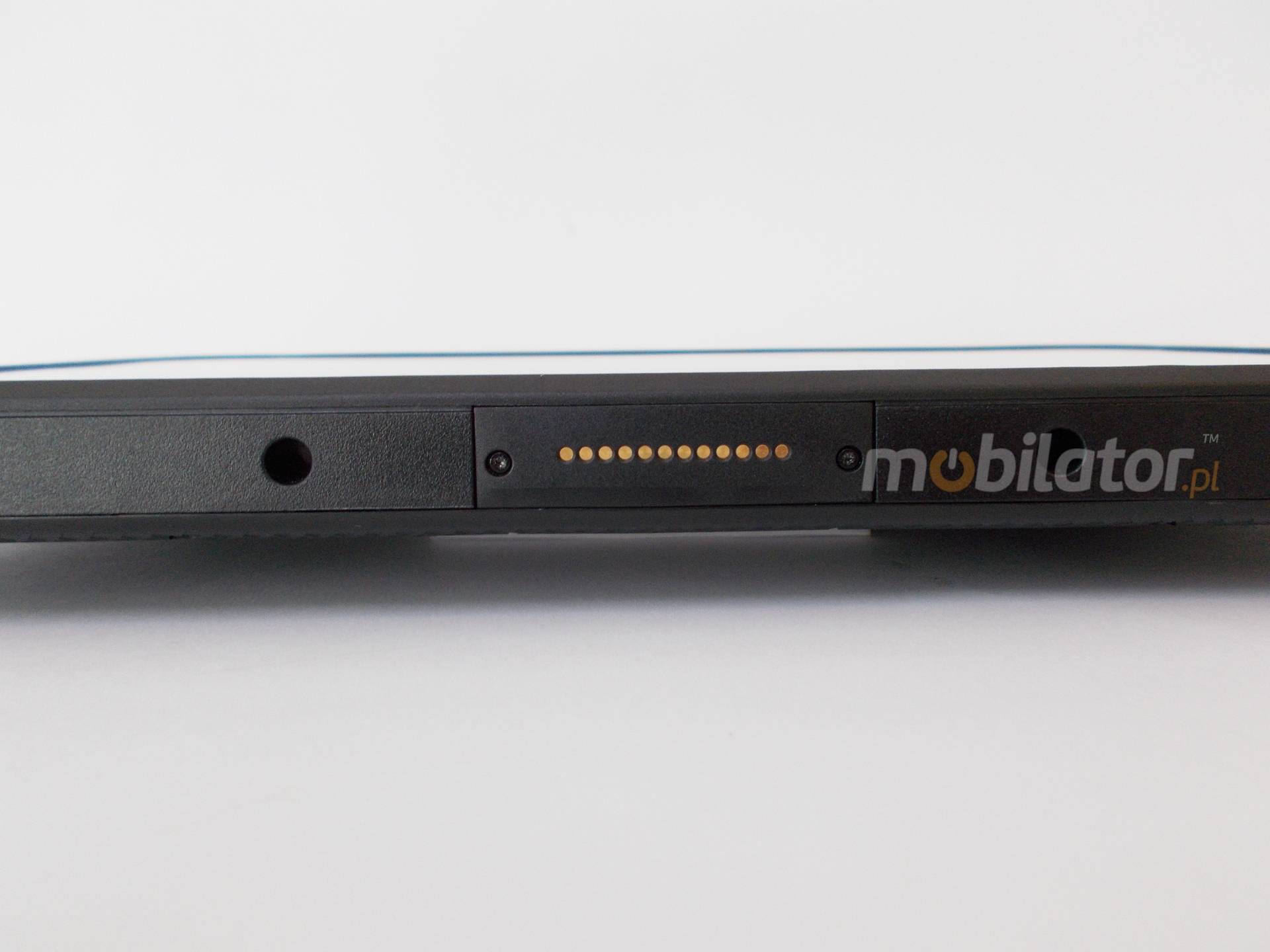

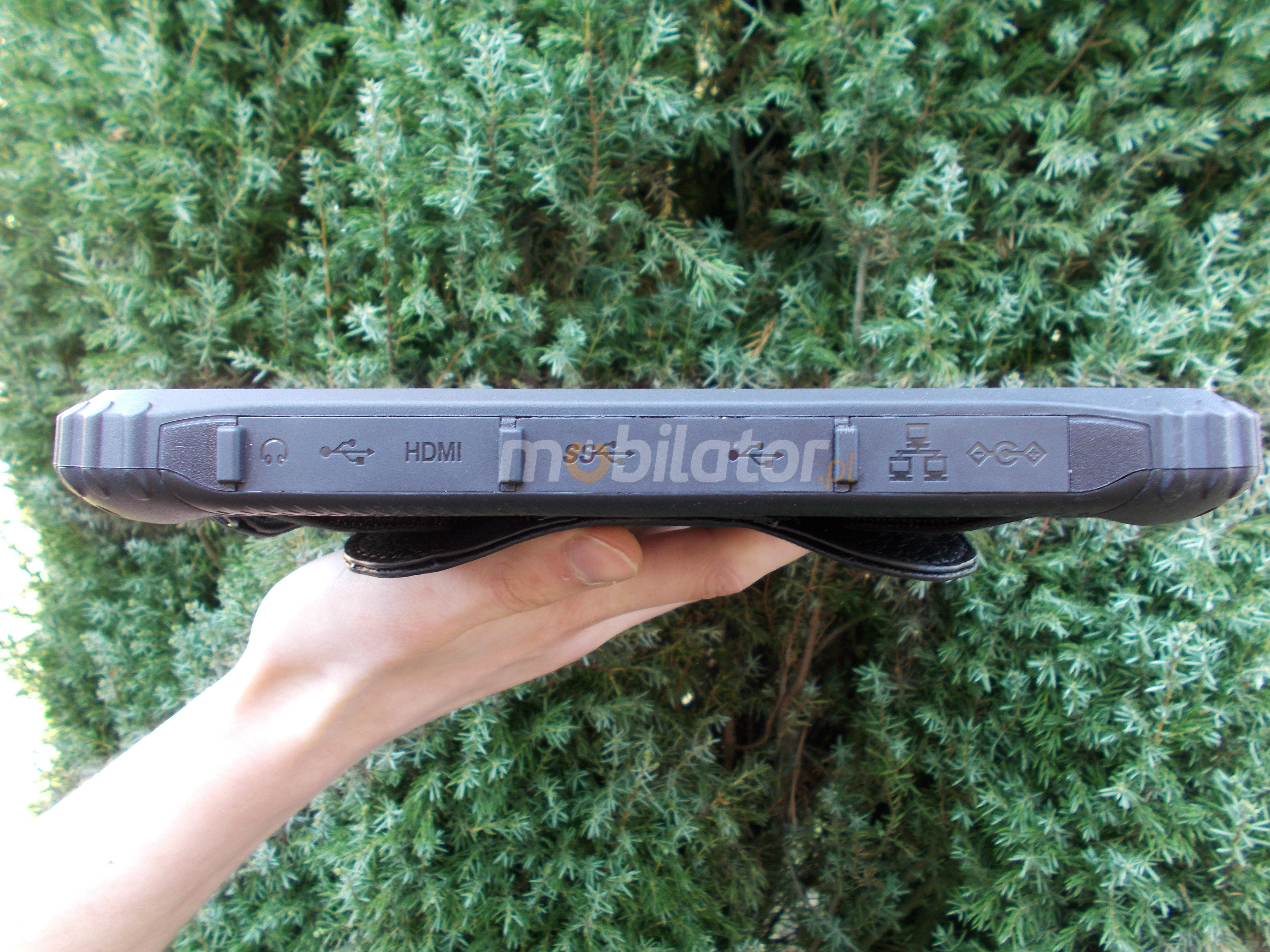

hdmi zlacze dokowania przyciski funkcyjne COM com i22k usb tablet

Real-time data access to the right information is very important to mobile users. I22K offers 3G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.1 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

mobipad hdmi zlacza kamera i22k

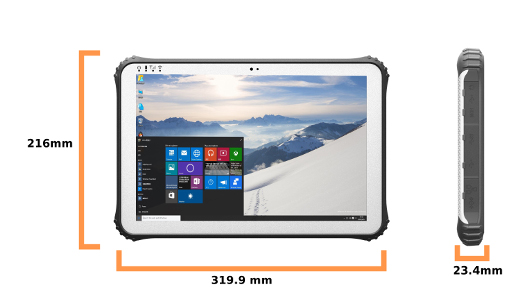

 Dimensions 319.6*216*23.4 mm
 Weight 1500g

Additional equipment

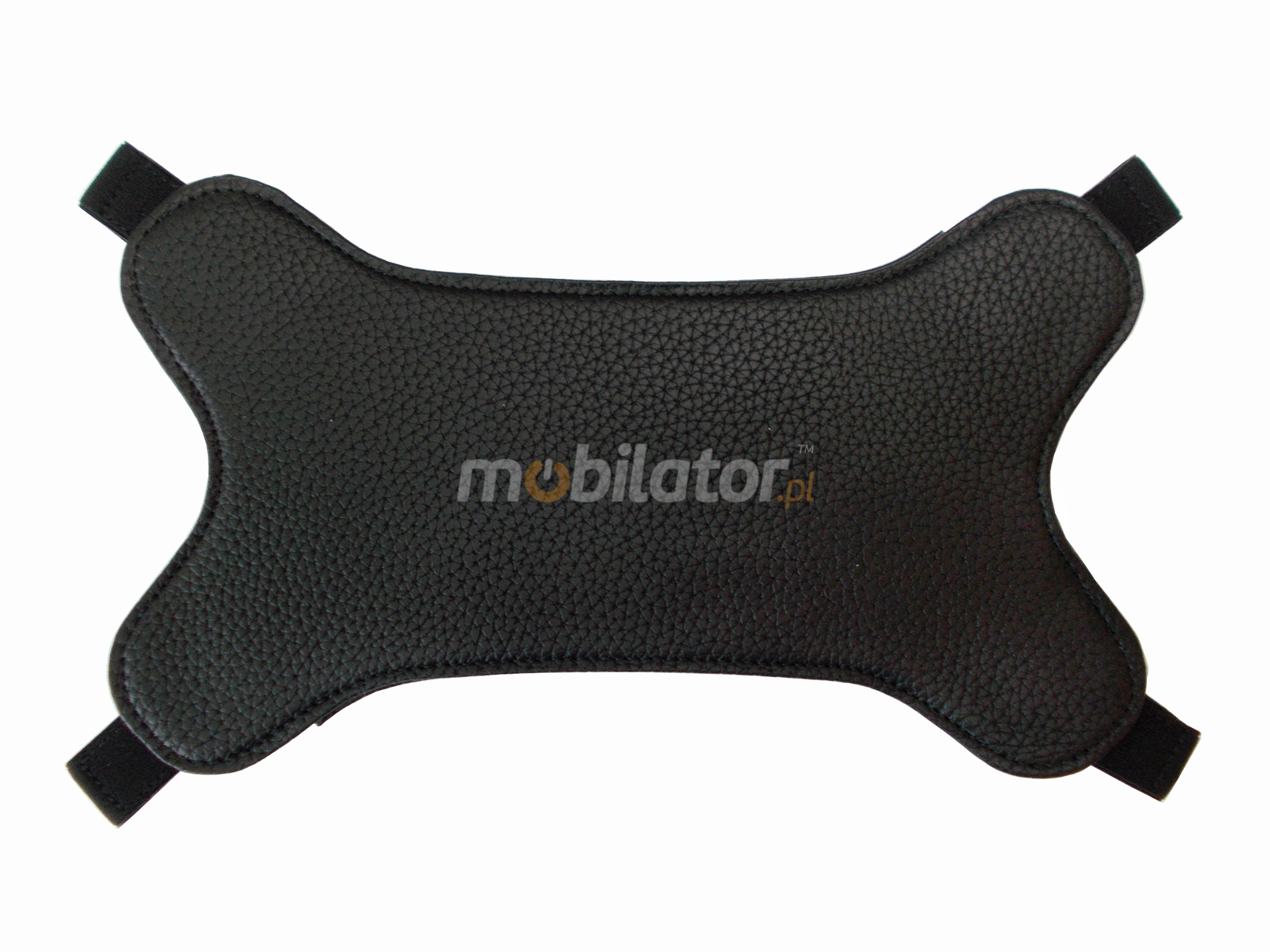

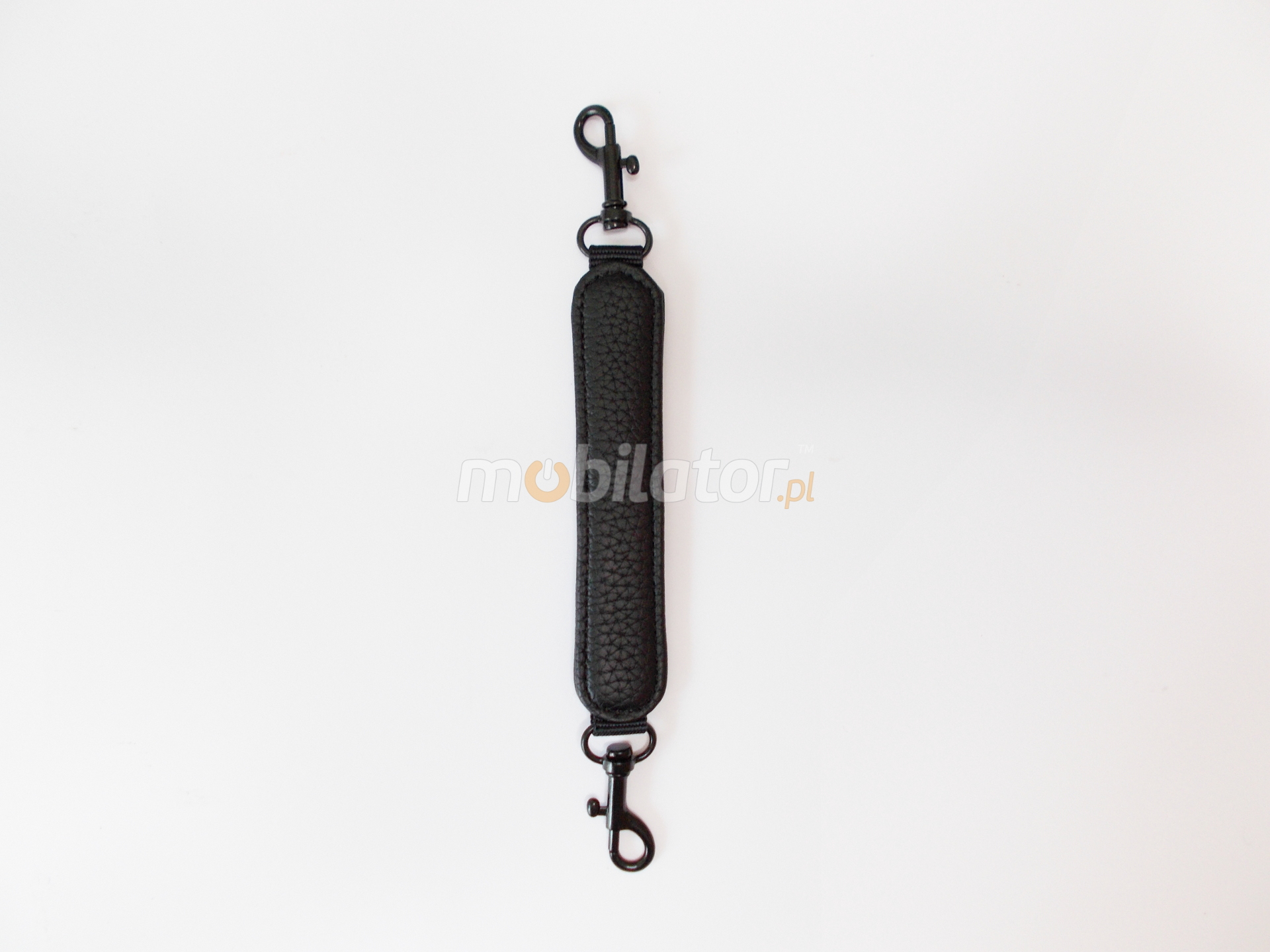

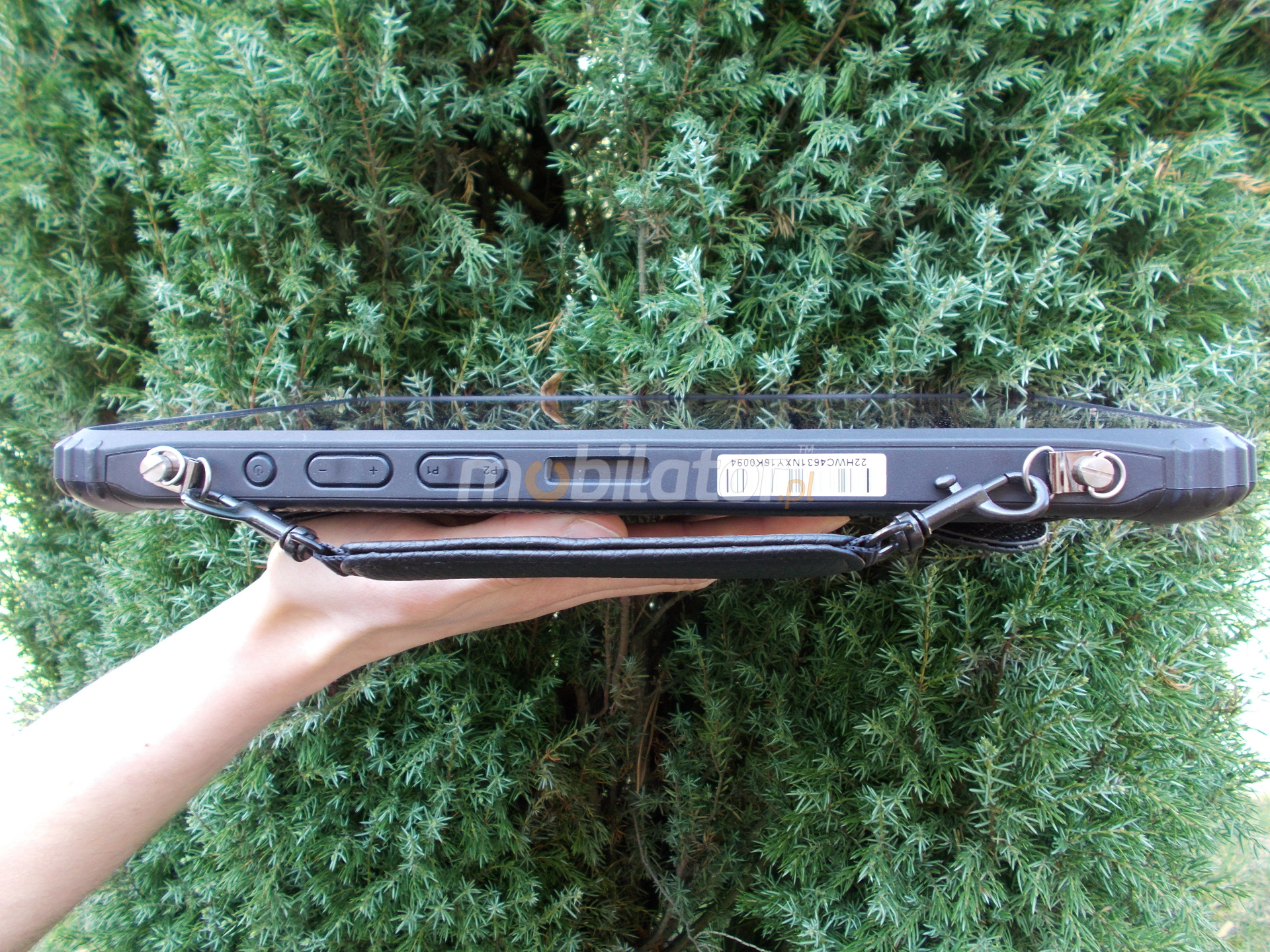

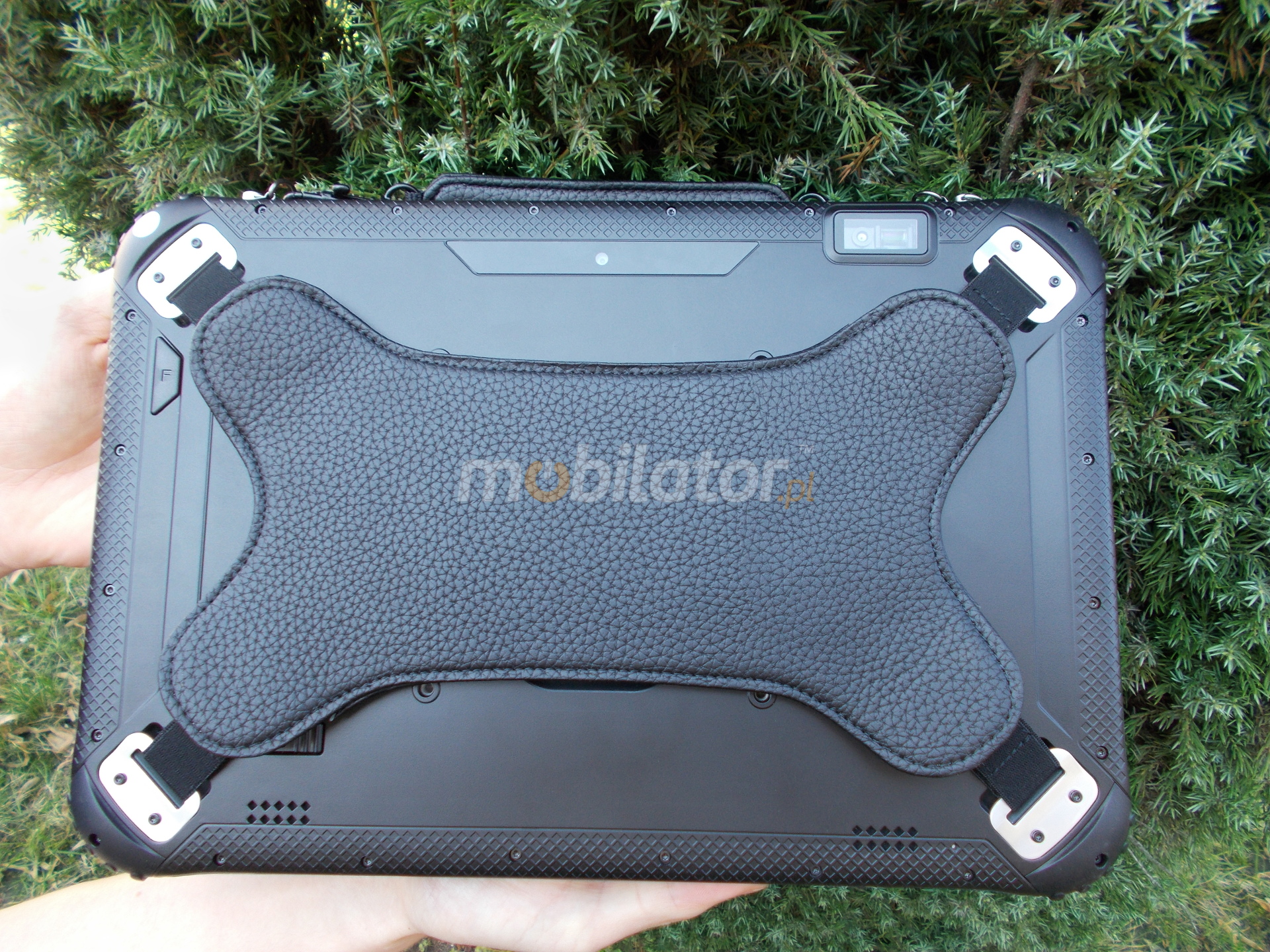

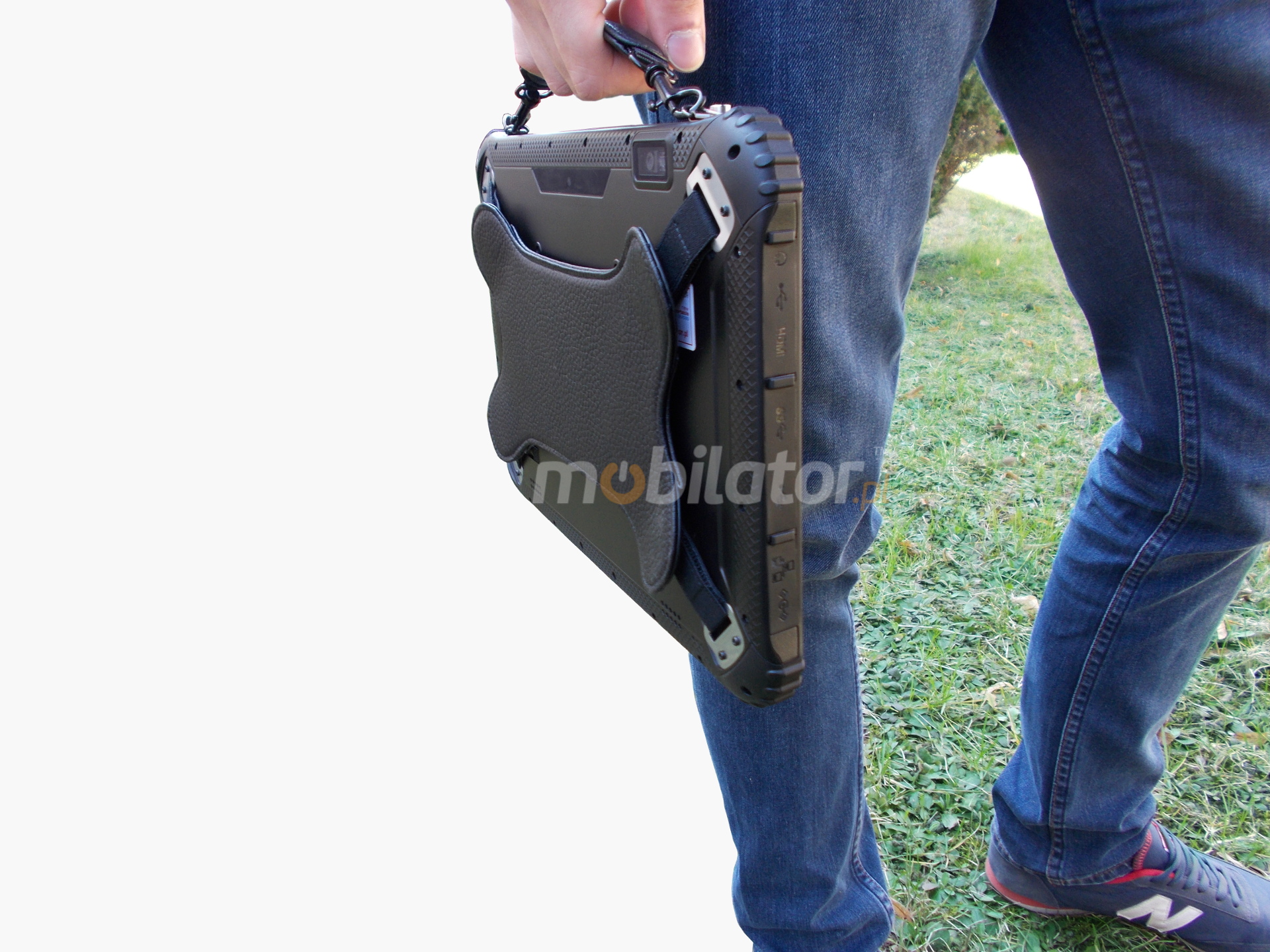

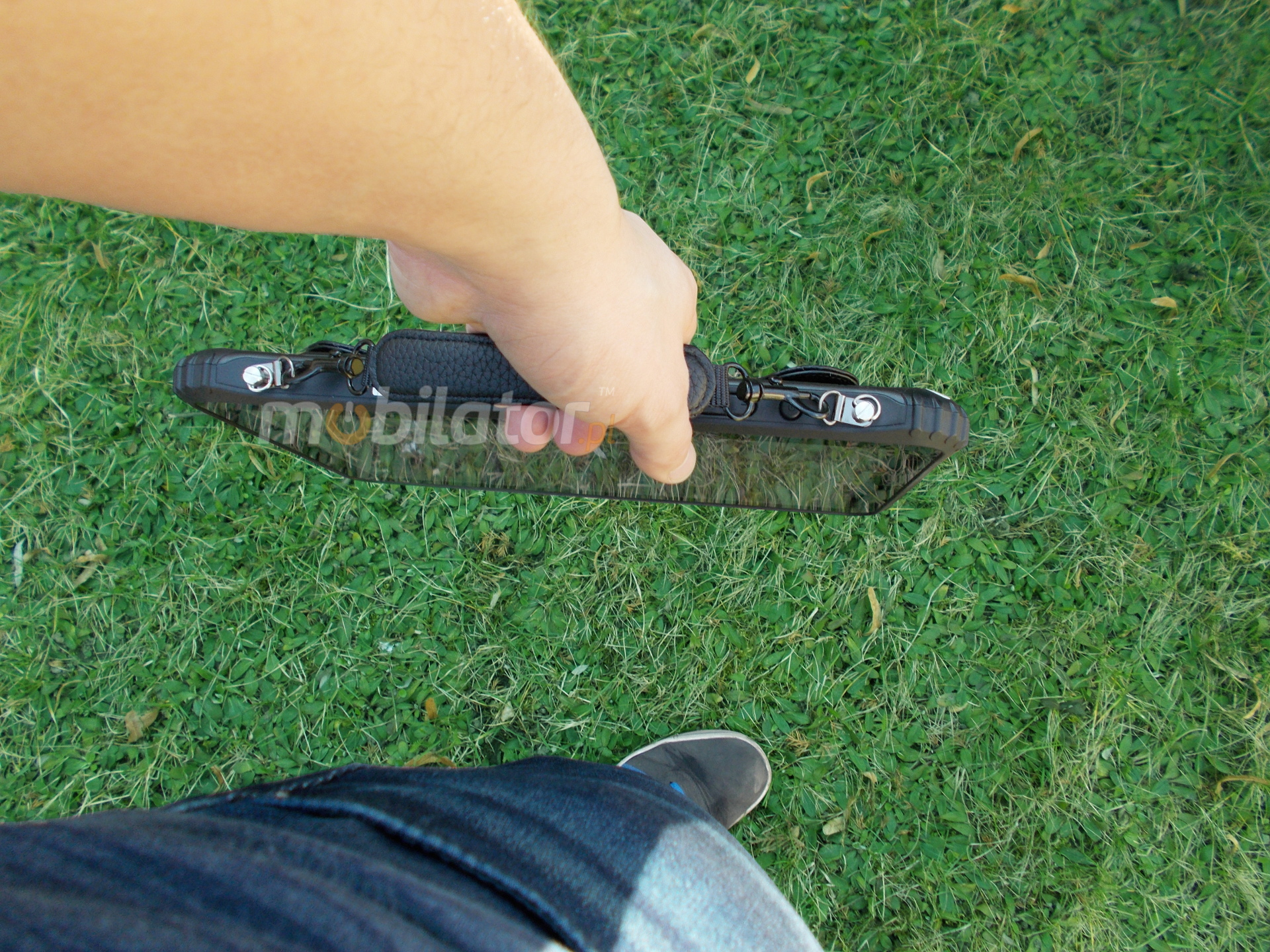

Wrist strap (option)

Comfortable, leather wrist holder increases comfort and confidence of holding the tablet during long-term work.

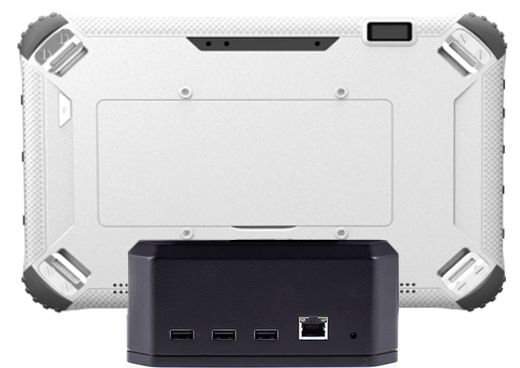

stacja dokujaca i22k

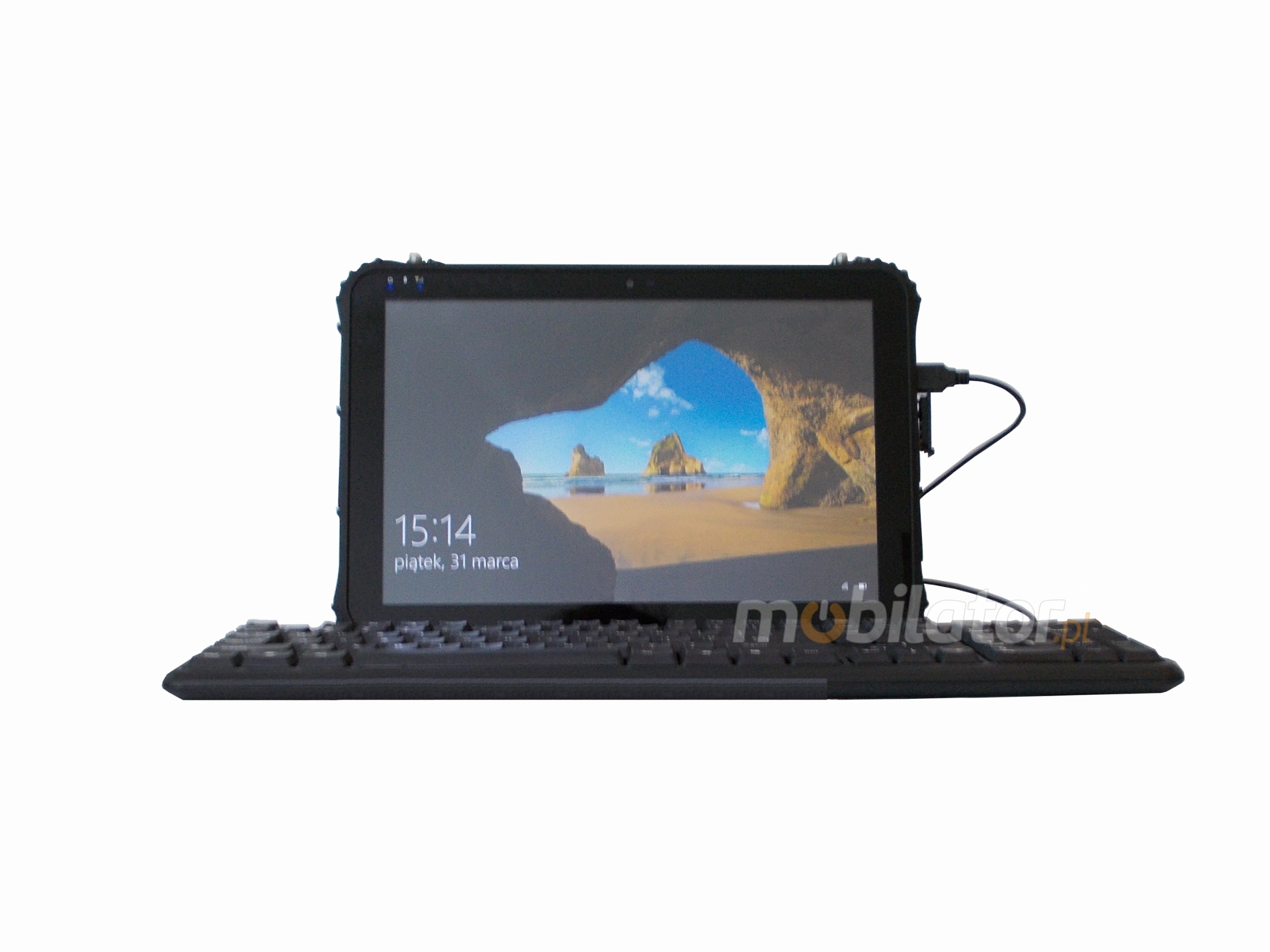

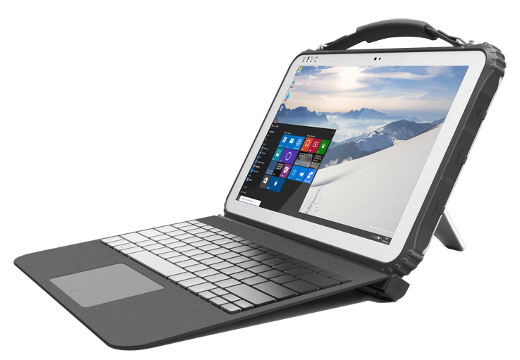

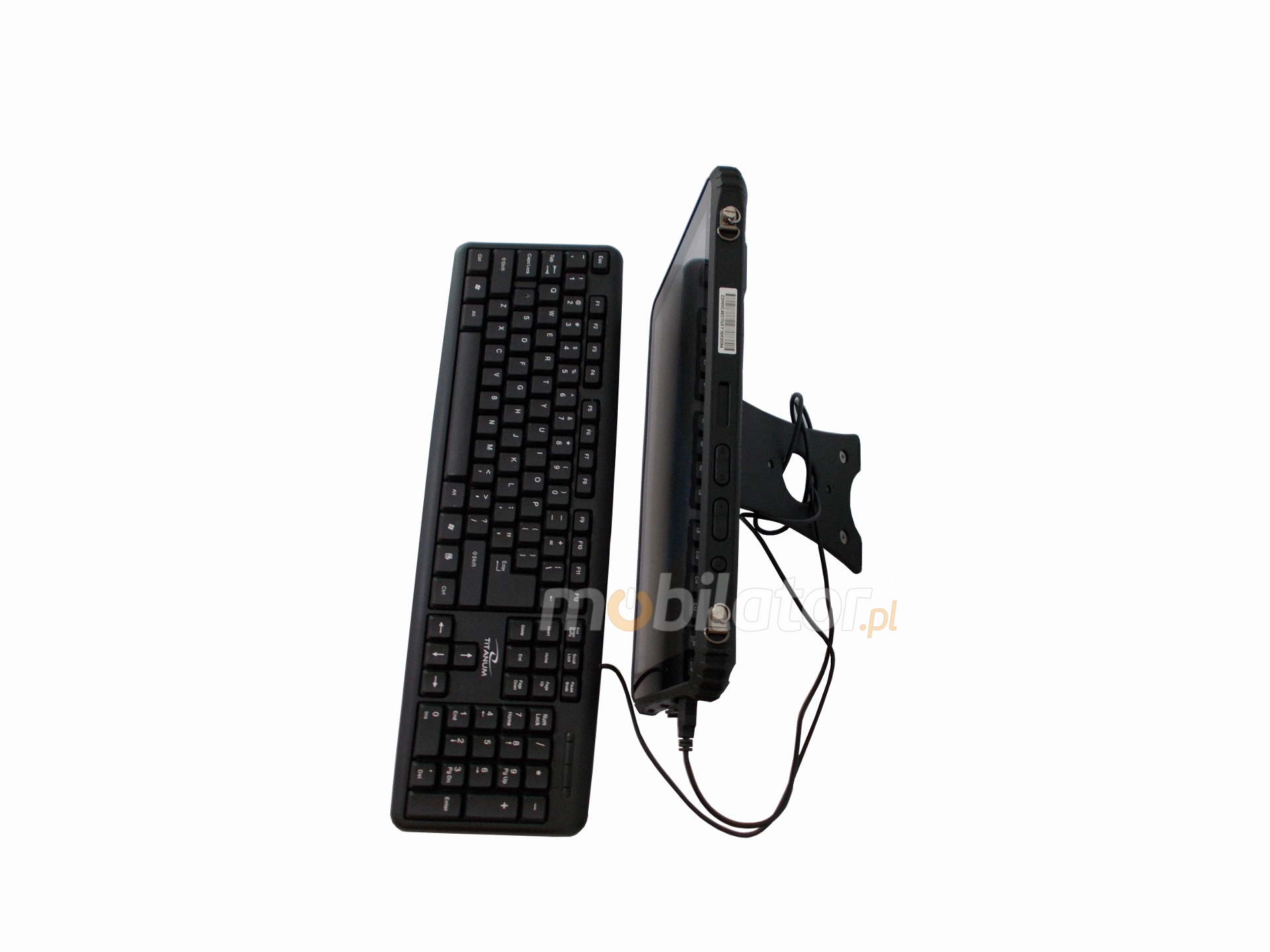

Keyboard + holder (option)

The Emdoor I22K tablet offers the perfect balance between mobility and comfort of use thanks to the possibility of fitting it with a detachable keyboard, which allows you to easily and quickly convert your tablet into a convenient, portable laptop with a touch screen.

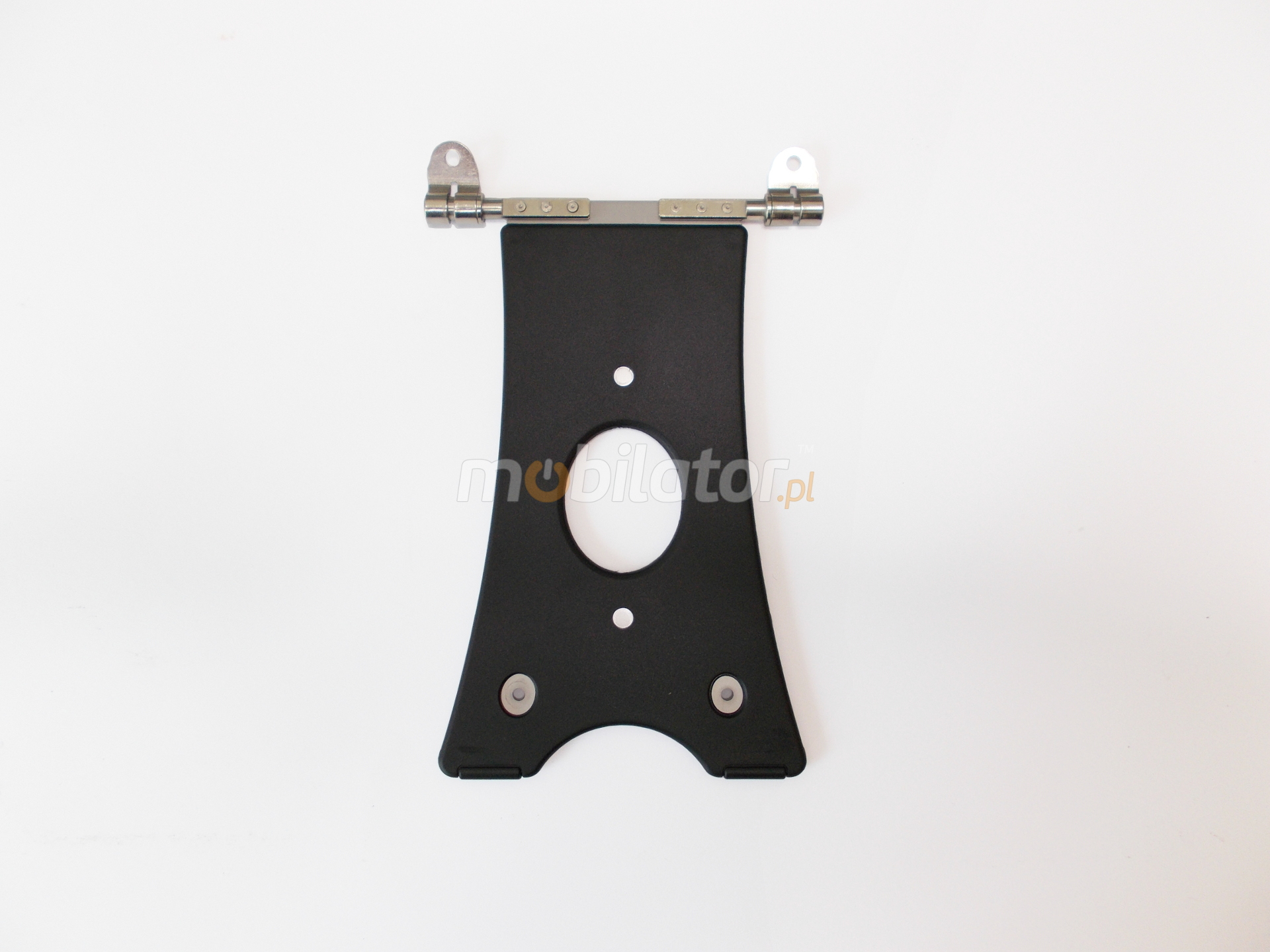

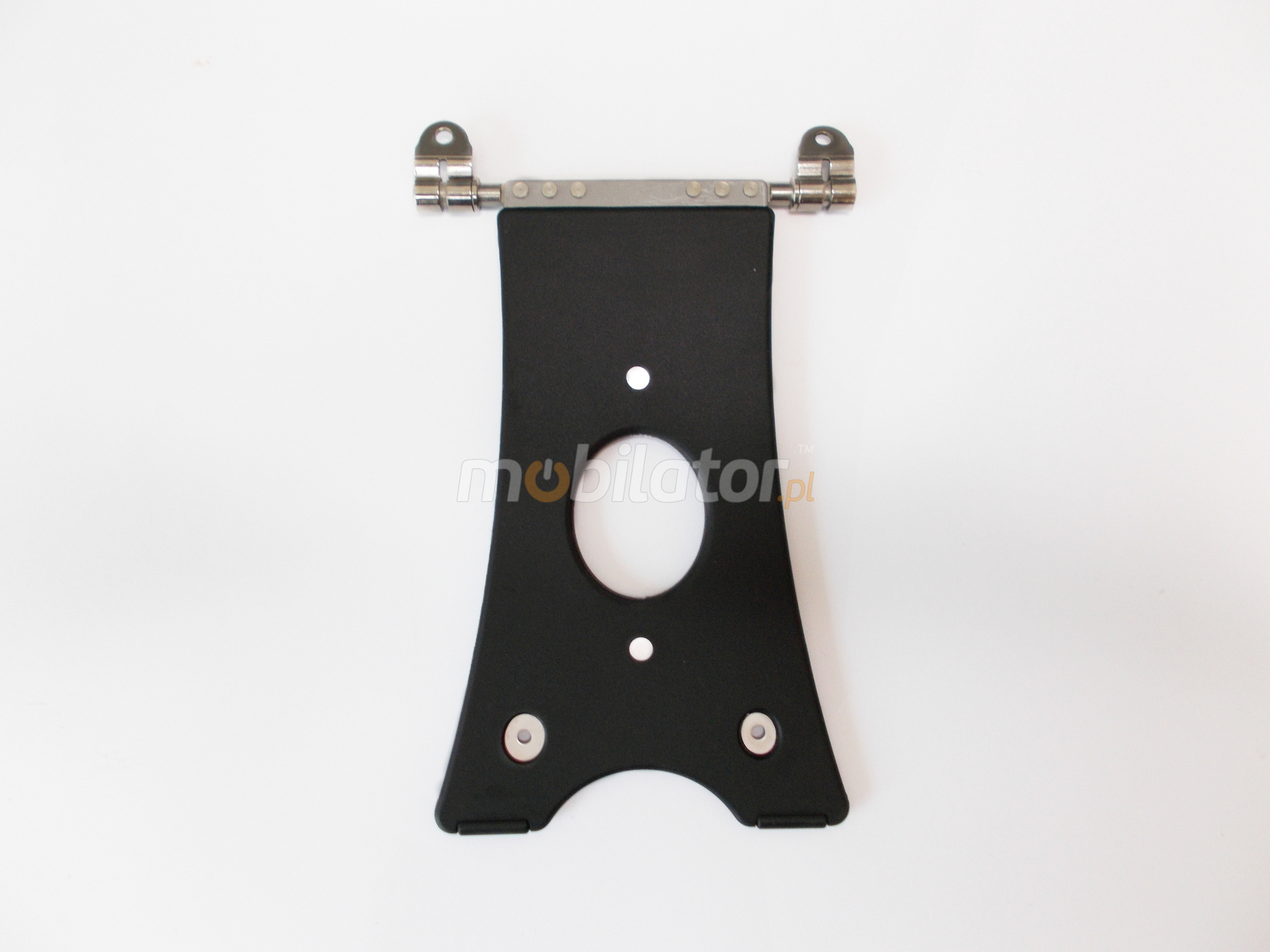

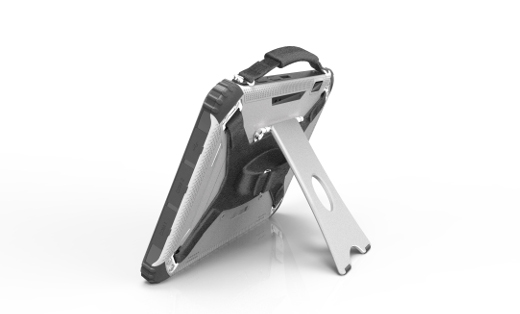

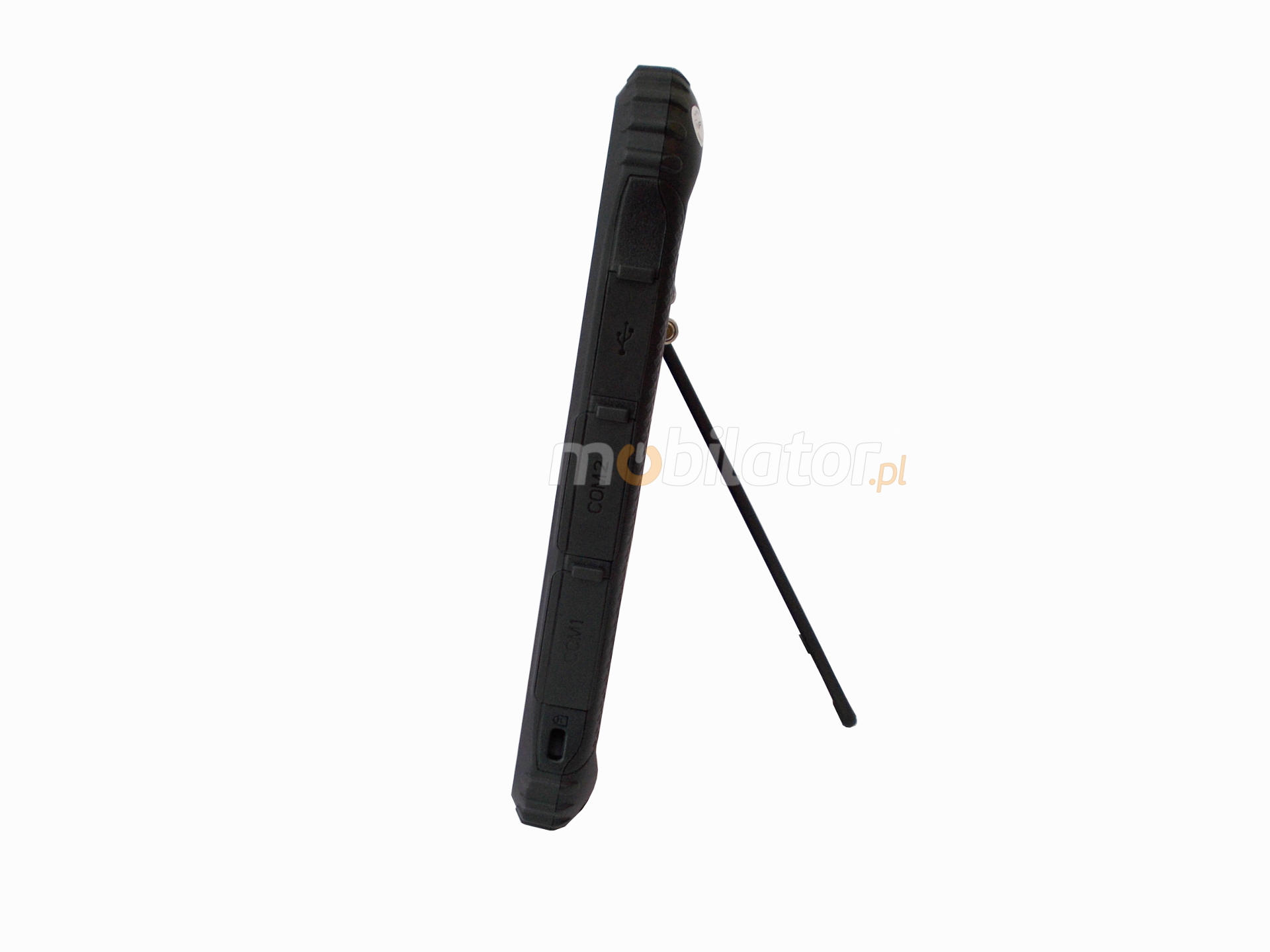

mobipad i22k podporka

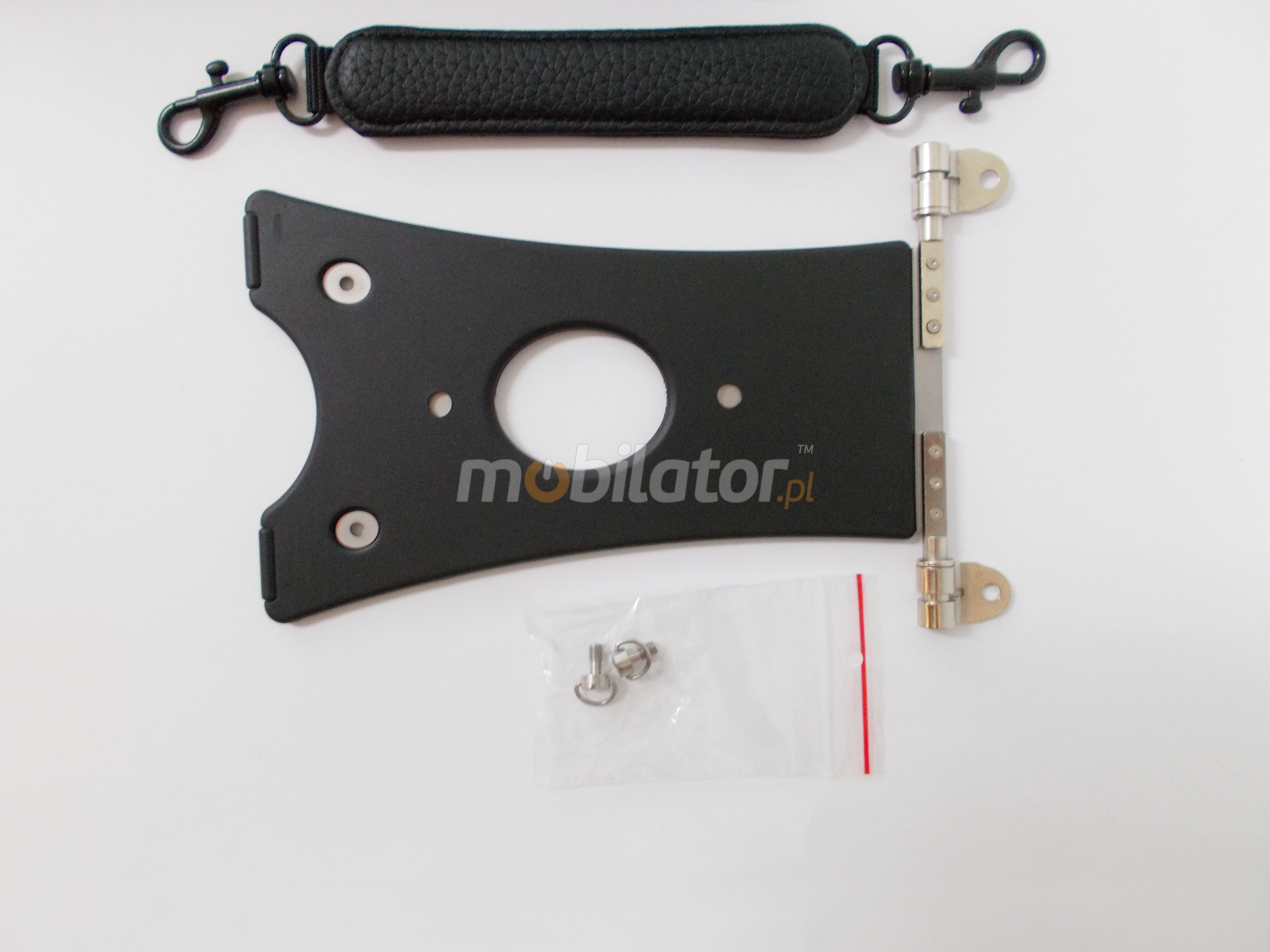

Shoulder holder (option)

Leather shoulder grip, allows you to keep the device in a comfortable position for long-term work even when standing.

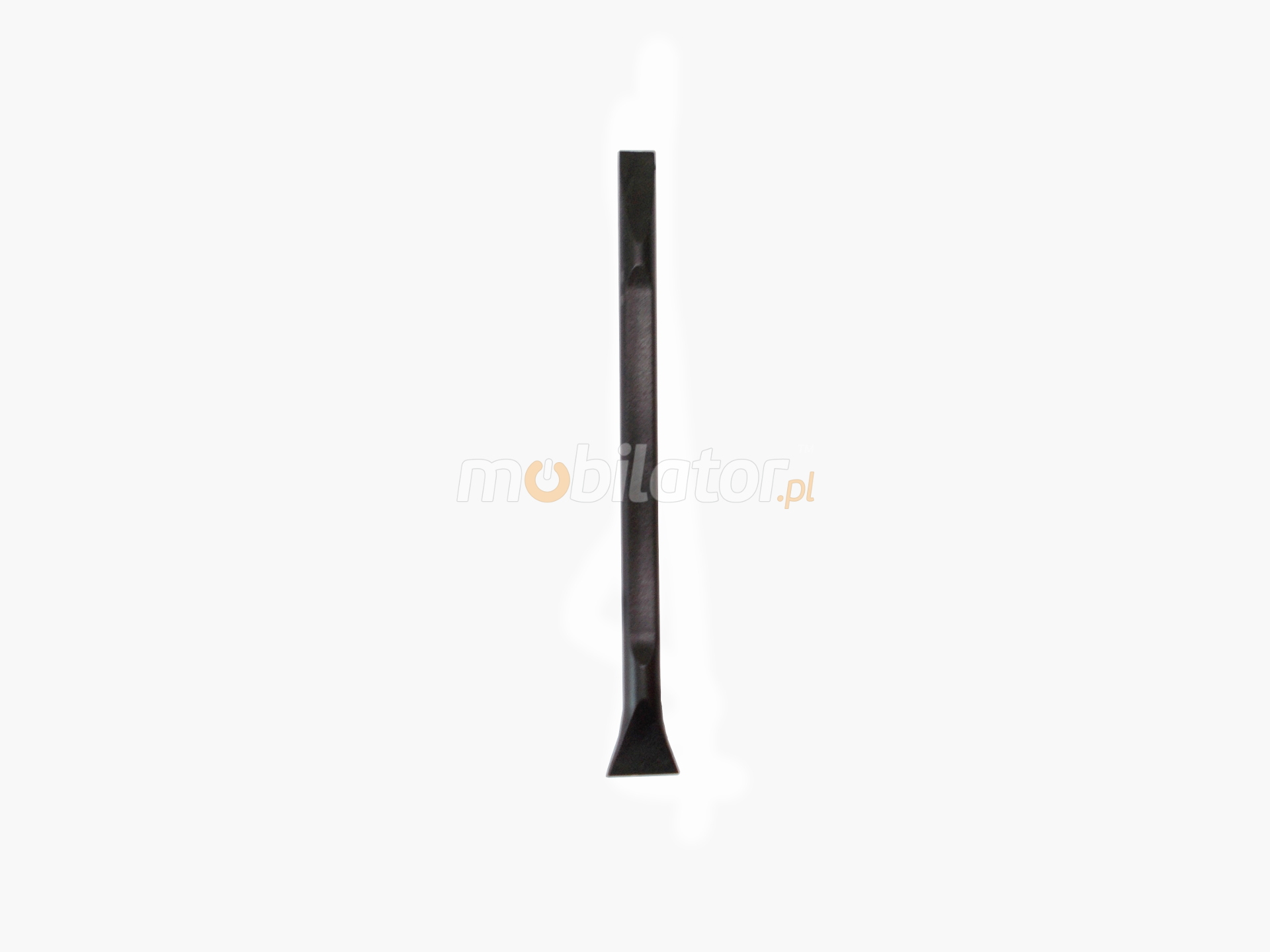

Capacitive stylus (option)

The stylish stylus allows you to precisely navigate the touch panel without leaving fingerprints.
