Strengthened Mobile Terminal with a built-in thermal printer and 1D laser scanner - MobiPad Z3506CK NFC v.2
|
|
The product from the archive - production terminated
|
Compare all versions

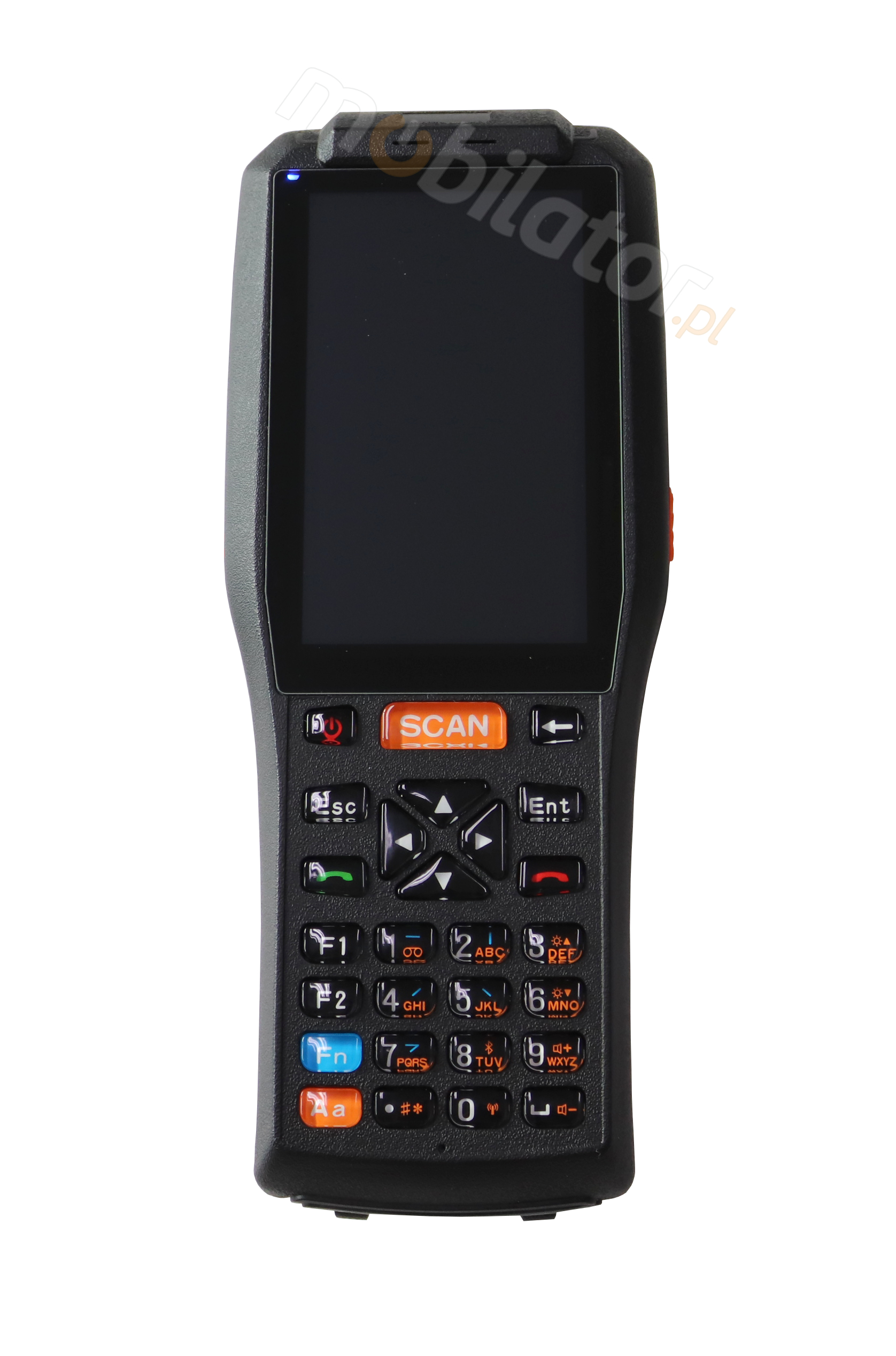

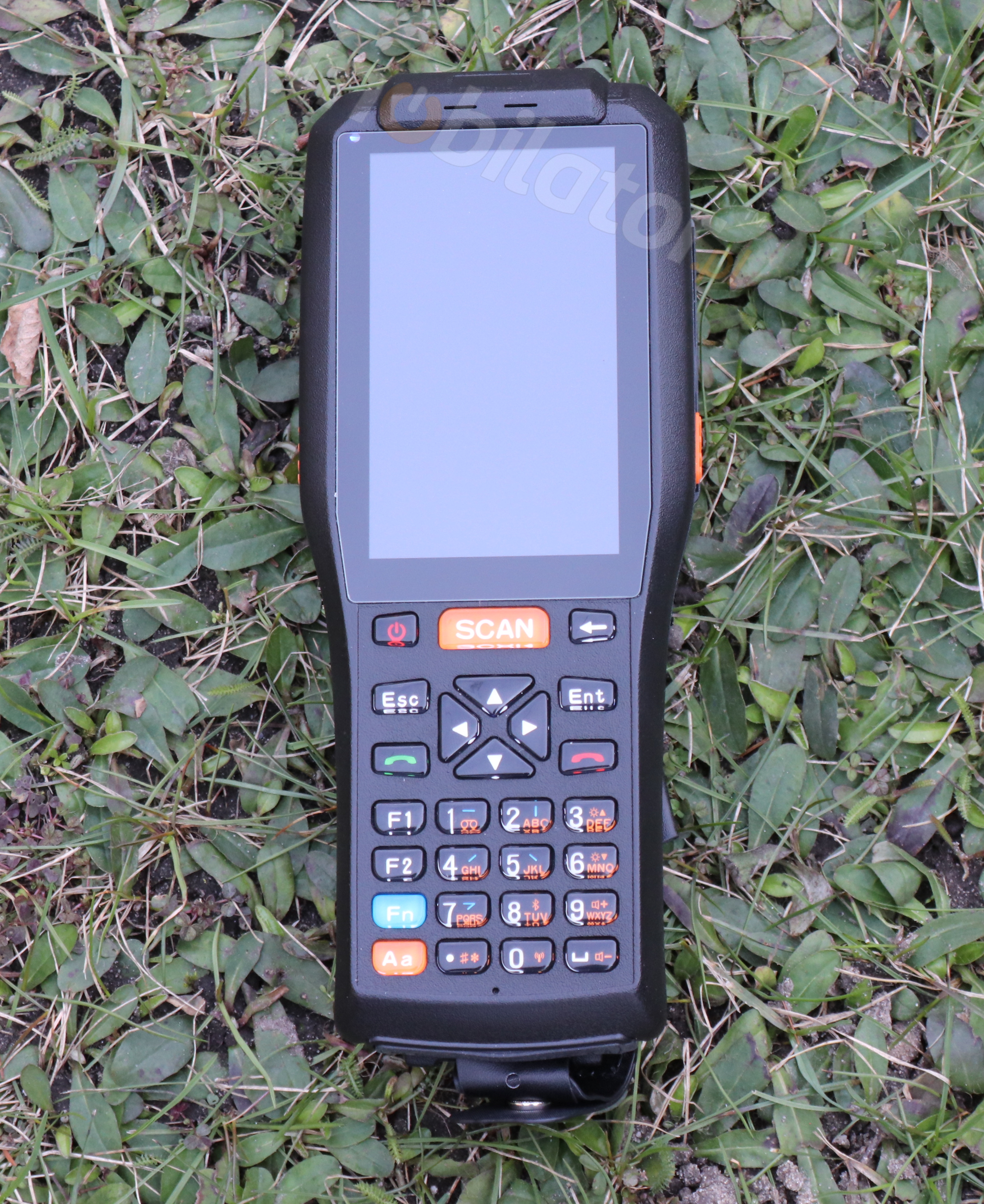

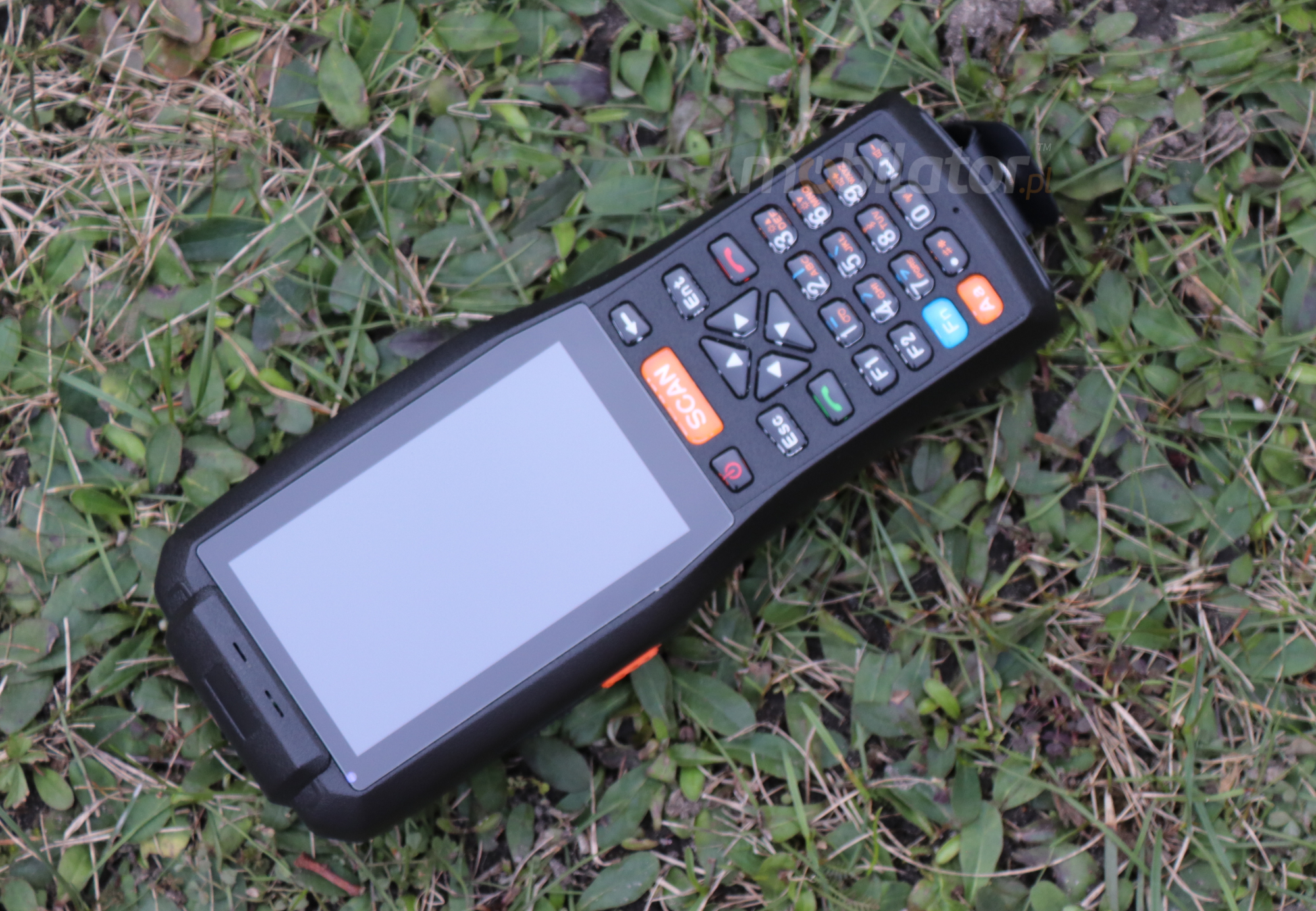

MobiPad Z356CK has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
|
.jpg)
| Processor(CPU) |
Qualcomm 8909 Cortex-A7 | Quad-Core 1.5GHZ |
| Display |
4" (800*480) | IPS HD Color Touch Screen |
| RAM |
1GB |
| ROM |
8GB |

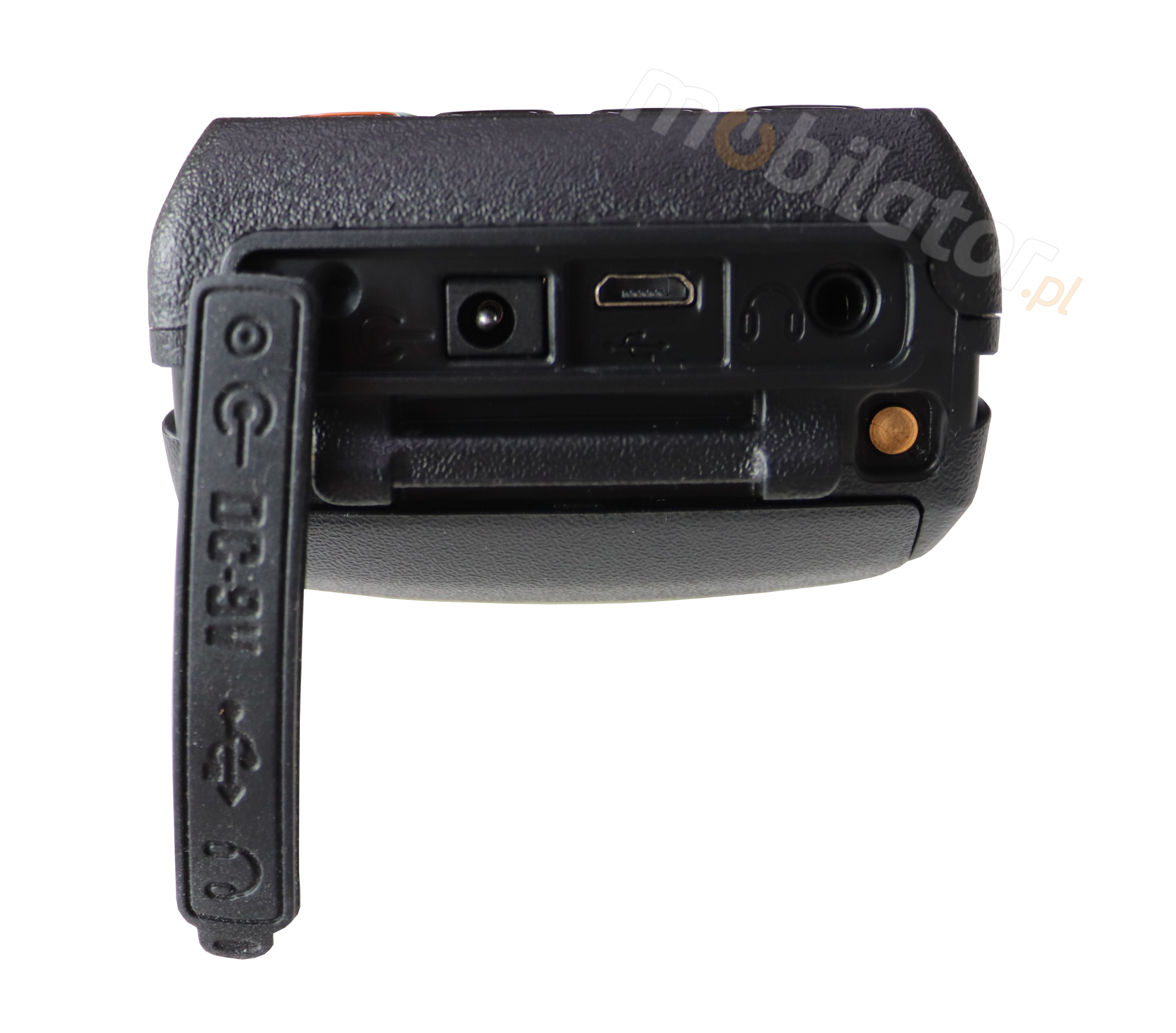

| Connectors |
microUSB | Micro SD (max. 32GB) | SIM |
| GPS |
Built-in GPS Support A-GPS (optional) |
| Audio |
Speaker | Microphone |
| Camera(optional) |
5Mpx | 8Mpx (optional) |
| Battery |
7.4V 3000mAh Li-Ion (Duration 7-8h) |

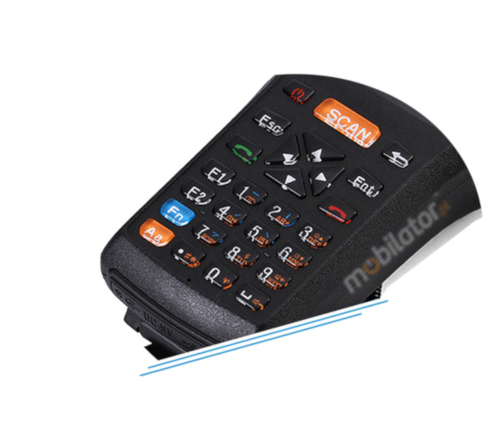

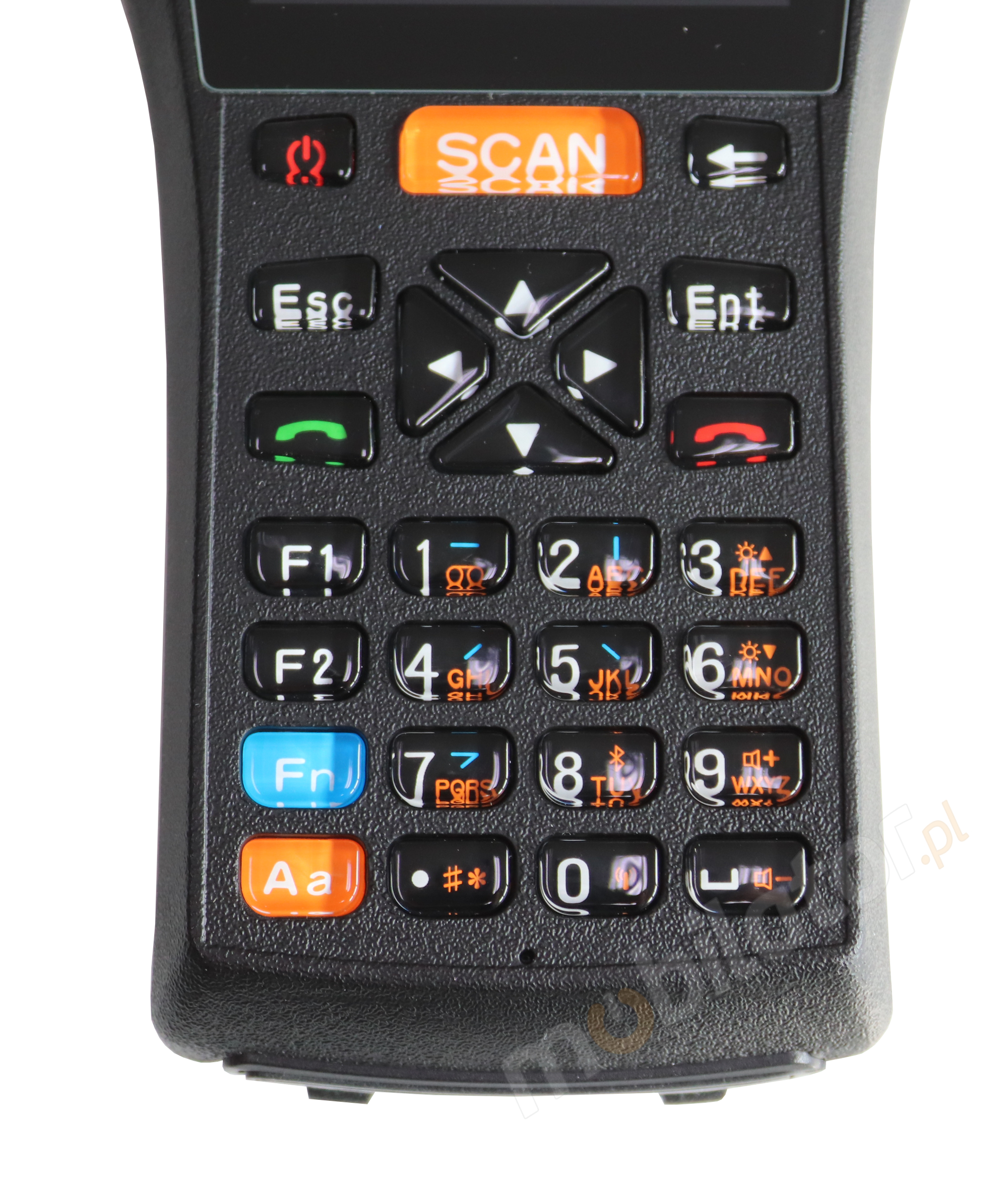

| Keyboard |
Vitual qwerty keyboard and actual figure button |
| Environment |
Android 5.1 Lollipop |
| Modules |
3G | WiFi | Bluetooth | GPS | NFC | Printer |
| Dimensions |
209mm*83mm*49mm | 508g |
| Resistance |
IP65 |
| Readers |
1D (Mindeo)
2D (Newland EM3096) (Optional)
|
|
Select a version for each other
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
Porównaj wszystkie wersje
|
|
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
|
Drukarka / Printer |
✔ |
✔ |
✔ |
✔ |
✔ |
|
1D Mindeo |
— |
✔ |
— |
✔ |
— |
|
2D Newland EM-3096 |
— |
— |
✔ |
— |
✔ |
|
5 Mpx |
— |
✔ |
✔ |
— |
— |
|
8 Mpx |
— |
— |
— |
✔ |
✔ |
go top…  menu…
|
|
|
Data collector MobiPad Z3506CK can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.
Operating temperature: -15 ° C ~ 60 °C
Operating Humidity: 0% ~ 90%
go top… menu…
|
|
|
|

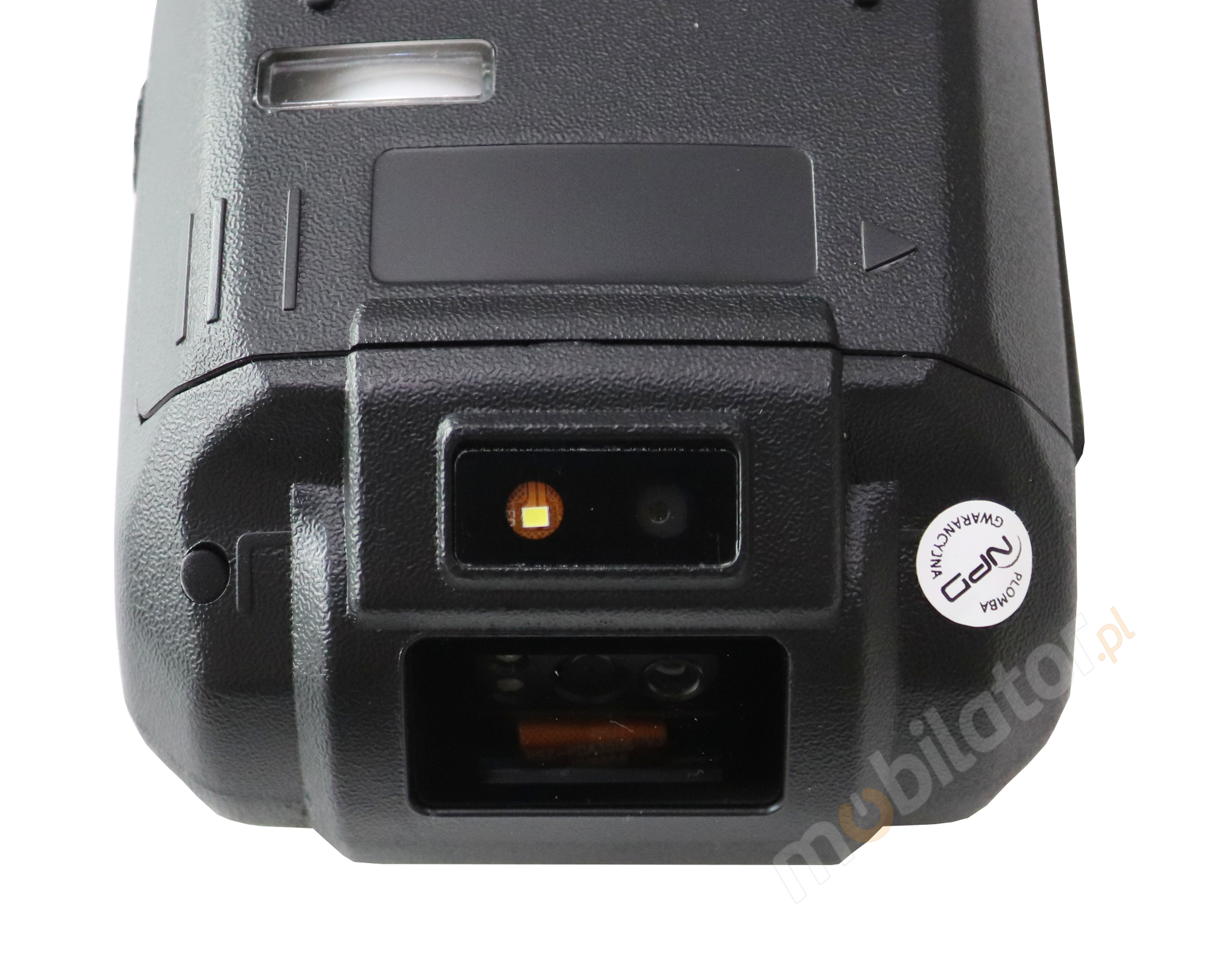

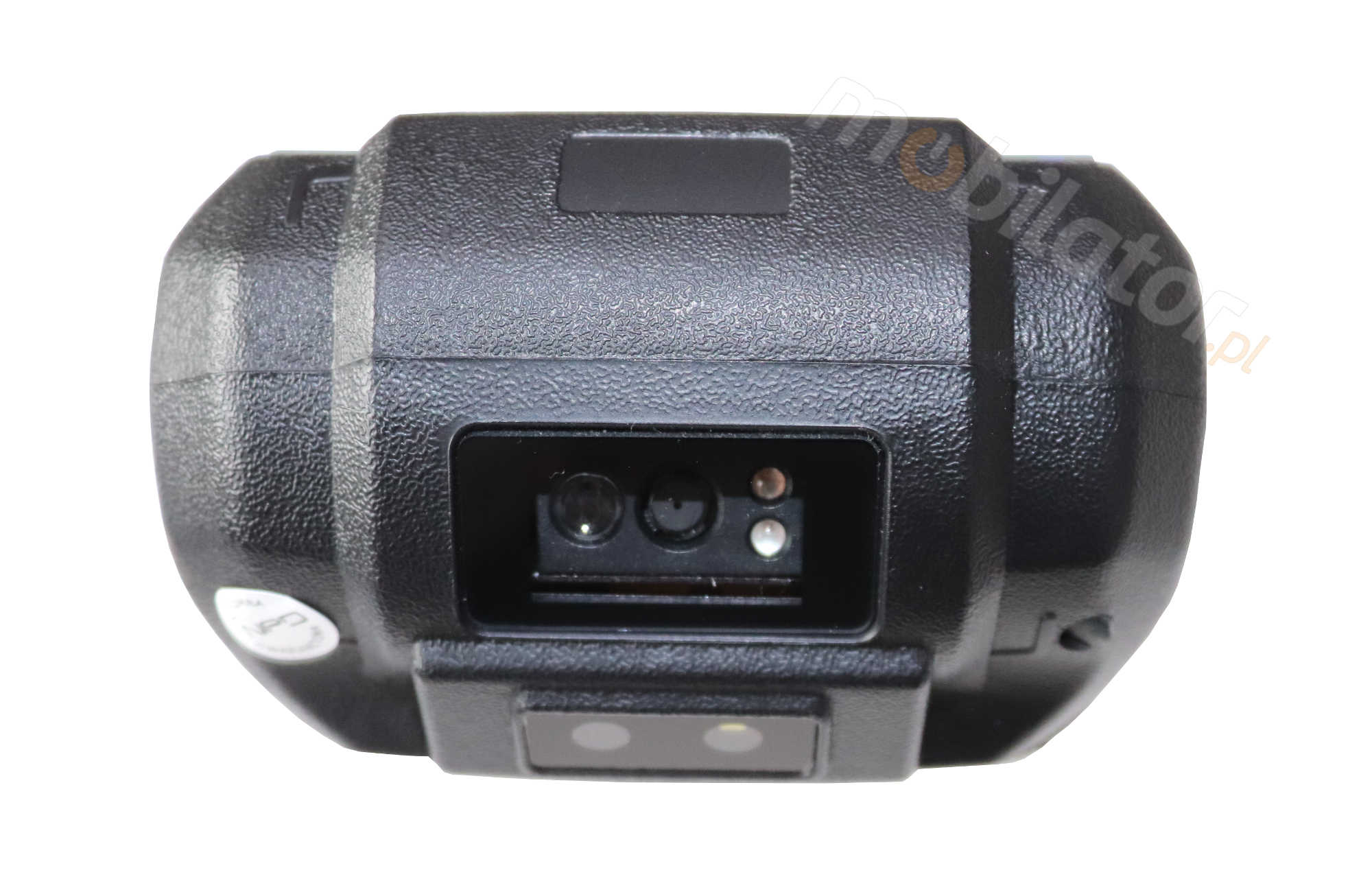

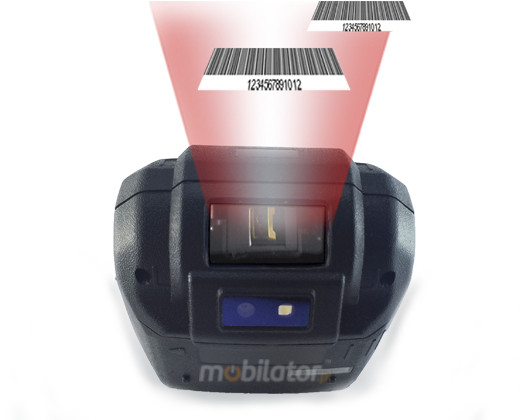

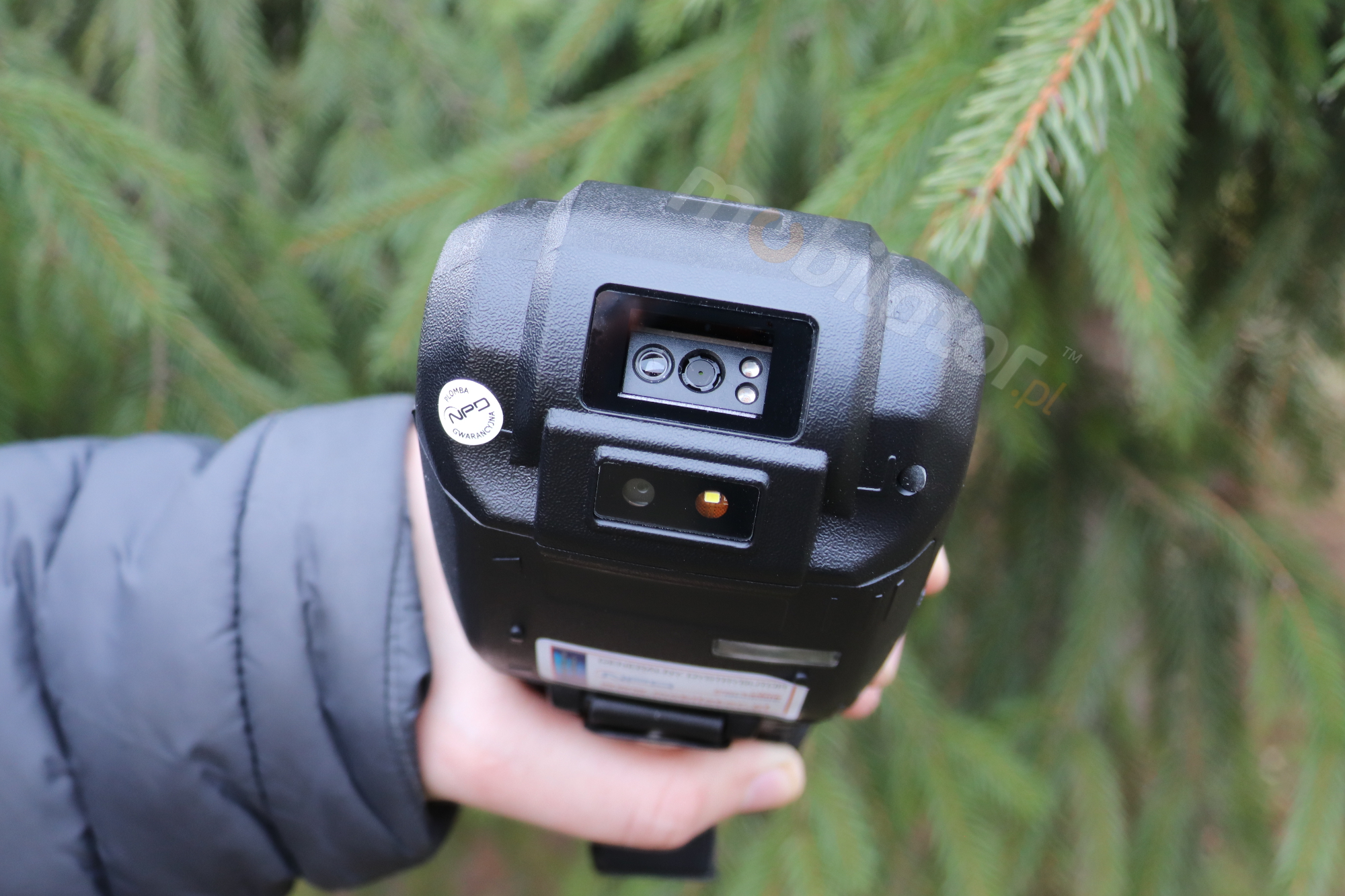

Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
.jpg)
|
Near Field Communication (NFC)
Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.
|
RFID (HF) NFC |
| Frequency |
13.56 MHz |
| Reading distance |
od 1 do 5 cm |
| Supported card standard |
Mifare Write/Read |
| Supported standards |
ISO 14443 A/B |
| |
ISO 15693 |
go top... menu…
|
|
|
Applicable standards
| Operating |
-15°C -- +60°C |
| Storage |
-20°C -- +70°C |
| Humidity |
0% - 90% RH | non-condensing |
| Dust |
IP6x (dust) |
| Water |
IPx5 (water) |
| Drop |
1.2m |
go top... menu…
IP65 Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
| No special protection |
| 0 |
 |
0
|
|
No waterproofing |
| Protection from solid objects greater than 50mm in diameter |
| 1 |
 |
1
|
|
Protection from dripping water
|
| Protection from solid objects greater than 50mm in diameter |
| 2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
| 3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
| 4 |
 |
4
|
|
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
| 5 |
 |
5
|
|
Protection from splashed water |
| Complete protectionm against contact, Protection from infiltration of dust |
| 6 |
 |
6
|
|
Protection from water projected from a nozzle |
| |
| |
 |
7
|
|
Protection against immersion |
| |
| |
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top... menu…
|
|
|
|
.jpg)
When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad Z3506CK NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.
| WiFi |
802.11 b/g |
| GPS |
Yes |
| Bluetooth |
Bluetooth v 4.0 |
| WWLAN(4G/3G/2G) |
LTE-FDD B1 B3 B8
LTE-TDD B38 B39 B40 B41
WCDMA Band1 Band8
TD-SCDMA Band34 Band39
CDMA BC0
DCS1800
EGSM900
|
.jpg)

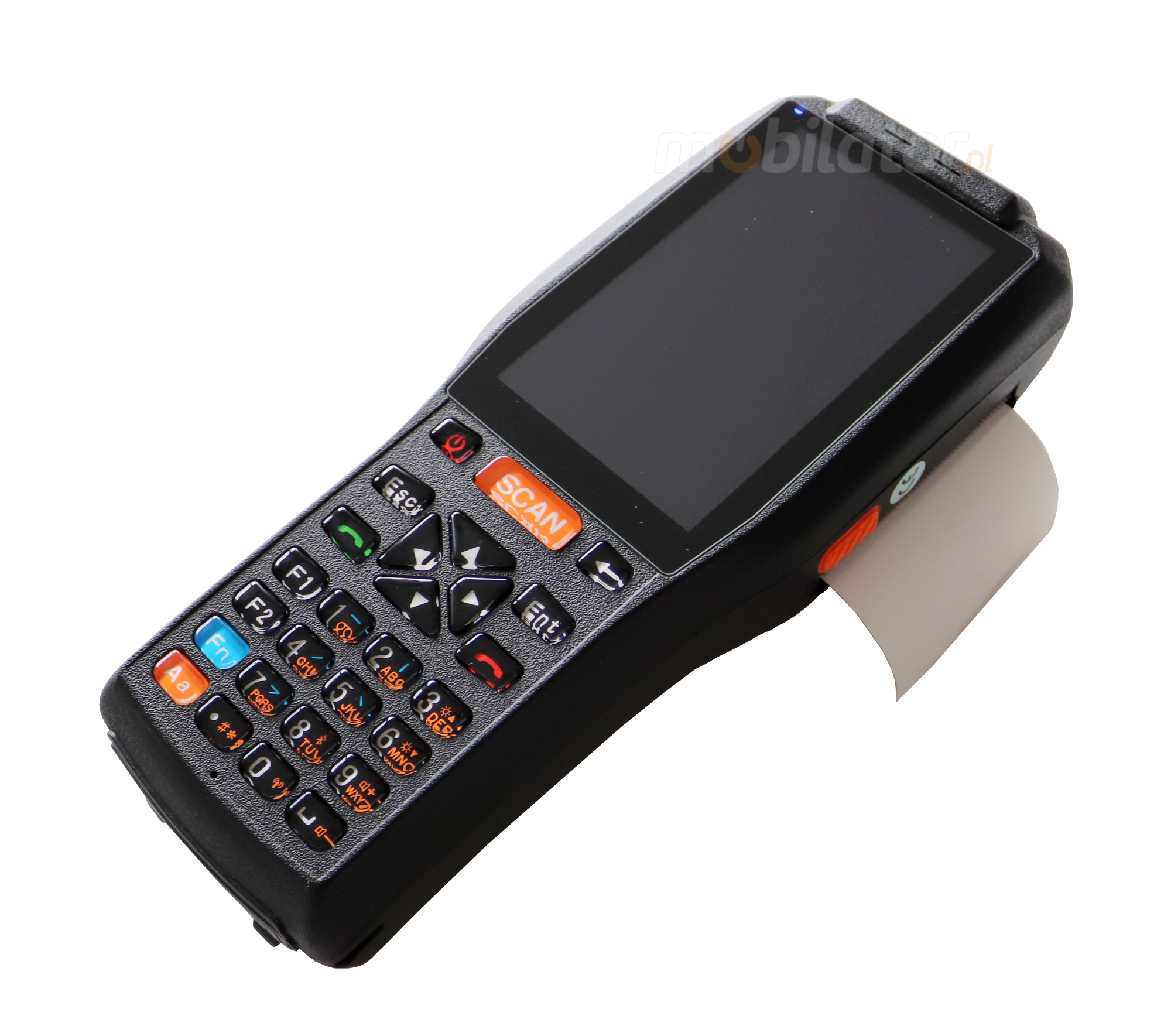

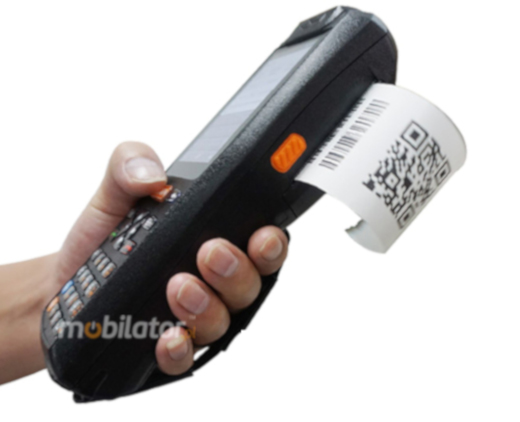

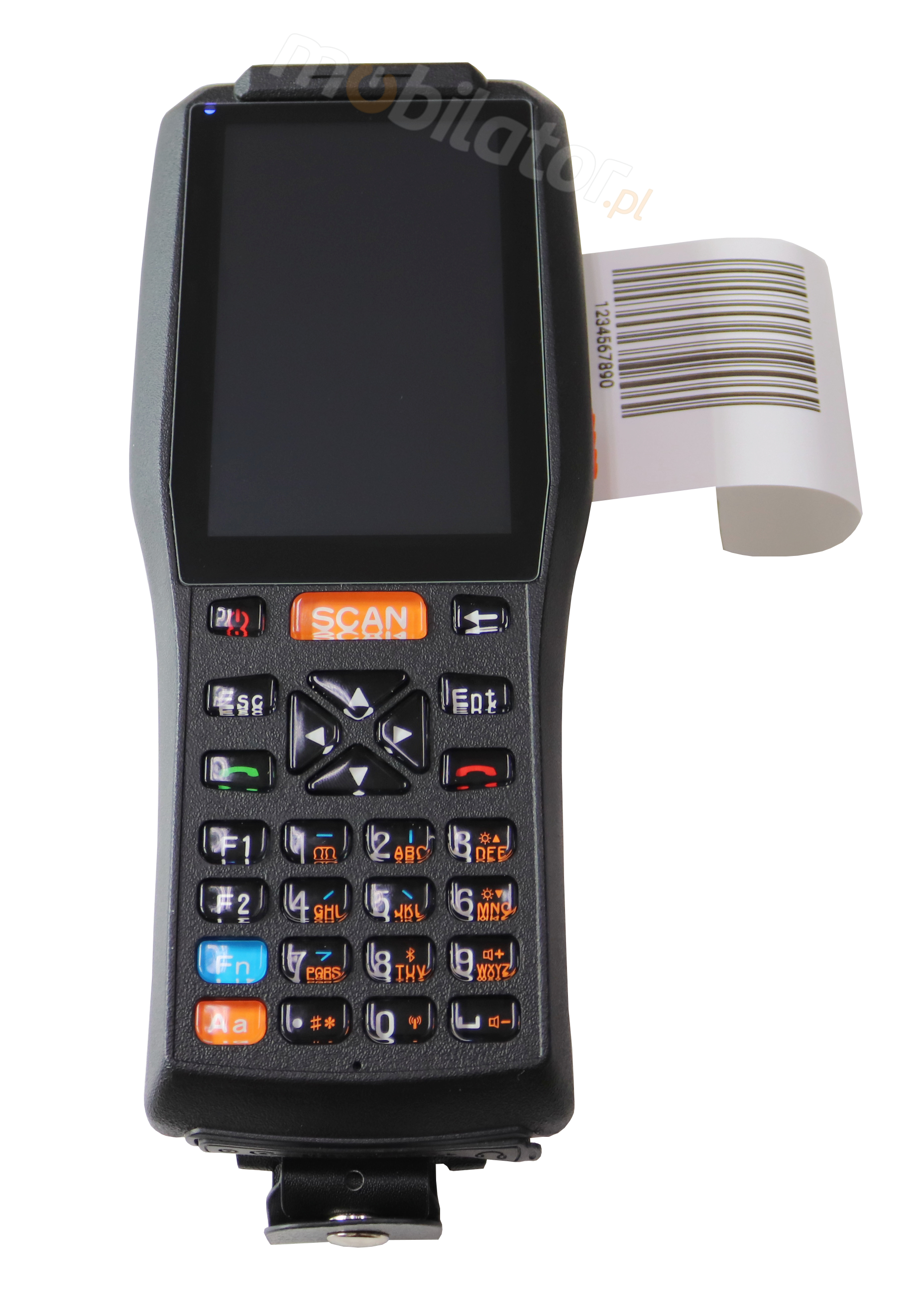

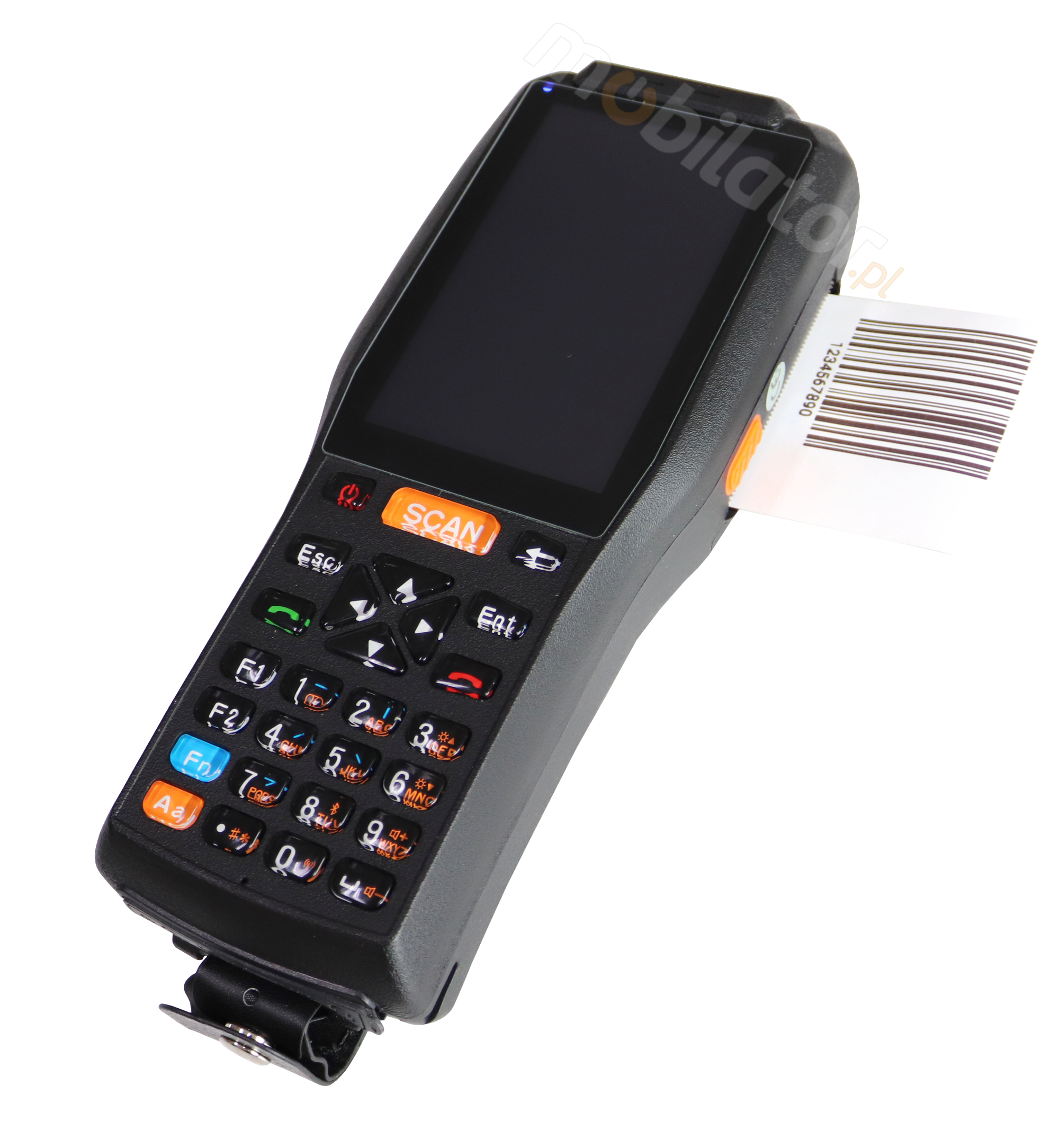

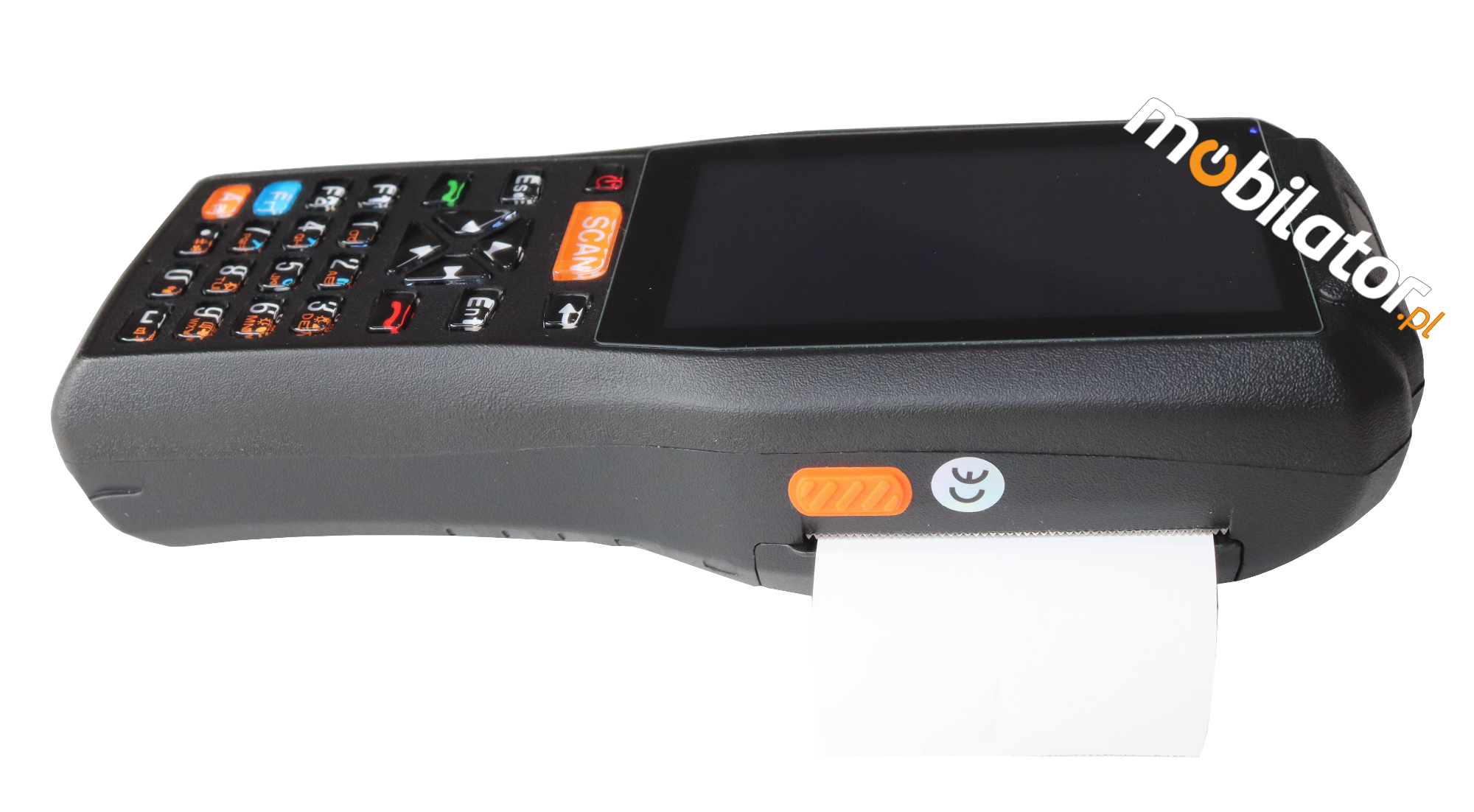

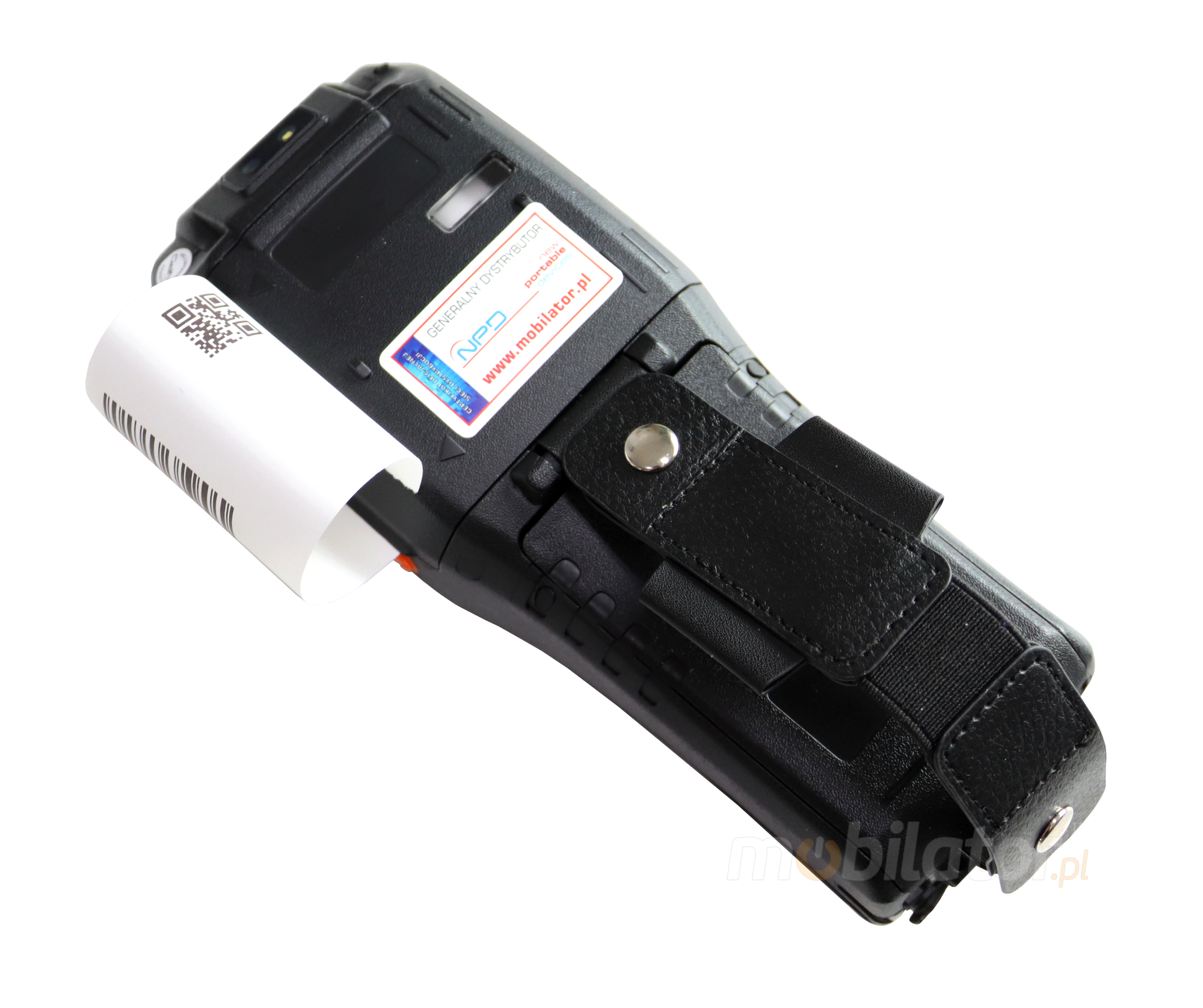

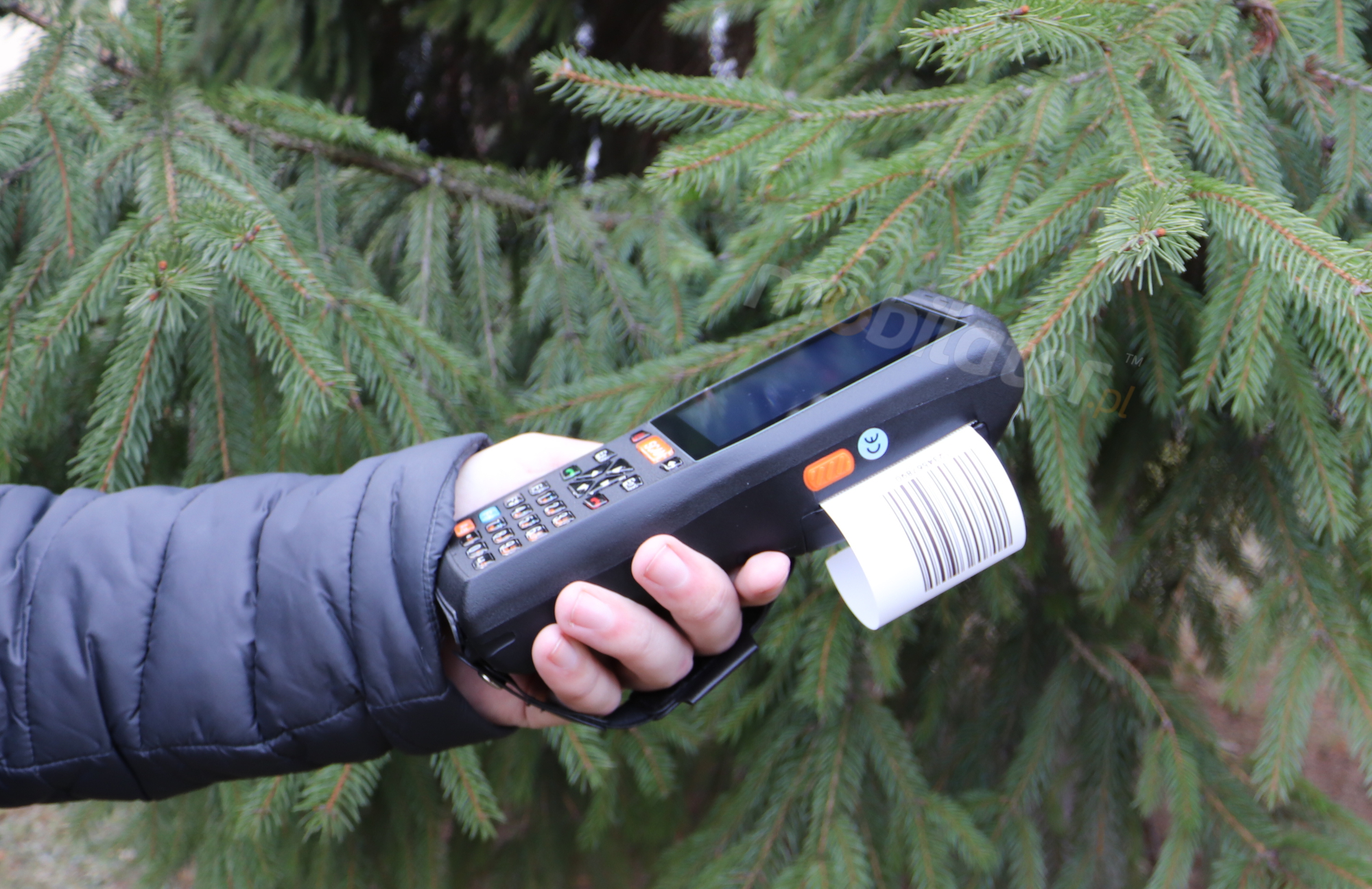

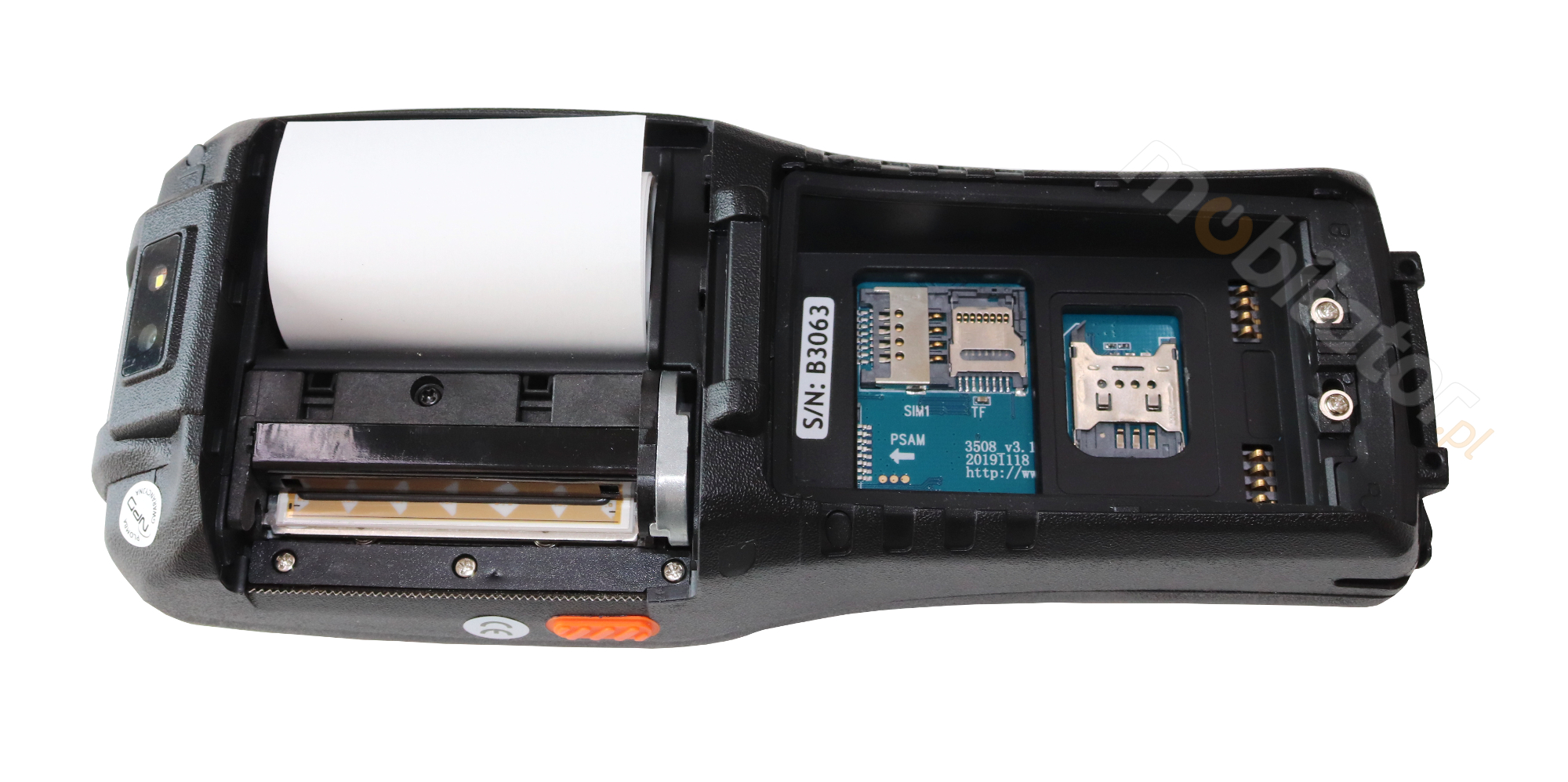

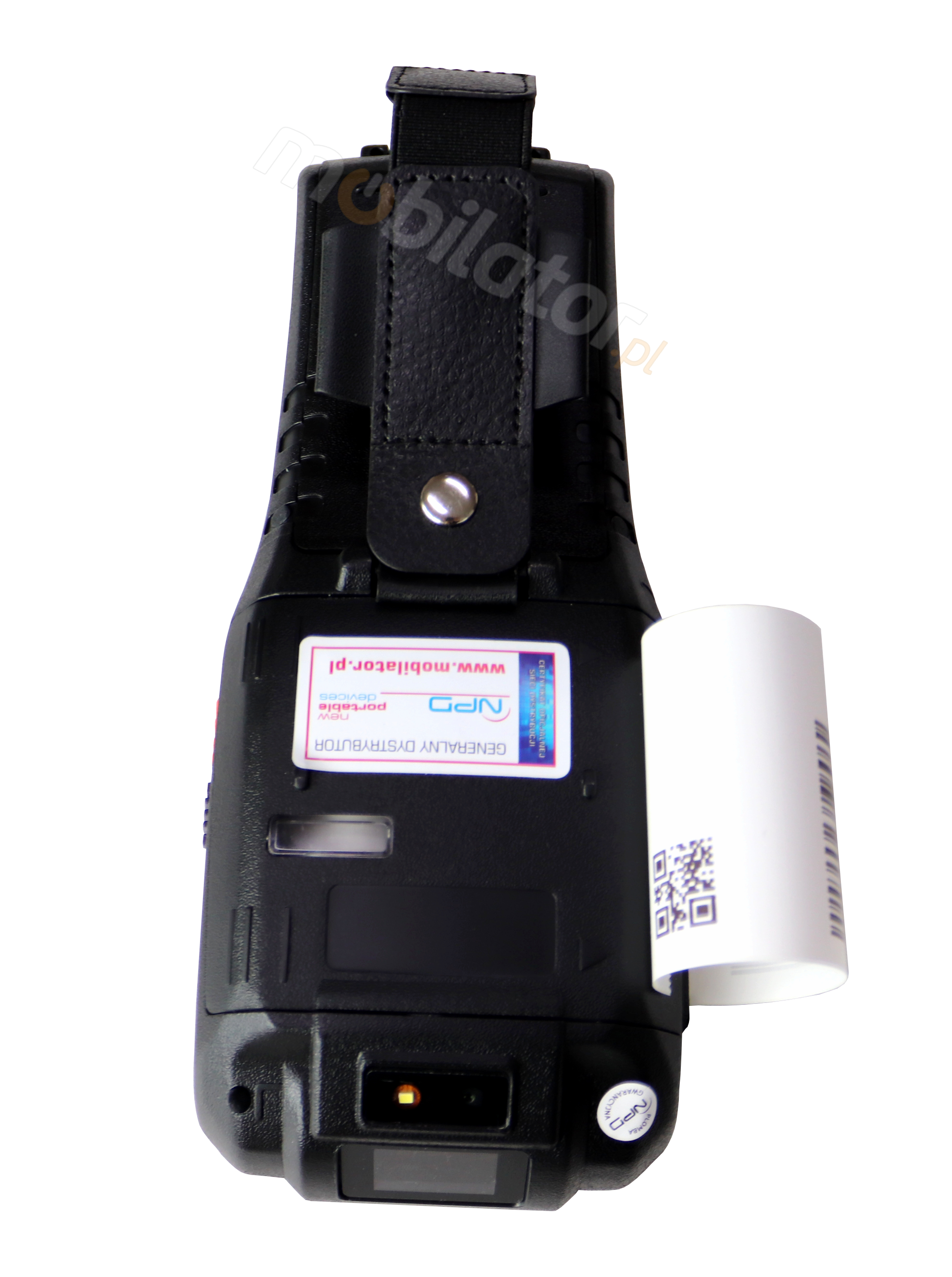

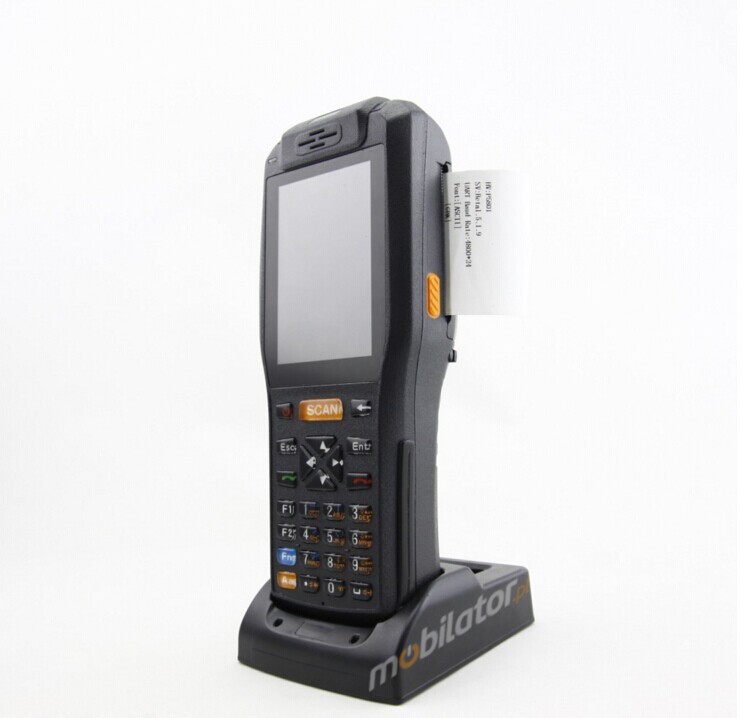

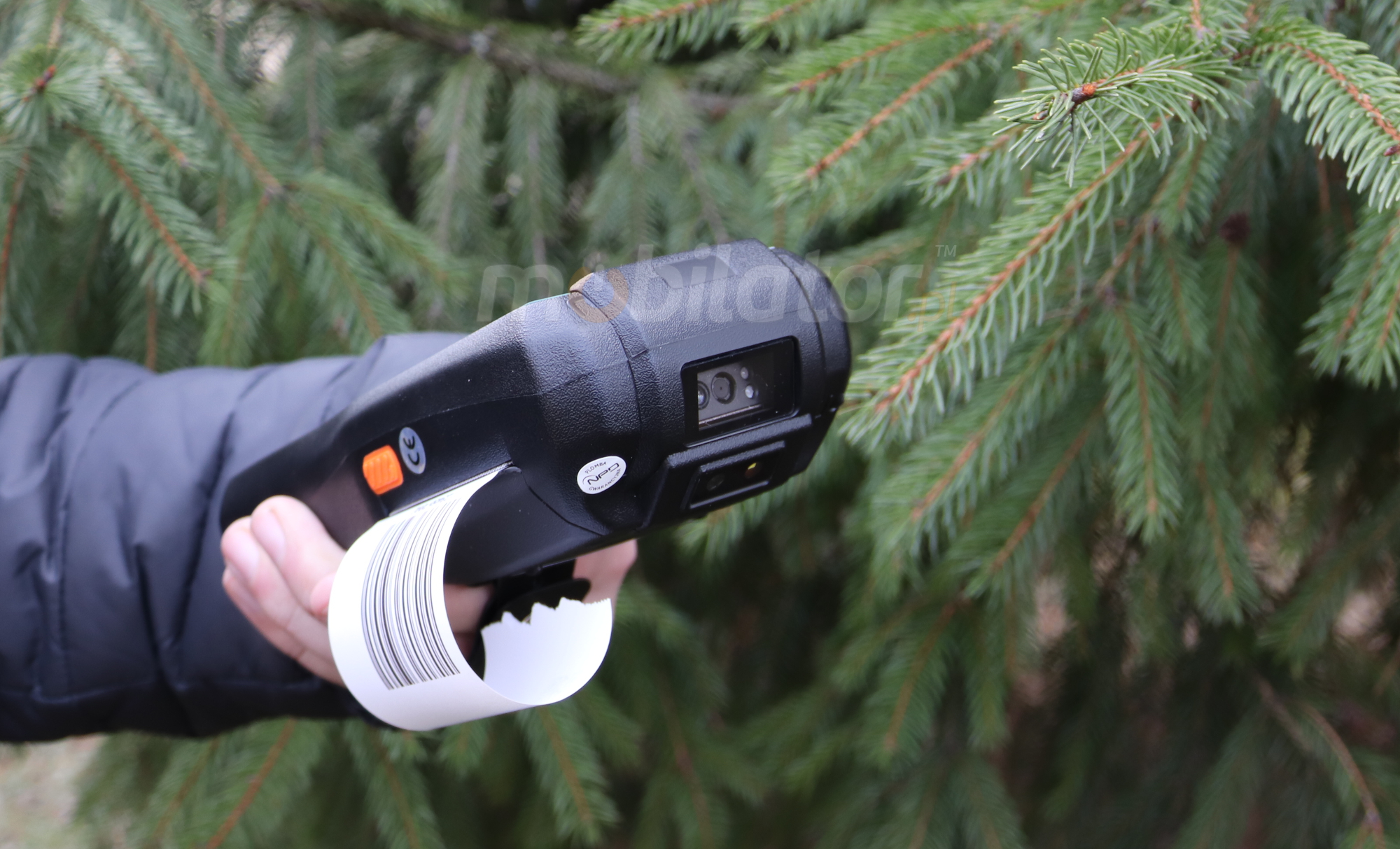

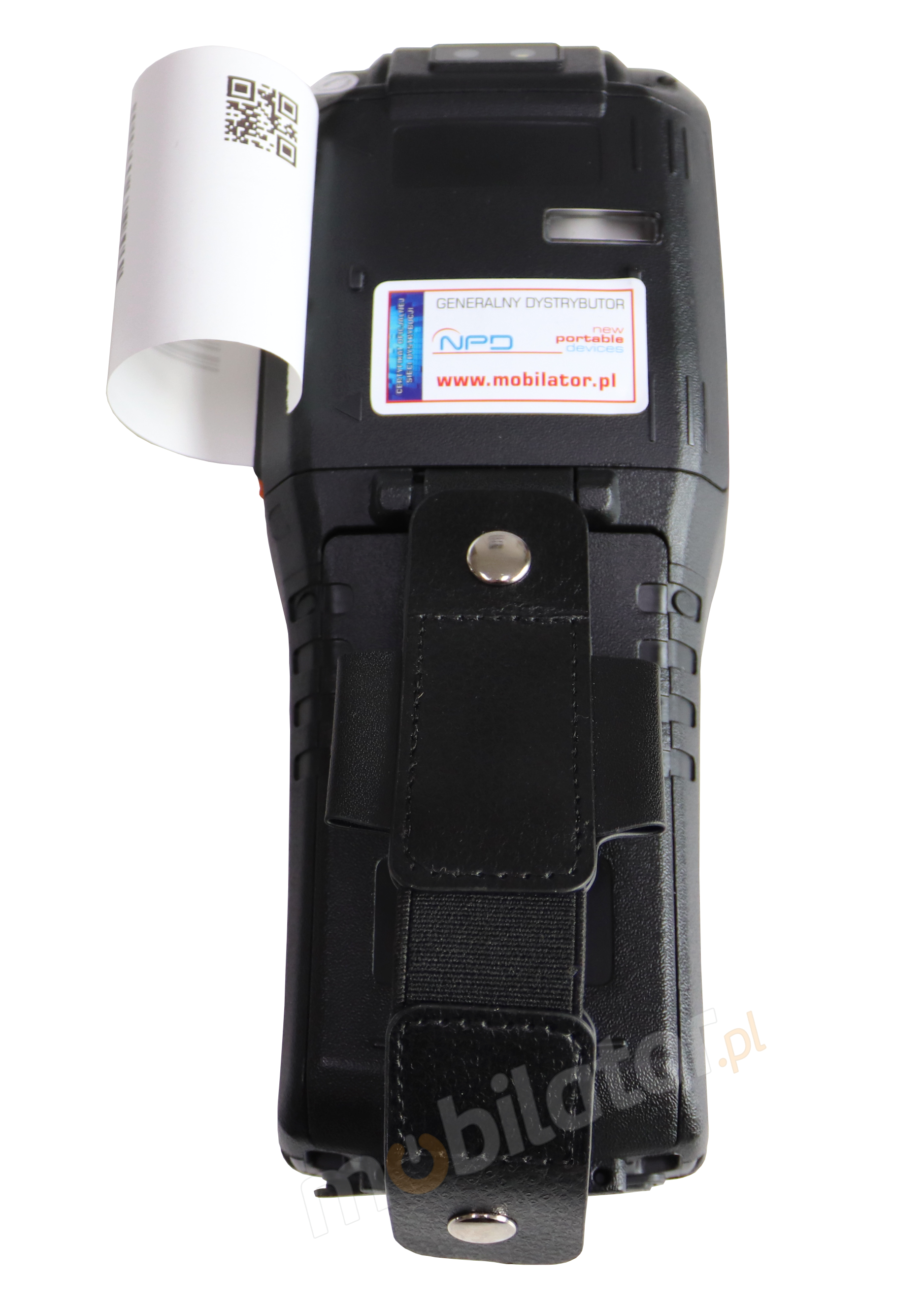

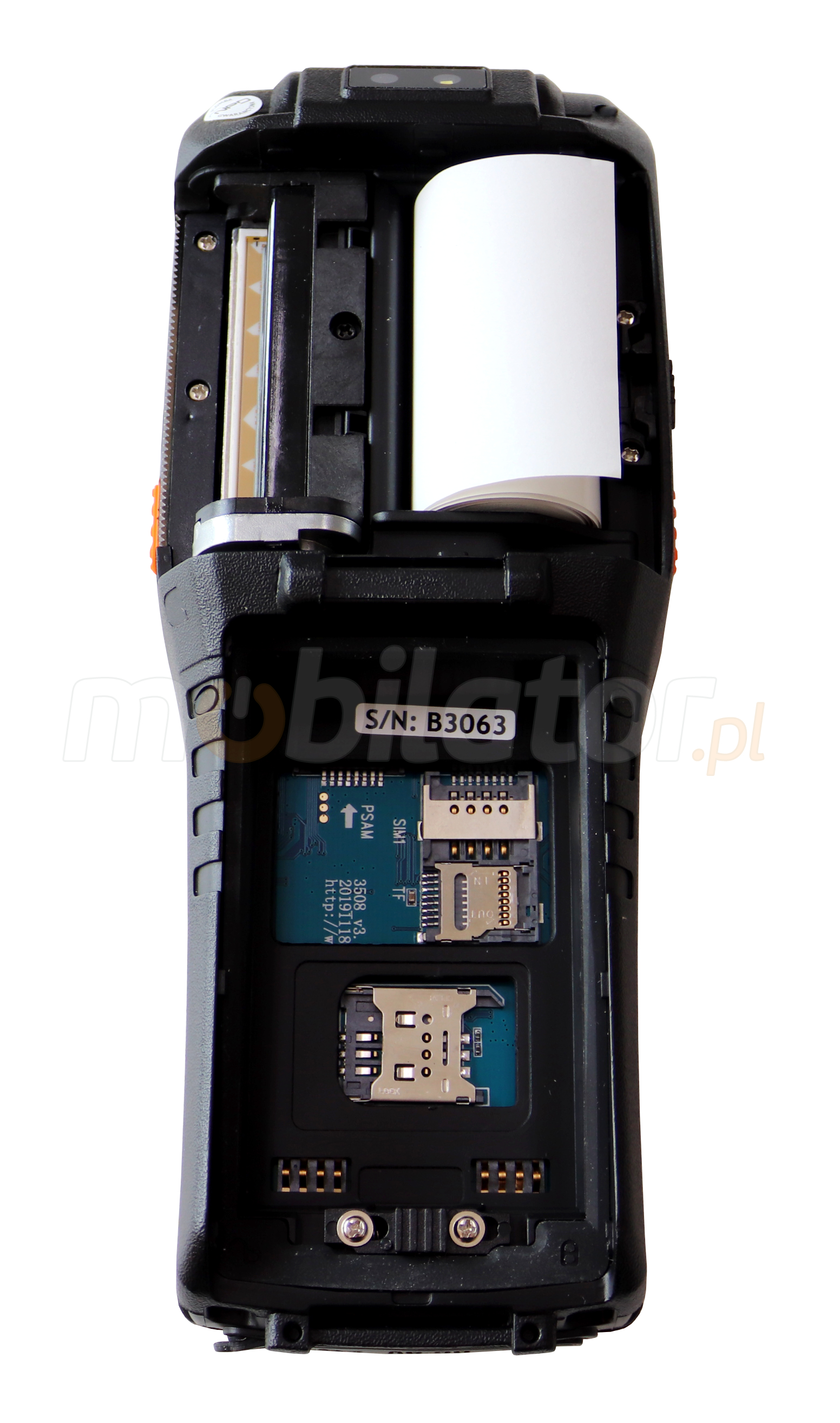

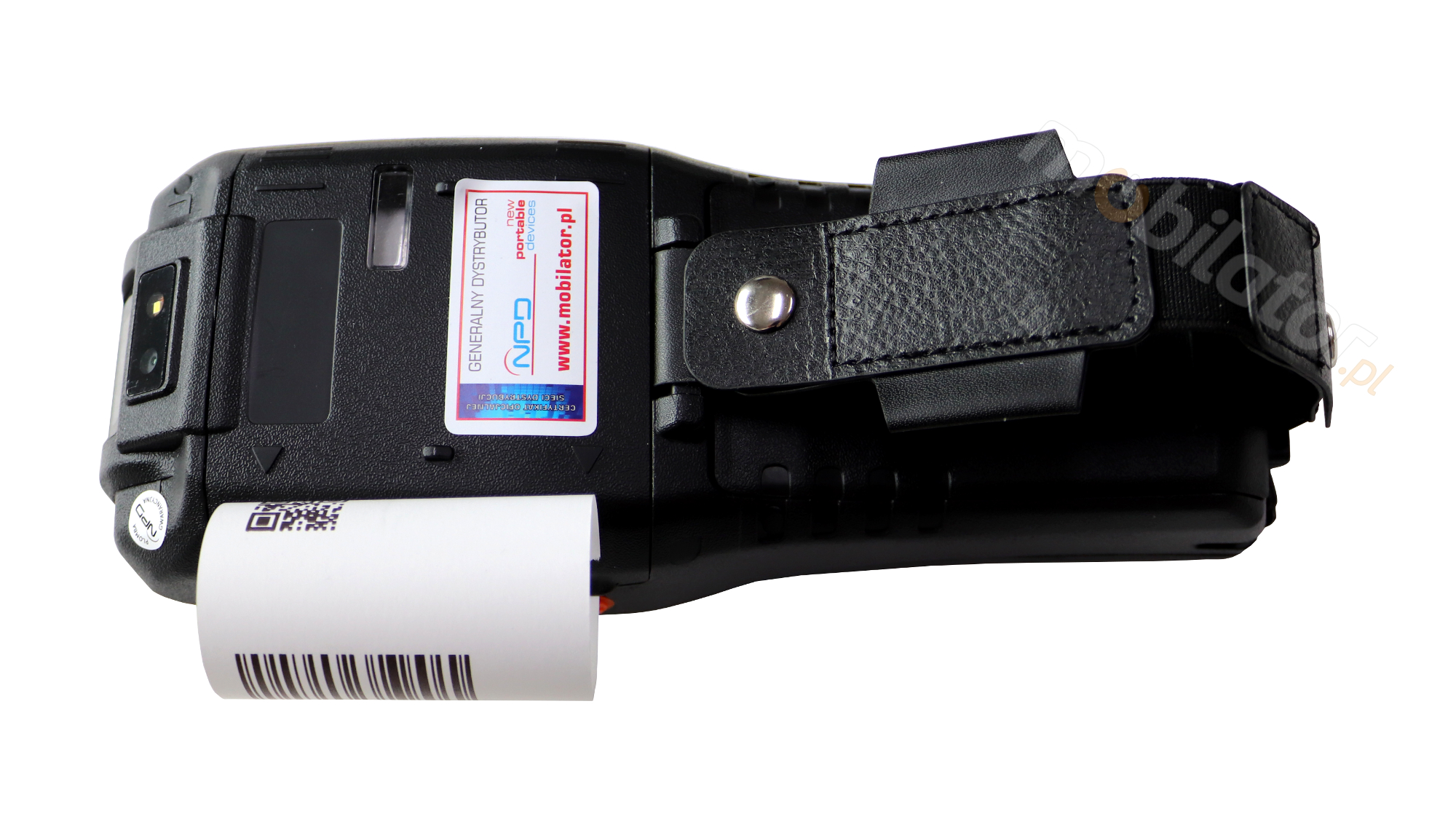

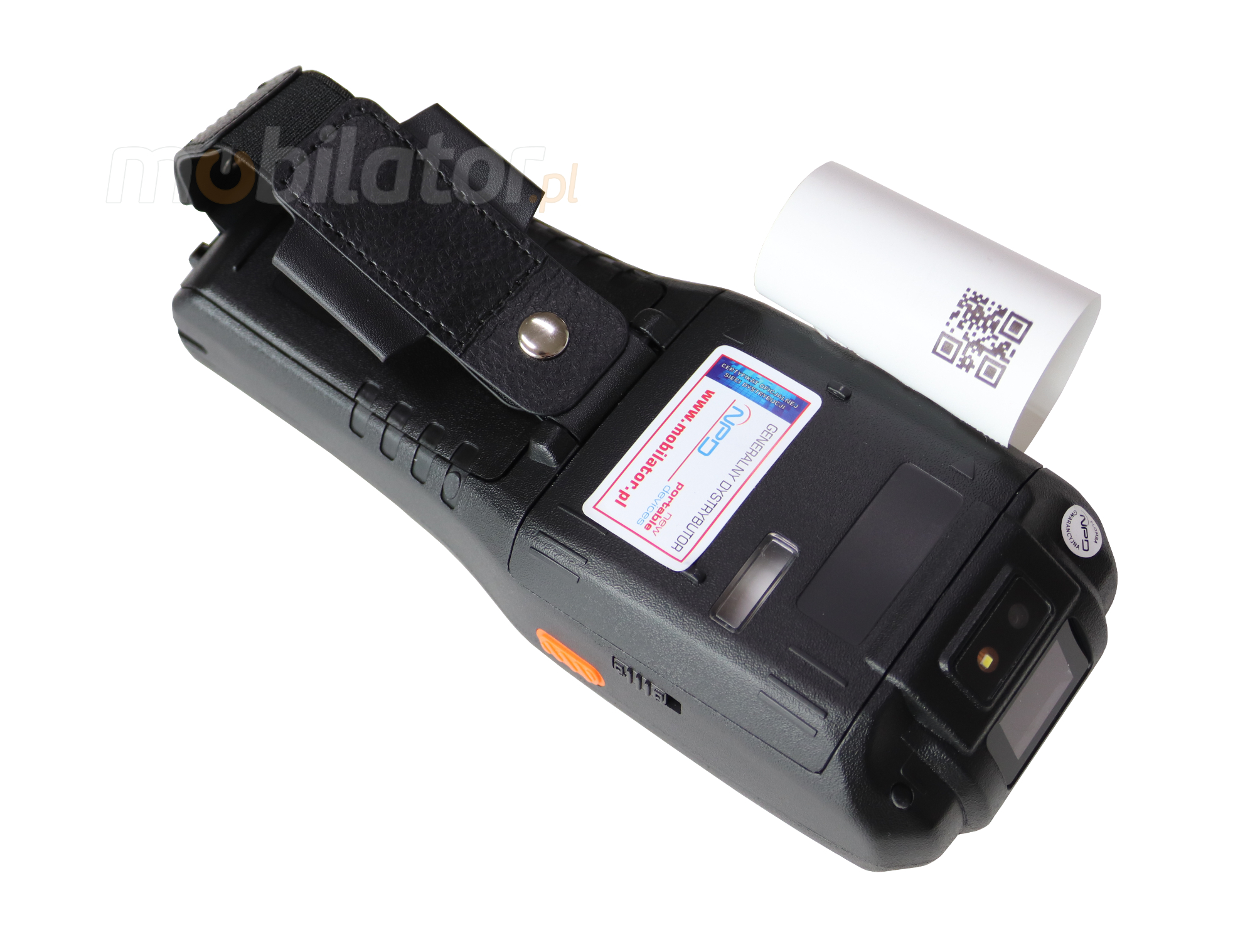

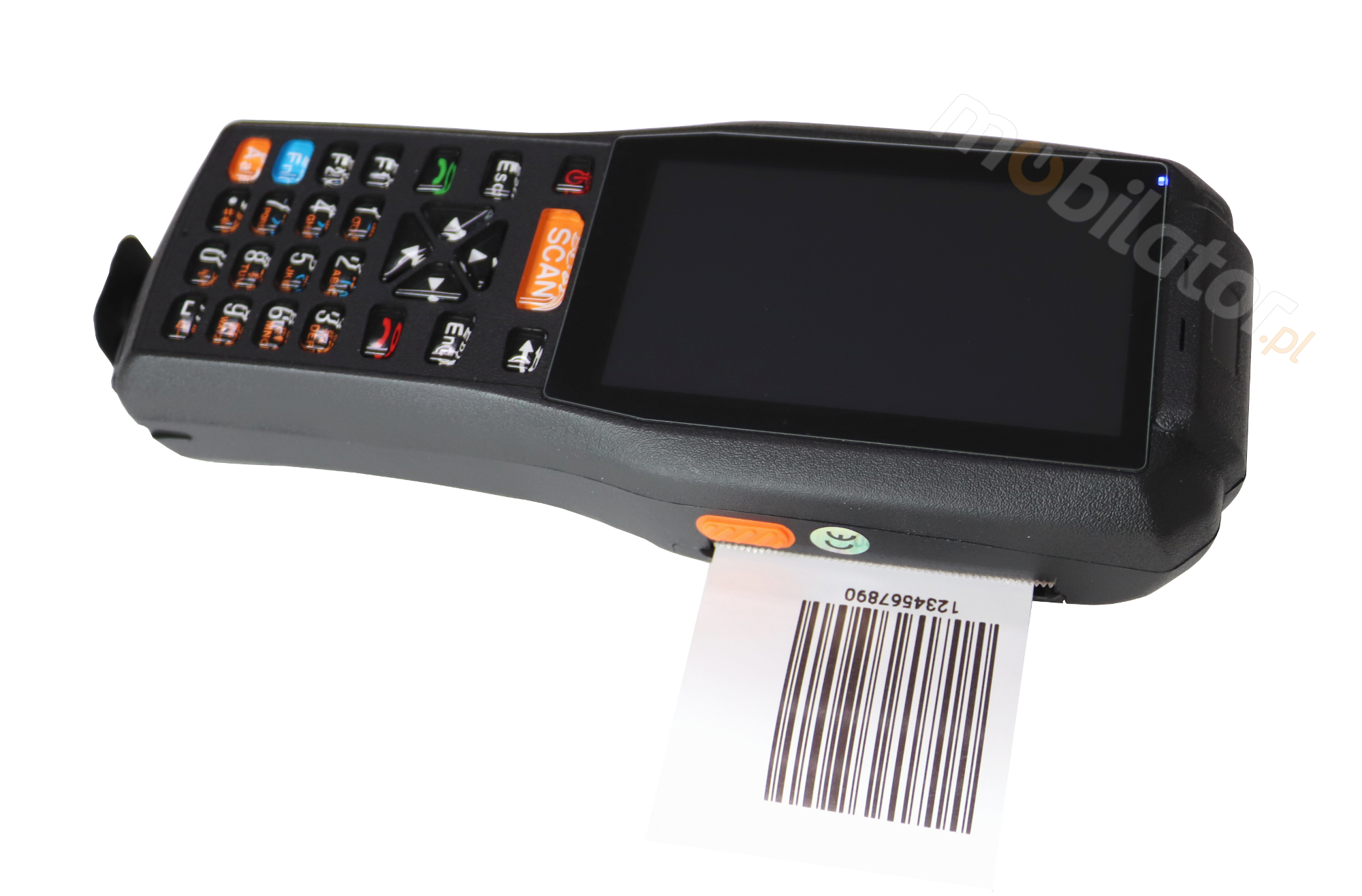

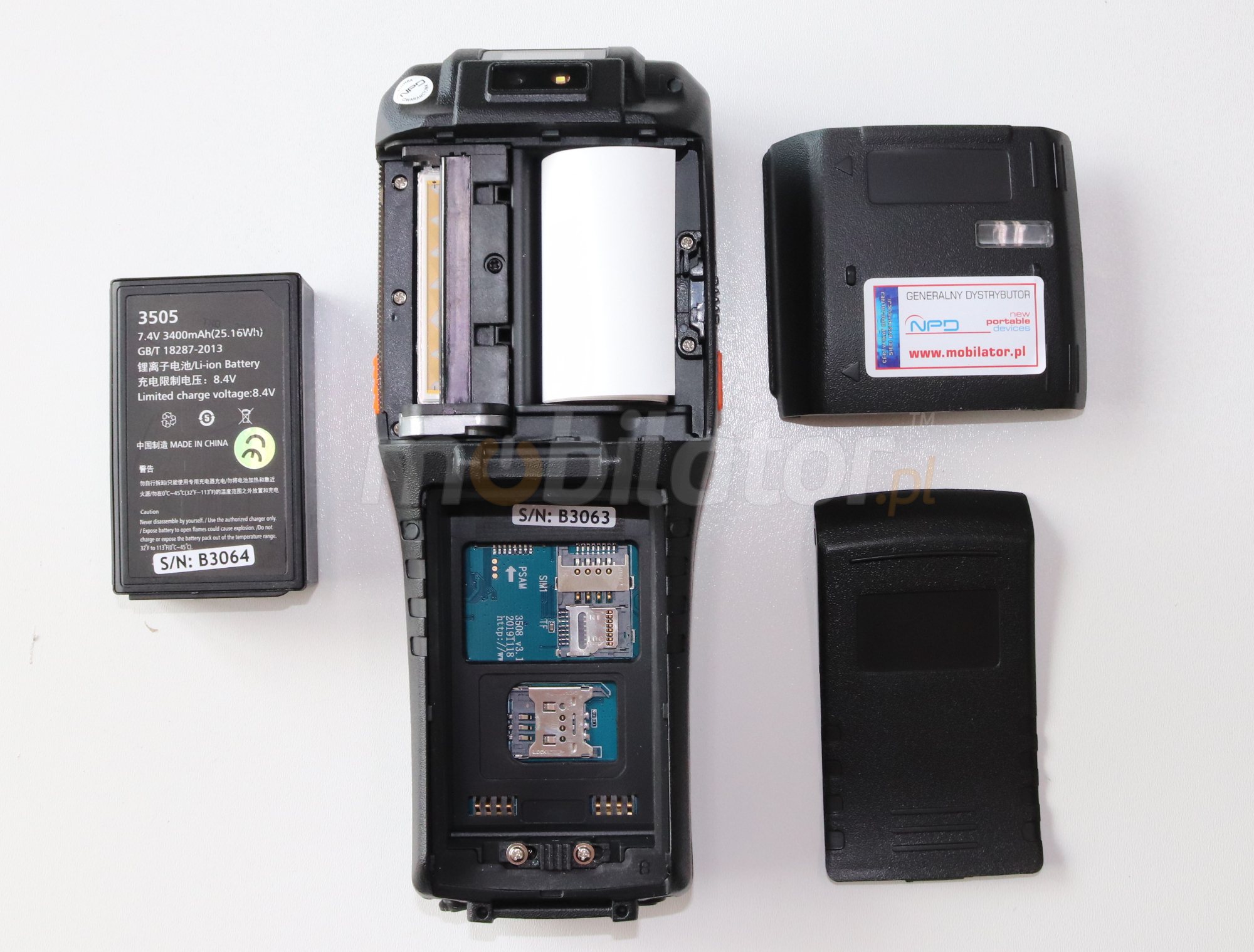

In the current version is also includes a built-in thermal printer specially designed and adapted for the Data Collector MobiPad Z3506CK. A portable printermade enables printing of, among others, desires or confirmations.
go top... menu…
|
|
|
|

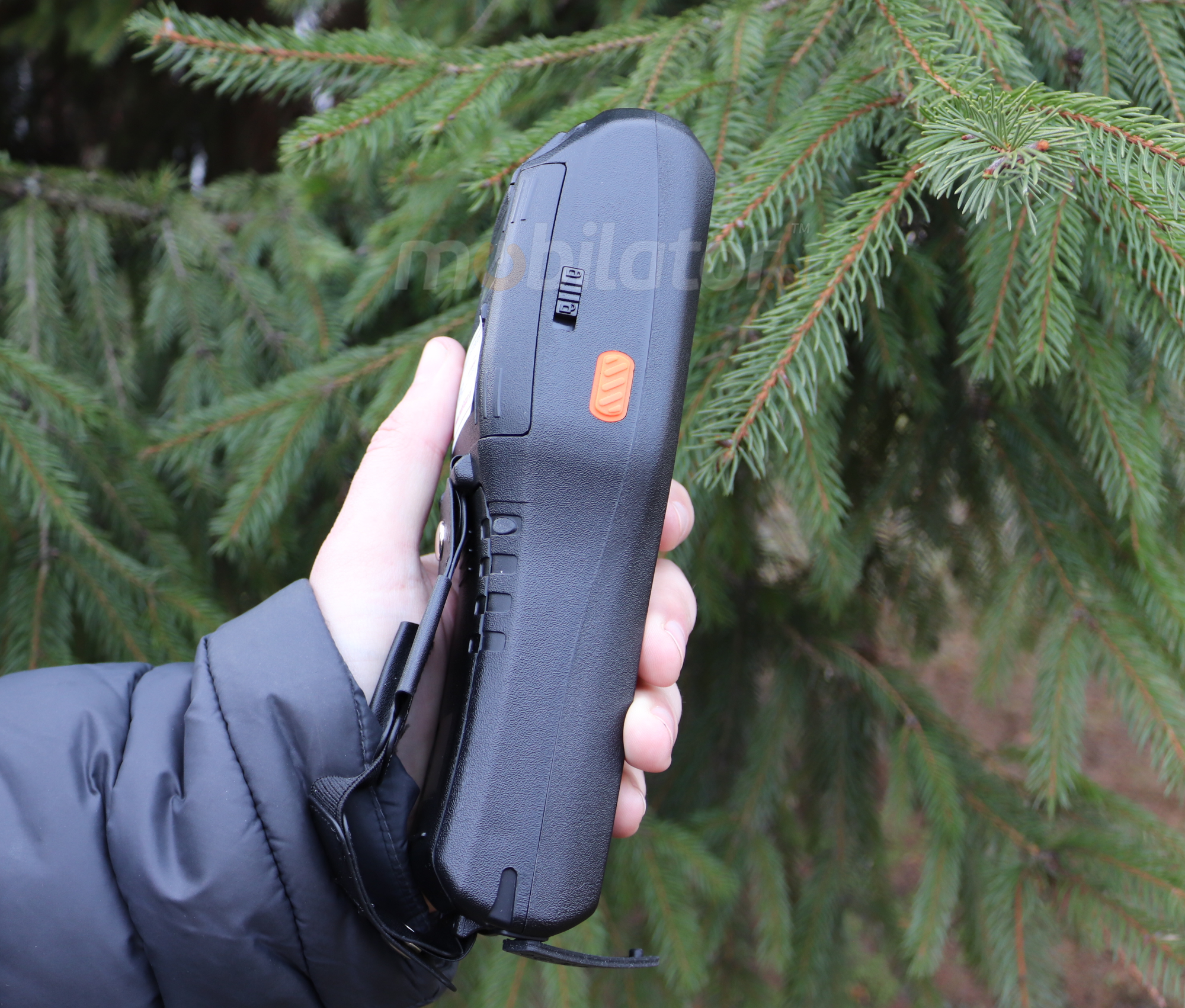

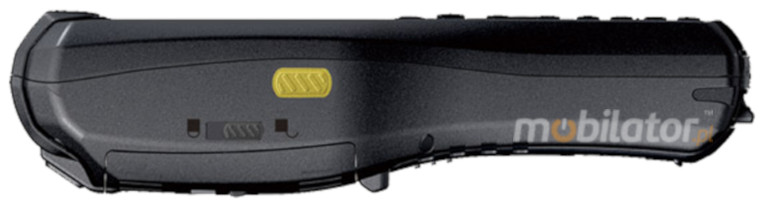

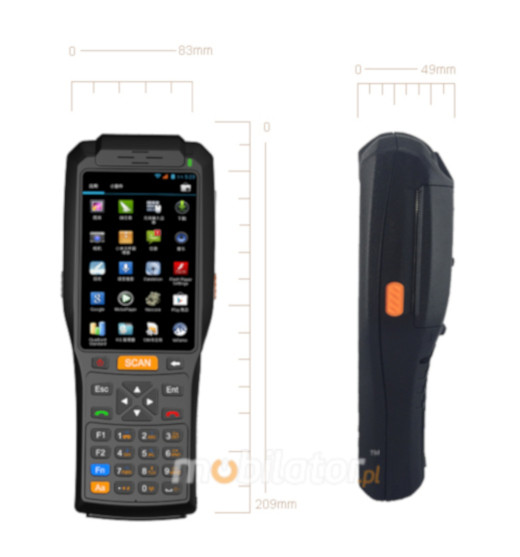

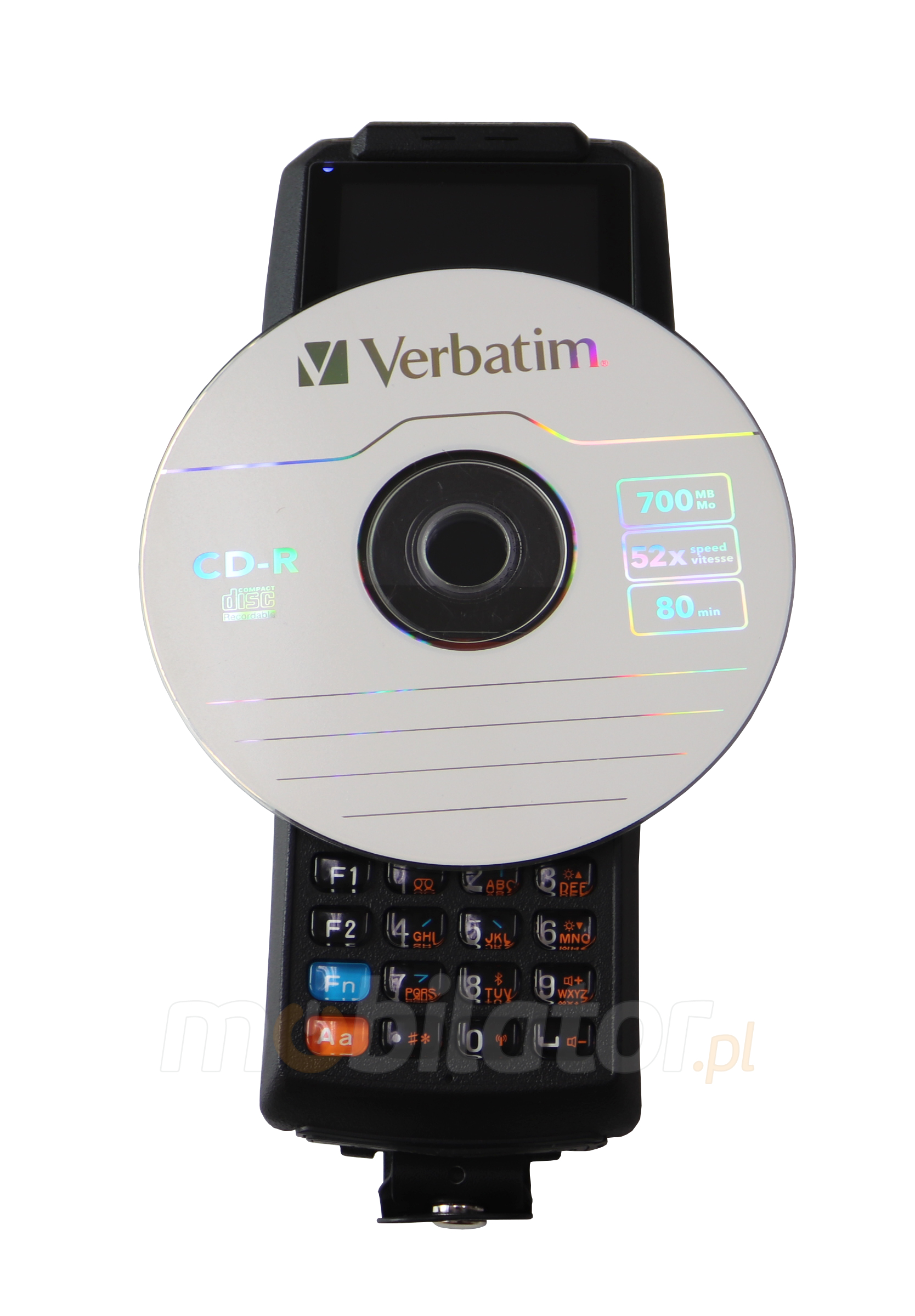

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad Z3506CK. The device weighs just 508g and its dimensions (209x 83 x 49mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that Z3506CK is in a group of devices which enjoy great popularity in the European market in the industrial segment.
|
| imensions |
209 × 83 × 49mm |
| Weight |
508g |
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP65 |
| Humidity: |
0 - 90% (no condensation) |
| Waterproof: |
IP65 |
| Weight: |
|
| Temperature: |
Operating temperature: -15°C -- +60°C
Storage temperature: -20°C -- +70°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.2 meters |
| Sand and dust: |
IP65 |
| 1D barcode scanner (reader): |
1D Mindeo |
| 2D barcode scanner (reader): |
Optional |
| RFID scanner (reader): |
NFC (13.56MHz) ISO 14443 A, ISO 14443 B, ISO 15693
Mifare |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
Tak |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
Nie |
| Dispaly: |
3.5"(320x480) - capacitive
Gorilla Glass |
| Brightness: |
----- |
| Contrast: |
----- |
| Touch screen: |
Yes |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
No |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Mediatek MT6580 Quad-core 1.3 GHz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
1GB |
| Hard Drive: |
----- |
| Flash Memory: |
8GB |
| Battery: |
3.7V 3100mAh Li-Ion |
| Working time on battery: |
>9 hours |
| HotSwap battery: |
----- |
| Fast battery replacement ability: |
Yes |
| Size: |
170 × 75 × 41mm- 272g |
| Casing material: |
high quality plastic and rubber |
| Fanless casing: |
Yes |
| Operating System: |
Android 5.1 |
| LAN: |
No |
| WLAN: |
802.11 b/g/n |
| Bluetooth: |
Bluetooth 4.0 |
| WAN: |
3G WCDMA UMTS900/1900/2100 and GMS |
| GPS: |
Built-in |
| Flash Card Reader: |
microSD (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
5Mpx (8Mpx opcjonal) |
| Audio: |
Built-in Speaker : Microphone |
| Seciurity: |
IP65 |
| In/Out: |
1 x microUSB 2.0, 1 x Micro SD(max.32GB), 1 x SIM, 1 x PSAM |
| Keyboard: |
Alphanumeric (+ function keys) : On-screen |
| Additional Navigation Devices : |
----- |
| Color: |
black |
| Optional accessories: |
----- |
| Other: |
----- |
Compare all versions
