Price Checker - Mini EC10
|
|
The product from the archive - production terminated
|
|
Price Checker
Discounter MTouch is a modern device in a rugged enclosure, combining the functions of multimedia devices for standard prices checker.
|
|
|
CCETouch
|

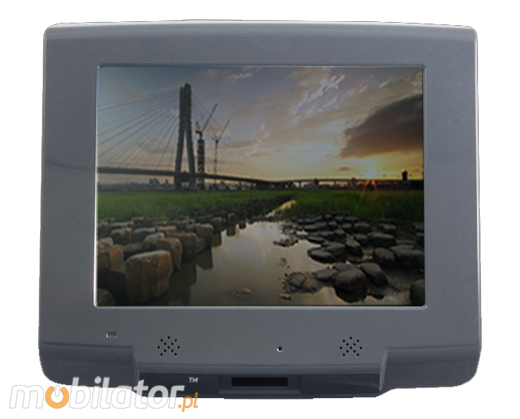

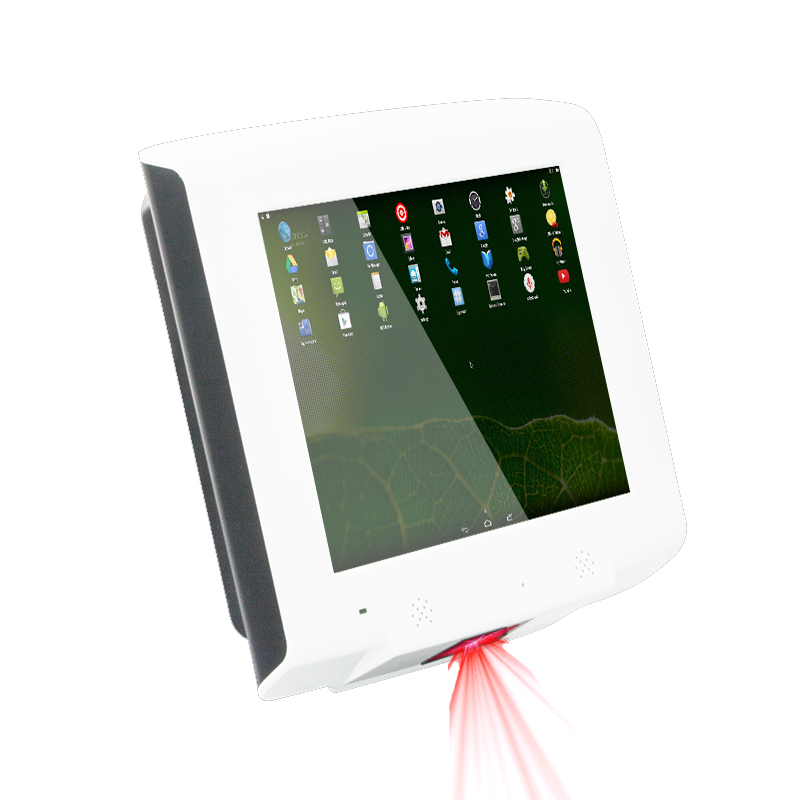

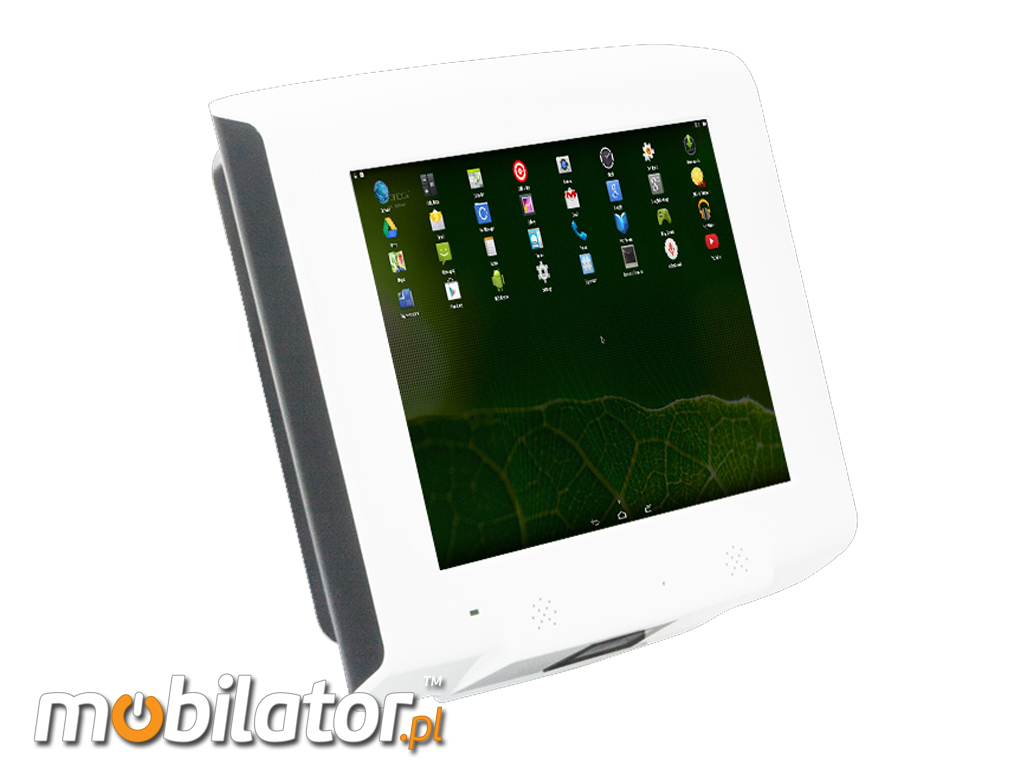

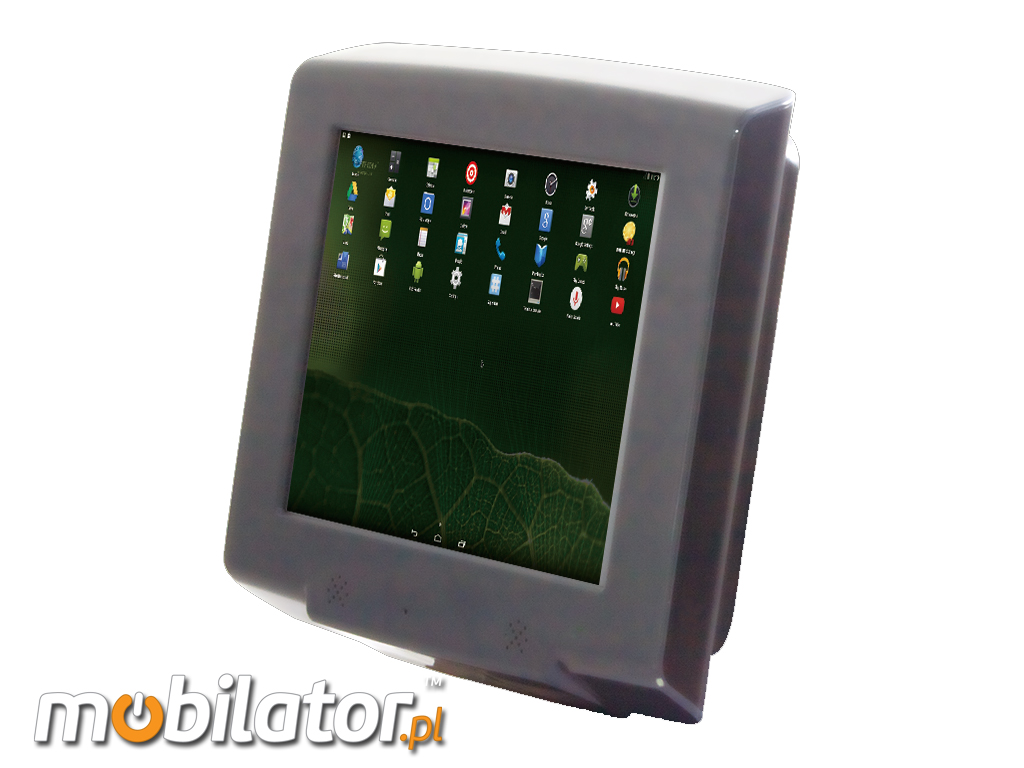

Price Checker Mini EC10
|
|
.jpg)
|
 |
CPU: Cortex A9 1.0Ghz
|
|
|
Memory RAM: 512 MB
|
|
|
ROM: 8GB Nand Flash |
|
|

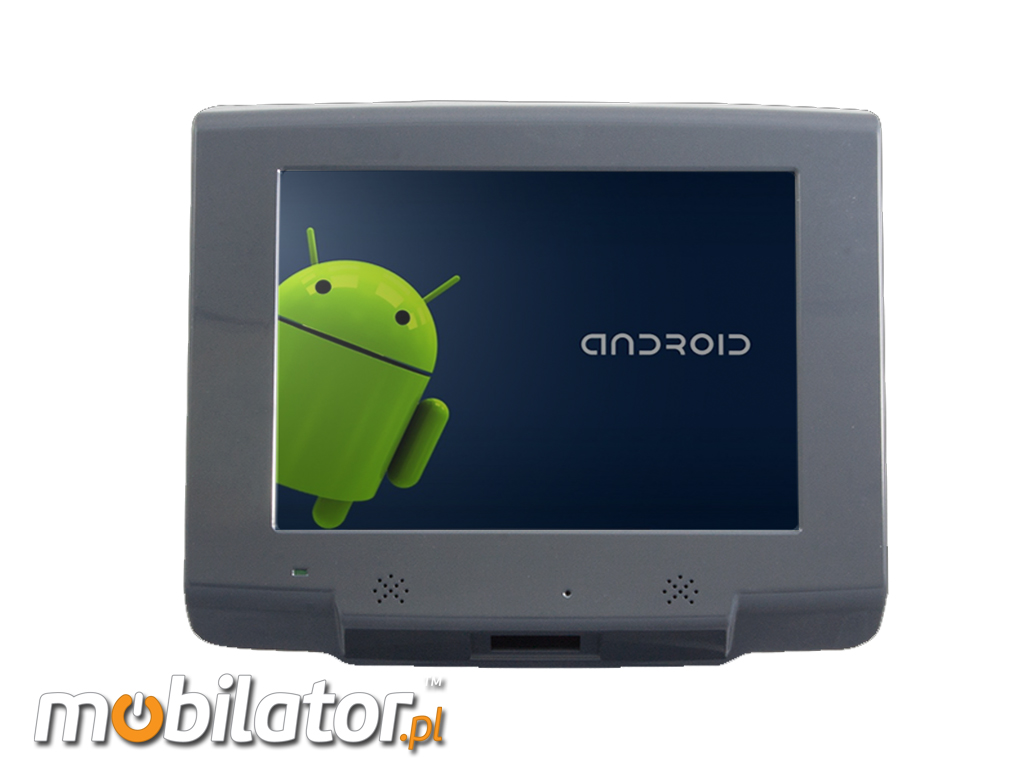

System: Android 4.0
|
|
|
Screen: 9.7" / 1024x768 / 5 - Wire Resistive
|
|
|
Barcode reader: 1D Mindeo
|
| |
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology price checker Mini EC10 is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of ARM Cortex-A9 processor family, Intel chipsets and memory. Integrated video graphics card and audio allow you to play a wide range of applications and media files (video, audio). The internal memory offers available to 8GB, expandable SD memory card (max32GB).
Dimensions:

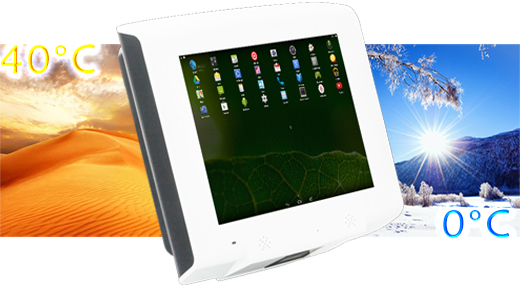

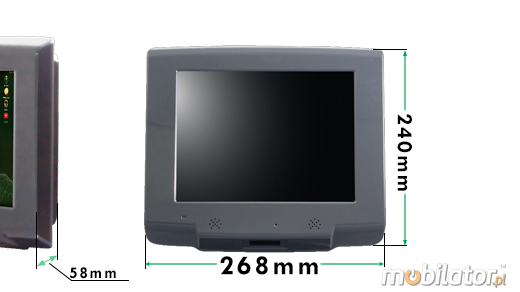

Housing dimension are 268 (W) x 240 (L) x 58 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
|
|
Communication:

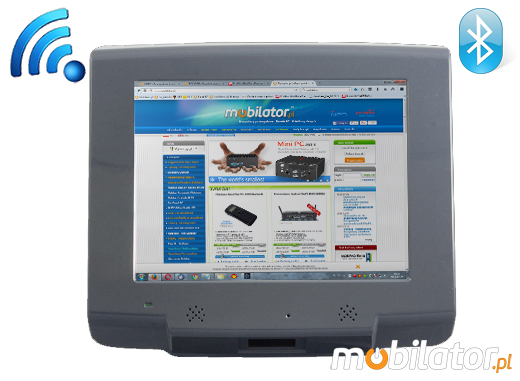

Price Checker Mini EC10 has optional modules such as a system of wireless communication Wi-Fi and Bluetooth.
.jpg)

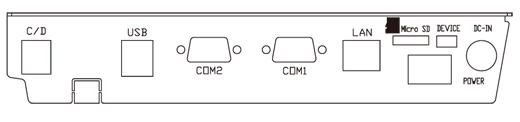

Connector:
1 x RJ45 LAN
1 x MicroSD slot
2 x USB
1 x USB-OTG
1 x RJ-11
1 x RS-232 COM
1 x mPCIe+USB
|
|
go top…  menu…

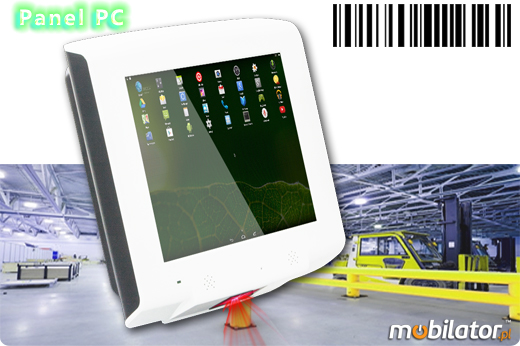

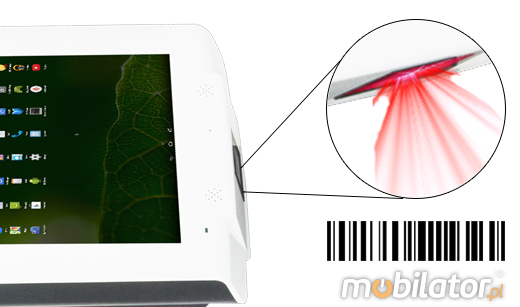

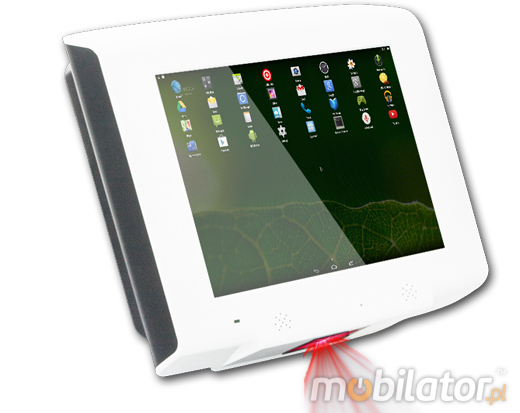

Barcode reader
Barcode reader allows to read, encode and transmit data to a computer stored in the bar code. With dynamic scanning capabilities and the large range of reading, data collector accurately collects data that helps improve the speed and efficiency. The whole can quickly start because thanks to simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
| Barcode reader - 1D |
| 1D Mindeo |
1D Laser
|
|
|

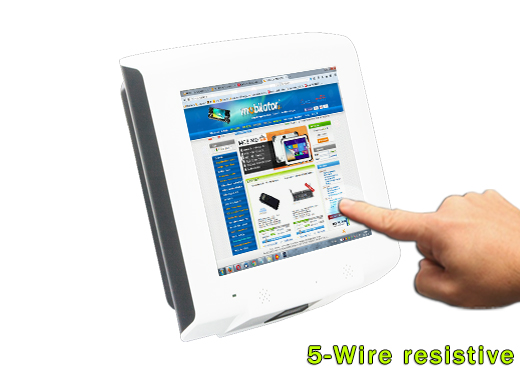

Price Checker Mini EC10 has a water-resistant front panel and scratch resistant LCD screen. With 1024x768 resolution and high brightness of 350 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
5-WIRE RESISTIVE SCREENS
The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
| Operating Temp |
0-60 °C |
| Operating Humidity |
20%-90% |
go top… menu…
|
Price Checker Mini EC10 with MTouch companies are based on the efficient dual-core processors and high-quality components.
Price Checker Mini EC10 are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of price checker models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model price checker has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Application:

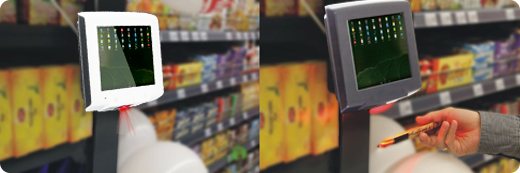

Price checkers mTouch is a device designed for all kinds of retail outlets where there is a need to provide the customer to verify the product's price and its name.
.jpg)
go top… menu…
|
| |
Mini EC-10 |
| ARM Cortex A9 1.0Ghz |
|
| Wi-Fi |
- |
| Bluetooth |
- |
| Czytnik kodów kreskowych 1D |
 |
| 24V DC-IN |
|
|
|
go top… menu…
Display |
Screen: 9.7"
Resolution: 1024 x 768
Type: 5 - Wire Resistive |
| Resistance IP |
-----
|
| Communication |
Wi-FI (option)
Bluetooth (option)
|
|
Dimensions
|
Height: 240 mm
Width: 58.5 mm
Length: 268 mm
|
| Weight |
3.5 kg |
| Processor |
ARM Cortex-A9 1GHz Dual Core |
| Chipset |
----- |
| Memory RAM |
512MB DDR3 (optional up to 1GB) |
| Graphics Card |
Mali400mp2 GPU |
| Sound Card |
Integrated, speakers (optional) |
| Network Card |
RJ45 100Mpbs LAN |
| Ports & interfaces |
1 x RJ45 LAN
1 x MicroSD slot
2 x USB
1 x USB-OTG
1 x RJ-11
1 x RS-232 COM
1 x mPCIe+USB
|
|
|
|
|
| Screen size: |
9.7" |
| Resolution: |
1024 x 768 |
| Aspect ratio: |
----- |
| Touchscreen: |
Resistive Type 5-Wire / P-CAP |
| Chipset: |
----- |
| CPU Support: |
ARM Cortex |
| Installed CPU: |
ARM Cortex-A9 1GHz Dual Core |
| Memory Support: |
up to 1GB (max) |
| Installed Memory: |
512 MB DDR3 |
| Graphic Card: |
Mali400mp2 GPU |
| Audio: |
Integrated, speakers (optional) |
| Storage (HDD) Support: |
----- |
| Installed Storage (HDD): |
ROM: 8GB NAND FLASH |
| CD/DVD Drive: |
----- |
| LAN: |
RJ45 100Mpbs LAN |
| Wireless LAN card: |
Yes (option) |
| Bluetooth: |
Yes (option) |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1 x RJ45 LAN
1 x MicroSD slot
2 x USB
1 x USB-OTG
1 x RJ-11
1 x RS-232 COM
1 x mPCIe+USB |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
24V DC |
| Supported OS: |
Android, Ubunt Linux, Windows |
| Installed OS: |
Android 4.2.2 |
| Dimensions: |
268 x 240 x 58 mm |
| Weight: |
3.5 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
20%~90% |
| Temp: |
0°C~40°C |
| Storage Temp: |
-20%~90% |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
----- |
| Response time touch-panel (ms): |
----- |
| Contrast Ratio: |
----- |
| Brightness: |
350 units |
| Viewing Angle: |
----- |
| Backlight MTBF: |
----- |
| Color Resolution: |
----- |
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
----- |
| Housing material: |
Plastic |
| Mounting VESA: |
YES |
| Folding Bracket (for office type working): |
----- |
| Power Consumption: |
10 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
1D Mindeo |
