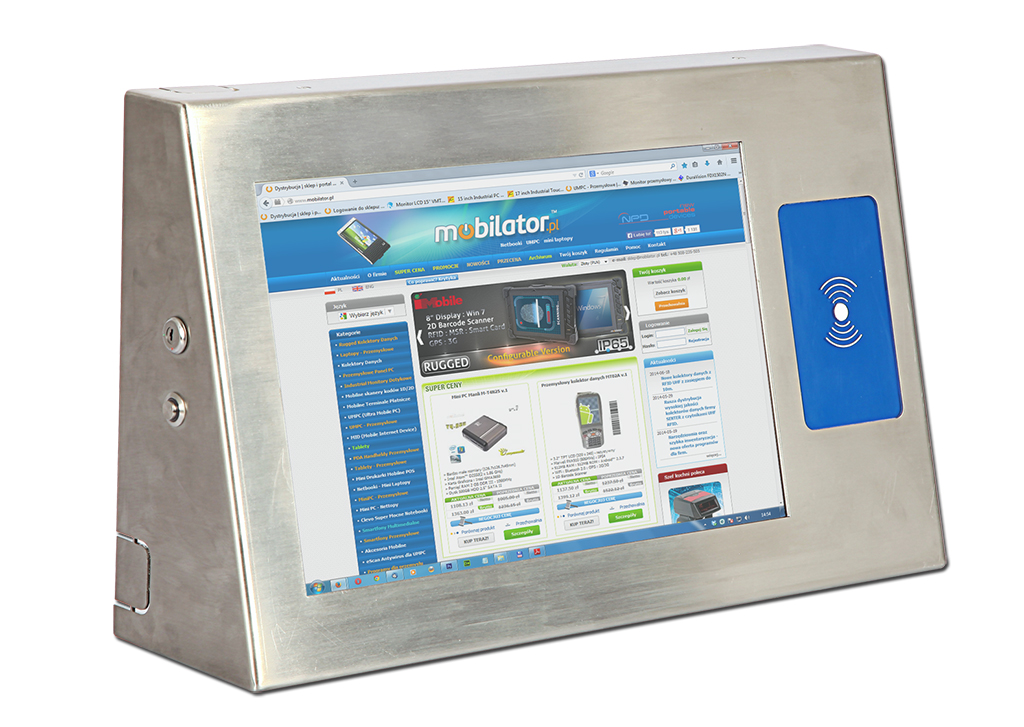

RFID HF&LF Industial Touch PC CCETouch PC-133RFID
|
|
|
 |
CPU: Intel® Atom™ D2550 (1M Cache, 2 x 1.86 GHz)
|
|
|
Memory: 2GB RAM DDRII SODIMM
|
|
|
Disk: 32GB SSD
|
|
|
System: Windows 8.1/8 / Windows 7 / Windows XP / Linux
|
|
|
Screen: 13.3" / 1600x900 / 16:10 / 5 - Wire Resistive
|
|
.png)
|
Expansion cards: None
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption (32 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Atom processor family, Intel chipsets and DDR2 memory. Integrated Intel®GMA 3650 video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:

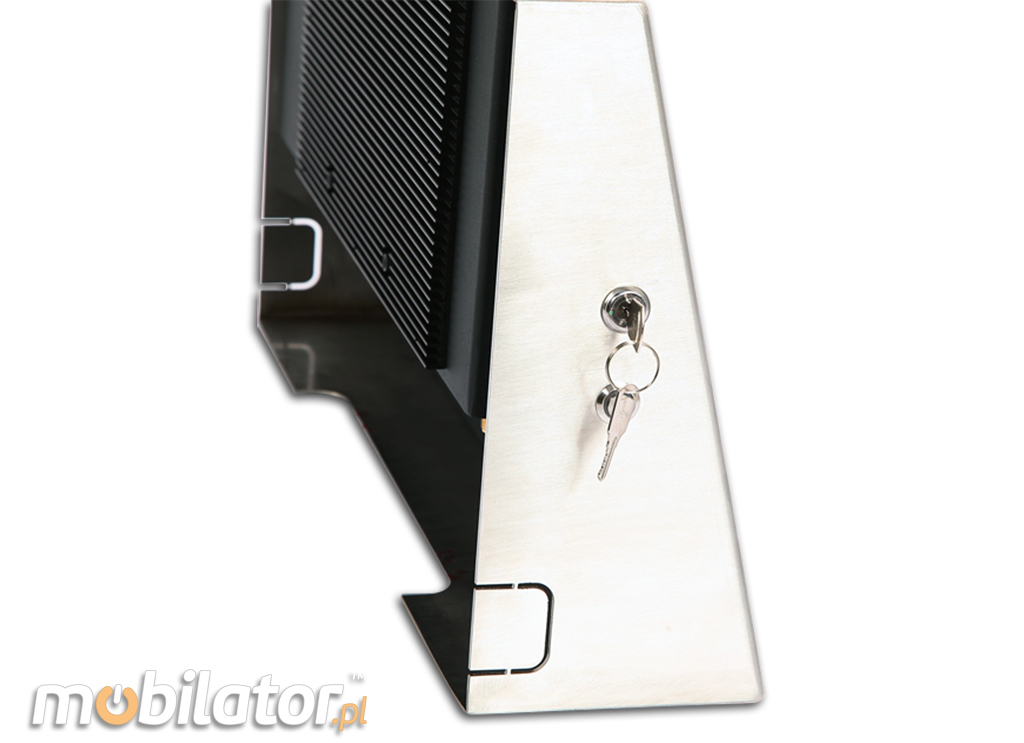

Housing dimension are 395 x 235 x 40/100 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.jpg)
Cooling:
Industrial Touch PC PC-133RFID is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

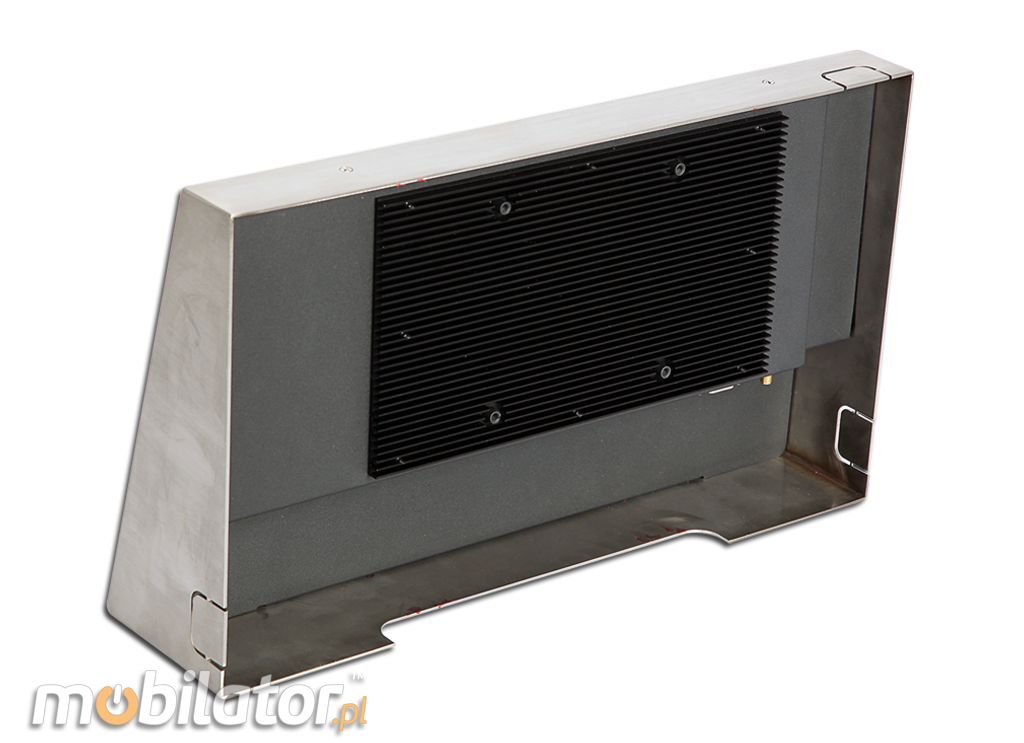

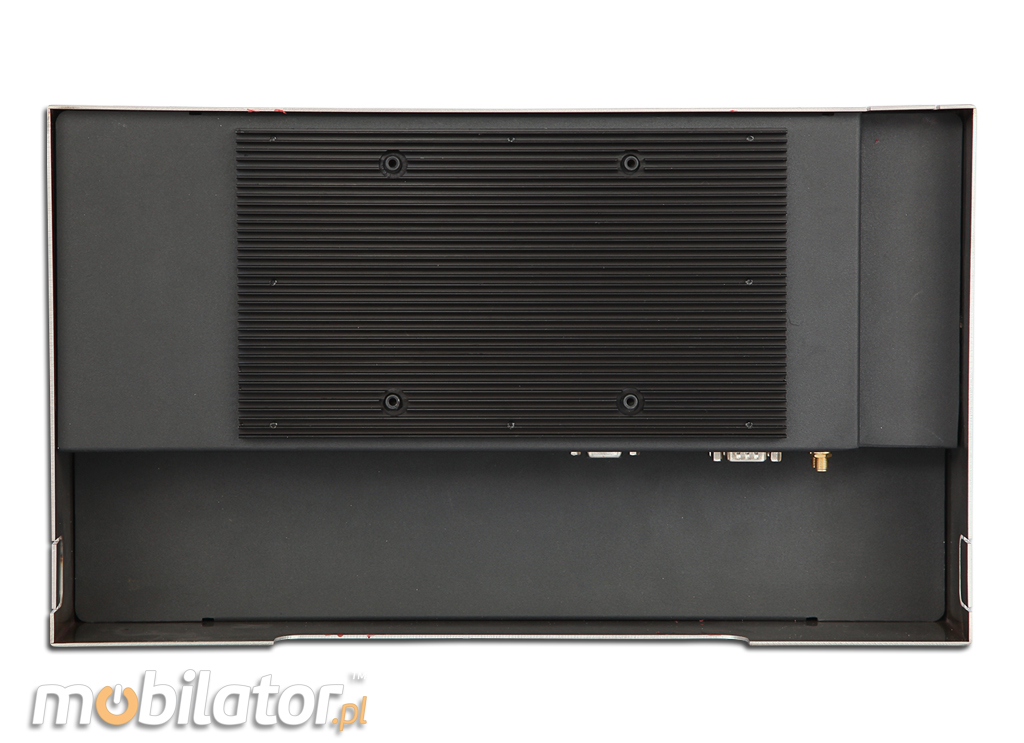

The industrial fanless Panel PC PC-133 RFID uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Industrial Panel PC CCETouch PC-133RFID standard has a system of wireless Wi-Fi communication.
Connector:

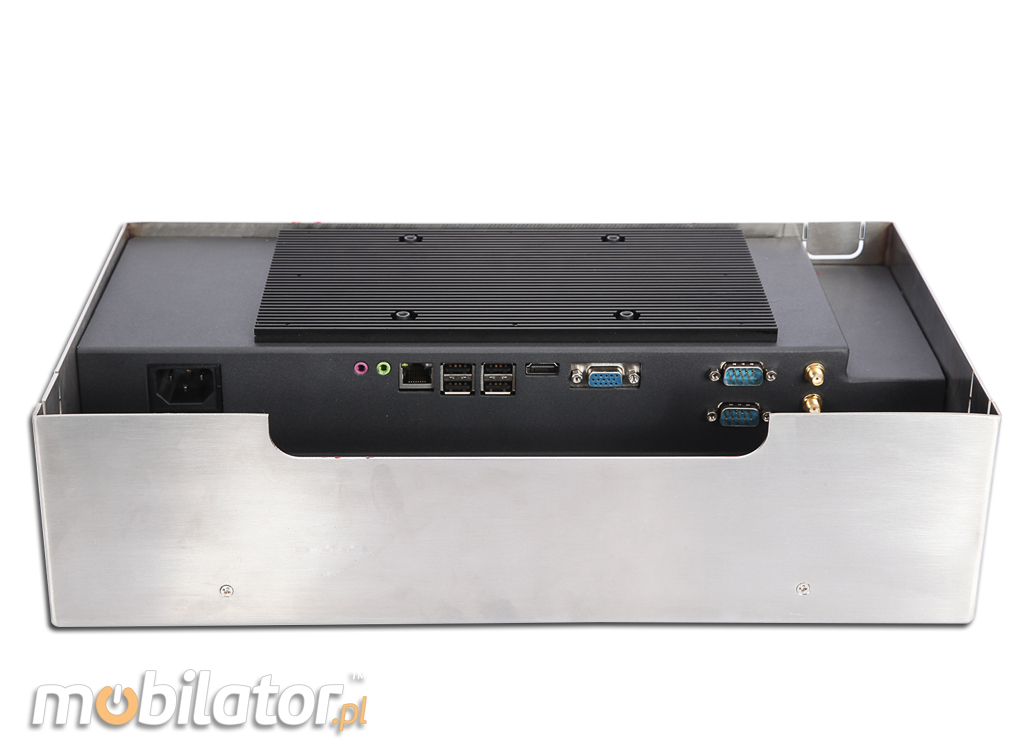

Integrated Intel RTL8111E LAN 1xRJ 1000M-45, WiFi module allows you to connect the device to the network. The computer is equipped with: one LAN connector, two COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a connector power.
|
1. Power connector |
5. 4 x USB 2.0 |
9. 2 x Antena Wi-Fi
|
|
2. Mic |
6. HDMI |
|
3. Audio
|
7. VGA |
|
4. LAN (RJ-45)
|
8. 2 x COM (RS-232) |
|
|
|
go top…  menu…
RFID
RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.
|
|
HF |
LF |
|
Frequency |
13.56 MHz |
125 kHZ
|
|
Effective Distance |
2-10 cm |
2-10 cm
|
Effective Time
|
<100ms |
<100ms |
|
Support cards |
TK4100, EM4100, EM4001 etc with 125KHZ Key chain or card; mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro |
TK4100, EM4100, EM4001 etc with 125KHZ Key chain or card; mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro |
RFID HF ( 13.56 MHz )
The HF band ranges from 3 to 30 MHz. Most HF RFID systems operate at 13.56 MHz with read ranges between 10 cm and 1 m. HF systems experience moderate sensitivity to interference.
HF RFID is commonly used for ticketing, payment, and data transfer applications.
RFID LF ( 125 kHz)
Low Frequency (LF, 125kHz – 134kHz)
Low Frequency RFID systems are typically 125 KHz, though there are systems operating at 134 KHz as well. This frequency band provides a shorter read range (< 0.5m or 1.5 ft) and slower read speed than the higher frequencies.
Typical applications for Low Frequency RFID devices include: access control, animal tracking, vehicle immobilizers, healthcare applications, product authentication and various point-of-sale.
|
|
|

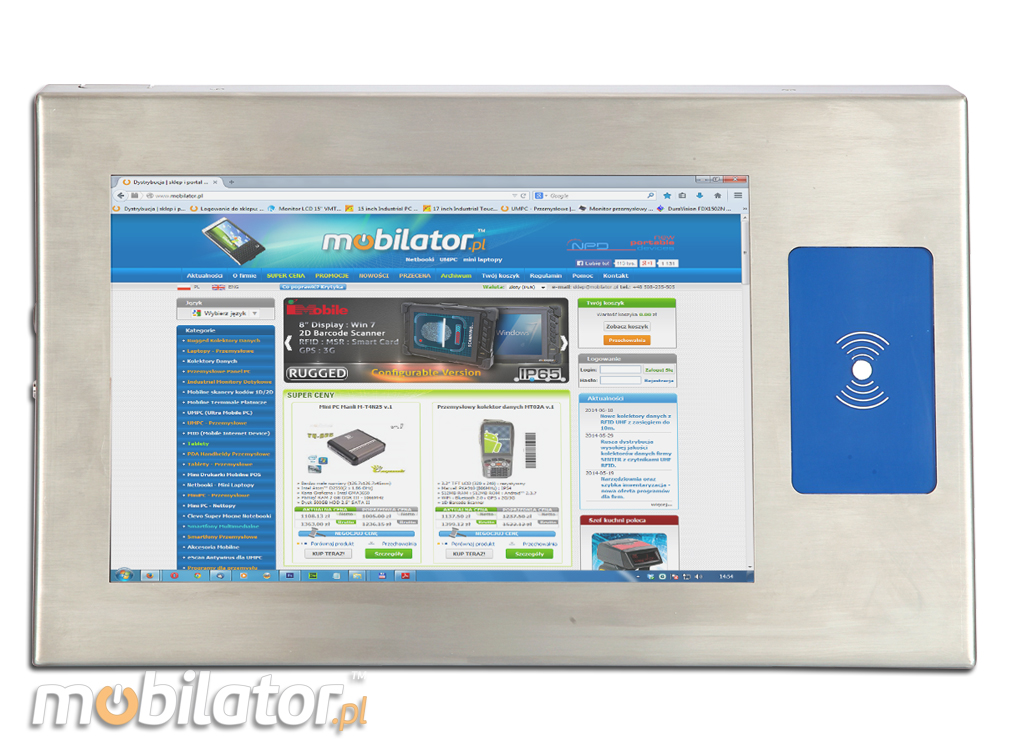

Industrial Touch PC-133RFID has a water-resistant front panel and scratch resistant LCD screen with 3H hardness. With 1600x900 resolution and high brightness of 300 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
5-WIRE RESISTIVE SCREENS
The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
Applicable standards and tests carried out.
Panel PC-133RFID is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP54 front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. PC-133RFID is the best solution for extreme applications in dust or moisture.
|
Operating Temp
|
0-60 °C |
|
Operating Humidity |
5%-95%
|
|
Dust |
IP5x(dust) |
|
Water |
IPx4(drops of water)
|
Resistance IP54 - Front Panel
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top… menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Industrial Panel PCs with CCETouch companies are based on the efficient quad-core processors and high-quality components..jpg)
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
|
go top… menu…
Display
|
Screen: 13.3"
Resolution: 1600 x 900
Type: 5 - Wire Resistive |
Resistance IP
|
Front Panel: IP 54
|
Communication
|
Wi-FI
|
|
Dimensions
|
Height: 235 mm
Width: 40/100 mm
Length: 395 mm
|
|
Weight |
4 kg
|
|
Processor |
Intel Atom Dual Core D2550 (2x 1.86GHz)
|
Chipset
|
Intel NM10 express chipset |
Memory RAM
|
2GB DDR3 (optional up to 6GB) |
Graphics Card
|
Intel® HD Graphics
|
Sound Card
|
Realtek ALC662 |
Network Card
|
Intel RTL8111G 1000M Lan |
|
RFID reader |
RFID HF (13,56MHz)
RFID LF (125kHz)
|
|
Ports & interfaces |
2 x COM(RS232)
1 x power
4 x USB 2.0
1 x RJ-45
1 x Audio
1 x Mic
1 x HDMI
1 x VGA
|
|
|
|
|
Compare all versions
| Screen size: |
13.3" |
| Resolution: |
1600 x 900 |
| Aspect ratio: |
16:10 |
| Touchscreen: |
Resistive Type 5-Wire |
| Chipset: |
Intel NM10 |
| CPU Support: |
Intel® Atom™ Procesor D2550 (1M Cache, 2 x 1.86 GHz) |
| Installed CPU: |
Intel® Atom™ Processor D2550 (1M Cache, 2 x 1.86 GHz) |
| Memory Support: |
up to 8GB (max); 400MHz - 533MHz DDRII SODIMM |
| Installed Memory: |
2GB DDR2 |
| Graphic Card: |
Intel® GMA 3650 |
| Audio: |
Realtek ALC662, 5.1 Channel High Definition Audio Codec 2 x 2W loudspeaker |
| Storage (HDD) Support: |
32 - 512 GB SSD / 320 - 1TB HDD |
| Installed Storage (HDD): |
32 GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port / 10/100/1000Mbit |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1xVGA, 1xHDMI, 4xUSB 2.0, 2xCOM (RS-232), 1xAudio / 1xMic, 1xAntena WiFi |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
AC 100V-240V |
| Supported OS: |
Microsoft Windows: XP/Vista/7/8/8.1; Linux |
| Installed OS: |
----- |
| Dimensions: |
395 x 235 x (Up 40/Down100) mm |
| Weight: |
4 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
5%~ 95% |
| Temp: |
0°C ~ 60°C |
| Storage Temp: |
-15°C ~ 70°C |
| IP Norm: |
Front panel |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP 54 |
| Dual display: |
Yes |
| Response time touch-panel (ms): |
<12ms |
| Contrast Ratio: |
500:1 |
| Brightness: |
300 cd/m2 |
| Viewing Angle: |
150° / 150° |
| Backlight MTBF: |
LCD/12,000 Hrs |
| Color Resolution: |
262K (6 bits) |
| Surface hardness (display): |
3H |
| Touch Life(contacts): |
>35,000,000 time |
| Housing material: |
Front-stainless steel; Back-aluminum alloy |
| Mounting VESA: |
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
32 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
RFID LF (125 kHz) / RFID HF (13.56MHz) |
| Barcode reader: |
|
Compare all versions
Compare all versions
