MoTouch 11.6 - Industrial Monitor with IP65 on front cover
|
|
| CURRENT PRICE |
| 397.75 € |
Net |
| 489.24 € |
Gross |
|
|
Industrial Touch Monitors
Small dimensions Industrial Panel Monitor are used in environments dominated by dust, dirt and moisture. They are ideal for applications requiring quiet and continuous operation. Industrial touch screen monitor, through its function of touch, replaces: mouse, keyboard, or other pointing device.
|
|
|
Mobilator
|
MoTouch 11.6
|
|
|
 |
Resolution: 1920x1080
|
|
|
LCD size: 10.4"
|
|
|
Backlight: LED |
|
|
Connectors:VGA/DVI/HDMI
|
|
|
Screen Protection: -
|
|
|
Mounting: 75mm x 75mm / 100mm x 100mm
|
 |
Built-in speakers: - |
| |
Detailed specification of the configuration available in the "Technical data"
|
Dimensions:
Housing dimension are 323.7 x 218.5 x 43 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
|
|
For proper operation of the touch controller is needed connect the monitor to the computer using the USB cable.
Connector:
Touch monitor MoTouch 11.6 is equipped with the essential connectors such as:
| 1. DC-IN 12-24V |
3. VGA |
|
| 2. HDMI |
4. DVI |
|
|
|
5. RJ-45 (touch connector)
|
.jpg)
|
|

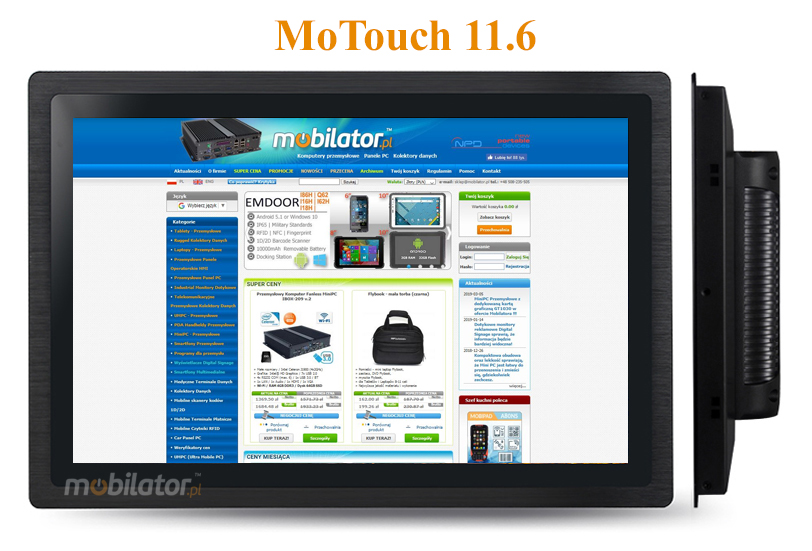

MoTouch 11.6 With 1920x1080 resolution and high brightness of 400 cd/m2, screen of capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.
The LCD monitor backlight LED technology results in realistic color rendering, energy consumption reduced by up to 40% and much lower failure rate compared to traditional LCD monitors with CCFL backlight.
Capacitive screen
Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.
Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.
|
Extreme temperatures
Touch monitor MoTouch 11.6 is adapted for continuous operation in both very low and high temperatures in the range from -20 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 65 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 80% relative humidity.
|
| Operation Temp |
-20 - 60 °C |
| Storage Temp |
-20 - 65 °C |
| Operation Humidity |
10% - 80% |
go top…  menu…
|
Industrial Monitors from the company Mobilator are based on efficient high-quality displays.
Industrial Monitors are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of monitors models of industrial and the ability to change the configuration, allow for optimal selection monitors for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model monitors has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
With industrial touch screens (touch screen) can be used on virtually any computer, and the list of applications is limited only by the imagination. Common applications of the touch screens:
- gambling, lotteries and slot arcade
- interactive public telephones,
- Industrial control rooms,
- terminals at points of sale,
- control of industrial processes,
- office equipment (photocopiers, franking machines, etc.)
- handling vehicles and machines airlines.
|
go top… menu…
Display |
Screen: 11.6"
Resolution: 1920x1080
Type: capacitive
Backlight: WLED
Aspect ratio: 16:9
Brightness: 250 nits
Contrast Ratio: 1000:1
|
| Resistance IP |
IP 65 on front
|
| Connectors |
1 x VGA
1 x HDMI
1 x DVI
1 x DC-IN
1 x RJ-45 (Touch connector)
|
|
Dimensions
|
Height: 218.5 mm
Width: 43 mm
Length: 323.7 mm
|
| Weight |
5 kg |
|
|
|
|
|
| Ports - rear panel: |
1x VGA, 1x HDMI, 1x DVI, 1x DC-IN, 1x RJ-45 (touch connector); |
| Power: |
12V DC |
| Dimensions: |
323.7 x 218.5 x 43 mm |
| Weight: |
5 kg |
| Expansion: |
----- |
| Humidity: |
10%~ 80% |
| Temp: |
-20°C ~ 60°C |
| Storage Temp: |
-20°C ~ 65°C |
| IP Norm: |
IP 65 on front |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP 65 |
| Screen size: |
11.6" |
| Resolution: |
1920x1080 |
| Aspect ratio: |
16:9 |
| Touchscreen: |
Capacitive |
| Response time touch-panel (ms): |
<5ms |
| Contrast Ratio: |
1000:1 |
| Brightness: |
400 cd/m2 |
| Viewing Angle: |
89/89/89/89(Typ.)(CR>10) |
| Backlight MTBF: |
WLED |
| Color Resolution: |
16.7M |
| Surface hardness (display): |
- |
| Touch Life(contacts): |
>50,000,000 times in one location without failure |
| Housing material: |
rugged 3mm thickness aluminum |
| Mounting VESA: |
Panel, Wall, Rack, Stand and Arm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
60 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| Built-in speakers: |
No |
