Mini PC Manli M-T4H35
|
|
The product from the archive - production terminated
|
Compare all versions
|
.gif)
|
Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
.gif)
|
|
MiniPC for the most demanding users
Manli T4 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T4H35 in first place in the ranking of the world's MiniPC.
|
|
Mini PC Manli M-T4H35 - Barebone |
|
Processor |
Intel® Core™ i7-3537U (2x2.0 GHz)
|
|
RAM |
not included - for building |
|
Disk |
not included - for building |
|
Graphics |
Intel® HD 4000
|
|
Chipset |
HM77 |
|
Communication |
WiFi 802.11n 150Mbps + Bluetooth 3.0 |
|
Dimensions |
126.7 x 126.7 x 45mm |
|
Other |

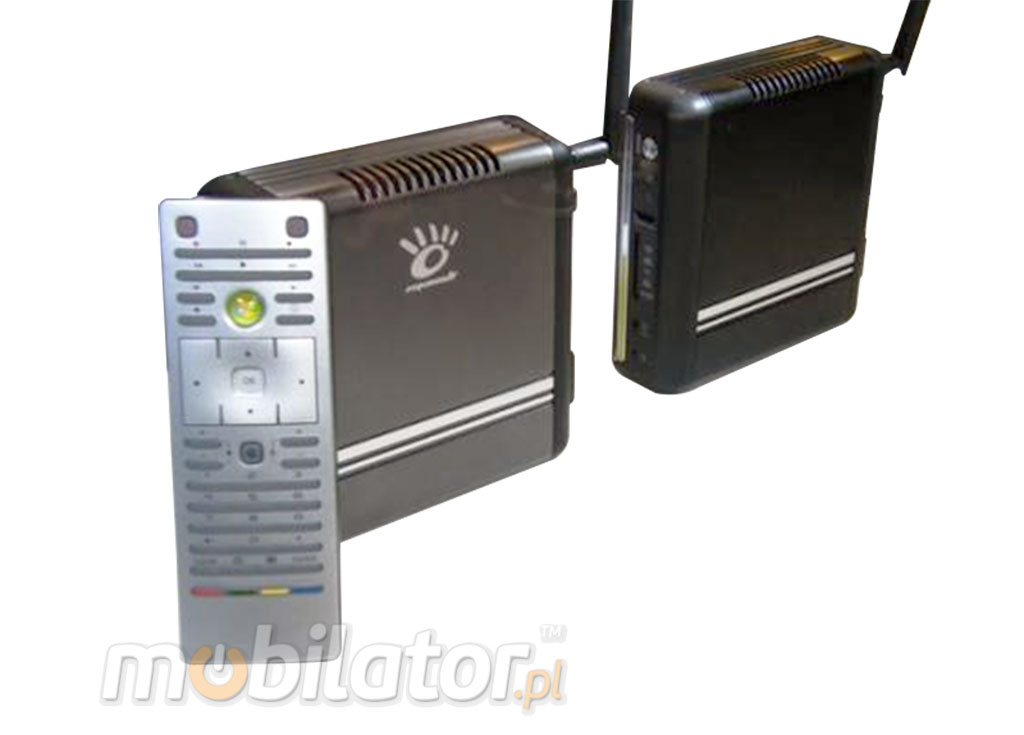

MCE Remote Control |
|
The detailed specification of the configuration available in the "Technical data"
|
|
|
go top…  menu…
|
.jpg)
New generation of Intel® Core™ i7-3537U
Manli Mini-PC is supported with Intel® Core™ i7-3537U, making it extremely energy efficient (17W), while retaining the high performance, as evidenced in Windows 8 that is dedicated for this device. Intel® Core™ i7-3537U is a dual-core processor with a frequency (2x2.0GHz) for small netbooks and MiniPC. It offers powerful integrated graphics Intel® HD 4000 and a single channel DDR3-1333MHz memory.
Processors available in a series of MiniPC MANIL T4
|
Model |
R/W |
Frequency |
Max. Frequency
|
L2 cache |
L3 cache
|
Max. GPU
|
TDP |
AMD E2-1800 Dual Core
|
2/2
|
1.7GHz
|
1.7GHz |
1MB
|
-
|
680 MHz
|
18 Wat |
|
Intel® Atom D2550 |
2/4
|
1.86 GHz |
1.86 GHz |
1 MB |
-
|
640 MHz
|
10 Wat |
|
Intel® Core™ i3-3227U |
2/4 |
1.9 GHz |
1.9 GHz |
512KB |
3 MB
|
1.1 GHz
|
17 Wat |
|
Intel® Core™ i5-3337U |
2/4 |
1.8 GHz |
2.7 GHz |
512 KB
|
3 MB
|
1.1 GHz
|
17 Wat |
|
Intel® Core™ i7-3537U |
2/4 |
2.0 GHz |
3.1 GHz |
512 KB
|
4 MB
|
1.2 GHz
|
17 Wat |
|
New generation Intel® HD 4000
Nettop Manli M-T4H35 equipped with powerful integrated graphics Intel ® HD 4000. Intel ® graphics solution adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, the clever arrangement of the Intel ® HD. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.
|
Flexible storage
 Flash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%..
.jpg)
Manli M-T4H35 can support a total of one HDD or SSD 2.5 ". Nettop Manli T4 is an alternative to installing two mSATA drive on which you can install and frequently used applications. Such a solution leads to a super-fast action of our little computer.
The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.
Increased security and faster work in RAID
.jpg) RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.
.jpg)
|

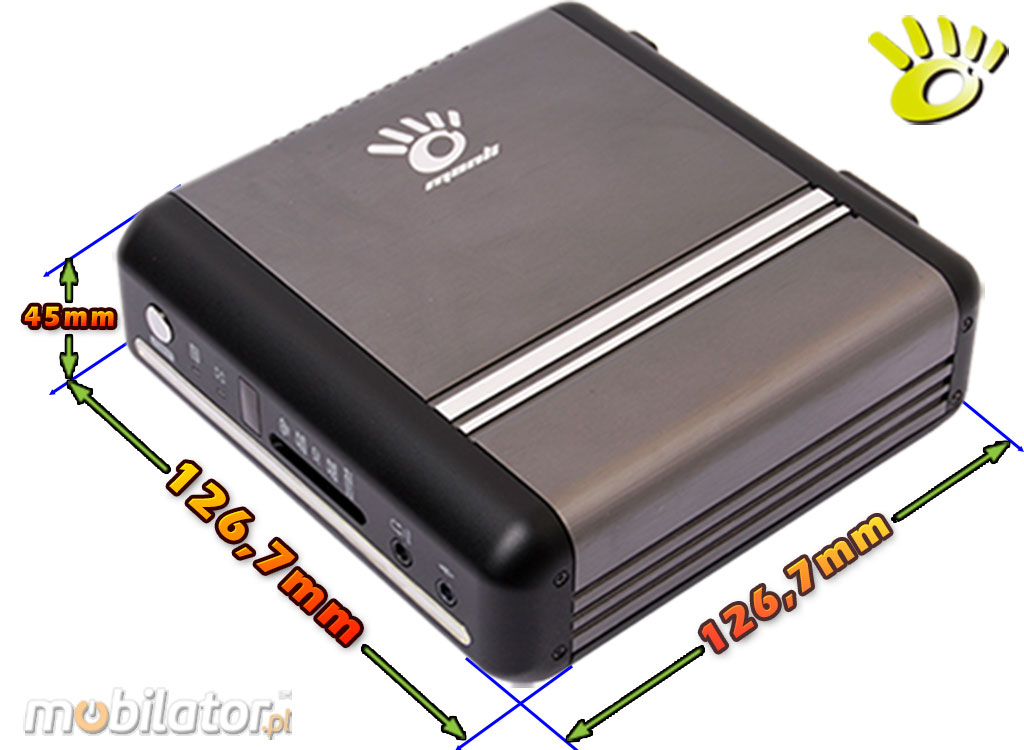

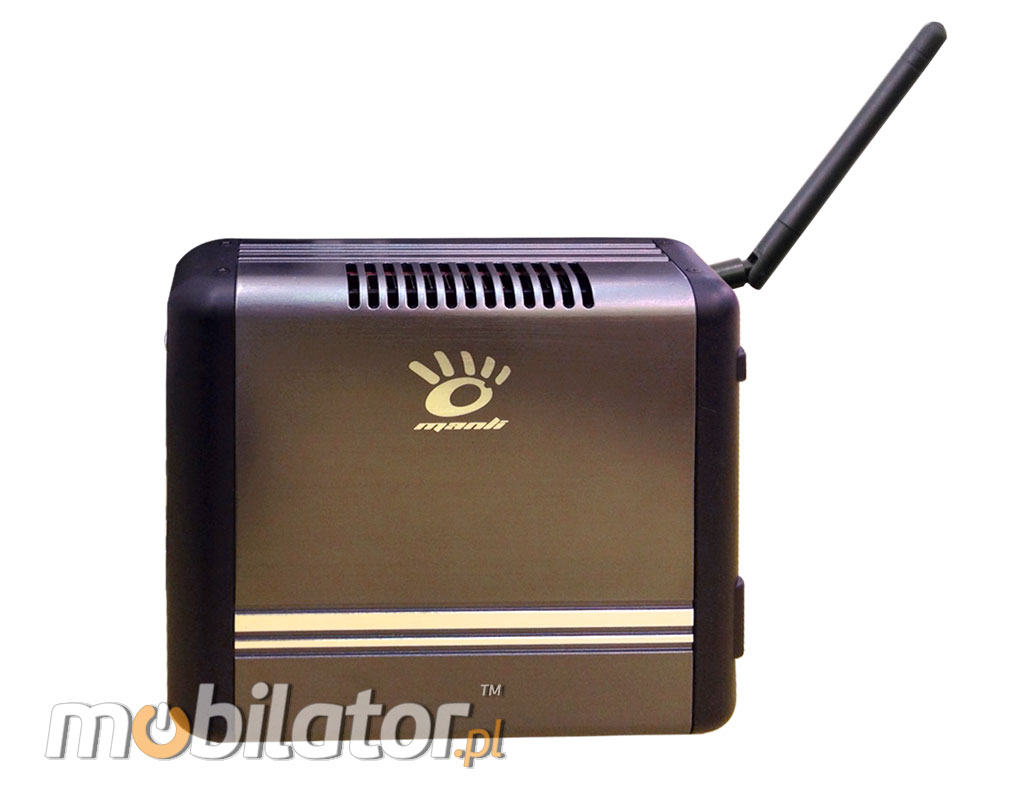

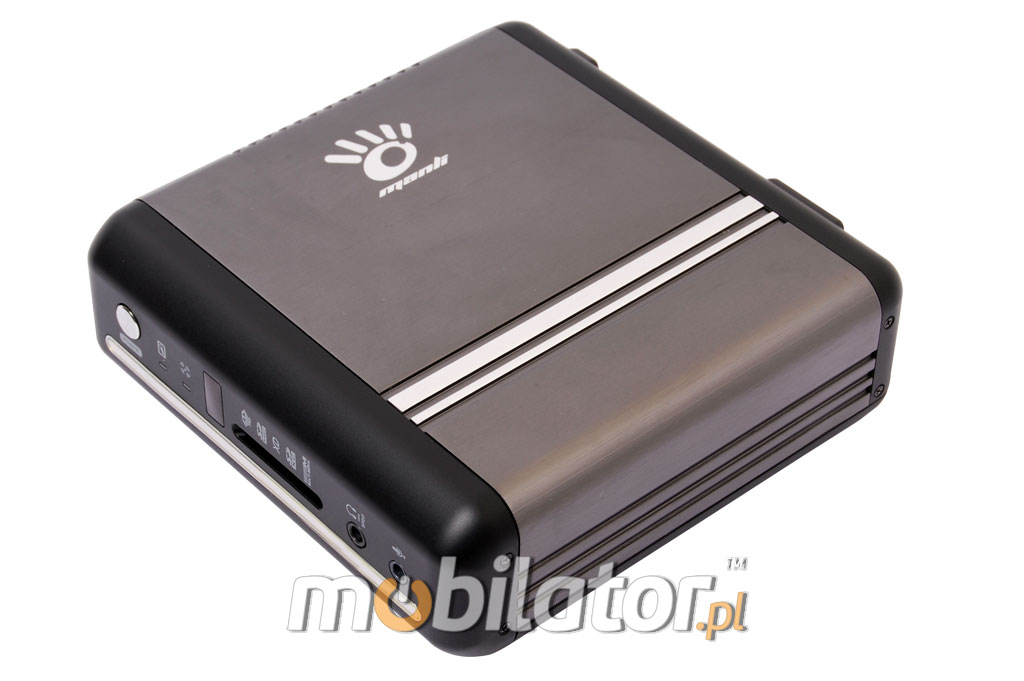

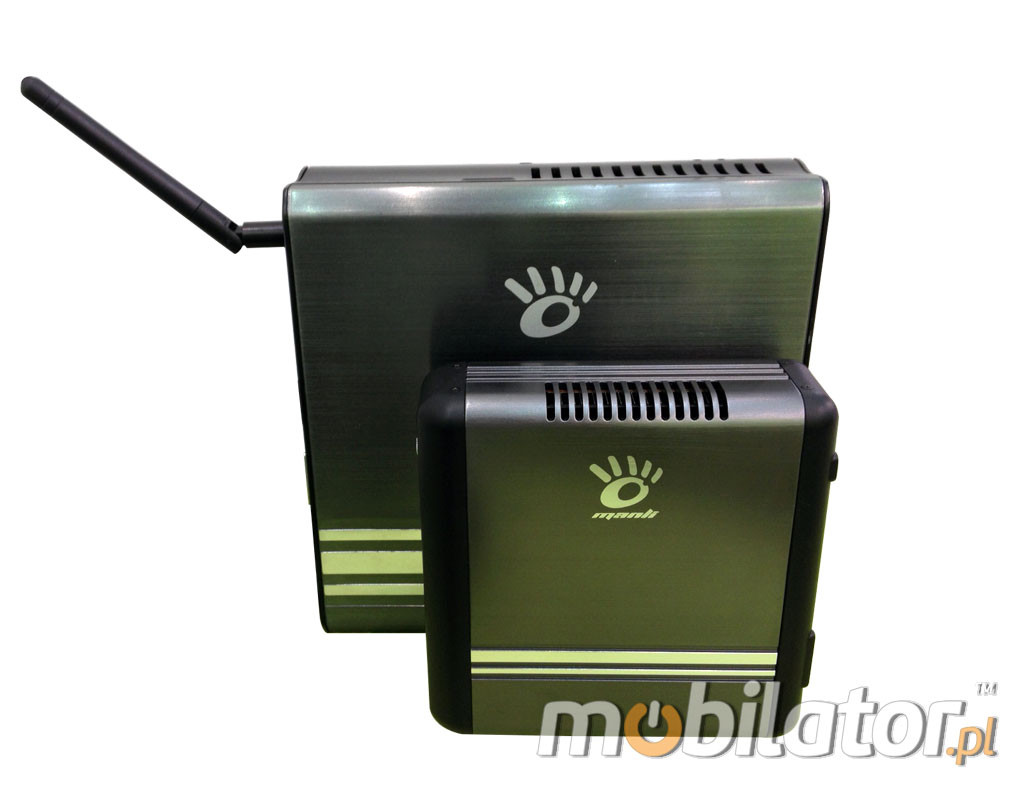

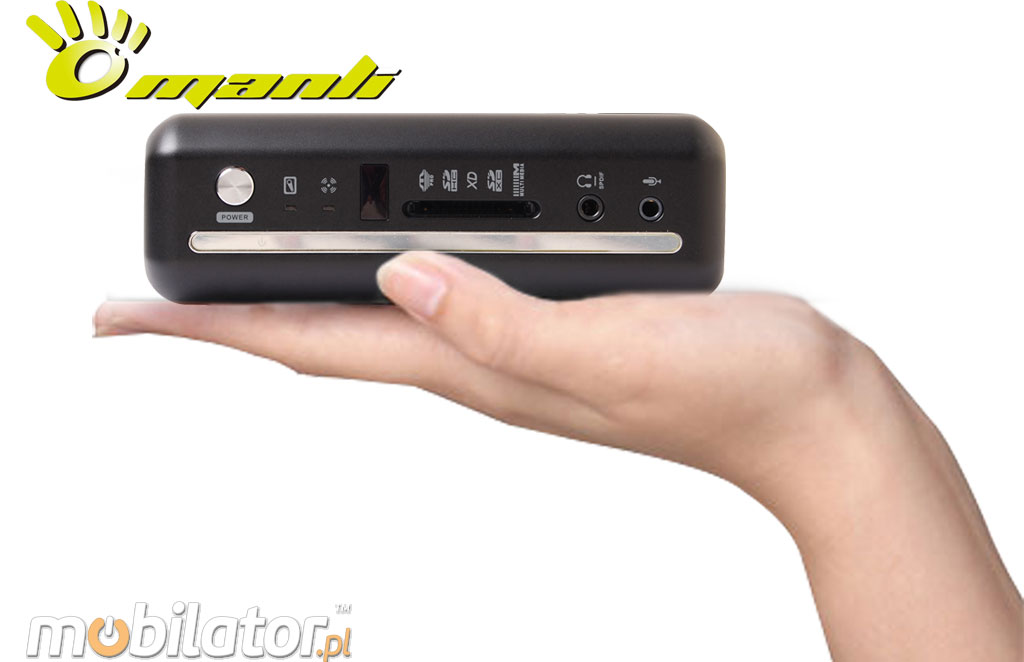

Very small size
|
|
You do not have to worry about where you bet your old desktop computer in the house or office. The Manli M-T4H35 problem disappears forever, because it has a very small size (126.7 x 126.7 x 45mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which is very small nettop ii has a modern design.
.jpg)

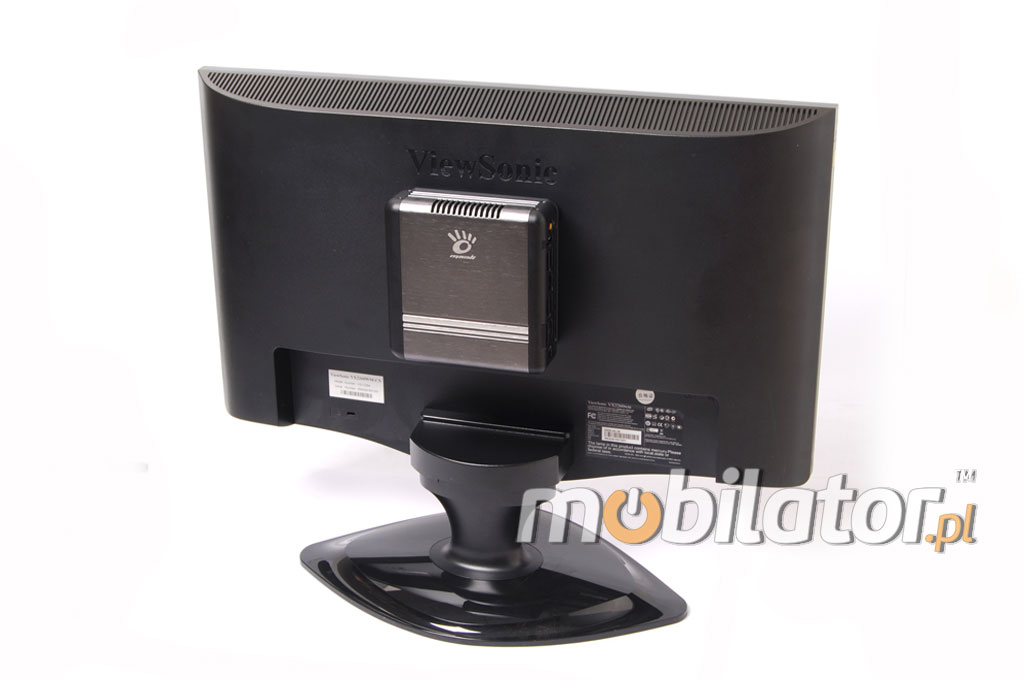

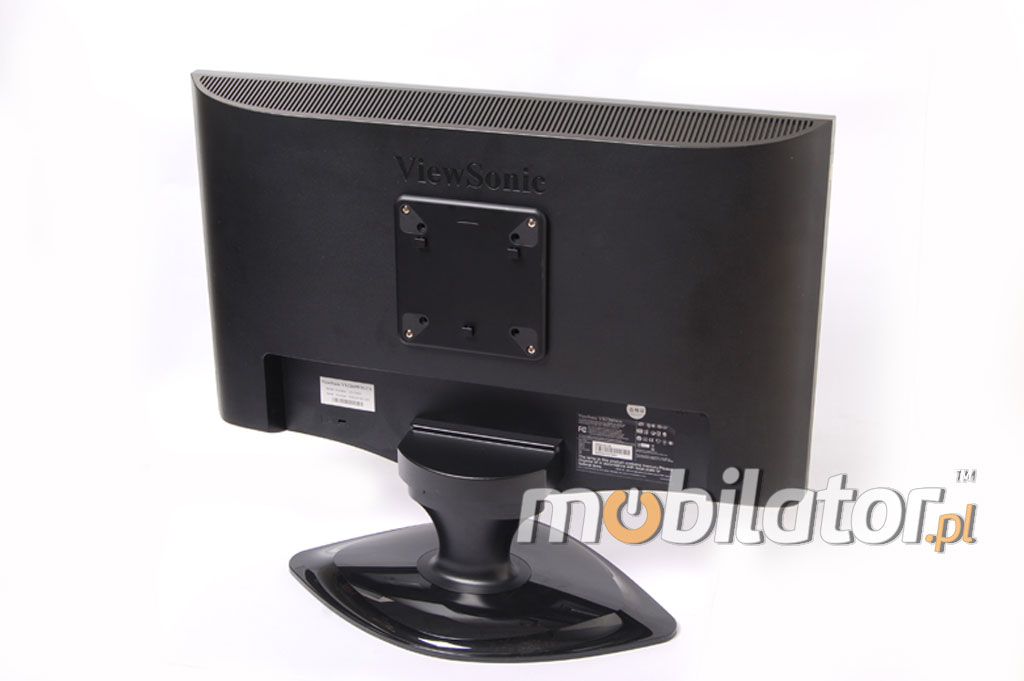

With the optional mounting brackets and adapters, there are many mounting options such as LCD / LED, in stores, on the desktop and in the car, etc
Application
.jpg)
|
Large storage capacity
Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications.
With up to 8GB of memory, Windows 8 always cope with the number of assigned tasks in parallel .
Now is the time to effectively replace the DVD player, Manli T4 ideally suited to the role player for movies, music and photos with him on your TV to display whatever you want.
About 70% less energy than a standard desktop computer
Manli T4 processor with a powerful Intel® Core™ i7-3537U provides up to 70% more efficiency compared to a traditional desktop computer.
.jpg)
|
|
|

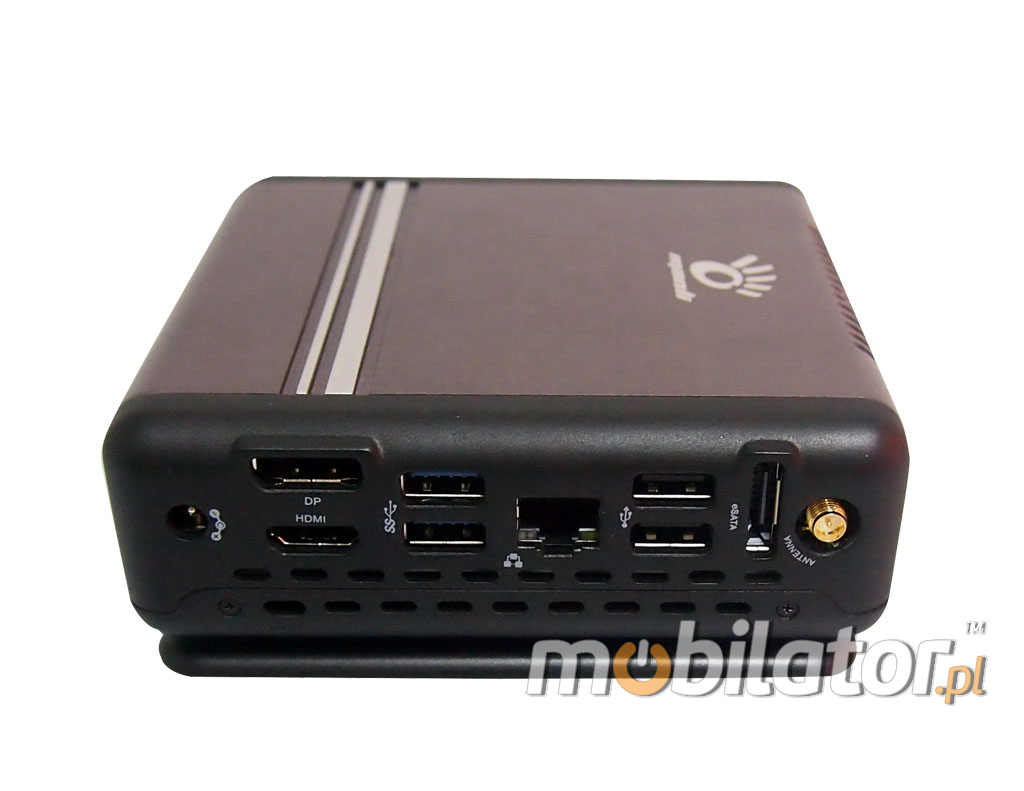

Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MS / MSPro / XD / MMC), LAN connection, four ports  USB (2xUSB 2.0 / 2xUSB 3.0) , one HDMI, one DisplayPort and eSATA port, two audio inputs, and optional WiFi, Bluetooth. .jpg)
In addition to the HDMI Nettop Manli T4 supports DisplayPort, which offers better color depth, speed of data transfer and support for high-resolution audio formats. All with a single cable.

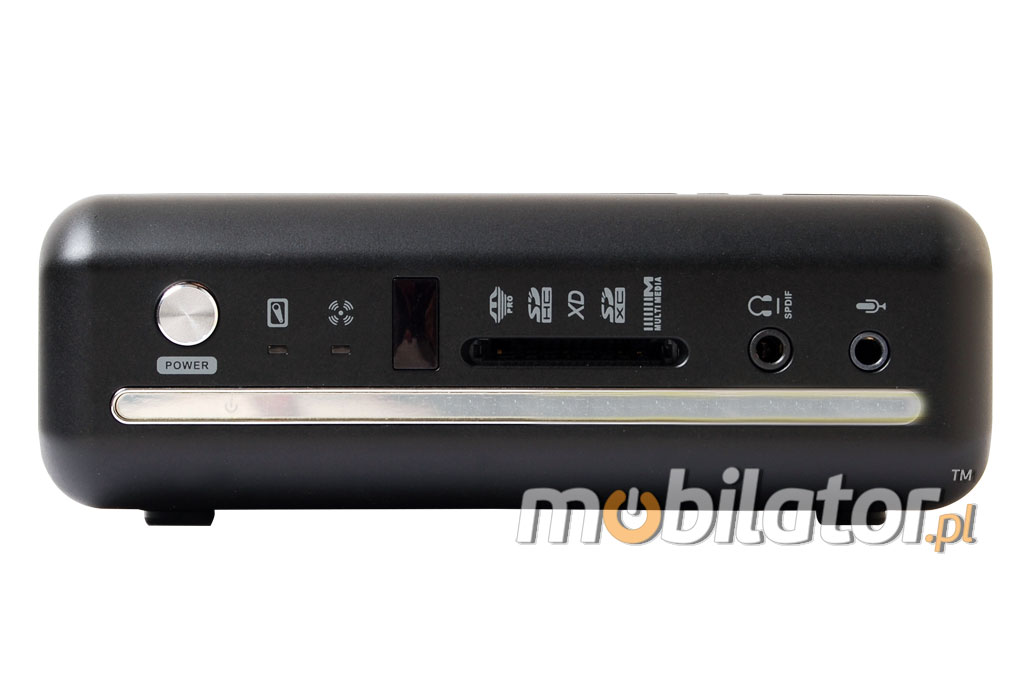

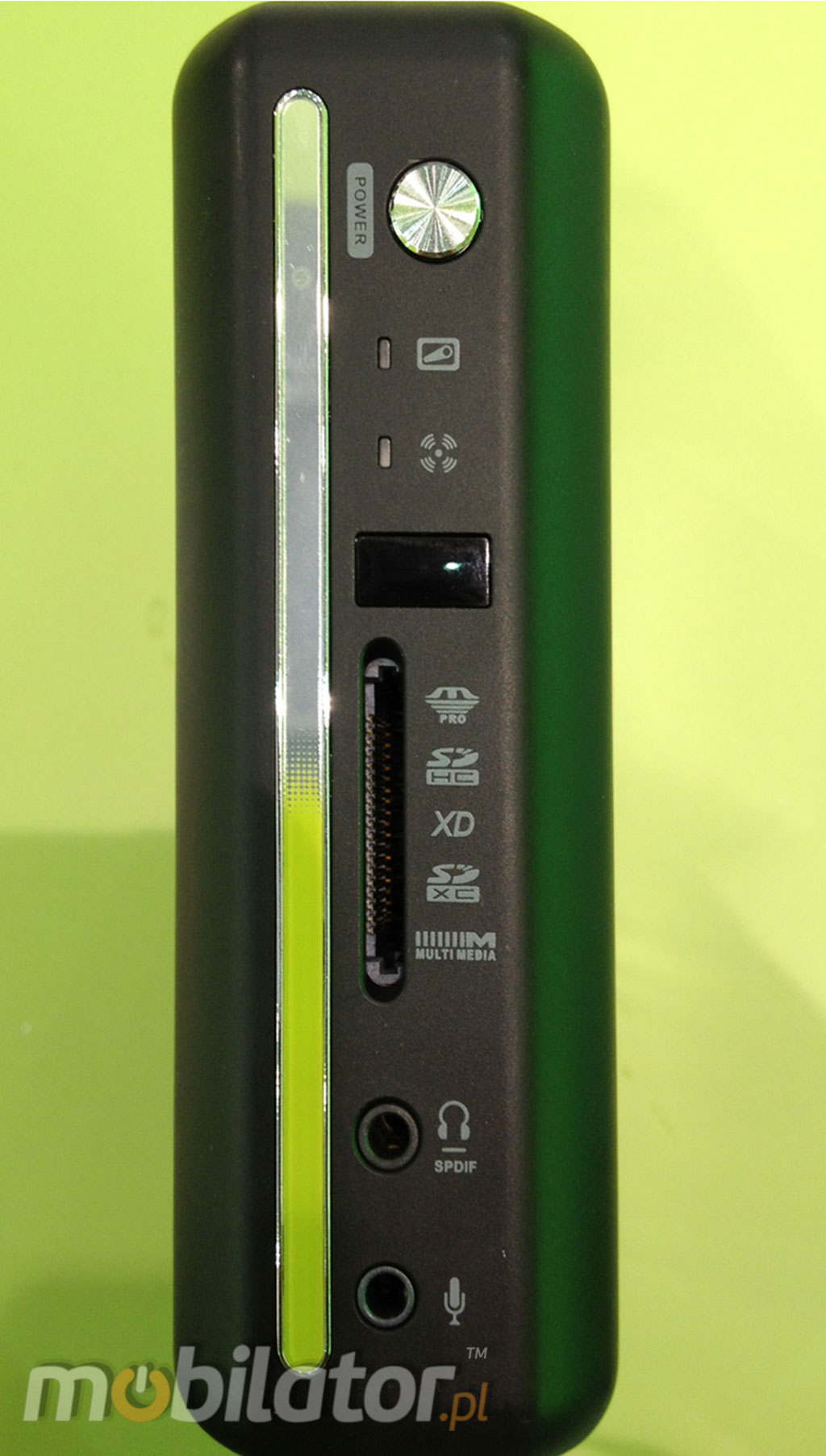

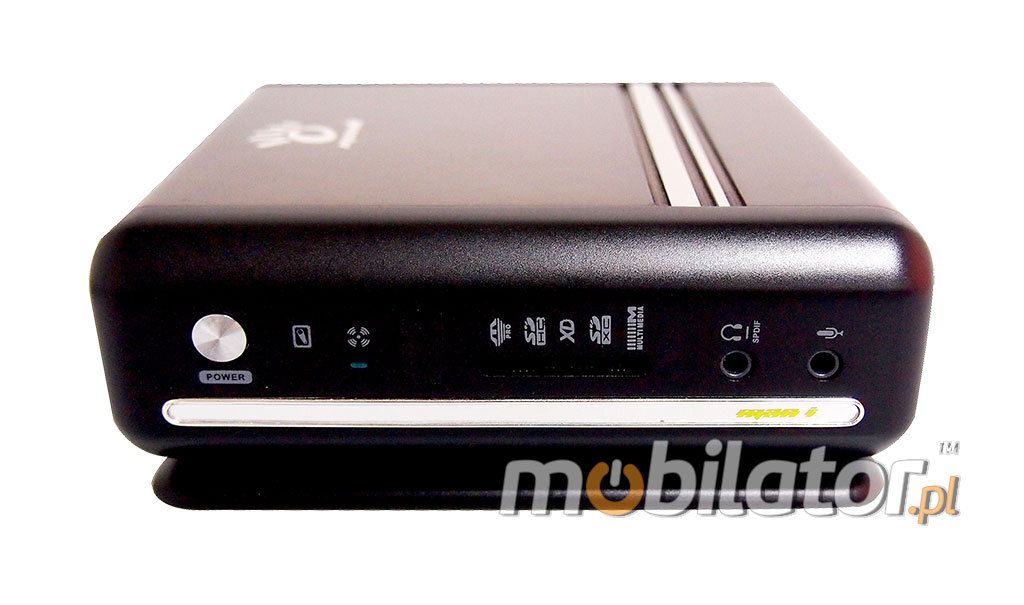

Front
.jpg)
|
1. Power |
2. Audio (speaker) / SPDIF
|
3. Mic-IN
|
4. LED the-power on
|
5. DISK LED
|
6. Memory Card Reader |

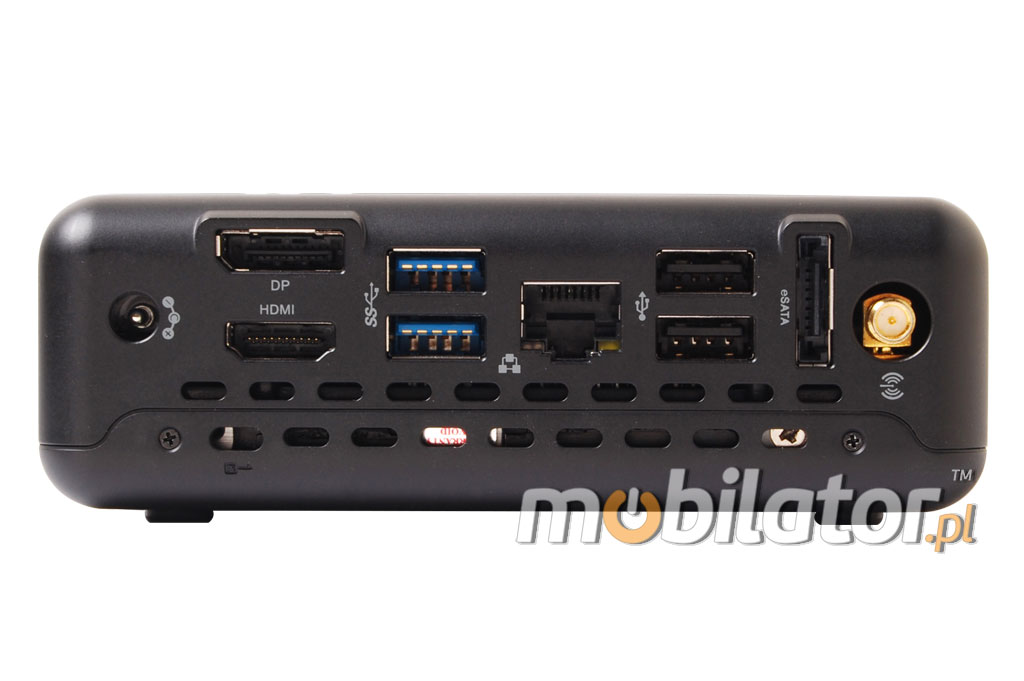

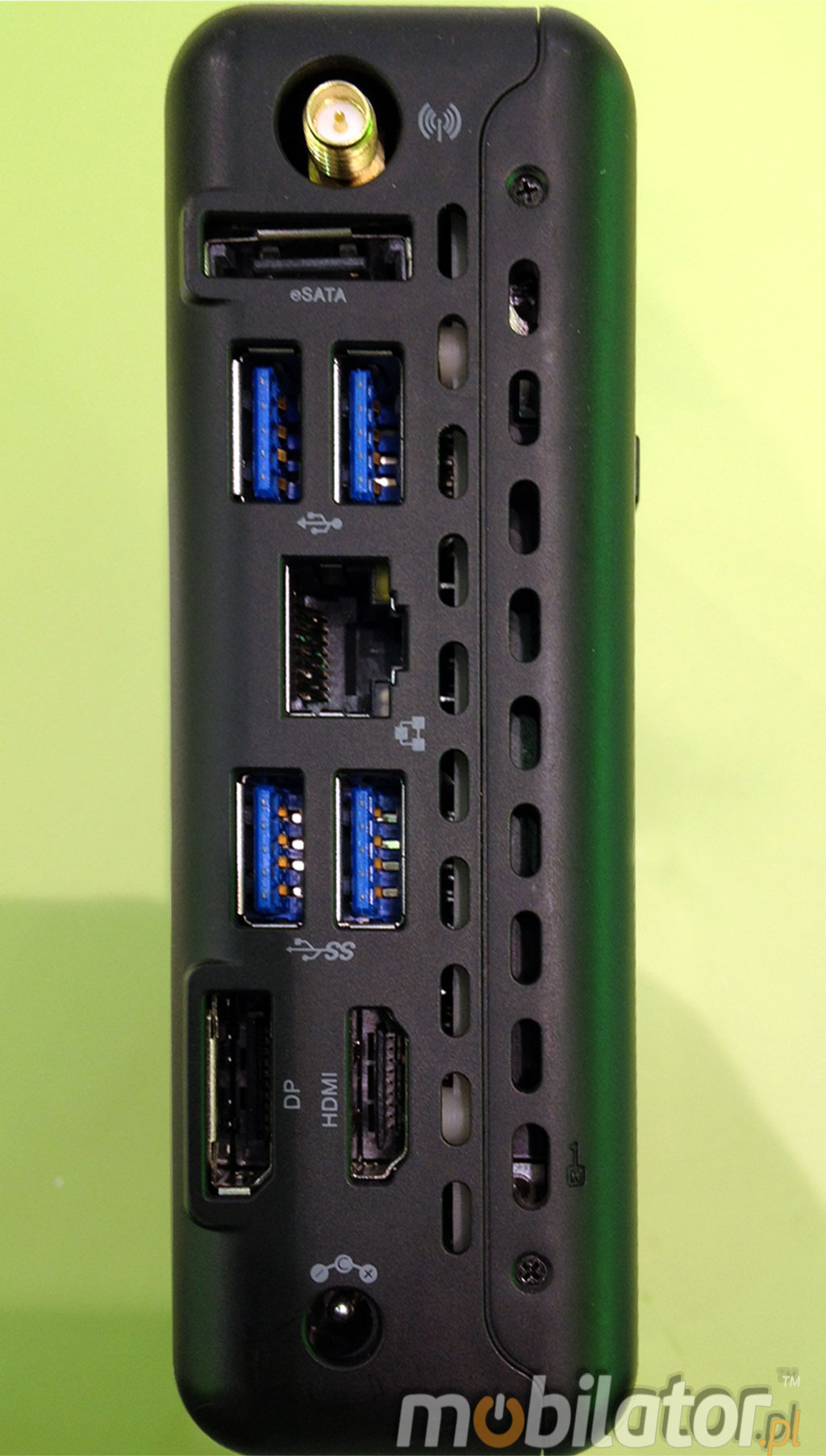

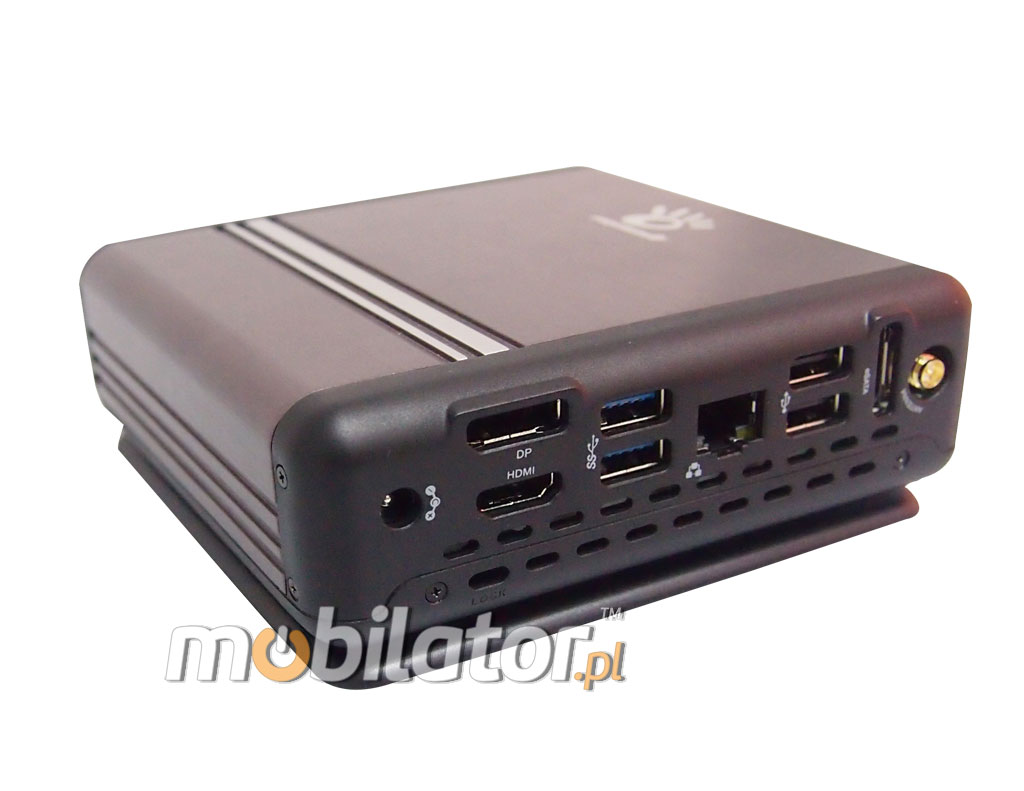

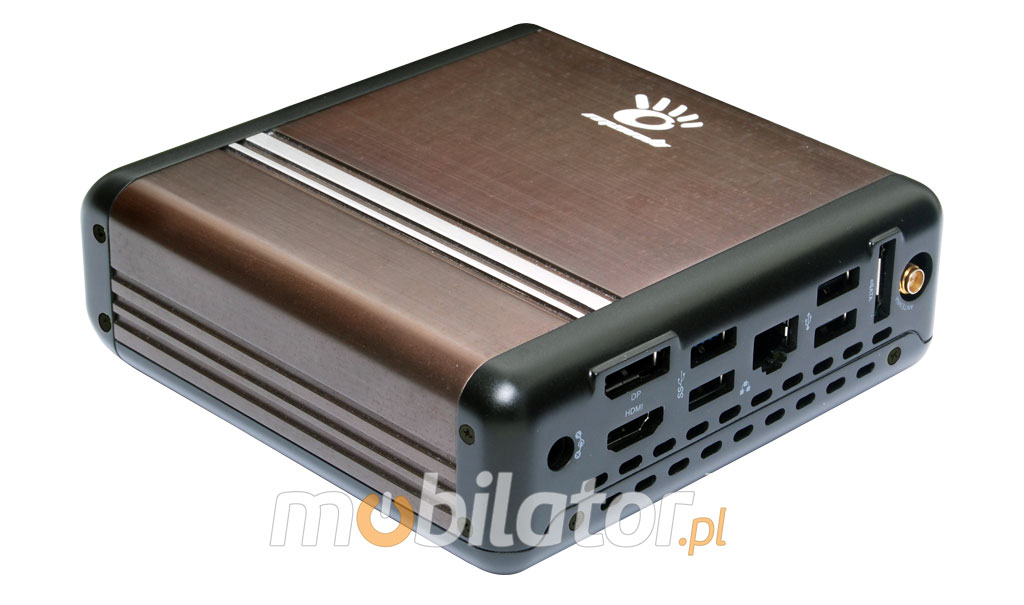

Back
.jpg)
|
1. The charging DC-IN |
2. Display Port |
3. mSATA |
|
4. Antena WiFi ,Bluetooth |
5. Output HDMI |
6. 2 x USB 3.0 |
|
7. LAN |
8. 2 x USB 2.0 |
|
|

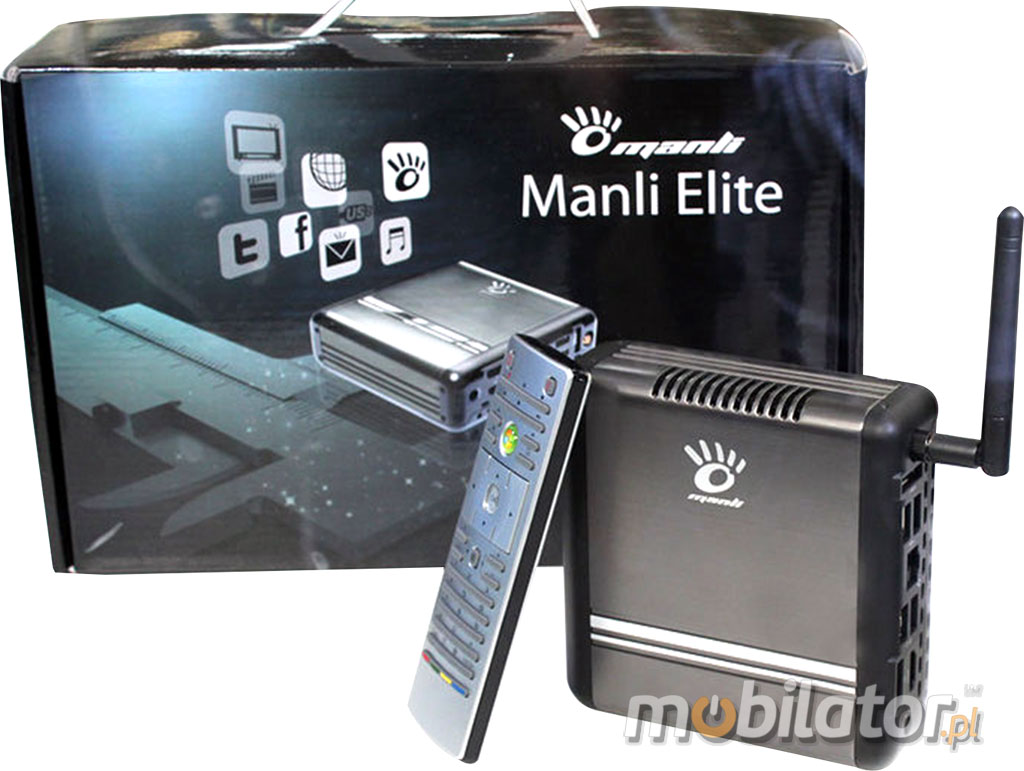

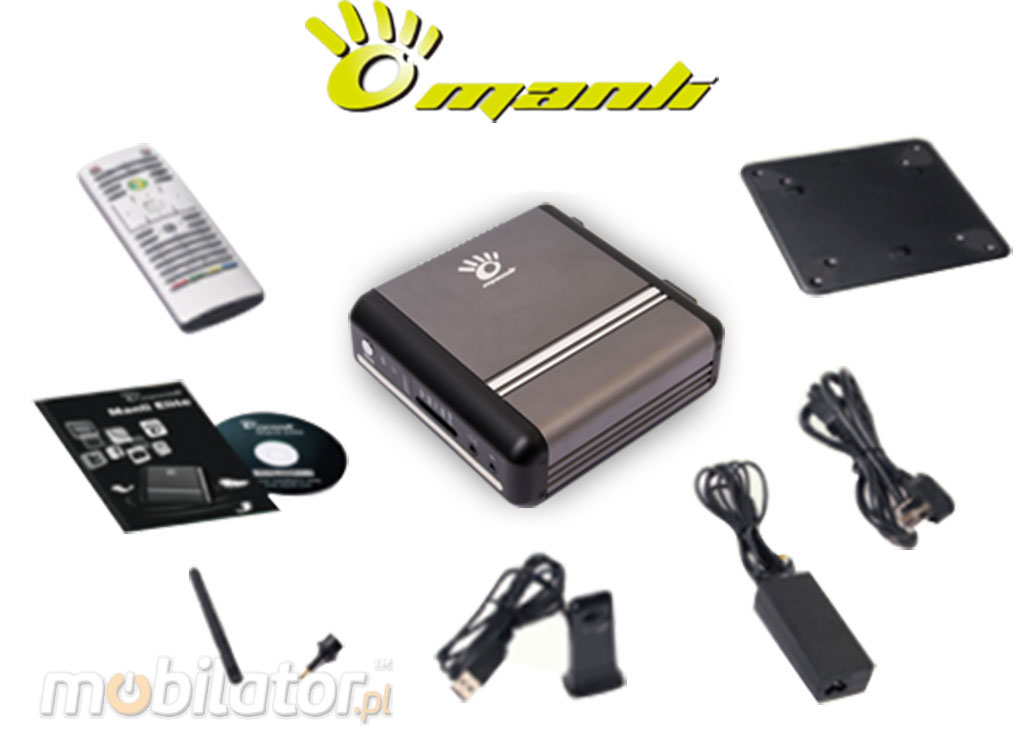

.jpg)
- AC Adapter
- VESA Mount
- Driver CD
- User Manual
- MCE Remote Control
- Extrenal USB IR receiver
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
Compare all versions
| Others: |
With Remote control |
| Chipset: |
HM77 |
| FSB: |
1600MHz |
| CPU Support: |
Intel® Core™ i7-3537U (4M Cache, up to 3.10 GHz) |
| Installed CPU: |
Intel® Core™ i7-3537U (2x2.0 GHz) |
| Memory Support: |
DDR3 SO-DIMM x 1 1600MHz (to 8GB) |
| Installed Memory: |
None |
| Graphic Card: |
Intel® HD4000 |
| Storage (HDD) Support: |
2.5" SATA II/III HDD to 1TB / SSD to 500GB |
| Installed Storage (HDD): |
None |
| CD/DVD Drive: |
None |
| LAN: |
10/100/1000Mbps |
| Wireless LAN card: |
WiFi 802.11n 150Mbps + Bluetooth 3.0 |
| TV Tuner: |
None |
| Front Panel (ports): |
Audio (Line-Out/SPDIF, Microphone) / Card Reader 7-in-1 (SD/SDHC/SDXC/MS/MSPro/XD/MMC) |
| Rear Panel (ports): |
2x USB 2.0, 2x USB 3.0, 1x RJ-45 , 1x HDMI, 1x eSATA, 1x Display port, 1x DC-in Jack |
| Power: |
AC/100-240V to DC/19V/3.42A/65W |
| Supported OS: |
Windows 8 |
| Installed OS: |
No (optional Windows 8) |
| Dimensions: |
126.7x126.7x45mm |
| Expansion: |
None |
