Android MiniPC Media Player AnBOX M106P
|
|
The product from the archive - production terminated
|
|
Android MiniPC
Android MiniPC Media Player AnBOX M106P it's device with Android OS which can be use in Digital Signage system.
The concept of Digital Signage includes an integrated form of system management, which includes electronic displays (digital signs, infosics) that present information, advertising, and other messages. Digital signage systems are used, inter alia, at airports, points of sale or service networks (e.g. travel companies, real estate, information, stations, shopping centers, etc.).
|
|
Housing dimensions are 230(w)x105(l)x35(h)mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use effective processor and DDR3 memory. Integrated video module allows to play a wide range of applications and media files (video and sound) in Full HD quality. Disk offer free space 8GB EMMC.
|
Processor |
Allwinner A20 ( 2 x 1GHz) |
OS
|
Android 4.2 |
RAM Memory
|
1GB DDR3 |
Flash Memory
|
8GB EMMC |
Communiaction
|
Wi-Fi, 3G/4G(option), GPS(option), IR(option) |
Interfaces
|
Slot SD | HDMI | 1 x USB 2.0 HOST 1 x OTG | RJ-45 | VGA | SIM |
Sound Card
|
support dual channel 4R/20W, 8R/10W loudspeaker
|
Dimensions
|
230mm x 105mm x 35mm |
Weight
|
1kg |
Storage Temperature
|
-20°C - 70°C |
Work Temperature
|
-20°C - 70°C |
Humidity
|
80% |
Support formats
|
Image: BMP, JPEG, PNG, GIF
Video: wmv | avi | flv | rm | rmvb | mpeg | ts | mp4 itp.
|
Play Modes
|
Loop, Timing, inter-cut and variable
|
|
|

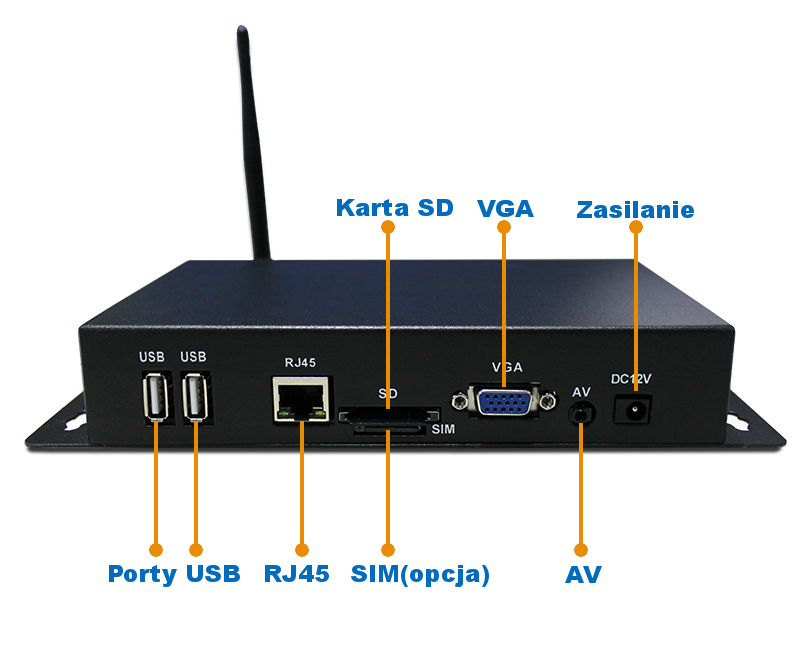

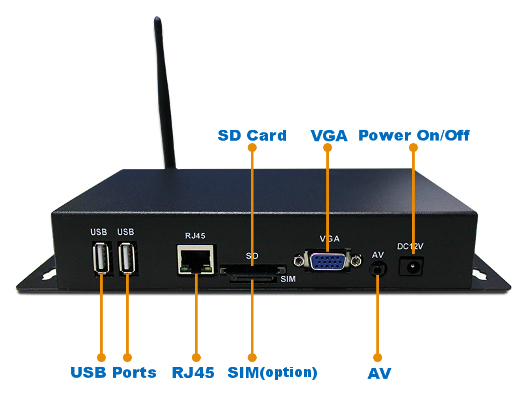

Integrated card 10M/100M LAN and WiFi allow connection to the network. The computer is equipped with: one LAN port, two USB 2.0 ports, one HDMI output port, one VGA, one SD slot, one SIM card slot and Power On/Off.
do góry…  menu…
|
|
|
|
Digital Signage is a modern, dynamic form of advertising that allows you to stand out from the competition and raise interest among your audience. This solution allows you to remotely control your monitor network with one central device. In addition, it is possible to integrate such device with the company's database applications, which allows for full automation of displayed messages, thanks to this solution the receiver always has access to up-to-date data. Despite being a relatively new form of information transfer, Digital Signage is slowly but effectively supplanting older, static forms of advertising such as posters, banners, banners and leaflets.
Digital Signage comes in many different forms and can be used for almost any purpose. Advertising monitors can be found in places such as airports, shops, hotels, service centers, shopping malls, train stations, tourist offices and other smaller or larger companies, both indoor and outdoor. Wherever used, they will surely attract the attention of the customer, they will bring to your business the atmosphere of modernity and originality and will make them stand out among the competition.
do góry… menu…
Android MiniPC Media Player AnBOX M106P is based on high-performance dual-core processor and high-quality components. The biggest advantages of these devices are: small size, performance and energy efficiency. Offered model AnBOX M106P has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Trade and services
|
The commercial industry is the mainstay of this type of device, Digital Signage can be used here to present prices, products, branding, promotion information, or traffic to the selected product. For tactile interaction, you can also use tactile infokios.
|
 |
Hotel and gastronomy
|
|
In this type of place Digital Signage can serve not only for commercial purposes but also for information such as menu presentation, promotion of services, information on available rooms, booking rooms, etc. |
Industry
In industry-related areas, DS panels can display order tables, production information, employee information, and device monitoring. Touch Digital Signage can be used to organize interim Fire protection tests, health and safety, etc.
|
 |
Offices and institutions
|
Here, just as in the industry, DS systems are primarily information functions, can display messages, notices, but also present announcements (eg job offers) or even help customers. |
Education
|
Digital Signage places a modern information network displaying information such as room listings, lesson plans, conference listings, and reminders of important events. |
 |
|
*more details in "Technical Data"...
|
|
|
| Others: |
Metal - Colour Black | Real Time Clock |
| Chipset: |
Allwinner A20 |
| CPU Support: |
----- |
| Installed CPU: |
Allwinner A20 ( 2 x 1GHz) |
| Memory Support: |
DDR3 |
| Installed Memory: |
1GB DDR3 |
| Graphic Card: |
Integrated |
| Storage (HDD) Support: |
Flash |
| Installed Storage (HDD): |
8GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
10/100 Ethernet |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
3G/4G (optional) |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
Yes |
| Front Panel (ports): |
1x SD card slot(max 32GB)
1x RJ-45
2 x USB 2.0
1x Port SIM(option)
1x VGA
1x AV
1x DC |
| Rear Panel (ports): |

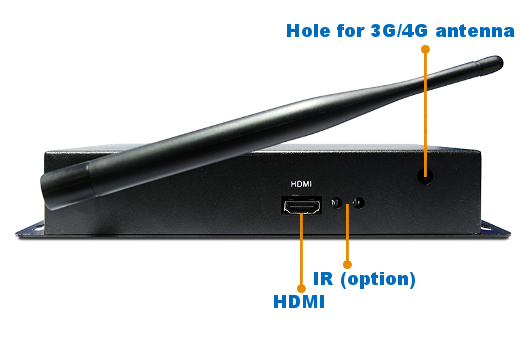

1x HDMI
1x Port IR(option) |
| Power: |
12V |
| Supported OS: |
Android |
| Installed OS: |
Android 4.2 |
| Dimensions: |
230 x 105 x 35mm |
| Weight: |
1kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
80% |
| Temp: |
-20 ～70℃ |
| IP Norm: |
----- |
| Storage temperature: |
-20 ~ 70℃ |
