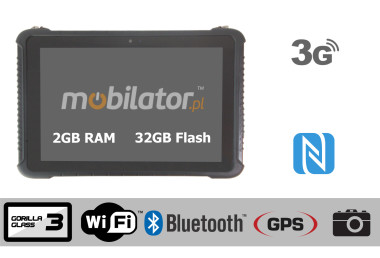

Industrial tablet Emdoor I16H, its 10 inch tablet adapted to work in harsh environment. Device passed specialist tests and obtain high norms of durable and resistant like IP65, MIL-STD-810G and drop up to 1.0m
To produce rugged industrial tablet used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.
10 inch IPS display with resolution 1280 x 800 pixels show high quality image, making possible to comfortable work for eyes. To ensure better protection, screen is secure by hardened glass pane GorillaGlass3. Thanks this solution display becomes resistant against scratch and tension.
The collection and processing of data
Barcode scanner, its one of the basic industrial modules increase effinency of work i places where barcodes are using. Thanks technology development modern readers are more efficent and precise. In waterproof industrial Emdoor I16H tablet can be mount one of the top barcode scanner, for example Honeywell N3680.
NFC (Near Field Communication), its a wireless communication standard that allows to data transfers up to several centimeters. This technology is slowly becoming a standard and appears in a growing number of devices, expecially mobile.
Resistance and durability
One of the important element which strengthens construction of the shockproof tablet Emdoor I16H is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.
IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm consist of two digitals. First means the level of dust resistance, second to water.
MIL-STD-810G its a military rugged rate. During extremal tests, devices pass through endurance tests. Equipment which have this rate are much more durable to environmental factors like temperature, humidity, vibration and drop.
Modules and Wireless Networks
Dustproof tablet Emdoor I16H might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 3G module(after set SIM card to slot) making possible to wireless connection to Internet.
Functionality
Strengthened tablet Emdoor I16H was design with mind to meet the needs of the widest possible audience. Professional parts like processor, high prerformance RAM memory, fast Flash and expanded communication module makes that industrial rugged tablet I16H meet the most demanding tasks.
Equipped with additional expansion connectors, docking connector and functional keys makes that utility and mulittasking of device increase. In cooperation with enhanced housing of the Emdoor I16H tablet which provides to high resistant against water, dust and fall whole product become much more attractive.
Application
Trade and Services
Architecture
Industry
It's another area where Emdoor I16H will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that tablet can be use in places with hard conditions, for example in cold room and sawmill.
Warehouse
Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in Emdoor i16H tablet is one of the best readers used today allowing You to conveniently and quick scan your assortment.
Additional equipment
We offer a number of additional enhancement accessories and operating systems for the Emdoor I16H tablet to further enhance iits functionality and comfort of work. Below You find list with all available accessories. Point the mouse at the picture to read short description or click it to move to the full description.
*product does not contain any elements in the kit,
except products marked with star...
Specyfikacja Emdoor I16H
Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description. More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.
*license of Windows 10 is included only in chosen versions...
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Durability: | IP65, MIL-STD-810G |
| Humidity: | 95% |
| Waterproof: | IPx5 |
| Weight: | |
| Temperature: | Operating Temperature: -20°C -- +60°C Storage temperature: -30°C -- +70°C |
| Shock: | MIL-STD-810G |
| Vibration: | MIL-STD-810G |
| Drop: | 1.0m |
| Sand and dust: | IP6x |
| 1D barcode scanner (reader): | lack(available in other version) |
| 2D barcode scanner (reader): | lack(available in other version) |
| RFID scanner (reader): | ----- |
| Magnetic card reader (MSR): | ----- |
| Microchip card reader: | ----- |
| Docking station connector: | Yes |
| VESA standard – holders and mounts support: | Tak |
| COM port: | Yes |
| Dispaly: | 10.1” (1280*800) 16:10 LCD | GORILLA GLASS 3 |
| Brightness: | 280nits |
| Contrast: | ----- |
| Touch screen: | Yes - capacitive (10-points) |
| Graphics card: | Intel HD Graphic |
| Swivel Hinge: | ----- |
| VGA out: | ----- |
| TV Out: | ----- |
| TV Tuner: | ----- |
| Processor: | Intel® Atom™ Processor Z8350 (QUAD CORE 1.33 - 1.92GHz) |
| Chipset: | ----- |
| BIOS: | ----- |
| Memory: | 2GB DDR3L |
| Hard Drive: | 32GB FLASH |
| Flash Memory: | Yes |
| Battery: | Li-Poly 3.7V 10000mAh |
| Working time on battery: | 8 hours (depending on usage) |
| HotSwap battery: | No |
| Fast battery replacement ability: | Yes |
| Size: | 280 x 187 x 22mm - 1014g (with battery) |
| Casing material: | ----- |
| Fanless casing: | Yes |
| Operating System: | lack(available in other version) / option: Windows 10 with Bing or Windows 10 Pro |
| LAN: | Yes |
| WLAN: | Dual Band 802.11 a/b/g/n |
| Bluetooth: | Bluetooth 4.0 |
| WAN: | 3G: WCDMA（900/2100MHz）HSDPA 7.2Mbps，HSUPA 5.76Mbps |
| GPS: | GPS support for Beidou |
| Flash Card Reader: | SD(max. 128GB) |
| CD/DVD: | ----- |
| Camera: | Front: 2Mpx Rear: 5Mpx |
| Audio: | Built-in Microphone | Audio Jack | Speaker |
| Seciurity: | IP65 | MIL-STD-810G |
| In/Out: | 1x HDMI 1.4a Type C 1x SIM card slot 1x LAN 1x SD card reader(max.128GB) 1x USB 2.0 1x microUSB 1x COM(RS232) Docking(12 Pogo Pin) DC In |
| Keyboard: | on-Screen | Function keys Volume + | Volume - | Power | Home |
| Additional Navigation Devices : | ----- |
| Color: | ----- |
| Optional accessories: | Docking station | Battery | Charger | Stylus | Wrist strap | Shoulder strap | Shoulders strap Suitcase holder | Car holder short and long |
| Other: | G-Sensor | NFC 13.56 MHz ISO14443 A/B | ISO15693 |
CURRENT PRICE |
|
| 2767.13 € | Net |
| 3403.57€ | Gross |
