Payment Terminal UROVO i9000 v.3
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/urovo-i9000-v.3-produkt-86001.html

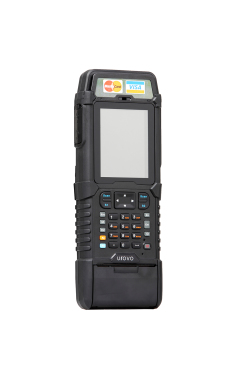

Payment Terminal UROVO i9000 v.3

terminal płatniczy urovo i900 kolektor danych karty magnetyczne karty ic kolektor danych


Shenzhen Urovo Technology Co., Ltd. is a leading manufacturer of software and hardware products and comprehensive provider of cross-industry information solutions. As one of the leading professional manufacturers of Mobile Handheld Data Terminal in China, we specialize in manufacturing and developing "All-in-one" handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner and wireless communications. Based on application of mobile data terminal technology, Urovo has made a number of groundbreaking achievement.

Description

UROVO rugged mobile payment terminal i9000 is developed for application in current e-commerce industry, financial insurance, retail, express logistics, police enforcement, counterfeiting and sourcing etc. It compromises various functions of finance POS and traditional industry PDA to provide powerful solutions integrating customized application, security payment, fast data collection and information access through a portable single device.urovo i9000 kolektor danych android windows ce tablet przemysłowy

System specifications
 Processor Samsung Cortex-A8 S5PV210@1GHz
 Security Processor
MAXQ1850
 Display 3.2" TFT-LCD QVGA (240x320) Resistive Film Touch-panel
 RAM 512MB
 ROM 512MB
 Connectors Mini USB : DC jack : 3.5mm Audo Jack
  Micro SD/TF (max. 32GB)
  opction - Micro SD/TF (max. 32GB) : SIM : PSAM x2
 Audio Loudspeaker : Microphone : Earphone
 Battery 3.7V 3000mAh Lithium (over 8h of standby time)
 Keyboard numeric : alphabetic x12 / directional x4 / function x10 / scan button
 Camera 5Mpx : autofocus
 Operating System
Windows CE 6.0 R3 or Android 2.3 (multi-language)
 Warranty 12 months (option 24 months)
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.



The collection and processing of data

1D Barcode Reader

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector Urovo i9000 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.


Scanning rate: 100±20 scan/sec
1D Laser Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded



kolektory danych tablety przemysłowe i9000 urovo transport rynek produkcja

Modules and Wireless Networks

WiFi 802.11b/g
Frequency Range
54MB/sec, CISCO Compatible CCX2/3 Security, CISCO AP Security
Bluetooth Bluetooth Class2.1 with EDR
GPS Support A-GPS, 48 channels
Accuracy
<1m, 1sec wakeup, warm botuup less than 38sec
WCDMA UMTS2100/900MHz : UMTS1900/850MHz : GSM850/900/1800/1900MHz
GSM CS GSM CS: UL 9.6kbps/DL 9.6kbps (can support phones if you put a earpiece)
GPRS/EDGE Multi-slot Class12. Class B
WCDMA CS UL 64kbps/DL 64kbps
WCDMA PS UL 384kbps/DL 384kbps
HSDPA DL 3.6Mbps
WAN GSM 850/900/1800/1900MHz
GPRS Class 10 Multi-slot, DL 85.6 kbps/UL 42.8kbps
GPRS Class 8
Multi-slot, DL 85.6 kbps/UL 21.4kbps
CDMA 2000
CDMA 2000, DMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
CDMA 2000 1X
UL/DL: 153.6kbps
EVDO Rev.0
UL 153.6kbps DL 2.4Mbps
EVDO Rev.A UL 1.8Mbps DL 3.1Mbps

kolektory danych urovo i9000 barcode scanner card icgo top... do góry menu… menu

Payment Terminal

kolektory danych karty magnetyczne karty ic barcode scanner

Magnetic Card Reader / IC

Card Readers i-Mobile are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.

 Safety Certificate
Certified to PCI 3.0 Online/Offline : China UnionPay pin-input safety certificate
 Magcard Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s
 IC Card
Compatible with ISO 7816-3 and EMV 4.2 pay standards : Certfied to UnionPay PBOC 2.0
 Contactless IC Card
Long effective distance to 50mm (depending on the specific envoirnment) : ISO/IEC 14443 A/MIFARE approved : Support ISO/IEC 14443 B read - write : MiFate Mini : MiFare 1K and MiFare 4K encryption : ISO/IEC 14443A communication: 212kBd, 424kBd, 49kBd : Certified to Unionpay qPBOC 2.0

Built-in Thermal Printer

Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.

 Printing Speed
75mm/s
 Printing Resolution
8 dot/mm
 Life Time
100M pulses : 50KM
 Paper Roll Width
58mm
 Printing Width
48mm

urovo i9000 drukarka termiczna i9000 urovo

Minimalism

urovo mobilator kolektory danych sim psam miniusb sdcard

i9000 is equipped with a Mini USB port, microSD card reader / PSAM / SIM card and audio output mini-jack. The possibility of recording enables integrated 5Mpx camera with autofocus. To facilitate the use of the device you will have a numeric keypad and alphabetical.

 Dimensions 240x130x20mm
 Weight 550g (including battery)



urovo i9000 connectors kamera mikrofon smart chip sim kolektor danych



go top... do góry menu… menu



Tests and standards

 Operating -10°C -- +50°C
 Storage -20°C -- +60°C
 Humidity 5% -- 95% non condensing
 Dust IP5x (dust)
 Water IPx4 (water)
 Drop multiple drops to concrete: 1.2m across the operating temperature range
 Regulatory CCC / CE / FCC
 Electrical Safety
Certified to Ul60950, CSA C22.2 No.6050, EN60950/IEC950
 Laser Safety
IEC Class 2/FDA Class II, in accordance with IEC60825/EN60825-1
go top... do góry menu… menu



Resistance IP54

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

go top... do góry menu… menu
The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8


Protection against complete, continuous submersion in water

Available hardware configurations

 Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8
WiFi
Bluetooth
OS
Kamera -
GPRS/GSM - - -
3G     - - -
GPS - - -
1D
- - - -


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu… menu

Durability: IP54
Humidity: 5% -- 95% non condensing
Waterproof: IP54
Weight:
Temperature: Operating (-10°C -- +50°C) / Storage (-20°C -- +60°C)
Shock: -----
Vibration: -----
Drop: multiple drops to concrete: 1.0m across the operating temperature range
Sand and dust: IP54
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): No
RFID scanner (reader): No
Magnetic card reader (MSR): Yes - Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s
Microchip card reader: Yes - IC Card (Compatible with ISO 7816-3 and EMV 4.2 pay standards : Certfied to UnionPay PBOC 2.0)
Contactless Cards IC ( Long effective distance to 50mm (depending on the specific envoirnment) : ISO/IEC 14443 A/MIFARE approved : Support ISO/IEC 14443 B read - write : MiFate Mini : MiFare 1K and MiFare 4K encryption : ISO/IEC 14443A communication: 212kBd, 424kBd, 49kBd : Certified to Unionpay qPBOC 2)
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 3.2" QVGA (240 x 320) rezystywny
Brightness: -----
Contrast: -----
Touch screen: Yes - Capacitive multi-touch
Graphics card: -----
Swivel Hinge: No
VGA out: -----
TV Out: -----
TV Tuner: No
Processor: Samsung Cortex-A8 S5PV210@1GHz / Security Processor: MAXQ1850
Chipset: -----
BIOS: -----
Memory: 512MB RAM / 512MB ROM
Hard Drive: 512MB + SD Card (possible to mount the sd card max.32GB)
Flash Memory:
Battery: 7.4V 2200mAh Lithium + Built-in 150mAh
Working time on battery: over 8h of standby time
HotSwap battery: No
Fast battery replacement ability: No
Size: 220x75x30mm - 550g (including battery)
Casing material: -----
Fanless casing: Yes
Operating System: Android 2.3 (multi-language) or Windows CE 6.0 R3
LAN: No
WLAN: Yes - 802.11b/g (54MB/sec, CISCO Compatible CCX2/3 Security, CISCO AP Security)
Bluetooth: Yes- Bluetooth Class 2.1 with EDR
WAN: Yes - 3G + GSM / GPRS
GPS: none (available in other configurations)
Flash Card Reader: Yes - SD / TF
CD/DVD: -----
Camera: Yes - 5Mpx autofocus
Audio: Microphone / Loudspeaker / 3.5mm Jack
Seciurity: -----
In/Out: mini USB : Micro SD/TF : SIM : PSAM x2 : DC Jack : 3.5mm audio jack
Keyboard: numeric : alphabetic x12 / directional x4 / function x10 / scan button
Additional Navigation Devices : -----
Color: czarny
Optional accessories: High-speed Thermal printer
Other: -----


CURRENT PRICE
3111.09 € Net
3826.64€ Gross
